Sony PCG-FR130, PCG-FR130P User Guide

Welcome

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the online VAIO® Computer User Guide. This user guide provides detailed information on all aspects of using your new VAIO computer, from keyboard functions to preinstalled software programs. In the left navigation window, click the topics you want to learn more about, and that information will be displayed in this main window.

View the Electronic Flyer, which provides updates and supplemental information about your computer.

View the VAIO® Computer Specifications, which lists your computer's hardware specifications and preinstalled software information, such as descriptions and contact information.

Page 1

Powering Your Computer

Your VAIO® computer comes with a battery and an AC adapter. This chapter explains how to install and use these supplied accessories to power your computer. It also describes ways you can efficiently utilize the battery as a power source.

Using AC Power



Using the Battery



Conserving Battery Power



Page 2

Using AC Power

The supplied battery is not charged when you receive your computer. To use your computer immediately, use the supplied AC adapter as the power source. While the computer uses AC power, it automatically charges the battery if it is inserted. See Using the Battery for more information on installing and using your battery.

Connecting the AC adapter



Turning on the computer



Page 3

Connecting the AC adapter

To connect the AC adapter

Plug the AC adapter cable into the DC IN port.

Connecting the AC Adapter to the Computer

Plug the power cord into the AC adapter and an AC outlet.

Use only the supplied AC adapter with your computer.

Page 4

Turning on the computer

To turn on the computer

Lift the lid of the computer by sliding the front switch to the right and lifting the lid. You may need to hold the bottom of the computer firmly to lift the lid.

Opening the Computer

Press the power button until the power indicator turns on.

Turning on the Computer

If you hold the power button down, the computer turns off.

Adjust the brightness of the computer screen by pressing the Fn+F5 keys.

Page 5

Using the Battery

Your computer, depending on the model you purchased, may come equipped with one battery bay and one multipurpose bay that supports a second battery. If your computer comes with two bays, you can purchase a second rechargeable battery to extend your computing time. For information on how to extend the life of the battery, see Conserving Battery

Power for more information.

Inserting a battery



Removing a battery



Locating battery information



Charging a battery



Notes on batteries



Frequently asked questions



The battery that comes with your computer is not fully charged at the time of purchase.

Page 6

Inserting a battery

To insert a battery

Lift the lid of the computer.

Push the battery bay cover down to open it. The battery bay cover swings out but does not detach from the computer.

Opening the Battery Bay

Slide the battery into the battery bay. If the computer is on, it automatically detects the battery.

Inserting a Battery

Push the battery bay cover up until it clicks into place.

Some software programs and peripheral devices prevent the system from automatically entering Hibernate mode. If you are using battery power, save your data frequently to avoid data loss and manually activate a power saving mode. See Using

power saving modes for more information.

Page 7

Removing a battery

If you are not using the computer for an extended period of time, remove the battery from the computer to avoid damaging the battery. You can remove the battery when the computer is on or off.

If the computer is on, connect the AC adapter and exit a power saving mode before you remove the battery.

To remove a battery

Push the battery bay cover down to open it.

Pull the battery out of the battery bay.

Push in and lift up the battery bay cover until it clicks into place.

Remov ing a Battery

Page 8

Locating battery information

You can display information for each of the batteries installed in your computer.

To view battery information

Click Start on the Windows® taskbar, and click Control Panel.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

Select the Power Meter tab. The total remaining battery charge is listed as a percentage. If your computer comes with more than one battery, you can view information on both batteries or just the primary battery.

You may also use the power icon on the Windows® taskbar to quickly view battery information. See To display the

power icon on the taskbar for instructions on how to set up this shortcut.

To display the power icon on the taskbar

Click Start on the Windows® taskbar, and click Control Panel.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

Select the Advanced tab, and then select Always show icon on the taskbar in the Options box. The power icon appears on the taskbar. See the power icon descriptions below for more information.

You can rollover the power icon to view the remaining battery charge, and you can double-click the power icon to open the Power Meter window, which also displays the remaining battery charge.

Power icon Power status

Computer is using AC power.

Computer is using AC power and charging the battery.

Battery is charging.

Battery is fully charged.

Battery is discharging.

No battery is inserted in the computer.

Page 9

Charging a battery

You will need to charge the battery if battery power drops below 10 percent or you have not used the battery for a long time. The lithium-ion battery supplied with your computer may be recharged at any time, whether you wait until the battery is completely or partially discharged. Charging a partially discharged battery does not affect battery life. If you charge the battery and find that battery power is still low, the battery may be reaching the end of its life, and you may need to replace it.

The battery supplied with your computer is not charged at the time of purchase.

To charge a battery

You can charge the battery when the computer is on or off. However, the battery will charge faster when the computer is off. Charging the battery takes several hours. See your VAIO® Computer Specifications on the Welcome page for the approximate time needed to charge your battery.

Charge the battery at temperatures between 50°F and 80°F (10°C to 30°C). Lower temperatures require more time to charge.

Insert the battery into the battery bay.

Connect the AC adapter to the computer. The computer automatically charges the battery as long as the computer is using AC power.

The battery indicator blinks while the battery charges. The battery indicator stops blinking when the battery is fully charged.

Battery Indicator

Battery indicator status Description

On The computer is using battery power.

Single blink The battery is running out of power.

Double blink The battery is charging.

Off The computer is using AC power.

Page 10

Notes on batteries

Never leave the battery in temperatures above 140°F (60°C), such as under direct sunlight or in a car parked in the



sun.

While the battery is in use or being discharged, the battery heats up. This is normal and is not cause for concern.



Keep the battery away from all sources of heat.



Keep the battery dry.



Do not open or disassemble the battery.



Do not expose the battery to any mechanical shock.



Battery life is shorter in a cold environment because of decreased battery efficiency at low temperatures.



Page 11

Frequently asked questions

How do I know when the battery is charged?

To determine the remaining battery charge, see Locating battery information.

When is the computer using AC power?

When the computer is directly connected to the AC adapter, it uses AC power, even if a battery is installed.

When should I recharge the battery?

When the battery level falls below 10 percent.



When both the battery and power indicators blink.



When you have not used the battery for a long time.



When should I replace the battery?

If, after charging the battery, the battery power is still low, the battery may be reaching the end of its life and should be replaced.

Should I be concerned that the installed battery is warm?

No, it is normal for the battery to be warm when it is powering the computer.

Page 12

Conserving Battery Power

You may use the power saving modes and power schemes to conserve battery power. Conserving battery power may significantly extend your computing time, depending on how you use your computer.

Using power saving modes



Using power schemes



Frequently asked questions



Page 13

Using power saving modes

In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate. Use the Standby and Hibernate power saving modes to override a profile setting or initiate an immediate action.

Standby — Saves the state of the system and peripheral devices in memory (RAM). Power consumption is reduced



to a minimum. The system remains on, and the computer screen (LCD) is off.

Hibernate — Saves the state of the system and peripheral devices to the hard disk. Power consumption is reduced



to the lowest possible setting without being completely off. Hibernate mode consumes the lowest level of power. Your computer enters Hibernate mode when the remaining battery charge drops below 5 percent, regardless of the setting you select.

Since some software programs and peripheral devices prevent the system from entering Hibernate mode, save your data frequently to avoid data loss.

To activate Standby mode

Click Start on the Windows® taskbar, and select Turn Off Computer.

Click Standby when the Turn off computer window appears. The power indicator blinks in this mode.

Press any key to return to normal mode.

To activate Hibernate mode

Press the Fn+F12 keys, or press the power button and release it immediately. Do not move the computer until the power indicator turns off.

Press the power button to return to normal mode.

If the computer does not activate Hibernate mode, see Frequently asked questions for more information.

Page 14

Using power schemes

You can use the preset power schemes or you can customize the power profiles to conserve power. By using the power schemes and power profiles, you control the power supplied to different devices, such as the computer screen (LCD) and the hard disk drive, in your computer. You also control when the computer activates a power saving mode (Standby or Hibernate).

To set your battery alarm

You can change your computer settings to notify you when the battery power reaches a certain level.

Click Start on the Windows® taskbar, and click Control Panel.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

Select the Alarms tab, and then select the type of alarm you want the computer to activate: a low or a critical battery alarm.

Drag the slider to the battery level at which you want the computer to activate the alarm. The Low battery alarm is set to 10 percent, and the Critical battery alarm is set to 5 percent by default.

To further customize your alarm settings, click Alarm Action. You can select the type of alarm you want the computer to activate and how you want the computer to respond to the alarm in this window.

To select a power scheme

Click Start on the Windows® taskbar, and click Control Panel.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears with the Power Schemes tab selected.

Select a power scheme from the drop-down menu in the Power schemes box. Each power scheme is preset to utilize your power supply efficiently, according to your computing functions. Select the power scheme that best explains how you want to use your computer.

Click Apply. The computer detects your changes.

To create a power scheme

Click Start on the Windows® taskbar, and click Control Panel.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears with the Power Schemes tab selected.

You can also right-click the power icon on the Windows® taskbar, and select Adjust Power Properties to open the Power Options Properties window.

Select your changes from the drop-down menus in the Settings for....power scheme box, and click Save As in

the Power schemes box. The Save Scheme window appears.

Type a name for your customized power scheme, and click OK. The power scheme you created appears in the Power schemes box.

If you want to delete a power scheme, select the power scheme and click Delete. When the Delete Scheme window appears, click Yes.

To customize your power properties

Click Start on the Windows® taskbar, and click Control Panel.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

If you want to access the power scheme information quickly from the Windows® taskbar, see To display the

Page 15

power icon on the taskbar for more information.

Select the Advanced tab, and select your changes from the drop-down menus in the Power buttons box. See

Using power saving modes for information on how Standby and Hibernate modes affect power consumption.

Click Apply. The computer detects your changes.

To activate Hibernate mode, you may first need to enable it. See Frequently asked questions for more information.

Page 16

Frequently asked questions

Can my computer enter Hibernate mode while using battery power?

Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode at all. If you are using a program that prevents the system from entering Hibernate mode, save your data frequently. See To activate Hibernate mode for information on how you can manually activate Hibernate mode.

Why doesn't my computer enter Hibernate mode?

You may first need to enable Hibernate mode. Follow these steps:

Click Start on the Windows® taskbar, and click Control Panel.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

Select the Hibernate tab.

Click to check the box next to Enable hibernation.

Page 17

Internet and Network Connections

Internet Connections



Network Connections



Connecting Another VAIO Computer



Page 18

Internet Connections

This section describes the basic steps for setting up your dial-up or Ethernet connection to the Internet. The New Connection Wizard guides you through the process of connecting to the Internet and choosing an Internet service provider (ISP) or setting up an existing account. When you connect to the Internet, you can register your VAIO® computer, use online services, and gain access to Sony Computing Support.

Setting up a dial-up Internet connection



Setting up an Ethernet Internet connection



Customizing your Internet connection



Frequently asked questions



Page 19

Setting up a dial-up Internet connection

Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (not supplied). Once you set up your telephone cable, you're ready to connect to the Internet.

To connect a telephone cable

Locate the Modem jack on your computer. For location information, see Locating Ports and Controls in the Setting Up chapter of your printed VAIO® Computer Quick Start.

Plug one end of the telephone cable into the Modem jack. Make sure it clicks into place.

Plug the other end into the wall jack.

Connecting a Telephone Cable

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

Connect your computer to a telephone line. See To connect a telephone cable for more information.

Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard. The New Connection Wizard appears.

New Connection Wizard

Click Next. If the Location Information wizard appears, follow the on-screen instructions, and then close the Location Information wizard.

If it is not already selected, click to select Connect to the Internet, and click Next.

Page 20

Follow the on-screen instructions.

Page 21

Setting up an Ethernet Internet connection

Your computer accommodates both 10BASE-T and 100BASE-TX Ethernet connections, with data transfer speeds of between 10 and 100 Mbps.

To connect an Ethernet cable

Locate the Ethernet port on your computer. For location information, see "Locating Controls and Ports" in the Setting Up chapter of your printed VAIO® Computer Quick Start.

Connecting an Ethernet Cable

Plug one end of the Ethernet cable into your computer's Ethernet port and the other into the network connection.

To set up an Ethernet connection to the Internet

Connect your computer to a network connection.

Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard. The New Connection Wizard appears.

New Connection Wizard

Click Next. If the Location Information wizard appears, follow the on-screen instructions, and then close the Location Information wizard.

Page 22

If it is not already selected, click to select Connect to the Internet, and click Next.

Follow the on-screen instructions.

Page 23

Customizing your Internet connection

The Internet Properties dialog box enables you to change the way you view the Internet. You can change your home page, fonts, language, and colors. You can also regulate content and set browsing preferences.

To open the Internet Properties dialog box

Click Start on the Windows® taskbar, and then Control Panel.

Click Network and Internet Connections, and then Internet Options. The Internet Properties dialog box appears.

Click the tabs to view options.

Make changes, and click Apply to activate your changes.

Click OK.

Page 24

Frequently asked questions

Why doesn't my modem work?

Make sure the telephone cable is securely plugged into the Modem jack on the computer and the wall jack. See To



connect a telephone cable for more information.

Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone.



Make sure the telephone number the program is dialing is correct.



Make sure the software you are using is compatible with the computer's modem. (All preinstalled Sony programs are



compatible.)

If you are still experiencing problems, use the supplied Application Recovery CD(s) to reinstall the modem driver



software. See Using the Application Recovery CDs for more information.

Why is my modem connection slow?

Your computer is equipped with a V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), follow these steps:

Ask your telephone company to verify your telephone line is free of any line noise.



If your problem is fax-related, make sure there are no problems with the fax machine you are calling and that it is



compatible with fax modems.

If you are having a problem connecting with your ISP, make sure the ISP is not experiencing technical problems.



If you have a second telephone cable available, try connecting the modem to that cable.



Page 25

Network Connections

With a Sony computer, you can easily set up or connect to a variety of networks. The New Connection Wizard and Network Setup Wizard make it easy to gain access to remote and local area networks (LANs) using wireless, Ethernet, or dial-up connections.

For more information about networking, click Start, Help and Support, and then Networking and the Web.

Using Ethernet and dial-up connections



Using wireless network connections



Checking your network connection status



Frequently asked questions



Types of Networks*

* T he c omputers repres ented in this graphic may not be identic al to the model you purc has ed.

Page 26

Using Ethernet and dial-up connections

For setting up local area networks (LANs), Ethernet is a widely installed technology. Your computer accommodates both 10BASE-T and 100BASE-TX Ethernet connections, with data transfer speeds of between 10 and 100 Mbps.

To connect to a local area network using a telephone or Ethernet cable

Connect an Ethernet or telephone cable to your computer. See To connect an Ethernet cable and Setting up a

dial-up Internet connection for more information.

Connecting an Ethernet Cable

Click Start, point to All Programs, Accessories, Communications, and click Network Setup Wizard. The Network Setup Wizard appears.

Network Setup Wizard

Click Next. If you are prompted to the Local Information window, follow the on-screen instructions, and then close the window.

Follow the Network Setup Wizard instructions.

Only connect 10BASE-T and 100BASE-TX cables to the Ethernet port . Do not connect any other type of

network cable or any telephone cable. Connecting cables other than those listed above may result in an electric current overload and could cause a malfunction, excessive heat, or fire in the port. To connect the unit to the network, see Using Ethernet and dial-up connections or contact your network administrator.

Page 27

You can connect to your company network from a remote location and use data, programs, and network resources. See Microsoft® Windows® Help by clicking Help and Support from the Start menu, and then clicking Networking and the Web in the left panel.

To connect to a remote network using a telephone or Ethernet cable

Connect an Ethernet or telephone cable to your computer. See To connect an Ethernet cable and Setting up a

dial-up Internet connection for more information.

From the Start menu, point to All Programs, Accessories, Communications, and click New Connection Wizard.

Click Next. If you are prompted to the Local Information window, follow the on-screen instructions, and then close the window.

Click Connect to the network at my workplace, and then click Next.

Follow the on-screen instructions.

Ask your network administrator for the detailed settings and devices needed to connect to an existing network.

Page 28

Using wireless network connections

A wireless local area network (LAN) is a network in which you can connect to a LAN through a wireless (radio) connection. You can opt to purchase a Sony Wireless LAN Access Point to set up a LAN.

The wireless LAN access point is designed for building a wireless LAN environment. Because a wireless LAN configuration requires no wiring, you can operate multiple computers more freely than ever before.

A Wireless LAN PC Card may accompany your computer (depending on the model you purchased) or you can purchase an external Wireless LAN PC Card separately. The Wireless LAN PC Card is designed for a wireless LAN environment. You can use the Wireless LAN PC Card with or without the access point.

For more information on Sony Wireless LAN, go to http://www.sonystyle.com/vaio.

There are two types of wireless connections:

An infrastructure network is one that extends an existing wired local network to wireless devices by providing an



access point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

A computer-to-computer (ad-hoc) network is one in which a local network is created only by the wireless devices



themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.

To connect to an existing wireless network

Make sure an access point is set up. See the instructions that accompanied the access point for more information.

Insert a Wireless LAN PC Card into the PC Card slot. See Inserting PC Cards for more information.

Inserting a PC Card

Click Start, Control Panel, Network and Internet Connections, and Network Connections. The Network Connections window appears.

Right-click Wireless Network Connection, and select Properties. The Wireless Network Connection Properties dialog box appears.

On the General tab, click to select Show icon in notification area when connected.

Click the Wireless Network Connection icon on the taskbar. The Wireless Network Connection dialog box appears.

Wireless Network Connection

Page 29

From the Available wireless networks list, select the name of the network (access point) in which you want to connect. If you do not see the network name, see If the network does not appear in the Available wireless

networks list box.

If required, type the network key in the Network key box. (The key should be between 5 and 13 ASCII characters or 10 to 26 hexadecimal characters.)

Retype the network key in the Confirm network key box.

10.

Make sure Enable IEEE 802.1x authentication for this network is selected.

11.

Click Connect.

If the network does not appear in the Available wireless networks list box

Click Advanced on the Wireless Network Connection dialog box. The Wireless Network Connection Properties dialog box appears.

Wireless Network Connection Properties

Click Add in the Preferred networks box. The Wireless network properties dialog box appears.

Wireless Network Properties

Page 30

Type the name of the network (access point) you want to connect to in the Network name (SSID) box. (The name should be no more than 32 ASCII characters.)

The following steps are for networks that require a network key. If you do not know the network key or are not sure a network key is required, see the network administrator for more information.

Click to select the Data encryption (WEP enabled) check box.

Click to select the Network Authentication (Shared mode) check box.

Click to cancel the The key is provided for me automatically check box.

Type the network key in the Network key box. (The key should be between 5 and 13 ASCII characters or 10 to 26 hexadecimal characters.)

Retype the network key in the Confirm network key box.

Click OK. The network name appears in the Preferred networks list box.

To set up a computer-to-computer (ad-hoc) network

Insert a Wireless LAN PC Card into the PC Card slot. See Inserting PC Cards for more information.

Inserting a PC Card

Click Start, Control Panel, Network and Internet Connections, and Network Connections. The Network Connections window appears.

Right-click Wireless Network Connection, and select Properties. The Wireless Network Connection Properties dialog box appears.

On the General tab, click to select Show icon in notification area when connected.

Page 31

Click the Wireless Network Connection icon on the taskbar. The Wireless Network Connection dialog box appears.

Wireless Network Connection

Click Advanced. The Wireless Network Connection Properties dialog box appears.

Wireless Network Connection Properties

Click Add. The Wireless network properties dialog box appears.

Wireless Network Properties

Page 32

Type the name of the network (access point) you want to connect to in the Network name (SSID) box. (The name should be no more than 32 ASCII characters.)

Click to select the Data encryption (WEP enabled) check box.

10.

Click to select the Network Authentication (Shared mode) check box.

11.

Click to cancel the The key is provided for me automatically check box.

12.

Type a network key in the Network key box. (The key should be between 5 and 13 ASCII characters or 10 to 26 hexadecimal characters.)

13.

Retype the network key in the Confirm network key box.

14.

Click to select This is a computer-to-computer (ad hoc) network; wireless access points are not used.

15.

Click OK. The network name appears in the Preferred networks list box.

To disconnect from a wireless network

For computers with built-in wireless LAN functionality, open the Wireless Network Connection Status window, and



click Disable. See Checking your network connection status. Move the Wireless LAN switch to OFF. The Wireless LAN indicator turns off.

For Wireless LAN PC Card connections, open the Wireless Network Connection Status window, and click Disable.



See Checking your network connection status. Follow these steps to remove the Wireless LAN PC Card:

Double-click the Safely Remove Hardware icon on the taskbar. The Safely Remove Hardware window appears.

Select the appropriate device name in the Hardware devices window, if it is not already selected, and click Stop. The Stop a Hardware device window appears.

Make sure the appropriate device name is selected, and click OK. A message appears stating it is now safe to remove the hardware device.

Remove the PC Card. See Removing PC Cards for more information.

Turning off the wireless LAN functionality while accessing remote documents, files, or resources may

result in data loss.

Page 33

Checking your network connection status

Whether you have a wireless, Ethernet, or dial-up connection, you can check the status of that connection by double-clicking the Wireless Network Connection icon on your taskbar. The Wireless Network Connection Status

window appears.

Wireless Network Connection Status

Page 34

Frequently asked questions

Why can't my computer connect to a wireless LAN access point?

Connection availability is affected by distance and obstructions. You may need to move your computer away from



obstructions or closer to any access point you may be using.

Make sure the Wireless LAN PC Card is correctly inserted into the PC Card slot. See Inserting PC Cards for more



information.

Make sure power to the access point is on.



Make sure the access point is displayed in the Available networks window. For more information, see To connect to



an existing wireless network.

Make sure the encryption key is correct.



Why can't I access the Internet?



Check the access point settings. Refer to the instructions supplied with the access point.



Make sure your computer and the access point are connected to one another.



Move your computer away from obstructions or closer to any access point you may be using.



Make sure your computer is properly configured for Internet access.

Why is the data transfer speed slow?

The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points.



Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move your computer away from obstructions or closer to any access point you may be using.

If you are using a wireless LAN access point, the device may be temporarily overloaded depending on how many



other devices are communicated via the access point.

If your access point interferes with other access points, change the access point channel. See your access point



instructions for more information.

Why is the communication speed interrupted or slowed down when MPEG2 data is transferred?

The typical effective data transfer speed via an access point is 4-5 Mbps when adhering to the IEEE 802.11b standard. High-rate stream transfers with MPEG2 data may lower this rate.

How do I avoid data transfer interruptions?

When your computer is connected to an access point, data transfer interruptions may occur when using large files



or if the computer is in close proximity to microwaves and cordless telephones.

Move the computer closer to the access point.



Make sure the access point connection is intact. For more information, see Checking your network connection



status.

Change the access point channel. See your access point instructions for more information.



Can I connect to a IEEE 802.11a device?

Computers with built-in wireless LAN support the IEEE 802.11b standard only. Devices connecting to a wireless LAN using the IEEE 802.11a standard cannot connect to devices using the IEEE 802.11b standard.

What are channels?

Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices.

If you are using a wireless LAN access point, refer to connectivity information contained in your access point instructions.

Page 35

Connecting Another VAIO Computer

The preinstalled Microsoft® Windows® XP operating system enables you to connect a compatible i.LINK®1 cable (not supplied) between your VAIO® computer and another compatible computer.

Connecting VAIO computers



Disconnecting VAIO computers



Frequently asked questions



i.LINK is a trademark of Sony us ed to des ignate that a produc t c ontains an I E E E 1 3 9 4 c onnection. T he i.LIN K c onnec tion may vary, depending on the software programs, operating system, and c ompatible i.LI NK devices. A ll products with an i.LI N K c onnec tor may not c ommunic ate with eac h other. Refer to the documentation that came with your compatible i.LIN K device for information on operating c onditions and proper connection. Before connecting compatible i.LI N K P C peripherals to your system, s uc h as a C D-RW or hard dis k drive, c onfirm their operating s ystem compatibility and required operating conditions.

Page 36

Connecting VAIO computers

When you connect two VAIO computers, you can use one computer to edit, copy, or delete files on the other computer. You can also print from a printer attached to either computer.

To connect VAIO computers

Plug one end of the i.LINK cable into the i.LINK port on each computer.

Click Start on the Windows® taskbar, and click Control Panel.

Click Network and Internet Connections, and click Set up or change your home or small office network. The Network Setup Wizard appears.

Network Setup Wizard

Follow the on-screen Network Setup Wizard instructions.

When you are prompted, type in a unique computer name for each computer. You will use this unique name to differentiate the two computers once they are networked together.

The Workgroup name should remain the same for the two networked computers.

When you finish the Network Setup Wizard on-screen instructions, click Start on the Windows® taskbar and click My Computer.

Click My Network Places in the Other Places menu. The My Network Places window appears.

Click View workgroup computers in the Network Tasks menu. Computers networked under the same workgroup name are displayed in this window.

Connecting Another Computer

Page 37

Page 38

Disconnecting VAIO computers

You can disconnect two VAIO computers when the computers are on or off.

To disconnect VAIO computers when the computers are on

Close all open files that are shared with the connected computers.

Unplug the i.LINK cable from the i.LINK port on each computer.

To disconnect VAIO computer when the computers are off

Unplug the i.LINK cable from the i.LINK port on each computer.



Page 39

Frequently asked questions

Why can't I establish a connection between two VAIO computers?

Your computer may not recognize an i.LINK1 connection if the i.LINK cable is not plugged securely into the i.LINK



ports. Disconnect the i.LINK cable and securely reconnect it to both computers. If neither computer responds after a few moments, restart both computers.

If the computers do not recognize the i.LINK connection after resuming from a power saving mode (Standby or



Hibernate), restart both computers. For more information, see Connecting VAIO computers.

i.LINK is a trademark of Sony us ed only to des ignate that a produc t c ontains an I E E E 1 3 9 4 c onnection. T he i.LIN K c onnec tion may vary, depending on the software applications, operating s ys tem, and c ompatible i.LINK devices. A ll products with an i.LI N K c onnection may not communicate with each other. Refer to the documentation that came with your compatible i.LIN K devic e for information on operating c onditions and proper connection. Before connecting compatible i.LI N K P C peripherals to your system, s uc h as C D-RW or hard dis k drive, c onfirm their operating s ystem c ompatibility and required operating conditions.

Page 40

CDs and DVDs

Inserting and Ejecting CDs or DVDs



Copying and Playing CDs



Playing DVDs



Page 41

Inserting and Ejecting CDs or DVDs

Avoid using adhesive labels to identify your CDs or DVDs. Adhesive labels may damage the optical drive if they come off while the disc is in the drive.

To insert a disc

Turn on the computer or exit a power saving mode (Standby or Hibernate) if one is active. For more information, see Using power saving modes.

Press the Eject button on the optical drive cover to open the drive tray. The drive tray slides out.

Ejecting the Drive Tray

Place a disc on the drive tray with the label facing up.

You can play some DVDs on both sides. Insert this type of DVD with the side you want to play facing up.

Inserting a Disc

Press the disc onto the hub until the disc clicks securely into place.

If you do not seat the disc firmly over the hub, the disc may come loose while it is in the drive. A loose

disc may damage the optical drive and make opening the drive tray difficult.

Push the drive tray gently to close it. The Busy indicator on the drive cover blinks while your computer is reading data from the drive.

To eject a disc

Turn on the computer or exit a power saving mode (Standby or Hibernate) if one is active. For more information, see Using power saving modes.

Close all programs that access the optical drive, and wait for the Busy indicator on the drive cover to turn off.

Press the Eject button on the drive cover to open the drive tray. The drive tray slides out.

If the Eject button does not work, turn off the computer and insert a thin, straight object (such as a paper clip) into the manual eject hole next to the Eject button.

Page 42

Lift the disc from the drive.

Push the drive tray gently to close it.

Page 43

Copying and Playing CDs

Your computer comes equipped with a CD-RW/DVD drive, which plays DVD and most DVD-R discs, and reads and writes data to CD-R and CD-RW discs.

Playing CDs



Copying files to a CD-RW or CD-R



Page 44

Playing CDs

Before you play an audio CD, you may need to enable your computer's audio feature.

To enable the audio feature

Click Start on the Windows® taskbar, and then click Control Panel, Performance and Maintenance, and System. The System Properties dialog box appears.

As a shortcut, you can press Fn + the Windows key + Insert to open the System Properties dialog box.

Select the Hardware tab, and in the Device Manager box, click Device Manager. A window with a listing of the computer's hardware devices appears.

Double-click the name of the optical drive to open the submenu.

Double-click the listed drive name, and select the Properties tab.

Click to select the Enable digital CD audio for this CD-ROM device check box if it is not already selected.

Click OK.

To adjust the volume for playing CDs and DVDs

Some programs have built-in volume controls, which you can adjust. If there are no volume controls, then adjust the volume of your computer's built-in speakers by doing one of the following:

Using the Function keys. An on-screen display may appear, notifying you when a change occurs.



To increase volume, press the Fn+F4 keys.



To decrease volume, press the Fn+Shift+F4 keys.



Using the Volume icon.



Double click the Volume icon on the Windows® taskbar. The Volume Control dialog box appears.



In the Volume Control and CD Player columns, move the Volume sliders up to increase volume and down



to decrease volume.

To play an audio CD

Insert the disc into the optical drive. See To insert a disc.

If nothing appears on the desktop once you insert an audio CD disc, then click Start, point to All Programs, and click to open a CD program, such as SonicStage. If the Audio CD window appears, click to select an option.

Audio CD Window

Page 45

Page 46

Copying files to a CD-RW or CD-R

You can copy files to CD-R or CD-RW discs if your VAIO® computer is equipped with a CD-RW/DVD drive or DVD-RW drive. Before you write data to a CD-RW or CD-R disc, read the following notes to avoid a computer malfunction and ensure the best writing results:

Deactivate the screen saver and exit anti-virus software.



Deactivate memory-resident disc utilities to avoid data loss.



Disable the FindFast program if it is installed on your computer. Click Start and point to All Programs to see a list of



programs on your computer.

Connect and use the AC adapter to power your computer or make sure your battery is at least 50 percent charged.



See Powering Your Computer for more information.

Use CD-R discs that are compatible with 24x speed.



Your computer does not support 1x or 2x writing speed.

To copy files to a CD-RW or CD-R

Insert a blank CD-R or CD-RWdisc into the optical drive. For more information, see Inserting and Ejecting CDs or

DVDs.

If the CD Drive window appears, click Take no action.

CD Drive Window

Open Windows Explorer by pressing the Windows key and the E key simultaneously.

In the Folders panel on the left, locate the file(s) or folder(s) you want to copy and either:

Right-click the file(s) or folder(s), point to Send To, and click the optical drive1 name.



Drag the file(s) or folder(s) onto the optical drive icon in the Files Stored on This Computer panel.



Close Windows Explorer.

Click Start, and My Computer.

Click the optical drive icon under Devices with Removable Storage. A new window appears with the file(s) or folder(s) you want to copy listed under Files Ready to Be Written to the CD.

In the CD Writing Tasks box, click Write these files to CD.

Page 47

Follow the instructions on the CD Writing Wizard.

CD Writing Wizard

Do not strike or shake the computer while writing data to a disc.

T he read/write drive letter des ignation may vary, depending on your s ystem's hardware configuration.

Page 48

Playing DVDs

You can play DVDs in your computer's optical drive and view the video on a TV. The type of optical drive installed in or connected to your computer may vary, depending on the model you purchased.

Connecting your computer to a TV



Playing DVDs on a TV



Disconnecting your computer from a TV



Playing DVDs on your computer



Frequently asked questions



Page 49

Connecting your computer to a TV

Your computer is equipped with an A/V OUT jack, which enables you to connect your computer to a TV. To locate the A/V OUT jack on your computer, see "Locating Controls and Ports" in the Setting Up chapter of your printed VAIO® Computer Quick Start.

To connect a TV to your computer

Locate the A/V OUT jack on the computer.

Plug one end of an audio-video (AV) cable (not supplied) into the A/V OUT jack.

Plug the other end of the AV cable into the audio and video ports on the TV.

Connecting a TV

Switch the TV input channel to external input.

See the guide that accompanied your TV for information on how to switch to external input.

Page 50

Playing DVDs on a TV

To play a DVD

Close all open programs.

Disable the screen saver and the virus checker.

Change the power schemes to Max Battery if it is not already selected. See To select a power scheme for more information.

Connect the TV to the computer. See Connecting your computer to a TV for more information.

Press the Fn+F8 keys to view the image on either the computer screen (LCD) or the TV. See Selecting a display for more information.

The Fn+F8 keys will not work once a DVD is inserted into the optical drive. Switching the display while

a DVD is playing may cause the computer to malfunction, and you may need to restart the DVD software.

Insert the DVD into the optical drive.

Open a preinstalled DVD program, such as InterVideo WinDVD®, by following these steps:

Click Start on the taskbar, and point to All Programs.

Select a program, such as InterVideo WinDVD, to play the DVD. For instructions on how to use a program, see the help guide included with the DVD program.

Systems equipped with a CD-RW/DVD drive can read most DVD-R media.

Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices

connected, this may damage your hearing and the speakers. Reduce the volume before playing a DVD.

Do not switch power saving modes while the computer is playing a DVD.

Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer to malfunction.

Page 51

Disconnecting your computer from a TV

Simply unplug the audio-video (AV) cable from the A/V OUT jack on the computer.

Page 52

Playing DVDs on your computer

Your computer is equipped with an optical drive that enables you to watch DVDs and most DVD-R discs on your computer.

To play a DVD while using AC power

Close all open programs.

Insert the DVD into the optical drive.

Open a preinstalled DVD program, such as InterVideo WinDVD®, by following these steps:

Click Start on the taskbar, and point to All Programs.

Select a program, such as InterVideo WinDVD, to play the DVD. For instructions on how to use a program, see the help guide included with the DVD program

To play a DVD while using battery power

Set the power schemes to Presentation. See To select a power scheme for more information.

Press the Fn+Shift+F5 keys to decrease the brightness of the computer screen. The lower the brightness the more battery power you conserve.

For more information on conserving battery power, see Conserving Battery Power.

Insert the DVD into the optical drive.

Open a preinstalled DVD program, such as InterVideo WinDVD, by following these steps:

Click Start on the taskbar, and point to All Programs.

Select a program, such as InterVideo WinDVD, to play the DVD. For instructions on how to use a program, see the help guide included with the DVD program.

Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices

connected, this may damage your hearing and the speakers. Reduce the volume before playing a DVD.

Do not switch power saving modes while the computer is playing a DVD.

Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer to malfunction.

Page 53

Frequently asked questions

How do I maintain CDs and DVDs?

Avoid touching the surface of the disc with your fingers. Fingerprints and dust on the surface of the disc may cause



reading errors.

Try using canned compressed air to clean dusty discs.



Do not clean the disc with solvents (such as benzine, thinner, alcohol, commercially available cleaners, or anti-static



spray), which may damage the disc. To clean the disc, follow these steps:

Hold the edge of the disc, and use a soft cloth to wipe the surface from the center out.

If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from the center out.

Wipe off any remaining moisture with a dry, soft cloth.

Do not drop or bend the disc.



Why does my computer freeze when I try to read a disc?

The disc your computer is trying to read may be dirty or damaged. Follow these steps:



Restart the computer by clicking Start, Turn Off Computer, and Restart.

Eject the disc from the optical drive.

Examine the disc for dirt or damage. If the disc is dirty, see How do I maintain CDs and DVDs? for instructions on how to clean it.

What do I do if the drive tray won't open?

Make sure the computer is on.



Press the Eject button on the optical drive.



If the Eject button does not work, click Start on the Windows® taskbar, and click My Computer. Right click the optical



drive icon, and select Eject from the shortcut menu.

If none of the above options work, insert a thin, straight object (such as a paper clip) in the manual eject hole to



the right of the Eject button.

What do I do if the optical drive isn't playing my CD or DVD properly?

Make sure the disc was inserted into the drive with the label facing up.



Make sure the necessary program(s) is installed according to the manufacturer's instructions.



If the CD or DVD is dirty or damaged, the computer will stop responding. Follow these steps:



Restart the computer by pressing the Ctrl+Alt+Delete keys, and selecting Restart from the Shut Down menu of the Windows Task Manger dialog box.

Remove the CD or DVD from the optical drive.

Check the disc for dirt or damage. If you need to clean the disc, see How do I maintain CDs and DVDs? for instructions.

If you are playing a CD or DVD and cannot hear sound, follow these steps:



Double-click the Volume icon on the Windows taskbar, and click to cancel the Volume Control and CD Audio Mute check boxes.

Check the volume setting in the audio mixer.

If you are using external speakers, check the volume settings on the speakers and the connections

Page 54

between the speakers and the computer.

Make sure the CD audio feature is enabled and the correct driver software is installed. Follow these steps:

Click Start on the Windows® taskbar, click Control Panel, Performance and Maintenance, and System. The System Properties window appears.

Select the Hardware tab, and click Device Manager in the Device Manager box. A window with a listing of the computer's hardware devices appears.

If a "X" or an exclamation point appear on the listed device, you may need to enable the device or reinstall the drivers.

Double-click the optical drive to open the submenu.

Double-click the listed drive name, and select the Properties tab.

Click to select the Enable digital CD audio for this CD-ROM device check box, if it is not selected.

You can confirm the driver software by selecting the Driver tab and clicking Driver Details.

Click OK to close the window.

Make sure an adhesive label was not attached to the CD or DVD. Adhesive labels can come off while the disc is in



the optical drive and damage the drive or cause it to malfunction.

If a region code warning appears, the disc may be incompatible with the optical drive. Check the DVD package to



make sure the region code is compatible with the optical drive.

If you notice condensation on the computer, do not use the computer for at least one hour. Condensation can



cause the computer to malfunction.

Why did the computer screen (LCD) go blank?

Your computer screen may go blank if the computer has lost power or has entered a power saving mode (Standby



or Hibernate). If the computer is in LCD (Video) Standby mode, press any key to activate the computer screen. See

Using power saving modes for more information.

Make sure the computer is plugged into a power source and is on. The power indicator on the computer will be on if



the computer is on.

If your computer is using battery power, make sure the battery is inserted properly and is charged. See Using the



Battery for more information.

If the display mode is set to external display, use the Fn+F7 key combination. See Selecting a display for more



information.

How do I adjust the image on the TV screen?

Use the controls on your TV to adjust the image. See the help guide that accompanied your TV for more information.

Why can't I view the entire DVD picture on a TV screen?

The video resolution on the computer may not be properly set for the TV screen. Change the video resolution to a smaller size.

If you are using the A/V Out jack, plug the audio-video (AV) cable into the computer before you start the computer.

To change the video resolution, follow these instructions:

Right-click the desktop, and select Properties from the shortcut menu. The Display Properties dialog box appears.

Select the Settings tab.

Move the screen resolution slider to the left to reduce the size and to the right to increase the size of the video

Page 55

resolution.

See Selecting a display for more information.

How do I switch the computer screen (LCD) from LCD to TV?

Press the Fn+F8 keys to view the image on either the computer screen (LCD) or the TV. See Selecting a display for more information.

The Fn+F8 key combination will not work once a DVD is inserted into the optical drive. Switching the

display while a DVD is playing may cause the computer to malfunction, and you may need to restart the DVD software.

Is the CD-RW reading speed slower than the CD-ROM or CD-R reading speed?

Generally the CD-RW reading speed is slower than the CD-ROM and the CD-R reading speeds, although reading speeds vary depending on the format you are using.

Page 56

Printer Connections

Printing With Your Computer



Page 57

Printing With Your Computer

Your computer is compatible with many popular printers. However, to ensure the best performance, printers must be compatible with the Microsoft® Windows® operating system installed on your computer.

Connecting a printer



Disconnecting a printer



Frequently asked questions



Page 58

Connecting a printer

You can connect a universal serial bus (USB) printer or, depending on the model, a parallel port printer to your computer. The New Hardware Wizard enables you to easily install the printer software, but some printers require separate driver software installation. See the instructions that accompanied your printer for more information.

To connect a USB printer

Plug the USB cable into the USB port on your computer. See "Locating Controls and Ports" in the "Setting Up" chapter of your printed VAIO® Computer Quick Start.

Plug the other end of the USB cable into the USB port on the printer. The New Hardware Wizard appears.

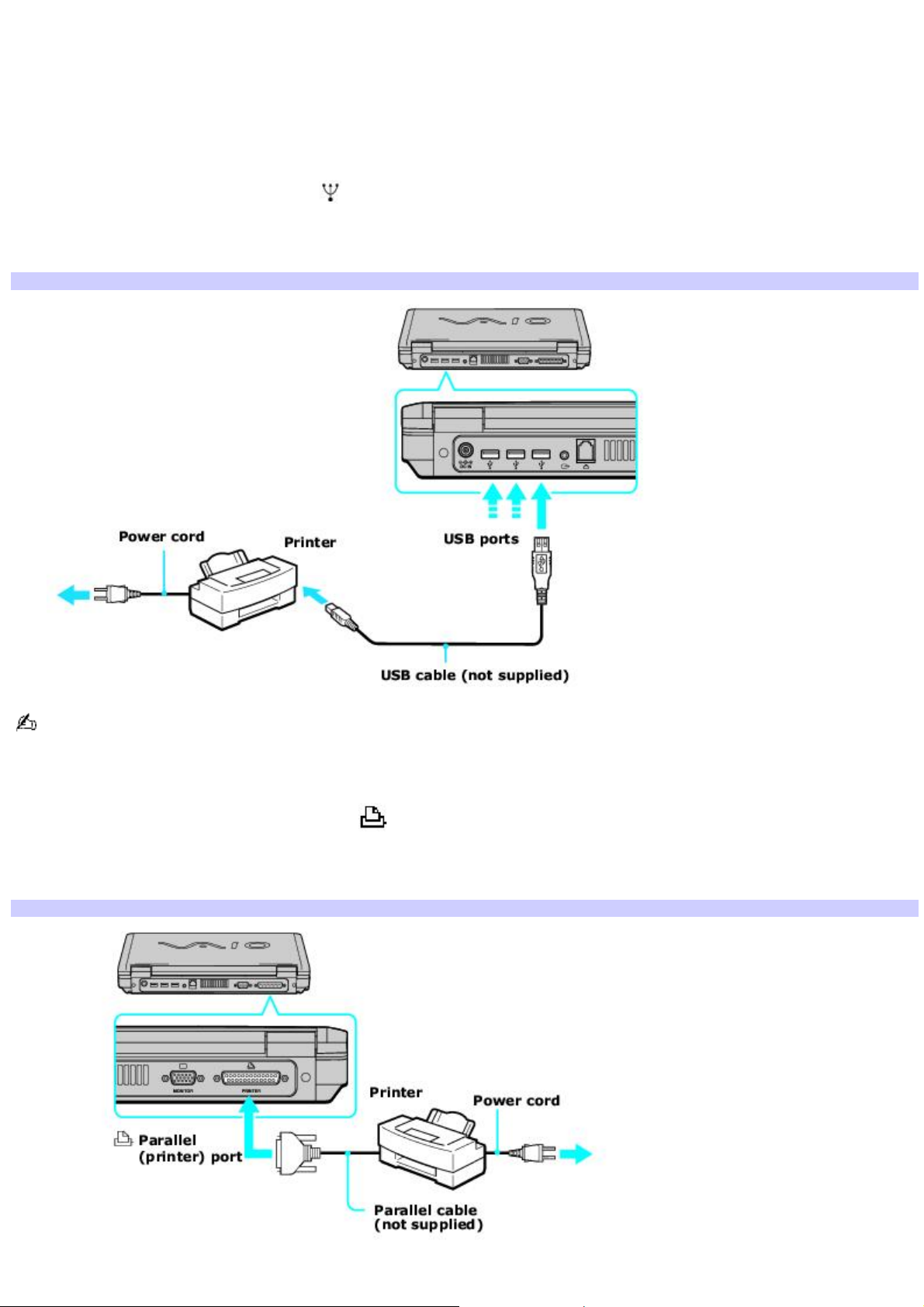

Connecting a USB Printer

See the guide that accompanied the printer for more information on its installation and use.

To connect a parallel printer

Plug the printer cable into the Printer port on your computer. See "Locating Controls and Ports" in the "Setting Up" chapter of your printed VAIO® Computer Quick Start.

Plug the other end of the printer cable into the port on the printer.

Connecting a Parallel Port Printer

Restart your computer by clicking Start, Turn Off Computer, and Restart.

Page 59

Make sure the computer recognizes the printer. Follow these steps:

Click Start, Control Panel, Printers and Other Hardware, and then Printers and Faxes.



If the computer recognizes the printer, it will be listed in the Printers and Other Hardware window. If the computer does not recognize the printer, you may need to install the printer driver software.

See the guide that accompanied the printer for more information on its installation and use.

Page 60

Disconnecting a printer

You can disconnect the printer cable when the computer is on or off. Disconnecting a printer when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

To disconnect a printer

Unplug the printer cable from the computer.



Page 61

Frequently asked questions

Why can't I print a document?

Make sure the printer is on, and the printer cable is securely connected to the ports on your printer and computer.



See Connecting a printer for more information.

Make sure the printer is compatible with the Microsoft® Windows® operating system installed on your computer.



You may need to install the printer driver software before you use the printer. See the guide that accompanied the



printer for more information.

If the printer is not functioning after the computer resumes from a power saving mode (Standby or Hibernate), then



restart the computer.

You may need to change the default printer port setting, although this setting is generally correct for most printers.



Click Start, and click Control Panel.

Click Performance and Maintenance, and click System. The System Properties dialog box appears.

Select the Hardware tab, and click Device Manager. The Device Manager window appears.

Double-click Ports (COM&LPT), and double-click ECP Printer Port (LPT1).

Select the Port Settings tab, and select a different LPT Port Number.

Page 62

Computer Features

Using the Touch Pad



Changing the Window Design of Sony Programs



Page 63

Using the Touch Pad

A pointing device called a touch pad is located in front of the keyboard. You can point to, select, drag, and scroll objects on the screen using the built-in touch pad.

Describing the touch pad



Customizing the touch pad



Frequently asked questions



Page 64

Describing the touch pad

Locating the Touch Pad

Touch Pad Action Description

Sliding one finger Equivalent to using a mouse to place the pointer on an item.

Tapping once Equivalent to pressing the left button once.

Tapping twice Equivalent to pressing the left button twice.

Sliding one finger while pressing the left button Equivalent to using the mouse to drag an item.

Moving your finger along the right edge of the touch pad Equivalent to scrolling vertically. (The scroll function is available only with programs that support a touch pad scroll feature.)

Moving your finger along the bottom to scroll horizontally Equivalent to scrolling horizontally. (The scroll function is available only with programs that support a touch pad scroll feature.)

Page 65

Customizing the touch pad

Open the Mouse Properties dialog box to set your touch pad and mouse preferences, such as changing pointers, enabling or disabling the tapping feature, clicking both buttons simultaneously, and adjusting the touch pad speed.

To customize the touch pad and mouse

Right-click the Touch Pad icon on the Windows® taskbar, and click Mouse Properties from the shortcut menu.



The Mouse Properties dialog box appears.

To enable the touch pad

Press the Windows key . The Start menu appears.

Press C to select Control Panel.

Press the Tab key to select Performance and Maintenance, and press Enter.

Press the Tab key to select System, and press Enter. The System Properties dialog box appears with the General tab selected.

Press the Right Arrow key to select the Hardware tab.

Press the Tab key to select the Device Manager button, and then press Enter. A window with a listing of the computer's hardware devices appears.

Press the Tab key once to select the first item in the list of hardware devices, and press the Down Arrow key

to select Alps Pointing-device then press Enter. The Alps Pointing-device Properties window appears

Press Enter to select the Enable Device button. The Device Problems Troubleshooting Wizard window appears.

Press Enter to select the Next button, and then press Enter again to select the Finish button.

10.

Press the Tab key to select the Close button, and then press Enter.

11.

Press the Windows key then press U. When the Turn off computer window appears, press R. The computer restarts and updates the touch pad settings.

To disable the touch pad

Click Start on the Windows® taskbar, and then click Control Panel, Performance and Maintenance and System. The System Properties dialog box appears.

Select the Hardware tab, and in the Device Manager box, click Device Manager. A window with a listing of the computer's hardware devices appears.

Double-click Mice and other pointing devices to open the submenu.

Right-click Alps Pointing-device, and select Disable.

When a warning window appears asking you if you want to disable the device, click Yes.

Click Yes again on the System Settings Change window to restart your computer.

Page 66

Frequently asked questions

What do I do if the touch pad does not work?

Try restarting your computer. Follow these steps:



Press the Windows key .

Press U. The Turn off computer window opens.

Press R to restart the computer.

If the computer does not restart,



Press Ctrl+Alt+Delete simultaneously. The Windows Task Manager window appears.

Press and release Alt to highlight the menu bar, and press the Right Arrow key to select Shut Down .

Press Enter.

Press R to restart the computer.

If you still cannot restart your computer, press and hold the power button to turn off the computer.



If the pointer does not move while playing a disc, press Ctrl+Alt+Delete simultaneously to stop playback and



restart the computer.

If you are still experiencing problems, make sure another mouse is not installed.



You may have disabled the touch pad without connecting a mouse to the computer. See To enable the touch pad.



You may need to use your supplied Application Recovery CD(s) to reinstall the touch pad or mouse drivers. See



Using the Application Recovery CDs for more information.

How do I change the left and right button assignments?

If your computer is interpreting a single-click as a double-click, you may want to change the button assignments. Follow these steps:

Click Start on the Windows® taskbar and click Control Panel, and then click Printers and Other Hardware and Mouse. The Mouse Properties dialog box appears with the Buttons tab selected.

Select your preferences in the Button Selection box, and then click Apply to install your settings.

You may need to use the Tab key and the Up Arrow and Down Arrow keys to make your selections.

Click OK to close the window.

Page 67

Changing the Window Design of Sony Programs

This feature changes the appearance, such as color, of certain Sony programs.

To change the window design

Click Start, and then Control Panel.

In the left panel, click Switch to Classic View.

Double-click UI Design Selector.

Click << or >> to view the designs.

Click Apply to select a design that appears in the center window. The UI Design Selector window design changes. The window design for your Sony software will match the UI Design Selector window.

Click OK.

Page 68

Mice and Keyboards

Using the Keyboard



Connecting Mice and Keyboards



Page 69

Using the Keyboard

Your keyboard is very similar to a typewriter's, but your computer keyboard has additional keys that perform specific computer-related tasks.

Key locations and descriptions



Combinations and functions with the Windows key



Indicator lights



Combinations and functions with the Fn key



Page 70

Key locations and descriptions

Keyboard

Key Description

Numeric keypad Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers or to perform mathematical calculations, such as addition and subtraction. Numbers appear on the front beveled edge of the numeric keys. Press the Num Lock key to activate the numeric keypad. (When you do so, the Num Lock indicator light turns on.) Press the Num Lock key again to deactivate the numeric keypad.

Arrow keys The Left, Right, Up, and Down arrow keys move the pointer on the screen. They also function as the Home, End, Page Up, and Page Down keys, respectively, when the Fn key is pressed.

Correction keys The Insert, Back Space, and Delete keys enable you to make corrections to keystrokes.

Function keys The 12 function keys along the top of the keyboard are used to perform designated tasks. For example, in many programs, F1 is the Help key. The task associated with each function key may vary from one program to the next.

Escape key The Esc (Escape) key is used to cancel commands.

Print Screen key The Print Screen key takes an electronic snapshot of the screen and moves it to the Clipboard. You can then paste the screen shot into a document and print it.

Operator keys (Ctrl, Alt, Shift keys) Several keys are always used with at least one other key: Ctrl, Alt, and Shift. When held down with another key, the Ctrl (Control) and Alt (Alternate) keys offer another way to give commands. For example, in many programs, instead of choosing the Save command from a menu, you can hold down Ctrl and press S (referred to as Ctrl+S ). The Shift key operates the same way as on a typewriter; it is used to produce capital letters or special symbols, such as @ and $.

Windows key

The key with the Microsoft® Windows® operating system logo displays the Start menu; it is the equivalent of clicking Start on the taskbar. See Combinations and functions with the Windows key for more information. Fn key The Fn key is used in combination with other keys to issue commands. See Combinations and functions with

the Fn key for more information.

Applications key

The Applications key displays a shortcut menu of context-sensitive choices. Pressing this key is the equivalent of clicking the right mouse button.

Page 71

Page 72

Combinations and functions with the Windows key

Combination Function

+F1 Displays the VAIO Help and Support Center window.

+Tab Switches the selected button on the taskbar.

+D Displays the desktop.

+E Displays the My Computer window.

+F Displays the Search Results window, where you can find a file or folder. This is the equivalent of selecting

Search from the Start menu.

+Ctrl+F Displays the Search Results - Computers window, where you can locate other computers. This is the

equivalent of selecting Search, and then Computer from the Start menu.

+M Minimizes all displayed windows.

Shift+ +M Returns all minimized windows to their previous size.

+R Displays the Run window. This is the equivalent of selecting Run from the Start menu.

Fn+ +Insert Displays the System Properties window. This is the equivalent of selecting Control Panel, and then System from the Start menu.

Page 73

Indicator lights

Indicator Function

Power

Turns on when the power to the computer is on, blinks in Standby mode, and turns off when the computer is in Hibernate mode or off. Battery

Turns on when the computer is using battery power, blinks when the battery is running out of power, double-blinks when the battery is charging. Hard Disk

Turns on when data is read from or written to the hard disk. Do not enter Standby mode or turn off the computer when this indicator is on. Num Lock

Press this key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is off. Caps Lock

Press this key to type letters in uppercase. Letters appear in lowercase if you press Shift while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps Lock indicator is off. Scroll Lock

Press this key to change how you scroll the display. Normal scrolling resumes when the Scroll Lock indicator is off. The Scroll Lock key functions differently depending on the program you are using and does not work with all programs.

Page 74

Combinations and functions with the Fn key

Combinations/

Feature Function

Fn+F3 Toggles the built-in speakers off and on.

Fn+F4 Adjusts the built-in speaker volume.

To increase volume, press Fn+F4.

To decrease volume, press Fn+Shift+F4.

Fn+F5 Adjusts the brightness of the computer screen (LCD).

To increase and decrease brightness, press Fn+F5.

Fn+F7 Toggles the display between the computer screen (LCD), a connected external device, such as a monitor or projector, and both the LCD and external device.

Select one display at a time when playing a DVD. Connect the cable before you turn on the computer; otherwise, Fn+F7 will not work. Fn+F8 Toggles the display between the computer screen (LCD), a connected TV, and both the LCD and TV.

Select one display (LCD or TV) when playing a DVD. Connect the TV cable before you turn on the computer; otherwise, Fn+F8 will not work. You cannot use the Fn+F8 function to switch between LCD and TV once a DVD is inserted into the optical drive. Fn+F12 Puts the system into Hibernate mode, a power management state. To return the system to normal operating mode, press the power button. Hibernate mode consumes the lowest level of power.

Page 75

Connecting Mice and Keyboards

Your computer is compatible with many popular mice and keyboards. To function properly, the device you connect must be compatible with the Microsoft® Windows® operating system installed on your computer. For information about your computer's built-in keyboard and key functions, see Key locations and descriptions.

Connecting a mouse or keyboard



Disconnecting a mouse or keyboard



Frequently asked questions



Page 76

Connecting a mouse or keyboard

Your computer can be on or off when connecting a universal serial bus (USB) mouse or keyboard. If you connect the mouse or keyboard when the computer is on, you may need to restart the computer for it to recognize the device. See Frequently

asked questions for more information.

To connect a USB mouse or keyboard to your computer

Plug the USB cable into the USB port . See "Locating Controls and Ports" in the "Setting Up" chapter of your printed VAIO® Computer Quick Start. (One USB port supports one USB connection.)

If the New Hardware Wizard appears, follow the on-screen instructions to complete the installation process.

Although the New Hardware Wizard guides you through the software installation, some devices require separate driver software installation. See the instructions that accompanied your mouse or keyboard for more information

Connecting a USB Mouse or Keyboard

Page 77

Disconnecting a mouse or keyboard

You can disconnect a USB mouse or keyboard when the computer is on or off. Disconnecting the mouse or keyboard when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

To disconnect a mouse or keyboard

Unplug the USB cable from the USB port.



Page 78

Frequently asked questions

What do I do if the computer doesn't recognize the mouse?

Make sure the mouse is securely plugged into the port. See Connecting a mouse or keyboard for more information.



Restart the computer with the mouse connected to the computer.



You may need to install or reinstall the mouse driver software. Use the supplied Application Recovery CD to install



the drivers. See Using the Application Recovery CDs for more information.

What do I do if the pointer doesn't move when I use the mouse?

Make sure another mouse is not installed.



If you are playing a disc, press the Ctrl+Alt+Delete keys simultaneously to stop playback and restart the computer.



If you still cannot use the pointer, restart the computer. You can restart the computer three different ways:



Press the Windows key , and press U. When the Turn Off Computer window appears, press R.



Press the Ctrl+Alt+Delete keys simultaneously. When the Windows Task Manager window appears, press



the Alt key to highlight the menu bar, and press the Right Arrow key to select Shut Down. Press Enter, and then press R.

Press and hold the power button. When the computer turns off, press the power button again to restart the



computer.

You may need to install or reinstall the mouse driver software. Use the supplied Application Recovery CD to install



the drivers. See Using the Application Recovery CDs for more information.

Page 79

Floppy Disk and PC Card Connections

Using the Floppy Disk Drive



Using PC Cards



Page 80

Using the Floppy Disk Drive

Your computer is equipped with a floppy disk drive. The floppy disk drive enables you to read or write data to a floppy disk.

Inserting and removing floppy disks



Protecting floppy disks



Frequently asked questions



Page 81

Inserting and removing floppy disks

To write data to a disk, use one that is not write-protected or disable the write-protect feature. The floppy disk drive cannot write data to a disk if it is inserted into the drive improperly.

To insert a floppy disk

Hold the floppy disk with the label facing up.

Push the floppy disk into the drive until it clicks into place.

Inserting a Floppy Disk

Do not open the shutter manually and touch the surface of the floppy disk.

To remove a floppy disk

Close all programs that access the floppy disk.

Wait for the LED indicator on the floppy disk drive to turn off.

Push the Eject button, and remove the disk.

To avoid losing data, do not push the Eject button when the LED indicator is on.

Remov ing a Floppy Disk

Page 82

Protecting floppy disks

Do not open the shutter manually or touch the surface of the floppy disk.



Keep floppy disks away from magnets, direct sunlight, and heat sources.



Page 83

Frequently asked questions

Why is the drive unable to write data to a floppy disk?

Make sure the floppy disk is properly inserted in the drive. See Inserting and removing floppy disks for instructions on how to insert the disk properly.

If the disk is inserted properly and you are still unable to write data to it, the disk may be full or write-protected. You can either use a floppy disk that is not write-protected or disable the write-protect feature.

Page 84

Using PC Cards

Your computer includes one or more PC Card slots. A PC Card enables you to connect devices such as an optical drive, floppy disk drive, or Network Interface Card (NIC).

See your VAIO® Computer Specifications for the type of PC Card that is compatible with your computer. These slots are compatible with CardBus. If your computer has more than one PC Card slot, use the lower slot for Type III PC Cards. You do not need to turn off your computer to insert or remove a PC Card.

Inserting PC Cards



Removing PC Cards



Frequently asked questions



Page 85

Inserting PC Cards

To insert a PC Card

Make sure the front label of the PC Card is facing up.

Push the PC Card gently into the slot. The system automatically detects the PC Card.

Do not force a PC Card into the slot; this may damage the connector pins.

When a PC Card is inserted, do not place your computer in a bag or case. Pressure or shock to a PC Card may damage your computer.

Touching the head of the PC Card will not damage the connector pins, but damage may occur if the head of the PC Card is sticking out of the PC Card slot while the computer is being transported.

Inserting a PC Card

Page 86

Removing PC Cards

You can remove PC Cards while the computer is on or off. PC Cards draw power from the computer when they are inserted into the PC Card slot, whether or not you use the card.

If you are not using your PC Card and you are using a battery as a power source, remove the PC Card from the PC Card slot to conserve battery power.

To remove a PC Card while your computer is on

Double-click the Safely Remove Hardware icon on the taskbar. The Safely Remove Hardware dialog box appears.

Click to select the PC Card in the Hardware devices window, if it is not already selected.

Click Stop. The Stop a Hardware device window appears.

Make sure the PC Card is selected, and click OK. A message appears stating it is safe to remove the hardware device.

Push the Release button. The Release button pops out.

Push the Release button a second time. The PC Card pops out.

Gently pull the card out of the slot.

To remove a PC Card while the computer is off

Push the Release button once. The Release button pops out.

Push the Release button a second time. The PC Card pops out.

Gently pull the card out of the slot.

Page 87

Frequently asked questions

Why doesn't my PC Card work?

Make sure the PC Card is inserted properly. See Inserting PC Cards for more information.



Make sure the PC Card is compatible with the Microsoft® Windows® operating system installed on your computer.



See the instructions that accompanied your PC Card. You may need to install driver software if you are not using a



Sony PC Card.

Why doesn't my computer recognize attached devices?

For some PC Cards, if you alternate between normal power operation and the Standby or Hibernate modes while the card is inserted into the PC Card slot, the computer may not recognize the PC Card or the connected device. Restart your computer.

Why can't I insert my PC Card?

Make sure you are inserting the card correctly. See Inserting PC Cards for more information.



You may not be able to use some PC Cards or some functions of the PC Card with this computer. Check the guide



that accompanied your PC Card for more information on its use.

Why does an exclamation mark (!) appear on the Device Manager tab in the System Properties dialog box?

The exclamation mark indicates there is a problem with the specified device. Make sure all cable and power



connections are secure.

You may not be using the most recent driver software provided by the PC Card manufacturer. Make sure the



necessary drivers are installed. You may need to remove the driver software, and reinstall it.

Page 88

Audio and Video Connections

Using i.LINK Digital-Video Recorders



Using Computer Monitors and Projectors



Using Speakers



Using Microphones



Page 89

Using i.LINK Digital-Video Recorders

You can connect a digital-video (DV) recorder, such as an i.LINK®1 digital video camera recorder, to the i.LINK® S400 (IEEE

1394) port on your computer. The i.LINK digital-video camera recorder is an external device that enables you to record and view digital images.

Connecting an i.LINK digital video recorder



Disconnecting the i.LINK digital video recorder



Using a digital video camera recorder



Frequently asked questions



i.LINK is a trademark of Sony us ed to des ignate that a produc t c ontains an I E E E 1 3 9 4 c onnector. T he i.LINK c onnec tion may vary, depending on the software application, operating system, and c ompatible i.LI NK devices. A ll products with an i.LI N K c onnec tion may not c ommunic ate with eac h other. Refer to the documentation that came with your compatible i.LIN K devic e for more information on operating c onditions and proper connection. Before connecting compatible i.LI N K P C peripherals to your system, s uc h as a C D-RW or hard dis k drive, c onfirm their operating s ystem compatibility and required operating conditions.

Page 90

Connecting an i.LINK digital video recorder

You can connect an i.LINK digital video (DV) recorder when the computer is on or off. Connecting the DV recorder when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

Before you connect an i.LINK digital video recorder

Do not connect more than one digital video camera recorder at a time. The preinstalled programs on your computer



will not recognize multiple cameras.

Do not connect an external device that requires power from the i.LINK port. The i.LINK port does not supply power



to the external device.

The i.LINK port supports transfer rates of up to 400 Mbps; however, the actual transfer rate is the lowest transfer



rate of the external device.

The i.LINK features available may vary depending on the programs you use. See the help guide that accompanied



your program for more information.

To connect an i.LINK digital video recorder

Turn on the digital video (DV) device and the computer.

Plug the i.LINK® cable into the i.LINK port on the DV device.

Plug the other end of the i.LINK cable into the i.LINK port on your computer. The Found New Hardware window appears on the lower right corner of your screen.

Connecting an i.LINK Digital Video Camera Recorder

See the guide that accompanied your digital video camera recorder for more information on its installation and use.

Page 91

Disconnecting the i.LINK digital video recorder

You can disconnect the digital video recorder while the computer is on or off. Simply unplug the i.LINK cable from the i.LINK port on the computer. Disconnecting the cable when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

Page 92

Using a digital video camera recorder

Your computer comes with preinstalled driver software that is compatible with most Sony digital video camera recorders. If you purchased a camera that comes with its own driver software, install these drivers before you use the camera.

To view images

You can view images captured by your digital video camera recorder three different ways. Select one set of instructions from the following list:

If your digital video camera recorder is compatible with the preinstalled programs, the Digital Video Device window



appears when you connect the camera to the computer. Select the program you want to use in this window, and click OK.

Click Start, and click All Programs. Select a program in which to view your images.



Click Start, and click Experience VAIO. Click Video, and select a program in which to view your images.



Page 93

Frequently asked questions

Why can't I use the DV recorder?

You may not be able to use the DV recorder, and the message DV equipment seems to be disconnected or turned off may appear because the i.LINK1 cable is not securely plugged into the ports on the computer or camera. Unplug the connectors, and plug them in again. See Connecting an i.LINK digital video recorder for more information.

Page 94

Using Computer Monitors and Projectors

You can connect an external display (such as a computer monitor or a projector) to your computer.

Connecting a computer monitor



Connecting a multimedia device



Selecting a display



Disconnecting a computer monitor or projector



Page 95

Connecting a computer monitor

Your computer can display images to the computer screen (LCD), to an external computer monitor, or to both the LCD and external monitor while your computer is on.

To connect a computer monitor

Make sure the computer monitor is plugged into an AC outlet.

Plug the display cable into the Monitor (VGA) port on the computer.

If it is not already on, turn on the computer monitor.

Press the Fn+F7 keys to toggle the display between your computer, the monitor, or both the computer and monitor. See Selecting a display for more information.

Connecting a Computer Monitor

Page 96

Connecting a multimedia device

You can connect a multimedia device, such as a multimedia computer monitor or projector, to your computer. Connecting a multimedia device enables you to display images on your computer screen (LCD), the multimedia device, or both.

For information on connecting a TV to your computer, see Playing DVDs.

To connect a multimedia computer monitor or projector

Plug the device into an AC outlet.

Plug the video cable into the Monitor (VGA) port on your computer. If you are using a multimedia computer monitor, which has built-in speakers and a microphone, you and also plug the audio cable into the Headphone

jack on your computer to hear sound.

To locate the Monitor port and Headphone jack, see "Locating Controls and Ports" in the "Setting Up" chapter of your printed VAIO® Computer Quick Start.

Connecting a Projector

Turn on the device (if it is not already on), and then turn on your computer.

Press the Fn+F7 key combination to toggle the display between your computer, the monitor, or both. See

Selecting a display for more information.

See the guide that accompanied your projector for more information on its installation and use.

Page 97

Selecting a display

You can connect external displays to your computer while it is on. When you connect an external display (projector, computer monitor, or TV) to your computer, you can switch the display between the computer screen (LCD), the external display, or both, using shortcut keys or the Display Properties settings.

Shortcut keys Result

Fn+F7 Toggles the display between the computer screen (LCD), a connected external display, such as a monitor or projector, and both the LCD and external display.

Select one display at a time. Connect the cable before you turn on the computer; otherwise, Fn+F7 will not work.

Fn+F8 Toggles the display between the computer screen (LCD), a connected TV, and both the LCD and TV.

To switch the display using the Display Properties settings

Depending on the external display, you may need to connect the display to the computer before you turn the computer on.

Click Start on the Windows® taskbar, and then click Control Panel and Appearance and Themes.

Click Display. The Display Properties window appears.

Click to select the Settings tab, and then click the Advanced button.

Click to select the nView tab. The (Multiple Monitors) and NVIDIA GeForce4 420 Go window appears.

(Multiple Monitors) and NVIDIA GeForce4 420 Go Window

Select the radio button of one of the four options available in the nView Modes box.

Page 98

Option Description

Standard Enables you to view the image on your LCD display.

Clone Enables you to view the image on both the LCD display and the external monitor.

Horizontal span Extends the image horizontally across the LCD display and the external monitor.

Vertical span Extends the image vertically across the LCD display and the external monitor.

You may not be able to display the computer screen (LCD) and an external display or projector at the same time, depending on the types of computer displays and projectors you are using.

Page 99

Disconnecting a computer monitor or projector

You can disconnect the external computer monitor or projector by unplugging the display or Monitor (VGA) cable from your computer's port. Disconnecting the external display when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

Page 100

Sony PCG-FR130, PCG-FR130P User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Welcome

Powering Your Computer

Using AC Power

Connecting the AC adapter

Turning on the computer

Using the Battery

Inserting a battery

Removing a battery

Locating battery information

Charging a battery

Notes on batteries

Frequently asked questions

Conserving Battery Power

Using power saving modes

Using power schemes

Frequently asked questions

Internet and Network Connections

Internet Connections

Setting up a dial-up Internet connection

Setting up an Ethernet Internet connection

Customizing your Internet connection

Frequently asked questions

Network Connections

Using Ethernet and dial-up connections

Using wireless network connections

Checking your network connection status

Frequently asked questions

Connecting Another VAIO Computer

Connecting VAIO computers

Disconnecting VAIO computers

Frequently asked questions

CDs and DVDs

Inserting and Ejecting CDs or DVDs

Copying and Playing CDs

Playing CDs

Copying files to a CD-RW or CD-R

Playing DVDs

Connecting your computer to a TV

Playing DVDs on a TV

Disconnecting your computer from a TV

Playing DVDs on your computer

Frequently asked questions

Printer Connections

Printing With Your Computer

Connecting a printer

Disconnecting a printer

Frequently asked questions

Computer Features

Using the Touch Pad

Describing the touch pad

Customizing the touch pad

Frequently asked questions

Changing the Window Design of Sony Programs

Mice and Keyboards

Using the Keyboard

Key locations and descriptions

Combinations and functions with the Windows key

Indicator lights

Combinations and functions with the Fn key

Connecting Mice and Keyboards

Connecting a mouse or keyboard

Disconnecting a mouse or keyboard

Frequently asked questions

Floppy Disk and PC Card Connections

Using the Floppy Disk Drive

Inserting and removing floppy disks

Protecting floppy disks

Frequently asked questions

Using PC Cards

Inserting PC Cards

Removing PC Cards

Frequently asked questions

Audio and Video Connections

Using i.LINK Digital-Video Recorders

Connecting an i.LINK digital video recorder

Disconnecting the i.LINK digital video recorder
