VAIO Notebook Computer User Guide

PCG-F150/PCG-F160/PCG-F180/PCG-F190

Page 2

Notice to Users

© 1999 Sony Electronics Inc. All rights reserved. This man ual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readab l e fo rm without prior written approval.

SONY ELECTRONICS INC. PROVIDES NO W ARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTA INED HEREIN AND HEREBY EXPRE S S LY DISCLAIMS ANY IMPLIED WARR ANTIES OF MERCHA NTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, W HE T HER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECT IO N WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMA T ION CONTAINED HEREIN OR THE USE THEREOF.

Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

fee and credit card information. Fin an cial services may require pri or arrangements with particip at in g financial instit ut ions.

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the

TAR guidelines for energy

efficienc y.

The International ENERGY STAR Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which busi n e ss proprietors can participate voluntar ily. The target e d products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standa rds and logo s are uniform amon g p articipating nati ons.

NERGY STAR is a U.S. registered mark.

Sony, i.LINK, VAIO and the VAIO logo are trademarks of Sony Corporation. W indows, Windows NT, and the Windows 98 logo are registered trademarks of Microsoft Corporation. Intel, MMX, and Pentium are trademarks of Intel Corporation.

All other trademarks are trademarks of their respective owners.

NERGY

This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or us ed outs ide the United States. Software specifications are subject to change without notice and may not necessaril y be identical to current r etail versions.

Updates and additions to software may require an additional charge. Subscriptions to online serv ic e p roviders may require a

Page 3

Safety Information

Owner’s Record

The model number and serial number are located on the bottom of your Sony VAIO Notebook Computer. Record the serial number in the space provided here. Refer to the model and serial number when you call your Sony Service Center.

Model Number: PCG-F150/PCG -F16 0/ PCG-F180/PCG-F190

AVERTISSEMENT

Pour prévenir tout risque d’incendie

❏

ou d’électr ocution, gar der cet appar eil à l’abri de la plu ie et de l’ humidité. Pour prévenir tout risque

❏

d’électrocution, ne pas ouvir le châssis de cet appareil et ne confier son entretien qu’à une personne qualifi ée. L’appareil doit êt re le plus près

❏

possible d ’une prise mur ale pour en faciliter l’accè s.

Serial Number:__ ______________________

WARNING

To prevent fire or shock hazard, do

❏

not expose your notebook computer to rain or moisture. To avoid electrical shock, do not open

❏

the cab inet. Refe r servici ng to qualified personnel only. Never install modem or telephone

❏

wiring during a lightning storm. Never install telephone jacks in wet

❏

locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone

❏

wire or termina ls unless the telephone line has been disconnected at the network interface. Use caution when installing or

❏

modifying telephone lines. Avoid using the modem during an

❏

electrical storm. Do not use the modem or a telephone

❏

to report a gas leak in the vicinity of the leak. A socket outlet should be as close as

❏

possible to th e u nit and easily accessible.

The laser beam used in the DVD-

ROM drive unit is harmful to the eyes. Do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only .

Regulatory Information

Declaration of Conformity

Trade Name: SONY Model No: PCG-F150/PCG -F16 0/

PCG-F180/PCG-F190 Responsible Party:

Sony Electronics Inc.

Address:

1 Sony Drive

Park Ridge, NJ 07656 Tele p h on e No. : 201-930-6970 This device complies with Part 15 of

the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received , including any int erfer ence that may cause undesir ed ope ration .

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Rules. These limits are desi gned to pr ovide reas onable protecti on against harmful interference in a resid e nt ial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and u s e d in accordance with the instructions, may cause harmful interference to radio communic ations.

Page 4

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, wh ich can be dete rmined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiv in g

❏

antenna. Increase the separation between the

❏

equipment and the receiver. Connect the equipment into an outlet

❏

on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced

❏

radio/TV technician for help.

You are cautione d that an y chan ge s or modifications not expressly approved in this manual could void your authority to operate this equipment.

Only peripherals (computer input/output devices, terminals, printers, etc. ) that comply with FCC Class B limits may be attached to this computer product. Operation with non-compliant peripherals is likely to result in interference to r adio and televis ion reception.

All cables used to connect peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded, may result in interference to radio and television reception.

FCC Part 68

This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC equivalenc e number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This modem uses the USOC RJ-11 telephone jack.

The REN is used to determine the quantity of devices which may b e connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). T o be certain of the number of devices that may be connected to the line, as det erm ined by the total RENs, conta ct the t ele phone compa ny to determine the maximum REN for the calling area.

If the terminal equipment (Notebook Computer PCG-F150/PCG-F160/ PCG-F180/PCG-F190) causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FC C if you believe it is necessary.

The telephone company may make changes in it s facilities, equ i p ment, operations or procedures that could affect the operations of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary m od ifications in order to maintain u ninterrupted service.

If trouble is experienced with this equipment (Notebook Computer PCG-F150/PCG-F160/ PCG -F180/ PCG-F190), please contact 1-888-4SONYPC (1-888-476-6972), or write to the Sony Customer Information Cent er, One Sony Drive, Park Ridge, NJ 07656 for repair and/or warranty information. If the trouble is causing harm to the telephone network, the telephone company may request that you remove the equipment from the network until the proble m is resolved.

Repair of this equipment should be made only by a Sony Service Center or Sony authorized agent. For the Sony Service

Page 5

Center nearest you, call 1-888-4SONYPC (1-888-476-6972).

Cet àppareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This equipment cannot be used on public coin service provided by the telephone company. Connection to Party Line Service is subject to st at e and p ossible provincial tariffs. (Contact th e st at e or provincial utility service commission, public service commission or corporation commission for information.)

Telephone Consumer Protection Act of 1991 (United States)

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic devic e to send any message via a telephone facsimile machine unless such message clearly contains, in a margin at the top or bottom of each transmit ted p ag e or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity, or individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual.

In order to program this in formation into your facsimile machine, see your fax software document at ion.

Telephone Consumer Guidelines (Canada)

Please refer to you r telepho ne directo ry under ‘Privacy Issues’ and/or ‘Terms of Service.’ For more detailed information please contact:

CRTC Terrasses de la Chaudiére, Tour centrale 1 promenade du Portage, 5 étage Hull PQ K1A 0N2.

DISPOSAL OF LITHIUM ION BATTERY

You can return your unwanted lithium ion batteries to your nearest Sony Service Center or Factory Service Center.

✍

In some a reas the di sposal of li thiu m ion batteries in household or business trash may be prohibited.

For the Sony Service Center nearest you call 1-888-476-6972 in the United St at es or

1-800-961-7669 in Canada

Do not handle damaged or leaking lithium ion batteries.

Ne pas manipuler les batteries au lithium-ion qui fuient ou sont endommagées.

Danger of explosion if battery is incorr ec tly replac ed. Replace only with the same or equi valent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructio n s.

Une batterie non conforme présente un danger d'explosion. La remplacer seulement par une batterie identique ou de type équivalent recommandé par le fabricant. Évacuer les batteries usées selon les directives du fabricant.

This Class B digital apparat us c omplies with Canadian ICE S -003.

Page 6

The battery pack used in this

device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 212°F (100°C) or incinerate. Dispose of used battery promptly. Keep away from children.

La manutention incorrecte du

module de batterie de cet appareil présente un risque d'incendie ou de brûlures chimiques. Ne pas démonter, incinérer ou exposer à une température de plus de 100°C. Évacuer promptement la batterie usée. Garder hors de portée des enfants.

INDUSTRY CANADA NOTICE

NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipmen t meets certain teleco mmuni cati ons networ k protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

telecommunications company cau se to request that the user disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and in t ernal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution: Users should not a ttempt to make such connections themselves, but should contact the appropriate electric inspection authority, o r el ect ri cian, as appropriate.

NOTICE: The Ringer Equivalence Number (REN) assigned t o e ach t e rminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combinat ion of devices subject only t o the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. The Ringer Equivalence Number for this equipment is 0.4.

AVIS DE L’INDUSTRIE CANADA

AVIS: L’étiquette d’In dustrie Cana da identifie le matériel homologué .

Before ins t a lling this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection.

The customer should be aware that compliance with the above con di tions may not prevent degrad at io n of s erv ice in some situations.

Repairs to cert ified equipment shou ld be coordinated by a r epres entative designa ted by the supplier. Equipment malfunctions or any repairs or alterations made by the user to this equipment may give the

Cette étiqu ette certifie qu e le matériel est conforme aux normes de protection , d’exploitatio n et de sécuri té des rés eau x de télécom munications , comme le prescrivent les documents concernant les exigences techniques rela ti ves au maté riel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avan t d’installer ce ma t é rie l, l’utilisateu r doit s’assurer qu’il est permis de le raccorder aux installations de l’ e n treprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement. L’abonné ne doit pas oublier qu’il est

Page 7

possible que la conformité aux conditions énoncées ci-dessus n’empêche pas la dégradation du se rv ice dans certaines situations.

Les réparations de ma t ériel homologué doivent être coordonnées par un représentant désigné par le fournisseur. L’entreprise de télécommunications peut demander à l’ u tilisateur de dé brancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fil s de mise à la terre de la source d ’éner gie électrique, des l ignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, son t rac co rdés ensemble. Cette précaution est particuliè rement importante dans le s régions rurales .

Avertissement: L’utilisateur ne doit pas tenter de fair e ces raccor dements lui- même; il doit avoir recours à un service d’inspection des in st allations électriques, ou à un électricien, selon le cas.

AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccor dés à une interface.

La terminaison d’une interfac e téléphonique peut consister en une combination de quelques dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie de tous les dispositifs n’ e xcède pas 5.

Page 8

Page 9

Contents

Welcome

Ergonomic Considerations.............................................................2

Using Your Notebook Computer

Locating the Controls and Connectors.........................................5

Connecting a Power Source ...........................................................9

Starting Your Computer ...............................................................14

Shutting Down Your Computer..................................................15

Registering Windows

98.............................................................16

Registering Your Computer.........................................................17

Using the Keyboard.......................................................................18

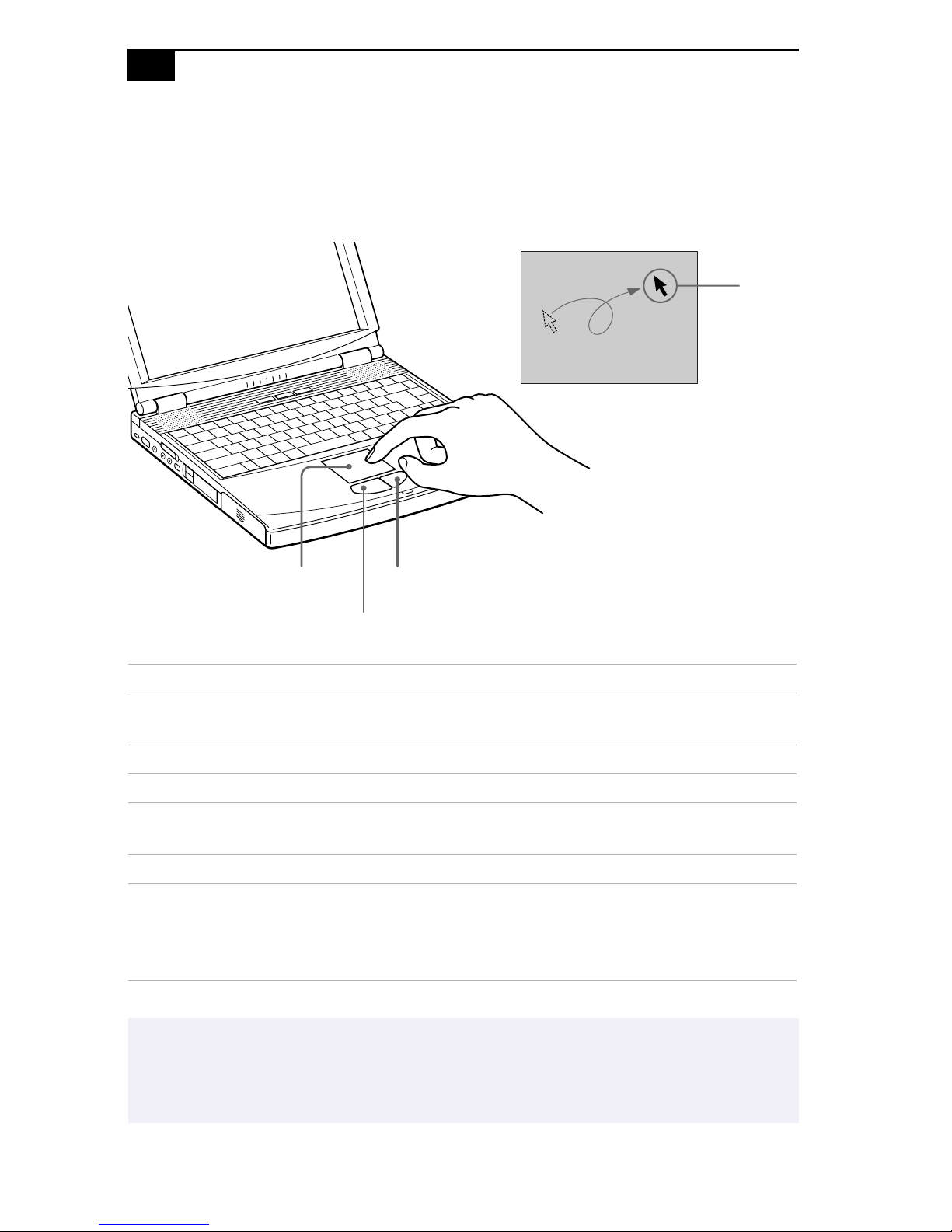

Using the Touchpad......................................................................24

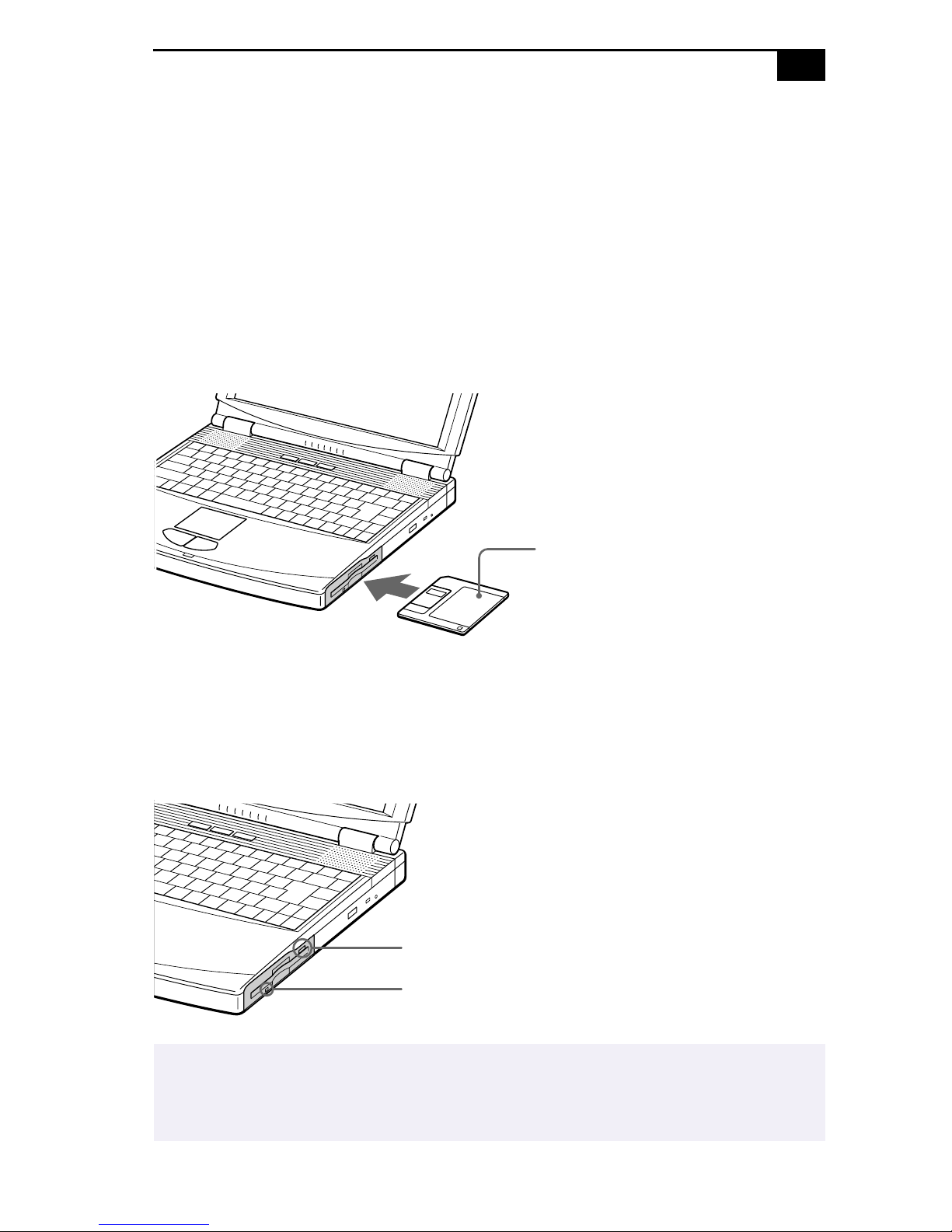

Using the Floppy Disk Drive .......................................................25

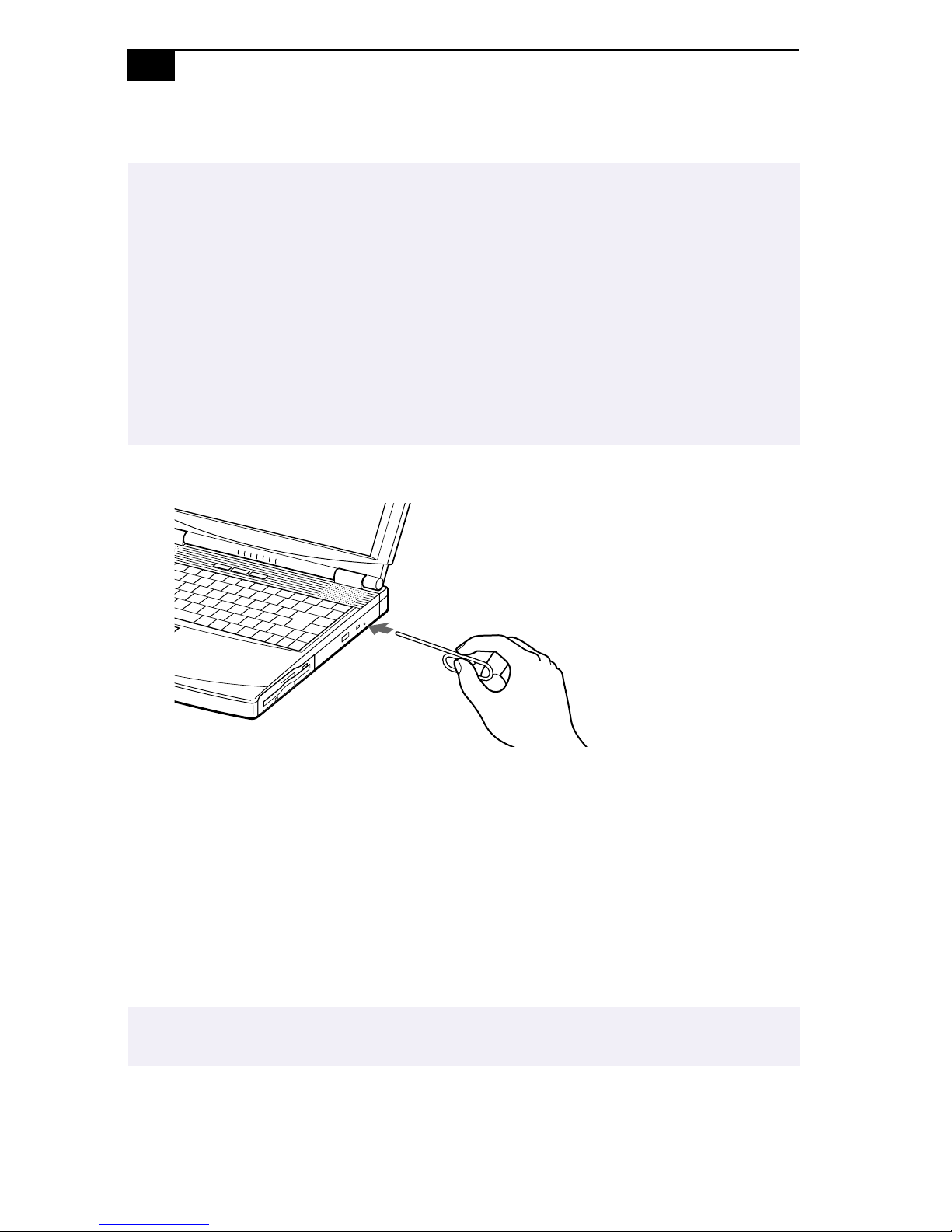

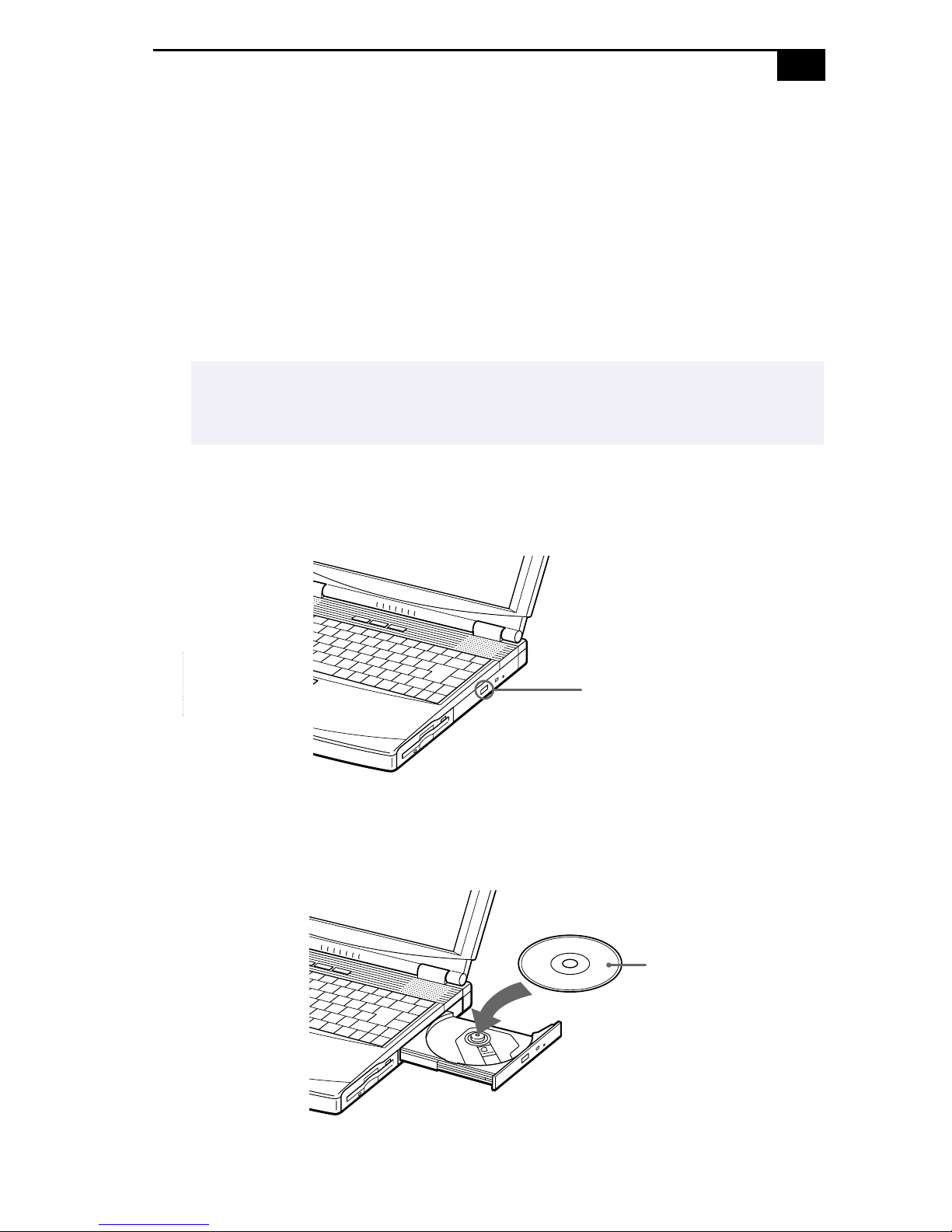

Using the DVD-ROM/CD-ROM Drive......................................27

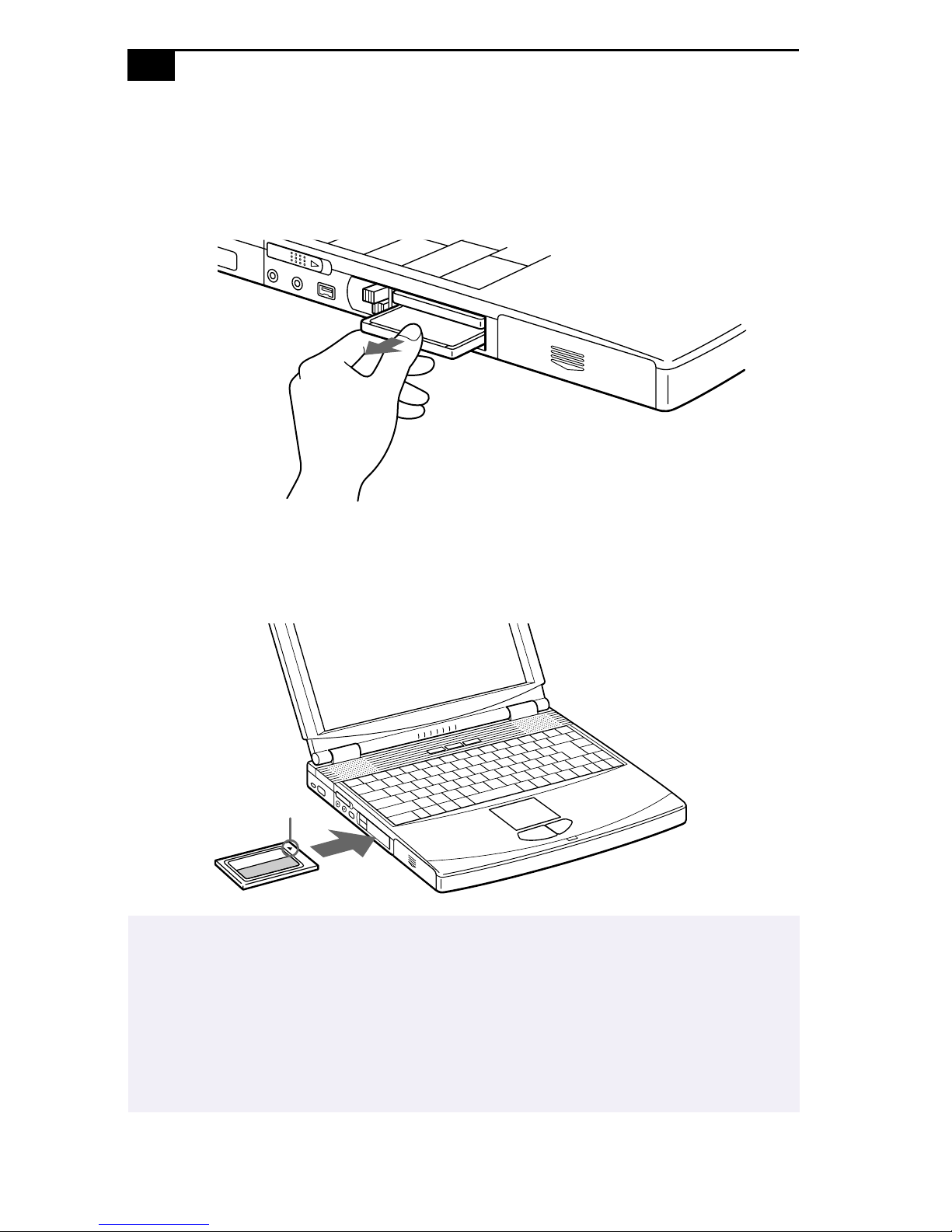

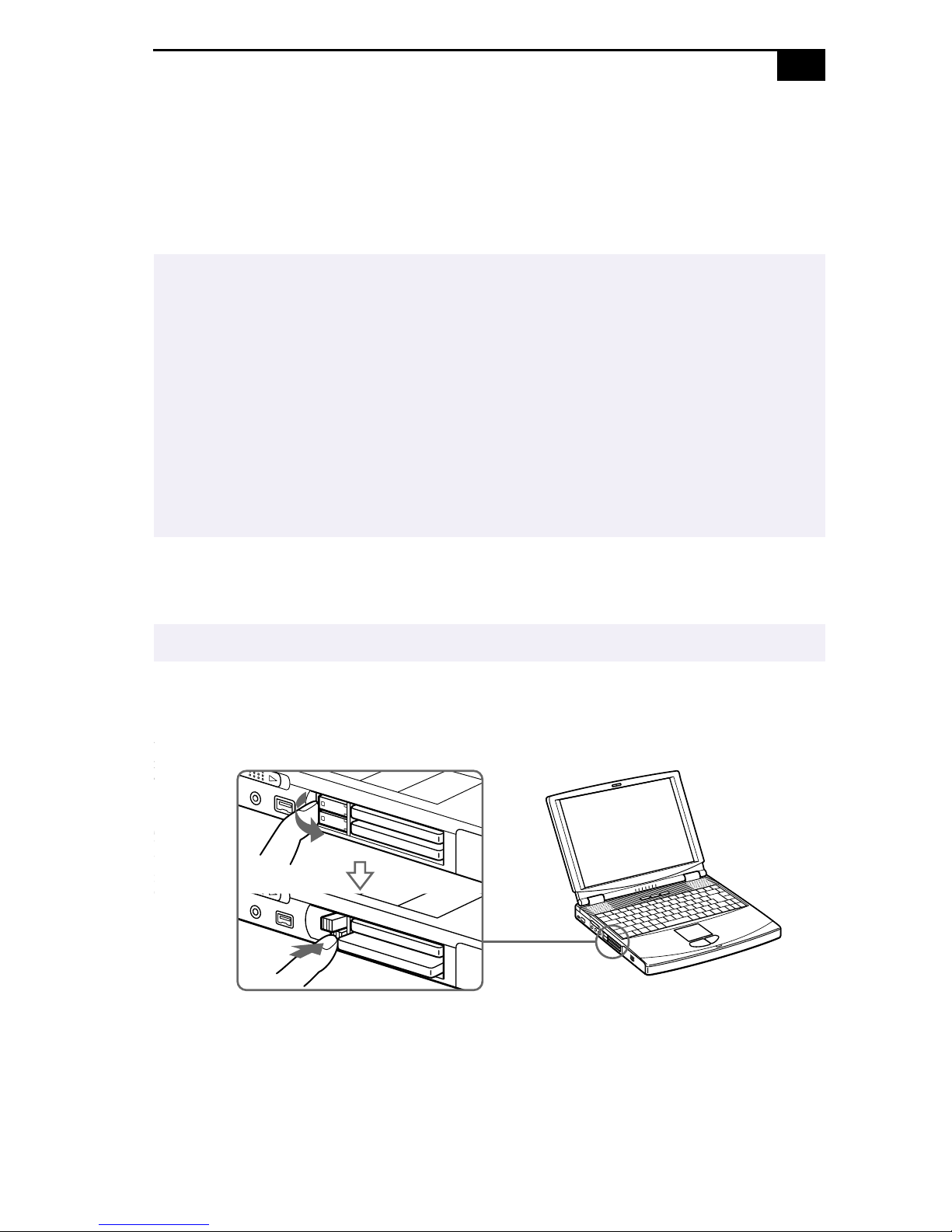

Using PC Cards..............................................................................29

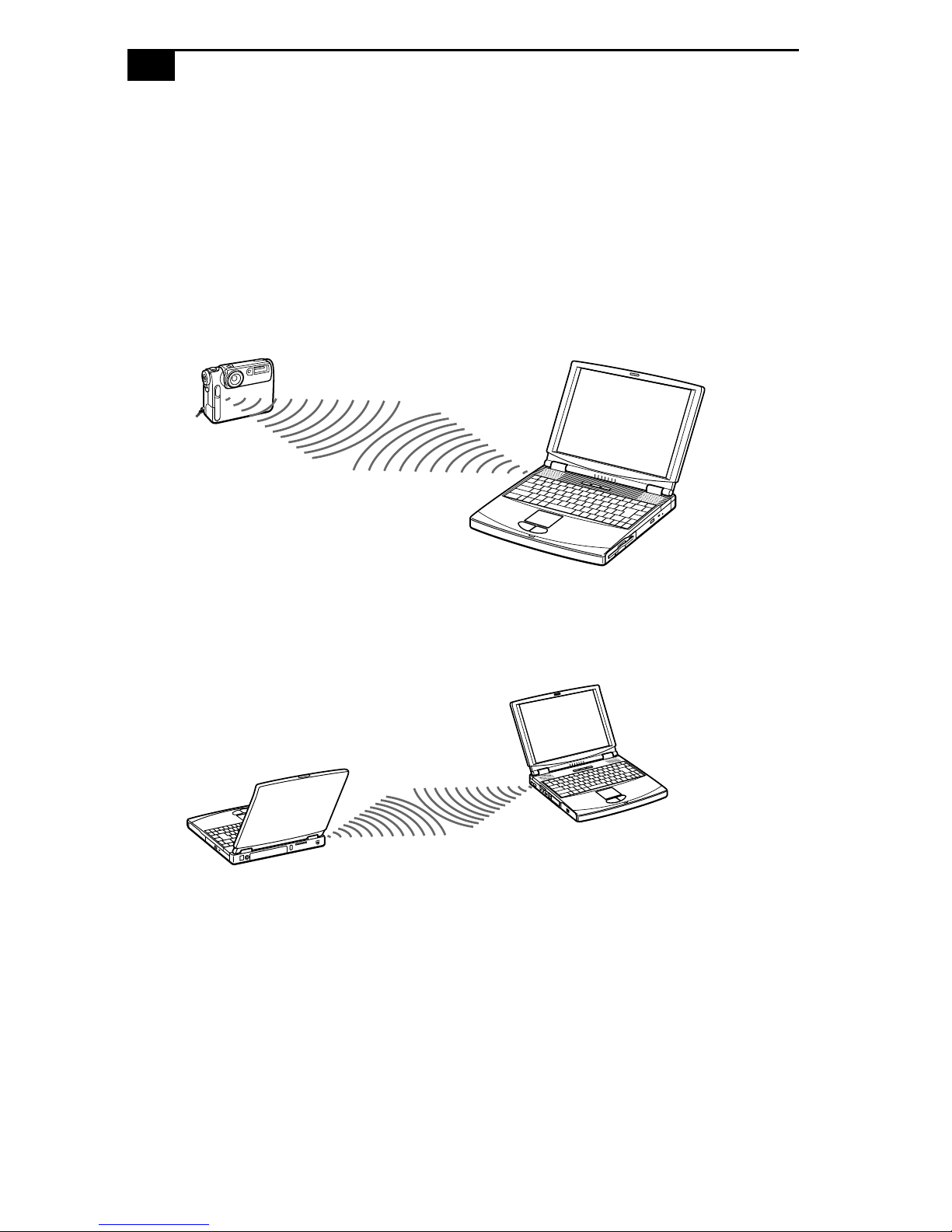

Using Infrared Communication Devices....................................32

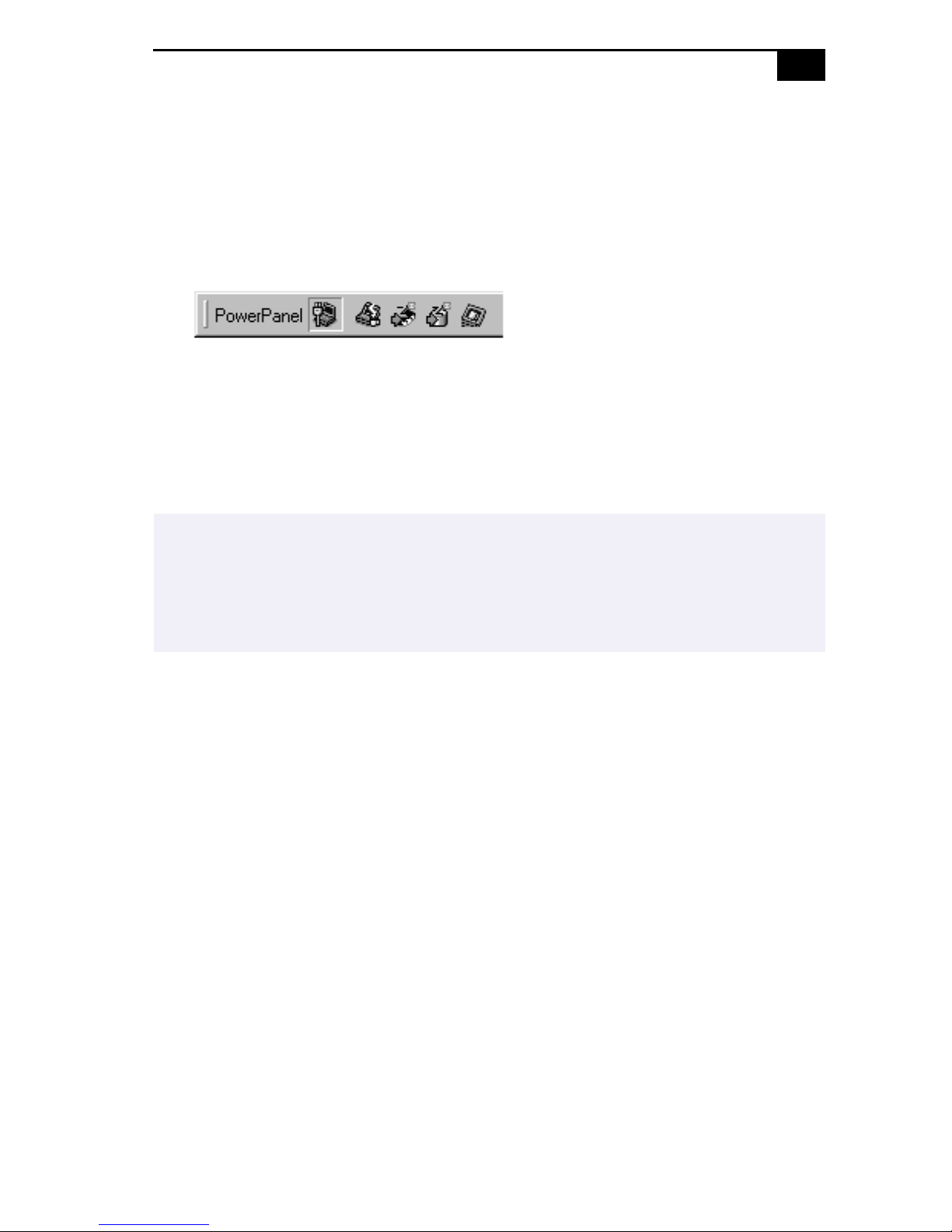

Using Power Saving Modes.........................................................34

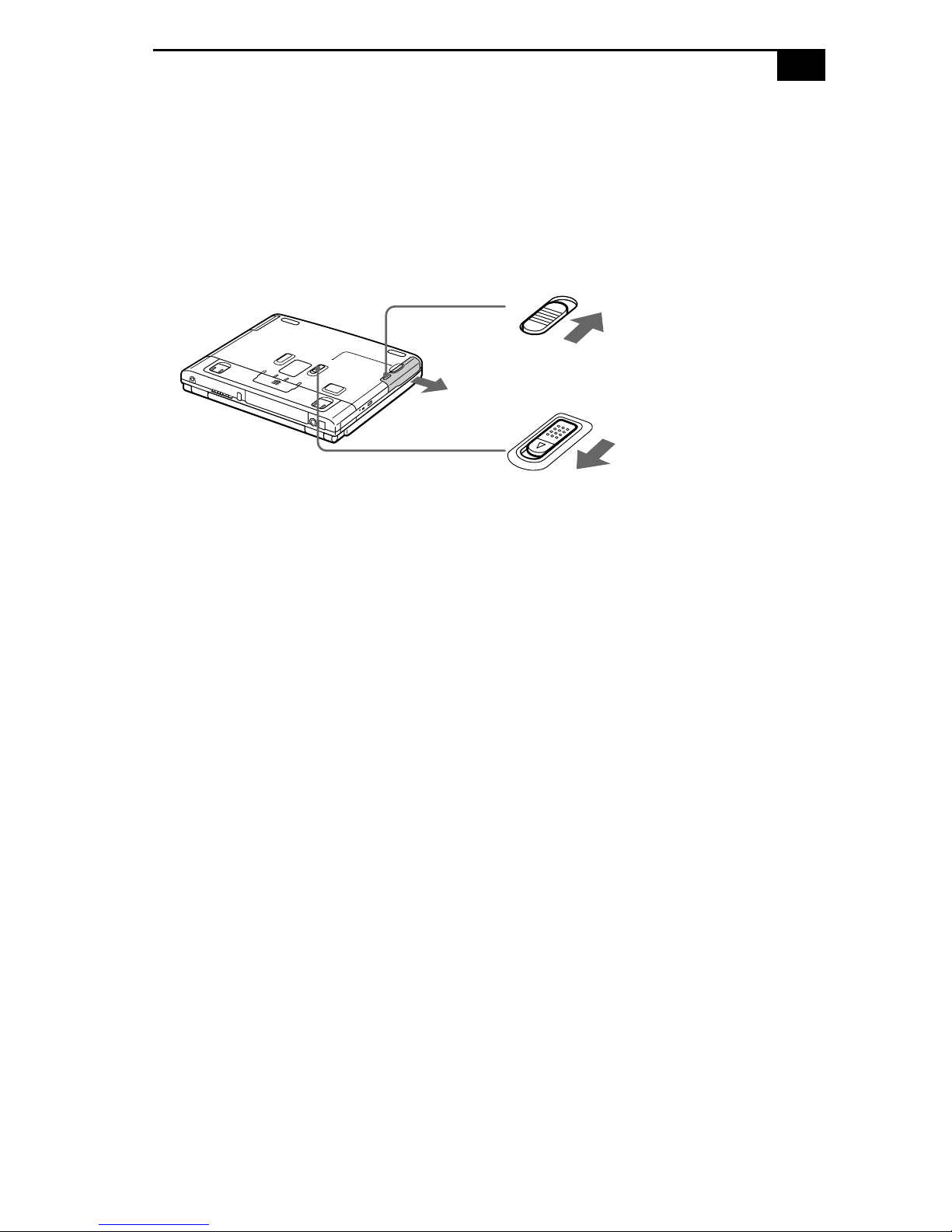

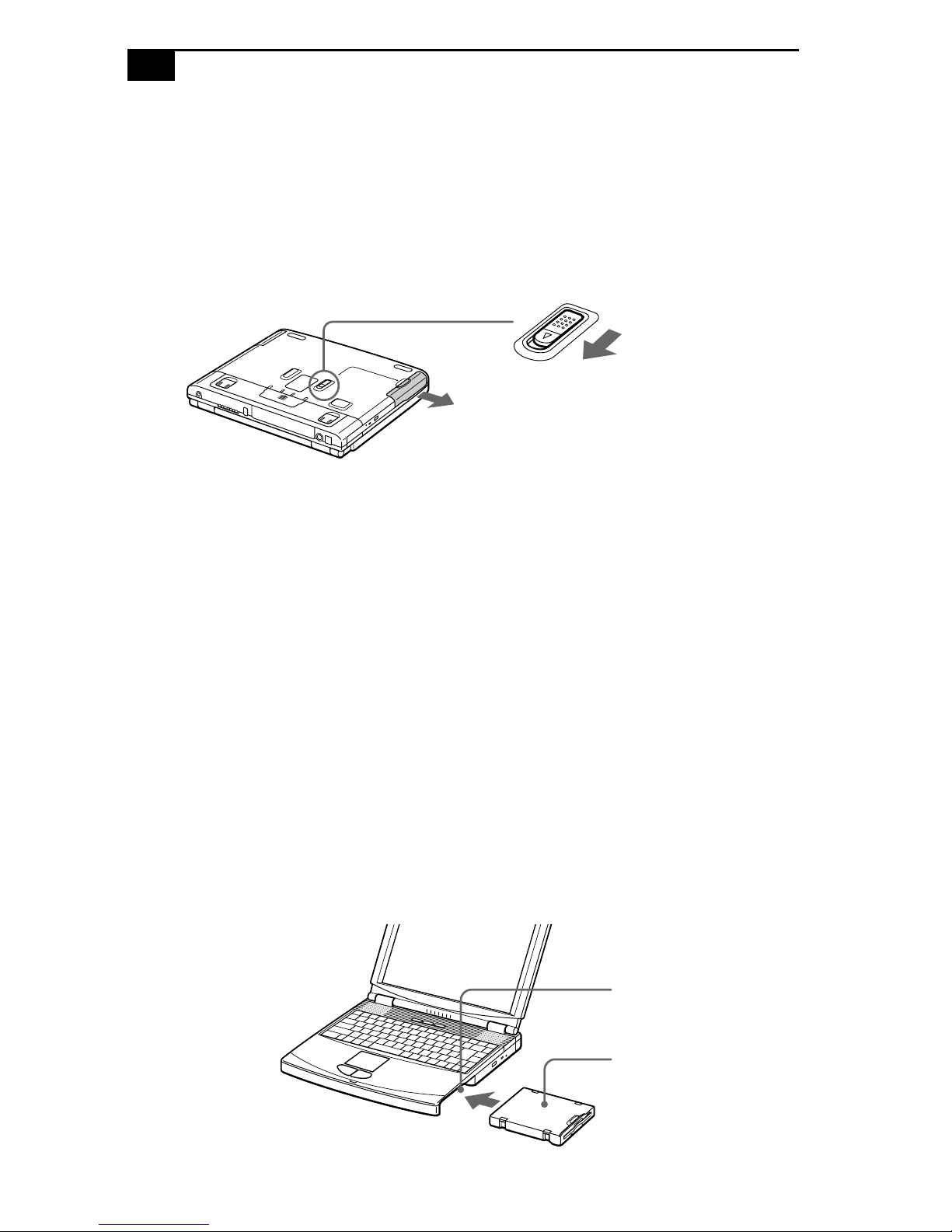

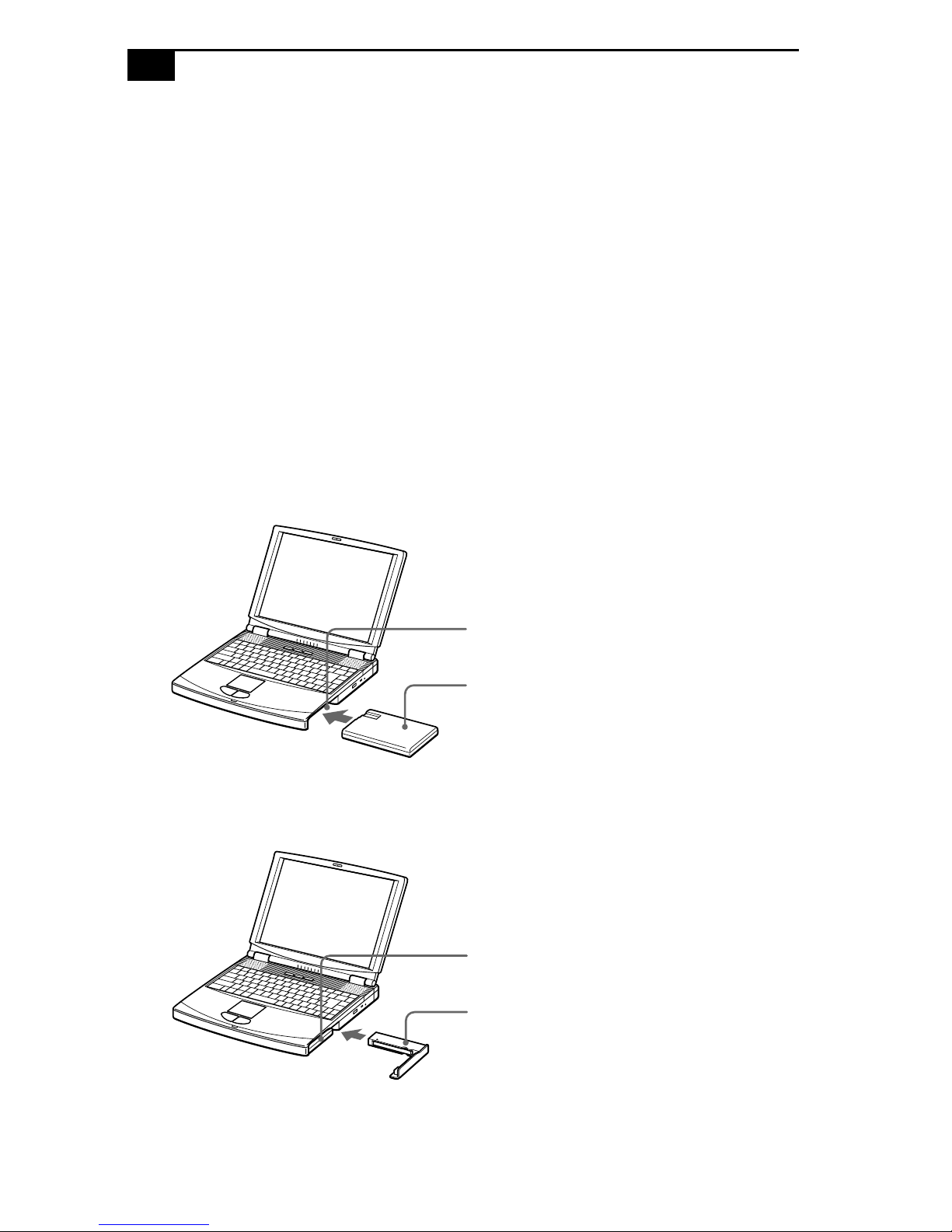

Using a Second Battery Pack........................................................36

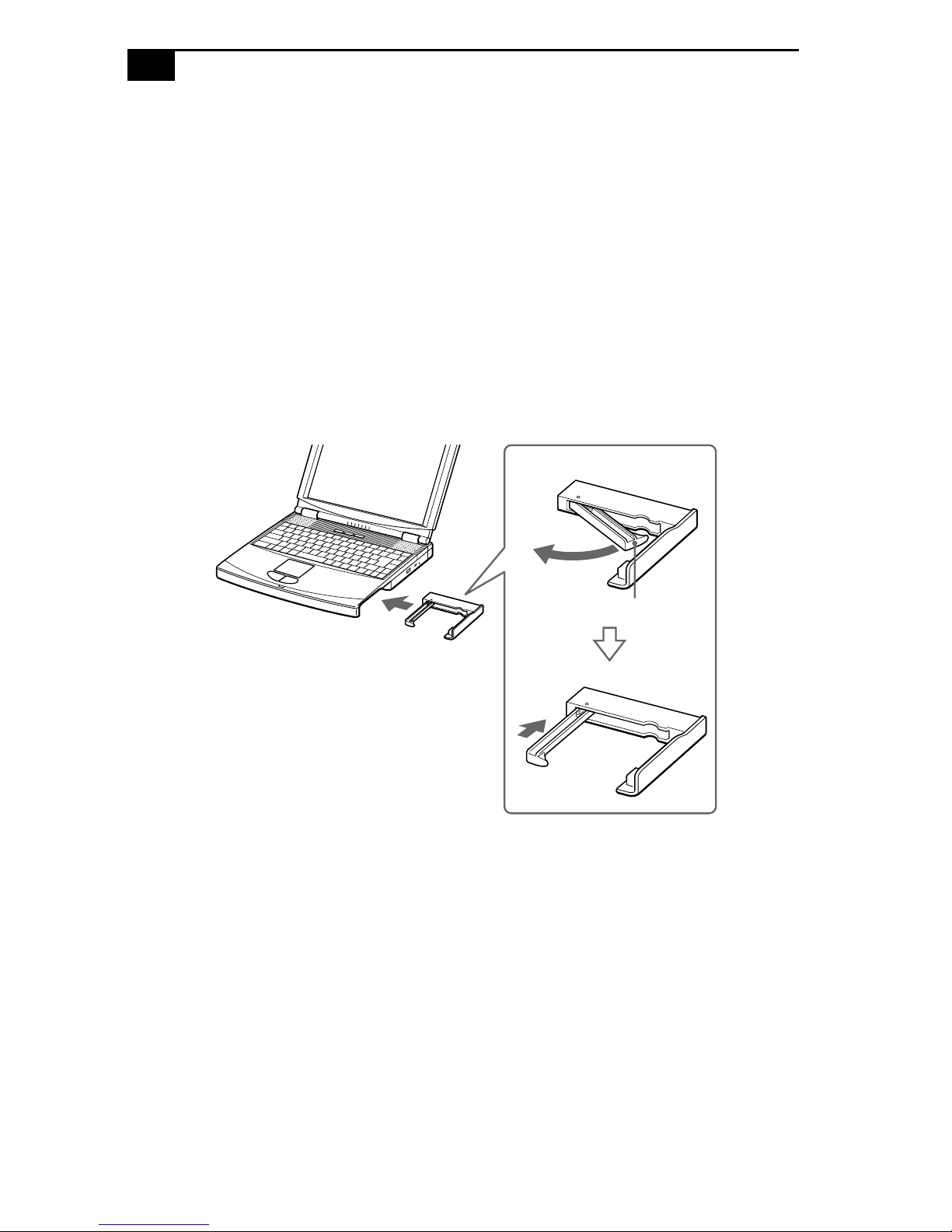

Using the Weight Saver .......................................... ......... .............38

Page 10

VAIO Notebook Computer User Guide

Connecting Peripheral Devices

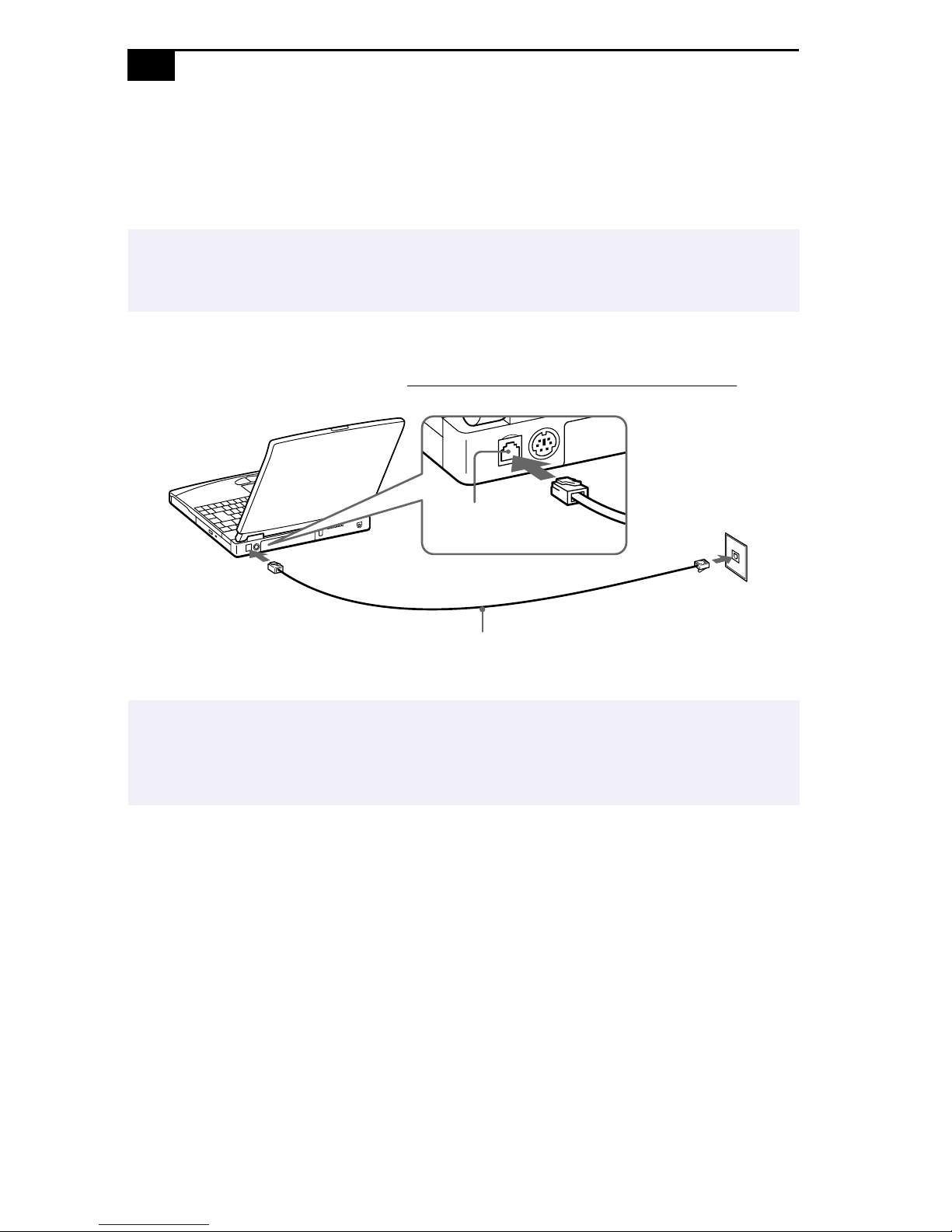

Connecting a Phone Line ..............................................................42

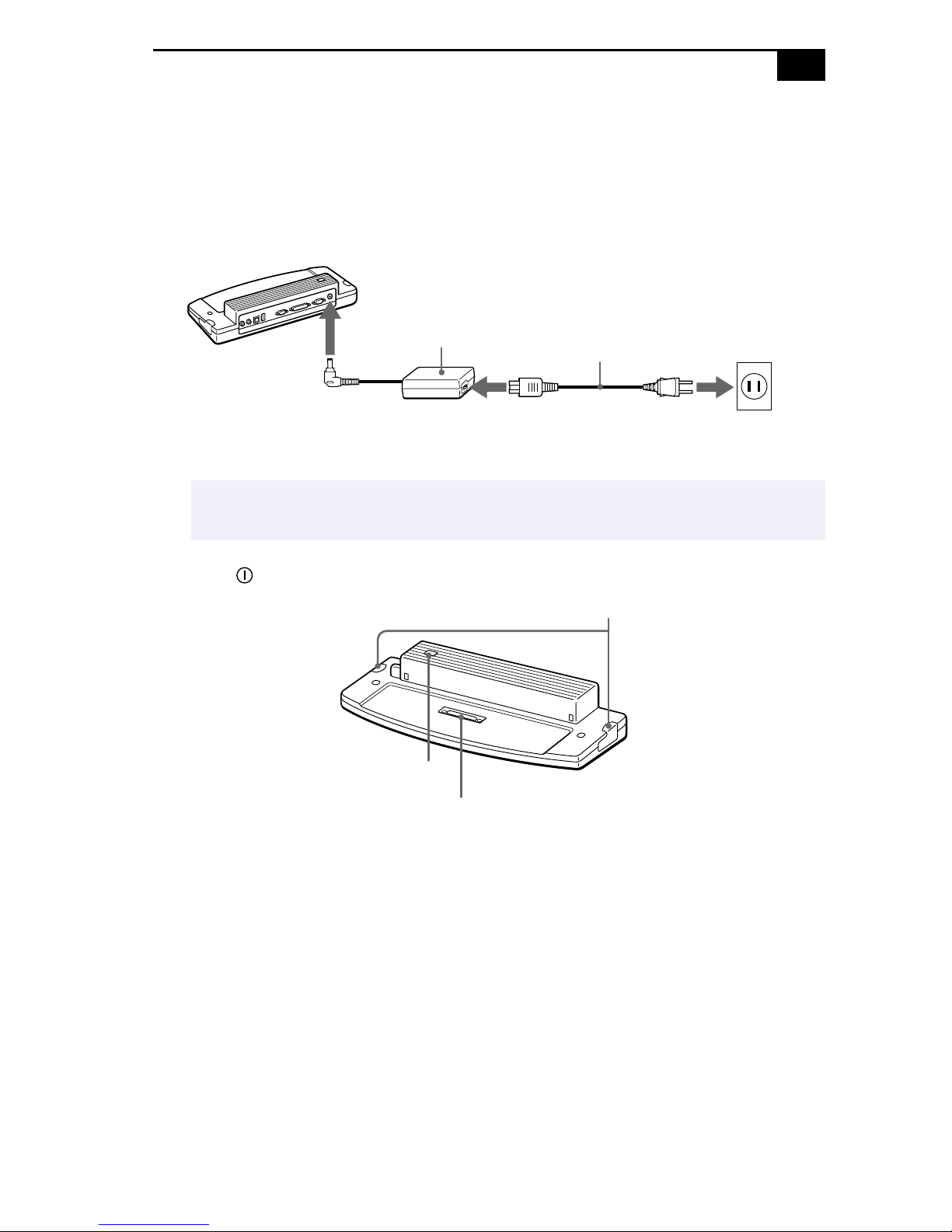

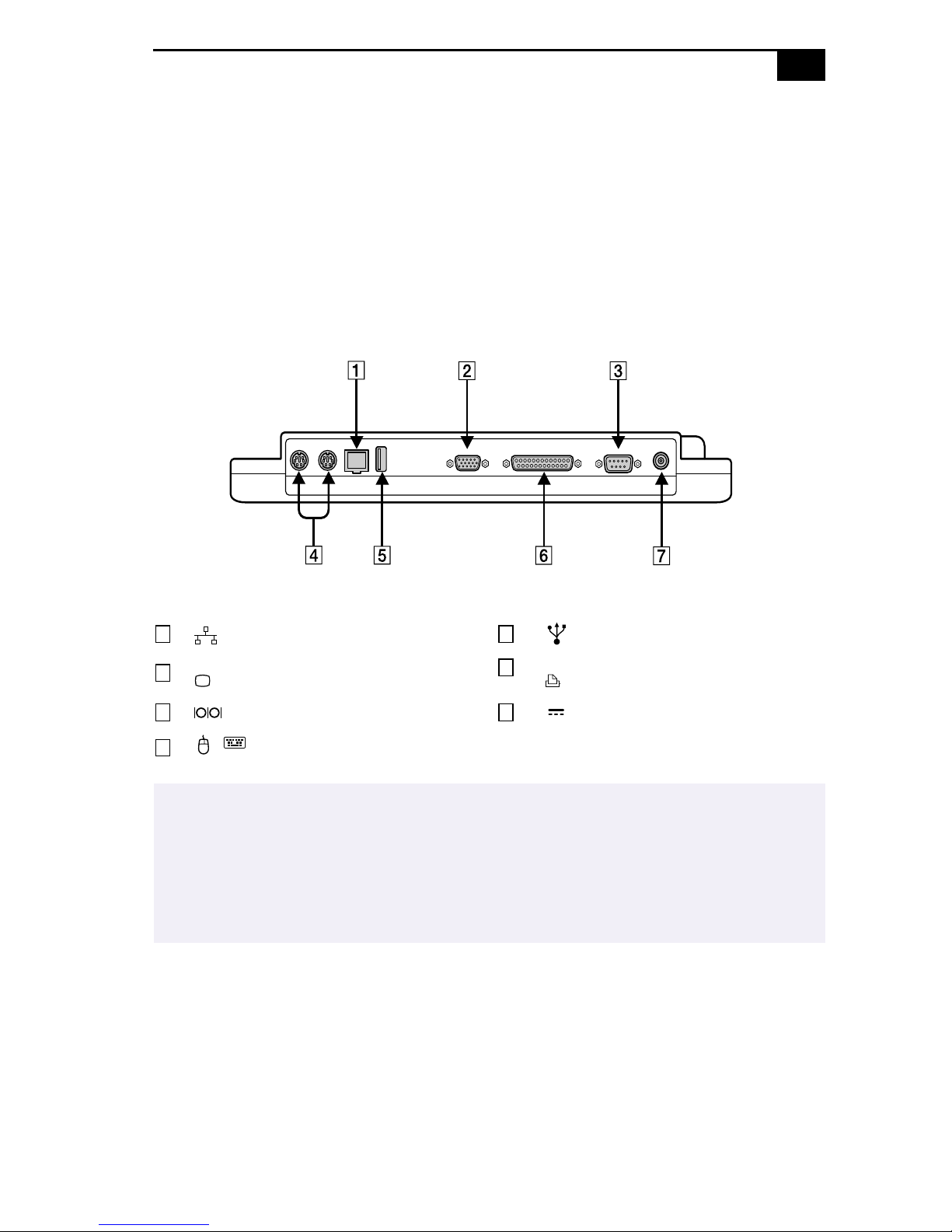

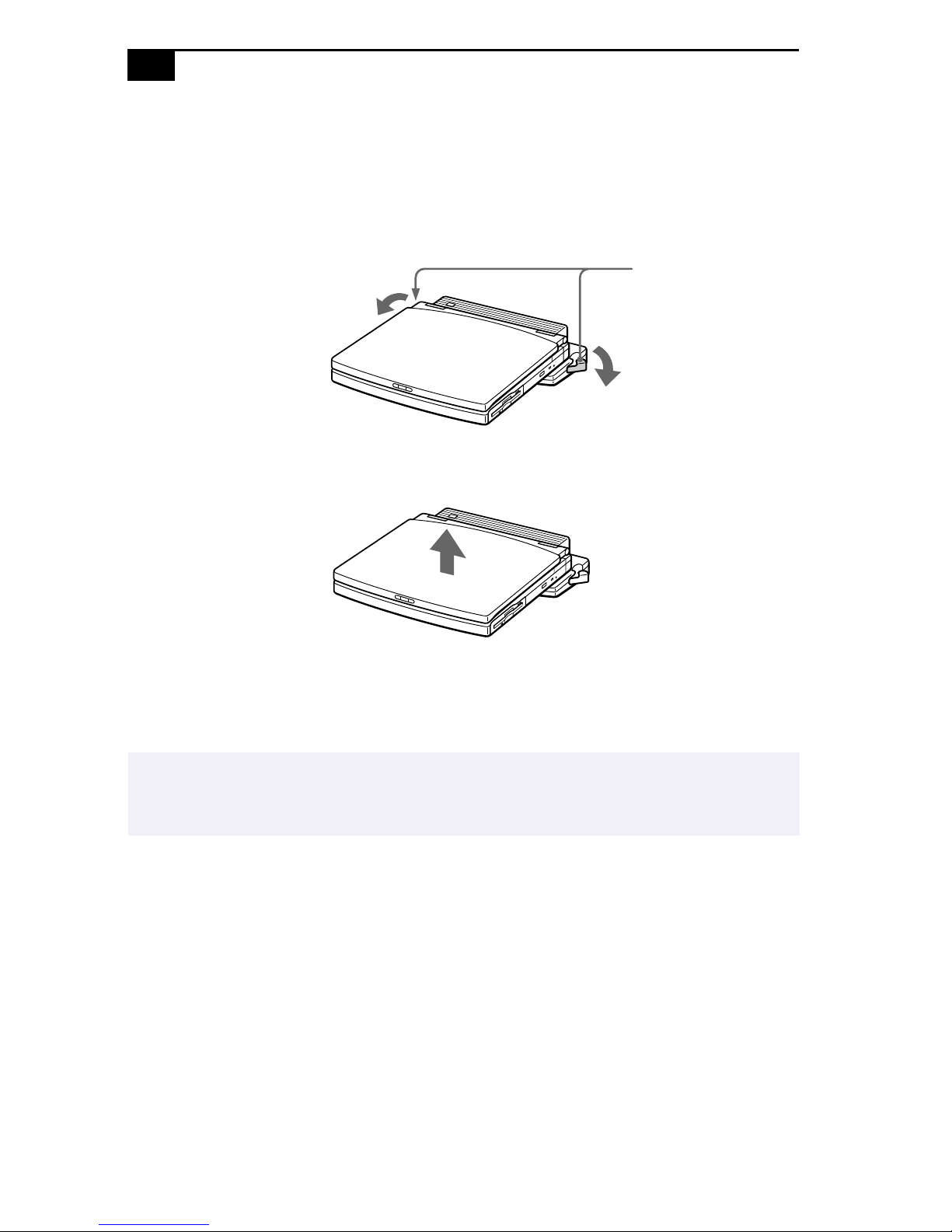

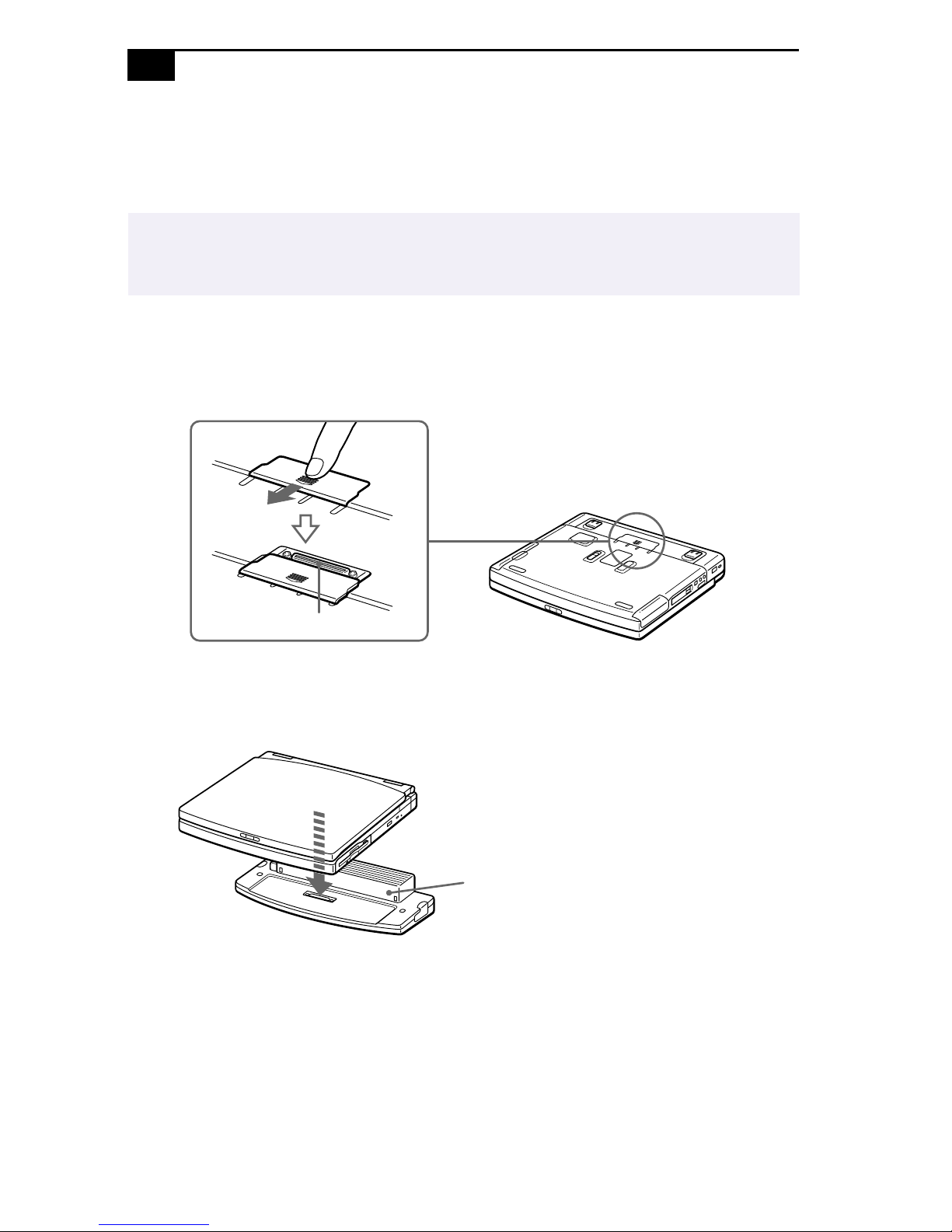

Connecting the Port Replicator....................................................43

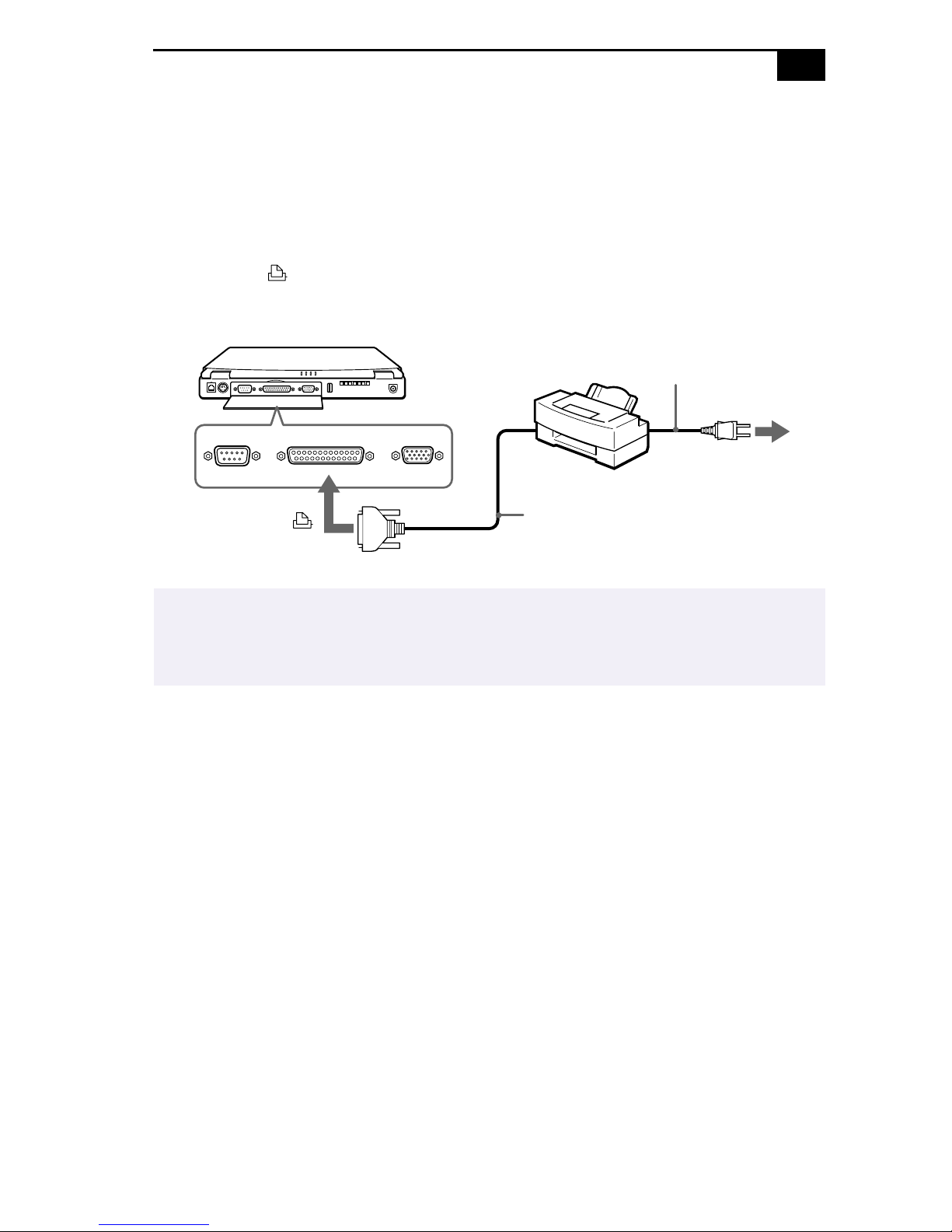

Connecting a Printer......................................................................47

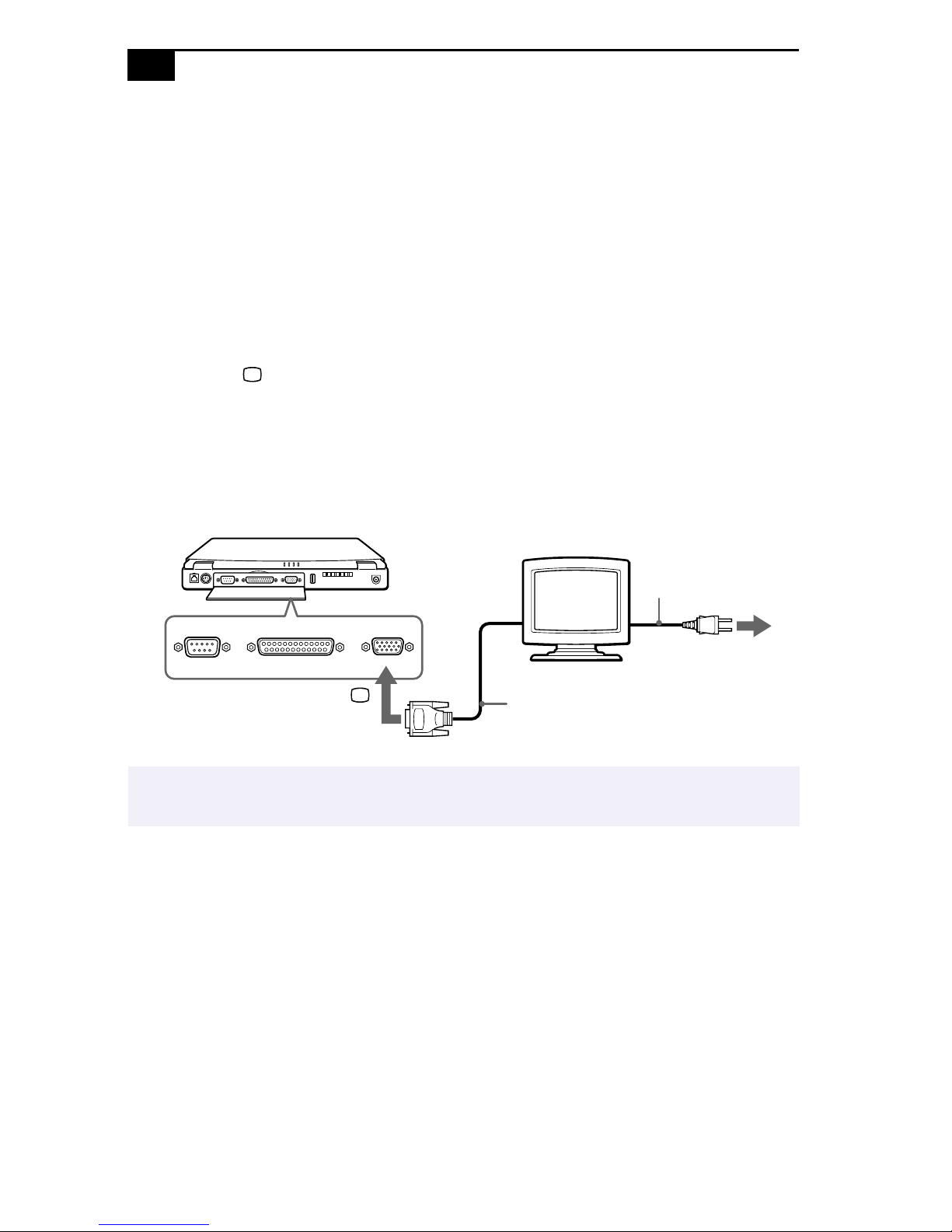

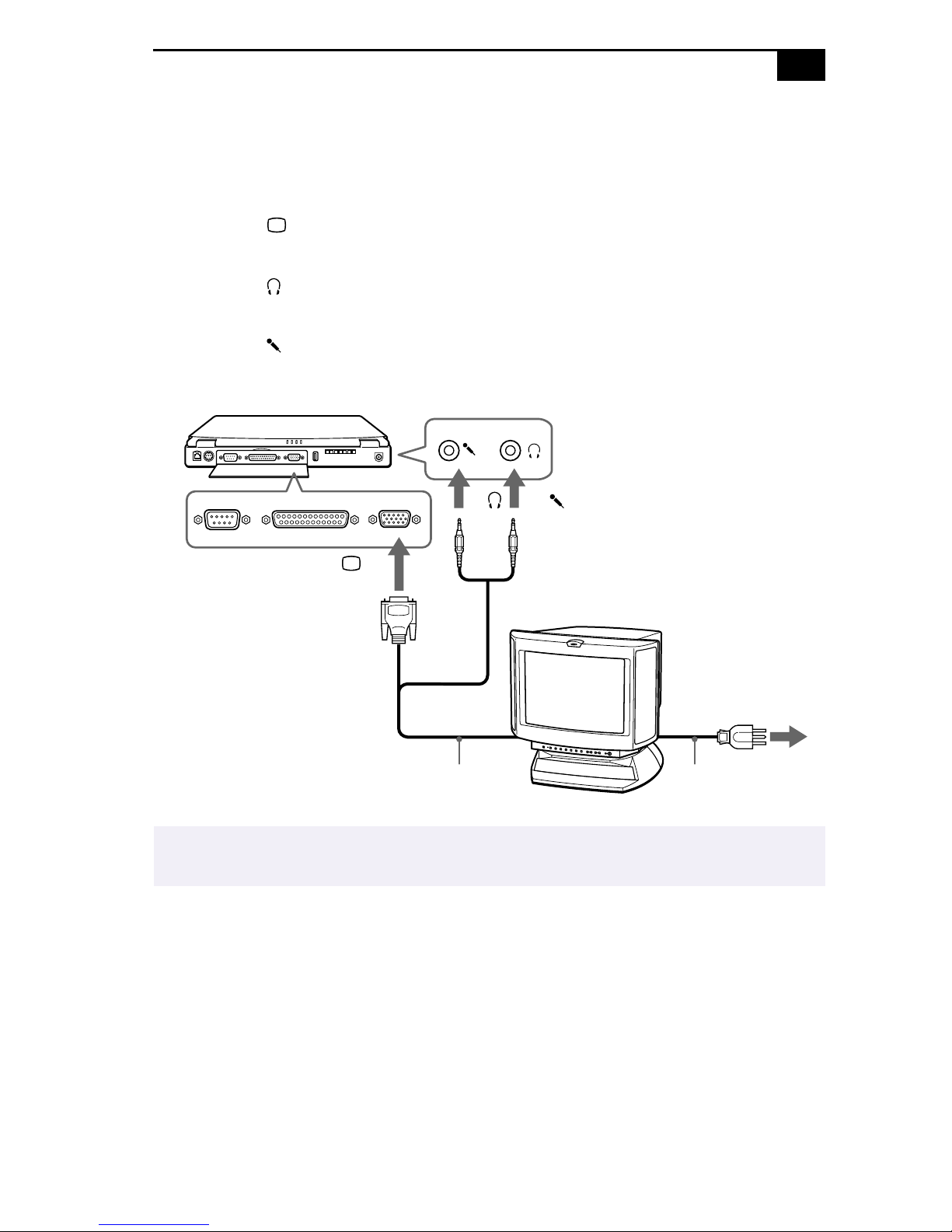

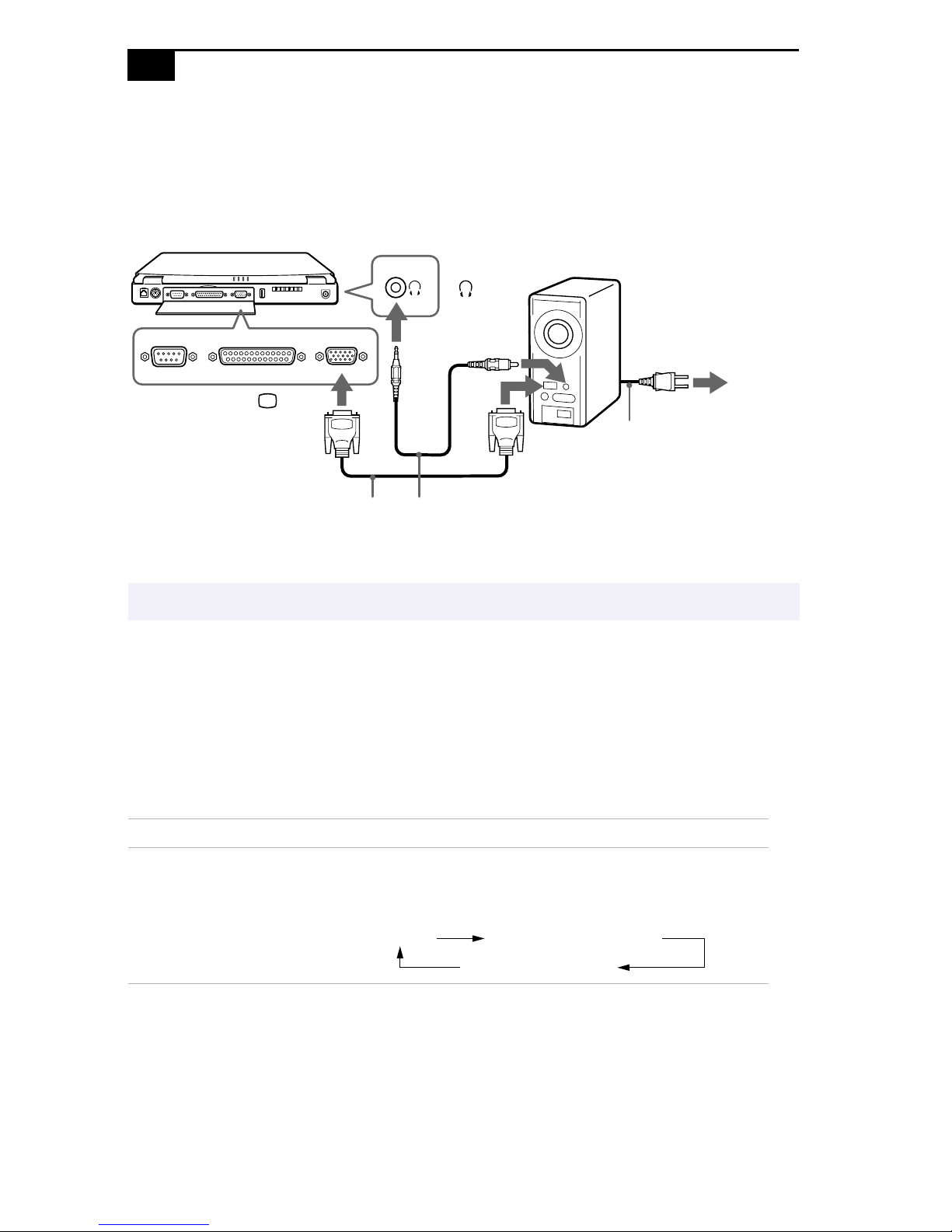

Connecting an External Display...................................................48

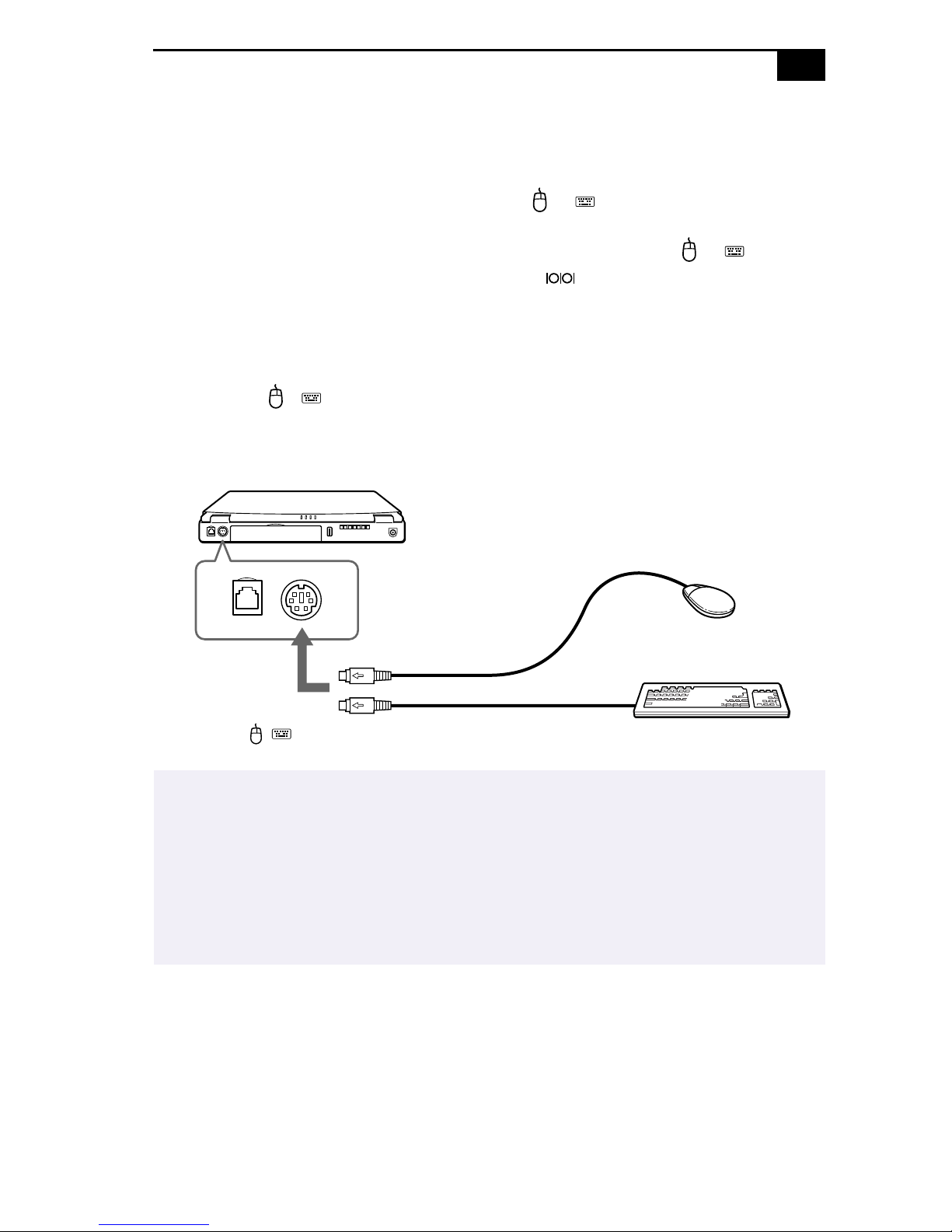

Connecting an External Mouse or Keyboard.............................51

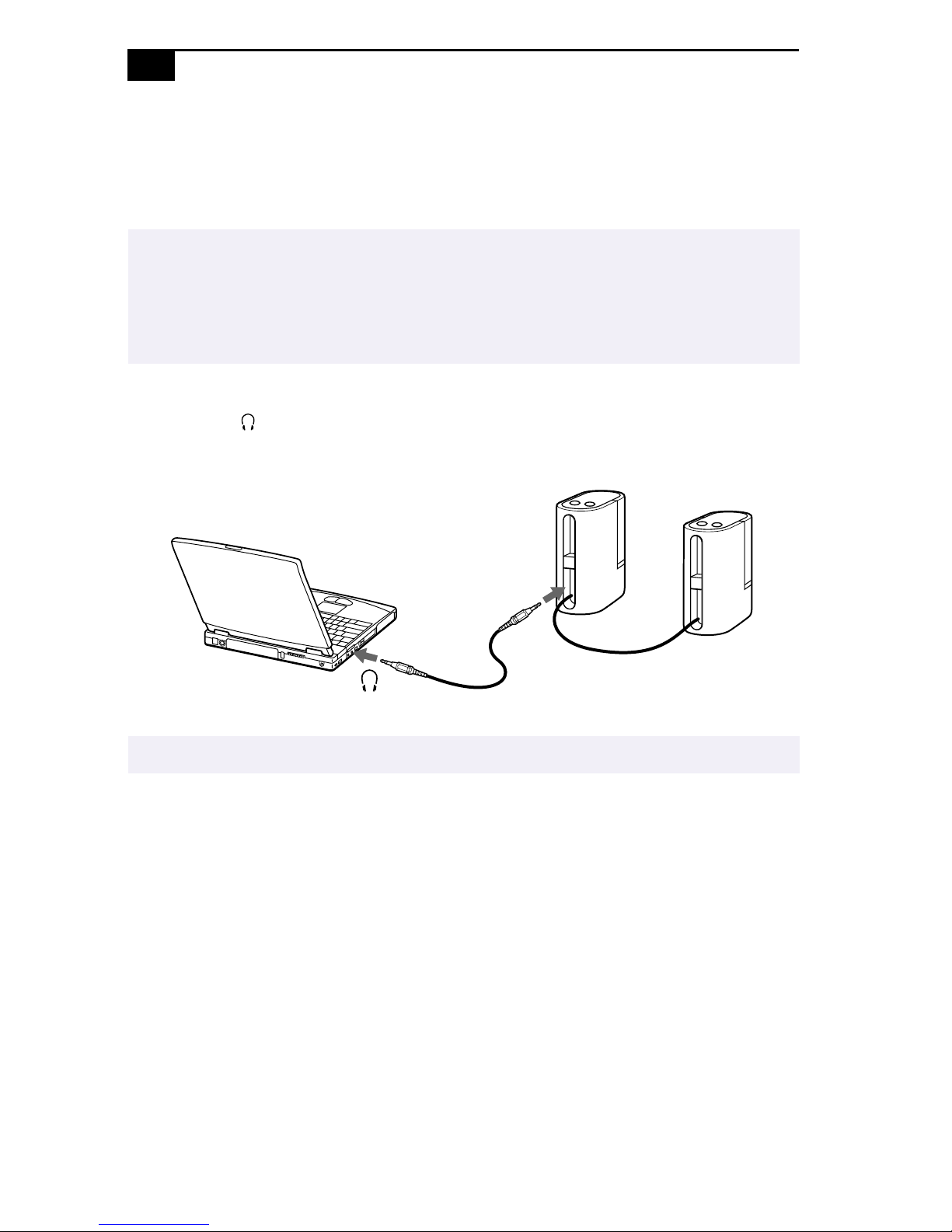

Connecting External Speakers......................................................52

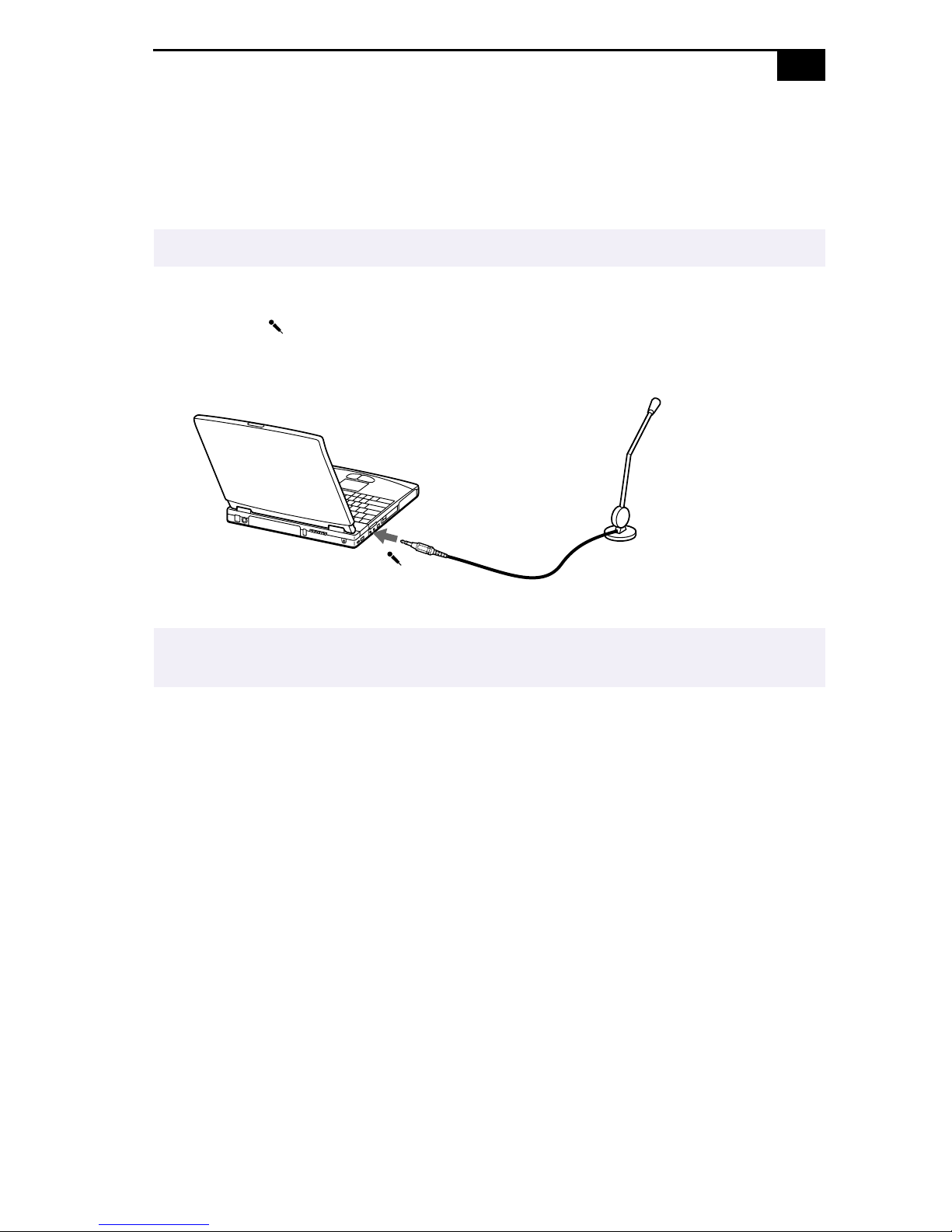

Connecting an External Microphone...........................................53

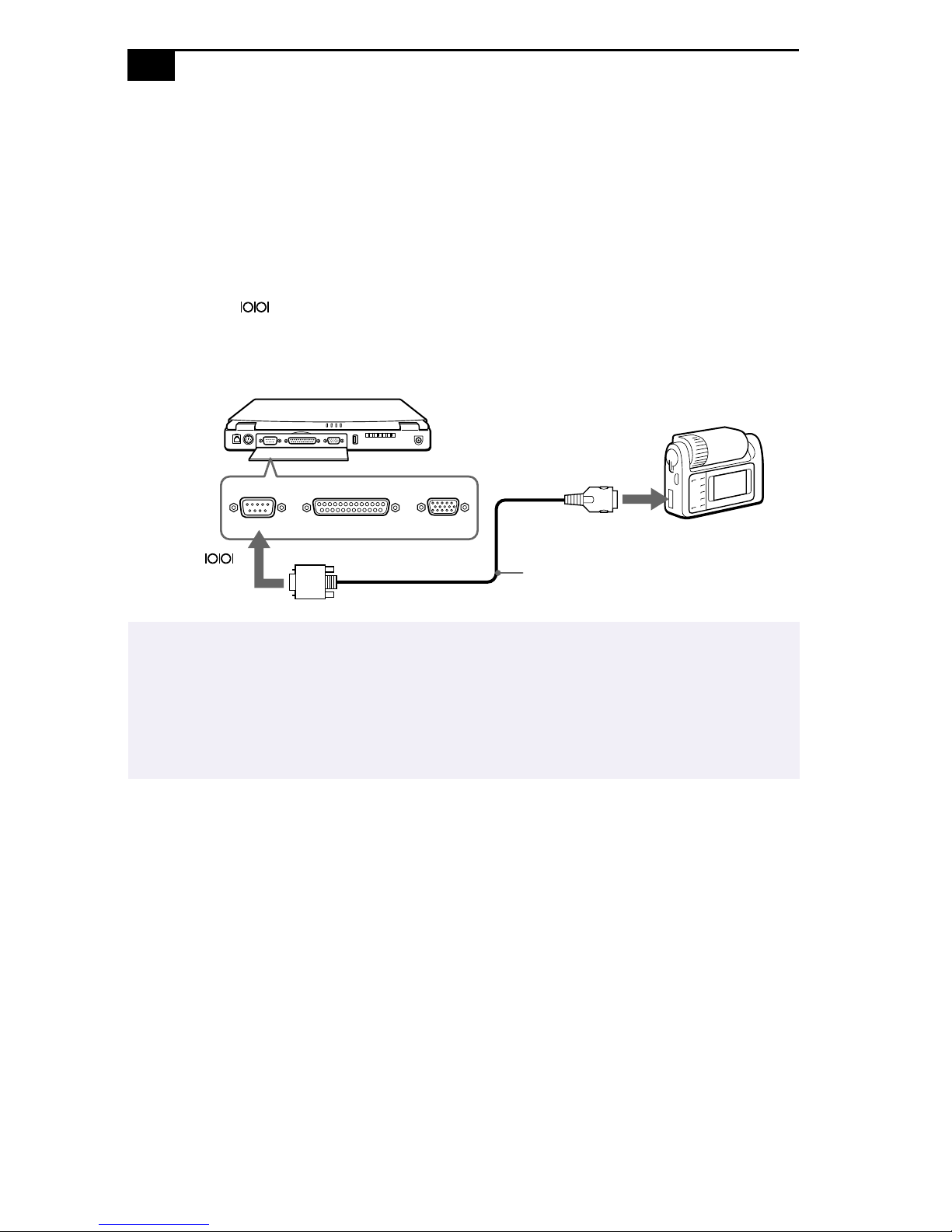

Connecting a Digital Still Camera or Other Serial Device .......54

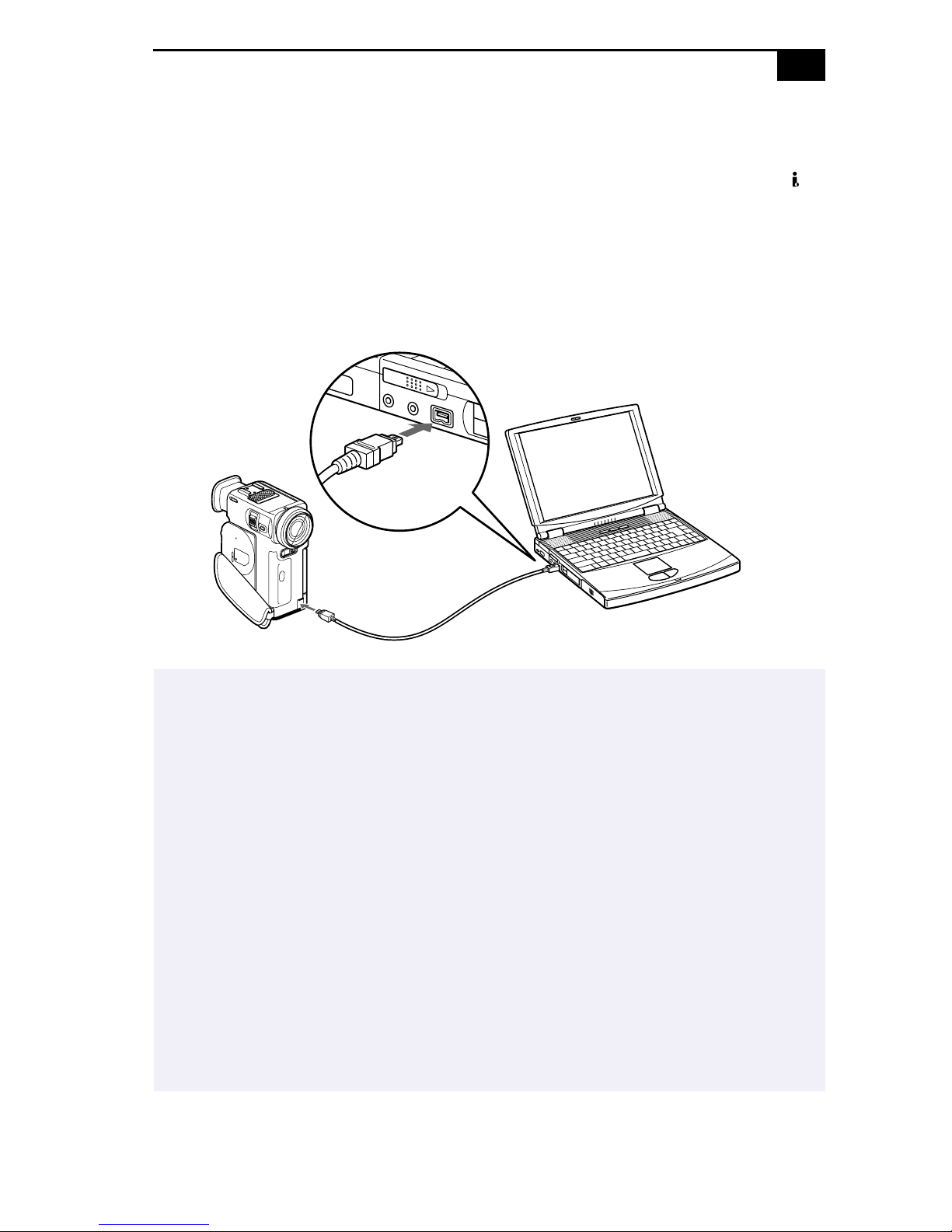

Connecting a Digital Video Camera Recorder...........................55

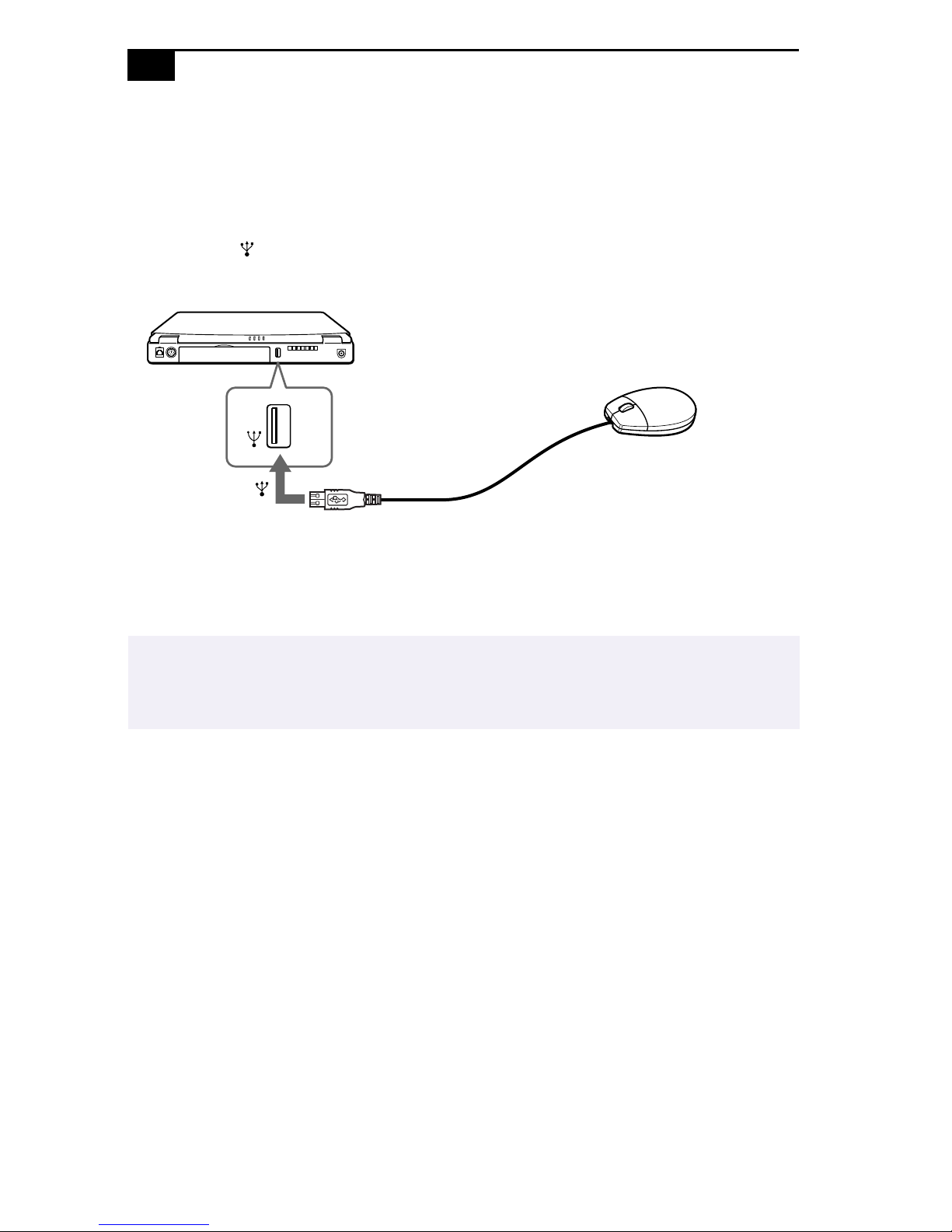

Connecting a Universal Serial Bus (USB) Device......................56

Customizing Your Notebook Computer

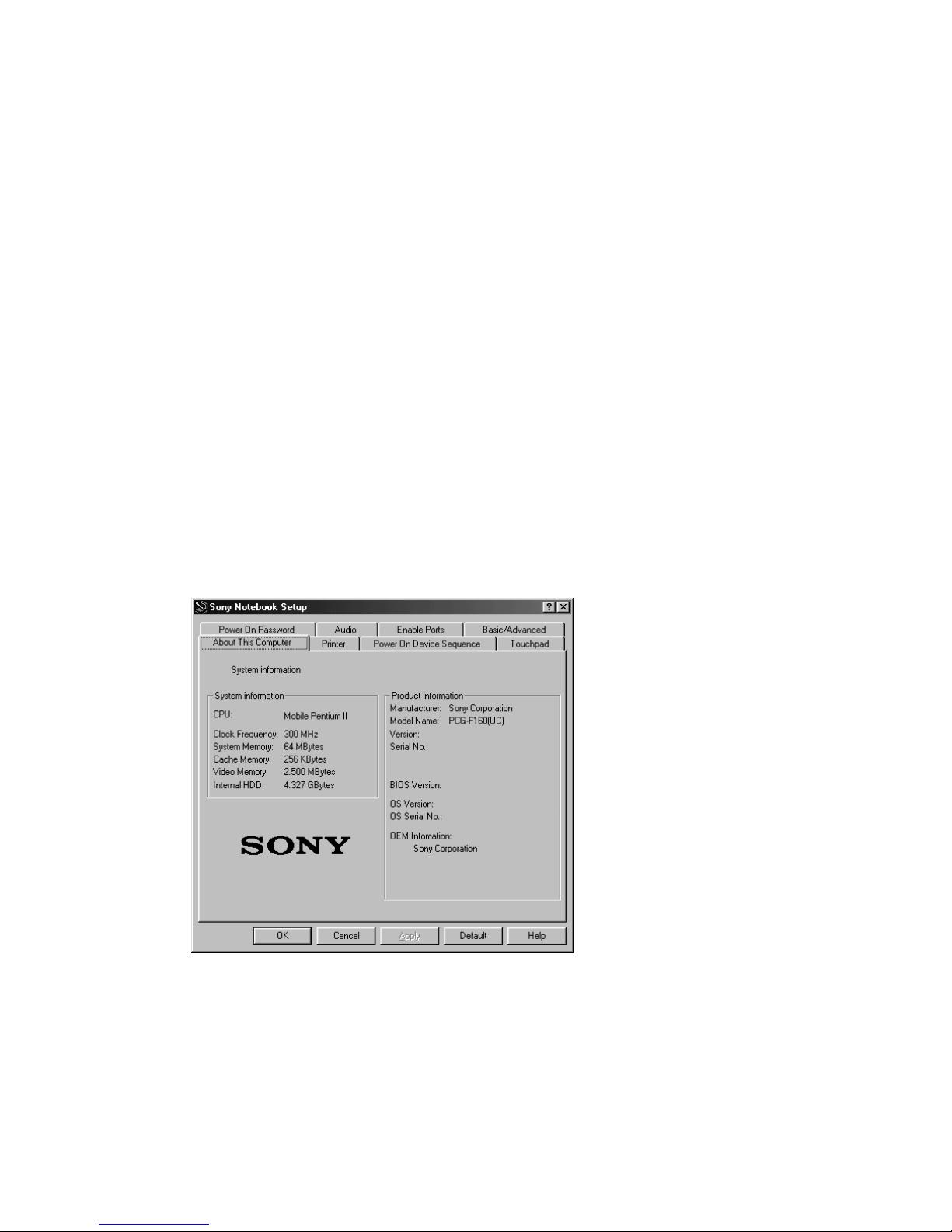

Displaying the Sony Notebook Setup Screen.............................57

Controlling Power Management..................................................59

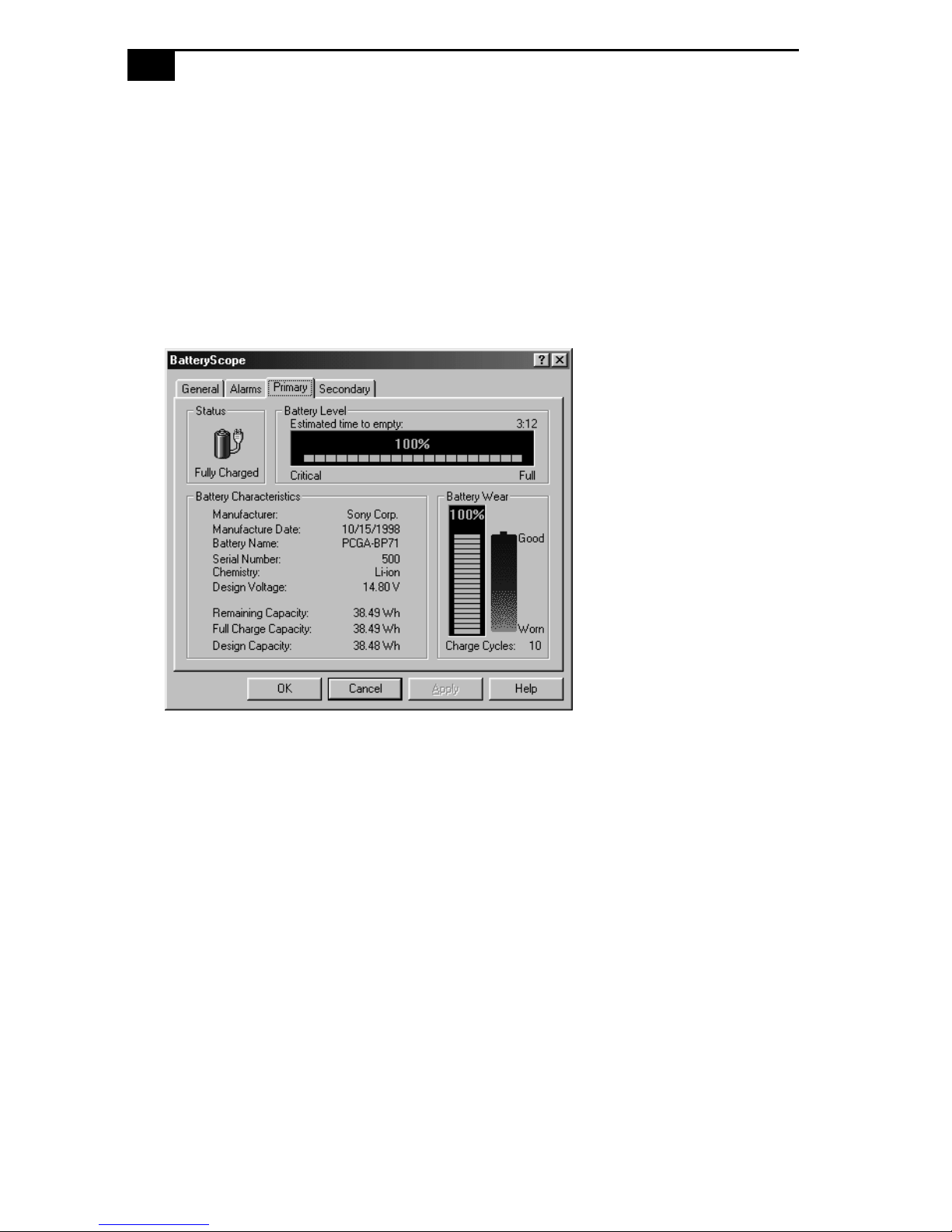

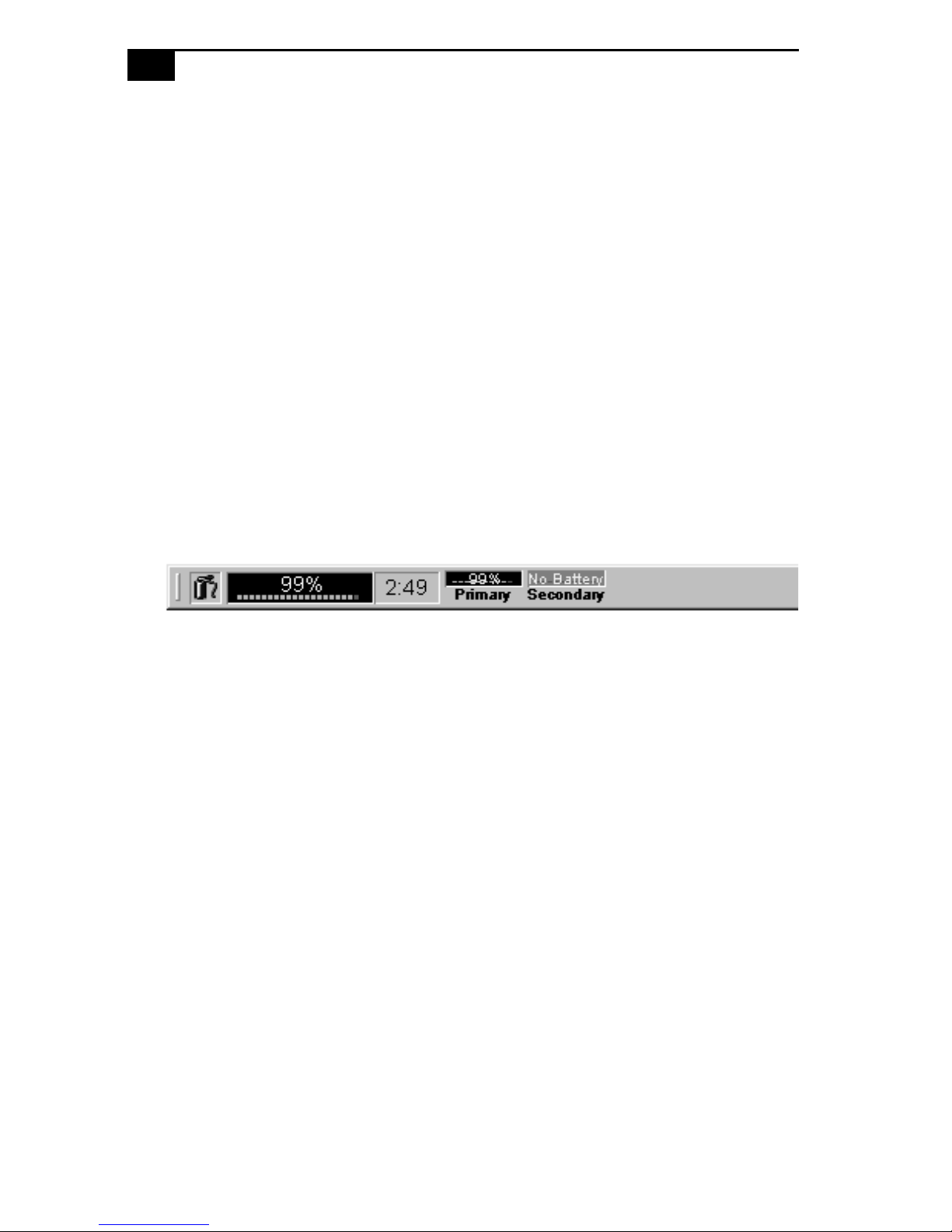

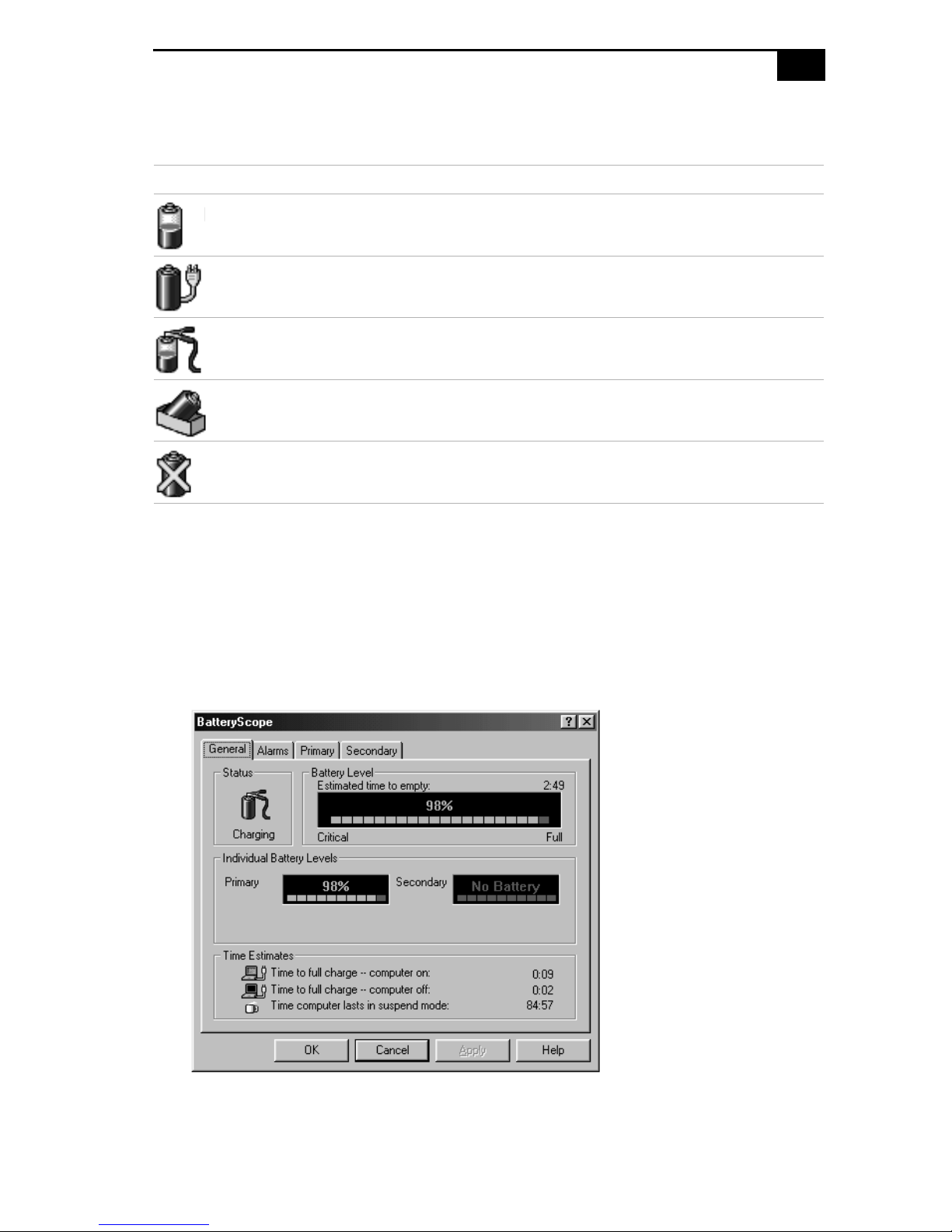

Displaying Battery Information...................................................62

Selecting the Display Mode..........................................................65

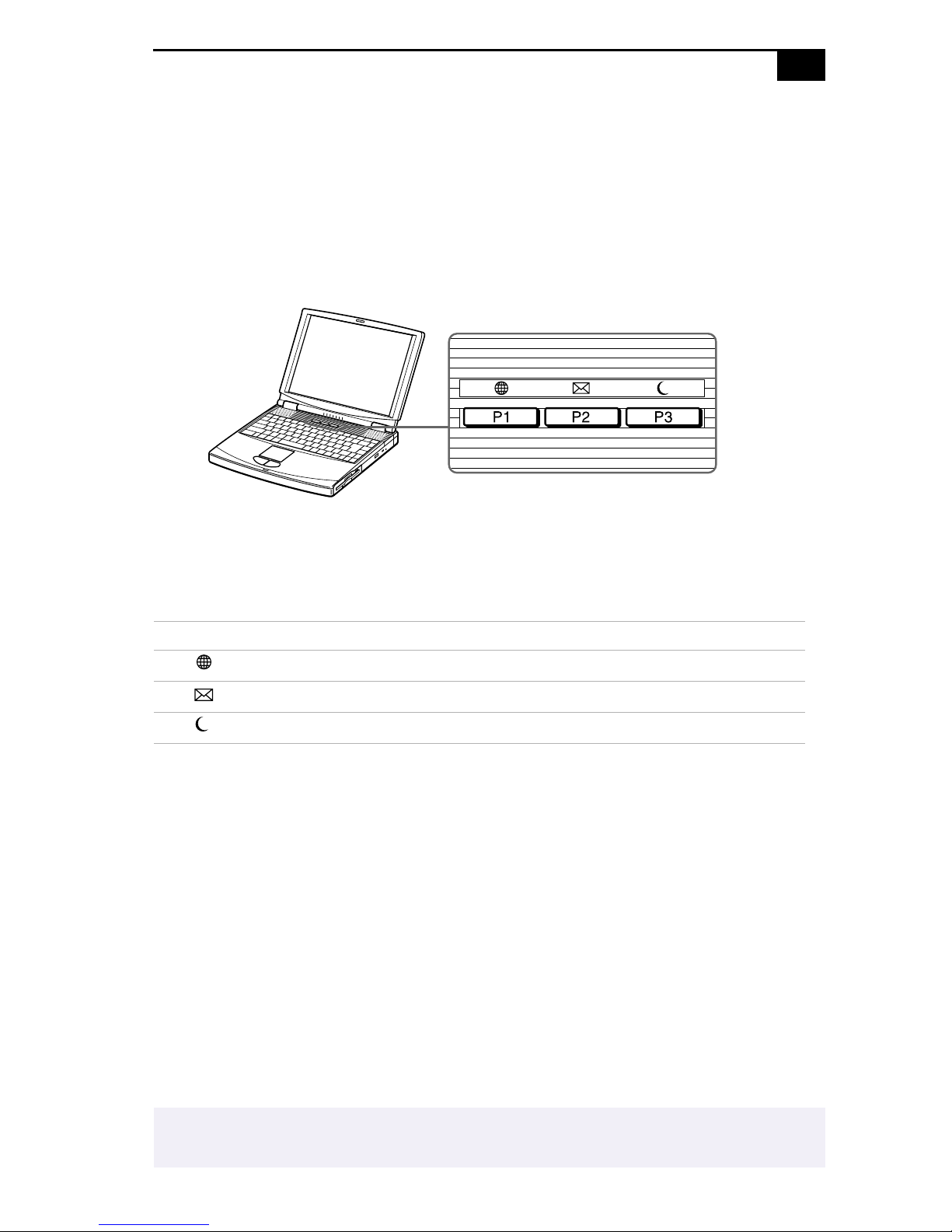

Starting Your Favorite Software with Programmable Power

Key (PPK) Setup .............................................................................69

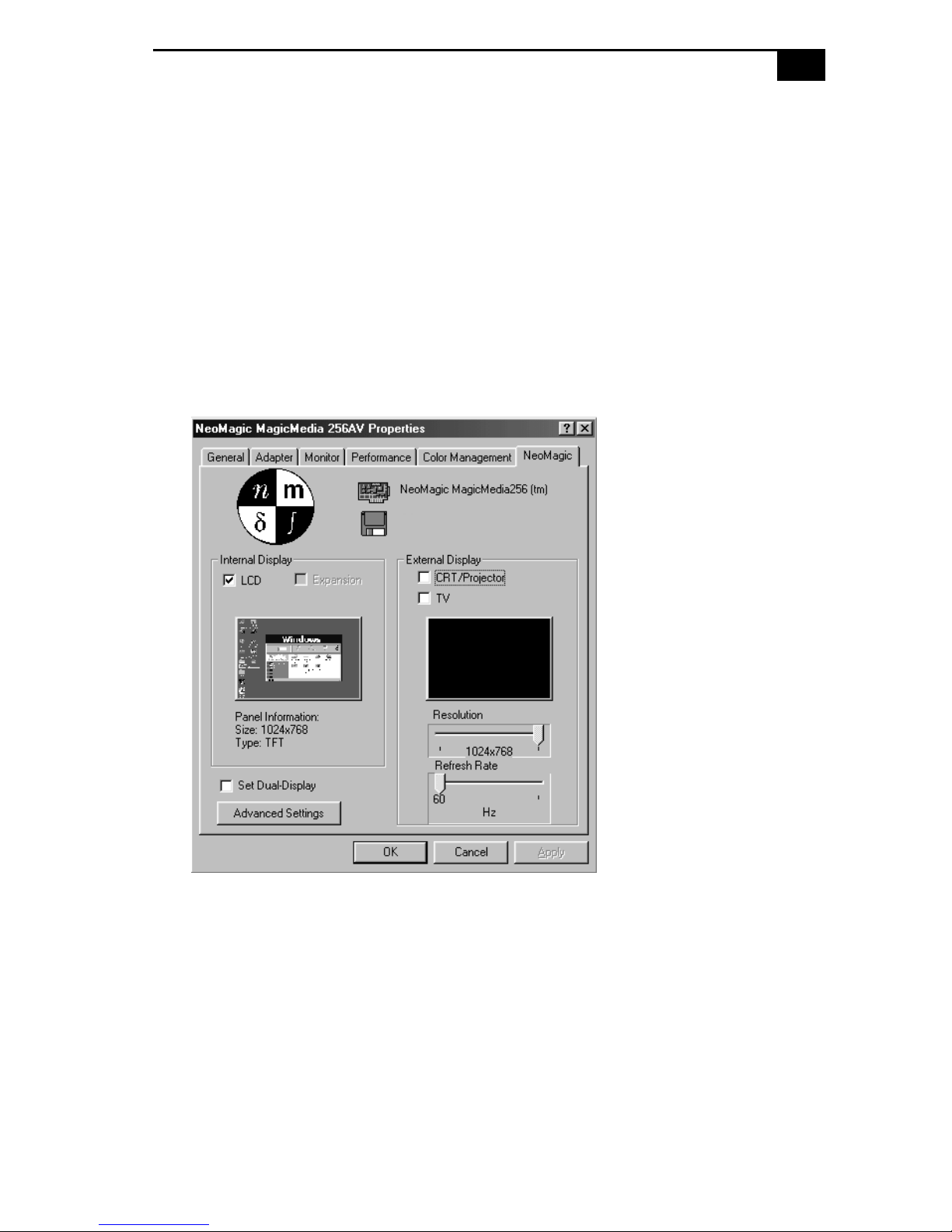

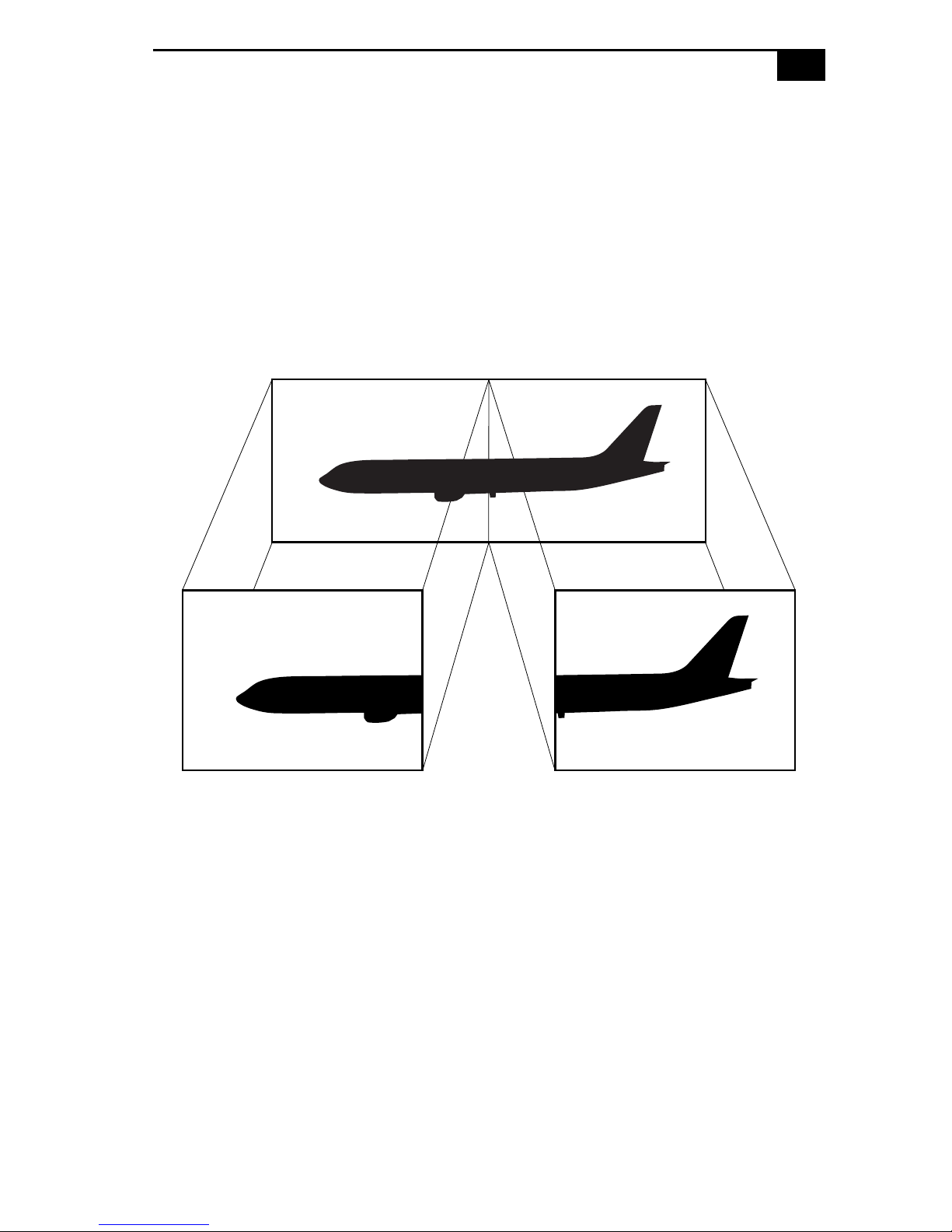

Using the Dual Display Function.................................................71

Getting Help

Troubleshooting .............................................................................75

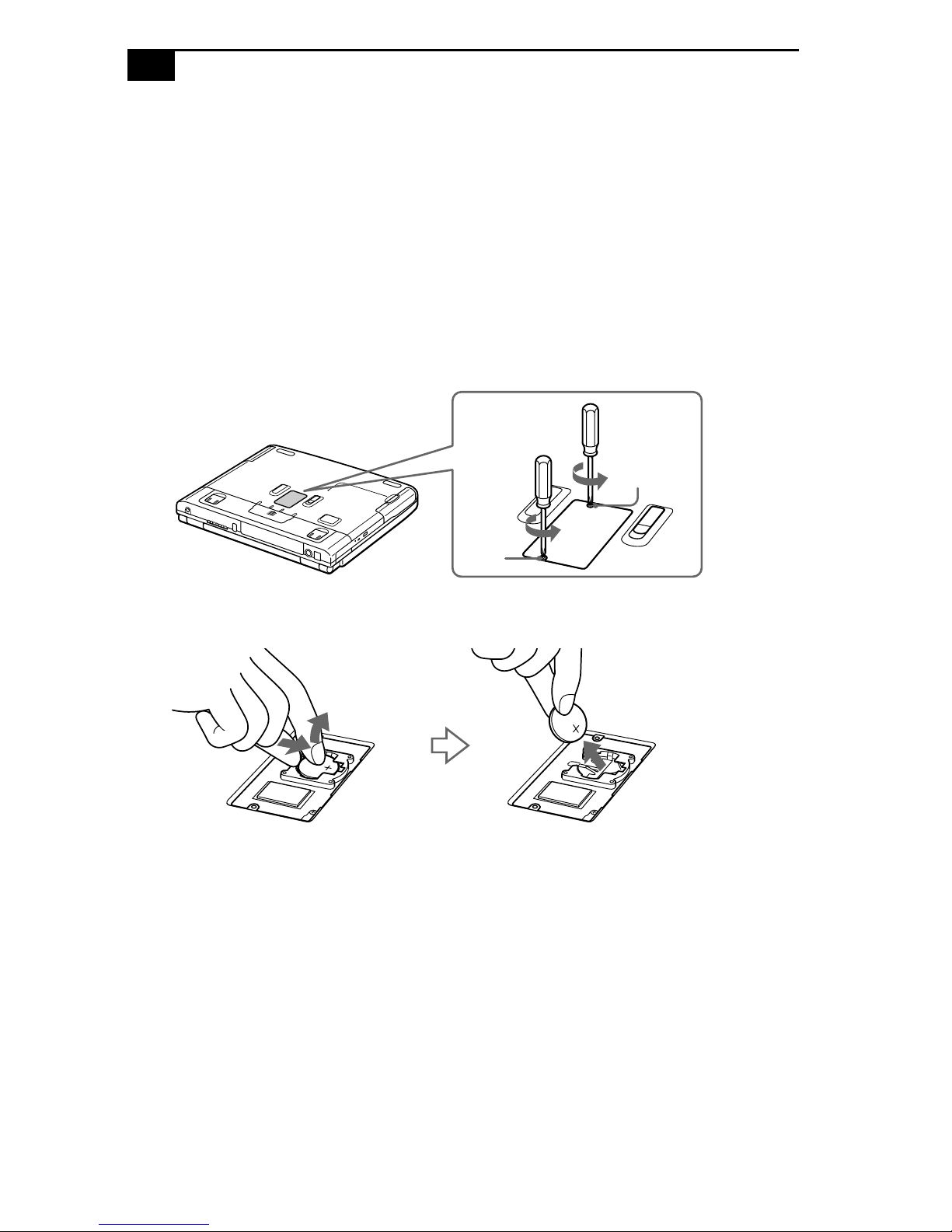

Replacing the Internal Backup Battery........................................82

Using the System and Application Recovery CDs....................84

Notes on Use.................. ....................... ..... ..... .... ...............87

Limited Warranty Statement............................................93

Index...................................................................................99

Page 11

Welcome

Congratulations on your purchase of the Sony VAIO Notebook Computer. Sony has combined leading-edge technology in aud io, video, computing, and communications to provide you with state-of-the-art personal computing.

About the User Guide

The User Guide offers a quick introduction and reference to your Sony Notebook computer.

❑ Using Your VAIO Notebook Computer shows you how to use the

standard components of your system.

❑ Connecting Peripheral Devices explains ho w you can add

functionalit y by c onnecting various p eripherals.

❑ Getting Help explains th e support options available to you and

offers basic troubleshooting tips.

❑ Notes on Use provides facts and advice about using your notebook

computer.

❑ Limited Warranty Stat ement provides your product warranty

statement and explains how to extend your warranty for an additiona l ni ne mo nt hs .

The online User Guide is included with your computer as an electronic document. It includes additional information on using the Sony software products that are installed on your computer and how to customize your Sony noteboo k computer.

Page 12

VAIO Notebook Computer User Guide

Ergonomic Considerations

You will be using your notebook computer as a portable device in a variety of environments. Whenever possible, you should attempt to apply the following ergonomic consi d era tions to both stationary and portable environments.

Computer positioned directly in front of you

Arms at desk level

Wrists relaxed and flat

❑ Position of your computer – Place the computer directly in front of

you as you work. Keep your forearms horizontal, with your wrists in a neutral, comfortable position while using the keyboard, touchpad, or external mouse. Let your upper arms hang naturally at your sides. Take breaks during sessions with your computer . Excessive use of the computer may strain muscles or tendons.

❑ Furniture and posture – Sit in a chair with good back support and

armrests. Adjust the level of the chair so your feet are flat on the floor . A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backward.

❑ Viewing angle of the computer’s displa y – Use the display’s tilting

feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightn e ss setting of the display also.

Page 13

Welcome

❑ Lighting – Choose a location where windows and lights do not create

glare and reflection on the display. Use indirect lighting to a v oid bright spots on the display. Yo u can also purchase accessories for your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.

❑ Tilt stand – You use the tilt stand to place the computer at an angle

that allows comfortable typing.

❑ Placement of an external display – When using an external display,

set the display at a comfortable viewing distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Page 14

Page 15

Using Your Notebook Computer

This section describes how to start using your computer and how to use your computer’s internal and external devices, such as the touchpad, floppy disk drive, and DVD-ROM/CD-ROM drive.

Locating the Controls and Connectors

Front

LCD screen (pages 22, 87) Battery 1 and 2 indicators (pages 11, 21)

Speakers (pages 22, 52) Hard disk drive indicator (page 21)

Keyboard (page18) Num Lock indicator (page 21)

Touchpad (page24) Caps Lock indicator (page 21)

Left/right buttons (page 24) Scroll Lock indicator (page 21)

Power indicator (page11)

7 8 9

10 11

Page 16

Left

VAIO Notebook Computer User Guide

Power switch (page 14)

1 5

Kensington Security Cable Lock port

2 6

Infrared port connector (page 32) PC card slots (page 29)

3 7 4 8

Microphone connector (pages 49, 53)

Headphone connector (pages 49, 52) S200 i.LINK

Battery bay (page 10)

™

connector (page55)

Page 17

Using Your Notebook Computer

526

Right

PPK buttons (page 69) Drive bay (pages 25, 36, 38)

1 3

DVD-ROM/CD-ROM drive (page 27) Internal microphone

2 4

Back

Phone line jack (page 42)

/ Mouse/Keyboard connector (page51)

cover

Monitor connector (page 48)

USB connector (page 56)

3 4

✍

Serial connector (page 54)

Printer connector (page 47)

There is a ventilation slot located between the USB connector and the DC In connector. Do not cover the ventilation slot when your computer is on.

DC In connector (page9)

Page 18

VAIO Notebook Computer User Guide

Bottom

Port replicator connector cover (pages 44, 46) Tilt stands

1 3

Drive bay RELEASE lever (pages 37, 39)

Page 19

Using Your Notebook Computer

Connecting a Power Source

You can use either AC power or a rechargeable battery pack as a power source.

Using the AC Adapter

Plug the cable attached to the AC adapter into the DC In connector on

the computer. Plug one end of the power cord into the AC adapter.

Plug the other end of the power cord into an AC outlet.

DC In

Notebook computer

AC adapter (supplied)

Power cord (supplied)

Page 20

VAIO Notebook Computer User Guide

Using Battery Power

You can use one or two battery packs as a source of power. The second battery pack inserts into the drive bay on the rig ht si de o f the computer. (See “Using Power Saving Modes” on page 34.) Additional battery packs are available as a separate option.

The battery pack that comes with your computer is not fully charged at the time of purchase. Follow the steps below to insert an d charge the battery pack.

To insert the battery pack

Open the cover of the battery bay.

Insert the battery pack into the battery bay on the left si de o f the

computer.

Battery pack (supplied)

Label side facing down

Close the cover of the battery bay until it clicks.

✍

When attaching yo ur comput er to th e port r eplicat or, do not attempt to insert o r remove the battery pack. Lifting and turning the computer with an attached docking station could cause a temporary loss of power.

Page 21

Using Your Notebook Computer

To charge the batter y pack

Connect the AC adapter to the computer.

Insert the battery pack.

The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges). When the battery is 85 percent full, the battery indicator light turns off. This process takes approximately two hours. To charge the battery completely, continue charging for an additional hour. See “Displaying Detailed Battery Information” on page 63 for information on checking the battery life.

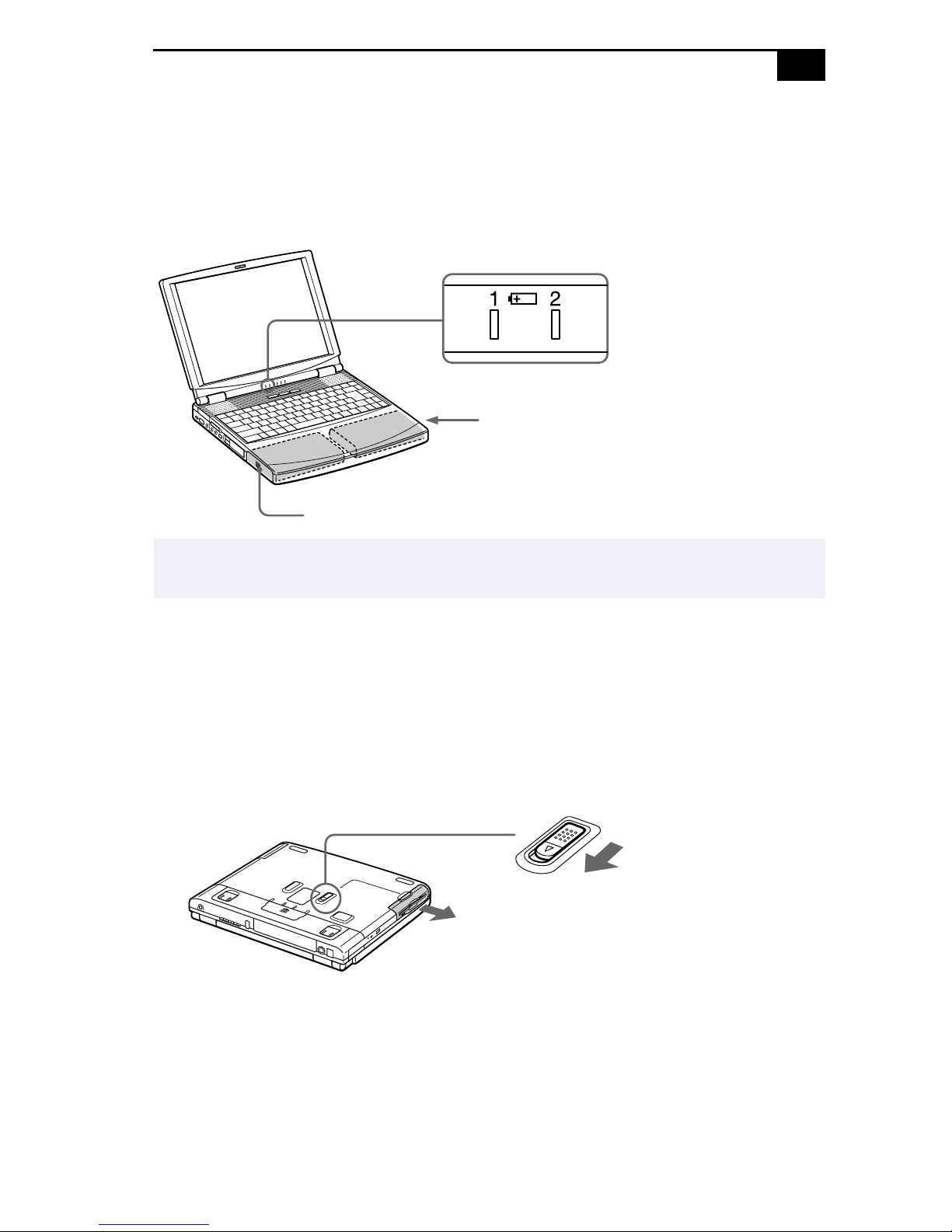

There are two battery indicator lights on the computer:

Battery indicators

Secondary battery pack (not supplied)

Battery pack (supplied)

Battery Indicator Meaning

Battery Indicator Light Status Meaning

On The computer is using battery power. Single blink The battery is running out of power. Double blink The battery is charging.

Indicates the status of the battery pack in the battery bay on the left side of the computer.

Indicates the status of the battery pack in the drive bay on the right side of the computer.

Off The computer is using AC power.

✍

To determine the amount of time the battery lasts, see “Displaying Battery Information” on page 62.

Page 22

VAIO Notebook Computer User Guide

When the battery is running out of power, both the battery and power indicators blink. When the computer is directly con nected to A C power and has a battery pack in the battery

bay, it uses power from the AC outlet. See “Using a Second Battery Pack” on page 36 for information on installing and charging a

battery pack in the drive bay. Keep the battery pack in the computer while it is directly connected to AC power. The

battery pack continues to charge while you are using the computer. If the battery level falls belo w 10%, you should either atta ch the AC ada pter to recharge the

battery or shut down your computer and insert a fully charged battery. You can extend battery life by changing the power management modes in the PowerPanel

utility. See “Using Power Saving Modes” on page 34. The batt ery pack s up plied with yo ur co mp uter i s a lit hium ion ba ttery and ca n be re char ged

at any time. Charging a partially discharged battery does not affect battery life. The battery indicator light is on while you use the battery pack as a power source. When

battery life is nearly depleted, the battery indicator starts flashing. For some software applications and some peripheral devices, your computer may not enter

System Hibernation mode when the battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as System Suspend or System Hibernation.

To remove the battery pack

Open the cover of the battery bay.

Pull out the battery pack.

Page 23

Close the cover of the battery bay.

You may lose data if you remove the battery pack while the computer is on and

not connected to the AC adapter or if you remove the battery while the compute r is in System Suspend mode.

Using Your Notebook Computer

Page 24

VAIO Notebook Computer User Guide

Starting Your Computer

Slide the LCD lock lever in the direction of the arrow, and lift the

cover.

LCD lock lever

Slide the power switch on the left side toward the front of the

computer until the green power indicator light turns on.

Power switch

✍

If you hold the power switch in the On position for more than four seconds, the computer turns off.

If necessary, adjust the brigh tne ss controls for the LCD displa y. To

decrease the brightness, press Fn+F5 and then the do wn or left a rrow key. To increase the brightness, press Fn+F5 and then the up or right arrow key.

Power indicator

Page 25

Using Your Notebook Computer

Shutting Down Your Computer

To avoid potential loss of data, follow these steps to shut down your computer.

Click the Start button on the Windows 98 taskbar.

Click Shut Down at the bottom of the Start menu to display the Shut

Down Windows dialog box.

Select Shut down.

Click OK.

✍

Respond to any prompts warning you to save documents.

Wait for your computer to turn off automatically. The power indicator

(green) turns off. Turn off any peripherals connected to your computer.

✍

If you are unable to shut down your computer using the steps described above, press the Ctrl+Alt+Delete keys at the same time to restart the computer. If you are unable to restart the computer in this way, you can slide the power switch forward and hold for four seconds. This operation may result in data loss.

During a period of inactivity, you can conserve battery life by using System Suspend mode. See “Controlling Power Management” on page 59.

Page 26

VAIO Notebook Computer User Guide

Registering Windows® 98

The first time you turn on your computer, you need to complete a few steps to register and configure the Windows 98 software that is already installed.

You must register Windows 98 before you can use the computer.

✍

The on-screen instructions guide you through the registration and configuration process. The following is an overview of the process.

Gathering information:

❑ Enter your name. ❑ Read and accept the License Agreement. ❑ Enter your Certificate of Authenticity number located on the

cover of the Microsoft Windows 98

Getting Started

manual.

Window s 98 set u p :

Click the Finish button on th e Windows 98 Setup Wizard screen. Selecting your computer settings:

If necessary, change the Time Zone, Date and Time on the Date/Time Properties screen.

Registering your computer:

For details on registering your computer, see “Registering Your Computer” on page 17. You can also sign up for your 100 free hours of Internet service at this time.

Learning about Windows 98:

If you wish, take the tour of Windows 98.

Page 27

Using Your Notebook Computer

Registering Your Computer

You can take advantage of Sony’s commitment to quality customer support and receive the following benefits by registering your computer with Sony.

❑ Sony Customer Support – Talk to a Support Representative to

troubleshoot problems you may be having with your computer.

❑ Extended Limited Warranty – Protect your investment. Extend your

Warranty nine months for a total of 12 months from the original date of purchase when you register your computer.

❑ Express service – Provides convenient resolution of problems. ❑ Free Internet access – Use the Internet for up to 100 free hours when

you sign up with GTE (no credit card necessary). Free access expires 100 hours or 60 days after signing up, whichever occurs first.

If you have not already registered, follow these steps to use your notebook computer’s online registration service.

You must connect your phone line before using any online services, including the online

✍

registration service. See “Connecting a Phone Line” on page 42.

Click the Sony VAIO Registration icon on the VAIO desktop.

Enter the information requested on the first online registration form.

Press the Tab key to move from box to box. Click the Next button to advance to the next form.

Complete the remaining forms by clicking the Next button each time

you complete a form.

The computer automatically transfers your registration information using your built-in modem and a to ll-free telephone number.

Page 28

VAIO Notebook Computer User Guide

Using the Keyboard

Your keyboard is very similar to a typewriter’s, but the keyboard has additional keys that perform specific co mputer-related tasks.

Correction

Escape Key Function keys Print Screen key

keys

Shift key

Ctrl key

Fn key

Alt key

Windows 98 key

Applications key

Numeric keypad area

Navigation keys

Key Description

Numeric keypad area

Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers or to perform mathematical calculations such as addition and subtraction. Note that you must press the Num Lock key to activate the numeric keypad. (When you do so, the Num Lock light will be on.)

Navigation keys Several keys are devoted to moving the cursor on the

screen.

Correction keys The Insert, Back Space, and Delete keys enable you to

make corrections in your documents.

Function keys The twelve function keys along the top of the keyboard

are used to perform designated tasks. For example, in many applications, F1 is th e Help key. The task associated with each function key may vary from one application to the next.

Escape key The Esc (Escape) key is used to cancel commands.

Page 29

Using Your Notebook Computer

Key Description

Print Screen key The Print Sc reen key takes an electronic snapshot of the

screen and places it in the Windows Clipboard. You can then paste the screen shot into a document and print it.

Operator keys Several keys are always used with at least one other key:

Ctrl, Alt, and Shift. When held down with another key, the Ctrl (Control) and Alt (Alternate) keys offer another way to give commands. For example, in many applications, instea d of choosing the Save command fr om a menu, you can hold down Ctrl and press S (referred to as Ctrl+S). The Shift key operates the same way as on a typewriter; it is used to produce capital letters or special symbols such as @ and $.

W indow s 98 key The key w ith the Windows logo displays the Windows 98

Start menu; it is the equiv alent of clic king th e Start but ton on the taskba r. See “Combinations and Functions with the Windows 98 Key” on page 20.

Fn key The Fn key is used in combinatio n with other keys to

issue commands. S ee “Com b ina t ions a nd Func tions with the Fn Key” on page 22.

Applications key The Applications key displays a shortcut menu of

context-sensitive choices. Pressing this key is the equivalent of clicking the right mouse button.

Page 30

VAIO Notebook Computer User Guide

Combinations and Functions with the Windows 98 Key

Combination Function

+ F1 Displays Windows Help. + Tab Switches the selected butt o n on the taskbar. + E Displays Windows Explorer. + F Displays the Windows Find: All Files window to find

a file or folder. This is the equ ivalent of selec ting Fi nd and then Files or Folders from the Start menu.

+ Ctrl + F Displays the Windows Find: Computer window

where you can locate other computers. This is the equivalent of selecting Find and th en Computer from the Start menu.

+ M Minimizes all display ed wind ows.

Shift + + M Returns all minimized windows to their previous

size.

+ R Displays the Run window. This is the equivale nt of

selecting Run from the Start menu.

Fn + + Insert Displays th e Properties window. This is the

equivalent of double-clicking the System icon in the Control Panel.

Page 31

Using Your Notebook Computer

Indicators

Indicator Function

Power Light is green when th e power to the computer is turn ed

on. Light is red in System Idle mode, and flashes red in System Suspend mode. Turns off when the computer is in System Hibernation mode or powered off.

Battery 1 Indicates the status of the battery inserted in the battery

Battery 2 Indicates the status of the battery inserted in the drive

Hard disk Lights when data is being read from or written to the

bay on the left side of the computer.

bay on the right side of the computer.

hard drive. Do not enter System Suspend mode or turn off the computer when this indicator light is on.

Light On Off

Num Lock The number keys in the

numeric keypad are active.

The alphan umeric character keys in the keypad area are active.

Caps Lock The letters appear in

uppercase as you type. The Shift key lowers the case of

Letters appear in lower case as you type (unless you hold

down the Shift key). typed letters when Caps Lock is on.

Scroll Lock The screen scr olls differently.

(Exactly how it scrolls

Information moves across the

display normally. depends on the specific application. It has no effect in many applications.)

Page 32

➜

VAIO Notebook Computer User Guide

Combinations and Functions with the Fn Key

Combinations/ Feature

Fn+ (ESC) System Suspend

Fn+ (F2) Display power sou rce status

Fn+ (F3) Mute On/Off

Fn+ (F4) Speaker volume

Fn+ (F5) Brightness control

Function

Puts the system into System Suspend mode, a power management state. To return the system to the active state, press any key or pr ess th e power switc h on your computer .

Displays the power source status, as in the example below:

Using AC power

Charging a battery pack

Toggles the built-in speaker off and on.

Adjusts the built-in speaker volume. To increase volume, press Fn+F4, then or ➜.

➜

To decrease volume, press Fn+F4, then or . Adjusts the brightness of the LCD.

To increase light intensity, press Fn+F5 and then or

➜

To decrease light intensity, press Fn+F5 and then or

Fn+ (F6) Contrast control

Contrast control display. Adjusts the contrast. To increase the contrast, press Fn+F6, then or ➜.

➜

To decrease contrast, press Fn+F6, then or .

Fn+ / (F7)

LCD

Switch to the external monitor/LCD

Toggles through th e LCD, ext ern al displa y (c onnected to the M onitor connector) and both L CD and external display.

Only LCD

LCD and external display

Only external display

Fn+F8 Not available on this model. Fn+ (F12)

System Hibernation

Provides for the lowest level of power consumption. When you execute this command, the state of the system and state of the peripheral devices are written to the hard disk and the system power is turned off. T o return the system to the originals state, use the power switch to turn on power.

➜

Page 33

Using Your Notebook Computer

Combinations/

Function

Feature

Fn+E

Ejects the DVD-ROM/CD-ROM drive.

†

Eject DVD-ROM/ CD-ROM

Fn+D Video standby

Fn+F Change the display siz e

Fn+S System Idle

Turns off the LCD in order to save power. To turn the LCD back on, press any key.

Zooms the display size in or out when the display is set to a low resolution.

Puts the system into System Idle mode, a power management state. To return the system t o the active state, press any key.

* The Fn+F6 (contrast control) function is available on model PCG-150 only. † The DVD-ROM drive is available on models PCG-F180/PCG-F190. The CD-ROM drive is available on

models PCG-F150/PCG-F160.

✍

Some functions are not available until Windows launches.

Page 34

VAIO Notebook Computer User Guide

Using the Touchpad

The keyboard contains a cursor-pointing device called a touchpad. You can point to, select, drag, and scroll objects on the screen using the built-in touchpad.

Pointer

Touchpad

Left button

Action Description

Point Slide one finger on the touchpad to place the poin ter on an item

or object. Click Press the left button once. Double-click Press the left button twice. Right-cl ic k Press the right button onc e . In ma ny app lications, th is action

displays a shortcut menu of context-sensitive choices. Drag Slide one finger while pressing the left button. Scroll Move your finger along t he right edge of the touchpad to scr oll

vertically. Move your finger along the bottom to scroll

horizontally. (The scroll function is available only with

applications that support a touchpad scroll feature.)

Right button

✍

See Mouse Help for information on touchpad features, such as clicking both buttons simultaneously, adjusting touchpad speed, and Easy Launcher functions. To access Mouse Help, p ress th e Start bu tton , select Setti ngs, and then select Control Pa nel. C lick the M ouse icon in the Control Panel and click the Help button.

Page 35

Using Your Notebook Computer

Using the Floppy Disk Drive

The computer comes with the floppy disk drive in the drive bay.

To insert a diskette

Hold the diskette with the label side facing up.

Gently push the diskette into the driv e unti l it clicks into place.

Diskette

Floppy disk drive

To remove a diskette

❑ When you finish using the diskette, wait until the LED indicator

turns off and then press the Eject button to remove the diskette.

Eject button

LED indicator

Do not press the E ject but ton when th e LED ind icator is turne d on. Ot herwise, data may be lost.

✍

If you have difficulty removing a diskette from the floppy disk drive, remove the floppy disk drive from the drive bay.

Page 36

To remove the floppy disk drive

1 2

VAIO Notebook Computer User Guide

Turn off the computer. There is a RELEASE lever on the bottom of the computer. Slide this

lever in the direction of the arrow.

Drive RELEASE lever on bottom

Slide the drive out of the drive bay.

Insert the weight saver. See “Using the Weight Saver” on page 38.

To reinsert the floppy disk drive

Turn off the computer.

If another device is in the drive bay, remove the device. See “To

remove the floppy disk drive” on page 26 or “To remove the second battery pack” on page 37.

Insert the floppy disk drive into the drive bay with the VAIO label

facing up. Continue pushing the drive into the bay until the RELEASE lever locks into place.

Drive bay

Floppy disk drive

Page 37

Using Your Notebook Computer

Using the DVD-ROM/CD-ROM Drive

Your computer comes with a DVD-ROM drive (models PCG-F180/F190) or CD-ROM drive (models PCG-F150/F160). If your computer is equipped with a DVD-ROM drive, you can play both DVD-ROMs and CD-ROMs.

To insert a disc

Turn on the computer.

✍

When the computer is in System Suspend or System Hibernation mode, you cannot insert a disc. See “Controlling Power Management” on page 59 for more information on System Suspend and System Hibernation modes.

Press the Eject button to open the DVD-ROM/CD-ROM drive.

The tray slides out.

Eject button

Place a DVD-ROM/CD-ROM in the tray with the label side facing

up. For DVD-ROMs, which can be played on both sides, the side of the disc facing up is the side that plays. Push the disc onto the hub until the disc clicks into place.

Label side facing up

Page 38

VAIO Notebook Computer User Guide

Close the tray by pushing it gently.

✍

Be sure to seat the disc firmly over the DVD-ROM/CD-ROM drive hub fingers. If you do not seat the disc firmly, you could damage your DVD-ROM/CD-ROM drive and you may not be able to open the tray.

When you finish using a disc, wait until the LED indicator turns off, then press the Eject button to remove the disc.

When the computer is in System Suspend or System Hibernation mode, you cannot remove a disc. See “Controlling Power Management” on page 59 for more information about System Suspend and System Hibernation modes.

If the disc does not come out when you press the Eject button, turn off the computer and insert a thin, pointed object into the manual eject hole.

To play DVD-ROMs

To achieve optimum performance when playing DVD-ROMs, you should use the following recommendations: Your computer should not be connected to the port replicator while playing DVD movies or using DVD applications. Close any open applications before playing a DVD-ROM movie. The DVD player automatically adjusts the screen properties when you play a DVD movie. Depending on the dis play setup properties you have selected, you may need to use the Fn + F command to expand the movie to full screen size.

✍

When playing DVD movies on battery power, set the power management profile to Maximum Performance. With other profiles, the movies are choppy.

Page 39

Using Your Notebook Computer

Using PC Cards

Your computer includes two PC card slots. PC cards allow you to connect portable external devices such as another hard disk drive, or to connect a network.

✍

The PC card slots can accommodate (at the same time) two Type I, two Type II, or one Type III PC card. These slots are compatible with Card Bus.

Some PC cards may require that you disable idle devices when using the PC card. You can use Sony Notebook Setup to disable devices. See “Displaying the Sony Notebook Setup Screen” on page 57 for details.

Be sure to use the most recent software driver provided by the PC card manufacturer. If an “!” mark appears on the Device Manager tab in the System Properties dialog box,

remove the software driver and then reinstall it. You may not be able to use some PC cards or some functions of the PC card with this

computer.

To insert a PC card

Use the lower slot for Type III PC cards.

✍

You do not need to shut down the computer before inserting or removing a PC card.

Pull the PC card relea se button up away fr om the computer and push

it in toward the computer.

Page 40

VAIO Notebook Computer User Guide

Remove the PC card slot protector. When you use a Type III PC card, you need to remove both the top

and bottom PC card slot protectors.

Insert the PC card into the PC card slot, front label facing up. Gently

push the card into the slot until the card is fixed into the connector. The release button comes out.

PC card

✍

Do not force a card into the slot. It may damage the connector pins. If you have difficulty inserting a card, check that you are inserting the card with the correct orientation. See the manual that came with your PC card for more information on use.

For some PC cards, if you alternate between normal power operation and the System Suspend or System Hibernation power management modes while the card is inserted, you may find that a device connected to your system is not recognized. Reboot your system to correct the problem.

Page 41

Using Your Notebook Computer

To remove a PC card

Close any applications that are using the PC card.

Click the PC card icon in the taskbar and close the card.

Pull the PC card release button up and press it in toward the

computer. Gently grasp the card and pull it out.

Insert the PC card slot protector back into the empty slot.

Page 42

VAIO Notebook Computer User Guide

Using Infrared Communication Devices

Your computer includes an infrared port, located on the left side. You can use this port to communicate with other infrared-equipped devices with compatible protocols, such as a digi tal still camera or other computers.

To use infrared communication with a digital still camera

Align the infrared ports on the computer and the digital camera so that they are in a direct line.

Infrared port

To use infrared communication with another computer

Align the infrared ports on the two computers so that they are in a direct line.

Page 43

Using Your Notebook Computer

✍

Infrared communication capability can be turned on and off. By default, it is not enabled when your system is shipped. To enable infrared use, click the infrared icon in the Windows Control Panel and select the Enable infrared communication checkbox on the Options tab.

You can disable infrared communication when you are not using it to conserve battery life. Use the infrared icon in the Windows Control Panel to enable and disable infrared

communication. Do not use the icon in the taskbar. Check the Status tag of the Infrared Monitor in the Windows Control Panel to determine if

the infrared device is detected. If the two devices are too far apart or too close together, data transfer may be interrupted or

there may be noise in the transmission. Do not cover the infrared ports with your hand or any other object. Avoid direct sunlight, fluorescent light, or flashing incandescent light near the infrared

ports.

See the manual that came with your digital still camera or other infrared communication device for more information on installation and use.

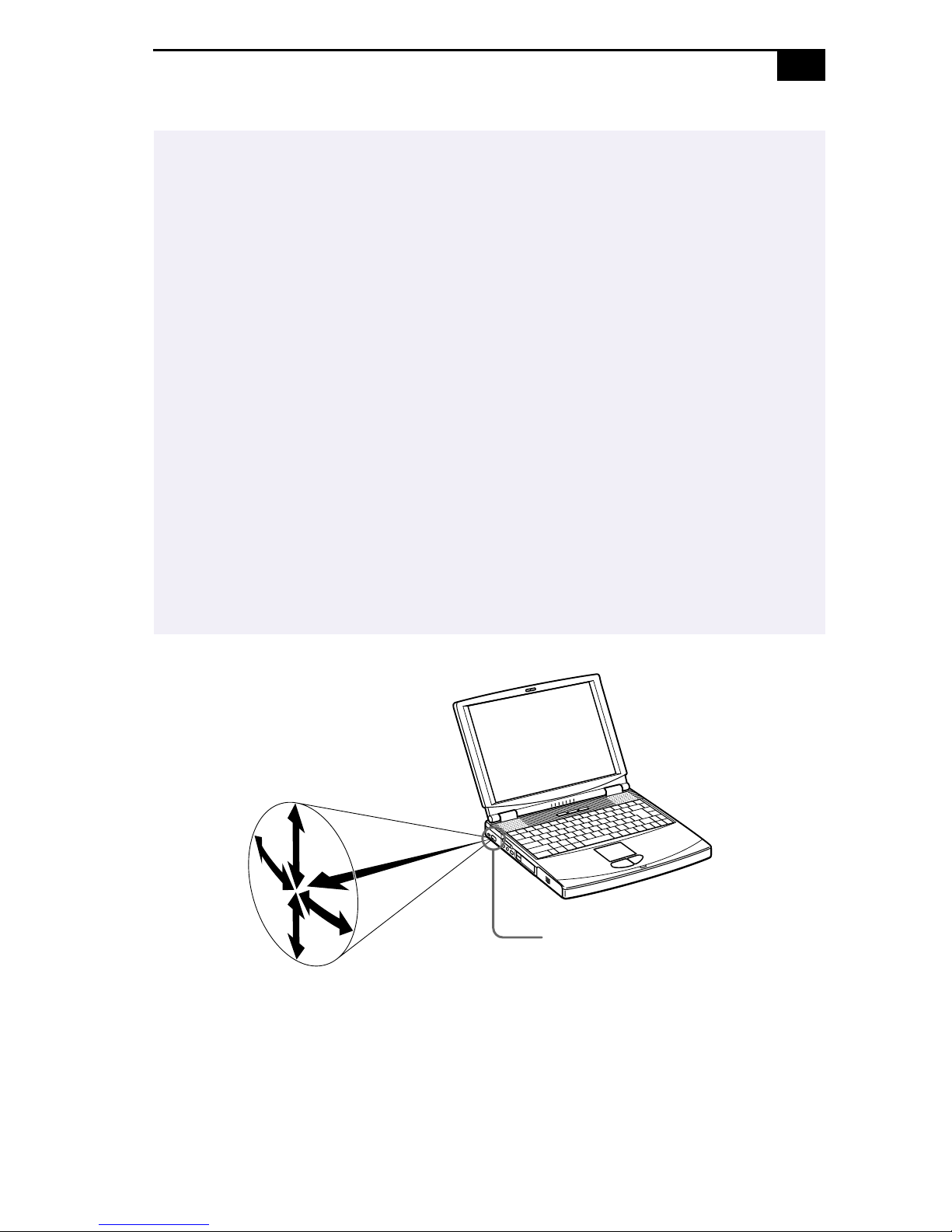

The active area of infrared transmission extends about 39 3/8 inches (1 meter) with a radius of 15 degrees.

)

(

Infrared port

degrees

Page 44

VAIO Notebook Computer User Guide

Using Power Saving Modes

When you use a battery as the source of power for your computer, you can take advantage of power manag eme nt settings to conserve battery life. In addition to the normal operatin g mode , which allow s you to turn off specific devices, your computer has three distinct power saving modes: System Idle, System Suspend, and System Hibernation. When using battery power, you should be aware that the computer automatically enters System Hibernation mode when the remaining battery charge drops below 7 percent, regardless of the power management setting you select.

✍

If the battery level falls below 10 percent, you should either attach the AC adapter to recharge the battery or shut down your computer and insert a fully charged battery.

Normal Mode

This is the normal state of your computer when it is in use. The green power indicator light is on in this mode. To save power, you can turn off a specific device such as the LCD or the hard disk.

System Idle Mod e

This mode is convenient if you do not need to use your computer for a brief period. The hard disk and video display enter a low power state, and the CPU clock and processor stop. The power indicator light is red in this mode.

To activate System Idle mode

Press Fn+S, or use the PowerPanel utility.

To return to normal mode

Press any key. Note that resuming from System Idle using the touchpad or mouse is not possible. You must press a key, a PPK, or the power switch.

Page 45

Using Your Notebook Computer

System Suspend Mode

The computer saves the current state of the system in RAM and switches off power to the CPU. The red power indicator light flashes in this mode.

To activate System Suspend mode

Press Fn+Esc, or slide the power switch forward and release it immediately. You can also use the PowerPanel utility to enter System Suspend mode.

To return to normal mode

Press any key.

System Hibernation Mode

The state of the system is saved on the har d drive and power is turned of f. The power indicator light is off in this mode.

To activate System Hibernation mode

Press Fn+F12. The “Save to Disk Manager” screen appears, and then the computer enters System Hibernation mode. You can also use the PowerPanel utility to enter System Hibernation mode.

To return to normal mode

Turn on the computer by sliding the power sw itch forward. The computer returns to its previous state.

When returning fro m System Hi bernation mode , th e system status stor ed on the hard disk i s

✍

erased and the computer starts normally if you slide the power switch forward and hold for more than four seconds.

❑ Time to return to normal mode

System Idle requires less time than System Suspend, and System Suspend requires less time than System Hibernation.

❑ Power consumption

System Idle uses more power than System Suspend, and System Suspend uses more power than System Hibernation.

Page 46

VAIO Notebook Computer User Guide

Using a Second Battery Pack

You can purchase a second rechargeable battery pack. With two battery packs, you can extend the time that you use your computer with battery power. When using two battery packs, the battery pack you insert first charges first. The battery pack you insert second charges when the first battery pack is 85 percent full. You can monitor which battery pack is charging by observing the battery indicator lights.

To insert a second battery pack

If another device is in the drive bay, remove the device. See “To

remove the floppy disk drive” on page 26. Insert the battery pack into the drive bay.

If the battery is being used, the battery 2 indicator light turns on.

Drive bay

Battery pack

Label side facing down

Attach the weight saver to the computer to stabilize the battery pack.

See also “Using the Weight Saver” on page 38.

Battery pack

Weight saver

Page 47

Using Your Notebook Computer

To charge the second battery pack

Keep the battery pack in the computer while it is connected to A C power. The battery indicator flashes while the battery is charging. See also “To charge the battery pack” on page 11 for more information.

Battery indicators

Second battery pack (not supplied)

Battery pack (supplied)

✍

To determine the amount of time the battery lasts, see “Displaying Battery Information” on page 62.

To remove the sec o n d ba tt ery pack

There is a Release lever on the bottom of the weight saver. To remove

the battery pack, slide this lever in the direction of arrow 1, then slide the RELEASE lever on the bottom of the computer in the direction of arrow 2.

Arrow 2: RELEASE lever

Arrow 1: Weight saver Release lever

Remove the weight saver, and then pull out the battery pack.

Reinsert the weight sa ve r. See “Using the Weight Saver” on pag e 38.

Page 48

VAIO Notebook Computer User Guide

Using the Weight Saver

The weight saver protects the drive bay when it is empty.

To attach the weight saver

If another device is in the drive bay, remove the device. See “To

remove the floppy disk drive” on page 26 or “To remove the second battery pack” on page 37.

Fold out the hinged arm of the weight saver and then push on the

hinged arm to lock it into place. Slide th e we ight saver in the direction of the arrow until it clicks.

Manually lock the weight saver’s RELEASE lever.

Weight saver (supplied)

Page 49

Using Your Notebook Computer

To remove the We ig ht Saver

There is a release lever on the bottom of the weight saver. To remove

the weight saver , slide this lever in the direction of arrow 1, then slide the RELEASE lever on the bottom of the computer in the direction of arrow 2.

Arrow 1: Weight saver Release lever

Arrow 2: RELEASE lever

After removing the weight saver, pull out the weight saver’s hinged

arm and fold it into the weight saver.

Page 50

Page 51

Connecting Peripheral Devices

You can add functionality to your computer by connecting any of these peripherals:

❑ Phone line (page 42) ❑ Port replicat o r (page 43) ❑ Printer (page 47) ❑ External display (page 48) ❑ External mouse or keyboard (page 51) ❑ External speakers (page 52) ❑ External microphone (page 53) ❑ Digital still camera or other serial d e vice (page 54) ❑ Digital video camera recorder (page 5 5) ❑ Universal Serial Bus (USB) device (page 56)

Before you connect peripherals, turn off the computer and all peripherals.

✍

Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals.

Page 52

VAIO Notebook Computer User Guide

Connecting a Phone Line

You need to connect a phone line to take advantage of online services and the Internet.

✍

In order to register your Sony VAIO Notebook Computer, register your software online, and use Sony Customer Support, you must connect to a phone line. You must register your computer to receive the extended warranty.

Plug one end of the phone cable into the phone line jack on the

computer.

Phone line jack

Phone cable (not supplied)

Plug the other end into the wall jack.

✍

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple phone lines or a private branch exchange (PBX). Some of these connections might result in excess electrical current and could cause a malfunction in the internal modem.

Phone line jack

Page 53

Connecting Peripheral Devices

637

Connecting the Port Replicator

Your notebook computer supports the use of an optional port replicator. Attaching a port replicator enables you to con nect a d d itional peripherals to your computer.

✍

Network (Ethernet)

Monitor (page 48) Printer (page 47)

Serial (page 54)

/ Mouse/Keyboard (page51)

The port replicator can be powered only with an AC power adapter. Do not remove the AC

USB (page 56)

DC In (page 9)

adapter from the port replicator or the AC outlet while using the port replicator; this may cause data damage or hardware malfunctions.

When using the port replicator for the first time, install the driver supplied with the port replicator. When installation is complete, a message appears asking if you want to change the system setup. Click Yes, then reboot your computer.

Page 54

To attach your computer to the port replicator

VAIO Notebook Computer User Guide

To supply power to your computer while it is connected to the port replicator, you can connect the AC adapter directly to the port replicator.

✍

When attaching yo ur comput er to th e port r eplicat or, do not attempt to insert o r remove the battery pack. Lifting and turni ng the compute r with a n attache d port repli cator coul d cause a temporary loss of power.

Turn off your computer and disconnect all peripherals.

On the bottom of the computer, lift the port replicator connector

cover.

Port replicator connector

Attach the bottom of the computer to the port replicator connector

until it clicks.

Notebook computer

Port replicator

Page 55

Connecting Peripheral Devices

Plug the cable attached to the AC adapter into the

DC IN

connector on the port replicator. Plug the power cord into the AC adapter and an AC outlet.

AC adapter

✍

Use the AC adapter that comes with your computer or the optional Sony PCGA-AC71 adapter.

Power cord

The power indicator light turns green.

Turn on the computer.

Release lever

Power

Port replicator connector

Page 56

To remove your computer from the port replicator when the power is off

1 2

VAIO Notebook Computer User Guide

Turn off your computer and the connected peripherals. Pull the levers on each side of the port replicator to disengage the

computer from the port replicator.

Lever

Lift the computer away from the port replicator.

Close the port replicator connector cover on the bottom of your

computer.

✍

It is extremely important to close the port replicator connector cover after removing your computer from the port replicator. If the cover is left open, dirt may get inside and damage the computer.

Page 57

Connecting Peripheral Devices

Connecting a Printer

You can connect a Windows 98-compatible printer to your computer to print documents.

To connect a printer

❑ Use the symbol to locate the Printer connector. Plug the printer

cable (supplied with the printer) into this port on the computer.

Power cord

Printer

to Printer

See the manual that came with your printer for more information on installation and use.

✍

Printer cable (supplied with the printer)

Before using the printer, you may need to change the Printer setting in the Sony Notebook Setup software. See “Displaying the Sony Notebook Setup Screen” on page57.

Page 58

VAIO Notebook Computer User Guide

Connecting an External Display

You can connect an external display to your notebook computer. For example, you can use the computer with any of the following:

❑ Computer display (monitor) (page 48) ❑ Multimedia computer display (pa ge 49) ❑ Projector (page 50)

To connect a computer display

❑ Use the symbol on the back of the computer to locate the Monitor

connector . Plug the display cable (not supplied) into this connector on the back of the computer.

❑ If necessary, plug one end of the display power cord into the display,

and the other end into an AC outlet.

Computer display

Power cord

Monitor

See the manual that came with your computer display for more information on installation

✍

and use.

Display cable (not supplied)

Page 59

Connecting Peripheral Devices

To connect a multimedia computer display

You can connect the notebook computer to a multimedia computer display that includes built-in speakers and a microphone.

Use the symbol to locate the Monitor connector. Plug the display

cable into this connector. Use the symbol to locate the Headphone connector. Plug the

speaker cable into this connector . Use the symbol to locate the Microphone connector. Plug th e

microphone cable into this connector.

to Monitor

✍

See the manual that came with your multimedia computer display for more information on installation and use.

Multimedia computer display

Power cordDisplay cable

Page 60

VAIO Notebook Computer User Guide

To connect a projector

You can use a projector, such as the Sony LCD Projector, as an external display.

Projector

to Monitor

Power cord

RGB signal cable

✍

See the manual that came with your projector for more information on installation and use.

Audio cable (not supplied)

To select a display

When you connect an external display to the monito r connector, you can toggle the output among the Liquid Crystal Display (LCD), the exte rnal monitor, or both devices.

Use the

Fn+F7

keys to select a display. See also “Selecting the Display

Mode” on page 65 for more information.

To Press Result

Switch to an external display

Fn+F7 Toggles among the LCD, the external display

connected to the Monitor connector, and both the LCD and external display.

Only LCD

LCD and external display

Only external display

Page 61

Connecting Peripheral Devices

Connecting an External Mouse or Keyboard

You can connect an external mouse or keyboard to the computer by plugging the mouse or keyboard into t h e / Mouse/Keyboard connector. To connect both a mouse and keyboard at the same time, you must use the port replicator. Connect the keyboard to the / Mouse/ Keyboard connector, and the mouse to the port replicator. The Mouse/Keyboard connector requires a PS/2 plug or adapter.

To connect an external mouse or keyboard

❑ Use the / symbol to locate the Mouse/Keyboard connector.

Plug the keyboard cable or mouse cable into this connector with the mark facing up.

Serial connector of the

-style

Mouse

See “Using the Keyboard” on page18 for more information on using the keyboard.

✍

See the manual that came with your mouse or keyboard for more information on installation and use.

Before you connect or disconnect the mouse or keyboard, turn off the computer. Before connecting a mouse to the Serial port, make sure the mouse is compatible with a

serial port.

Mouse/Keyboard

Keyboard

Page 62

VAIO Notebook Computer User Guide

Connecting External Speakers

You can enhance the sound quality of your computer by connecting external speakers.

Make sure your speakers are designed for computer use.

✍

Turn down the volume of the speakers before you turn them on. Do not place diskettes on the speakers; the speakers’ magnetic field may damage the data

on the diskettes.

To connect external speakers

❑ Use the symbol to locate the Headphone connector. Plug the

speaker cable into this connector.

Speakers

Speaker cable

Headphone

See the manual that came with your speakers for more information on installation and use.

✍

(supplied with speakers)

Page 63

Connecting Peripheral Devices

Connecting an External Microphone

You can enhance the quality of sound input by using an external microphone.

Make sure your microphone is designed for computer use.

✍

To connect an external microphone

❑ Use the to locate the Microphone connector. Plug the microphone

cable into this connector.

Microphone

See the manual that came with your microphone for more information on installation and

✍

use.

Page 64

VAIO Notebook Computer User Guide

Connecting a Digital Still Camera or Other Serial Device

You can connect other computer peripherals, such as the Sony Digital Still Camera, to the Serial connector on your computer.

To connect a digital still camera

❑ Use the symbol to locate the Serial connector . Plug the connecting

cable (not supplied) into this port on the computer and into the Digital I/O connector on the digital still camera.

Digital still camera

to Digital I/O

to Serial

The Sony Digital Still Camera is pictured; you may need to connect your camera differently.

✍

See the manual that came with your digital camera or other serial device for more information on installation and use.

If you use a digital camera that has an infrared data communication system or other infrared communication device, see “Using Infrared Communication Devices” on page32.

Conne cting cable (not supplied)

Page 65

Connecting Peripheral Devices

Connecting a Digital Video Camera Recorder

You can connect a digital video camera recorder to the S200 i.LINK™ (IEEE 1394) connector.

To connect a digital video camera recorder

❑ Plug one end of the i.LINK cable (not supplied) into the i.LINK

connector on the left side of the computer and the other end into the DV In/Out connector on the digital vide o camera recorder.

Digital video camera recorder

to DV In/Out

The Sony digital video camera recorder (DCR-PC7) is pictured; you may need to connect

✍

your camera differently. On Sony digital video cameras, connectors labeled “DV In/Out” or “i.LINK” are i.LINK-

compatible. See the manual that came with your digital video camera recorder for more information on

installation and use. Do not connect more than one digital video camera at a time. The software supplied with

your computer will not recognize multiple cameras.

to i.LINK

i.LIN K cable (not supplied)

The i.LINK connector on the computer does not supply power to external devices. If the external device requires power from the i.LINK connector, you cannot use the device with the computer.

The computer supports transfer rates up to 200 Mbps; however, the actual transfer rate is the lowest transfer rate of the external device.

The i.LINK features available may vary depending on the software applications you use. See the documentation that came with your software for more information.

Page 66

VAIO Notebook Computer User Guide

Connecting a Universal Serial Bus (USB) Device

You can connect a USB device to your computer.

To connect a USB device

❑ Use the symbol to locate the USB connector. Plug one end of the

USB cable into this port and the other end into the USB device.

USB device

to USB

USB connecting cable (not supplied)

You can use the optional Sony USB mouse PCGA-UMS1 with this computer. The USB mouse software driver is preinstalled in the computer. Therefore you only need to plug the USB mouse into the USB connector.

See the manual that came with your USB device for more information on installation and

✍

use.

Page 67

Customizing Your Notebook Computer

You can customize the settings of your notebook computer . The following sections briefly describe how to change your computer’s default settings. You can also refer to the Sony Notebook Setup Help for more detailed information.

Displaying the Sony Notebook Setup Screen

To display the Sony Notebook Setup screen:

Click the Start button on the Windows 98 taskbar.

Point to VAIO and click Sony Notebook Setup.

Select the tab for the item you want to change. See “Notebook Setup

Tabs” on page 58. After you finish, click OK.

Page 68

VAIO Notebook Computer User Guide

Notebook Setup Tabs

Tab Description

About This Computer Display system information, including memory

capacity, serial number, and BIOS version.

Audio Change the volume of the sounds that pla y while the

operating system is loading. Printer Select printer port mode settings. Power On

Device Sequence

Touchpa d When you conn ect an optional mouse to the Serial

Power On Password Set the password to secure your computer. Enable Ports Change the har dware r esourc es such as I/O addr ess,

Basic/Advanced Toggle between Advanced mode (add iti onal scr eens

Select the order of drives and devices from which

you want to load the operating system. You can

specify the hard drive as well as other drives

inserted into your computer.

port of your computer, you can make your touchpad

inactive. You can also customize the settings of your

mouse using the mouse utility.

IRQ, or DMA dependi n g on the option al hardware

or software you use. Disabling ports releases

resources to the system. To change the serial or

infrared settings, click Advanced on the Basic/

Advanced tab.

with advanced settings) and Basic mode of display.

Advanced mode includes Serial, Infrared, and View

Resources tabs.

✍

For more information about each option, click Help on the Sony Notebook Setup screen to display the Help file.

Page 69

Customizing Your Notebook Computer

Controlling Power Management

The PowerPanel utility allow s you to control the power management of your notebook computer and provides key information about system activity and battery life. The following sections briefly describe how to conserve your computer’s battery power. You can also refer to the PowerPanel Help for more detailed information.

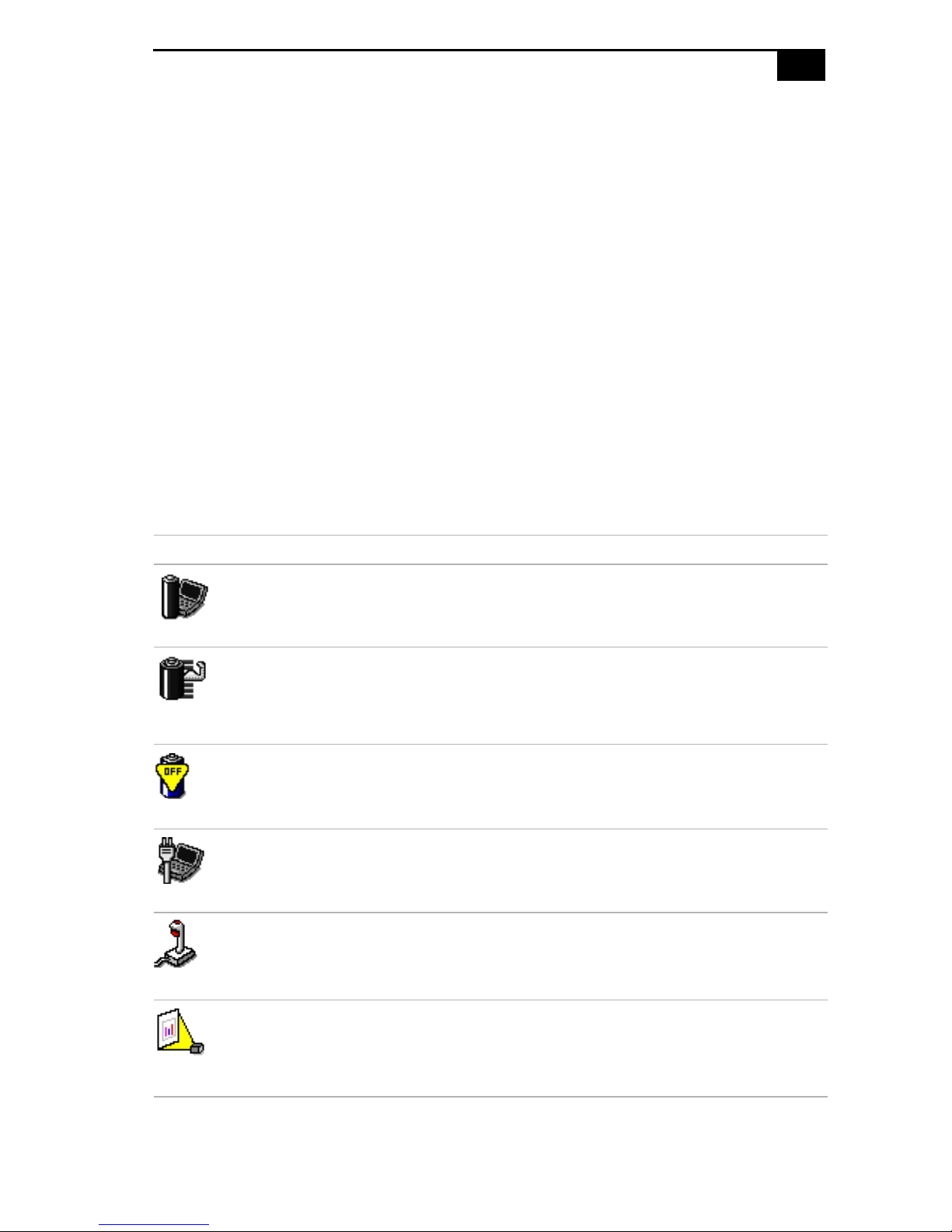

Power Management Profiles

PowerPanel provides several predefined power management profiles. Each profile consists of a group of specific power management settings that are designed to meet specific power management goals—ranging from maximum power management to no power management. Yo u can change the settings for any of the predefined profiles or you can create your own profile to suit your portable computin g need s. The predefined profiles are:

Icon Description

Maximum Performance

while still conserving power.

Maximum Battery Life

you maximum battery life and good performance. It slows the computer and puts it into System Suspend mode after a specified time period.

Disable Power Management

features such as System Suspend and System Hibernation modes.

AC Power

use. Similar to the Power Management Off setting. Powe rPanel automatically loads the AC profile unless you disable this feature.

–

Games

Disables the display and the Hard Disk Standby timer.

–

Provides the best system performance

–

Provides power saving features to give

–

Turns off all power management

–

The power management state when AC power is in

Presentation

power. This option is ideal for slide show presentations. You can establish settings for LCD (Video) Standby, Hard Disk Standby, and System Suspend to optimize power management for your system.

–

Keeps the display on at all times while it conserves

Page 70

Icon Description

VAIO Notebook Computer User Guide

Word Processing

timeouts on the hard disk and display screen. You can also establish settings for LCD (Video) Standby, Hard Disk Standby, and System Suspend to optimize power management for your system.

Spreadsheet

spreadsheet applications such as Microsoft Excel.

Communications

timeout. The Internal modem remains powered. You can also establish settings for LC D (Video) Standby, Hard Disk Standby, and System Suspend to optimize power management for your system.

Automatic Profile Selection

suitable for active appli cat ions.

–

Optimizes power management with longer

–

Optimizes performance and power requirements for

–

Extends battery life by ini tiati ng a quick di splay

–

Automatically swit ches to a pr ofile

Power Management Commands

PowerPanel also provides power management commands that you can use to activate specific power management functions and to control power for a specific device. You might use these commands when you want to override a profile setting or initiate an immediate action, such as putting the system into Video Standby mode before the Video Standby timer expires.

Icon Description

System Idle

consumption. This state stops the CPU clock and puts all peripheral s into low power mo de. To return the system to the activ e state, press any key or power switch on your system.

System Suspend

power management state that saves the state of the system and peripheral devices in memory (RAM). Power consumption reduces to a minimum, and the system remains on. To return the system to the active state, press any key or the power switch on you r computer.

System Hibernation –

consumption. The system writes the state of the system and peripheral devices to t he h ard disk and turns off the system power. To return the system to the original state, use the power switch to turn on power. The system saves the data in the Save to Disk Partition on the hard drive.

– Puts the system into Idle mode, a state of low power

– Puts the system into System Suspend mode, a

Provides for the lowest lev el of power

LCD (Video) Standby

turn off the Video Standby timer, the display remains active except when the system enters System Suspend mode. The video display system is one of the largest consumers of power in the system.

–

Turns off the LCD to save power. If you

Page 71

Customizing Your Notebook Computer

To activate PowerPanel

When you start your computer, the PowerPanel toolbar appears along the right edge of the screen by default. If the toolbar does not appear, right-click the taskbar at th e bottom of the s creen. Select Toolb a r from the pop-up m e n u, then click PowerPanel. The PowerPanel appears on the taskbar.

The Current Profile icon appears on the PowerPanel toolbar. To change the profile, click the profile icon, then select a profile from the list of profiles.

To select the power management command, click the power management button you want to set.

✍

Refer to the PowerPanel Help for information on customizing the PowerPanel toolbars. When you use the battery pack to power your computer, your system selects the Maximum

Battery Life power management profile by default. If you select a different power management profile while using battery power, that profile is selected automatically the next time you use the battery pack to power your computer.

To customize the power management settings

You can c hange t he po wer manage ment s etti ngs, such as the sys tem ti mer and brightness of the screen.

Click the profile icon on the PowerPanel toolbar.

Select Edit Profile from the menu.

Click a profile for which you want to change the settin g.

Double-click an item for which you w an t to change the setting.

Click a desired setting.

Click the File menu, then click Save.

Click the File menu, then click Close.

Page 72

VAIO Notebook Computer User Guide

Displaying Battery Informati on

You can display detailed information for each of the batteries in your computer. The following sections briefly describe how to display your computer’s general battery information. You can also refer to the BatteryScope Help for more detailed information.

Activating BatteryScope

To activate BatteryScope

When you start your computer, the BatteryScope toolbar appears along the right edge of the screen by default. If the toolbar does not appear, right-click the taskbar at the bottom of the screen. Select Toolbar from the pop-up menu, then click BatteryScope. The BatteryScope appears on the taskbar.

You can also view battery gauges on the shared PowerPanel and BatteryScope toolbar.

❑ Percentage indicator

Displays the percentage of the remaining capacity.

❑ Time indicator

Displays estimated time (h ours/minutes) remaining before the battery fully drains, also referred to as the time-to-empty.

Page 73

Battery Icon Descriptions

Battery icon Battery status

Discharging

Fully charged

Charging

Not in use

No batter y

Customizing Your Notebook Computer

Displaying Detailed Battery Information

You can obtain detailed informatio n about the batteries.

❑ Click the battery icon on the taskbar to display the BatteryScope

window. The screen appears displaying the General tab, which contains

information such as the estimated time-to-empty and charging time.

Page 74

To display information on individual batteries

1 2

VAIO Notebook Computer User Guide

Click the Primary battery tab to display information for the battery in the bay on the left side.

Click the Secondary battery tab to display information for the battery in the bay on the right side.

You can display the information about each battery, such as estimated time-to-empty, manufacturer, capacity, and other information.

To customize the BatteryScope toolbar and alarm system

You can customize the BatteryScope toolbar to suit your portable computing needs, including modifications to the alarm settings. Refer to the BatteryScope Help for more information.

Page 75

Customizing Your Notebook Computer

Selecting the Display Mode

When you connect an external display, you can toggle the display mode between the LCD on your computer and external displays.

Click the Start button on the Windows 98 taskbar.

Point to Settings and click Control Panel.

Click Display.

Click the Settings tab, then click the Advanced button.

Click the NeoMagic® tab.

Page 76

VAIO Notebook Computer User Guide

Select the type of display:

External (CRT/Projector)

Internal (LCD) Displays the LCD of your computer.

✍

You can turn off the computer's LCD display by removing the checkmark from the LCD option under Internal Display.

If you select CRT/Projector and turn off the LCD, you can use the Refresh Rate slider to change the display's horizont al frequency. This setting can b e made onl y for CR T disp lay . If you select Independent Display Timing (see page67), you can change both the resolution and the refresh rate.

Click OK. If you have made changes, the System settings change

Displays an external computer display or RGB connected projector that is connected to the Monitor connector on your computer.

dialog box appears. Select Yes to restart Windows. If you have not made changes, click OK to close the Display

Properties screen.

✍

Depending on the types of computer displays and projectors you are using, you may not be able to display the computer's LCD and external display simultaneously.

Page 77

Customizing Your Notebook Computer

Using a CRT or Projector

When you select CRT/Projector as the display mode, you can make additional settings, described as follows:

After selecting CRT/Projector as the type of external display (step 6

on page 66), click Advanced Settings. Click the External Display Options tab.

Select the follow ing options:

External Display Device:

CRT Connects with th e external computer display. Projector Connects with the projector.

Monitor Settings:

Independent Display Timing

Projector Settings:

Type Select the projector's resolution from the drop-

Click OK.

✍

You cannot select Independent Display Timing when the display is set to True Color (24 bit).

Click to place a checkmark when you want to set the resolution and refresh rate differently from the computer's LCD. To change the resolution and refresh rate, see the notes to step 6 on page 66.

down box.

Page 78

VAIO Notebook Computer User Guide

Display Sp e c if ications

LCD Display Mode Resolution Number of colors

1024 x 768 65,536* (PCG-F150); 16,770,000* (P CG-F160/180/19 0) 800 x 600 16,770,000* 640 x 480 16,770,000*

* Achieved by graphic accelerator's dithering function

External Display Mode Resolution Number of colors

1280 x 1024 256 1024 x 768 16,770,000 800 x 600 16,770,000 640 x 480 16,770,000

Page 79

Customizing Your Notebook Computer

Starting Your Favorit e Software wit h Programmable Power Key (PPK) Setup

The PPK Setup software enables you to start your favorite software by simply pressing the Programmable Power Keys. This section briefly describes how to use the Programmable Power Keys. Y ou can also refer to the PPK Setup Help for more detailed information.

Programmable Power Keys

Your computer has three Programmable Power Keys, which are set to activate as follows by default:

Press: To activate:

P1 P2 P3

* When power is off, pressing this key turns your computer on.

To use the PPK Setup window:

Double-click the PPK Setup icon on the taskbar. The PPK Setup

window appears. Click a Programmable Power Key tab for the Programmable Power

Key you want to use. Click the combination of keys you want to use.

VAIO demo The e-mail software System Sus p end mode

Select “Select from the registered files list,” then click Next.

Select a desired setting, then click OK.

Click OK.

✍

You can change PPK launch files, select files not currently registered, or disable the PPK. Refer to the PPK Help for more detailed information.

Page 80

VAIO Notebook Computer User Guide

Using the internal Timer:

You can use the internal T imer to start software at a specific time. You can use this feature when the computer is on or in System Suspend mode.

✍

When selecting software that uses a phone line: The computer may not be able to disconnect the phone line due to communication and server conditions. Be sure to monitor the status of the softw are when runni ng PPK Setup , and m anually disconnec t the phone line if you notice a malfunction. Furthermore, when using the Timer to start the software, it is advised that you set the computer to enter System Suspend or System Hibernation mode after a certain time. This allows the computer to disconnect the phone line if the computer fails to disconnect the line normally. However, the computer cannot disconnect the phone line when it enters System Suspend mode if the internal modem ring resume is set to On.

Page 81

Customizing Your Notebook Computer

Using the Dual Display Function

The dual display function allows you to distribute portions of your desktop across separate displays. For example, if you have an external monitor attached to the monitor connector, your LCD display and the monitor can function as a single desktop. You can move the cursor off one display and onto the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other. This configuration of a sing le desktop distributed across separate displays is referred to as a virtual desktop.

Virtual desktop

External monitor

Your LCD display

Selecting dual display mode

You must restart Windows to use dual display mode. Save your work and close any open applications before changing to dual display mode, then follow these steps:

Click the Start button on the Windows 98 taskbar.

Point to Settings and click Control Panel.

Click the Display icon.

Click the Settings tab.

Click the Advanced button.

Click the NeoMagic tab.

Page 82

7 8

9 10 11 12

VAIO Notebook Computer User Guide

Check the Set Dual-Display option and click OK. The System Settings Change dialog box appears.

Click Yes to restart your system. Repeat steps 1 to 3 to display the Display Properties screen. Click the display icon number 2. Click Yes. Click OK.

Setting the colors and resolution for each display

You can set the display colo rs and resolution for each display that is part of a virtual desktop.

Follow steps 1 to 4 above to display the Display Properties screen. Select the display you wish to change (1 or 2) by clicking on the icon of the display. You can change colors by selecting an option from the Colors list. Use the slider in the Screen area to change the resolution. Click OK or Apply. Click OK to confirm that you want to make the changes.

Customizing the virtual deskto p

You can customize dual display mode by changing the position of the two desktops that comprise the virtual desktop.

In the Display Properties screen, drag the icons of display 1 or display 2, moving them to a new position relative to each other. The two display icons must be connected to create a virtual desktop. Click OK to apply the change.

Releasing the dual display setting

You must restart Windows to return to single display mode. Save your work and close any open appli c ations before returning to single display mode. Follow the steps in the section above on Selecting dual display mode. In step 7, remove the check from the Set Dual-Display option. You must restart Windows before the change takes effect.

Page 83

Getting Help

Sony provides several support options for your Sony computer. When you have questions about your computer and the preinstalled software, check these sources for answers, in the following sequence:

VAIO Notebook

Computer Read Me First

VAIO Notebook

Computer User Guide

Online User

Guide

Manuals and

online help files that may accompany your preinstalled software

Knowledge

Database

Contains a complete list of the items that ship with your computer, product specifications, software support information, and the most up-to-date information on using your computer.

Explains how to use your notebook computer and connect peripheral devices.

This electronic version of the additional information on the preinstalled software titles. You can access th is guide from the Windows Start menu by selecting Programs/VAIO/ Documentation.

Most of the manuals for preinst a lled soft wa re are located on your hard disk drive as online help files. You can access the online help files from the Help menu in the specific application. A printed manu al is available for some appli cations.

Provides instant access to information on commonly encountered problems. Enter a description of your problem and the Knowledge Database searches for the corresponding solutions online. You can access the Sony Knowledge Dat ab as e at: http://www.sony.com/pcsupport/

User Guide

contains

Page 84

VAIO Notebook Computer User Guide

Sony

Fax-on-Demand

Calling Sony

Customer Support

This service provides you with answers to comm only asked ques tions. You can use this automated servi c e to reque st a lis t of avail abl e topic s and th en selec t the topics that you want to receive. To contact the Sony fax-on-demand service, call 1-888 -4SON YP C (1-888-476-6972). (Requires a fax machine or your fax software.)

You can call and speak with a Sony Customer Support Representative without using your computer by calling 1-888-4SONYPC (1-888-47 6-6972) . Softwar e support is available f ree of charge for 90 days afte r th e origin al da te of pur c ha se.

Page 85

Getting Help

Troubleshooting

This section describes how to solve com mon problems you may encounter when using your computer. Many problems have simple solutions, so try these suggestions before you call Sony Customer Support.

When you reconnect devices be sure to turn off the computer as described in “Shutting

✍

Down Your Computer” on page 15. Turning off the computer using other methods may result in data loss.

My computer does not start

Check that the computer is plugged into a power source and that it is

❑

turned on. Check that the power indicator on the front panel of the computer indicates that the power is on.

❑ Check that the battery packs are inserted properly and that they are

charged.

❑ Make sure there is no diskette in the floppy disk drive. ❑ Confirm that the power cord and all cables are connected firmly, as

described in “Connecting Peripheral Devices” on page 41.

❑ If you plugged the computer into a power strip or UPS, make sure the

power strip or UPS is turned on and working.

❑ If you are using an external display, check that it is plugged into a

power source and turned on. Check that the brightness and contrast controls are adjusted correctly. See the manual that came with your display for details.

❑ Moisture condensation may have occurred. Do not use the computer

for at least one hour and then turn on the computer.

❑ Your computer’s internal backup battery may be low on power.

Change the backup battery located on the bottom of your computer, following the procedure in “Replacing the Internal Backup Battery” on page 82.

When I turn on my computer, the message “Operating system not found” appears and Windows does not start

Check the floppy disk drive to see if a non-bootable diskette is in the

❑

drive.

❑ If a non-bootable diskette is in the drive, turn off the computer,

remove the diskette, and then turn on the computer again. Confirm

Page 86

VAIO Notebook Computer User Guide

that Windows starts properly. If Windows still does not start, follow the procedure below to initialize the BIOS.

❑ If the floppy disk drive is empty, follow the steps below to initialize

the BIOS:

Remove any peripheral devices connected to the computer.

Turn the computer off and then turn it on again.

Turn on the computer and press the F2 key when the Sony logo appears.

The BIOS setup menu screen appears. Press the arrow keys to select the Exit menu.

Press the arrow keys to select Get Default Values and then press the Enter

key. The message “Load default configuration now?” appears. Check that [Yes] is selected, then press the Enter key.

Press the arrow keys to select Exit (Save Changes) and then press the Enter

key. The message “Save con figuration changes and ex it now?” appears. Check that [Yes] is selected, then press the Enter key. The computer

restarts.

If your computer still displays th e message “Operating system not found” and Windows does not start, contact Sony Customer Support.

My LCD does not display anything

❑ Check that the compu t er is pl ugge d in to a po wer source an d t h at i t i s

turned on. Check that the power indicator on the front panel of the computer is on.

❑ Check that the battery packs are inserted properly and that they are

charged.

❑ The computer may be in LCD (Video) Standby mode. Press any key

to activate the display.

The screen image on my external display is not centered or sized properly

Use the controls on your external display to adjust the image. See the manual supplied with your dis p lay for more information.

My computer “locks up”

Try restarting the computer. On the Windows taskbar, click the Start

❑

button, click Shut Down, and then click Restart the computer.

❑ If you cannot restart as described in the preceding step, you can

restart the computer by pressing Ctrl+Alt+Delete.

Page 87

Getting Help

❑ If the previous step does not work, slide the power switch towar d the

front and hold it for at least four seconds. This turns off the power.

❑ If your computer locks up while playin g a DVD-ROM/CD-ROM,

stop the DVD-ROM/CD-ROM, and restart the computer by pressing Ctrl+Alt+Delete.

Pressing Ctrl+Alt+Delete may result in data loss in files that are currently open.

✍

My software program “locks up” or crashes

Contact the software publisher or designated provider for technical support. See the online version of Read Me First for a complete list of phone numbers.

My DVD-ROM drive tray does not open

❑ Make sure the computer is turned on. ❑ Press the Eject button on the DVD-ROM/CD-ROM drive. ❑ If the Eject button does not work, you can open the tray by inserting a

sharp, pointed object into the hole to the right of the Ej ect b utton.

I cannot play a CD-ROM

❑ Make sure the label of the CD-ROM is facing up. ❑ If the CD-ROM requires software, make sure the software is installed

according to the program’s instructions.

❑ Moisture condensation may have occurred. Leave the computer for at

least 1 hour while the computer is turned on.

❑ Clean the CD-ROM. ❑ Check the speaker volume.

I cannot play a DVD-ROM

If a region code warning appears when yo u are using the DVD

❑

player, it could be that the DV D-ROM you are trying to play is incompatible with the DVD-ROM drive in your notebook computer. The region code is listed on the disc’s packaging.

❑ If you hear audio but cannot see video, your computer’s video

resolution may be set too high. For best results, change the Windows Control Panel/Display/Settings to 800 x 600 using 256 colors.

Page 88

➜

❑ If you see video but cannot hear au d io, check all of the following:

VAIO Notebook Computer User Guide

Make sure your DVD player’s mute setting is off. Check the master volume setting in the audio Mixer. If you have connected speakers externally, check the volume settings in your computer speakers and check the connections between your speakers and the computer. Check the Windows Control Panel/System/Device Manager to see that the drivers are installed properly.

❑ A dirty or damaged disc may cause the computer to “hang” while it

tries to read the disc. If necessary, reboot the computer, remove the disc, and then check that it is not dirty or damaged. For cleaning instructions, see “On Cleani ng CD-ROMs and DVD-ROMs” on page 90.

When I click an application icon a message appears, such as “You must insert the application CD into your CD-ROM drive,” and the software does not start

Some titles require specific files that are located on the application’s

❑

CD-ROM. Insert the disc and try starting the program again.

❑ Make sure you place the disc in the tray with the label side facing up .

My floppy disk drive cannot write to a diskette

If the diskette is write-protected, disable the write-protect feature or

❑

use a diskette that is not write-protected.

❑ Check that the diskette is properly inserted into the floppy disk drive.

My speakers have no sound

❑ If the built-in speakers are turned off, press Fn+F3 to turn on the

speakers.

❑ If the speaker volume is turned to the minimum, press Fn+F4, and

then press

❑ If your computer is powered by batteries, check that the battery packs

to increase the volume.

➜

are inserted properly and that they are charged.

❑ If you are using an application that has its own volume control, check

that the volume is turned up.

❑ Check the volume controls in Windows 98. ❑ If you connect external speakers, check that the speakers are pr operly

connected and the volume is turned up. If the speakers have a mute button, make sure it is off. If the speakers are powered by batteries, check that the batteries are inserted properly and that they are charged.

Page 89

Getting Help

❑ If you have connected an audio cable to the Headphone connector,

disconnect the cable.

My modem does not work

❑ Check that the phone line is plugged into the line jack. See

“Connecting a Pho ne L ine” on page 42 for details.

❑ Check that the phone line is working. You can check the line by

plugging in an ordinary phone and listening for a dial tone.

❑ Check that the phone number the program is dialing is correct. ❑ Check that the software you are using is compatible with the

notebook computer modem. (A ll preinstalled programs are compatible.) Call the software publisher or Sony Custo mer S upport.

My modem connection is slow

The computer’s modem uses K56flex™ technology and V. 90 capability. Many factors influence modem connection speed, including telephone line noise or compatibility with teleph one equipment (such as fax machines or other modems ). If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider, check the following:

❑ Have your phone company check that your phone line is free from

any line noise.

❑ If your problem is fax-related, check that there are no problems with

the fax machine you are calling and that it is compatible with fax modems.

❑ If you are having a problem connecting with your Internet Service

Provider, check that the ISP is not experiencing technical problems.

❑ If you have a second phone line available, try connecting the modem

to that line.

My microphone does not work

If you are using an external microphone, check that the microphone is plugged into the Microphone connector. See “Connecting an External Microphone” on page 53 for details.

My mouse does not work

❑ If you are using an external mouse, check that the mouse is plugged

into the mouse connector. See “Connecting an External Mouse or Keyboard” on page 51 for details.

Page 90

❑ If you connected an external mouse while your computer is on, you

VAIO Notebook Computer User Guide

must restart your computer.

❑ If you are using an optional Sony USB mouse PCGA-UMS1, check

that the mouse is plugged into the USB con necto r.

My touchpad does not work

You may have disabled the touchpad while no mouse was connected to the computer. If so, you mus t restart the computer to make the touchpad work again.

I cannot use DV devices. The message “DV equipment seems to be disconnected or turned off” appears.

Check that the DV device is turned on and that the cables are

❑

properly connected.

❑ If you are using multiple i.LINK devices, the combination of the

connected devices may cause unstable operation. In this case, turn of f the power to all connected devices and disconnect unused devices. Check the connection, then turn on the power again.

My touchpad interprets a single tap as a double-click

Click the Mouse icon in the Control Panel and then change the button assignments in the Mouse Properties dialog box. One of the buttons is assigned to the double-click action.

My computer does not shut down

It is best to shut down your computer using the Shut Down command on the Windows 98 Start menu. U sing other methods, including those listed here, may result in loss of unsaved data. If the Shut Down command does not work properly, follow these steps:

❑ Restart the computer by pressing Ctrl+Alt+Delete. If this does not

work, slide the power switch forward and hold it for at least four seconds to turn off the power.

❑ Unplug the computer from the AC adapter and remove the battery

pack from your computer.

Page 91

Getting Help

My PC card is not working

Make sure the PC card is compatible with Windows 98.

❑ ❑ Use the Sony Notebook Setup utility to disable devices you are not

currently using.

The sound of my computer’s fan is too loud

Use the PowerPanel utility to change the Thermal Control Strategy setting to Quiet. This setting slo ws down the CPU speed. See the PowerPanel Help for more information.

I cannot print

The default setting for the printer port mode is correct for most printers. If you cannot print, try changing the printer port mode. In Sony Notebook Setup, select the Printer tab. If the printer port mode is set to ECP, change it to bi-directional. If the printer port mode is set to bi-directional, change it to ECP. See “Displaying the Sony Notebook Setup Screen” on page 57 for details on using Sony Notebook Setup.

Page 92

VAIO Notebook Computer User Guide

Replacing the Internal Backup Battery

The backup battery will last about three years. When the battery is l ow on power, replace it with a Sony lithium battery CR2025 or compatible.

To replace the backup battery

Turn off the computer and connected devices, then unplug all the

cables. Unscrew the battery cover to open it.

Screw 1

Screw 2

Remove the battery.

Insert a new batter y and close the cover.

Follow the procedure below to set the clock.

To set date and time

After replacing the backup battery, be sure to set the time as follows:

Turn on the computer.

The message “Press <F1> to resume, <F2> to Setup” appears at the bottom of the display.

Press F2.

The BIOS Setup menu starts.

Page 93

Getting Help

➜

Set the date (month/day/year).

Press Enter to move to the next item. To enter 01/31/1999 , for example, follow these steps: Type 1, press Enter, type 31, press Enter, type 1999, then press Enter.

➜

Press to select System Time, then set the time

(hour:minute :second). Press Enter to move to the next item. Press ➜ to select Exit, then press to select Get Default Values.

The message “Load default configuration now?” appears. Make sure that Yes is selected and press Enter.

If No is selected, press to select Yes. Select Exit (Save Changes), then press Enter.

The message “Save configuration changes and exit now?” appears. Make sure that Yes is selected and press Enter.

The computer restarts.

Page 94

VAIO Notebook Computer User Guide

Using the System and Application Recovery CDs

The following sections describe how to use the System Recovery and Application Recovery utiliti e s.

Using the System Recovery CD(s)

You can reinstall software titles that shipped with your computer if they are corrupted or accidentally erased. You may not need to recover the entire contents of your har d drive. If you experience a problem with your computer, reinstalling an individual device driver or software title may correct the problem. Use the Application Recovery CD(s) to reinstall individual applications or device drivers. See “Using the Application Recovery CD(s)” on page 86.

The System Recovery CD contains a backup copy of all the software originally installed on your hard disk drive. It can be used only to

recover the hard disk of the notebook computer you purchased.

The System Recovery utility gives you three options:

❑ Full Restore with out Format restores all the software titles that

originally came with your com p uter without formatting the hard disk.

❑ Full Restore with Format formats the hard disk drive and then

restores all the original software.

❑ Operating System Only restores the Windows 98 operating system,

the notebook computer utility programs, and the device drivers that shipped with your computer.

If you choose the Full Restore with Format or Operating System Only option,

your hard disk will be formatted, which removes all the information on the hard disk drive. You will lose any software you have installed and any other files you have created since you started to use your computer. This means you will have to reinstall any applications that were not included with the computer when you purchased it. If you choose the Full Restore without Format option, you may need to reinstall applications that were not included with the computer when you purchased it. If you have any questions on using the System Recovery CD, contact Sony Customer Support.

Page 95

Getting Help

To use the System Recovery CD(s)

✍

You need to complete the Windows 98 registration process when you use the System Recovery CD. Make sure you have the product ID number located on the cover of your Microsoft Windows 98 “Getting Started” manual. You will need this number to complete the recovery process.

Insert the Sony System Recovery CD in the DVD-ROM/CD-ROM

drive.

✍

The System recovery utility boots from the DVD-ROM/CD-ROM drive. It must be in the DVDROM/CD-ROM drive when you turn on the computer.

Shut down your computer as described in “Shutting Down Your

Computer” on page 15. Wait four seconds and turn on your computer.

Click OK to signify you have read and accept the Microsoft End-User

License Agreement. When the System Recovery menu appears, follow the on-screen

instructions to complete the recovery process.

✍

Y our system may include one or two System Recovery CDs. If you have two System Recovery CDs, i nsert th e f irst CD to ru n th e System Re covery prog r am . You are prompted to insert th e second CD once the information from the first CD has been installed.

The recovery process takes from 30 to 60 minutes to complete.

If your computer does not start from the Recovery CD

Slide the power switch forward and hold it f or mo re than four

seconds to turn off the computer. Turn on the computer. When the Sony logo is displayed, press the F2

key. The BIOS setup menu screen appears. Press the arrow keys to select the Exit menu.

Press the arrow keys to select Get Default Values and then press the

Enter key. The me ssage “Load default configuration now?” appears. Check that [Yes] is selected, then press the Enter key.

Press the arrow keys to select Exit (Save Changes) and then press the

Enter key. The message “Save configuration changes and exit now?” appears.

Page 96

VAIO Notebook Computer User Guide

Check that [Yes] is selected, then press the Enter key. The computer restarts from the Recovery CD.

Using the Application Recovery CD(s)

The Application Recovery CD(s) allows you to reinstall individual applications and device drivers if they are corrupted or accidentally erased. Reinstalling an individual device driver or software title may correct a pr oblem you ar e experiencing with your computer, and you may not need to recover the entire contents of your hard drive. If you do need to reinstall all the software titles that shipped with your computer , use the System Recovery CD(s). See “Using the System Recovery CD(s)” on page 84.

You can also use the A pplication Recovery CD to install Windows NT Workstation 4.0 drivers on your computer.

✍

You must be in Windows to run the Application Recovery CD. The application will not run from DOS. If you have any questions on using the Application Recovery CD, contact Sony Customer Support.

To use the Application Recovery CD(s)

Turn on your computer. If your computer is already on, close all

applications. When the Windows desktop appears, insert the Sony Application

Recovery CD in the DVD-ROM/CD-ROM drive. The Application Recovery utility loads automatically.

When the Application Recovery menu appears, select the icon for the

application you want to restore and then follow the on-screen instructions to complete the recovery process.

✍

Your system ma y incl ude one or tw o App lica tion R ecov ery CDs. If you have two Application Recovery CDs, insert the first CD to run the Application Recovery program. You may be prompted to insert the second CD, depending on the application you wish to restore.

For a list of the contents of the Application Recovery CD(s), see the online version of

Me First.

Read

Page 97

Notes on Use

This section describes safety guidelines and precautions to help protect your computer from potential damage.

On Handling the LCD Screen

❑ Do not leave the LCD facing the sun as it can damage the LCD. Be

careful when using the computer near a window.

❑ Do not scratch the LCD or exert pressure on it. This could cause

malfunction.

❑ Using the computer in low tempera ture conditio ns may produce a

residual image on the screen. This is not a malfunction. When the computer returns to normal temperature, the screen returns to normal.

❑ A residual image may appear on the screen if the same image is

displayed for a lengthy period of time. The residual image disappears in a while. You can use a screen saver to prevent residual images.

❑ The screen becomes warm during operation. This is normal a nd does

not indicate a malfunction.

❑ The LCD is manufactured using high-precision technology. You may,

however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction.

On the Power Source

❑ Your computer operates on 100V-240V AC 50/60 Hz. ❑ Do not share the AC outlet with other power-consuming equipment,

such as a copy machine or shredder.

❑ You can purchase a power strip with a surge protector. This device

prevents damage to your computer caused by sudden power surges such as those that may occur during an electrical storm.

❑ Do not place heavy objects on the power cord.

Page 98

❑ To disconnect the cord, pull it out by the plug. Never pull the cord

VAIO Notebook Computer User Guide

itself.

❑ Unplug your computer from the wall outlet if you will not be using

the computer for a long time.

❑ When the AC adapter is not used, unplug it from the AC outlet. ❑ Use only the AC adapter supplied. Do not use any other AC adapter.

On Handling

❑ Clean the cabinet with a soft, dry cloth or a soft cloth lightly

moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.

❑ Should any solid object or liquid fall into the computer, shut down

your computer and then unplug it. You may want to have the computer checked by qualified personnel befo re operating it any further.

❑ Do not drop the computer or place heavy objects on t op of the

computer.

On Installation

❑ Do not place your computer in a location subject to:

❑ Heat sources, such as radiators or air ducts ❑ Direct sunlight ❑ Excessive dust ❑ Moisture or rain ❑ Mechanical vibration or shock ❑ Strong magnets or speakers that are not magnetically shielded ❑ Ambient temperature of more than 95º F (35º C) or less than

50º F (10º C)

❑ High humidity

❑ Do not place electronic equipment near your computer. The

computer’s electromagnetic field may cause a malfunction.

❑ Provide adequate air circulation to prevent internal heat buildup. Do

not place your computer on porous surfaces such as rugs or blankets, or near materials such as curtains or draperies that may block its ventilation slots. Leave a space of at least 8 inches behind the back panel of the computer.

Page 99

Notes on Use

❑ The computer uses high-frequency radio signals and may cause

interference to radio or TV reception. Should this occur, relocate the computer a suitable distance away from the set.

❑ Use only specified peripheral equipment and interface cables;

otherwise, problems may result.

❑ Do not use cut or damaged connection cables. ❑ Your computer will not work with party lines, cannot be connected to

a coin-operated telephone, and may not work with multiple phone lines or a private branch exchange (PBX).

❑ If the telephone company makes a service call to your home or office

and determines that your computer is responsible for a problem, the telephone company may bill you for the service call. Also, if you do not disconnect your computer when it is adversely affecting the telephone line, the telephone company has the right to disconnect your service until you correct the problem.

On Moisture Condensation

If the computer is brought directly from a cold location to a warm one, moisture may condense inside yo ur computer. In this case, allow at least an hour before turning on your computer. If any problems occur, unplug your computer, and contact your Sony Service Center.

On Handling Diskettes

❑ Do not open the shutter manually and touch the surface of the

diskette.

❑ Keep diskettes away from magnets. ❑ Keep diskettes away from direct sunlight and other he at sources.

On Handling CD-ROMs and DVD-ROMs

Do not touch the surface of the disc.

❑ ❑ Do not drop or bend the di sc .

Page 100

On Cleaning CD-ROMs and DVD-ROMs

❑

VAIO Notebook Computer User Guide

Fingerprints and dust on the surface of a disc may cause read errors. Proper care of the disc is essential to maintain its reliability. Do not use solvents such as benzine, thinner , commercially available cleaners or anti-static spray, as they may cause damage to the disc.

❑ For normal cleaning, hold the disc by its edge and use a soft cloth to

wipe the surface from the cen ter out.

❑ If the disc is badly soiled, moisten a soft cloth with water, wring it out

well, and use it to wipe the surface of the disc from the center out. Wipe off any remaining moisture with a dry soft cloth.

On Using Batteries

❑ Never leave the battery pack in temperatures above 140

F (60° C),

such as under direct sunlight or in a car parked in the sun.

❑ Battery life is shorter in a cold environment. This is due to decreased

battery efficiency at low temperatures.

❑ Charge the batteries at temperatures between 50

F and 80° F (10° C

to 30° C). Lower temperatures require a longer charging time.

❑ While the battery is in use or being discharged, the battery pack heats

up. This is normal and is not cause for concern.

❑ Keep the battery pack away from all sources of heat. ❑ Keep the battery pack dry. ❑ Do not open or try to disassemble the battery pack. ❑ Do not expose the battery pack to any mechanica l shock. ❑ If you are not using the computer for an extended period of time,

remove the battery pack from the computer to prevent damage to the battery.

❑ If, after fully charging the battery pack, the battery power is still low,

the battery pack may be reaching the end of its life and should be replaced.

❑ You do not need to discharge the battery before recharging. ❑ If you have not used the battery pack for a considerable amount of

time, recharge the battery.
