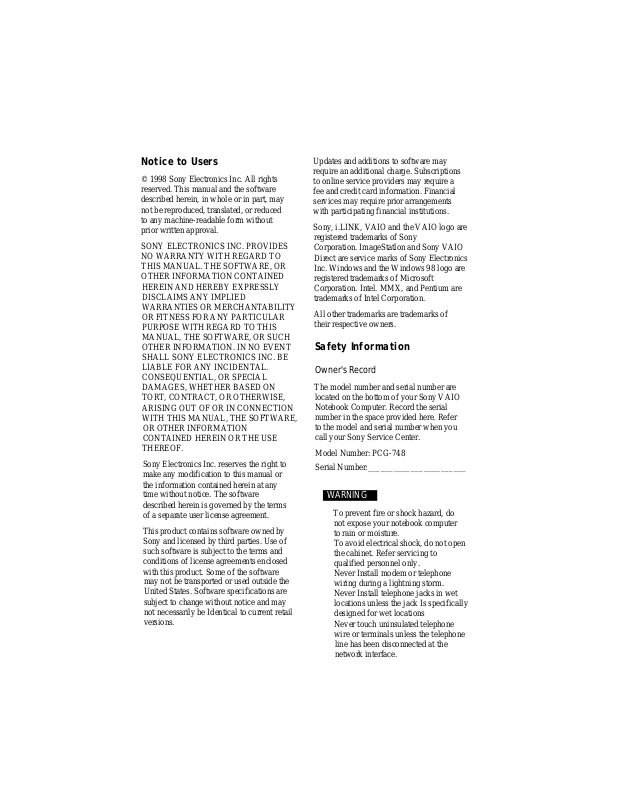

Sony PCG-748 User Manual
Notice to Users
© 1998 Sony Electronics Inc. All rights
reserved. This manual and the software
described herein, in whole or in part, may
not be reproduced, translated, or reduced
to any machine-readable form without
prior written approval.
SONY ELECTRONICS INC. PROVIDES
NO WARRANTY WITH REGARD TO
THIS MANUAL. THE SOFTWARE, OR
OTHER INFORMATION CONTAINED
HEREIN AND HEREBY EXPRESSLY
DISCLAIMS ANY IMPLIED
WARRANTIES OR MERCHANTABILITY
OR FITNESS FOR ANY PARTICULAR
PURPOSE WITH REGARD TO THIS
MANUAL, THE SOFTWARE, OR SUCH
OTHER INFORMATION. IN NO EVENT
SHALL SONY ELECTRONICS INC. BE
LIABLE FOR ANY INCIDENTAL.
CONSEQUENTIAL, OR SPECIAL
DAMAGES, WHETHER BASED ON
TORT, CONTRACT, OR OTHERWISE,
ARISING OUT OF OR IN CONNECTION
WITH THIS MANUAL, THE SOFTWARE,
OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE
THEREOF.
Sony Electronics Inc. reserves the right to
make any modification to this manual or
the information contained herein at any
time without notice. The software
described herein is governed by the terms
of a separate user license agreement.
This product contains software owned by
Sony and licensed by third parties. Use of
such software is subject to the terms and
conditions of license agreements enclosed
with this product. Some of the software
may not be transported or used outside the
United States. Software specifications are
subject to change without notice and may
not necessarily be Identical to current retail
versions.
Updates and additions to software may
require an additional charge. Subscriptions
to online service providers may require a
fee and credit card information. Financial
services may require prior arrangements
with participating financial institutions.
Sony, i.LINK, VAIO and the VAIO logo are
registered trademarks of Sony
Corporation. ImageStatlon and Sony VAIO
Direct are service marks of Sony Electronics
Inc. Windows and the Windows 98 logo are
registered trademarks of Microsoft
Corporation. Intel. MMX, and Pentium are
trademarks of Intel Corporation.
All other trademarks are trademarks of
their respective owners.
Safety Information
Owner's Record
The model number and serial number are
located on the bottom of your Sony VAIO
Notebook Computer. Record the serial
number in the space provided here. Refer
to the model and serial number when you
call your Sony Service Center.
Model Number: PCG-748
Serial Number:
WARNING
To prevent fire or shock hazard, do
not expose your notebook computer
to rain or moisture.
To avoid electrical shock, do not open
the cabinet. Refer servicing to
qualified personnel only.
Never Install modem or telephone
wiring during a lightning storm.
Never Install telephone jacks in wet
locations unless the jack Is specifically
designed for wet locations
Never touch uninsulated telephone
wire or terminals unless the telephone
line has been disconnected at the
network interface.
_______________________
Use caution when installing or
modifying telephone lines.
Avoid using the modem during an
electrical storm.
Do not use the modem or a telephone
to report a gas leak' in the vicinity of
the leak.
A socket outlet should be as close as
possible to the unit and ecisily
accessible.
The use of optical instruments
with this product will increase eye
hazard.
AVERITISSEMENT
Pour prévenir tout risque d’incendie
ou d’électrocution, garder cet appareil
à l’abri de la pluie et de l’humidité.
Pour prévenir tout risque
d’électrocution, ne pas ouvir le châssis
de cet appareil et ne confier son
entretien qu’à une personne qualifiée.
L’appariel doit être le plus près
possible d’une prise murale pour en
faciliter l’accès.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No: PCG-748
Responsible Ptirty:
Sony Electronics Inc.
Address:
1 Sony Drive
Park Ridge, NJ 07656
Telephone No.: 201-930-6970
This device complies with Part 15 of
the FCC rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
Interference, and (2) this device
must accept any interference that
may cause undesired operation.
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential Installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful
Interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful Interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference Ijy one or more of the
following measures:
□ Reorient or relocate the receiving
■ antenna.
□ Increase the separation between the
equipment and the receiver.
Connect the equipment Into an outlet
on a circuit different from that to
which the receiver is connected.
□ Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Only peripherals (computer input/output
devices, terminals, printers, etc.) that
comply with FCC Class B limits may be
attached to this computer product.
Operation with non-compUant peripherals
is likely to result in Interference to radio
and television reception.
All cables used to connect peripherals must
be shielded and grounded. Operation with
cables, connected to peripherals, that are
not shielded and grounded, may result in
interference to radio and television
reception.
FCC Part 68
This equipment complies with Part 68 of
the FCC rules. On the bottom of this
equipment is a label that contains among
other information, the FCC equivalence
number (REN) for this equipment. If
requested, this information must be
provided to the telephone company.
All applicable registration jack USCOs, any
facility Interface codes and service order
codes associated with the services the
equipment is to be connected.
The REN is used to determine the quantity
of devices which may be connected to the
telephone line. Excessive RENs on the
telephone line may result in the devices not
ringing in response to an incoming call. In
most, but not all areas, the sum of the RENs
should not exceed five (5.0). To be certain
of the number of devices that may be
connected to the line, as determined by the
total RENs, contact the telephone company
to determine the maximum REN for the
calling area.
If the terminal equipment (Notebook
Computer PCG-748) causes harm to the
telephone network, the telephone company
wlU notify you in advance that temporary
discontinuance of service may be required.
But if advance notice isn’t practical, the
telephone company will notify the
customer as soon as possible. Also, you
will be advised of your right to file a
complaint with the FCC if you believe it is
necessary.
The telephone company may make
changes in its facilities, equipment,
operations or procedures that could affect
the operations of the equipment. If this
happens, the telephone company will
provide advance notice in order for you to
make the necessary modifications in order
to maintain uninterrupted service.
If trouble is experienced with this
equipment (Notebook Computer PCG-
748), please contact 1-888-4SONYPC (1-
888-476-6972), or write to the Sony
Customer Information Center, One Sony
Drive, Park Ridge, NJ 07656 for repair and
(or) warranty Information. If the trouble is
causing harm to the telephone network, the
telephone company may request you
remove the equipment from the network
until the problem is resolved.
Repair of this equipment should be made
only by a Sony Service Center or Sony
authorized agent. For the Sony Service
Center nearest you, call 1-888-4SONYPC
(1-888-476-6972).
This equipment cannot be used on public
coin service provided by the telephone
company. CpnnpctlooiQ Party Line Service
is subject to state and possible provincial
tariffs. (Contact the state or provincial
utility service commission, public service
commission or corporation commission
for information.)
Telephone Consumer
Protection Act of 1991
(United States)
The Telephone Consumer Protection Act of
1991 makes it unlawful for any person to
use a computer or other electronic device
to send éiny message via a telephone
facsimile machine unless such message
clearly contains, in a margin at the top or
bottom of each transmitted page or on the
first page of the transmission, the date and
time it is sent and an identification of the
business, other entity, or individual
sending the message, and the telephone
number of the sending machine or such
business, other entity, or individual.
In order to program this information into
your facsimile, see your fax software
documentation.
Telephone Consumer
Guidelines (Canada)
DISPOSAL OF LITHIUM ION
BATTERY
You can return your unwanted lithium ion
batteries to your nearest Sony Service
Center or Factory Service Center.
In some areas the disposal of lithium ion
batteries in household business trash
may be prohibited.
For the Sony Service Center nearest you
call 1-888-476-6972 in the United States or
1-800-961-7669 in Canada.
I Do not handle damaged or leaking
lithium ion batteries.
! Me pas manipuler les batteries au
lithium-ion qui fuient ou sont
endommagées.
Please refer to your telephone directory
under ‘Privacy Issues’ and/or ‘Terms of
Service’. For more detailed information
please contact:
CRTC
Terrasses de la Chaudière, Tour centrale
1 promenade du Portage, 5 étage,
HullPQKlAONZ.
This Class B digital apparatus complies
with Canadian ICES-003.
Cet àppareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
! Danger of explosion if battery is
incorrectly replaced. Replace only
with the same or equivalent type
recommended by the
manufacbirer. Discard used
batteries according to the
manufacturer's instructions.
! Une batterie non conforme
présente un danger d'explo«on.
La remplacer seulement par une
batterie identique ou de type
équivalent recommandé par le
fabricant. Evacuer les batteries
usées selon les directives du
fabricant.
! The battery pack used in this
device may present a fire or
chemical burn harard if mistreated.
Do not disassemble, heat above
212° (100°C) or incinerate.
Dispose of used battery promptly.
Keep away from chiltben.
! La manutention imorrecte du
module de batterie de cet appareil
présente un risque d'incendie ou
de brûlures cMmiques. Ne pas
démonter, incinérer ou exposer à
une température de plus de 100
Ëvacuer promptement la batterie
usée. Garder hors de portée des
enfants.
INDUSTRY CANADA NOTICE
NOTICE: The Industry Canada label
identifies certified equipment. This
certification means that the equipment
meets certain telecommunications
network protective, operational and safety
requiren^nts as prescribed in the
appropriate Terminal Equipment Technical
Requirements document (s). The
Department does not guarantee the
equipment will operate to the user’s
satisfaction.
Before installing this equipment, users
should ensure that it is permissible to be
connected to the facilities of the local
telecommunications company. The
equipment must also be installed using an
acceptable method of connection.
The customer should be aware that
compliance with the above conditions may
not prevent degradation of service in some
situations.
Repairs to certified equipment should be
coordinated by a representative designated
by the supplier. Any repairs or alterations
made by the user to this equipment, or
equipment malfunctions may give the
telecommunications company cause to
request the user to disconnect the
equipment.
Users should ensure for their own
protection that the electrical ground
connections of the power utility, telephone
lines and Internal metallic water pipe
system, if present, are connected together.
This precaution may be particularly
important in rural areas.
Caution: Users should not attempt to make
such connections themselves, but should
contact the appropriate electric inspection
authority, or electrician, as appropriate.
NOTICE: The Ringer Equivalence Number
(REN) assigned to each terminal device
provides an indication of the maximum
number of termintds tdlowed to be
connected to a telephone interface. The
termination on an Interface may consist of
any combination of devices subject only to
the requirement that the sum of the Ringer
Equivalence Numbers of all the devices
does not exceed 5.
AVIS DE L'INDUSTRIE
CANADA
AVIS: L’étiquette d’industrie Canada
identifie le matériel homologué.
Cette étiquette certifie que le matériel est
conforme aux normes de protection,
d’exploitation et de sécurité des réseaux de
télécommunications, comme le prescrivent
les documents concernant les exigences
techniques relatives au matériel terminal.
Le Ministère n’assure toutefois pas que le
matériel fonctionnera à la satisfaction de
l’utilisateur.
Avant d’installer ce matériel, l’utilisateur
doit s’assurer qu’il est permis de le
raccorder aux installations de l’entreprise
locale de télécommunication. Le matériel
doit également être installé en suivant une
méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est
possible que la conformité aux conditions
énoncées ci-dessus n’empêche pas la
dégradation du service dans certaines
situations.
Les réparations de matériel homologué
doivent être coordonnées par un
représentant désigné par le fournisseur.
L’entreprise de télécommunications peut
demander à l’utilisateur de débrancher un
appareil à la suite de réparations ou de
modifications effectuées par l’utilisateur ou
à cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit
s’assurer que tous les fils de mise à la terre
de la source d’énergie électrique, des lignes
téléphoniques et des canalisations d’eau
métalliques, s’il y en a, sont raccordés
ensemble. Cette précaution est
particulièrement importante dans les
réglons rurales.
Avertissement: L’utilisateur ne doit pas
tenter de faire ces raccordements lui-
même; il doit avoir recours à un service
d’inspection des installations électriques,
ou à un électricien, selon le cas.
AVIS: L’indice d’équivalence de la
sonnèiie (IE'S) assigné à chaque dispositif
terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une
interface.
La terminaison d’une Interface
téléphonique peut consister en une
combination de quelques dispositifs, à la
seule condition que la somme d’indices
d’équivalence de la sonnerie de tous les
dispositifs n’excède pas 5.
Contents
Welcome
Ergonomic Considerations
Using Your Notebook
Computer
Locating the Controls and Connectors
Connecting a Power Source
Starting Your Computer
Shutting Down Your Computer
Registering Windows® 98
Registering Your Computer
Using the Keyboard
Using the Touchpad
Using the Floppy Disk Drive
Using the CD-ROM Drive
Using PC Cards......................................................................29
Using Infrared Communication Devices..................................31
Using Power Saving Modes.....................................................33
Using a Second Battery Pack...................................................35
Using the Weight Saver...........................................................37
...............................................................
...............................................................
.......................................................
.....................................
.....................................................
..........................................................
...............................................
......................................................
.....................................................
.................................................
.....................................................
2
5
8
12
13
14
15
16
22
23
26
Connecting Peripheral Devices
Connecting a Phone Line.........................................................40
Connecting a Printer................................................................41
Connecting an External Display.......................................:
Connecting an External Mouse or Keybgard«
Connecting External Speakers.................................................46
Connecting an External Microphone.......................................47
Connecting a Digital Still Camera
........................
......
42
45
IX
VAIO Notebook Computer User Guide
or Other Serial Device
Connecting a Universal Serial Bus (USB) Device
.............................................................
..................
Getting Started With
VAIO Space
Starting VAIO Space
VAIO Space Centers
Navigating through VAIO Space
Using the Software Center
Using the Audio-Video Center................................................56
Using the Online Center..........................................................59
Using the Tool Center
Using the Help Center.............................................................62
Exiting VAIO Space................................................................62
..........................
...............................................................
......................................................
.............................................................
;....................................51
............................................
Customizing Your
Notebook Computer
Displaying the Sony Notebook Setup Screen
Coptrolling Power Management.............................................65
Displaying Battery Information
Selecting the Display Mode....................................................71
..............................................
.........................
48
49
52
53
55
60
63
68
Getting Help
Calling SOS............................................................................75
Troubleshooting......................................................................77
Using the System and Application
Recovery CDs.........................................................................82
Notes on Use
Adding Memory......................................
................................
Limited Warranty Statement
Index
90
Welcome
Congratulations on your purchase of the Sony VAIO Notebook
Computer. Sony has combined leading-edge technology in audio, video,
computing, and communications to provide you with state-of-the-art
personal computing.
Here are just some of the features your notebook computer has to offer:
□ Using Your VAIO Notebook Computer shows you how to use the
standard components of your system.
□ Connecting Peripheral Devices explains how you can add
functionality by connecting various peripherals.
□ Getting help explains the support options available to you, shows
you how to use Sony Online Support service, and offers basic
troubleshooting tips.
□ Notes on Use provides facts and advice about using your notebook
computer.
□ Limited Warranty Stement provides your product warranty
statement and explains how to extend your warranty for an
additional nine months.
The online User Guide is included with your computer as an electronic
document. It includes additional information on using the Sony software
products that are installed on your computer.
VAIO Notebook Computer User Guide
Ergonomic Considerations
You will be using your notebook computer as a portable device in a
variety of environments. Whenever possible, you should attempt to
apply the following ergonomic considerations to both stationary and
portable environments.
□ Position of your computer - Place the computer directly in front of
you as you work. Keep your forearms horizontal with your wrists in
a neutral, comfortable position while using the keyboard, touchpad,
or external mouse. Let your upper arms hang naturally at your sides.
Take breaks during sessions with your computer. Excessive use of the
computer may strain muscles or tendons.
□ Furniture and posture - Sit in a chair with good back support and
armrests. Adjust the level of the chair so your feet are flat on the floor.
A footrest may make you more comfortable. Sit in a relaxed, upright
posture and avoid slouching forward or leaning far backward.
□ Viewing angle of the computer’s display - Use the display’s tilting
feature to find the best position. You can reduce eye strain and
muscle fatigue by adjusting the tilt of the display to the proper
position. Adjust the contrast or brightness settings of the display also.
Welcome
□ Lighting - Choose a location where windows and lights do not create
glare and reflection on the display. Use indirect lighting to avoid
bright spots on the display. You can also purchase accessories for
your display that help reduce glare. Proper lighting adds to your
comfort and work effectiveness.
□ Tilt stand - You use the tilt stand to place the computer at an angle
that allows comfortable typing.
□ Placement of an external display - When using an external display,
set the display at a comfortable viewing distance. Make sure the
display screen is at eye level or slightly lower when you are sitting in
front of the monitor.
Using Your Notebook Computer
This section describes how to start using your computer and how to use
your computer’s internal and external devices, such as the touchpad,
floppy disk drive, and CD-ROM drive.
Locating the Controls and Connectors
Front
LCD screen (pages 20, 85)
0
Speakers (page 46)
m
KeybrrarcJ (prjge 16)
0
Toiichparl (page 22)
0
LeWright button (page 22)
0
Microphone (page 47)
0
Power indicator (pages 12,19)
0
Hard diskdrive indicator (page 19)
0
Battery 1 and 2 indicators (pages 19.68)
0
Num Lock indicator (page 19)
0
Caps Lock indicator (page 19)
0
Sttroll lock indicator (page 19)
0
Left
VAIO Notebook Computer User Guide
Qj f'ovver switch (page 12)
gj Hard ijisk drive.
1^ Battery t'lay (page 9)
0 o Headphone connector (page 46)
0 Vi' iiicrophone connector (page 47)
0 -0 Line In conntictor
Tliere is a ventilation slot located directly above the headphone connector. Do not cover the
ventilation slot when your computer is on.
Right
Using Your Notebook Computer
Qj PhMie line jack (page 40)
PC card slots (page 29)
Back
1____r
0] ■■■ DC In (page 6)
[1 oa Serial C0M1 connc-ctor (page 49)
[U infrared port (page 31)
0 ^ USB connector (page 49)
jjj Drive bay (pages 23. 26)
A
0 6/m Mouse/Keyboard connenor (page 4B)
0 a
0 (3/Sr FDD/Printer corrnector Ipatje 41)
Monitor connector (page 42)
VAIO Notebook Computer User Guide
Connecting a Power Source
You can use either AC power or a rechargeable battery pack as a power
source.
Using the AC Adapter
T Plug the cable attached to the AC adapter into the DC In connector on
the computer.
2 Plug one end of the power cord into the AC adapter.
3 Plug the other end of the power cord into an AC outlet.
Notebook computer
m
«■ot*
Power cord (supplied)
Using Your Notebook Computer №■
Using Battery Power
You can use one or two battery packs as a source of power. The second
battery pack inserts into the drive bay on the right side of the computer.
(See “Using Power Saving Modes” on page 33.) Additional battery packs
are available as a separate option.
The battery pack that comes with your computer is not fully charged at
the time of purchase. Follow the steps below to insert and charge the
battery pack.
To insert the battery pack
1 Open the cover of the battery bay.
Insert the batteiy pack into the battery bay on the left side of the
computer.
Battery pack
(supplied)
3 Close the cover of the battery bay.
VAIO Notebook Computer User Guide
To charge the battery pack
1 Connect the AC adapter to the computer.
2 Insert the battery pack.
The computer automatically charges the battery (the battery indicator
light flashes in a double blink pattern as the battery charges). When the
battery is 85% full, the battery indicator light turns off. This process takes
approximately two hours. To charge the battery completely, continue
charging for an additional hour.
A fully charged battery pack supplies power for approximately three to
five and a half hours. The time varies based on your system
configuration. See “Displaying Detailed Battery Information” on page 69
for information on checking the battery life.
There are two battery indicator lights on the computer:
Battery indicators
Battery Indicator
■EZl 2
Battery Indicator
Light Status
On
Single blink
Double blink
Off
Secondary battery pack
(not supplied)
Battery pack (supplied)
Meaning
Indicates the status of the battery pack in the battery
bay on the left side of the computer.
Indicates the status of the battery pack in the drive bay
on the right side of the computer.
Meaning -■ -
The computer is using battery power.
The battery is running out of power.
The battery is charging.
The computer is using AC power.
Using Your Notebook Computer
To remove the battery pack
1 Open che cover of the battery bay.
2 Pull out the battery pack.
3 Close the cover of the battery bay.
^ You may lose data if you remove the battery pack while the computer is on arid not
connected to the AC adapter or if you remove the battery while the computer is in System
Suspend mode.
See" Using a Second Battery Pack" on page 35 for information on installing and charging a
battery pack in the drive bay.
Keep the battery pack in the computer while it is directiy connected to AC power. The
battery pack continues to charge while you are using the computer.
When the remaining battery charge drops to a very low level, the computer automatically
alters System Hibernation mode. This may result in data ioss as the system changes modes.
You can extend battery iife by changing the powa management modes in the PowerPanei
utiiity. See "Using Power Saving Modes" on page 33.
The battery pack suf^iied with your conputer is a iithium ion battery and can be recharged
at any time, Charging a partiaiiy discharged battay does not affect battery iife.
The battery indicata light is on while you use the battery pack as a power source. When
battery life is nearly depleted, the battery indicator starts flashing.
For some software applications and some peripheral ctevices, yourcanputer may not enter
system hibernation mode when the battery life is low. To avoid loss of data when using
battery power, you should save your data frequently and manually activate a power
management mode, such as system suspend or system hibernation^
VAIO Notebook Computer User Guide
Starting Your Computer
1 Slide the LCD lock lever in the direction of the arrow, and lift the
cover.
LCD lock lever
2 Slide the power switch on the left side toward the front of the
computer until the green power indicator light turns on.
If you hold the power switch in the on position for more than four seconds, the computer
turns off.
3 If necessary, adjust the contrast controls for the LCD display. To
increase the contrast, press Fn+F6 and then the down or left arrow
key. To decrease the contrast, press Fn+F6 and then the up or right
arrow key.
Using Your Notebook Computer
Shutting Down Your Computer
! To avoid potential loss of data, follow these steps to shut down your computer.
1
Click the Start button on the Windows 98 taskbar.
2
Click Shut Down at the bottom of the Start menu to display the Shut
Down Windows dialog box.
3
Select Shut down.
4
Click OK.
Respond to any prompts warning you to save documents.
5 Wait for your computer to turn off automatically.
6 Turn off any peripherals connected to your computer.
If you are unable to shut dovm your computer using the steps described above, press the
Ctrl+Alt+Delete k^s at the same time to restart the computer. If you are unable to restart
the computer in this way, you can slide the power switch fcMward arxl hold for four seconds.
This operation may result in data loss.
During a period of inactivity, you can conserve tottery life by using System Suspend mode.
See "Controlling Power Management" on page 65.
VAIO Notebook Computer User Guide
Registering Windowsf^ 98
The first time you turn on your computer, you need to complete a few
steps to register and configure the Windows 98 software that is already
installed on your computer.
You must register Windows 98 before you can use the computer.
To install Windows NT Workstation 4.0 on your notebook computer, you need to use the
Application Recovery CD. See " Using the Application Recovery CD" on page 104 for
instructions.
The on-screen instructions guide you through the registration and
configuration process. The following is an overview of the process.
1 Gathering information:
□ Enter your name.
□ Read and accept the License Agreement.
□ Enter your Certificate of Authenticity number located on the
cover of the Microsoft Windows 98 Getting Started manual.
2 Windows 98 setup;
□ Click the Finish button on the Windows 98 Setup Wizard screen.
3 Sefecting your computer settings;
□ If necessary, change the Time Zone, Date and Time on the Date/
Time Properties screen.
4 Learning about Windows 98:
□ If you want, take the tour of Windows 98.
Using Your Notebook Computer
Registering Your Computer
You can take advantage of Sony’s commitment to quality customer
support and receive the following benefits by registering your computer
with Sony;
□ Sony Online Support - Talk to a Support Representative to
troubleshoot problems you may be having with your computer.
□ Extended Limited Warranty - Protect your investment. Extend your
Warranty nine months for a total of 12 months from the original date
of purchase when you register your computer.
□ Express service - Provides convenient resolution of problems.
□ Free Internet access - Use the Internet for up to 50 free hours when
you sign up with GTE (no credit card necessary). Limit of two hours
per day; free access expires 50 hours or 90 days after signing up,
whichever occurs first.
Follow these steps to use your notebook computer’s online registration
service.
^ You must connect your phone line before using any online services, including the online
registration service. See "Connecting a Phone Line" on page 40.
1 Click.the registration icon on the VAIO desktop.
2 Enter the information requested on the first online registration form.
Press the Tab key to move from box to box.
3 Click the Next button to advance to the next form.
4 Complete the remaining forms by clicking the Next button each time
you complete a form.
The computer automatically transfers your registration information using
your built-in modem and a toll-free telephone number.
VAIO Notebook Computer User Guide
Using the Keyboard
Your keyboard is very similar to a typewriter’s, but the keyboard has
additional keys that perform specific computer-related tasks.
Escape Key Function keys
Keys
Numeric keypad
area
Navigation keys
Correction keys
Function keys
Print Screen key
Descriptions
Contains the keys found on a typical calculator.
Use the numeric keypad area to type numbers or
to perform mathematical calculations such as
addition and subtraction. Note that you must
press the Num Lock key to activate the numeric
keypad. (When you do so, the Num Lock light
will be on.)
Several keys are devoted to moving the cursor on
the screen (the four arrow keys which also
function as the Home, End, Page Up, and Page
Down keys).
The Insert, Back Space, and Delete-keys enable
you to make corrections in your documents.
The twelve function keys along the top of. the
keyboard are used to perform designated tasks.
For example, in many applications, FI is the Help
key. The teisk associated with each function key
may vary from one application to the next.
Using Your Notebook Computer
Keys Descriptions
Escape key
Print Screen key
Operator keys
Windows 98 key
o
Fn key
Applications key The Applications key displays a shortcut menu of
The Esc (Escape) key is used to cancel commands
The Print Screen key takes an electronic snapshot
of the screen and places it in the Windows
Clipboard. You can then paste the screen shot into
a document and print it.
Several keys are always used with at least one
other key: Ctrl, Alt, and Shift. When held down
with another key, the Ctrl (Control) and Alt
(Alternate) keys offer another way to give
commands. For example, in many applications,
instead of choosing the Save command from a
menu, you can hold down Ctrl and press S
(referred to as Ctrl+S). The Shift key operates the
same way as on a typewriter; it’s used to produce
capital letters or special symbols such as @ and $.
The key with the Windows logo displays the
Windows 98 Start menu; it’s the equivalent of
clicking the Start button on the task bar. See
“Combinations and Functions with the Windows
98 Key” on page 18.
The Fn key is used in combination with other
keys. To issue commands. See “Combinations and
Functions with the Fn Key” on page 20.
context-sensitive choices; pressing this key is the
equivcilent of clicking the right mouse button.
VAIO Notebook Computer User Guide
Combinations and Functions with the Windows 98 Key
Combinations
+ F1
ffl +Tab
a +E
a +F
a + Ctrl + F
a +M
Shift + aM
a + R
Fn + a + Insert Displays the Properties window. This is the
. - in the Control Panel.
Functions
Displays Windows Help.
Switches the selected button on the taskbar.
Displays Windows Explorer.
Displays the Windows Find: All Files window
to find a file or folder. This is the equivalent of
selecting Find and then Files or Folders from
the Start menu.
Displays the Windows Find: Computer
window where you can locate other
computers. This is the equivalent of selecting
Find and then Computer from the Start menu.
Minimizes all displayed windows.
Returns all minimized windows to their
previous size.
Displays the Run window. This is the
equivalent of selecting Run from the Start
menu.
equivalent of double-clicking the System icon
Indicators
Indicators Functions
Power
0
Hard disk
0
Battery 1
1
Lights when the power to the computer is turned
on. Flashes in System Suspend mode.
Turns off when the computer is in System
Hibernation mode or powered off.
Lights when data is being read from or written to
the hard drive. Do not enter System Suspend
mode or turn off the computer when this
indicator light is on.
Indicates the status of the battery inserted in the
battery bay on the left side of the computer.
Using Your Notebook Computer
Battery 2
«□2
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . ... . ... . . . . . ... . . . . . . . . . . . . . . . . .
I
Light
; Num Lock;Turns on when the
Caps Lock Turns on when the letters
Scroll
Lock
Indicates the status of the battery inserted in the
drive bay on the right side of the computer.
On Off
number keys area in the
numeric keypad are
active.
appear in uppercase as
you type. The Shift key
lowers the case of typed
letters when Caps Lock is
on.
Turns on when the screen
scrolls differendy. (Exactly
how it scrolls depends on
the specific application. It
has no effect in many
applications.)
. . . . . . . . ... . . . . . . . . . . . ... . . . . . . . . . . ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turns off when the
alphanumeric character keys
in the keypad area are
active.
Turns off when letters
appear in lower case as you
type (unless you hold down
the Shift key).
Turns off when information
moves across the display
normally.
VAIO Notebook Computer User Guide
Combinations and Functions with the Fn Key
Combinations/
Feature
Fn+ ^ (ESC)
System Suspend
Fn+ a (F2)
Display power status
Fn+ (F3)
Speaker switch
Fn+ (F4)
Speaker volume
Fn+ ->?r (F5)
Brightness control
Fn+ 3 fF6)
Contrast control
Fn+ [^/ H (F7)
Switch to the
external display
Fn+ ^-0 (F12)
System Hibernation
Fn+E
Eject CD-ROM
Functions
Puts the system into System Suspend mode, a
power management state. To return the system
to the active state, press any key or press the
power switch on your computer.
Displays the power status, as in the example
below:
Using AC
power
Toggles the built-in speaker off and on.
Adjusts the built-in speaker volume.
To increase volume, press Fn+F4, then ^ or
To decrease volume, press Fn-HF4, then or ^.
Adjusts the brightness of the LCD.
To increase light intensity, press Fn-i-F5 and then
t or^.
To decrease light intensity, press Fn-i-F5 and
then 4» or ^.
To Increase the contrast, press Fn-i-F6 and then
the up or right arrow key. To decrease the
contrast, press Fn-i-F6 and then the down or left
arrow key.
Toggles through the LCD, external display
(connected to the O Monitor connector) and
both LCD and external display.
Only LCD
------
► LCD and external display —i
4
-------------
Only external display
Provides for the lowest level of power
consumption. When you execute this command,
the state of the system and state of the
peripheral devices are written to the hard disk
and the system power is tumetf off. To return
the system to the original state, use the power
switch to turn on power.
Ejects the CD-ROM drive.
---------------------------
1
Using Your Notebook Computer
Combinations/
Feature
Fn+F
Change the display
size
Fn+D
Video standby
Functions
Zooms the display size in or out when the
display is set to a low resolution.
Turns off the LCD in order to save power.
Loading...
