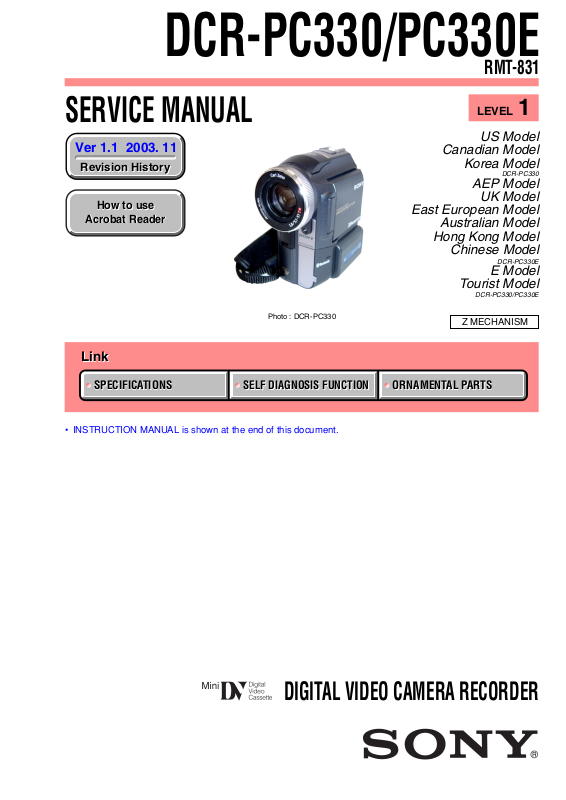

SONY DCR-PC330, PC330E, RMT-831 Service Manual

Download

DCR-PC330/PC330E

RMT-831

SERVICE MANUAL

Ver 1.1 2003. 11

Revision History

How to use

Acrobat Reader

Photo : DCR-PC330

Link

SELF DIAGNOSIS FUNCTION

LEVEL 1

US Model

Canadian Model

Korea Model

AEP Model

UK Model

East European Model

Australian Model

Hong Kong Model

Chinese Model

DCR-PC330E

E Model

Tourist Model

DCR-PC330/PC330E

Z MECHANISM

ORNAMENTAL PARTSSPECIFICATIONS

DCR-PC330

• INSTRUCTION MANUAL is shown at the end of this document.

DIGITAL VIDEO CAMERA RECORDER

DCR-PC330/PC330E

COVER

SPECIFICATIONS

System

Video recording system

2 rotary heads, Helical scanning system

Sitll image record ing system

Exif Ver. 2.2 *1

*1 “Exif” is a file format for still images,

established by the JEITA (Japan Electronics and Information Technology Industries Association). Files in this format can have additional information such as your camcorder’s setting inform a tion at the time of recording.

Audio recording system

Rotary heads, PCM system Quantization: 12 bi ts (Fs 32 kHz, stereo 1, stereo 2), 16 bits (Fs 48 kHz, stereo)

Video signal

DCR-PC330: NTSC color, EIA standards DCR-PC330E: PAL color, CCIR standards

Usable cassette

Mini DV cassette with the mark printed

Tape speed

SP: Approx. 18.81 mm/s LP: Approx. 12.56 mm/s

Recording/playback time (using a DVM60 cassette)

SP: 60 min LP: 90 min

Fast forward/rewind time (using a DVM60 cassette)

Approx. 2 min 40 s

Viewfinder

Electric viewfinder (color)

Image device

5.9 mm (1/3 type) CCD (Charge Coupled Device) Gross: Approx. 3 310 000 pixels Effective (still): Approx. 3 050 000 pi xe ls Effective (movi e ): Approx. 2 050 000 pixels

Lens

Carl Zeiss Vario-Sonnar T* Combined power zoom lens Filter diameter: 37 mm (1 1/2 in.) 10 × (Optical), 120 × (Dig ital) F = 1.8 ~ 2.1

Focal length

5.1 - 51 mm (7/32 - 2 1/8 in.) When converted to a 35 mm still camera In CAMERA-TAPE: 45 - 450 mm (1 13/16 - 17 3/4 in.) In CAMERA-MEMORY: 37 - 370 mm (1 1/2 - 14 5/8 in.)

Colour temperature

[AUTO], [HOLD], [INDOOR] (3 200 K), [OUTDOOR] (5 800 K)

Minimum illumination

7 lx (lux) (F 1.8) 0 lx (lux) (during NightShot function)*

*Objects unable to be seen due to the dark can be

shot with infrared lighting.

Input/Output connectors

Audio/Video input/output

10-pin connector Video signal: 1 Vp-p, 75 Ω (ohms), unbalanced Luminance signal: 1 Vp-p, 75Ω (ohms), unbalanced Chrominance signal: DCR-PC330: 0.286Vp-p

Audio signal: 327 mV (at output impe da nce more than 47 kΩ (kilohms)), Input impedance more than 47 kΩ(kilohms), Output impedance with less than 2.2 kΩ (kilohms)

DV input/output

4-pin connector

Headphones jack

Stereo minijack (φ 3.5 m m)

LANC jack

Stereo mini-minijack (φ 2.5 mm)

USB jack

mini-B

MIC jack

Minijack, 0.388 mV low impedance wi th DC

2.5 to 3.0 V, output impedance 6.8 kΩ (kilohms) (φ 3.5 mm), Stereo type

DCR-PC330E: 0.3Vp-p 75Ω (ohms), unbalanced

LCD screen


6.2 cm (2.5 type)

Total dot number

211 200 (960 × 220)

General

Power requirements

DC 7.2 V (battery pack) DC 8.4 V (AC Adaptor)

Average power consumption (when using the battery pack)

During camera recording using the viewfinder

3.3 W During camera recording using the LCD

3.8 W

Operating temperature

0°C to 40°C (32°F to 104°F)

Storage temperature

-20°C to + 60° C (-4°F to + 140° F)

Dimensions (approx.)

59 × 119 × 113 mm (2 3/8 × 43/4 × 41/2 in.) (w/h/d)

Mass (Approx.)

540 g (1 lb 3 oz) main unit only 630 g (1 lb 6 oz) including the NP-FM30 rechargeable bat tery pack, DVM60 cassette and lens cap.

Supplied accessories

See page 3.

AC Adaptor AC-L15A/L15B

Power requirements

AC 100 - 240 V, 50/60 Hz

Current consumption

0.35 - 0.18 A

Power consumption

18 W

Output voltage

DC 8.4 V, 1.5 A

Operating temperature

0°C to 40°C (32°F to 104°F)

Storage temperature

-20°C to + 60° C (-4°F to + 140° F)

Dimensions (approx.)

56 × 31 × 100 mm (2 1/4 × 11/4 × 4 in.) (w/h/ d) excluding the projecting parts

Mass (approx.)

190 g (6.7 oz) excluding the power cord

Rechargeable battery pack (NP-FM30)

Maximum output voltage

DC 8.4 V

Output voltage

DC 7.2 V

Capacity

5.0 Wh (700 mAh)

Dimensions (approx.)

38.2 × 20.5 × 55.6 mm (1 9/16 × 13/16 × 2 1/4 in.) (w/h/d)

Mass (approx.)

65 g (2.2 oz)

Operating temperature

0°C to 40°C (32° F to 104°F)

Type

Lithium ion

“Memory Stick”

Memory

Flash memory 16MB: MSA-16A

Operating voltage

DC 2.7 - 3.6 V

Power consumption

Approx. 45 mA during operation m ode Approx. 130 µA during tape recording standby

Dimensions (approx.)

21.5 × 50 × 2.8 mm (7/8 × 2 × 1/8 in.) (w/h/d)

Mass (approx.)

4 g (0.14 oz)

Design and specifications are subject to change without n o tice.

CAUTION :

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

— 2 —

Checking supplied accessories.

Make sure that the following accessories are supplied with your camcorder.

DCR-PC330/PC330E

Lens cap (Small, 1) X-3952-743-1

AC Adaptor (1)

1-477-533-32

Power cord (Main lead) (1)

When you use the lens hood, use the small lens cap.

Lens hood (1) 3-085-395-01

String, Cap (1) 3-979-194-12

(PC330E:AUS model)

1-696-819-21 Power cord (Main lead) (1) (PC330:KR model)

1-776-985-11 Power cord (Main lead) (1) (PC330:E model/ PC330E:AEP,EE,E model)

1-769-608-11 Power cord (Main lead) (1) (PC330E:UK,HK model)

1-783-374-11 Power cord (Main lead) (1) (PC330:US,CND model)

1-790-107-22 Power cord (Main lead) (1)

Wireless Remote Commander (1) (RMT-831) 1-477-898-41

Battery Holder (1) 3-083-973-01

(PC330:JE model /PC330E:JE model)

1-790-732-12 Power cord (Main lead) (1) (PC330E:CH model)

1-782-476-13

A/V connecting cable (1) (AV multi) (1.5m) 1-823-156-12

Lens cap (Large, 1) X-3949-944-1

Memory stick (1) (MSA-16A) (not supplied)

Other accessories

3-084-863-11 MANUAL, INSTRUCTION (ENGLISH)

3-084-863-21 MANUAL, INSTRUCTION (FRENCH) (PC330:CND) 3-084-863-31 MANUAL, INSTRUCTION

(SPANISH/PORTUGUESE) (PC330:E,JE)

3-084-863-41 MANUAL, INSTRUCTION (TRADITIONAL CHINESE)

3-084-863-51 MANUAL, INSTRUCTION (KOREAN) (PC330:JE,KR)

3-084-863-61 MANUAL, INSTRUCTION (ARABIC) (PC330:E) 3-084-864-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH)

(PC330E:AEP,UK,E,HK,AUS,CH,JE)

3-084-864-21 MANUAL, INSTRUCTION (SPANISH/PORTUGUESE)

3-084-864-31 MANUAL, INSTRUCTION (ITALIAN/GREEK) (PC330E:AEP) 3-084-864-41 MANUAL, INSTRUCTION (GERMAN/DUTCH)

3-084-864-51 MANUAL, INSTRUCTION (RUSSIAN) (PC330E:E,JE) 3-084-864-61 MANUAL, INSTRUCTION (ARABIC/PERSIAN) (PC330E:E) 3-084-864-71 MANUAL, INSTRUCTION (TRADITIONAL CHINESE)

3-084-864-81 MANUAL, INSTRUCTION (SIMPLILIED CHINESE)

3-084-945-11 COMPUTER APPLICATIONS GUIDE (ARABIC/PERSIAN)

(PC330:US,CND,E,JE)

(PC330:E)

(PC330E:AEP)

(PC330E:HK)

(PC330E:CH,E,JE)

(PC330:E/PC330E:E)

USB cable (1) 1-823-931-11

Cleaning cloth (1) 3-073-861-01

21-pin adaptor (1) (PC330E:AEP,UK,EE model) 1-770-783-21

Rechargeable battery pack (1) (NP-FM30) A-7096-387-A (PC330:US,CND model) Rechargeable battery pack (1) (NP-FM30) A-7096-388-A (PC330:E,JE,KR model/ PC330E model)

2-pin conversion adaptor (1) (PC330:JE model/ PC330E:JE model) 1-569-007-12

Battery terminal cover (1) 3-057-482-01

2-pin conversion adaptor (1) (PC330:E model/ PC330E:E,HK model) 1-569-008-12

• Abbreviation

CD-ROM (SPVD-010 USB Driver) (1) (PC330:E,JE,KR model/PC330E) 3-078-942-05 CD-ROM (SPVD-010 (I) USB Driver) (1)

CND : Canadian model AUS : Australian model CH : Chinese model EE : East European model HK : Hong Kong model KR : Korea model JE : Tourist model

(PC330:US,CND model) 3-078-943-05

3-084-945-21 COMPUTER APPLICATIONS GUIDE

3-084-945-31 COMPUTER APPLICATIONS GUIDE

3-084-945-41 COMPUTER APPLICATIONS GUIDE (RUSSIAN)

3-084-945-51 COMPUTER APPLICATIONS GUIDE (KOREAN)

3-084-946-11 MANUAL, INSTRUCTION (FOR COMPUTER)(ENGLISH)

3-084-946-21 MANUAL, INSTRUCTION (FOR COMPUTER)(FRENCH)

3-084-946-31 MANUAL, INSTRUCTION (FOR COMPUTER)

3-084-946-41 MANUAL, INSTRUCTION (FOR COMPUTER)

3-084-946-51 MANUAL, INSTRUCTION (FOR COMPUTER)

Note :

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

(TRADITIONAL CHINESE) (PC330:E/PC330E:HK)

(SIMPLILIED CHINESE) (PC330E:CH,E,JE)

(PC330E:E,JE)

(PC330:JE,KR)

(PC330:US,CND,E,JE/PC330E:AEP,UK,E,HK,AUS,CH,JE)

(PC330:CND/PC330E:AEP,E,JE)

(GERMAN/DUTCH)(PC330E:AEP)

(SPANISH/PORTUGUESE)(PC330:E,JE/PC330E:AEP)

(ITALIAN/GREEK)(PC330E:AEP)

Note :

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

— 3 —

DCR-PC330/PC330E

SAFETY CHECK-OUT

After correcting the original service problem, perform the following

safety checks before releasing the set to the customer.

1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are "pinched" or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair . Point them out to the customer and recommend their replacement.

4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

5. Check the B+ voltage to see it is at the values specified.

6. Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270˚C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

— 4 —

DCR-PC330/PC330E

COVER

SELF-DIAGNOSIS FUNCTION

1. SELF-DIAGNOSIS FUNCTION

When problems occur while the unit is operating, the self-diagnosis function starts working, and displays on the viewfinder, or LCD screen what to do. This function consists of two display; selfdiagnosis display and service mode display. Details of the self-diagnosis functions are provided in the Instruction manual.

Viewfinder or LCD screen

C : 3 1 : 1 1

Blinks at 3.2Hz

3 1C

1 1

2. SELF-DIAGNOSIS DISPLAY

When problems occur while the unit is operating, the counter of the viewfinder or LCD screen consists of an alphabet and 4-digit number , which blinks at 3.2Hz. This 5-character display indicates the “repaired by:”, “block” in which the problem occurred, and “detailed code” of the problem.

Repaired by:

C : Corrected by customer H : Corrected by dealer E : Corrected by service

engineer

Note: The self-diagnosis display data will be kept even if the lithium battery (BT9901 of BT-021 board) is removed.

Indicates the appropriate step to be taken. E.g.

31 ....Reload the tape.

32 ....Turn on power again.

Block

Detailed Code

Refer to page 6. Self-diagnosis Code Table.

— 5 —

DCR-PC330/PC330E

Ver 1.1 2003. 11

3. SELF-DIAGNOSIS CODE TABLE

Self-diagnosis Code

Function

Repaired by:

C C C C

C C

C C C C C C

Block

04 21 22 31

31 31

31 31 31 31 31 31

Detailed

Code

00 00 00 10

20 21

22 23 24 30 40 42

Symptom/State

Non-standard battery is used. Condensation. Video head is dirty. LOAD direction. Loading does not

complete within specified time UNLOAD direction. Loading does not

complete within specified time T reel side tape slacking when unloading Winding S reel fault when counting the

rest of tape. T reel fault. S reel fault. T reel fault. FG fault when starting capstan. FG fault when starting drum. FG fault during normal drum operations. LOAD direction loading motor time-

out. UNLOAD direction loading motor

time-out. T reel side tape slacking when

unloading. Winding S reel fault when counting the

rest of tape. T reel fault.

S reel fault.

T reel fault.

FG fault when starting capstan.

FG fault when starting drum FG fault during normal drum

operations

Correction

Use the info LITHIUM battery. Remove the cassette, and insert it again after one hour. Clean with the optional cleaning cassette.

Load the tape again, and perform operations from the beginning.

Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning.

Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Remove the battery or power cable, connect, and perform

operations from the beginning. Remove the battery or power cable, connect, and perform

operations from the beginning.

Note: Add the sentence as follows.

If other codes are displayed, service is required. Please send the set to a specialized center.

— 6 —

DCR-PC330/PC330E

COVER

Note:

• Follow the disassembly procedure in the numerical order given.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• The parts numbers of such as a cabinet are also appeared in this section. Refer to the parts number mentioned below the name of parts to order.

MAIN PARTS

1. ORNAMENTAL PARTS

CPC lid (3-085-314-01)

Screw (M1.7), lock ace, p2 (3-080-198-11)

Standard commander (RMT-831) 1-477-898-41

Battery holder (SERVICE) (for RMT-831) 3-083-973-01

Jack cover (F) assembly

Note: Disassembling the main unit

is necessary to replace it.

Jack cover (AV) assembly

Note: Disassembling the main unit

is necessary to replace it.

— 7 —

DCR-PC330/PC330E

9-876-272-41

Sony EMCS Co.

— 8 —

2003K1600-1

Published by DI CS Strategy Div.

Camera Operations Guide

Read this first

Digital Video Camera Recorder

3-084-863-11(1)

DCR-PC330

SERIES

Read this first

Before operating the unit, please read this manual thoroughl y, and retain it for future reference.

WARNING

To prevent fire or shock hazard, do no t expose t h e u nit to rain or moisture.

For customers in the U.S.A. and CANADA

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

RECYCLING LITHIUM-ION BATTERIES

Lithium-Io n batteries are recyclable. You can help preserve our environment by returning your

used rechargeable ba tteries to the collection and r ecycling location ne ar est you. For more information regarding recycling of rechargeable batter ies, c al l to ll fr ee 1-800-8228837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batter ies.

This symbol is intended to alert the user to the pr esence of uninsu late d “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitut e a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and ma i n te na nce (servicing) instructions in the literature accompanying the appliance.

CAUTION

The use of optical instrument s with th is product will increase eye ha zard. As the l ase r beam used in this Handycam is harmful to eyes, do not at tempt to disassemble the cabinet. Refer servicing to qualified personnel only.

b Notice

If static electricity or electromagnetic interference causes data transfer to discontin ue midway (fail), restart the applicat ion or disconnect and connect the USB cable again.

“Memory Stick”

This device complies with P art 15 of the FCC Rules. Operation is s ubject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device mu s t accept any interference received, including interference that may cause undesired operati on.

This Class B digital app ar atus complies with Canadian ICES-003.

For customers in the U.S.A.

If you have any questions about this product, you may call: Sony Customer Informatio n Ce nter 1-800-222SONY (7669) The number below i s f or FCC rel ated ma tter s only . Regulatory Information

Declaration of Conformity

Trade Name: SONY Model No.: DCR-PC330 Responsible Party: Sony Electr oni cs Inc. Address: 680 Kinderkamack Road, Oradell, NJ 07649 U.S.A. Telephone No.: 201-930-6972 This device complies wi th Part 15 of the FCC Rule s. Operation is subject to the following two conditions: (1) This device may not cause harmful i nterfe rence, and (2) this device must accept a ny interference received, inclu d ing interference th at may cause undesired operation.

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided belo w. R efe r t o th ese numb ers w hen ever you call upon your Sony deale r regarding this product. Model No. DCR-PC330 Serial No. Model No.AC- Serial No.

CAUTION

You are cautioned tha t any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

b Note:

This equipment has been tested and f oun d to comply with the li mits for a Class B di gital device, pursuant to Part 15 of the FCC Rules. These limits are des igned to provide reas onable protection against har mful interference in a residential installation. This equipm e nt ge ne ra te s, uses, and can radiate radio frequency energy and, if not installed and used in accorda n c e w ith the instructions, may cause harmful interference to radio communications. H ow ever, there is no guarantee that interferenc e will not occur in a particular i nstallati on. If this equi pment does cause

harmful interfer en ce to radio or television reception, which ca n be dete rmin ed by tu rni ng the equipment of f and on, the user is e ncourag ed t o try to correct the interfere nc e by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and

receiver.

– Conn ec t the e quipment to an outlet on a circuit

different from that to which the receiver is connected.

– Consult a Sony dealer or an experienced radio/TV

technician for help.

The interface cable su pplied must b e used with th e equipment in order to co mp ly with the limits for a digital device pursuant to Subpar t B of Part 15 of FCC Rules.

Notes on use

Note on Cassette Memory

Your camcorder is based on the DV format. You can use only mini DV cassettes in your camcorder. Use of mini DV cassette s w ith Cassette Memor y is recommended as you can use Title search (p. 54), Date search (p. 55), [ TITLE] (p. 74), [ TAPE TITLE] (p. 76).

Cassettes with Cassette Memory are marked with .

Notes on recording

• Before starting to record, test the recording function to make sure the picture and sound ar e recor de d without any problems.

• Compensation for the contents of recordings cannot be provided, even if recording or playback is not possible due to a malfunction of the camc or der, storage med ia, etc.

• TV color systems differ dep end ing on the country/ regions. To view your recordings on a TV, you need an NTSC system-based TV.

• Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials m ay be contrary to the copyright laws.

Notes on the LCD panel, viewfinder, and lens

• The LCD screen and the viewfinder are manufactured using extremely hi gh- pr e ci sion technology, so over 99.99% of the pixels are operational for effec tive use. However, there may be some tiny black points and / or bright points (white, red, blue , or gr een in color) that appear constantly on the LCD scr een a nd the

,continued

viewfinder. These points are normal results of the manufacturing process and do not affect the recordin g in an y way.

• Exposing the LCD screen, the viewfinder, or the lens to direct sunlight for long periods of time may cause malfunctions. Be careful when placing the camera near a window or outdoors.

• Do not aim at the sun. Doing so mi ght c au se your camcorder to malfunction. Take pictur e s of the sun only in low light conditions, such as at dusk .

• When you are using the touch panel, place your hand on the back side of the LCD panel to support it. Then, touch the buttons displayed on the screen.

Note on connecting other device

Before connecting your camcorder to other device such as a VCR or a computer with a USB or i.LINK cable, be su r e to insert the connector plu g in the proper direction. If you insert the connector plug forcibly i n the wrong direction, the terminal may be damaged, or this may cause a malfunction of your camcorder.

Note on using this manual

The images of the LCD screen and the viewfinder used on this manual are captured using a digital still camera, and thus may ap pe ar different from what you see.

Notes on using the camcor d er

• Hold your camcorder correctly.

• To ensure a good grip, lower the finge r rest a nd fasten the grip belt as shown in the following illustration.

Touch the button on the LCD screen.

• You can change the lang uage to be use d f o r screen display on your camcorder (p. 22).

• Do not hold the camcorder by the following parts.

Viewfinder

Battery pack

LCD panel

Flash

Table of Contents

: Features available for tape only. : Features available for “Memory Stick”

only.

Read this first ............................................................................................. 2

Quick Start Guide

Recording movies on a tape ...................................................................... 8

Recording still images on a “Memory Stick”............................................. 10

Getting started

Step 1: Checking supplied items.............................................................. 12

Step 2: Charging the battery pack............................................................ 13

Using an outside power sourc e .................................................................................16

Step 3: Turning the power on................................................................... 16

Step 4: Adjusting the LCD panel and viewfinder...................................... 17

Adjusting the LCD panel ...........................................................................................17

Adjusting the viewfinder ........................................................................................... .17

Step 5: Setting the date and time............................................................. 18

Step 6: Inserting the recording media ...................................................... 20

Inserting a cassette tape ...........................................................................................20

Inserting a “Memory Stick” ........................................................................................21

Step 7: Setting the screen language........................................................ 22

Recording

Recording movies .................................................................................... 23

Recording for a longer time ....................................................................................... 25

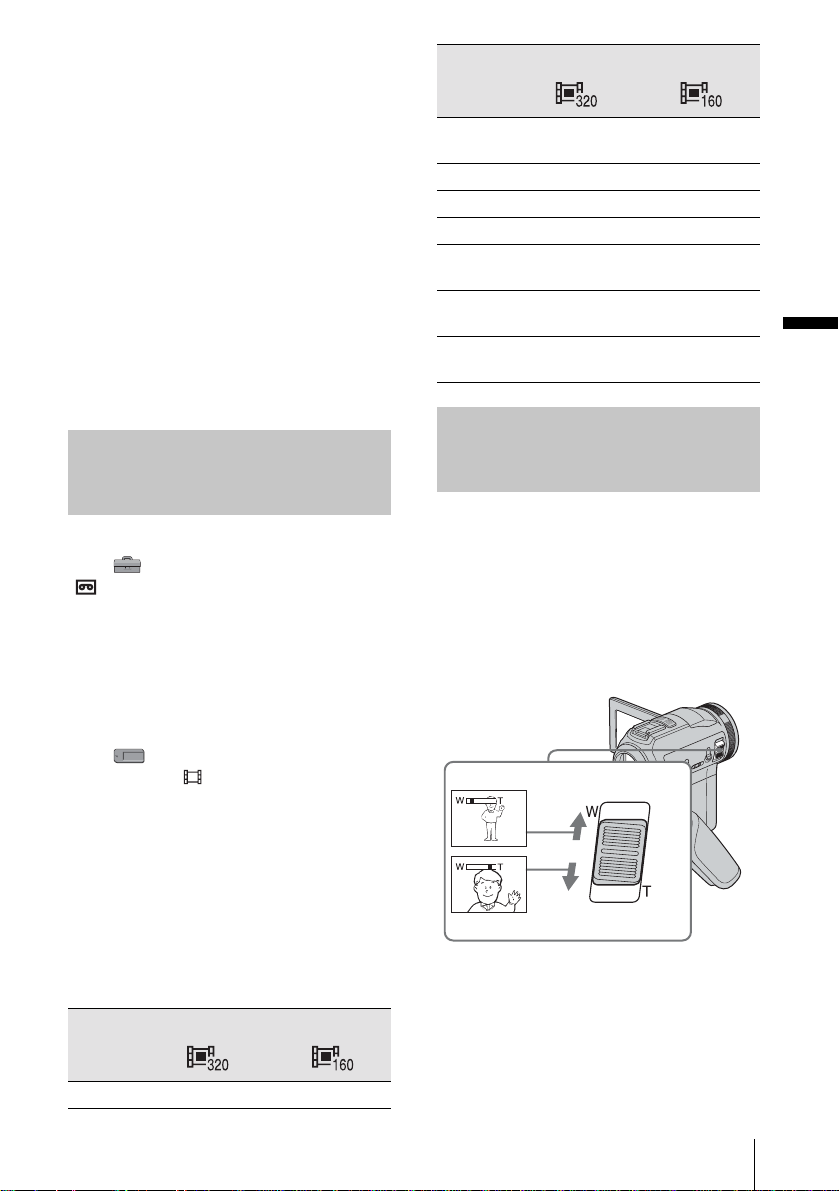

Using zoom ............................................................................ ................................... 25

Recording in mirror mode . ........................................................................................ 26

Using the self-timer .............. .....................................................................................26

Recording movies fit for breaking into still images

– Progressive recording mode ............................................................................ 27

Recording still images – Memory photo recording............................. 28

Selecting image quality or siz e ................................................................................. 29

Using the flash ....................... ........................................................... ........................30

Using the self-timer .............. .....................................................................................31

Recording a still image on a “Memory Stick” while recording movies on a tape ....... 32

Adjusting the exposure............................................................................. 32

Adjusting the exposure fo r ba ck l it subjects ........... ............................................. ....... 32

Fixing the exposure for the selected subject – Flexible spot meter .......................... 33

Adjusting the exposure man ually ............ .................................................................. 33

,continued

Recording in dark places – NightShot, etc............................................... 34

Adjusting the focus................................................................................... 35

Adjusting the focus for an off-center subject – SPOT FOCUS ........................ ..........35

Adjusting the focus manually .....................................................................................36

Using supplementary light to focus on a still image – HOLOGRAM AF .............37

Adjusting the frame and focus when recording a still image in darkness

– NightFraming .................................................................................................... 38

Recording a picture using various effects ................................................ 38

Fading in and out of a scene – FADER ..............................................................38

Using special effects – Digital effect ...................................................................40

Overlaying still images on movies on a tape – MEMORY MIX ..................................41

Searching for the starting point .......................................................... 43

Searching for the last scene of the most recent recording – END SEARCH .............43

Searching manually – EDIT SEARCH ............................. ................. .........................44

Reviewing the most recently recorded scenes – Rec review ....................................44

Playback

Viewing movies recorded on a tape ................................................... 45

Playing back in various modes ..................................................................................46

Viewing recordings with added effects – Digital effect ..............................................47

Viewing recordings on a “Memory Stick” ........................................... 48

Playing back in various modes from a “Memory Stick” ..............................................49

Various playback functions ...................................................................... 50

Magnifying pictures – Tape playback zoom/Memory playback zoom .......................50

Displaying the screen indicators ................................................................................51

Displaying the date/time and camera settings data – Data code ..............................51

Playing the picture on a TV...................................................................... 53

Locating a scene on a tape for playback ........................................... 54

Searching quickly for a desired scene – Zero set memory ........................................54

Searching for a scene using Cassette Memory – Title search ..................................54

Searching for a scene by date of recording – Date search .......................................55

Advanced operations

Using the Menu

Selecting menu items .........................56

Using the (CAMERA SET) menu

– PROGRAM AE/WHITE BAL./16:9

WIDE, etc. ....................................58

Using the (MEMORY SET) menu

– BURST/QUALITY/IMAGE SIZE/ ALL ERASE/NEW FOLDER, etc. .64

Using the (PICT. APPLI.) menu

– PICT. EFFECT/SLIDE SHOW/ FRAME REC/SMTH INT. REC,

etc. ...............................................68

Using the (EDIT/PLAY) menu

– TITLE/TAPE TITLE/SEARCH,

etc. ...............................................73

Using the (STANDARD SET) menu

– REC MODE/MULTI-SOUND/ AUDIO MIX/USB-CAMERA, etc. ..77

Using the (TIME/LANGU.) menu

– CLOCK SET/WORLD TIME,

etc. ................................................82

Customizing Personal Menu ..............83

Dubbing/Editing

Changing the image size

– Resize .....................................100

Marking recorded images with specific

information – Image protection/

Print mark ...................................101

Troubleshooting

Troubleshooting ...............................103

Warning indicators and me ss age s ...111

Additional Information

Using your camcorder abroad ..........115

Usable cassette tapes ......................116

About the “Memory Stick” .................117

About the “InfoLITHIUM” battery

pack ............................................119

About i.LINK .....................................121

Maintenance and precauti ons ..........122

Specification .....................................125

Quick Reference

Identifying parts and controls ...........127

Index ................................................134

Connecting to a VCR or TV ...............86

Dubbing to another tape ..............87

Recording pictures from a VCR or TV 87 Dubbing pictures from a tape to a

“Memory Stick” .............................89

Dubbing still images from a “Memory

Stick” to a tape .............................90

Dubbing selected scenes from a tape

– Digital program editing ..............91

Dubbing sound to a recorded tape

......................................................97

Deleting recorded pictures ...........99

Refer also to other operat in g inst ruc ti ons supplied with your camco rde r:

• Editing images with your computer cComputer Applications Guide

Quick Start Guide

Recording movies on a tape

1 Attach the charged battery pack to the camcorder.

To charge the battery, see page 13.

a Slide the battery release lever and

remove the battery terminal cover.

Battery release lever

b Slide the battery pack in the direction

of the arrow until it clicks.

2 Insert a cassette into the camcorder.

a Slide the OPEN/

ZEJECT lever in the direction of the arrow to open the lid.

The cassette compartment comes out automatically.

OPEN/ZEJECT lever

b Insert the cassette with

its window-side facing up, then push the center of the back of the cassette.

Window-side

c Press .

Close the cassette lid after the cassette compartment slides back in by itself.

Quick Start Guide

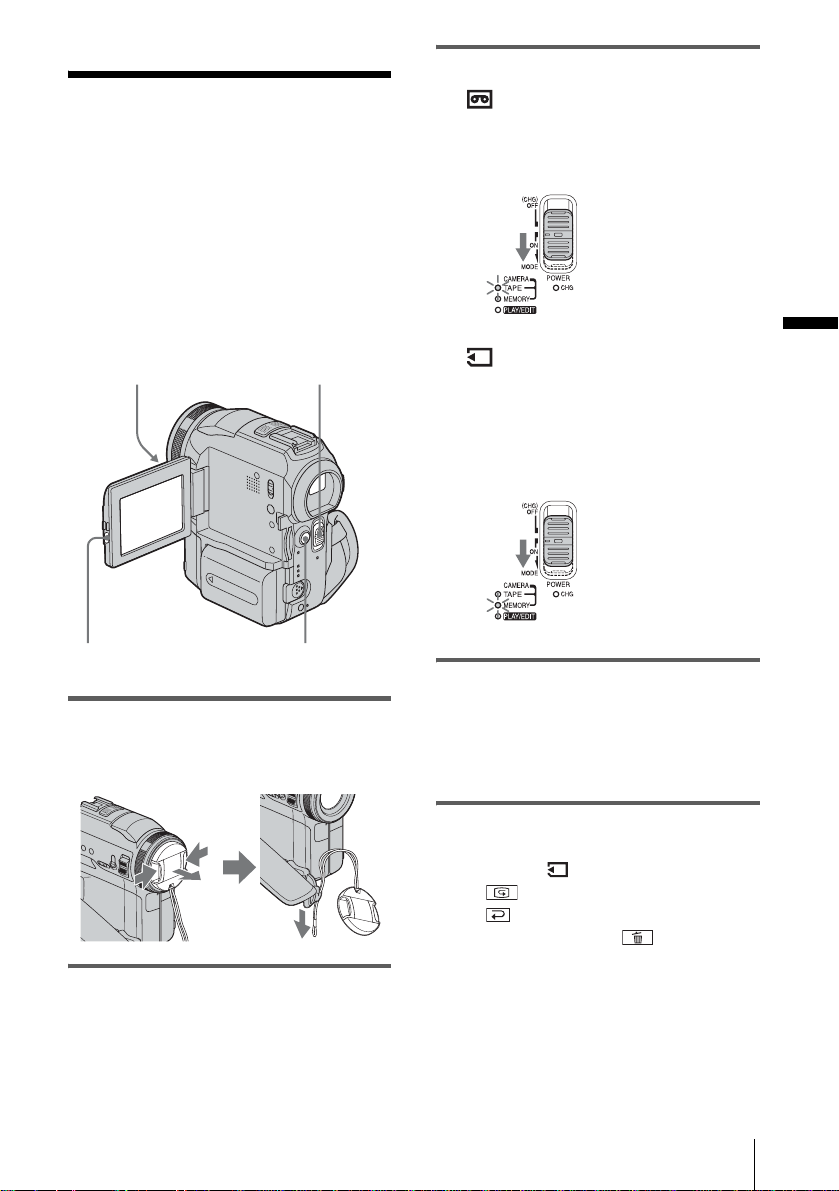

3 Start recordi ng while checking the subject on the LCD screen.

The date and time is not set up in the default setting. To set the date and time, see page 18.

a Remove the le ns cap. b Press OPEN and

open the LCD panel.

c While pressing the

green button, slide the POWER switch down to light up the CAMERA-TAPE lamp.

The power turns on.

d Press START/STOP.

Recording starts. To change to standb y m ode, press START/STO P again.

4 View the recorded picture on the LCD screen.

a Slide the POWER

switch rep eatedly until the PLAY/EDIT lamp lights up.

b Touch (rewind).

Quick Start Guide

c Touch (play) to

start the playback.

To stop, press .

To turn off the power, slide the POWER switch up to (CHG) OFF.

Quick Start Guide

Recording still images on a “Memory Stick”

1 Attach the charged battery pack to the camcorder.

To charge the battery, see page 13.

a Slide the battery release lever and

remove the battery terminal cover.

Battery release lever

b Slide the battery pack in the direction

of the arrow until it clicks.

2 Insert a “Memory Stick” into the camcorder.

Insert it so that the b mark is at the bottom left corner. Push in until it clicks.

b mark

Quick Start Guide

3 Start recording while checking the subject on the LCD screen.

The date and time is not set up in the default setting. To set the date and time, see page 18.

a Remove the le ns cap. b Press OPEN and

open the LCD panel.

c While pressing the

green button, slide the POWER switch repeatedly until the CAMERA-MEMORY lamp lights up.

The power turns on.

d Press PHOTO lightly.

A short beep sound is heard when the focus is adjusted.

e Press PHOTO fully.

A shutter sound is heard and the still image is recorded.

4 View the recorded picture on the LCD screen.

a Slide the POWER

switch rep eatedly until the PLAY/EDIT lamp lights up.

Quick Start Guide

b Touch .

The most recently recorded image is d isplayed.

c Touch (next) or

(previous) to view images in sequence.

To turn off the power, slide the POWER switch up to (CHG) OFF.

Quick Start Guide

Getting started

Step 1: Checking supplied items

Make sure you have followi ng items supplied with your camc order.

The number in pa rentheses indi cates the numbe r of that item supplied.

“Memory Stick” 16MB ( 1)

AC Adapt or (1)

Wireless Remote Commander (1)

A button-type lithium battery is already installed.

A/V connecting cable (1)

USB cable (1)

Rechargeable battery pa ck NP - FM 30 (1)

Battery terminal cover (1)

Power cord (1)

Lens cap (La r ge, 1)

Attached to the camcorder.

Lens hood (1) and Lens cap (Small, 1)

Use the lens hood to record under strong light, such as under the sun. When you use the lens hoo d, us e th e small lens cap. See page 127 on how to replace the lens cap. Note when you use a filter (opti ona l) , the shadow of the lens hood may appear on the screen. Also, if you force the lens hood on, you may not be able to remove it again.

CD-ROM “SPVD-010 USB Driver” (1)

Cleaning cloth (1)

Camera Operations Guide (This manual) (1)

Computer Applications Guide (1)

Getting started

Step 2: Charging the battery pack

You can charge the battery by attaching the

“InfoLITHIUM” battery pack (M series)

to your camcorder.

b Notes

• You cannot use bat te r ie s othe r tha n the “InfoLITHIUM” battery pack (M series) (p. 119).

• Do not short-circuit the DC plug of the AC Adaptor with any metallic objects. This may cause a malfunction.

• Use a nearby wall outle t whe n usi ng the AC Adaptor. Disconnect the AC Adaptor from the wall outlet immediately if a ny ma lf unction occurs.

DC IN jack

Battery

DC plug

1 Slide the battery release lever and

remove the battery terminal cover.

Getting started

Battey release lever

2 Attach the battery pack by slidin g it in

the direction of the arrow until it clicks.

Power cord

To the wall outlet

AC Adaptor

3 With the b mark on the DC plug

facing the jack cover, connect the AC Adaptor to the DC IN jack on your camcorder.

b mark

4 Connect the power cord to the AC

Adaptor.

5 Connect the power cord to the wall

outlet.

,continued

Getting started

6 Slide the POWER switch up to (CHG)

OFF.

The CHG (charg e) lamp lights up and charging starts.

To check the remaining b attery – Battery Info

DISPLAY/BATT INFO

After charging the battery

The CHG (charge) lamp turns off when the battery is fully charged. Disconnect the AC Adaptor from the DC IN jack.

To remove the battery pack

POWER switch

Battery release lever

Set the POWER switch to (CHG) OFF.

1 2 Slide the battery releas e lever and slide

the battery pac k out.

b After removing the battery pack

• Always attach the terminal cover to protect the

battery terminal. If you do not use the ba tte r y pa ck for a long time, use up the battery pack completely before storing it. See page 120 about storage of the battery pack.

OPEN

You can check the battery’s curr ent charge l evel and its current remaining record ing time both during charging or when the power is turned off.

POWER switch

1 Set the POWER switch to OFF (CHG). 2 Press OPEN and open the LCD panel. 3 Press DISPLAY/BATT INFO.

The battery info rmation appe ars for about 7 seconds. Keep the butt on pres sed to vi ew it for a bout 20 seconds.

A Battery ch arge level: Displays

approximate remaining amount of power left in the batt ery pack.

B Possible recording time using the LCD

panel.

C Possible recording time using the

viewfinder.

Getting started

Charging time

Approximate number of minutes required when you fully charge a fully discharged battery pack at 25°C (77°F). (10 – 30° C (50 – 86°F) recommended.)

Battery pack

NP-FM30 (supplied) 145 NP-FM50 150 NP-FM70 240 NP-QM71/QM71D 260 NP-FM91/QM91/

QM91D

360

Recording time when recording with the LCD screen on

Approximate nu m ber of minutes available when you use a full y charged batter y pack at 25°C (77°F).

With the LCD BACKLIGHT switch set to ON

Battery pack Continuous

recording time

NP-FM30 (supplied)

NP-FM50 130 75 NP-FM70 270 155 NP-QM71/

QM71D NP-FM91/

QM91/QM91D

80 45

315 180

475 270

With the LCD BACKLIGHT switch set to OFF

Battery pack Continuous

recording time

NP-FM30 (supplied)

NP-FM50 150 85 NP-FM70 310 175 NP-QM71/

QM71D NP-FM91/

QM91/QM91D

90 50

365 210

550 315

Typical* recording time

Recording time when recordi ng with the viewfinder

Approximate number of minutes available when you use a fully charged battery pack at 25°C (77°F).

Battery pack Continuous

recording time

NP-FM30 (supplied)

NP-FM50 150 85 NP-FM70 310 175 NP-QM71/

QM71D NP-FM91/

QM91/QM91D

* Approximate number of minutes when recording

while you repeatedly record, start/stop, slide the POWER switch to change the power mode, and zoom. The actual batter y life may be shorter.

90 50

365 210

550 315

Playing time

Approximate number of minutes available when you use a fully charged battery pack at 25°C (77°F).

Battery pack LCD panel

opened*

NP-FM30 (supplied)

NP-FM50 195 240 NP-FM70 400 495 NP-QM71/

QM71D NP-FM91/

QM91/QM91D

* Wit h the LCD BACKLIGHT switch set to ON.

b Notes

• The power will not be supplied from the battery pack when the AC Adaptor is conn ected to the DC IN ja ck of your camcorder, even if its power cor d is disconnected from the wall outlet.

• The recording and playba ck tim e wil l be shor te r when you use your camcorder in low temperatur e .

• The CHG (charge) lamp flashes during charging, or the battery inform a tion will not be correctly displayed in following conditions.

120 150

465 580

695 865

Typical* recording time

LCD panel closed

,continued

Getting started

– The battery pack is not atta c h e d cor r e ctly. – The batte r y pa ck is damaged. – The batte r y pa ck is ful ly di sc harge d. (For Ba tt ery

information only.)

Step 3: Turning the power on

Using an outside power source

You can use the AC Adaptor as the power source when you do not want the battery to run out. While you are using the AC Adaptor, the battery pack will not lo se i ts c harge e v en when it is attached to your cam corder.

PRECAUTION

Even if your camcorder is turned off, AC power (house current) is still supplied to it while connected t o the wall outle t via th e AC Adapt or.

Connect your camcorder as shown in “Charging the battery pack” (p. 13).

You need to slide the POWER switch repeatedly to select the desired power mode to record or play When using this camcorder for the first time, the [CLOCK SET] screen appears (p. 18).

While pressing the green button, slide the POWER switch down.

The power turns on. To enter the record i ng or playing mode, sli de the switch repeatedly until the respective lamp for the desired po w er m ode lights up.

• CAMERA-TAPE mode: To record on a tape.

• CAMERA-MEMORY mode: To record on a

“Memory Stick . ”

• PLAY/EDIT mode: To play or edit pictures on

a tape or “Memory St i ck. ”

Getting started

To turn off the power

Slide the POWER switch up to (CHG) OFF.

Step 4: Adjusting the LCD panel and viewfinder

Adjusting the LCD panel

You can adjust the angle and brightness of the LCD panel to meet various recording situations.

Even when there are obstructions be t ween you and the subject , you can check t he subject on the LCD screen during record ing by adjustin g the angle of the LCD pa nel.

[MENU], (STANDARD SET) menu, then touch [LCD/V F SET] (p. 78).

3 Adjust the item with / , then

touch .

z Tips

• If you rotate the LCD panel 180 degrees to the lens side, you can close the LCD panel with the LCD screen facing out.

• If you are using the battery pack fo r power sour c e , you can adjust the brightness by selecting [LCD BL LEVEL] from the [LCD/VF SET] on the (STANDARD SET) menu

• When you use your camcorde r in bright conditions using the battery pack, set the LCD BACK LIGHT switch to OFF. This position saves batter y powe r .

(p. 78).

Adjusting the viewfinder

Getting started

LCD BACKLIGHT switch

Maximum 180 degrees

Maximum 90 degrees

Press OPEN and open the LCD panel.

Open the LCD panel 90 degrees to the camcorder, then rotate it to the desired position.

To adjust the brightness of the LCD screen

Touch .

2 Touch [LCD BRIGHT].

If the item is not displayed on the screen, touch / . If you cann ot fin d it , to uch

You can view images using the viewfinder when you close the LCD panel. Use the viewfinder wh en the batter y is running ou t, or when the screen is hard to see.

Viewfinder lens adjustme nt lever

1 Extend the viewfinder. 2 Adjust the viewfinder lens adjustment

lever until the picture is clear.

To use the viewfinder during operation

When you are recording on a tape or a “Memory Stick,” you can adjust the exposure (p.32) and fader (p. 38) while checking the image on the viewfinder. Have t h e LCD panel rotated 180 degrees and closed with the screen faci ng out.

,continued

Getting started

1 Set the power mo de to CAME RA-TAPE

or CAMERA-MEMORY (p. 16).

2 Extend the viewfind er, and close the

LCD panel with the screen facing out.

appears on the sc reen.

3 Touch . 4 Touch [YES].

The LCD screen is turned off.

5 Touch the LCD screen whil e checking

the display in th e vi ewfinder.

[EXPOSURE], etc. are displayed.

6 Touch the button you want to set.

• [EXPOS URE]: Adjust with /

and touch .

• [FADER]: Touch it repeatedly to select a

desired effect (only in the CAMERATAPE mode).

• : The LCD screen lights up. To hide the buttons on the LCD screen, touch .

z Tip

• To adjust the brightness of the viewfinder backlight, select (STANDARD SET) menu, [LCD/VF SET], then [VF B.LIGHT] (when you are using the battery pack, p. 78).

Step 5: Setting the date and time

Set the date and time when using this camcorder for the first time. If you do not set the date and time, the [CLOCK SET] screen appears eve ry t im e yo u tur n on your camcorder.

b Note

• If you do not use your camcorder for abo ut 3 months, the built-in rechargeable button-t ype

battery gets discharged and the date and time settings may be cleared from the memory. In that case, charge the rechargeable button-type battery (p. 124) and then set the date and time again.

Getting started

OPEN

POWER switch

1 Turn on your camcorder (p. 16). 2 Press OPEN and open the LCD panel.

Proceed to step 7 when you set the clock for the first time.

3 Touch .

4 Touch [MENU].

8 Set [M] (month), [D] (day), hour and

minute in the same way as was done in step 7, then couch .

For midnight, set it to 12:00AM. For midday, set it to 12:00PM.

5 Select (TIME/LANGU.) with

/ , then touch .

6 Select [CLOCK SET] with / ,

then touch .

7 Set [Y] (year) with / , then touch

Getting started

You can set any yea r up to the year 2079.

Getting started

Step 6: Inserting the recording media

Inserting a cassette tape

You can use mini DV cassettes only. For details on these cassettes (such as writeprotection), see page 116.

b Note

• Do not force the cassette into the comp artment. This may cause a malfunction of your camcorder.

1 Slide the OPEN/ZEJECT lever in

the direction of the arrow and open the lid.

2 Insert a cassette with its window-side

facing up.

Window-side

Push the center of the back of the cassette lightly.

3 Press .

The cassette compartment automatically slides back in.

OPEN/ZEJECT lever

The cassette compartment automatically comes out and opens up.

Lid

4 Close the lid.

To eject the cassette

Slide the OPEN/ZEJECT lever in the direction of the a rrow and open the lid .

The cassette compartment automatically comes out.

2 Take out the cass ette, then press .

The cassette compartment automatically slides back in.

3 Close the lid.

Getting started

Inserting a “Memory Stick”

For details on the “M emory Stick” (such as write-protection), see page 117.

b Note

• When using the half-sized “Memory Stick,” the “Memory Stick Duo,” make sure you a tta c h the Memory Stick Duo adaptor. Your cam co rd er ma y malfunction when it is inserted without an adaptor (p. 118).

Access lamp

b mark

b Notes

• If you force the “Memory Stick” into the “Memory Stick” slot in the wrong dire c tion, the “Memory Stick” slot may be damaged.

• Do not insert anything other than a “Memory Stick” into the “Memory Stick” slot. Doing so may cause a malfunction of your camcorde r.

• When the access lamp is lit or flashing, your camcorder is reading/writi ng da ta from /to the “Memory Stick.” Do not shake or knock your camcorder, turn the power off, eject the “Memory Stick,” or remove the battery pa ck. Otherwise, image data may be damaged.

Getting started

Insert the “Memory Stick” with the b mark at the bottom left corner until it clicks.

To eject a “Memory Stick”

Lightly push the “Memory Stick” in once.

Lightly push in once.

Getting started

Step 7: Setting the screen language

You can select the language to be used on the LCD screen.

5 Select the desired language with /

, then touch .

z Tip

• Your camcorder offers [ENG [SIMP]] (simplified

English) for when you cannot find your native tongue among the options.

OPEN

POWER switch

1 Turn on your camcorder. 2 Press OPEN to open the LCD panel. 3 Touch .

4 Touch [LANGUAGE].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (TIME/LANGU.) menu (p. 82).

Getting started

Recording

Recording movies

You can record movies on a tape or a “Memory Stick.” Before recording, follow steps 1 to 7 in “Getting star ted” (p. 12 - p. 22). When you are recordi ng on a tape, movies will be recorded along with stereo sound. When you are recordi ng on a “Memory Stick,” the movie will be recorded with monaural sound.

Camera recording lamp

POWER switch

3 Select the recording mode.

To record on a tape

Slide the POWER switch until the CAMERA-TAPE lamp lights up, and your camcorder is set to the standby mode.

Slide the POWER switch while pressing the green button.

To record on a “Memory Stick” –

MPEG MOVIE EX

Slide the POWER switch repeatedly until the CAMERA-MEMORY lamp lights up, and the currently selected record in g fo lder appears on the sc reen.

Slide the POWER switch while pressing the green button.

Recording

OPEN

START/STOP

1 Remove the lens cap. Pull the lens cap

string down and attach it to the grip belt.

2 Press OPEN and open the LCD panel.

4 Press START/STOP.

Recording star ts. [REC] appear s on the LCD screen and the Camera recording l amp lights up. Press START/STO P again to stop recording.

To check the most recently recorded MPEG movie – Rev iew

Touch . Playback starts automatically. Touch again to return to standby. To delete the movie, touch after playback is finished, then [YES]. To cancel deleting, touch [NO].

To turn the power off

Slide the POWER switch up to (CHG) OFF.

,continued

Recording

Indicators displayed during recording on a tape

The indicators will not be recorded on the tape. Date/time and the camera settings data (p. 51) will not be displayed during recording.

A Indicators for Casse tte Memo ry casset tes B Rema ining batt ery

The indicated time may not be correct depending on the environment of use. When you opene d or closed t he LCD panel, it takes about one mi nute to display the correct remaining battery time.

C Recording mod e ( SP or LP) D Recording status ([STBY] (standby) or

[REC] (recor d i n g))

E Time code (hour: minute: second: frame)

or tape counter (hour: minute: second)

F Recording capacity of the tape

Displayed after you run the tape for a while.

G Personal Menu button (p. 56) H END SEARCH/EDIT SEARCH/Rec

review display switc h but t on (p. 43)

Indicators displayed during recording on a “Memory Stick”

The indicators will not be recorded on the “Memory Stick.” Date/time (p. 51) will not be displayed during recording.

A Recordin g folder B Remaining battery

The indicated time may not be correct depending on the environment of use . When you opened or closed the LCD panel, it takes about one minute to display the correct remaining battery time.

C Recording status ([STBY] (standby) or

[REC] (recording))

D Movie size E Recorde d ti me (hour: minute: second) F Recording capacity of the “M emory

Stick”

G “Memory Stick” recording start

indicator (appears for about 5 seconds)

H Personal Menu button (p. 56) I Review bu tton (p. 23)

b Notes

• Before changing the battery pack, sl ide the POWER

switch up to (CHG) OFF.

• In the default setting, w hen y ou do not ope rate the

camcorder for more than about 5 minutes, the power will automatically turn off to prevent battery loss ([A.SHUT OFF], p. 81). To restart recording, slide the POWER switch dow n to select CAMERATAPE or CAMERA-MEMORY, and then press START/STOP.

• When you are recording on a “Memory Stick” using

an external flash (optional), turn off the power of the external flash to prev ent charging no ise from getti ng recorded.

Recording

z Tips

• To ensure sm oot h tr an sition on a tape from the last recorded scene to the next, note the following. – Do not re move the cassette. (The pictu re w ill be

recorded continuously without a break even when you turn the power off).

– Do not record pictures in SP mode and LP mode on

the same tape.

– Avoid stopping then recording a movie in the LP

mode.

• See “To record for a longer time on a “Memory Stick”” (p. 25) for the approximate length of time it is possible to record on a “Memory Stic k” of different capacities.

• The recording time, date, and the camera settings data (for tape only) are recorded automatically on the recording media without being displayed on the screen. You can view this information duri ng playback by pressing [DATA CODE] on the screen (p. 51).

Recording for a longer time

To record for a longer time on a tape

In the (STANDARD SET) menu, select [ REC MODE], then [LP] (p. 77). In the LP mode, you can record 1.5 times longer than you can when recording in the SP mode. A tape recorded in the LP mode should be played back only on this camcorder.

320 × 240 160 × 112

16MB (supplied)

32MB 00:05:20 00:21:20 64MB 00:10:40 00:42:40 128MB 00:21:20 01:25:20 256MB

(MSX-256) 512MB

(MSX-512) 1GB

(MSX-1G)

00:02:40 00:10:40

00:42:40 02:50:40

01:25:20 05:41:20

02:50:40 11:22:40

Using zoom

When the CAMERA-TAPE mode is selected, you can choose zo om to magnification levels greater than 10 times, and from that point activ ate th e dig ita l zo om ([DIGITAL ZOOM], p. 62). Occasional use of the zoom is effective, but use it sparingly for best results.

Recording

To record for a longer time on a “Memory Stick”

In the (MEMORY SET) menu, select [MOVIE SET], [ IMAGE SIZE], then [160 × 112] (p. 65). The number of pictures you can reco rd on a “Memory Stick” varies depending on the image size and the recording environment. Refer to the following list for approximate length of time yo u can record movies on a “Memory Stic k” f ormatted on your camcorder.

Image size and time (hour: minute: second)

320 × 240 160 × 112

8MB 00:01:20 00:05:20

1 cm (approx . 1/2 inch)*

80 cm (approx. 2 5/8 feet)*

* The mi nim um distance required between your

camcorder and the subject to get a sharp focus in that position of the lever.

,continued

Recording

Move the power zoom lever slightly for a slower zoom. Move it further for a faster zoom.

To record wider range of view

Move the power zoom lever towards W. The subject appears farther away (Wide angle).

To record closer view

Move the power zoo m lever towards T. The subject appear s closer (Telephoto).

Recording in mirror mode

Using the self-timer

With the self-timer, you can start recording after a delay of about 10 seconds.

START/STOP

You can turn the LCD panel towards the subject so that you and your subject can share the image being recorded. You can also utilize this function when recording you rself, to keep the attention of small children attracted to the camcorder while you record them.

Extend the viewfinder.

Open the LCD panel 90 degrees to the camcorder, th en rotate it 180 degrees towards the subject.

A mirror-image of the subject appears on the LCD screen, but the picture will be normal when recorde d .

START/STOP

1 Touch . 2 Touch [SELF-TIMER].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (CAMERA SET) menu.

3 Touch [ON], then .

appears.

4 Press START/STOP.

Recording

You will hear a beep sound counting down for about 10 secon ds (The count down indicatio n begins from 8). The recording starts. To stop recordin g, press START/STOP.

To cancel the count down

Touch [RESET] o r pr es s START/STOP.

To cancel the self-timer

Follow step s 1 and 2, then sele ct [O FF] in step

Recording movies fit for bre aking into still images – Progressive recording mode

This feature is useful for movies you intend to import to your computer to produce still images. You can record pictures with less blurring than recording in the normal mode, producing pictures suitable for analyzing high-speed action such as sports. To enjoy as a movie, it is better to record the pict ure in the normal mode, since the image is recorded only every 1/3 0 of a second in the progres sive recording mode.

If the item is not displayed on the scre en, touch / . If you cannot find it, touch [MENU], and select [PROGRES. REC] from the (CAMERA SET) menu.

3 Touch [ON], then .

appears.

4 Press START/STOP.

Press it again to s to p recording.

To cancel the progressive recording mode

Follow steps 1 and 2, th en select [OFF] in step

Recording

START/STOP

1 Touch . 2 Touch [PROGRE REC].

Note on the progressive recording mode

In a normal TV broadcast, the sc reen is d ivide d into 2 finer fields and these are displayed in turn, every 1/60 of a second. Thus, the actual picture displaye d in a n instant covers only half of the apparent picture area. In progressive recording, the pictur e is f ull y d ispl a yed with all the pixels. A picture reco rd ed in th i s mo d e appears clearer, but a moving subje c t ma y a ppe ar awkward.

b Notes

• When recording in the pr ogr e ssi ve re co rd ing mode under fluorescent light or a light bulb, the screen may flicker. This is not a malfunction .

• You cannot use the Progr es sive recording mode with: – [16:9 WIDE ] mode

Recording

Recording still

The selected re cording folder is di splayed.

images

– Memory photo recording

You can record still images on a “Memory Stick.” Before recording, follow steps 1 to 7 in “Getting started” (p. 12 - p. 22).

OPEN

POWER switch


1 Remove the lens cap. Pull the lens cap

string down and attach it to the grip belt.

Slide the POWER switch while pressing the green button.

4 Press and hold PHOTO lightly.

You will hear a light be eping sound when the focus and brigh t ness settings are adjusted. Recording does not start at this point.

The indicator stops flashing.

The number of images that can be recorded.*

*The number of images that can be recorded

varies depending on the image size se tti ng an d the recording environment.

5 Press PHOTO fully.

A shutter sound is heard. When bars of

disappears, the image is recorded

on the “Memory Sti ck.”

2 Press OPEN and open the LCD panel. 3 Slide the POWER switch repeatedly

until the CAMERA-MEMORY lamp lights up.

Recording

To check the most recently recorded image – Review

Touch . Touch again to return to standby. To delete the image, touch , then [YES]. To cancel deleting, to uch [NO].

To turn the power off

Slide the POWER switch up to (CHG) OFF.

To record still images continuously – Burst

Select the (MEMORY SET) menu, [STILL SET], then [ BURST] (p. 64). You can record 3 to 32 images continuously in a time interval of about 0.5 to 0.07 seconds.

Indicators displayed during recording

quality/size of the image and t he recording environment.

Refer to the follow ing list for the approximate number of pictures that can be recorded on a “Memory Stick” formatted on your camcorder.

When the Image quality is [FINE] (number of images)

The image size of 2016 × 1512 is 1540KB, that of 640 × 480 is 150KB.

2016 × 1512

640 × 480

A Record ing folder B Image size

(2016 × 1512) or (640 × 48 0)

C Quality

([FINE]) or ([STANDARD])

D Personal Menu button (p. 56) E Review button (p. 28)

z Tips

• When you press PHOTO on your Remote Commander, the image dis pla y ed on th e screen at that timing is recorded.

• The recording time, date, and the camera settings data are recorded automatically on the recording media without being displayed on the screen. You can view this information duri ng pla yba c k by pressing [DATA CODE] on the screen (p. 51).

• The recording a ngle is wider than that of the CAMERA-TAPE mode.

Selecting image quality or size

Select the (MEMORY SET) menu, [STILL SET], then [ QUALITY] or [ IMAGE SIZE] (p. 64). The number of pictures you can record on a “Memory Stick” varies depending on the

8MB 5 50 16MB (supplied) 10 96 32MB 20 190 64MB 40 390 128MB 82 780 256MB

(MSX-256) 512MB

(MSX-512) 1GB (MSX-1G) 610 5900

145 1400

300 2850

When the Image quality is [STANDARD] (number of images)

The image size of 2016 × 1512 is 640KB, that of 640 × 480 is 60KB.

2016 × 1512

8MB 12 120 16MB (supplied) 24 240 32MB 48 485 64MB 98 980 128MB 195 1970 256MB

(MSX-256) 512MB

(MSX-512) 1GB (MSX-1G) 1450 14500

355 3550

720 7200

640 × 480

,continued

Recording

Using the flash

The recommended distance t o t he subject when using the built-in flash is 0.3 to 2.5 m (1 to 8 feet). Your camcorder is set to auto flashing by default, so according to the lighting conditions, the flash may be automatically activated when you press PHOT O. Follow the steps below when you always want to use the fla s h, or when you do not want to use the flash at all. The available settings vary according to what you selected in [REDEYE REDUC] of [FLASH SET] in the (CAMERA SET) menu (p. 61).

(flash)

Press (flash) repeatedly to select a setting.

The settings are displayed cyclically in the following order.

When the red eye reduction f eat ure is turned off

No indicator displayed: Automatically flashes when there is not enough surrounding ligh t.

(Forced flash): A lways uses the flash

regardless of the surrounding brightness.

(No flash): Always records wi thout

using the flash.

When the red eye reduction feature is turned on

(Auto red-eye reduction): Pre-flashes to reduce red-eye before the flash automatically flashes when there is not enough surrou nd i ng light.

(Forced red-ey e reduction): Alwa ys uses the flash and the red-eye reducing preflash regardless of the surrounding brightness.

(No flash): Always records wi thout

using the flash.

b Notes

• Remove the dust from the surface of the flash lamp before using it. You may not get a sufficient amount of flash if the dust discolors or sticks to the lamp due to the heat from flashing.

• The red-ey e reduction ma y not produce the desired effect due to individual differenc e s an d othe r conditions.

• The flash charge indicat or flic kers while charging, and remains lit when the battery charge is co mplete . (In the CAMERA -TAPE mode, it takes a wh ile to fully charge the fl ash lamp sin ce it charges its battery with the flash lamp op en.)

• The flash will not work during the following operations: – S uper NightShot function – Color Slow Shutter function – Digital effect – Progressive recording mode –Burst – During tape recording – [16:9 WIDE] mode

• Even if aut o flas hing or (Aut o red- eye re ductio n) is selected, the fl a s h w ill not work during the following operations: – NightShot function – [SPOTLIGHT], [SUNSET&MOON], and

[LANDSCAPE] of [PROGRAM AE] – M anual exposure – F l exi ble spot meter

• If you use the flash in bright places such as when shooting a backlit subject, the f la sh ma y not be effective.

• Attaching the lens hood (supplied) or a conversion lens (optional) may cause its shadow to appear.

• You cannot use an external flash (optional) and the built-in flash at the same time.

Recording

z Tips

• The amount of light used by the flash is adjusted automatically . To adj ust it manuall y, selec t [FLASH LEVEL] from the (CAMERA SET) menu (p. 58).

• When th e f ocus is hard to adjust, use the HOLOGRAM AF function (p. 37), or refer to “Adjusting the focus manually” (p. 36) for the proper focal distance information.

Using the self-timer

With the self-timer, you can record a still image after a delay of about 10 seco nds.


3 Touch [ON], then .

appears.

4 Press PHOTO.

You will hear a beep sound counting down for about 10 seconds (The count do w n indication begins fr om 8). The image is record ed. When bars of

disappears, the im age is recorded

on the “Memory Stic k. ”

To cancel the count down

Touch [RESET].

To cancel the self-timer

Follow steps 1 and 2, th en select [OFF] in step

Recording

1 Touch . 2 Touch [SELF-TIMER].

If the item is not displayed on the screen, touch / . If you cann ot fin d it , to uch [MENU] and se le ct it fr om the (CAMERA SET) menu.

,continued

Recording

Recording a still image on a “Memory Stick” while recording movies on a tape

Adjusting the exposure

The image size is set to [640 × 480]. If you want to record a still image in a diff erent size, use the Memory photo recording function (p. 28).


Press PHOTO fully during tape reco rding.

Recording is complete when the scrolling stops.

To record still images in standby mode

Press and hold PHOTO lightly. Check the image and press it fully.

b Notes

• You cannot record a stil l image on a “Memory

Stick” during the following ope rations: – [16:9 WIDE] mode – Progr es sive recording mode – Memory ove r lap – MEMORY MIX function – [SMTH INT.REC] (S mooth interval tap e

recording)

• Titles are not recorded on a “Memory Stick.”

The exposure is adjusted automatically in the default setting.

Adjusting the exposur e for backlit subjects

When your subject has its back to the sun or other light, you can adjust the exposure to prevent the subject from becoming shadowed.

BACK LIGHT

Press BACK LIGHT during recording or in the standby mode.

. appears.

To cancel the back light function, press BACK LIGHT again.

b Note

• The back light function is canceled when you set [EXPOSURE] to [MANUAL] (p. 33) or select [SPOT METER] (p. 33).

Recording

Fixing the exposure for the selected subject – Flexible spot meter

You can adjust and fix the exposure to the subject, so that it is recorded in suitable brightness even when there is strong contrast between the subject and the background (such as subjects in the limelight on stage) .

b Note

• You cannot use the Flexibl e spot meter together with: – Colo r Slow S hutter function – NightS hot function – NightF r a ming function

• If you set [PROGRAM AE], [SPOT METER] is automatically set to [AUTO].

z Tip

• If you set [SPOT METER], [EXPOSURE] is automatically set to [MANUAL].

1 Touch during recording or in

the standby mode.

2 Touch [SPOT METER].

If the item is not displayed on the screen, touch / . If you cann ot fin d it , to uch [MENU], and select it from the (CAMERA SET) menu.

3 Touch the point you want to adjust and

fix the exposure on the screen.

The [SPOT METER] indicator flashes while the camera is adjusting the exposure for the se lected point.

Adjusting the exposure manually

Recording

You can fix the brightness of a picture at the best exposure. When recording indoors on a clear day, for instance, you can avoid backlight shadows on people next to the window by manually fixing the exposure to that of the wall side of the room.

1 Touch durin g rec ording or in

the standby mode.

2 Touch [EXPOSURE].

If the item is not displayed on the scre en, touch / . If you cannot find it, touch [MENU], and select it from the (CAMERA SET) menu.

3 Touch [MANUAL].

4 Touch [END].

To return the setting to automatic exposure

Follow steps 1 and 2, then sele ct [A UTO] in step 3. Or set [EXPOSURE] to [AUTO] (p. 33).

,continued

Recording

4 Adjust the exposure by touching

(dim)/ (bright), then touch .

To return the setting to automatic exposure

Follow steps 1 and 2, then select [AUTO] in step 3.

Recording in dark places

You can record subjects in dark places (such as when capturing the face of your baby sleeping) with the NightShot, Super NightShot or Color Slow Shutter function. The Color Slow Shutte r function e nables you to record in color.

Set the NIGHTSHOT/NIGHTFRAMING switch to NIGHTSHOT.

and [“NIGHTSHOT”] appear. To cancel NightShot, set the NIGHTSHOT/ NIGHTFRAMING switch to z (green).

– NightShot, etc.

To record clearer pictures on the tape – Super NightShot

The picture will be recorded at a maxim u m of 16 times the sensitivity of NightShot reco rd in g.

1 Slide the POWER switch to select the

CAMERA-TAPE mode.

2 Set the NIGHTSHOT/

NIGHTFRAMING switch to NIGHTSHOT.

and [“NIGHTSHOT”] appear.

3 Touch . 4 Touch [SUPER NS].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (CAMERA SET) menu.

Recording

5 Touch [ON], then .

appears. To cancel Super NightShot, follow steps 3 and 4, then select [OFF] in step 5. Or, set the NIGHTSHOT/NIGHTFRAMING switch to z (green).

Adjusting the focus

The focus is adjusted automatically in the default setting.

To record a clearer picture in color on the tape – Color Slow Shutter

Slide the POWER switch to select the CAMERA-TAPE mode.

2 Make sure the NIGHTSHOT/

NIGHTFRAMING switch is set to z (green).

3 Touch . 4 Touch [COLOR SLOW S].

If the item is not displayed on the screen, touch / . If you cann ot fin d it , to uch [MENU], and select it from the (CAMERA SET) menu.

5 Touch [ON], then .

appears. To cancel Color Slow Shutter, follow s teps 3 and 4, then select [OFF] in step 5.

b Notes

• Do not use the NightShot/Super NightShot function in bright places. This may cause a m al fu nc tion.

• The Color Slow S hutt e r func tion may not operate correctly in total darkness. When you are record ing in a place with no light at all, use the NightShot or Super NightShot functions.

• You cannot use the Sup er NightShot/Color Slow Shutter function together with: – FADER func ti on – Digital effect

• You cannot use the Color Slow Shutter function together with: – [PROGRAM AE] – Manual exposure – Flexible spot meter

• When using th e Supe r NightShot or Color Slow Shutter function, the shutter speed of your camcorder changes depend ing on the brightness. The motion of the picture may slow down at this time.

• Adjust the fo cus ma nua lly when it is hard to focus automatically.

• Do not cover th e in frar ed po rt with your fingers or other objects. Remove the conversion lens (optional) if it is attached.

Adjusting the focus for an offcenter subject – SPOT FOCUS

You can select and adjust the focal point to aim it at a subject not located in the center of the screen.

1 Touch durin g rec ording or in

the standby mode.

2 Touch [SPOT FOCUS].

If the item is not displayed on the scre en, touch / . If you cannot find it, touch [MENU], and select it from the (CAMERA SET) menu.

3 Touch the subject for which you want

to adjust the focus on the screen.

[SPOT FOCUS] flashes while the camera is adjusting the focus.

9 appears.

4 Touch [END].

Recording

,continued

Recording

To adjust the focus automatically

Follow steps 1 and 2, then touch [AUTO] i n step

3. Or press FOCU S af ter step 4.

b Notes

• You cannot use the SPOT FOCUS function together

with: – NightFraming function – [PROGRAM AE]

• Focusing distance information will not be displayed.

Adjusting the focus manually

You can adjust the focus manually according to the recording conditions. Use this function in the following cases.

– To record a subject behind a window covered

with raindrops. – To record horizontal stripes. – T o record a subject w i th little contrast

between the subje ct and its background. – When you want to focus on a subject in the

background.

2 Rotate the focus ring and adjust the

focus.

9 changes to when the focus cannot be

adjusted any further. when the focus cannot be adjusted an y closer.

Tips for focusing manually

• It is easier to focus on the subject when you use the zoom function. Move the power zoom lever towards T (tele ph o t o) to adjust the focus, and then, towards W (wide angle) to adjust the zoom for recording.

• W hen you want to record a c lose-up image of a subject, move the power zoom lever towards W (wide angle) to fully magnify the image, then adjust the focus.

To use the expanded focus

It will be easier to confirm the focus setting by enlarging the image during manual focusing. When the CAMERA-MEMORY lamp is on, set [EXP. FOCUS] in the (CAMERA SET) menu to [ON] (p. 60). When you rotat e th e focus ring, appears and the image will be displayed at twice it s original size.

9 changes to

– T o record a stationary subject using a tr ipod.

FOCUS

Focus ring

1 Press FOCUS during recording or in

the standby mode.

9 appears.

Recording

To adjust the focus automatically

Press FOCUS again .

z Tip

• The focal distance information (for when it is dark and hard to adjust focus) appears for 3 seconds in the following cases. (It will not be displayed correctly if you are usi n g a c onversion l e ns (optiona l) .) – When the focus mode is switched from automatic

to manual.

– When you rotate the focus ring.

Using supplementary light to focus on a still image – HOLOGRAM AF

HOLOGRAM AF emitter

When you are recording in a dark place, you can use the HOLOGRAM AF light to focus on subjects until the focus is fixed. The maximum focal distance for the HOLOGRAM AF light is about 2.5 m (8 feet).

[HOLOGRAM AF] is set to [AUTO] by default

(p. 61).

About HOLOGRAM AF

“HOLOGRAM AF,” an application of laser holograms, is a new auto-focus optical system that enables still image shoo ting i n dark pla ces. Having gentler radiation than conventional high-brightness LEDs or lamps, the system satisfies the Laser Class 1 (*) specification and thus maintains higher safety for human eyes. No safety problems will be caused by looking directly into the HOLOGRAM AF emitter at a close range. However, it is not recommended to do so, because you may experience side effects, such as several m i nut es of residual images or dazzling, that you w oul d encounter after looking into a flashlight.

* H OLOGRAM AF satisfies the Class 1(time base

30000 seconds) specifications, recommended by all of the JIS (Japan), IEC (EU), and FDA (US) indu stry standards. Complying with these standards certifies the laser product to be safe, under conditions where a human looks at the laser light either directly or through a lens for 30000 seconds.

b Notes

• The focus may not be co rre c tly a djusted if you are using a conversion lens (optional) as it may block the HOLOGRAM AF light.

• You cannot use HOLOGRAM AF together with: – CAMERA-TAPE mode – Flash set to – [SUNSET&MOON] or [LANDSCAPE] of

[PROGRAM AE] – M anual focus – SPOT FOCUS function –Burst – NightS hot function

• The focal distance inf or ma ti on is not d ispl a yed on the screen.

(No flash)

Recording

Adjusting the frame and focus when recording a still image in darkness – NightFraming

Recording a picture using various effects

You can observe the subject in total darkness. When recording, th e HOL OG R AM AF li ght is emitted to focus on a subject until the focus is fixed.

1 Slide the POWER switch repeatedly to

select the CAMERA-MEMORY mode.

2 Set the NIGHTSHOT/

NIGHTFRAMING switch to NIGHTFRAMING.

and [NIGHTFRAMING] appear . To cancel NightFraming, set the NIGHTSHOT/NIGHTFRAMING switch to z (green).

POWER switch

Fading in and out of a scene – FADER

You can add the following effects to currently recording pictures.

[NORMAL FADER]

b Note

• The focus may not be correctly adjusted if you are using a conversion lens (optional) as it may block the HOLOGRAM AF light.

• The focus will be adjusted automatically even if manual focusing is selected.

• Supplementary light will be emitted even if [HOLOGRAM AF] is set to [OFF].

• Flash will be activated even if selected.

z Tip

• Even though the subject may not appear on the LCD panel in natural colors when you are shooting, it will be recorded in na tu r al colors.

Recording

(No flash) is

[MOSAIC FADER]

[MONOTONE]

When fading in, t he picture gradually changes from black-an d-white to color. When fading out , the pi cture grad ually chan ges from color to black-and-white.

[OVERLAP] (fade in only)

5 Press START/STOP.

The fader indicat or stops flashing and disappears when the fade is complete.

[WIPE] (fade in only)

[DOT FADER] (fade in only)

1 Slide the POWER switch to select the

CAMERA-TAPE mode.

2 Touch in the standby mode (to

fade in) or during recording (to fade out).

3 Touch [FADER].

If the item is not displayed on the screen, touch / . If you cann ot fin d it , to uch [MENU], and select i t from the (PICT. APPLI.) me nu.

4 Touch the desired effect, then touch

To cancel the operation

In step 3, touch [OFF].

b Note

• You cannot use the FADER function together with: – Super NightShot function – Colo r Slow S hutter function – Digital effect – [SMTH INT. REC] (Smooth interval tape

recording)

– [FRAME REC] (Frame recording)

z Tip

• You can also select the fade-in effect while recording. When you stop the recording, the screen turns blue to store its last image, from which you can fade into the continuing recording.

Fading in from still image on the “Memory Stick” – Memory ov erlap

You can fade in from the still image on the “Memory Stick” to the movie currently being recorded on th e t ape.

Still image

Movie

1 Check that you have a “Memory Stick”

with the still image to be superimpose d and a tape in your camc or der.

2 Slide the POWER switch to select the

CAMERA-TAPE mode.

3 Touch . 4 Touch [MENU]. 5 Select (PICT. APPLI.), then

[ OVERLAP] by touching / and .

The recorded image appears on the thumbnail screen.

6 Touch (previous)/ (next) to

select the still im age to be superi m p os ed.

7 Touch [ON ] , then . 8 Touch .

Recording

,continued

Recording

9 Press START/STOP to st art recording.

[M. OVRLAP] stops flashing, and disappears when fading is finished.

1 Slide the POWER switch to select the

CAMERA-TAPE mode.

Using special effects – Digital effect

You can add digital effects to the recordings.

[STILL]

You can record a movie while superimposing it on a previously recorded still image.

[FLASH] (flash motion)

You can record a movie with a serial-sti ll-image effect (strobe effect).

[LUMI. KEY] (luminance key)

You can replace a br ighter area in a previousl y recorded stil l imag e, su ch as the ba ck gr oun d of a person or a title written on white paper, with a movie.

2 Touch . 3 Touch [D. EFFECT].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (PICT. APPLI.) menu.

4 Touch the desired effect, then adjust

the effect by touching (decrease) /

(increase) and touch .

Adjustment screen example:

[TRAIL]

You can record a pict ure so that an incident al image like a trail is left.

[SLOW SHUTTR] (slow shutter)

You can slow down th e shutter speed. This mode is suitab le for shooting a subject more clearly in a dark place.

[OLD MOVIE]

You can add an old m ovie-type atmosphere to pictures. Your camcord er automatica lly records pictures in the letterbox mode for all screen size, sepia in color, and at a slower shutter speed.

Recording

When you touch [STILL] or [LUMI. KEY], the image displayed on the screen at that time is saved as a still image.

Effect Items to adjust

[STILL] The degree of transparency

of the still image you want to superimpose on a movie.

[FLASH] The interval of frame-by-

frame playback.

[LUMI. KEY] The color scheme of the

area in the still image which is to be swapped with a movie.

[TRAIL] The fade time of the

incidental image.

Effect Items to adjust

[SLOW SHUTTR]*

[OLD MOVIE] No adjustment necessary.

* It is hard to adjust the focus automatically when

you choose this effect. Adjust the focus manually using a tripod to steady the camcorder.

Shutter speed (1 is 1/30, 2 is 1/15, 3 is 1/8, 4 is 1/4).

5 Touch .

appears.

To cancel Digital effect

Follow step s 2 and 3, then sele ct [O FF] in step

b Notes

• You cannot use D igi ta l eff e ct toge the r w ith: – Super NightShot function – Color Slow Shu tte r fu nct ion – FADER func ti on – Memory overlap – MEMORY MIX function

• You cannot use [SLOW SHUTTR]/[OLD MOVIE] together with [PROGRAM AE] (except [AUTO]).

• You cannot use [OLD MOVIE] together with: – [16:9 WIDE] mode – Picture effect ([PICT. EFFECT])

z Tip

• You can create a picture with color and brightness reversed or a picture that looks like a pastel drawing while recording on a tape. For details, refer to Picture effect ([PICT. EFFECT], p. 68).

Overlaying still image s on movies on a tape – MEMORY MIX

You can superimpose a still image you ha ve recorded on a “Memory Stick” over the movie you are currently recording on a tape. You can then record the superimposed pictures on a ta pe or a “Memory Stic k.” (You cannot superimpose a still image on a tape which you have already finished recording.)

[MTCAM LUMI.] (Memory Luminance key)

You can swap t he br ighte r (w hite) area of a s til l image into a movie. To use this function, have a still image of an illustra tion or title handwr itten on white paper re corded on a “Memory Stick ” beforehand.

Still image

[CAMTM CHROMA] (Camera Chroma key)

You can superimpose a movie on top of a sti ll image, such as an image which can be used as background. Shoot the movie with the subject against a blue background. Only the blue area of the movie will be sw apped with the still image.

Still image

Movie

Recording

Blue

,continued

Recording

[MTCAM CHROMA] (Memory Chroma key)

You can have the movie swap into the blue area of a still image such as an illustration or into a frame with a blu e area enclosed by the frame.

Still image

Blue

Movie

6 Touch the desired effect.

The still image is superimposed on the movie which is currently displayed on the LCD screen.

1 Check that you have a “M emory

Stick” with the still image to be superimpose d and a tape (only if you are recording on tape ) in your camcorder.

2 Slide the POWER switch repeatedly to

select the CAMERA-TAPE mode (when you are recording on a tape) or the CAMERA-MEMORY mode (when you are r e cording on a “Memory Stick”).

3 Touch . 4 Touch [MEMORY MIX].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (PICT. APPLI.) menu. The still image stored in the “Memory Stick” will be displaye d on the thumbnail screen.

Thumbnail screen

7 Touch (decrease)/ (increase)

to adjust the following.

For [MTCAM LUMI.]

The color scheme of the bright area in the still image which is to be swapped into a movie. When you want to record onl y the still image stored on th e “Memory Stick ” to a tape, touch on the screen in [MTCAM LUMI.] until th e bar indicator is extended fully to the right side.

For [CAMTM CHROMA]

The color scheme of the blue area in the movie.

For [M

TCAM CHROMA]

The color scheme of the blue a rea in the still image which is to be swapped into a movie.

8 Touch twice.

appears.

9 Start recording.

When you are recording on a tape

Press START/ STOP.

When you are recording on a “Memory Stick”

Press PHOTO fully.

5 Touch / to select the still

image to overlap.

Recording

To cancel MEMORY MIX

Follow steps 1 to 4, then touch [OFF] in step 5.

b Notes

• When the overlapping still image has a large amount of white, the image in the thumbnail screen may not be clear.

• When you use the MEMORY MIX function in the mirror mode (p. 26), the picture on the LCD screen appears normally, witho ut be ing mirror-reversed.

• You may not be able to play back pictures modifi ed on your computer or recorded with other camcorders on your camcorder.

z Tip

The supplied SPVD-010 USB Driver CD-ROM contains sample images for use in MEMORY MIX operations. Ref er to the supplied “Computer Applications Guide” for details.

Searching for the starting point

Searching for the las t scene of the most recent recording – END SEARCH

This function is ha ndy when you have played back the tape, for example, but want to start recording right after the most recently recorded scene. When you use a cassette without Cassette Memory, the END SEARCH function will not work once you eject the cassette after you have reco rded on the tape. If you use a cassette with Cassette Memory, it will function even when you have ejected the cassette.

POWER switch

Recording

1 Slide the POWER switch repeatedly to

select the CAMERA-TAPE mode.

2 Touch .

,continued

Recording

3 Touch .

Appears only with a cassette with Cassette Memory

The last scene of the most recent recording is played back for about 5 seconds, and the camcorder enters the standby mode at the point where the las t r ecording has finished.

3 Keep touching (to go

backward)/ (to go forward) and release it at the point where you want the recording to start.

Reviewing the most recently recorded scenes – Rec review

You can view a few seconds of the scene recorded just before you stopped the tape.

To cancel the operation

Touch [CANCEL].

b Note

• The END SEARCH function will not work correctly

when there is a blank section between recorded sections on the tape.

z Tips

• When PLAY/EDIT mode is selected, you can do this

operation by touching and selecting [END SEARCH].

• You can do this operation als o by se le ct ing [END

SEARCH] in the menu.

Searching manually – EDIT SEARCH

You can search for the start point while viewing the pictures on the screen. The sound is not played back during the search.

1 Slide the POWER switch to select the

CAMERA-TAPE mode.

2 Touch .

1 Slide the POWER switch repeatedly to

select the CAMERA-TAPE mode.

2 Touch .

3 Touch once.

The last few seconds of the most recen tly recorded scene are played back. Then, your camcorder is set t o t he standby mode.

Recording

Playback

Viewing movies recorded on a tape

Make sure you have a recorded cassette inserted into your camcorder. Some of the operations are possible using the Remote Commander or using the touch panel. When you want to play back recordings on your TV, see page 53.

OPEN

POWER switch

3 Touch (rewind) to go to the point

you want to view.

4 Touch (play) to start playback.

To adjust the volume

Touch .

2 Touch [V OLUME].

If the item is not displayed on the scre en, touch / . If you cannot find it, touch [MENU], and select it from the (STANDARD SET) menu.

3 Adjust the volume by tou chi n g

(decrease) / (increase), then touch

To stop playback

Touch (stop).

Playback

1 Press OPEN and open the LCD panel. 2 Slide t he POWE R switch repeat edly to

select the PLAY/EDIT mode.

Slide the POWER switch while pressing the green button.

To pause

Touch (pause) during play back. Touch it again to restart the playback. Playback stops automatically when the pause mode continues for more than 5 minutes.

To fast forward or rewind

Touch (fast forward) or (rewind) in stop mode.

To review movies on the viewfinder

Close the LCD panel. T hen, extend the viewfinder.

,continued

Playback

Indicators displayed during tape playback

A Rema ining batt ery B Recording mod e ( SP or LP) C Tape transport indicator D Time code (hour: minute: second: frame)

or tape counter (hour: minute: second)

E Personal Menu button (p. 56) F Video operatio n buttons

Playing back in various modes

2 Touch [ VAR. SPD PB].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (EDIT/PLAY) menu.

3 Select a playback mode.

To return to the normal playback mode, touch (pa use) t wic e (onc e f ro m frame playback).

To Touch

change the playback direction*

play back slowly**

play back 2 times faster (double speed)

play back frame by frame

(frame) during

playback.

(slow) during playback. To reverse direction

1 Touch (frame). 2 (slow).

(double speed) during playback. To reverse direction

1 Touch (frame). 2 (double speed).

(frame) during playback pause. To reverse direction, touch

(frame) again during frame playback.

To fast forward or rewind during playback – Picture search

Keep on touching (fast forward) or (rewind) duri ng playback. To resume n ormal playback, release the butto n.

To view the picture while fast forwarding or rewinding – Skip scan

Touch ( fast forward) or (rewi nd) while fast forwarding or re w i nding the tape. To resume fast forwarding or rewinding, release the button.

To play back in various modes

You will not hear the recorded sound. Also, you may see mosai c- li ke images of the prev io usly played picture remaining on the screen.

1 During playback or playbac k pause,

touch .

Playback

*Horizontal lines may appear at the top, bottom,

or in the center of the sc reen. This is not a malfunction.

**Pictures output from the DV Interface

cannot be played back smoothly in slow mode.

4 Touch , then .

Viewing recordings with added effects – Digital effect

You can apply [STILL], [FLASH], [LUMI. KEY], and [TRAIL] effects when viewing recorded pictures. For details on each effect, see page 40.

POWER switch

1 Slide t he POWE R switch repeat edly to

select the PLAY/EDIT mode.

b Note

• You cannot add effects to exter na lly input pictures. Also, you cannot output pictures edited with digital effects via the DV Interface.

z Tip

• You cannot record the pictures edited using special effects on the tape in your camcorder, bu t you can copy them to a “Memory Stick” (p. 89) or another tape (p. 87) .

Playback

2 Touch while the picture you

want to add the effect to is displayed.

3 Touch [MENU]. 4 Select (PICT. APPLI.), then [D.

EFFECT] by touching / and touch .

5 Select an effect, then adjust the effect

by touching (decrease)/ (increase).

6 Touch twice, then .

appears.

To cancel Digital effect

Follow steps 2 to 4, then select [OFF] in step 5.

Playback

Viewing recordings on a “Memory Stick”

You can view pictures one at a time on the screen. When you have a lot of pictures, you can list them to search through them easily. Make sure you have a rec o r de d “Me mo ry Stick” inserted into your camcorder. When you want to play back a recorded picture on your TV, see page 53.

3 Touch .

The most recently recorded picture appears on the screen.

4 Touch (previous)/ (next) to

select a picture.

When you view a movi e, touch when the selected movie appears on th e screen.

Selected playback folder

OPEN

POWER switch

1 Press OPEN and open the LCD panel. 2 Slide the POWER switch repeatedly to

select the PLAY/EDIT mode.

Slide the POWER switch while pressing the green button.

Playback

To adjust the volume of movies

Touch .

2 Touch [VOLUME].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (STANDARD SET) menu.

3 Adjust the volume by touc hi ng

(decrease) / (increase) , t hen touch

To stop or pause movies

Touch . Touch it again to restart th e playback.

To delete pictures

See “Deleting rec orded pictures” (p. 99).

Indicators displayed during “Memory Stick” playback

A Remaining battery B Still image size C Picture number/Total number of

recorded pictures in the curr ent playback folder

D Folder name E Playing time (movies only) F Previous/next folder indicator

The following indicators appear when the first or last picture of the current folder is displayed and w hen there are multipl e folders on the same “Memory Stick.”

: Touch to move to the previous

folder.

: Touch to move to the next

folder.

: Touch / to move to either

the previous or the next folder.

G Image dele te but ton H Print mark (still images only) (p. 102) I Image protection mark (p. 101) J Data file name K Personal Menu button L Index screen display button M Tape playb ack select button N Picture select button

b Note

• Folders that you have created on a computer, renamed folders, and modifie d pic ture s ma y not appear on the screen.

z Tip

• Once you record a pictur e in a folder, th e same folder will be set as the default folder for playback . You can select a playback folder in the menu (p. 67).

Playing back in various modes from a “Memory Stick”

Using the screen in step 4 in “Viewing recordings on a “Memory Stick”” (p. 48), the following operat i ons are available.

To search for a scene in a movie

You can divide a movie into a maximum of 60 scenes in order to s ta rt pl ayback from a particular scene. The number of scenes you can divide the movie into depends on the length of the movie.

1 Touch (previous)/ (next) to

select a scene fr om which to start the playback.

2 Touch .

To display 6 pictures at a time, including movies – Index Screen

Touch .

Previous 6 pictures

Next 6 pictures

* The picture displayed before switching to the index

screen.

N mark*

Movie mark

Playback

,continued

Playback

To return to the si ngle display mode, t ouch the picture that you w ant to display.

To view pictures in other folders in the index screen

Touch .

2 Touch . 3 Touch [PB FOLDER]. 4 Select a folder with / , then touch

Various playback functions

You can magnify a small subj ect in a recording and display it on the screen. You can also display the recorded date and the name of the folder in which the pictu r e is recorded.

POWER switch

DISPLAY/BATT INFO

Magnifying pictures – Tape playback zoom/Memory playback zoom

You can magnify movies reco rded on a tape or still images stored on a “Memory Stick.”

1 Slide the POWER switch repeatedly to

select the PLAY/EDIT mode.

2 Touch . 3 Touch [MENU].

Playback

4 Select (PICT. APPLI.), then [PB

ZOOM] by touching / and touch .

Tape playback zoom screen

• If you press DISPLAY/BATT INFO during the playback zoom operation, the frame will disappear.

Displaying the screen indicators

“Memory Stick” playback select button

Memory playback button

Tape playback select button

5 Play back the still picture or movie,

and touch the screen at the point you want to magnify within the displayed frame.

The picture is magnified approximately twice the original size and centered at the point you tou ched o n the screen . When you touch another place, the point you touche d becomes the center.

6 Adjust the zoom ratio using the power

zoom lever.

You can select the zoom ratio from approximately 1.1 to 5 times the original size. Touch W to decrease, or T to increase the ratio.

You can choose to d isplay the time code, tape counter, and other information on the screen.

Press DISPLAY/BATT INFO.

The indicator switches on or off as you press the button.

z Tip

• You can display the screen indicators during playback on a TV. Select the (STANDARD SET) menu, [DISPLAY], then [V-OUT/PANEL] (p. 81).

Displaying the date/time and camera settings data – Data code

During playback, you ca n view the date /time data and the camera settings data ([CAMERA DATA]) that are automatically recorded while recording pictures on a tape or a “Memory Stick.”

1 Slide the POWER switch repeatedly to

select the PLAY/EDIT mode.

Playback

To cancel the operation

Touch [END].

b Note

• You cannot magnify externally input pictures. Also, you cannot output the magnif ie d pic tures via the DV Interface.

z Tips

• You can save the enlarged picture as a st ill imag e on a “Memory Stick,” by pressi ng PHOTO. The i mage will be recorded at an image size of 640 × 480.

2 Touch durin g pla yb ack or

playback pause.

,continued

Playback

3 Touch [DATA CODE].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (STANDARD SET) menu.

4 Select [CAMERA DATA] or [DATE/

TIME] then touch .

To hide the date/time/the camera settings data

Follow steps 2 and 3, and select [OFF] in step 4.

E Shutter speed F Aperture value

* Appears only during tape playback

b Note

• Camera setting data do not appear wh en movies on a “Memory Stick” are played back.

z Tips

• Exposure adjustment value (0EV) appears when a “Memory Stick” is played back.

• appears for the picture recorded using flash.

Camera settings data display

In the date/time data display, the date and time is displayed in the same area. If you record the picture without setting the clock, [--- -- ----] and [--:--:--] will appear.

A SteadyShot off* B Exposure* C White balance* D Gain*

Playback

Playing the picture on a TV

Connect your camcorder to a TV using the supplied A/V connecting cable as shown in the following illustration. Connect the supplied AC Adaptor to the wall socket for the power supply (p. 13). Refer also to the instruction manuals supplied with the devices to be connected. To copy to another tape, see page 87.

A/V jack

A/V connecting cable (supplied)*1

Signal flow

*1 The supplied A/V connec ting cable has a video

plug and an S video plug for the video connection.

*2 This connection produ ces higher quality DV

format pictures. When there is an S video jack on the device to be connected, connect th e S vide o plug to that jack instead of using the yellow video plug. The audio will not be output when you connect with the S video plug alone.

When you have an S video jack on your TV or VCR *2

S video plug (black)

Yellow

White

Red

VCRs or TVs

When you want to play the sound in monaural mode, use a conn ectin g cab le (o ptio nal) for that purpose.

Playback

When your TV is connected to a VCR

Connect your camcorder to the LINE IN input on the VCR using the A/V connecting cable. Set the input selector on the VCR to LINE.

When your TV is monaural (When your TV has only one audio input jack)

Connect the yellow plug of the A/V connecting cable to the video input jack and connect the white or the red plug to the audio input jack of your TV or VCR.

Playback

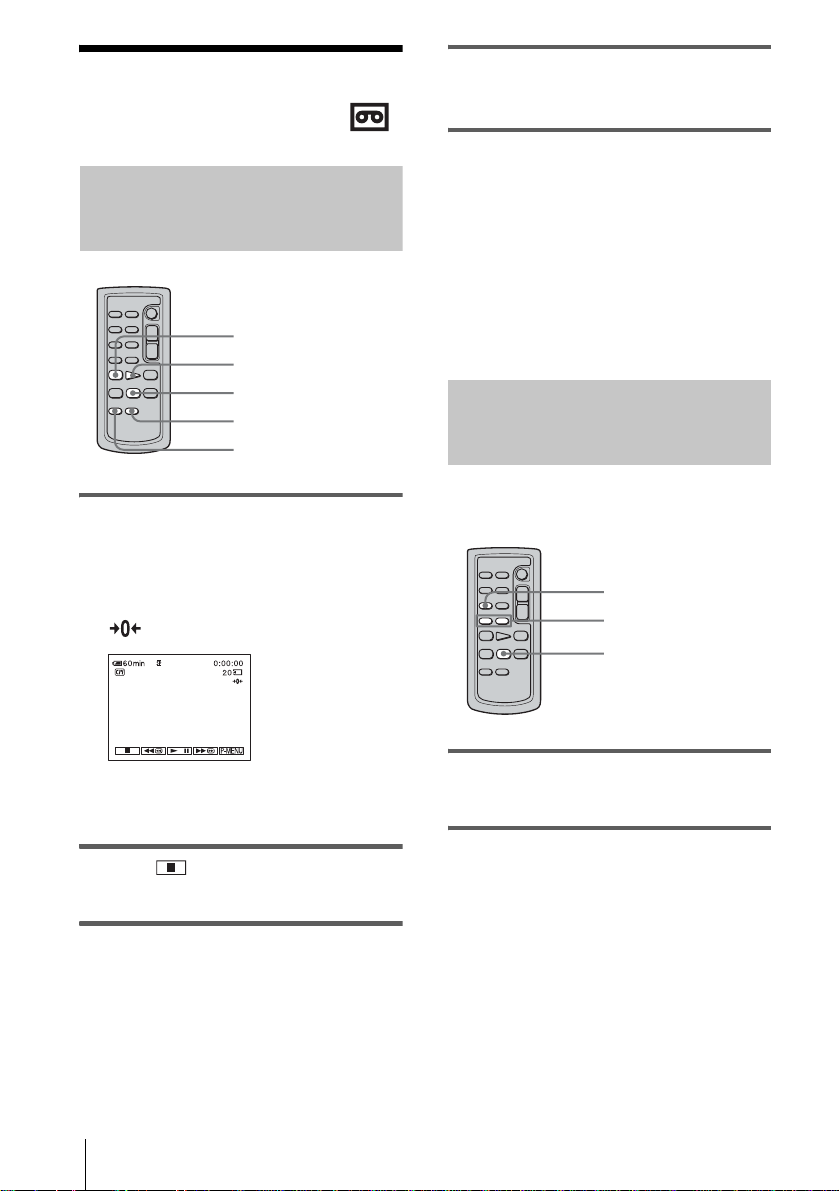

Locating a scene on a tape for playback

4 Press PLAY.

The playback star ts fr om the point designated “0:0 0: 00” on the tape counter.

Searching quickly for a desired scene – Zero set memory

m REW PLAY

STOP DISPLAY

ZERO SET MEMORY

1 During playback, press ZERO SET

MEMORY on the Remote Commander at the point you w ant to locate later on.

The tape counter is reset to “0:00:00” and

appears on the screen.

To cancel the operation

Press ZERO SET MEMORY on the Remote Commander agai n.

b Notes

• There may be a discrepancy of several seconds between the time code and the ta pe counter.

• Zero set memory will not function correctly if there is a blank section between recorded sections on the tape.

Searching for a scene using Cassette Memory – Title search

You can locate a scene where you have added a title (p. 74).

SEARCH M. . / >

STOP

If the tape counter is not di splayed, press DISPLAY on the Remote Commander.

2 Press (stop) when you want to

stop playback.

3 Press m REW.

The tape stops automatically when t he tape counter reache s “0:00:00.”

Playback

1 Slide the POWER switch repeatedly to

select the PLAY/EDIT mode.

2 Press SEARCH M. on the Remote

Commander repeatedly to select [TITLE SEARCH].

3 Press .(previous)/> (next) on

the Remote Commander to select a title that you want to play.

Playback starts automatically from the selected title.

Present point on the tape

Point where the playback starts

1 Slide the POWER switch repeatedly to

select the PLAY/EDIT mode.

2 Press SEARCH M. on the Remote

Commander repeatedly to select [DATE SEARCH].

3 Press . (previous)/> (next) on

the Remote Commander to select a recording date.

When your cassette has Cassette Memory

To cancel the operation

Press STOP on the Remote Commander.

b Notes

• You cannot use Title search when [ SEARCH] is set to [OFF] on the (EDIT/PLAY) menu (it is set to [ON] by default) (p. 74).

• The Title searc h will not function correctly when there is a blank secti on between recorded sections on the tape.

Searching for a scene by date of recording – Date search

When you are using a cassette with Casset te Memory, you can locate a sce ne by the recording date ([ SEARCH] is set to [ON] by default). When you are using a cassette that does not have Ca ssette Memory, you can locate the point where the recording date changes.

SEARCH M.

. / >

STOP

Present point on the tape

Point where the playback starts

Playback starts automatically from the beginning of the selected date.

When your cassette does not have Cassette Memory

Playback starts automatically from the point where the dat e changes. Each time you press the button, the previous or the next date will b e searched for and displayed.

To cancel the operation

Press STOP on the Remote Commander.

b Notes

• If one day’s recording is less than 2 minutes, your camcorder may not accurately find the point where the recording date changes.

• The Date search will not function correctly when there is a blank section between recorded sections on the tape.

• You can record date/time data for up to 6 days. When you have recorded for more than 7 days on a tape, locate the date w ithout using the Cassette Memory. To turn off the Cassette Memory, select the (EDIT/PLAY) menu, [ SEARCH], and then [OFF] (p. 74).

Playback

Advanced operations

Using the Menu

Selecting menu items

You can change various settings or make detailed adjustments using the menu items displayed on the screen.

POWER switch

1 Turn on the power (p. 16).

3 Touch [MENU] to display the menu

index screen.

4 Select the icon of the desired menu

with / , then touch .

CAMERA SET (p. 58)

MEMORY SET (p. 64)

PICT. APPLI. (p. 68)

EDIT/PLAY (p. 73) STANDARD SET (p. 77) TIME/LANGU. (p. 82)

2 Touch .

The Personal Men u appears. Items t hat are used often are disp la yed as short-cuts. The available menu items vary depending on the power mode of your camcorder.

Example: PLAY/EDIT mode’ s Personal Menu

Using the Menu

5 Select the desired item with / ,

then touch .

You can also touc h the item directly to select it. You can scroll and see all items. The available me nu items va ry dependi ng on the power mode of you r camcorder. Unavailable items will not be displayed.

6 Select the desired setting.

changes to . If you decide not to change the setting, touch to return to the previous scree n.

7 Touch , then to hide the menu

screen.

You can also touch (return) to go back a screen each time you touch the button.

To use the short-cuts of the Personal Menu

You can custom iz e t he short-cuts (p. 83).

1 Touch . 2 Touch the desired item. 3 Select the desired setting, then touch .

z Tips

• When the PLAY/EDIT mode is selected, touch on the screen displayed after step 1to display the video operation screen. Touch to return to the previous screen.

• It is convenient if the items you often use appear as short-cuts on the Personal Menu. To customize the Personal Menu, see page 83.

Using the Menu

Using the (CAMERA SET) menu

– PROGRAM AE/WHITE BAL./16:9 WIDE, etc.

You can select items listed below on the CAMERA SET menu. To select items, see “Selecting menu items” (p. 56).

PROGRAM AE

You can record pic tures easily in a situ at ion that requires va ri ous techniques by selecting the following settings.

G AUTO Select this when not using PROGRAM AE. SPOTLIGHT*

(spotlight) ( )

Select to prevent people’s f ace s from appearing excessively white when subject s are lit by strong light, such as in a theater or at a wedding.

The default settings are marked with G. The indicators in parentheses appear w hen the setting is selected. The settings you can adjust vary depending on the power mode of your camcorder. Only the items that can be operated in the selected mode are displayed.

Using the Menu

PORTRAIT (soft portrait) ( )

SPORTS* (sports lesson) ( )

BEACH&SKI* (beach & ski) ( )

SUNSET&MOON ** (sunset & moon) ( )

LANDSCAPE** (landscape) ( )

Select to bring out the subject suc h a s pe ople or flowers while creating a soft background.

Select to minimize shake when shooting fastmoving subjects such as in tennis or golf.

Select to prevent people’s f ace s from appearing dark in strong light or reflected light, such as at a beach in midsummer or on a ski slope .

Select to maintain the a tmosphere of situations such as sunsets, general night vi ews , fir e works, and neon signs.

Select when shooting distant subjects such as mountains. This set ting also prevents you r camcorder from focusing on glass or metal m esh in windows that comes i n between the camco rder and the subject.

SPOT METER

EXPOSURE

WHITE BAL.

* Your cam c or de r is adj uste d to focus only on subjects in the middle to f ar dis ta nce. **Your camcorder is adjuste d to fo cu s o nly on di stan t subjects.

See page 33 for details.

You can adjust th e color balance to the br ightness of the recording environment.

G AUTO Select when you want to record with the white balance adjusted

automatically.

HOLD ( ) Select when recording a single-colored subject or background. OUTDOOR ( ) • Select when recording a sunset/sunrise, general night views, neon

signs, or fireworks.

• Select when under daylight fluorescent lamps.

INDOOR (n) • Select when recording at a party or in studios where lighting

conditions change quickly.

• Select when unde r video la mps such as those in a studio, under sodium lamps, mercury lamp s or warm whi te fluor es c ent lamps.

Using the Menu

b Note

• The setting returns to [AUTO] when you disconnect the power source from your camcorder for more than 5 minutes.

Tips

• For better color balance adjustment when [WHITE BAL.] is set to [AUTO], aim your camcorder at a nearby white object for about 10 seconds after setting the POWER switch to CAMERA-TAPE when: – You remove the battery pack for replacement. – You bring your camcorder outdoors from inside the house while using fixed exposure, or

bring your camcorder in from outside.

• Set [WHITE BAL.] to [AUTO] and reset it to [HOLD] after few seconds when: – You changed the [PROGRAM AE] settings when [WHITE BAL.] is set to [HOLD]. – You brought your camcorder outdoors from inside the house, or vice versa.

• Set [WHITE BAL.] to [AUTO] or [HOLD] under white or cool whit e fluo resce nt la mps.

,continued

Using the Menu

SHARPNESS

You can adjust th e sharpness of the im age outline with / . appears when the sharpness is anything other than the default setting.

AUTO SHUTTER

SPOT FOCUS

EXP. FOCUS

FLASH SET

Soften

GON Select to automa tically activate the electronic shutte r to adjust the

shutter speed when recordin g in bright conditions.

OFF Selec t w he n recording without using the electronic shutter.

See page 35 for details.

When you are reco rdin g pict ures on a “Mem ory St i ck” whil e fo cusi ng manu al ly , you can see if the focu s is correctly adjusted by magnifying the ce nt er of the picture to twice its original size (p. 36).

GOFF Select to deactivate expanded focus. ON Select to activate expanded focus.

Note that these settings will not function with external flas hes that do not support the following settings.

Sharpen

FLASH LEVEL

Using the Menu

You can select an appropriate fl ash setting for re cording with an e xt ernal flash (optional).

HIGH ( ) Select to make the flash level higher than the standard setting.

GNORMAL ( ) Standard setting. LOW ( ) Select to make the flash level lower than the standa r d set ti ng.

b Note

• The setting returns to [NORMAL] when you disconnect the power source from you r

camcorder for more than 5 minutes.

REDEYE REDUC

SUPER NS

NS LIGHT

HOLOGRAM AF

GOFF Select to disable the r ed-eye reduction. ON ( ) Select to activate the flash before record ing to preven t red-eye (p.30).

See page 34 for details.

When using the Nig htShot function to record, you can recor d cl earer pictures by using the NightShot Light to emit infrared rays (invisible). The maximum shooting distan ce using the NightShot Light is about 3 mete rs (10 feet).

GON Select to use the NightShot Light. OFF S e le ct to disable the NightShot Light.

b Note

• Attaching a conversi on le ns ( optional) may obstruct the infra red r ay s.

When you are recording a still image in a d ark place, you can use supplem entary light for focusing on the subject. While is displayed on the screen, press PHOTO. The supplementary light is emitted during the focus adjustment (p. 37).

GAUTO Select to use HOLOGRAM AF when it is hard to focus on a subject

in dark places.

OFF S e le ct to disa ble supplementary light.

Using the Menu

COLOR SLOW S

SELF-TIMER

See page 35 for details.

See page 26, 31 for details.

,continued

Using the Menu

DIGITAL ZOOM

You can select the maximum zoom level in case you want to zoom to a level greater than 10 times while recording on a tape. Note that the image quality decreases when you are using the digital zoom. This funct ion is useful when recording enlarged pictures of a distant subject, such as a bird.

The right side of the bar shows the digital zooming zone. The zooming zone appears when you select the zooming level.

16:9 WIDE

GOFF Select to deactivate the digita l zoom. Up to 10 times zoom is

performed optically.

20 × Select to activate the digital zoom. 10 times through 20 times zoom is

performed digitally.

120 × Select to activate the digital zoom. 10 times through 120 times zoom

is performed digitally.

You can record a 16:9 wide picture on the tape to watch on a 16:9 wide-screen TV ([16:9WIDE] mode). With this functi on [ON], your camcorder offers even wider an gl es when you move the power zoom lever to the “W” side than recording in [OFF]. When you connect your camcorder to the S video input jack of a TV co m patible with the ID-1/ID-2 system and play the tape, the TV switches to full mode automatically. Refer also to the manuals supplied with your TV.

When viewed on the LCD screen/viewfinder

When viewed on a 16:9 wid e screen TV*

Using the Menu

When viewed on a standard TV**

* Pic ture appears in full sc re e n w hen the wide-screen TV s w itches to full mode. **Played in 4:3 mode. When you play a picture in the wide mode, it appears as you have seen

on the LCD screen or in the viewfinder.

STEADYSHOT

PROGRES. REC

GOFF Standard setting (to record pictures to play back on a 4:3 TV). The

) Select to rec ord a pict ur e to be pla ye d ba ck on a 16:9 wide TV. The

ON (

z Tips

• The ID-1 system sends aspect ratio information (16:9, 4:3, or letter box) by inserting signals between video signals .

• The ID-2 system sends a copyright protection signal with the ID-1 signals inserted between video signals in an analog connection.

• S1 video sends informati on with the standard S video signal to select wide mode automatically.

recorded picture will not be wide.

recorded picture will be played in full mode when you connect to your TV using an S (S1) video input jack compatible wit h ID-1/ I D-2 systems.

You can select this function to compensate for camera-sha k e.

GON Standard setting (enable the SteadyShot function). OFF ( ) Select to deactivate the SteadyShot function.

Select to shoot a stationary subject wi th a tripod, or when using a conversion lens (optional). Nat ur al pic ture s are pro duc ed .

See page 27 for de t ai ls .

Using the Menu

Using the (MEMORY SET) menu

– BURST/QUALITY/IMAGE SIZE/ALL ERASE/NEW FOLDER, etc.

You can select items listed below on the [MEMORY SET] menu. To select items, see “Selecting menu items” (p. 56).

STILL SET

BURST

You can record several still images one after another. The number of images you can record changes with the image size and space available on the “Memory Stick” you are using.

1 Select [NORMAL], [HIGH SPEED], or [ EXP. BRKTG], and then touch

GOFF Select when not recording continuously. NORMAL ( ) Select to record from 3 (2016 × 1512 image size) to 21 (640 × 480

HIGH SPEED ()

EXP. BRKTG ()

The default settings are marked with G. The indicators in parentheses appear w hen the setting is selected. The settings you can adjust

image size) images continuously at approximately 0.5-seco nd intervals.

Select to record up to 32 images (640 × 480 image size) continuously at approximately 0.07-second intervals.

Select to record 3 imag es con secut ively wit h diff erent expos ures at approximately 0.5-second intervals. You can compare the 3 images and select an image recorded in the best exposure.

vary depending on the power mode of your camcorder. Only the items that can be operated in the selected mode are displayed.

Using the Menu

2 Touch . 3 Press PHOTO fully.

In the [NORMAL] or [HIGH SPEED] setting, the maximum number of images are recorded as long as you a re pressing PHOTO f ul ly .

b Notes

• The flash will not function while you are recording images continuously.

• The maximum number of im ag es will be recorded in th e self-timer mode o r wh en y o u are

operating with the Remote Commander.

• The images may flicker or dis co lor whe n you se le ct [HIGH S PEE D].

• [EXP. BRKTG] will not function when you have space for fewer than 3 images remaining

on the “Memory Stick.”

• When it is hard to see th e diff erence bet ween t he imag es record ed in [EXP. B RKTG] mod e

on the LCD screen, connect your camcorder to your TV or a computer.

QUALITY

IMAGE SIZE

MOVIE SET

IMAGE SIZE

REMAINING

GFINE ( ) Select to record still images with the fine image quali ty (compressed

STANDARD ()

G2016 × 1512 ()

640 × 480 ( ) Select to record many still images or for playing on a sm a ll sc r e en.

G320 × 240 ()

160 × 112 ( ) Select to recor d fo r longer time.

GAUTO Select to display the remaining capacity of the “Memory Stick” in the

ON Select to always display the remaining capacity of the “Memory

to about 1/4). Select to recor d still images with the standard image quality

(compressed to about 1/10).

Select to record still images for playing on a large screen. This setting can be selected only in the CAMERA-MEMORY mode.

Select to record movies for playing on a large screen, or to record clearer pictures.

following cases:

• After inserting a “Memory Stick” with the POWER switch in the CAMERA-MEMORY mode (for about 5 seconds).

• When th e r e maining capacity of th e “ Memory Stick” is les s tha n 2 minutes after the CAMERA-MEMORY mode is selected.

• At the starting or ending point of the movie (for approximately 5 seconds).

Stick.”

Using the Menu

ALL ERASE

You can delete all the pictures on a “Memory Stick” that are not write-protected. To delete pictures one by one, see page 99.

1 Select [ALL FILES] or [CURRNT FOLDER].

ALL FILES Select to delete all the images on the “Memory Stick.” CURRNT

FOLDER

Select to delete all the images in the selected playback folder.

2 Touch [YES] twice.

To cancel deletion of all pictures, select [NO].

3 Touch .

,continued

Using the Menu

FORMAT

FILE NO.

b Notes

• The folder will not be deleted even when you delete all the pic tures in the folder.

• Do not move the POWER switch or press any but tons while [ Erasing all data...] is displaye d on the screen.

The supplied or newly purchased “Me m or y St ick” has been formatted at the factory, and does not require formattin g. For details on the “M emory Stick,” see page 117.

1 Touch [YES] twice.

To cancel formatting, select [NO].

2 Touch .

b Notes

• Do not do any of the following while [ Formatting ...] is displayed: – Move the POWER switch to select other power modes. – Ope rate an y buttons. – Eject the “Memory Stick.”

• Formatting erases everything on the “Memory Stick” including protected image data and newly created folders.

NEW FOLDER

Using the Menu

GSERIES Select to assign file numbers in sequenc e ev en if t he “M emor y Stick ”

is replaced with another one. The file number is reset when a new folder is created or the recording folder is replaced with another.

RESET Select to reset the file number to 0001 each time the “Memory Stick”

is changed.

You can create a new folder (102MSDCF to 999MSDCF) on a “Memory Stick.” When a folder is full (a maximum of 9999 images are stored) a new folder is automatically created.

1 Touch [YES].

A newly created f ol der will be numbered in sequence after t h e l as t folder number. To cancel creatio n , select [NO].

2 Touch .

b Notes

• You cannot delete the cr eate d f olders using your camcorder. You will have to form at the “Memory Stick” (p. 66), or delete them using your c omputer.

• The number of pictures that can be recorded on a “Memory Stick” decreases as the number of folders increases on the “Memory Sti ck .”

REC FOLDER

PB FOLDER

As the default setting, pictures are saved in the 101MSDCF folder. You can select a folder to save your pictures. Create new folders from the [NEW FOLDE R ] menu, then select the folder to be used for recording with / and touch . When you have a lot of pictures, you can search for the desired pi cture easil y when you sort them in folders.

Select the playback folder with / , then touch .

Using the Menu

Using the (PICT. APPLI.) menu

EFFECT/SLIDE SHOW/FRAME REC/SMTH INT. REC, etc.

You can select items listed below on the PICT. APPLI. menu. To select items, see “Selecting menu items” (p. 56) .

FADER

OVERLAP

D. EFFECT

– PICT.

See page 38 for details.

See page 39 for details.

See page 40 and 47 for det ails.

PICT. EFFECT

Using the Menu

You can add spec ia l effects (such as film s ) to a picture before or after recording on a tape. appears when the eff ect is selected.

GOFF Select when not using the Picture effect setting. NEG.ART Select to record/play the picture with the color

and brightness of the picture rev ersed .

SEPIA Select to record/play the picture appearing in sepia. B&W Select to record/play the picture appearing in monochrome (black-

and-white).

SOLARIZE Select to r ecor d/play the picture looking like an

illustration with strong c ontr a st.

PASTEL Select to record the picture looking like a pale

pastel drawing. (This effect is not available during playback.)

MEMORY MIX

PB ZOOM

SLIDE SHOW

MOSAIC Select to record picture appearing mosaic-

b Note

• You cannot add effects to externally input pictures. Also, you cannot output pictures edited with Picture effects via the DV Interface.

Tip

• You can copy pictures ed ite d using picture effects to a “Memory Stic k” (p. 89) or to another tape (p. 87).

See page 41 for details.

See page 50 for details.

You can play back the images stored in a “Memory Stick” (or a selected playback folder) in sequence (slid e sh ow).

patterned. (This effect is not available during playback.)

1 Touch . 2 Touch [PB FOLDER]. 3 Select [ALL FILES] or [CURRNT FOLDER], then touch .

ALL FILES ( ) Select to execute a slide s h o w b y p l ay in g back all the images o n

CURRNT FOLDER ( )

the “Memory Stick.” Select to ex ecute a slide show by playing back all the images in

the current playback folder.

Using the Menu

4 Touch [REPEAT]. 5 Touch [ON] or [OFF], then .

GON ( ) Select to repeat the slide show. OFF S e le ct to ex ecute the slide show only once.

6 Touch [END]. 7 Touch [START].

Your camcorder pl ays back the images r ecorded on the “Memory Stick” in sequence.

,continued

Using the Menu

RESIZE

FRAME REC

To cancel the slide show, touch [END]. To pause, touch [PAUSE].

z Tips

• You can select the first picture for the slide show by touching / before touching

[START].

• If movies are played in the slide show, you can adjust the volume by touching

(decrease)/ (increase).

See page 100 for detail s.

You can record pictures with a stop-motion animated effec t by alternately frame recording and then moving the subject a little. Operate your camc or der u sing the Remote Commander to prevent camera shake.

GOFF Select to record in the standard recording mode . ON ( ) Select to record pictures using the FRAME REC function.

1 Select [ON], then touch . 2 Touch . 3 Press START/STOP.

A picture (approximately 6 frames) is recorded, and your camcorder enters the standby mode.

4 Move the subject and repeat step 3.

SMTH INT. REC

Using the Menu

b Notes

• When you use frame recording continuously, the remaining tape time will not be indicated

correctly.

• The last scene will be longer than other scenes.

This function is useful to observe the movement of clouds or t he changes of daylight. Your camcorder will shoot 1 frame of the picture at a selected interval and keep them in memory until it has stored several frames. Then those frames are recorded on the tape at one time. These pictures appear smooth when played back. Connect your camcorder to the wall ou tlet u sing the s upplied AC Adaptor d uring the operation.

[a] [a] [a]

[b]

a: Shooting time b: Interval

[b]

1 Touch .

2 Select the desired interv al by t ouching / , then t ouch .

You can select from 1 to 120 seconds for the interval.

3 Touch [REC START].

Recording start s and z changes to red. When your camcorder has shot 6 frames, it records them on the tape, after performing the END SEARCH function dependi ng on the interval lengt h. (During the END SEA R CH function, pictures may disappear once or previously rec orded pictures may appear.)

To interrupt smooth interval recording, touch [REC STOP]. To resume touch [REC START]. To cancel smooth interval recording, touch [REC STOP], the n [END]. Do not turn off the power o r d isconnect the power source while a message is displayed on the screen.

b Notes

• The camcorder will shoot several frames for the first and last shots of the Smooth interval recording.

• You cannot use the Smooth int e rv al reco rd ing wi th: – MEMORY MIX function – Memory ove r lap

• Smooth interval recording is released when approximately 12 hours have elapsed after shooting has begun.

• Sounds are not recorde d.

• The last few frames may not be recorded if the battery or tape has run out.

• There may be discrepa nc ie s in the interval.

Using the Menu

Tips

• If you adjust the fo cu s manually, you may b e able to record clear pictures even if th e light changes (p. 36) .

• You can silence the beeps during recording (p. 80).

,continued

Using the Menu

INT. REC-STL

This function is use ful to observe the mo vement of clouds or the change of daylight. Your camcorder will sh oot a still ima ge at a select ed interval a nd record it on a “Memory Stick.”

[a] [a] [a]

DEMO MODE

[b]

a: Shooting time b: Interval

1 Touch . 2 Select a desired interval time (1, 5, or 10 minutes), then touch . 3 Touch [ON], then touch .

GOFF To deactivate interval recording.

( ) To record still images on a “Memory Stick” in the selected

interval.

4 Touch .

flashes.

5 Press PHOTO fully.

stops flashing and the Interval photo recording starts.

To cancel interval photo recording, select [OFF] in step 3.

When you remove a cassette or “Memory Stick” from your camcorder, and select the CAMERA-TAP E mode , you can vi ew the demon str atio n in a bout 10 minu tes.

GON

OFF Select when you do not intend to use the DEMO MODE.

Select to see an over view of the funct ions a vail able s uch a s when you are using this camcorder for the first time.

Using the Menu

b Note

• You can view the demonstration only when the NIGHTSHOT/NIGHTFRAMING switch

is set to z (gree n ).

Tips

• The demonstration wil l be suspe nde d in si tua tions such as those described below.

– When you touch the screen during the demonstration. (The demonstration starts again in

about 10 minutes.) – When a cassette or “M e mory Stick” i s inserted. – When a mode other than CAMERA-TAPE is selected.

• If [A.SHUT O FF ] is set to [5 min] when the cam c or de r is used on the battery pack, the power will be turned off after approxima te ly 5 mi nutes (p. 81).

Using the (EDIT/ PLAY) menu

TAPE TITLE/ SEARCH, etc.

You can select items listed below on the EDIT/ PLAY menu. To select items, see “Selecting menu items” (p. 56). The default settings are marked with G. The settings you ca n adjust vary dependi ng on the

VAR. SPD PB

– TITLE/

See page 46 for details.

power mode of your camcorder. Only the items that can be operate d i n th e selected mode are displayed.

REC CTRL

AUD DUB CTRL

PROG. EDIT

REC CTRL

BURN DVD

Using the Menu

See page 87 and 90 for det ails.

See page 98 for details.

OTHER DEVICE Select to make programs and dubbing the selected scenes to a tape on

a VCR (p. 91).

MEMORY STICK Select to make pro gr am s a nd dubbing the selected scenes to a

“Memory Stick” (p. 95).

See page 87 and 89 for det ails.

When your camc or der is connected to a Sony VAIO series per sonal computer, you can easily burn the picture recorded on the tape on a DVD using this command. See the supplied “Computer Applications Guide” for details.

,continued

Using the Menu

END SEARCH

TITLE

EXEC Select to activate the END SEARCH function . The mo s t recently

recorded picture is played back for ab out 5 se co nds a nd the n stops automatically.

CANCEL Select to stop the END SEARCH function.

GON Select when you want to search for a scene, title, etc. using the

Cassette Memory (p. 54, 55).

OFF Select to se arc h without using Cassette Memory .

Any titles you have su perimposed using thi s ca mcorder can only be vie w ed on a

video cassette device with the index titler function. If you superimpose a title, you will be able to search for it using Title search. You can superimpose up to about 20 titles (about 5 letters per title) on a cassette with Cassette Memory. Note, however, that only 11 titles can be recorded when other data (6 date/time data/1 cassette label) is recorded.

1 Select a desired title from the displayed titles (2 original titles that you

have created bef ore and the preset ti tl es that have been sto red in your camcorder). You can create original titles (up to 2 types of title of within 20 characters each) in the follo w ing procedure.

1 Select [CUSTOM 1 ” ”] or [CUSTOM 2 ” ”], then touch . 2 Select a desired character. Touch the button repeatedly to select the

desired character on the button.

Using the Menu

To erase a charact er: Touch . To insert a space: Touch .

3 Touch to move s to select the next character, and enter the

character in the same manner.

4 When you have finished entering characters, touch .

2 Touch . 3 Touch (color), / (position), [SIZE] as n ecessary to select a

desired color, position or size.

Color

white t yellow t violet t red t cyan t green t blue

Position

You can select fr om 8 to 9 choices.

Size

small y large (You can only select the small size when you are entering more than 13 characters.)

4 Touch . 5 Touch [SAVE].

During playback, playback pause, or recording

[TITLE SAVE] is displayed on the screen for ab out 5 se conds and th e titl e is set.

During recording standby

[TITLE] appears. When you press START/STOP to start recording, [TITLE SAVE] is displayed on the screen for about 5 seconds, and the title is set.

b Notes

• The point you superimposed the title may be detected as an index signal when searching a recording with other video device.

• When you are using your camcorder on the battery pack and do not operate it for 5 minutes, the power automatically goes off as the default setting. If you may take 5 minutes or longer to enter characters, set [A.SHUT OFF] on the (STANDARD SET) menu to [NEVER] (p. 81) . The powe r will no t be tu rn ed off. Even though the power goes off, the characters you have entered remain store d in me mory. Turn the power back on, then start again from step 1 to continue superim posing the title.

Tip

• To change a created title, select the title in step 1, then touch . Then, reselect the characters again.

Using the Menu

TITL ERASE

TITLE DISP

1 Select the title that you want to de l et e us in g / , then touch . 2 Confirm the title is the one you want to eras e, then touch [YES].

To cancel the operation, touch [NO].

3 Touch .

You can view the ti tle w hen you playback th e pi ct ure.

GON Select to display the titl e when a sce ne superimposed with a ti tle

appears.

OFF S e lect when you do not want to display the title.

,continued

Using the Menu

TAPE TITLE

You can label a cassette with Cassette Memory (up to 10 letters). The label will be displayed for approximately 5 seconds when you select the CAMERA-TAPE mode and insert a cassette, or when you select the PLAY/EDIT mode. Up to 4 titles will be displayed at the same time if the cassette has titles superimposed.

1 Select the desired ch aracter. Touch th e button repeatedly to select the

desired character on the button.

To erase a chara ct er: Touch . To insert a space: Touch .

2 Touch to move s to select the next character, and enter the

character in the same manner.

3 When you have finished entering characters, touch . 4 Touch .

z Tips

• To erase the label you have created, touch repeatedly to erase the characters, then

touch .

• To change the label you ha ve cre at ed , ins ert the cassette into your camcorder and go

through the procedure from step 1.

ALL ERASE

Using the Menu

You can delete all data such as date, title, and cassett e label sa ved in the Casse tte Memory at one time.

1 Touch [YES] twice.

To cancel deletion of all data, select [NO].

2 Touch .

Using the (STANDARD SET) menu – REC MODE/MULTI-

SOUND/AUDIO MIX/USB-CAMERA, etc.

You can select the items listed below on the STANDARD SET menu. To select these items, see “Selecting menu items” (p. 56).

REC MODE

GSP ( SP ) Select to record in the SP (Standard Play) mode on a cassette. LP ( LP ) Select to increase the recording time to 1.5 times the SP mode (Long

Play). The use of Sony Excellence/M aster mini DV cassette is recommended to get the most out of your camcorder.

b Notes

• You cannot add sound on the tape rec or de d in the LP m ode .

• If you record in the LP mode, a mosaic-like noise may appear or sound may be interrupted when you play back the tape on other camcorders or VCRs.

• When you mix recordings in the SP mode and in the LP mode on one tape, the play back picture may be distorted or the time code may not be written pr ope r ly betw e en the scenes.

The default settings are marked with

indicators in paren t heses appear when the setting is selected. The settings you can adjust

vary depending on the power mode of your camcorder. Only the items that can be o

perated in the selected mode are displayed.

G. The

Using the Menu

AUDIO MODE

VOLUME

MULTI-SOUND

G12BIT Select to record in the 12-bit mode (2 ster eo sounds). 16BIT ( ) Select to record in the 16-bit mode (1 stereo sound with high quality).

See page 45, 48 for details.

You can select how t o pl ay back audio recorded on a tape in stereo mode.

GSTEREO Select to play back a stereo tape or dual sound track tape with main

and sub sound.

1 Select to play back a stereo tape with the left channel sound or a dual

sound track tape with main sound.

2 Select to play back a stereo tape with the right channel sound or a dual

sound track tape with sub sound.

,continued

Using the Menu

AUDIO MIX

LCD/VF SET

LCD BRIGHT

LCD BL LEVEL

b Notes

• You can playback a dual sound tr a c k casse tte on this camcorder. However, you cannot

record a dual sound track on this cam c or de r.

• The setting returns to [STEREO] when you disconnect the power source from your

camcorder for more than 5 minutes.

You can adjust the audio balance betw een the originally rec orded sound (ST1) and sound added af t er w ards (ST2) on the tape (p. 99).

b Notes

• You cannot adjust sound recorded in 16 bit audio mode.

• Only the originally re co rd ed sound will be heard when you disconnect the power source

from your camcorder for more than 5 minutes.

The recorded picture will not be af fected by this setting.

See page 17 for de t ai ls .

You can adjust the br i ght ness of the LCD screen’ s backlight.

GNORMAL Standard brightness. BRIGHT Select to brighten the LCD screen.

LCD COLOR

VF B.LIGHT

Using the Menu

b Notes

• When you connect your camco rd er to outside power sources, [BRIGHT] is automatically

selected for the setting.

• When you select [BRIGHT], bat tery life is reduc e d by ab out 10 pe r cent dur ing recor di ng.

Touch / to adjust the color on the LCD screen.

Low intensity

High intensity

You can adjust the brightness of the viewfinder.

GNORMAL Standard brightne ss. BRIGHT To brighten the viewfinder screen.

A/V c DV OUT

b Notes

• When you connect your camcorder to outside power sources, [BRIGHT] is automatically selected for the setting.

• When you select [BRIGHT] , batt ery life is reduced by about 10 percent during recor ding.

You can connect a digital device and an analog device to your camcorder and convert the signal transmitted from the connected devices to the appropriate signal on your camcor der.

GOFF Select when not using the Digital convert function. ON ( ) To output analog images and sound in digital format using your

camcorder. The analog signal input to the A/V jack of your camcorder will be converted and output from the DV Inte rfac e of your camcorder. For details, r ef er to the “Computer Applications Guide.”

VIDEO INPUT

USB-CAMERA

USB-PLY/EDT

Using the Menu

When you connect your camcorder to another device using th e supplied A/V connecting cable , set the type of plug you are go i ng t o use for the connection.

GVIDEO Select to input a video signal. S VIDEO Select to input an S video signal.

You can conn ec t a USB cabl e (su ppl ied ) to you r c amcor de r, an d vi ew t he pi ct ure displayed on the screen of your cam corder on your comp ut er (USB Streaming). For details, refer to the “Computer Applications Guide.”

GOFF Select to deactivate the USB Streaming function. USB STREAM Select to activate the USB Streaming function.

You can conn ec t a USB cabl e (su ppl ied ) to you r c amcor de r, an d vi ew t he pi ct ure on the tape or “Memory Stick” in your camcorder on your computer. For details, refer to the “Computer Applications Guide.”

GSTD-USB Select to view the picture on the “Me mor y Sti ck ”. USB STREAM Select to view the picture on the tape.

,continued

Using the Menu

DATA CODE

REMAINING

REMOTE CTRL

GOFF Select not to display date, time and the camera settings data during

playback.

DATE/TIME Select to display the date and time during playback (p. 51). CAMERA DATA Select to display the camera settings data during playba ck (p. 51).

GAUTO Select to display the remaining ta pe in dic a tor fo r about 8 seconds:

• After you select the CAMERA-TAPE mode with the cassette inserted, and your camcord er cal cu lates the remaining amount of tape.

• When you touch (play/pause).

ON Select to always display the rem ai ning tape indicator.

GON Select when using the Remote Commander supplied with your

camcorder.

OFF Select to de activate the Remote Commander to pr event your

camcorder from responding to a com ma nd se nt by another VCR remote control unit.

b Note

• The setting returns to [ON] when you have the power source disconnected from your camcorder for more than 5 minutes.

REC LED

BEEP

Using the Menu

GON Select to turn on the camera recor ding lamp on the front of your

camcorder during recording.

OFF Selec t thi s s et ting in the following recording situations. The camer a

recording lamp will not light up dur i ng rec o rd ing.

• When you do not want the subject to be nervous about being recorded.

• When you are recording close to the subj ect .

• When the subject reflec ts the recording lamp.

GMELODY S e le c t to sound a melody when you start/stop recor ding or when an

unusual condition occurs on your camcorder.

NORMAL Select to sound a beep instead of the melody.

DISPLAY

OFF S e le ct to canc e l the melody, the beep sound, and the shutter so und.

MENU ROTATE

A.SHUT OFF

GLCD PANEL Select to show the dis pla ys such as the time code on the LCD screen

and in the viewfinder.

V-OUT/PANEL Select to show the displays such as the time code on the TV sc ree n,

LCD screen, and in the viewfinder.

b Note

• You cannot input a signal to your camcorder if you press DISPLAY/BATT INFO while [V-OUT/PANEL] is selected.

You can select the scrolling direction (up or down) of the menu items on the LCD screen when you touch or .

GNORMAL Select to scroll the menu items downward s by touc hing . OPPOSITE Select to scroll the menu items upwards by touching .

G5 min Select to activate the Auto shut off. When approximately 5 minutes

have elapsed while you do not operate your camcorder, the camcorder is automatically turned off to prevent th e battery from becomi n g consumed.

NEVER Select to deactivate the Au to sh u t of f.

b Note

• When you connect your camcorder to the wall socket, [A.SHUT OFF] is automatically set to [NEVER].

Using the Menu

Using the (TIME/ LANGU.) menu

WORLD TIME, etc.

You can select i t ems listed below on the TIME/ LANGU. menu. To select items, see “Selecting menu items” (p. 56) .

CLOCK SET

You can set the dat e and time (p. 18).

WORLD TIME

You can adjust th e t im e difference when using your camc or der abroad. Set the time difference by touching / , the clock will be adjusted in accordance with the time difference. If you set the time difference to 0, the clock returns to the originally set time.

LANGUAGE

You can select or change the language used for the on-screen display (p. 22). You can select from English, Simplified English, Canadian-French, Latin American Spanish, Brazilian-Portuguese, Traditional-Chinese, or Korean.

– CLOCK SET/

The settings you can adjust vary depending on the powe r m ode of your cam c or d e r . O n ly the items that can be o

mode are displayed.

perated in the selected

Using the Menu

Customizing Personal Menu

You can add frequently used menu item s to Personal Menu, or sort them in the order yo u like (customizing). You can customize the Personal Men u for each power mode of your camcorder.

Adding a menu – Add

You can add frequently used menu item s to Personal Menu for easier and faster access.

b Note

• You can add up to 28 menu ite ms each for the CAMERA-TAPE, CAME RA-MEMORY, and PLAY/EDIT modes. If you want to add more, you must delete a less importa nt me nu ite m before adding a new menu item (p. 84).

1 Touch .

3 Touch [ADD].

4 Touch / to select a menu

category, then touch .

The available items vary depending on the power mode of the camcorder. Only the available items are displayed.

Using the Menu

5 Touch / to select a menu item,

then touch .

2 Touch [P-MENU SET UP].

If the desired menu is not displayed on the screen, touch / until the menu is displayed.

6 Touch [YES].

The menu is added to the end of the list.

7 Touch .

Using the Menu

,continued

Deleting menu – Delete

The selected menu is deleted from Pers onal Menu.

1 Touch .

2 Touch [P-MENU SET UP].

If the desired menu is not displayed on the screen, touch / until the menu is displayed.

3 Touch [DELETE].

6 Touch .

b Note

• You cannot delete [MENU] and [P-MENU SET UP].

Arranging the order of menus displayed on Personal Menu – Sort

You can sort the menus added to Personal Menu in the desired order.

1 Touch .

2 Touch [P-MENU SET UP].

If the menu is not displayed on the screen, touch / until the desired menu is displayed.

4 Touch the menu that you want to

delete.

5 Touch [YES].

Using the Menu

3 Touch [SORT].

4 Touch the menu item you want to

move.

5 Touch / to move the menu item

to the desired place.

2 Touch [P-MENU SET UP].

If the desired me nu is not displayed on the screen, touch / until the menu is displayed.

3 Touch [RESET].

Using the Menu

6 Touch .

To sort more i tems, repeat steps 4 to 6.

7 Touch [END]. 8 Touch .

b Note

• You cannot move [P -MENU SE T UP].

Initialising the settings – Reset

You can initialize Personal Menu to the default settings after adding or deleting menus.

1 Touch .

4 Touch [YES].

5 Touch [YES].

The Personal Menu settings return to the default settings. To cancel initialization, touch [NO].

6 Touch .

Using the Menu

Dubbing/Editing

Connecting to a VCR or TV

Connecting with an i.LINK cable

A/V jack

i.LINK cable (optional)

When you have an S video jack on your TV or VCR *2

You can record the picture from a VCR or TV to a tape or a “Memory Stick” inserted into your camcorder (p. 87). You can also create a copy of the picture recorded on your camcorder on other recording device (p. 87). Connect your camcorder to a TV or VCR as shown in the following illustration.

i.LINK jack

DV Interface

S video plug (black)

Yellow

A/V connecting cable (supplied)*1

Signal flow

*1 The supplied A/V connecting cable has a video

plug and an S video plug for the video connection.

*2 This connection produces higher quality DV

format pictures. When there is an S video jack on the device to be connected, connect the S video plug to that jack instead of using the yellow video plug. The audio will not be output when you connect with the S video plug alone.

b Notes on A/V jacks

• Use the A/V connecting cable to connect your camcorder to other devices. Bef or e conne c ting, make sure the [DISPLAY ] setting in the (STANDARD SET) menu is set to [LCD PANEL] (the default setting) (p. 81).

• When you are connecting your camcorder to monaural device, connect the yellow plug of the A/

Dubbing/Editing

White

Red

V connecting cable to the video jack, and the red or the white plug to the audio jack on the VCR or the TV.

VCRs or TVs

To use an i.LINK cable for connection

Use an i.LINK cable (optional) to connect your camcorder to other device via the DV Interface. The video and sound signals are transmitted digitall y, producing high qualit y pictures. N ote that you canno t record the pict ure and sound separately. For details, see page 121.

Dubbing to another

Recording pictures

tape

You can copy and edit the pic ture played back on your camcord e r to other recording devices (such as VCRs).

1 Connect your VCR to your camcorder

as a recording device (p. 86).

2 Prepare your VCR for recording.

• Insert a cassett e for recording.

• If your VCR has an input selector, set it to the input mode.

3 Prepare your camcorder for playback.

• Insert the reco rded cassette.

• Slide the POWER switch to select the PLAY/EDIT mode.

4 Start the playback on your camcorder,

and record it on the VCR.

Refer to the operating instruc tions supp lied with your VCR for details.

5 When the dubbing is finished, stop

your camcorder and the VCR.

from a VCR or TV

You can record and edit pictures or TV programs from a VCR or TV on a tape or a “Memory Stick” inserted in your camcorder. You can also record a scene as a still image on a “Memory Stick.” Insert a cassette or a “Memory Stick” for recording in your ca m c or d er. If you have connected the A/V connecting cable, select the input signal in [VIDEO INPUT] in the

(STANDARD SET) menu (p. 77).

Recording movies

Dubbing/Editing

1 Connect your TV or VCR to your

camcorder (p. 86).

2 If you are recording from a VCR,

insert a cassette.

3 Slide the POWER switch to select the

PLAY/EDIT mode.

b Notes

• When your camcorder is connected to the VCR via the DV Interface, you cannot record the title, indicators, in formation for the Cass ette Memory, and words entered on the index screen of the “Memory Stick.”

• When dubbing using the A/V co nnecting cable, press DISPLAY/BATT INFO to hide indicators such as time code (p. 51). Otherwise, they will be recorded on the tape.

• To record the date/time and camera settin gs da ta, have them displayed on screen (p. 51).

• Pictures edited with Picture effect ([P ICT. EFFECT] p. 68), Digital effect (p. 40, 47), or Playback zoom (p. 50) cannot be output via the DV Interface.

• When connecte d using the i.LINK cable, the recorded picture becomes rough whe n a pict ur e is paused on your camcorder while recording to a VCR.

4 Operate your camcorder to record

movies.

When recording on a tape

1 Touch . 2 Touch [ REC CTRL].

If the item is not displayed on the screen, touch / . If y ou cannot find it, touch [MENU], and select it from the

(EDIT/PLAY) menu (p. 73).

3 Touch [REC PAUSE].

When recording on a “Mem or y Stick”

1 Touch . 2 Touch [MENU]. 3 Select the (EDIT/PLAY) menu,

then [ REC CTRL].

,continued

Dubbing/Editing

5 Start playing the cassette on your

VCR, or select a TV program.

The pictur e pl ayed o n th e conn ecte d de vice appears on the LCD screen of your camcorder.

6 Touch [REC START] at the point yo u

want to start recording.

7 Stop recording.

When recording on a ta pe

Touch (stop) or [REC PAUSE].

When recording on a “M emory Stick”

Touch [REC STOP].

8 Touch then .

z Tips

• The indicator appears when you connect your

camcorder and other devices via an i . L INK cable. (This indicator may also appear on yo ur TV.)

• When recording movies on a “Memory Stick,” you

can skip step 4 and press START/STOP in step 6.

to record the scene, and select other scene as described ab ove.

Recording still images

1 Perform steps 1 to 3 in “Recording

movies” (p.87).

2 Play the video, or receive the TV

program you want to record.

The pictures on the VCR or TV appear on the screen of your camcorder.

3 Press PHOTO lightly at the scene you

want to record. Check the image and press it fully.

The image is no t re cor de d unle ss you p res s PHOTO fully. Release it if you do not want

Dubbing/Editing

Dubbing pictures from a tape to a “Memory Stick”

You can record movies (with sound recorded in monaural) or still images (fixed to image size [640 × 480]) on a “Mem or y St ic k.” Make sure you have a recorded tape and a “Memory Stick” i nserted into your camcorder.

1 Slide the POWER switch to select the

PLAY/EDIT mode.

2 Search and record the scene you want

to record.

When recording a still image

1 Touch (play) to playba ck t he tape. 2 Press PHOTO lightly at the scene you

want to record. Check the image and press it fully.

8 Touch , then .

b Notes

• The Data code and titles recorded on the tape cannot be recorded on the “Memory Stick.” The time and date the picture is recorded on the “Memory Stick” will be recorded.

• The sound is recorded in 32kHz mona ural .

z Tips

• You can also record a movie by pressin g STAR T/ STOP during tape playback.

• For the recording time of movies, see page 25.

Dubbing/Editing

When recording a movie

1 Touch . 2 Touch [MEN U ] . 3 Select the (EDIT/PLAY) menu,

then [ REC CTRL].

4 Touch (play) to playba ck t he tape.

5 Touch [REC STA R T] at th e poi nt you

want to start recording.

6 Touch [REC STO P] at the point you

want to stop recording.

7 Touch (stop) to stop tape playback.

Dubbing/Editing

Dubbing still images

10Touch , then .

from a “Memory Stick” to a tape

You can record still images on a tape. Make sure you have the “Mem ory Stick” with the images and a tape inserted into your camcorder.

1 Slide the POWER switch to select the

PLAY/EDIT mode.

2 Search for the point where you want to

start dubbing by touching (rewind) or (fast forward), then touch (stop).

3 Touch . 4 Touch / to select the image

you want to dub.

5 Touch .

b Notes

• You cannot dub the index scr een.

• You may not be able to dub images modified on your

computer or recorded with o ther camcorders on your camcorder.

• You cannot dub MPEG mo vie s on the ta pe .

6 Touch [ REC CTRL].

If the item is not displayed on the screen, touch / . If you cannot find it, touch [MENU], and select it from the (EDIT/PLAY) menu.

7 Touch [REC PAUSE]. 8 Touch [REC START].

The selected image is dubbed to the tape.

9 Touch (stop) or [REC PAUSE]

when you want to stop recording.

To dub other still images, select images by touching / , then repeat steps 7 to

Dubbing/Editing

Dubbing selected scenes from a tape

– Digital program editing

2 Prepare your VCR.

• Insert a cassette for recording.

• Set the input selector to input mode if your VCR has one.

You can select up to 20 scenes (progra ms) and record them in the desired order to other recording device such as VCRs or to a “Memory Stick” inserted in yo ur camcorder. When you are recordi ng on a “Memory Stick,” skip steps 1 and 2 and start from “Recording the selected scenes as programs” (p. 95).

Delete unwanted scene

Change the order

Results of editing

Step 1 : Preparing your camcorder and VCR for operation

Follow the steps below when you are performing a digital program edit for the first time to a tape in a VCR. You can skip this setting if you have set up the VCR by the following proc edure before.

3 Prepare your camcorder (playing

device).

• Insert a cassette for editing.

• Slide the POWER switch to select the PLAY/EDIT mode.

4 Touch . 5 Touch [MENU].

Dubbing/Editing

6 Touch / to select (EDIT/

PLAY), then touch .

7 Touch / to select [PROG.

EDIT], then touch .

b Notes

• You cannot perform the Digital program editing on a VCR that does not support [IR SETUP] codes.

• The operating signal for the Digital program editing cannot be transferred via the LANC jack.

1 Connect your VCR to the camcorder

as a recording device (p. 86).

You can use either t he A/V connecting cable or the i.LINK cable to make the connection . The dubbing proced ure is easier with the i.LINK connection.

,continued

Dubbing/Editing

8 Touch [OTHER DEVICE].

9 Touch [EDIT SET].

10Touch [CONTROL].

11Select [i.LINK] or [IR].

When connecting with an i.LI N K cable

Touch [i.LIN K ], t hen . Go on to “Step 2 : Adjusting the synchronization of the VCR” (p. 94).

When connecting with an A/V connecting cable

Touch [IR], then . Follow the proce dure described in “To set the [IR SETUP] code” (p. 92).

To set the [IR SETUP] code

When you connect w i th an A/V connecting cable, you need to check the [IR SETUP] code signal to see if your V CR can be operated by your camcorder (infrared ray emitter).

Remote sensor

Infrared ray emitter

VCR

1 Touch , then [IR SETUP]. 2 Select the [IR SETUP] code of your VCR

/, then touch .

with

For the [IR SETUP] code of your VCR, refer to “[IR SETUP] code list” (p.93). When there is more t han one cod e listed for the manufactur er of your VCR, try eac h code and find the m os t appropriate one.

3 Touch [PAUSEMODE]. 4 Cancel the recording pause on yo ur

VCR, then touch .

Refer to the operating instructions su pplied with your VCR for details on operation .

5 Point the infrared ray emitter of your

camcorder towar ds the remote sensor o n your VCR, from about 30 cm (12 in.) away, with no ob st ructions.

6 Insert a cassette into your VCR, and set

the VCR to recording pause.

7 Touch [IR TEST]. 8 Touch [EXEC].

The recording starts o n your V CR when the setting is correct. [Completed. ] appears when the [IR SETUP] code test is finished. Go on to “Step 2 : Adjusting the synchronization of the VCR” (p. 94). When recording fails to start, sele ct another [IR SETUP] code and try again.

Dubbing/Editing

SONY DCR-PC330, PC330E, RMT-831 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

SELF-DIAGNOSIS FUNCTION

MAIN PARTS

Camera Operations Guide
