3-071-132-12 (1)

DCR-IP7BT/IP7E/ PC120BT/PC120E

Network Function Operating Instructions Mode d’emploi de la fonction réseau

On trademarks

•“Memory Stick” and are registered trademarks of Sony Corporation.

•The BLUETOOTH trademarks are owned by their proprietor and used by Sony Corporation under license.

•Portions of the supplied software are based in part on the work of the Independent JPEG Group.

All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore, “™” and “®” are not mentioned in each case in this manual.

No compensation for your recordings

Contents of the recording cannot be compensated for if recording or playback of attached or downloaded files is not made due to a malfunction, problems with storage media, etc.

Precautions

•Before using the network function, be sure to set up the clock of the camcorder. For details, refer to the operating instructions of the camcorder. If you use the network function without setting the clock, you may not be able to send or receive e-mail, or view a Web page.

•Do not remove the battery pack or disconnect the AC power adaptor while in NETWORK mode. The setup for the NETWORK mode may be lost. Also, exit the NETWORK mode when setting the POWER switch to OFF (CHG) or switching the mode.

•We recommend that you make backup copies of your e-mail messages and your network preferences. These may be lost from time to time due to memory corruption. To save the network preferences, write them down on paper, or use “Setup memo”, described on page 77. Also, this data may be lost when the camcorder is repaired by repair services.

•The reset button cannot reset the network preferences.

Note on network operation when using the battery pack

When the remaining battery time is insufficient in NETWORK mode, use the AC power adaptor or replace the battery pack with a fully charged battery pack. Before connecting the AC power adaptor or replacing the battery pack, be sure to exit the NETWORK mode.

Note on the network function

The network function is only available in the following countries or areas: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Luxembourg, Netherlands, Norway, Portugal, Sweden, Switzerland, United Kingdom, and Spain. (As investigated by Sony Corporation on 1. 8. 2001) When using the camcorder in a country or area not described above, the network function is available only in the country or area where you purchased the camcorder.

For customers in CANADA

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment that is installed outdoors is subject to licensing.

2-GB

Table of contents

Introduction

The network function on the camcorder ... 4 Overview of the Bluetooth wireless

technology .............................................. 5

Basic operations in the NETWORK

mode ........................................................6

How to use the Network Menu .......... 6

How to use the control button ............ 7

How to input characters ...................... 8

How to use the menu bar on the

browser ......................................... 13

Preparation

Registering a Bluetooth device .................15

When using the Modem Adaptor

with Bluetooth Function ............. 15

When the registration has failed ...... 19

Displaying information on your

camcorder ..................................... 19

Radio wave indication ....................... 20

Selecting other Bluetooth devices

from the list .................................. 20

Deleting a registered Bluetooth

device from the list ...................... 20

Setting network preferences ..................... 22

Setting your provider preferences ... 22 Setting network options preferences

........................................................ 26

Network Operation

Using e-mail ................................................ 29

Sending e-mail .................................... 29

Using the address book ..................... 40

Receiving e-mail ................................. 46

Deleting unnecessary e-mail ............. 52

Viewing Web pages.................................... 54

Viewing Web pages ........................... 54

Storing the Web page into a “Memory

Stick” – Page Memo .................... 61

Shutting down the browser .............. 66

Additional Information

File storage destinations and file

names .................................................... 67

Troubleshooting.......................................... 68

Trouble accessing the Internet .......... 68

Trouble with e-mail ............................ 68

Trouble viewing a Web page ............ 69

Specifications............................................... 71

Messages ......................................................72

General ................................................. 72

E-mail ................................................... 73

Browser ................................................ 73

Glossary ....................................................... 75

Setup memo................................................. 77

Introduction

3-GB

– Introduction –

The network function on the camcorder

The camcorder can access the Internet through your provider using a dial-up networking connection with a Bluetooth device. You can view a Web page, and send and receive e-mail with the images recorded with your camcorder attached. Bluetooth specification ver. 1.1 has been adopted for the communication system of the camcorder, and compatible Bluetooth profiles are the “Generic Access Profile” and the “Dial-up Networking Profiles”.

Your camcorder

as the Modem Adaptor with Bluetooth function

• Access the Internet easily

• Send/receive your e-mail

To the InternetA Bluetooth device, such

You can view a Web page via the Internet.

You can send or receive e-mail anytime, and attach images to email messages.

4-GB

Before using the network function, be sure to set up the clock of the camcorder. The clock is not set up at the default setting. You also have to set up the camcorder and the peripheral device, and make the required registrations (Internet service provider sign-up, etc.)

Overview of the Bluetooth wireless technology

What is the Bluetooth wireless technology?

The Bluetooth wireless technology allows communication between various Bluetooth devices without using cables. Devices which can use this technology include PCs, computer peripheral devices, PDAs, and mobile phones. This omnidirectional communication system enables communication even if the Bluetooth device is in a bag or there are obstacles between the devices. Also, the Bluetooth wireless technology has advanced security functions, such as scrambled frequencies and data encryption.

Authentication

The authentication routine can block unspecified users’ access to this network. When attempting communication with an unregistered Bluetooth device, the devices must first be registered with each other by entering a common passkey to each device. When connecting with a previously registered Bluetooth device, communication starts without entering the passkey.

Introduction

5-GB

Basic operations in the NETWORK mode

This section describes basic control ways to operate the camcorder, those which are used for network operations.

How to use the Network Menu

To access the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

[a]

[b]

[c]

[d]

6-GB

[a]: Send and receive e-mail. For details, see “Using e-mail” on page 29. [b]: View a Web page through the Internet. For details, see “Viewing Web pages” on

page 54.

[c]: You have to make various settings using this menu before using the network

function. For details, see “Setting network preferences” on page 22.

[d]: Exit the NETWORK mode.

The actual screens may differ slightly from the illustrations in this network function operating instructions.

Basic operations in the NETWORK mode

How to use the control button

Most of the network operations are carried out by the control button. Select a button on the screen using the control button, then enter it by pressing the control button.

Note

The shape of the control button differs depending on your camcorder model.

(1) Press v/V/b/B on the control button repeatedly to select the desired button

displayed on the screen. The selected button turns orange.

(2) Press the centre z on the control button to enter the setting.

Introduction

Repeat steps 1 and 2 to execute the function.

The procedure above is described as “Select [XXXX], then press the centre z on the control button” in this network function operating instructions.

7-GB

Basic operations in the NETWORK mode

How to input characters

You have to frequently enter characters, such as e-mail addresses, or Web page addresses (URL), to use the network function. This section describes how to input characters.

1 Selecting the character type

(1) Display the character input screen.

(2) Select either of the character type tabs.

abc: When inputting alphabetical characters. 123: When inputting numerical characters.

When you have selected abc When you have selected 123

2 Inputting characters

(1) Select the key which has the character you want to input.

8-GB

Basic operations in the NETWORK mode

(2) Press the centre z on the control button to enter the character.

Pressing it repeatedly selects the other characters on the key. When inputting the same character or the other characters on the same key, select another key using v/V/b/B on the control button, then select the previous key again. For details on available characters, see the “The available characters list” on page

12.

(3) Repeat steps 1 and 2 to input characters.

(4) After you input the characters, select [Enter], then press the centre z on the

control button. The screen which is displayed before you display the character input screen appears.

Note

Even if you cancel the character input operation, select [Enter], then press the centre z on the control button to exit the character input screen.

Introduction

To delete a character

Select [<] or [,]. Each time you press the centre z on the control button, the cursor is moved to the left or right. Move the cursor to the right of the character at which you want to delete, select [Back Space], then press the centre z on the control button. The character at the left of the cursor is deleted.

To add a character

Select [<] or [,]. Each time you press the centre z on the control button, the cursor is moved to the left or right. Move the cursor to the position at which you want to add a character, then input characters.

To start a new line

Select [ ], then press the centre z on the control button.

9-GB

Basic operations in the NETWORK mode

E.g., Enter “Hello” into the Subject item on the Send screen

(1) Select the abc tab.

(2) Select [ghi], then press the centre z on the control button five times.

“H” is entered.

(3) Select [def], then press the centre z on the control button twice.

“e” is entered.

10-GB

(4) Select [jkl], then press the centre z on the control button three times.

“l” is entered.

Basic operations in the NETWORK mode

(5) Select [ ], then press the centre z on the control button.

The cursor moves to the next position.

(6) Select [jkl], then press the centre z on the control button three times.

“l” is entered.

(7) Select [mno], then press the centre z on the control button three times.

“o” is entered.

Introduction

(8) Select [Enter], then press the centre z on the control button.

“Hello” is entered and the Send screen appears again.

11-GB

Basic operations in the NETWORK mode

The available characters list

Alphabetical characters

Key Character

abc

a t b t c t A t B t C t a t...

def

d t e t f t D t E t F t d t...

ghi

g t h t i t G t H t I t g t...

jkl

j t k t l t J t K t L t j t...

mno

m t n t o t M t N t O t m t...

pqrs

p t q t r t s t P t Q t R t S t p t...

tuv

t t u t v t T t U t V t t t...

wxyz

w t x t y t z t W t X t Y t Z t w t...

Symbol characters (when selecting the abc tab)

Key Character

.’,?!

. t ' t , t ? t ! t . t...

/˜\^

@ t / t ~ t \ t ^ t @ t...

www.

www. t .com t .net t .html t www. t...

` ´ ˆ

a: à t á t â t a t à t... A: À t Á t Â t A t À t... e: è t é t ê t e t è t... E: È t É t Ê t E t È t... i: ì t í t î t i t ì t... I: Ì t Í t Î t I t Ì t... o: ò t ó t ô t o t ò t... O: Ò t Ó t Ô t O t Ò t... u: ù t ú t û t u t ù t...U: Ù t Ú t Û t U t Ù t...

´y

¨ ˜

a: ä t ã t a t ä t... A: Ä t Ã t A t Ä t... e: ë t e t ë t... E: Ë t E t Ë t... i: ï t i t ï t... I: Ï t I t Ï t... o: ö t õ t o t ö t... O: Ö t Õ t O t Ö t... u: ü t u t ü t... U: Ü t U t Ü t... y: ÿ t y t ÿ t... n: ñ t n t ñ t... N: Ñ t N t Ñ t...

¿¡

çß

ç t ß t ¿ t ¡ t Ç t ç t...

12-GB

Symbol characters (when selecting the 123 tab)

Key Character

|<>{}

| t < t > t { t } t | t...

()[]

( t ) t [ t ] t ( t...

.+–=_

. t + t - t = t _ t . t...

∗

;&:’

#”$%

t ; t & t : t ' t ∗ t...

# t " t $ t % t # t...

Basic operations in the NETWORK mode

Numerical characters

Key Character

How to use the menu bar on the browser

When you access the Internet and view a Web page, you can carry out various operations using the menu bar. While the browser screen is displayed, press BROWSER MENU on the camcorder to display the menu bar. For details on how to use BROWSER MENU, refer to the operating instructions of the camcorder.

Introduction

To show the menu bar

(1) Press BROWSER MENU on the camcorder.

The following menu bar appears.

(2) Press V on the control button.

The rest of the menu bar buttons appear.

To hide the menu bar

Press BROWSER MENU on the camcorder again. The menu bar disappears.

13-GB

Basic operations in the NETWORK mode

The buttons on the menu bar

The buttons on the upper level

Button Function

(Previous Page) Go to the previous page in your step. (Next Page) Go to the next page in your step.

(Refresh) Refresh the current page.

(Stop) Stop loading the current page.

(New URL) Enter the URL of a Web page.

(Bookmark) Bookmark the current page. (Bookmarks are stored in the

(Line Close) Disconnect the phone line.

END

(END) Exit the browser.

The buttons on the lower level

Button Function

(Zoom) Change the page size.

(Frame Select) Change the frame on the page currently being viewed.

(Page Information) Show the title and URL of the current page. (Page Memo) Store the current page in the “Memory Stick”. You can

Use this button when images or characters on the Web page are not displayed properly.

camcorder.) Bookmarking is convenient to access frequently-visited pages.

Use this button when the page has separate frames.

then view the page without accessing the Internet.

14-GB

Note

The buttons may not function, depending on the Web page being accessed.

– Preparation –

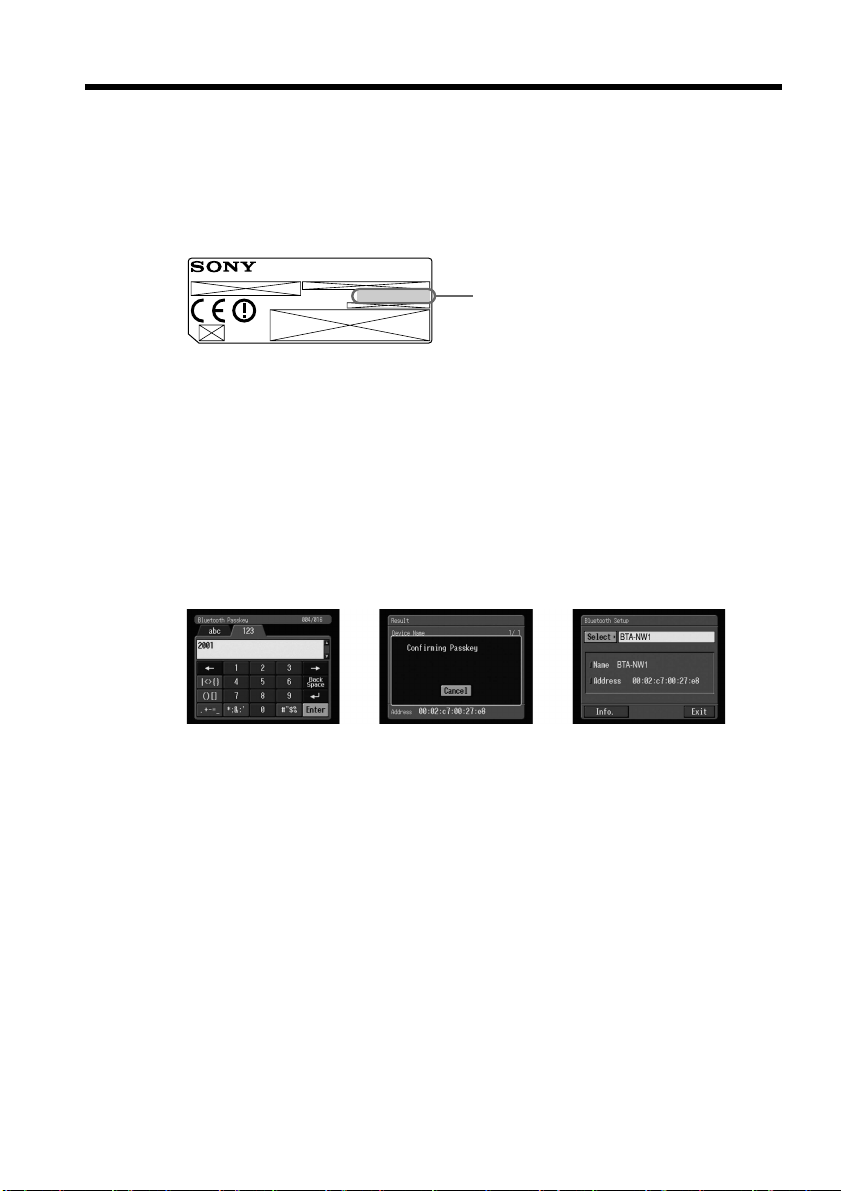

Registering a Bluetooth device

This section describes making a registration of a Bluetooth device. Here we describe the procedure for registering the Sony Modem Adaptor with Bluetooth Function. Once the registration is completed, the camcorder can connect to the Bluetooth device without reregistering the device. Up to three Bluetooth devices can be registered. Also, refer to the operating instructions supplied with the Bluetooth device.

For more information about Bluetooth devices compatible with the camcorder, access the following URL:

•http://www.sony.ca/service

•http://www.sony-europe.com/imaging, then click “support”

•http://www.sony-asia.com.sg/helpdesk

Only for the DCR-IP7BT/PC120BT The Sony BTA-NW1 Modem Adaptor with Bluetooth Function is supplied with the DCR-IP7BT/PC120BT. This unit has already been registered to your DCR-IP7BT/ PC120BT.

Notes

•When using the Sony BTA-NW1 Modem Adaptor with Bluetooth Function, install it in a location that has no obstacles between the camcorder and the device. The distance between the devices must be within 10 m (33 feet).

•The connection may be interrupted depending on the conditions in which the communication is taking place.

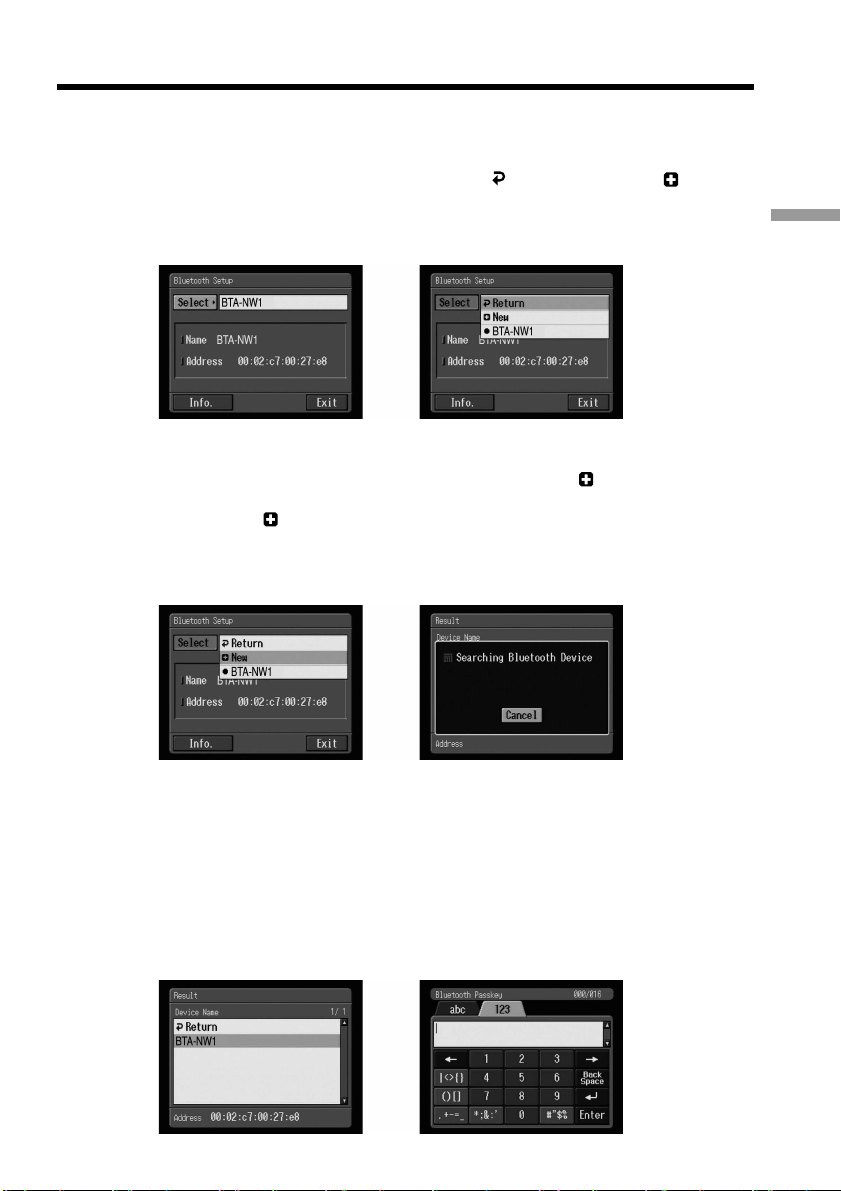

When using the Modem Adaptor with Bluetooth Function

Preparation

1 Preparing the Modem Adaptor with Bluetooth Function

Set the Modem Adaptor with Bluetooth Function to connection standby (BONDING). For details, refer to the operating instructions supplied with the Modem Adaptor with Bluetooth Function.

15-GB

Registering a Bluetooth device

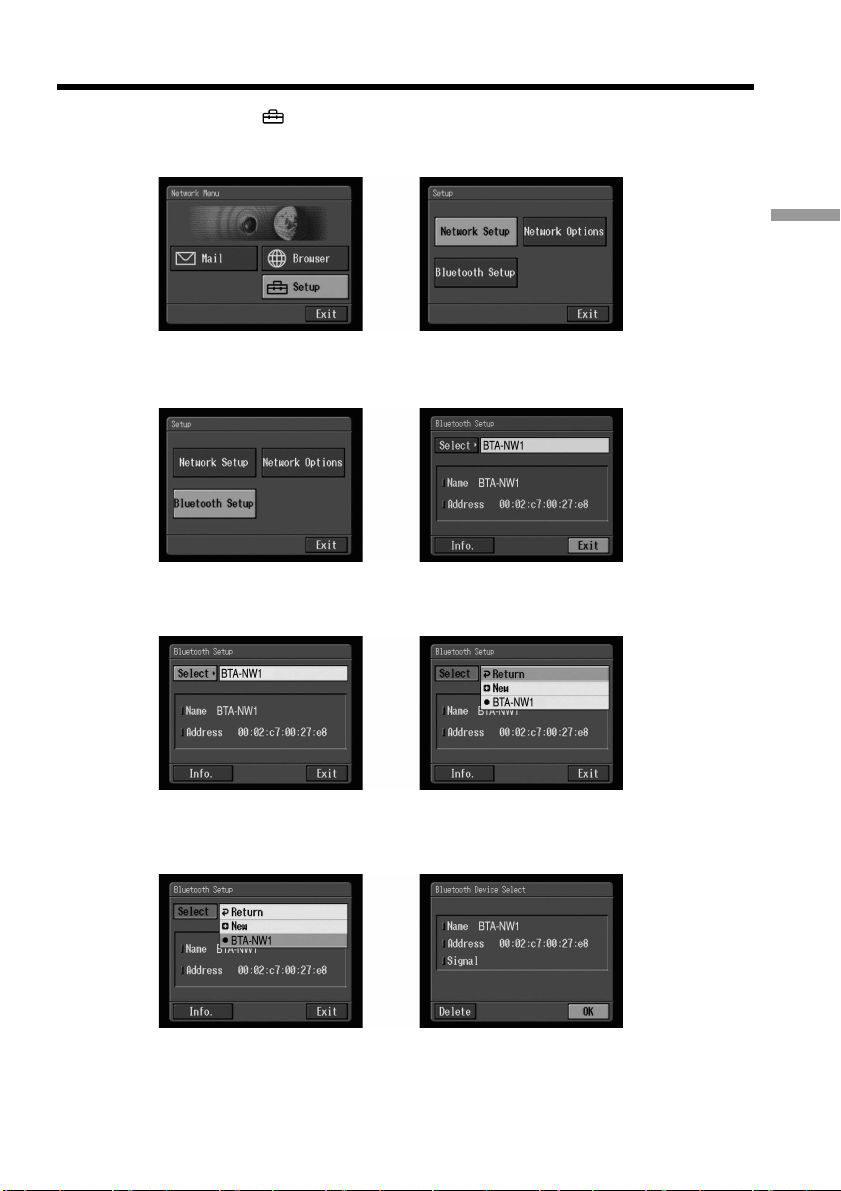

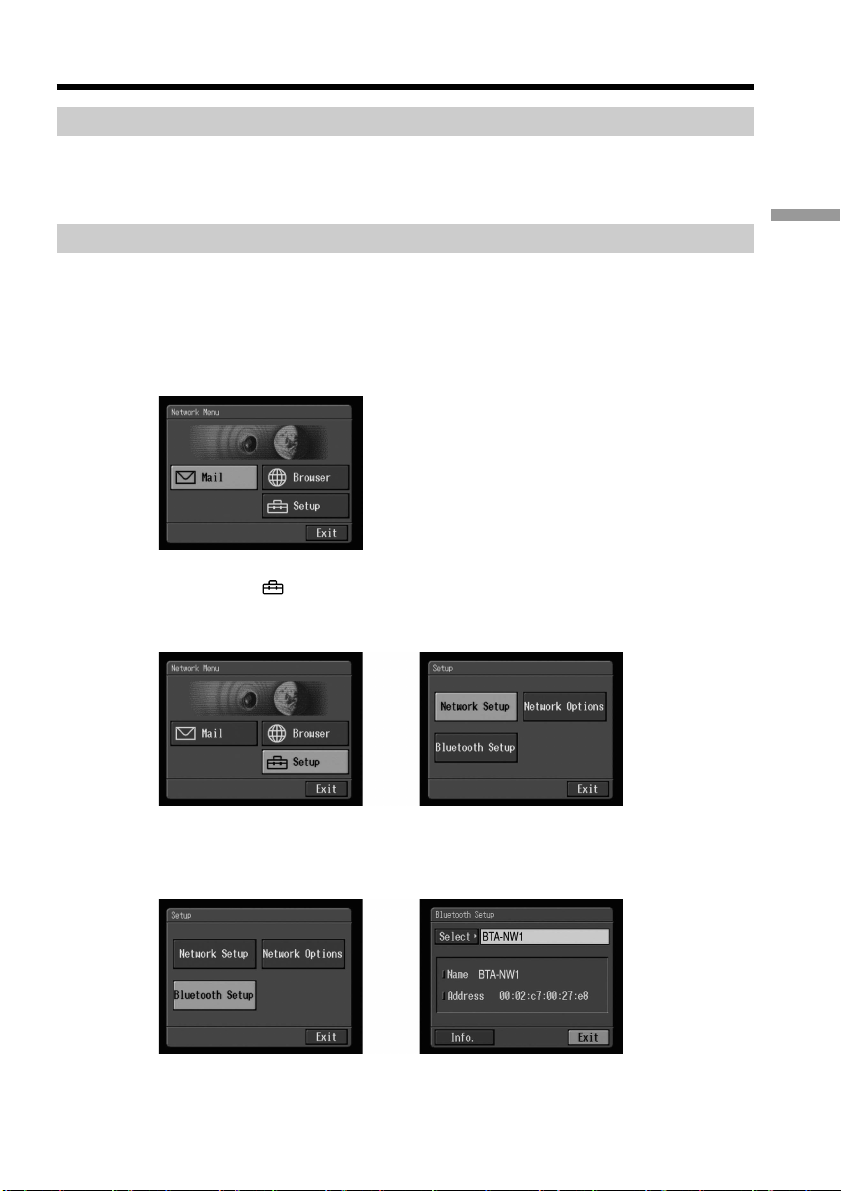

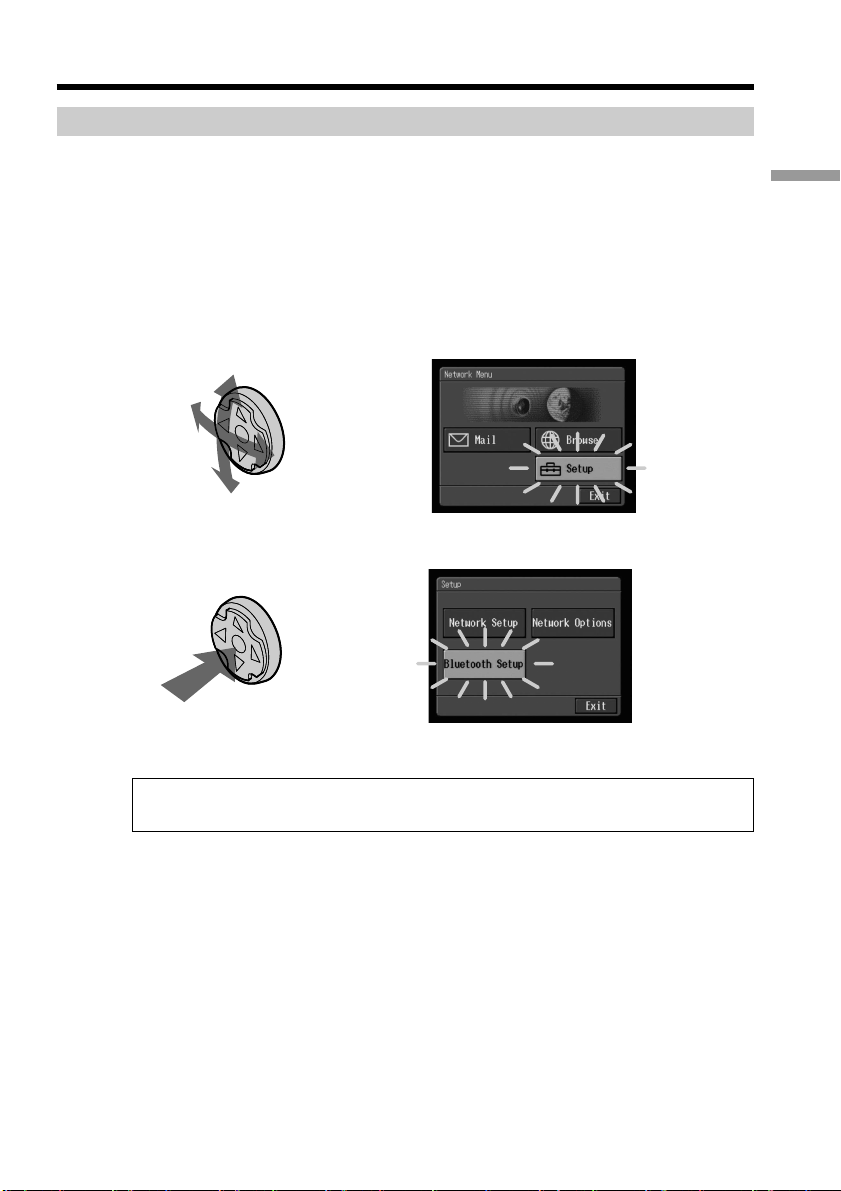

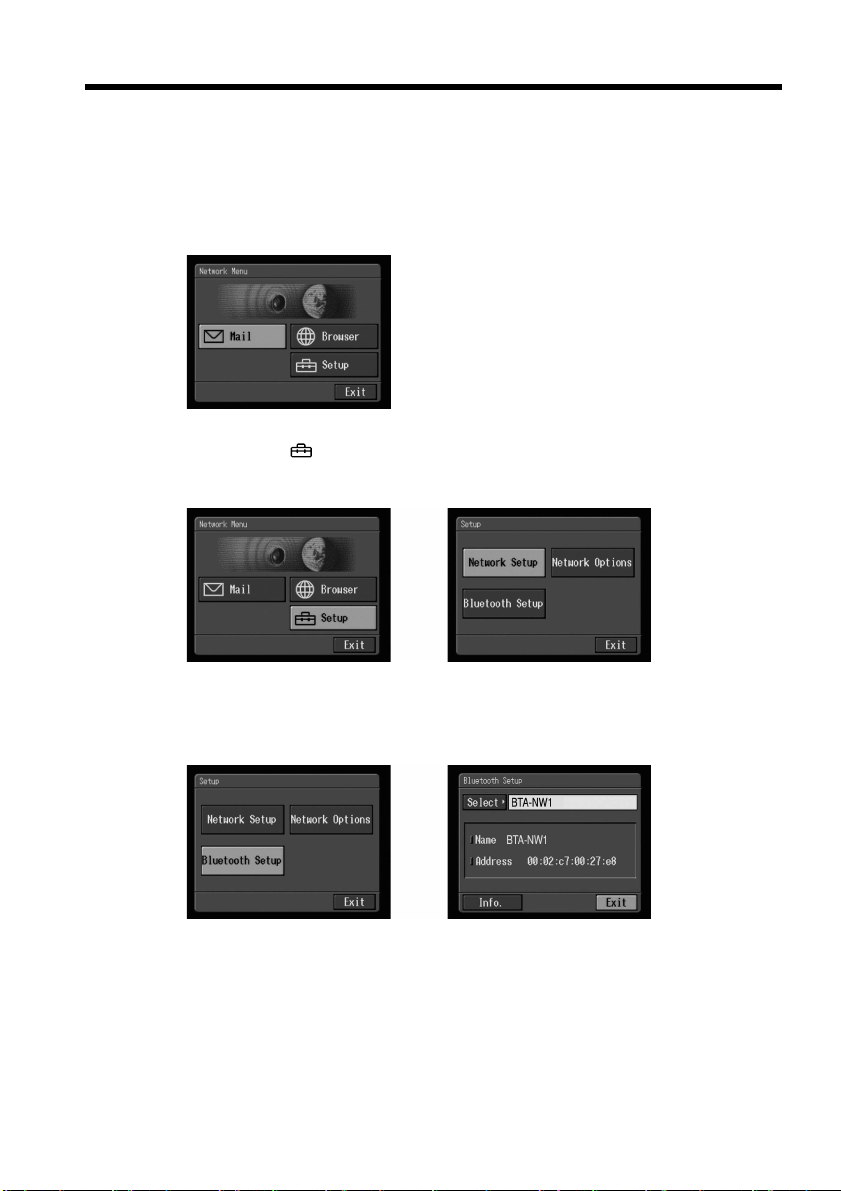

2 Specifying the Modem Adaptor with Bluetooth Function as the

connection device

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

(2) Select [

The Setup screen appears.

Setup], then press the centre z on the control button.

(3) Select [Bluetooth Setup], then press the centre z on the control button.

The Bluetooth Setup screen appears.

16-GB

Registering a Bluetooth device

(4) Select [Select], then press the centre z on the control button.

The Bluetooth devices list appears. When making a registration for the first time, only [ Bluetooth devices. When selecting a Bluetooth device on the list, see “Selecting other Bluetooth devices from the list” on page 20.

Tip

The last-used Bluetooth device is listed next to [

Return] and [ New] are indicated. The list shows up to three

Preparation

New].

(5) Select [

The camcorder starts searching for the Bluetooth devices. When the searching is completed, the available Bluetooth devices list appears.

New], then press the centre z on the control button.

Notes

•The search takes from about 10 to 60 seconds. The time depends on the number of Bluetooth devices around the camcorder.

•If the Bluetooth device you want to register is not found, carry out the procedure again from step 4.

(6) Select the desired Bluetooth device, then press the centre z on the control

button. The character input screen appears.

17-GB

Registering a Bluetooth device

(7) Enter the passkey.

For details on how to input characters, see “How to input characters” on page

8. For example, when using the BTA-NW1 Modem Adaptor with Bluetooth Function, the passkey is its serial number which is indicated on the label on the rear panel.

MODEL NO.

MODEM ADAPTOR WITH BLUETOOTHTM FUNCTION

Tip on “Passkey”

The passkey is an identification number needed to allow two Bluetooth devices to communicate with each other. The connection will be permitted after entering the passkey. This “Passkey” is also referred to as a “Bluetooth passkey”, “PIN”, “Bluetooth PIN”, etc. For details, refer to the operating instructions supplied with the Bluetooth adaptor.

(8) Select [Enter], then press the centre z on the control button.

After the registration is completed, the Bluetooth Setup screen appears again. The selected Bluetooth device is specified.

BTA-NW1

Passkey

The number used when registering a Bluetooth device

18-GB

Note

When the message “Bluetooth Registration Error Check the Passkey” is indicated, select [OK], then press the centre z on the control button. Carry out the procedure again from step 4.

(9) Select [Exit], then press the centre z on the control button.

The Setup screen appears again. For details on how to turn off the Modem Adaptor with Bluetooth Function, refer to the operating instructions supplied with the Modem Adaptor with Bluetooth Function.

(10)Select [Exit], then press the centre z on the control button.

The Network Menu appears again.

Registering a Bluetooth device

When the registration has failed

Carry out the procedure described in “When using the Modem Adaptor with Bluetooth Function ” on page 15 again from step 4.

Displaying information on your camcorder

You can display your camcorder information.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

(2) Select [

The Setup screen appears.

Setup], then press the centre z on the control button.

(3) Select [Bluetooth Setup], then press the centre z on the control button.

The Bluetooth Setup screen appears.

Preparation

19-GB

Registering a Bluetooth device

(4) Select [Info.], then press the centre z on the control button.

The Bluetooth Setup: Self information screen appears.

The model name

This is the unique address assigned to each camcorder at the factory. This address is used when exchanging information between devices. This address cannot be modified. (The number indicated on the illustration is an example number.)

To clear the Self Information screen

Select [Return], then press the centre z on the control button.

Radio wave indication

indicates the radio wave status of the connected Bluetooth device. (Use this

indication as a guide.)

Selecting other Bluetooth devices from the list

Select the Bluetooth device you want to specify, then press the centre z on the control button in step 4 in “When using the Modem Adaptor with Bluetooth Function” on page

15. The device information is indicated. Select [Exit], then press the centre z on the

control button.

20-GB

Deleting a registered Bluetooth device from the list

Up to three Bluetooth devices can be registered on the camcorder. When deleting a Bluetooth device from the list, follow the procedure below.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

Registering a Bluetooth device

(2) Select [ Setup], then press the centre z on the control button.

The Setup screen appears.

(3) Select [Bluetooth Setup], then press the centre z on the control button.

The Bluetooth Setup screen appears.

(4) Select [Select], then press the centre z on the control button.

The Bluetooth devices list appears.

Preparation

(5) Select the device you want to delete, then press the centre z on the control

button. The device name and address of the selected device are indicated.

(6) Select [Delete], then press the centre z on the control button.

The selected device is deleted from the list.

21-GB

Setting network preferences

You have to access the Internet to view a Web page, or send or receive your e-mail. This section describes how to set network preferences to access the Internet.

Setting your provider preferences

Set your provider preferences according to the requirements of your provider. When you do not understand the setup items, consult your provider.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

(2) Select [

The Setup screen appears.

Setup], then press the centre z on the control button.

(3) Select [Network Setup], then press the centre z on the control button.

The Provider Setup: Custom screen appears. If the PPP screen is not displayed, select the PPP tab.

22-GB

Setting network preferences

(4) Set up the following items:

ID: Enter the login name you use for accessing your provider using a dial-up

connection.

Tip on “ID”

This “ID” is also referred to as a “user ID”, “login name”, “PPP login name”, “network ID”, “account name”, “logon name”, “user name”, etc.

Password: Enter the password you use for accessing your provider using a

dial-up connection.

Tip on “Password”

This “Password” is also referred to as a “PPP password”, “network password”, “connection password”, etc.

Tip on dial-up connection

The dial-up connection is used to access the Internet using a phone line.

DNS1: Enter the DNS (Domain Name System) server address of your provider. Tips on “DNS1”

•This “DNS1” is also referred to as a “name server”, “primary DNS server”, “primary name server”, etc.

•This entry may be unnecessary, depending on the provider. For details, consult

your provider.

DNS2: Enter the secondary DNS server address of your provider, if necessary. Tips on “DNS2”

•This “DNS2” is also referred to as a “secondary DNS server” etc.

•This entry may be unnecessary, depending on the provider. For details, consult

your provider.

Preparation

TEL No. 1: Enter the telephone numbers of your most convenient access

point.

Tip on access point

Most providers install access points in various areas. We recommend that you select the most convenient access point which allows you to obtain the lowest telephone charges.

TEL No. 2/TEL No. 3: Enter the second and third telephone numbers, if

necessary.

23-GB

Setting network preferences

(5) Select the Mail tab.

The Mail screen appears.

(6) Set up the following items:

User ID: Enter the user ID name you use for your provider.

Password: Enter the password of your user ID for accessing the POP server.

Your user ID and password are required to use e-mail.

Tip on “Password”

This “Password” is also referred to as a “mail password”, “mail server password”, etc.

Address: Enter your e-mail address. Tip on “Address”

This “Address” is also referred to as a “mail address”, “e-mail address”, etc.

POP Server: Enter the POP (Post Office Protocol) server address of your

provider. The POP server is for receiving e-mail.

Tip on “POP Server”

This “POP Server” is also referred to as a “mail server”, “POP3 server”, etc.

24-GB

SMTP Server: Enter the SMTP (Simple Mail Transfer Protocol) server address

of your provider. The SMTP server is for sending e-mail.

Tip on “SMTP Server”

This “SMTP Server” is also referred to as a “mail server”, “SMTP mail server”, etc. The SMTP server may be the same as the POP server, depending on the provider.

APOP: Select whether you want to use APOP. Tip on “APOP”

APOP is an authentication protocol for security. When your provider supports APOP, we recommend that you check this item. For more information on whether the provider support APOP or not, consult your provider.

Setting network preferences

(7) Select the Browser tab.

The Browser screen appears.

(8) Set up the following items:

Proxy: Enter the proxy server address of your provider. Port: Enter the port number of the proxy server of your provider. This entry

may be unnecessary, depending on your provider. For details, consult your provider.

(9) Select [Exit], then press the centre z on the control button.

The setup is completed, and the Network Setup screen appears again.

(10)Select [Exit], then press the centre z on the control button.

The Setup screen appears again.

Preparation

25-GB

Setting network preferences

Setting network options preferences

For the network options setup, you can use the network function even if the network options setup is left at the default settings. If you have set your preferences based on the requirements of your provider, you can access the Internet without modifying the items on the Network Options screen.

(1) Display the Setup screen.

(2) Select [Network Options], then press the centre z on the control button.

The Network Options screen appears.

26-GB

(3) Set up the following items:

Verify Password: Select whether password entry is required when you access

your provider. When you check this item, you have to enter your password for accessing your provider each time you try to make a connection.

Note

When this item is checked:

– You cannot set your password for accessing your provider.

Tip on “Verify Password”

When you check this item, you have to enter your password for accessing your provider each time you try to make a connection. This can prevent other persons from connecting to your provider using your ID.

Time Out: Select whether the connection is automatically cancelled if no

communication is made for specific time (1 minute, 2 minutes, 5 minutes, 15 minutes, or 30 minutes).

Setting network preferences

Note

Although you have selected a specific time for the “Time Out” function, the line connection may not be cancelled automatically, depends on the Web page you access. In this case, you can cancel the line connection manually.

Mail

Send&Receive: Select whether to check the e-mail inbox after sending e-

mail.

Save Mail to Server: Select whether to keep copies of the messages on the

server.

Note

If you try to receive e-mail without checking this item, e-mail messages may not be downloaded and may be lost from your server, depending on the type of e-mail you receive. For details, see “Note on “Save Mail to Server”” on page 28.

Signature: Set up this item when you want to attach your signature to e-

mail.

Restrict: Select whether to skip an e-mail message if its file size is more than

50 KB, 200 KB, or 500 KB.

Browser

Cookie: Select whether to accept a cookie. When you do not want to send

your personal information, do not check this item. This item is checked at the default setting.

Image Display: Select whether to display images on the screen when

viewing a Web page. This item is checked at the default setting.

Reset: Reset all the items on the Network Options screen except “Signature”

and “Modem Init”.

Note

A verification message does not appear when you try to reset items.

Preparation

Modem Init: Set up the character string to be used for modem initialization.

If no setup is specified, you do not need to modify this item.

Note

If the setup is wrong, the message “Connection Error No Response From PPP Server” appears when you try to access the Internet and you will not be able to access the Internet.

(4) Select [Exit], then press the centre z on the control button.

The Setup screen appears again.

27-GB

Setting network preferences

Note on “Save Mail to Server”

When “Save Mail to Server” is not checked, copies of e-mail messages received will not be stored on your server. However, the following error messages described below depend on the type of e-mail messages. See the table below.

Messages

Memory Stick Memory Full

Cause and/or Corrective Actions

You tried to download e-mail when the “Memory Stick” is already full.

c Delete the e-mail, and delete unnecessary e-mail

messages or image files in the “Memory Stick”, then download your e-mail again.

c Insert another “Memory Stick” that has sufficient

memory, then download your e-mail again.

Mail Over Size Limit

You tried to download e-mail whose size is over the size set in the item “Restrict”.

c You can download that e-mail using your computer etc. c Delete the e-mail, and release the checkmark of the item

“Restrict”, then download that e-mail again.

Attached Invalid File Deleted

You downloaded e-mail that has an attached file whose file name extension is invalid.

c The camcorder cannot receive files other than those in

the JPEG or MPEG format.

Mail Over Size Limit

Memory Stick Directory Error

You downloaded an e-mail message whose the number of characters of the message is more than 4000.

c The camcorder cannot receive an e-mail message that

has 4000 characters or more.

c Insert another “Memory Stick” that has sufficient

memory, then download your e-mail again.

These error messages are indicated in a message.

These e-mail messages are stored on the server even if you did not check the item “Save Mail to Server”. You can retrieve that e-mail using your computer etc.

The previously downloaded e-mail is not stored on the server if you did not check the item “Save Mail to Server”. You cannot retrieve this e-mail using your computer etc.

For e-mail messages that have lots of line break, the number of available characters is less than 4000.

28-GB

— Network Operation—

Using e-mail

This section describes the basic usage of e-mail. E-mail is sent and received via the Internet. E-mail is very convenient; you can send e-mail anytime, and you can also send images stored in a “Memory Stick” by attaching them to e-mail.

Sending e-mail

By entering the e-mail address of the destination, you can send an e-mail message in a moment.

1 Specifying the destination address

Be careful to enter the address correctly.

Tip

You can select the e-mail address from the address book. For details, see “Selecting the destination address from the address book” on page 45.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

(2) Select [

The Send screen appears.

Mail], then press the centre z on the control button.

Network Operation

29-GB

Using e-mail

(3) Select [To], then press the centre z on the control button.

The address list appears. The list shows the addresses that are registered in the address book. For details on the address book, see “Using the address book” on page 40.

When you have selected an address listed in the address book, go to step 7.

Tips

•The last-used address is listed next to New.

•Addresses are listed in historical order.

(4) Select [ New], then press the centre z on the control button.

The character input screen appears.

30-GB

(5) Enter the e-mail address of an addressee.

For details on how to input characters, see “How to input characters” on page

(6) Select [Enter], then press the centre z on the control button.

The Send screen appears again. The new e-mail address is listed and its check box is indicated by the checkmark (

Using e-mail

Tip

If you notice that the e-mail address is wrong, you can correct it in the address book. For details on the address book, see “Editing the address book” on page

43.

(7) If you want to send the e-mail message to other addressees, select other e-mail

addresses. The check box of the selected e-mail address is indicated by the checkmark (

(8) Select [ Return], then press the centre z on the control button.

The Send screen appears again.

Network Operation

Note

If you try to send an e-mail message with 50 addresses registered in the address book, the last-used address will be deleted. The message “Address Book Full Overwrite the Data with Current Address?” appears for verification. When you overwrite it, select [OK], then press the centre z on the control button. When you select [Cancel], delete the unnecessary address from the address book, then enter a new address.

31-GB

Using e-mail

2 Entering the subject of a message

(1) Select [Subject], then press the centre z on the control button.

The subject list appears. The list shows up to six subjects.

When you want to use a subject shown on the list, select the subject, then press the centre z on the control button. After selecting the subject, go to “3 Entering the text of a message” on page 33.

Tip

The last-used address is listed next to [

New].

(2) Select [

The character input screen appears.

New], then press the centre z on the control button.

(3) Enter the subject.

For details on how to input characters, see “How to input characters” on page

Note

The total number of characters you can enter is 24.

(4) Select [Enter], then press the centre z on the control button.

The Send screen appears again.

32-GB

Using e-mail

3 Entering the text of a message

Enter the text of the message. You can select the text from the message list, or modify it to suit your purposes. The list shows up to six messages.

(1) Select [Message], then press the centre z on the control button.

The message list appears.

The list shows messages that were made previously. When you choose to use the selected text, select [OK], then press the centre z on the control button. After you select the message, go to “4 Sending e-mail” on page 34. If you modify the selected text, select [Edit], then press the centre z on the control button. The character input screen appears. Go to step 3.

Network Operation

(2) Select [

The character input screen appears.

New], then press the centre z on the control button.

(3) Enter your message.

For details on how to input characters, see “How to input characters” on page

Note

The total number of characters you can enter is 512.

33-GB

Using e-mail

(4) Select [Enter], then press the centre z on the control button.

The Send screen appears again.

4 Sending e-mail

Tip

You can send an e-mail message with your signature. For details, see “Attaching your signature to a message” on page 38.

(1) Select whether you attach images or not.

When attaching images, see “Attaching images to e-mail” on page 37.

(2) Check the message.

When you check or modify a message, see “Checking or modifying a message” on page 35.

(3) Select [Send], then press the centre z on the control button.

The screen for verifying the connection appears. Set the Bluetooth device to connection standby with the camcorder beforehand. For details, refer to the operating instructions supplied with the Bluetooth device.

34-GB

(4) Check the telephone number.

When dialling other telephone numbers

Select [TEL No.], then press the centre z on the control button. The registered telephone number list appears. Select the desired telephone number, then press the centre z on the control button. The selected telephone number is specified.

Using e-mail

(5) Select [Connect], then press the centre z on the control button.

The camcorder starts dialling the selected telephone number. After the sending is completed, the message “Sending Mail Complete” appears. The phone line is automatically disconnected.

(6) Select [OK], then press the centre z on the control button.

The Send screen appears again.

To cancel sending e-mail

During sending, select [Cancel], then press the centre z on the control button.

Tip

You can automatically check the e-mail inbox after sending e-mail. For details, see “Setting network options preferences” on page 26.

Checking or modifying a message

(1) Display the Send screen.

(2) Select [Message], then press the centre z on the control button.

The message list appears.

Network Operation

35-GB

Using e-mail

(3) Select the message you want to check or modify, then press the centre z on the

control button. The following screen appears.

(4) Check or modify the message. When the message is long, select the message

area, then press the control button V repeatedly to scroll the message.

When you only check the message:

After checking the message, select [OK], then press the centre z on the control button. The Send screen appears again.

When you modify the message:

Go to step 5.

(5) Select [Edit], then press the centre z on the control button.

The character input screen appears.

36-GB

(6) Modify the message.

For details on how to input characters, see “How to input characters” on page

(7) Select [Enter], then press the centre z on the control button.

The Send screen appears again.

Using e-mail

Attaching images to e-mail

You can send images by attaching them to e-mail messages.

Preparation

Store the desired images in the “Memory Stick” and insert it into the camcorder.

(1) Follow these procedures: “1 Specifying the destination address” on page 29,

“2 Entering the subject of a message” on page 32, and “3 Entering the text of

a message” on page 33. The Send screen appears.

(2) Select [Attach], then press the centre z on the control button.

The image index list appears.

(3) Select the desired images.

Move the yellow arrow mark onto the image you want to upload, then press the control button. The selected image is indicated by the checkmark (

Network Operation

To page up or down the index list

Select [<] or [,], then press the centre z on the control button. The next or previous page is displayed.

37-GB

Using e-mail

(4) Repeat step 3 to select other images.

Note

The total number of images you can attach is 99, and the attachable file size is up to 3 MB.

(5) Select [

The Send screen appears again. The total number of selected images and total file size are indicated.

OK], then press the centre z on the control button.

To cancel the selected image

Select the image again, then press the centre z on the control button. The checkmark will disappear from the image.

To cancel all the selected images

Select [

(6) Carry out the procedure described in “4 Sending e-mail” on page 34 from

step 3.

Note

The amount of time it takes to send images depends on the image file size.

Attaching your signature to a message

CLR], then press the centre z on the control button.

38-GB

You can attach your signature to the last column of the e-mail message.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

Using e-mail

(2) Select [ Setup], then press the centre z on the control button.

The Setup screen appears.

(3) Select [Network Options], then press the centre z on the control button.

The Network Options screen appears.

(4) Select [Signature], then press the centre z on the control button.

The character input screen appears.

Network Operation

(5) Enter your signature.

For details on how to input characters, see “How to input characters” on page

Note

The total number of characters you can enter is 256.

39-GB

Using e-mail

(6) Select [Enter], then press the centre z on the control button.

The setup of your signature is completed, and the Network Options screen appears again. “Yes” is indicated next to [Signature].

(7) Select [Exit], then press the centre z on the control button.

The Setup screen appears again.

(8) Select [Exit], then press the centre z on the control button.

The Network Menu appears again.

Using the address book

Once you register frequently used e-mail addresses in the address book, you can send email without entering the e-mail address manually.

Registering destination addresses in the address book

40-GB

You can register frequently used e-mail addresses in the address book. Up to 50 addresses can be registered. Be careful to enter the address correctly.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

Using e-mail

(2) Select [ Mail], then press the centre z on the control button.

If the Address screen is not displayed, select the Address tab. The address screen appears.

(3) Select [New], then press the centre z on the control button.

The Address Book: New screen appears.

(4) Select [Name], then press the centre z on the control button.

The character input screen appears.

(5) Enter the destination name.

For details on how to input characters, see “How to input characters” on page

Note

The total number of characters you can enter in the [Name] box is 24.

Network Operation

41-GB

Using e-mail

(6) Select [Enter], then press the centre z on the control button.

The Address Book: New screen appears again.

(7) Select [Address], then press the centre z on the control button.

The character input screen appears.

(8) Enter the e-mail address.

For details on how to input characters, see “How to input characters” on page

42-GB

(9) Select [Enter], then press the centre z on the control button.

The Address Book: New screen appears again.

(10)Select [Return], then press the centre z on the control button.

The Address screen appears again.

Using e-mail

(11)Select [Exit], then press the centre z on the control button.

The Network Menu appears again.

Tips

•The addresses are listed in alphabetical order.

•When you reply to the address of a previously received e-mail message, the address

will be automatically registered on the address book. To edit the address, see “Editing the address book” below.

Editing the address book

You can edit the names or e-mail addresses in the address book.

(1) Follow steps 1 and 2 in “Registering destination addresses in the address

book” on page 40. The Address screen appears.

(2) Select the area where the name and address are indicated, then select the

address you want to edit using the control button b/B, then press the centre z on the control button. The Address Book: Edit screen appears.

Network Operation

43-GB

Using e-mail

(3) Select [Name] or [Address], then press the centre z on the control button.

When modifying the name, select [Name], and when modifying the address, select [Address]. The character input screen appears.

(4) Modify the name or address.

For details on how to input characters, see “How to input characters” on page

(5) Select [Enter], then press the centre z on the control button.

The Address Book: Edit screen appears again.

44-GB

(6) Select [Return], then press the centre z on the control button.

The Address screen appears again.

(7) Check the name or address.

(8) Select [Exit], then press the centre z on the control button.

The Network Menu appears again.

Using e-mail

Selecting the destination address from the address book

You can select the destination address from the address book.

(1) Follow steps 1 and 2 in “Registering destination addresses in the address

book” on page 40. The Address screen appears.

(2) Select the area where the name and address are indicated, then select the

destination address using the control button b/B.

Network Operation

(3) Select [tTo], then press the centre z on the control button.

The Send screen appears. The selected address is set as the destination address.

(4) Carry out the procedures described in “2 Entering the subject of a message”

on page 32.

45-GB

Using e-mail

Receiving e-mail

Once you receive e-mail, you can reply to it or forward it.

Preparation

•Insert a “Memory Stick” into the camcorder, for storing images.

•Release the lock of the “Memory Stick”.

Checking your e-mail inbox

Tip

You can keep copies of your messages on your server even if you download the message using the camcorder. For details, see “Setting network options preferences” on page 26.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

46-GB

(2) Select [

If the Receive screen is not displayed, select the Receive tab. The Receive screen appears.

Mail], then press the centre z on the control button.

Using e-mail

(3) Select [Receive], then press the centre z on the control button.

(4) Check the telephone number.

When dialling other telephone numbers

(5) Select [Connect], then press the centre z on the control button.

The camcorder starts dialling the selected telephone number. When an e-mail message has been sent to you, the camcorder download it, and the message “Receiving Mail Complete” appears. Select [OK], then press the centre z on the control button. The phone line is automatically disconnected.

Network Operation

47-GB

Using e-mail

(6) When an e-mail message has been received, select where area that the message

is displayed, then select the message using the control button b/B, then press the centre z on the control button. The message is displayed.

(7) Select [Return], then press the centre z on the control button.

The Receive screen appears again.

To cancel reception of e-mail

While downloading, select [Cancel], then press the centre z on the control button. Incoming E-mail not yet downloaded remains on your server.

When the message is long

Select the message area, then press the control button V repeatedly to scroll the message.

When a file is attached to an e-mail message

The files that the camcorder can receive have the following extensions: .jpg or .mpg. When you receive other types of files, the message “Attached Invalid File Deleted” is inserted in the e-mail message. The camcorder cannot play back the attached image if the file is in an incompatible format.

48-GB

To view an attached image

Exit the NETWORK mode, then view the image following the same procedure as that for viewing an image recorded in a “Memory Stick”. In such cases, the attached file will be stored next to the last-recorded image recorded in VCR or MEMORY mode.

When no new messages have been sent to you

The message “No New Mail” appears.

Using e-mail

URL included in an e-mail message

When a URL (http://...) is typed in the message, select the URL, then press the centre z on the control button. The browser starts automatically and accesses the indicated Web page.

Notes

•The total number of e-mail message characters allowed is 4000. More than that number of characters will cause the excess characters to be deleted and a message indicating that some of the text was deleted is attached to the beginning of the message.

•The amount of time it takes to receive the message depends on the attached image file size.

Tips

•You can automatically check the e-mail inbox after sending e-mail. For details, see “Setting network options preferences” on page 26.

•You can skip an e-mail message if its file size is too large. For details, see “Setting network options preferences” on page 26.

•For e-mail messages, the total number of characters used for the subject and the

sender name has an upper limit of 24 characters. When you receive an e-mail message with more than 24 characters in these items, you cannot read the subject and the sender name on the camcorder.

Sending your answer – Reply

You can quickly reply to an e-mail message without entering the address.

(1) Display the Receive screen.

Network Operation

49-GB

Using e-mail

(2) Select the area where a message is indicated, then select the message you want

to reply to using the control button b/B, then press the centre z on the control button. The selected message is displayed.

(3) Select [Reply], then press the centre z on the control button.

The Send screen appears.

Tip

“Re:” is added to the beginning of the subject line.

50-GB

(4) Carry out the procedure described in “3 Entering the text of a message” on

page 33 to enter the text of the message.

Tip

You cannot quote a received e-mail message.

(5) Carry out the procedure described in “4 Sending e-mail” on page 34 from

step 3.

Using e-mail

Forwarding the message to another person – Forward

You can forward a downloaded message to another person.

(1) Display the Receive screen.

(2) Select the area where a message is indicated, then select the message you want

to forward using the control button b/B, then press the centre z on the control button. The selected message is displayed.

Network Operation

(3) Select [Forward], then press the centre z on the control button.

The Send screen appears.

Tips

•An attached file is not automatically forwarded. When you also want to send the attached file, see “Attaching images to e-mail” on page 37.

•“Fw:” is added to the top of the subject line.

(4) Carry out the procedure described in “1 Specifying the destination address”

on page 29 from step 3 or “Selecting the destination address from the address book” on page 45 to specify the destination address.

51-GB

Using e-mail

(5) Carry out the procedure described in “3 Entering the text of a message” on

page 33 to modify the message.

Tip

The total number of characters you can enter in a message is 512. The characters over that number will be deleted.

(6) Carry out the procedure described in “4 Sending e-mail” on page 34 from

step 3.

Deleting unnecessary e-mail

Up to 50 received e-mail messages can be stored in a “Memory Stick”. If you try to receive a 51st e-mail message, an error message appears and the camcorder cannot receive the e-mail message.

Preparation

•Insert the “Memory Stick” into the camcorder, which the e-mail message you want to delete is stored.

•Release the lock of the “Memory Stick”.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

52-GB

(2) Select [

If the Receive screen is not displayed, select the Receive tab. The Receive screen appears.

Mail], then press the centre z on the control button.

Using e-mail

(3) Select the area where a message is indicated, then select the message you want

to delete using the control button b/B, then press the centre z on the control button. The selected message is displayed.

(4) Select [Delete], then press the centre z on the control button.

The message “Delete This Mail?” used for verification appears.

(5) Select [OK], then press the centre z on the control button.

The selected e-mail message is deleted.

To cancel deletion

Select [Cancel], then press the centre z on the control button in step 5.

Network Operation

53-GB

Viewing Web pages

A site that posts information on the Internet is called a “Web Page” or “Web site”. You can easily retrieve information by accessing a Web site on the Internet.

Viewing Web pages

1 Entering the URL needed to access the Web page

Enter the address of the Web page, and then access the Internet. Be careful to enter the address correctly.

Tip on URL

A Web site has a unique address on the Internet. The address is called a URL. This URL is required to access a Web site.

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

54-GB

(2) Select [

The following screen appears.

Browser], then press the centre z on the control button.

(3) Select (New URL), then press the centre z on the control button.

The character input screen appears.

Viewing Web pages

(4) Enter the URL.

For details on how to input characters, see “How to input characters” on page

(5) Select [Enter], then press the centre z on the control button.

The screen used for verifying the connection appears. Set the Bluetooth device to connection standby with the camcorder beforehand. For details, refer to the operating instructions supplied with the Bluetooth device.

(6) Check the telephone number.

When dialling other telephone numbers

(7) Select [Connect], then press the centre z on the control button.

The camcorder starts dialling the selected telephone number. After the connection is completed, the Web page selected in step 4 is loaded.

Network Operation

(8) Operate the browser using the menu bar.

For details on the menu bar, see “How to use the menu bar on the browser” on page 13.

55-GB

Viewing Web pages

Note on connection status indication

The connection status is indicated on the top of the screen. This item also shows a connected time and the address of the Web page. The connecting time indication should be used as a guide.

Off Line: being offline

Loading: Loading a Web page

On Line: being online

Notes

•When the address is too long to display, the whole of the address is not indicated. If you want to know the correct address of the page, select , then press the centre z on the control button. The address is indicated in full.

•A portion of the whole page is displayed on the screen.

•It takes more time to load a large size page, and its images or text may not be

displayed properly. This is not a malfunction.

•When you try to open a large size page, the message “Data too Large for Full Display” appears and the entire page may not be loaded.

•When viewing a scaled-down page, the screen may show some flicker or the colour may be strange. This is not a malfunction.

•To prevent the occurence of a malfunction, operate the menu bar buttons after loading the page.

Tip

You can access the Web page from a bookmark. For details, see “3 Jumping to the Web page specified by the bookmark ” on page 60.

2 Bookmarking the Web page – Bookmark

You can bookmark Web pages you frequently access. Up to 30 bookmarks are available.

(1) Display the Web page you want to bookmark.

56-GB

Viewing Web pages

(2) When the menu bar is not displayed, press BROWSER MENU on the

camcorder. The menu bar appears.

Network Operation

(3) Select

The bookmark list appears.

(Bookmark), then press the centre z on the control button.

(4) Select [ Add], then press the centre z on the control button.

The bookmark is added, and the display returns to the Web page.

To edit a bookmark

You can edit the title of a bookmark.

(1) Select (Bookmark), then press the centre z on the control button.

The bookmark list appears.

57-GB

Viewing Web pages

(2) Select the bookmark you want to edit, then press the centre z on the control

button. The title and URL are indicated.

(3) Select [Edit], then press the centre z on the control button.

The character input screen appears.

(4) Edit the name.

For details on how to input characters, see “How to input characters” on page

58-GB

(5) Select [Enter], then press the centre z on the control button.

The title of the bookmark is modified.

(6) Select [ Return], then press the centre z on the control button.

The screen displayed in step 2 appears again.

Viewing Web pages

To delete bookmarks

You can delete bookmarks. We recommend that you delete unnecessary bookmarks since you can only store up to 30 bookmarks.

(1) Select (Bookmark), then press the centre z on the control button.

The bookmark list appears.

(2) Select the bookmark you want to delete, then press the centre z on the control

button.

Network Operation

(3) Select [Delete], then press the centre z on the control button.

The message “Delete This Bookmark?” used for verification appears.

(4) Select [OK], then press the centre z on the control button.

The selected bookmark is deleted.

59-GB

Viewing Web pages

To cancel deletion of the bookmark

Select [Cancel], then press the centre z on the control button in step 4.

3 Jumping to the Web page specified by the bookmark

(1) When the menu bar is not displayed, press BROWSER MENU on the

camcorder. The menu bar appears.

(2) Select

The bookmark list appears.

(Bookmark), then press the centre z on the control button.

(3) Select the bookmark, then press the centre z on the control button.

60-GB

Viewing Web pages

(4) Select [Go], then press the centre z on the control button.

(5) Check the telephone number.

When dialling other telephone numbers

(6) Select [Connect], then press the centre z on the control button.

The camcorder starts dialling the selected telephone number. After the connection is completed, the Web page specified by the bookmark is displayed.

Network Operation

To select another bookmark

Select [Cancel], then press the centre z on the control button in step 4. The bookmark list appears. Select another bookmark.

Storing the Web page into a “Memory Stick” – Page Memo

You can store your favourite Web pages in a “Memory Stick”. Once you store them, you can view the Web page without accessing the Internet.

Storing the Web page into a “Memory Stick”

Up to 30 page memos can be stored in a “Memory Stick”.

Preparation

•Insert a “Memory Stick” into the camcorder, for storing images.

•Release the lock of the “Memory Stick”.

(1) Display the Web page you want to store.

61-GB

Viewing Web pages

(2) When the menu bar is not displayed, press BROWSER MENU on the

camcorder. The menu bar appears.

(3) Select

The page memo list appears.

(Page Memo), then press the centre z on the control button.

(4) Select [ Add], then press the centre z on the control button.

The message “Saving Page Memo Do Not Remove Memory Stick” appears. After the message disappears, storing is complete.

(5) Select [ Return], then press the centre z on the control button.

The page memo list appears again.

To cancel the storing of the Web page

During storing, select [Cancel], then press the centre z on the control button.

Note

You cannot store the Web page while loading it.

Editing the title of a page memo

You can edit the title of a page memo stored in a “Memory Stick”.

Preparation

•Insert a “Memory Stick” into the camcorder, for storing images.

•Release the lock of the “Memory Stick”.

62-GB

Viewing Web pages

(1) Select (Page Memo), then press the centre z on the control button.

The page memo list appears.

(2) Select the page memo you want to edit, then press the centre z on the control

button. The title and URL of the selected page memo are indicated.

(3) Select [Edit], then press the centre z on the control button.

The character input screen appears.

Network Operation

(4) Edit the name.

For details on how to input characters, see “How to input characters” on page

63-GB

Viewing Web pages

(5) Select [Enter], then press the centre z on the control button.

The title of the page memo is modified.

(6) Select [ Return], then press the centre z on the control button.

The browser screen appears again.

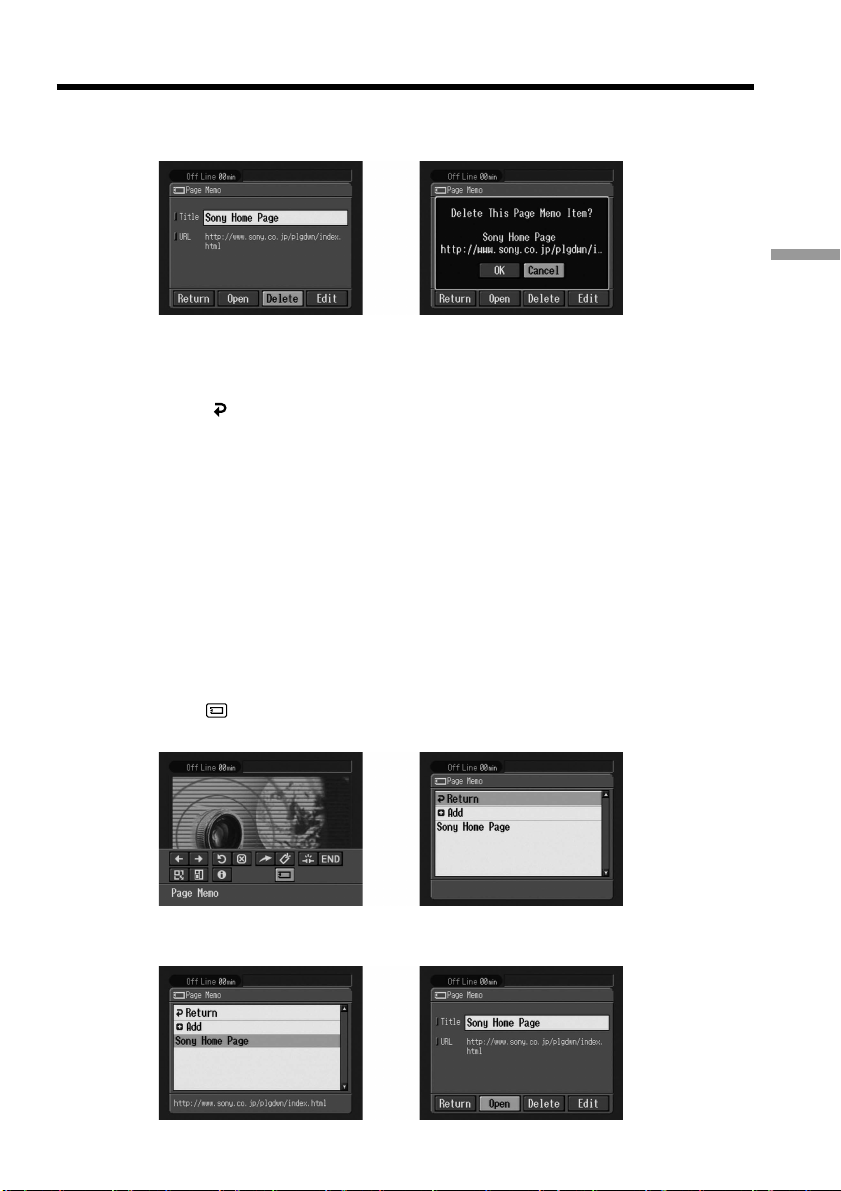

To delete the page memo

You can delete page memos. We recommend that you delete unnecessary page memos since you can only store up to 30 page memos.

Preparation

•Insert a “Memory Stick” into the camcorder, for storing page memos.

•Release the lock of the “Memory Stick”.

(1) Select (Page Memo), then press the centre z on the control button.

The page memo list appears.

64-GB

(2) Select the page memo you want to delete, then press the centre z on the

control button. The following screen appears.

Viewing Web pages

(3) Select [Delete], then press the centre z on the control button.

The message “Delete This Page Memo Item?” used for verification appears.

(4) Select [OK], then press the centre z on the control button.

The selected page memo is deleted and the page memo list appears again.

Network Operation

(5) Select [

The browser screen appears again.

Return], then press the centre z on the control button.

To cancel deletion of the page memo

Select [Cancel], then press the centre z on the control button in step 4.

Displaying a Web page stored in page memo

You can display a page memo stored in a “Memory Stick”.

Preparation

Insert the “Memory Stick” into the camcorder, which the page memo you want to display is stored.

(1) Select (Page Memo), then press the centre z on the control button.

The page memo list appears.

(2) Select the page memo you want to display.

65-GB

Viewing Web pages

(3) Select [Open], then press the centre z on the control button.

The Web page stored in page memo is displayed.

To select another page memo

Select [Cancel], then press the centre z on the control button in step 3. The page memo list appears. Select another page memo.

Shutting down the browser

To finish viewing the Web page, and disconnect the phone line

(1) Press BROWSER MENU on the camcorder to display the menu bar.

(2) Select

END

(End), then press the centre z on the control button.

The browser is closed, then the phone line is disconnected.

To only disconnect the line

Select (Line Close), then press the centre z on the control button. The phone line is disconnected.

Note

When shutting down the browser, a verification message may appear, depending on your camcorder.

66-GB

– Additional Information –

File storage destinations and file names

Files are grouped in the following folders. You can only view these folders on a computer. The meanings of the file names are as follows.

sssss stands for any number within the range from 00001 to 99999. ssss stands for any number within the range from 0001 to 9999.

XXX stands for a portion of an attached file name.

Folder containing still image files and MPEG MOVIE AD moving image files

Folder containing image files attached to e-mail

Folder containing the text data of e-mail etc.

Folder containing files of page memo (1) etc.

Folder containing files of page memo (2) etc. Folder containing moving image files recorded in the MPEG format

Folder File name Meaning

100MSDCF DSCsssss.JPG Still image file

MOVsssss.MPG Moving image file

700MSNET XXXsssss.JPG Still image file over the network

XXXsssss.MPG Moving image file over the network

CAM NET01 RCV.MBX Incoming e-mail list*

IMAGEMEM.CNF Page memo management file*

MEMOssss MEMOssss.HTM Page memo HTML file

IMGssss.JPG Page memo still image file IMGssss.GIF Page memo image file IMGssss.PNG Page memo image file IMGssss.XBM Page memo image file

MOML0001 MOVsssss.MPG Moving image file

* Do not delete these files. These are required files even though they cannot be verified

using a PC.

Additional Information

67-GB

Troubleshooting

Trouble accessing the Internet

The message “...Incomplete” or “Authentication Error...” is indicated and the camcorder cannot access the Internet.

c Check your setup according to the procedure described in “Setting network

preferences” on page 22.

The camcorder cannot access the Internet.

c Try to access it again after a while.

The message “Line is Busy or Phone number may be Wrong” is indicated and the camcorder cannot access the Internet.

c The phone line of your provider is busy. Call again after a while. c The settings for the telephone number may be incorrect. Please check those settings. c The telephone signalling type setup of the Modem Adaptor with Bluetooth function

may be wrong. Check the setup.

The message “Bluetooth Connection Error” is indicated and the camcorder cannot access the Internet.

c Check that the Bluetooth device is turned on. c Install the Bluetooth device nearer to the camcorder.

The message “Phone Line Disconnected” is indicated when making an entry in the online registration procedure.

c Data entry can be done offline. When the camcorder needs to connect with the site, the

screen for verifying the connection appears. Select [OK], then press the centre z on the control button, the connection will be established again.

The message “Bluetooth Authentication Error Check the Certified Status” is indicated and the camcorder cannot access the Internet.

c The Bluetooth device may be deleted from the registration. Set it up again.

The message “Low Battery” is indicated and the camcorder cannot access the Internet.

c Charge the battery pack or use the AC power adaptor, then connect again.

Trouble with e-mail

The message “DNS Error The Requested URL Could Not Found” is indicated and the camcorder cannot send or receive e-mail.

c The DNS setup may be wrong. Check the PPP setup.

The camcorder cannot send e-mail.

c The clock of the camcorder is not set. Set up the clock. c Check your setup according to the procedure described in “Setting network

preferences” on page 22.

c Connect again after a while.

68-GB

Troubleshooting

The camcorder cannot receive e-mail.

c The clock of the camcorder is not set up. Set it up. c Check your setup according to the procedure described in “Setting network

preferences” on page 22.

c All of your downloaded e-mail messages are stored in the “Memory Stick”. Insert a

new “Memory Stick” that has sufficient memory and download your e-mail again. Also, check that the lock switch is set to release.

c You can restrict the file size of downloaded e-mail messages. Check the setup of the

item “Restrict” on the Network Options screen.

c Up to 50 downloaded e-mail messages can be stored in a “Memory Stick”. If you want

to store a 51st e-mail message, delete unnecessary e-mail or insert a new “Memory Stick” that has sufficient memory and then download your e-mail again.

All of the e-mail message cannot be received.

c The total number of available e-mail characters is 4000. You cannot receive the entire

text of e-mail that has more than 4000 characters.

The message “PPP Authentication Error” is indicated.

c Check your setup according to the procedure described in “Setting network

preferences” on page 22.

You received an e-mail message sent from Mailer Daemon.

c Your e-mail has not been sent to its destination address. Check the e-mail address. If

you receive an e-mail message from Mailer Daemon and the destination address is correct, the server may be down, or the e-mail address may have changed.

Attached files are not saved in the “Memory Stick”.

c The compatible file types are .jpg and .mpg only. Check the file type. c The message “Memory Stick Directory Error” may be indicated when a “Memory

Stick” whose directory structure does not correspond to the DCF standard is inserted.

c All of your downloaded e-mail messages are stored in the “Memory Stick”. Insert a

new “Memory Stick” that has sufficient memory and download your e-mail again. Also, check that the lock switch is set to release.

c You can restrict the file size of downloaded e-mail messages. Check the setup of the

item “Restrict” on the Network Options screen.

Additional Information

Trouble viewing a Web page

The images are not displayed.

c Check the setup of the item “Image Display” on the Network Options screen.

Some of the Web page or all of the Web page is not displayed.

c When the page has been made using the software, such as Macromedia Flash, the

page does not correspond to the browser of the camcorder.

It takes some time to load the Web page.

c When the Web page is busy, try to connect through other providers or other access

points, or connect during off-peak times.

69-GB

Troubleshooting

The Web page is not loaded.

c When entering its URL

Check that the address is correct. (For example, did you enter “0” or “O”, “-” or “_”)

c When accessing through the bookmark or page memo

The address may have been changed or the link structure of the Web site may have been modified. When the link structure is modified, follow the address to its source. (For example, when you cannot access http://www.sony.co.jp/xxxx/, then try to access http://www.sony.co.jp/)

The Web page cannot make a transition.

c The item “Cookie” may not be checked. Check the item “Cookie” on the Network

Options screen.

The cookie is not saved.

c Exit the NETWORK mode, the cookie will be deleted.

The message “DNS Error The Requested URL Could Not Found” is indicated and the Web page is not displayed.

c The setup of the item “DNS” may be wrong. Check the setup of the PPP screen. c The setup of the item “Proxy” may be wrong. Check the setup of the Browser screen.

70-GB

Specifications

Bluetooth

The number of registered devices available

E-mail

Sending

The maximum number of email destination addresses to which a message can be sent at one time

The registrable number of subjects

The maximum number of characters of a subject

The registrable number of messages

The maximum number of characters of a message

512

The maximum number of images attached to e-mail

The maximum file size of images attached to e-mail

3 MB

Signature

The number of characters

256

Addressbook

The registrable number of destination addresses

The maximum number of characters of a name

The maximum number of characters of an e-mail address

Receiving

Compatible attachment file standards

Extension: .jpg, .mpg, .jpeg, .mpeg

The maximum number of characters of an e-mail message

Approx. 4000

The maximum number of email messages recordable in a “Memory Stick”

Browser

The number of bookmarks available

The maximum number of characters of a bookmark title

The maximum number of page memos recordable in a “Memory Stick”

The maximum number of characters of a page memo title

Additional Information

71-GB

Messages

Various messages appear on the screen. Check the corresponding descriptions in the following list.

General

Message Meaning

Bluetooth Connection Error

Bluetooth Authentication Error Check the Certified Status

Bluetooth Registration Error Check the Passkey

Bluetooth Communication Disconnected

Bluetooth Connection Error Select Bluetooth Device

PPP Authentication Error Check ID or Password

Phone Line Disconnected Connection Error

No Response From PPP Server

Bluetooth Connection Error Check Phone Line

Low Battery

Profile Error Reset Profile

Memory Error Memory Stick Error Memory Stick Error

Outgoing Mail Canceled Memory Stick Error

Unable to Open the File Memory Stick Error

Action Canceled Memory Stick Error

Incoming Mail Canceled Memory Stick Format Error Enter PPP Password

Saving the Profile

72-GB

•The Bluetooth device is too far from the camcorder.

•The Bluetooth device is busy.

•The passkey was wrong.

•The passkey transmission failed.

•The Bluetooth device was turned off.

•The Bluetooth device is too far from the camcorder.

•The Bluetooth device became impossible to connect.

No Bluetooth devices are registered. Register the Bluetooth device (p. 15).

Your ID or password entered on the PPP screen during manual setup may be wrong.

Check the connection status.

•The telephone number entered on the PPP screen in manual setup may be wrong.

•The setup of Modem Init on the Network Options screen is wrong.

Check that the Bluetooth device is connected to a telephone terminal.

The capacity of the battery pack is insufficient. Change the battery pack or use the AC power adaptor.

Check the setup. If an entry is missing, set up again referring to your notes.

Exit the NETWORK mode, then enter the NETWORK mode again. The “Memory Stick” may be broken. Do the following; exit the

NETWORK mode, turn off the camcorder, remove and insert the “Memory Stick”, then operate the camcorder. If, the message still appears, use another “Memory Stick”.

Format the “Memory Stick”. For details on “Verify Password”, see “Setting network options

preferences” (p. 26). Do not turn off the camcorder while the message is indicated.

Messages

E-mail

Message Meaning

POP Server Disconnected

POP Server Connection Error

SMTP Server Disconnected SMTP Server Connection Error

PPP Profile Incomplete Mail Profile Incomplete No Picture Files

The POP server may be down. Connect to the page again after a while.

•Your password entered on the Mail screen during manual setup may be wrong. Check your password.

•Connect the page after a while.

Connect to the page again after a while. Your password entered on the Mail screen during manual setup may

be wrong. Check your password. Check the setup in provider preferences. Check the setup in provider preferences. No images in the “Memory Stick”.

Browser

Message Meaning

You are About to View Pages Over a Secure Connection Do You Want to Continue?

You are About to Leave a Secure Internet Connection Do You Want to Continue?

Warrant Date Expired Invalid Data Open Anyway?

Set the Date and Time Invalid Data Open Anyway?

Page Certification Error Invalid Data Open Anyway?

Opening Error Invalid File Type

DNS Error The Requested URL Could Not Found

Loading Error

You tried to open an SSL page. When you know that the page is safe, select [OK], then press the centre z on the control button.

The clock is not set up on the camcorder. Set up the clock.

The certification of the page may be broken, wrong, or it may be of other pages. When you know that the page is safe, select [OK], then press the centre z on the control button.

You cannot display this page on the camcorder.

•The URL may be wrong.

•The DNS entry on the PPP screen during manual setup may be

wrong. Check this item.

•Connect to the page again after a while.

Connect to the page again after a while.

Additional Information

73-GB

Messages

Message Meaning

Read-Only File in Directory Unable to Delete the File Check the File Status

Opening File Error Read-Only File

This File is Locked Enter User Name

and Password Timeout

Disconnected Automatically Loading...

Retry Later

Files modified with a computer may not be deleted by the camcorder.

User authentication is required to access the page. Enter your user name and password.

Check the Network Options setup (p. 26).

The page memo cannot be stored while the unit is loading a Web page. Store it again after the Web page has been loaded (p. 62).

74-GB

Glossary

Access point (p. 24)

A telephone number used to access the Internet, which is provided by an Internet service provider.

Address book (p. 40)

Used to register e-mail destination addresses.

@ (At mark) (p. 22)

Used to separate the domain name and the user name.

Attachment (p. 37)

To attach a file to an e-mail message.

Connect time (p. 56)

The time for being connected with an Internet service provider using a dial-up connection. Most Internet service providers charge for the time connected.

Cookie (p. 27)

Used by the operator of an Internet site to identify the user. This is frequently used in online shopping.

DNS (p. 23)

An abbreviation for Domain Name System. This “DNS” is also referred to as a “name server”, “primary DNS server”, “primary name server”, etc. This is a server that replaces a domain name with an IP address. This is specified by an IP address.

Download (p. 54)

Load information from the server through the phone line.

E-mail (p. 29)

Also referred to as “Email”, “Mail”, etc. Using a network, such as the Internet, you can send and receive a message very quickly. E-mail is easy to edit or store.

E-mail address (p. 29)

Also referred to as an “Email address”, “Mail address”, etc. This is the destination address for e-mail. There is no need to specify the country and the house number. The same address does not exist in the world. You can receive your e-mail even if your are in another country.

Forward (p. 51)

To forward a received e-mail message to another person. “Fw:” (Forward) is added to the beginning of the title in order to indicate that the e-mail is a forwarded e-mail.

Additional Information

ID (p. 23)

Used to identify the user in combination with a password when accessing the Internet through the Internet service provider.

Internet (p. 4)

A worldwide network of computers. You can use e-mail, information retrieval services, etc., over this network.

Internet service provider (p. 4)

Also referred to as a “Provider”, an “ISP”, etc. A company that provides access to the Internet.

75-GB

Glossary

Link (p. 49)

A related page address listed on a Web page as a Web link.

Password (p. 23)

Used to access the provider in combination with a user ID.

POP3 (p. 25)

An abbrebiation for Post Office Protocol, Version 3. This is a server used to receive email.

PPP (p. 23)

An abbrebiation for Point to Point Protocol, Version 3. This is a protocol for accessing a provider using a dial-up connection.

Proxy (p. 25)

A server or program to make a computer located inside a firewall pass through the firewall.

Reply (p. 49)

To reply to a previously received e-mail message. When replying, “Re:” (Reply) is added to the beginning of the title in order to indicate that the e-mail is a reply.

Signature (p. 38)

Used to add your name, your address, etc., to the end of a message.

SMTP (p. 25)

An abbreviation for Simple Mail Transfer Protocol. This is a server used to send e-mail.

76-GB

SSL (p. 73)

An abbrebiation for Secure Sockets Layer. A protocol for exchanging information safely between Web browsers and Web servers. SSL is frequently used for credit card transactions over the Internet. SSL also has a function to verify ownership and to encrypt data.

Subject (p. 32)

The title of a e-mail message. When replying, “Re:” (Reply) is added to the beginning of the title in order to indicate that the e-mail is a reply. When forwarding an e-mail message, “Fw:” (Forward) is added to the beginning of the title in order to indicate that the e-mail is a forwarded e-mail message.

URL (p. 54)

An abbrebiation for Uniform Resource Locator. An address on the Internet. By specifying this address, you can access the Web page.

Web page (p. 54)

A Web site that makes information available on the Internet. When the page includes Web links, you can specify other pages by selecting the link.

Setup memo

Be careful not to reveal these entries.

Network Menu

Network Setup

Provider Setup

PPP

Mail

Browser

ID Password DNS1 DNS2 TEL No. 1 TEL No. 2 TEL No. 3

UserID Password Address POP Server SMTP Server

Proxy Port

Example

abc123@xxx.sony.co.xx hcHZ7yd

192.168.0.1

192.168.0.2 XXXXXXX

abc123 hcHZ7yd abc123@xxx.sony.co.xx pop.xxx.sony.co.xx smtp.xxx.sony.co.xx

proxy.xxx.sony.co.xx 8080

Additional Information

77-GB

À propos des marques commerciales

•“Memory Stick” et sont des marques déposées de Sony Corporation.

•Les marques commerciales BLUETOOTH appartiennent à leur propriétaire et sont utilisées sous licence par Sony Corporation.

•NetFront by Access Co., Ltd. est adopté pour la fonction Internet de ce produit.

•Certaines parties du logiciel fourni sont en partie basées sur le travail du Independent JPEG Group.

Tous les autres noms de produits mentionnés dans ce manuel peuvent être des marques commerciales ou des marques déposées de leurs sociétés respectives. En outre, les symboles “™” et “®” ne sont pas systématiquement mentionnés dans ce manuel.

Aucun dédommagement pour vos enregistrements

Vous ne pouvez prétendre à aucun dédommagement si l’enregistrement ou la lecture de fichiers joints ou téléchargés n’a pas eu lieu en raison d’un dysfonctionnement, de problèmes survenus avec le support de stockage, etc.

Précautions

•Avant d’utiliser la fonction réseau, veillez à régler l’horloge du caméscope. Pour plus de détails, reportez-vous au mode d’emploi du caméscope. Si vous utilisez la fonction réseau sans procéder au réglage de l’horloge, il est possible que vous ne puissiez pas envoyer ou recevoir de messages électroniques ou encore visualiser une page Web.

•Ne retirez pas la batterie ou ne débranchez pas l’adaptateur secteur lorsque l’appareil se trouve en mode NETWORK (Réseau). Sinon, la configuration du mode NETWORK (Réseau) risque d’être perdue. Quittez le mode NETWORK (Réseau) lorsque vous réglez le commutateur POWER sur OFF (CHG) ou lorsque vous passez à un autre mode.

•Nous vous recommandons de faire des copies de sauvegarde de vos messages électroniques et de vos préférences réseau. Ces éléments risquent d’être perdus en cas

d’altération de la mémoire. Pour sauvegarder vos préférences réseau, gardez-en une trace écrite ou utilisez la section “Configuration de la mémoire” page 77.) Ces données peuvent également être perdues en cas de réparation.

•La touche reset (réinitialisation) ne peut pas réinitialiser les préférences réseau.

Remarque sur le fonctionnement réseau en cas d’utilisation de la batterie

Lorsque l’autonomie de la batterie est insuffisante en mode NETWORK, utilisez l’adaptateur secteur ou remplacez la batterie par une batterie complètement rechargée. Avant de brancher l’adaptateur secteur ou de remplacer la batterie, vous devez quitter le mode NETWORK.

Remarque sur la fonction réseau

La fonction réseau est disponible uniquement dans les pays ou les zones suivantes : Allemagne, Autriche, Belgique, Danemark, Espagne, Finlande, France, Grèce, Irlande, Luxembourg, Norvège, Portugal, Suède, Suisse, Royaume-Uni et Pays-bas. (D’après une étude de Sony Corporation datée du 8. 1. 2001) Lorsque vous utilisez le caméscope dans un pays ou une zone non mentionné(e) cidessus, la fonction réseau est disponible uniquement dans le pays ou la zone d’achat du caméscope.

A l’attention des clients au CANADA

Le fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas provoquer d’interférence et (2) doit accepter tout type d’interférence, y compris les interférences susceptibles de provoquer un fonctionnement non souhaité de l’appareil.

Pour empêcher les interférences radio sur le service objet de la licence, cet appareil est censé être utilisé à l’intérieur et loin des fenêtres pour lui procurer un blindage maximal. Tout équipement installé à l’extérieur doit faire l’objet d’un droit de licence.

2-FR

Table des matières

Introduction

La fonction réseau du caméscope .............. 4

Présentation de la technologie sans fil

Bluetooth ................................................. 5

Opérations de base en mode

NETWORK .............................................6

Utilisation du Network Menu

(Menu réseau) ................................ 6

Utilisation du bouton de

commande ...................................... 7

Saisie de caractères ............................... 8

Utilisation de la barre de menus du

navigateur..................................... 13

Préparation

Enregistrement d’un appareil

Bluetooth ............................................... 15

Si vous utilisez l’adaptateur pour

modem avec fonction

Bluetooth....................................... 15

Si l’enregistrement échoue ................ 19

Affichage des informations sur votre

caméscope..................................... 19

Indication des ondes radio ................ 20

Sélection d’autres appareils Bluetooth

dans la liste ................................... 20

Suppression de la liste d’un appareil

Bluetooth enregistré .................... 20

Configuration des préférences réseau .....22

Configuration de vos préférences au

niveau de votre fournisseur

d’accès ........................................... 22

Configuration des préférences des

options réseau .............................. 26

Informations complémentaires

Emplacements de la mémoire fichier et

noms des fichiers ................................. 67

Dépannage ................................................... 68

Difficultés pour accéder à Internet .. 68 Difficultés liées au courrier

électronique .................................. 68

Difficultés pour visualiser une page

Web ................................................ 69

Spécifications............................................... 71

Messages ......................................................72

Généralités ........................................... 72

Messagerie électronique .................... 73

Navigateur ........................................... 73

Glossaire ...................................................... 75

Configuration de la mémoire.................... 77

Introduction

Fonctionnement du réseau

Utilisation du courrier électronique ........29

Envoi de courrier électronique ......... 29

Utilisation du carnet d’adresses ....... 40

Réception de courrier électronique .. 46 Suppression des messages inutiles .. 52

Visualisation de pages Web ......................54

Visualisation de pages Web .............. 54

Mémorisation de la page Web sur un

“Memory Stick” – Page Memo

(Mémoire de page) ...................... 61

Quitter le navigateur .......................... 66

3-FR

– Introduction –

La fonction réseau du caméscope

Le caméscope peut accéder à Internet via votre fournisseur d’accès au moyen d’une connexion à un réseau commuté avec un appareil Bluetooth. Vous pouvez visualiser une page Web et envoyer et recevoir des messages électroniques en intégrant les images enregistrées avec votre caméscope en pièce jointe. La spécification Bluetooth version 1.1 a été adoptée pour le système de communication du caméscope et les profils compatibles Bluetooth sont “Generic Access Profile” et “Dial-up Networking Profiles”.

Votre caméscope

comme l’adaptateur pour modem avec fonction Bluetooth

• Accédez facilement à Internet

Vous pouvez visualiser une page Web via Internet.

• Envoyez/recevez votre courrier électronique

Vers InternetUn équipement Bluetooth,

Vous pouvez envoyer ou recevoir du courrier électronique à tout moment ainsi que joindre des images à vos messages.

4-FR

Avant d’utiliser la fonction réseau, veillez à régler l’horloge du caméscope. L’horloge n’est pas configurée en usine. Vous devez également configurer le caméscope et le périphérique et effectuer les enregistrements requis (inscription auprès du fournisseur d’accès Internet, etc.)

Présentation de la technologie sans fil Bluetooth

Qu’est-ce que la technologie sans fil Bluetooth ?

La technologie sans fil Bluetooth permet une communication entre divers appareils Bluetooth sans utiliser de câbles. Les appareils pouvant utiliser cette technologie sont, entre autres, les ordinateurs, les périphériques, les ANP et les téléphones mobiles. Ce système de communication omnidirectionnel permet de communiquer même si l’appareil Bluetooth se trouve dans un sac ou s’il existe des obstacles entre les appareils. La technologie sans fil Bluetooth dispose également de fonctions de sécurité avancées, comme un brouillage des fréquences et un codage des données.

Authentification

La procédure d’authentification peut bloquer l’accès de ce réseau aux utilisateurs non spécifiés. Lorsque vous essayez d’établir une communication avec un appareil Bluetooth non enregistré, les appareils doivent d’abord s’enregistrer mutuellement en entrant un code d’accès commun sur chaque appareil. Lorsque vous vous connectez à un appareil Bluetooth déjà enregistré, la communication commence sans saisie du code d’accès.

Introduction

5-FR

Opérations de base en mode NETWORK

Cette section décrit les méthodes de commande de base pour utiliser le caméscope, plus précisément celles qui sont utilisées pour les opérations réseau.

Utilisation du Network Menu (Menu réseau)

Pour accéder au Network Menu (Menu réseau), reportez-vous à la section “Accès au réseau” du mode d’emploi du caméscope.

[a]

[b]

[c]

[d]

6-FR

[a]: envoi et réception de courrier électronique. Pour plus de détails, voir la section

“Utilisation du courrier électronique” page 29.

[b]: visualisation d’une page Web via Internet. Pour plus de détails, voir la section

“Visualisation de pages Web” page 54.

[c]: vous devez effectuer divers réglages à l’aide de ce menu avant d’utiliser la fonction

réseau. Pour plus de détails, voir la section “Configuration des préférences réseau” page 22.

[d]: quitter le mode NETWORK (Réseau).

Les écrans réels peuvent être légèrement différents des illustrations de ce mode d’emploi de la fonction réseau.

Opérations de base en mode NETWORK

Utilisation du bouton de commande

La plupart des opérations réseau sont effectuées via le bouton de commande. Sélectionnez un bouton sur l’écran à l’aide du bouton de commande, puis validez en appuyant sur le bouton de commande.

Remarque

La forme du bouton de commande peut varier selon le modèle du caméscope.

(1) Appuyez plusieurs fois sur v/V/b/B sur le bouton de commande pour

sélectionner le bouton de votre choix affiché sur l’écran. Le bouton sélectionné devient orange.

(2) Appuyez sur z au centre du bouton de commande pour entrer le réglage.

Introduction

Répétez les étapes 1 et 2 pour exécuter la fonction.

La procédure ci-dessus est décrite par “Sélectionnez [XXXX], puis appuyez sur z au centre du bouton de commande” dans le présent mode d’emploi.

7-FR

Opérations de base en mode NETWORK

Saisie de caractères

Vous aurez souvent besoin de saisir des caractères, comme pour les adresses de messagerie électronique ou les adresses de page Web (URL), pour utiliser la fonction réseau. Cette section décrit comment saisir des caractères.

1 Sélection du type de caractère

(1) Affichez l’écran de saisie des caractères.

(2) Sélectionnez l’un des onglets de type de caractère.

abc: si vous saisissez des caractères alphabétiques. 123: si vous saisissez des caractères numériques.

Si vous avez sélectionné abc Si vous avez sélectionné 123

2 Saisie de caractères

(1) Sélectionnez la touche comportant le caractère que vous souhaitez saisir.

8-FR

Opérations de base en mode NETWORK

(2) Appuyez sur z au centre du bouton de commande pour entrer le caractère.

Appuyez plusieurs fois de suite pour sélectionner les autres caractères de la touche. Lorsque vous saisissez le même caractère ou les autres caractères de la même touche, sélectionnez une autre touche à l’aide de v/V/b/B sur le bouton de commande, puis sélectionnez à nouveau la touche précédente. Pour plus de détails sur les caractères disponibles, reportez-vous à la section “Liste des caractères disponibles” page 12.

(3) Répétez les étapes 1 et 2 pour saisir des caractères.

(4) Après avoir saisi les caractères, sélectionnez [Enter], puis appuyez sur z au

centre du bouton de commande. L’écran qui était affiché avant l’écran de saisie des caractères réapparaît.

Remarque

Même si vous annulez l’opération de saisie des caractères, sélectionnez [Enter], puis appuyez sur z au centre du bouton de commande pour quitter l’écran de saisie des caractères.

Introduction

Suppression d’un caractère

Sélectionnez [<] ou [,]. À chaque pression sur z au centre du bouton de commande, le curseur se déplace vers la gauche ou la droite. Déplacez le curseur à droite du caractère que vous souhaitez supprimer, sélectionnez [Back Space] (Retour), puis appuyez sur z au centre du bouton de commande. Le caractère situé à gauche du curseur est supprimé.

Ajout d’un caractère

Sélectionnez [<] ou [,]. À chaque pression sur z au centre du bouton de commande, le curseur se déplace vers la gauche ou la droite. Déplacez le curseur à l’endroit où vous souhaitez ajouter un caractère, puis saisissez les caractères.

Commencer une nouvelle ligne

Sélectionnez [ ],puis appuyez sur z au centre du bouton de commande.

9-FR

Opérations de base en mode NETWORK

Par ex., saisissez “Hello” dans l’option Subject (Objet) de l’écran Send (Envoyer)

(1) Sélectionnez l’onglet abc.

(2) Sélectionnez [ghi], puis appuyez cinq fois sur z au centre du bouton de

commande. “H” est saisi.

(3) Sélectionnez [def], puis appuyez deux fois sur z au centre du bouton de

commande. “e” est saisi.

10-FR

(4) Sélectionnez [jkl], puis appuyez trois fois sur z au centre du bouton de

commande. “l” est saisi.

Opérations de base en mode NETWORK

(5) Sélectionnez [ ], puis appuyez sur z au centre du bouton de commande.

Le curseur se déplace sur la position suivante.

(6) Sélectionnez [jkl], puis appuyez trois fois sur z au centre du bouton de

commande. “l” est saisi.

(7) Sélectionnez [mno], puis appuyez trois fois sur z au centre du bouton de

commande. “o” est saisi.

Introduction

(8) Sélectionnez [Enter], puis appuyez sur z au centre du bouton de commande.

“Hello” est saisi et l’écran Send (Envoyer) apparaît à nouveau.

11-FR

Opérations de base en mode NETWORK

Liste des caractères disponibles

Caractères alphabétiques

Touche Caractère

abc

a t b t c t A t B t C t a t...

def

d t e t f t D t E t F t d t...

ghi

g t h t i t G t H t I t g t...

jkl

j t k t l t J t K t L t j t...

mno

m t n t o t M t N t O t m t...

pqrs

p t q t r t s t P t Q t R t S t p t...

tuv

t t u t v t T t U t V t t t...

wxyz

w t x t y t z t W t X t Y t Z t w t...

Symboles (si vous sélectionnez l’onglet abc)

Touche Caractère

.’,?!

. t ' t , t ? t ! t . t...

/˜\^

@ t / t ~ t \ t ^ t @ t...

www.

www. t .com t .net t .html t www. t...

` ´ ˆ

´y

¨ ˜

¿¡

çß

ç t ß t ¿ t ¡ t Ç t ç t...

12-FR

Symboles (si vous sélectionnez l’onglet 123)

Touche Caractère

|<>{}

| t < t > t { t } t | t...

()[]

( t ) t [ t ] t ( t...

.+–=_

. t + t - t = t _ t . t...

∗

;&:’

#”$%

t ; t & t : t ' t ∗ t...

# t " t $ t % t # t...

Opérations de base en mode NETWORK

Caractères numériques

Touche Caractère

Utilisation de la barre de menus du navigateur

Lorsque vous accédez à Internet et que vous visualisez une page Web, vous pouvez effectuer diverses opérations à l’aide de la barre de menus. Lorsque l’écran du navigateur est affiché, appuyez sur BROWSER MENU du caméscope pour afficher la barre de menus. Pour plus de détails sur l’utilisation de BROWSER MENU, reportezvous au mode d’emploi du caméscope.

Introduction

Affichage de la barre de menus

(1) Appuyez sur BROWSER MENU sur le caméscope.

La barre de menus suivante apparaît.

(2) Appuyez sur V sur le bouton de commande.

Les autres boutons de la barre de menus apparaissent.

Masquer la barre de menus

Appuyez de nouveau sur BROWSER MENU sur le caméscope. La barre de menus disparaît.

13-FR

Opérations de base en mode NETWORK

Boutons de la barre de menus

Boutons de la partie supérieure

Bouton Fonction

(Previous Page, Page précédente) Aller à la page précédente. (Next Page, Page suivante) Aller à la page suivante.

(Refresh, Rafraîchir) Rafraîchir la page en cours.

(Stop, Arrêt) Arrêter le chargement de la page en cours.

(New URL, Nouvelle URL) Saisir l’URL d’une page Web.

(Bookmark, Signet) Insérer un signet dans la page en cours. (Les

(Line Close, Fermeture de ligne) Déconnecter la ligne téléphonique.

END

(End, FIN) Quitter le navigateur.

Boutons de la partie inférieure

Bouton Fonction

(Zoom) Modifier la taille de la page.

(Frame Select, Sélection d’une trame) Modifier la trame de la page en cours de

(Page Information, Informations Afficher le titre et l’URL de la page en cours.

sur la page)

(Page Memo, Mémoire de page) Mémoriser la page en cours dans le “Memory

Utilisez ce bouton lorsque les images ou les caractères d’une page Web n’apparaissent pas correctement.

signets sont mémorisés dans le caméscope.) Les signets sont pratiques pour accéder à des pages que vous utilisez fréquemment.

visualisation. Utilisez ce bouton lorsque la page dispose de différentes trames.

Stick”. Vous pouvez alors visualiser la page sans accéder à Internet.

14-FR

Remarque

Suivant la page Web à laquelle vous accédez, il se peut que les boutons ne fonctionnent pas.

– Préparation –

Enregistrement d’un appareil Bluetooth

Cette section décrit comment procéder à un enregistrement avec un appareil Bluetooth. Nous décrivons ici la procédure d’enregistrement de l’adaptateur pour modem Sony avec fonction Bluetooth. Une fois l’enregistrement effectué, le caméscope peut se raccorder à l’appareil Bluetooth sans procéder à un réenregistrement de l’appareil. Vous pouvez enregistrer jusqu’à trois appareils Bluetooth. Reportez-vous également au mode d’emploi fourni avec l’appareil Bluetooth.

Pour obtenir plus d’informations sur les appareils Bluetooth compatibles avec le caméscope, consultez l’URL suivant :

•http://www.sony.ca/service

•http://www.sony-europe.com/imaging, puis cliquez sur “support”

•http://www.sony-asia.com.sg/helpdesk

Modèle DCR-IP7BT/PC120BT uniquement L’adaptateur pour modem BTA-NW1 Sony avec fonction Bluetooth est fourni avec le DCR-IP7BT/PC120BT. Cet appareil a déjà été enregistré sur votre DCR-IP7BT/ PC120BT.

Remarques

•Lorsque vous utilisez l’adaptateur pour modem BTA-NW1 Sony avec fonction Bluetooth, installez-le dans un endroit ne comportant aucun obstacle entre le caméscope et l’appareil. La distance entre les appareils doit être inférieure à 10 m (33 pieds).

•La connexion peut être interrompue suivant les conditions de la communication.

Préparation

Si vous utilisez l’adaptateur pour modem avec fonction Bluetooth

1 Préparation de l’adaptateur pour modem avec fonction Bluetooth

Mettez l’adaptateur pour modem avec fonction Bluetooth en attente de connexion (BONDING). Pour plus de détails, reportez-vous au mode d’emploi fourni avec l’adaptateur pour modem avec fonction Bluetooth.

15-FR

Enregistrement d’un appareil Bluetooth

2 Spécification de l’adaptateur pour modem avec fonction Bluetooth

comme équipement de connexion

(1) Ouvrez le Network Menu(Menu réseau).

Pour plus de détails sur l’ouverture du Network Menu (Menu réseau), reportez-vous à la section “Accès au réseau” dans le mode d’emploi fourni avec votre caméscope.

(2) Sélectionnez [

bouton de commande. L’écran Setup (Configuration) apparaît.

Setup] (Configuration), puis appuyez sur z au centre du

(3) Sélectionnez [Bluetooth Setup] (Configuration Bluetooth), puis appuyez sur z

au centre du bouton de commande. L’écran Bluetooth Setup (Configuration Bluetooth) apparaît.

16-FR

Enregistrement d’un appareil Bluetooth

(4) Sélectionnez [Select] (Sélectionner), puis appuyez sur z au centre du bouton

de commande. La liste des appareils Bluetooth apparaît. Lorsque vous effectuez un enregistrement pour la première fois, seuls [ (Nouveau) sont indiqués. La liste contient jusqu’à trois appareils Bluetooth. Si vous sélectionnez un appareil Bluetooth dans la liste, reportez-vous à la section “Sélection d’autres appareils Bluetooth dans la liste” page 20.

Conseil

Le dernier appareil Bluetooth utilisé apparaît à côté de [

Return] (Retour) et [ New]

Préparation

New] (Nouveau).

(5) Sélectionnez [

commande. Le caméscope commence à rechercher les appareils Bluetooth. Lorsque la recherche est terminée, la liste des appareils Bluetooth disponibles apparaît.

New] (Nouveau), puis appuyez sur z au centre du bouton de

Remarques

•La recherche prend entre 10 à 60 secondes. La durée dépend du nombre d’appareils Bluetooth placés à proximité du caméscope.

•Si l’appareil Bluetooth que vous souhaitez enregistrer est introuvable, recommencez la procédure à partir de l’étape 4.

(6) Sélectionnez l’appareil Bluetooth de votre choix, appuyez ensuite sur z au

centre du bouton de commande. L’écran de saisie des caractères apparaît.

17-FR

Enregistrement d’un appareil Bluetooth

(7) Saisissez ensuite le code d’accès.

Pour plus de détails sur la saisie des caractères, reportez-vous à la section “Saisie de caractères” page 8. Par exemple, lorsque vous utilisez l’adaptateur pour modem BTA-NW1 avec fonction Bluetooth, le code d’accès correspond au numéro de série indiqué sur l’étiquette du panneau arrière.

MODEL NO.

MODEM ADAPTOR WITH BLUETOOTHTM FUNCTION

Conseil concernant l’option “PassKey” (Code d’accès)

Le code d’accès est un numéro d’identification nécessaire pour permettre la communication entre deux appareils Bluetooth. La connexion sera autorisée après saisie du code d’accès. Ce “code d’accès” est également désigné par les termes “code d’accès Bluetooth”, “NIP”, “NIP Bluetooth”, etc. Pour plus de détails, reportez-vous au mode d’emploi fourni avec l’adaptateur Bluetooth.

(8) Sélectionnez [Enter], puis appuyez sur z au centre du bouton de commande.

Après enregistrement, l’écran Bluetooth Setup (Configuration Bluetooth) réapparaît. L’appareil Bluetooth sélectionné est spécifié.

BTA-NW1

Code d’accès

Nombre utilisé lorsque vous enregistrez un appareil Bluetooth

18-FR

Remarque

Lorsque le message “Bluetooth Registration Error Check the Passkey” (“Erreur d’enregistrement Bluetooth, vérifiez le code d’accès”) apparaît, sélectionnez [OK], puis appuyez sur z au centre du bouton de commande. Recommencez la procédure à partir de l’étape 4.

(9) Sélectionnez [Exit] (Quitter), puis appuyez sur z au centre du bouton de

commande. L’écran Setup (Configuration) réapparaît. Pour plus de détails sur la désactivation de l’adaptateur pour modem avec fonction Bluetooth, reportezvous au mode d’emploi s’y rapportant.

(10)Sélectionnez [Exit] (Quitter), puis appuyez sur z au centre du bouton de

commande.

Le Network Menu (Menu réseau) réapparaît.

Enregistrement d’un appareil Bluetooth

Si l’enregistrement échoue

Recommencez la procédure décrite dans la section “Si vous utilisez l’adaptateur pour modem avec fonction Bluetooth” page 15 à partir de l’étape 4.

Affichage des informations sur votre caméscope

Vous pouvez afficher les informations de votre caméscope.

(1) Ouvrez le Network Menu(Menu réseau).

Pour plus de détails sur l’ouverture du Network Menu (Menu réseau), reportez-vous à la section “Accès au réseau” dans le mode d’emploi fourni avec votre caméscope.

(2) Sélectionnez [

bouton de commande. L’écran Setup (Configuration) apparaît.

Setup] (Configuration), puis appuyez sur z au centre du

Préparation

(3) Sélectionnez [Bluetooth Setup] (Configuration Bluetooth), puis appuyez sur z

au centre du bouton de commande. L’écran Bluetooth Setup (Configuration Bluetooth) apparaît.

19-FR

Enregistrement d’un appareil Bluetooth

(4) Sélectionnez [Info.] (Informations), puis appuyez sur z au centre du bouton de

commande. L’écran Bluetooth Setup: Self information (Configuration Blutooth : informations) apparaît.

Nom du modèle

Il s’agit de l’adresse unique attribuée à chaque caméscope en usine. Cette adresse est utilisée lors de l’échange d’informations entre les appareils. Elle ne peut pas être modifiée. (Le numéro indiqué dans l’illustration est juste un exemple.)

Pour faire disparaître l’écran Self Information (Informations)

Sélectionnez [Return] (Retour), puis appuyez sur z au centre du bouton de commande.

Indication des ondes radio

indique le statut des ondes radio de l’appareil Bluetooth connecté. (Cette indication

doit vous servir de guide.)

20-FR

Sélection d’autres appareils Bluetooth dans la liste

Sélectionnez l’appareil Bluetooth que vous souhaitez spécifier, puis appuyez sur z au centre du bouton de commande à l’étape 4 de la section “Si vous utilisez l’adaptateur pour modem avec fonction Bluetooth” page 15. Les informations relatives à l’appareil sont affichées. Sélectionnez [Exit] (Quitter), puis appuyez sur z au centre du bouton de commande.

Suppression de la liste d’un appareil Bluetooth enregistré

Vous pouvez enregistrer jusqu’à trois appareils Bluetooth sur le caméscope. Lorsque vous supprimez un appareil Bluetooth de la liste, suivez la procédure ci-dessous.

(1) Ouvrez le Network Menu(Menu réseau).

Pour plus de détails sur l’ouverture du Network Menu (Menu réseau), reportez-vous à la section “Accès au réseau” dans le mode d’emploi fourni avec votre caméscope.

Enregistrement d’un appareil Bluetooth

(2) Sélectionnez [ Setup] (Configuration), puis appuyez sur z au centre du

bouton de commande. L’écran Setup (Configuration) apparaît.

(3) Sélectionnez [Bluetooth Setup] (Configuration Bluetooth), puis appuyez sur z

au centre du bouton de commande. L’écran Bluetooth Setup (Configuration Bluetooth) apparaît.

(4) Sélectionnez [Select] (Sélectionner), puis appuyez sur z au centre du bouton

de commande. La liste des appareils Bluetooth apparaît.

Préparation

(5) Sélectionnez l’appareil que vous souhaitez supprimer, puis appuyez sur z au

centre du bouton de commande. Le nom et l’adresse de l’appareil sélectionné s’affichent.

(6) Sélectionnez [Delete] (Supprimer), puis appuyez sur z au centre du bouton de

commande. L’appareil sélectionné est supprimé de la liste.

21-FR

Configuration des préférences réseau

Vous devez accéder à Internet pour visionner une page Web ou envoyer ou recevoir vos messages électroniques. Cette section décrit comment configurer vos préférences réseau pour accéder à Internet.

Configuration de vos préférences au niveau de votre fournisseur d’accès

Configurez les préférences du fournisseur d’accès en fonction des spécifications de votre fournisseur. Si vous ne comprenez pas les options de configuration, consultez votre fournisseur d’accès.

(1) Ouvrez le Network Menu (Menu réseau).

Pour plus de détails sur l’ouverture du Network Menu (Menu réseau), reportez-vous à la section “Accès au réseau” dans le mode d’emploi fourni avec votre caméscope.

22-FR

(2) Sélectionnez [

bouton de commande. L’écran Setup (Configuration) apparaît.

Setup] (Configuration), puis appuyez sur z au centre du

(3) Sélectionnez [Network Setup] (Configuration réseau), puis appuyez sur z au

centre du bouton de commande. L’écran Provider Setup: Custom (Configuration du fournisseur d’accès : personnalisation) apparaît. Si l’écran PPP (Protocole PPP) n’apparaît pas, sélectionnez l’onglet PPP.

Configuration des préférences réseau

(4) Configurez les options suivantes :

ID: saisissez le nom d’utilisateur utilisé pour accéder à votre fournisseur

d’accès via une connexion par ligne commutée.

Conseil concernant l’option “ID”

“ID” est également désignée par les termes “ID utilisateur”, “code utilisateur”, “code utilisateur PPP”, “ID réseau”, “nom du compte”, “code d’identification”, “nom d’utilisateur”, etc.

Password: saisissez le mot de passe utilisé pour accéder à votre fournisseur

d’accès via une connexion par ligne commutée.

Conseil concernant l’option “Password”

“Mot de passe” est également désigné par les termes “mot de passe PPP”, “mot de passe réseau”, “mot de passe de connexion”, etc.

Conseil concernant la connexion par ligne commutée

La connexion par ligne commutée est utilisée pour accéder à Internet via une ligne téléphonique.

DNS1: saisissez l’adresse du serveur DNS (système de noms de domaine) de

votre fournisseur d’accès.

Conseils concernant l’option “DNS1”

•“DNS1” est également désigné par les termes “serveur de noms de domaine”, “serveur DNS primaire”, “serveur de noms primaire”, etc.

•Cette entrée peut être inutile suivant votre fournisseur d’accès. Pour plus de détails, consultez votre fournisseur d’accès.

Préparation

DNS2: saisissez l’adresse du serveur DNS secondaire de votre fournisseur

d’accès, le cas échéant.

Conseils concernant l’option “DNS2”

•“DNS2” est également désigné par le terme “serveur DNS secondaire” etc.

•Cette entrée peut être inutile suivant votre fournisseur d’accès. Pour plus de détails, consultez votre fournisseur d’accès.

TEL No. 1: saisissez les numéros de téléphone de votre point d’accès le plus

pratique.

Conseil concernant le point d’accès

La plupart des fournisseurs d’accès installent des points d’accès à divers endroits. Nous vous recommandons de sélectionner le point d’accès le plus pratique vous permettant de réduire vos coûts téléphoniques au maximum.

TEL No. 2/TEL No. 3: saisissez les deuxième et troisième numéros de

téléphone, le cas échéant.

23-FR

Configuration des préférences réseau

(5) Sélectionnez l’onglet Mail (Message).

L’écran Mail (Message) apparaît.

(6) Configurez les options suivantes :

User ID: saisissez l’ID utilisateur que vous utilisez pour votre fournisseur

d’accès.

Password: saisissez le mot de passe de l’ID utilisateur pour accéder au serveur

POP. Votre ID utilisateur et votre mot de passe sont nécessaires pour utiliser votre messagerie électronique.

Conseil concernant l’option “Password”

“Mot de passe” est également désigné par les termes “mot de passe de messagerie”, “mot de passe de serveur de messagerie, etc.

Address: saisissez votre adresse de messagerie électronique. Conseil concernant l’option “Address”

“Adresse” est également désignée par les termes “adresse de messagerie”, “adresse e-mail”, etc.

24-FR

POP Server: Saisissez l’adresse du serveur POP (Post Office Protocol) de votre

fournisseur d’accès. Le serveur POP reçoit le courrier électronique.

Conseil concernant l’option “POP Server”

“Serveur POP” est également désigné par les termes “serveur de messagerie”, “serveur POP3”, etc.

SMTP Server: Server : saisissez l’adresse du serveur SMTP (Simple Mail

Transfer Protocol) de votre fournisseur d’accès. Le serveur SMTP envoie le courrier.

Conseil concernant l’option “SMTP Server”

“Serveur SMTP” est également désigné par les termes “serveur de messagerie”, “serveur de messagerie SMTP”, etc. Suivant le fournisseur d’accès, le serveur SMTP peut être le même que le serveur POP.

APOP: sélectionnez cette option si vous souhaitez utiliser APOP. Conseil concernant “APOP”

APOP est un protocole d’authentification pour assurer la sécurité. Cochez cette option si votre fournisseur d’accès supporte APOP. Renseignez-vous auprès de votre fournisseur d’accès pour savoir s’il supporte APOP ou non.

Sony DCR-IP7E, PC120E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
