The player
Portable USB
Memory Player
Operating Instructions
4-253-595-11(1)
AZ-ES1/ES128/ES256
©2004 Sony Corporation
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
Do not install the appliance in a confined
space, such as a bookcase or built-in
cabinet.
To prevent fire, do not cover the ventilation
of the apparatus with news papers, table
cloths, curtains, etc. And don’t place lighted
candles on the apparatus.
To prevent fire or shock hazard, do not place
objects filled with liquids, such as vases, on
the apparatus.
Warning
Certain countries may regulate disposal of
the battery used to power this product. Please
consult with your local authority.
The validity of the CE marking is restricted
to only those countries where it is legally
enforced, mainly in the countries EEA
(European Economic Area).
2
Table of Contents
Overview
What you can do with your player .............. 4
Main features ............................................... 5
Getting started
Step 1: Check the package contents. ........... 6
Step 2: Insert a battery. ................................ 7
Locating controls ......................................... 8
Basic operations
Listening to music ....................................... 9
1. Connect the headphones.......................... 9
2. Put on the headphones........................... 10
3. Insert the “pavit” into the player. .......... 11
4. Start playback........................................ 11
B
Advanced operations
Changing the sound quality (M.D.S.E) ..... 14
Playing a track repeatedly (REP 1) /
Playing all tracks in random order
(SHUF) .................................................. 14
Locking the controls (HOLD) ................... 15
Turning off the beep sounds (BEEP)......... 15
B
Additional information
Precautions ................................................ 16
Cleaning..................................................... 16
Troubleshooting ......................................... 17
Specifications ............................................ 19
Index ............................................ Back cover
3
Overview
What you can do with your player
AZ-ES1/ES128/ES256 is a portable USB memory player specially designed for use with a USB
storage media called “pavit.” You can send MP3 files from your computer to the “pavit,” insert
the “pavit” into the player, and carry your favorite songs anywhere.
1 Send your
favorite songs
to the “pavit.”
Use the supplied “Music
Transfer pavit Edition”
software to send MP3 files
from your computer to the
“pavit.”
What is “pavit”?
The “pavit” is a compact, lightweight, new-generation USB storage media* with a large
storage capacity. Although the “pavit” is dedicated to “pavit”-compatible devices, it can
also be used as an external storage media for your computer, since it connects directly to
the USB port, a standard interface for personal computers.
* Storage media is a device that can store data, such as floppy disk, hard disk and magneto-optic disk
(MO).
The “pavit” complies with USB2.0 (High-Speed USB).
2 Enjoy music
anywhere with
your player!
4
Main features
• Compact size, lightweight, highly portable, with skip-proof operation
• Up to 120 minutes of music can be stored in a 128-MB “pavit” and 240 minutes in a 256-MB
“pavit.”*
• MP3 files on your computer are sent to the “pavit” by simple and easy operations using the
supplied “Music Transfer pavit Edition” software.
•The “pavit” connects directly to the USB port on your computer for high-speed data transfer.
•You can also store a variety of data other than MP3 files in the new-generation USB storage
media “pavit. ”
*The time length varies according to the bit rate used when encoding MP3 files. The times indicated here are
for 128-kbps MP3 files.
Notes
• Music you record is limited to private use only. Any other use requires the permission of the copyright
holders.
• Sony is not liable for incomplete data transfer or damaged data due to problems of this product or your
computer.
OverviewOverview
5
Getting started
Step 1: Check the package contents.
Check the accessories enclosed in the package.
• Portable USB memory player (1)
• Stereo headphones (1)
• Headphone extension cord (1)
• Neck strap (1)
• Operating instructions for the application software “Music Transfer pavit Edition” (1)
• Quick start guide (1)
* Supplied with AZ-ES128 and AZ-ES256 only. For AZ-ES1, see “Optional accessories” on page 19.
• USB storage media “pavit”* (1)
• CD-ROM (“Music Transfer pavit Edition”)
(1)
6
Step 2: Insert a battery.
Insert one LR03 (size AAA) alkaline battery into the battery compartment as illustrated below.
Insert with the e
side upward.
e
E
Battery duration
Approximately 11 hours (continuous playback, with a Sony LR03 (size AAA) alkaline battery)
When the battery is drained, playback stops and the power is turned off automatically. If you try
to turn on the power in this state, the LED indicator will not light up and you cannot start
playback.
Replace the battery with a new one.
When you turn on the power after replacing the battery, playback starts from the track whose
playback was interrupted by battery drain.
To remove the battery
Turn the player upside down and push the battery inward a little to draw out the battery.
Getting started
E
e
The cover of the battery
compartment is designed
to prevent the battery
from dropping.
Notes on dry batteries
• Do not throw batteries into fire.
• Do not carry batteries with coins or other metallic objects. It can generate heat if the positive
and negative terminals of the battery are accidentally contacted by a metallic object.
•When the player is not to be used for a long time, remove the battery.
• If battery leakage occurs, wipe off any deposit in the battery compartment, and insert a new
battery. In case the deposit adheres to you, wash it off thoroughly.
7
Locating controls
2
15
3
Player (front/side) Player (rear)
678
E
.
N
S
O
.
D
.
M
F
F
O
4
P
E
E
B
O
N
F
F
O
O
F
F
R
E
P
1
O
H
L
S
D
H
U
F
1 LED indicator
2 VOLUME –/+* buttons
3 Nx* (play/stop) button
4 ./ > (skip) buttons
6 M.D.S.E (MP3 Digital Sound Enhancer)
switch
7 HOLD/BEEP switch
8 REP 1 (repeat 1)/SHUF (shuffle) switch
5 “pavit” slot
* The button has a tactile dot.
8
Basic operations
Listening to music
First, send MP3 files to the “pavit” from your computer using the supplied “Music Transfer pavit
Edition” software. Refer to the separate manual for “Music Transfer pavit Edition” about how to
send MP3 files to the “pavit.”
1
. Connect the headphones.
1 Remove the plug cover from the
player.
While pressing the latch 1, slide and
lift the plug cover 2.
2 Pass the headphone cord
through the notch in the plug
cover.
2
1
3 Connect the headphone plug to the i (headphones) jack, and reattach the
plug cover to the player.
Slide the plug cover so that it clicks into place securely.
2
1
Basic operations
(Continued)
9
2
. Put on the headphones.
You can hang the player from your neck with the supplied neck strap.
To use the player while carrying it in a pocket or bag, connect the supplied headphone
extension cord (see page 13).
1 Fold one end of the supplied neck
strap as illustrated to secure the
headphone cord.
2 Place the strap around your neck,
then fold the other end of the neck
strap to secure the headphone cord.
10
Note
Hold the folded-over end of the neck strap when
adjusting the length of the headphone cord.
3
. Insert the “pavit” into the player.
4
. Start playback.
NxVOLUME –/+
Align this projection with the
groove inside the “pavit” slot.
Basic operations
1 Press and hold Nx.
The power is turned on, a short beep is heard in the headphones (when the HOLD/BEEP
switch is set to BEEP ON), and playback starts.
2 Press VOLUME –/+ to adjust the volume.
Audio files (tracks) are played in the order of the Playlist created by the “Music Transfer
pavit Edition” software.
During play mode, the LED indicator slowly flashes in green.
Playback stops after the last track has been played.
(Continued)
11

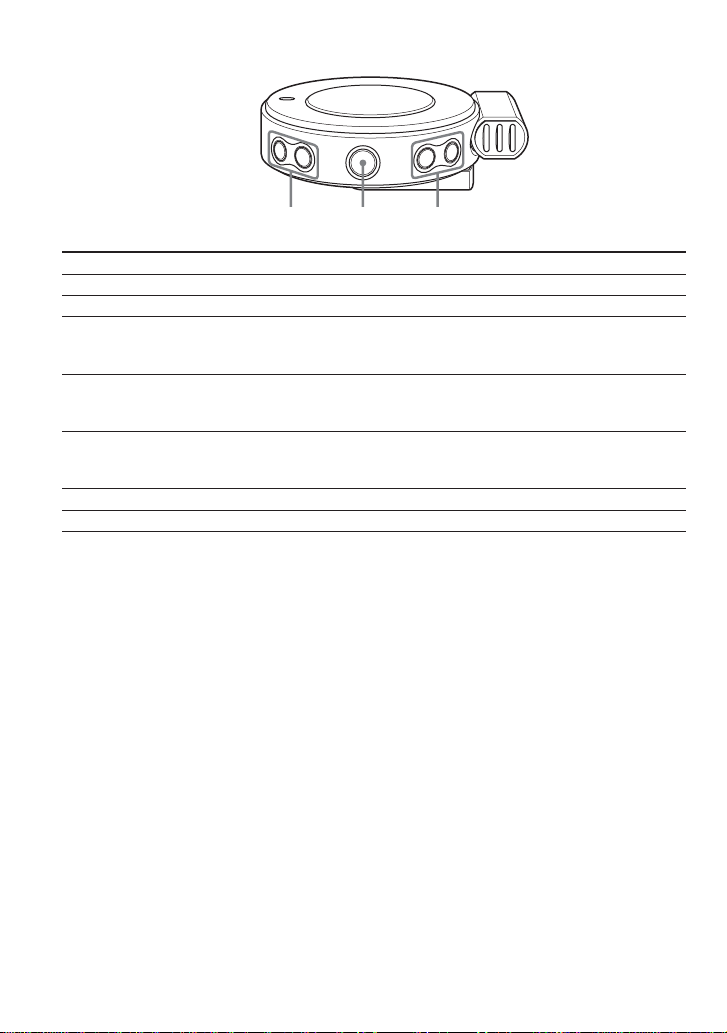

Other operations
VOLUME –/
+
./>Nx
To Do this
Go to the beginning of the next track Press >.*
1
Go to the beginning of the current track Press ..
Go to the beginning of previous tracks Press . repeatedly.*
To quickly locate the desired track, press and hold
. until you find it.*
Go to the beginning of succeeding tracks Press > repeatedly.*
To quickly locate the desired track, press and hold
>
until you find it.*
1
2
1
2
Adjust the volume Press VOLUME –/+.
Press and hold VOLUME –/+ to quickly turn up or
down the volume.
Stop playback Press Nx.*
3
Turn off the power Press and hold Nx.
*1 A short beep sounds for each track. When the first track is reached, the player emits a different beep sound.
*2 While holding down the button, a short beep sounds for each track. When the first track is reached, the
player emits a different beep sound and playback of the first track will start.
*3 The power is automatically turned off if the player is not operated for about 10 seconds while playback is
stopped.
If playback does not start
Make sure that the HOLD/BEEP switch is slid in the direction opposite to the arrow (see page
15).
To remove the “pavit”
Always turn off the power before you remove the “pavit.” The audio data or the “pavit” itself
might be destructed if you remove the “pavit” with the player’s power turned on.
Tip
Playback starts from the position where it was last stopped.
To start playback from the first track, press . or
to the first track.
Playback will also start from the first track when:
– you remove the “pavit” and insert a different “pavit.”
– you reset the player.
>
12
repeatedly, or press and hold . or > to return
Using the headphone extension cord
The headphone extension cord makes it easy to use the player while carrying it in your pocket or
bag.
1 Remove the plug cover from the player.
2
1
2 Connect the plug of the headphone extension cord to the i (headphones) jack on the player.
3 Connect the headphone plug to the headphone extension cord.
Basic operations
Notes
•The plug cover cannot be attached to the player when using the extension cord. Keep the plug cover in a safe
place so that you will not lose it.
•To prevent the wire from breaking, do not pull on the headphone cord when you connect or disconnect the
headphones, or when attaching or detaching the plug cover. Also, do not hang the player from your neck
when the headphone extension cord is connected.
13
B
Advanced operations
M.D.S.E REP 1/SHUF
P
E
E
B
O
N
F
F
O
E
.
N
S
O
.
D
.
M
F
F
O
O
F
F
R
E
P
1
O
H
L
S
D
H
U
F
Changing the sound
quality
The M.D.S.E (MP3 Digital Sound Enhancer)
allows you to enjoy clear digital sound and a
resonant bass.
Set the M.D.S.E switch to ON.
To return to the normal sound
Set the M.D.S.E switch to OFF.
(M.D.S.E)
Playing a track
repeatedly
(REP 1) /
Playing all tracks in
random order
To
Play the current track
repeatedly*
Play all tracks in random
order*
*1 After the track has been played 10 times
*2 Playback stops when all the tracks in the “pavit”
To return to the normal play mode
Set the REP 1/SHUF switch to OFF.
1
2
repeatedly, playback stops.
have been played.
(SHUF)
Set the REP 1/
SHUF switch to
REP 1
SHUF
14
HOLD/BEEP
O
E
.
N
S
O
.
D
.
M
F
F
O
P
E
E
B
O
N
F
F
O
F
F
R
E
P
1
O
H
S
L
D
H
U
F
Locking the controls
(HOLD)
When carrying the player in a bag, the
HOLD function can be used to prevent
accidental pressing of the buttons.
Slide the HOLD/BEEP switch in the
direction of the arrow.
A yellow mark behind the switch becomes
visible, and all operation buttons except for
the switches on the rear side are disabled.
To release the HOLD function
Slide the HOLD/BEEP switch in the
direction opposite to the arrow.
Turning off the beep
sounds
Set the HOLD/BEEP switch to BEEP
OFF.
To turn on the beep sounds
Set the HOLD/BEEP switch to BEEP ON.
It is recommended you set the HOLD/BEEP
switch to BEEP ON, as many operations can
be confirmed by beep sounds.
(BEEP)
Advanced operations
15
B
Additional information
Precautions
General
Never place the player in a place:
• under direct sunlight or near heat sources
• in a car with its windows closed
(especially in summer)
•where it will be subjected to excessive
moisture such as in a bathroom
• where there is much dust
• near magnets or magnetized items such as
speakers or TV
Headphones
Road Safety
Do not use headphones while driving,
cycling, or operating any motorized vehicle.
It may create a traffic hazard and is illegal in
many areas. It can also be potentially
dangerous to play your player at a high
volume while walking, especially at
pedestrian crossings. You should exercise
extreme caution or discontinue use in
potentially hazardous situations.
Preventing hearing damage
Avoid using the headphones at a high
volume. Hearing experts advise against
continuous, loud and extended play. If you
experience a ringing in your ears, reduce the
volume or discontinue use.
Warning
If there is lightning when you are using your
player, take off the headphones immediately.
In case of failure of this player, consult your
Aiwa dealer without opening the casing. If
failure occurs while the “pavit” is inserted in
the player, it is recommended not to remove
the “pavit” from the player to ensure an early
solution to the problem.
Cleaning
Clean your player’s casing with a soft cloth
slightly moistened with water or a mild
detergent solution.
Note
Do not use any type of abrasive pad, scouring
powder or solvent such as alcohol or benzene as it
may mar the finish of the casing.
Cleaning the headphone plug
If the headphone plug is dirty, it may cause
noise or sound skipping. To ensure good
sound quality, clean the headphone plug
periodically with a soft, dry cloth.
If you have any questions or problems
concerning your player, please consult your
nearest Aiwa dealer.
Consideration for others
Keep the volume at a moderate level. This
will allow you to hear outside sounds and to
be considerate to the people around you.
16
Troubleshooting
If you experience any of the following difficulties while using your player, use this
troubleshooting guide to help you to remedy the problem. Should any problem persist, consult
your nearest Aiwa dealer.
For trouble concerning operations while connected to your computer, also refer to
“Troubleshooting” in the separate manual for the “Music Transfer pavit Edition” software.
Operation
Symptom
There is no sound.
The buttons do not work.
The volume will not
increase.
The sound is distorted.
There is no sound output
from the right headphone.
Playback stops suddenly.
There is noise in the
playback sound.
The LED indicator flashes red
even though the battery has
just been replaced.
Cause/Remedy
c The volume level is set to the minimum level.
Increase the volume (page 11).
c The headphone plug is not connected properly.
Connect the headphone plug properly.
c The headphone plug is dirty.
Clean the headphone plug with a soft dry cloth.
c The HOLD function is activated.
Release the HOLD function (page 15).
c The player contains moisture condensation.
Let your player sit for a few hours.
c The battery is exhausted.
Replace the battery with a new one (page 7).
c The HOLD function is activated.
Release the HOLD function (page 15).
c The bit rate used when encoding the MP3 files was low.
Transfer MP3 files encoded with higher bit rates to the “pavit.”
c The headphone plug is not fully connected.
Connect the headphone plug fully.
c The battery is exhausted.
Replace the battery with a new one (page 7).
c The audio data itself contains noise.
Noise may have been introduced when creating audio data due to
the conditions of the computer. Create the audio data again.
c The player is not functioning normally.
Remove the “pavit” from the player and hold down Nx for more
than 5 seconds to reset the player.
c Send the audio data to the “pavit” again, as the data stored in the
“pavit” may have been destructed.
Additional information
(Continued)
17
Battery
Symptom
Battery life is short.
Other
Symptom
The “pavit” cannot be
inserted into the player.
The player gets warm.
The “pavit” which has been
used on another device does
not work.
Cause/Remedy
c The operating temperature is below 0°C (32°F).
Battery life becomes shorter in cold temperatures due to battery
characteristics. This is not a malfunction.
Cause/Remedy
c The “pavit” is being inserted backwards.
Insert the “pavit” in the correct orientation.
c The player gets warm if it is used for an extended period of time.
This is not a malfunction.
c The “pavit” has been formatted on a computer or another device.
Make a backup copy of any important data in the “pavit,” such as
by copying it to the hard disk of your computer. Then reformat the
“pavit,” using the supplied “Music Transfer pavit Edition”
software. As Music Transfer pavit Edition is not compatible with
FAT32 file systems, reformat the “pavit” with FAT or FAT16
format.
18
Specifications
Supported audio file format
MP3 Bit rate: 8 - 320 kbps*
Sampling frequencies: 24/22.05/16/12/
11.025/8/32/44.1/48 kHz
* 128 kbps or a higher bit rate is recommended.
Frequency response
20 - 20,000 Hz (single signal measurement)
Output
Headphones: Stereo mini-jack
Operating temperature
5°C - 35°C (41°F - 95°F)
Power source
One LR03 (size AAA) alkaline battery:
1.5 V DC × 1
Battery life
Approx. 11 hours with a Sony LR03 (size AAA)
alkaline battery
Dimensions
Approx. 65 × 65 × 17.8 mm
(2 5/8 × 2 5/8 × 23/32 in.)
(w/h/d, excluding projecting parts)
Approx. 65 × 75.1 × 28.8 mm
(2 5/8 × 3 × 1 3/16 in.)
(w/h/d, including projecting parts)
Mass
Approx. 50 g (1.8 oz) (including battery)
Accessories
See page 6.
Optional accessories
USB storage media “pavit”
AZ-RM128P: 128 MB
AZ-RM256P: 256 MB
Additional information
Design and specifications are subject to change
without notice.
19
Index
A, B
Battery 7
Beep 15
P, Q
“pavit” 4, 5
insert 11
remove 12
Playback 11
C, D, E
Cleaning 16
F, G
Format 18
H, I, J, K
Headphones
connect 9
extension cord 13
precautions 16
HOLD 15
L
Listening 9
Locking the controls (HOLD function) 15
M
M.D.S.E (MP3 Digital Sound Enhancer) 14
MP3 4, 5
Music Transfer pavit Edition 4, 9
N, O
Neck strap 10
R
Repeat 14
Reset 17
S
Shuffle 14
Skip 12
Sound 14
T, U
Troubleshooting 17
V, W, X, Y, Z
Volume 11, 12
http://www.aiwa.com/
Sony Corporation Printed in Korea
Loading...
