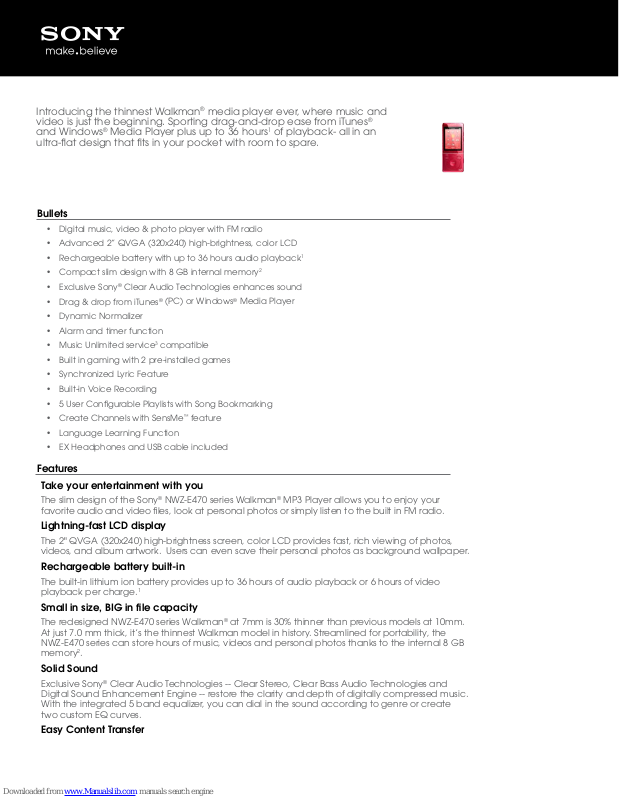

Sony NWZ-E474BLK, NWZ-E474RED Specifications

Page 1

NWZ-E474RED

Introducing the thinnest Walkman® media player ever, where music and video is just the beginning. Sporting drag-and-drop ease from iTunes® and Windows® Media Player plus up to 36 hours1 of playback- all in an ultra-at design that ts in your pocket with room to spare.

Bullets

• Digital music, video & photo player with FM radio

• Advanced 2” QVGA (320x240) high-brightness, color LCD

• Rechargeable battery with up to 36 hours audio playback

• Compact slim design with 8 GB internal memory

• Exclusive Sony® Clear Audio Technologies enhances sound

• Drag & drop from iTunes

• Dynamic Normalizer

• Alarm and timer function

• Music Unlimited service

• Built in gaming with 2 pre-installed games

• Synchronized Lyric Feature

• Built-in Voice Recording

• 5 User Congurable Playlists with Song Bookmarking

• Create Channels with SensMe

• Language Learning Function

• EX Headphones and USB cable included

(PC) or Windows® Media Player

compatible

™

feature

Red 8 GB Walkman® A/V player

Features

Take your entertainment with you

The slim design of the Sony® NWZ-E470 series Walkman® MP3 Player allows you to enjoy your favorite audio and video les, look at personal photos or simply listen to the built in FM radio.

Lightning-fast LCD display

The 2" QVGA (320x240) high-brightness screen, color LCD provides fast, rich viewing of photos, videos, and album artwork. Users can even save their personal photos as background wallpaper.

Rechargeable battery built-in

The built-in lithium ion battery provides up to 36 hours of audio playback or 6 hours of video playback per charge.

Small in size, BIG in le capacity

The redesigned NWZ-E470 series Walkman® at 7mm is 30% thinner than previous models at 10mm. At just 7.0 mm thick, it’s the thinnest Walkman model in history. Streamlined for portability, the NWZ-E470 series can store hours of music, videos and personal photos thanks to the internal 8 GB memory

Solid Sound

Exclusive Sony® Clear Audio Technologies -- Clear Stereo, Clear Bass Audio Technologies and Digital Sound Enhancement Engine -- restore the clarity and depth of digitally compressed music. With the integrated 5 band equalizer, you can dial in the sound according to genre or create two custom EQ curves.

Easy Content Transfer

Page 2

The Media Go™ application for Windows® allows you to transfer your favorite music, videos, playlists, and photos to your Walkman

easily. You can drag and drop the data from iTunes® for

Windows, Windows Media Player or Windows Explorer.

Dynamic Normalizer

Dynamic Normalizer balances the volume level between songs. With this setting, when listening to album songs in the shue play mode, the volume level between songs is moderated to minimize the dierence in their recording levels.

Keep track of time

The NWZ-E470 Walkman® player has a built in clock function with alarm and sleep timer functions.

Discover music with Music Unlimited

The NWZ-E470 series is compatible with Sony’s Music Unlimited service3, oering users access to millions of songs plus sync your personal library. Choose any album or song or sit back and enjoy channels.

Built-in Gaming

The NWZ-E470 series Walkman® comes pre-loaded with two relaxing games. Users can select between a colorful puzzle organizing game or a challenging numbers organization game. (similar to a falling block games & Sudoku)

Display song lyrics

Load LRC lyric les for your favorite songs and set the lyrics to scroll by in sync to the music.

Voice Recording

Using the built-in microphone you have a handy way to take a note or just have fun.

Bookmarking with Multiple Playlists

Users can bookmark songs and add them to 5 congurable playlists.

Create Channels with SensMe™ feature

SensMe™ tone analysis keeps your music in tune with your mood. SensMe soware application automatically groups your music into channels based on beats-per-minute, making listening and managing your content even simpler.

Language Learning Function

Learning a new language is made easier thanks to the adjustable playback speed control, A-B repeat and rewind functions.

Open, charge and listen

Everything you need is in the box including USB cable and so hybrid silicone EX headphones.

Specications

Audio

Audio Power Output

Antenna System

AVLS

Equalizer

Format(s) Supported

Frequency Response

Station Preset(s)

Tuner Frequency Range

Tuner Type

Audio Features

Play Mode

5mW+5mW

FM: Headphone Cord Antenna

Volume Limit ON/OFF

5 Band Equalizer with 6 presets: Heavy/ Pop/Jazz/ Unique/Custom 1/Custom 2 & Clear Bas

MP3 / WMA / AAC-LC / L-PCM

20 - 20,000Hz (When playing data le, single signal measruement)

up to 30 FM presets

87.5 to 108.0 MHz

Digital FM Tuner

Normal / Repeat / Shue / Shue&Repeat / Repeat Song/Playback Range / Display Lyrics/ Karaoke / Language study

Page 3

Simulated Surround

Sound Mode

Convenience

Automatic Shut-o

Recording Modes

Convenience Features

Karaoke

Multiple Language Display

On-Screen Display

Search Features

Display

Display Technology

Screen Size

General

Backlit Color

Recommended Use

Hardware

Headphone Type

Interface

VPT (Studio / Live / Club / Arena / Matrix)

DSEE: Digital Sound Enhancement Engine 5-band equalizer (None/Heavy/Pop/Jazz/Unique/Custom 1/Custom 2) VPT (Studio/Live/Club/Arena/Matrix) Clear Stereo (On/O) Clear Bass Dynamic Normalizer (On/O) DPC (Speed Control: x0.5/x0.7/x0.9/O/x1.1/x1.25/x1.5/x1.75/x2.0)

Sleep Timer Settings : O/Aer 30Min/Aer 60Min/Aer 90Min/Aer 120Min

Voice Recording

Karaoke / Language study: O / Language study / Maximum Karaoke Mode / Minimum Karaoke Mode

German/English/Spanish/French/Italian/Polish/Portuguese/Russian/ Turkish/Japanese/Korean/Simplied Chinese/Traditional Chinese

Portrait orientation (Landscape orientation during video play mode)

All Songs/Album/Artist/Genre/Release Year/Playlists/Bookmark/Folder/ Voice Recording

TFT color display with white LED-backlight, QVGA(320 x 240 Pixels)

2'' QVGA (320 x 240 Pixels)

White LED-backlight

Music / Video / Photo / FM / Podcast playback

MDR-EX083

Hi-Speed USB with WM-PORT(22pin)

Page 4

System Requirements

Inputs and Outputs

Headphone Output(s)

Memory

Memory Size

User Memory Capacity (Approx.)

Operating Conditions

Operating Temperature

Playback features

Photo Playback

Power

Battery Charging (Approx)

IBM PC/AT or compatible computer preinstalled with the following Windows operating systems 1:

Windows XP Home Edition Windows XP Professional Windows Vista Home Basic (Service Pack 2 or later) Windows Vista Home Premium (Service Pack 2 or later) Windows Vista Business (Service Pack 2 or later) Windows Vista Ultimate (Service Pack 2 or later) Windows 7 Starter (Service Pack 1 or later) Windows 7 Home Basic (Service Pack 1 or later) Windows 7 Home Premium (Service Pack 1 or later) Windows 7 Professional (Service Pack 1 or later) Windows 7 Ultimate (Service Pack 1 or later) Not supported by OSs other than above [Compatibility mode] for Windows XP (included with Windows Vista and Windows 7) is

not supported.

Excluding OS Versions not supported by Microso.

Excluding 64-bit OS versions.

CPU: 1 GHz processor (2.6GHz recommended for video playback) RAM: 1 GB or more

Hard Disk Drive / Solid State Drive: 600MB or more of available space Internet Explorer 7 or later Internet connection (for Gracenote® MusicID® service, podcast features, Store access,

and online help)

We do not guarantee operation for all computers even if they meet the above System Requirements.

Not supported by the following environments: Personally constructed computers or operating systems An environment that is an upgrade of the original manufacturer-installed operating

system Multi-boot environment Mac OS Design and specications are subject to change without notice.

1 (1/8" stereo mini jack)

8GB

6.71 GB (7,211,614,208 bytes)

5 'C to 35 'C (41 'F to 95 'F)

JPEG

USB based charging: 3 Hours (full charge), 1.5 Hour (80%)

(Service Pack 3 or later)

Battery Life (Approx)

Power Type

Video

Format

Dimensions (Approx.)

Music: 36 Hrs. Video: 6 Hrs. FM Radio: 12 Hrs. Voice Recording: 3 Hrs.

Built-in Rechargeable Li-ion Battery

AVC / MP4 / WMV

43.3 x 97.2 x 7.4　mm (1 3/4 x 3 7/8 x 5/16 inches)

Page 5

Weights and Measurements

Weight (Approx.)

51g (1.8oz)

Accessories

Walkman® player MDR-EX083 Earbud headphones Earbud adapters (S,M, L)

Supplied Accessories

1. Actual battery life will vary based on product settings, usage patterns and environmental conditions.

2. 1 GB equals 1 billion bytes, a portion of which is used for data management functions.

3. Requires registration, subscription fee and access via PC. Service subject to change or terminate without notice. Sync requires that music content exist in the service library. Copy

protected content is not supported.

logos are trademarks of Sony. iTunes is a trademark of Apple Inc. Windows is a trademark of Microso Corporation. All other trademarks are trademarks of their respective owners.

Updated: July 18, 2012

USB cable Quick Start Guide Soware: The soware is stored in the built-in ash memory of the player, and includes

the following items: Media Go, Walkman Guide & User Guide. For details on how to install, refer to “Quick Start Guide”.
