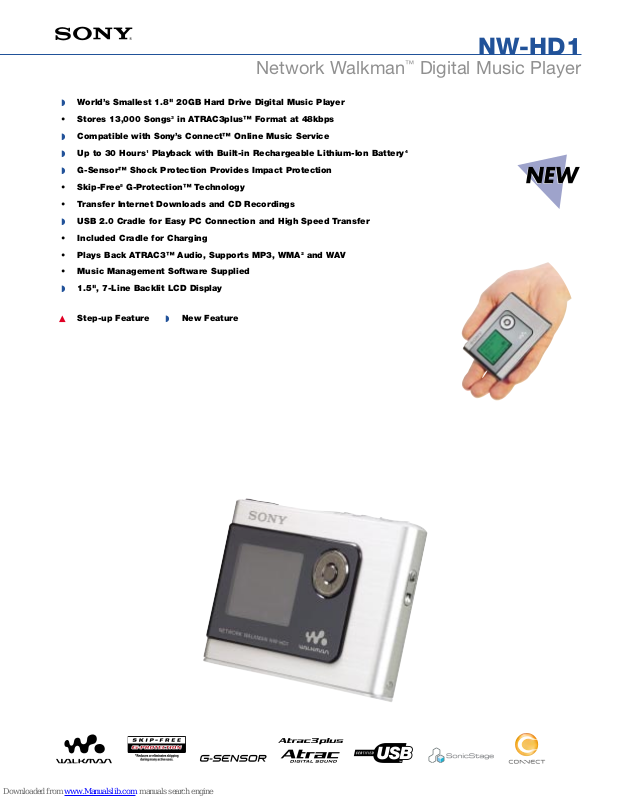

NW-HD1
Network Walkman™Digital Music Player
®
◗ World’s Smallest 1.8" 20GB Hard Drive Digital Music Player
• Stores 13,000 Songs
3
in ATRAC3plus™ Format at 48kbps
◗ Compatible with Sony’s Connect™ Online Music Service
◗ Up to 30 Hours1Playback with Built-in Rechargeable Lithium-Ion Battery
4
◗ G-Sensor™ Shock Protection Provides Impact Protection
• Skip-Free
5
G-Protection™ Technology
• Transfer Internet Downloads and CD Recordings
◗ USB 2.0 Cradle for Easy PC Connection and High Speed Transfer
• Included Cradle for Charging
• Plays Back ATRAC3™ Audio, Supports MP3, WMA
2
and WAV
• Music Management Software Supplied
◗ 1.5", 7-Line Backlit LCD Display
▲ Step-up Feature ◗ New Feature
Page 2
features
◗
World’s Smallest 1.8" 20GB Hard Drive Digital Music Player
fits comfortably into the palm of a hand or is easily carried in pocket
or purse
• Store 13,000 Tracks3 at 48kbps when using Sony’s ATRAC3plus™
audio format.
◗
Sony's Connect™ Online Music Service provides an easy method
for downloading legal music. Connect™ Music Service offers access to
over 500,000 songs plus many independent titles as well as featured
artist and celebrity mixes.
◗
Internal Rechargeable Battery Provides Up to 30 Hours
1
Continuous Playback (ATRAC3 Audio Playback) and can be
charged in the supplied charging cradle. Quick charge feature allows
battery to be charged to 80% capacity in one hour.
◗
G-Sensor™ Shock Protection provides impact protection.
• Skip-Free5G-Protection™ Technology continues to provide quick
recovery from both horizontal and vertical shock.
• Transfer Internet Downloads and Recordings between your CDs
and your PC, creating your own music mixes for on-the-go enjoyment.
◗
Connects to USB 2.0 Port for High-Speed Data Transfer. After
music mixes have been created in the jukebox, they are easily
transferred at high speed to the device.
• USB Cradle for PC Connection and Recharging connects unit
directly to PC and recharges the internal battery by simply placing the
Network Walkman
®
player in the USB cradle when cradle is powered by
supplied AC adaptor.
• Plays Back in ATRAC3™ Audio, Supports Multiple Internet Audio
Formats (MP3, WMA
2
, WAV) The Network Walkman player plays back
ATRAC3 and ATRAC3plus™ files and supports the most popular
Internet Audio formats.
• Music Management Software Supplied Import, manage and easily
transfer your digital music collections with the supplied music
management software.
◗
1.5" 7-Line Backlit LCD Display with 4 Modes depending on the
mode chosen, display will feature track number, bit rate, elapsed time,
song title, artist name, spectrum analyzer, play mode and bass/AVLS/
battery life indicator.
specifications
Outputs: Headphone (Stereo Mini Jack), Line Out
Input: USB Cradle Connector
Power Requirements: Embedded Rechargeable Lithium-Ion Battery
Battery Life (Approx.):
ATRAC3plus™ Audio Playback: Up to 30 Hours1with Embedded Lithium-Ion
Battery
Color: Silver
Dimensions (WHD): 3 5⁄8" x 2 1⁄2" x 9⁄16" (89.0 x 62.1 x 13.8mm)
Weight: 3.8 oz (110g)
Supplied Accessories: SonicStage®Software, Headphones, Carrying Pouch,
USB Cable, USB Cradle, AC Power Adaptor
©2004 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, ATRAC3, ATRAC3plus, Connect, G-Protection, G-Sensor, Network Walkman, SonicStage and
Walkman are trademarks of Sony.
1
Up to 30 hours continuous playback with built-in Lithium-Ion rechargeable battery (fully charged)
when playing in ATRAC3plus™ @ 48Kbps. Actual battery life may vary based on usage patterns.
2
Non secured WMA files.
3
Calculated based on 4 minutes per song @ 48kbps.
4
When playing back in ATRAC3plus file format
5
Eliminates or reduces skipping during many active uses.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
NW-HD1
Network Walkman™Digital Music Player
®
