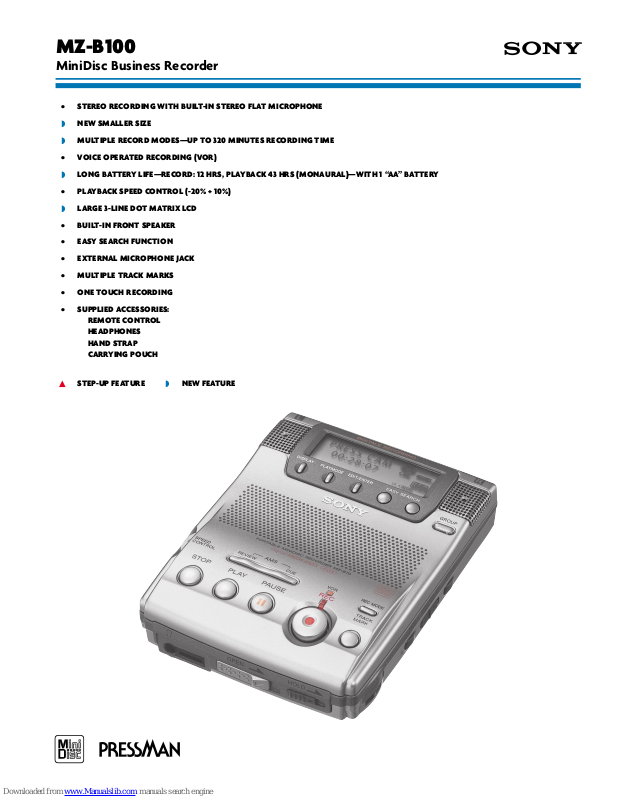

MZ-B100
MiniDisc Business Recorder
• STEREO RECORDING WITH BUILT-IN STEREO FLAT MICROPHONE
◗ NEW SMALLER SIZE
◗ MULTIPLE RECORD MODES—UP TO 320 MINUTES RECORDING TIME
• VOICE OPERATED RECORDING (VOR)
◗ LONG BATTERY LIFE—RECORD: 12 HRS, PLAYBACK 43 HRS (MONAURAL)—WITH 1 “AA” BATTERY
• PLAYBACK SPEED CONTROL (-20% + 10%)
◗ LARGE 3-LINE DOT MATRIX LCD
• BUILT-IN FRONT SPEAKER
• EASY SEARCH FUNCTION
• EXTERNAL MICROPHONE JACK
• MULTIPLE TRACK MARKS
• ONE TOUCH RECORDING
• SUPPLIED ACCESSORIES:
REMOTE CONTROL
HEADPHONES
HAND STRAP
CARRYING POUCH
▲ STEP-UP FEATURE ◗ NEW FEATURE
Page 2
MZ-B100
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
features
• STEREO RECORDING WITH BUILT-IN STEREO FLAT MICROPHONE
records separate left and right channels in stereo, and provides
convenient recording versatility in a variety of situations
◗
NEW SMALLER SIZE
represents continuing advances in Sony technology
and makes this unit light in weight and easier to transport and use
almost everywhere
◗
MULTIPLE RECORD MODES—UP TO 320 MINUTES RECORDING TIME
allows for extended recording times to record more than 5 hours
(in MD-LP mode) using standard MiniDiscs
• VOICE OPERATED RECORDING (VOR)
activates the recorder only when
audible sound is present, conserving tape and eliminating soundless passages
◗
LONG BATTERY LIFE—RECORD: 12 HRS/PLAYBACK: 43 HRS
(MONAURAL)—WITH JUST 1 “AA” BATTERY
is made possible by advanced
technology which extends battery power beyond previous limits
• PLAYBACK SPEED CONTROL (-20% + 10%)
lets you adjust playing speed
as much as +30% or -15% for easier review of recorded information
◗
LARGE 3-LINE DOT MATRIX LCD
shows track in use, track remaining
and name, disc remaining and name, recording date, play mode, and
other functions
• BUILT-IN FRONT SPEAKER
has excellent sound quality for general
monitoring and playback of recordings
• EASY SEARCH FUNCTION
allows moving forward or backward on the
recording at high speed, to locate specific recorded portions for playback
• EXTERNAL MICROPHONE JACK
allows connection of an external
microphone for special recording applications
• MULTIPLE TRACK MARKS
electronically marks separate points during
recording sessions, for later reference
• ONE TOUCH RECORDING
for simplified, quick play/record operation
• SUPPLIED ACCESSORIES: REMOTE CONTROL, HEADPHONES,
HAND STRAP, CARRYING POUCH
so this Pressman®recorder is ready to
go to work and travel with you, right out of the box
specifications
FORMAT:
MiniDisc
SAMPLING FREQUENCY:
44.1kHz
DATA COMPRESSION METHOD (CODING):
ATRAC (Adaptive Transform Acoustic Coding)
INPUTS:
DC In, 3V
Mic (stereo mini-jack)
Digital Line-in
SPEAKER:
1" (28mm)
POWER REQUIREMENTS:
“AA” x 1 battery
BATTERY LIFE:
Recording: 14 hours
Playback: 45 hours
COLOR:
Silver
DIMENSIONS (WHD):
4 1⁄8" x 3 1⁄8" x 1" (105.7 x 80 x 24.9mm)
WEIGHT:
5 2⁄3oz (160g)
SUPPLIED ACCESSORIES:
Headphone, Remote Control, Hand Strap,
Carrying Pouch
OPTIONAL ACCESSORIES:
AC-E30HG AC Adaptor, FS-85B50 Foot Control,
“AA” Battery, External Microphone, MiniDisc
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, Clear Voice, the MiniDisc logo, Pressman and Sony-Matic are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
