Sony MWE99 Operating Manual

2-581-015-61(1)

Portable IC Audio Player

Network Walkman

Operating Instructions

“WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products.

Corporation.

NW-E95/E99

is a trademark of Sony

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To prevent fire, do not cover the ventilation of the apparatus with newspapers, table cloths, curtains, etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

Note on installation

If you use the unit at a place subject to static or electrical noise, the track’s transferring information may be corrupted. This would prevent successful transferring authorization on your computer.

For the customers in the United States

Owner’s Record

The model number is located in the front and the serial number is located on the rear side of the player (see page 8). Record the serial number in the space provided below. Refer to them whenever you call your Sony dealer regarding this product.

Model No. Serial No.

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference using one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

If you have any questions about this product: Visit: www.sony.com/walkmansupport Contact: Sony Customer Information Services Center at (866)-456-7669 Write: Sony Customer Information Services Center 12451 Gateway Blvd..

Fort Myers, FL33913

Declaration of Conformity

Trade Name: SONY Model No.: NW-E95

Responsible Party: Sony Electronics Inc. Address: 16450 W. Bernardo Dr,

Telephone Number: 858-942-2230

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NW-E99

San Diego, CA 92127 USA

Notice for users

On the supplied software

• Copyright laws prohibit reproducing the software or the manual accompanying it in whole or in part, or renting the software without the permission of the copyright holder.

• In no event will SONY be liable for any financial damage, or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this player.

• In the event a problem occurs with this software as a result of defective manufacturing, SONY will replace it. However, SONY bears no other responsibility.

• The software provided with this player cannot be used with equipment other than that which is so designated.

• Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice.

• Operation of this player with software other than that provided is not covered by the warranty.

• Depending on the type of the text and characters, the text shown on SonicStage and MP3 File Manager may not be displayed properly on device. This is due to: – The capability of the connected player. – The player is not functioning normally. – The ID3 TAG information for the track is

written in the language or the character that is not supported by the player.

OpenMG and its logo are trademarks of Sony Corporation. SonicStage and SonicStage logo are trademarks or registered trademarks of Sony Corporation. ATRAC, ATRAC3, ATRAC3plus and their logos are trademarks of Sony Corporation. Microsoft, Windows and Windows Media are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders. In this manual,

and ® marks are not specified.

This manual explains how to operate your Network Walkman and how to use the MP3 File Manager (pre-installed software). For details on how to use the SonicStage (supplied software), refer to the SonicStage operating instructions.

Table of Contents

Overview ................................................... 6

What you can do with your Network

Walkman ........................................... 6

Other features ........................................ 7

Step 1: Checking the package contents ..... 8

Step 2: Inserting the battery ....................... 9

Locating controls ..................................... 10

Front side .............................................10

Rear side .............................................. 10

Display ................................................ 11

Basic Operations

Transferring audio files from the computer

to your Network Walkman ............... 12

Note on playing songs with a limited

playing period (Timeout contents) .. 13

Note on playing songs with a limited

playing count ................................... 13

Listening to music with your Network

Walkman........................................... 14

What is the Group function? ............... 15

On other operations ............................. 16

Advanced Operations

Repeat mode ............................................ 17

Selecting the repeat mode ................... 17

Playing the tracks repeatedly

(Track Repeat)................................. 18

Playing a specified section repeatedly

(A-B Repeat) ................................... 19

Playing specified sentences repeatedly

(Sentence Repeat) ........................... 20

Setting the repeat counts ..................... 21

Changing the display mode ..................... 22

Selecting the group display mode ....... 23

Adjusting treble and bass

(Digital sound preset) ....................... 23

Selecting the Sound quality ................. 23

Adjusting the Sound quality ................ 24

Locking the controls (HOLD) ................. 25

Storing non-audio data ............................ 25

Adjusting the settings of your Network Walkman

Adjusting the time setting of your Network

Walkman to a computer’s

built-in clock..................................... 26

Adjusting the current time setting

(DATE-TIME) .................................. 27

Limiting the volume (AVLS) ................... 28

Setting the volume using the preset

volume function ................................ 29

Setting a volume level of the preset

mode ................................................ 29

Switching to the manual mode ............ 30

Turning off the beep sound (BEEP) ........ 31

Changing the backlight setting ................ 32

Other functions

Regrouping songs (REGROUP)

— NW-E95 only............................... 33

Formatting memory (FORMAT) ............. 34

Other Information

Precautions .............................................. 35

Troubleshooting ....................................... 36

To reset the player ............................... 36

What happened? .................................. 36

Messages ............................................. 39

Specifications .......................................... 41

Glossary ................................................... 42

Menu list .................................................. 44

MP3 File Manager software operation

What you can do with the MP3 File

Manager ............................................ 45

Transferring MP3 audio files from the

computer to your Network Walkman 46

Display of MP3 File Manager ................. 48

Erasing audio file ..................................... 49

Ordering audio file .................................. 49

Index ................................................. 50

Overview

What you can do with your Network Walkman

First, you need to install the “SonicStage” software into your computer (MP3 File Manager software is pre-installed in your Network Walkman). You can easily transfer digital audio files from your computer to the built-in flash memory and carry it anywhere to enjoy.

MP3, WAV and

EMD (Electric Music

Distribution) Services

Audio CDs

Windows® Media

Format Audio Files

1 Store digital audio

files on your computer.

Download the latest audio files! Store favorite songs!

2 Transfer files to your

Network Walkman.

When you transfer MP3 format audio files to your Network Walkman, use MP3 File Manager software (pre-installed software) to transfer and store them as MP3 format audio files.

USB connection

3 Enjoy music with your

Network Walkman.

You can display the data stored in the built-in flash memory using Windows Explorer when your Network Walkman is connected to the computer. However, an MP3 file cannot be played back if you drag or copy the file directly on the Windows Explorer screen. When you transfer an MP3 format audio file to your Network Walkman, be sure to use the MP3 File Manager software (see page 45).

Other features

• Compact size, light weight, skip-proof operation, high portability.

• The pre-installed MP3 File Manager software enables you to transfer MP3 format audio files to your Network Walkman and listen to them with your Network Walkman as MP3 format files.

• Continuous playback time with a battery NW-E95/E99: Approximately 70*1 hours

• Recording time* NW-E95: 512MB built-in flash memory, more than 23 hours 20 minutes

NW-E99: 512MB + 512MB built-in flash memories, more than 46 hours 40 minutes

• The supplied SonicStage software enables you to record songs from audio CDs to the hard disk of your computer using the ATRAC3plus format (high sound quality, high compression).

• Sentence Repeat: Useful function for learning a foreign language.

• High-speed data transfer using the dedicated USB cable.

• Backlight LCD screen: song titles and artist names can be displayed.

• Group function: you can select songs to be played by album.

• Storage function: you can store a variety of data as well as audio files.

*1Differs according to the data format. In this case, the figure for the battery duration is when continuously

playing ATRAC3 format audio files.

Differs according to the bit rate when recording. In this case, the figure for the recordable time is when recording at 48kbps ATRAC3plus format.

NOTES:

• The recorded music is limited to private use only. Use of the music beyond this limit requires permission

of the copyright holders.

• Sony is not responsible for incomplete recording/downloading or damaged data due to problems of the

Network Walkman or computer.

Step 1: Checking the package contents

Please check the accessories in the package. NW-E95/E99:

• Network Walkman (1)

• Headphones (1)

• Dedicated USB cable (1)

• Carrying pouch (1)*

• Neck strap (1)*

• Extension headphone cord (1)

• CD-ROM for the SonicStage software (1)

• Operating Instructions (1)

• SonicStage Operating Instructions (1)

About the Serial Number

The serial number provided for your device is required for the customer registration. The number is on the rear side of your Network Walkman.

OPEN

Serial NO.

Serial Number

Record the serial number in the space provided below. Refer to it whenever you call upon your Sony dealer regarding this product.

Serial No. _____________________

* NW-E99 only

Step 2: Inserting the battery

Insert the size AAA (LR03) alkaline battery with correct polarity. Be sure to insert it from the E side as illustrated.

OPEN

Battery duration

ATRAC3 format: Approximately 70 hours ATRAC3plus format: Approximately 60 hours MP3 format: Approximately 50 hours * The battery life may be shorter due to operating

conditions and the temperature of the location.

On the remaining battery indication

The battery icon in the display changes as shown below.

low battery change the

If “LOW BATT” is displayed in the display, you need to change the battery.

Note

If you do not use the battery correctly, it may become damaged from leakage and corrosion. For best results: – Use the alkaline battery. – Make sure the polarity is correct. – Do not charge a dry cell battery. – Remove the battery, if you do not intend to use

the player for an extended period of time.

– If you have battery leakage, replace with a new

battery after cleaning the battery compartment.

battery

OPEN

If the battery compartment lid is accidentally detached, attach it as illustrated.

Locating controls

For details about each part, refer to the pages in parentheses.

Rear sideFront side

2 3

4 5 6

1 Strap hole for attaching the strap 2 REPEAT/SOUND button

(page 18 to 20, 23)

3 MENU button (page 16 to 22, 24, 26 to

34) You can switch to the Time display by pressing the MENU button for a while.

4 GROUP button (page 15, 23) 5 Display (page 11, 18, 39)

For details on the display and icons, refer to page 11.

6 ACCESS lamp (page 12, 46) 7 Headphone jack (page 14) 8 Nx button

(page 14, 16 to 17, 19 to 22, 24, 26 to

34)

OPEN

9 Shuttle switch

(page 16 to 17, 19 to 22, 24, 26 to 34)

0 VOLUME +/– button (page 14, 29)

qa HOLD (Locking controls) switch

(page 14, 25)

qs USB jack (page 12, 46) qd Battery compartment (page 9)

Display

Text/graphic information display (page

17) Displays track number, track name,

current date and time (page 22 to 28), MESSAGE (page 13, 39) and menu. Press the MENU button to switch the display mode. For details, refer to “Changing the display mode” on page

22.

2 Repeat mode indication (page 18)

The current repeat mode is displayed.

3 AVLS indication (page 28)

The indication appears while the AVLS function is activated.

4 Digital sound preset indication

(page 23 to 24) The current sound setting is displayed.

5 Remaining battery indication (page 9)

The remaining battery power is displayed.

Basic Operations

Transferring audio files from the computer to your Network Walkman

Note

Before connecting your Network Walkman to the computer for the first time, be sure to install the “SonicStage” software from the supplied CD-ROM in your computer. Even if the SonicStage software is already installed, you need to install the SonicStage software supplied with this Network Walkman before connecting your Network Walkman to the computer (update programs may be available).

You can transfer ATRAC3plus format audio files from the computer to your Network Walkman using the installed SonicStage software. Follow the procedure below.

You can also transfer MP3 format audio files, using the MP3 File Manager that is pre-installed in your Network Walkman. For details, refer to “MP3 File Manager software operation” on page 45.

1 Install the SonicStage software in your computer using the supplied CD-ROM.

Follow step 1 only for the first time when you connect your Network Walkman to the computer.

For details, refer to the manual “SonicStage operating instructions.”

2 Import audio files into the SonicStage software.

For details, refer to the manual “SonicStage operating instructions.”

3 Connect your Network Walkman to your computer.

Connect the small connector of the dedicated USB cable into the USB jack on the Network Walkman, then the large connector to a USB port on your computer. “CONNECT” appears in the display.

ACCESS lamp

OPEN

Dedicated USB cable (supplied)

to a USB portto the USB jack

Notes

• The ACCESS lamp blinks while your Network Walkman accesses the computer.

• Do not disconnect the USB cable when the ACCESS lamp is blinking. The data being transferred may be destroyed.

• Use of your Network Walkman with a USB hub or a USB extension cable is not guaranteed. Always connect your Network Walkman to the computer directly using the dedicated USB cable.

• Some USB devices connected to the computer may interfere with the proper operation of your Network Walkman.

• The control buttons on your Network Walkman are all disabled while it is connected to a computer.

• You can display the data stored in the built-in flash memory using Windows Explorer when your Network Walkman is connected to the computer.

4 Transfer audio files to your Network Walkman.

For information on transferring audio files to the built-in flash memory, refer to the separate manual “SonicStage operating instructions.”

z Tips

• As the NW-E99 has two flash memories, you can select one flash memory from the list of transfer destinations. The transfer destinations below are shown on the SonicStage screen: – Network Walkman (#1 Internal): flash memory 1 – Network Walkman (#2 Internal): flash memory 2

• For information on transferring audio files back to the computer, refer to the manual “SonicStage operating instructions” or online Help for the SonicStage software.

Note on playing songs with a limited playing period (Timeout contents)

Some songs distributed via the Internet (EMD service) have a limited playing period. If you try to play an expired song, “EXPIRED” blinks and the next song will be played after a

moment. In addition, an expired song cannot be played using the SonicStage software, or transferred to

your Network Walkman. Delete any songs as needed.

Basic Operations

Note on playing songs with a limited playing count

Your Network Walkman does not support contents with a limited playing count. When you try to play a song with a limited playing count, “EXPIRED” will be displayed and the

song will not be played.

Listening to music with your Network

Walkman

Please insert the battery before use (see page 9).

Note

When using Network Walkman, be sure do disconnect it from the computer.

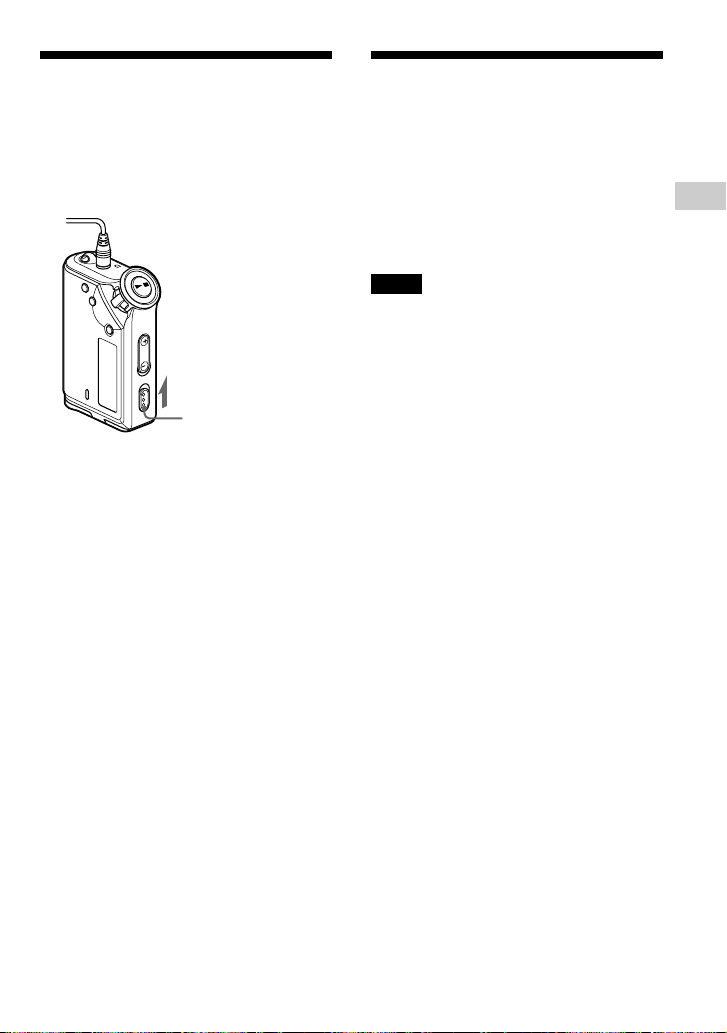

1 Connect the headphones.

to i jack

2 Start playback.

1 Press the Nx button.

2 Press the

VOLUME +/– button to adjust the volume.

HOLD switch

z Tip

If your Network Walkman is not operated for 5 seconds while in stop mode, the display automatically turns off.

To use the headphones extension cord

to i jack

Extension headphone cord

If playback does not start

Make sure that the HOLD switch is set to off (page 25).

To stop playback

Press the Nx button.

To adjust the volume

The volume can be set in the Preset and Manual mode (page 29 to 30).

Playback order of tracks/groups (NW-E99 only)

The transferred tracks/groups playback as follows: Tracks/groups transferred using SonicStage software in the flash memory 1 t Tracks/groups transferred using MP3 File Manager software in the flash memory 1 t Tracks/groups transferred using SonicStage software in the flash memory 2 t Tracks/groups transferred using MP3 File Manager software in the flash memory 2

When the normal playback mode is selected, playback stops automatically after the last song is played.

What is the Group function?

The Group function enables you to select favorite music conveniently on your Network Walkman. You can transfer to audio files or play songs by album or artist using the Group function.

• The track number is the order of songs in each

Group1

Group2

Group3

Tr ac k1 Tr ac k2 Tr ac k3

group.

• You can switch between Track Name mode and Group mode by pressing the GROUP button.

• In the Group mode, group names are displayed instead of track names. In addition, any shift operations, such as Skip or Repeat, are performed by group.

Basic Operations

Tr ac k1 Tr ac k2 Tr ac k3

Tr ac k1

Tr ac k1 Tr ac k2 Tr ac k3

Tr ac k1

Transferring by group

The audio files transferred to the SonicStage software are always grouped when transferred to the built-in flash memory.

z Tip

A group created by SonicStage software has priority over one created by MP3 File Manager software on your Network Walkman.

continued

Listening to music with your Network Walkman

On other operations

Shuttle switch

Press (Confirm)

to (+/>)

to (./–)

z Tip

You can switch to the Group mode by pressing the GROUP button.

Nx button

MENU button

Shuttle switch operation

Skip to the beginning of the next track/

group* Skip to the beginning

of the current track/

group*

Rotate the Shuttle switch clockwise once (+/>).

Rotate the Shuttle switch counterclockwise once (./–).

Fast-forward*

Fast-rewind*

Rotate the Shuttle switch clockwise (

) and hold it.

Rotate the Shuttle switch

counterclockwise (./–) and hold it.

*1Rotating and holding of the Shuttle switch during

stop mode allows you to skip to the beginning of the next (current and previous) track/group continuously.

Fast-forward and fast-rewind speed become faster if the operation is continued for 5 seconds.

+ 36 hidden pages
