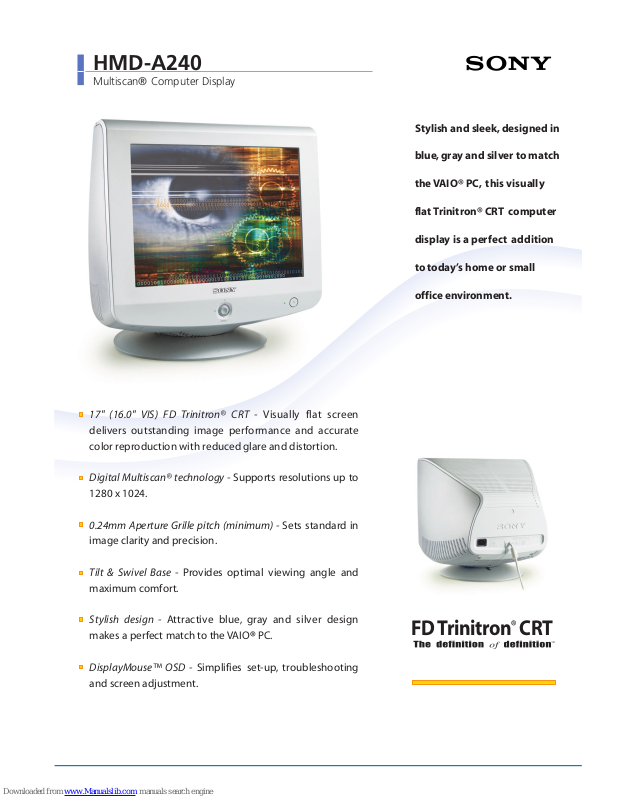

Sony Multiscan HMD-A240 Specifications

HMD-A240

Multiscan® Computer Display

Stylish and sleek, designed in

blue, gray and silver to match

the VAIO® PC, this visually

flat Trinitron® CRT computer

display is a perfect addition

to today’s home or small

office environment.

17" (16.0" VIS) FD Trinitron® CRT - Visually flat screen
delivers outstanding image performance and accurate
color reproduction with reduced glare and distortion.

Digital Multiscan® technology - Supports resolutions up to
1280 x 1024.

0.24mm Aperture Grille pitch (minimum) - Sets standard in
image clarity and precision.

Tilt & Swivel Base - Provides optimal viewing angle and
maximum comfort.

Stylish design - Attractive blue, gray and silver design
makes a perfect match to the VAIO® PC.

DisplayMouse™ OSD - Simplifies set-up, troubleshooting
and screen adjustment.

FD Trinitron® CRT

Operating Conditions

Temperature: 50° to 104° F (10° to 40° C)
Relative Humidity: 10% to 80% (Non-Condensing)

Shipping Conditions

Temperature: -40° to 140°F (-40° to 60°C)

Relative Humidity: 5% to 95% (Non-Condensing)

Regulation and Standard Compliance

Safety Regulations UL1950, cUL, NOM

DHHS, DNHW
Emissions/EMI FCC Class B, IC Class B
Others PC2001 Logo Compliance
Power Management International Energy Star
Designed for PC2001, Windows® 95,98,2000

Windows NT®, Windows XP

Macintosh® Compatible
Plug and Play DDC-2B, DDC-2Bi

Tilt Range -5° to +15°

Swivel Range ± 90º

Front Panel User Controls

Power Switch On/Off

Menu Button Enter / Exit On Screen Display
Brightness, Contrast and
navigation control.

On Screen Display Controls

Contrast / Brightness Contrast, Brightness

Size / Center H Center, H Size
V Center, V Size, Zoom
Geometry Raster Rotation
Pincushion, Pin Balance
Key Stone, Key Balance
Convergence H & V Convergence
Option Degauss, Moiré Adjust

Control Lock

Color Preset 5000K / 9300K
Color Adjust 5000K-9300K Adjustable
OSD Language (Eng, Fre, Ger, Spa, Ita,
Dut, Swe, Rus, Jap)
Reset Mode Reset, All Reset

Supplied Accessories

AC Power Cord
User's Manual (English, French, Spanish)
Warranty Card

Limited Warranty

Parts, Labor and CRT: 1 year

Sony Electronics Inc.
16450 West Bernardo Drive
San Diego, California 92127
For more information: 1.800.352.SONY

Web address: sony.com/displays

HMD-A240

Multiscan® Computer Display

Printed in the USA - (02/01/02)

Model HMD-A240

Color Blue, Gray & Silver

CRT Super Fine Pitch 17"

FD Trinitron

Viewable Image Size

16.0"

Aperture Grille Pitch

0.24 ~ 0.25mm variable

Screen Treatment

High Contrast AR Coating

Horizontal Scan

30kHz - 70kHz

Vertical Refresh

48Hz - 120Hz

Maximum Resolution

1280 x 1024

Recommended Resolutions

1024 x 768 @85Hz, 800 x 600 @85Hz

Preset Timings

Factory Presets - 8 modes
User Adjustable - 17 Settings

Color Temperature Presets

5000, 9300 (default) Kelvin
5000K-9300K adjustable

Video Signal Inputs

Video Input Analog RGB 0.7 Vp-p ± 5%,

Positive, 75 ohms (typ)

Sync Input Separate HD/VD,
(TTL) Polarity free
External composite,
(TTL) Polarity free

Logic Level "1" 2.4 - 5.5V

Input Connectors

Captive pigtail D-sub HD15

Display Dimensions (WxHxD)

16.6" x 17.0" x 16.8"

Display Weight

39.9 lbs

Power Requirements

100-120V AC, 50/60 Hz

Power Management:

Normal Operation 100 W max.
Active Off 3W max.
Power Off 0W approx.

• Easy access to controls.

• Simple clean design

DisplayMouse™ Control

FD Trinitron® CRT

Stylish Design

•

Delivers outstanding image quality

• Reduces glare and image distortion

• matched to VAIO® PC

Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and Sony does not
and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this document. Sony hereby
disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance.

©2002 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, DisplayMouse, Trinitron, Multiscan, are trademarks of Sony. Microsoft, the Windows
Logo and Windows are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc. All other trademarks are property of their respective owners. Features and specifications are subject to change
without notice. Non-metric weights and measurements are approximate.

This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this product
meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.
