Sony Multiscan HMD-A100 Specifications
Multiscan A100 Computer Display
• 15" (14.0" VIS) FD Trinitron®CRT – Virtually-flat screen delivers exceptional image
performance with reduced glare
• 0.24-0.25mm Aperture Grille pitch (variable) – Sets new standard in image clarity and precision
• High-contrast black screen coating – For superior contrast and grayscale performance
• Digital Multiscan
®
technology – Supports resolutions up to 1280 x 1024 @ 60Hz
• DisplayMouse
™
OSD menu control – Simplifies monitor set-up, troubleshooting and adjustment
• 4 Port USB hub – For easy connection of peripheral devices
• Uniquely sleek and elegant design – Stylish in any environment - matching USB keyboard
and mouse available

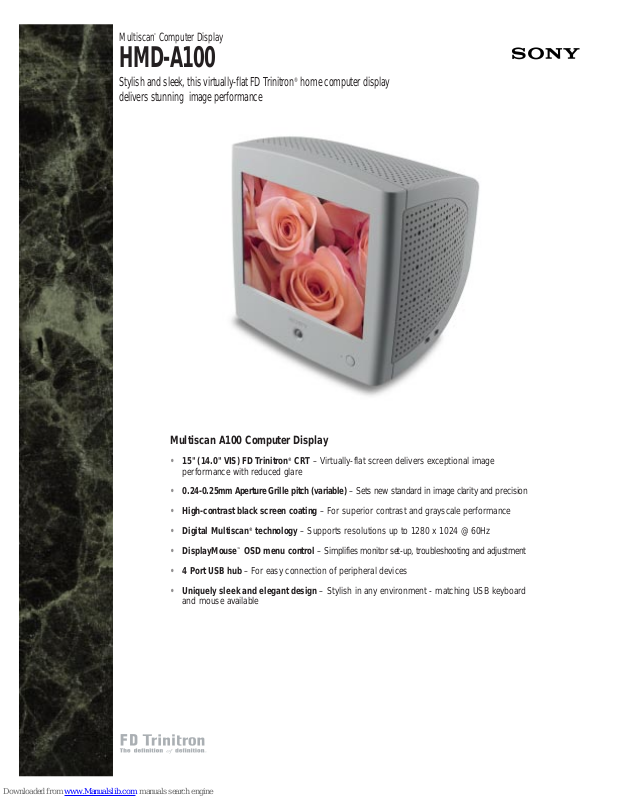

Multiscan®Computer Display
HMD-A100
Stylish and sleek, this virtually-flat FD Trinitron®home computer display
delivers stunning image performance
The Multiscan A100 15" display (14.0" VIS)
with its superb image quality and
attractive, sleek styling, is the perfect
addition to any home. Whether it’s used
for playing games or surfing the Internet,
the HMD-A100 sets a new standard for
high-performance displays for the home.
The virtually-flat FD Trinitron®CRT and
tight aperture grille pitch deliver true
colors and sharp,crisp images. The sheer
flatness of the displays screen—along with
a high-contrast black coating—direct
reflected light away from the line of vision,
reducing distracting glare and washout.
And, it’s easy on the eyes in more ways
than one. With its unique color and design,
and available matching USB keyboard and
mouse, this display is a stylish fit for any
home environment. The HMD-A100 also
features a 4 port USB hub for easy
connection of peripheral devices, and the
DisplayMouse™ menu control to simplify
monitor setup and adjustment.
Sony Electronics Inc.
Information Technologies Marketing Division
3300 Zanker Road, San Jose, California 95134
For more information: 1.800.352.SONY
Web address: http://www.sony.com/displays
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and
Sony does not and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this
document. Sony hereby disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized
dealers may be able to assist you and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and
software in each and every particular instance.
©1999 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, displays by sony, Multiscan, Trinitron, Digital Multiscan, ASC, Super Fine Pitch,
are trademarks of Sony. Microsoft, the Windows Logo are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc.Features and specifications are subject to change without notice. Nonmetric weights and measurements are approximate.
This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this
product meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen image is simulated.
D187
Printed in U.S.A. 9/99
Multiscan®Computer Display
HMD-A100
Specifications
Power Management
International Energy Star, NUTEK, and VESA DPMS
Compliant
Operation: <95 watts (w/o USB)
Suspend: <15 watts (maximum)
Active Off: <5 watts (maximum)
Power Off: 0.5 watts
Regulation and Standard Compliance
Safety: UL 1950
CSA 22.2 No. 950
EN60950 (TUV, GS mark)
NEMKO
Emission/EMI: FCC Class B
IC Class B
ELF/VLF: MPR II TUV (full compliance)
X-ray: DHHS
DNHW
Ergonomics: ISO9241-3, -7, -8
Designed for: PC 99
Windows
®
95, 98, NT, 2000
Macintosh
®
Compatible
Plug & Play: DDC-1, DDC-2B
Front Panel Digital Controls
Power On/Off
Brightness (multi-functional buttons)
Contrast (multi-functional buttons)
DisplayMouse
™
control
On-Screen Display (OSD)
Brightness
Contrast
H/V Size
H/V Centering
Zoom
Raster Rotation
Pincushion
Pin Balance
Keystone
Key Balance
Color Temperature
Moiré Adjust
Manual Degauss
Multi-Language Select
(7 languages)
Reset
Supplied Accessories
Detachable Tilt Base
AC Power Cord
INF Diskette
USB Cable
Headphone hook
User’s Manual
Warranty Card
Limited Warranty
1 Year - Parts, Labor and CRT
Model
HMD-A100
CRT
15" FD Trinitron
®
Viewable Image Size
14.0"
Aperture Grille Pitch
0.24 - 0.25mm (variable)
Screen Treatment
High-contrast AR Coating
Horizontal Scan Range
30-70kHz
Vertical Scan Range
48-120Hz
Maximum Resolution
1280 x 1024 @ 60Hz
Recommended Resolution
800 x 600 @ 85Hz
Preset Resolutions
640 x 480 @ 60Hz VGA Graphics
640 x 480 @ 85Hz VESA
720 x 400 @ 70Hz VGA Text
800 x 600 @ 75Hz VESA
800 x 600 @ 85Hz VESA
832 x 624 @ 75Hz Macintosh
®
16"
1024 x 768 @ 75Hz VESA
1024 x 768 @ 85Hz VESA
1280 x 1024 @ 60Hz VESA
Color Temperature Presets
5000 Kelvin
6500 Kelvin
9300 Kelvin
User-Adjustable
Signal Inputs
Analog RGB
0.7Vp-p, 75ohm (typical)
External Sync Signals
Separate/Composite 1-5Vp-p, polarity-free TTL
Input Connector
Captive 15 pin mini D-sub
Dimensions (WxHxD)
14.7" x 14.6" x 16.7"
Weight
33.1 lbs
Operating Temperature
50°F-104°F (10°C-40°C)
Operating Humidity
10%-80% (Non-Condensing)
Power Requirements
100-120V/220-240V AC; 50-60Hz
