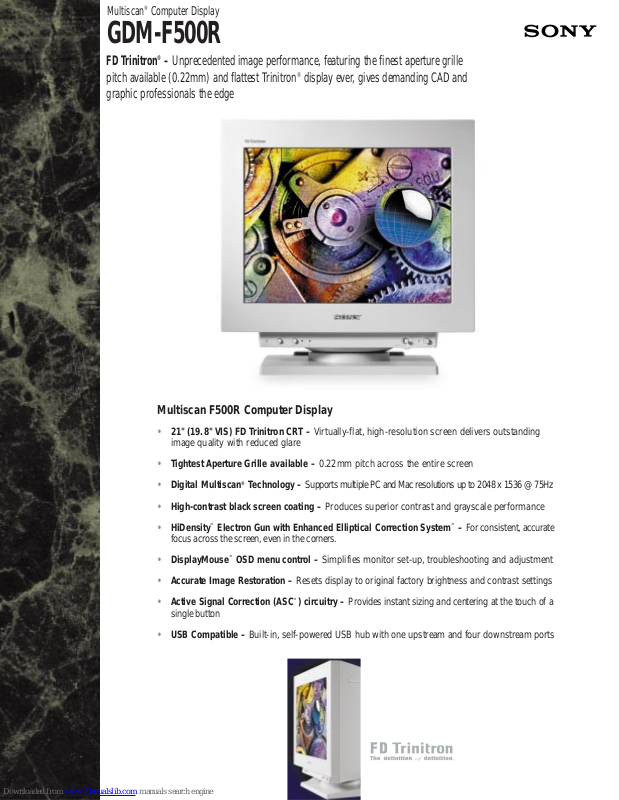

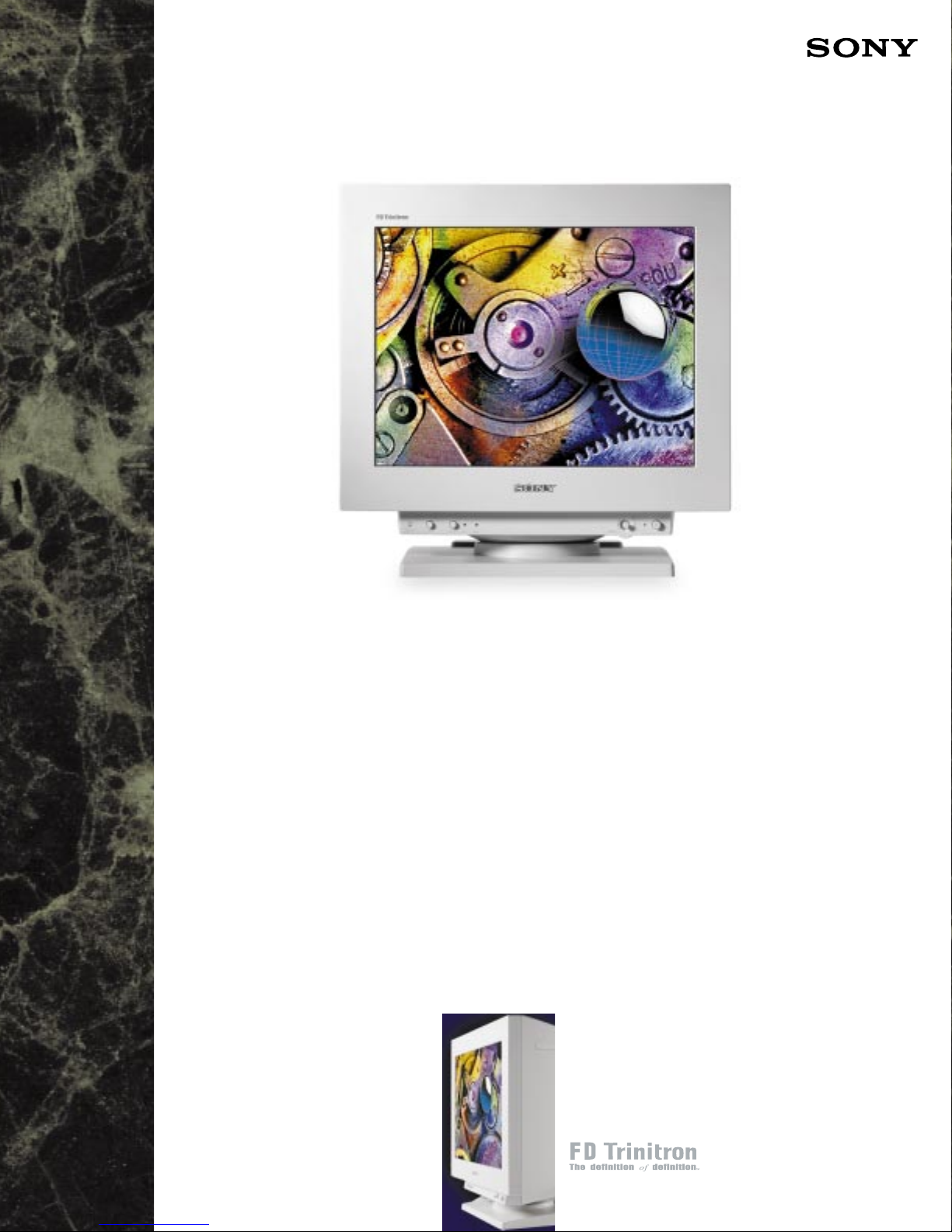

Multiscan®Computer Display
GDM-F500R
FD Trinitron®– Unprecedented image performance, featuring the finest aperture grille
pitch available (0.22mm) and flattest Trinitron
®
display ever, gives demanding CAD and
graphic professionals the edge
Multiscan F500R Computer Display
• 21" (19.8" VIS) FD Trinitron CRT – Virtually-flat, high-resolution screen delivers outstanding
image quality with reduced glare
• Tightest Aperture Grille available – 0.22mm pitch across the entire screen
• Digital Multiscan®Technology – Supports multiple PC and Mac resolutions up to 2048 x 1536 @ 75Hz
• High-contrast black screen coating – Produces superior contrast and grayscale performance
• HiDensity™Electron Gun with Enhanced Elliptical Correction System™– For consistent, accurate
focus across the screen, even in the corners.
• DisplayMouse™OSD menu control – Simplifies monitor set-up, troubleshooting and adjustment
• Accurate Image Restoration – Resets display to original factory brightness and contrast settings
• Active Signal Correction (ASC™) circuitry – Provides instant sizing and centering at the touch of a
single button
• USB Compatible – Built-in, self-powered USB hub with one upstream and four downstream ports
Page 2
Multiscan®FD Trinitron®displays offer the very
latest in advanced CRT display technology from
Sony: the FD Trinitron CRT. These virtually flat
CRTs minimize geometric distortion and reduce
reflective glare that may cause eyestrain.
Designed with the demanding CAD and graphic
professionals in mind, the Multiscan F Series
sets a new level of image performance, ease of
use and reliability.
The stunning images produced by this display
are a result of Sony’s new HiDensity™Electron
Gun with Enhanced Elliptical Correction
System™technology. The tight 0.22mm aperture grille pitch delivers sharp, detailed color
images consistently across the entire screen –
especially in the corners. Digital Multiscan®and
Active Signal Correction (ASC™) technologies
allow for easy set-up, regardless of the input
signal or resolution. And with broad horizontal
scan rates available, resolutions as high as
2048 x 1536 @ 75Hz are possible.
Our unique DisplayMouse™control is easy-touse and allows for precise manual adjustment
of the image to fit individual user preference.
Sony left nothing to the imagination with this
display, including GeoLock Plus™circuitry. This
feature will automatically sense and neutralize
electromagnetic fields that can cause image or
color distortion, which is commonly noticeable
on large screen displays.
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and
Sony does not and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this
document. Sony hereby disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized
dealers may be able to assist you and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and
software in each and every particular instance.
©2000 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, Multiscan, Trinitron, DisplayMouse and The Definition of Definition are trademarks of Sony. Microsoft, the Windows Logo and Windows are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc.Features and specifications are subject to change without notice.
Non-metric weights and measurements are approximate.
This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this
product meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.
D194
Printed in U.S.A. 2/00
Operating Temperature
50°F-104°F (10°C-40°C)
Operating Humidity
10%-80% (Non-Condensing)
Regulation and Standard Compliance
Safety: UL 1950
CSA 22.2 No. 950
EN60950 (TUV, GS mark)
Emission/EMI: FCC Class B
IC Class B
MPR II TUV (full compliance)
TCO ’99
X-ray: DHHS
DNHW
PTB
Ergonomics: ZH1/618, ISO9241-3, -7.-8
Designed for: Microsoft Windows
®
2000
Windows®98
Macintosh Compatible
Plug & Play: DDC-1, DDC-2B, DDC-2Bi
DMI Compliant
VESA: Generalized Timing Formula (GTF)
Front Panel Digital Controls
Power On/Off
Active Signal Correction (ASC
™
)
Reset
Brightness
Contrast
Input Switching Button
On-Screen Display (OSD)
Brightness/Contrast
H/V Size
H/V Centering
Zoom
Raster Rotation
Pincushion
Pin Balance
Keystone
Key Balance
Color Temperature
sRGB
H/V Convergence: Top/Bottom V
Convergence
Landing Correction (4 Corners)
Moiré Cancellation
Moiré Adjustment
Manual Degauss
H/V OSD Position
Image Restoration
Control Lock
Multi-Language Select (9 languages)
Supplied Accessories
Tilt Base/Wide Angle Swivel (±90°) Stand
Video Signal Cable (15 pin mini D-sub)
AC Power Cord
Macintosh Adapter
Windows 95/98 inf. Diskette
USB Cable
Limited Warranty
3 Years - Parts, Labor and CRT
Model
GDM-F500R
CRT
21" FD Trinitron
®
Viewable Image Size
19.8"
Aperture Grille Pitch
0.22mm
Screen Treatment
Anti-Reflective Coating
Electronic Gun
HiDensity
™
Electron Gun with Enhanced Elliptical
Correction System™technology
Horizontal Scan Range
30-121kHz
Vertical Scan Range
48-160Hz
Maximum Resolution
2048 x 1536 @ 75Hz
Preset Resolutions (27 modes)
640 x 480 @ 60Hz VGA Graphics
640 x 480 @ 85Hz VESA
800 x 600 @ 85Hz VESA
832 x 624 @ 75Hz Macintosh
®
16"
1024 x 768 @ 75Hz Macintosh®19"
1024 x 768 @ 85Hz VESA
1152 x 864 @ 75Hz VESA
1152 x 870 @ 75Hz Macintosh 2-page
1280 x 1024 @ 75/85Hz VESA
1600 x 1200 @ 75/85Hz VESA
1800 x 1350 @ 85Hz Sony
1800 x 1440 @ 80Hz Sony
and others
Color Temperature Presets
5000 Kelvin
6500 Kelvin
9300 Kelvin
User-adjustable Settings (Bias/Gain Control)
sRGB
Signal Inputs
Analog RGB
0.7Vp-p, 75ohm (typical)
External Sync Signals
Separate/Composite 1-5Vp-p, polarity-free TTL
Sync on Green: 0.3Vp-p, negative
Input Connector
15 pin mini D-sub and 5 BNC connectors
Power Requirements
90-264V AC; 50-60Hz
Power Management
International Energy Star, NUTEK and VESA
DPMS Compliant
Operation: 145 watts (maximum)
Suspend: 15 watts (maximum)
Active Off: 1 watt (maximum)
Power Off: <0 watt
Dimensions (WxHxD)
19.8" x 20.0" x 18.7"
Weight
70.5 lbs
Multiscan®Computer Display
GDM-F500R
Specifications
Sony Electronics Inc.
3300 Zanker Road, San Jose, California 95134
For more information: 1.800.352.SONY
Web address: http://www.sony.com/displays
