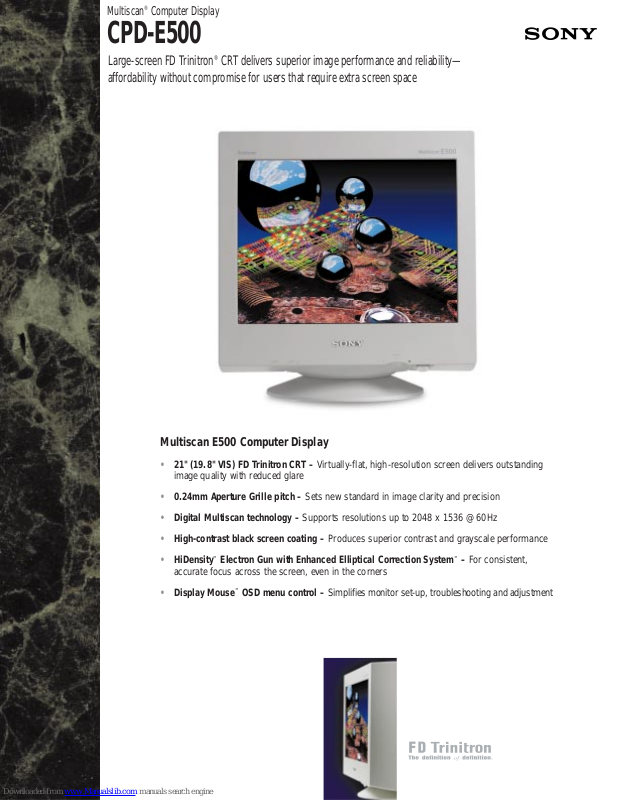

Sony CPD-E500 Marketing, Multiscan CPD-E500 Specifications
Multiscan®Computer Display
CPD-E500
Multiscan E500 Computer Display
• 21" (19.8" VIS) FD Trinitron CRT – Virtually-flat, high-resolution screen delivers outstanding
image quality with reduced glare
• 0.24mm Aperture Grille pitch – Sets new standard in image clarity and precision
• Digital Multiscan technology – Supports resolutions up to 2048 x 1536 @ 60Hz
• High-contrast black screen coating – Produces superior contrast and grayscale performance
• HiDensity™Electron Gun with Enhanced Elliptical Correction System™– For consistent,
accurate focus across the screen, even in the corners
• Display Mouse™OSD menu control – Simplifies monitor set-up, troubleshooting and adjustment
Large-screen FD Trinitron®CRT delivers superior image performance and reliability—
affordability without compromise for users that require extra screen space
The Multiscan E500 is ideal for the home
or the office requiring exceptional image
performance, without sacrificing value or reliability. It’s perfect for everything from spreadsheets to finely detailed graphic presentations
to browsing the Internet and gaming.
The virtually flat, high-resolution FD T rinitron
®
CRT combined with a 0.24 mm aperture grille
pitch and precise, convenient on-screen digital controls, allow the CPD-E500 to perform
at a level that will set a new benchmark for
your expectations of clarity and color.
To provide superior contrast and grayscale
performance, the CPD-E500 screen features
a high-contrast black coating. This coating,
coupled with the display’s vertically flat
screen, also helps cut glare and washout
caused by ambient light. And that reduces
eyestrain.
Sony’s DisplayMouse™menu control makes
this premier SOHO display one of the
easiest to set up, adjust and—in the unlikely
event that there’s a problem—troubleshoot.
Users can quickly take advantage of everything the CPD-E500 has to offer.
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and
Sony does not and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this
document. Sony hereby disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized
dealers may be able to assist you and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and
software in each and every particular instance.
©2000 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, Multiscan, Trinitron,DisplayMouse, HiDensity, Enhanced Elliptical Correction
System and The Definition of Definition are trademarks of Sony. Microsoft, the Windows Logo, Windows and Windows NT are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc.
Features and specifications are subject to change without notice. Non-metric weights and measurements are approximate.
This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this
product meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.
D193
Printed in U.S.A. 2/00
Regulation and Standard Compliance
Safety: UL 1950
CSA 22.2 No. 950
EN60950 (TUV, GS mark)
Emission/EMI: FCC Class B
IC Class B
EN55022
ELF/VLF: MPR II TUV (full compliance)
X-ray: DHHS
DNHW
Ergonomics: ISO9241-3, -7, -8
Designed for: PC99, Windows®95, 98,
2000, Windows NT
®
Macintosh®Compatible
Plug & Play: DDC-1, DDC-2B, DDC-2Bi
DMI Compliant
VESA: Generalized Timing Formula (GTF)
Front Panel Digital Controls
Power On/Off
Reset
Slider Input Selector
DisplayMouse
™
Control
On-Screen Display (OSD)
Brightness
Contrast
H/V Size and Centering
Zoom
Raster Rotation
Pincushion
Pin Balance
sRGB
Keystone
Key Balance
Color Temperature
H/V Convergence
Top/Bottom V Convergence
4 Corners Landing
Moiré Adjust
Moiré Cancel (On/Off)
Manual Degauss
H/V OSD Position
Control Lock
Multi-Language Select (9 languages)
Supplied Accessories
AC Power Cord
INF Diskette
Mac Adapter
User’s Manual
Limited Warranty
3 Years - Parts, Labor and CRT
Model
CPD-E500
CRT
21" FD Trinitron
®
with HiDensity™Electron Gun
Viewable Image Size
19.8"
Aperture Grille Pitch
0.24mm
Screen Treatment
High Contrast AR Coating
Horizontal Scan Range
30-109kHz
Vertical Scan Range
48-160Hz
Maximum Resolution
2048 x 1536 @ 65Hz
Recommended Resolution
1600 x 1200 @ 85Hz
Factory Preset Resolutions
Timing Data Table (TDT) - 28 modes
User-Adjustable - 15 settings
Color Temperature Presets
5000 Kelvin
6500 Kelvin
9300 Kelvin
User-adjustable
sRGB
RGB Gain/Bias
Signal Inputs
Analog RGB
0.7Vp-p, 75ohm Typical
External Sync Signals
Separate/Composite 1-5Vp-p, polarity-free TTL
Sync on green 0.3V p-p±10%, negative
Input Connector
Captive 15 pin mini D-sub
Power Requirements
90-264V AC; 50-60Hz
Power Management
International Energy Star, NUTEK, and VESA
DPMS Compliant
Operation: <145 watts
Suspend: <15 watts
Active Off: <1 watt
Power Off: 0 watt
Dimensions (WxHxD)
19.6" x 18.9" x 18.8"
Weight
70.5 lbs
Operating Temperature
50°F-104°F (10°C-40°C)
Operating Humidity
10%-80% (Non-Condensing)
Multiscan®Computer Display
CPD-E500
Specifications
Sony Electronics Inc.
3300 Zanker Road, San Jose, California 95134
For more information: 1.800.352.SONY
Web address: http://www.sony.com/displays
