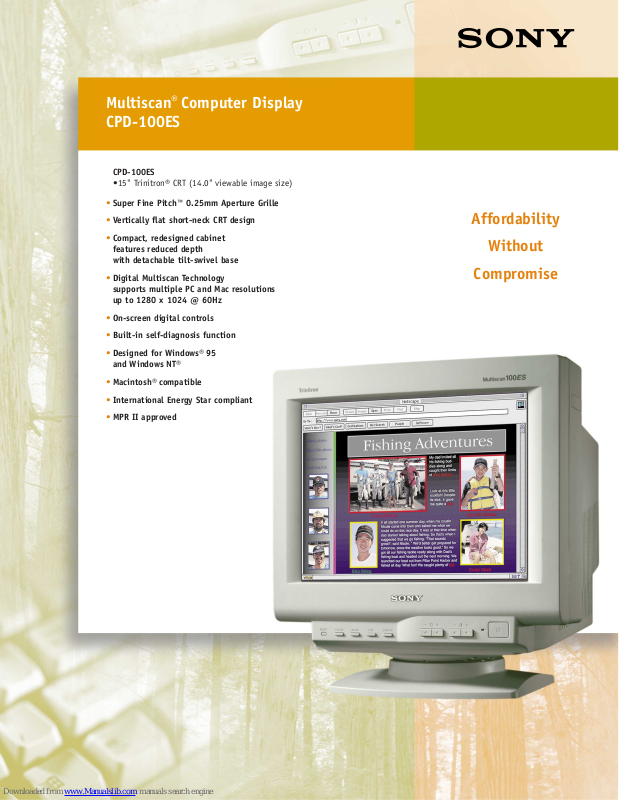

Sony Multiscan CPD-100ES Specifications

CPD-100ES

•15" Trinitron® CRT (14.0" viewable image size)

• Super Fine Pitch™ 0.25mm Aperture Grille

• Vertically flat short-neck CRT design

• Compact, redesigned cabinet

features reduced depth
with detachable tilt-swivel base

• Digital Multiscan Technology

supports multiple PC and Mac resolutions
up to 1280 x 1024 @ 60Hz

• On-screen digital controls

• Built-in self-diagnosis function

• Designed for Windows® 95

and Windows NT®

• Macintosh® compatible

• International Energy Star compliant

• MPR II approved

Multiscan®Computer Display
CPD-100ES

Affordability

Without

Compromise

Multiscan® Computer Display
CPD-100ES

The Sony CPD-100ES provides the budget-conscious computer user a better option over
monitors based on shadow mask CRT technology. This entry level 15" computer display
(14" VIS) provides features normally found on high-end Sony Computer displays, including
the crispness of Sony’s legendary Trinitron CRT technology, a 0.25mm aperture grille pitch,
and precise, convenient on-screen digital controls. Easy-to-use on-screen controls for
brightness/contrast, horizontal and vertical size and centering, pincushion, raster rotation
and color temperature reflect Sony’s passion for outstanding image quality. The CPD-100ES
also features a short neck CRT and new cosmetic design, complete with detachable tilt­swivel base for more placement options on the desktop.

SPECIFICATIONS

CRT

15" Trinitron CRT with Short Neck CRT Design
90°deflection

Viewable Image Size

14.0" measured diagonally

Aperture Grille Pitch

0.25mm

Horizontal Scan Range

30-70kHz

Vertical Scan Range

50-120Hz

Maximum Resolution and Refreshed Rate

1024 x 768 @ 85Hz
1280 x 1024 @ 60Hz

Preset Resolutions

640 x 480 @ 60Hz VGA Graphics
640 x 480 @ 85Hz VESA
800 x 600 @ 75Hz VESA
800 x 600 @ 85Hz VESA
832 x 624 @75Hz Macintosh 16"
1024 x 768 @ 75Hz VESA
1024 x 768 @ 85Hz VESA
1280 x1024 @ 60 Hz VESA

Color Temperature Presets

5000 Kelvin
9300 Kelvin
User Adjustable (5000-9300K)

Signal Inputs

Analog RGB: 0.7Vp-p, 75 ohm termination
External Sync Signals:

Composite 1-5 Vp-p, polarity-free TTL

Sync on Green: 0.3Vp-p, negative

Power Requirements

100-120/220-240V AC; 50/60Hz

Power Management

International Energy Star, NUTEK, and VESA

DPMS compliant
Operation: 110 watts (maximum)
Suspend: 15 watts (maximum)
Active off: 8 watts (maximum)

Dimensions (WxHxD)

14.5" x 15.4" x 15.3"

Weight

30.9 lbs

Operating Temperature

50°F-104°F (10°C-40°C)

Operating Humidity

10%-80%, non-condensing

Regulation Compliance

Safety: UL 1950

CSA 950
EN60950 (TUV, GS mark/CE mark)
SEMKO, NEMKO,
DEMKO, FIMCO, NOM, EI

Emission/EMI: FCC Class B

IC Class B
MPR II (TUV) (full compliance)

X-ray: DHHS, DNHW

PTB

Ergonomic: ZH1/618, ISO9241-3, -8

ISO9241-8

Designed for: Microsoft® Windows NT® and

Windows® 95
Macintosh® Compatible

Plug and Play: DDC-1, DDC-2B

Front Panel Digital Controls

Power On/Off
Reset
Brightness
Contrast
On Screen Displays (OSD)

Horizontal Size and Centering

Vertical Size and Centering

Pincushion Distortion Correction

Raster Rotation

Pin Cushion

Color Temperature

Supplies Accessories

Detachable Tilt Base/Wide Angle Swivel (±90°) Stand
AC Power cord
Windows® 95 inf. diskette

Optional Accessories

Macintosh Adaptor available by calling

1.800.352.7669

Input Cable

Captive 15-pin mini D-sub (attached)

Limited Warranty

1 year Parts, Labor and CRT
