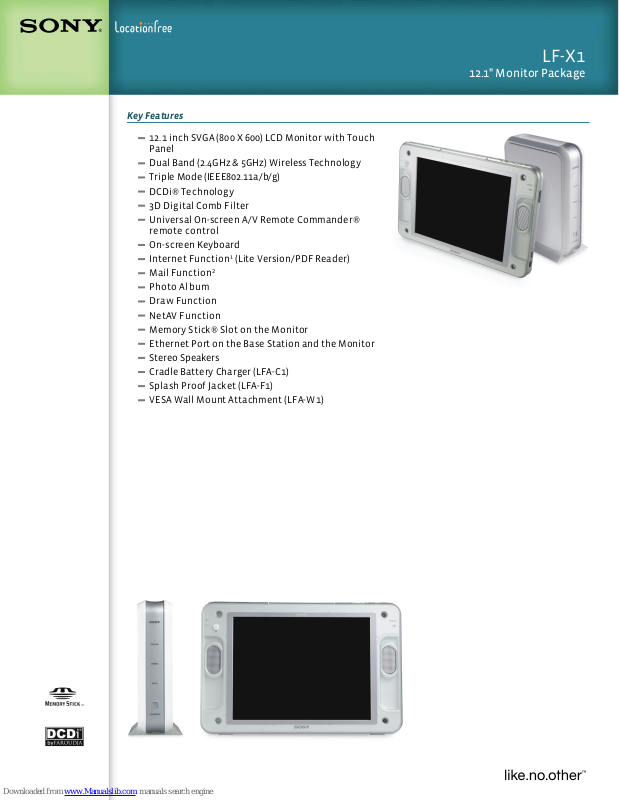

Page 1
LF
-X1
12.1" Monitor Package
Key Features
12.1 inch SVGA (800 X 600) LCD Monitor with Touch
Panel
Dual Band (2.4GHz & 5GHz) Wireless Technology
Triple Mode (IEEE802.11a/b/g)
DCDi® Technology
3D Digital Comb Filter
Universal On-screen A/V Remote Commander
®
remote control
On-screen Keyboard
Internet Function (Lite Version/PDF Reader)
1
Mail Function
2
Photo Album
Draw Function
NetAV Function
Memory Stick® Slot on the Monitor
Ethernet Port on the Base Station and the Monitor
Stereo Speakers
Cradle Battery Charger (LFA-C1)
Splash Proof Jacket (LFA-F1)
VESA Wall Mount Attachment (LFA-W1)
Page 2
Sony Electronics Inc. • 16530 Via Esprillo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 04/27/2006
LF
-X1
12.1" Monitor Package
Rear view of the Base Station jack panel
Please visit the Dealer Network for current
information at www.sony.com/dn
Specifications
Base Station
Power
Power Requirements: AC 120V 60Hz
Inputs and Outputs
S
-Video Input(s): 1 (TBD)
Composite Video Input(s): 1 (Rear)
Composite Video Output(s): 1 (TBD)
IR Blaster: 1 (TBD)
Ethernet Port: 1 (TBD)
Wireless Monitor
Power
Battery Type:
1 Lithium Battery
Power Requirements: AC 100-240V
Inputs and Outputs
Ethernet Port: 1 (TBD)
Headphone Jack: 1 (TBD)
Memory Stick® Media Slot:
1 GB
USB Port(s):
1 (for use with optional USB
keyboard only)
Dimensions
Weight:
5 lbs. 5 oz. (Monitor and Battery) 1 lbs.
3 oz. (Base Station)
Measurements: 14 3/8" x 9 1/2" x 1
1/4" (Monitor) 2 3/8" x 8 3/4" x 7 1/8" (Base
Station)
Supplied Accessories
Quick Start Guide
IR Blaster
Rechargeable Battery Pack
Instruction Manual
Stylus
Optional Accessories
Rechargeable Battery Pack (BP-LX1A)
AC Power Adapter (AC-LX1M)
Cradle Battery Charger (LFA-C1)
Splash Proof Jacket (LFA-F1)
VESA Wall Mount Attachment (LFA-W1)
Retractable Stylus (LFA-ST1)
IR Blaster (VM-50)
Plug Adapter (PC-232S)
UPC Code: 027242657502
1. Some websites require software or multimedia plug-ins or have other
features that may not be supported by LocationFree. In some
instances, all or portions of these websites may not be viewable.
LocationFree currently supports HTML 4.0, HXTML Basic 1.0, JavaScript,
SSL, Java Applet *PJAE 1.2) and Macromedia Flash Version 6.0.
2. Supports POP3 and SMTP only. ISPs that require proprietary software
may not be accessible using LocationFree TV. Please check with your
provider.
4
4
3. Estimated battery life of 100 - 240 minutes. Actual battery life will vary
based on usage patterns, settings and battery condition.
As with all wireless products, actual performance may vary depending on
the user’s environment.
©2005 Sony Electronics Inc.
Reproduction in part of whole is prohibited without prior written consent
by Sony. All rights reserved. Sony, LocationFree, Remote Commander and
Memory Stick are trademarks of Sony. All other trademarks are property
of their respective owners. DCDi is a trademark of Faroudja, a division of
Genesis Microchip Inc.
Features and specifications are subject to change without notice. Non
-
metric weights and measures are approximate.
