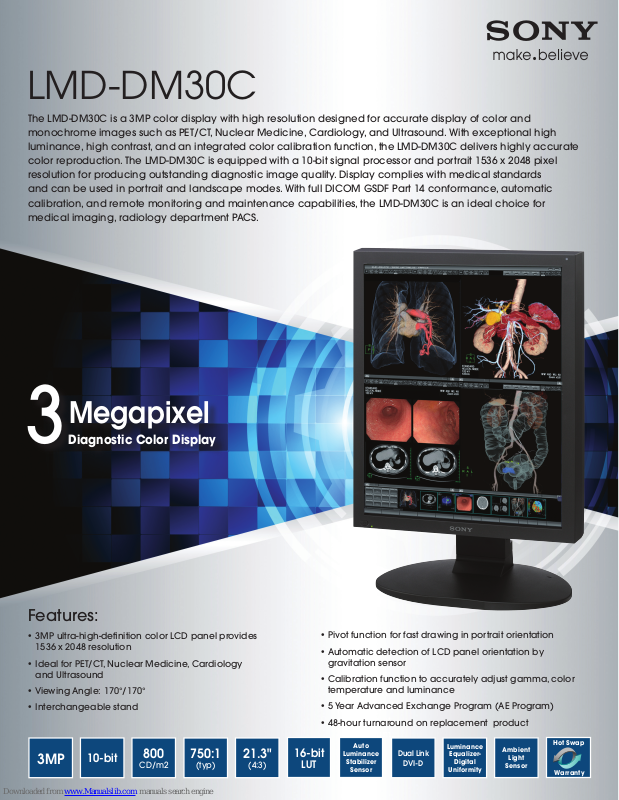

LMD-DM30C
The LMD-DM30C is a 3MP color display with high resolution designed for accurate display of color and
monochrome images such as PET/CT, Nuclear Medicine, Cardiology, and Ultrasound. With exceptional high
luminance, high contrast, and an integrated color calibration function, the LMD-DM30C delivers highly accurate
color reproduction. The LMD-DM30C is equipped with a 10-bit signal processor and portrait 1536 x 2048 pixel
resolution for producing outstanding diagnostic image quality. Display complies with medical standards
and can be used in portrait and landscape modes. With full DICOM GSDF Part 14 conformance, automatic
calibration, and remote monitoring and maintenance capabilities, the LMD-DM30C is an ideal choice for
medical imaging, radiology department PACS.
Megapixel
3
Features:
• 3MP ultra-high-definition color LCD panel provides
1536 x 2048 resolution
• Ideal for PET/CT, Nuclear Medicine, Cardiology
and Ultrasound
• Viewing Angle: 170°/170°
• Interchangeable stand
Diagnostic Color Display
• Pivot function for fast drawing in portrait orientation
• Automatic detection of LCD panel orientation by
gravitation sensor
• Calibration function to accurately adjust gamma, color
temperature and luminance
• 5 Year Advanced Exchange Program (AE Program)
• 48-hour turnaround on replacement product
800
3MP
10-bit
CD/m2
750:1
(typ)
21.3"
(4:3)
16-bit
LUT
Auto
Luminance
Stabilizer
Sensor
Dual Link
DVI-D
Luminance
Equalizer-
Digital
Unifor mity
Ambient
Light
Sensor
Hot Swa p
Warranty
Page 2
LMD-DM30C Specifications
LCD panel a-Si TFT Active Matrix LCD (Color)
Effective Picture Approx. 17.05 x 12.79 in (433.2 x 324.9 mm) (W/H, Diagonal)
Size 21.3 in (541.02 mm)
Viewing angle (H, V) 85
(up/down/left/right contrast > 10:1)
Resolution
Portrait 3MP (1536 x 2048)
Landscape 3MP (2048 x 1536)
Display Color Approx. 16,770,000
Aspect
Landscape 4:3
Portrait 3:4
Pixel efficiency 99.99%
Maximum luminance 800 cd/m² (panel typical)
Contrast ratio 750:1 (typical)
Backlight CCFL
Mounting standard VESA (100 mm)
Video input DVI-D Dual Link/DisplayPort (per display)
USB ports 2
Power AC 100
Power consumption 120W
Mass Approx. 27 lb 1.9 oz (12.3 kg)
Operating conditions
Temperature 41o F to 104o F (5o C to 40o C)
Recommended temperature 68
Humidity 30% to 80%
Pressure 700 hPa to 1060 hPa (Operating)
Storage and transport conditions
Temperature -4o F to 140o F ( -20o C to 60o C)
Humidity 10% to 85%
Pressure 266 hPa to 1060 hPa (Storage)
Dimensions (W x H x D)
Landscape 18.66 x 18.44/20.86 x 8.66 in (474 × 468.4/529.9 × 220 mm)
Portrait 14.44 x 20.54/22.96 x 8.66 in (367 × 521.9/583.4 × 220 mm)
Safety Compliance
U.S.A. UL60601-1
ANSI/AAMI/ ES60601-1:2005
Class B FCC-DoC
Canada No60601-1
Class B Digital Apparatus
China GB49493 (IEC60950) + GB9254 (CISPR22)
GB17625.1(IEC61000-3-2)
Supplied Accessories
AC power cord , DVI cable (Dual link), USB cable, CD-ROM
o
/85o/85o/85o (typical)
~240V 50/60 Hz
o
F to 86o F (20o C to 30o C)
Front view (portrait)
14 1/2" (367 mm
)
Side view (portrait)
)
523.9 mm – 583.4 mm
(
" – 23"
8
/
5
20
8 3/4" (220 mm
)
Front view (landscape)
18 3/4" (474 mm
)
Side view (landscape)
)
Optional Accessories
Warranty
5 Year Advanced Exchange Program
Limited Product Warranty also includes a 5 year Advanced Exchange Program (“AE Program”). For additional terms
and conditions of the Advanced Exchange policy, visit www.sony.com/professionalservices/warranty/md-ae
For the full Sony Standard Limited Product Warranty, visit www.sony.com/professionalservices/warranty
Independent Sub-pixels Drive technology is the property of, and developed by, Totoku Electric Co., Ltd.
LMD-KT10 Calibration Kit / LMD-SN10 Display Network Manager
9
1
/16" (38.7 mm
468.4 mm – 529. 9 mm
(
"
8
/
7
" – 20
2
/
1
18
)
3 7/8" (95.5 mm
sony.com/radiology
©2012 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. All non-metric weights and measurements are
approximate. Features and specifications are subject to change without notice. Sony, Sony make.believe, and their respective logos, are trademarks of Sony. VESA is
a trademark of the Video Electronics Standards Association. All other trademarks are trademarks of their respective owners.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician or other appropriately licensed medical professional.
Caution: See product labeling for indications, contraindications, warnings, cautions and directions for use.
