Page 1

Sony’s lightweight LCD monitor lineup From studio to field

Professional LCD Picture Monitor

LMD-A240 LMD-A220 LMD-A170

Page 2

Full HD, Excellent Cost:Performance Ratio,

Lightweight and Slim

24”

22”

17”

Full HD, Excellent Cost:Performance Ratio LCD Lineup

The LMD-A240 (24”) incorporates a WUXGA (1920 x 1200) panel and the LMD-A220 and LMD-A170 incorporate a Full HD (1920 x 1080) panel. All LMD-A Series monitors emulate broadcast standards (ITU-R BT.709, EBU, and SMPTE-C).

Lightweight and Compact,

with Lower Power Consumption

These monitors offer a design that is uniquely light and compact. Their weight is reduced by 12% to 22%, and depth by more than 30%, compared with predecessor models. Power consumptions for these models is reduced by more than 25%. Users appreciate these convenient, cost-saving qualities.

LMD-A240 LMD-A220 LMD-A170

Sony is proud to introduce its lightweight, full HD LMD-A Series monitor lineup with an excellent cost:performance ratio. Models include the LMD-A240 (24”), LMD-A220 (22”), and LMD-A170 (17”).

The series offers full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models.

The LMD-A Series offers the same user-interface design, convenient features and functions, and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network.

Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field: DC operation, VESA mount and yoke-mount holes, and an optional protection kit (LMD-A170 only).

This broad and powerful professional LCD monitor lineup continues to meet the broadest range of application needs for excellent cost:performance picture monitoring.

Optimized Low-latency I/P Conversion

The I/P conversion system delivers automatically optimized signal processing according to input signals with low-latency (less than 0.5 field). This system helps users to edit and monitor for a live production.

Time code and In-monitor Display (IMD) Function

With an external remote function via Ethernet, image source names and tally information can be displayed on screen. LMD-A Series monitors support the TSL system protocol. The IMD system can display European language text including umlaut and accent marks.

Time code and

waveform monitor

Time code, on-screen tally,

and 93% area marker

IMD on the LMD-A240

16:10 screen

Waveform Monitor and Vector Scope Display

These features enable users to monitor sources using the internal waveform and vector scope. In addition, LMD-A Series monitors provide some of the same evaluation tools as larger, dedicated equipment. Both the waveform monitor and the vector scope offer zoom functions for very precise signal adjustment (from zero to 20% video level), and both have two-channel audio monitoring.

Waveform monitor

Vector scope

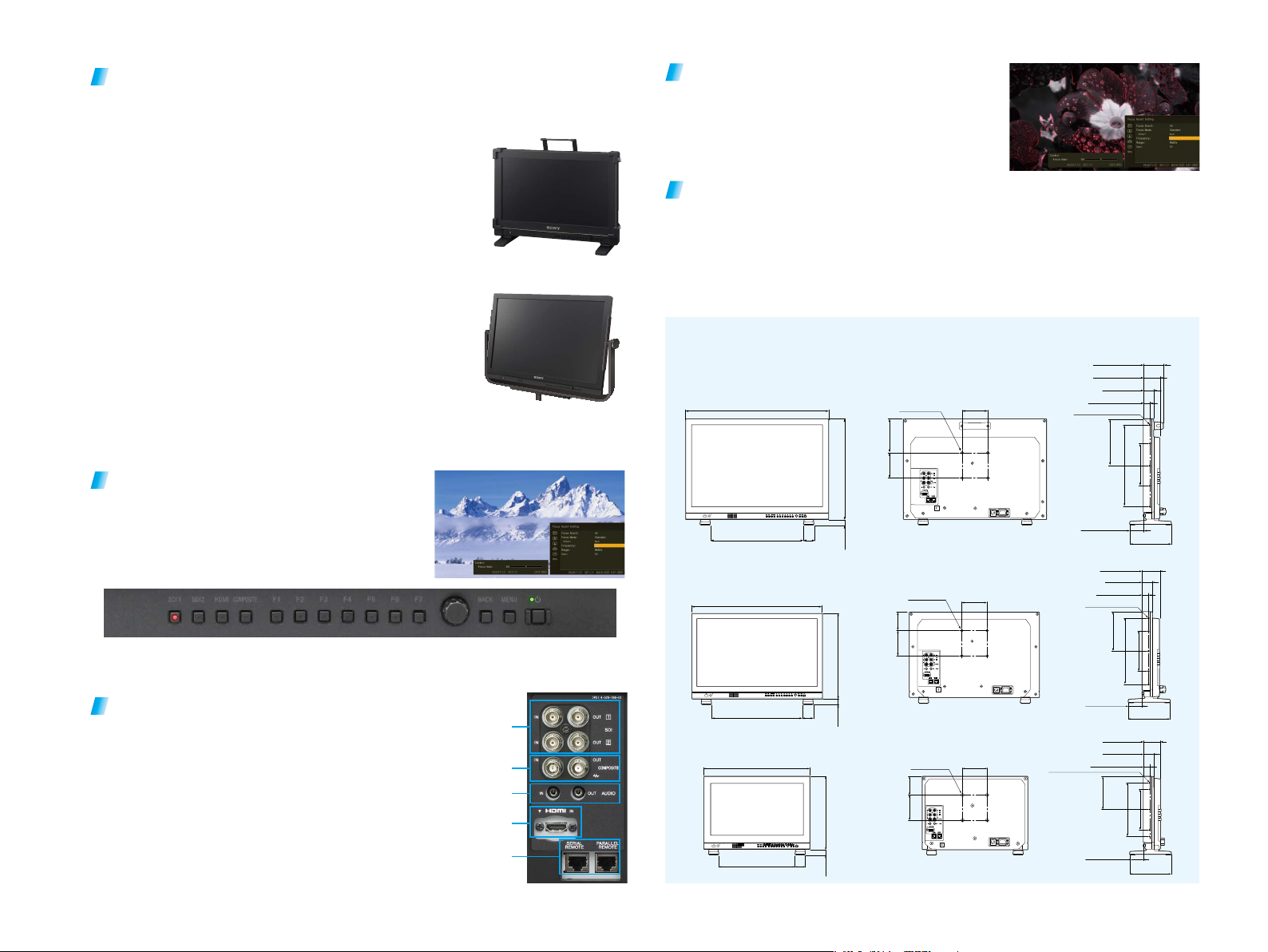

Page 3

Versatility for a Wide Range of User Applications

These monitors offer a variety of mechanical features to enhance monitor mobility and user convenience in a wide range of applications.

Optional Protection Kit (BKM-PL17 for LMD-A170 only)

This accessory provides an AR-coated protection panel for the 17-inch monitor, along with corner bumpers to safeguard the monitor from scratches and impact. The benefit of this is significant when renting out these monitors – for example, panel damage is reduced and there is a far lower incidence of panel replacement and downtime during rental cycles.

LMD-A170 with protection kit image

Camera Focus Function

This function controls the aperture level of a video signal, and displays images on screen with sharpened edges to help camera focus operation.

Other Features

• Safety area markers

• Closed caption display (EIA/CEA-608 and EIA/CEA-708, SDI only)

• 8-channel audio level meter display

• External remote control function

• Computer signal input capability via HDMI input

Camera focus image

Yoke-mount and VESA-mount Capability

All of these monitors have screw holes on their side bezels for yoke mounting. This type of mounting is convenient when installing a monitor to a camera crane or monitor stand. There are also VESA-mount 100-mm pitch holes on each monitor’s rear panel.

LMD-A240 with yoke-mount image

(3rd vendor yoke mount is required)

User-friendly Operability and UI

LMD-A Series monitors offer the same functions and operability as PVM-A Series monitors. This means that both types of monitor can be operated and controlled in the same way.

Front control panel: Consistent design between the PVM-A and LMD-A Series.

Input Versatility

LMD-A Series monitors are equipped with built-in standard input interfaces: 3G/HD/SD-SDI (x2), HDMI (HDCP) input (x1), and composite (x1).

3G/HD/SD-SDI

Input (x2)

Output (x2)

Composite

Input / Output

Audio

Input / Output

HDMI IN

Serial remote

Parallel remote

Dimensions

LMD-A240

566.6 (2

2 3/8

)

(14 5/8)

37 0.1

LMD-A220

517.8 (20 1/2)

364.1 (14 3/8)

LMD-A170

420.2 (16 5/8)

304.1 (12)

(

1 5/

(1 5/8)

Unit: mm (inches)

78.2

(3 1/8)

64.4

(2 5/8)

(1 5/8)

25.9

4-M4 hole

)

133 .8

397. 8 (

22.5

/8)

338 (13

)

29/

22.5

(

/8)

288.8 (11

)

29/

22.5

(

(4)

100

)

29/

(

4-M4 hole

(3)

73.3

100 (4)

4-M4 hole

73.3

100 (4)

(3)

5-M4 hole

54.3

67.2 (2

25.9 (1

5-M4 hole

54.3 (2 1/4)

25.9 (1

130.7

54.3 (2 1/4)

(1 1/16)

)

(12

185 .2

323.2

(2 1/4)

40 (1

/16)

/8)

155.3 (6

263.4 (10

70 (2 7/8)

40 (1

/16)

/4)

/2)

214.2 (8

)

160

165

/4) /8)

/8)

160 (6

165 (6

/8)

160 (6

165 (6

(6 1/2)

/2)

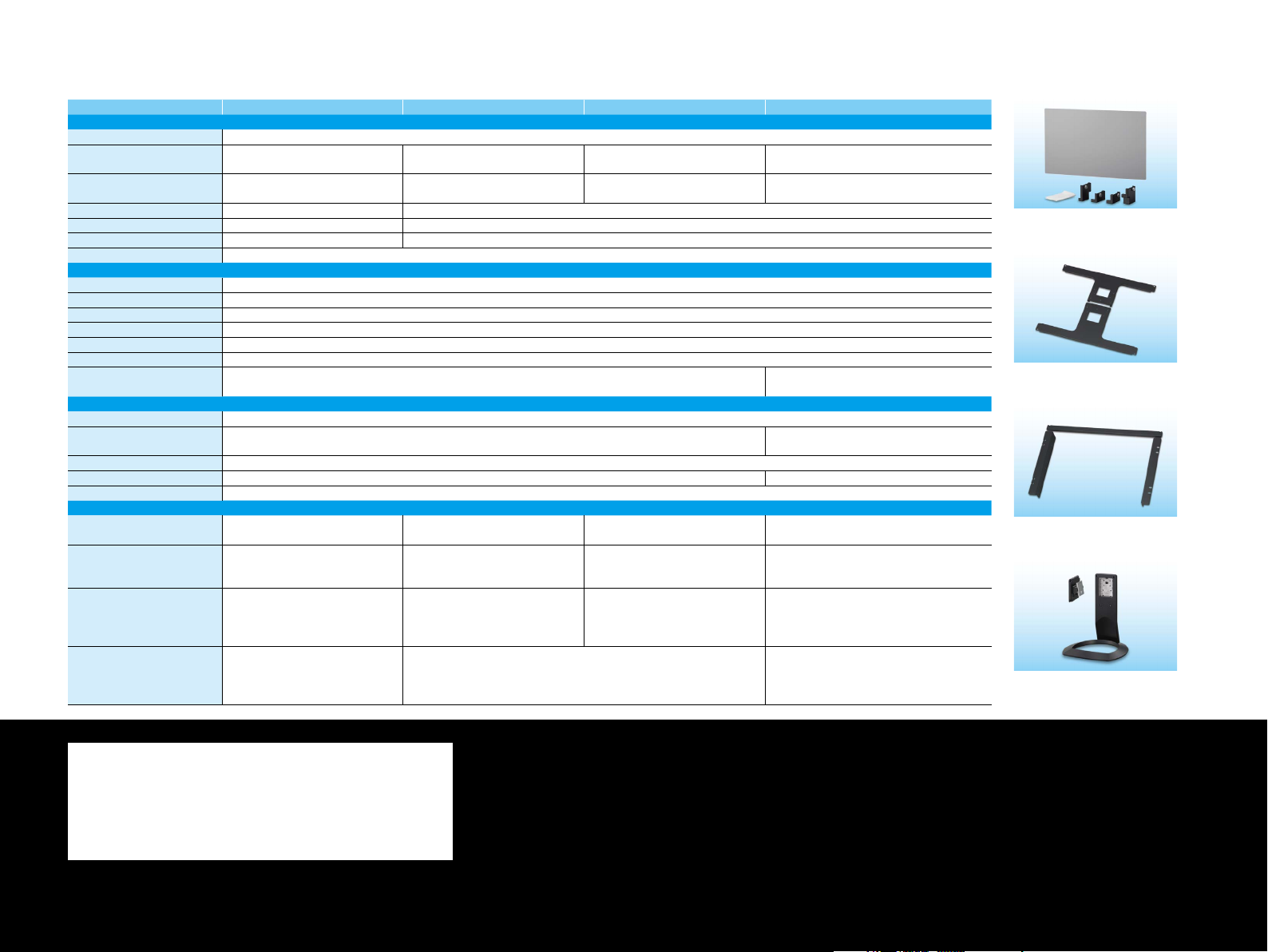

Page 4

Specifications Options

Picture Performance

Panel Picture size (diagonal)

Effective picture size (H x V)

Resolution (H x V) Aspect Colours Viewing angle

Input

Composite SDI HDMI Audio Parallel remote Serial remote DC in

Output

Composite SDI

Audio monitor out Speaker (built-in) Headphones output

General

Power requirements

Power consumption

Mass

Supplied accessories

LMD-A240 LMD-A220 LMD-A170 LMD-941W

a-Si TFT Active Matrix LCD

611.3 mm 24 1/8 inches

518.4 x 324.0 mm 20 1/2 x 12 7/8 inches 1920 x 1200 pixels (WUXGA) 1920 x 1080 pixels (Full HD) 16:10 16:9 Approx. 1,073 million colours Approx. 16.7 million colours 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)

BNC (x1), 1.0 Vp-p ±3 dB sync negative BNC (x2) HDMI (x1) (HDCP correspondence) Stereo mini jack (x1), -5 dBu 47 kilohms or higher RJ-45 Modular connector 8-pin (x1) RJ-45 Modular connector (x1) (Ethernet, 10BASE-T/100BASE-TX) XLR-type 4-pin (male) (x1) DC 12 V to 17 V (output impedance 0.05 Ω or less)

BNC (x1), loop-through, with 75 ohms automatic terminal function BNC (x2), Output signal amplitude: 800 mVp-p ±10%, Output impedance: 75 Ω unbalanced Stereo mini jack (x1)

1.0 W (monaural) 0.5 W (monaural) Stereo mini jack (x1)

AC 100 V to 240 V, 0.5 A to 0.2 A, 50/60 Hz DC 12 V to 17 V, 3.6 A to 2.6 A Approx. 51 W (max.) Approx. 45 W (average power consumption in the default sattus)

7.6 kg 16 lb 12 oz (with monitor feet)

AC power cord (1), AC plug holder (1), Before Using This Unit (1), CD-ROM (1)

546.1 mm 21 1/2 inches

476.1 x 267.8 mm 18 3/4 x 10 5/8 inches

AC 100 V to 240 V, 0.5 A to 0.2 A, 50/60 Hz DC 12 V to 17 V, 3.4 A to 2.4 A Approx. 47 W (max.) Approx. 43 W (average power consumption in the default sattus)

5.4 kg 11 lb 14 oz (with monitor feet)

AC power cord (1), AC plug holder (1), Handle (1) (including 4 screws), Before Using This Unit (1), CD-ROM (1)

419.6 mm 16 5/8 inches

365.8 x 205.7 mm 14 1/2 x 8 1/8 inches

AC 100 V to 240 V, 0.5 A to 0.2 A, 50/60 Hz DC 12 V to 17 V, 3.6 A to 2.5 A Approx. 49 W (max.) Approx. 42 W (average power consumption in the default sattus)

4.9 kg 10 lb 13 oz (with monitor feet)

228.0 mm 9 inches

198.7 x 111.8 mm 7 7/8 x 4 1/2 inches

XLR-type 4-pin (male) (x1) DC 12 V (output impedance 0.05 ohms or less)

BNC (x1), Output signal amplitude: 800 mVp-p ±10%, Output impedance: 75 ohms unbalanced

AC 100 V to 240 V, 0.7 A to 0.4 A, 50/60 Hz DC 12 V, 2.5 A

Approx. 36 W (max.)

2.0 kg 4 lb 6.5 oz

2.6 kg 5 lb 12 oz (when AC adaptor is installed) AC power cord (1), AC adaptor (1), AC plug holder (1), Handle (1), Arm mount bracket (1) (including 4 screws), Operating Instructions (1), CD-ROM (1), Using the CD-ROM Manual (1)

BKM-PL17

Protection kit (LMD-A170)

MB-L22

Mounting bracket (LMD-A220)

MB-L17

Mounting bracket (LMD-A170)

SU-561

Monitor stand
