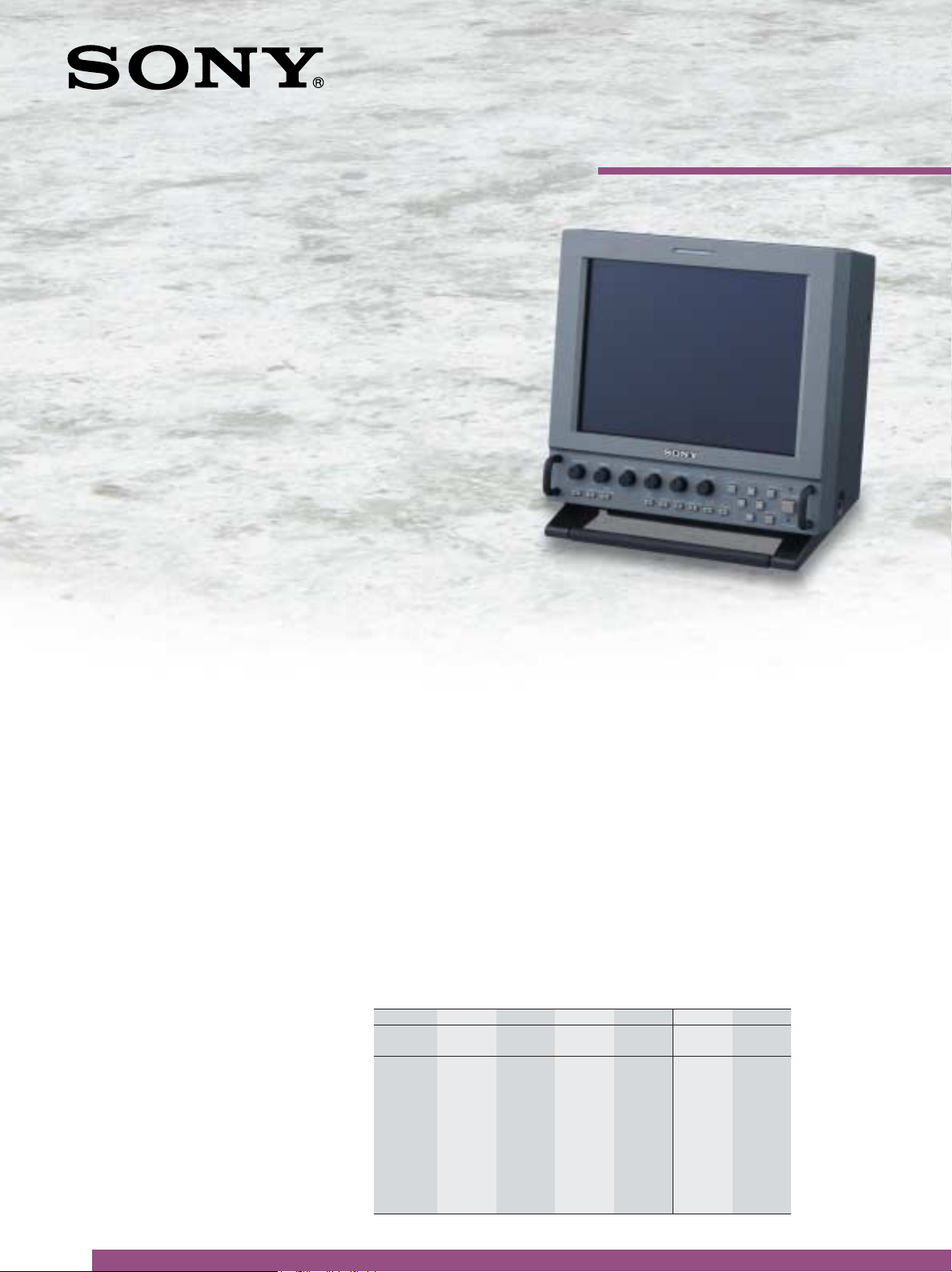

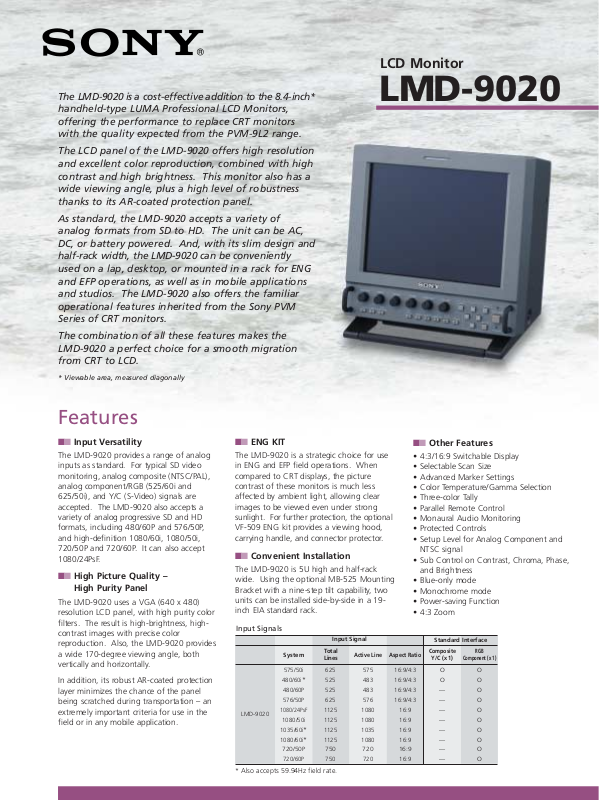

Sony LMD-9020 Features & Specifications

Page 1

LCD Monitor

The LMD-9020 is a cost-effective addition to the 8.4-inch* handheld-type LUMA Professional LCD Monitors, offering the performance to replace CRT monitors with the quality expected from the PVM-9L2 range.

The LCD panel of the LMD-9020 offers high resolution and excellent color reproduction, combined with high contrast and high brightness. This monitor also has a wide viewing angle, plus a high level of robustness thanks to its AR-coated protection panel.

As standard, the LMD-9020 accepts a variety of analog formats from SD to HD. The unit can be AC, DC, or battery powered. And, with its slim design and half-rack width, the LMD-9020 can be conveniently used on a lap, desktop, or mounted in a rack for ENG and EFP operations, as well as in mobile applications and studios. The LMD-9020 also offers the familiar operational features inherited from the Sony PVM Series of CRT monitors.

The combination of all these features makes the LMD-9020 a perfect choice for a smooth migration from CRT to LCD.

* Viewable area, measured diagonally

LMD-9020

Features

■■ Input Versatility

The LMD-9020 provides a range of analog inputs as standard. For typical SD video monitoring, analog composite (NTSC/PAL), analog component/RGB (525/60i and 625/50i), and Y/C (S-Video) signals are accepted. The LMD-9020 also accepts a variety of analog progressive SD and HD formats, including 480/60P and 576/50P, and high-definition 1080/60i, 1080/50i, 720/50P and 720/60P. It can also accept 1080/24PsF.

■■ High Picture Quality –

High Purity Panel

The LMD-9020 uses a VGA (640 x 480) resolution LCD panel, with high purity color filters. The result is high-brightness, highcontrast images with precise color reproduction. Also, the LMD-9020 provides a wide 170-degree viewing angle, both vertically and horizontally.

In addition, its robust AR-coated protection layer minimizes the chance of the panel being scratched during transportation – an extremely important criteria for use in the field or in any mobile application.

■■ ENG KIT

The LMD-9020 is a strategic choice for use in ENG and EFP field operations. When compared to CRT displays, the picture contrast of these monitors is much less affected by ambient light, allowing clear images to be viewed even under strong sunlight. For further protection, the optional VF-509 ENG kit provides a viewing hood, carrying handle, and connector protector.

■■ Convenient Installation

The LMD-9020 is 5U high and half-rack wide. Using the optional MB-525 Mounting Bracket with a nine-step tilt capability, two units can be installed side-by-side in a 19inch EIA standard rack.

Input Signals

Input Signal

System

575/50i 625 575 16:9/4:3

480/60i

480/60P 525 483 16:9/4:3 — 576/50P 625 576 16:9/4:3 —

LMD-9020

* Also accepts 59.94Hz field rate.

1080/24PsF

1080/50i 1125 1080 16:9 — 1035/60i 1080/60i

720/50P 750 720 16:9

720/60P 750 720 16:9 —

Total

Active Line

Lines

525 483 16:9/4:3

1125 1080 16:9 —

1125 1035 16:9 —

1125 1080 16:9 —

■■ Other Features

• 4:3/16:9 Switchable Display

• Selectable Scan Size

• Advanced Marker Settings

• Color Temperature/Gamma Selection

• Three-color Tally

• Parallel Remote Control

• Monaural Audio Monitoring

• Protected Controls

• Setup Level for Analog Component and NTSC signal

• Sub Control on Contrast, Chroma, Phase, and Brightness

• Blue-only mode

• Monochrome mode

• Power-saving Function

• 4:3 Zoom

Standard Interface

Aspect Ratio

Composite

Y/C (x 1)

OO OO

—

RGB

Component (x 1)

O O O O O O O O

Page 2

Specifications

142 (5 5/8)

11.5∞

107.5 (4 1/4)

216 (8

5/8)

37 (1 1/2)

66.5 (2 5/8)

31 (1

)

206 (8

)

APERTURE

LINE A LINE B

RGB

COMPONENT

SCAN ASPECT MARKER MONO

ENTER

KEY INHIBIT

RESET MENU

POWER

BLUE ONLY

EXT

SYNC

BRIGHT CHROMA PHASE CONTRAST VOLUME

17.5 (23/32)

LMD-9020

Picture Performance

Type a-Si TFT Active Matrix LCD with a multi-layer AR-coated

Resolution 640 x 680 dots Pixel efficiency 99.99% Picture Size (H x W), (Viewable area) Approx. 170.9 x 128.2 mm, (Approx.6

(Diagonal) 213.6 mm (8.4-inch) Aspect 4:3 Colors 16,770,000 colors Viewing Angle 85°/85°/85°/85° (typical) (up/down/left/right contrast>10:1)

Input

Line A Composite BNC x 1, 1.0 Vp-p +3dB, -6 dB sync negative

Y/C

Audio Mini jack x 1, -5 dBu 47 kΩ or higher

Line B Composite BNC x 1,1.0 Vp-p +3 dB, -6 dB sync negative

Audio Mini jack x 1, -5 dBu 47 kΩ or higher

RGB/ RGB/Component BNC x 3, RGB input : 0.7 Vp-p +3 dB, -6 dB Component (Sync On Green, 0.3 Vp-p sync negative)

Audio Mini jack x 1, -5 dBu 47 kΩ or higher

Ext.sync BNC x 1, 0.3 to 4 Vp-p ± bipolarity ternary or negative polarity

Remote Parallel remote Modular connector 8-pin x 1(Assignable)

Output

Line A Composite BNC x 1, Loop-through, with 75 Ω automatic termination

Y/C 4-pin mini-DIN x 1, Loop-through, with 75 Ω automatic

Line B Composite BNC x 1,Loop-through, with 75 Ω automatic termination Audio output Mini jack x 1, Loop-through Headphones output Mini jack x 1(Monaural), Loop-through Speaker output 0.5 W (Monaural)

General

Power Consumption Approx. 15 W, With AC Adaptor : Approx. 20 W Power requirement AC 100 to 240 V, 50/60 Hz, 0.82 to 0.42 A, DC 12 V 1.5 A,

Operating Temparature 0 to 40 °C Operating Humidity 30 to 85 % (No condensation) Operating/Storage/Trans. Pressure 700 to 1060 hPa Storage & Transport Temperature -20 to 60 °C Storage & Transport Humidity 0 to 90 % Dimensions (W x H x D) Approx. 216 x 206 x 136.1 mm (8 5/8x 8 1/8x 5 3/8inches)

Dimension with the supplied stand

Dimension

with the supplied stand and AC adaptor

Mass Approx. 2.8 Kg (6 lb 3 oz)

With the supplied stand Approx. 3.0 Kg (6 lb 10 oz) With the supplied stand

and AC adaptor

Supplied Accessories AC adaptor (1), AC Cord (1),AC plug holder (1),

protection panel

/4x 5 1/8inches)

4-pin mini-DIN x 1 Y : 1.0 Vp-p + 3dB, -6 dB sync negative C : 0.286 Vp-p ±3 dB (NTSC),0.3 Vp-p ±3 dB (PAL)

Component input : 0.7 Vp-p +3 dB, -6 dB (75% chrominance standard color bar signal)

binary

termination

Rechargeable Battery Pack

Approx. 216 x 230 x 159.5 mm

/8x 9 1/8x 6 3/8inches)

(8 Approx. 216 x 230 x 210 mm

(8 5/8 x 9 1/8 x 8 3/8 inches)

Approx. 3.7 Kg (8 lb 3 oz)

Operating instructions (1), CD-ROM (1),Warranty card (1), Using the CD-ROM Manual (1)

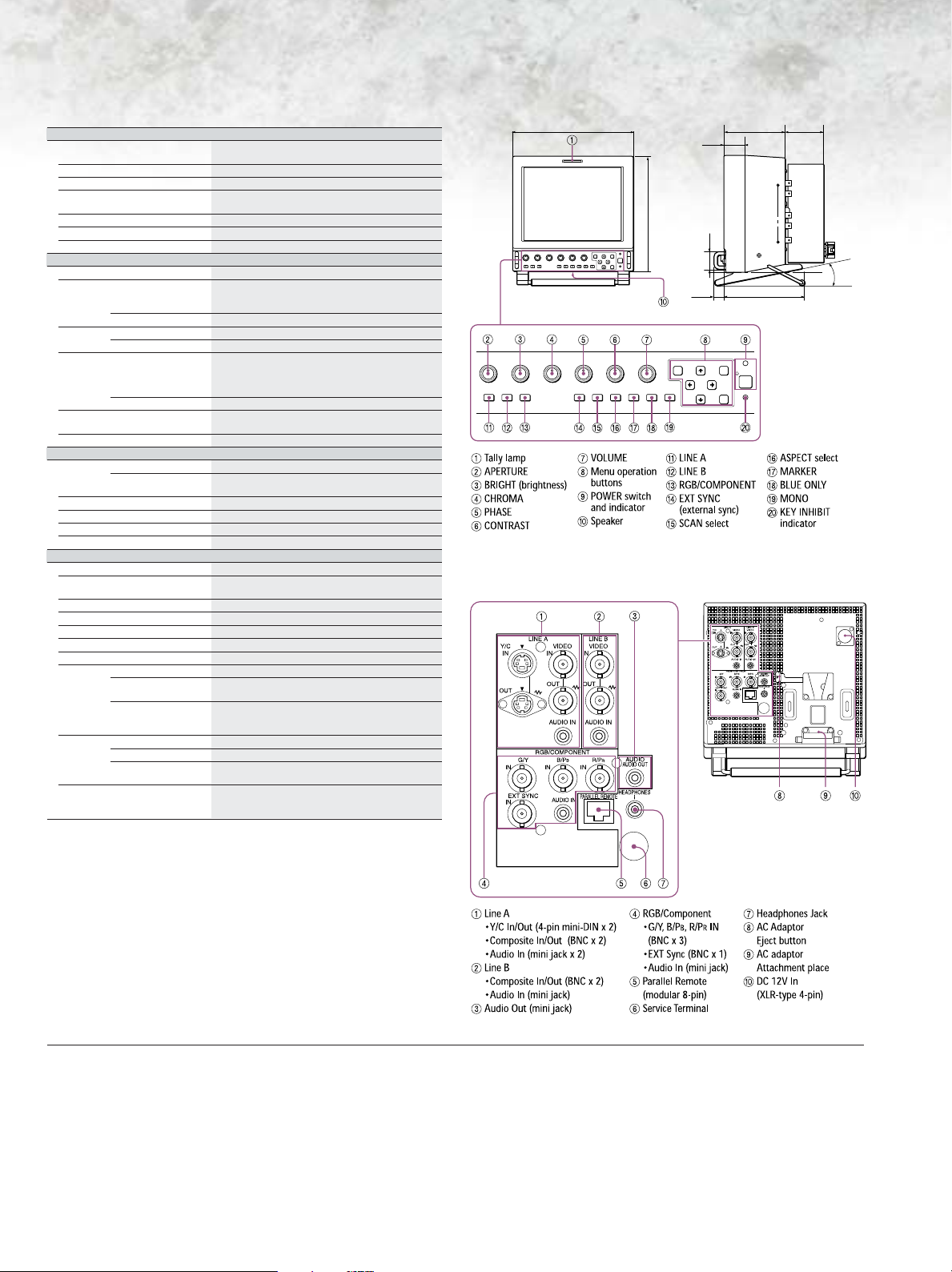

Dimensions & Control Panel

Unit: mm (inches)

Connector Panel

Optional Accessories

• MB-525 Mounting Bracket

• VF-509 ENG Kit (Viewing Hood, Carrying Handle and

• BP-GL95/BP-GL65 Rechargeable Lithium-ion Battery Pack

• BP-L60S Lithium-ion Battery Pack

• BC-L70 Lithium-ion Battery Charger

Distributed by

MK10322V1IW05NOV

Connector Protector)
