4-101-083-11(1)

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

KV-XR34 KV-XR29

KV-XR25

N60

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 - 240V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

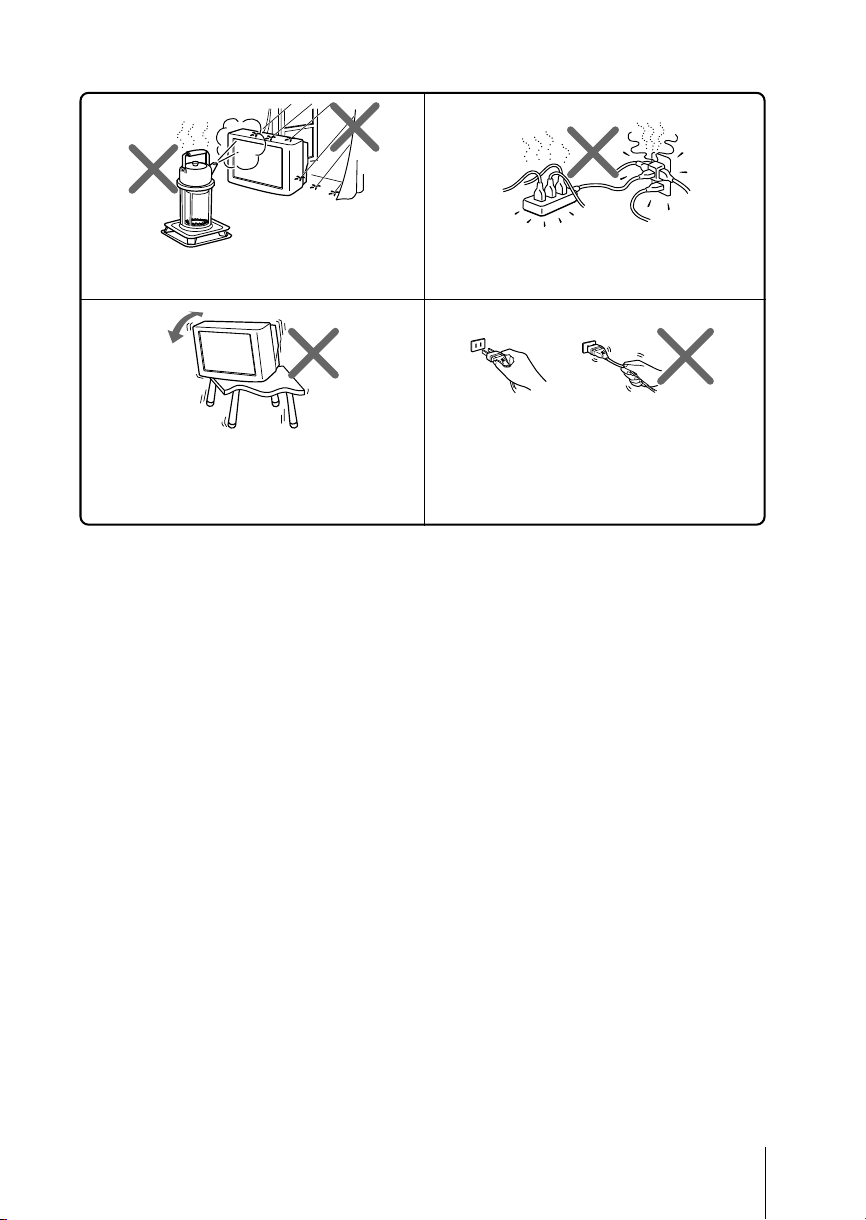

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

x Securing the TV

To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps. (2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV front and rear panels ..................... 8

Using the remote control and

basic functions ...................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Enjoying stereo or bilingual

programs ............................................. 12

Menu Adjustment

Introducing the menu system .......... 13

Changing the “Video” setting.......... 16

Changing the “Audio” setting ......... 17

Changing the “Channel Setup”

setting .................................................. 19

Changing the “Channel Block”

setting .................................................. 20

Changing the “Timer” setting.......... 21

Changing the “Setup” setting .......... 22

Additional Information

Connecting optional components ... 23

Troubleshooting ................................. 25

Specifications ...................... Back cover

Installation

x Getting Started

Step 1

Initial Setup

Language:

English

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components (see page 23).

Step 3

Plug in the power cord, then press ! on the TV to turn it on.

Note

• The 1 (standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Step 4

Set up the TV by following the instructions of the “Initial Setup” menu (see page 7).

Move

6 Installation

Select

[TV/VIDEO]

End

[MENU]

Initial Setup

Language:

Move

English

Select

[TV/VIDEO]

End

[MENU]

Initial Setup

First please connect cable/ antenna

Start Auto Program now?

Yes

Move

Select

[TV/VIDEO]

End

[MENU]

Initial Setup

Display this menu next time?

Yes No

Move

Select

[TV/VIDEO]

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear. You may change the menu language, preset the TV channels automatically and adjust the picture position using the buttons on the TV front panel.

Tip

• The MENU, and V/v/B/b buttons on the remote control can also be used for the operations below.

Press VOLUME +/– to select the desired

menu language, then press TV/VIDEO.

The selected menu language appears.

Press VOLUME +/– to select “Yes”, then

press TV/VIDEO to preset the channels automatically or select “No” to skip automatic channel presetting.

Once you select “Yes”, your TV will start searching for all the available channels.

If the message “No channel found. Please connect cable/antenna.” appears, check your TV connections, then press TV/VIDEO.

Installation

Press VOLUME +/– to adjust the bars on

the top and bottom of the menu if they are slanted, then press TV/VIDEO.

If no adjustment is necessary, then press TV/VIDEO.

Press VOLUME +/– to select “No”, then

press TV/VIDEO. This menu will not appear again the next time you turn on the TV by pressing !.

To allow this menu to appear again, select “Yes”, then press TV/VIDEO.

Tips

• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

• You can also set up your TV by pressing the MENU button on the TV front panel for about five seconds or using the menu system (see page 13).

Tilt Correction

[ – VOL ]

Move [– VOL +]

[ VOL + ]

End [MENU]

Select [TV/VIDEO]

Installation

Overview of Controls

x TV front and rear panels

TV rear panel

L(MONO)

ENTER SELECT

AUTO

PROGRMENU

PROGR

COMPONENT VIDEO(DVD) IN

LYC

VIDEO

MONITOR

OUT

BCR

VIDEO

AUDIO

TV front panel

VIDEO

(MONO)

AUDIO

VIDEO 3 INPUT

SOUND

MODE

TV/VIDEO

VOLUME

CHANNEL

STANDBY/

WAKE UP

Button/Terminal Function Page

1 Remote control sensor. – 2 STANDBY Standby indicator. 6 2 WAKE UP Wake Up indicator. 21 3 ! Turn off or turn on the TV. 6 4 CHANNEL +/– Select channel number. – 5 VOLUME +/– Adjust volume. – 6 TV/VIDEO Select TV or video input. 23

Menu operations

5 VOLUME +/– Select and adjust items. – 6 TV/VIDEO Confirm selected items. – 7 MENU Display or cancel the menu. –

8 SOUND MODE Select sound mode options. 11

5-Band Graphic Equalizer display will appear.

9 VIDEO 3 INPUT Video input terminal 3. 23 0 i Headphone jack. – qa COMPONENT VIDEO

(DVD) IN Component video input terminal. 24

qs 8 Antenna input terminal. 23 qd MONITOR OUT Monitor output terminal. 23 qf VIDEO IN 1,2 Video input terminal 1, 2. 23

8 Overview of Controls

x Using the remote control and basic

functions

POWER

DISPLAY

0 qa qs

MUTING

TV/VIDEOMTS/SAP

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

RESET

SLEEP

5 6

8 9

Overview of Controls

Button Description Page

1 POWER Turn off temporarily or turn on the TV. – 2 TV/VIDEO Select TV or video input. 23 3 0–9 Input numbers. – 4 ENT Confirm input numbers. – 5 CH +/– Select channel number. – 6 VOL +/– Adjust volume. – 0 MUTING

Mute the sound. –

qa DISPLAY Display on-screen information. – qd JUMP Jump to last channel number that has been –

watched for at last five seconds.

continue

Overview of Controls

continued

Button Description Page

qf PICTURE MODE Select picture mode options. 11 qg SOUND MODE Select sound mode options. 11

qh Select audio effect mode options:

qk RESET Set TV to factory setting while adjusting items in –

Menu operations

7 MENU Display or cancel the menu. 15 8 Confirm selected items. 15 qj V, v, B, b Select and adjust items. 15

Timer operations

9 SLEEP Set TV to turn off automatically. –

Stereo/bilingual operations

qs MTS/SAP Select stereo/bilingual mode. 12

5-Band Graphic Equalizer display will appear.

“Effect Off”, “Simulated” (stereo-like monaural – sound), “Surround”.

an on-screen menu.

10 Overview of Controls

Advanced Operations

x Selecting the picture and sound

modes

You can select picture and sound modes and adjust the setting to your personal preference.

POWER

DISPLAY


MODE

SOUND

MODE

MUTING

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

TV/VIDEOMTS/SAP

Selecting the picture mode

Press PICTURE MODE to select the desired picture mode.

Select To view

“Vivid” contrast and sharp pictures.

“Standard” standard pictures.

“Movie” finely detailed pictures.

“Sports” bright pictures.

RESET

SLEEP

Selecting the sound mode

Press SOUND MODE on the remote control (or the front panel) to select the desired sound mode. 5-Band Graphic Equalizer display will appear.

Select To listen to

“Movie” dynamic and clear sound that emphasizes the low and

“News” sound that emphasizes vocals.

“Soft” soft, natural and relaxing sounds.

“Standard” standard flat sounds.

Movie

high tones.

100 300 1k 3k 8k

News

100 300 1k 3k 8k

Soft

100 300 1k 3k 8k

Standard

100 300 1k 3k 8k

Advanced Operations

x Enjoying stereo or bilingual

programs

You can enjoy stereo sound or bilingual programs of MTS stereo system by using MTS/SAP button.

Select stereo or bilingual programs

Press MTS/SAP until you receive the sound you want.

Select To listen to

“Stereo” stereo broadcast sound.

“Auto SAP” SAP broadcast sound.

“Mono” monaural sound.

MTS/SAP

DISPLAY

MUTING

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

RESET

POWER

TV/VIDEOMTS/SAP

SLEEP

Notes

• When select “Auto SAP”, non-SAP program sound will be same as “Stereo” mode sound.

• If the stereo signal is very weak, the stereo broadcast sound may become noisy. To reduce the noise select “Mono”.

12 Advanced Operations

Menu Adjustment

x Introducing the menu system

The MENU button lets you open a menu and change the settings of your TV. The following is an overview of the menu system.

Video icon

Audio icon

Channel Setup icon

Channel Block icon

Timer icon

Setup icon

Menu level 1

Level 1

“Video”

“Audio”

Level 2

“Mode”

“Picture Controls”

“Color Temp.”

“VM”

“Intelligent Picture”

“Mode”

“Sound Controls”

“Balance”

“Steady Sound”

“Effect”

“MTS”

Return icon

Setup

Language: English Tilt Correction 16:9 Enhanced:

Caption Vision:

Video Label

Move

Select

End

Name of the current menu

Menu level 3

Menu level 2

User Guidance

Level 3/Function

Select the picture mode:

“Vivid” t “Standard” t “Movie” t “Sports”

Adjust the picture mode option:

“Picture” t “Brightness” t “Color” t

“Hue” t “Sharpness”

Adjust white color tint:

“Cool” t “Neutral” t “Warm”

Sharpen the edges of each object:

“High” t “Low” t “Off”

Optimize picture quality:

“On” t “Off”

Select the sound mode:

“Movie” t “News” t “Soft” t “Standard”

Adjust sound frequency settings.

Select to emphasize the left and right speakers.

Adjust volume automatically:

“On” t “Off”

Select audio effect mode:

“Off” t “Simulated” t “Surround”

Select stereo/bilingual mode:

“Stereo” t “Auto SAP” t “Mono”

Page

continue

Menu Adjustment

continued

Level 1

“Channel Setup”

“Channel Block”

“Timer”

“Setup”

Level 2

“Favorite Channels”

“Cable”

“Auto Program”

“Channel Skip/Add”

“Channel Label”

–

“Sleep”

“Wake Up Timer”

“Language”

“Tilt Correction”

“16:9 Enhanced”

“Caption Vision”

“Video Label”

Level 3/Function

Quick access to favorite channels.

Watch cable TV programs:

“On” t “Off”

Preset channels automatically.

Skip unwanted channels or add new ones.

Label the channel number.

Block unwanted channels.

Set TV to turn off automatically.

Set TV to turn on automatically.

Change the menu language:

“English” t “ ” (Chinese)

Adjust the picture position.

Change the picture size:

“On” t “Off”

Select the closed caption mode:

“Off” t “CC1/2/3/4” t “Text1/2/3/4” t

“Info”

Label the connected equipment.

Page

14 Menu Adjustment

How to use the menu

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

Press MENU to display the menu.

Video

Mode:

Picture Controls Color Temp.: VM: Intelligent Picture:

Move

Select

Vivid

Cool High

End

RESET

SLEEP

Press V or v to select the desired item.

Press

(or b) to confirm your selection and go to the next level.

Channel Setup Favorite Channels Cable: Auto Program Channel Skip/Add Channel Label

Move

Favorite Channels Cable: Auto Program Channel Skip/Add Channel Label

Move

Select

Channel Setup

Select

End

Other menu operations

Adjust the setting value

Move to the next/previous menu level

Cancel the menu

Tips

• If you want to exit from Menu level 2 to Menu level 1, press V or v until the return icon ( ) is highlighted, then press .

• The MENU, TV/VIDEO and VOLUME +/– buttons on the TV front panel can also be used for the operations above (see page 8).

Press

V, v, B or b.

B or b.

MENU.

Menu Adjustment

x Changing the “Video” setting

The “Video” menu allows you to adjust the picture settings.

Press MENU.

Make sure the “Video” icon ( ) is

selected, then press

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Vivid”, “Standard”, “Movie” or “Sports” (see

“Color Temp.” adjust white color tint. (Color Temperature) Choose either “Cool” (blue tint), “Neutral” (neutral tint) or

“VM” sharpen the edges of each object. (Velocity Modulation) Choose either “High”, “Low” or “Off”.

“Intelligent Picture” optimize picture quality.

page 11).

Tip

• You can adjust the setting to your personal preference in the “Picture Controls” option.

“Warm” (red tint).

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

Video

Mode:

Picture Controls Color Temp.: VM: Intelligent Picture: On

Move

Select

Vivid

Cool High

End

Adjusting the “Picture Controls” items

Press v to select “Picture Controls”, then press .

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press .

Pressing RESET button on the remote control will set your TV to the factory setting.

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be memorized.

Note

• Reducing “Sharpness” can also reduce picture noise.

16 Menu Adjustment

x Changing the “Audio” setting

Balance Steady Sound: Effect: Off

Off

MT S: Stereo

Sound Controls

Movie

Mode:

Audio

Select

End

Move

The “Audio” menu allows you to adjust the sound settings.

Press MENU.

Press V or v to select the “Audio”

icon (

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Movie”, “News”, “Soft” or “Standard” (see

“Balance” Press v or B to emphasize the left speaker.

“Steady Sound” adjust the volume of all channel numbers and video inputs

“Effect” choose either “Off”, “Simulated” or “Surround” (see page 10).

“MTS” choose either “Stereo”, “Auto SAP” or “Mono”. (Multi-Channel Tip TV Sound) • You can also access the setting by pressing the MTS/SAP

), then press .

page 11).

Tip

• You can adjust the setting to your personal preference in the “Sound Controls” option (see page 18).

Press V or b to emphasize the right speaker.

automatically. Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

button on the remote control (see page 12).

continue

Menu Adjustment

Sound Controls

Select

End

Move

Mode:

Movie

100 300 1k 3k 8k

continued

Adjusting the “Sound Controls” items

The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings to your personal preference in the menu.

Press v to select “Sound Controls”, then

press

Press b or B to select the desired sound frequency, then press V or v to

adjust the setting and press .

The adjusted settings will be memorized. Pressing RESET button on the remote control will set your TV to the factory setting.

Notes

• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency will affect lower pitched sound.

• You may display the settings directly using the SOUND MODE button on the TV front panel (see page 8) or the remote control (see page 10).

18 Menu Adjustment

x Changing the “Channel Setup”

setting

The “Channel Setup” menu allows you to quickly access favorite channels, receive cable TV programs, preset channels automatically, skip unwanted channels or add new ones and label the channel number.

Press MENU.

Press V or v to select the “Channel Setup”

icon (

Press V or v to select the desired item (e.g., “Favorite Channels”), then press .

Select To

“Favorite Channels” quickly access favorite channels.

“Cable” receive cable TV programs.

“Auto Program” preset channels automatically.

“Channel Skip/Add” skip unwanted channels or add new ones.

“Channel Label” label the channel number.

), then press .

(1) Press V or v to select the position you want to set a favorite

(2) Press V or v to select the desired channel, then press . To use “Favorite Channels”, exit all menus and press . Press V or v to move the cursor to the desired channel number and press .

Press V or v to select “On”, then press . If you select “Cable: On”, you will be able to receive 125 cable

TV channels. If there are no cable TV channels, you will receive VHF broadcast channels only. To receive only VHF and UHF broadcast channels, select “Off”, then press .

(1) Press V or v to select the desired channel, then press . (2) Press V or v to select either “Skip” or “Add”, then press .

(1) Select “Channel” and press .

(2)

channel, then press .

Press V or v to select the channel number, then press . Select “Label” and press . Press V or v to select alphanumeric characters for the label, then press .

Channel Setup Favorite Channels Cable: Auto Program Channel Skip/Add Channel Label

Move

Select

End

Note

• You can skip over channels that have been skipped by pressing CH +/–. You can still use the 0-9 buttons to directly tune to skipped channels.

Menu Adjustment

x C

hanging the “Channel Block”

setting

The “Channel Block” menu allows you to block unwanted channels.

Press MENU.

Press V or v to select the “Channel Block”

icon (

Press V or v to select the desired channel, then press .

Press V or v to select “Block” or “Allow”, then press .

Notes

• When you first enter the “Channel Block” menu, the channel highlighted is the current

channel that is being viewed.

• When a channel is blocked, the word “Blocked” and lock symbol ( ) will appear on the

black screen.

• “Channel Block” is disabled when in video mode.

), then press .

Channel Block

2: Allow 3: Allow 4: Allow 5: Allow 6: Allow

Select channel to block

Move

Select

End

20 Menu Adjustment

Timer

Wake Up Timer:

Sleep:

Off

Move

End

Select

x Changing the “Timer” setting

The “Timer” menu allows you to set TV to turn off and turn on automatically.

Press MENU.

Press V or v to select the “Timer” icon ( ),

then press

Press V or v to select the desired item (e.g., “Sleep”), then press .

Select To

“Sleep” set TV to turn off automatically.

“Wake Up Timer” set TV to turn on automatically.

Press V or v to select the desired period of time (max. of 90 minutes), then press .

Press V or v to select the desired period of time (max. of 12 hours), then press . After the selected length of time, the TV switches on automatically and “Wake Up Timer” will appear on

the screen.

The indicator on the TV lights up amber once you set the “Wake Up Timer”.

Notes

• You can also cancel “Sleep” and “Wake Up Timer” by turning off the TV’s main power.

• If no buttons or controls are pressed for more than one hour after the TV is turned on using the “Wake Up Timer”, the TV automatically goes into standby mode.

Menu Adjustment

x C

hanging the “Setup” setting

The “Setup” menu allows you to change the menu language, adjust the picture position, change the picture size, select the closed caption mode and label the connected equipment.

Press MENU.

Press V or v to select the “Setup” icon

), then press .

(

Press V or v to select the desired item (e.g., “Language”), then press .

Select To

“Language” change the menu language.

“Tilt Correction” adjust the picture position when it is not aligned with the TV

“16:9 Enhanced” change the picture size.

“Caption Vision” select the closed caption mode (for programs that are broadcast

“Video Label” label the connected equipment.

Press V or v to select either “English” or “ ” (Chinese), then press .

screen. Press B or b to adjust the picture position, then press .

Choose either “On” or “Off”.

with closed caption). Press V or v to select either “Off”, “CC1/2/3/4” (printed dialogue and sound effects), “Text1/2/3/4” (network/station information) or “Info” (name of current program and remaining time).

(1) Select “Video Input” and press .

Press V or v to select the input you want to label, then press .

(2) Select “Label” and press , then press V or v to select the

label options: ”Video 1/2/3/4”, “VCR”, “Cable”, “DVD” or “Customize”*.

* You may edit the video label. Press V or v to select

alphanumeric characters for the label, then press .

Language: Tilt Correction 16:9 Enhanced:

Caption Vision:

Video Label

Move

Setup

Select

English

Off Off

End

22 Menu Adjustment

Additional Information

x Connecting optional components

Connecting to VIDEO 3 INPUT and VIDEO IN 1, 2 terminals

TV front panel

VIDEO

VIDEO 3 INPUT

(MONO)

AUDIO

Audio/Video cable

(not supplied)

Camcorder

TV rear panel

COMPONENT VIDEO(DVD) IN

RLY

VIDEOINMONITOR

OUT

VIDEO

Antenna cable

(not supplied)

Audio/Video cable

(not supplied)

Connecting to MONITOR OUT terminal

TV rear panel

COMPONENT VIDEO(DVD) IN

RLY

VIDEOINMONITOR

OUT

VIDEO

Audio/Video

cable

(not supplied)

Video game

equipment

VCR

Audio system

VCR

continue

Additional Information

continued

Connecting to COMPONENT VIDEO (DVD) IN terminal

TV rear panel

COMPONENT VIDEO(DVD) IN

MONITOR

OUT

VIDEO

RLY

VIDEO

Notes

• If your DVD player can output interlace and progressive mode signals, select the interlace output when connecting to COMPONENT VIDEO (DVD) IN on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz interlace signals.

• Some DVD player terminals may be labeled differently:

Connect To (on the DVD player)

Y (green) Y

CB (blue) CB, PB, Cb or B-Y

CR (red) CR, PR, Cr or R-Y

• If you select “DVD” on your TV screen, the signal from the MONITOR OUT will not be output properly. This does not indicate a malfunction.

Component

video cable

(not supplied)

Audio cable

(not supplied)

DVD player

24 Additional Information

x Troubleshooting

If you find any problem while viewing your TV, please check the following guide. If any problem persists, contact your Sony dealer.

Troubleshooting guide

Symptom

Snowy picture

Noisy sound

Distorted picture

Noisy sound

Possible cause

• The connection is loose or the cable is damaged.

• The antenna setup is inappropriate.

• Channel presetting is inappropriate or incomplete.

• Signal transmission is low.

• Broadcast signals are too strong.

• Check the antenna cable and connection on the TV, VCR and at the wall.

• Check the antenna setup. Contact a Sony dealer for advice.

• Preset the channel again.

• Try using a booster.

• Turn off or disconnect the booster if it is in use.

Solutions Page

–

No picture

No sound

Good picture

No sound

• The power cord, antenna or VCR is not connected.

• The TV is not turned on.

• The volume level is too low.

• The sound is muted.

• Check the power cord, antenna and VCR connections.

• Press POWER.

• Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on again.

• Press VOL + to increase the volume level.

• Press MUTING to cancel the muting.

Additional Information

continued

Dotted lines or stripes

Possible causeSymptom Solutions Page

• There is local interference from cars, neon signs, hair dryers, power generators, etc.

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice.

–

Double images or “ghosts”

No color

Picture slant

Good morning!

Abnormal color patches

TV cannot receive stereo broadcast sound.

• Broadcast signals are reflected by nearby mountains or buildings.

• The antenna setup is inappropriate.

• Use of a booster is inappropriate.

• The color level setting is too low.

• The antenna setup is inappropriate.

• The magnetic disturbance from external speakers or other equipment, or the direction of the earth’s magnetic field may affect the TV.

•

Connection is loose or the cable is damaged.

•

The antenna setup is inappropriate.

• Use a highly directional antenna.

• Check the antenna setup. Contact a Sony dealer for advice.

• Turn off or disconnect the booster if it is in use.

•

Display the “Video” menu and select the desired picture mode, then adjust the “Color” level in “Picture Controls”.

• Check the antenna setup. Contact a Sony dealer for advice.

• Keep external speakers or other electrical equipment away from the TV.

• Display the “Setup” menu and adjust “Tilt Correction” so that the picture is optimal.

• Keep external speakers or other equipment away from the TV. Do not move the TV while the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

• Check the antenna cable and connection on the TV, VCR and at the wall.

• Check the antenna setup. Contact a Sony dealer for advice.

–

Stereo broadcast sound swithches on and off or is distorted.

26 Additional Information

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

TV cabinet creaks.

A small “boom” sound is heard when the TV is turned on.

Possible causeSymptom

• Your TV’s selfdiagnosis function indicates the possible problems.

•

Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

•

The TV’s demagnetizing function is working. This does not indicate a malfunction.

Solutions

• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn off your TV. Contact your nearest Sony service center.

—

Page

–

Additional Information

x Specifications

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Channel coverage

8 (Antenna)

Audio output (Speaker)

Number of terminal

VIDEO

AUDIO

COMPONENT VIDEO (DVD) IN

i (Headphone)

Picture tube

Tube size

Viewing screen size

Dimensions (w/h/d)

Mass

KV-XR34N60 KV-XR29N60 KV-XR25N60

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

NTSC3.58

MTS

VHF : 2 to 13 UHF : 14 to 69 CATV : 1 to 125

75-ohm external terminal

5 W + 5 W

Input: 3 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 3 Output: 1 Phono jacks; 500 mVrms

Input: 1 Phono jacks;

Output: 1 Stereo minijack

34 in. 29 in. 25 in.

859 mm

803 mm

895 × 674 × 590 mm 772 × 576 × 516 mm 696 × 513 × 499 mm

78 kg 49 kg 38 kg

Y: 1 Vp-p, 75 ohms, sync negative C

B: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms

Audio: 500 mVrms

724 mm 639 mm Measured

679 mm 598 mm Measured

Note

diagonally

Design and specifications are subject to change without notice.

Sony Corporation

28 Additional Information

Sony KV-XR29N60 Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual
