Page 1

4-098-311-11 (1)

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

KV-BT21

KV-BM14

N50 N40

Page 2

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110-240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

Page 3

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

Page 4

x Securing the TV

B KV-BT21N50/BT21N40 only

To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps. (2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Page 5

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV top control, front and

rear panels............................................. 8

Using the remote control and

basic functions ...................................... 9

Menu Adjustment

Introducing the menu system .......... 11

Changing the “Video” setting.......... 14

Changing the “Audio” setting ......... 15

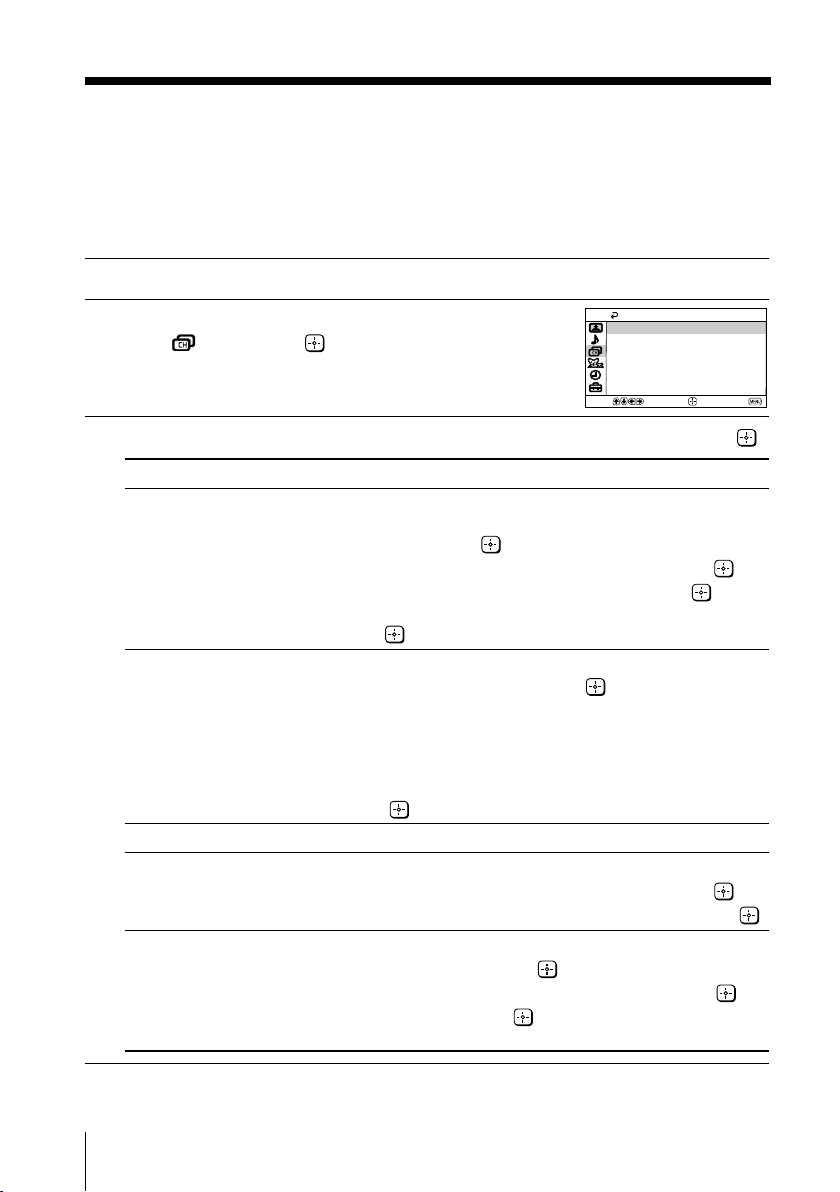

Changing the “Channel Setup”

setting .................................................. 16

Changing the “Channel Block”

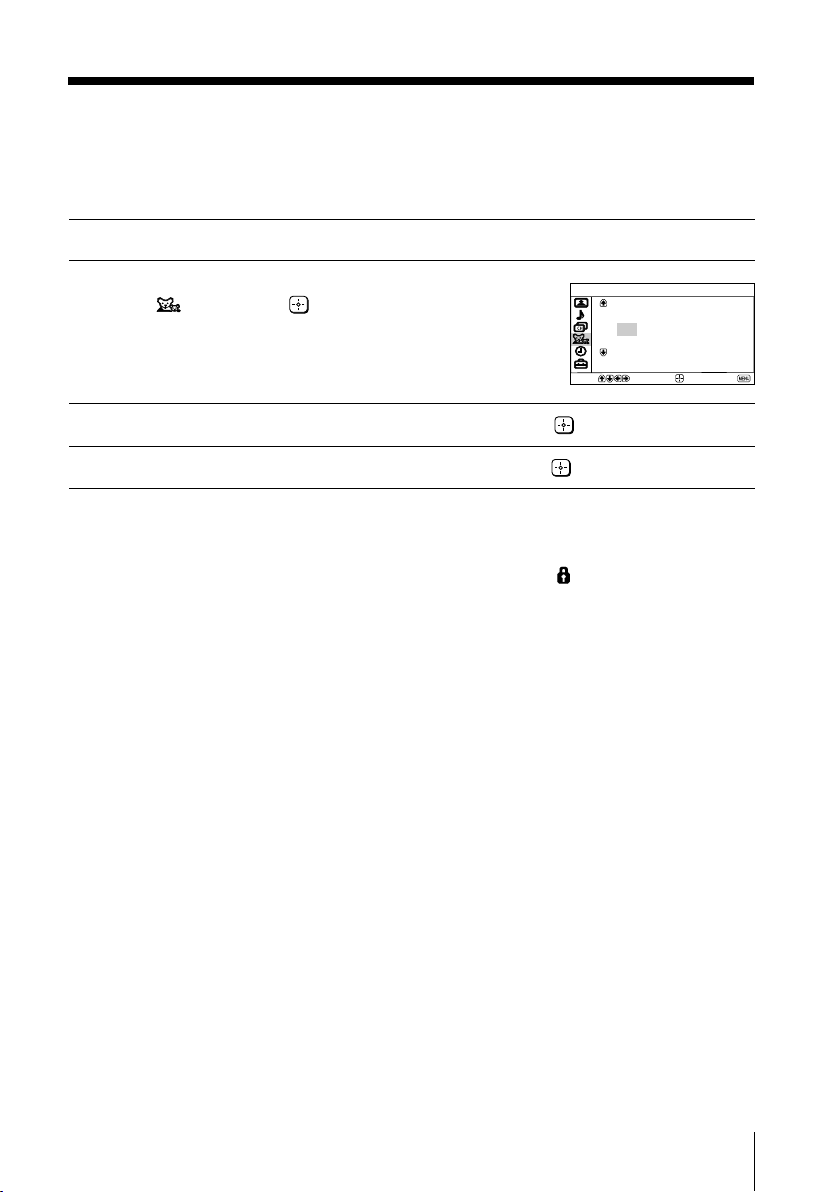

setting .................................................. 17

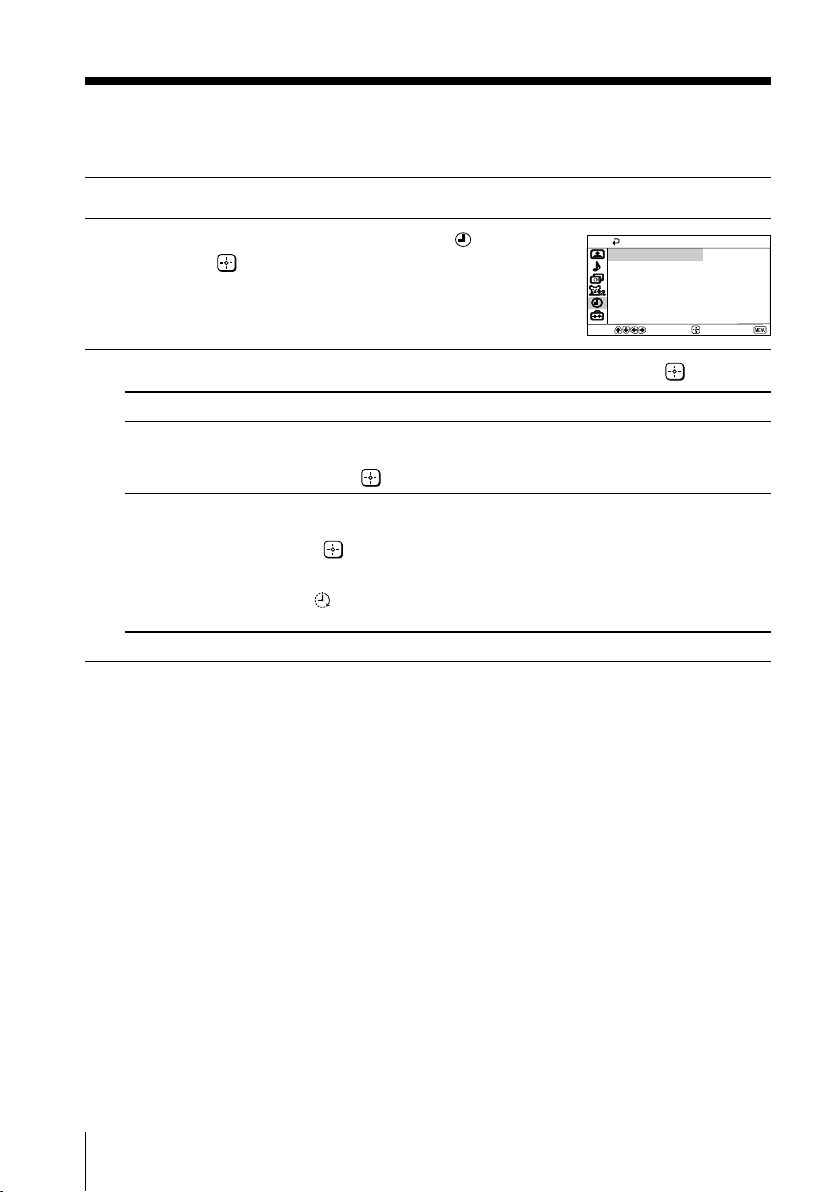

Changing the “Timer” setting.......... 18

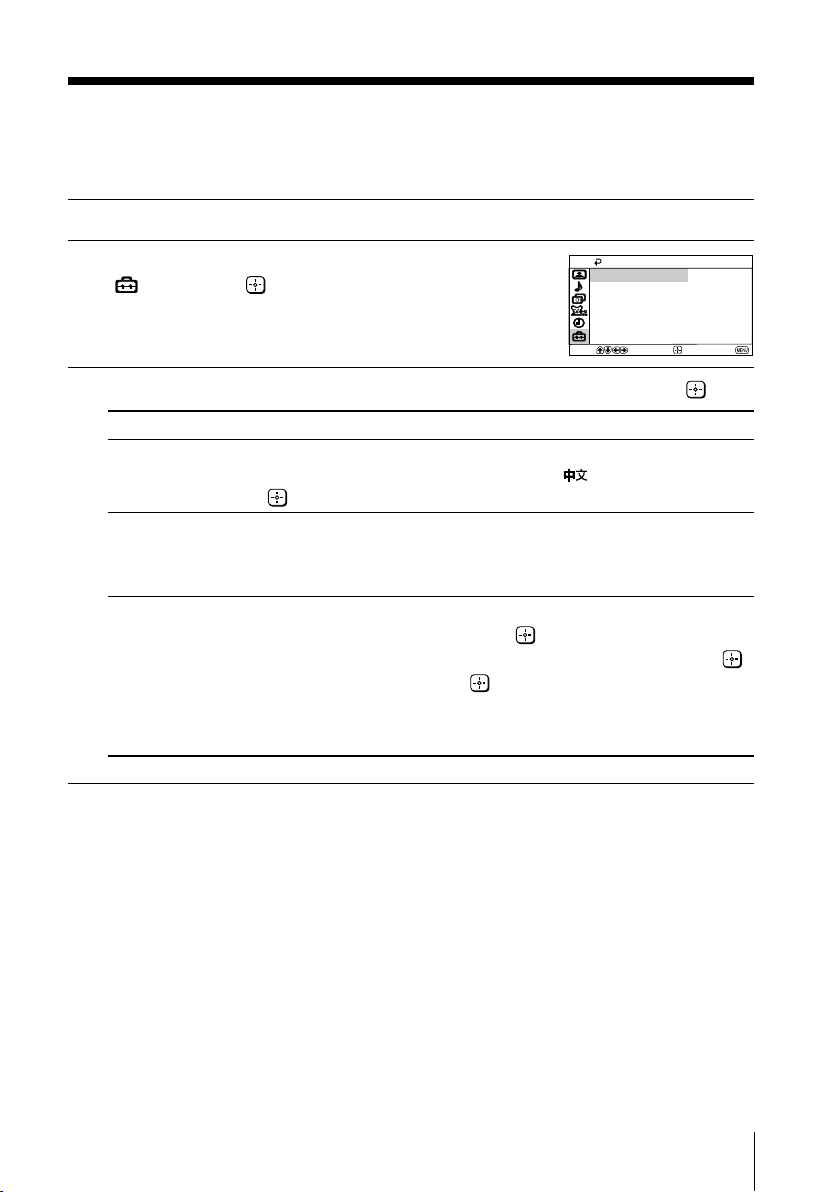

Changing the “Setup” setting .......... 19

Additional Information

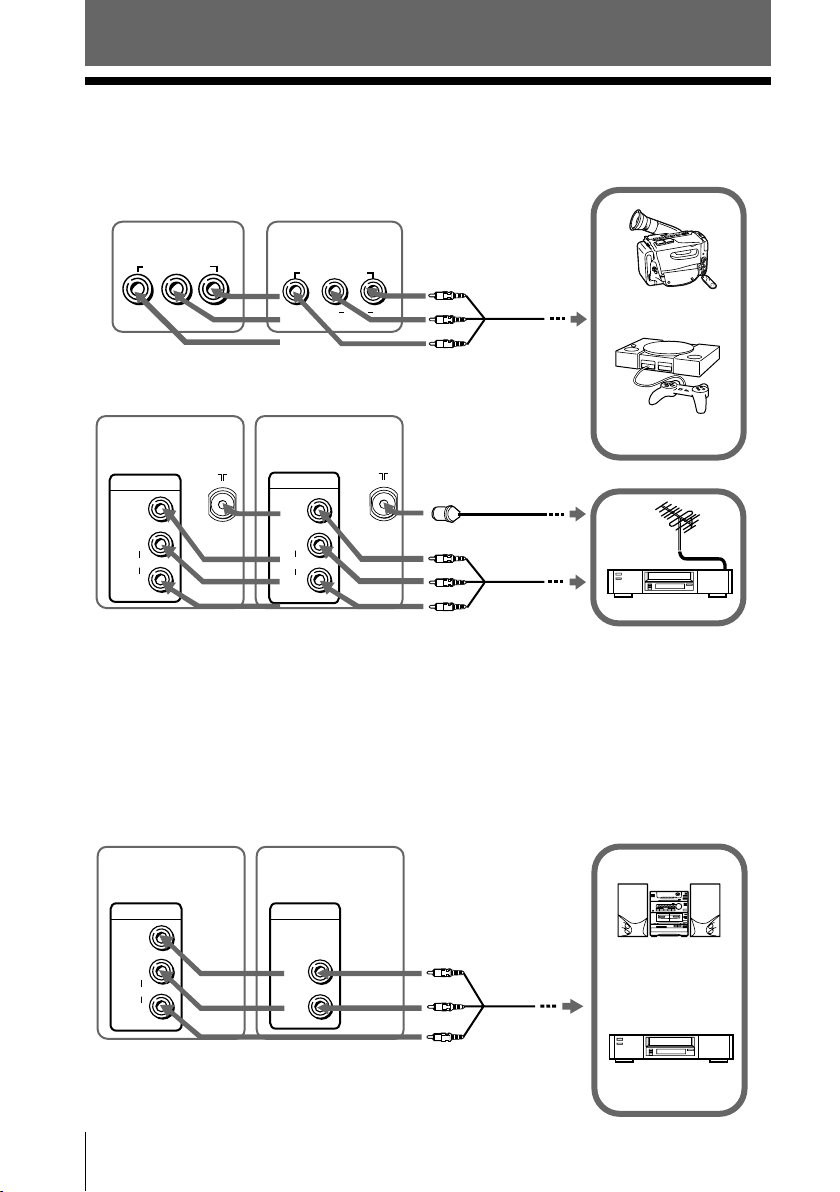

Connecting optional components ... 20

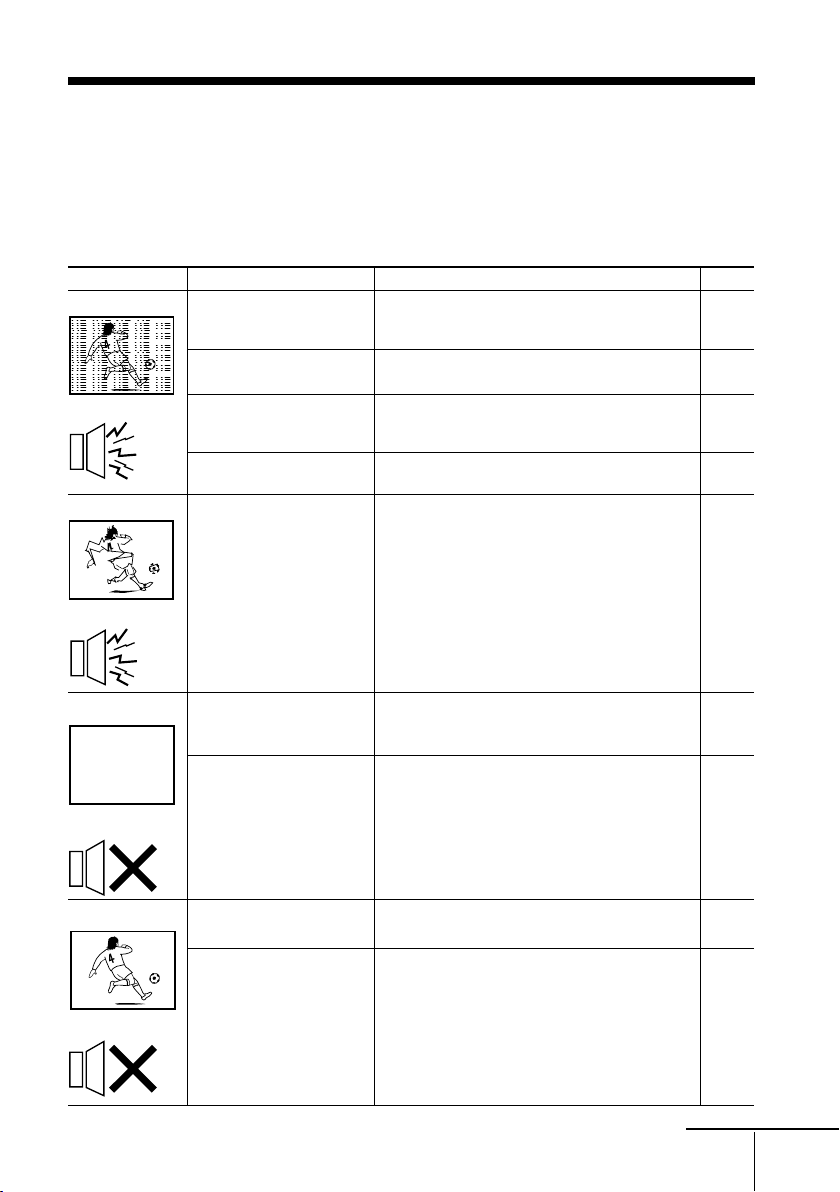

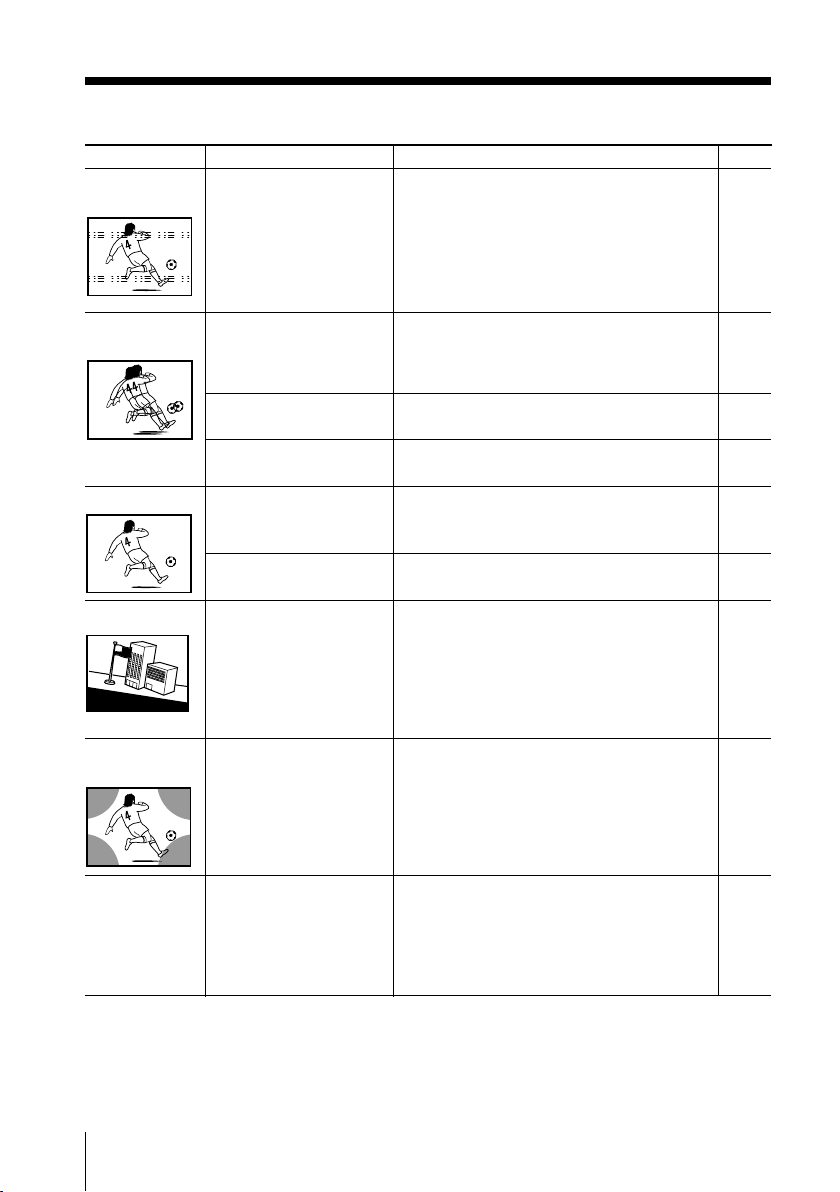

Troubleshooting ................................. 21

Specifications ...................... Back cover

Page 6

Installation

x Getting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components (see page 20).

Step 3

Plug in the power cord, then press ! on the TV to turn it on.

Note

• The 1 (standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Step 4

6 Installation

Set up the TV by following the instructions of the “Initial Setup” menu (see page 7).

Page 7

Initial Setup

Language:

English

Initial Setup

First please connect cable/ antenna

Start Auto Program now?

Yes

Initial Setup

Display this menu next time?

Yes No

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear. You may change the menu language and preset the TV channels automatically using the buttons on the top control panel.

Tip

• The MENU, and V/v/B/b buttons on the remote control can also be used for the operations below.

Press VOLUME +/– to select the desired

menu language, then press TV/VIDEO.

The selected menu language appears.

Press VOLUME +/– to select “Yes”, then

press TV/VIDEO to preset the channels automatically or select “No” to skip automatic channel presetting.

Once you select “Yes”, your TV will start searching for all the available channels.

If the message “No channel found. Please connect cable/antenna.” appears, check your TV connections, then press TV/VIDEO.

Installation

Press VOLUME +/– to select “No”, then

press TV/VIDEO. This menu will not appear again the next time you turn on the TV by pressing !.

To allow this menu to appear again, select “Yes”, then press TV/VIDEO.

Tips

• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

• You can also set up your TV by pressing the MENU button on the top control panel for about five seconds or using the menu system (see page 11).

Installation

Page 8

Overview of Controls

x TV top control, front and rear panels

TV top control panel

TV/VIDEO VOLUME

CHANNEL

POWER

TV rear panel

TV front panel

KV-BT21N50

VIDEO 2 INPUT

VIDEO

(MONO)

AUDIO

KV-BT21N50 KV-BT21N40/BM14N40

VIDEO 1 IN

VIDEO VIDEO VIDEO

(MONO)

MONITOR OUT

(MONO) (MONO)

KV-BT21N40/BM14N40

AUDIOAUDIO

VIDEO 2 INPUT

VIDEO

(MONO)

AUDIO

(MONO)

VIDEO 1 IN

AUDIO

(MONO)

MONITOR OUT

VIDEO

AUDIO

qaqa

Button/Terminal Function Page

1 ! Turn off or turn on the TV. 6 2 Remote control sensor. – 3 Wake Up indicator. 18 3 1 Standby indicator. 6 4 i Headphone jack. – 5 VIDEO 2 INPUT Video input terminal 2. 20 6 POWER Turn off temporarily or turn on the TV. – 7 CHANNEL +/– Select channel number. – 8 VOLUME +/– Adjust volume. – 9 TV/VIDEO Select TV or video input. 20

Menu operations

8 VOLUME +/– Select and adjust items. – 9 TV/VIDEO Confirm selected items. –

0 MENU Display or cancel the menu. – qa 8 Antenna input terminal. 20 qs MONITOR OUT Monitor output terminal. 20 qd VIDEO 1 IN Video input terminal 1. 20

The earphone jack will be labeled as for KV-BM14 only.

8 Overview of Controls

Page 9

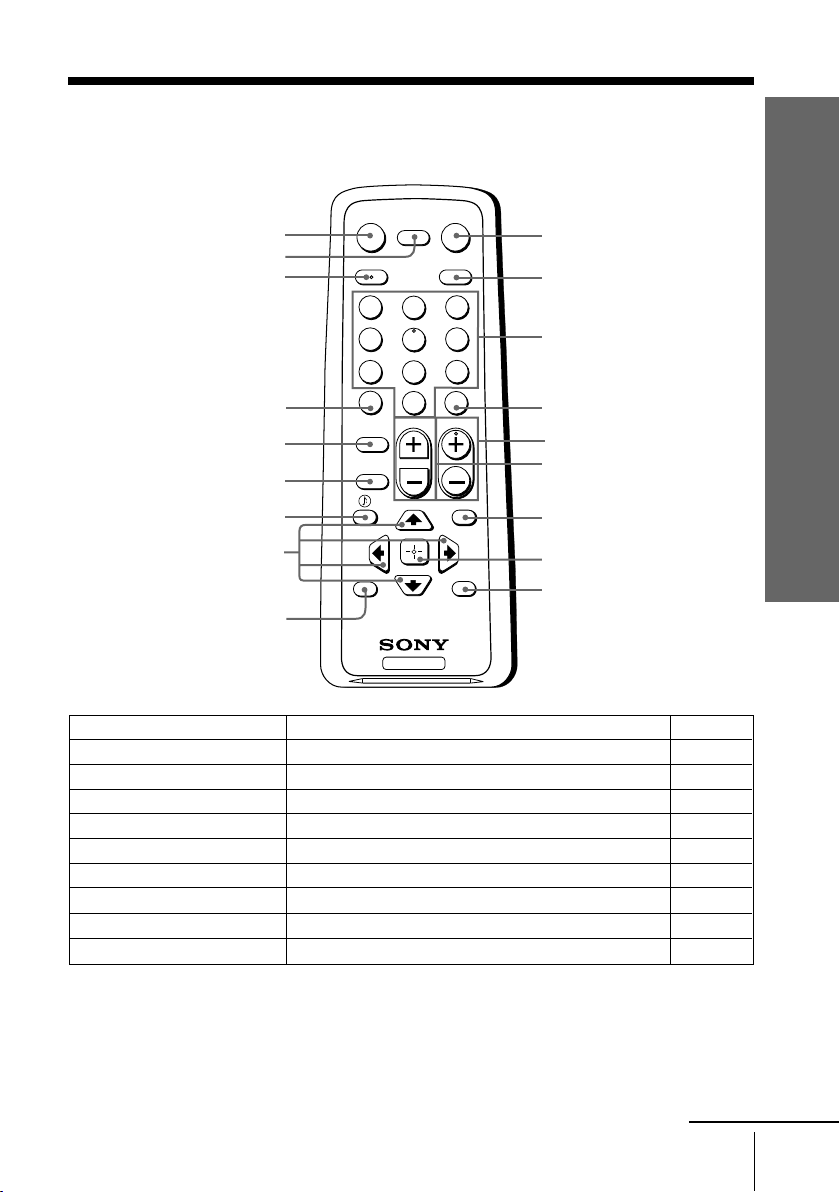

x Using the remote control and basic

functions

POWER

DISPLAY

0 qa qs

MUTING

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

RESET

TV/VIDEOMTS/SAP

5 6

SLEEP

8 9

Overview of Controls

Button Description Page

1 POWER Turn off temporarily or turn on the TV. – 2 TV/VIDEO Select TV or video input. 20 3 0–9 Input numbers. – 4 ENT Confirm input numbers. – 5 CH +/– Select channel number. – 6 VOL +/– Adjust volume. – 0 MUTING

Mute the sound. –

qa DISPLAY Display on-screen information. – qd JUMP Jump to previous channel number. –

continue

Overview of Controls

Page 10

continued

Button Description Page

qf PICTURE MODE Select picture mode options: –

“Vivid” (contrast and sharp pictures), “Standard” (standard pictures), “Movie” (finely detailed

pictures), “Sports” (bright pictures).

qg SOUND MODE Select sound mode options: –

(KV-BT21N50 only) “Movie” (low and high tones), “News” (vocals),

qh Select audio effect mode options: –

(KV-BT21N50 only)

qk RESET Set TV to factory setting while adjusting items in an –

Menu operations

7 MENU Display or cancel the menu. 13 8 Confirm selected items. 13 qj V, v, B, b Select and adjust items. 13

Timer operations

9 SLEEP Set TV to turn off automatically. –

Stereo/bilingual operations

qs MTS/SAP Not function for your TV. –

“Soft” (soft, natural and relaxing sounds), “Standard” (standard flat sounds).

“Effect Off”, “Simulated” (stereo-like monaural sound), “Surround”.

on-screen menu.

10 Overview of Controls

Page 11

Menu Adjustment

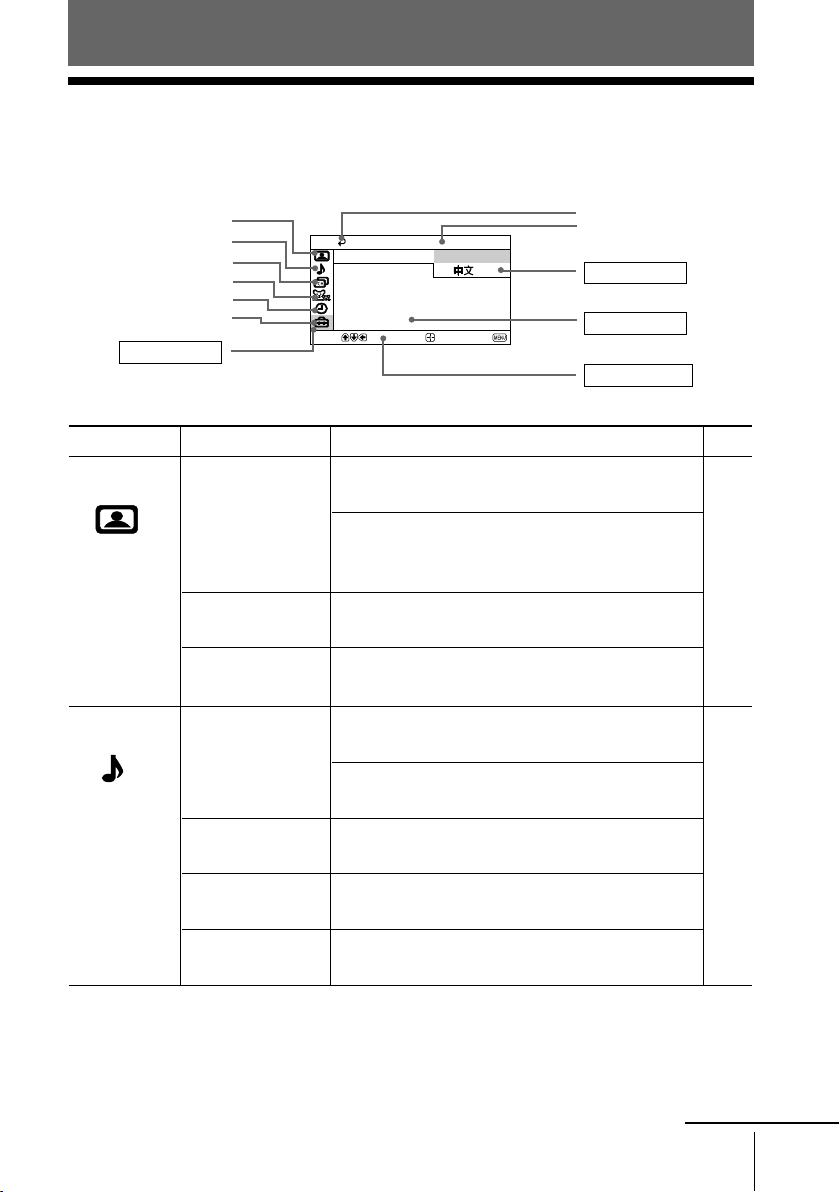

x Introducing the menu system

The MENU button lets you open a menu and change the settings of your TV. The following is an overview of the menu system.

Video icon

Audio icon

Channel Setup icon

Channel Block icon

Timer icon

Setup icon

Menu level 1

Level 1

“Video”

“Audio”

Level 2

“Mode”

“Picture Controls”

“Color Temp.”

“Intelligent Picture”

“Mode”

(KV-BT21N50 only)

“Sound Controls”

(KV-BT21N50 only)

“Balance”

(KV-BT21N50 only)

“Steady Sound”

“Effect”

(KV-BT21N50 only)

Return icon

Setup Language: English Caption Vision: Video Label

Move

Select

End

Name of the current menu

Menu level 3

Menu level 2

User Guidance

Level 3/Function

Select the picture mode:

“Vivid” t “Standard” t “Movie” t “Sports”

Adjust the picture mode option:

“Picture” t “Brightness” t “Color” t

“Hue” t “Sharpness”

Adjust white color tint:

“Cool” t “Neutral” t “Warm”

Optimize picture quality:

“On” t “Off”

Select the sound mode:

“Movie” t “News” t “Soft” t “Standard”

Adjust the sound mode option:

“Treble” t “Bass”

Select to emphasize the left and right speakers.

Adjust volume automatically:

“On” t “Off”

Select audio effect mode:

“Off” t “Simulated” t “Surround”

Page

continue

Menu Adjustment

Page 12

continued

Level 1

“Channel Setup”

“Channel Block”

“Timer”

“Setup”

Level 2

“Favorite Channels”

“Cable”

“Auto Program”

“Channel Skip/Add”

“Channel Label”

“Sleep”

“Wake Up Timer”

“Language”

“Caption Vision”

“Video Label”

Level 3/Function

Quick access to favorite channels.

Watch cable TV programs:

“On” t “Off”

Preset channels automatically.

Skip unwanted channels or add new ones.

Label the channel number.

Block unwanted channels.

Set TV to turn off automatically.

Set TV to turn on automatically.

Change the menu language:

“English” t “ ” (Chinese)

Select the closed caption mode:

“Off” t “CC1/2/3/4” t “Text1/2/3/4” t

“Info”

Label the connected equipment.

Page

12 Menu Adjustment

Page 13

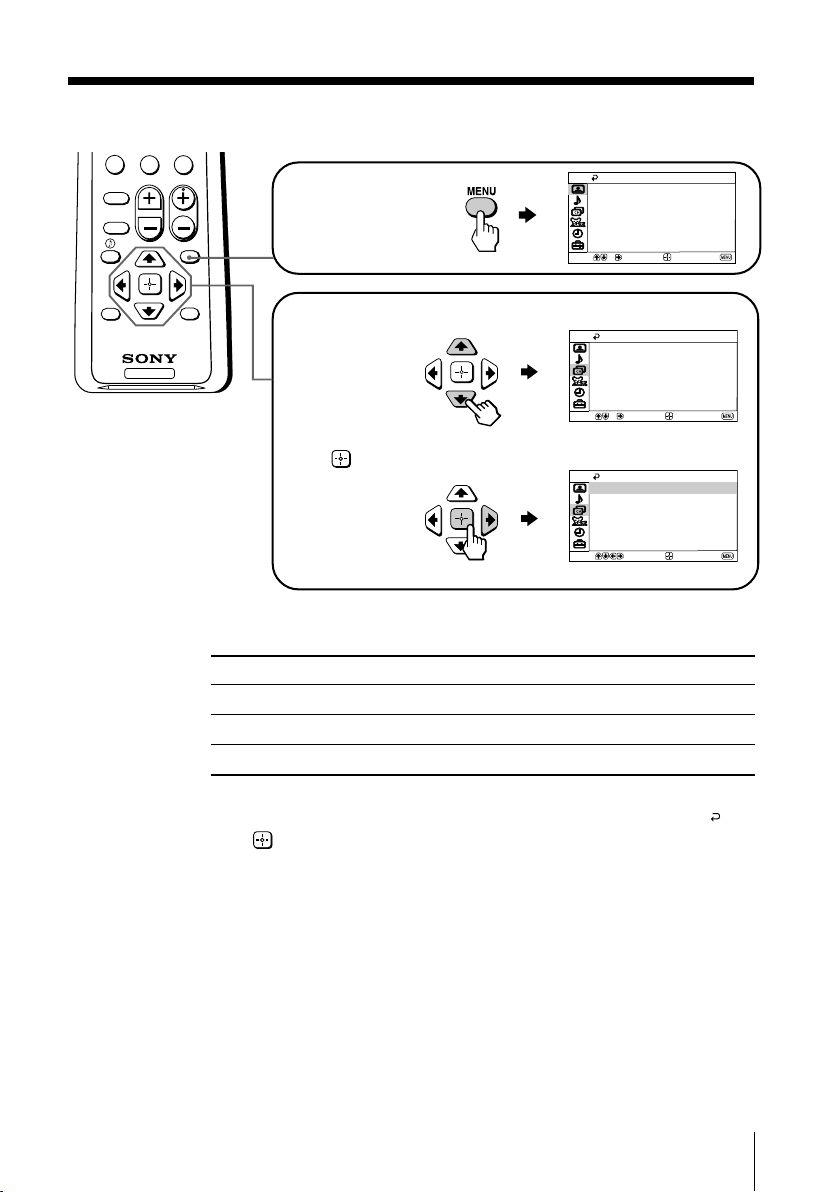

How to use the menu

Move

End

Channel Setup

Auto Program Channel Skip/Add Channel Label

Cable:

Select

Favorite Channels

JUMP ENT

VOL

PICTURE MODE

SOUND MODE

Press MENU to display the menu.

Video

Mode:

Picture Controls Color Temp.: Intelligent Picture:

Move

Select

Vivid

Cool

End

RESET

SLEEP

Press V or v to select the desired item.

Press

(or b) to

Channel Setup Favorite Channels Cable: Auto Program Channel Skip/Add Channel Label

Move

Select

End

confirm your selection and go to the next level.

Other menu operations

Adjust the setting value

Move to the next/previous menu level

Cancel the menu

Tips

• If you want to exit from Menu level 2 to Menu level 1, press V or v until the return icon ( ) is highlighted, then press .

• The MENU, TV/VIDEO and VOLUME +/– buttons on the top control panel can also be used for the operations above (see page 8).

Press

V, v, B or b.

B or b.

MENU.

Menu Adjustment

Page 14

x Changing the “Video” setting

The “Video” menu allows you to adjust the picture settings.

Press MENU.

Make sure the “Video” icon ( ) is

selected, then press

Video

Mode:

Picture Controls Color Temp.: Intelligent Picture: On

Vivid

Cool

Move

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Vivid”, “Standard”, “Movie” or

“Color Temp.” adjust white color tint. (Color Temperature) Choose either “Cool” (blue tint), “Neutral” (neutral

“Intelligent Picture” optimize picture quality.

“Sports” (see page 10).

Tip

• You can adjust the setting to your personal preference in the “Picture Controls” option.

tint) or “Warm” (red tint).

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

Select

Adjusting the “Picture Controls” items

Press v to select “Picture Controls”, then press .

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press .

Pressing RESET button on the remote control will set your TV to the factory setting.

End

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be memorized.

Note

• Reducing “Sharpness” can also reduce picture noise.

14 Menu Adjustment

Page 15

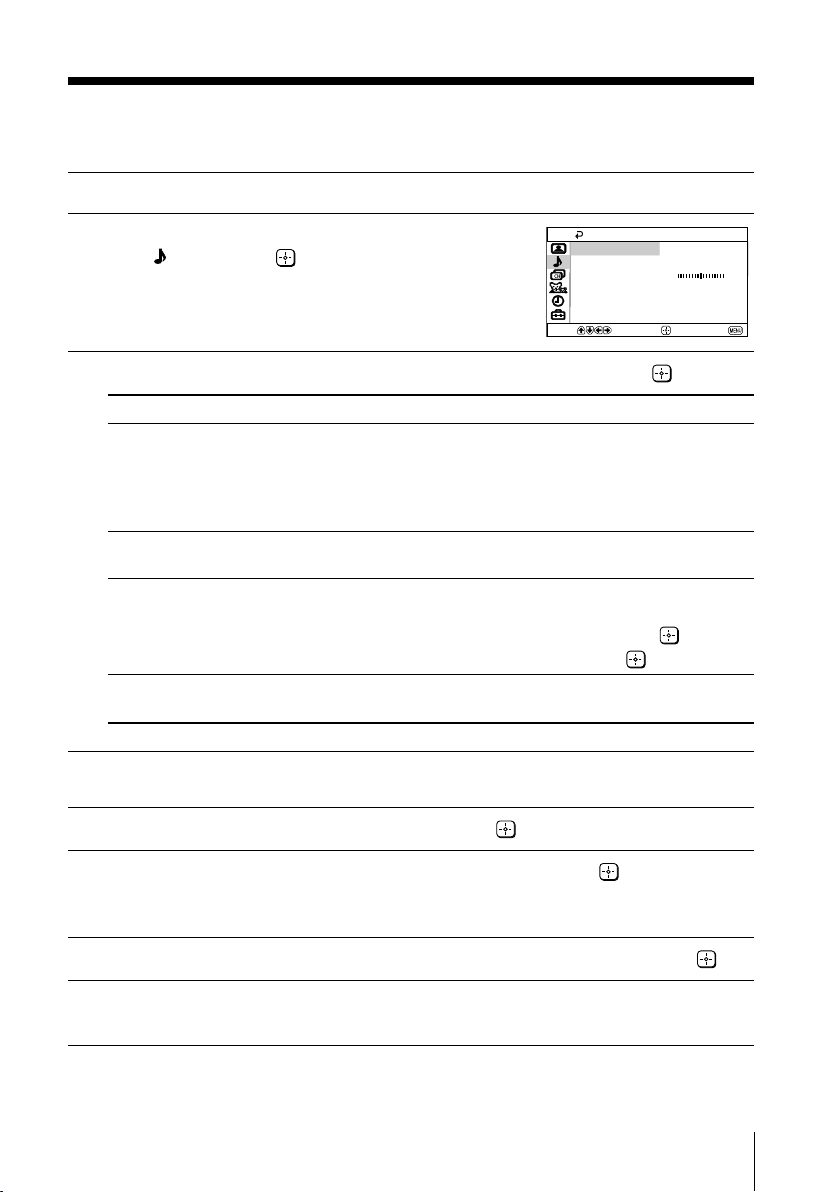

x Changing the “Audio” setting

Balance Steady Sound: Effect: Off

Off

Sound Controls

Movie

Mode:

Audio

Select

End

Move

The “Audio” menu allows you to adjust the sound settings.

Press MENU.

Press V or v to select the “Audio”

), then press .

icon (

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Movie”, “News”, “Soft” or (KV-BT21N50 only) “Standard” (see page 10).

Tip

• You can adjust the setting to your personal preference in the “Sound Controls” option.

“Balance” Press v or B to emphasize the left speaker. (KV-BT21N50 only) Press V or b to emphasize the right speaker.

“Steady Sound” adjust the volume of all channel numbers and

“Effect” choose either “Off”, “Simulated” or “Surround” (KV-BT21N50 only) (see page 10).

video inputs automatically. Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

Adjusting the “Sound Controls” items (KV-BT21N50 only)

1 2

3 4

Press v to select “Sound Controls”, then press .

Press V or v to select either “Treble” or “Bass”, then press .

Pressing RESET button on the remote control will set your TV to the factory setting.

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be memorized.

Menu Adjustment

Page 16

x Changing the “Channel Setup”

setting

The “Channel Setup” menu allows you to quickly access favorite channels, receive cable TV programs, preset channels automatically, skip unwanted channels or add new ones and label the channel number.

Press MENU.

Press V or v to select the “Channel Setup”

icon (

Press V or v to select the desired item (e.g., “Favorite Channels”), then press .

Select To

“Favorite Channels” quickly access favorite channels.

“Cable” receive cable TV programs.

“Auto Program” preset channels automatically.

“Channel Skip/Add” skip unwanted channels or add new ones.

“Channel Label” label the channel number.

), then press .

(1) Press V or v to select the position you want to set a favorite

(2) Press V or v to select the desired channel, then press .

To use “Favorite Channels”: Exit all menus and press . Press V or v to move the cursor to the desired channel number and press .

Press V or v to select “On”, then press . If you select “Cable: On”, you will be able to receive 125 cable

TV channels. If there are no cable TV channels, you will receive VHF broadcast channels only. To receive only VHF and UHF broadcast channels, select “Off”, then press .

(1) Press V or v to select the desired channel, then press .

(2) Press V or v to select either “Skip” or “Add”, then press .

(1) Select “Channel” and press .

(2)

channel, then press .

Press V or v to select the channel number, then press .

Select “Label” and press , then press V or v to select alphanumeric characters for the label.

Channel Setup Favorite Channels Cable: Auto Program Channel Skip/Add Channel Label

Move

Select

End

Note

• You can skip over channels that have been skipped by pressing CH +/–. You can still use the 0-9 buttons to directly tune to skipped channels.

16 Menu Adjustment

Page 17

x C

hanging the “Channel Block”

setting

The “Channel Block” menu allows you to block unwanted channels.

Press MENU.

Press V or v to select the “Channel Block”

icon (

Press V or v to select the desired channel, then press .

Press V or v to select “Block” or “Allow”, then press .

Notes

• When you first enter the “Channel Block” menu, the channel highlighted is the current channel that is being viewed.

• When a channel is blocked, the word “Blocked” and lock symbol ( ) will appear on the black screen.

• “Channel Block” is disabled when in video mode.

), then press .

Channel Block

2: Allow 3: Allow 4: Allow 5: Allow 6: Allow

Select channel to block

Move

Select

End

Menu Adjustment

Page 18

x C

Timer Sleep: Wake Up Timer:

Off Off

Move

End

Select

hanging the “Timer” setting

The “Timer” menu allows you to set TV to turn off and turn on automatically.

Press MENU.

Press V or v to select the “Timer” icon ( ),

then press

Press V or v to select the desired item (e.g., “Sleep”), then press .

Select To

“Sleep” set TV to turn off automatically.

“Wake Up Timer”

Notes

• You can also cancel “Sleep” and “Wake Up Timer” by turning off the TV’s main power.

• If no buttons or controls are pressed for more than one hour after the TV is turned on using the “Wake Up Timer”, the TV automatically goes into standby mode.

Press V or v to select the desired period of time (max. of 90 minutes), then press .

set TV to turn on automatically. Press V or v to select the desired period of time (max. of 12 hours), then

press . automatically and “Wake Up Timer” will appear on the screen.

The indicator on the TV lights up amber once you set the “Wake Up Timer”.

After the selected length of time, the TV switches on

18 Menu Adjustment

Page 19

x C

hanging the “Setup” setting

The “Setup” menu allows you to change the menu language, select the closed caption mode and label the connected equipment.

Press MENU.

Press V or v to select the “Setup” icon

), then press .

(

Setup Language: Caption Vision: Video Label

English Off

Move

Press V or v to select the desired item (e.g., “Language”), then press .

Select To

“Language” change the menu language.

“Caption Vision” select the closed caption mode.

“Video Label” label the connected equipment.

Press V or v to select either “English” or “ ” (Chinese), then press

Press V or v to select either “Off”, “CC1/2/3/4” (printed dialogue and sound effects), “Text1/2/3/4” (network/station information) or “Info” (name of current program and remaining time).

(1) Select “Video Input” and press .

Press V or v to select the input you want to label, then press .

(2) Select “Label” and press , then press V or v to select the label

options: ”Video 1/2”, “VCR”, “Cable”, “DVD” or “Customize”*.

* You may customize the video label by entering alphanumeric

characters.

Select

End

Menu Adjustment

Page 20

Additional Information

x Connecting optional components

Connecting to VIDEO 2 INPUT and VIDEO 1 IN terminals

TV front panel

KV-BT21N50

VIDEO 2 INPUT

VIDEO

(MONO)

TV rear panel

KV-BT21N50

VIDEO 1 IN

VIDEO

(MONO)

AUDIO

KV-BT21N40/ BM14N40*

VIDEO 2 INPUT

VIDEO AUDIO

(MONO) (MONO)

KV-BT21N40/ BM14N40*

VIDEO 1 IN

VIDEO

(MONO)

AUDIO

(MONO)

Audio/Video

cable

(not supplied)

Antenna cable

(not supplied)

Audio/Video

cable

(not supplied)

Camcorder

Video game

equipment

VCR

* Sound Mix Terminal (KV-BT21N40/BM14N40 only)

You can connect the audio L and R jacks from your AV equipment to both AUDIO (MONO) jacks on the TV to enjoy mixed left and right sound. If you do not prefer the mixed sound, disconnect either one of the AUDIO (MONO) jacks.

Connecting to MONITOR OUT terminal

TV rear panel

KV-BT21N50

MONITOR OUT

VIDEO

(MONO)

AUDIO

20 Additional Information

KV-BT21N40/ BM14N40

MONITOR OUT

VIDEO

AUDIO

Audio/Video

cable

(not supplied)

Audio system

VCR

Page 21

x Troubleshooting

If you find any problem while viewing your TV, please check the following guide. If any problem persists, contact your Sony dealer.

Troubleshooting guide

Symptom

Snowy picture

Noisy sound

Distorted picture

Noisy sound

No picture

No sound

Possible cause

• The connection is loose or the cable is damaged.

• The antenna setup is inappropriate.

• Channel presetting is inappropriate or incomplete.

• Signal transmission is low.

• Broadcast signals are too strong.

• The power cord, antenna or VCR is not connected.

• The TV is not turned on.

Solutions

• Check the antenna cable and connection on the TV, VCR and at the wall.

• Check the antenna setup. Contact a Sony dealer for advice.

• Preset the channel again.

• Try using a booster.

• Turn off or disconnect the booster if it is in use.

• Check the power cord, antenna and VCR connections.

• Press POWER.

• Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on again.

Page

–

8, 9

Good picture

No sound

• The volume level is too low.

• The sound is muted.

• Press VOL + to increase the volume level.

• Press MUTING to cancel the muting.

Additional Information

continue

Page 22

continued

Dotted lines or stripes

Possible causeSymptom Solutions Page

• There is local interference from cars, neon signs, hair dryers, power generators, etc.

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice.

–

Double images or “ghosts”

No color

Picture slant

Good morning!

Abnormal color patches

The 1 (standby) indicator on your TV flashes red several times after every three

seconds.

• Broadcast signals are reflected by nearby mountains or buildings.

• The antenna setup is inappropriate.

• Use of a booster is inappropriate.

• The color level setting is too low.

• The antenna setup is inappropriate.

• The magnetic disturbance from external speakers or other equipment, or the direction of the earth’s magnetic field may affect the TV.

•Your TV’s selfdiagnosis function indicates the possible problems.

• Use a highly directional antenna.

• Check the antenna setup. Contact a Sony dealer for advice.

• Turn off or disconnect the booster if it is in use.

•

Display the “Video” menu and select the desired picture mode, then adjust the “Color” level in “Picture Controls”.

• Check the antenna setup. Contact a Sony dealer for advice.

• Keep external speakers or other electrical equipment away from the TV.

• Keep external speakers or other equipment away from the TV. Do not move the TV while the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn off your TV. Contact your nearest Sony service center.

–

22 Additional Information

Page 23

TV cabinet creaks.

A small “boom” sound is heard when the TV is turned on.

Possible causeSymptom

•

Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

•

The TV’s demagnetizing function is working. This does not indicate a malfunction.

Solutions

—

Page

–

Additional Information

Page 24

x Specifications

KV-BT21N50 KV-BT21N40

Power requirements

Power consumption (W)

Television system

Color system

Channel coverage

8 (Antenna)

Audio output (Speaker)

Number of terminal

VIDEO

AUDIO

i (Headphone)

(Earphone)

Picture tube

Tube size

Viewing screen size

Dimensions (w/h/d)

Mass

Design and specifications are subject to change without notice.

110 - 240 V AC, 50/60 Hz

Indicated on the rear of the TV

NTSC3.58

VHF : 2 to 13 UHF : 14 to 69 CATV : 1 to 125

75-ohm external terminal

3 W + 3 W 3 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 2 Output: 1 Phono jacks; 500 mVrms

Output: 1 Stereo minijack KV-BT21N50/

Output: 1 Monaural minijack KV-BM14N40 only

21 in. 14 in.

545 mm 371 mm

507 mm

497 × 461 × 487 mm

23 kg 12 kg

KV-BM14N40

335 mm Measured diagonally

374 × 355 × 420 mm

Note

KV-BT21N40 only

Measured diagonally

Sony Corporation

24 Additional Information
