2-687-554-12 (1)

Tr initron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

KV-AZ212

N60

Page 2

A Specifications

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Channel coverage

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

(S Video)

(Component

Video)

i (Headphone)

FM Radio

Tuning Range

Intermediate Frequency

Picture tube

Tube size

Viewing screen size

Dimensions (w/h/d)

Mass

KV-AZ212N60

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

NTSC3.58, PAL*, PAL 60*, SECAM*, NTSC4.43* * AV IN only

MTS

VHF : 2 to 13 /UHF : 14 to 69 /CATV : 1 to 125

75-ohm external terminal

10 W + 10 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 3 Output: 1 Phono jacks; 500 mVrms

Input: 1 Y: 1 Vp-p, 75 ohms,

Input: 1 Phono jacks;

Output: 1 Stereo minijack

87.5 - 108.0 MHz

7.9 MHz

21 in.

545 mm

507 mm

589 × 472 × 515 mm

27 kg

unbalanced, sync negative C: 0.286 Vp-p, 75 ohms

Y: 1 Vp-p, 75 ohms, sync negative C

B: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms

Note

Measured diagonally

Design and specifications are subject to change without notice.

Page 3

B WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

Page 4

C Getting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tips

•Your TV can receive both TV and FM radio signals from the

appropriate connections through the 8 (antenna input) terminal (see F).

•You can also connect your TV to other optional components

(see F).

Step 3

Select

Confirm

Plug in the power cord, then press ! on the TV to turn it on.

Note

•The 1 (standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Step 4

Set up the TV by following the instructions of the “Initial Setup” menu (see D).

End

Page 5

Program Edit

2 3 4

Off Off Off

Edit:

PROG

SkipLabel

Exit

Select

Confirm

Off

End

Select

Confirm

End

Select

Confirm

Program:

Searching...

End

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear. You may change the menu language, preset the TV channels automatically, edit the channels and adjust the picture position using the buttons on the remote control or TV top control panel.

Press V or v to select the desired menu

language, then press .

The selected menu language appears.

Press V or v to select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic presetting is in progress.

After all available channels have been tuned and stored, the “Program Edit” menu appears automatically on the screen.

To skip automatic channel presetting, select “No”, then press

If the message “No channel found. Please connect cable/antenna” appears, check your TV connections, then press .

The “Program Edit” menu enables you to

edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press V or v to select the program

number with the channel you wish to change. The selected channel will appear on the screen.

c) If you wish to edit the channels, press

to enter edit mode. Press b until the mode that you wish to edit is highlighted: Label, Skip, (block symbol). Then press

1) To label, press V or v to select the alphanumeric characters for the label. Then press

Select

Confirm

Exit

Page 6

Setting up your TV (“Initial Setup”) (continued)

2) To skip the program number, press V or v to select “On”. Then press

You can skip this program number when using PROG +/–.

3) To block unwanted program number, press V or v to select

d) Repeat step b) to c) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

Press B or b to adjust the bars on the top

and bottom of the menu if they are slanted, then press

If no adjustment is necessary, then press

To prevent this “Initial Setup” menu from

appearing again when you turn on the TV by pressing !, press V or v to select “No”, then press

To allow this menu to appear again, select “Yes”, then press

. Then press .

Select

Confirm

Exit

End

Tip

•You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

Page 7

TV top control, front and rear panels

TV top control panel

WEGA GATE

PROG

TV rear panel

(MONO)

TV front panel

(MONO)

3 2

(

MONO)

(

MONO)

qsqdqf

Button/Terminal Function See

1 ! Turn off or turn on the TV. C 2 Remote control sensor. 3 Wake Up indicator. H 3 1 Standby indicator. C 4 i Headphone jack. - 5 t2Video input terminal 2. F 6 PROG +/– Select program number. - 7 2 +/– Adjust volume. - 8 t Select TV or video input. F

WEGA GATE menu operations

6,7 V,v,B,b Select and adjust items. I

Confirm selected items. I

8 9 WEGA GATE Display or cancel WEGA GATE menu. I

FM Listen to FM Radio. P

0 qa 8 Antenna input terminal. F

qs T Monitor output terminal. F qd Component video input terminal. F qf t1Video input terminal 1. F

Page 8

F Connecting optional components

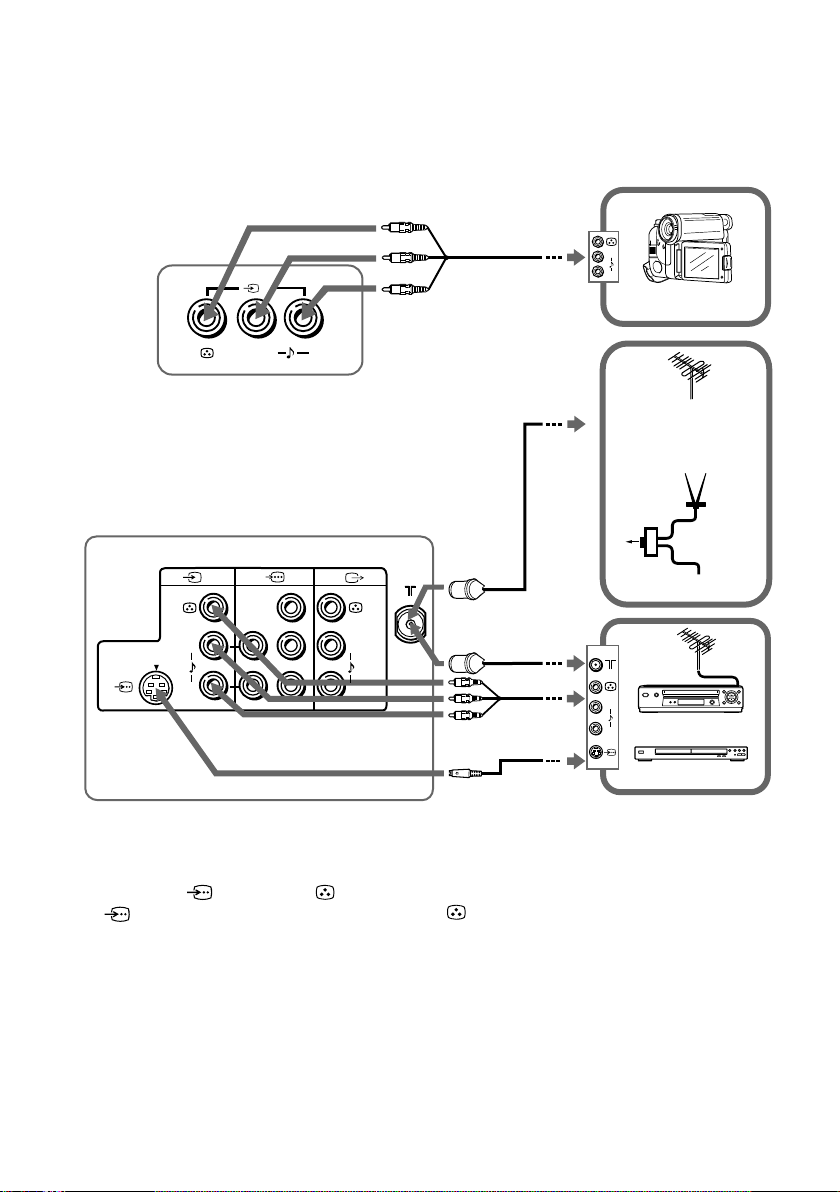

Connecting to the video input terminal ( t )

TV front panel

Camcorder

TV, CATV, Satellite

When there is no

FM signal

Antenna

selector

FM signal

TV rear panel

(MONO)

Audio/Video cable

(not supplied)

Antenna cable

(not supplied)

(

MONO)

(

MONO)

Antenna cable

(not supplied)

Audio/Video

cable

(not supplied)

S Video

cable

(not supplied)

DVD Player

Note

• When both (S video) and (video) for t 1 are connected at the same time, (S video) is automatically selected. To view (video), disconnect the S video cable.

TV signal

VCR

Page 9

Connecting optional components (continued)

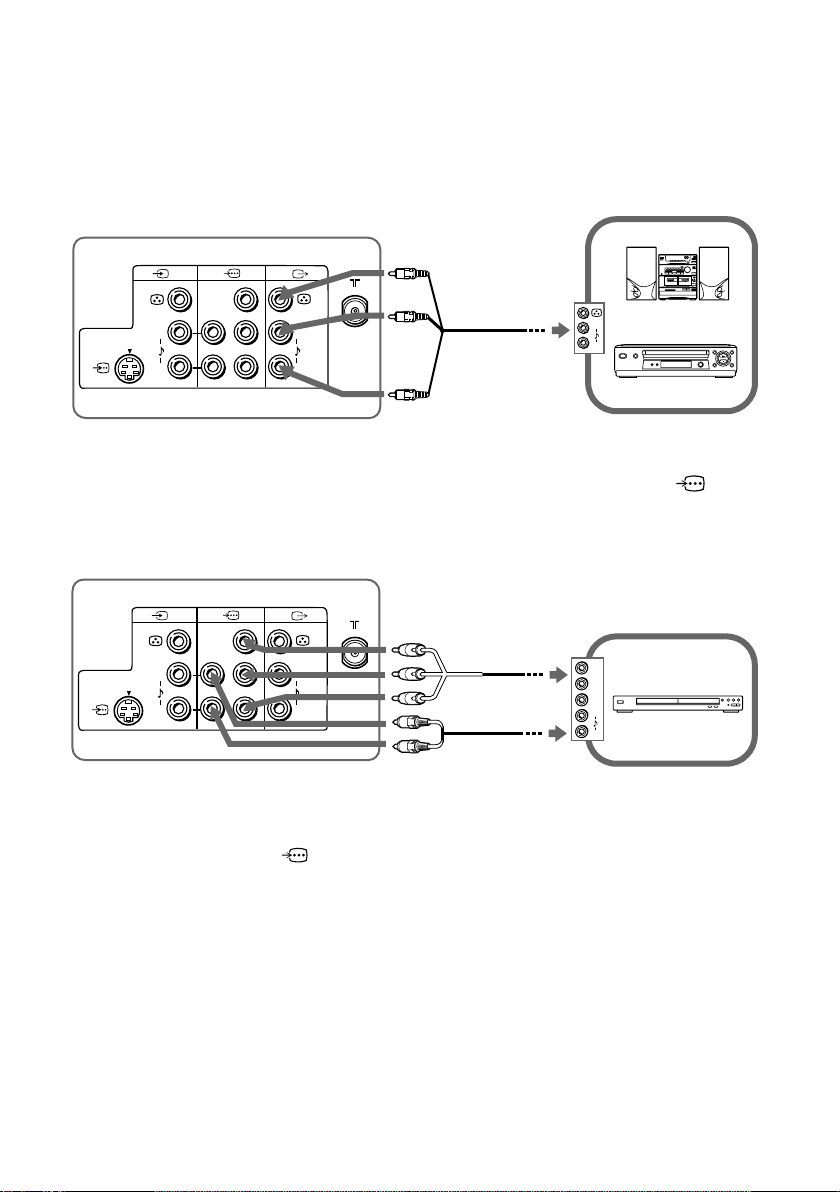

Connecting to the monitor output terminal ( T )

TV rear panel

(MONO) (MONO)

Audio/Video

cable

(not supplied)

Audio system

VCR

Connecting to the component video input terminal ( )

TV rear panel

(MONO)

Notes

• If your DVD player can output interlace and progressive mode signals, select the interlace output when connecting to (component video input) on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/ PR, Y/Cb/Cr or Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks will not be output properly. This does not indicate a malfunction.

Component video

cable

(not supplied)

Audio cable

(not supplied)

DVD player

Page 10

G Troubleshooting

If you find any problem while viewing your TV, you can either use the “Factory Settings” function or check the Troubleshooting guide below. If the problem persists, contact your Sony dealer.

“Factory Settings” function

Press the WEGA GATE button. Choose “Settings” and go to “Setup” ( ) menu. From “Setup” menu, select “Factory Settings”. Then select “Yes” and press menu will appear. Your TV will be set to factory settings, but certain problems may be solved.

Symptom Solutions

Snowy picture, noisy sound

Distorted picture, noisy sound

No picture, no sound

Good picture, no sound

Dotted lines or stripes

Double images or “ghosts”

No color

. Your TV will go blank for a few seconds, then the “Initial Setup”

• Check the antenna cable and connection on the TV, VCR and at the wall

(see F).

• Check the antenna setup. Contact a Sony dealer for advice.

•Preset the channel again (see M).

• Display the “Channel Setup” menu and set the “Signal Booster” to “Auto”

(see M).

•Try using an external booster.

•Turn off or disconnect the external booster if it is in use.

• Display the “Channel Setup” menu and set the “Signal Booster” to “Off”

(see M).

• Check the power cord, antenna and VCR connections (see F).

•Press ?/1 (power) to turn on the TV (see H).

•Press ! (main power) on the TV to turn off the TV for about five seconds,

then turn it on again (see E).

•Press 2 + to increase the volume level (see H).

•Press to cancel the muting (see H).

•Press A/B until “Stereo” or “Mono” appears on the screen (see O).

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice.

• Use a highly directional antenna.

• Check the antenna setup. Contact a Sony dealer for advice.

•Turn off or disconnect the external booster if it is in use.

• Display the “Picture” menu and select “Custom” from “Picture Mode”,

then adjust the “Color” level from “Picture Adjustment” (see K).

• Display the “Setup” menu and check the “Color System” setting

(usually set this to “Auto”) (for video input only) (see N).

• Check the antenna setup. Contact a Sony dealer for advice.

Page 11

Troubleshooting (continued)

Symptom Solutions

Picture slant

Abnormal color patches

TV cannot receive stereo broadcast

sound.

Stereo broadcast sound switches on and off or is distorted.

TV cannot receive FM radio station.

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

The TV screen sometimes goes blank for slightly longer than usual during channel change.

TV cabinet creaks.

A small “boom” sound is heard when the TV is turned on.

• Keep external speakers or other electrical equipment away from the TV.

• Display the “Setup” menu and adjust “Picture Rotation” so that the picture position is optimal (see N).

• Keep external speakers or other equipment away from the TV. Do not move the TV while the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

• Check the antenna cable and connection on the TV, VCR and at the wall (see F).

• Check the antenna setup. Contact a Sony dealer for advice.

• Connect a separate FM antenna and the TV channel source through an antenna selector (switch) to your TV (see F).

• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn off your TV. Contact your nearest Sony service center.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a malfunction.

• Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

• The TV’s demagnetizing function is working. This does not indicate a malfunction.

Page 12

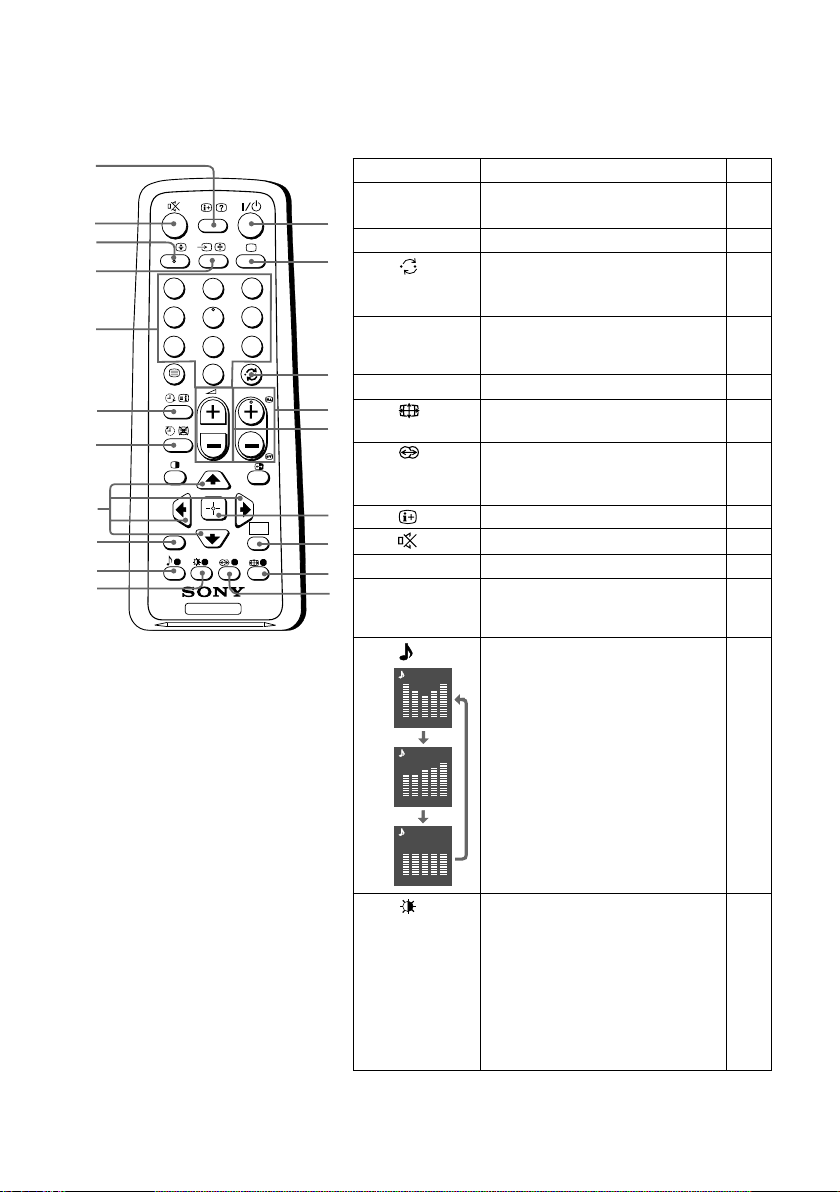

H Using the remote control and basic

functions

qa qs

qk ql

A/B

RETURN

Button Description See

1 ?/1 Turn off temporarily or turn on –

2 a Display the TV program. –

3 Jump to last program number –

PROG

4 PROG +/–

5 2 +/– Adjust volume. – 8

4 5

the TV.

that has been watched for at least five seconds.

Select program number. To select – quickly, press and hold until the desired program number appears.

Change the picture size: – “On” (16:9 wide-mode), “Off”.

9 Select surround mode options: L

“TruSurround”,“WOW”, “Simulated”, “Off”.

WEGA GATE

0 Display on-screen information. – qa Mute the sound. –

qd t Select TV or video input. F

qf 0 – 9 Input numbers. For program –

ql Select sound mode options L

Dynamic

100 300 1k 3k 8k

Standard

100 300 1k 3k 8k

Custom

numbers 10 and above, enter the next digit within two seconds.

with a 5-Band Graphic Equalizer display: “Dynamic”, “Standard”, “Custom”*.

* When the “Custom” mode is

selected, you can receive the last adjusted sound settings from the “Sound Adjustment” option in the menu.

100 300 1k 3k 8k

Select picture mode options: K “Vivid”, “Standard”,

“Custom”*.

* When the “Custom” mode is

selected, you can receive the last adjusted picture settings from the “Picture Adjustment” option in the menu.

Page 13

Using the remote control and basic functions (continued)

Button Description See WEGA GATE menu operations

6 Confirm selected items. I 7 WEGA GATE Display or cancel WEGA GATE menu. qj V, v, B , b Select and adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the –

(Wake Up Timer)

qh Set TV to turn off automatically according to the –

(Sleep Timer)

Teletext operations (green labels)

, , , ,

(red, green,

yellow, blue)

PIP operations

, , V, v, B, b Not function for your TV.

Stereo/bilingual operations

qs A/B Select stereo/bilingual mode. O

desired period of time (max. of 12 hours).

The indicator on TV lights up amber once you set the wake up timer.

If no buttons or controls are pressed for more than one hour after the TV is turned on using the wake up timer, the TV automatically goes into standby mode.

desired period of time (max. of one hour and 30 min.).

Not function for your TV.

–

WOW, TruSurround, SRS and symbol are trademarks of SRS Labs, Inc. WOW and TruSurround technologies are incorporated under license from SRS Labs, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and BBE symbol are trademarks of BBE Sound, Inc.

Page 14

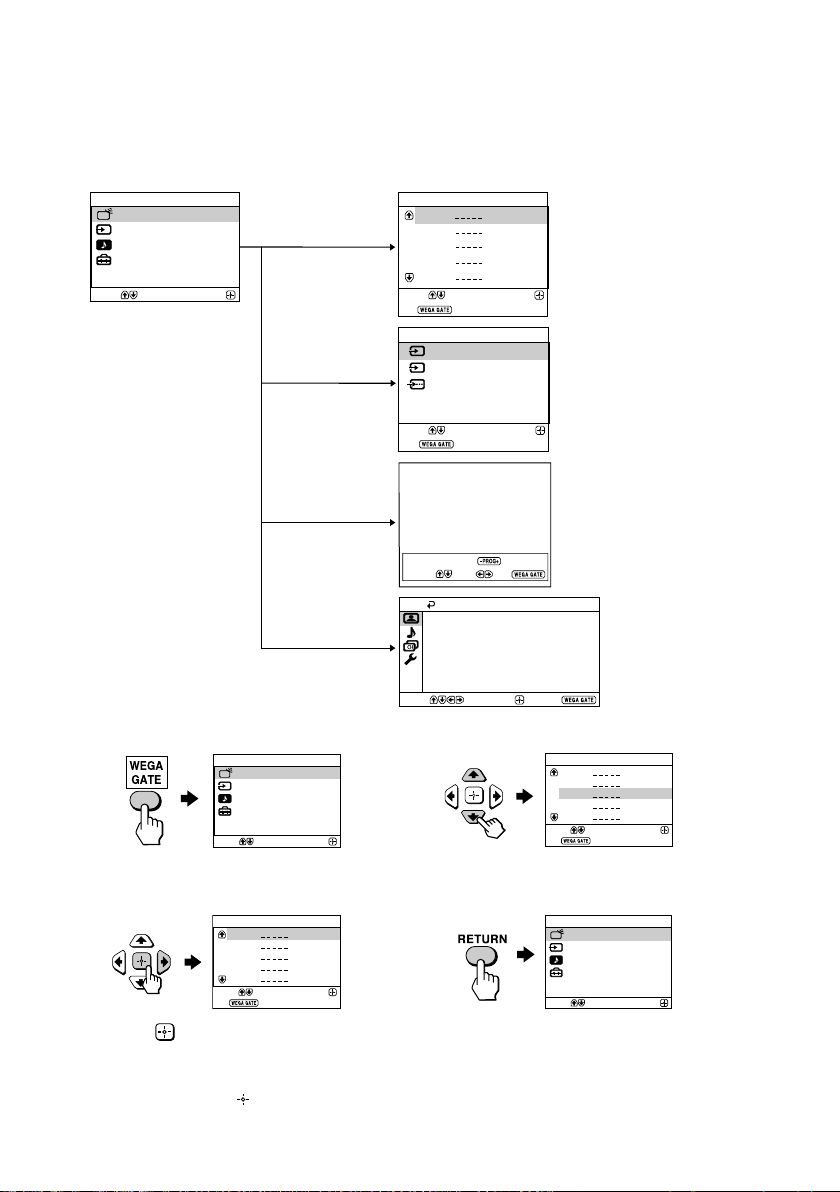

I Introducing the WEGA GATE

navigator

WEGA GATE is a gateway that allows you access to preset TV channels, connected external inputs, FM Radio mode and “Settings” menu.

External Inputs

FM Radio Settings

Select

WEGA GATE

“TV”

Confirm

“External Inputs”

2 3

Select

End

External Inputs

Video 1

Video 2

DVD

Select End

FM Radio

Confirm

watch the preset TV channels (see D)

select the inputs for the connected equipment (see F)

“FM Radio”

“Settings”

Preset 1:

---.--

Please setup FM Radio

Select Preset 1-9 Search

Picture Mode: Vivid

Color Temperature: Cool VM: High Intelligent Picture: On Signal Level Indicator: On

Select

Exit

Fine


Picture Adjustment

Confirm

listen to the FM Radio (see P)

change the settings of your TV (see J)

End

How to use WEGA GATE

WEGA GATE TV

External Inputs

FM Radio

Settings

Select

(1) Press WEGA GATE to display or cancel

Confirm

(3) Press V or v to select the desired item.

the WEGA GATE menu.

1 2 3 4 5

Select

End

(2) Press (or b) to confirm your selection

or go to the next level.

Confirm

(4) Press RETURN to move to the previous

level.

Tip

• The WEGA GATE, and V,v,B,b buttons on the top control panel can also be used for the operations above.

Select

End

Select

1 2 3 4 5

WEGA GATE TV

External Inputs

FM Radio Settings

Confirm

Page 15

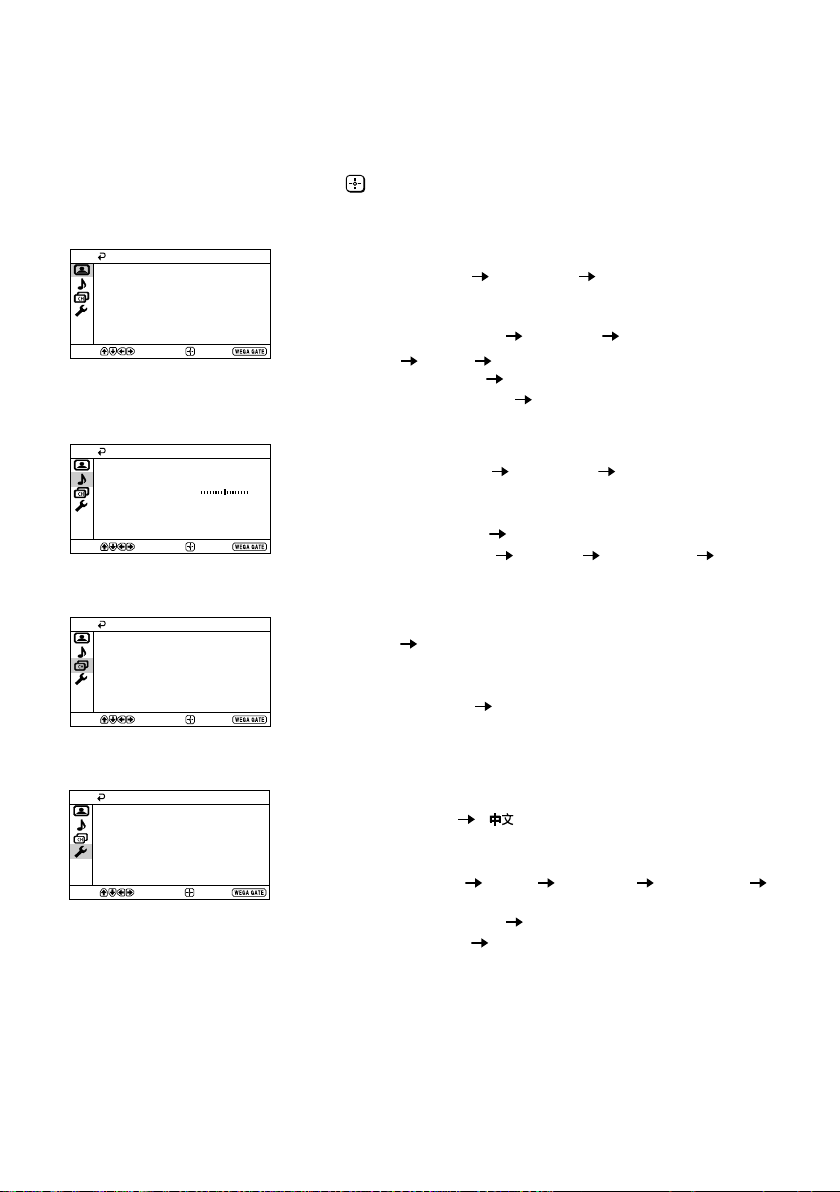

J “Settings” Adjustment

You are able to change the settings of your TV from “Settings” in WEGA GATE menu. Press WEGA GATE button to display WEGA GATE menu. Press V or v to select “Settings” and press

The following is an overview of the items that can be adjusted.


Picture Mode: Vivid

Picture Adjustment Color Temperature: Cool VM: High Intelligent Picture: On Signal Level Indicator: On

Select

Confirm

Sound

Sound Mode: Dynamic

Sound Adjustment Balance Intelligent Volume: Surround: Off

Confirm

Channel Setup

Cable: Auto Program

Program Edit

Signal Booster:

FM Radio Setup

Confirm

Setup

Language:

Picture Rotation Video Label

Color System:

Wake Up Timer Beep: Factory Settings

Confirm

End

Off

End

Auto

End

English

NTSC3.58

End

“Picture” (see K)

“Picture Mode”: “Vivid” “Standard” “Custom” “Picture Adjustment”: “Picture”, “Brightness”, “Color”, “Hue”,

“Sharpness”, “Reset” “Color Temperature”: “Cool” “Neutral” “Warm” “VM”: “High” “Low” “Off” “Intelligent Picture”: “On” “Off” “Signal Level Indicator”: “On” “Off”

“Sound” (see L)

“Sound Mode”: “Dynamic” “Standard” “Custom” “Sound Adjustment”: “Adjust”, “Reset” “Balance” “Intelligent Volume”: “On” “Off” “Surround”: “TruSurround” “WOW” “Simulated”

“Off”

“Channel Setup” (see M)

“Cable”: “On” “Off” “Auto Program” “Program Edit” “Signal Booster”: “Auto” “Off” “FM Radio Setup”

“Setup” (see N)

“Language”: “English” “ ” (Chinese) “Picture Rotation” “Video Label”: “Video Input”, “Label” “Color System”: “Auto” “PAL” “SECAM” “NTSC3.58”

“NTSC4.43” (for video input only) “Wake Up Timer Beep”: “On” “Off” “Factory Settings”: “Yes” “No”

Note

• When a feature is dimmed in the menu, it is not selectable.

Page 16

K Changing the “Picture” setting

The “Picture” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Make sure the “Picture” icon ( ) is selected, then press .

Press V or v to select the desired item (e.g., “Picture Mode”), then press .

Select To

“Picture Mode” choose either “Vivid” (bright, contrast and sharp),

“Color Temperature” adjust white color tint.

“VM” sharpen the edges of each object. (Velocity Modulation) Choose either “High”, “Low” or “Off”.

“Intelligent Picture” optimize picture quality.

“Signal Level Indicator” display the signal level when the “Intelligent Picture” is

“Standard” (normal) or “Custom”*.

Choose either “Cool” (blue tint), “Neutral” (neutral tint) or “Warm” (red tint).

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

functioning. “Intelligent Picture Signal Level” indicator will be displayed, followed by picture improvement when you change the program number or the input mode.

red amber green

(weak) (average) (good) Press V or v to select “On”, then press . To cancel, select “Off”, then press . “Intelligent Picture” is

still functioning.

*You can adjust the setting to your personal preference in the “Picture Adjustment”,

“Color Temperature” and “VM” options only when the “Custom” mode is selected.

Page 17

Changing the “Picture” setting (continued)

Adjusting the “Picture Adjustment” items under “Custom” mode

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press

Selecting “Reset” will set your TV to the factory settings.

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be received when you select “Custom”.

Note

• Reducing “Sharpness” can also reduce picture noise.

Page 18

L Changing the “Sound” setting

The “Sound” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Press V or v to select the “Sound” icon ( ), then press .

Press V or v to select the desired item (e.g., “Sound Mode”), then press .

Select To

“Sound Mode” choose either “Dynamic” (low and high tones), “Standard”

“Balance” Press v or B to emphasize the left speaker.

“Intelligent Volume” adjust the volume of all program numbers and video inputs

“Surround” choose either “TruSurround”(surround sound that spreads

*You can adjust the setting to your personal preference in the “Sound Adjustment”

option only when the “Custom” mode is selected.

** BBE High Definition Sound is fully activated maximizing the sound effect in the WOW

mode.

(voice and high tones) or “Custom”*.

Press V or b to emphasize the right speaker.

automatically. Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

out to the rear of a room), “WOW” ** (full, deep bass sound), “Simulated” (stereo-like monaural sound) or “Off”.

Note

• “Intelligent Volume” is not selectable when “TruSurround” is selected.

Adjusting the “Sound Adjustment” items under “Custom” mode

The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings of “Custom” mode in the menu.

Make sure that “Adjust” is selected, then press .

Selecting “Reset” will set your TV to the factory settings.

Press B or b to select the desired sound frequency, then press V or v to

adjust the setting and press

The adjusted settings will be received when you select “Custom”.

Notes

• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency will affect lower pitched sound.

•You may display the settings directly by using the button on the remote control (see H).

Page 19

M C

hanging the “Channel Setup”

setting

The “Channel Setup” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Press V or v to select the “Channel Setup” icon ( ), then press .

Press V or v to select the desired item (e.g., “Cable”), then press .

Select To

“Cable” receive cable TV programs.

Press V or v to select “On”, then press . If you select “Cable: On”, you will be able to receive 125 cable TV channels. If there are no cable TV channels, you will receive VHF broadcast channels only. To receive only VHF and UHF broadcast channels, select “Off”, then press .

“Auto Program” preset channels automatically.

“Program Edit” label the program number, skip the program number and block

unwanted programs (see step 3 of the section “Initial Setup” in D).

“Signal Booster”

improve the picture quality if the TV signal is too strong or weak. Press V or v to select either “Off” if the signal is too strong (picture distorted; picture with lines; signal interference) or “Auto” if the signal is weak (snowy picture), then press .

Page 20

Changing the “Channel Setup” setting (continued)

Select To

“FM Radio Setup”* preset up to nine FM radio stations.

You can manually preset each FM radio station that can be received in your area and then store the radio frequency of the desired FM radio stations. (1) Press V or v to select the desired FM radio station

position, then press .

(2) Press V or v to search the FM radio stations.

Searching stops automatically when a station is tuned in. If the station has a weak signal, press B or b to fine tune the radio frequency manually, then press to store the FM radio station.

(3) You may edit the FM radio station label. Press V or v to

select alphanumeric characters for the label, then press .

(4) Repeat steps (1) through (3) to preset other FM radio

stations.

* The “FM Radio Setup” feature is only available in FM

Radio mode. To enable this feature, access to FM Radio mode by using WEGA GATE system (see I) or pressing the FM button on the top control panel (see E), then preset your desired FM radio stations according to the steps mentioned above.

Page 21

N C

1 2 3

hanging the “Setup” setting

The “Setup” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Press V or v to select the “Setup” icon ( ), then press .

Press V or v to select the desired item (e.g., “Language”), then press .

Select To

“Language” change the menu language.

“Picture Rotation” adjust the picture position when it is not aligned with the TV

“Video Label” label the connected equipment.

“Color System” select the color system (for video input only).

“Wake Up Timer Beep” automatically using wake up timer.

“Factory Settings”

Press V or v to select either “English” or “ ” (Chinese), then press .

screen.

Press B or b to adjust the picture position, then press .

(1) Select “Video Input” and press . Press V or v to select the

input you want to label, then press .

(2) Select “Label” and press , then press V or v to select

the label options: “Video 1”/“Video 2”/“DVD”, “VCR”,

“SAT”, “Game” or “Edit”*. * You may edit the video label to your favorite name. Press V or v to select alphanumeric characters for the label, then press .

Press V or v to select either “Auto”, “PAL”, “SECAM”, “NTSC3.58” or “NTSC4.43”, then press . Normally, set this to “Auto”.

allow your TV to emit beeping sound when TV switches on

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

reset your TV to factory settings. Press and press V or v to select “Yes”, then press .

To cancel, select “No”, then press .

Notes

•To ensure the beeping sound can be heard, you must set an appropriate volume level on your TV and make sure the TV is not in mute condition.

•To stop the beeping sound, press any buttons on the remote control or top control panel.

• If no button is pressed for three minutes, the beeping sound will automatically go off.

Page 22

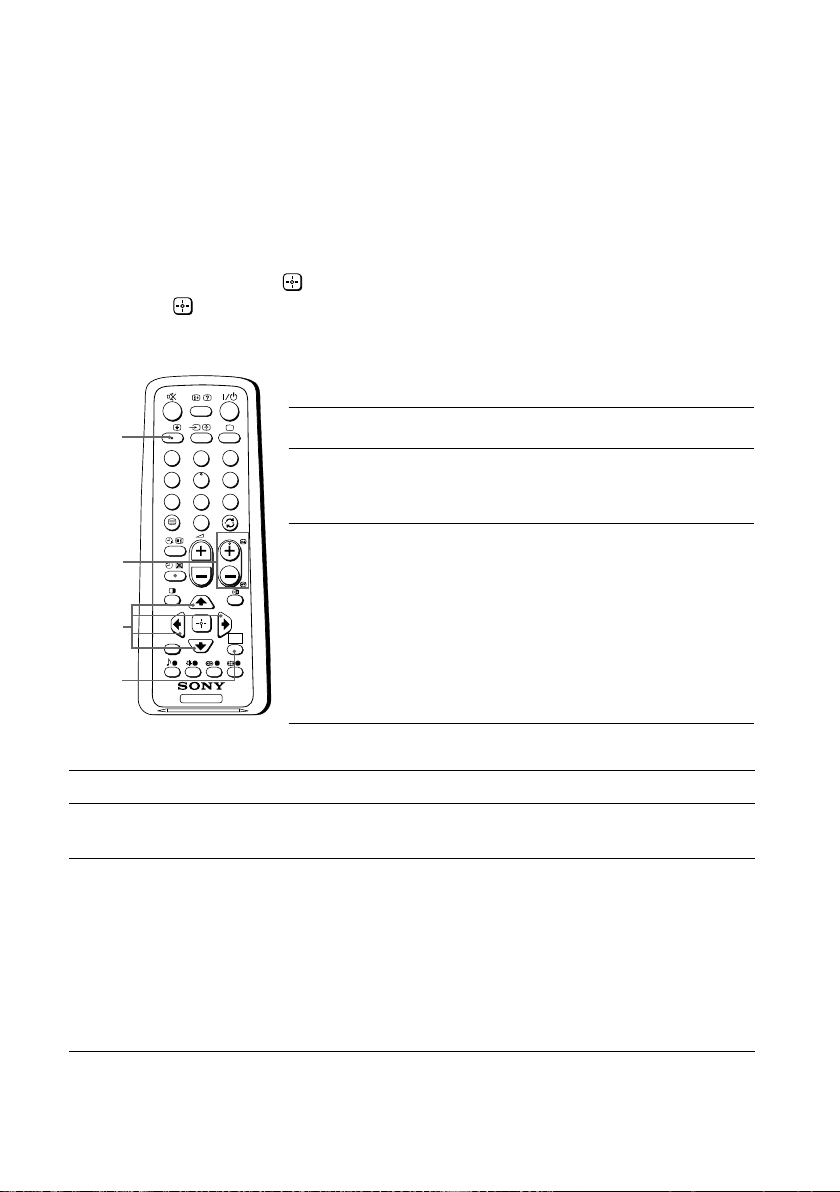

Enjoying stereo or bilingual programs

You can enjoy stereo sound or bilingual programs of MTS (Multi-Channel TV Sound) stereo system by using the A/B button.

Select stereo or bilingual programs

A/B

RETURN

PROG

WEGA GATE

Notes

• When select “Auto SAP”, non-SAP program sound will be same as “Stereo” mode sound.

• If the stereo signal is very weak, the stereo broadcast sound may become noisy. To reduce the

noise, select “Mono”.

Press A/B until you receive the sound you want.

Select To listen to

“Stereo” stereo broadcast sound.

“Auto SAP” SAP (Second Audio Program)

broadcast sound.

“Mono” monaural sound.

Page 23

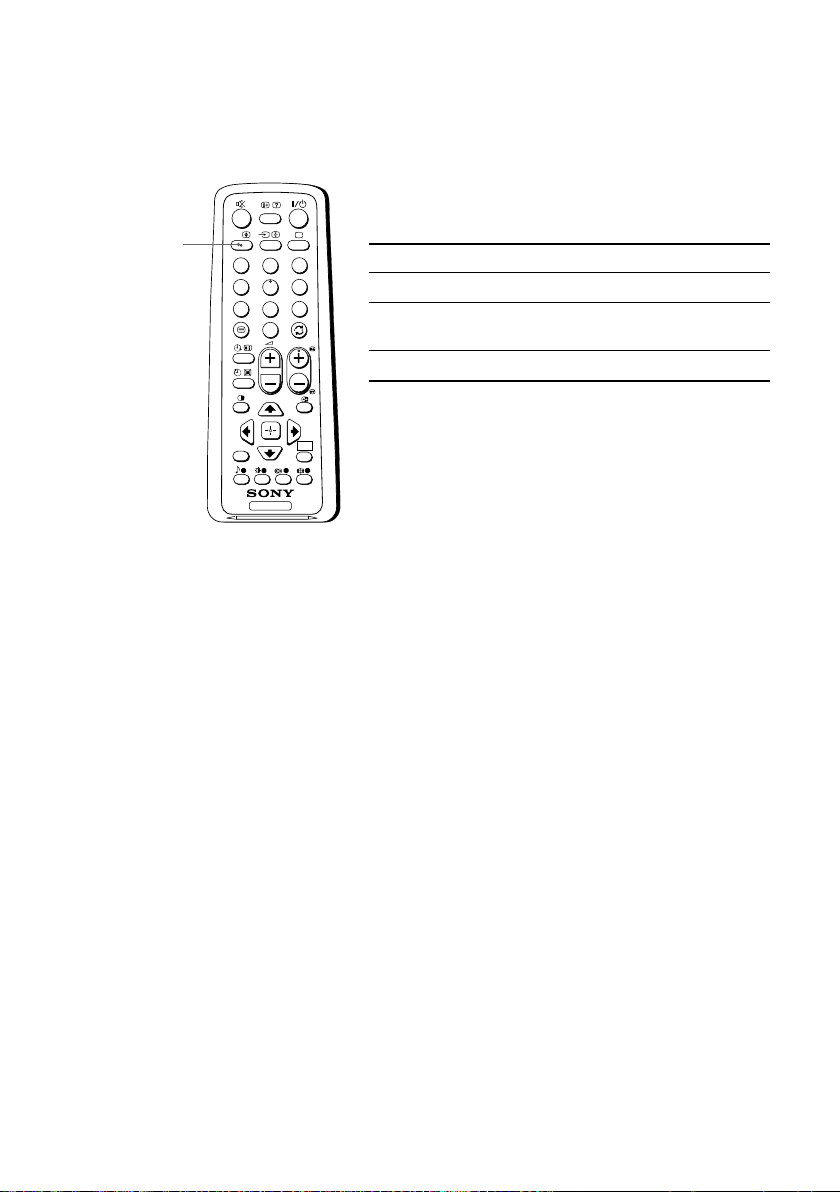

P Listening to the FM Radio

You are able to listen to the FM radio stations using your TV.

To access to FM Radio mode:

Press WEGA GATE button and select “FM Radio” (see I).

Press FM button on the top control panel (see E).

To exit from FM Radio mode:

Press WEGA GATE button, select the desired items: “TV” or “External Inputs”, then press press

Press FM button on the top control panel.

. Select the desired TV channel or external inputs and

Listening to preset stations

A/B

PROG

+/–

A/B

PROG

Access to FM Radio mode.

Press WEGA GATE button and select “Settings”.

Preset the desired FM radio stations in “FM Radio Setup” from “Channel Setup” menu (see M).

Exit from “Channel Setup” menu by pressing

WEGA GATE button. The selected preset FM radio station number and label will appear on the

V, v, B, b

WEGA

GATE

RETURN

WEGA GATE

screen. To select the desired preset FM radio station, press PROG +/–.

Tip

• You can also use the 1-9 buttons on the remote control to directly select the desired preset FM radio station.

Listening to non-preset stations

Access to FM Radio mode.

Press V or v to search for the desired FM radio station. The preset number

and label will not be displayed.

If the station has a weak signal, press B or b to fine tune the radio frequency

manually.

Notes

•You can only operate V, v, B and b functions using the remote control buttons in FM Radio mode.

• The available radio frequency is only for temporary listening pleasure and cannot be stored in the memory.

• If the message “Please setup FM Radio” appears, display the “Channel Setup” menu and select “FM Radio Setup” to preset the desired FM radio stations (see M).

Note

• When a FM stereo program has static noise, press A/B until “Mono” appears. There will be no

stereo effect, but the noise will be reduced.
