Page 1

2-685-750-12 (1)

Tr initron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

使用說明書

• 使用本電視機之前請先詳細閱讀此手冊﹐並妥善保存以備日後用作參考。

Panduan Pengendalian

• Sebelum mengendalikan unit, sila baca buku panduan ini dengan teliti dan simpan untuk rujukan masa depan.

KV-AZ212

M61

Page 2

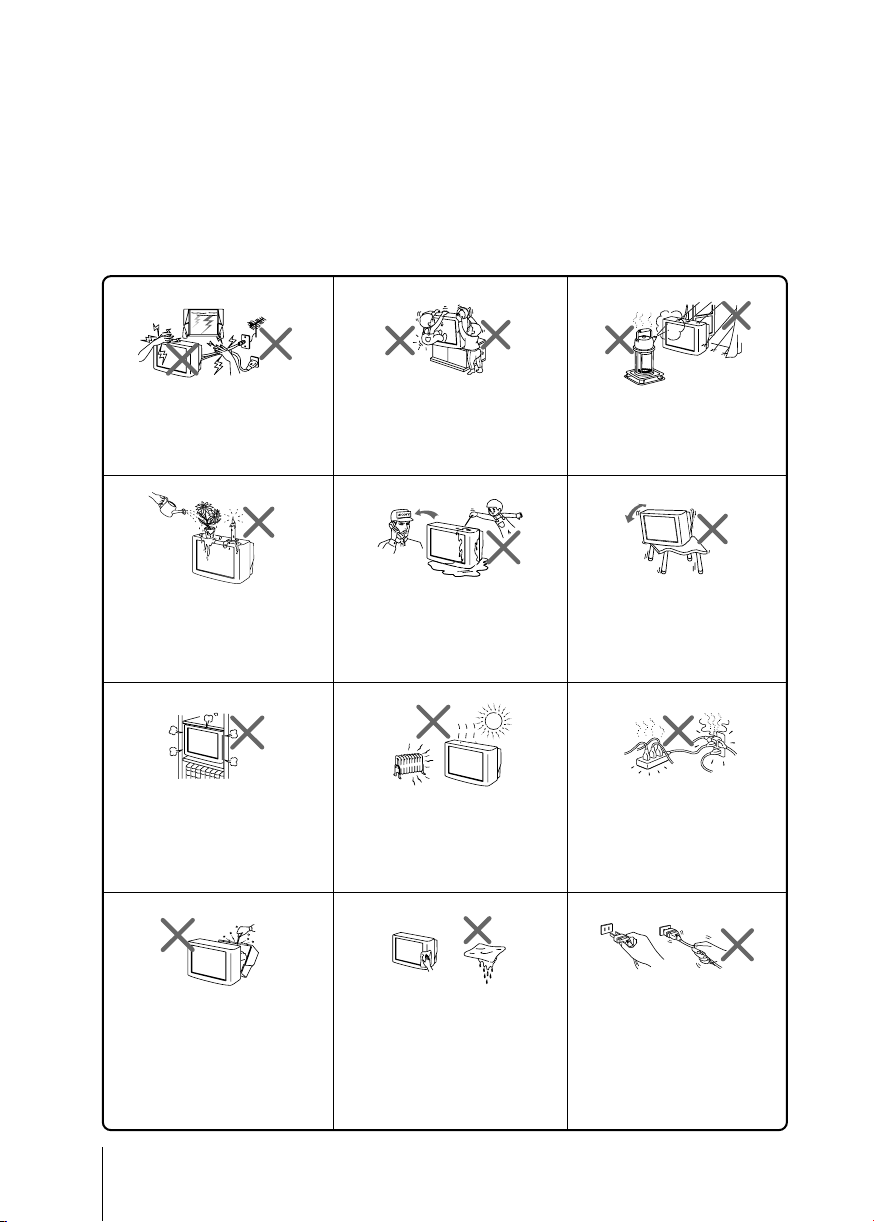

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

Page 3

Table of Contents

Getting Started ............................................................................................................... 4

Setting up your TV (“Initial Setup”) ........................................................................... 5

TV top control, front and rear panels ......................................................................... 7

Connecting optional components ............................................................................... 8

Using the remote control and basic functions ......................................................... 10

Introducing the WEGA GATE navigator ................................................................. 12

“Settings” Adjustment ................................................................................................ 13

Changing the “Picture” setting .................................................................................. 14

Changing the “Sound” setting ................................................................................... 16

Changing the “Channel Setup” setting .................................................................... 17

Changing the “Setup” setting .................................................................................... 19

Viewing Teletext........................................................................................................... 20

Enjoying stereo or bilingual programs ..................................................................... 21

Listening to the FM Radio .......................................................................................... 22

Troubleshooting ........................................................................................................... 23

Specifications ................................................................................................ Back cover

Page 4

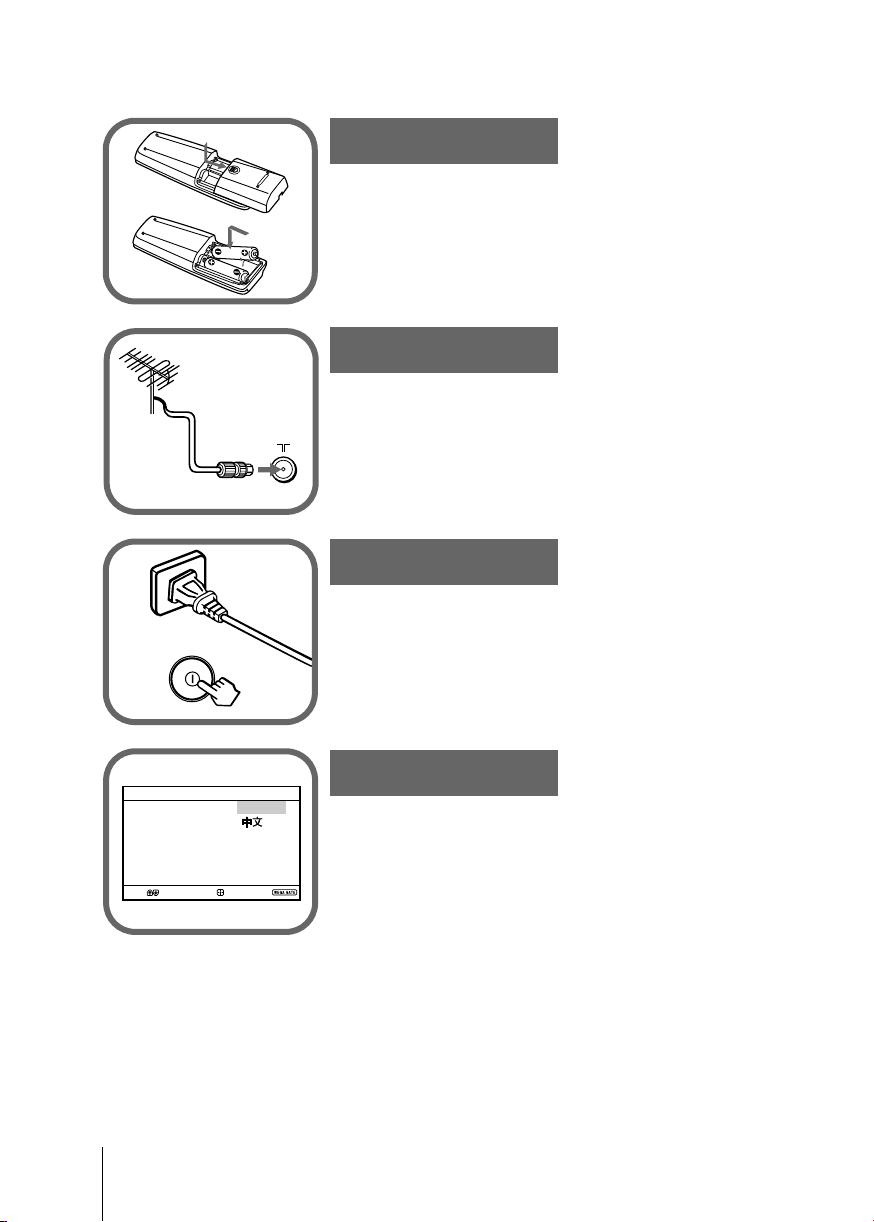

x Getting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tips

•Your TV can receive both TV and FM radio signals from the appropriate connections through the 8 (antenna input) terminal (see page 8).

•You can also connect your TV to other optional components (see page 8).

Step 3

Plug in the power cord, then press ! on the TV to turn it on.

Note

• The 1 (standby) indicator flashes green for a few seconds when turning on the TV. This does not indicate a malfunction.

Initial Setup

Language:

Select

Confirm

English

End

Step 4

Set up the TV by following the instructions of the “Initial Setup” menu (see page 5).

Page 5

Program Sorting/Edit

01 02

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select

Confirm

Program Sorting/Edit

01 02 03 04

Off Off Off Off

Sorting:

Edit:

PROG

SkipLabel

Exit

Select

Confirm

Program:

Auto Program

TV System: Auto

VHF Low

End

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear. You may change the menu language, preset the TV channels automatically, sort or edit the channels and adjust the picture position using the buttons on the remote control or TV top control panel.

Press V or v to select the desired menu

language, then press .

The selected menu language appears.

Press V or v to select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic presetting is in progress.

After all available channels have been tuned and stored, the “Program Sorting/Edit” menu appears automatically on the screen.

To skip automatic channel presetting, select “No”, then press

If the message “No channel found. Please connect cable/antenna” appears, check your TV connections, then press

The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press V or v to select the program

number with the channel you wish to change. The selected channel will appear on the screen.

c) If you wish to store the channels in a

different order:

1) Press b to enter sorting mode.

2) Press V or v to select the new program number position for your selected channel, then press B.

Initial Setup Language:

Select

Confirm

Initial Setup First please connect cable/ antenna

Start Auto Program now?

Yes

Confirm

English

End

continue

Page 6

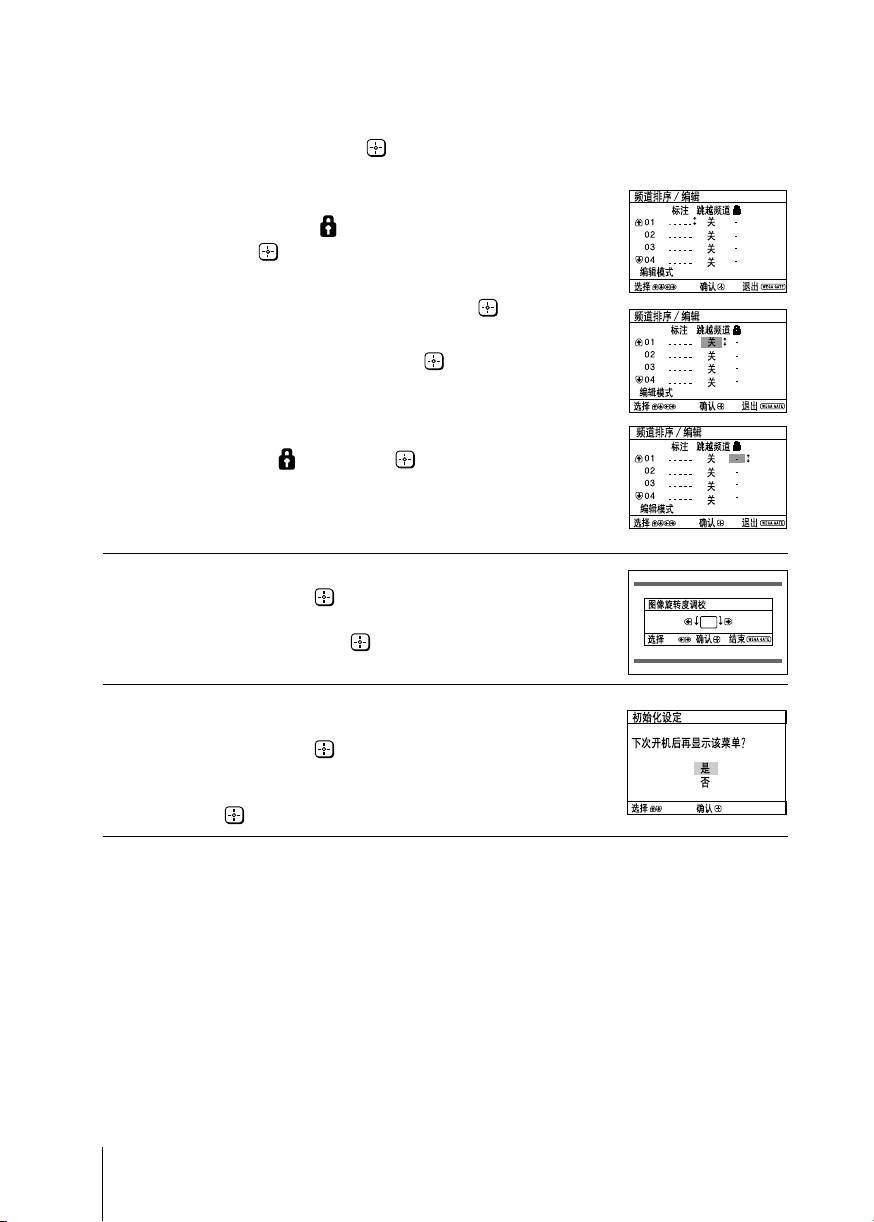

Setting up your TV (“Initial Setup”) (continued)

d) If you wish to edit the channels, press

to change to edit mode. Press b until the mode that you wish to edit is highlighted: Label, Skip, Then press

1) To label, press V or v to select the alphanumeric characters for the label. Then press

2) To skip the program number, press V or v to select “On”. Then press

You can skip this program number when using PROG +/-.

3) To block unwanted program number, press V or v to select

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

Press B or b to adjust the bars on the top

and bottom of the menu if they are slanted, then press

If no adjustment is necessary, then press

(block symbol).

. Then press .

Program Sorting/Edit

Label Skip

PROG

Off

Label Skip 01 02 03 04

Label Skip

01 02 03 04

Picture Rotation

Select

Confirm

Off

Off Off Off Off

Edit mode

Select

Program Sorting/Edit

PROG

Edit mode

Select

Program Sorting/Edit

PROG

Edit mode

Select

Exit

End

To prevent this “Initial Setup” menu from

appearing again when you turn on the TV by pressing !, press V or v to select “No”, then press

To allow this menu to appear again, select “Yes”, then press

Initial Setup

Display this menu next time?

Select

Tip

•You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

Yes

Confirm

Page 7

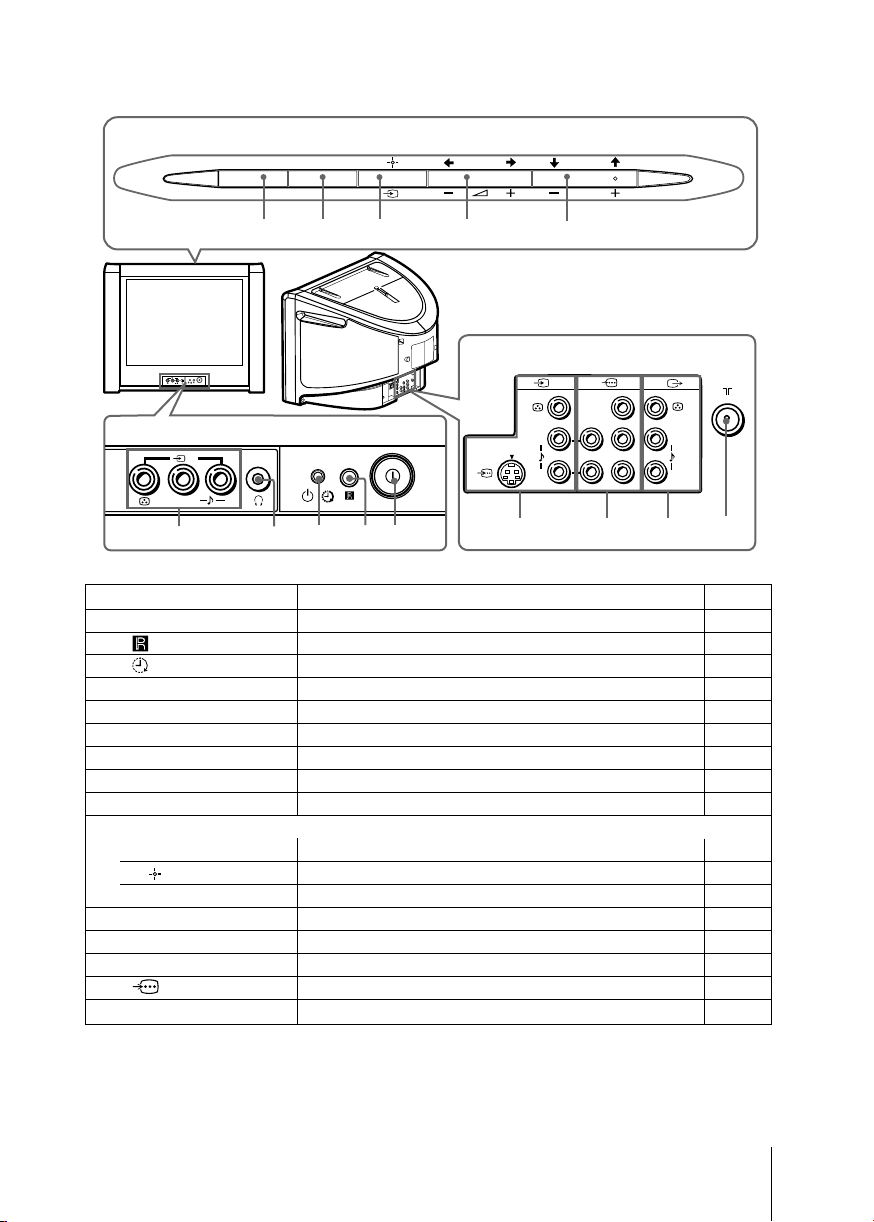

x TV top control, front and rear

panels

TV top control panel

WEGA GATE

PROG

TV rear panel

(MONO)

TV front panel

(MONO)

(

MONO)

qf qsqd

(

MONO)

Button/Terminal Function Page

1 ! Turn off or turn on the TV. 4 2 Remote control sensor. - 3 Wake Up indicator. 11 3 1 Standby indicator. 4 4 i Headphone jack. - 5 t2Video input terminal 2. 8 6 PROG +/– Select program number. - 7 2 +/– Adjust volume. - 8 t Select TV or video input. 8

WEGA GATE menu operations

6,7 V,v,B,b Select and adjust items. 12

Confirm selected items. 12

9 WEGA GATE Display or cancel WEGA GATE menu. 12 0 FM Listen to FM radio. 22 qa 8 Antenna input terminal. 8 qs T Monitor output terminal. 9 qd Component video input terminal. 9 qf t1Video input terminal 1. 8

Page 8

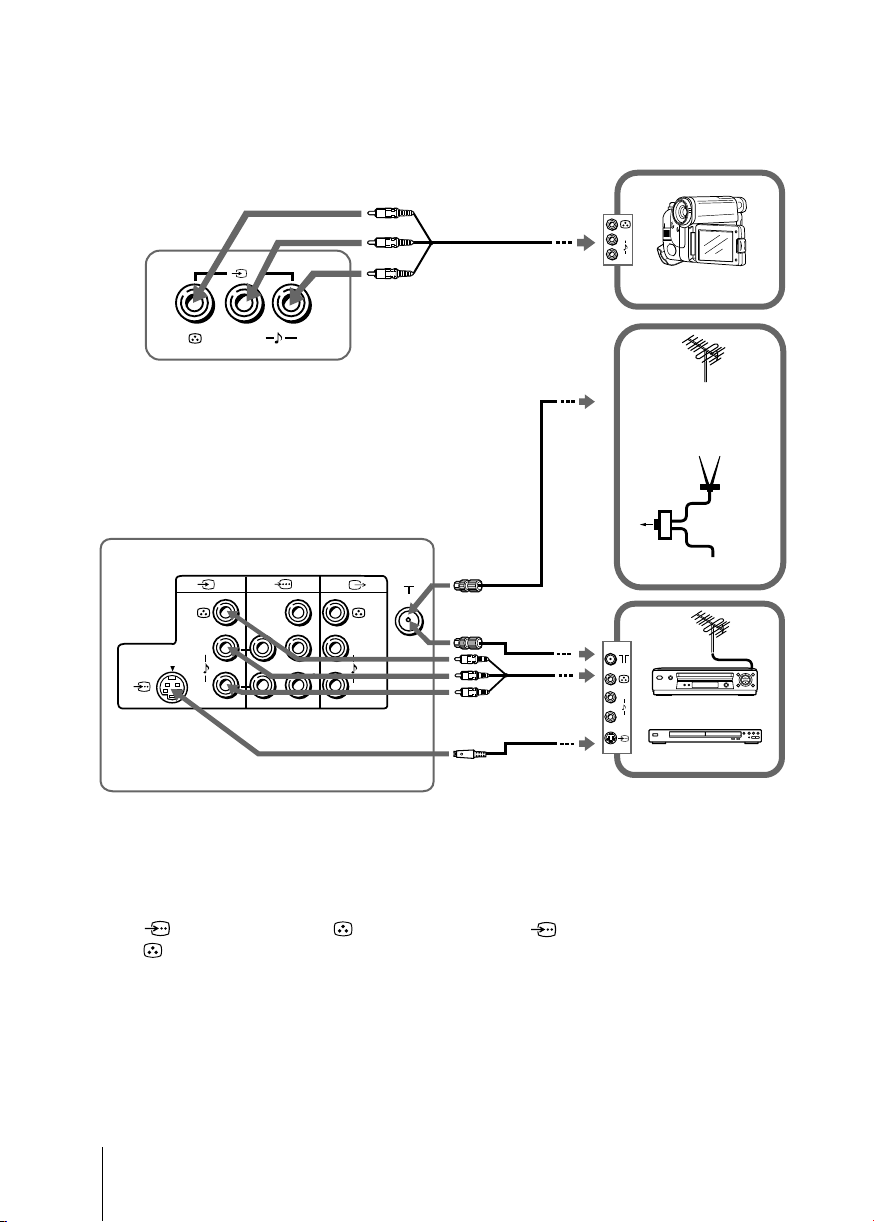

x Connecting optional components

Connecting to the video input terminal ( t )

Audio/Video cable

TV front panel

TV rear panel

(MONO)

(not supplied)

Antenna cable

(not supplied)

Camcorder

TV, CATV, Satellite

When there is no

FM signal

Antenna

selector

FM signal

TV signal

VCR

DVD player

(

MONO)

(

MONO)

Antenna cable

(not supplied)

Audio/Video cable

(not supplied)

S Video cable

(not supplied)

Notes

• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see page 18).

• When both (S video) and (video) for t 1 are connected at the same time,

(S video) is automatically selected. To view (video), disconnect the S video cable.

Page 9

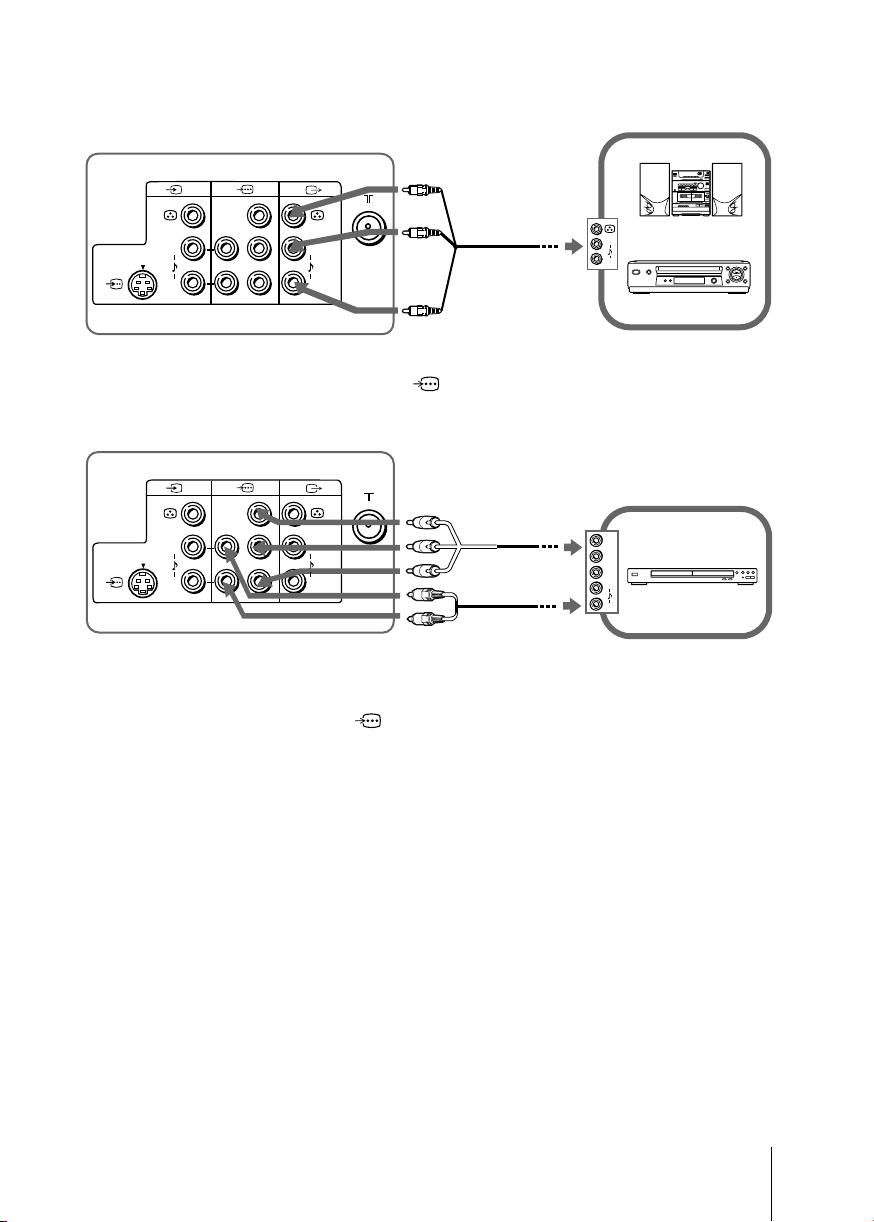

Connecting to the monitor output terminal ( T )

TV rear panel

(MONO) (MONO)

Audio/Video

cable

(not supplied)

Audio system

VCR

Connecting to the component video input terminal ( )

TV rear panel

(MONO)

Notes

• If your DVD player can output interlace and progressive mode signals, select the interlace output when connecting to (component video input) on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/ PR, Y/Cb/Cr or Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks will not be output properly. This does not indicate a malfunction.

Component video

cable

(not supplied)

Audio cable

(not supplied)

DVD player

Page 10

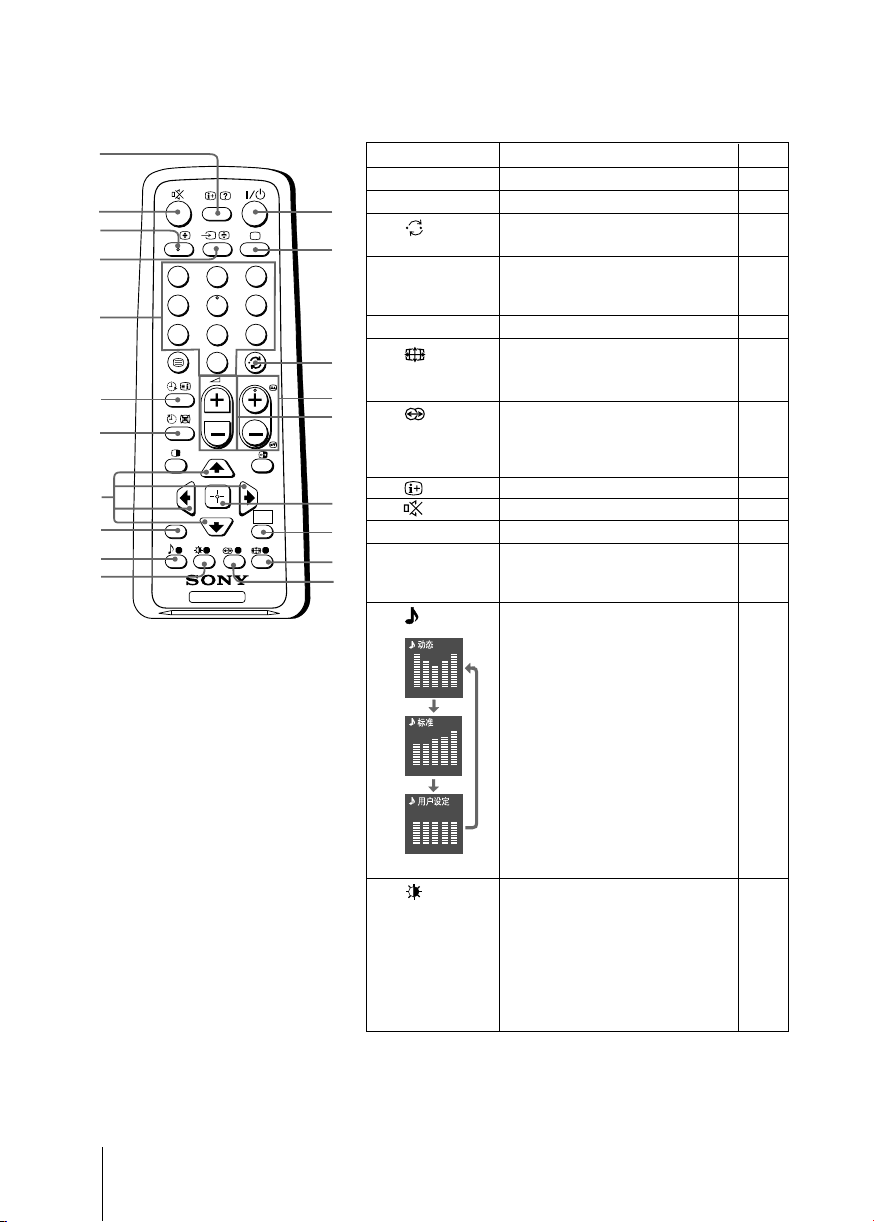

x Using the remote control and basic

functions

qa qs

qk ql

A/B

RETURN

Button Description Page

1 ?/1 Turn off temporarily or turn on –

2 a Display the TV program. –

3 Jump to last program number –

PROG

4 PROG +/–

5 2 +/– Adjust volume. – 8 Change the picture size: –

4 5

the TV.

that has been watched for at least five seconds.

Select program number. To select quickly, press and hold until the desired program number appears.

“On” (16:9 wide-mode), “Off”.

–

9 Select surround mode options: 16

“TruSurround”, “WOW”, “Simulated”, “Off”.

0 Display on-screen information. –

WEGA

GATE

qa Mute the sound. –

qd t Select TV or video input. 8

qf 0 – 9 Input numbers. For program –

numbers 10 and above, enter the second digit within two seconds.

ql Select sound mode options 16

Dynamic

100 300 1k 3k 8k

Standard

with a 5-Band Graphic Equalizer display: “Dynamic”, “Standard”, “Custom”*.

* When the “Custom” mode is

selected, you can receive the

100 300 1k 3k 8k

Custom

last adjusted sound settings from the “Sound Adjustment” option in the menu.

100 300 1k 3k 8k

Select picture mode options: 14

“Vivid”, “Standard”, “Custom”*.

When the “Custom” mode is

selected, you can receive the last adjusted picture settings from the “Picture Adjustment” option in the menu.

Page 11

Button Description Page WEGA GATE menu operations

6 Confirm selected items. 12 7 WEGA GATE Display or cancel WEGA GATE menu. qj V, v, B , b Select and adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the –

(Wake Up Timer)

desired period of time (max. of 12 hours).

The indicator on TV lights up amber once you set the wake up timer.

If no buttons or controls are pressed for more than one hour after the TV is turned on using the wake up timer, the TV automatically goes into standby mode.

qh Set TV to turn off automatically according to the –

(Sleep Timer)

Teletext operations (green label)

desired period of time (max. of one hour and 30 min.).

, , , , All buttons are used for Teletext operations. 20 , , , ,

(red, green,

yellow, blue)

PIP operations

, , V, v, B, b Not function for your TV.

Stereo/bilingual operations

–

qs A/B Select stereo/bilingual mode. 21

WOW, TruSurround, SRS and symbol are trademarks of SRS Labs, Inc. WOW and TruSurround technologies are incorporated under license from SRS Labs, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and BBE symbol are trademarks of BBE Sound, Inc.

Page 12

x Introducing the WEGA GATE

Confirm

Select

WEGA GATE

External Inputs

Settings

FM Radio

navigator

WEGA GATE is a gateway that allows you access to preset TV channels, connected external inputs, FM Radio mode and “Settings” menu.

02 03

Select

End

External Inputs

Video 1

Video 2

DVD

Select End

FM Radio

watch the preset TV channels (see page 5)

Confirm

select the inputs for the connected equipment (see page 8)

Confirm

Select

WEGA GATE TV

External Inputs

FM Radio Settings

“TV”

Confirm

“External

Inputs”

“FM Radio”

“Settings”

Preset 1:

---.--

Please setup FM Radio

Select Preset 1-9 Search

Picture Mode: Vivid

Color Temperature: Cool

VM: High Intelligent Picture: On Signal Level Indicator: On

Select

Exit

Fine


Picture Adjustment

Confirm

listen to the FM Radio (see page 22)

change the settings of your TV (see page 13)

End

How to use WEGA GATE

WEGA GATE TV

External Inputs FM Radio Settings

Select

(1) Press WEGA GATE to display or cancel

Confirm

(3) Press V or v to select the desired item.

the WEGA GATE menu.

01 02 03 04 05

Select

End

(2) Press (or b) to confirm your selection

or go to the next level.

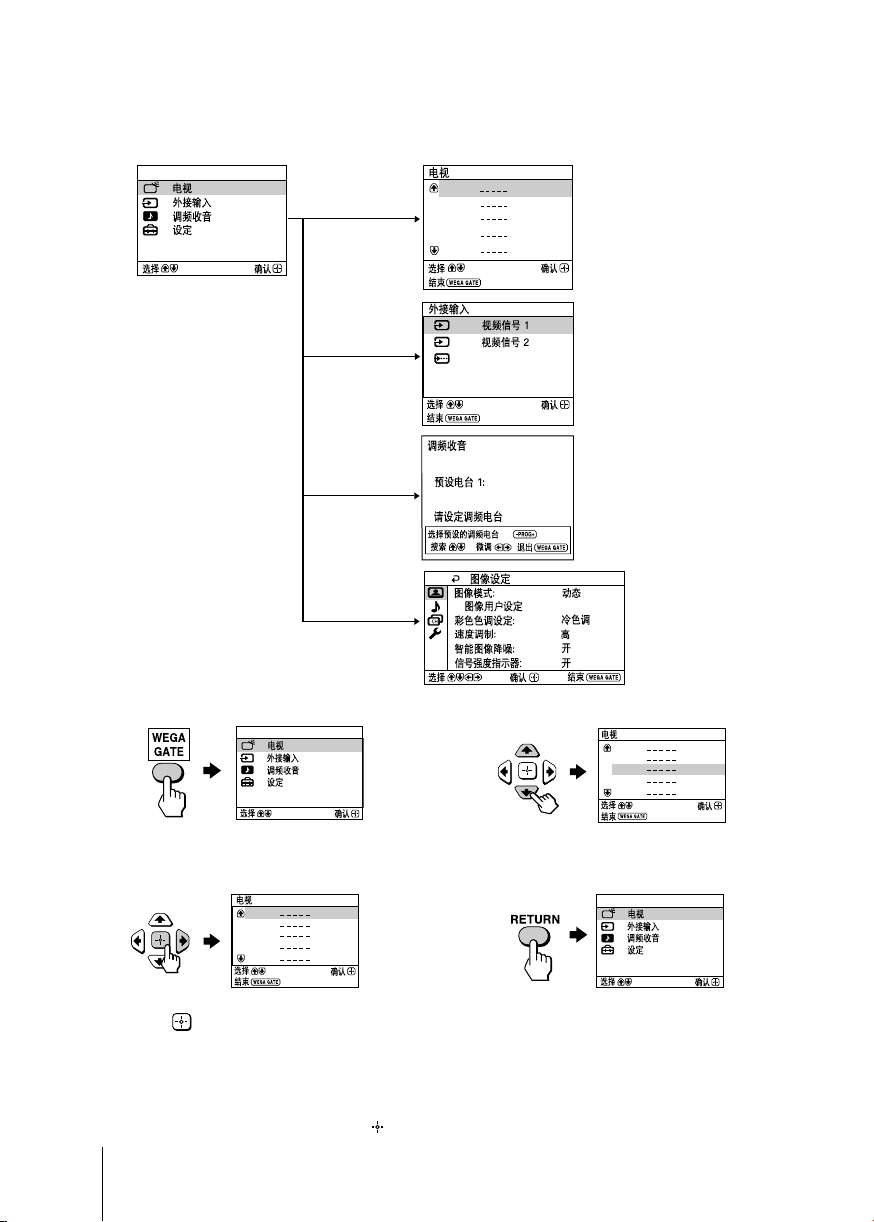

Confirm

(4) Press RETURN to move to the previous

level.

Tip

• The WEGA GATE, and V,v,B,b buttons on the top control panel can also be used for the operations above.

Select

End

01 02 03 04 05

Confirm

Page 13

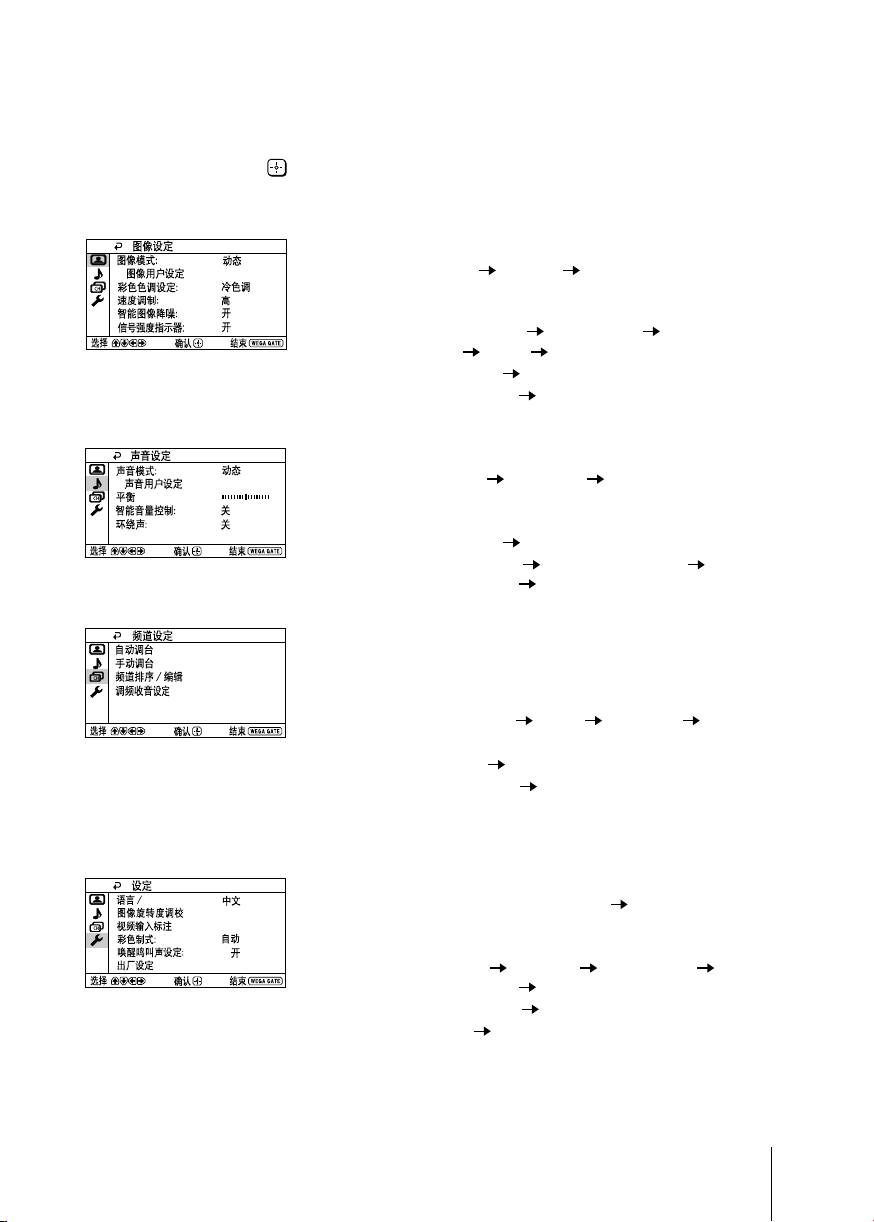

x “Settings” Adjustment

You are able to change the settings of your TV from “Settings” in WEGA GATE menu. Press WEGA GATE button to display WEGA GATE menu. Press V or v to select “Settings” and press

The following is an overview of the items that can be adjusted.


Picture Mode: Vivid

Picture Adjustment Color Temperature: Cool VM: High Intelligent Picture: On Signal Level Indicator: On

Select

Confirm

Sound

Sound Mode: Dynamic

Sound Adjustment

Balance

Intelligent Volume:

Surround: Off

Confirm

Channel Setup

Auto Program Manual Program Program Sorting/Edit FM Radio Setup

Confirm

”Picture” (see page 14)

“Picture Mode”: “Vivid” “Standard” “Custom” “Picture Adjustment”: “Picture”, “Brightness”, “Color”, “Hue”,

“Sharpness”, “Reset”

End

“Color Temperature”: “Cool” “Neutral” “Warm” “VM”: “High” “Low” “Off” “Intelligent Picture”: “On” “Off” “Signal Level Indicator”: “On” “Off”

”Sound” (see page 16)

“Sound Mode”: “Dynamic” “Standard” “Custom”

Off

End

“Sound Adjustment”: “Adjust”, “Reset” “Balance” “Intelligent Volume”: “On” “Off” “Surround”: “TruSurround” “WOW” “Simulated”

“Off”

”Channel Setup” (see page 17)

“Auto Program” “Manual Program”

“Program”: “00” - “99”

End

“TV System”: “B/G” “I” “D/K” “M” “VHF Low”/”VHF High”/”UHF” “Fine”: “Auto” “Manual”

“Signal Booster”: “Auto” “Off” “Program Sorting/Edit” “FM Radio Setup”

Setup

Language:

Picture Rotation

Video Label

Color System:

Wake Up Timer Beep: Factory Settings

Select

Confirm

English

Auto

End

”Setup” (see page 19)

“Language”: “English” “ ” (Chinese) “Picture Rotation” “Video Label”: “Video Input”, “Label” “Color System”: “Auto” “PAL” “SECAM” “NTSC3.58”

“NTSC4.43” “Wake Up Timer Beep”: “On” “Off” “Factory Settings”: “Yes” “No”

Note

• When a feature is dimmed in the menu, it is not selectable.

Page 14

x Changing the “Picture” setting

The “Picture” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Make sure the “Picture” icon ( ) is selected, then press .

Press V or v to select the desired item (e.g., “Picture Mode”), then press .

Select To

“Picture Mode” choose either “Vivid” (bright, contrast and sharp),

“Color Temperature” adjust white color tint.

“VM” sharpen the edges of each object. (Velocity Modulation) Choose either “High”, “Low” or “Off”.

“Intelligent Picture” optimize picture quality.

“Signal Level Indicator” display the signal level when the “Intelligent Picture” is

“Standard” (normal) or “Custom”*.

Choose either “Cool” (blue tint), “Neutral” (neutral tint) or “Warm” (red tint).

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

functioning. “Intelligent Picture Signal Level” indicator will be displayed, followed by picture improvement when you change the program number or the input mode.

red amber green

(weak) (average) (good) Press V or v to select “On”, then press . To cancel, select “Off”, then press . “Intelligent Picture” is

still functioning.

*You can adjust the setting to your personal preference in the “Picture Adjustment”,

“Color Temperature” and “VM” options only when the “Custom” mode is selected (see page 15).

Page 15

Adjusting the “Picture Adjustment” items under “Custom” mode

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press

Selecting “Reset” will set your TV to the factory settings.

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be received when you select “Custom”.

Notes

• “Hue” can be adjusted for the NTSC color system only.

• Reducing “Sharpness” can also reduce picture noise.

Page 16

x Changing the “Sound” setting

The “Sound” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Press V or v to select the “Sound” icon ( ), then press .

Press V or v to select the desired item (e.g., “Sound Mode”), then press .

Select To

“Sound Mode” choose either “Dynamic” (low and high tones), “Standard”

“Balance” Press v or B to emphasize the left speaker.

“Intelligent Volume” adjust the volume of all program numbers and video inputs

“Surround” choose either “TruSurround”(surround sound that spreads

*You can adjust the setting to your personal preference in the “Sound Adjustment”

option only when the “Custom” mode is selected.

** BBE High Definition Sound is fully activated maximizing the sound effect in the WOW

mode.

(voice and high tones) or “Custom”*.

Press V or b to emphasize the right speaker.

automatically.

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

out to the rear of a room), “WOW”** (full, deep bass sound),

“Simulated” (stereo-like monaural sound) or “Off”.

Note

• “Intelligent Volume” is not selectable when “TruSurround” is selected.

Adjusting the “Sound Adjustment” items under “Custom” mode

The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings of “Custom” mode in the menu.

Make sure that “Adjust” is selected, then press .

Selecting “Reset” will set your TV to the factory settings.

Press B or b to select the desired sound frequency, then press V or v to

adjust the setting and press .

The adjusted settings will be received when you select “Custom”.

Notes

• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency will affect lower pitched sound.

•You may display the settings directly by using button on the remote control (see page 10).

Page 17

x C

hanging the “Channel Setup”

setting

The “Channel Setup” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Press V or v to select the “Channel Setup” icon ( ), then press .

Press V or v to select the desired item (e.g., “Auto Program”), then press .

Select To

“Auto Program” preset channels automatically.

“Manual Program” manually preset desired channels and channels that cannot

“Program Sorting/Edit”

“FM Radio Setup”* preset up to nine FM radio stations.

be preset automatically (see Presetting channels manually in page 18).

change the order in which the channels appear on the screen, label the program number, skip the program number and block unwanted programs (see step 3 of the section “Initial Setup” in page 5).

You can manually preset each FM radio station that can be received in your area and then store the radio frequency of the desired FM radio stations. (1) Press

(2) Press

(3) You may edit the FM radio station label. Press

(4) Repeat steps (1) through (3) to preset other FM radio

* The “FM Radio Setup” feature is only available in FM

V or v to select the desired FM radio station

position, then press .

V or v t Searching stops automatically when a station is tuned in. If the station has a weak signal, press

the radio frequency manually, then press to store the FM radio station.

select alphanumeric characters for the label, then press

stations.

Radio mode. To mode by using WEGA GATE system (see page 12) or pressing the FM button on the top control panel (see page

7), then preset your desired FM radio stations according to the steps mentioned above.

o search the FM radio stations.

B or b to fine tune

enable this feature, access to FM Radio

V or v to

Notes

• If you preset a blocked program number, that program number will be unblocked automatically.

• If you sort a blocked program, that program will remain blocked.

continue

Page 18

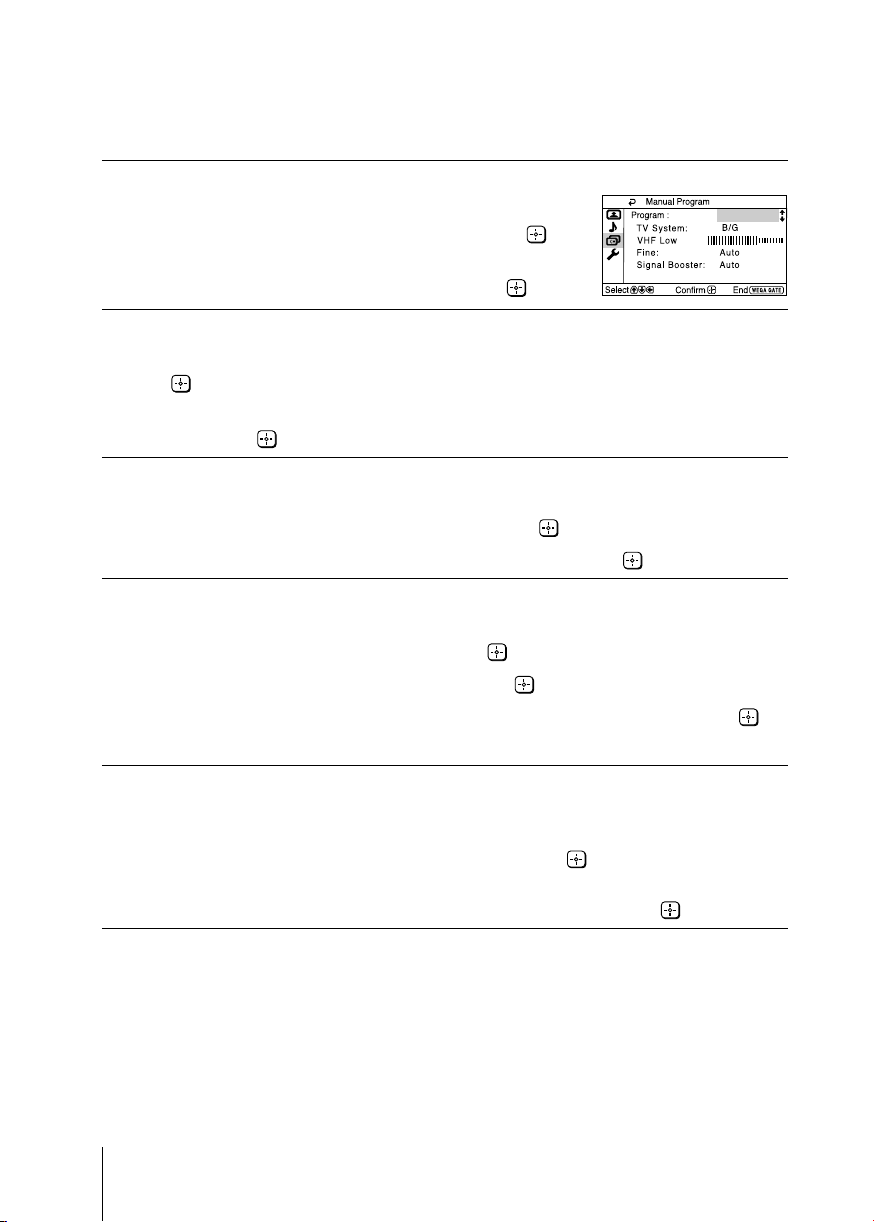

Changing the “Channel Setup” setting (continued)

Presetting channels manually

After selecting “Manual Program”, select the program

number to which you want to preset a channel.

(1) Make sure “Program” is selected, then press

(2) Press V or v

to preset appears on the menu, then press .

Select the desired channel.

(1) Make sure either “VHF Low”, “VHF High” or “UHF” is selected, then press

(2) Press V or v until the desired channel’s broadcast appears on the TV screen,

then press .

If the sound of the desired channel is abnormal, select the appropriate TV

system.

(1) Press V or v

(2) Press V or v

If you are not satisfied with the picture and sound quality, you may be able

to improve them by using the “Fine” tuning feature.

(1) Press V or v to select “Fine”, then press .

(2) Press V or v

Press V,v,B or b until the picture and sound quality are optimal, then press .

(3)

The + or – icon on the menu flashes while tuning.

until the program number you want

to select “TV System”, then press .

until the sound becomes normal, then press .

to select “Manual”, then press .

If the TV signal is too strong (picture distorted; picture with lines; signal

interference) or weak (snowy picture), you may be able to improve the picture quality by setting the “Signal Booster” feature.

(1) Press V or v

(2) Press V or v

signal interference) or “Auto” (for snowy picture), then press .

to select “Signal Booster”, then press .

to select either “Off” (for picture distorted; picture with lines;

Page 19

x C

1 2 3

hanging the “Setup” setting

The “Setup” menu allows you to adjust settings below.

Press WEGA GATE and select “Settings”.

Press V or v to select the “Setup” icon ( ), then press .

Press V or v to select the desired item (e.g., “Language”), then press .

Select To

“Language” change the menu language.

“Picture Rotation” adjust the picture position when it is not aligned with the TV

“Video Label” label the connected equipment.

“Color System” select the color system.

“Wake Up Timer Beep

” automatically using wake up timer.

“Factory Settings”

Press V or v to select either “English” or “ ” (Chinese), then press .

screen.

Press B or b to adjust the picture position, then press .

(1) Select “Video Input” and press . Press V or v to select the

input you want to label, then press .

(2) Select “Label” and press , then press V or v to select

the label options: “Video 1”/“Video 2”/“DVD”, “VCR”,

“SAT”, “Game” or “Edit”*. * You may edit the video label to your favorite name. Press V or v to select alphanumeric characters for the label, then press .

Press V or v to select either “Auto”, “PAL”, “SECAM”, “NTSC3.58” or “NTSC4.43”, then press . Normally, set this to “Auto”.

allow your TV to emit beeping sound when TV switches on

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

reset your TV to factory settings. Press and press V or v to select “Yes”, then press .

To cancel, select “No”, then press .

Notes

• Color system is not selectable in FM Radio mode.

•To ensure the beeping sound can be heard, you must set an appropriate volume level on your TV and make sure the TV is not in mute condition.

•To stop the beeping sound, press any buttons on the remote control or top control panel.

• If no button is pressed for three minutes, the beeping sound will automatically go off.

Page 20

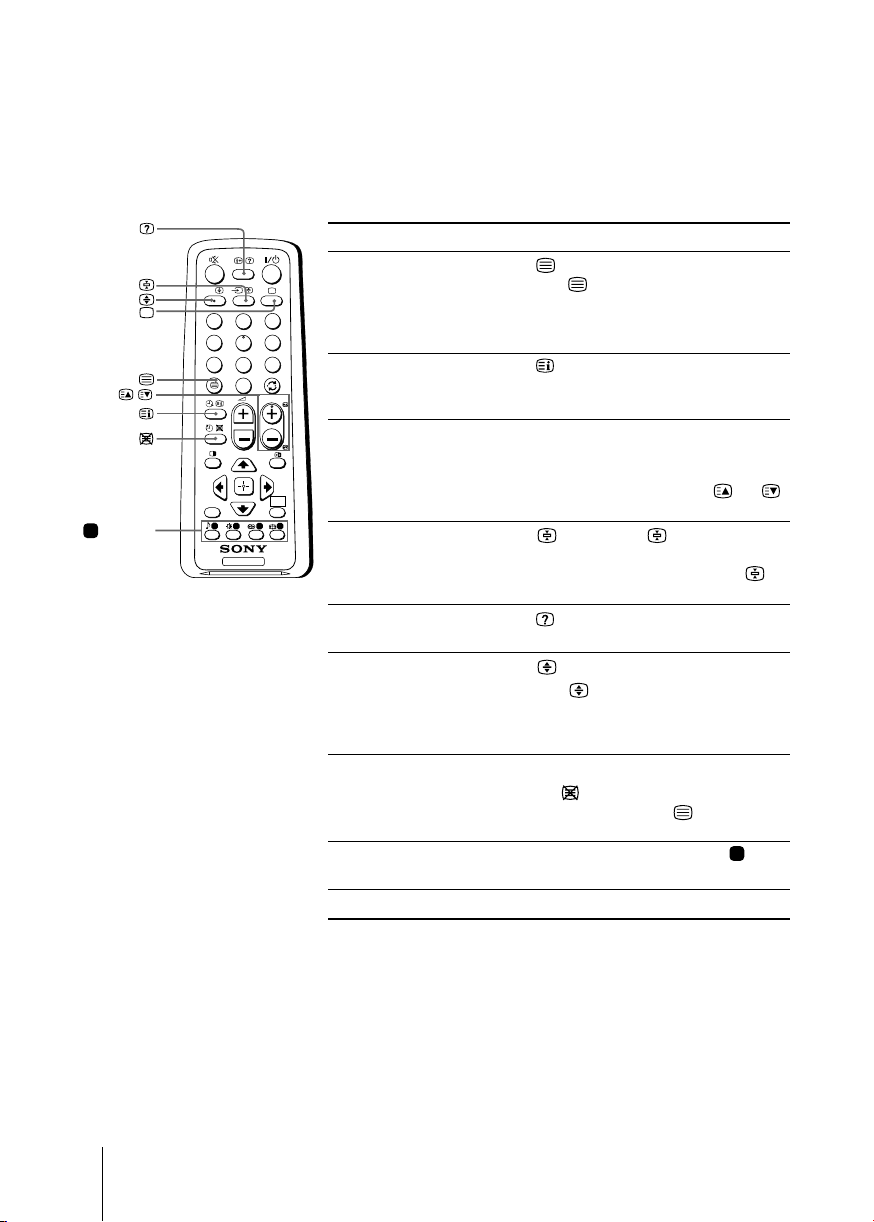

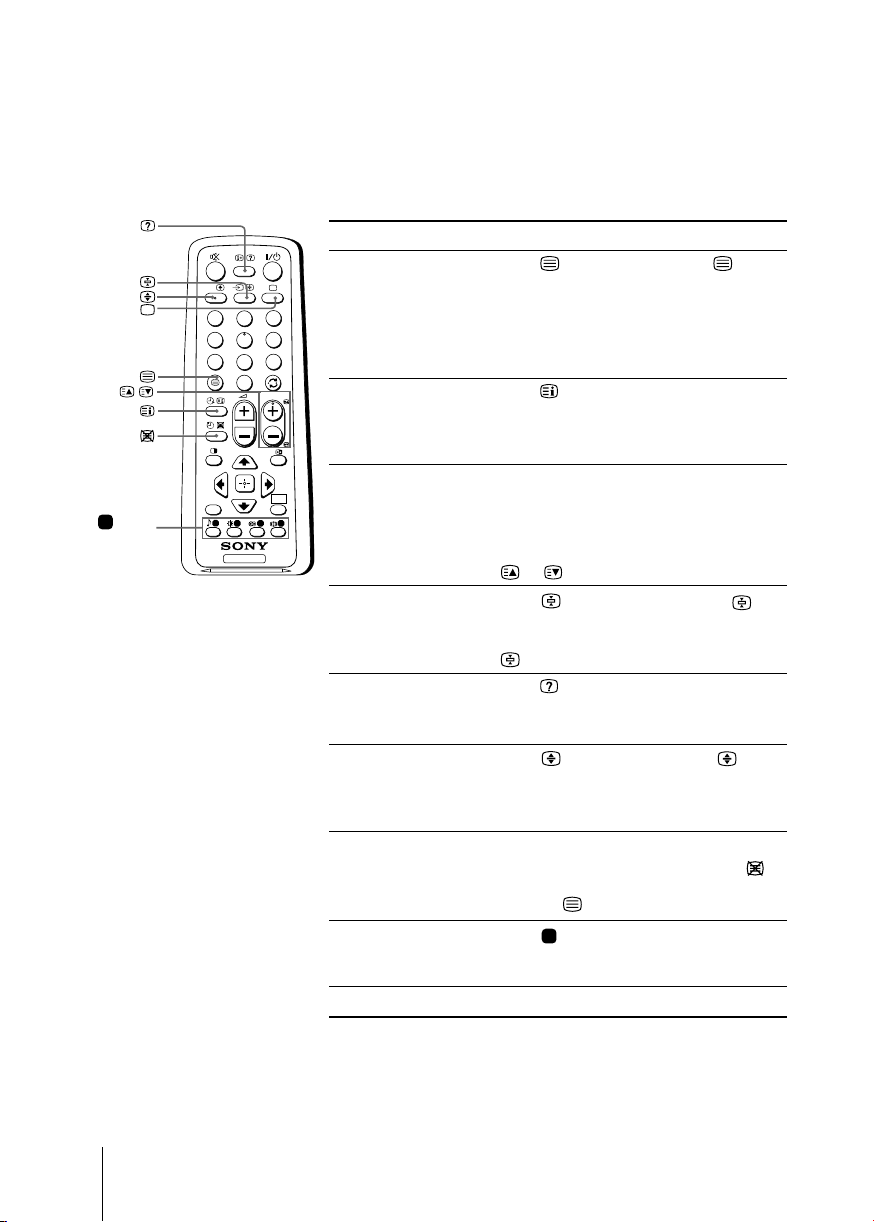

x Viewing Teletext

Some TV stations broadcast an information service called Teletext which allows you to receive various information, such as stock market reports and news.

You can use the buttons on the remote to view Teletext.

To Do this

display a Teletext Press . Each time you press , the

(red,

green,

yellow,

blue)

A/B

RETURN

PROG

WEGA GATE

page on the screen changes as follows: TV picture Teletext t Teletext and TV t TV.

If there is no Teletext broadcast, “100” is displayed at the top left corner of the screen.

check the contents Press . of a Teletext service An overview of the Teletext contents,

including page numbers, appears on the screen.

select a Teletext page Press the number buttons to enter the

three-digit page number of the desired Teletext page. If you make a mistake, reenter the correct page number. To access the next or previous page, press

or .

hold (pause) a Press to display the symbol “ ” at Teletext display the top left corner of the screen. To

resume normal Teletext viewing, press

reveal concealed Press . information (e.g., To conceal the information, press the an answer to a quiz) button again.

enlarge the Teletext Press . Each time you press , the display Teletext display changes as follows:

Enlarge upper half t Enlarge lower half t Normal size.

stand by for a Teletext (1) Enter the Teletext page number that page while watching you want to refer to, then press . a TV program (2) When the page number is displayed,

press to show the text.

select a FASTEXT Press (red, green, yellow and blue) menu or the colored that corresponds to the desired menu or boxes page number.

turn off Teletext Press a.

Note

• The FASTEXT feature can be used only when the FASTEXT broadcast is available.

Page 21

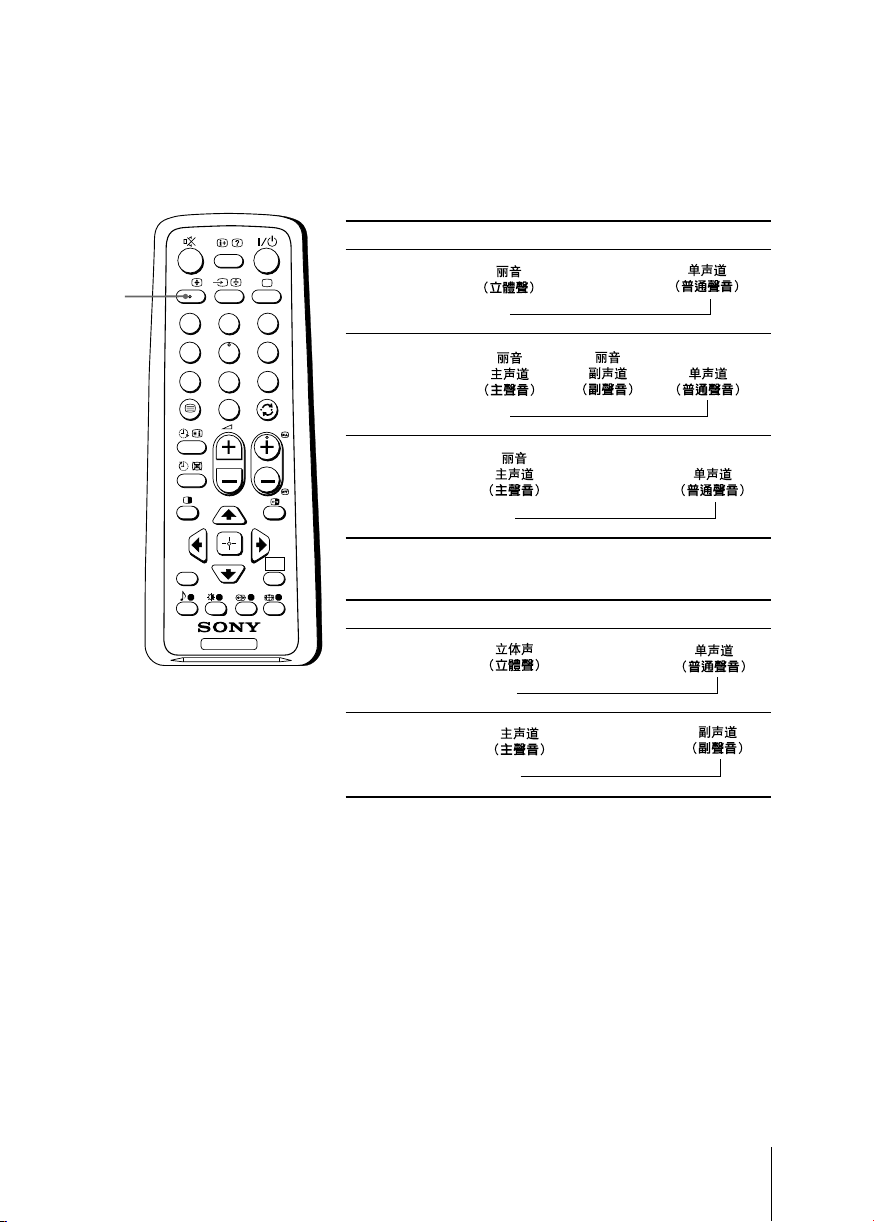

x Enjoying stereo or bilingual programs

You can enjoy stereo sound or bilingual programs of NICAM and A2 stereo systems by using the A/B button.

When receiving a NICAM program

Broadcasting On-screen display (Selected sound)

A/B

RETURN

NICAM stereo

PROG

NICAM bilingual

NICAM monaural

NICAM

(Stereo sound)

NICAM Main (Main sound)

NICAM Sub

(Sub sound)

When receiving an A2 program

WEGA GATE

Broadcasting On-screen display (Selected sound)

A2 stereo

A2 bilingual

Stereo

(Stereo sound)

Main

(Main sound)

Mono

(Regular sound)

Mono

(Regular sound)

Mono

(Regular sound)

Mono

(Regular sound)

Sub

(Sub sound)

Note

• If the stereo sound is noisy when receiving a stereo program, select “Mono”. The sound becomes monaural, but the noise is reduced.

Page 22

x Listening to the FM Radio

You are able to listen to the FM radio stations using your TV.

To access to FM Radio mode:

Press WEGA GATE button and select “FM Radio” (see page 12).

Press FM button on the top control panel (see page 7).

To exit from FM Radio mode:

Press WEGA GATE button, select the desired items: “TV” or “External Inputs”, then press

Press FM button on the top control panel.

A/B

PROG

+/–

V, v,

B, b

WEGA

GATE

. Select the desired TV channel or external inputs and press .

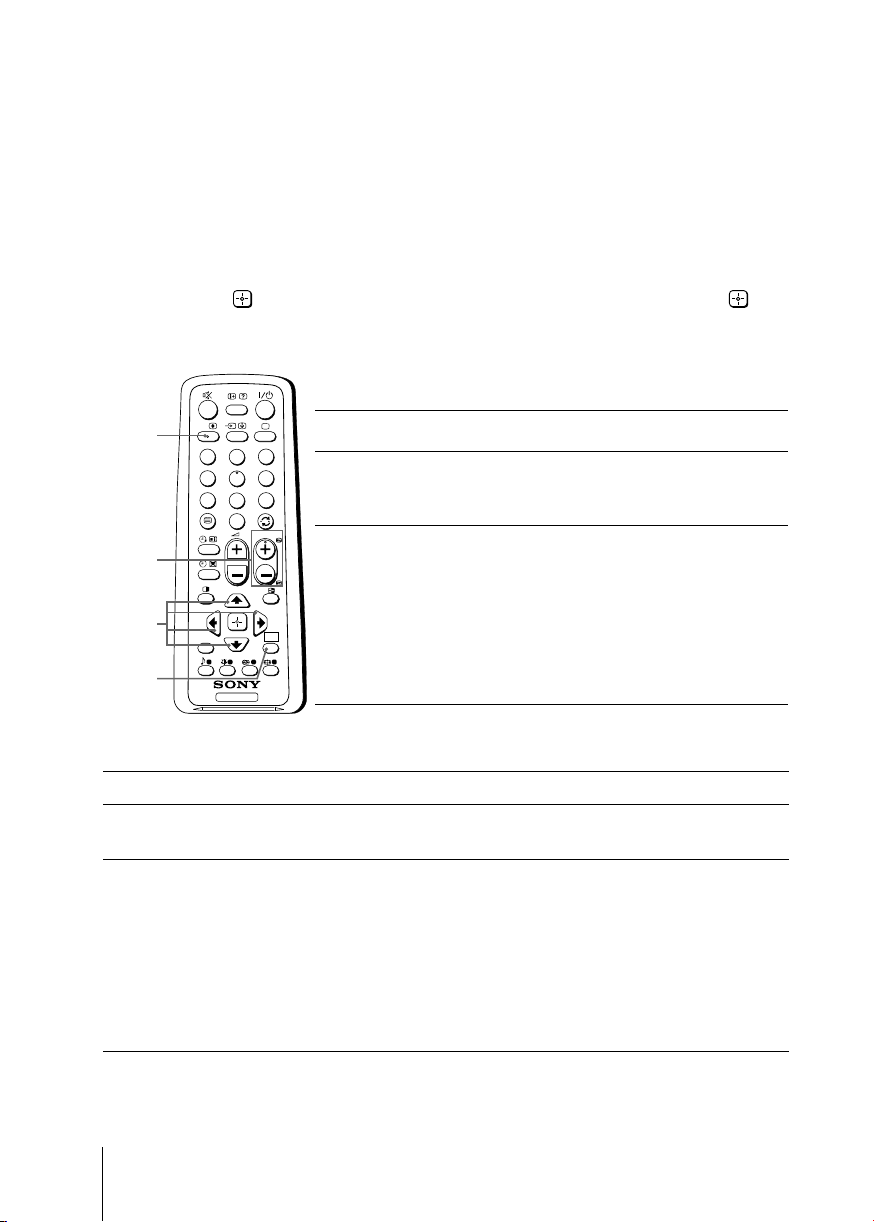

Listening to preset stations

A/B

RETURN

PROG

WEGA GATE

Access to FM Radio mode.

Press WEGA GATE button and select “Settings”.

Preset the desired FM radio stations in “FM Radio Setup” from “Channel Setup” menu (see page 17).

Exit from “Channel Setup” menu by pressing

WEGA GATE button. The selected preset FM radio station number and label will appear on the screen. To select the desired preset FM radio station, press PROG +/–.

Tip

• You can also use the 1-9 buttons on the remote control to directly select the desired preset FM radio station.

Listening to non-preset stations

Access to FM Radio mode.

Press V or v to search for the desired FM radio station. The preset number

and label will not be displayed.

If the station has a weak signal, press B or b to fine tune the radio frequency

manually.

Notes

•You can only operate V, v, B and b functions using the remote control buttons in FM Radio mode.

•

The available radio frequency is only for temporary listening pleasure and cannot be stored in the memory.

•

If the message “Please setup FM Radio” appears, display the “Channel Setup” menu and select “FM Radio Setup” to preset the desired FM radio stations (see page 17).

Note

• When a FM stereo program has static noise, press A/B until “Mono” appears. There will be no stereo effect, but the noise will be reduced.

Page 23

x Troubleshooting

If you find any problem while viewing your TV, you can either use the “Factory Settings” function or check the Troubleshooting guide below. If the problem persists, contact your Sony dealer.

“Factory Settings” function

Press the WEGA GATE button. Choose “Settings” and go to “Setup” ( ) menu. From “Setup” menu, select “Factory Settings”. Then select “Yes” and press Your TV will go blank for a few seconds, then the “Initial Setup” menu will appear. Your TV will be set to factory settings, but certain problems may be solved.

Symptom Solutions

Snowy picture, noisy sound

Distorted picture, noisy sound

Good picture, noisy sound

No picture, no sound

Good picture, no sound

Dotted lines or stripes

Double images or “ghosts”

No color

• Check the antenna cable and connection on the TV, VCR and at the wall (see page 8).

• Check the antenna setup. Contact a Sony dealer for advice.

• Display the “Channel Setup” menu and select “Manual Program” to preset the channel again (see page 18).

• Display the “Channel Setup” menu and set the “Signal Booster” to “Auto” from “Manual Program” (see page 18).

•Try using an external booster.

•Turn off or disconnect the external booster if it is in use.

• Display the “Channel Setup” menu and set the “Signal Booster” to “Off” from “Manual Program” (see page 18).

• Display the “Channel Setup” menu and select the appropriate “TV System” from “Manual Program” (see page 18).

• Check the power cord, antenna and VCR connections (see page 8).

•Press ?/1 (power) to turn on the TV (see page 10).

•Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on again (see page 7).

•Press 2 + to increase the volume level (see page 10).

•Press to cancel the muting (see page 10).

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice.

• Use a highly directional antenna.

• Use the fine tuning (“Fine”) function (see page 18).

• Check the antenna setup. Contact a Sony dealer for advice.

•Turn off or disconnect the external booster if it is in use.

•

Display the “Picture” menu and select “Custom” from “Picture Mode”, then adjust the “Color” level from “Picture Adjustment” (see

• Display the “Setup” menu and check the “Color System” setting (usually set this to “Auto”) (see page 19).

• Check the antenna setup. Contact a Sony dealer for advice.

page 15

continue

Page 24

Troubleshooting (continued)

Symptom Solutions

Picture slant

Abnormal color patches

Teletext display is incomplete (snowy picture or double images).

TV cannot receive stereo broadcast sound. or Stereo broadcast sound switches on and off or is distorted.

TV cannot receive FM radio station.

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

The TV screen sometimes goes blank for slightly longer than usual during channel change.

TV cabinet creaks.

• Keep external speakers or other electrical equipment away from the TV.

• Display the “Setup” menu and adjust “Picture Rotation” so that the picture position is optimal (see page 19).

• Keep external speakers or other equipment away from the TV. Do not move the TV while the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

• Check the antenna cable and connection on the TV, VCR and at the wall (see page 8).

• Check the antenna setup. Contact a Sony dealer for advice.

• Display the “Channel Setup” menu and set the “Signal Booster” to “Auto” from “Manual Program” (see page 18).

•Try using an external booster.

• Use the fine tuning (“Fine”) function (see page 18).

• Check the antenna cable and connection on the TV, VCR and at the wall (see page 8).

• Check the antenna setup. Contact a Sony dealer for advice.

• Connect a separate FM antenna and the TV channel source through an antenna selector (switch) to your TV (see page 8).

• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn off your TV. Contact your nearest Sony service center.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a malfunction.

• Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

A small “boom” sound is heard when the TV is turned on.

• The TV’s demagnetizing function is working. This does not indicate a malfunction.

Page 25

警告

• 本電視機內存在危險性高電壓。

• 本電視機僅可在 110-240 伏特交流電壓下操作。

• 若未完成所有連接程序﹐請勿插入電源線﹔否則極少量的電流可能經天線或其它端子

外泄。

• 若打算近期內不使用遙控器﹐請將電池取出﹐以避免電池泄漏而損壞遙控器。若您不小心觸及電池所泄漏的液體﹐應立即用水洗淨。

為了個人安全起見﹐雷雨期間﹐ 請勿觸摸電視機的任何部份﹐包括電源線和天線電纜。

請勿放置任何物體於電視機上。請勿使任何液體滴濕或噴濕本電視機。請勿放置任何裝有液體的物體（如花瓶）於電視機上。

請勿堵塞本電視機的通風口。請勿將本電視機放置於諸如書架或嵌入式壁櫥等封閉之處。

為了兒童安全起見﹐請勿讓他們獨自逗留在電視機旁。千萬別讓兒童攀爬本電視機。

若有任何液體流入或固體落入本電視機內時﹐請勿操作本電視機。應立即請合格的專業人員檢查。

本電視機只適於家庭使用。請勿將本電視機放置於任何交通工具內或多塵､高溫､潮濕或震動頻繁之處。

為防止火災或觸電﹐請勿使本電視機被雨淋或受潮。

放置電視機於穩定的､並足以支撐電視機重量的電視支架及地面上。確保電視支架的表面平整且表面積寬於電視機底面。

請勿在同一電源插座上插入太多的電器。請勿損壞電源線。

請勿打開本電視機的機殼和後蓋﹐ 因為電視機內存在高電壓和危險性部件。須由合格的專業人員對電視機進行檢修或棄置。

請用乾的軟布清潔本電視機。請勿使用汽油､稀釋劑或任何其它化學品清潔本電視機。請勿在電視機殼噴塗表面貼附任何物體（例如﹐貼紙﹐透明玻璃膠紙﹐ 膠合劑等）。請勿刮劃顯像管。

捏住插頭將電源線拔開。請勿直接拉拔電源線。即使電視機已斷開電源﹐但只要電源線還在插座內﹐它仍接通至交流電源。若想移動本電視機或打算近期內不使用本電視機時﹐請將電源線拔開。

Page 26

準備工作 ............................................................ 4

設定您的電視機（“初始化设定”） .................................... 5

電視機頂部控制､前面和背後的控制板 .................................. 7

連接選購的裝置 ...................................................... 8

使用遙控器和基本功能 ............................................... 10

介紹 WEGA GATE 指示系統 ......................................... 12

“设定”調整 ....................................................... 13

調整“图像设定” ................................................... 14

調整“声音设定” ................................................... 16

調整“频道设定” ................................................... 17

調整“设定”菜單 ................................................... 19

收看圖文電視 ....................................................... 20

欣賞立體聲或雙語言節目 ............................................. 21

收聽調頻收音 ....................................................... 22

故障檢修 ........................................................... 23

規格 ............................................................. 封底

Page 27

x 準備工作

步驟 1

將所提供的電池裝入遙控器。

註

• 請勿使用舊電池或同時使用不同類型的電池。

步驟 2

將天線電纜（未提供）連接至電視機背後的 8（天線輸入）端子。

提示

• 通過 8（天線輸入）端子正確的連接﹐您的電視機可接收電視及調頻收音的信號（參考第 8 頁）。

• 您也可將本電視機連接至其它選購的裝置（參考第 8 頁）。

步驟 3

插入電源線﹐然後按壓電視機上的 ! 鍵以接通電視機的電源。

註

• 打開電視機時 1（待機）指示燈將閃爍為綠燈數秒鐘。這並不表示發生故障。

Initial Setup

Language:

Select

Confirm

English

End

步驟 4

按照“Initial Setup”（“初始化设定”）菜單的指示以設定您的電視機（參考第 5 頁）。

Page 28

01 02

PROG

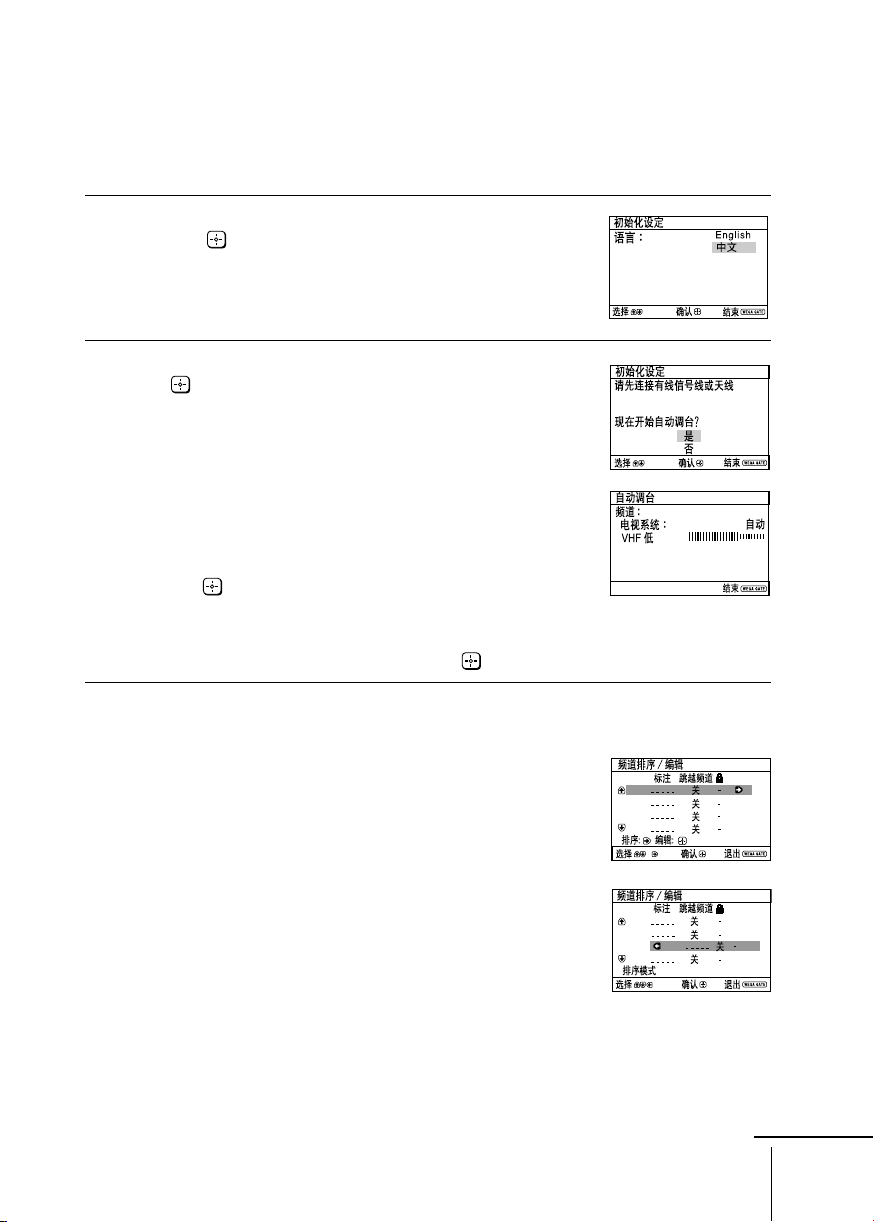

設定您的電視機（“初始化设定”）

當您第一次打開電視機時﹐“Initial Setup”（“初始化设定”）菜單將會顯示在屏幕上。您可用遙控器或電視機頂部控制板上的按鍵以改變菜單語言﹐自動預設電視頻道﹐排序或編輯頻道和調整圖像位置。

按壓 V 或 v 鍵以選擇所要的菜單語言﹐

然後按壓

鍵。

被選擇的菜單語言將顯示在屏幕上。

按壓 V 或 v 鍵以選擇“是”﹐然後

按壓鍵以自動預設頻道。

屏幕將顯示自動預設頻道正在進行中。

當所有可接收的頻道已被調諧和儲存後﹐ “频道排序/编辑”菜單將會自動顯示在屏幕上。

若要略掉自動預設頻道﹐選擇“否”﹐ 然後按壓

鍵。

如果出現“无信号。请连接有线信号线或天线” 的訊息﹐請檢查您的電視連接﹐然後按壓

鍵。

“频道排序/编辑”菜單可以讓您排序或

編輯頻道。

a) 若您要保留當前頻道的狀態﹐按壓

WEGA GATE 鍵以退出。

b) 按壓 V 或 v 鍵以選擇您要改變的頻道號碼。

被選定的頻道將會顯示在屏幕上。

PROG

01 02 03 04

c) 若您要改變頻道的順序：

1) 按壓 b 鍵以進入排序模式。

2) 按壓 V 或 v 鍵以選擇新的頻道位置﹐

然後按壓 B 鍵。

續

Page 29

設定您的電視機（“初始化设定”）（續）

d) 若您要編輯頻道﹐按壓

模式。按壓 b 鍵直到您要編輯的模式被選中：

標註､跳越頻道､然後按壓

1) 若要標註﹐按壓 V 或 v 鍵以選擇英文､數字､字符進行標註。然後按壓

2) 若要跳越頻道號碼﹐按壓 V 或 v 鍵以選擇“开”。然後按壓當您在使用 PROG +/– 鍵時﹐您可跳越此頻道號碼。

3) 若要鎖定不要的頻道號碼﹐按壓 V 或 v 鍵以選擇。然後按壓鍵。

e) 若您要改變其他頻道﹐請重復 b) 至 d) 的步驟。

按壓 WEGA GATE 鍵以進入下個菜單。

若菜單頂部和底部的線條傾斜﹐按壓 B 或 b 鍵以

作出調整﹐然後按壓

若不需作出調整﹐則按壓鍵。

若要防止“初始化设定”菜單在按壓 ! 鍵打開電

視機時再次顯示在屏幕上﹐則按壓 V 或 v 鍵以選擇“否”﹐然後按壓

鍵。

鍵以改換成編輯

（鎖定符號）。

鍵。

PROG

鍵。

PROG

若要這菜單再次顯示在屏幕上﹐選擇“是”﹐ 然後按壓

提示

• 您可按壓 WEGA GATE 鍵以進入“初始化设定”菜單最後的設定項目。

鍵。

Page 30

x 電視機頂部控制､前面和背後的控制板

電視機頂部的控制板

WEGA GATE

PROG

電視機背後的控制板

(MONO)

電視機前面的控制板

(MONO)

(

MONO)

qf qsqd

(

MONO)

按鍵∕端子功能頁面

1 ! 打開或關閉電視機。 4 2 遙控傳感器。 – 3 喚醒指示燈。 11 3 1 待機指示燈。 4 4 i 耳機插口。 – 5 t2 視頻輸入端子 2。 8 6 PROG +/– 選擇頻道號碼。 – 7 2 +/– 調整音量。 – 8 t 選擇電視或視頻輸入。 8

WEGA GATE 菜單操作

6, 7 V,v,B,b 選擇和調整項目。 12 8 確認被選項目。 12

9 WEGA GATE 顯示或取消 WEGA GATE 菜單。 12 0 FM 收聽調頻收音。 22 qa 8 天線輸入端子。 8 qs T 監視器輸出端子。 9 qd DVD 分量信號輸入端子。 9 qf t1 視頻輸入端子 1。 8

Page 31

x 連接選購的裝置

連接至視頻輸入端子（t）

電視機前面的控制板

電視機背後的控制板

(

MONO)

(MONO)

音頻∕視頻電纜

（未提供）

天線電纜（未提供）

攝像機

電視､共用天線電視､

衛星或

當無調頻信號時

天線

選擇器

調頻信號

電視信號

(

MONO)

天線電纜

（未提供）

音頻∕視頻電纜

（未提供）

S 視頻電纜

錄像機

DVD 播放機

（未提供）

註

• 若將錄像機連接至 8（天線輸入）端子﹐請將錄像機輸出的信號預設至電視機上的頻道號碼 “0”（參考第 18 頁）。

• 當（S 視頻）和 t1 的（視頻）同時被連接時﹐ （S 視頻）即自動被選定。要收看（視頻）時﹐斷開 S 視頻電纜即可。

Page 32

連接至監視器輸出端子（T）

電視機背後的控制板

(MONO) (MONO)

音頻∕視頻

電纜

（未提供）

音頻系統

錄像機

連接至 DVD 分量信號輸入端子（）

電視機背後的控制板

(MONO)

註

• 當連接 DVD 播放機至電視機上的 (分量信號輸入端子) 時﹐若您的 DVD 播放機可輸出隔行和逐行的掃描模式信號﹐則請選擇隔行掃描輸出。您的電視機可接收 525i/60 赫茲或

625i/50 赫茲的隔行掃描信號。

• 某些 DVD 播放機的插口可能標記為 Y/CB/CR, Y/PB/PR, Y/Cb/Cr 或 Y/B-Y/R-Y。

• 若您在電視屏幕上選擇“DVD”﹐T（監視器輸出）將不能輸出正常的信號。這並不表示發生

故障。

(MONO)

DVD 分量信號電纜

（未提供）

DVD 播放機

音頻電纜

（未提供）

Page 33

x 使用遙控器和基本功能

qa qs

qk ql

A/B

RETURN

按鍵說明頁面

1 ?/1 打開或關閉電視機。 – 2 a 顯示電視節目。 –

3 跳回到之前收看至少五秒的頻 –

PROG

4 PROG +/– 選擇頻道號碼。若要快速選擇﹐ –

5 2 +/– 調整音量。 – 8 改變圖像尺寸： –

9 選擇環繞聲模式： 16

道號碼。

按住此鍵直到所要的頻道號碼出現。

“开”（16:9 寬熒幕模式）﹐ “关”。

“TruSurround”﹐“WOW 环绕声”﹐“模拟立体声”﹐ “关”。

0 顯示屏幕上的信息。 –

WEGA GATE

qa 消除聲音。 – qd t 選擇電視或視頻輸入。 8

qf 0-9 輸入數字鍵。對於頻道號碼 10 –

8 9

和以上﹐請在兩秒內輸入第二位數字。

以“5-Band Graphic Equalizer

” 16 顯示選擇聲音模式選項： “动态”﹐“标准”﹐“用户

设定”*。

100 300 1k 3k 8k

* 當選擇“用户设定”模式時﹐

您可接收到最終在菜單里的 “声音用户设定”選項中所

100 300 1k 3k 8k

調整的音響設定。

100 300 1k 3k 8k

w; 選擇圖像模式選項： 14

“动态”﹐“标准”﹐“用户

设定”*。

* 當選擇“用户设定”模式時﹐

您可接收到最終在菜單里的 “图像用户设定”選項中所調整的圖像設定。

Page 34

按鍵說明頁面 WEGA GATE 菜單操作

6 確認被選項目。 12 7 WEGA GATE 顯示或取消 WEGA GATE 菜單。

qj V, v, B, b 選擇和調整項目。 qk RETURN 回到之前的階段。

定時器操作

（喚醒定時器）

qh 依照您所要的時間設定電視以自動關閉（最多 1 小時 –

（睡眠定時器）

圖文電視操作（綠色標記）

, , , , 所有按鍵用於圖文電視操作。 20 , , , ,

(紅色﹐綠色﹐

黃色﹐藍色）

畫中畫操作

, , V, v, B, b 本電視機無此操作。 –

立體聲或雙語言操作

qs A/B 選擇立體聲或雙語言模式。 21

依照您所要的時間設定電視以自動打開（最多 12 小時）。

一旦你已設定喚醒定時﹐電視機上的指示燈將亮起黃褐色。

用喚醒定時接通電視機電源並超過一小時後﹐若您不按壓電視機或遙控器上的任何一個按鍵或控制鍵﹐則電視機再進入待機狀態。

30 分鐘）。

–

WOW, TruSurround, SRS 及的標識是 SRS Labs, Inc. 登記過的商標。WOW 及 Tr uSurround 科技是登記在 SRS Labs, Inc. 特許證下。

註冊于 BBE 音響公司並應用了美國專利號碼 4638258, 4482866。 “BBE”與 BBE 符號是 BBE 音響公司的註冊商標。

Page 35

x 介紹 WEGA GATE 指示系統

WEGA GATE

WEGA GATE 是個允許您進入預設電視頻道﹐已連接的外接輸入﹐調頻收音模式和“设定”菜單的通道。

WEGA GATE

“电视”

“外接输入”

02 03

DVD

觀看預設電視頻道（參考第 5 頁）。

選擇連接裝置的輸入（參考第 8 頁）。

“调频收音”

“设定”

如何使用 WEGA GATE 菜單

WEGA GATE

(1) 按壓 WEGA GATE 鍵以顯示

或取消 WEGA GATE 菜單。

01 02 03 04 05

(2) 按壓鍵（或 b 鍵）以確定

您所選的項目或進入下一個階段的菜單。

---.--

1-9

收聽調頻收音（參考第 22 頁）。

改變電視機的設定（參考第 13 頁）。

01 02 03 04 05

(3) 按壓 V 或 v 鍵以選擇所要的項目。

(4) 按壓 RETURN 鍵以回到之前的

階段。

提示

• 頂部控制板上的 WEGA GATE 鍵﹐ 鍵和 V,v,B,b 鍵也可用於上述操作。

Page 36

x “设定”調整

您可在 WEGA GATE 菜單里的“设定”改變電視機的設定。按壓 WEGA GATE 鍵以顯示 WEGA GATE 菜單。按壓 V 或 v 鍵以選擇“设

定”﹐然後按壓

以下是可以被調整項目的總概況。

鍵。

“图像设定”（參考第 14 頁）

“图像模式”：“动态” “图像用户设定”：“对比度”﹐“亮度”﹐“颜色”﹐

“彩色色调设定”：“冷色调” “自然色调” “暖色调” “速度调制”：“高” “低” “关” “智能图像降噪”：“开” “关” “信号强度指示器”：“开” “关”

“标准” “用户设定”

“色调”﹐“锐度”﹐“重新设定”

“声音设定”（參考第 16 頁）

“声音模式”：“动态” “标准” “用户设定” “声音用户设定”：“设定”﹐“重新设定” “平衡” “智能音量控制”：“开” “关” “环绕声”：“TruSurround” “WOW 环绕声” “模拟立体声” “关”

“频道设定”（參考第 17 頁）

“自动调台” “手动调台”

“频道”：“00” – “99” “电视系统”：“B/G” “I” “D/K” “M” “VHF 低”/“VHF 高”/“UHF” “微调”：“自动” “手动”

“信号增强”：“自动” “关” “频道排序/编辑” “调频收音设定”

Language:

註

• 當菜單顯示的功能呈暗淡色﹐您將無法選擇此功能。

“设定”（參考第 19 頁）

“语言/Language”：“English”（英文） “中文” “图像旋转度调校” “视频输入标注”：“视频输入”﹐“标注” “彩色制式”：“自动” “PAL ” “SECAM”

“NTSC3.58” “NTSC4.43”

“唤醒鸣叫声设定”：“开” “关” “出厂设定”：“是” “否”

Page 37

x 調整“图像设定”

“图像设定”菜單可使您調整以下設定。

按壓 WEGA GATE 鍵並選擇“设定”。

確認“图像设定”符號（）已被選擇﹐然後按壓鍵。

按壓 V 或 v 鍵以選擇所要的項目 (例如﹐“图像模式”）﹐然後按壓鍵。

選擇以

“图像模式” 選擇“动态”（亮度､對比和銳度）､“标准”（普通）或“用户

“彩色色调设定” 調整白色色澤。

“速度调制” 加強各物體邊緣的清晰度。

“智能图像降噪” 接收最理想的圖像效果。

“信号强度指示器” 當“智能图像降噪”操作時顯示信號強度。

设定”*。

選擇“冷色调”（藍色澤）､“自然色调”（自然色澤）或“暖色调”（紅色澤）。

選擇“高”､“低”或“关”。

按壓 V 或 v 鍵以選擇“开”﹐然後按壓鍵。要取消時﹐選擇“关”﹐然後按壓鍵。

當您更換頻道號碼或輸入模式時﹐ “智能图像降噪信号强度” 指示器將會顯示﹐接著圖像被改善。

紅色黃褐色綠色

（弱）（普通）（良好）

按壓 V 或 v 鍵以選擇“开”﹐然後按壓鍵。

要取消時﹐選擇“关”﹐然後按壓鍵。“智能图像降噪”還在操作中。

* 僅當“用户设定”模式被選取時方可隨個人喜好調整“图像用户设定”､“彩色色调

设定”和“速度调制”選項中的設定（參考第 15 頁）。

Page 38

調整“用户设定”模式下的“图像用户设定”項目

按壓 V 或 v 鍵以選擇“对比度”､“亮度”､“颜色”､“色调”（顏色深

淺）或“锐度”﹐然後按壓

選擇“重新设定”將會使電視機恢復到工廠設定。

按壓 V, v, B 或 b 鍵以調整您所選項目的設定﹐然後按壓鍵。

重復上述步驟以調整其它項目。

當選擇“用户设定”項目時﹐您可接收已被調整的設定。

註

• 只有當彩色制式為 NTSC 時﹐您才能調整“色调”設定。

• 您也可減少“锐度”以降低圖像噪點。

鍵。

Page 39

x 調整“声音设定”

“声音设定”菜單可使您調整以下設定。

按壓 WEGA GATE 鍵並選擇“设定”。

按壓 V 或 v 鍵以選擇“声音设定”符號 ( )﹐然後按壓鍵。

按壓 V 或 v 鍵以選擇所要的項目 (例如﹐“声音模式”）﹐然後按壓鍵。

選擇以

“声音模式” 選擇“动态”（低和高音調）､“标准”（人聲和高音調）或“用户

“平衡”按壓 v 或 B 鍵以強調左揚聲器。

“智能音量控制” 自動調整所有頻道號碼和視頻輸入的音量。

“环绕声”

* 僅當“用户设定”模式被選取時方可隨個人喜好調整“声音用户设定”選項中的設定。 ** BBE 高清晰聲音充分啟動使 WOW 環繞聲模式的聲音效果達到最佳。

註

• 當“Tr uSurround”被選取時﹐您將無法選擇“智能音量控制”。

设定”*。

按壓 V 或 b 鍵以強調右揚聲器。

按壓 V 或 v 鍵以選擇“开”﹐然後按壓鍵。要取消時﹐選擇“关”﹐然後按壓鍵。

選擇“Tr uSurround”（傳遍整個房間的環繞聲)､“WOW 环绕声”** （豐富､深沉的低音響）､“模拟立体声”（模擬立體聲的單聲道音響）或“关”。

調整“用户设定”模式下的“声音用户设定”項目

“5-Band Graphic Equalizer”（5 波段互動音響均衡器）可使您在菜單上的“用户设定”模式調整聲音頻率設定。

確認“设定”已被選定﹐然後按壓鍵。

選擇“重新设定”將會使電視機恢復到工廠設定。

按壓 B 或 b 鍵以選擇所要的聲音頻率﹐然後按壓 V 或 v 鍵以調整設定再按壓

註

• 調整高頻率將影響高音調聲音﹐調整低頻率將影響低音調聲音。

• 您可直接按壓遙控器上的鍵（參考第 10 頁）以顯示設定。

鍵。

當選擇“用户设定”模式時﹐您可接收已被調整的設定。

Page 40

x 調整“频道设定”

“频道设定”菜單可使您調整以下設定。

按壓 WEGA GATE 鍵並選擇“设定”。

按壓 V 或 v 鍵以選擇“频道设定”符號（）﹐然後按壓鍵。

按壓 V 或 v 鍵以選擇所要的項目（例如﹐“自动调台”）﹐然後按壓鍵。

選擇

“自动调台”

“手动调台”

“频道排序/编辑”

“调频收音设定”*

以

自動預設頻道。

手動預設所要的頻道及不能自動預設的頻道 (參考第 18 頁的手動預設頻道)。

改變顯示在屏幕上的頻道順序﹐標註頻道號碼﹐跳越頻道號碼和鎖定不要的頻道（參考第 5 頁的“初始化设定”的步驟 3)。

最多可以預設 9 組的調頻廣播電台。

您可手動預設所處地區內可以接收的每個調頻廣播電台﹐然後儲存所要調頻電台的廣播頻率。

(1)按壓 V 或 v 鍵以選擇所要調頻廣播電台的位置﹐然後按

壓鍵。

(2)按壓 V 或 v 鍵以搜尋調頻廣播電台。

當調諧到電台時﹐搜尋自動停止。當該電台的信號微弱時﹐請按壓 B 或 b 鍵以手動微調廣

播頻率﹐然後按壓鍵以儲存該頻道廣播電台。

(3) 您可編輯調頻廣播電台標註。按壓 V 或 v 鍵以選擇英

文､數字､字符進行標註﹐然後按壓鍵。

(4) 重復步驟（1）至（3）以預設其它調頻廣播電台。

* 僅有調頻收音模式可讓您使用“调频收音设定”功能。若要

啟動此功能﹐使用 WEGA GATE 系統以進入調頻收音模式（參考第 12 頁）或按壓頂部控制板上的 FM 鍵（參考第 7 頁）﹐然後依照以上提及的步驟預設所要的調頻廣播電台。

註

• 若您預設一個鎖定的頻道號碼﹐該頻道號碼將自動解鎖。

• 若您排序一個鎖定的頻道﹐該頻道將保留在鎖定狀態。

續

Page 41

VHF

調整“频道设定”（續）

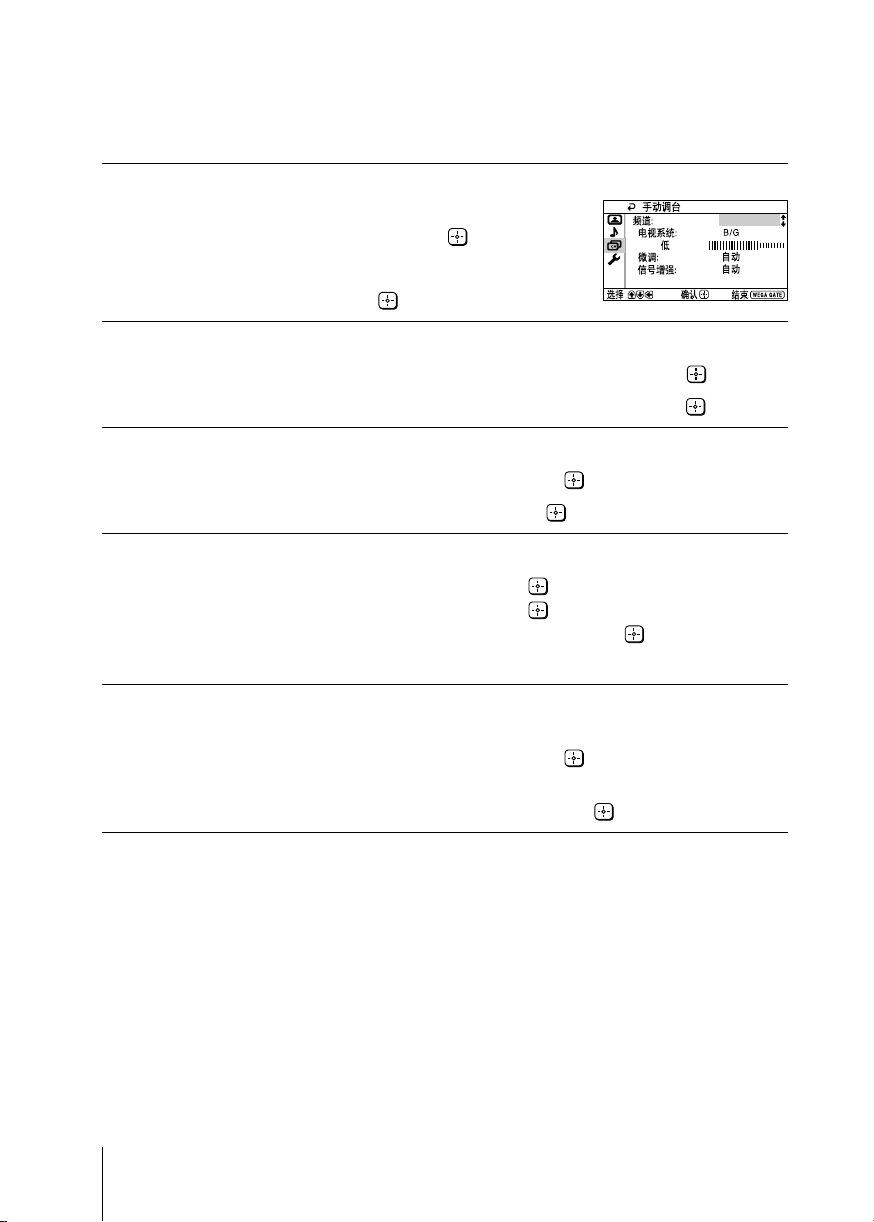

手動預設頻道

在選擇“手动调台”之後﹐選擇您要預設頻道

的頻道號碼。

(1)確認“频道”已被選定﹐然後按壓

(2)按壓 V 或 v 鍵直到您要預設的頻道號碼

顯示在菜單上﹐然後按壓鍵。

選擇所要的頻道。

(1)確認“VHF 低”､“VHF 高”或“UHF”已被選定﹐然後按壓鍵。

(2)按壓 V 或 v 鍵直到您所要的頻道顯示在電視屏幕上﹐然後按壓鍵。

若所要頻道的聲音失真﹐則請選擇適當的電視系統。

(1)按壓 V 或 v 鍵以選擇“电视系统”﹐然後按壓鍵。

(2)按壓 V 或 v 鍵直到聲音正常為止﹐然後按壓

若您不滿意圖像和聲音質量﹐您可用“微调”來改善它。

(1)按壓 V 或 v 鍵以選擇“微调”﹐然後按壓 (2)按壓 V 或 v 鍵以選擇“手动”﹐然後按壓 (3)按壓 V, v, B 或 b 鍵直到圖像和聲音最佳﹐然後按壓

菜單上的 + 或 – 符號將會在調諧時閃爍。

鍵。

鍵。鍵。

鍵。

若電視信號太強（圖像失真；圖像有線條；信號干擾）或微弱（圖像有雪花狀斑

點）﹐您可設定“信号增强”以改善圖像質量。

(1)按壓 V 或 v 鍵以選擇“信号增强”﹐然後按壓鍵。

(2)按壓 V 或 v 鍵以選擇“关”（適用於圖像失真；圖像有線條；信號干擾）

或“自动”（適用於圖像有雪花狀斑點）﹐然後按壓

鍵。

Page 42

x 調整“设定”菜單

“设定”菜單可使您調整以下設定。

按壓 WEGA GATE 鍵並選擇“设定”。

按壓 V 或 v 鍵以選擇“设定”符號 ( )﹐然後按壓鍵。

按壓 V 或 v 鍵以選擇所要的項目（例如﹐“语言/Language”）﹐然後按壓鍵。

選擇

“语言/Language”

“图像旋转度调校”

“视频输入标注”

“彩色制式”

“唤醒鸣叫声设定”

“出厂设定”

以

更換菜單語言。按壓 V 或 v 鍵以選擇

鍵。

調整電視屏幕上傾斜的圖像。按壓 B 或 b 鍵以調整圖像位置﹐然後按壓鍵。

標註所連接的裝置。 (1) 選擇“视频输入”並按壓鍵。

按壓 V 或 v 鍵以選擇您要標註的輸入﹐然後按壓鍵。

(2) 選擇“标注”並按壓鍵﹐然後按壓 V 或 v 鍵以選擇

標註選項：“视频信号 1”/“视频信号 2”/“DVD”､ “录像机”､“卫星节目”､“游戏机”或“编辑”*。

* 您可用喜愛的名稱編輯視頻輸入標註。按壓 V 或 v 鍵以選擇

英文､數字､字符進行標註﹐然後按壓鍵。

改變彩色制式。

按壓 V 或 v 鍵以選擇“自动”､“PAL ”､“SECAM”､ “NTSC 3.58”或“NTSC 4.43”﹐然後按壓鍵。通常將此設定為“自动”。

使您的電視機在使用喚醒定時自動打開時發出鳴叫聲。按壓 V 或 v 鍵以選擇“开”﹐然後按壓鍵。

要取消時﹐選擇“关”﹐然後按壓鍵。

使電視機恢復到工廠設定。按壓鍵後再按壓 V 或 v 鍵以選擇“是”﹐然後按壓鍵。

要取消時﹐選擇“否”﹐然後按壓鍵。

“English”

（英文）或“中文”﹐然後按壓

註

• 您無法在調頻收音模式裡選擇彩色制式。

• 想要確保能聽得到鳴叫聲﹐您必須先設定一個適當的音量並確定電視機不是處於靜音狀態。

• 若要鳴叫聲停止﹐按壓頂部控制板或遙控器上的任何一個按鍵即可。

• 若三分鐘後沒有按壓任何按鍵﹐鳴叫聲將會自動停止。

Page 43

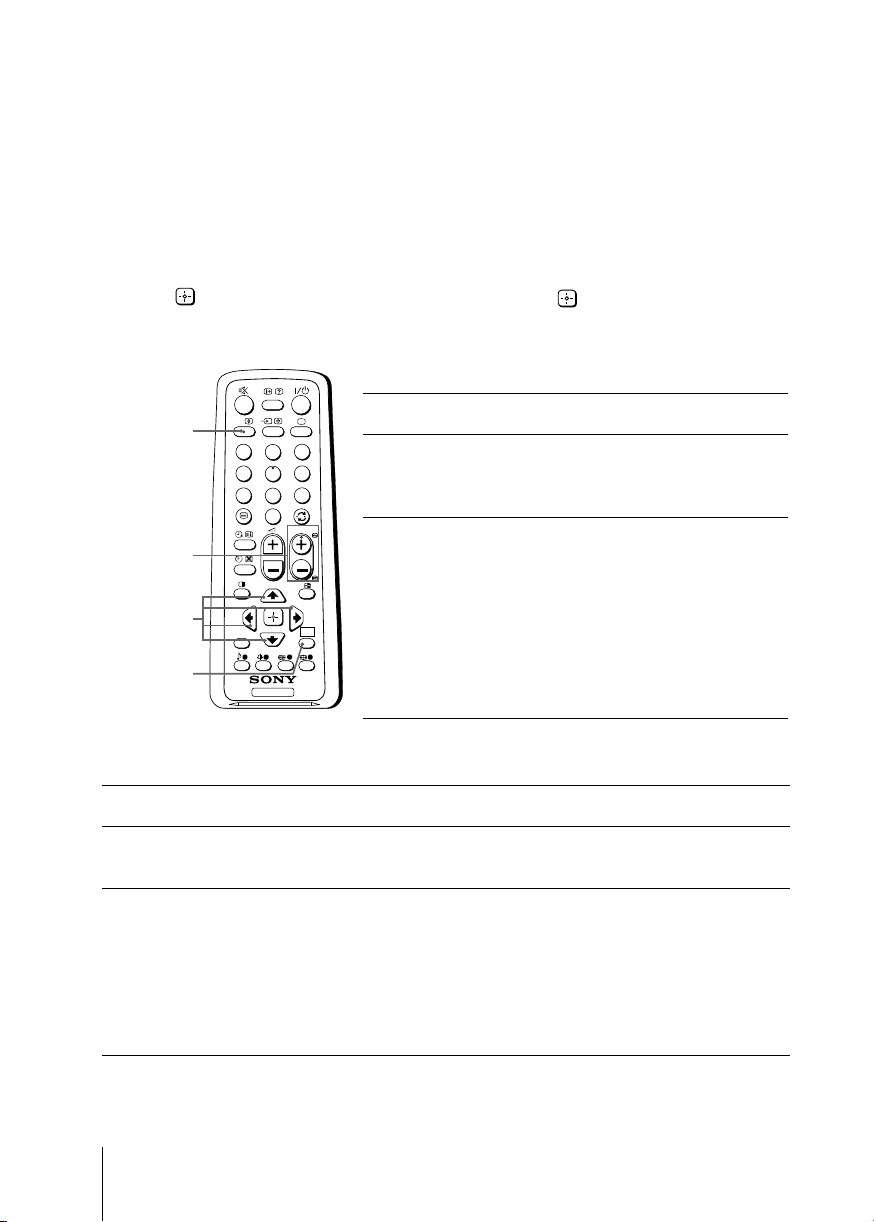

x 收看圖文電視

有些電視台播出被稱作圖文電視的信息節目﹐它可使您收看各種信息﹐例如股市行情和新聞。

您可使用遙控器上的按鍵以收看圖文電視。

要操作如下

(紅色﹐

綠色﹐ 黃色﹐ 藍色)

A/B

RETURN

將電視畫面上顯示

圖文電視頁面

PROG

檢查圖文電視節

目的內容

選擇圖文電視頁面

WEGA

GATE

固定（暫停）圖文

電視顯示

顯示被隱藏的信息

（例如知識競賽答案）

放大圖文電視顯示

觀看電視節目時使

圖文電視頁面備用

選擇 FAS TEXT 菜單

或彩色格子

取消圖文電視

按壓鍵。每按一次鍵﹐屏幕按以下順序變化：圖文電視 t 圖文電視與電視 t電視。若無圖文電視節目﹐“100”即顯示在屏幕左上角。

按壓鍵。屏幕上出現圖文電視內容概覽﹐包括頁碼。

按壓數字鍵以輸入所需圖文電視頁面的三位數頁碼。如果您輸錯﹐則請重新輸入正確的頁碼。

按壓鍵以顯示“ ”標誌在屏幕的左上角。要恢復正常觀看圖文電視時﹐按壓鍵。

按壓鍵。要隱藏信息時﹐再次按壓此鍵。

按壓鍵。每按一次鍵﹐圖文電視顯示按以下順序變化：放大上半部 t 放大下半部 t 正常尺寸。

(1) 輸入您要參閱的圖文電視頁碼﹐然後

按壓鍵。

(2) 當頁碼顯示時﹐按壓鍵以顯示

圖文內容。

按壓與所要菜單或頁碼相對應的（紅色､綠色､黃色及藍色）鍵。

按壓 a 鍵。

註

•FASTEXT 功能僅可在有 FASTEXT 廣播的情況下使用。

Page 44

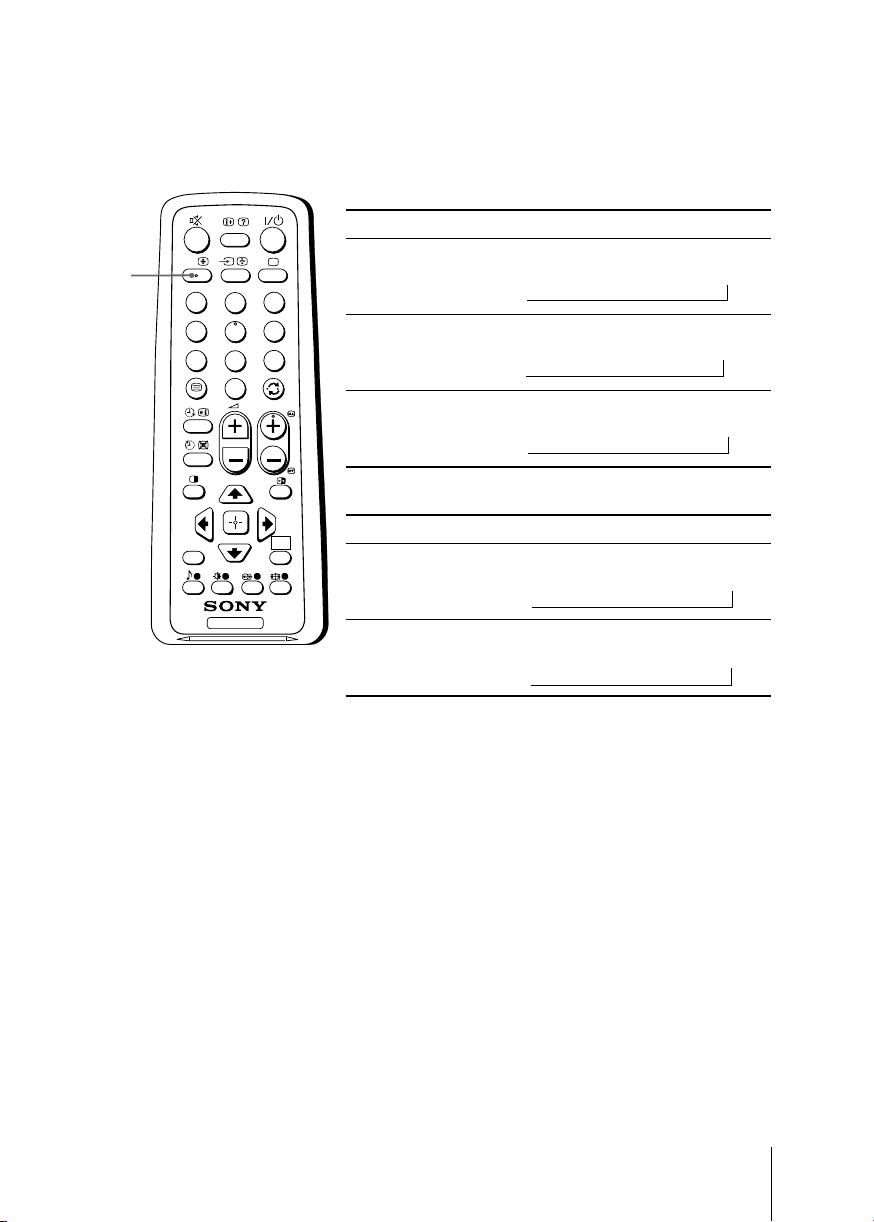

x 欣賞立體聲或雙語言節目

您可使用 A/B 鍵以欣賞麗音（NICAM）和 A2 立體聲制式的立體聲或雙語言節目。

當接收麗音節目時

播送屏幕顯示（所選擇的聲音）

A/B

RETURN

麗音立體聲

PROG

麗音雙語言

麗音單聲道

WEGA

GATE

當接收 A2 節目時

播送屏幕顯示（所選擇的聲音）

A2 立體聲

A2 雙語言

註

• 當接收立體聲節目時﹐若有噪音則請選擇“单声道”。聲音變成單聲道聲音, 但噪音降低。

Page 45

x 收聽調頻收音

您可以使用您的電視機以收聽調頻廣播電台。

進入調頻收音模式：

按壓 WEGA GATE 鍵並選擇“调频收音”（參考第 12 頁）。

或

按壓頂部控制板上的 FM 鍵（參考第 7 頁）。

退出調頻收音模式：

按壓 WEGA GATE 鍵﹐選擇所要的項目：“电视”或“外接输入”﹐然後按

鍵。選擇所要的電視頻道或外接輸入並按壓鍵。

壓

或

按壓頂部控制板上的 FM 鍵。

收聽預設電台

A/B

PROG

+/–

V, v, B, b

WEGA GATE

A/B

RETURN

PROG

WEGA GATE

進入調頻收音模式。

按壓 WEGA GATE 鍵並選擇“设定”。顯示

“频道设定”菜單並在“调频收音设定”裡預設所要的調頻廣播電台（參考第 17 頁）。

按壓 WEGA GATE 鍵以退出“频道设定”菜單。

被選取的預設調頻廣播電台和標註將出現於屏幕上。

欲選擇所要的預設調頻廣播電台﹐按壓 PROG +/– 鍵。

提示

• 您也可直接用遙控器上的 1–9 鍵以選擇所要的預設調頻廣播電台。

收聽非預設電台

進入調頻收音模式。

按壓 V 或 v 鍵以搜尋所要的調頻廣播電台。已預設的調頻廣播電台和標註將不會

出現於屏幕上。

若該電台的信號微弱﹐按壓 B 或 b 鍵以手動微調廣播頻率。

註

• 在調頻收音模式裡﹐您只可以使用遙控器上的按鍵以操作 V,v,B 和 b 功能。

• 接收到的廣播頻率只供暫時的聽覺享受﹐且不能儲存在記憶體中。

• 如果出現“请设定调频电台”的訊息﹐請顯示“频道设定”菜單並選擇“调频收音设定” 以預設所要的調頻廣播電台（參考第 17 頁）。

註

• 當 FM 立體聲節目有噪音時﹐則按壓 A/B 鍵直到“单声道”出現。如此會失去立體聲音效﹐但噪音將會降低。

Page 46

x 故障檢修

若在觀看電視時遇見任何問題﹐您可使用“出厂设定”功能以解決問題或參考下列故障檢修指南。若問題仍然存在﹐請聯絡 Sony 經銷商。

“出厂设定”功能

按壓 WEGA GATE 鍵。選擇“设定”(“Settings”) 後進入“设定”(“Setup”) （）菜單。從“设定”菜單里選擇“出厂设定”。然後選擇“是”並按壓鍵。電視屏幕即呈現空白﹐約數秒後﹐“初始化设定”菜單將會顯示在電視屏幕上。您的電視機將恢復到工廠設定﹐但一些電視故障可能會消失。

癥狀解決方法

圖像有雪花狀斑點﹐ 有噪聲

圖像失真﹐有噪聲

圖像良好﹐ 有噪聲

沒有圖像﹐ 沒有聲音

圖像良好﹐ 沒有聲音

圖像有點線或條紋

圖像出現雙重影像

圖像無彩色

•

檢查天線電纜以及電視機﹐錄像機和牆上的天線連接是否正確（參考第 8 頁）。

• 檢查天線的裝置。請尋求 Sony 經銷商的協助。

•

顯示“频道设定”菜單並選擇“手动调台”以再次預設頻道（參考第 18 頁）。

• 顯示“频道设定”菜單並選擇“手动调台”裡的“信号增强”為“自动” （參考第 18 頁）。

• 嘗試使用外部信號增強器。

• 切斷外部信號增強器的電源或拔掉其插頭以終止其操作。

• 顯示“频道设定”菜單並選擇“手动调台”裡的“信号增强”為“关” （參考第 18 頁）。

• 顯示“频道设定”菜單並在“手动调台”裡選擇適當的“电视系统” （參考第 18 頁）。

• 檢查電源線﹐天線和錄像機之連接是否正確（參考第 8 頁）。

• 按壓 ?/1（電源）鍵以接通電視機的電源（參考第 10 頁）。

• 按壓電視機上的 !（主電源）鍵以切斷電視機的電源﹐五秒左右後再次接通電源（參考第 7 頁）。

• 按壓 2 + 鍵以提高音量水平（參考第 10 頁）。

• 按壓鍵以取消靜音（參考第 10 頁）。

• 不要在電視機旁使用吹風機或其它設備。

• 檢查天線的裝置。請尋求 Sony 經銷商的協助。

• 使用高定向天線。

• 使用“微调”功能（參考第 18 頁）。

• 檢查天線的裝置。請尋求 Sony 經銷商的協助。

• 切斷外部信號增強器的電源或拔掉其插頭以終止其操作。

• 顯示“图像设定”菜單並選擇“图像模式”裡的“用户设定”﹐然後調整 “图像用户设定”裡的“颜色”水平（參考第 15 頁）。

• 顯示“设定”菜單及檢查“彩色制式”設定（一般將此設定為“自动”）（參考第 19 頁）。

• 檢查天線的裝置。請尋求 Sony 經銷商的協助。

續

Page 47

故障檢修（續）

癥狀解決方法

圖像傾斜

• 將外部揚聲器或其它電器放置在離電視機較遠的地方。

• 顯示“设定”菜單﹐並調整“图像旋转度调校”以使圖像位置調至最佳（參考第 19 頁）。

圖樣出現反常彩色斑點

圖文電視顯示不完全（圖像有雪花狀斑點或雙重影像）。

立體聲廣播聲音開關失常或聲音失真。

或

聲音頻繁地轉換於單聲道和立體聲之間。

電視機不能接收調頻廣播電台。

電視機上的 1 （待機）

指示燈每隔三秒閃爍至少一次的紅色亮光。

電視屏幕有時會在更換頻道時呈顯空白﹐ 空白時間比一般略長。

電視機外殼吱嘎聲。

當您接通電視機時﹐ 聽到“ ”的聲音。

• 將外部揚聲器或其它電器放置在離電視機較遠的地方。請別在電視機打開時進

行搬移。按壓電視機上的 !（主電源）鍵以切斷電視機的電源﹐約 15 分鐘後再將其打開以使電視機消磁。

• 檢查天線電纜以及電視機﹐錄像機和牆上的天線連接是否正確（參考第 8 頁）。

• 檢查天線的裝置。請尋求 Sony 經銷商的協助。

• 顯示“频道设定”菜單﹐並選擇“手动调台”裡的“信号增强”為“自动” （參考第 18 頁）。

• 嘗試使用外部信號增強器。

• 使用“微调”功能（參考第 18 頁）。

• 檢查天線電纜以及電視機﹐錄像機和牆上的天線連接是否正確（參考第 8 頁）。

• 檢查天線的裝置。請尋求 Sony 經銷商的協助。

• 通過一個天線選擇器（開關）,連接另外一個調頻天線和電視頻道源至您的電視機（參考第 8 頁）。

• 計算 1（待機）指示燈的亮光次數。按壓 !（主電源）鍵以切斷電視機的電源。通知您鄰近的 Sony 維修服務中心。

• “信号增强”正在操作以探測微弱的信號。這並不表示發生故障。

• 室溫的變化有時會導致電視機的外殼膨脹或縮小﹐因此產生噪聲。這並不表示

發生故障。

• 電視機自動消磁。這並不表示發生故障。

Page 48

x Specifications

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Teletext language

Channel coverage

B/G

D/K

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

(S Video)

(Component

Video)

i (Headphone)

FM Radio

Tuning Range

Intermediate Frequency

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

Design and specifications are subject to change without notice.

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K, M

PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43

NICAM Stereo/Bilingual B/G, I, D/K; A2 Stereo/ Bilingual B/G

English, French

VHF : E2 to E12 /UHF : E21 to E69 / CATV : S01 to S03, S1 to S41

UHF : B21 to B68 /CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 / UHF : C13 to C57, R21 to R60 / CATV : S01 to S03, S1 to S41, Z1 to Z39

VHF : A2 to A13 /UHF : A14 to A79 / CATV : A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

10 W + 10 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 3 Output: 1 Phono jacks; 500 mVrms

Input: 1 Y: 1 Vp-p, 75 ohms,

Input: 1 Phono jacks;

Output: 1 Stereo minijack

87.5 - 108.0 MHz

10.7 MHz

21 in.

589 × 472 × 515

unbalanced, sync negative C: 0.286 Vp-p, 75 ohms

Y: 1 Vp-p, 75 ohms, sync negative C

B: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms

NoteKV-AZ212M61

Measured diagonally
