Page 1

2-697-021-12 (1)

Tr initron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

KV-AW21

N50

Page 2

A Specifications

KV-AW21N50

Power requirements

Power consumption (W)

Television system

Color system

Channel coverage

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

Picture tube

Tube size

Viewing screen size

Dimensions (w/h/d)

Mass

Design and specifications are subject to change without notice.

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

NTSC3.58, PAL*, PAL 60*, SECAM*, NTSC4.43* * AV IN only

VHF : 2 to 13 /UHF : 14 to 69 /CATV : 1 to 125

75-ohm external terminal

3 W + 3 W

Input: 2 Phono jacks; 1 Vp-p, 75 ohms

Input: 2 Phono jacks; 500 mVrms

21 in.

545 mm

507 mm

600 × 465 × 481 mm

25 kg

Note

Measured diagonally

Page 3

B WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

Page 4

C Getting Started

Step 1

Insert the batteries (supplied) into the remote.

• Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

• You can also connect your TV to other optional

components (see E).

Step 3

Initial Setup Language:

Select

Confirm

Plug in the power cord, then press 1 on the TV to turn it on.

• The 1 (standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Step 4

English

Set up the TV by following the instructions of the “Initial Setup” menu (see D).

End

Page 5

Program Edit

2 3 4

Off Off Off

Edit:

PROG

SkipLabel

Exit

Select

Confirm

Off

End

Select

Confirm

Initial Setup

Language:

English

Start Auto Program now?

Yes

First please connect cable/ antenna

Initial Setup

End

Select

Confirm

Select

Confirm

Initial Setup

Display this menu next time?

Yes

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear. You can adjust settings below using the buttons on the remote control or TV front panel. Press V , v , B or b to select or adjust items, then press

Select the desired menu language.

Select “Yes” to preset the channels automatically.

To skip automatic channel presetting, select “No”.

The “Program Edit” menu enables you to

edit the channels (see K).

Adjust the bars on the top and bottom of the

menu if they are slanted.

To prevent this “Initial Setup” menu from appearing

again when you turn on the TV by pressing 1, select “No”.

To allow this menu to appear again, select “Yes”.

•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA GATE.

Select

Confirm

End

Page 6

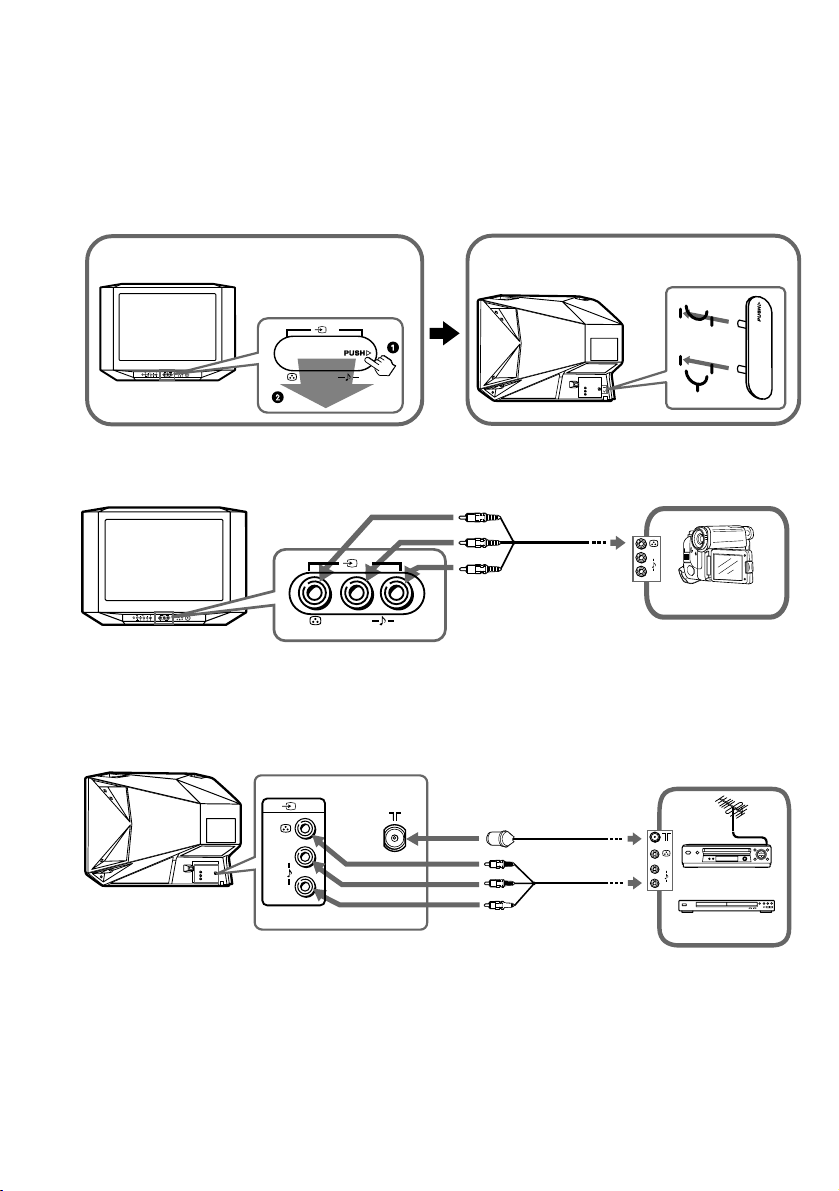

E Connecting optional components

You can connect a wide range of optional components to your TV. Connecting cables are not supplied.

Connecting to the TV (front)

Step 1

PROG

WEGA

(MONO)

GATE

(MONO)

PROG

WEGA

(MONO)

GATE

(MONO)

Connecting to the TV (rear)

(MONO)

Step 2

Audio/Video

cable

Antenna

cable

Audio/Video

cable

Camcorder

VCR

DVD Player

Page 7

F Troubleshooting

If you find any problem while viewing your TV, you can either use the “Factory Settings” function (see L) or check the Troubleshooting guide below. If the problem persists, contact your Sony dealer.

Snowy picture, noisy sound

• Check the antenna setup and other connections.

•Preset the channel again (see K).

• Set the “Signal Booster” to “Auto” (see K) or try using an external booster.

Distorted picture, noisy sound

• Set the “Signal Booster” to “Off” (see K), or turn off or disconnect any external booster in

use.

No picture, no sound

• Check the power cord, antenna setup and other connections.

•Press 4/1 (power) to turn on the TV.

•Press 1 (main power) on the TV to turn off the TV for about five seconds, then turn it on

again.

Good picture, no sound

•Press 2 + to increase the volume level or press to cancel the muting.

Dotted lines or stripes

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup.

Double images or “ghosts”

• Check the antenna setup or use a highly directional antenna.

•Turn off or disconnect any external booster in use.

No color

• Adjust the “Color” level from “Picture Adjustment” (see I).

• Select the appropriate “Color System” (for video input only) (see L).

• Check the antenna setup.

Picture slant

• Keep external speakers or other electrical equipment away from the TV.

• Adjust the “Picture Rotation” (see L).

Abnormal color patches

• Keep external speakers or other equipment away from the TV. Do not move the TV while

the TV is turned on. Press 1 (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

• Count the number of times the 1 (standby) indicator flashes. Press 1 (main power) to

turn off your TV. Contact your nearest Sony service center.

The TV screen sometimes goes blank for slightly longer than usual during channel change.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a malfunction.

TV cabinet creaks.

• Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

A small “boom” sound is heard when the TV is turned on.

• The TV’s demagnetizing function is working. This does not indicate a malfunction.

Page 8

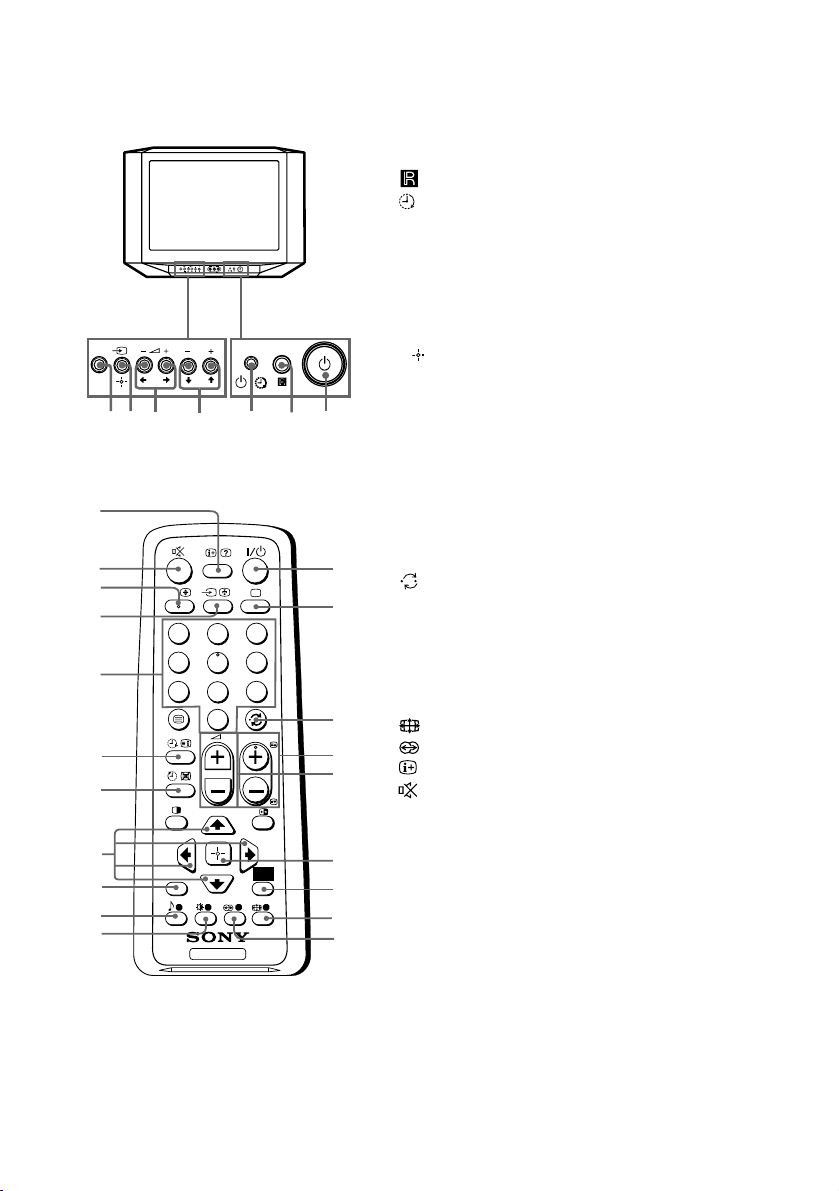

G TV buttons and remote control

1 1 Turn off or turn on the TV. 2 Remote control sensor. 3 Wake Up indicator. 3 1 Standby indicator. 4 PROG +/– Select program number. 5 2 +/– Adjust volume. 6 t Select TV or video input.

WEGA GATE menu operations (see H)

4,5 V,v,B,b Select or adjust items. 6

Confirm selected items.

7 WEGA GATE Display or cancel WEGA GATE menu.

WEGA GATE

PROG

WEGA

(MONO)

GATE

PROG

qa qs

qk ql

432

567

A/B

RETURN

PROG

WEGA GATE

1 ?/1 Turn off temporarily or turn on the

TV.

2 a Display the TV program.

3 Jump to last program number that

4 PROG +/– Select program number. To select

5 2 +/– Adjust volume.

8 Not function for your TV. 9 Not function for your TV.

Display on-screen information.

qa Mute the sound. qs A/B Not function for your TV. qd t Select TV or video input. qf 0-9 Input numbers. For program

6 7 8

has been watched for at least five seconds.

quickly, press and hold until the desired program number appears.

numbers 10 and above, enter the next digit within two seconds.

Page 9

TV buttons and remote control (continued)

ql Not function for your TV. w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see I).

WEGA GATE menu operations (see H)

6 Confirm selected items. 7 WEGA GATE Display or cancel WEGA GATE menu. qj V, v, B , b Select or adjust items. qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the desired period of time

(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set

qh Set TV to turn off automatically according to the desired period of time

(Sleep Timer) (max. of one hour and 30 min.).

Teletext operations (green icon)

, , , ,

(red, green,

yellow, blue)

* When the “Custom” mode is selected, you can receive the last adjusted

picture settings from the “Picture Adjustment” option in the menu.

the wake up timer. If no buttons or controls are pressed for more than one hour after the TV is turned on using the wake up timer, the TV automatically goes into standby mode.

Not function for your TV.

PIP operations

, , V, v, B , b Not function for your TV.

Page 10

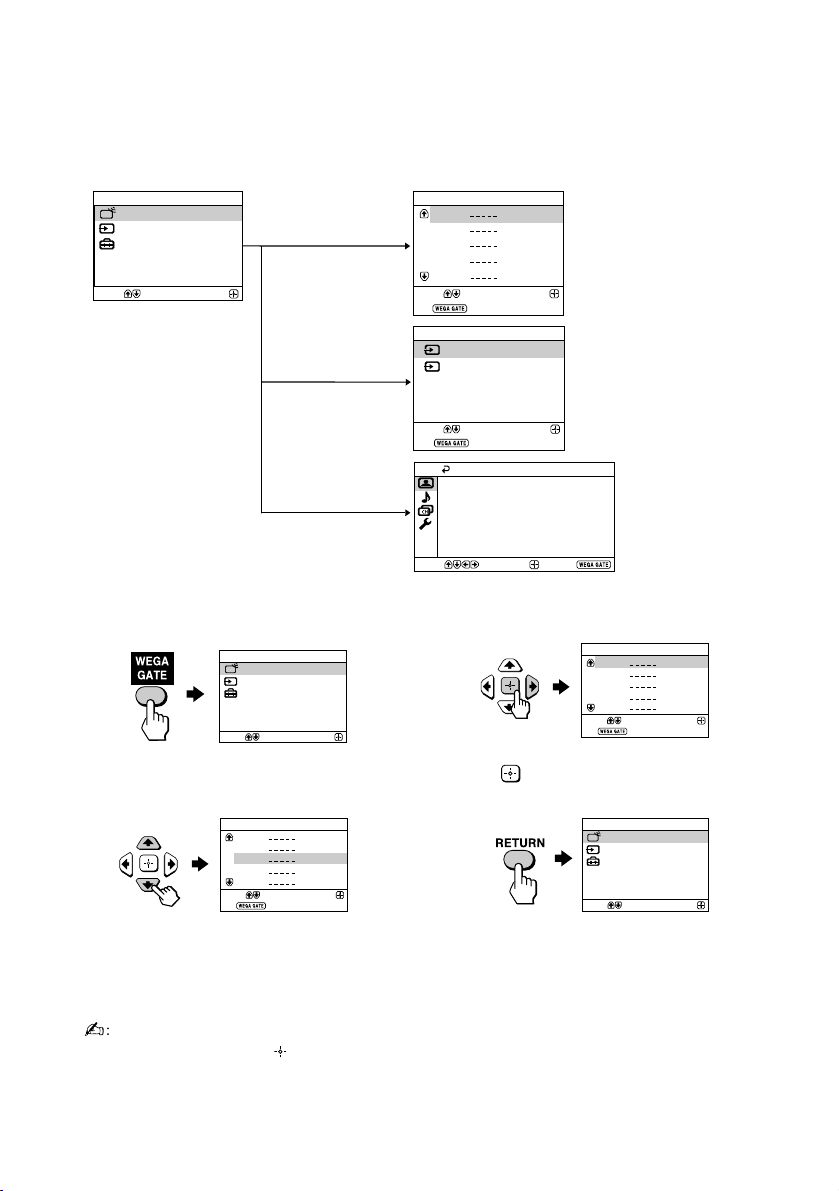

H WEGA GATE navigator

Confirm

Select

WEGA GATE

Settings

External Inputs

WEGA GATE is a gateway that allows you access to preset TV channels, connected external inputs and “Settings” menu.

WEGA GATE

Select

External Inputs

Settings

Confirm

“TV”

“External Inputs”

“Settings”

How to use WEGA GATE

WEGA GATE TV

External Inputs Settings

Select

(1) Press WEGA GATE to display or cancel

the WEGA GATE menu.

1 2 3 4 5

Select

End

Confirm

2 3

Select

End

External Inputs

Video 1

Video 2

watch the preset TV channels (see D)

Confirm

select the inputs for the connected equipment (see E)

Select End

Picture Mode: Vivid

Picture Adjustment Color Temperature: Cool Intelligent Picture: On Signal Level Indicator: On

Select


Confirm

End

change the settings of your TV (see I,J,K,L)

1 2 3 4 5

Select

End

Confirm

(2) Press (or b) to confirm your selection

or go to the next level.

(3) Press V or v to select the desired item.

(4) Press RETURN to move to the previous

level.

• When a feature is dimmed in the menu, it is not selectable.

• The WEGA GATE, and V,v,B,b buttons on the front panel can also be used for the operations above.

Page 11

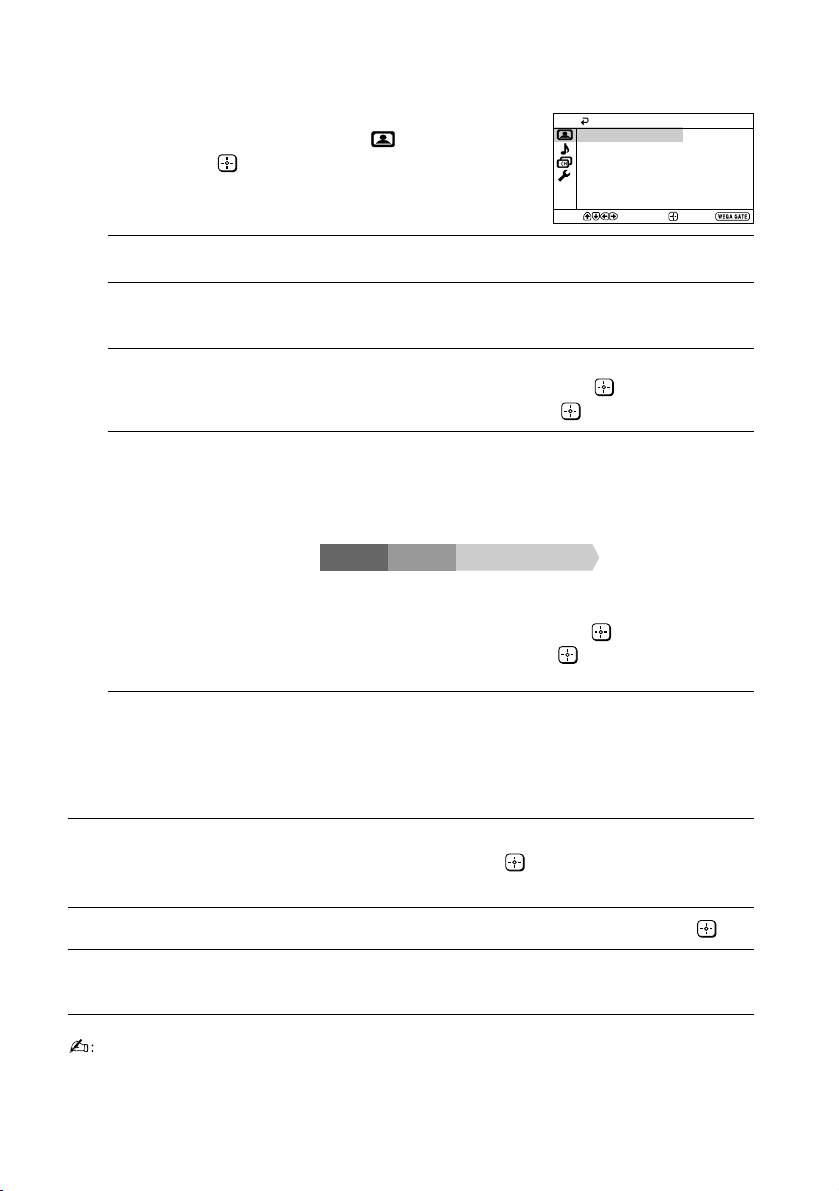

I “Picture” setting

Press WEGA GATE and select “Settings”. Make sure the “Picture” icon ( then press

) is selected,


Picture Mode: Vivid

Picture Adjustment Color Temperature: Cool Intelligent Picture: On Signal Level Indicator: On

Select

Confirm

End

“Picture Mode” Choose either “Vivid” (bright, contrast and sharp),

“Color Temperature” Adjust white color tint.

“Intelligent Picture” Optimize picture quality.

“Signal Level Indicator” Display the signal level when the “Intelligent Picture” is

*You can adjust the setting to your personal preference in the “Picture Adjustment” and

“Color Temperature” options only when the “Custom” mode is selected.

“Standard” (normal) or “Custom”*.

Choose either “Cool” (blue tint), “Neutral” (neutral tint) or “Warm” (red tint).

Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

functioning. “Intelligent Picture Signal Level” indicator will be displayed, followed by picture improvement when you change the program number or the input mode.

red amber green

(weak) (average) (good) Press V or v to select “On”, then press . To cancel, select “Off”, then press . “Intelligent Picture” is

still functioning.

Adjusting the “Picture Adjustment” items under “Custom” mode

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press

Selecting “Reset” will set your TV to the factory settings.

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be received when you select “Custom”.

• Reducing “Sharpness” can also reduce picture noise.

Page 12

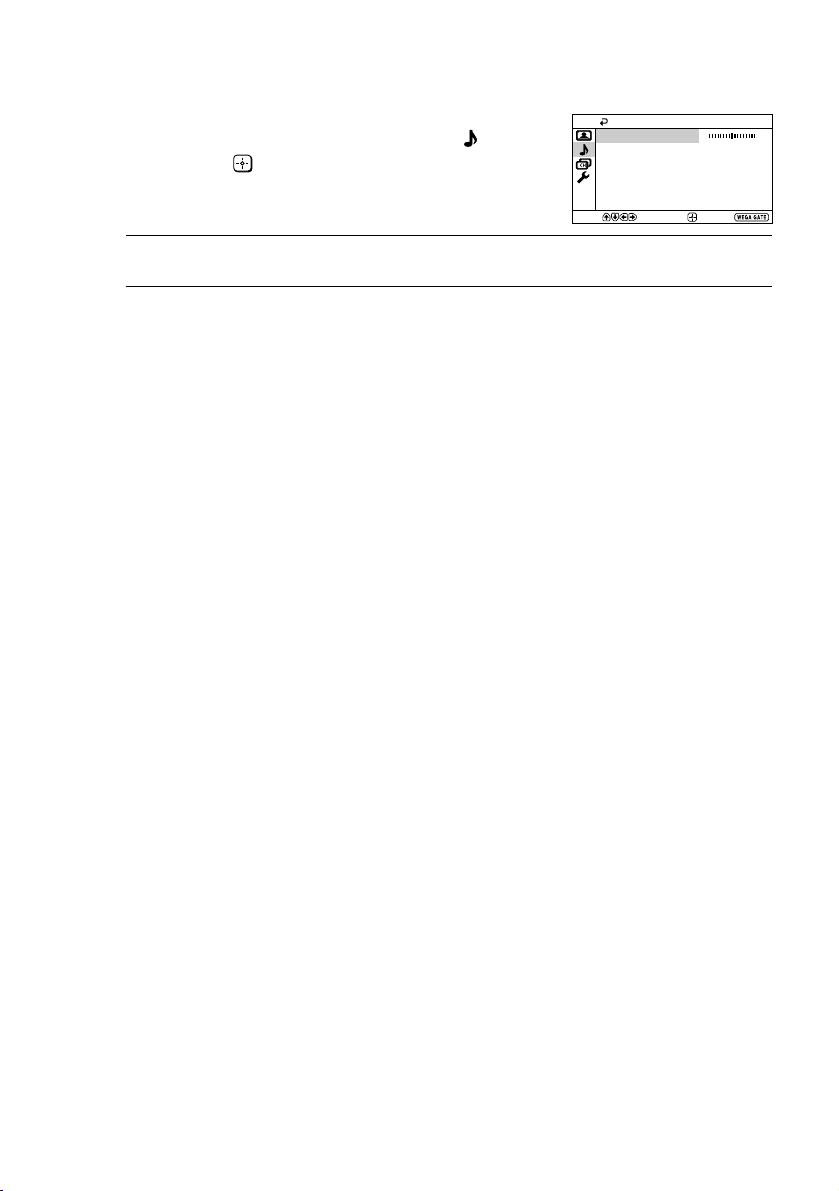

J “Sound” setting

Press WEGA GATE and select “Settings”. Press V or v to select the “Sound” icon ( then press .

Sound

Balance

Select

“Balance” Press v or B to emphasize the left speaker.

Press V or b to emphasize the right speaker.

Confirm

End

Page 13

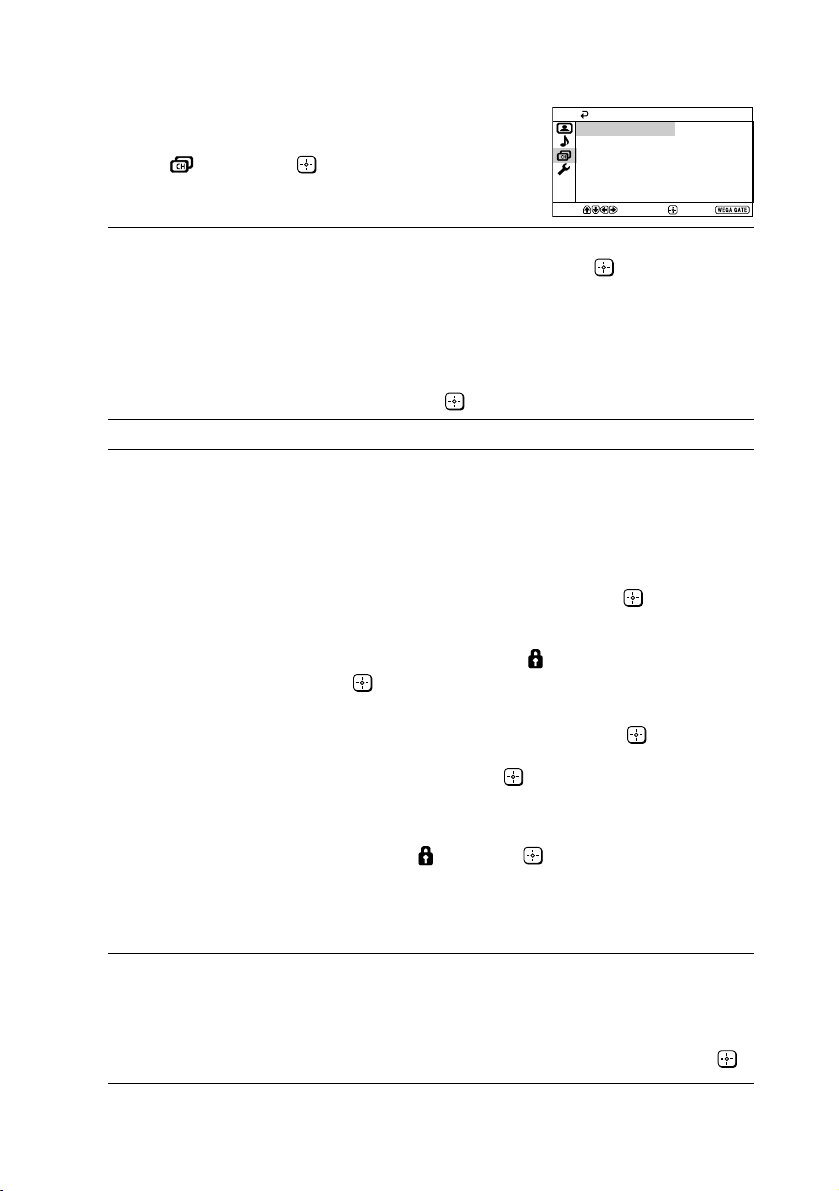

“Channel Setup” setting

Press WEGA GATE and select “Settings”. Press V or v to select the “Channel Setup” icon (

), then press .

Channel Setup

Cable: Auto Program Program Edit

Signal Booster:

Auto

“Cable” Receive cable TV programs.

Press V or v to select “On”, then press . If you select “Cable: On”, you will be able to receive 125 cable TV channels. If there are no cable TV channels, you will receive VHF broadcast channels only. To receive only VHF and UHF broadcast channels, select “Off”, then press .

“Auto Program” Preset channels automatically.

“Program Edit”

Edit the channels. (a) If you wish to keep the channels in the current condition,

press WEGA GATE to exit.

(b) Press

V or v to select the program number with the channel you wish to change. The selected channel will appear on the screen.

mode. Press b until the mode that you wish to edit is

highlighted: Label, Skip, (block symbol). Then press

(1) To label, press V or v to select the alphanumeric

characters for the label. Then press .

(2) To skip the program number, press V or v to select “On”. Then press . You can skip this program number when using

PROG +/–. (3) To block unwanted program number, press V or v to

select . Then press .

(d) Repeat step (b) to (c) if you wish to change other

channels.

Select

Confirm

End

“Signal Booster”

Press WEGA GATE to exit.

Improve the picture quality if the TV signal is too strong or weak. Press V or v to select either “Off” if the signal is too strong (picture distorted; picture with lines; signal interference) or “Auto” if the signal is weak (snowy picture), then press .

Page 14

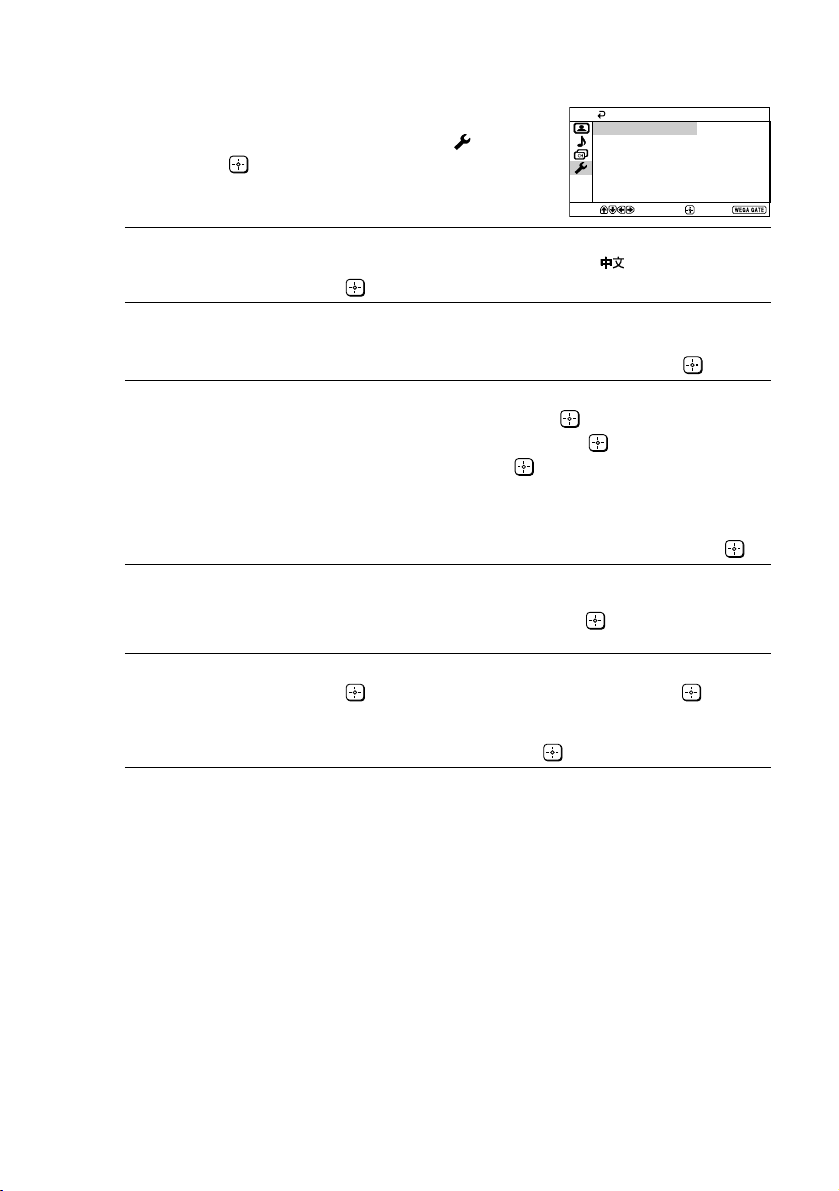

“Setup” setting

Press WEGA GATE and select “Settings”. Press V or v to select the “Setup” icon (

then press .

Setup

Language:

Picture Rotation Video Label Color System: NTSC3.58

Factory Settings

Select

“Language” Change the menu language.

Press V or v to select either “English” or “ ” (Chinese), then press .

“Picture Rotation” Adjust the picture position when it is not aligned with the TV

screen.

Press B or b to adjust the picture position, then press .

“Video Label” Label the connected equipment.

(1) Select “Video Input” and press . Press V or v to select the

input you want to label, then press .

(2) Select “Label” and press , then press V or v to select

the label options: “Video 1”/“Video 2”, “VCR”, “SAT”,

“Game” or “Edit”*. * You may edit the video label to your favorite name. Press V or v to select alphanumeric characters for the label, then press .

“Color System” Select the color system (for video input only).

Press V or v to select either “Auto”, “PAL”, “SECAM”, “NTSC3.58” or “NTSC4.43”, then press . Normally, set this to “Auto”.

“Factory Settings”

Reset your TV to factory settings. Press and press V or v to select “Yes”. Then press . Your TV will go blank for a few seconds, then the “Initial Setup”

menu will appear. To cancel, select “No”, then press .

Confirm

English

End
