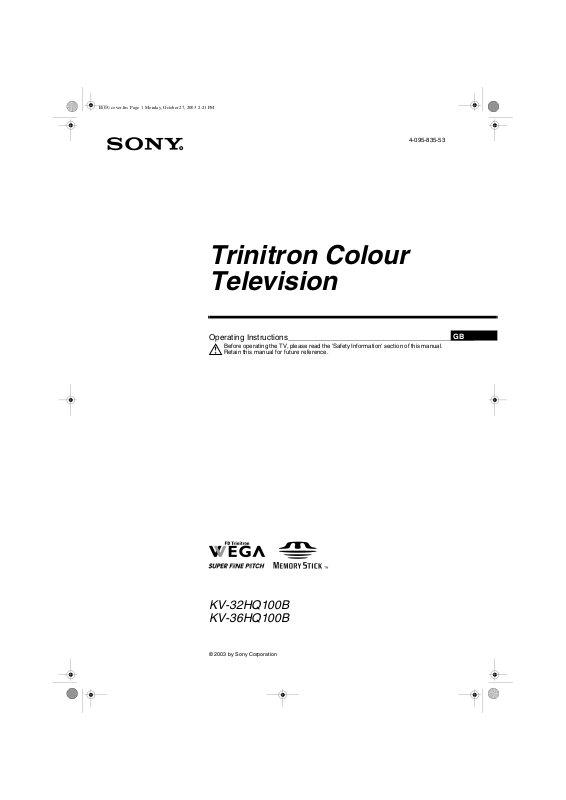

Sony KV-32HQ100B, KV-36HQ100B, KV-32HQ150U Operating Instruction

Page 1

4-095-835-53

Trinitron Colour Television

Operating Instructions

Before operating the TV, please read the 'Safety Information' section of this manual. Retain this manual for future reference.

KV-32HQ100B KV-36HQ100B

Page 2

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM AND IRELAND

For KV-32HQ100B models

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS 1362 (i.e. marked with or ) must be used. When an alternative type of plug is used it should be fitted with a 5 AMP fuse, otherwise the circuit should be protected by a 5 AMP fuse at the distribution board. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service centre.

For KV-36HQ100B models

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced, a 13 AMP fuse approved by ASTA or BSI to BS 1362 (i.e. marked with or ) must be used. When an alternative type of plug is used it should be fitted with a 13 AMP Fuse, otherwise the circuit should be protected by a 13 AMP fuse at the distribution board. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service centre.

ASA

FUSE

How to replace the Fuse

Open the fuse compartment with a flat blade screwdriver, and replace the fuse.

IMPORTANT

If the plug supplied is not suitable for the socket outlet in your home, it should be cut off and an appropriate plug fitted in accordance with the following instructions: The wires in this mains lead are coloured in accordance with the following code: Blue Neutral Brown Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. Do not connect either wire to the earth terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green and yellow.

WARNING

• To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket outlet. This plug cannot be used and should be destroyed.

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.

• Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing to qualified personnel only.

Page 3

Page 4

Safety information

This set is to operate on a 220-240V AC supply only. Take care not to connect too many appliances to the same power socket as this could result in fire or electric shock.

Do not open the cabinet and the rear cover of the TV. Refer to qualified service personnel only.

For environmental and safety reasons, it is recommended that the TV is not left in standby when unused. Disconnect from the mains. However, some TVs may have features which need the TV to be left in standby to work correctly. The instructions in this manual will inform you if this applies.

For your own safety, do not touch any part of the TV, power lead or aerial lead during lightning storms.

Never push objects of any kind into the set as this could result in a fire or electric shock. Never spill liquid of any kind on the set. If any liquid or solid object does fall through, do not operate the TV. Have it checked immediately by qualified personnel.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Do not cover the ventilation openings of the TV. For ventilation, leave a space of at least 10cm all around the set.

Clean the screen and cabinet with a soft, lightly dampened cloth. Do not use any type of abrasive pad, alkaline cleaner, scouring powder or solvent, such as alcohol or benzine, or antistatic spray. As a safety precaution, unplug the TV before cleaning it.

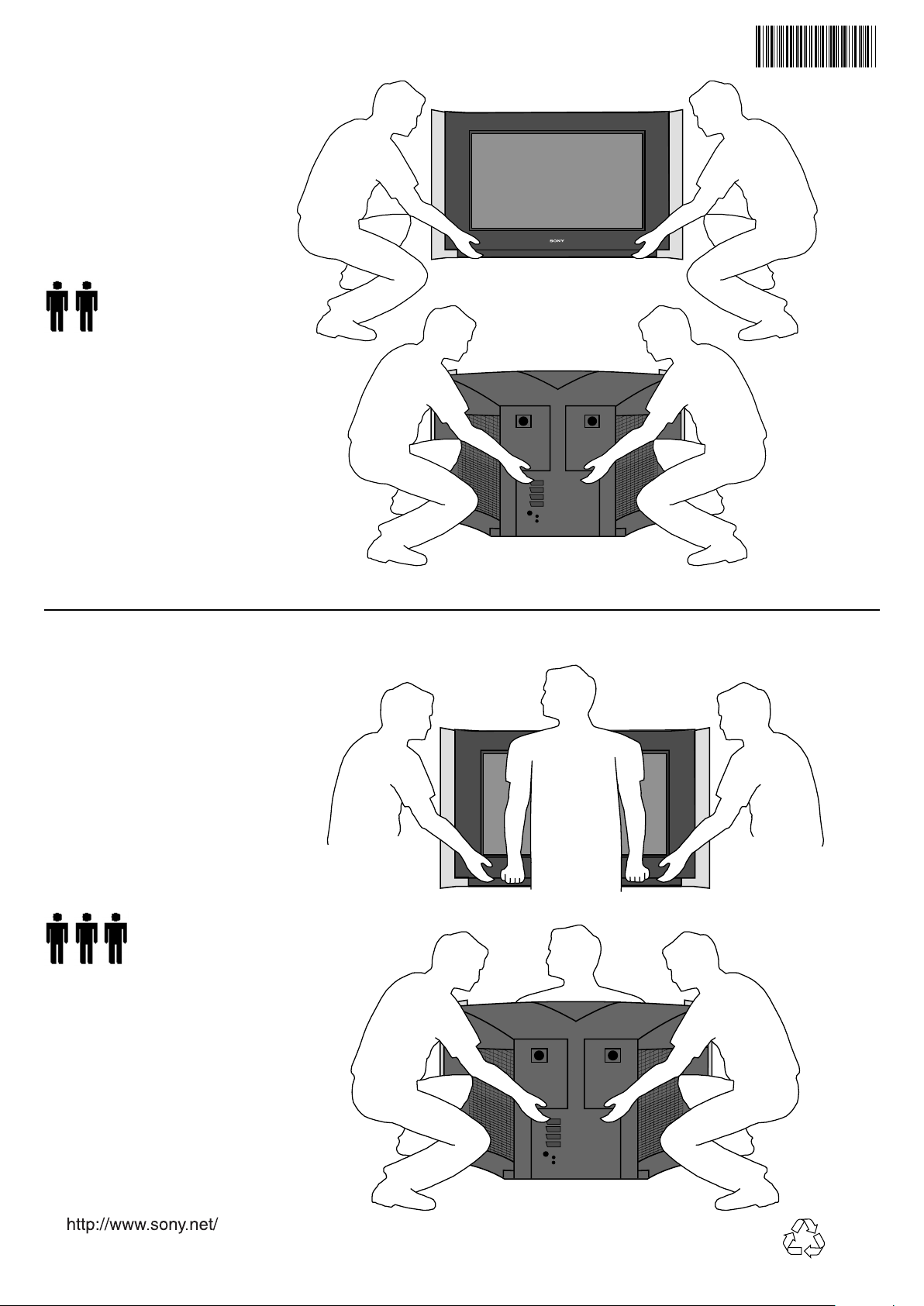

Place the TV on a secure stable stand. Never attempt to move the TV and stand together always move the TV and stand separately. Do not place the TV on its side or face up. Do not allow children to climb on to it.

Never place the TV in hot, humid or excessively dusty places. Do not install the TV where it may be exposed to mechanical vibrations.

Pull out the power lead by the plug. Do not pull on the power lead itself.

Unplug the power lead before moving the TV. Avoid uneven surfaces, quick steps or excessive force. If the set has been dropped or damaged, have it checked immediately by qualified service personnel.

Do not place any objects on the TV. To prevent fire, keep inflammable objects or naked lights (e.g. candles) away from the TV.

Take care not to place heavy objects on the power lead as this could result in damage. We recommend you wind any excess lead around the holders provided on the rear of the TV.

Do not cover the ventilation openings of the TV with items such as curtains or newspapers etc.

NOTE: Sony recommend you only use their designated stands- 32HQ1 for KV-32HQ100 and 36HQ1 for KV-36HQ100.

Page 5

Getting started

Checking the accessories supplied ..............................................................4

Inserting batteries into the remote control ...................................................4

Connecting an aerial and a VCR to the TV ..................................................5

Switching on the TV .....................................................................................5

Automatically tuning the TV..........................................................................6

Finding your video channel ..........................................................................6

Overview

Overview of the TV buttons ..........................................................................7

Overview of the remote control buttons........................................................8

Basic Operation

Picture and Picture (PAP).............................................................................9

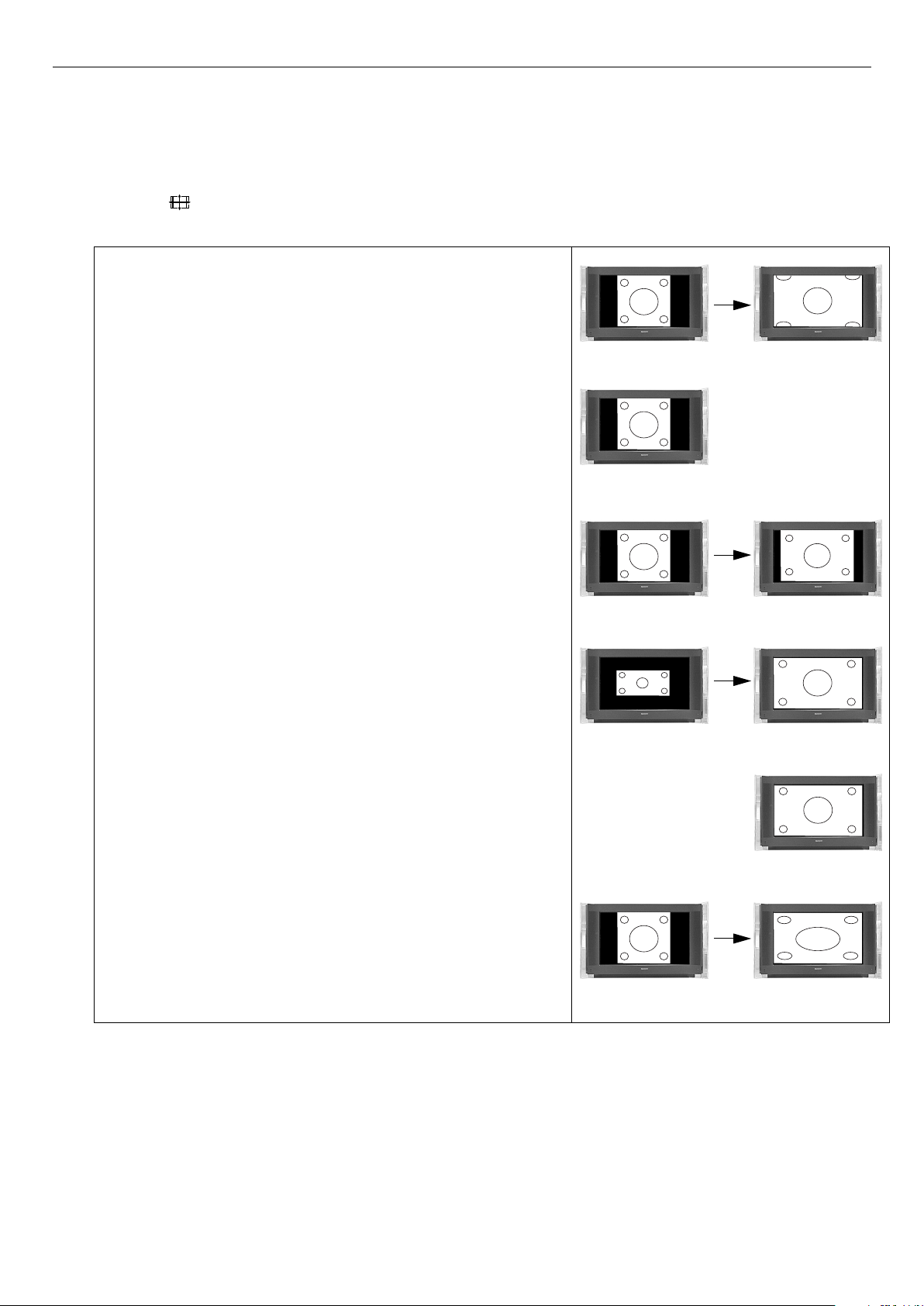

Screen Mode ...............................................................................................10

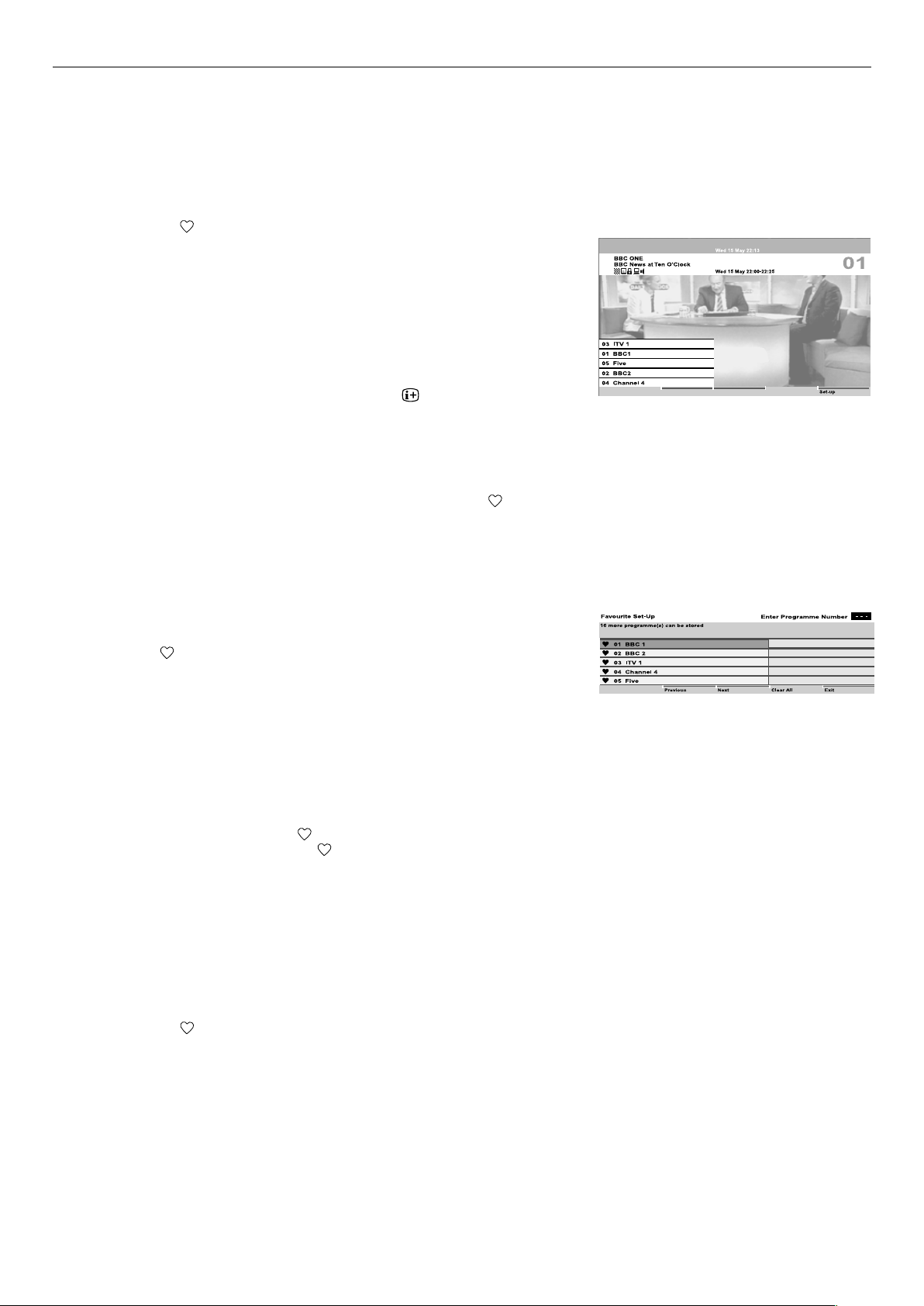

Favourite menu

Viewing favourite programmes .................................................................... 11

To enter Favourite Set-up ........................................................................... 11

Adding or deleting a favourite channel ........................................................ 11

To clear all favourite channels ..................................................................... 11

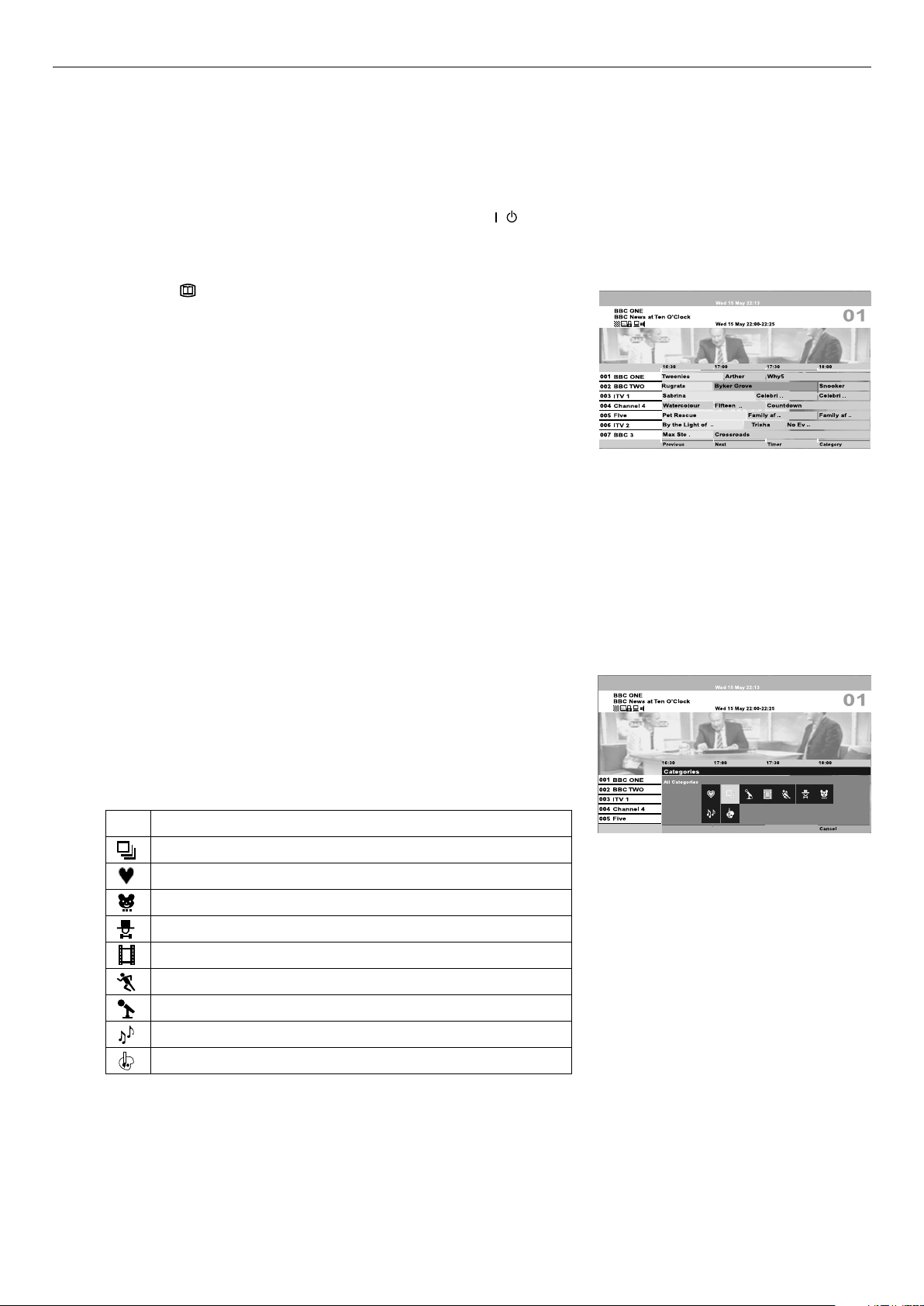

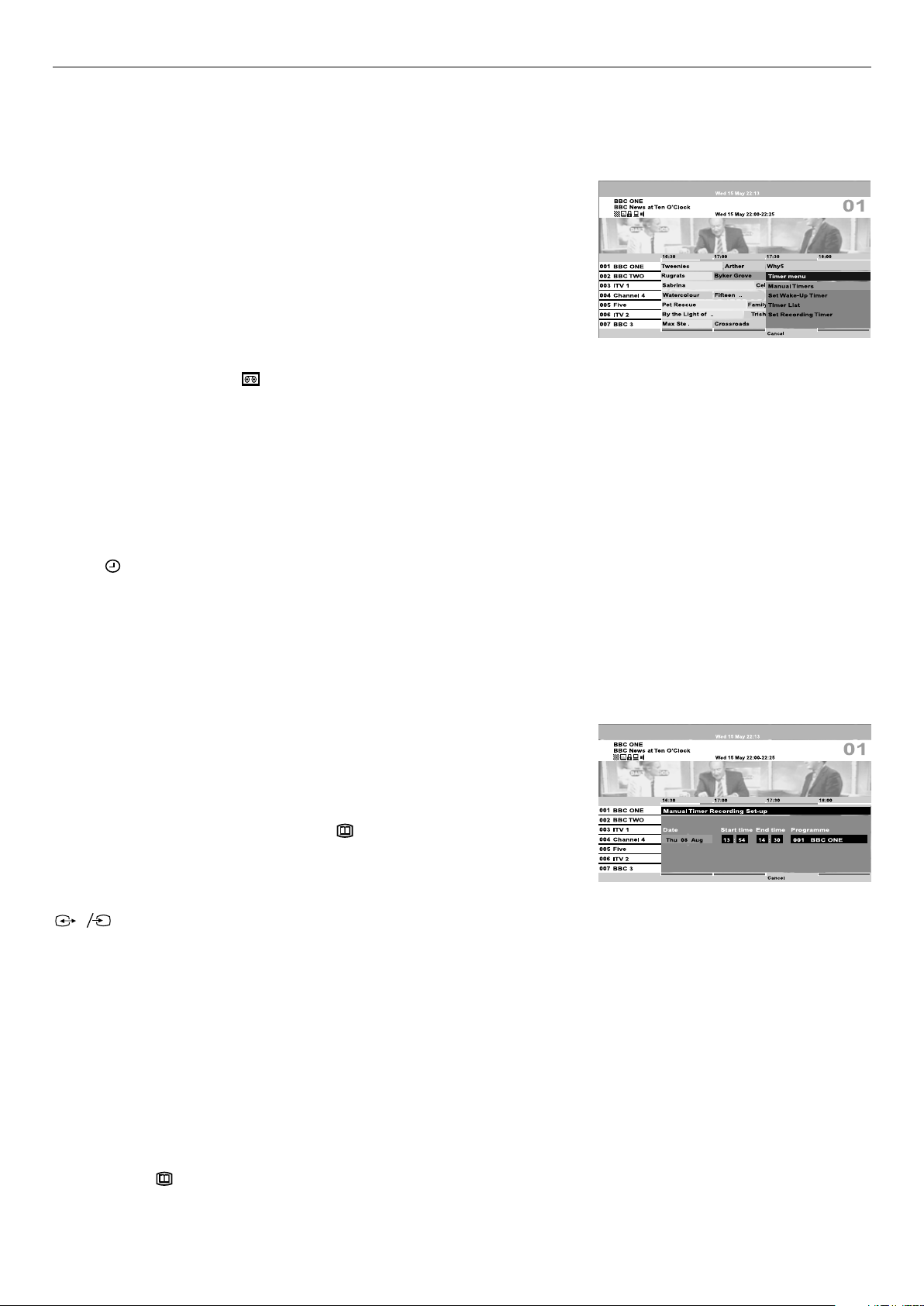

EPG

Selecting a category of programme .............................................................12

Selecting a programme for recording or timed display .................................13

Table of contents

Text

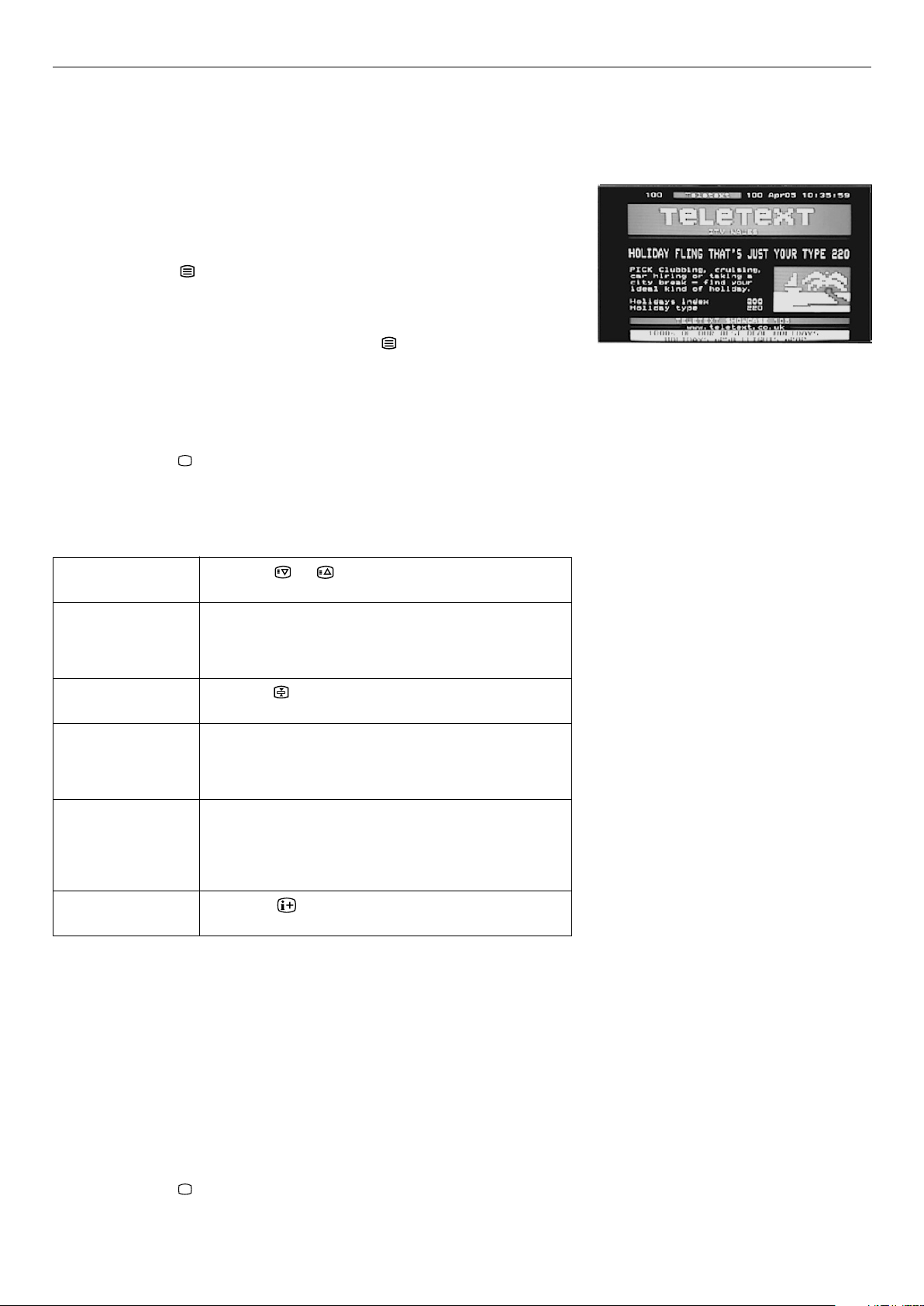

Viewing Text..................................................................................................14

Viewing TopText ...........................................................................................14

Memory Stick

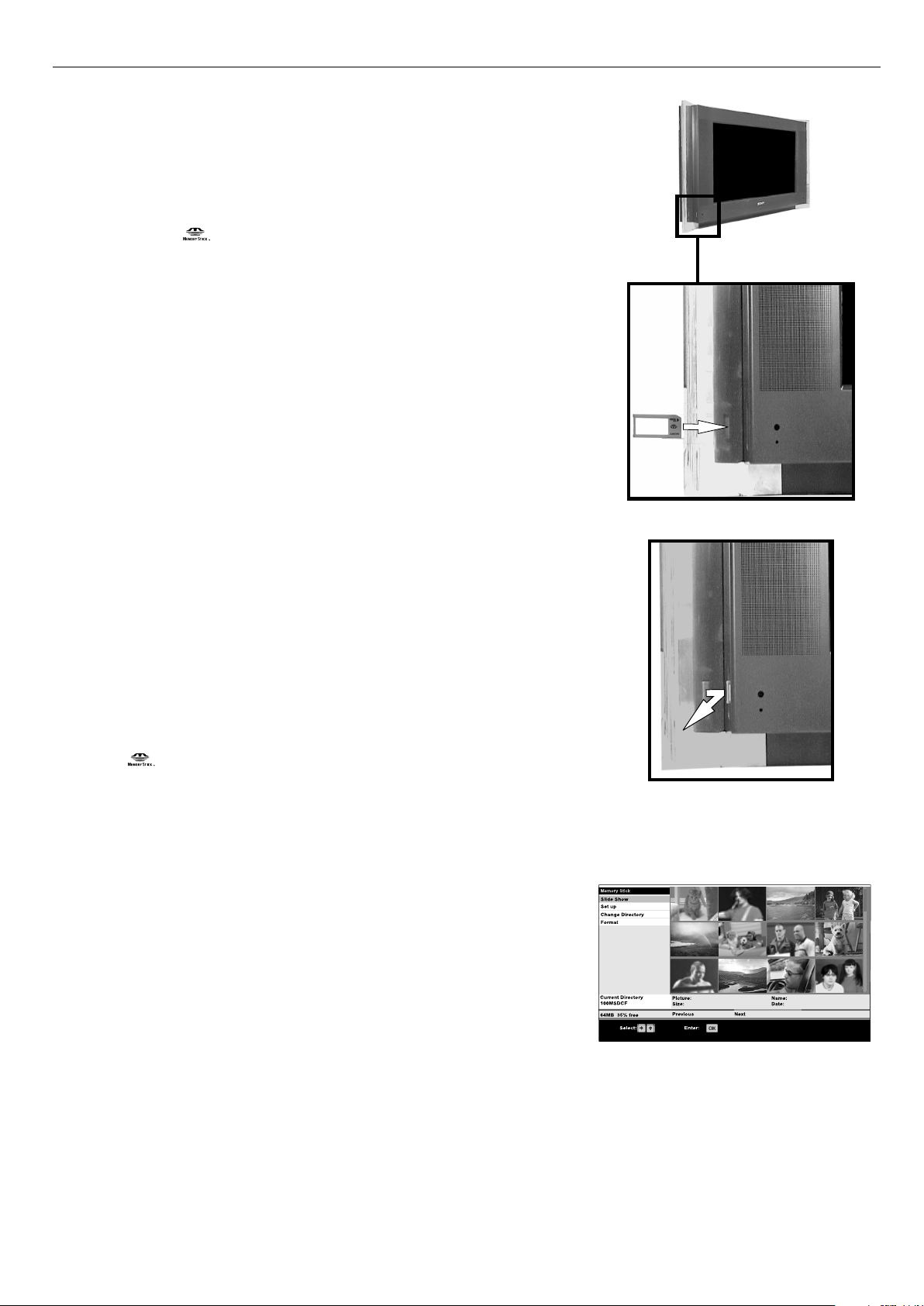

Inserting a Memory Stick..............................................................................15

Removing a Memory Stick............................................................................15

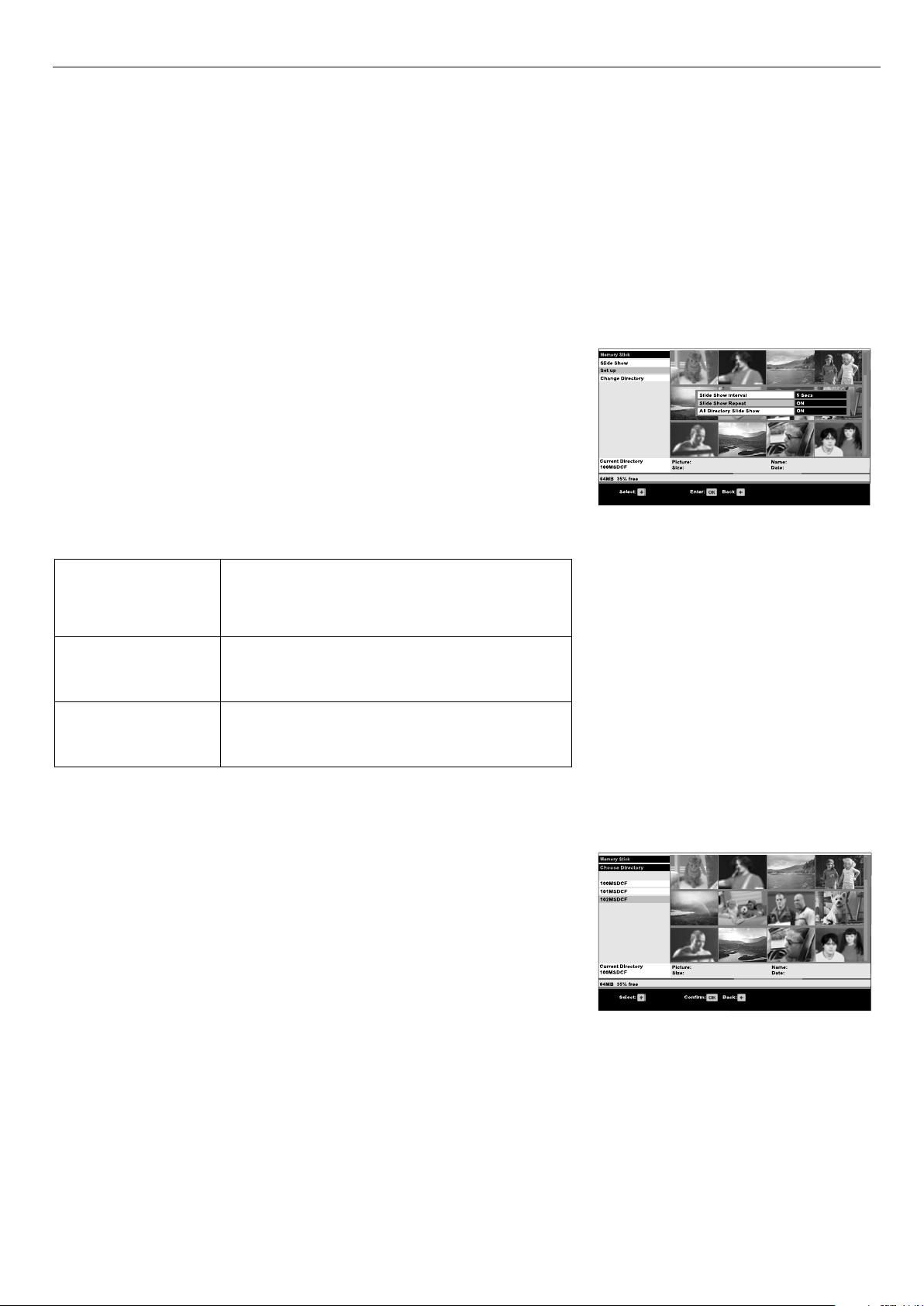

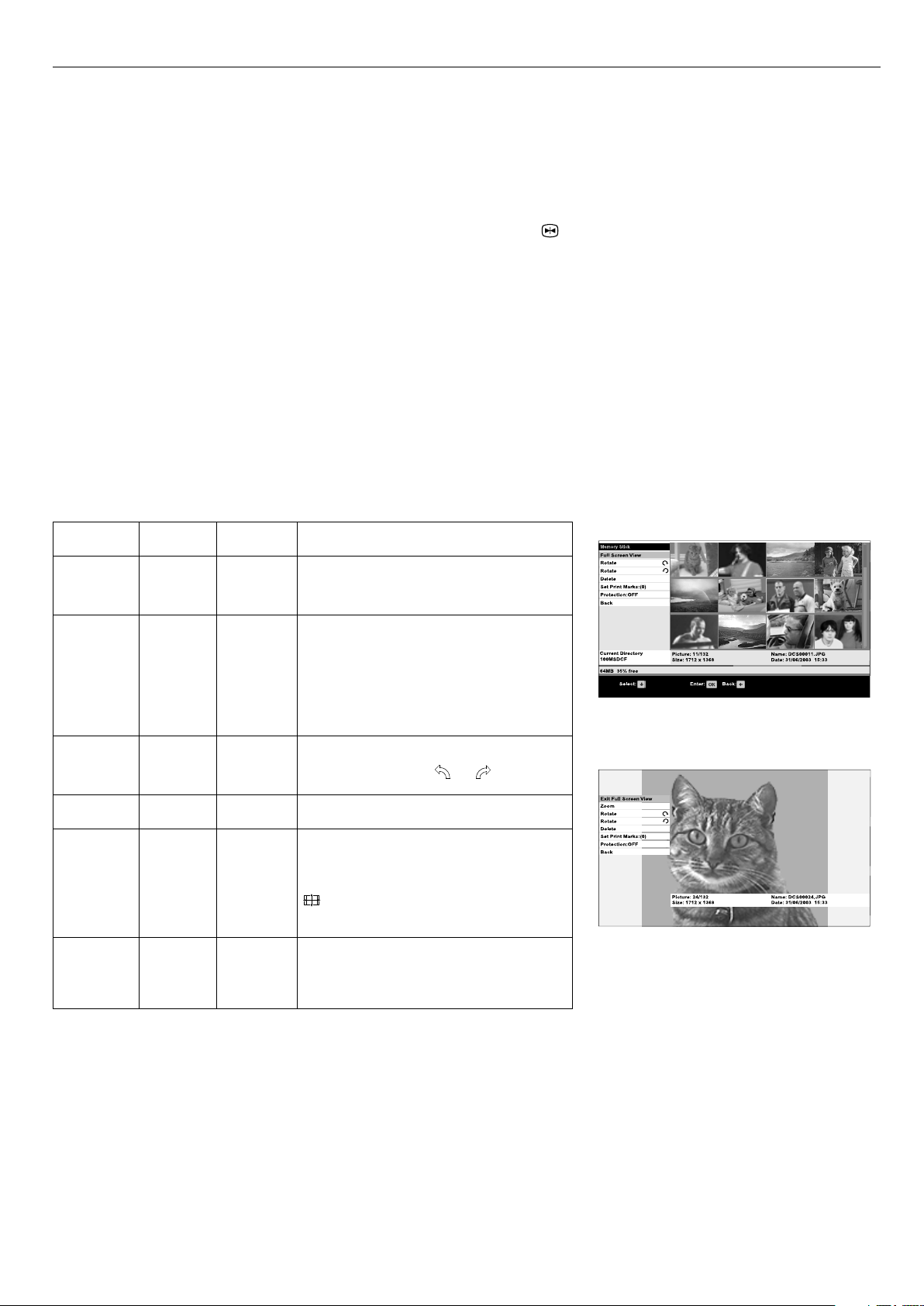

The Memory Stick Thumbnail menu.............................................................15

Slideshow .....................................................................................................16

Changing directory .......................................................................................16

Memory Stick precautions............................................................................ 17

Saving a TV picture to the Memory Stick .....................................................17

TV menu system

Using the TV menu system ..........................................................................18

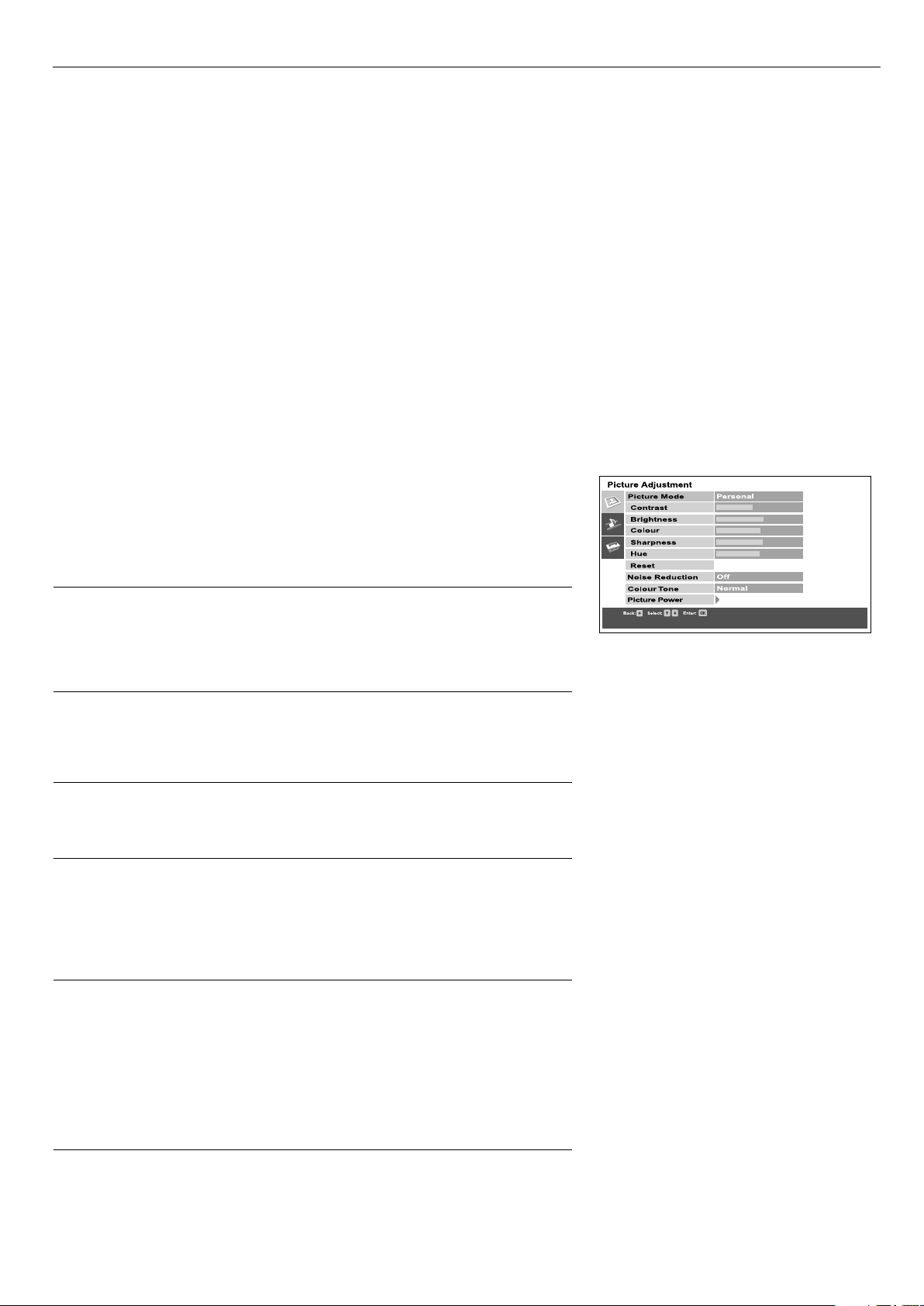

Picture Adjustment menu .............................................................................18

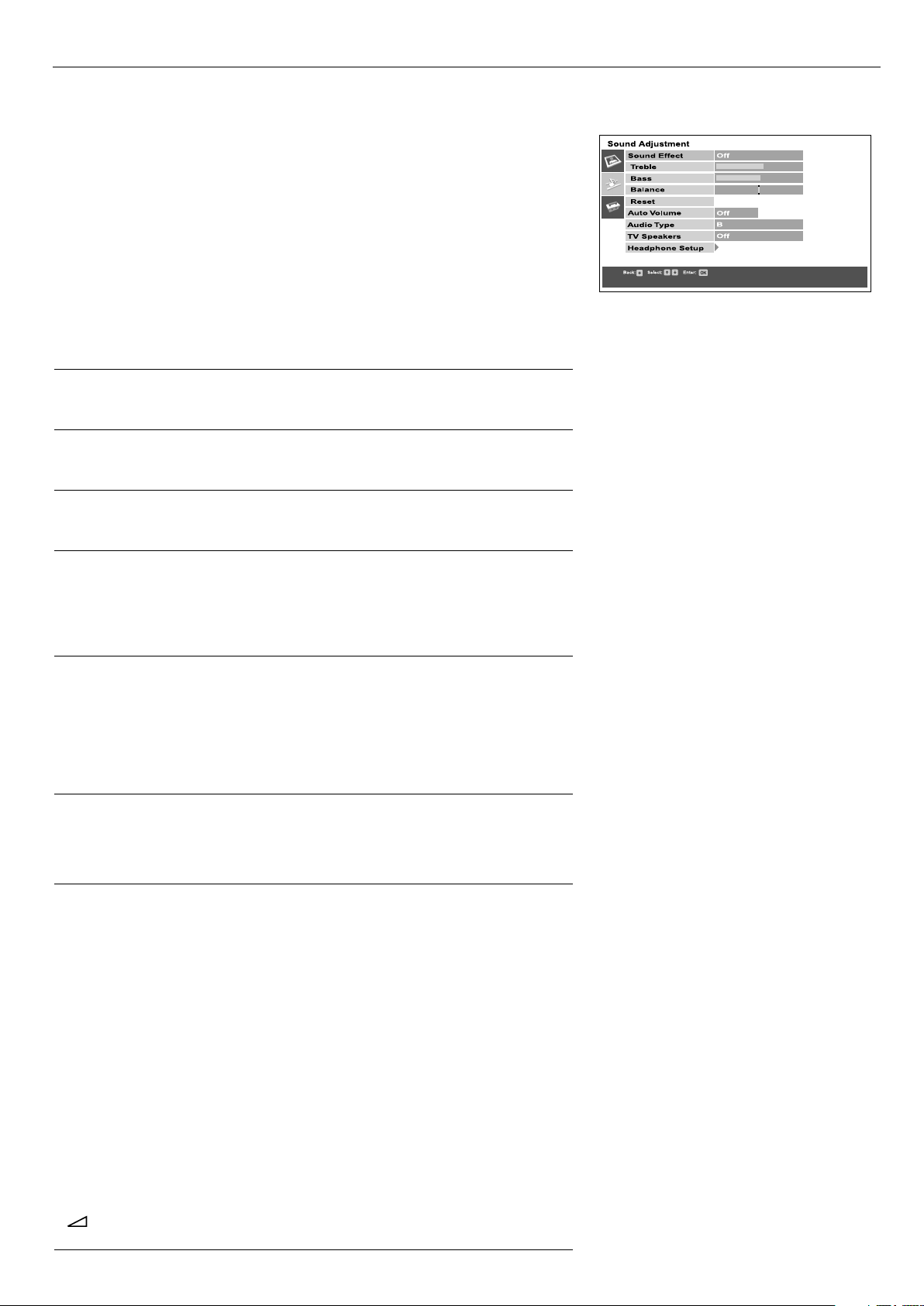

Sound Adjustment menu..............................................................................19

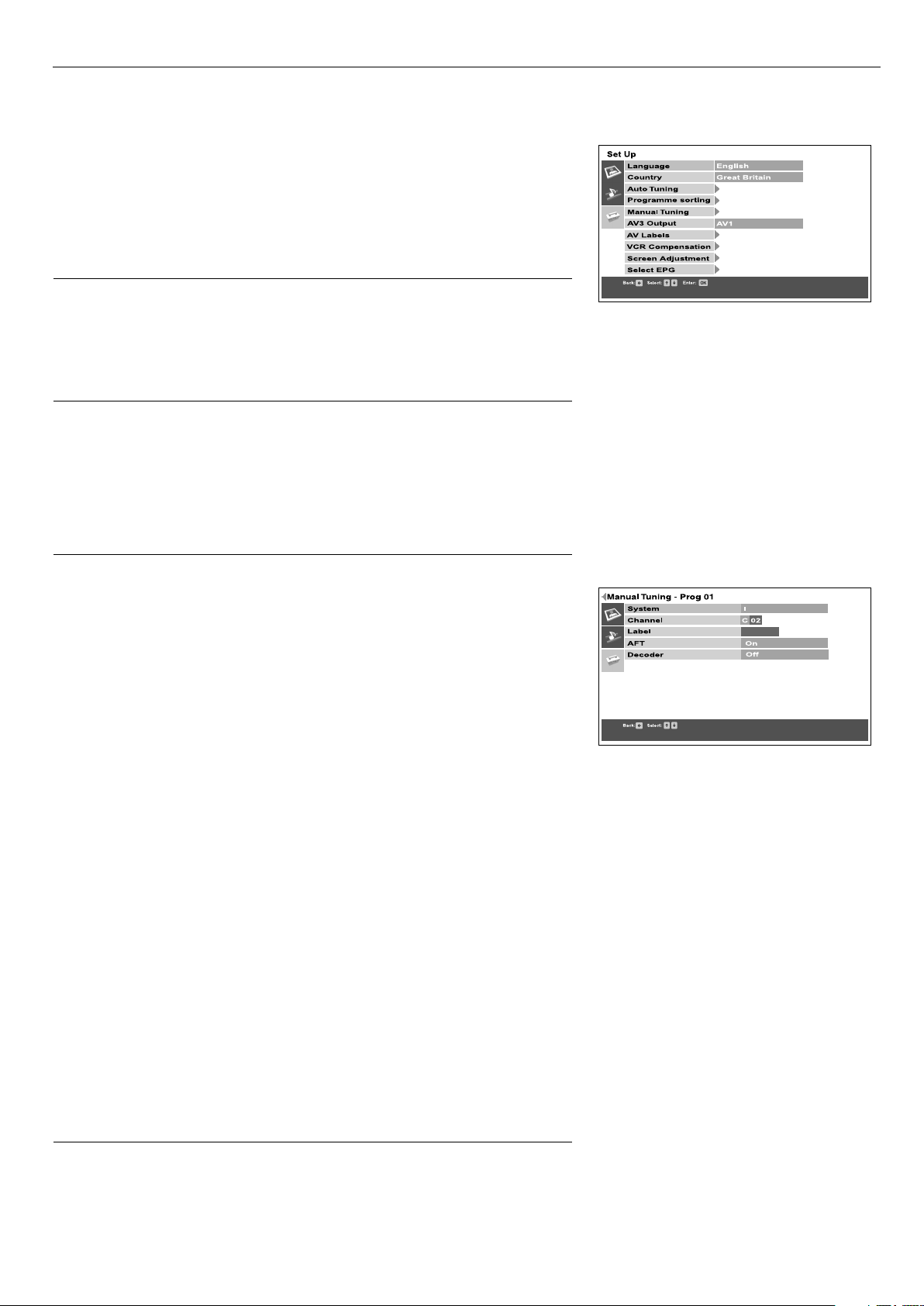

Set Up menu.................................................................................................20

Language/Country ..................................................................................20

Auto Tuning .............................................................................................20

Programme Sorting..................................................................................20

Manual Tuning .........................................................................................20

AV3 Output...............................................................................................21

AV Labels.................................................................................................21

VCR Stabiliser..........................................................................................21

Screen Adjustment ..................................................................................22

Select EPG ..............................................................................................22

Connecting Other Equipment to the TV

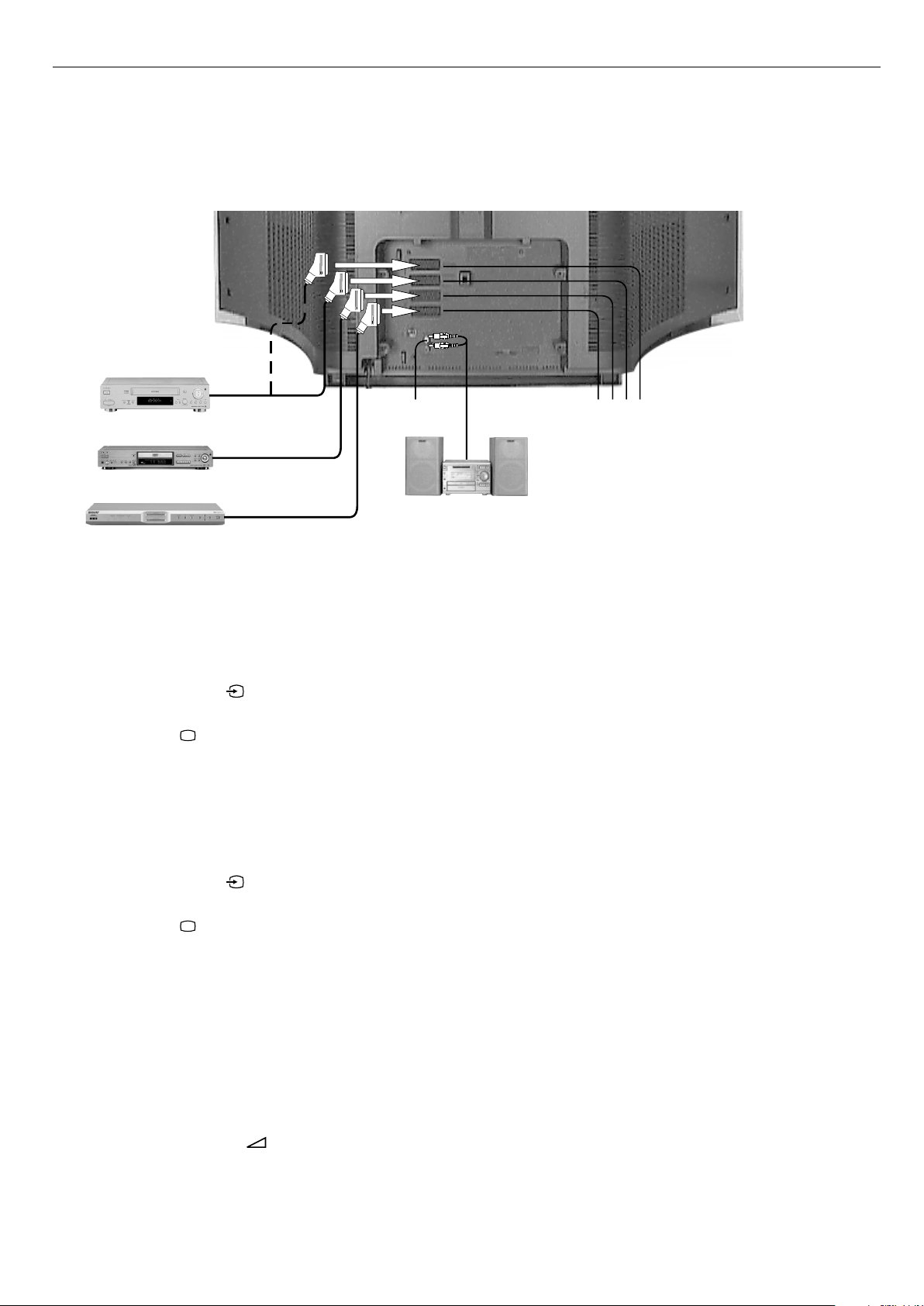

Connecting equipment to the rear sockets ...................................................23

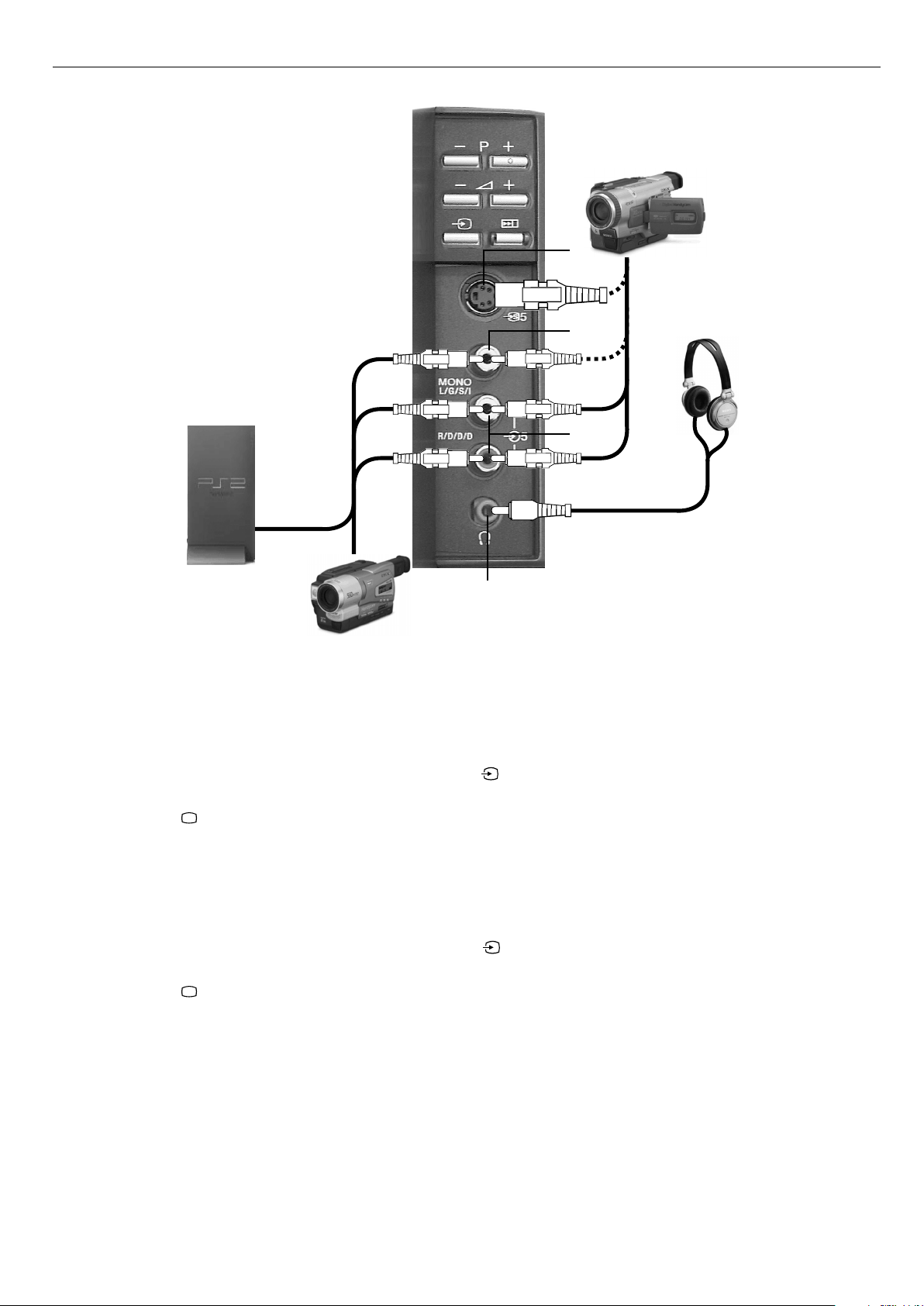

Connecting equipment to the front sockets ..................................................24

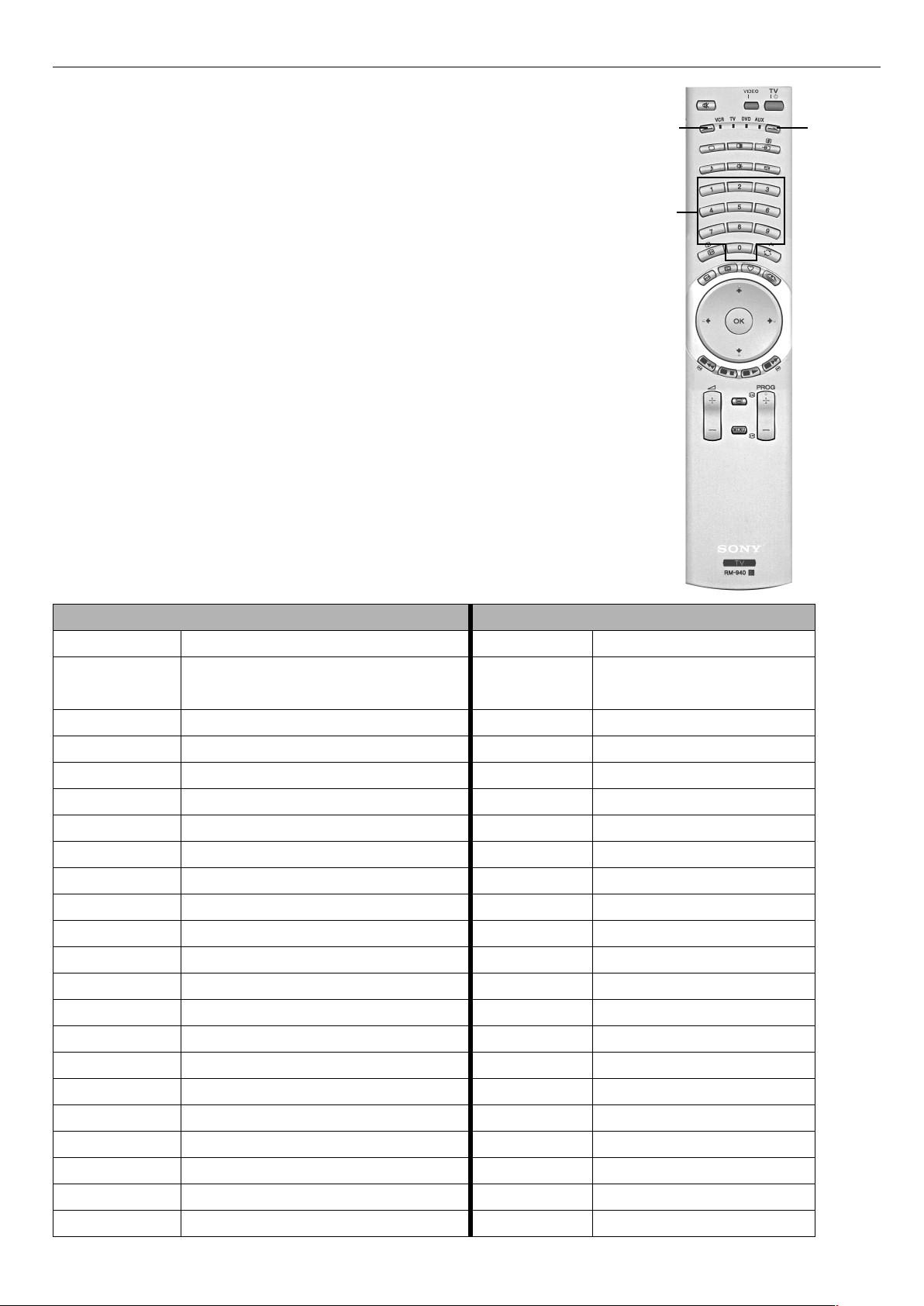

Using the remote control with DVD/VCR equipment ....................................25

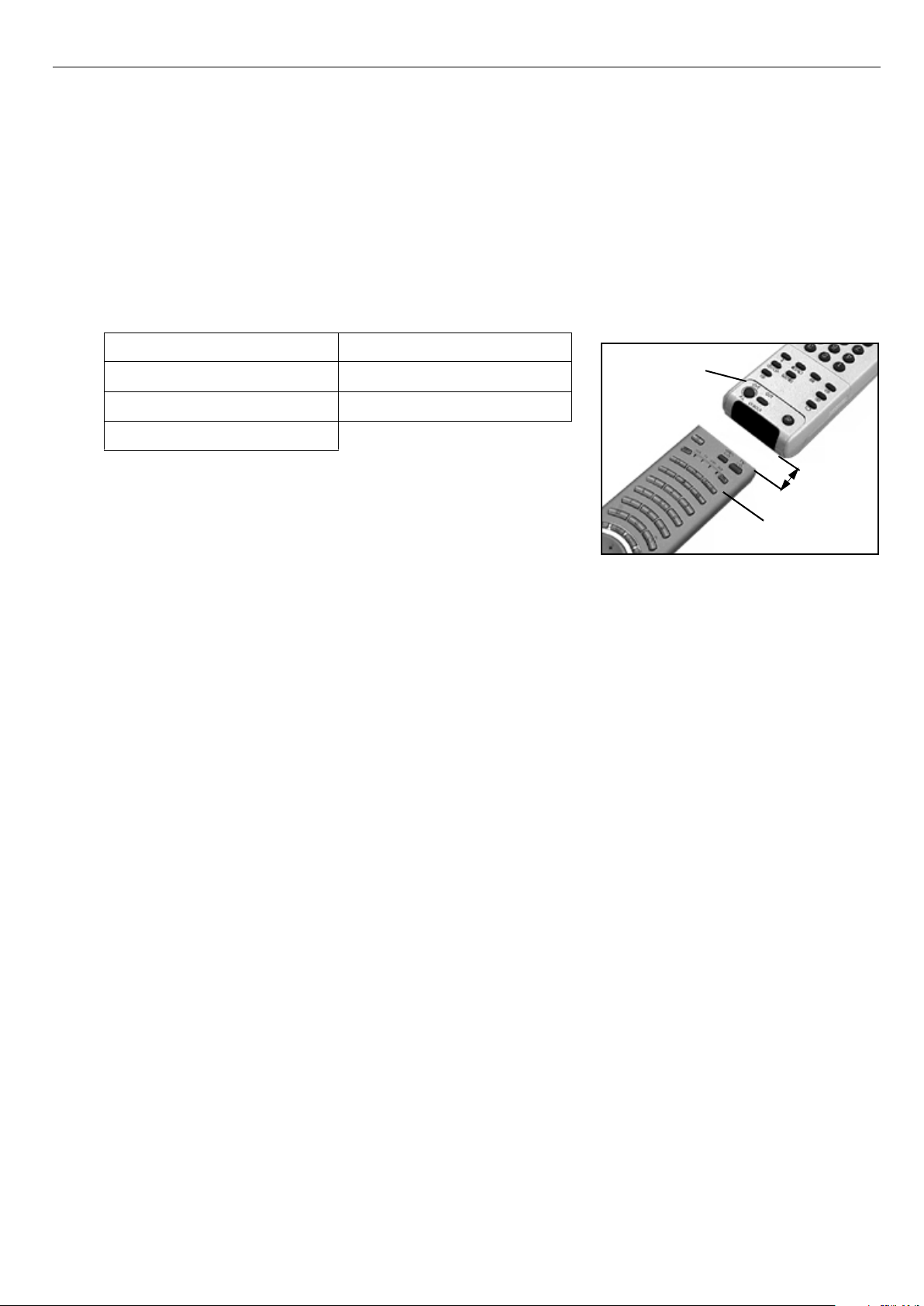

Teaching the remote control .........................................................................26

Additional information

Specifications ...............................................................................................27

Troubleshooting ............................................................................................28

Page 6

Getting started

Follow steps 1 - 6 to install your TV and view the

programmes.

1 Checking the accessories supplied

Batteries

Remote control

2 Inserting batteries into the remote control

Coin

Always remember to:

• observe the correct polarity when inserting batteries. (Refer to the markings in the battery case)

• dispose of batteries in an environmentally friendly way

Page 7

3 Connecting an aerial and a VCR to the TV

Connecting an aerial only

Connect your aerial lead to the aerial socket marked on the rear of

the TV.

Connecting an aerial and a VCR

Connect your aerial lead to the IN socket on your VCR.

Getting started

Connect a lead from the OUT socket on your VCR to the aerial socket

marked on the rear of the TV.

Connect a fully wired scart lead from the socket on the rear of

the TV to the scart socket on your VCR.

Connect the VCR to the mains socket and switch on.

Insert a pre-recorded tape into the VCR and press the ‘PLAY’ button. This

enables the TV to locate and store the video channel during the ‘Automatically tuning the TV’ procedure.

Notes: Socket names may vary depending on make and model of VCR. Refer to your VCR instruction manual for details.

If your VCR does not have a scart socket follow the connecting instructions above ignoring the scart lead connection. You will also need to manually tune the VCR to a spare TV channel.

4 Switching on the TV

Scart lead

(not

supplied)

RF lead

(not

supplied)

VCR

Connect the TV plug to your mains socket (220 - 240 V AC, 50 Hz).

Push in the on/off button on the side of the TV.

Note:

If the red indicator on the front of the TV is lit the TV is in standby mode. Press the TV button on the remote control to switch on the TV. Please be patient as the picture may take a few moments to appear on screen.

On/Off button

Page 8

Getting started

5 Automatically tuning the TV

When you switch on the TV for the first time, the Sony logo appears on the TV screen followed by the ‘Memory Stick’ logo, then the Language/ Country menu with the word ‘English’ highlighted. Press the V or v buttons on the remote control to choose the language you require then press the OK button to confirm.

Language/Countr y menu

The word Country is now highlighted. Press the V or v buttons to choose the country in which you are using the TV. It is important to select the correct country to ensure correct Teletext displays. Press the OK button to confirm your choice.

The picture rotation prompt appears. Sometimes the Earth’s natural magnetism can cause the screen to look tilted.

a) If no correction is required, press the OK button. b) If some correction is required, press the V or v button to rotate the

picture over a range of -5 to +5. Press the OK button to store.

The picture centering prompt appears. This allows you to adjust the vertical position of the display if it is not centralised.

a) If no correction is required, press the OK button. b) If some correction is required, press the V or v button to set the new

position. Press the OK button to store.

The autotune prompt screen appears. Press the OK button to select Yes. The autotune procedure begins, tuning all the available channels. A display then appears on the TV screen to inform you of the tuning progress.

If no channels are found, a display appears on screen asking you to confirm your aerial is connected. Check the aerial is connected correctly then press the OK button to repeat the tuning process.

Once tuning is complete, the ‘Programme Sorting’ prompt appears. If you wish to change the order of the stored channels, press the OK button and refer to page 20 for instructions. If you do not wish to sort the channels at this time, press the MENU button to return to normal operation.

Autotune prompt

Note:

If you need to re-enter the ‘Automatic Tuning’ procedure at any time, you can do so by pressing the Auto Start up button (refer to page 7)

To view programmes, press the PROG+/- button or the numbered buttons on the remote control.

6 Finding your video channel

If you connected a VCR to your TV when following the ‘Connecting an aerial and a VCR to the TV’ instructions, you now need to find your video channel.

Press the PROG+/- button on the remote control until the picture from the

pre-recorded tape appears on screen.

Notes:

If you wish to move your video channel to a different programme number, refer to ‘Programme Sorting’ on page 20.

If you have connected your VCR using a scart lead, press the repeatedly on the remote control until the picture from the pre-recorded tape appears on the TV screen.

/ button

Page 9

Overview of the TV buttons

The TV buttons can be found on the control panel on the side of the TV. An expanded view is shown below.

Press on the mark, then release to open the door.

Programme buttons

Press to display the next (+) or previous (-) channel.

Video input button

Press to select signals from equipment connected to the TV sockets (refer to page 23 for details).

Volume buttons

Press to increase (+) or decrease (-) the volume.

Auto Start up button

Press to start the auto start up sequence. This is useful if you move to a different area, and wish to use the ‘Automatic Tuning’ procedure again.

Note:

For information on the socket connections, refer to page 24 for details.

Page 10

Overview of the remote control buttons

Mute button

Press to mute the TV sound. Press again to restore the sound.

VIDEO button

Press to switch off your VCR or DVD temporarily. Press again to return to normal operation.

TV button

Press to switch off your TV temporarily. The red indicator on the front of the TV illuminates. Press again to return to normal operation.

./> buttons

This remote control can also operate other equipment (refer to page 26 for details).

TV button

Press to return to normal TV operation from Text or Video Input mode.

PAP button

Press to switch on PAP mode (refer to page 9 for details).

Input button /Hold button

Press to select signals from equipment connected to the TV sockets (refer to page 23 for details). In text mode press to keep a page on display. Press again to cancel.

Sound Mode button

Press to repeatedly change the ‘Sound Mode’.

Picture Mode button

Press repeatedly to change the ‘Picture Mode’.

Screen format button

Press repeatedly to change the screen mode. Refer to page 10 for details.

Buttons 0 - 9

Press to input the required channel number. For two digit numbers enter the second digit within 2 seconds. VCRs:- To input numbers 10 and above on your VCR, press the -/-- button on the remote control then press the 2 digit number eg press -/-- then press 2 and 3 for channel 23.

Info button

Press to reveal on screen information when available. In text mode, press to reveal hidden information (eg answers to a quiz). Press again to cancel.

Previous channel button

Press this button to return to the previous channel you were watching (provided you watched it for at least 5 seconds).

Favourite button

Press to display a list of your favourite stored programmes (refer to page 11 for details).

Freeze button

Press to freeze the TV picture (refer to page 17, Saving a TV picture to the ‘Memory Stick’).

EPG button

Press to display the EPG menu.

MEMORY STICK button

Press to display the ‘Memory Stick’ menu (refer to page 15 for details).

Control pad

Use these buttons to navigate through the menu system of the TV.

OK button

Press the OK button to store settings made in the menu system.

Coloured buttons

These buttons can be used as Fastext buttons (refer to page 14 for details). Note: When the remote has been set to operate VCR or DVD, the coloured buttons operate the main functions of your VCR or DVD.

Volume + and - button

Press to increase (+) or decrease (-) the volume.

Text button

Press to switch Text on or off (refer to page 14 for details).

MENU button

Press to enter the menu system of this TV (refer to page 18 for details).

PROG +/- button

Press to select the next or previous programme.

Page 11

Picture and Picture (PAP)

This feature divides the screen in two for watching two channels simultaneously. You can select which picture you wish to be active by pressing the B or b button. The active picture will be highlighted. The sound from the active picture can be heard through the TV loudspeakers.

Press the button to enter PAP mode.

Refer to the table below for explanations of each option.

Press the button to exit PAP mode.

Basic operation

PAP display

Selecting sound for the headphones

Changing the channel of the screens

Selecting screens

Zooming the screens

You can set the ‘Headphones Set-up’ feature to permanently output the sound from the picture displayed in the Right hand screen, or to output the sound from whichever picture you select to be active in the PAP mode (refer to the ‘Sound Adjustment’ menu on page 19).

Press the PROG +/- buttons to change the channel of the selected screen, or press the V or v button to change the channel of the non-selected screen. Alternatively, press the

button to view pictures from equipment connected to the

AV sockets of the TV.

Press the B or b button to select the screen you wish to view.

Press the B or b button to select the screen you wish to zoom.

Right screen selected: Press the b button to zoom. Left screen selected: Press the B button to zoom.

Note:

To return the zoomed screen to normal size, select the opposite screen, then press and hold the B or b button until both screens are the same size.

Page 12

Basic operation

Screen Mode

The pictures that this TV receives may be in one of several formats (e.g. conventional 4:3 format, 16:9 widescreen format). You can alter the TV screen mode manually to suit the broadcast you are watching:

Press the button repeatedly to select one of the following modes:

Smart: imitation of wide screen effect for 4:3 broadcasts.

4:3: for conventional 4:3 broadcasts.

14:9: compromise between 4:3 and 16:9 picture size.

Zoom: imitation of wide screen effect for movies broadcast in

Wide: for 16:9 broadcasts

for conventional 4:3 broadcasts

cinemascopic (letter box) format.

Note:

In Smart, Zoom and 14:9 modes parts of the top and bottom of the screen are cut off. Press the v or V button to adjust the position of the image on screen (e.g. to read subtitles).

Page 13

The Favourite menu gives you the option to: a) Compile a list of all the programmes you wish to store as favourites. b) Quickly display a favourite programme on screen. c) Add or delete programmes to the favourite list.

Viewing Favourite programmes

Favourite menu

Press the button on the remote control to display the Favourite menu.

This menu consists of a programme information area, and a favourite channel list. A maximum of 20 channels can be stored as favourites.

Note:

If no favourite programmes have been previously stored, a screen appears asking if you wish to set Favourite programmes. Press the B button to select ‘Yes’ then press OK. The Favourite Set-up menu appears. Follow the instructions for ‘Adding or deleting a Favourite channel’

Press the V or v buttons to move the cursor bar up or down the favourite

channel list. As each channel is highlighted, you can obtain a brief description of its programme by pressing the button (the availability of this description depends on the broadcaster). If there are more than 5 channels in the list, press the GREEN button to display the next group of channels or RED button to display the previous group.

When the programme you want to view is highlighted, press the OK

button to view the programme in the background. Press the button to return to normal operation.

To enter Favourite Set-up

With the Favourite menu on screen, press the BLUE button to display the

1 .

Favourite set-up menu. This menu shows all the channels available to you. A will be shown alongside channels already stored as favourites.

Favourite menu

Favourite Set-up menu

Adding or deleting a Favourite channel

Press the V or v button to highlight the channel you wish to add or delete.

If there are more than 5 channels in the selected list, press the GREEN button to display the next group of channels or the RED button to display the previous group. Alternatively, if you know the channel number, you can use the 0 - 9 buttons on the remote control to enter the channel number directly.

When the channel you wish to add or delete is highlighted, press the OK

button. This will either add a to show the channel is now stored as a favourite, or remove the existing .

To clear all Favourite channels

With the Favourite set-up menu on screen, press the YELLOW button.

A display appears asking you to confirm you wish to delete all favourites.

Press the B or b button to highlight ‘Yes’, then press the OK button.

Press the BLUE button to return to the Favourite menu.

Press the button to return to normal TV operation.

Page 14

EPG

The EPG menu provides a quick and easy way to: a) View a list of the programmes available. b) View a list relating to a category of programme, e.g. Sports or Movies. c) Set a programme to be recorded.

Note:

EPG is not instantly available from switch on. EPG data is obtained when the TV is in standby mode, and during this time the standby indicating light flashes to indicate that data is being obtained. This may take up to 30 minutes. When the flashing stops, press the button to exit standby mode, then proceed as follows. EPG availability is dependant on the broadcaster.

Press the button to display the EPG screen. This screen consists of

an event information area, a 2 hour timer bar (divided into 30 minute intervals) and a 7 channel programme list covering the 2 hour period.

Press the V or v buttons to move the cursor bar up or down the

programme list and the b or B buttons to move left and right. If you press the b button once more after highlighting the last programme on the right, the programmes scheduled for the next 2 hour period are displayed. As each programme is highlighted, a brief description of the programme appears in the event information area at the top of the screen. If you do not wish to view a programme from the 7 channels listed, press the GREEN button to display the next group of channels or the RED button to display the previous group of channels (if more than 7 channels are available).

When a currently broadcast programme you wish to view is highlighted,

press the OK button to exit the EPG menu and view the programme.

Selecting a category of programme

The Category list allows you to search for programmes quickly by dividing the channels into different categories. For example, if you select ‘News’ from the Category list, then only programmes related to News will be shown in the EPG menu.

With the EPG menu on screen, press the BLUE button to display the

Category display. This display contains icons representing categories such as sport and news.

EPG menu

Category list

Press the V, v, B or b buttons to highlight the category icon you want,

then press the OK button. The EPG programme list will now only contain programmes related to the category type selected.

The category types are as follows:

Icon Category

Displays all programme types

Displays programmes you have stored as favourites

Displays childrens programmes

Displays all entertainment programmes

Displays all movie programmes

Displays all sports programmes

Displays all news programmes

Displays all music programmes

Displays all arts programmes

Press the V, v, B or b buttons to highlight the programme you wish to

view from the new list, then press the OK button to view.

Note:

If you choose a category other than ‘All Programmes’ or ‘Favourites’, it is not stored when the TV is switched off, and will have to be selected again when the TV is next turned on.

Page 15

Selecting a programme for recording or timed display

With the EPG menu displayed press the V, v, B and b buttons to highlight a future programme, then press the YELLOW button to display the ‘Timer Menu’ pop-up display. This option allows you to choose from a) Set Recording Timer, b) Set WakeUp Timer or c) Manual Timers.

a) Set Recording Timer

Highlight ‘Set Recording Timer’ and press the OK button to automatically set your VCR to record the selected programme.

Notes: This option only works if your VCR has SMARTLINK capability and is connected to the AV3 SMARTLINK socket of the TV. If you do not have a SMARTLINK VCR, a message will tell you to set the timer recording function of your VCR so that it switches on and off to correspond with the programme you have stored for recording.

When a programme has been set for recording, a solid red bar appears under the timer bar in the menu, and the record symbol appears in the display. The coloured bar shows the time allocated for recording and reminds you that you are unable to record other programmes during that time period.

Once a recording has begun you can put the TV into its standby mode, but do not switch off completely or the recording may be cancelled.

b) Set Wake-Up Timer

Highlight ‘Set Wake-Up Timer’ and press OK if you wish the future programme you selected to automatically appear on screen when transmission starts. When you use this option a solid green bar appears under the timer bar in the menu and the timer symbol appears in the display. This coloured bar indicates that a ‘Set Wake-Up Timer’ request has been activated. If you are watching another programme just before the transmission is due to begin, the TV will automatically switch to the ‘Set Wake-Up Timer’ programme.

Note:

If you have placed the TV into standby, it will automatically turn itself on when the ‘Set Wake-Up Timer’’ programme is about to start. If the TV receives no command during the ‘Set Wake-Up Timer’ programme, it will return to the standby mode.

EPG

Timer Menu pop-up display

c) Manual Timers

Highlight ‘Manual Timers’ and press OK if you wish the TV to output a channel to your VCR for recording when the transmission begins. The Manual Timer display appears. Press the V or v button to set the day of recording, then press the b button to move to the start time. Repeat this procedure to set the start and stop times and the channel number, then press the OK button to store and return to the EPG menu. If you do not have a SMARTLINK VCR, a message reminds you to set your VCR timer. Press the OK button to continue. Press the button to remove the EPG menu. Unless you have a SMARTLINK VCR, you must now set the timer recording function of your VCR to switch on and off to correspond with the programme you have stored for recording.

Notes on recording:

The ‘ManualTimers’ feature only works if you have connected your VCR to the AV3 socket

TV into its standby mode, but do not switch off completely or the recording will be cancelled. If you put the TV into standby mode, the standby indicator on the front of the TV flashes green periodically to remind you a recording has been programmed.

on the rear of the TV. After you have programmed a recording you can put the

Timer List

The Timer pop-up menu also has a ‘Timer List’ option. If you highlight this and press the OK button, a screen is displayed showing all the programmes you have set for recording or wake up. To delete one of these programmes, proceed as follows:

Press the V or v button to highlight the programme you wish to delete then

press the OK button.

A message asks you to confirm deletion. Press the B button to highlight

‘Ye s ’, then press the OK button to confirm .

Manual timer display

Press button to return to normal TV operation.

Page 16

Text

Most TV channels provide a text service. The index page (usually page 100) provides information on how to use the service. Please ensure you are receiving a strong signal or some text errors may occur.

Viewing Text

Select the TV channel that carries the text service you wish to view.

Press the button to enter Picture and Text (P&T) mode. The screen is

divided into two with the Text display on the left and the TV channel in the right corner.

Notes:

If you wish to view the Text in full screen mode, press the button a second time.

Press the numbered buttons to enter a three digit number for the text

page you wish to view. Your selected page appears on screen.

Enter more 3 digit page numbers as required.

Press the button on the remote control at any time to exit Text mode.

Text display

How to use Text features

To select the next or preceding page

To select a sub page

To keep a page on display

To use Fastext Fastext allows you to access pages with one button push.

To use the Page Catching feature

To use the Reveal

function

Press the or button.

A text page can consist of several sub pages. In this case an information box is displayed at the bottom of the screen showing the number of sub pages available. Select the sub pages by pressing the B or b button.

Press the button. Press again to cancel.

When Fastext is available, four coloured items appear at the bottom of the screen. Press the corresponding coloured button on the remote control to display the page.

Select a page that contains several page numbers (e.g. the index page), then press the OK button. Press the V or v button to highlight the page number required, then press the OK button again. Your selected page appears on screen.

Press the button to reveal hidden information on the page (such as answers to a quiz).

Viewing Top-Text

If transmitted by the broadcasting authorities, Top-Text can be viewed on this TV.

Select a channel you know is broadcasting TOP-Text, then press the

YELLOW button to show a pop-up list of ‘group’ topics.

Press the V or v button to highlight the desired ‘group’, then press the

YELLOW button or OK button to select.

Press the BLUE button to show a pop-up list of ‘block’ topics.

Press the V or v button to highlight the desired ‘block’, then press the

BLUE button or OK button to select.

Press the button when you wish to exit Top-Text.

Page 17

A ‘Memory Stick’ is a new recording medium with a data capacity that exceeds a floppy disk. It is specially designed for exchanging and sharing digital data among ‘Memory Stick’ compatible products. Use the ‘Memory Stick’ to display JPEG pictures (DCF version 1.0 format) individually or as a slideshow presentation on the TV screen. Because it is removable, ‘Memory Stick’ can also be used for external data storage.

Notes: ‘Memory Stick’ and the logo are trademarks of Sony Corporation. DCF (Design rules for Camera File systems) is a standard format for digital still cameras, DV camcorders etc. It specifies the format used for naming JPEG files and the directories used on the ‘Memory Stick’. This format is supported by Sony and other manufacturers.

Inserting a ‘Memory Stick’

Insert a ’Memory Stick’ into the front control panel of the TV set until it clicks into the connector. The side showing the B symbol must be facing you and it must be pointing towards the ‘Memory Stick’ socket. The red light flashes indicating that the ‘Memory Stick’ contents are being read.

Memory Stick

Removing a ‘Memory Stick’

Confirm that the red light is off. Do not pull the ‘Memory Stick’. You must push the ‘Memory Stick’ and then release. The ‘Memory Stick’ will spring out.

Note: Data stored on a ‘Memory Stick’ may become damaged or erased if you remove the ‘Memory Stick’ when it is reading or writing data.

The ‘Memory Stick’ Thumbnail menu

Press the button to display the Thumbnail menu. This screen gives an overview of the ’Memory Stick’ content. From this menu you can also choose to see a slide show of the content, change the directory (if the ’Memory Stick’ contains more than one directory), format a ‘Memory Stick’ and change settings related to the viewing operation.

To view a picture

Press the v, V, B or b buttons to highlight the picture you wish to view.

There may be more pictures available than can be shown on the Thumbnail screen. If so, press the GREEN button to view the next group of pictures, or the RED button to view the previous group.

When you have selected the picture you want, press the OK button to

display the Thumbnail ‘Action List’. The picture you have selected for viewing will be outlined.

Thumbnail menu

The option ‘Full Screen View’ should now be highlighted. Press the OK

button to view the selected picture at full size. Whilst the picture is displayed at full size, you can select the next or previous picture for viewing by pressing the B or b buttons.

To return to the Thumbnail menu, first press the OK button to display the full

screen ‘Action List’. Make sure ‘Exit Full Screen View’ is highlighted, then press the OK button once again.

Page 18

Memory Stick

Slide Show

This feature allows you to display all the ’Memory Stick’ pictures as a slideshow presentation on the TV screen.

With the Thumbnail menu on screen, press the v, V, B or b buttons to

highlight ‘Slide Show’ then press the OK button.

The slideshow begins. (To change the length of time an image is displayed

refer to the ‘Set up’ section below).

Press the OK button anytime during the slideshow to return to the

‘Thumbnail’ menu.

Set up

This feature allows you to 1) set the length of time for a picture to be displayed during a slideshow, 2) set a slideshow to continuously repeat, 3) display photographs from all directories.

With the Thumbnail menu on screen, press the v, V, B or b buttons to

highlight ‘Set up’ then press the OK button to display the Set up menu.

Press the v or V button to highlight the option you require. The table below

explains each option and its function.

Press the B button to return to the Thumbnail display once all settings are

complete.

Slide Show Interval

Sets the length of time a picture is displayed during a slideshow.

Slide Show Repeat

Sets a slideshow to continuously repeat.

All Directory Slide Show

Displays photographs from all the available directories during the slideshow.

With ‘Slide Show Interval’ highlighted, press the OK button to activate. Press the v or V button to select 5 sec, 10 sec, 30 sec or 60 secs, then press the OK button to store your choice.

With ‘Slide Show Repeat’ highlighted, press the OK button to activate. Press the v or V button to select ‘On’ or ‘Off’ then press the OK button to confirm.

Highlight ‘All Directory Slide Show’ then press the OK button to activate. Press the v or V button to select ‘On’ or ‘Off’ then press the OK button to store your choice.

Set up menu

Change Directory

This feature allows you to choose the directory that you wish to be displayed in the Thumbnail menu.

With the Thumbnail menu on screen, press the v, V, B or b buttons to

highlight ‘Change Directory’ then press the OK button.

A directory list appears in the display.

Press the v or V buttons to select your desired directory, then press the OK

button. The photographs from that directory are now displayed in the Thumbnail menu.

Format

Highlight ‘Format’ then press the OK button to begin formatting. A message

display appears asking you to confirm you want to format the ’Memory Stick’. ‘Format’ will be highlighted.

Press the OK button to continue. A display will inform you when format is

complete.

Press the OK button to return to the Set up menu.

Directory list

Page 19

Saving a TV picture to the ‘Memory Stick’

Whilst you are viewing a TV picture, you can freeze the picture and store it onto the ‘Memory Stick’.

Note:

Please be aware that due to copyright limitations you will not be allowed to store images displayed via the AV inputs.

When the picture you wish to store appears on screen, press the

button to freeze the picture.

A message appears asking you if you wish to store the picture. Highlight

’Ye s ’ then press the OK button to store.

Other features

There are various features available to you whilst the Thumbnail ‘Action list’ or the full screen ‘Action list’ are on display. Press the v or V button you want and press the OK button to activate. The table below gives a description of how these features operate.

To access Thumbnail Action list: Choose a picture in the Thumbnail menu then press the OK button. To access full screen Action List: Follow instructions above to display the Thumbnail Action List, then with Full Screen View option highlighted, press the OK button to display a full screen picture. Press the OK button once more to display the full screen Action List.

to select the feature

Memory Stick

Feature Thumbnail

Delete Yes Yes Deletes the selected picture from the ’Memory

Set Print mark

Yes Yes If you wish, you can rotate the picture on view 90

Rotate

Protection Yes Yes When set to ‘On’, protection is added to prevent

Zoom No Yes When selected, the centre part of the displayed

Back Yes Yes This should only be selected if you have entered

Action List

Yes Yes Allows you to set the amount of printed copies

Full screen Action List

Operation

Stick’. A message display asks you to confirm deletion. Press v or V buttons to Highlight ‘Delete this File’, then press OK button.

required of the selected photograph. These can be printed from your personal printer, the Sony on-line printing service, or from a shop that conforms with Digital Print Order Format (DPOF) standard. When Set Print Mark is selected, a display appears allowing you to set the number of copies required by using the v or V buttons.

degrees clockwise or anti-clockwise. Press the v or V button to highlight or symbol, then press the OK button.

the picture from being accidentally deleted.

photograph is enlarged to fill the whole screen. Pressing the v, V, B or b buttons will display a different part of the picture as an enlarged view. Magnification can be increased by pressing the

button on the remote control. To exit Zoom mode, press the OK button. This will return you to the full screen picture mode.

one of the Action lists, and do not want to perform any of the operations available. When selected you will be returned to the Thumbnail menu or the full screen picture.

Thumbnail Action list

Full screen Action list

‘Memory Stick’ precautions

• Do not remove the ‘Memory Stick’ while it is reading or writing data.

• We recommend that you make a backup copy of important data that you record on the ‘Memory Stick’.

• Data may become damaged if:

- you remove the ‘Memory Stick’ or turn off the TV while it is reading or writing data.

- you use the ‘Memory Stick’ in a location subject to the effects of static electricity or electric noise.

• Do not allow the ‘Memory Stick’ to get wet.

• Do not use or store the ‘Memory Stick’ in a location that is:

- extremely hot, such as in a car parked in the sun.

- under direct sunlight.

- very humid or subject to corrosive substances.

• This TV supports DCF formatted JPEG files and directories only. Any files not recognised as DCF format will not be displayed. DCF formatted JPEG files that have been created or modified on a PC may not appear correctly on the TV screen.

• Some ‘Memory Stick’ compatible products may not work in accordance with the DCF format supported by this TV, and the images may not appear on screen. If in doubt please contact the manufacturer of your product.

• Before using a ‘Memory Stick’ Duo, please read the ‘Caution about Memory Stick Duo’ book supplied.

Page 20

TV menu system

Using the TV menu system

This TV contains a menu system which is based on a series of on screen displays. These displays help you get the most from your TV, from customising the picture and sound to accessing advanced features. Use the following buttons on the remote control to operate the TV menu system:

Press the MENU button to display the main menu.

Use the following buttons to operate the menu:

- Press the v or V buttons to highlight the required menu or option.

- Press the b button to enter the required menu or option.

- Press the B button to return to the last menu or option.

- Press the v, V, B or b buttons to alter the settings of the selected option.

- Press the OK button to confirm and store your selection.

Press the MENU button to remove the menu from the TV screen.

Picture Adjustment menu

This menu allows you to customise the TV picture settings. Highlight the required option and press b to select. The table below explains each option and how to use it.

Picture Mode

This option allows you to select one of four picture modes. Press V or v to select Live, Personal, Movie or Game. Press OK to confirm your choice.

Contrast, Brightness, Colour, Sharpness, Hue

These options allow you to adjust the contrast, brightness, colour and sharpness. Press B or b to set the levels. Press OK to confirm.

Note:

Hue will only be available if an NTSC broadcast is received. When adjusting these settings, the ‘Picture Mode’ automatically changes to ‘Personal’.

Reset

This option resets all picture settings to the factory preset levels. Press b to restore default picture settings.

Note:

This feature is only available when ‘Picture Mode’ is set to ‘Personal’.

Noise Reduction

Sometimes a weak signal can produce a snowy picture (called Picture Noise). This option can help to reduce this effect. Press V or v to select Off, Low, Auto or High. Press OK to confirm.

Colour Tone

This option allows you to alter the tint of the picture. The settings available are:

Warm: Gives the white colours a red tint. Normal: Gives the white colours a neutral tint. Cool: Gives the white colours a blue tint.

Picture adjustment menu

Press V or v to select Warm, Normal or Cool. Press OK to confirm.

Picture Power

This option allows you to view a picture enhancement technology demonstration, and set the contrast level to its optimum. Sharpness: Optimizes the sharpness levels of the TV picture. Press V or v to

select ‘Low’ (Demo) or ‘High’, then press OK to confirm your choice.

Note:

As this is a demonstration only, any changes made are not stored.

Contrast: Optimizes the contrast levels of the TV picture. Press V or v to

select ‘On’ or ‘Off’ then press OK to confirm your choice.

Page 21

TV menu system

Sound Adjustment menu

This menu allows you to customise the sound. Highlight the required option and press b to select. The table below explains each option and how to use it.

Sound Effect

This option allows you to select one of four sound modes. Press V or v to select Off, Natural*, Dynamic or Dolby V**. Press OK to confirm.

Notes:

*‘Natural’ and ‘Dynamic’ are functions of the ‘BBE High Definition Sound System’. This

system enhances clarity, detail, presence of sound and increases musical realism.

**This TV has been designed to create surround sound effect by simulating the sound of

four speakers with two speakers when the broadcast signal is Dolby Surround encoded. The sound effect can also be improved by connecting a suitable external amplifier (for details refer to page 23). Manufactured under licence from Dolby Laboratories. ‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories.

Treble, Bass

These options allow you to customise the sound by adjusting the treble and bass levels. Press B or b to set the levels. Press OK to confirm.

Balance

This option allows you to set the balance of sound between the left and right speakers. Press B or b to set the balance. Press OK to confirm.

Reset

This option resets all sound controls (treble, bass and balance) to the factory preset levels. Press b to restore default sound settings.

Sound adjustment menu

Auto Volume

Sometimes the broadcast volume level changes (e.g. adverts tend to be louder than programmes). This option allows you to cancel this effect, giving a constant volume level. Press V or v to select ‘Off’ or ‘On’. Press OK to confirm.

Note:

This option is not available when ‘Sound Effect’ is set to ‘Dolby V’.

Audio Type When receiving a bilingual broadcast: This option allows you to choose which

language to listen to. Press V or v to select A to listen to the first language or B to listen to the second language. Press OK to confirm.

When receiving a stereo broadcast: This option allows you to choose between mono or stereo sound. Press V or v to select Mono or Stereo. Press OK to confirm.

TV Speakers

This option allows you to switch the TV speakers on or off. Press V or v to set the speakers to ‘On’, ‘Off One Time’ or ‘Off Permanent’. Press OK to confirm.

Note:

This feature is useful when connecting external audio equipment (Hi-Fi etc.- see page 23).

Headphones Set-up

With this option you can configure settings for the headphones. Your options are as follows:

Vol ume : Allows you to set the volume level for the headphones. Press B

or b to adjust the volume. Press OK to confirm.

Audio Type: When receiving a bilingual broadcast: This option allows you

to choose which language to listen to. Press V or v to select A to listen to the first language or B to listen to the second language. Press OK to confirm.

When receiving a stereo broadcast: This option allows you to

choose between mono or stereo sound. Press V or v to select Mono or Stereo. Press OK to confirm.

PAP Selection: This option allows you to set which PAP picture sends its sound

to the headphones (refer to ‘Picture and Picture’ on page 9). Press V or v to select ‘Frame’ if you wish to hear the sound from the active picture (which will be highlighted) or ‘Right Picture’ to permanently hear the sound from the right picture. Press OK to confirm.

Note:

The headphone volume is independent of the main volume set by the volume +/- button

of the remote control. However, the output level from the Audio output socket on the

rear of the TV is determined by the main volume setting.

Page 22

TV menu system

Set up menu

This menu gives you access to more advanced features. The options are:

Language/Country

When you first installed the TV you were asked to select your language and country. The ‘Language’ and ‘Country’ options in this ‘Set-up’ menu allow you to change these settings. With the ‘Language’ or ‘Country’ option highlighted, press b to enter. Press v or V to select the desired Language or Country then press OK to confirm.

Auto Tuning

All the available channels were tuned in when the TV was first installed. This ‘Auto Tuning’ option allows you to repeat that process (e.g. to re-install the TV at an alternative location or search for new channels that have been launched by broadcasters). With the ‘Auto Tuning’ option highlighted, press b to select. The autotune prompt appears on screen. Press OK to start the auto tuning process. When all available channels have been tuned the TV returns to normal operation.

Programme sorting

This option allows you to change the order in which the channels are stored on the TV and delete unwanted channels. With the ‘Programme sorting’ option highlighted, press b to enter the ‘Programme sorting’ menu. Press v or V to highlight the channel you wish to move to a new position, then press b to select (press the OK button if you wish to delete the channel). Press v or V to highlight the new position for your channel, then press the OK button. Your chosen channel has now moved to the new position. Repeat to move other channels if required.

Set-up menu

Manual Tuning

This option allows you to manually tune in channels. With the ‘Manual Tuning’ option highlighted, press b to enter the Manual Tuning menu. Press v or V to highlight the programme number you wish to tune. Press OK to confirm, and display the setting screen. Press v or V to highlight System, then press the b button. Press v or V to set the system required. Choose from system I for UK or IRL for Ireland. Press the B button. Press v button to highlight Channel and press the b button. Press v or V to choose ‘C’ for terrestrial or ‘S’ for cable channels. Press the b button. The channel number is highlighted. (a) If you know the channel number you want: Press the numbered buttons

on the remote control to enter the channel number. Press OK to store.

(b) If you do not know the channel number: Press V to SEARCH.

The TV set automatically searches for the next available TV broadcast channel or the VCR test signal. When a channel has been found press either

OK to store or V to continue searching.

Naming a channel

The ‘Label’ option allows you to give the channel a personalised name.

a) Press v or V to highlight ‘Label’ then press the b button to enter. b) Press the v or V button to select the first letter or number of your choice.

Press b button to confirm. Select remaining characters in this way, then press the OK button to store.

AFT (Automatic Fine Tune)

This option allows you to fine tune the channel for optimum result.

a) Press the v or V button to highlight ‘AFT’ then press the b button to enter. b) Press the v or V button to adjust the tuning frequency over a range of -15 to

+15. Press the OK button to store.

Note:

In most cases it is best to leave the AFT option set to ‘On’.

Manual tuning setting screen

Decoder

This option allows you to set a channel for viewing an encoded signal (e.g. from a pay TV decoder.

a) Press v or V to highlight ‘Decoder’ then press the b button to enter. b) Press v or V to select AV1 or AV3 depending on which socket your decoder

is connected to. Press the OK button to store.

Page 23

AV3 Output

This option allows you to set which signal source is output from the AV3 scart socket (labelled ) on the rear of the TV. If you connect a VCR to this

3/s 3

socket you can record from equipment connected to the other sockets of the TV. Press V or v to select one of the following settings then press the OK button to confirm:

TV Always outputs the tuned analogue TV signal.

TV menu system

AV1 Outputs the signal from equipment connected to the

socket on the rear of the TV.

AV2 Outputs the signal from equipment connected to the

socket on the rear of the TV.

AV4 Outputs the signal from equipment connected to the

4/s 4

socket on the rear of the TV.

AV5 Outputs the signal from equipment connected to the

socket on the side of the TV.

AV Labels

This ‘AV Labels’ option allows you to assign a name to any equipment connected to the AV sockets of the TV. The name is then displayed briefly on screen when the equipment is selected. With the ‘AV Labels’ option highlighted, press b to enter the ‘AV Labels’ menu. Press v or V to highlight the socket you wish to name. Press b to select the LABEL column. Press v or V to select one of the preset names ‘Cable’, ‘CAM’, DVD’, ‘Sat’, or Video’. Select ‘Edit’ if you wish to assign your own name. Press OK to store.

Note:

If ‘Edit’ is selected, press b to select the LABEL column. Press v or V to select the first character. Press b to confirm this character. Select the other characters in the same way (up to a maximum of five characters). After selecting all required characters, press OK to store.

VCR Compensation

This option corrects jitter that can sometimes appear when playing back programmes recorded on a bad or faulty tape. With the ‘VCR Compensation’ option highlighted, press b button to enter. Press the v or V button to select the AV socket your VCR is connected to, then press b button to confirm. Press the v or V button to select ‘On’, then press OK button to store.

Notes on AV inputs:

AV1/AV2 inputs: These sockets accept Video inputs or RGB inputs. The TV

detects which input is being applied to the socket, and automatically displays the data on screen.

AV3/AV4 inputs: These sockets accept Video inputs or S-VHS inputs. The TV

detects which input is being applied to the socket, and automatically displays the data on screen.

Page 24

TV menu system

Screen Adjustment

With this option you can configure settings for the TV screen. Your options are as follows:

Auto Format: With this option switched on, the TV can automatically

4:3 Format Correction: When viewing 4:3 or 14:9 broadcasts there will be dark

Picture Rotation: Due to the Earth’s natural magnetism the picture might

RGB Setup: When viewing signals from RGB equipment connected

adjust the picture size to suit the broadcast. Press V or v to select ‘On’ or ‘Off’. Press OK to confirm.

areas visible at the edge of the screen. The settings available are:

4:3 Dark areas remain on the TV screen. Smart:The TV automatically switches to Smart mode,

eliminating any dark areas on the TV screen.

Press the V or v button to select ‘4:3’ or ‘Smart’. Press

OK to confirm.

Note:

This feature is only available when ‘Auto Format’ is set to ‘On’.

slant slightly. This option allows you to cancel out this effect. With the ‘Picture Rotation’ option highlighted, press b to select. Press v or V to rotate the picture over a range of -5 to +5. Press OK to store.

to the AV1 or AV2 sockets (e.g. DVD player, PlayStation) the picture may need adjusting. This option allows you to adjust the size and horizontal picture position of the signals from the RGB equipment. With the ‘RGB Setup’ option highlighted, press b to enter the ‘RGB Setup’ menu. Press b to select H Centre. Press v or V to centralise the picture over a range of -5 to +5. Press OK to store. Press v to select H Size. Press v or V to adjust the picture size over a range of -5 to +5. Press OK to store.

Note: If there is no RGB equipment connected to either the AV1 or AV2 scart sockets the ‘RGB Set-up’ option will not be available.

Select EPG

This option allows you to select the provider you wish to use to supply information for the EPG menu. With the ‘Select EPG’ option highlighted, press b to display the Select EPG menu. A list shows all the providers available. Press the v or V button to select the provider you wish to use. As you highlight each provider, all the services they offer is displayed on screen so you can select the one you find the most suitable. Press the OK button to store your choice (refer to page 12 for EPG operation).

Page 25

Connecting other equipment to the TV

A wide range of equipment can be connected to the TV through the front and rear sockets.

Connecting equipment to the rear sockets

VCR

DVD

Decoder/Set top box

Connecting a DVD player

Connect a scart lead from the B socket of the TV to a scart socket on

your DVD player (refer to your DVD instruction manual)

Insert a DVD into the DVD player, then press the ‘PLAY’ button. The

picture appears automatically on the TV. If not, press the button on the remote control repeatedly until the picture appears on screen.

Press the button when you wish to return to normal TV operation.

Connecting a Decoder/Set top box

Connect a scart lead from the A socket of the TV to a scart socket on

your set top box (refer to your set top box instruction manual).

Hi-Fi

ABCD

Note: Connecting cables are not supplied.

Switch on your set top box. The picture appears automatically on the TV.

If not, press the button on the remote control repeatedly until the picture appears on screen.

Press the button when you wish to return to normal TV operation.

Connecting a SMARTLINK VCR

SMARTLINK is a direct link between the TV and a SMARTLINK VCR. Ensure your SMARTLINK VCR is connected to the C socket labelled (

VCR, using a fully wired 21 pin scart lead. For more information on SMARTLINK, refer

to your SMARTLINK VCR instruction manual.

SMARTLINK) i3/r3

Connecting a Hi-Fi

Connect a phono jack lead from the E sockets of the TV to your Hi-Fi

(refer to your Hi-Fi instruction manual).

Use the Volume +/- button to set the required volume level. If you

want to turn your TV speakers off, please refer to ‘TV Speakers’ in the ‘Sound Adjustment’ menu on page 19.

Page 26

Connecting other equipment to the TV

PlayStation

S-VHS

Camcorder

Headphones

Camcorder

Connecting equipment to the front sockets

Connecting a PlayStation

Connect the lead supplied with your playstation to the sockets I (video

input), and J (left and right audio input).

Switch on the PlayStation, insert a game, then press the button on

the remote control repeatedly until the picture appears on screen.

Press the button when you wish to return to normal TV operation

Connecting an S-VHS/8mm/Hi8 Camcorder

Connect your camcorder to the sockets H and J or I and J as

shown.

Press the ‘PLAY’ button on your camcorder, then press the button on

the remote control repeatedly until the picture appears on screen.

Press the button when you wish to return to normal TV operation

Note:

Connecting cables are not supplied.

Connecting headphones

Connect your headphones to the G socket on the TV.

Refer to the ‘Headphones Set-up’ option (see Sound adjustment menu

on page 19) to set the volume level.

Page 27

Using the remote control with DVD and VCR equipment

This remote control has been configured to operate not only Sony DVDs and VCRs, but also those made by other manufacturers. To operate other makes of DVD and VCR using this remote control, complete the following procedure.

Find the 3 digit code for your brand from the list below. If your brand has more

than one code allocated to it, make a note of the first code only at this stage.

Press the > or . button on the remote control until either the VCR green

light or the DVD green light illuminates.

With the required green light illuminated, press and hold down the > button

for approximately 6 seconds, until the lights start to flash.

Using the numbered buttons, enter the 3 digit code for your DVD or VCR.

Once a correct number has been entered, all three green lights will illuminate momentarily.

Turn on your DVD or VCR and check that the remote control operates the

main functions. If not, repeat steps 2 - 4 and enter the next 3 digit code allocated to your brand of VCR or DVD.

When you wish to use the remote control to operate the TV again, press the

> or . button until the TV green light illuminates. Don’t forget to select VCR or DVD using the > or . buttons every time you wish to operate that equipment with this remote control.

Note: The brand codes you set may be lost if weak batteries are not replaced immediately. Should this

happen, use the above procedure to reset the code. A small label has been attached to the inside of the battery cover for you to make a note of your brand codes. Not all brands and models of DVDs or VCRs are covered in this list.

Additional information

> button . button

Numbered

but

tons

VCR Brand List DVD Brand List

Brand Code Brand Code

SONY (VHS) 301, 302, 303, 308, 309, 362 SONY

SONY (BETA) 303, 307, 310 AKAI 032

SONY (DV) 304, 305, 306 AIWA 021

AIWA 325, 331, 351 DENON 018, 027, 020, 002

AKAI 326, 329, 330 GRUNDIG 009, 028, 023, 024, 016, 003

DAEWOO 342, 343 HITACHI 025, 026, 015, 004, 035

GRUNDIG 358, 355, 360, 361, 320, 351, 366 JVC 006, 017

HITACHI 327, 333, 334 KENWOOD 008

JVC 314, 315, 322, 344, 352, 353, 354, 348, 349 LG 015, 014, 034

LG 332, 338 LOEWE 009, 028, 023, 024, 016, 003

LOEWE 358, 355, 360, 361, 320, 351 MATSUI 013, 016

MATSUI 356, 357 ONKYO 022, 033

ORION 328 PANASONIC 018, 027, 020, 002, 045, 046, 047

PANASONIC 321, 323 PHILIPS 009, 028, 023, 024, 016, 003, 031

PHILIPS

SAMSUNG 339, 340, 341, 345 SAMSUNG 011, 014

311, 312, 313, 316, 317, 318, 358, 359, 363, 364

PIONEER 004

001, 029, 030, 036, 037 , 038, 039, 040, 041, 042, 043, 044, 053, 054, 055

SANYO 335, 336 SANYO 007

SHARP 324 SHARP 019, 027

THOMSON 319, 350, 365 THOMSON 012

TOSHIBA 337 TOSHIBA 003

YAMAHA 018, 027, 020, 002

Page 28

Additional information

Teaching the remote control*

To reduce the number of remote controls you need, this remote control has a learning feature. Once set up as explained below, it can be used in place of your other remote controls.

Press and hold the . button for approximately six seconds, until the

‘AUX’ light flashes.

Press the button on which you wish to store a learned function. The VCR,

TV, DVD and AUX lights flash in order.

The following buttons can be used to store learned functions:

VIDEO I/1 button Numbered buttons

V, v, B, b buttons OK button

Coloured buttons Menu button

Prog+/- buttons

*The functions learned may be lost if weak batteries are not replaced immediately.

Other remote control

Position the other remote control as shown. Press the button that you

wish to teach your TV remote control. The VCR, TV, DVD and AUX lights illuminate at the same time when a function has been learned and stored.

Repeat steps 2 and 3 to learn other functions.

Press the . button to finish.

Erasing the last learned function

Press and hold the . button for approximately six seconds, until the

‘AUX’ light flashes.

Press the % button to erase the last learned function.

Press the . button to return to normal operation.

Erasing all the learned functions

Press and hold the . button for approximately six seconds, until the

‘AUX’ light flashes.

Press the % and . buttons to erase all learned functions.

2-4cm

TV remote control

Press the . button to return to normal operation.

Page 29

Specifications

TV System I

Additional information

Colour System PAL,SECAM

NTSC 3.58, 4.43 (only Video In)

Channel Coverage VHF: E2-E12

UHF: E21-E69 CATV: S1-S20 HYPER: S21-S41 UHF: UHF, B21-B69

Picture Tube KV-32HQ100B: Super Fine Pitch FD Trinitron Approx. 82cm

KV-36HQ100B: Super Fine Pitch FD Trinitron Approx. 91cm

Sound Output Left/Right: 2x20W (music power), 2x10W (RMS)

Subwoofer: 1x30W (music power), 1x15W (RMS)

Power Consumption

Dimensions (w x h x d)

KV-32HQ100B: Approx. 160W KV-36HQ100B: Approx. 160W

KV-32HQ100B: Approx. 1015 x 575 x 590mm KV-36HQ100B: Approx. 1100 x 625 x 620mm

Weight KV-32HQ100B: Approx. 68kg

KV-36HQ100B: Approx. 88kg

Rear Terminals 21-pin Euro connector (CENELEC standard) including audio/video input,

RGB input, TV audio/video output.

21-pin Euro connector (CENELEC standard) including audio/video input, RGB input, TV audio/video output

21-pin Euro connector (CENELEC standard) including audio/videoinput, S-video input, selectable audio/video output.

21-pin Euro connector (CENELEC standard) including audio/videoinput, S-video input.

RF In

Audio output - RCA phono jacks

Side Terminals Video input - phono jack

S video input - 4 pin

Audio inputs - phono jacks

DIN

Headphones jack - minijack stereo

Accessories Supplied

RM-940 remote control (1) IEC designated size AA battery (2)

Design and specification are subject to change without notice

Page 30

Additional information

Troubleshooting

Problem Possible causes Solutions

No picture, no sound. • Powe r off.

Poor or no picture (screen is dark), but good sound.

Some channels are blank. • Scrambled or subscription-only

Standby indicator flashing. • Fault (irregular flash).

Good picture, no sound. • Volume control.

No colour on colour programmes.

• TV in standby.

• Aerial disconnected.

• Picture preset level adjustment. • Select ‘Picture Adjustment’ menu then adjust the

channel.

• Programme used only for data (no picture or sound).

• Programme not being transmitted.

• EPG data being obtained

(regular flash).

• Timer record event has been set.

• TV speakers turned ‘Off’.

• Colour level setting. • Select ‘Picture Adjustment’ menu then adjust the colour

• Plug in the TV.

• Press the

indicator is on press the button on the remote control.

• Check aerial connection.

brightness, picture and colour levels.

• Subscribe to pay-per-view broadcaster.

• See ‘Programme Sorting’ section (refer to page 20).

• Do not open the cabinet, refer to qualified personnel.

• Contact your nearest SONY Service Centre.

• Wait until flashing stops.

• Wait until recording has ended.

• Press the + button on the remote control.

• If is displayed on the screen, press the button on

the remote control.

• Set TV speakers to ‘On’ in Sound Adjustment’ menu.

setting.

button on the front of the TV. If the

Remote control does not function.

Distorted picture when changing programmes or selecting teletext.

• Batteries low.

• Wrong mode.

• Inputs from external equipment not

switched off.

• Replace batteries.

• Press the > or . button to check if your remote

control is in the correct Mode for the equipment you are trying to control.

• Switch off all additionally connected equipment.

• If you continue to have these problems, have your TV serviced by qualified

personnel .

• NEVER open the casing yourself.

Page 31

Page 32

=KV-32HQ100

409583553

4-095-835-53

=KV-36HQ100

Sony Corporation Printed in Spain
