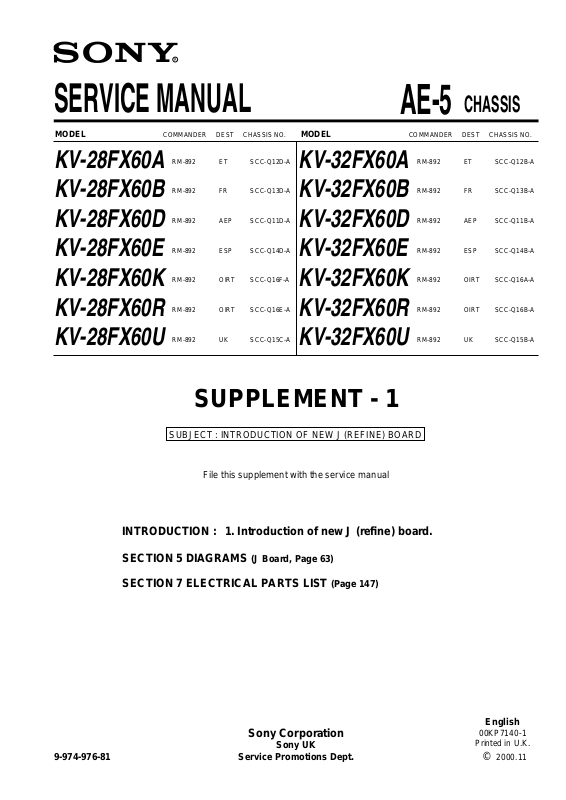

Page 1
R
SERVICE MANUAL CHASSIS
MODEL COMMANDER DEST CHASSIS NO. MODEL COMMANDER DEST CHASSIS NO.
KV-28FX60A
KV-28FX60B
KV-28FX60D
KV-28FX60E
KV-28FX60K
KV-28FX60R
KV-28FX60U
RM-892 ET SCC-Q12D-A
RM-892 FR SCC-Q13D-A
RM-892 AEP SCC-Q11D-A
RM-892 ESP SCC-Q14D-A
RM-892 OIRT SCC-Q16F-A
RM-892 OIRT SCC-Q16E-A
RM-892 UK SCC-Q15C-A
KV-32FX60A
KV-32FX60B
KV-32FX60D
KV-32FX60E
KV-32FX60K
KV-32FX60R
KV-32FX60U
AE-5
RM-892 ET SCC-Q12B-A
RM-892 FR SCC-Q13B-A
RM-892 AEP SCC-Q11B-A
RM-892 ESP SCC-Q14B-A
RM-892 OIRT SCC-Q16A-A
RM-892 OIRT SCC-Q16B-A
RM-892 UK SCC-Q15B-A
SUPPLEMENT - 1
SUBJECT : INTRODUCTION OF NEW J (REFINE) BOARD
File this supplement with the service manual
INTRODUCTION : 1. Introduction of new J (refi ne) board.
SECTION 5 DIAGRAMS (J Board, Page 63)
SECTION 7 ELECTRICAL PARTS LIST (Page 147)
9-974-976-81
Sony Corporation
Sony UK
Service Promotions Dept.
English
00KP7140-1
Printed in U.K.
© 2000.11
Page 2
J [PRINTED WIRING BO ARD (B side)]J [PRINTED WIRING BO ARD (A side)]
2
Page 3
123 4 5 6 7 8 9 1011121314151617181920
21
KV-28/32FX60
A
B
C
D
E
9-974-976-81
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
J [ INTERFACE/PIP/AUDIO/CHROMA/COMB FILTER (1/2)]
85 86
87
Page 4
19 182021
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
J [ INTERFACE/PIP/AUDIO/CHROMA/COMB FILTER (2/2)]
R
S
Page 5
ELECTRICAL PARTS LIST
When indicating parts by reference
number, please include the board
name.
CAPACITORS COILS
MF : mF, PF : mmF MMH : mH , uH
Items marked “ * “ are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
All variable and adjustable resistors have
characteristic curve B, unless otherwise
noted.
RESISTORS
All resistors are in ohms.
F : nonfl ammable.
REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK
A-1651-123-A MOUNTED PC BOARD, J (REFINE)
(KV-28FX60A/28FX60B/28FX60D/
28FX60E/28FX60K/28FX60R/
28FX60U/32FX60A/32FX60D/
32FX60E/32FX60K/32FX60R/
32FX60U)
A-1651-119-A MOUNTED PC BOARD, J (REFINE)
(KV-28FX60B)
<CAPACITOR>
C8224 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8225 1-104-664-11 ELECT 47UF 20.00% 16V
C8227 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C8228 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C8229 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C8230 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C8231 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C8232 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8233 1-104-664-11 ELECT 47UF 20.00% 16V
C8105 1-126-933-11 ELECT 100UF 20.00% 16V
C8234 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C8106 1-126-933-11 ELECT 100UF 20.00% 16V
C8107 1-126-935-11 ELECT 470UF 20.00% 16V
C8108 1-126-933-11 ELECT 100UF 20.00% 16V
C8109 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8235 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C8236 1-126-933-11 ELECT 100UF 20.00% 16V
C8237 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8238 1-164-505-11 CERAMIC CHIP 2.2UF 16V
C8110 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8239 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C8111 1-126-933-11 ELECT 100UF 20.00% 16V
C8112 1-128-551-11 ELECT 22UF 20.00% 25V
C8144 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C8145 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C8240 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C8241 1-126-964-11 ELECT 10UF 20.00% 50V
C8242 1-104-664-11 ELECT 47UF 20.00% 16V
C8243 1-110-501-11 CERAMIC CHIP 0.33UF 10.00% 16V
C8200 1-104-664-11 ELECT 47UF 20.00% 16V
C8301 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V
C8201 1-163-241-11 CERAMIC CHIP 39PF 5.00% 50V
C8202 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8203 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8204 1-164-506-11 CERAMIC CHIP 4.7UF 16V
C8302 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8303 1-126-933-11 ELECT 100UF 20.00% 16V
C8304 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8305 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8205 1-165-319-11 CERAMIC CHIP 0.1UF 50V
C8306 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C8208 1-164-506-11 CERAMIC CHIP 4.7UF 16V
C8209 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8210 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8211 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V
C8307 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8308 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8309 1-126-961-11 ELECT 2.2UF 20.00% 50V
C8311 1-104-664-11 ELECT 47UF 20.00% 16V
C8212 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V
C8313 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8213 1-163-087-00 CERAMIC CHIP 4PF 0.25PF 50V
C8214 1-163-087-00 CERAMIC CHIP 4PF 0.25PF 50V
C8215 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V
C8216 1-126-933-11 ELECT 100UF 20.00% 16V
C8314 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8318 1-104-664-11 ELECT 47UF 20.00% 16V
C8321 1-104-664-11 ELECT 47UF 20.00% 16V
C8322 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V
C8217 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8323 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8218 1-126-964-11 ELECT 10UF 20.00% 50V
C8219 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8220 1-126-964-11 ELECT 10UF 20.00% 50V
C8221 1-104-664-11 ELECT 47UF 20.00% 16V
C8324 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8325 1-126-964-11 ELECT 10UF 20.00% 50V
C8326 1-104-664-11 ELECT 47UF 20.00% 16V
C8327 1-107-682-11 CERAMIC CHIP 1UF 10.00% 16V
C8222 1-104-664-11 ELECT 47UF 20.00% 16V
C8328 1-104-664-11 ELECT 47UF 20.00% 16V
C8223 1-104-664-11 ELECT 47UF 20.00% 16V
Page 6
C8329 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8331 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8332 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8333 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8334 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
REF.NO. PART.NO DESCRIPTION REMARKREF.NO. PART.NO DESCRIPTION REMARK
C8706 1-163-235-11 CERAMIC CHIP 22PF 5.00% 50V
C8707 1-163-235-11 CERAMIC CHIP 22PF 5.00% 50V
C8708 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8709 1-126-964-11 ELECT 10UF 20.00% 50V
C8710 1-126-933-11 ELECT 100UF 20.00% 16V
C8335 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8336 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8337 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8338 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8345 1-164-346-11 CERAMIC CHIP 1UF 16V
C8346 1-126-963-11 ELECT 4.7UF 20.00% 50V
C8424 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8501 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8503 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8504 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8505 1-126-933-11 ELECT 100UF 20.00% 16V
C8506 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V
C8507 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8508 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8509 1-126-933-11 ELECT 100UF 20.00% 16V
C8510 1-104-664-11 ELECT 47UF 20.00% 16V
C8511 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8512 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8513 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8514 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8515 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8516 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8517 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8518 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8519 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8801 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8802 1-104-664-11 ELECT 47UF 20.00% 16V
C8803 1-104-664-11 ELECT 47UF 20.00% 16V
C8804 1-126-933-11 ELECT 100UF 20.00% 16V
C8810 1-164-222-11 CERAMIC CHIP 0.22UF 25V
C8811 1-164-222-11 CERAMIC CHIP 0.22UF 25V
C8812 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8814 1-104-664-11 ELECT 47UF 20.00% 25V
C8822 1-126-933-11 ELECT 100UF 20.00% 16V
C8825 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8826 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8827 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8828 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8829 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8830 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8831 1-126-964-11 ELECT 10UF 20.00% 50V
C8832 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8833 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8834 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8835 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8836 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8837 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8838 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8839 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8840 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8520 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8521 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8601 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8602 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8605 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8606 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8607 1-104-664-11 ELECT 47UF 20.00% 16V
C8608 1-104-664-11 ELECT 47UF 20.00% 16V
C8609 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8610 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8611 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8612 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8613 1-104-664-11 ELECT 47UF 20.00% 16V
C8614 1-104-664-11 ELECT 47UF 20.00% 16V
C8700 1-126-964-11 ELECT 10UF 20.00% 50V
C8701 1-104-664-11 ELECT 47UF 20.00% 16V
C8702 1-163-133-00 CERAMIC CHIP 470PF 5.00% 50V
C8703 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8704 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8705 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8841 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8842 1-104-664-11 ELECT 47UF 20.00% 16V
C8843 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8844 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C8846 1-126-933-11 ELECT 100UF 20.00% 16V
C8847 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8849 1-164-346-11 CERAMIC CHIP 1UF 16V
C8850 1-164-346-11 CERAMIC CHIP 1UF 16V
C8851 1-126-967-11 ELECT 47UF 20.00% 50V
C8852 1-164-346-11 CERAMIC CHIP 1UF 16V
C8853 1-126-967-11 ELECT 47UF 20.00% 50V
C8854 1-164-346-11 CERAMIC CHIP 1UF 16V
C8855 1-164-346-11 CERAMIC CHIP 1UF 16V
C8856 1-164-346-11 CERAMIC CHIP 1UF 16V
C8857 1-164-346-11 CERAMIC CHIP 1UF 16V
C8858 1-164-346-11 CERAMIC CHIP 1UF 16V
C8859 1-164-346-11 CERAMIC CHIP 1UF 16V
C8860 1-164-346-11 CERAMIC CHIP 1UF 16V
C8861 1-164-346-11 CERAMIC CHIP 1UF 16V
C8862 1-164-346-11 CERAMIC CHIP 1UF 16V
Page 7
C8863 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8864 1-164-346-11 CERAMIC CHIP 1UF 16V
C8865 1-104-664-11 ELECT 47UF 20.00% 16V
C8866 1-164-346-11 CERAMIC CHIP 1UF 16V
C8867 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
REF.NO. PART.NO DESCRIPTION REMARKREF.NO. PART.NO DESCRIPTION REMARK
D8813 8-719-158-49 DIODE UDZ-TE-17-12B
D8814 8-719-158-49 DIODE UDZ-TE-17-12B
D8900 8-719-056-85 DIODE UDZS-TE17-8.2B
D8901 8-719-158-49 DIODE UDZ-TE-17-12B
D8902 8-719-056-85 DIODE UDZS-TE17-8.2B
C8868 1-126-964-11 ELECT 10UF 20.00% 50V
C8869 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C8900 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8901 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C8902 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C8903 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8904 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C8905 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8906 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8907 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C8908 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8909 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C8910 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C8911 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C8914 1-126-933-11 ELECT 100UF 20.00% 16V
C8977 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C8978 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
<FILTER>
CF8200 1-781-328-21 TRAP, CERAMIC
<CONNECTOR>
CN8101 1-695-302-11 CONNECTOR, BOARD TO BOARD 50P
CN8900 1-561-534-41 SOCKET, PIN 21P
CN8901 1-695-293-11 SOCKET 21P
CN8902 1-695-293-11 SOCKET 21P
<DIODE>
D8200 8-719-158-49 DIODE UDZ-TE-17-12B
D8201 8-719-158-49 DIODE UDZ-TE-17-12B
D8202 8-719-158-49 DIODE UDZ-TE-17-12B
D8203 8-719-158-49 DIODE UDZ-TE-17-12B
D8801 8-719-158-49 DIODE UDZ-TE-17-12B
D8802 8-719-158-49 DIODE UDZ-TE-17-12B
D8803 8-719-158-49 DIODE UDZ-TE-17-12B
D8804 8-719-158-49 DIODE UDZ-TE-17-12B
D8805 8-719-158-49 DIODE UDZ-TE-17-12B
D8806 8-719-158-49 DIODE UDZ-TE-17-12B
D8807 8-719-158-49 DIODE UDZ-TE-17-12B
D8808 8-719-158-49 DIODE UDZ-TE-17-12B
D8809 8-719-158-49 DIODE UDZ-TE-17-12B
D8810 8-719-158-49 DIODE UDZ-TE-17-12B
D8811 8-719-158-49 DIODE UDZ-TE-17-12B
D8812 8-719-158-49 DIODE UDZ-TE-17-12B
D8903 8-719-056-85 DIODE UDZS-TE17-8.2B
D8904 8-719-056-85 DIODE UDZS-TE17-8.2B
D8905 8-719-056-85 DIODE UDZS-TE17-8.2B
D8906 8-719-056-85 DIODE UDZS-TE17-8.2B
D8907 8-719-158-49 DIODE UDZ-TE-17-12B
D8908 8-719-056-85 DIODE UDZS-TE17-8.2B
D8909 8-719-056-85 DIODE UDZS-TE17-8.2B
D8910 8-719-056-85 DIODE UDZS-TE17-8.2B
D8911 8-719-056-85 DIODE UDZS-TE17-8.2B
D8912 8-719-158-49 DIODE UDZ-TE-17-12B
D8913 8-719-158-49 DIODE UDZ-TE-17-12B
D8914 8-719-158-49 DIODE UDZ-TE-17-12B
D8915 8-719-158-49 DIODE UDZ-TE-17-12B
<FILTER>
FL8200 1-236-071-11 ENCAPSULATED COMPONENT
FL8201 1-233-764-21 FILTER
FL8203 1-236-071-11 ENCAPSULATED COMPONENT
FL8302 1-236-071-11 ENCAPSULATED COMPONENT
FL8304 1-236-071-11 ENCAPSULATED COMPONENT
FL8308 1-236-071-11 ENCAPSULATED COMPONENT
FL8500 1-236-071-11 ENCAPSULATED COMPONENT
FL8501 1-236-071-11 ENCAPSULATED COMPONENT
FL8502 1-233-765-21 FILTER
FL8503 1-233-768-21 FILTER
FL8504 1-233-766-21 FILTER
FL8700 1-236-071-11 ENCAPSULATED COMPONENT
FL8701 1-236-071-11 ENCAPSULATED COMPONENT
FL8801 1-236-071-11 ENCAPSULATED COMPONENT
FL8802 1-236-071-11 ENCAPSULATED COMPONENT
<IC>
IC8101 8-759-576-76 IC TDA2822D013TR
IC8151 8-752-072-94 IC CXA1875AM-T4
IC8200 8-759-654-42 IC MSP3410D-C5QA-B4
IC8201 8-759-701-36 IC MC3403NS-E20
IC8202 8-759-908-15 IC TL431CZ
IC8301 8-752-096-06 IC CXA2163Q-T6
IC8302 8-759-485-79 IC TC7SET08FU(TE85R)
IC8500 8-752-390-37 IC CXD2064Q-T6
IC8601 8-759-576-74 IC LF90CDT-TR
IC8602 8-759-576-72 IC LF50CDT-TR
IC8603 8-759-576-72 IC LF50CDT-TR
IC8604 8-759-576-72 IC LF50CDT-TR
IC8700 8-752-390-35 IC CXD2057M-T6
Page 8
IC8801 8-752-096-83 IC CXA2149AQ-TL
IC8802 8-759-385-76 IC MC14052BDR2
<JACK>
J8901 1-774-747-11 JACK BLOCK, PIN
<CHIP CONDUCTOR>
JR8401 1-216-295-11 SHORT 0
<COIL>
L8200 1-412-006-31 INDUCTOR 10UH
L8202 1-408-615-31 INDUCTOR 100UH
L8203 1-408-615-31 INDUCTOR 100UH
<TRANSISTOR>
Q8100 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8101 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8156 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8157 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8200 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8201 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8202 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8300 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8302 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8303 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8305 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8306 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8308 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8309 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8310 8-729-038-96 TRANSISTOR IMZ1A-T109
Q8501 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8503 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8504 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8700 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8801 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8802 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8805 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8807 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8809 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8817 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8818 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8819 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8901 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R
Q8902 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
REF.NO. PART.NO DESCRIPTION REMARKREF.NO. PART.NO DESCRIPTION REMARK
R8106 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8107 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8108 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8109 1-249-389-11 CARBON 4.7 5% 1/4W
R8110 1-249-389-11 CARBON 4.7 5% 1/4W
R8111 1-216-033-00 RES-CHIP 220 5% 1/10W
R8112 1-216-033-00 RES-CHIP 220 5% 1/10W
R8115 1-216-029-00 RES-CHIP 150 5% 1/10W
R8116 1-216-029-00 RES-CHIP 150 5% 1/10W
R8117 1-216-029-00 RES-CHIP 150 5% 1/10W
R8118 1-216-029-00 RES-CHIP 150 5% 1/10W
R8165 1-216-295-11 SHORT 0
R8167 1-216-025-11 RES-CHIP 100 5% 1/10W
R8168 1-216-025-11 RES-CHIP 100 5% 1/10W
R8174 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R8175 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R8200 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8201 1-216-295-11 SHORT 0
R8202 1-216-021-00 RES-CHIP 68 5% 1/10W
R8203 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R8204 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8205 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R8206 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8208 1-216-037-00 RES-CHIP 330 5% 1/10W
R8209 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R8210 1-216-025-11 RES-CHIP 100 5% 1/10W
R8211 1-216-295-11 SHORT 0
R8212 1-216-295-11 SHORT 0
R8213 1-216-295-11 SHORT 0
R8214 1-216-295-11 SHORT 0
R8216 1-216-025-11 RES-CHIP 100 5% 1/10W
R8217 1-216-025-11 RES-CHIP 100 5% 1/10W
R8218 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8219 1-216-025-11 RES-CHIP 100 5% 1/10W
R8220 1-216-025-11 RES-CHIP 100 5% 1/10W
R8221 1-216-025-11 RES-CHIP 100 5% 1/10W
R8222 1-216-295-11 SHORT 0
R8223 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8224 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8225 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8226 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8227 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8228 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8229 1-216-295-11 SHORT 0
R8230 1-216-081-00 RES-CHIP 22K 5% 1/10W
<RESISTOR>
R8103 1-216-075-00 RES-CHIP 12K 5% 1/10W
R8104 1-216-075-00 RES-CHIP 12K 5% 1/10W
R8105 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8231 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8232 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8233 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8234 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8235 1-216-089-11 RES-CHIP 47K 5% 1/10W
Page 9
R8236 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8237 1-216-043-91 RES-CHIP 560 5% 1/10W
R8238 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R8239 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R8240 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
REF.NO. PART.NO DESCRIPTION REMARKREF.NO. PART.NO DESCRIPTION REMARK
R8517 1-216-295-11 SHORT 0
R8519 1-216-037-00 RES-CHIP 330 5% 1/10W
R8520 1-216-041-00 RES-CHIP 470 5% 1/10W
R8521 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R8522 1-216-041-00 RES-CHIP 470 5% 1/10W
R8243 1-216-021-00 RES-CHIP 68 5% 1/10W
R8300 1-216-295-11 SHORT 0
R8302 1-216-017-91 RES-CHIP 47 5% 1/10W
R8306 1-216-083-00 RES-CHIP 27K 5% 1/10W
R8307 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8308 1-216-039-00 RES-CHIP 390 5% 1/10W
R8309 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8310 1-216-037-00 RES-CHIP 330 5% 1/10W
R8312 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8313 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8314 1-216-295-11 SHORT 0
R8316 1-216-037-00 RES-CHIP 330 5% 1/10W
R8317 1-216-295-11 SHORT 0
R8318 1-216-295-11 SHORT 0
R8319 1-216-295-11 SHORT 0
R8320 1-216-041-00 RES-CHIP 470 5% 1/10W
R8322 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8323 1-216-017-91 RES-CHIP 47 5% 1/10W
R8324 1-216-041-00 RES-CHIP 470 5% 1/10W
R8326 1-216-017-91 RES-CHIP 47 5% 1/10W
R8328 1-216-025-11 RES-CHIP 100 5% 1/10W
R8329 1-216-025-11 RES-CHIP 100 5% 1/10W
R8330 1-216-041-00 RES-CHIP 470 5% 1/10W
R8331 1-216-041-00 RES-CHIP 470 5% 1/10W
R8332 1-216-041-00 RES-CHIP 470 5% 1/10W
R8523 1-216-033-00 RES-CHIP 220 5% 1/10W
R8524 1-216-295-11 SHORT 0
R8526 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R8527 1-216-047-91 RES-CHIP 820 5% 1/10W
R8528 1-216-047-91 RES-CHIP 820 5% 1/10W
R8529 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R8530 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8531 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
R8532 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8700 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8701 1-216-073-00 RES-CHIP 10K 5% 1/10W
R8702 1-216-025-11 RES-CHIP 100 5% 1/10W
R8703 1-216-025-11 RES-CHIP 100 5% 1/10W
R8704 1-216-025-11 RES-CHIP 100 5% 1/10W
R8705 1-216-295-11 SHORT 0
R8706 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8707 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8708 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8709 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R8801 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8802 1-216-073-00 RES-CHIP 10K 5% 1/10W
R8803 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8804 1-216-073-00 RES-CHIP 10K 5% 1/10W
R8805 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R8806 1-216-085-00 RES-CHIP 33K 5% 1/10W
R8333 1-216-041-00 RES-CHIP 470 5% 1/10W
R8334 1-216-041-00 RES-CHIP 470 5% 1/10W
R8336 1-216-041-00 RES-CHIP 470 5% 1/10W
R8337 1-216-041-00 RES-CHIP 470 5% 1/10W
R8338 1-216-017-91 RES-CHIP 47 5% 1/10W
R8339 1-216-017-91 RES-CHIP 47 5% 1/10W
R8340 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R8341 1-216-041-00 RES-CHIP 470 5% 1/10W
R8344 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8345 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8346 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8347 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8506 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8507 1-216-295-11 SHORT 0
R8508 1-216-043-91 RES-CHIP 560 5% 1/10W
R8509 1-216-031-00 RES-CHIP 180 5% 1/10W
R8510 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R8511 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8512 1-216-295-11 SHORT 0
R8514 1-216-017-91 RES-CHIP 47 5% 1/10W
R8807 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8810 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R8813 1-216-073-00 RES-CHIP 10K 5% 1/10W
R8816 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8817 1-216-073-00 RES-CHIP 10K 5% 1/10W
R8820 1-216-295-11 SHORT 0
R8821 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8822 1-216-073-00 RES-CHIP 10K 5% 1/10W
R8826 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8836 1-216-025-11 RES-CHIP 100 5% 1/10W
R8846 1-216-295-11 SHORT 0
R8854 1-216-029-00 RES-CHIP 150 5% 1/10W
R8855 1-216-031-00 RES-CHIP 180 5% 1/10W
R8856 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R8857 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8858 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8859 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8864 1-216-295-11 SHORT 0
R8865 1-216-023-00 RES-CHIP 82 5% 1/10W
R8866 1-216-022-00 RES-CHIP 75 5% 1/10W
Page 10
R8867 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8868 1-216-033-00 RES-CHIP 220 5% 1/10W
R8869 1-216-033-00 RES-CHIP 220 5% 1/10W
R8870 1-216-295-11 SHORT 0
R8871 1-216-049-11 RES-CHIP 1K 5% 1/10W
REF.NO. PART.NO DESCRIPTION REMARKREF.NO. PART.NO DESCRIPTION REMARK
R8931 1-216-039-00 RES-CHIP 390 5% 1/10W
R8932 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8933 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8934 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8935 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8872 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8873 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8874 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8875 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8876 1-216-093-91 RES-CHIP 68K 5% 1/10W
R8877 1-216-093-91 RES-CHIP 68K 5% 1/10W
R8878 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8879 1-216-689-11 METAL CHIP 39K 0.5% 1/10W
R8880 1-216-295-11 SHORT 0
R8881 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8882 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8883 1-216-663-11 METAL CHIP 3.3K 0.5% 1/10W
R8885 1-216-663-11 METAL CHIP 3.3K 0.5% 1/10W
R8888 1-216-033-00 RES-CHIP 220 5% 1/10W
R8889 1-216-033-00 RES-CHIP 220 5% 1/10W
R8890 1-216-295-11 SHORT 0
R8892 1-216-295-11 SHORT 0
R8893 1-216-295-11 SHORT 0
R8900 1-216-039-00 RES-CHIP 390 5% 1/10W
R8901 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8902 1-216-039-00 RES-CHIP 390 5% 1/10W
R8903 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8904 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8905 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8906 1-216-035-00 RES-CHIP 270 5% 1/10W
R8936 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8937 1-216-035-00 RES-CHIP 270 5% 1/10W
R8938 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8939 1-216-035-00 RES-CHIP 270 5% 1/10W
R8940 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8941 1-216-025-11 RES-CHIP 100 5% 1/10W
R8942 1-216-009-91 RES-CHIP 22 5% 1/10W
R8943 1-216-022-00 RES-CHIP 75 5% 1/10W
R8944 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8945 1-216-022-00 RES-CHIP 75 5% 1/10W
R8946 1-216-033-00 RES-CHIP 220 5% 1/10W
R8947 1-216-039-00 RES-CHIP 390 5% 1/10W
R8948 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8949 1-216-022-00 RES-CHIP 75 5% 1/10W
R8950 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8951 1-216-033-00 RES-CHIP 220 5% 1/10W
R8952 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8953 1-216-035-00 RES-CHIP 270 5% 1/10W
R8954 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8955 1-216-039-00 RES-CHIP 390 5% 1/10W
R8956 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8957 1-216-025-11 RES-CHIP 100 5% 1/10W
R8958 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8959 1-216-022-00 RES-CHIP 75 5% 1/10W
R8960 1-216-033-00 RES-CHIP 220 5% 1/10W
R8907 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8908 1-216-035-00 RES-CHIP 270 5% 1/10W
R8909 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8911 1-216-025-11 RES-CHIP 100 5% 1/10W
R8913 1-216-022-00 RES-CHIP 75 5% 1/10W
R8914 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8915 1-216-022-00 RES-CHIP 75 5% 1/10W
R8916 1-216-033-00 RES-CHIP 220 5% 1/10W
R8917 1-216-033-00 RES-CHIP 220 5% 1/10W
R8918 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8919 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8922 1-216-022-00 RES-CHIP 75 5% 1/10W
R8923 1-216-022-00 RES-CHIP 75 5% 1/10W
R8924 1-216-022-00 RES-CHIP 75 5% 1/10W
R8925 1-216-022-00 RES-CHIP 75 5% 1/10W
R8926 1-216-033-00 RES-CHIP 220 5% 1/10W
R8927 1-216-033-00 RES-CHIP 220 5% 1/10W
R8928 1-216-033-00 RES-CHIP 220 5% 1/10W
R8929 1-216-039-00 RES-CHIP 390 5% 1/10W
R8930 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8961 1-216-022-00 RES-CHIP 75 5% 1/10W
R8962 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8963 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8964 1-216-035-00 RES-CHIP 270 5% 1/10W
R8965 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8968 1-216-022-00 RES-CHIP 75 5% 1/10W
R8969 1-216-033-00 RES-CHIP 220 5% 1/10W
R8974 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8977 1-216-037-00 RES-CHIP 330 5% 1/10W
R8978 1-216-037-00 RES-CHIP 330 5% 1/10W
R8979 1-216-045-00 RES-CHIP 680 5% 1/10W
R8980 1-216-045-00 RES-CHIP 680 5% 1/10W
R8981 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8982 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8994 1-216-073-00 RES-CHIP 10K 5% 1/10W
R8995 1-216-089-11 RES-CHIP 47K 5% 1/10W
R8996 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
Page 11
<CRYSTAL>
X8200 1-781-148-21 VIBRATOR, CRYSTAL
X8301 1-781-612-11 VIBRATOR, CRYSTAL
X8700 1-767-342-21 VIBRATOR, CRYSTAL
REF.NO. PART.NO DESCRIPTION REMARKREF.NO. PART.NO DESCRIPTION REMARK
Loading...
