Sony KV-32CS71B Users guide

Page 1

2-593-187-21

Colour Television

Operating Instructions

Before operating the TV, please read the “Safety Information” section of this manual. Retain this manual for future reference.

KV-32CS71B

Page 2

Page 3

Introduction

Thank you for choosing this Sony FD Trinitron Colour Television.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

• Symbols used in the manual:

• Important information.

• Information on a feature.

• 1,2... Sequence of instructions.

• Shaded buttons on the remote control show you the buttons you have to press to follow the sequence of the instructions.

• Informs you of the result of instructions.

Table of Contents

Introduction .............................................................................................................................................. 3

Safety Information.................................................................................................................................... 4

Overview

Overview of Remote Control Buttons....................................................................................................... 5

Overview of TV Buttons .......................................................................................................................... 6

Installation

Inserting Batteries into the Remote Control............................................................................................. 6

Connecting the Aerial and VCR .............................................................................................................. 6

First Time Operation

Switching On the TV and Automatically Tuning ...................................................................................... 7

Menu system

Introducing and Using the Menu System................................................................................................. 9

Menu Guide:

Picture Adjustment.......................................................................................................................... 9

Sound Adjustment .......................................................................................................................... 10

Sleep Timer .................................................................................................................................... 11

Language/Country .......................................................................................................................... 11

Auto Tuning .................................................................................................................................... 11

Programme Sorting......................................................................................................................... 12

Programme Labels ......................................................................................................................... 12

AV Preset........................................................................................................................................ 12

Manual Programme Preset............................................................................................................. 13

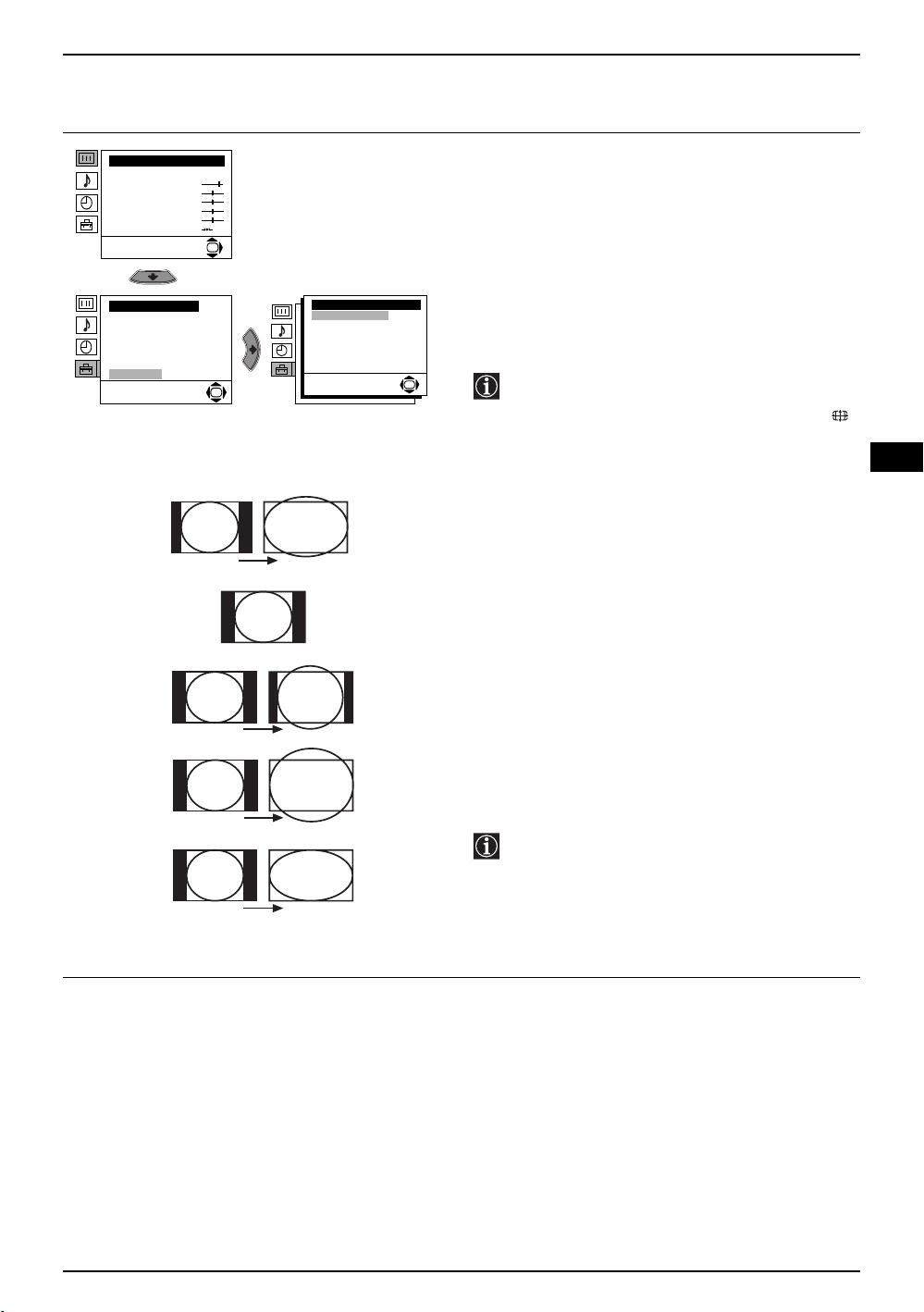

Auto Format .................................................................................................................................... 15

Noise Reduction ............................................................................................................................. 16

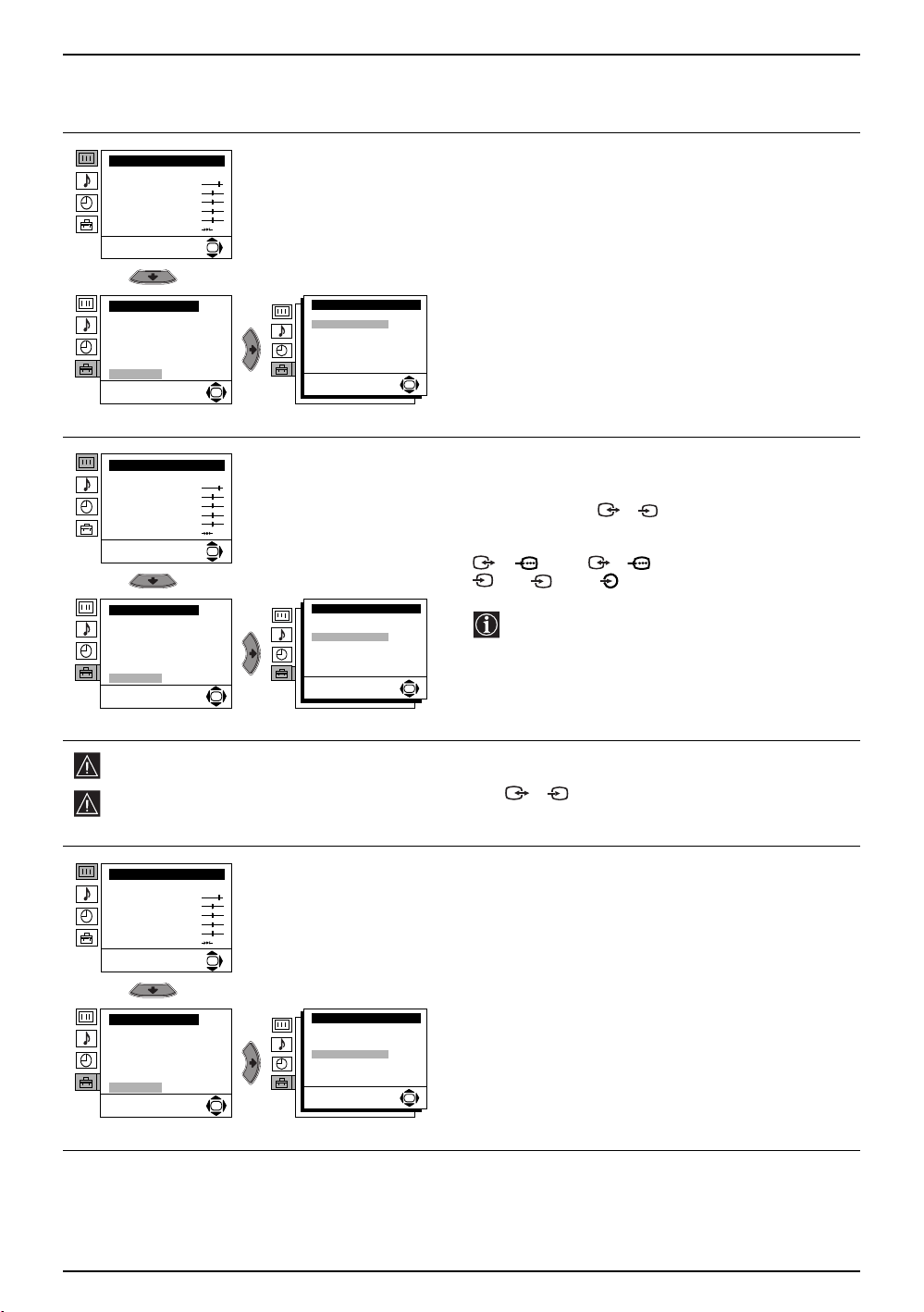

AV3 Output ..................................................................................................................................... 16

TV Speakers................................................................................................................................... 16

RGB Centring ................................................................................................................................. 17

Picture Rotation .............................................................................................................................. 17

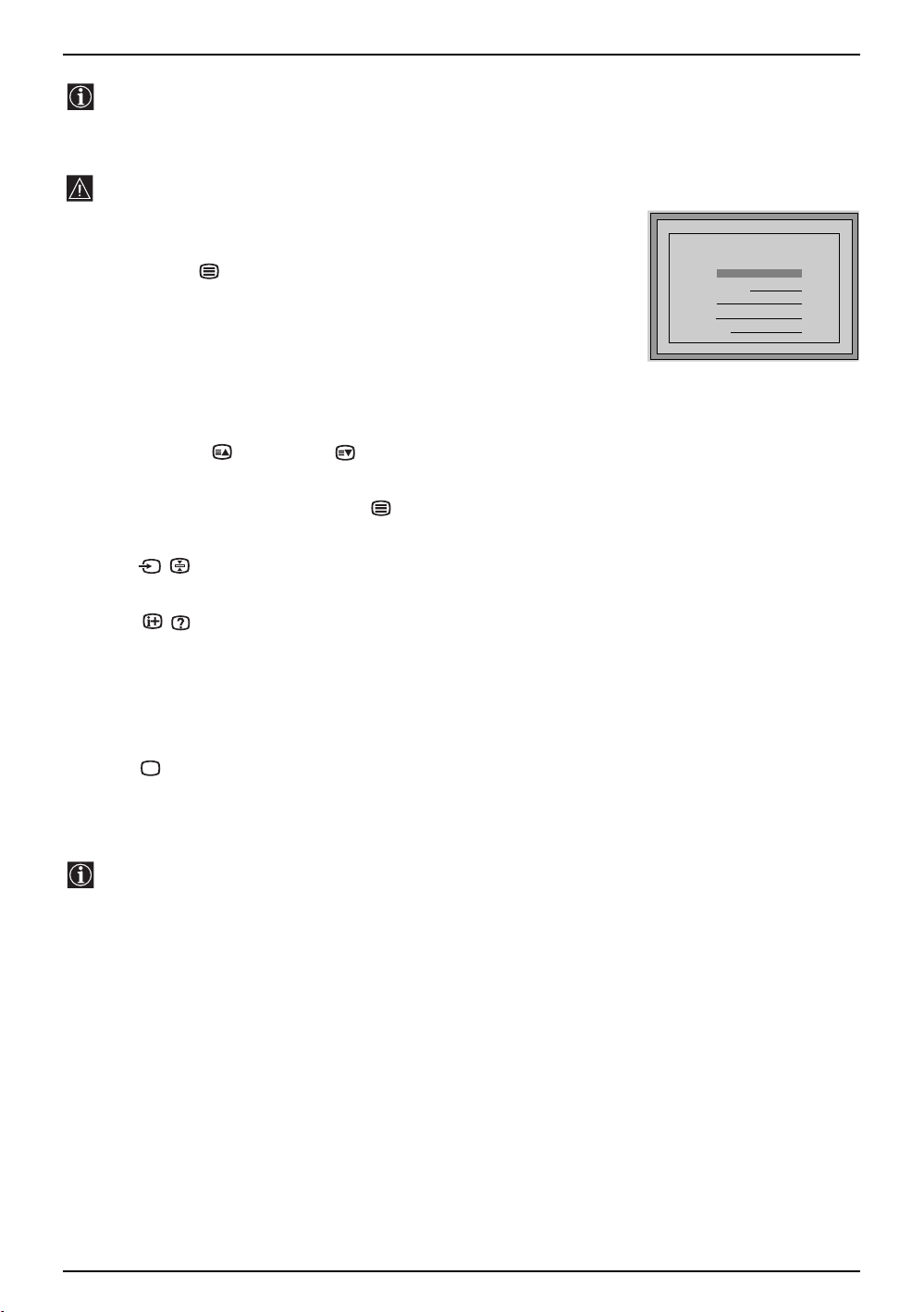

Teletext.................................................................................................................................................. 18

Additional Information

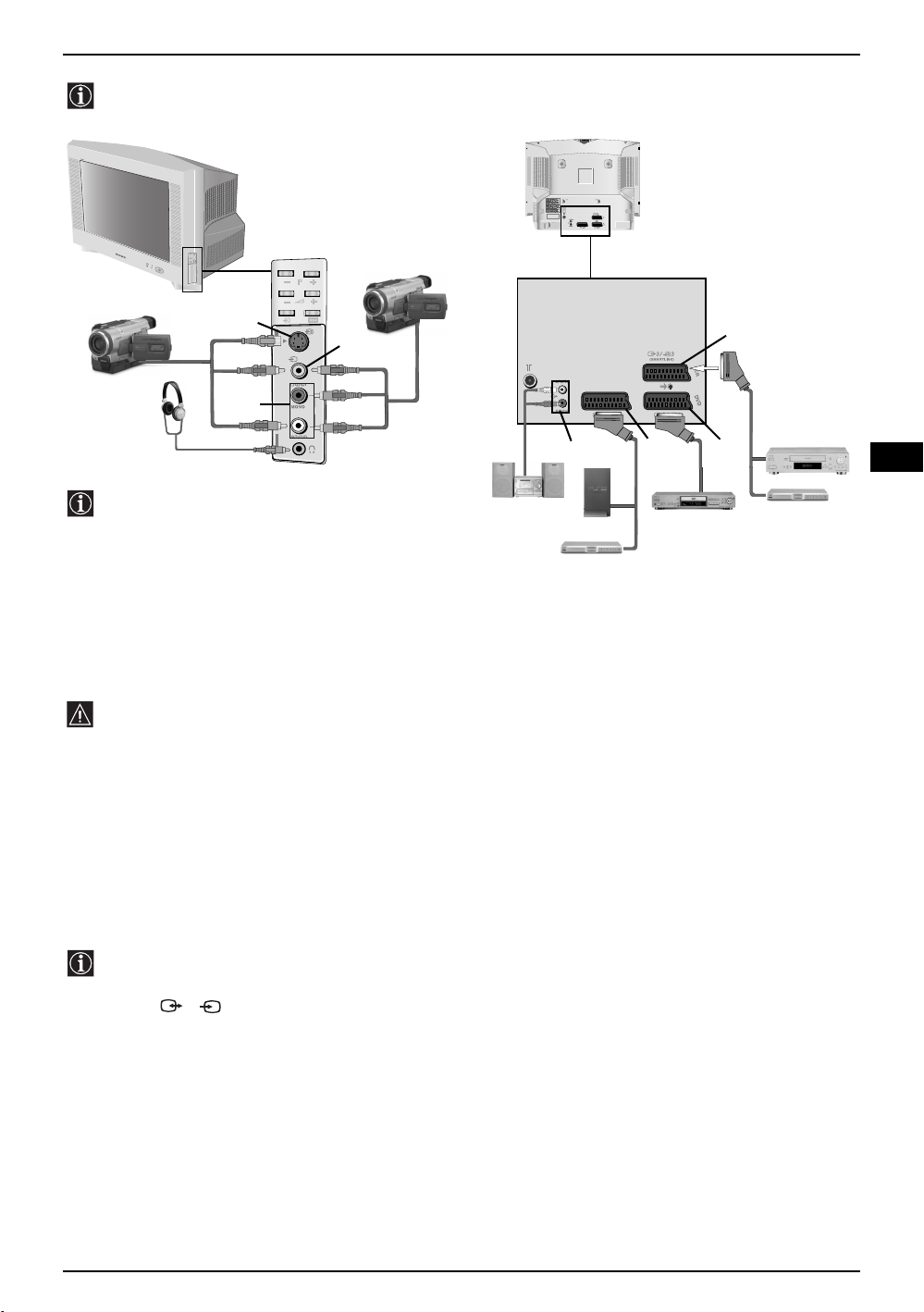

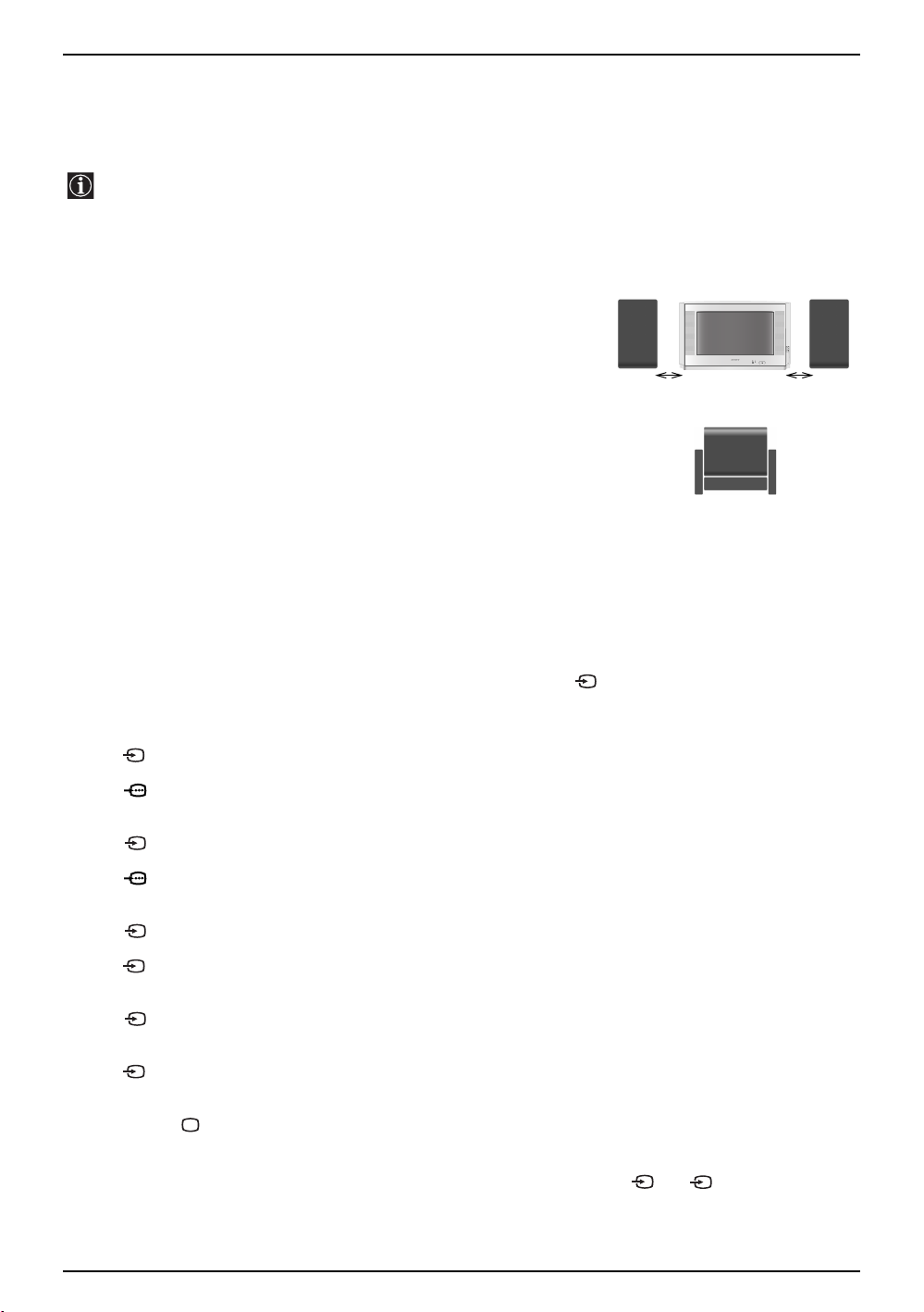

Connecting Optional Equipment .............................................................................................................. 19

Using Optional Equipment ....................................................................................................................... 20

Specifications........................................................................................................................................... 21

Disposal of Old Electrical & Electronic Equipment .................................................................................. 21

Troubleshooting ....................................................................................................................................... 22

Table of Contents 3

Page 4

Safety Information

This set is to operate on a 220-240V AC supply only. Take care not to connect too many appliances to the same power socket as this could result in fire or electric shock.

Do not open the cabinet and the rear cover of the TV. Refer to qualified service personnel only.

Do not cover the ventilation openings of the TV For ventilation, leave a space of at least 10cm all around the set.

For environmental and safety reasons, it is recommended that the TV set is not left in standby mode when not in use. Disconnect from the mains. However, some TVs may have features which require they are left in standby. The instructions in this manual will inform you if this applies.

For your own safety, do not touch any part of the TV, power lead or aerial lead during lightning storms.

Never place the TV in hot, humid or excessively dusty places. Do not install the TV where it may be exposed to mechanical vibrations.

Never push objects of any kind into the set as this could result in a fire or electric shock. Never spill liquid of any kind on the set. If any liquid or solid object does fall into the cabinet, do not operate the TV. Have it checked immediately by qualified personnel.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

To prevent fire, keep inflammable objects or naked lights (eg candles) away from the TV.

Clean the screen and cabinet with a soft, lightly dampened cloth. Do not use any type of abrasive pad, alkaline cleaner, scouring powder or solvent, such as alcohol or benzine, or antistatic spray. As a safety precaution, unplug the TV before cleaning it.

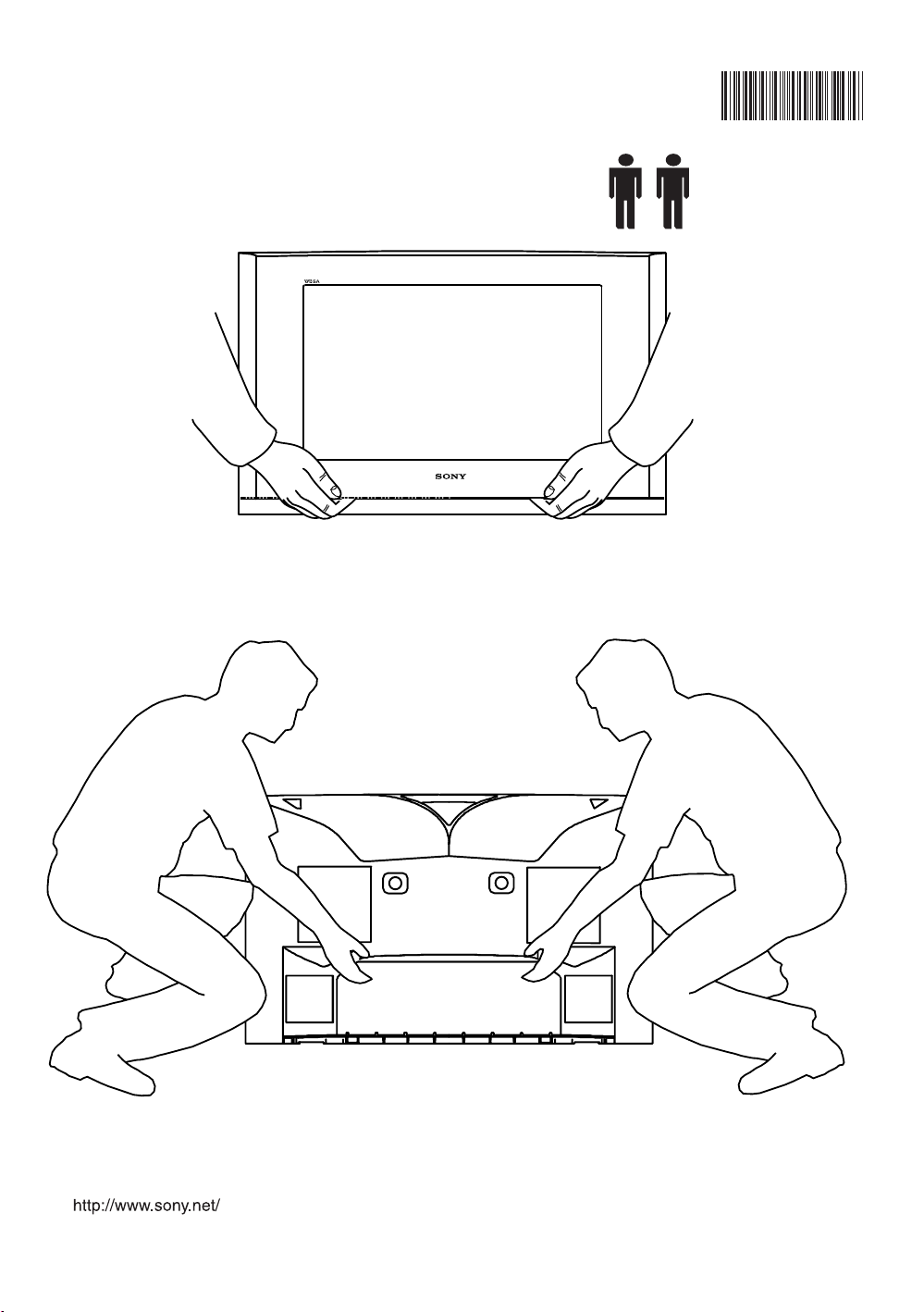

Place the TV on a secure stable stand. Never attempt to move the TV and stand together - always move the TV and stand separately. Do not place the TV on its side or face up. Do not allow children to climb on to it.

4 Safety Information

Pull out the power lead by the plug. Do not pull on the power lead itself.

Unplug the power lead before moving the TV. Avoid uneven surfaces, quick steps or excessive force. If the set has been dropped or damaged, have it checked immediately by qualified service personnel.

Take care not to place heavy objects on the power lead as this could result in damage. We recommend you wind any excess lead around the holders provided on the rear of the TV.

Do not cover the ventilation openings of the TV with items such as curtains or newspapers etc.

Page 5

Overview of Remote Control Buttons

1 To Temporarily Switch Off TV: Press to temporarily switch off TV

(standby indicator on TV lights up). Press again to switch on TV from standby mode. To save energy we recommend switching off completely when TV is not in use. After 15 minutes without a signal and without any button being pressed, the TV switches automatically into standby mode.

2 Selecting input source: Press repeatedly until the desired input

symbol of the source appears on the TV screen.

3 Selecting channels: Press to select channels. For double-digit

programme numbers, enter the second digit within 2.5 seconds.

qj qh

qg qf

4 Press to watch the last channel selected (watched for at least 5

seconds).

5 This button only works in Teletext mode.

6 This button only works in Teletext mode.

7 Selecting Teletext: Press to switch on teletext.

8 When MENU is switched on, use these buttons to operate the menu

system. For details refer to “Introducing and Using the Menu System” on page 9. When MENU is switched off, press OK to show a channel overview. Then press v or V to select the channel and then press the OK button to watch the selected channel.

9 Selecting Screen format: Press this button repeatedly to change

the screen format. For more details refer to ‘Auto Format’ on page 15.

q; Selecting channels: Press to select the next or previous channel.

qa Muting the Sound: Press to mute TV sound. Press again to restore

the sound.

qs Adjusting TV volume: Press to adjust the volume of the TV.

qd Displaying the menu system: Press to display the menu on the TV

screen. Press again to remove the menu display from the TV screen.

qf Selecting TV mode: Press to switch off teletext or video input.

qg Selecting Picture mode: Press repeatedly to change the picture

mode.

qh Selecting Sound mode: Press repeatedly to change the sound

mode.

qj Displaying on Screen information: Press to display all on-screen

indications. Press again to cancel.

Besides TV functions, all coloured buttons as well as green symbols are also used for Teletext operation. For more details, please refer to “Teletext” section of this instruction manual.

Overview 5

Page 6

Overview of TV Buttons

Standby indicator

Pull open the door on the side of the TV to reveal the sockets

Selecting Input source

S video Input jack

Programme Up or Down Buttons (Selects TV channels)

Volume control buttons

Auto Start Up Button

Video Input jack

Audio

Input jacks

On/Off switch

Inserting Batteries into the Remote Control

Make sure you insert the supplied batteries observing the correct polarities. Always remember to dispose of used batteries in an environmental friendly way.

SONY CORPORATION JAPAN/4

N JAPAN/4

SONY CORPORATIO

Connecting the Aerial and VCR

Connecting cables are not supplied.

Headphones jack

VCR

For more details of VCR connection, please refer to the section “Connecting Optional Equipment” of this instruction manual.

6 Overview-Installation

Scart lead is optional

MANUFACTURED UNDER LICENCE

FROM DOLBY LABORATORIES

"DOLBY" AND THE DOUBLE - D

SYMBOL ARE TRADEMARKS OF

DOLBY LABORATORIES

Page 7

Switching on the TV and Automatically Tuning

The first time you switch on your TV, a sequence of menu screens appear on the TV enabling you to:

1) choose the language of the menu screen, 2) choose the country in which you wish to operate the TV,

3) adjust the picture slant 4) search for and store all available channels (TV Broadcasts) and 5) change the order in which the channels (TV Broadcasts) appear on the screen. However, if you need to change any of these settings at a later date, you can do that by selecting the appropriate option in the (Set Up menu) or by pressing the Auto Start Up Button on the TV set.

Connect the TV plug to the mains socket (220-240V AC, 50Hz).

Press the on/off button on the TV set to turn on the TV. The first time you switch on the TV, a Language menu appears automatically on the TV screen.

Press the v or V button on the remote control to select the

language, then press the OK button to confirm your selection. From now on all the menus will appear in the selected language.

The Country menu appears automatically on the TV screen. Press

the v or V button to select the country in which you will operate the TV set, then press the OK button to confirm your selection.

• If the country in which you want to use the TV set does not appear in the list, select “-” instead of a country.

• In order to avoid wrong teletext characters for Cyrillic languages we recommend you select Russia as the country if your own country does not appear in the list.

Because of the earth’s magnetism, the picture might slant. The

Picture Rotation menu allows you to correct the picture slant if it

is necessary.

a) If it is not necessary, press the v or V button to select Not

necessary and press OK.

b) If it is necessary, press the v or V button to select Adjust now,

then press OK and correct any slant of the picture between –5 and +5 by pressing the v or V button. Finally press OK to store.

Language

Svenska Norsk English Nederlands Français Italiano

Select Language:

Country

Sverige Norge

Italia Deutschland Österreich

Select country:

If picture slants, please

adjust picture rotation

Not necessary

Adjust now

continued...

First Time Operation 7

Page 8

Switching on the TV and Automatically Tuning

The Auto Tuning menu appears on the screen. Press the OK

button to select Yes.

The TV starts to automatically search and store all available

broadcast channels for you.

This procedure could take some minutes. Please be patient and do not press any buttons, otherwise the automatic tuning will not be completed.

If no channels were found during the auto tuning process then a new menu appears automatically on the screen asking you to connect the aerial. Please connect the aerial (see page 6) and press OK. The auto tuning process starts again.

Programme: 01

Channel: C21

Searching...

Do you want to start

automatic tuning?

Ye s

Auto Tuning

System: I

No channel found

Please connect aerial

Confirm

After all available channels are captured and stored, the Programme Sorting menu appears automatically on the screen enabling you to change the order in which the channels appear on the screen.

a) If you wish to keep the broadcast channels in their tuned order,

go to step 8.

b) If you wish to store the channels in a different order:

1 Press the v or V button to select the programme number that

has the channel (TV Broadcast) you wish to rearrange, then press the b

2 Press the v or V button to select the new programme

number position for your selected channel (TV Broadcast), then press the B button.

3 Repeat steps b)1 and b)2 if you wish to change the order of

the other channels.

Press the MENU button to remove the menu from the screen.

Your TV is now ready for use.

button.

Programme Sorting

Programme: 01 TVE 02 TVE2 03 TV3 04 C33 05 C27 06 C58

Select channel: Exit:

Programme Sorting

Programme: 01 TVE 02 TVE2 03 TV3 04 C33 05 C27 06 C58 05 C27

Select new position: Exit:

8 First Time Operation

Page 9

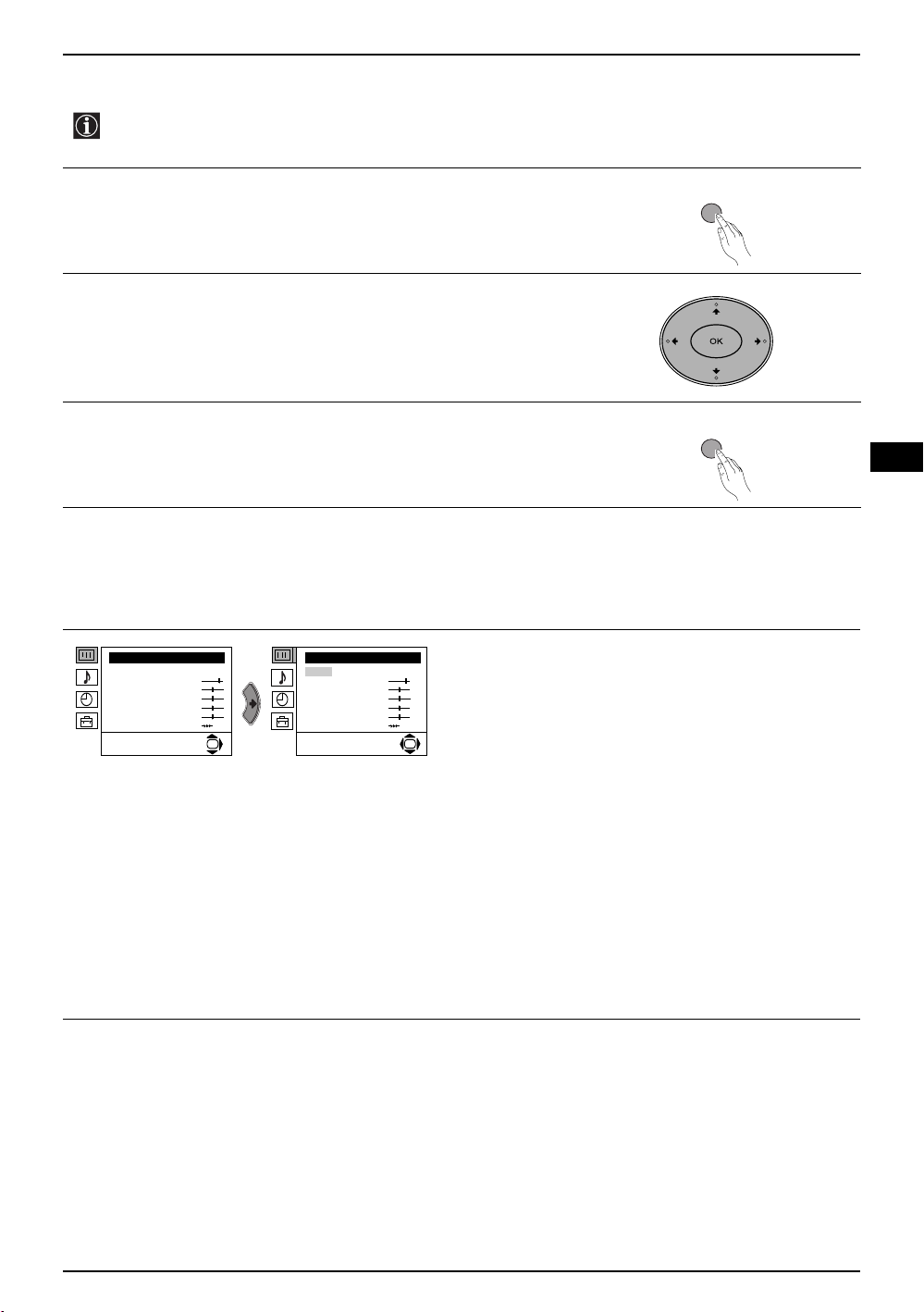

Introducing and Using the Menu System

Your TV uses an on-screen menu system to guide you through the operations. Use the following buttons on the Remote Control to operate the menu system:

Press the MENU button to switch the first level menu on.

• To highlight the desired menu or option, press v or V button.

• To enter to the selected menu or option, press b.

• To return to the last menu or option, press B.

• To alter the settings of your selected option, press v/V/B or b.

• To confirm and store your selection, press the OK button.

Press the MENU button to remove the menu from the screen.

Menu Guide

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

• Brightness, Colour and Sharpness can only be altered if “Personal” mode is selected.

• Hue is only available for NTSC colour signal (e.g: USA video tapes).

• Select Reset and press the OK button to return the picture settings to their factory preset levels.

PICTURE ADJUSTMENT

The “Picture Adjustment” menu allows you to alter the picture adjustments.

To do this:

After selecting the item you want to alter press the b button, then repeatedly press the v/V/B or b buttons to make any adjustments and finally press the OK button to store.

This menu also allows you to customise the picture mode based on the programme you are watching:

v Personal (for individual settings). v Live (for live broadcast programmes, DVD and

Digital Set Top Box receivers).

v Movie (for films).

Menu System 9

Page 10

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

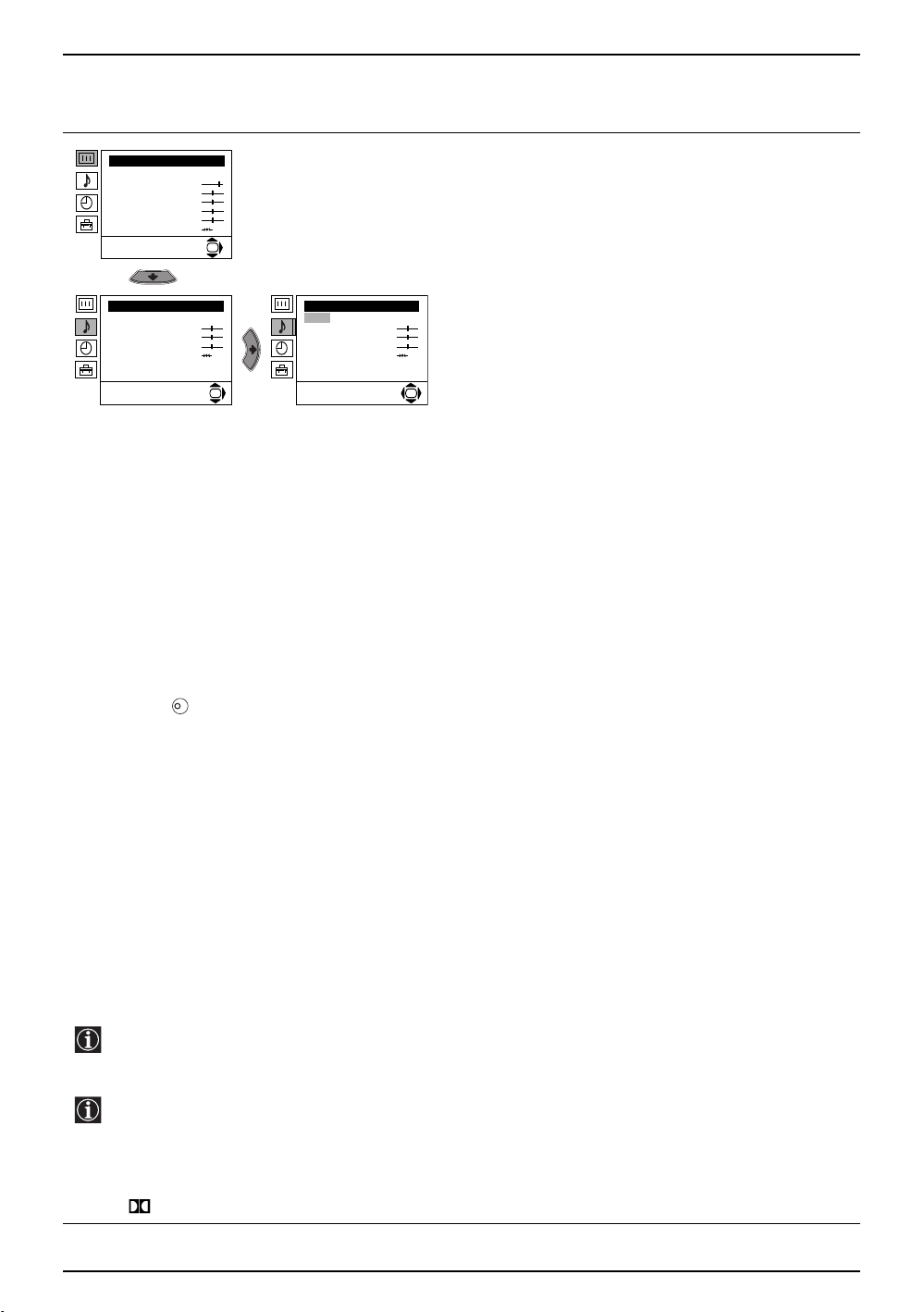

SOUND ADJUSTMENT

The “Sound Adjustment” menu allows you to alter the sound settings.

To do this: After selecting the item you want to alter press the b button, then repeatedly press the v/V/B or b buttons to make any adjustments and finally press the OK

Sound Adjustment

Effect: Natural Treble Bass Balance Reset Dual Sound: Mono Auto volume: On

Sound Adjustment

Effect: Natural Treble Bass Balance Reset Dual Sound: Mono Auto volume: On

button to store.

Effect bvNatural: Enhances clarity, detail and presence of sound by using the “BBE

High Definition Sound system”*.

v Dynamic: “BBE High Definition Sound system”* intensifies clarity and presence

of sound for better intelligibility and musical realism.

v Dolby**Virtual: Simulates the sound effect of “Dolby Surround Pro Logic”.

v Off: Flat response.

Treble bBLess b More Bass bBLess b More Balance bBLeft b Right Reset Resets the sound to the factory preset levels.

Dual Sound b • For a stereo broadcast:

v Mono. v Stereo.

• For a bilingual broadcast:

v Mono (for mono channel if available). v A (for channel 1). v B (for channel 2).

Auto VolumebvOff: volume level changes according to the broadcast signal.

v On: volume level of the channels will stay the same, independent of the broadcast

signal (e.g. in the case of advertisements).

• If you are listening to the TV through headphones, the “Effect” option is automatically switched to “Off”.

• If you select “Dolby Virtual” in the “Effect” option, the “Auto Volume” option is automatically switched to “Off” and vice versa.

* The “BBE High Definition Sound system” is manufactured by Sony Corporation under license from

BBE Sound, Inc. It is covered by U.S. Patent No. 4,638,258 and No. 4,482,866. The word “BBE” and BBE Symbol are trademarks of BBE Sound, Inc.

**This TV has been designed to create the “Dolby Surround” sound effect by simulating the sound of

four speakers with only two speakers, when the broadcast audio signal is Dolby Surround encoded. The sound effect can also be improved by connecting a suitable external amplifier (for details refer to “Connecting to external audio Equipment” on page 20).

**Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol

are trademarks of Dolby Laboratories.

10 Menu System

Page 11

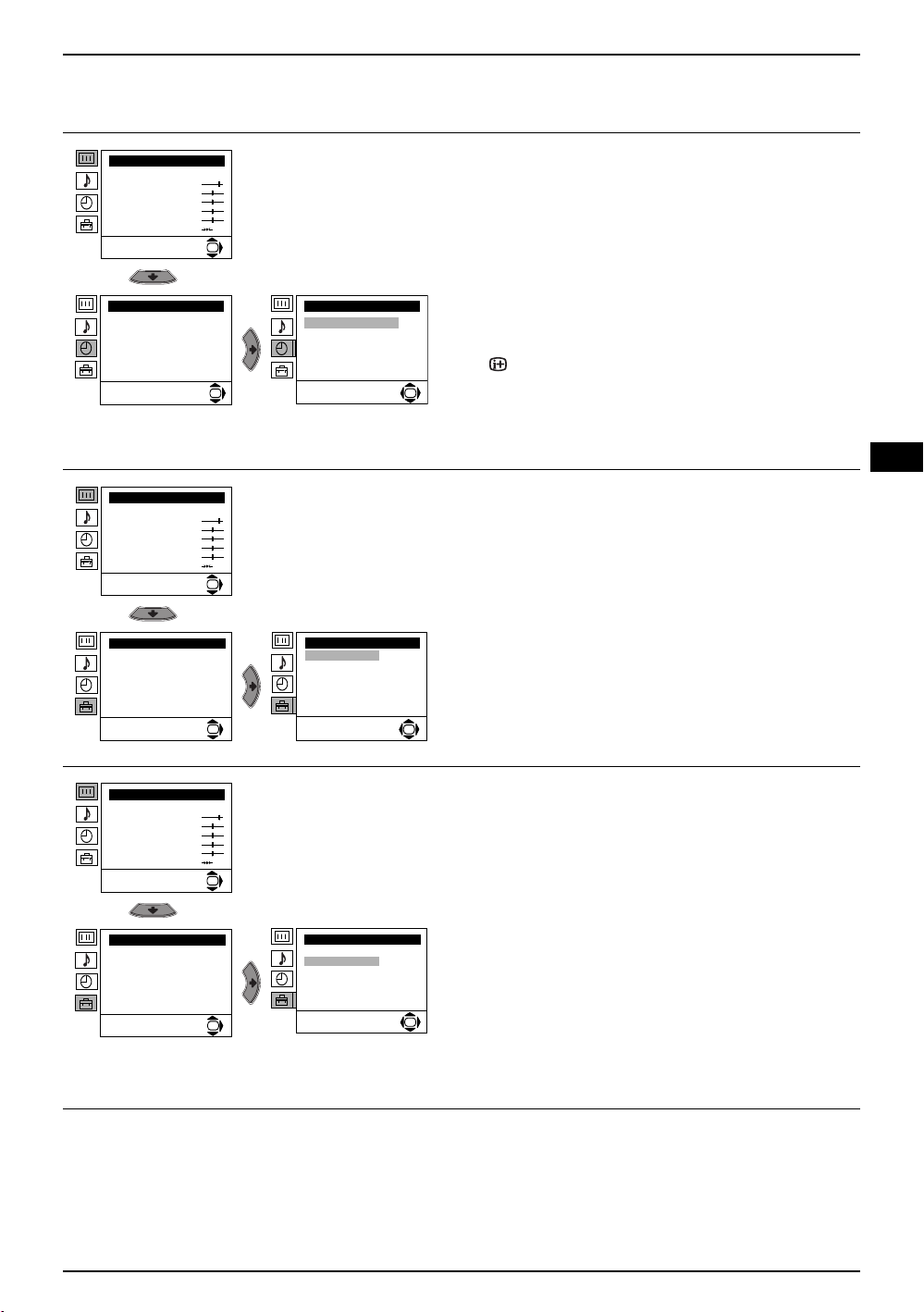

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Timer

Sleep Timer: Off

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

Timer

Sleep Timer: Off

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

SLEEP TIMER

The “Sleep Timer” option in the “Timer” menu allows you to select a time period for the TV to automatically switch itself into the standby mode.

To do this: After selecting the option, press the

b button then

press the v or V button to set the time period delay (max. of 4 hours) and finally press the OK button to store.

• While watching the TV, you can press the button on the remote control to display the time

remaining.

• One minute before the TV switches itself into

standby mode, the time remaining is displayed on the TV screen automatically.

LANGUAGE / COUNTRY

The “Language/Country” option in the “Set Up” menu allows you to select the language in which the menus are displayed. It also allows you to select the country in which you wish to operate the TV set.

To do this: After selecting the option, press the proceed in the same way as in the steps 2 and 3 of the section “Switching On the TV and Automatically Tuning” on page 7.

b button then

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

AUTO TUNING

The “Auto Tuning” option in the “Set Up” menu allows you to automatically search for and store all available TV channels.

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

To do this: After selecting the option, press the

b button then

proceed in the same way as in TV steps 5 and 6 of the section “Switching On the TV and Automatically Tuning” on page 8.

continued...

Menu System 11

Page 12

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

PROGRAMME SORTING

The “Programme Sorting” option in the “Set Up” menu allows you to change the order in which the channels (TV Broadcasts) appear on the screen.

To do this: After selecting the option, press the

b button then

proceed in the same way as in step 7 b) of the section

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset

Detail Set Up

“Switching On the TV and Automatically Tuning” on page 8.

PROGRAMME LABELS

The “Programme Labels” option in the “Set Up” menu allows you to name a channel using up to five characters (letters or numbers).

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset

Detail Set Up

To do this: 1 After selecting the option, press the b button, then

press the

v or V buttons to select the programme

number of the channel you wish to name.

2 Press the

Label column highlighted, press the v or

b button. With the first element of the

buttons to select a letter or number (select “-“ for a blank), then press the

b button to confirm the

character. Select the other four characters in the same way. Finally press the OK to store.

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

12 Menu System

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

AV PRESET

The “AV Preset” option in the “Set Up” menu allows you to designate a name to the external equipment you have connected to the sockets of this TV.

To do this: 1 After selecting the option, press the

press the v or

V buttons to select the input source

you wish to name (AV1, AV2 and AV3 represent the rear Scart sockets and AV4 is for the side connectors). Then press the b button to confirm.

2 A predefined label automatically appears in the

label column: a) If you want to use one of the 6 predefined

labels (CABLE, GAME, CAM, DVD, VIDEO or SAT), press the v or

V buttons to select the

desired label, then press OK button to store.

b) If you want to set a different label, select Edit

and press the b button. Then with the first element highlighted, press the v or to select a letter, number or “-“ for a blank, then press the b button to confirm the character. Select the other four characters in the same way. Finally press the OK button to store.

b button, then

V buttons

continued...

Page 13

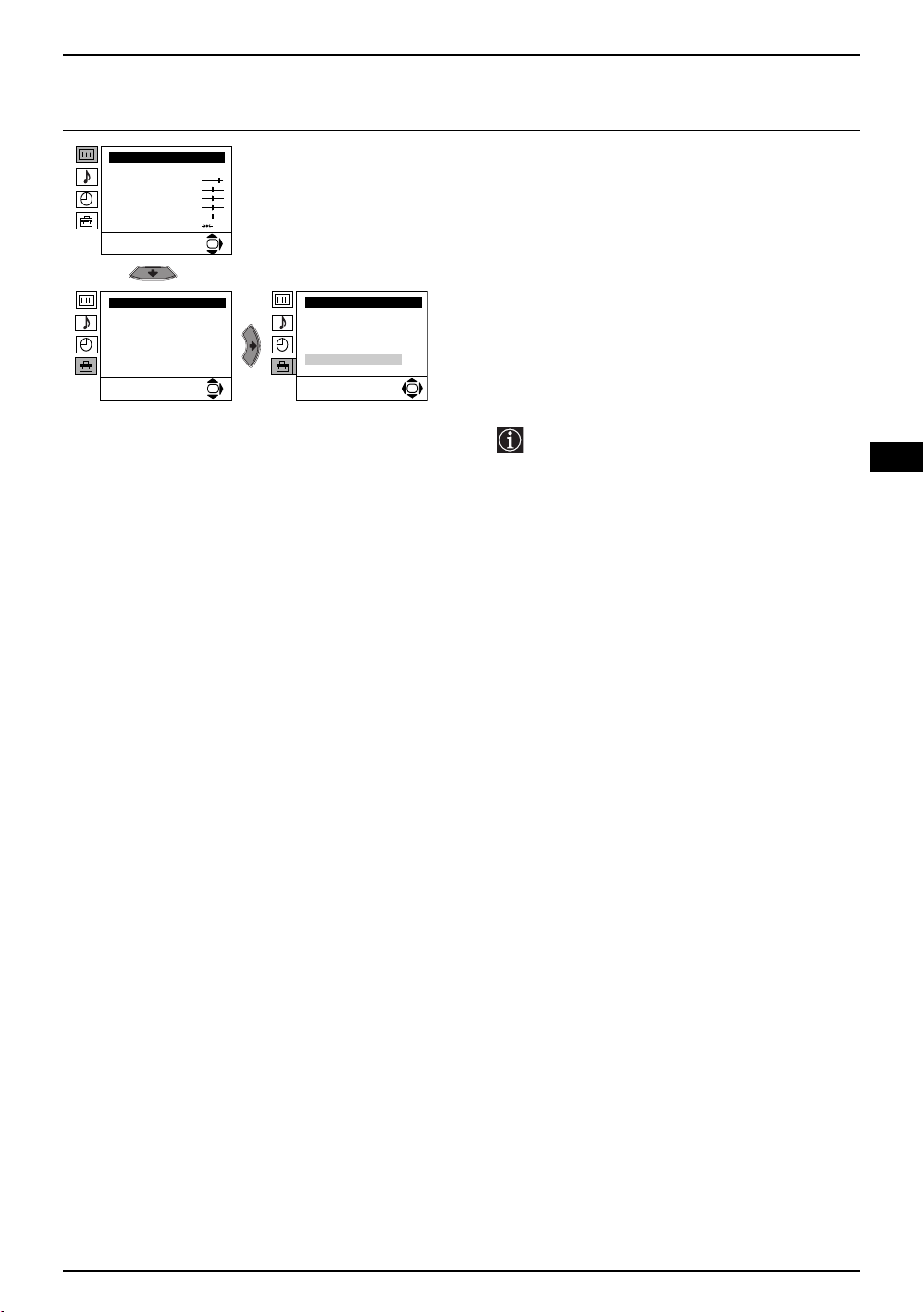

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

MANUAL PROGRAMME PRESET

The “Manual Programme Preset” option in the “Set Up” menu allows you to:

a) Preset channels or the VCR channel one by one

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

to the programme order of your choice.

To do this: 1 After selecting the ”Manual Programme Preset”

option, press the option highlighted press the

b button then with Programme

b button.

Press the v or V buttons to select which programme number you want to preset the channel to (for VCR, select programme number “0”). Then press the B button.

2 The availability of this option depends on

the country you have selected in the “Language/Country” menu.

After selecting the System option, press the button. Then press the v or

V buttons to select the

TV Broadcast system (B/G for western European countries or D/K for eastern European countries). Press the B button.

3 After selecting the Channel option, press the

button. Then press the v or

V buttons to select the

channel tuning (“C” for terrestrial channels or “S” for cable channels). Next press

b button. After

that, press the numbered buttons to directly enter the channel number of the TV Broadcast or the VCR channel. If you do not know the channel number, press the v or

V buttons to search for it.

When you have tuned to the desired channel, press the OK button twice to store.

Repeat all the above steps to tune and store more channels.

b) Label a channel using up to five characters.

To do this:

After highlighting the Programme option, press the PROG +/- button to select the programme number of the channel you wish to name. When the programme you want to name appears on the screen, select the Label option and press the button. Next press the v or letter, number or “-“ for a blank. Press the to confirm thecharacter. Select the other four characters in the same way. After selecting all the characters, press the OK button twice to store.

V buttons to select a

b button

continued...

Menu System 13

Page 14

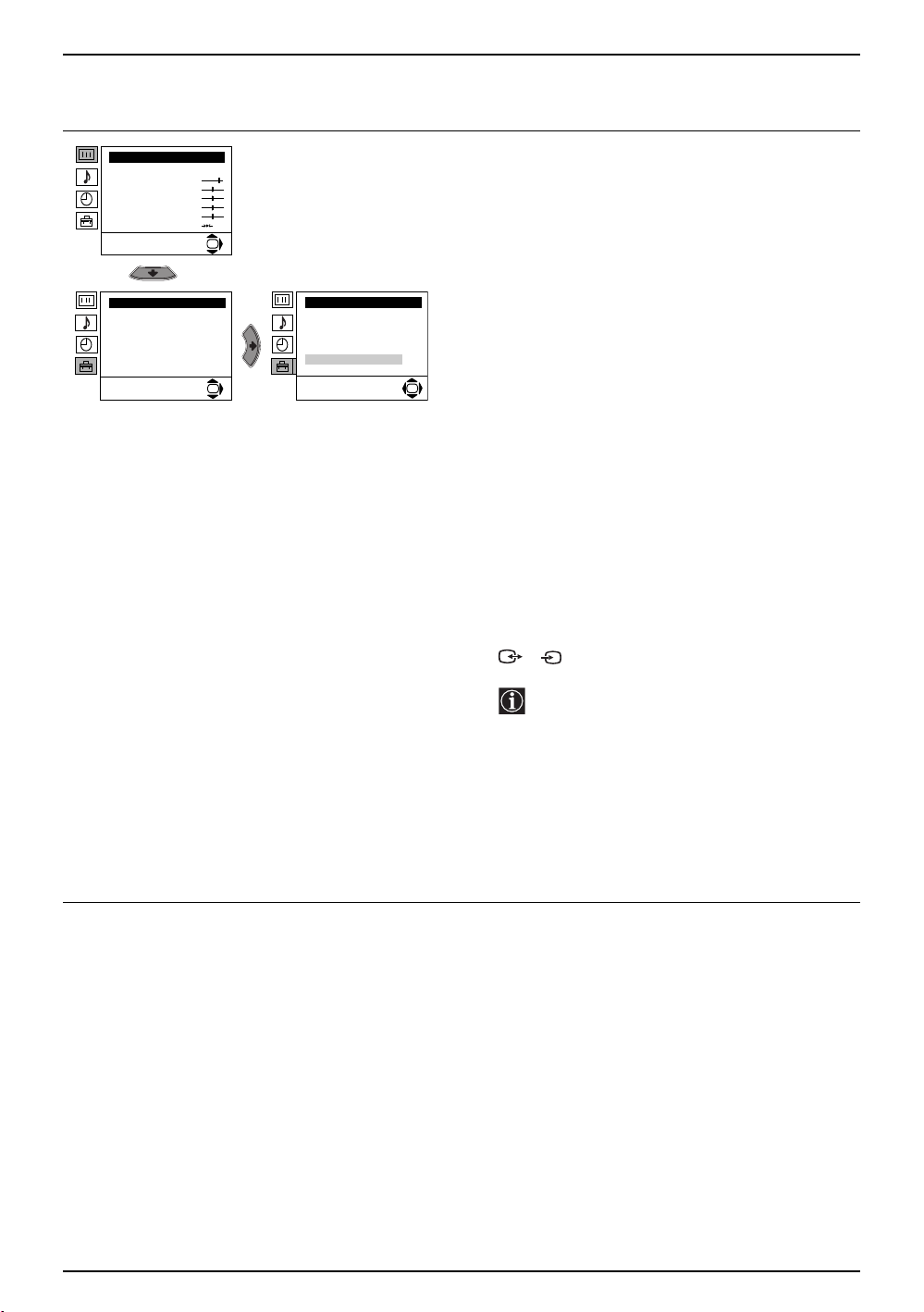

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

c) Manually fine tune the TV to obtain a better

picture reception if the picture is distorted. Normally the automatic fine tuning (AFT) is in operation, but you can alter it manually.

To do this:

Whilst watching the channel (TV Broadcast) you wish to fine tune, select the AFT option and press the

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

b button. Next press the v or V buttons to

adjust the fine tuning between -15 and +15. Finally press the OK button twice to store.

d) Skip any unwanted programme numbers when

they are selected with the PROG +/- buttons.

To do this:

After highlighting the Programme option, press the PROG +/- button to select the programme number you want to skip. When the programme you want to skip appears on the screen, select the Skip option and press the b button. Next press the v or

V buttons to select Yes. Finally

press the OK button twice to confirm and store.

To cancel this function later on select “No” instead of “Yes” in the step above.

e) View and record scrambled channels when using

a decoder connected directly to the Scart socket

3/ 3 or through a VCR.

The availability of this option depends on the country you have selected in the “Language/Country” menu.

To do this:

Select the Decoder option and press the b button. Next press the v or

V buttons to select

On. Finally press the OK button twice to confirm and store.

To cancel this function later on, select “Off” instead of “On” in the step above.

continued...

14 Menu System

Page 15

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

Smart

4 : 3

Detail Set Up

Auto format: Noise Reduction: AV3 output: TV speakers: RGB Centring: Picture Rotation

On Auto TV On 0 0

AUTO FORMAT

The “Auto Format” option in the “Detail Set Up” menu allows you to automatically change the aspect ratio of the screen.

To do this: After selecting the option, press the b button. Then press the v or TV set to automatically switch to the screen format used on the broadcast signal) or Off (if you wish to keep your preference). Finally press the OK button to store.

Even if you have selected “On” or “Off” in the “Auto Format” option, you can always modify the format of the screen by pressing repeatedly on the remote control to select one of the following formats.

Smart: Imitation of wide screen effect for 4:3

4:3: Conventional 4:3 picture size, full picture

14:9: Compromise between 4:3 and 16:9 picture

V buttons to select On (if you wish the

broadcasts.

information.

size

14 : 9

Zoom

Wide

Zoom: Widescreen format for letterbox movies

Wide: For 16:9 broadcast. Full picture information

In “Smart”, “Zoom” and “14:9” modes, a part of of the top and bottom of the screen are cut off. Press the v or

V buttons to adjust the

position of the image on the screen (to read subtitles for example).

continued...

Menu System 15

Page 16

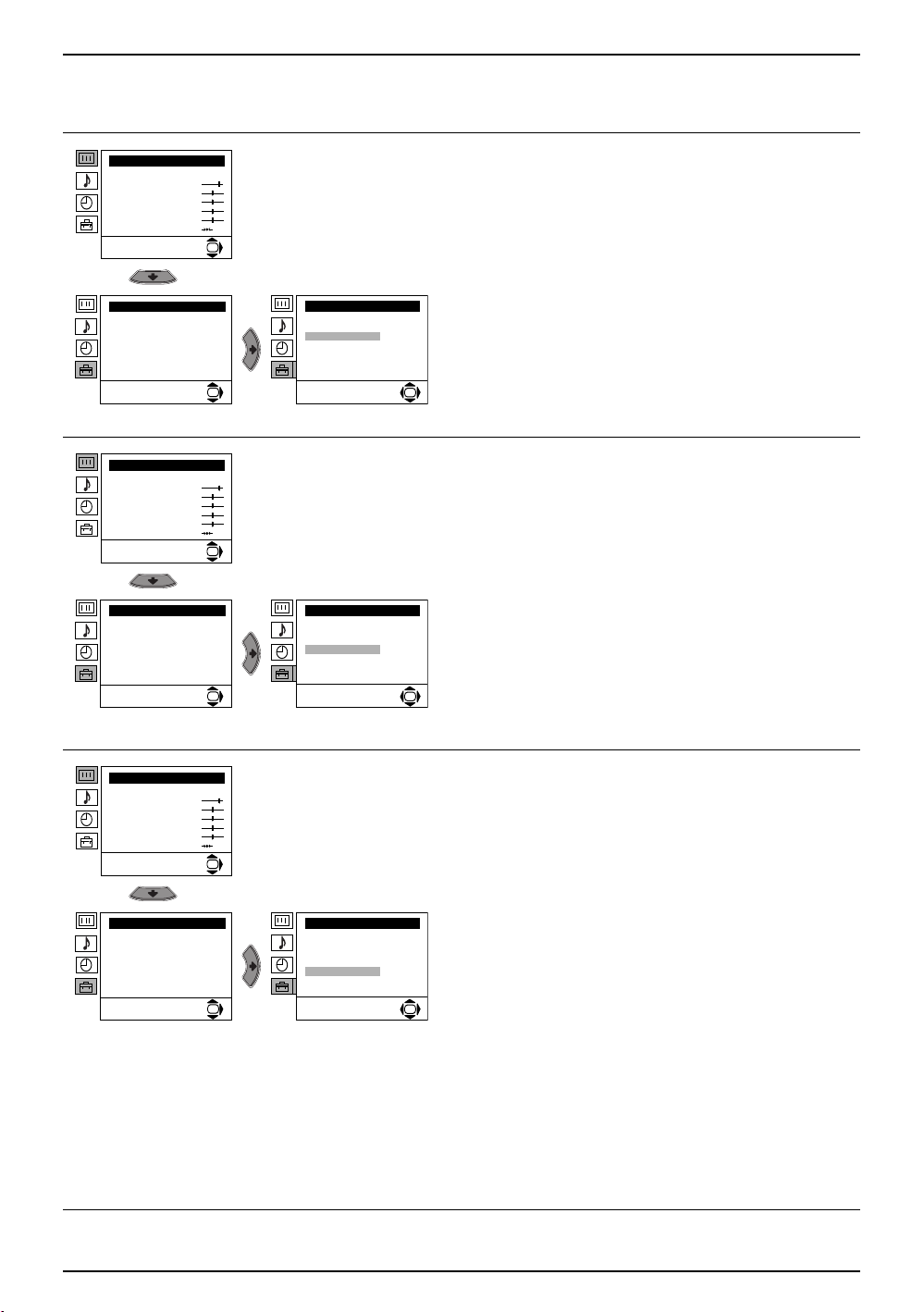

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

NOISE REDUCTION

The “Noise Reduction” option in the “Detail Set Up” menu allows you to automatically reduce any picture noise visible in the broadcast signal.

Detail Set Up

Auto format: Noise Reduction: AV3 output: TV speakers: RGB Centring: Picture Rotation

On Auto TV On 0 0

To do this: After selecting the option, press the b button. Then press the v or

V buttons to select Auto. Finally press

the OK button to confirm and store.

To cancel this function later on, select “Off” instead of “Auto” in the step above.

AV3 OUTPUT

The “AV3 Output” option in the “Detail Set Up” menu allows you to select the source to be output from the Scart connector 3/ 3 so you can record from this Scart any signal coming from the TV or from

Detail Set Up

Auto format: Noise Reduction: AV3 output: TV speakers: RGB Centring: Picture Rotation

On Auto TV On 0 0

external equipment connected to Scart connectors

1/ 1 or 2/ 2 or the side connectors

4 or 4 and 4.

If your VCR supports Smartlink, this procedure

is not necessary.

To do this: After selecting the option, press the b button. Then press the v or

V buttons to select the desired output

signal: TV, AV1, AV2, AV4, YC4 or AUTO.

If you select “AUTO”, the output signal will always be the same one that is displayed on the screen.

If you have connected a decoder to the Scart socket 3/ 3 or to a VCR connected to that Scart

socket, please remember to set the “AV3 Output” to “AUTO” or “TV” for correct unscrambling.

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

TV SPEAKERS

The “TV Speakers” option in the “Detail Set Up” menu allows you to mute the TV speakers in order to listen to the TV from an external amplifier connected to the audio outputs on the rear of the TV set.

To do this: After selecting the option, press the b button. Then

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

Detail Set Up

Auto format: Noise Reduction: AV3 output: TV speakers: RGB Centring: Picture Rotation

On Auto TV On 0 0

press the v or the OK button to confirm and store.

To cancel this function later on, select “On” instead of “Off” in the step above.

V buttons to select Off. Finally press

16 Menu System

continued...

Page 17

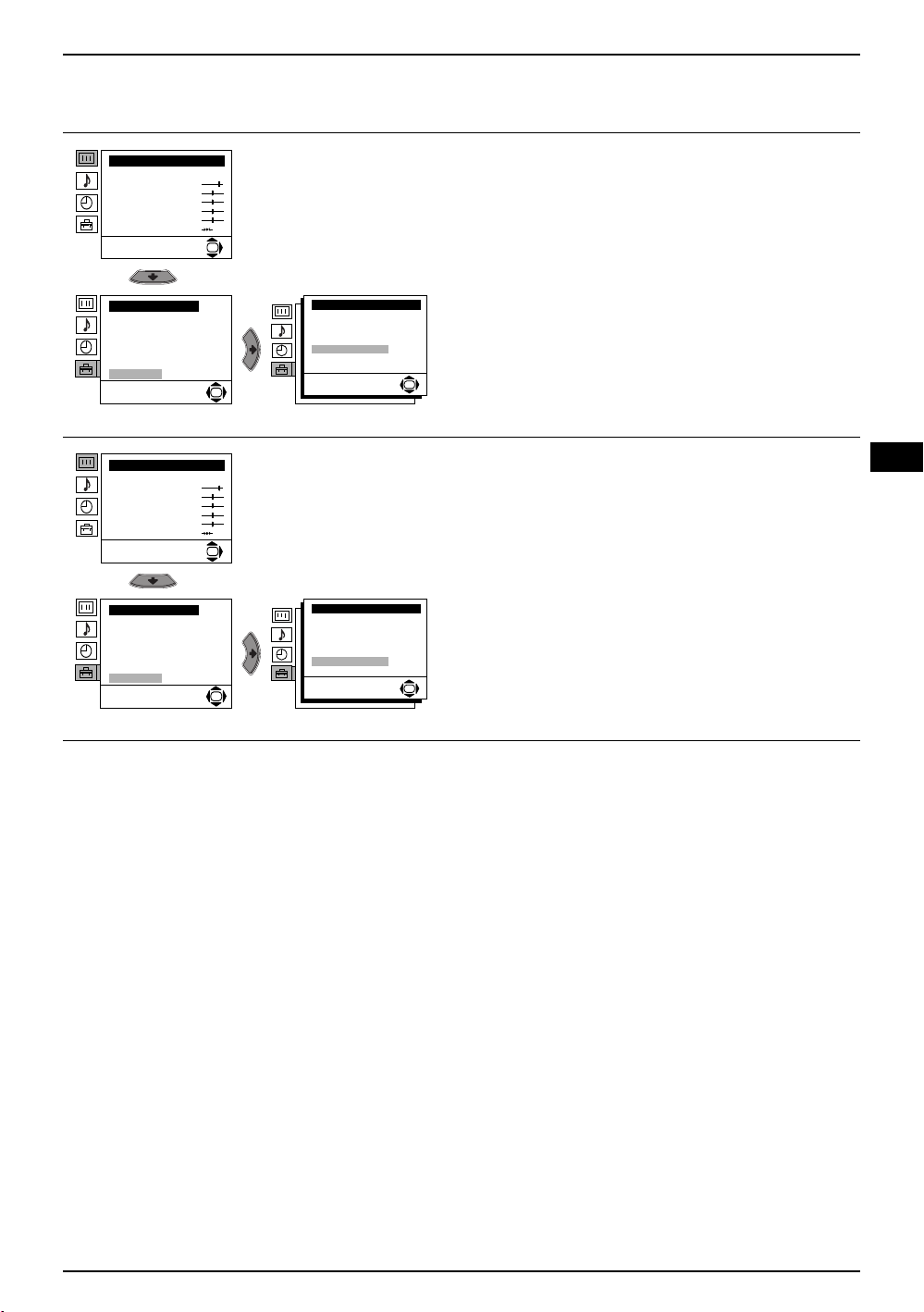

Introducing and Using the Menu System

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

Picture Adjustment

Mode: Personal Contrast Brightness Colour Sharpness Hue Reset

Set Up

Language/Country Auto Tuning Programme Sorting Progamme Labels AV Preset Manual Programme Preset Detail Set Up

RGB CENTRING

When connecting an RGB source, such as a “PlayStation”, you may need to readjust the horizontal position of the picture. In that case, you can readjust it using the “RGB Centring” option in the

Detail Set Up

Auto format: Noise Reduction: AV3 output: TV speakers: RGB Centring: Picture Rotation

Detail Set Up

Auto format: Noise Reduction: AV3 output: TV speakers: RGB Centring: Picture Rotation

On Auto TV On 0 0

“Detail Set Up”.

To do this: While watching an RGB source select the “RGB Centring” option and press the b button. Then press the v or

V buttons to adjust the centre of the picture

between –10 and +10. Finally press the OK button to confirm and store.

PICTURE ROTATION

Because of the earth’s magnetism, the picture might slant. If this is the case, you can correct the pictures slant by using the option “Picture Rotation” in the “Detail Set Up” menu.

To do this: After selecting the option, press the b button. Then press the v or picture between -5 and +5 and finally press the OK button to store.

V buttons to correct any slant of the

Menu System 17

Page 18

Teletext

Teletext is an information service transmitted by most TV stations. The index page of the teletext service (usually page 100) gives you information on how to use the service. To operate teletext, use the remote control buttons as indicated below.

Teletext errors may occur if you use a channel (TV Broadcast) with a weak signal.

To Switch on Teletext:

TELETEXT

After selecting the TV channel which carries the teletext service you wish to view, press the button.

To Select a Teletext page:

Input the 3 digits of the page number, using the numbered buttons.

TELETEXT

Index

Programme

Programme News

News

News Sport

Sport

Sport Weather

Weather

153

153 101

101

• If you have made a mistake, retype the correct page number.

• If the counter on the screen continues searching, it is because the page is not available. In that case, input another page number.

To access the next or preceding page:

Press the PROG + () or PROG - ( ) buttons.

To superimpose teletext onto the TV:

Whilst you are viewing teletext, press the button. Press again to cancel teletext mode.

To freeze a teletext page:

Press the / button. Press again to cancel freeze.

To reveal concealed information (e.g: answer to a quiz):

Press the / button. Press again to conceal the information.

To select a sub page:

A teletext page may consist of several sub pages. In this case the page number that appears on the upper left corner changes colour from yellow to green, and one or more arrows will appear next to the page number. Repeatedly press the B or b buttons on the remote control to watch the desired sub page.

To Switch Off Teletext:

Press the button.

Fastext

The Fastext service lets you access pages with one button push. While you are in Teletext mode and providing Fastext is broadcast, a colour coded menu appears at the bottom of the teletext page. Press one of the coloured buttons (red, green, yellow or blue) to access the corresponding page.

18 Teletext

Page 19

Connecting Additional Equipment

Using the following instructions you can connect a wide range of optional equipment to your TV set. (Connecting cables are not supplied).

MANUFACTURED UNDER LICENCE

FROM DOLBY LABORATORIES

"DOLBY" AND THE DOUBLE - D

SYMBOL ARE TRADEMARKS OF

DOLBY LABORATORIES

S VHS/Hi8/ DVC camcorder

8mm/Hi8/ DVC

camcorder

When you connect the headphones,

the TV speakers will automatically be muted.

Hi-Fi

“PlayStation”*

Decoder

DVD

* “PlayStation” is a product of Sony

Computer Entertainment, Inc.

* “PlayStation” is a trademark of Sony

Computer Entertainment, Inc.

VCR

Decoder

• To avoid picture distortion, do not connect external equipment to connectors A and B at the same time.

• Do not connect a Decoder to the Scart connector F.

• Games that use a “gun” attachment to point at the screen do not work correctly due to the 100Hz technology used in this television

Connecting a VCR:

To connect a VCR, please refer to the section “Connecting the aerial and VCR” of this instruction manual. We recommend you connect your VCR using a Scart lead. If you do not have a Scart lead, tune in the VCR test signal to the TV programme number “0” by using the “Manual Programme Preset” option. (for details of how to manually programme these presets, see page 13, step a). Refer to your VCR instruction manual to find out the output channel of your VCR.

Connecting a VCR that supports Smartlink:

Smartlink is a direct link between the TV set and the VCR. For more information on Smartlink, please refer to the instruction manual of your VCR. If you use a VCR that supports Smartlink, please connect the VCR by using a Scart lead to the Scart socket 3/ 3 G.

continued...

Additional Information 19

Page 20

Connecting Additional Equipment

Connecting to external Audio Equipment:

Plug in your Hi-Fi equipment to the audio output sockets D if you wish to amplify the audio output from your TV. Next, using the menu system, select the “Set Up” menu. Enter the “Detail Set Up” menu and set “TV Speakers” to “Off”.

The audio level of the external speakers can be modified by pressing the volume buttons on the remote control. Also, treble and bass settings can be modified through the “Sound Adjustment” menu.

To enjoy “Dolby Virtual” sound effect through your Hi-Fi equipment:

Place the speakers of your equipment in front of your sitting position and besides the TV set, but keeping a distance of 50 cm from each speaker to the TV set. Then, using the menu system, select the menu “Sound Adjustment”, and select “Dolby Virtual” on the “Effect” option.

Left Hi-Fi speaker

50cm 50cm

Your sitting position

Right Hi-Fi speaker

Using optional Equipment

Connect your equipment to the designated TV socket, as indicated in the previous page.

Switch on the connected equipment.

To watch the picture from the connected equipment, press the button repeatedly until the correct

input symbol appears on the screen.

Symbol

Press the button on the remote control to return to the normal TV picture.

Input Signals

• Audio/video input signal through the Scart connector E.

• RGB input signal through the Scart connector E. This symbol appears only if a RGB source has been connected.

• Audio/video input signal through the Scart connector F.

• RGB input signal through the Scart connector F. This symbol appears only if a RGB source has been connected.

• Audio/video input signal through the Scart connector G.

• S Video Input signal through the Scart connector G. This symbol appears only if a S Video source has been connected.

• Video input signal through the phono socket B and Audio input signal through phono

socket C.

• S Video Input signal through the front S Video input jack A and Audio signal through phono socket C. This symbol appears only if a S Video source has been connected.

For Mono Equipment

Connect the phono plug to the L/G/S/I socket on the side of the TV and select 4 or 4 input signal using the instructions above. Finally, refer to the “Sound Adjustment” section of this manual and select “Dual Sound” “A” on the sound menu screen.

20 Additional Information

Page 21

Specifications

TV system:

Side Terminals

4 S Video input – 4 pin DIN 4 video input – phono jack

Colour system:

PAL, SECAM

4 audio input – phono jacks headphones jack

NTSC 3.58, 4.43 (only Video In)

Sound Output:

Channel Coverage:

VHF: E2-E12

2 x 14 W (music power)

2 x 7 W (RMS) UHF: E21-E69 CATV: S1-S20 HYPER: S21-S41

Picture Tube:

Flat Display FD Trinitron WIDE:

Power Consumption:

102 W

Standby Power Consumption:

0.4 W

32” (approx. 82 cm. measured diagonally)

Dimensions (w x h x d): Rear Terminals

Approx. 933 x 562 x 572 mm.

1/ 21-pin scart connector (CENELEC

standard) including audio/video input, RGB input, TV audio/video output.

2/ 21-pin scart connector (CENELEC

standard) including audio/video input, RGB input, monitor audio/video output.

3/ 21-pin Scart connector (CENELEC

(SMARTLINK)standard) including audio / video input, S

video input, selectable audio / video output and Smartlink interface.

Audio outputs (Left/Right) - phono jacks

Weight:

Approx. 60 Kg.

Accessories supplied:

1 Remote Control (RM-947)

2 Batteries (IEC designated, AA/R6 size)

Other features:

• 100Hz picture

• Teletext, Fastext, TOPtext (250 page Text memory)

• Sleep Timer

• Smartlink (direct link between your TV set and a compatible VCR. For more information on Smartlink, please refer to the Instruction Manual of your VCR)

• Dolby Virtual

• BBE

• Autoformat

Design and specifications are subject to change without notice

Ecological Paper - Totally Chlorine Free

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Additional Information 21

Page 22

Troubleshooting

Here are some simple solutions to problems which may affect the picture and sound.

Problem Suggested Remedy

No picture (screen is dark), and no sound. • Check the aerial connection.

Poor or no picture (screen is dark), but good sound.

No picture or menu information from equipment connected to the Scart socket.

Good picture, no sound. • Press the button on the remote control.

No colour on colour programmes. • Using the MENU system, select the “Picture

Distorted picture when changing programmes or selecting Teletext.

Wrong characters appear when viewing teletext. • Using the menu system, display the “Language/

Picture slanted. • Using the menu system, select the “Picture Rotation”

• Plug the TV in and press the button on the front of the TV.

• If the standby indicator is on press the button or a numbered button on the remote control.

• Using the MENU system, select the “Picture Adjustment“ display and select “RESET“ to return to the factory settings.

• Check that the optional equipment is on, and press the button of the remote control repeatedly until the correct input symbol is displayed on screen.

• Check that “TV Speakers” is “On” in the “Detail Set Up” menu.

• Check the Headphones are not connected.

Adjustment“ and select “RESET“ to return to the factory settings.

• Turn off any equipment connected to the scart connectors on the rear of the TV.

Country” menu and select the country in which you are operating the TV set.

option in the “Detail Set Up” menu to correct the picture slant.

Snowy picture when viewing a TV channel. • Using the menu system, select the “Manual

No unscrambled picture whilst viewing un unscrambled channel with a decoder connected through the scart connector 3/ 3.

Remote control does not function. • Replace the batteries.

The standby indicator on the TV flashes. • Contact your nearest Sony service centre.

• If you continue to have problems, have your TV serviced by qualified personnel.

• NEVER open the casing yourself.

Programme Preset” menu and adjust Fine Tuning (AFT) to obtain better picture reception.

• Using the menu system, select the “Noise Reduction” option in the “Detail Set Up” menu and select “Auto” to reduce the noise in the picture.

• Using the menu system, display the “Set Up” menu. Then select the “Detail Set Up” option and set “AV3 Output” to “TV”.

• Check that the decoder is not connected to the 2/

2 scart socket.

22 Troubleshooting

Page 23

Page 24

2-593-187-21

259318721

KV-32CS71B

Sony Corporation Printed in Spain
