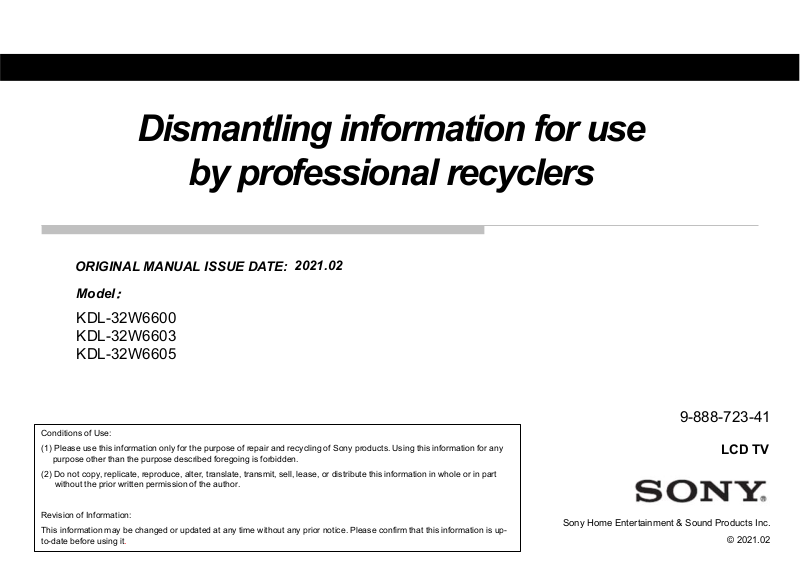

Sony KDL-32W6600 Users guide

Dismantling information for use

by professional recyclers

ORIGINAL MANUAL ISSUE DATE:

Model

：

2021.02

KDL-32W6600 KDL-32W6603 KDL-32W6605

Conditions of Use:

(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any

purpose other than the purpose described foregoing is forbidden.

(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part

without the prior written permission of the author.

Revision of Information:

This information may be changed or updated at any time without any prior notice. Please confirm that this information is upto-date before using it.

9-888-723-41

LCD TV

Sony Home Entertainment & Sound Products Inc.

MODEL LIST

MODEL REMOTE DESTINATION

KDL-32W6600 RMT-TX300E CEI

KDL-32W6603 RMT-TX300E CEI

KDL-32W6605 RMT-TX300E CEI

2

1 LIST OF ITEMS TO BRING

1. Screwdriver (e.g. #2 Phillips Screwdriver)

2. Multimeter

3. ESD Wrist Straps

4. Metal Washer (Flat) or Coin (for remove Rear Cover)

5. Ruler (for remove Rear Cover)

2 OPTIONAL EQUIPMENT

TOOLS & EQUIPMENTS

Thickness: approx. 1.5mm

Diameter: 20~25mm

(wrap in tape (L=50mm))

1. Screwdriver (e.g. #0 Phillips Screwdriver)

2. Parts Tray for loose screws and small items

3. Flashlight

For Surface Mounted Parts/Connectors;

Hot-Air Type soldering Iron is needed.

Plastic or Metal Ruler

(In case of Metal ruler, wrap in tape (L=50mm) for prevent scratches)

3

DISSASSEMBLY

4

DISASSEMBLY, EXPLODED VIEWS AND OTHER PARTS

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.

!

• and shaded parts are critical for safety. Replace only with part number specified.

• Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced.

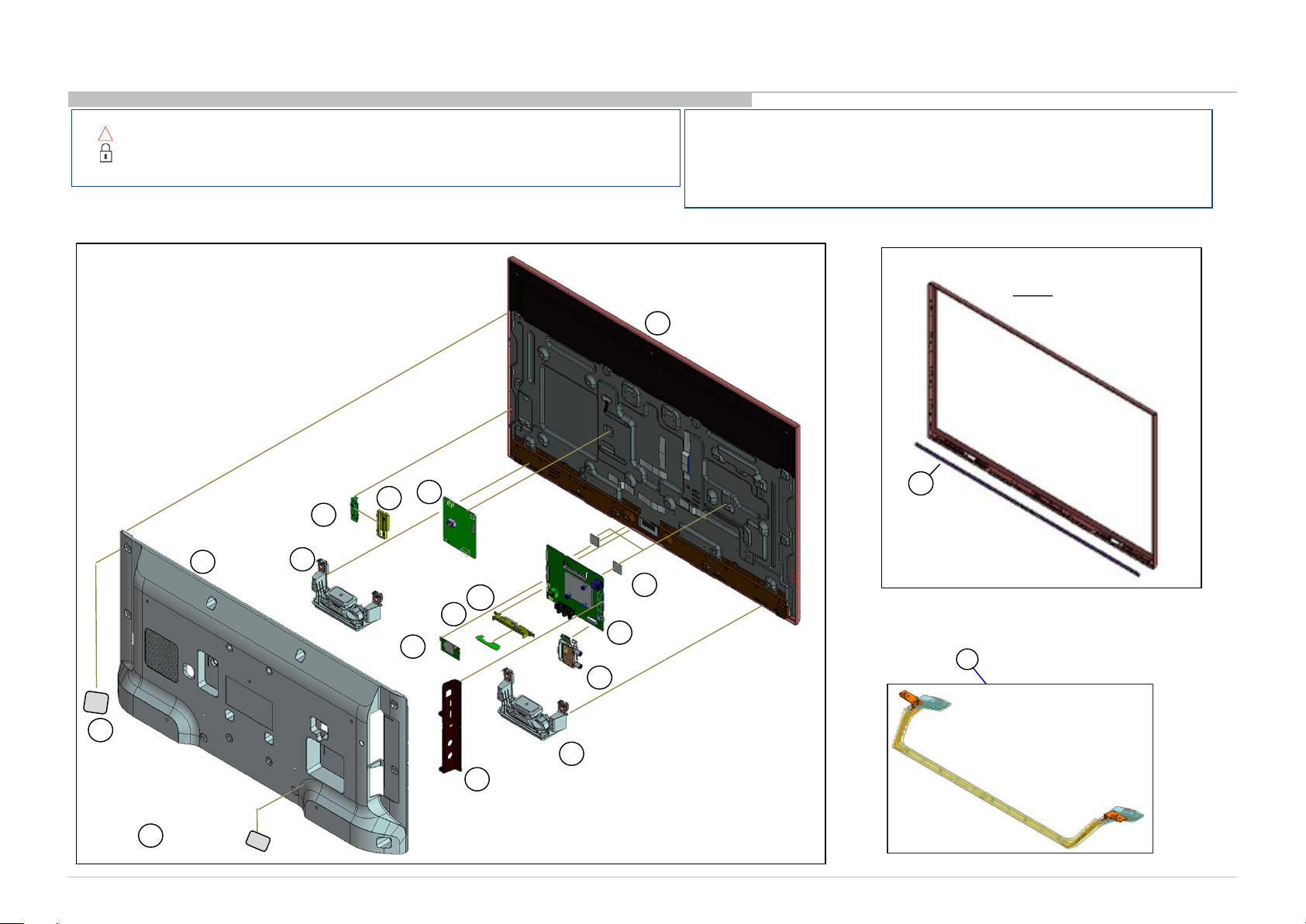

3-1. KDL-32WE6* 3-1-1. Disassembly, Exploded View

15

REAR COVER

LOUDSPEAKER

3

BRACKET SWITCH

SWITCH UNIT

5

7

CARD WIRELESS LAN

14

6

HKT-E MOUNT 10

8

LK1 BOARD

9

GUIDE, LIGHT

13

BLM BOARD

12

11

UNIVERSAL SIL-TU

(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when ordering these components.

 Picture provided in this section might have slight difference from the actual sets.  Lines that indicate parts are shown in blue in the illustration.

 The reference number beside the part description indicates the disassembly sequence.

Remove screws before disassembly. Unplug connectors before disassembly

BEZEL

P-MOD

16

PANEL, ORNAMENT (MZT)

SHEET, THERMAL (BM)

STAND, ASSY

51

2

LABEL, SVC HOTLINE VT

LABEL, UNDER

1

TERMINAL

4

BRACKET, SIDE (FRE)

7

LOUDSPEAKER

5

SOURCE BOARD (1)

CN9901(LK1) (1)

SY3) (1)

SP (1)

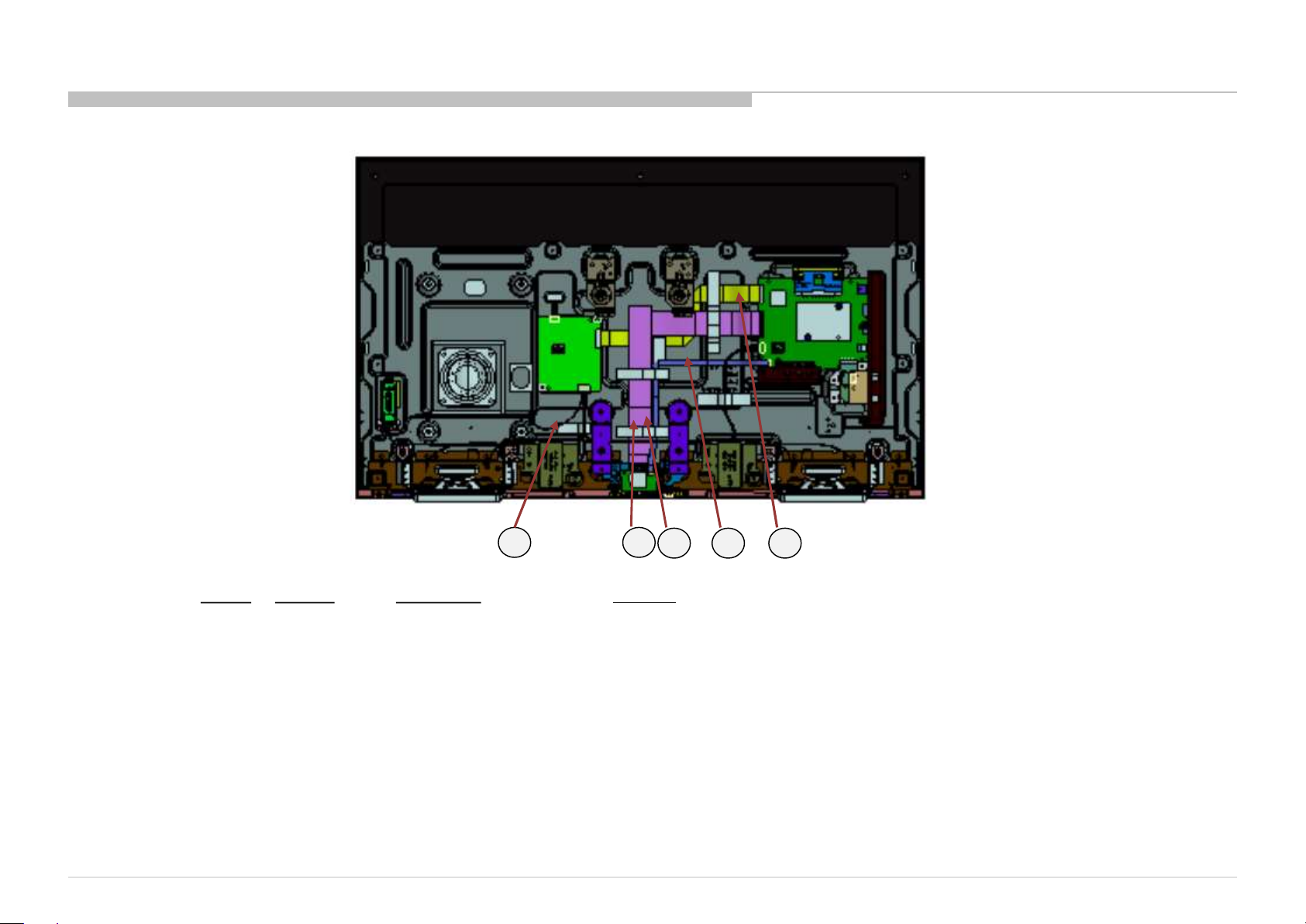

HARNESS/CABLE

REF. NO PART NO. DESCRIPTION REMARKS

81

82

83

84

85

1-912-039-11

1-912-036-11

1-849-990-11

-not applicable-

1-912-024-11

1-912-033-11

1-910-805-95

FLEXIBLE FLAT CABLE 30P

FLEXIBLE FLAT CABLE 40P

FLEXIBLE FLAT CABLE 51P

FLEXIBLE FLAT CABLE 5P

HARNESS ASSY

85

81

83

CN8501(BLM)-

CN9601(BLM)-

-

CN9500(BLM)-J1(DNUR-

CN9602(BLM)-CN100(HKT)-CN1(3KEY)/CN4001(LK1)-

8284

KDL-32WE613/615/610 (CEI/UKA)

KDL-32WE613 (RU3)

-not service part for Europe region -

KDL-32WE613/615/610 (CEI/UKA)

KDL-32WE613 (RU3)

6

MT(2

PARTS LIST

REF. NO PART NO. DESCRIPTION REMARKS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16 4-596-261-01 PANEL, ORNAMENT (MZT)

-not applicable- LABEL, UNDER TERMINAL (MZT) -not service part for Europe region -

-not applicable- LABEL, SERVICE HOTLINE VT -not service part for Europe region -

A-2181-666-A REAR COVER (2S MZT) ASSY KDL-32WE613/610 (CEI/UKA)

4-596-529-31 REAR COVER (2S MZT) A KDL-32WE613 (RU3)

A-2182-773-A REAR COVER (2S MZT) A KDL-32WE615

4-595-950-31 BRACKET, SIDE (FRE) KDL-32WE613/610

4-595-950-41 BRACKET, SIDE (FRE) KDL-32WE615

1-474-647-12 SWITCH UNIT (3M-P)

4-595-952-01 BRACKET, SWITCH (MZT)

1-859-227-11 LOUDSPEAKER

1-458-959-12 CARD, WIRELESS LAN

A-2178-585-A HKT-E MOUNT

4-689-347-01 GUIDE, LIGHT (MZT) A

8-594-328-00 UNIVERSAL SIL-TU SUT-DE251ZP KDL-32WE613 (CEI/UKA)

8-594-328-10 UNIVERSAL SIL-TU SUT-DE251ZP KDL-32WE613 (RU3)

8-594-326-00 UNIVERSAL SIL-TU SUT-CE251ZP KDL-32WE615

8-594-301-30 UNIVERSAL SIL-TU SUT-RE243ZP KDL-32WE610

A-2180-699-B COMPL SVC BLM_KM_AEP_WXGA

4-549-186-02 SHEET, THERMAL(BM)

A-2179-427-A SPRO MODULE LK1_M32_M40

!

A-2180-817-A P-MOD (IS7S320HNO0101)(SERVICE

STAND

51 4-596-028-31 STAND BASE (2S MZT) A KDL-32WE613/615/610 (CEI/UKA)

51 4-596-028-01 STAND BASE (2S MZT) A KDL-32WE613 (RU3)

7

スライド 7

MT(2

T-CONなし?

Matsunaga, Toshiya (SHES), 2020/12/03

PARTS LIST

PART NO. DESCRIPTION REMARKS

1-493-332-11

1-493-000-51 AC ADAPTOR (85W)

4-262-708-04

1-846-420-11

!

1-846-421-11

!

1-846-093-52

A-2180-523-A DIGITAL AUDIO ADAPTOR ASSY

1-493-314-11 REMOTE COMMANDER(RMT-TX300E)

4-588-089-02 BAG, SCREW ASSY (TQS)

AC ADAPTOR(60W) KDL-32WE613/610

KDL-32WE615

CLAMPER, CABLE

CORD SET, POWER-SUPPLY KDL-32WE613/615/610 (CEI)

CORD SET, POWER-SUPPLY KDL-32WE613 (UKA)

CORD SET, POWER-SUPPLY KDL-32WE613 (RU3)

8

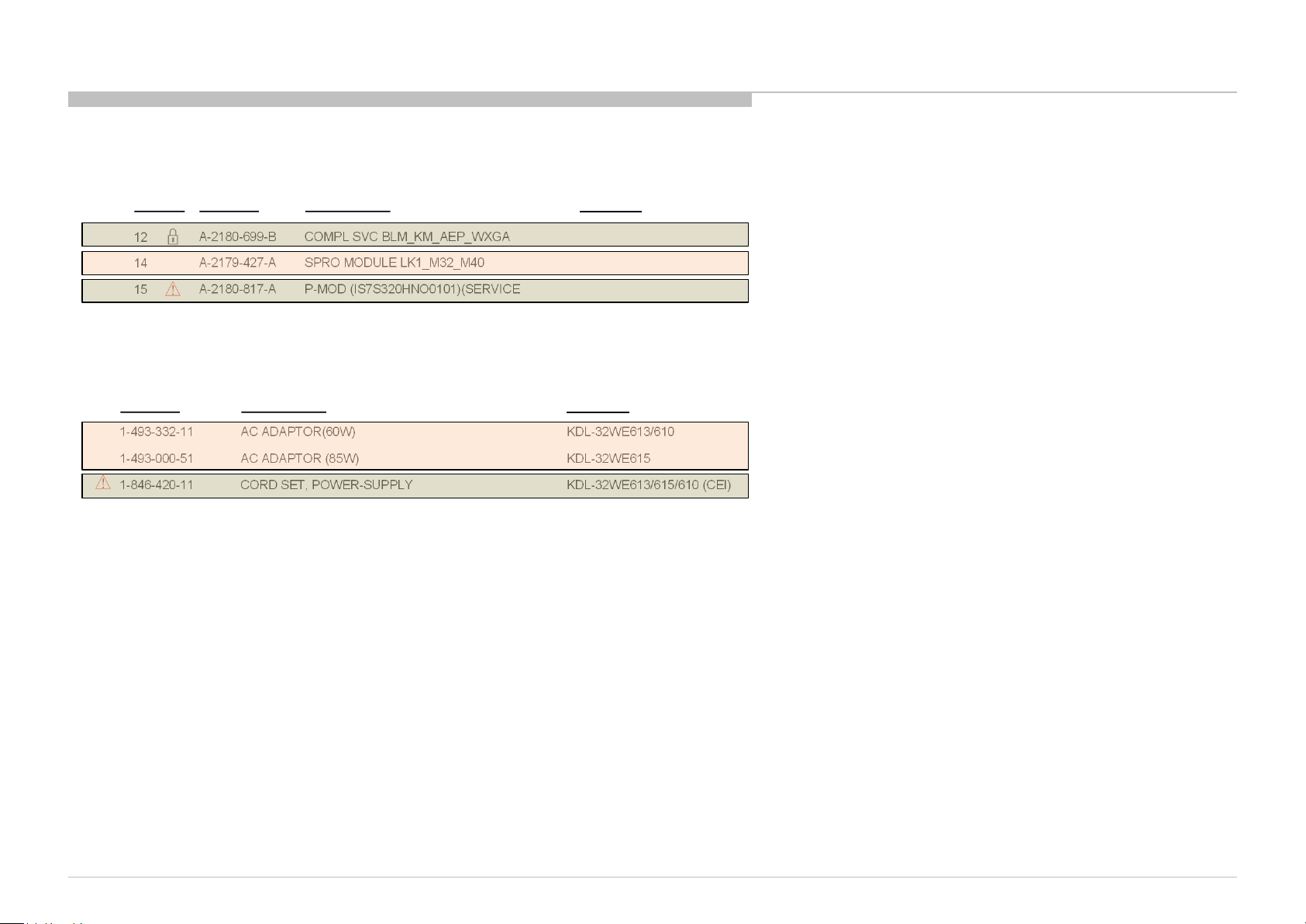

SET PART LIST

REF. NO PART NO. DESCRIPTION REMARKS

PARTS LIST

12

14

15

A-2180-699-B COMPL SVC BLM_KM_AEP_WXGA

A-2179-427-A SPRO MODULE LK1_M32_M40

A-2180-817-A P-MOD (IS7S320HNO0101)(SERVICE

!

Other Parts

PART NO. DESCRIPTION REMARKS

1-493-332-11

1-493-000-51 AC ADAPTOR (85W)

!

1-846-420-11

AC ADAPTOR(60W) KDL-32WE613/610

CORD SET, POWER-SUPPLY KDL-32WE613/615/610 (CEI)

Printed Circuit Board, incl. capacitors

Liquid Crystal Display

External Power Supply

KDL-32WE615

Cable

9
