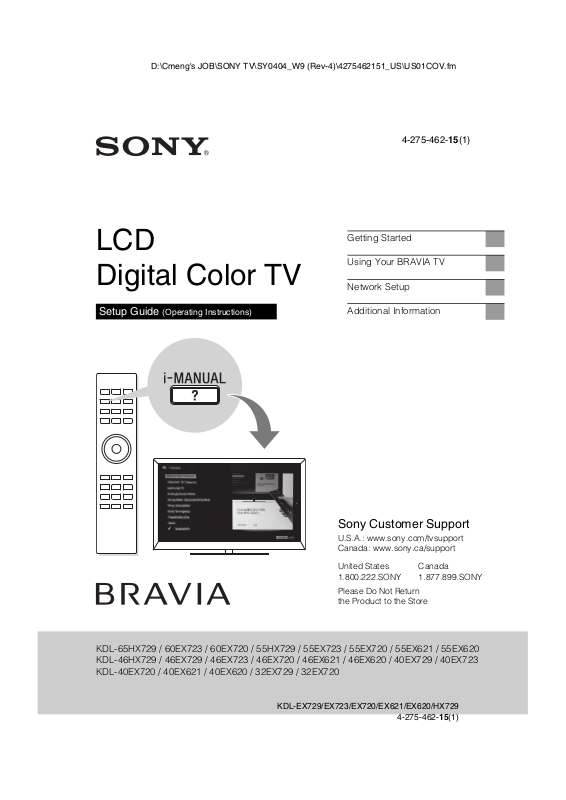

Sony KDL-32EX720, KDL-32EX729, KDL-40EX620, KDL-40EX621, KDL-40EX720 Setup Guide

...

Download

4-275-462-15(1)

LCD Digital Color TV

Setup Guide (Operating Instructions)

Getting Started

Using Your BRAVIA TV

Network Setup

Additional Information

Sony Customer Support

U.S.A.: www.sony.com/tvsupport Canada: www.sony.ca/support

United States Canada

1.800.222.SONY 1.877.899.SONY

Please Do Not Return the Product to the Store

KDL-65HX729 / 60EX723 / 60EX720 / 55HX729 / 55EX723 / 55EX720 / 55EX621 / 55EX620 KDL-46HX729 / 46EX729 / 46EX723 / 46EX720 / 46EX621 / 46EX620 / 40EX729 / 40EX723 KDL-40EX720 / 40EX621 / 40EX620 / 32EX729 / 32EX720

Owner’s Record

The model and serial numbers are located at the side and rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade exposure, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

• Some people may experience

discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of any other device or media used with this television and (ii) our website (www.sony.com/tvsupport) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.

• When using the simulated 3D

function, please note that the displayed image is modified from the original due to the conversion done by this television.

• Operate the TV only on 110-240 V

AC (U.S.A./Canada 120 V AC)

Licensing Information

Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.

HDMI, the HDMI Logo, and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Fergason Patent Properties, LLC: U.S. Patent No. 5,717,422 U.S. Patent No. 6,816,141

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Rovi and Rovi On Screen Guide are trademarks of Rovi Corporation and/or its subsidiaries.

The Rovi On Screen Guide system is manufactured under license from Rovi Corporation and/or its subsidiaries.

The Rovi On Screen Guide system is protected by one or more United States patents of Rovi Corporation and/or its subsidiaries.

Rovi Corporation and/or its subsidiaries and related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the Rovi On Screen Guide system and cannot guarantee service availability in your area. In no event shall Rovi Corporation and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the Rovi On Screen Guide system.

Blu-ray Disc is a trademark.

“BRAVIA” and , S-Force, Motionflow, BRAVIA Sync, and are trademarks or registered marks of Sony Corporation.

“PlayStation” is a registered trademark and “PS3” is a trademark of Sony Computer Entertainment Inc.

, the DLNA Logo and DLNA

DLNA CERTIFIED marks, or certification marks of the Digital Living Network Alliance.

TrackID is a trademark or registered trademark of Sony Ericsson Mobile Communications AB.

are trademarks, service

Music and video recognition technology and related data are provided by

Gracenote standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com. CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000-present Gracenote. Gracenote Software, copyright © 2000present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a nonexhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

. Gracenote is the industry

Browser from Opera Software

Your BRAVIA TV is ENERGY STAR qualified in the “Home” mode. It meets strict energy efficiency guidelines

Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices.

Changes to certain features, settings, and functionalities of this TV (i.e. Rovi On Screen Guide, Picture/Sound, Light Sensor, Power Savings) can increase or change the power consumption.

Depending upon such changed settings, the power consumption may exceed the limits required for the ENERGY STAR qualification in the “Home” mode.

The 32 class has a 31.5 inch viewable image size, the 55 class has a 54.6 inch viewable image size and the 65 class has a 64.5 inch viewable image size (measured diagonally).

set by the U.S.

• The “x” that appears in the model

name corresponds to a numeric digit, related to design, color or TV system.

• Features may differ depending on the

model/region/area.

• The illustrations of the remote control

used in this manual are of the RM-YD059 unless otherwise stated.

• The illustrations used in this manual

may differ depending on your TV model.

• Retain this manual for future

reference.

The BRAVIA® Full HDTV Experience

Thank you for choosing Sony! Your new BRAVIA HDTV Experience.” This document will help you get the most out of your TV. Please take a moment to register your TV at:

TV opens the door to the “Full

U.S.A.: http://productregistration.sony.com Canada: http://www.SonyStyle.ca/registration

• Receive over-the-air HD broadcasts with

an HD-quality antenna connected directly to the back of your TV. Visit www.antennaweb.org for more information on antenna selection and setup.

• Discover the wealth of entertainment now

available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.

Four Steps to a Full HD Experience

Set, Source, Sound, and Setup.

1 Set

Now that you have made the best selection in LCD TV technology, be sure to remove all accessory contents from the packaging before setting up your TV.

2 Source

To experience the stunning detail of your BRAVIA TV, you need access to HD programming.

• Upgrade your signal or content source to

high-definition (HD) by contacting your HD service provider.

This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

3 Sound

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.

4 Setup

Install your TV and connect your sources. See page 12 for sample connection diagrams. To help assure the highest quality for your HD experience, use Sony HDMI (HighDefinition Multimedia Interface) cables.

To learn more about HDTV, visit:

U.S.A.: http://www.sony.com/HDTV Canada: http://www.SonyStyle.ca/hd

The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV inputs.

* For supported PC formats refer to the i-Manual.

Table of Contents

Getting Started

Checking the accessories ...........................................................................................8

Inserting batteries into the remote control...................................................................8

Before setting up your TV ...........................................................................................9

1: Attaching the Table-Top Stand (except KDL-65HX72x) .......................................10

2: Adjusting the viewing angle of the TV ...................................................................11

3: Connecting the TV ................................................................................................12

4: Securing the TV ....................................................................................................15

5: Bundling the cables...............................................................................................17

6: Running initial setup..............................................................................................17

Using a Wall-Mount Bracket......................................................................................18

Installing the TV Against a Wall or Enclosed Area .................................................... 19

Using Your BRAVIA TV

Watching the TV........................................................................................................20

Selecting various functions and settings (Home Menu) ............................................22

Displaying Operating Instructions (i-Manual) ............................................................24

Network Setup

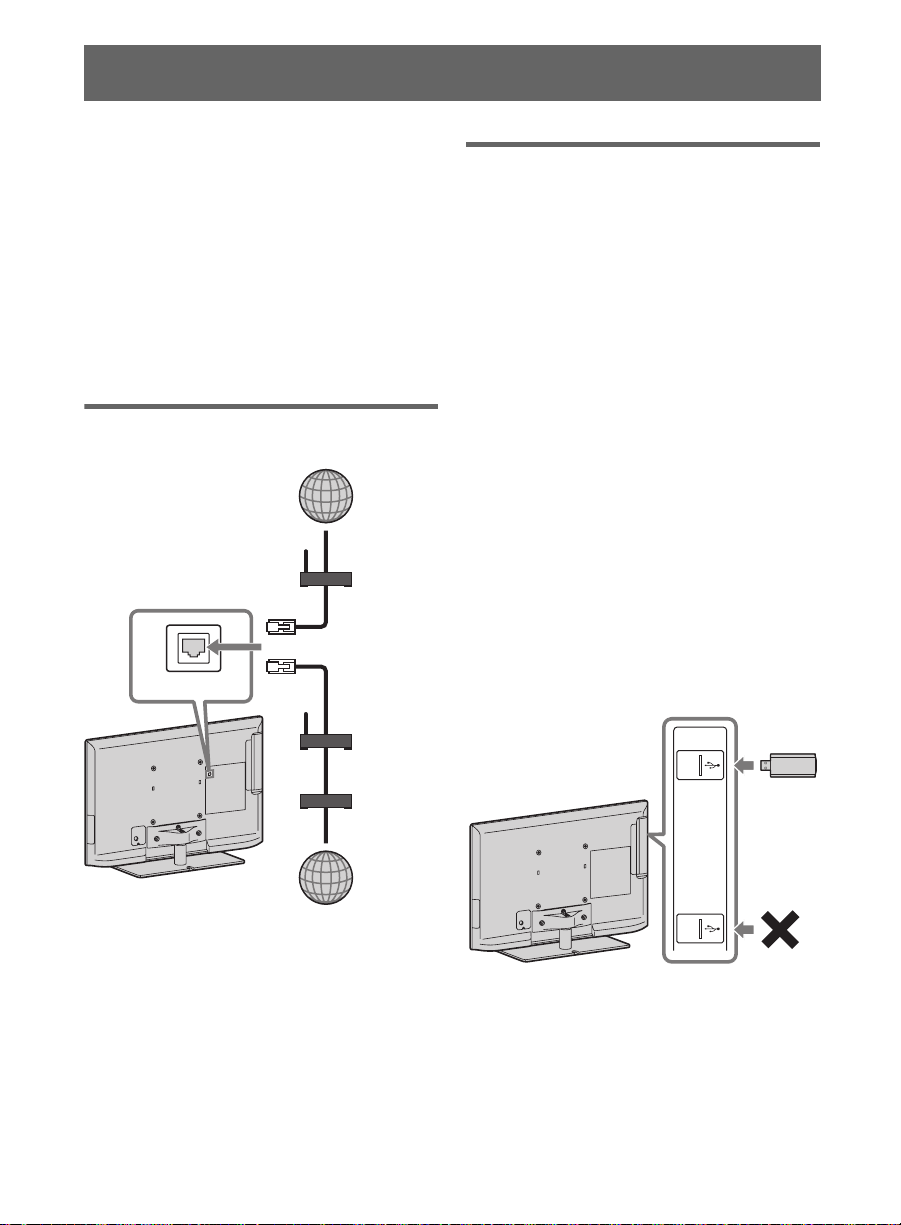

Preparing a wired network ........................................................................................26

Preparing a wireless LAN..........................................................................................26

Setting up the Internet connection ............................................................................27

If you cannot connect to the Internet.........................................................................28

Adjusting the server display settings.........................................................................29

Additional Information

Troubleshooting ........................................................................................................30

How to Care for Your BRAVIA .................................................................................31

Specifications............................................................................................................32

After setting up your BRAVIA TV and learning basic operations with this manual, see the built-in manual (i-Manual) for further explanation of the features of your TV.

This TV has a built-in manual (i-Manual). To access the i-Manual, press i-MANUAL on the remote control, and select an item. For details, see page 24 of this manual. Contents of the i-Manual may differ depending on the model/region/area.

Contents of the i-Manual

* Some models do not have this feature.

How to Use i-Manual

“BRAVIA” TV Features

3D Feature* Presence Sensor “BRAVIA” Internet Video “BRAVIA” Internet Widgets* Wireless LAN / Wireless LAN Ready “BRAVIA” Sync with “Control for

HDMI” Skype Ready TrackID™/Music Search/Video

Watching TV

3D Feature* Rovi On Screen Guide™ Favorites Wide Mode Picture Mode Photos/Music/Videos Twin Picture (PIP) Twin Picture (P&P)

Settings/Home Menu

About the Home Menu Settings Picture & Display Sound Preferences

i-Manual Channels & Inputs Network Product Support

Using Other Equipment/ Internet

VCR/DVD Player Audio System USB Device (e.g. Digital Camera) Picture Frame HDMI Equipment Internet/Wireless LAN Home Network Media Remote PC

Parts Description

Remote Control TV Controls and Indicators Terminals

Troubleshooting

Index

Bookmarks

Getting Started

Checking the accessories

Remote control (1) Size AAA batteries (2) Table-Top Stand (1)

(except KDL-65HX72x)

Fixing screws for Table-Top Stand (M5 × 16) (3)

(except KDL-65HX72x/KDL-60EX72x)

Assembling screws for Table-Top Stand (M6 × 14) (4)

(for KDL-60/55/46EX72x/ KDL-55/46HX72x/KDL-55/46EX62x)

Assembling screws for Table-Top Stand (M6 × 14) (3)

(for KDL-40/32EX72x/KDL-40EX62x)

Hexagon wrench (1)

(except KDL-65HX72x)

Operating Instructions (this manual) and other documents

*1Please refer to the model name printed on the

remote control.

*2Assembling the Table-Top Stand is required.

Refer to the supplied Table-Top Stand leaflet to assemble the Table-Top Stand.

Inserting batteries into the remote control

B KDL-65/55/46HX72x and

KDL-60/55/46/40/32EX72x

1 Remove the protection sheet. 2 Push and slide the cover upward.

B KDL-55/46/40EX62x

Push to open

1 Remove the protection sheet. 2 Push and lift the cover to open.

Guidelines for Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Before setting up your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and maybe also a hexagon wrench (supplied with some models) and the supplied screws to complete the task. Look for the supplied Table-Top Stand instruction leaflet. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damage.

• Ensure your TV has adequate ventilation, see page 19.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and floor materials.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

• Ensure that there are no objects in front of the TV.

• Do not expose the Presence Sensor to direct sunlight or other strong light, as malfunction may occur.

IR Sensor

3D Sync Transmitter (KDL-65/55/ 46HX72x, KDL-60/ 55/46/40/32EX72x

Presence Sensor

only)

Getting Started

1: Attaching the Table-Top

Stand (except KDL-65HX72x)

Refer to the supplied Table-Top Stand instruction leaflet for proper attachment.

• Do not put stress on the LCD panel or the

frame around the screen.

• Be careful to not pinch your hands or the AC

power cord when you install the TV unit to the Table-Top Stand.

For KDL-55/46HX72x, KDL-55/46/40/32EX72x and KDL-55/46/40EX62x

1 Place the TV unit on the Table-Top

Stand.

Guide pins

For KDL-60EX72x

1 Align with the two dowels of the

Table-Top Stand, and gently place the TV, checking that the f mark is facing the front.

Neck

2 Attach the TV and Table-Top Stand

with the supplied screw and hexagon wrench.

• Align the TV from the top, slide it in until the

guide pins cannot be seen.

2 Use the supplied screws to attach the

TV unit to the Table-Top Stand.

• If you use an electric screwdriver, set the

torque at approximately 1.5 N·m {15 kgf·cm}.

Head

* 3 N·m {30 kgf·cm}

• Tighten to approximately 3 N·m {30 kgf·cm}.

Detaching the Table-Top Stand from the TV

To detach the Table-Top Stand from the TV, remove the screws fixed in step 2. For KDL-60EX72x, be sure to remove the screws Table-Top Stand is not attached to the TV. For KDL-65HX72x, be sure to remove the screws Stand.

for detaching the head when the

at the head of the Table-Top

Head

2: Adjusting the viewing

angle of the TV

This TV can be adjusted within the angles as illustrated.

Angle adjustment (Swivel) (except KDL-65HX72x/ KDL-60EX72x)

• When adjusting the angle, hold the stand with

one hand to avoid having the stand slip or TV tip over.

Getting Started

Soft cloth

• Do not remove the Table-Top Stand for any

reason other than to install corresponding accessories on the TV.

• When removing the Table-Top Stand from the

TV, lay the display face down on a stable work surface that is larger than the TV.

• To prevent damaging the surface of the LCD

display, make sure to place a soft cloth on the work surface.

• When installing the TV on a wall, remove the

screws from the rear of the TV. The screws and number of screws depends on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to store the removed screws in a safe place, keeping them away from children.

• When attaching the Table-Top Stand again, be

sure to fasten the screws (previously removed) to the original holes on the rear of the TV.

20°

Angle adjustment (Tilt) (except KDL-65HX72x/ KDL-60EX72x)

20°

0° - 6°

3: Connecting the TV

Shown with a Set Top Box with HDMI connection

Set Top Box

Recommendation of the F type plug

The one based on the following drawing is recommended about the F type plug. Projection of the inner wire from the connection part must be less than 1.5 mm.

Shown with a Set Top Box with COMPONENT connection

Set Top Box

Cable System or VHF/UHF Antenna System

Cable or Antenna

1.5 mm max.

(Reference drawing of the F type plug)

Shown with HD BRAVIA® Sync™ Basic Connection

**Optical

Connection

*A/V Receiver

*Rear of TV

*Blu-ray Disc

HD Cable Box or HD Satellite Receiver

SAT (Dish)

Cable/ Antenna

* Signifies a BRAVIA Sync capable device. ** The optical connection is only needed for A/V receivers that do not support ARC (Audio

Return Channel).

• For HX729/EX729 model series, when Control4 is set to On, control by BRAVIA Sync will

be disabled.

Getting Started

(Continued)

Shown with HD Basic Connection with Home Theater System

*Optical Connection

Rear of TV

Home Theater System

Blu-ray Disc/DVD

Cable/ Antenna

* The optical connection is only needed for A/V receivers that do not support ARC (Audio

Return Channel).

Cable/SAT (Dish)

SD Cable Box or SD Satellite Receiver

Shown with PC Connection with SD VCR/DVD

Notebook PC

Rear of TV

Side Panel

Splitter

DVDVCR

VCR/DVD Combo

Cable/Antenna

4: Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Preventing the TV from Toppling

• Secure the TV to a wall and/or stand.

• Do not allow children to play or climb on furniture and TV sets.

• Avoid placing or hanging items on the TV.

• Never install the TV on: – slippery, unstable and/or uneven

surfaces.

– furniture that can easily be used as

steps, such as a chest of drawers.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Route all AC power cords and connecting cables so that they are not accessible to curious children.

Recommended Measures to Secure the TV

Consider the following measures when securing your TV to a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the Stand.

Angle brace (not supplied)

Stand

2 Secure the TV to the Stand.

Use the optional hardware listed as follows (not supplied):

• A machine screw (screwed into the TV’s Table-Top Stand) For KDL-65HX729 Use M6 screw For KDL-60/55/46/40EX723, KDL-60/ 55/46/40/32EX720, KDL-55/46HX729, KDL-55/46/40EX621, KDL-55/46/ 40EX620 and KDL-46/40/32EX729 Use M4 screw

• A screw or similar (attach it to the Stand)

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

Getting Started

(Continued)

An alternative way to secure the TV is with an optional Sony Support Belt Kit. The Sony Support Belt Kit is available as an optional accessory, depending on your TV model.

Machine screw (not supplied)

Rope or chain

Screw hole on the Table-Top Stand

(not supplied)

Screw (not supplied)

The length of the M6/M4 machine screw differs depending on the rope or chain diameter. Please refer to below illustration.

Screw M6/M4 Rope or

5-6 mm

Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV model name.

• For United States call: 1-800-488-7669 or

visit: www.sony.com/accessories

• For Canada call: 1-877-899-7669

chain TV’s

Table-Top Stand

3 Anchor the TV to the Wall.

Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).

Anchor bolts (M6) (not supplied)

Wallmount holes

• Your TV is shipped with screws attached to the

rear of the TV depending on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV on a wall.

• Securing the TV to the stand without securing

the TV and the stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

Rope or chain (not supplied)

Wall-anchor (not supplied)

5: Bundling the cables

• Before bundling the cables, remove the cable

holder from the AC cover (see step 1 and 2). Reuse the cable holder (see step 3) to bundle the other cables (see step 4).

• Do not bundle the AC power cord together

with other cables.

6: Running initial setup

KDL-65HX729

KDL-60/55/46/40EX723, KDL-60/55/46/40/32EX720, KDL-55/46HX729, KDL-55/46/40EX621, KDL-55/46/40EX620 and KDL-46/40/32EX729

Getting Started

* KDL-65HX72x

only

1 Complete your cable connections

before proceeding with the Initial Setup.

Connect the TV to your nearest power outlet.

2 Check the ENERGY SAVING

switch setting is on (z) (KDL-65HX72x only).

3 Press 1 (power) on the TV. The "

(power) indicator will light green. When you switch the TV on for the first time, the Language menu appears on the screen.

• When you turn on the TV for the first time, the

TV requires some internal processing for optimization before you can perform the initial setup. There will be no picture and sound, and the timer indicator on the front of the TV blinks orange for about 40 seconds. Do not turn off the TV during this process. This process has been completed at the factory on some TVs.

* When installing on the wall, attach the cable

holder under the terminals.

(Continued)

Follow the instructions on the screen.

• The ENERGY SAVING switch must be on

(z) to set the clock and obtain program information for the Rovi On Screen Guide (KDL-65HX72x only).

• Home mode sets the TV to settings optimized

for home viewing (this setting is ENERGY STAR compliant).

5 Select Continue to scan for

available channels and enable the Rovi On Screen Guide™ feature. If you receive channels from a cable box or satellite receiver and do not wish to use the TV’s built-in tuner, select Skip. Selecting Skip will disable the Rovi On Screen Guide feature, which is only available when the TV’s tuner is used.

• If you skip the channel scan while in the setup

menus, Rovi On Screen Guide will be disabled.

Using a Wall-Mount Bracket

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see “Detaching the Table-Top Stand from the TV” (page 11). Prepare the TV for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that you use the Wall-Mount Bracket designed for your TV and the installation should be performed by a Sony dealer or licensed contractor.

• Refer to “Compatible Wall-Mount Bracket Information” (page 34).

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• Be sure to use the screws supplied with the Wall-mount bracket when attaching the mounting hooks to the TV set. The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8-12 mm

Screw (supplied with the Wall-mount bracket)

Mounting Hook

Hook attachment on rear of TV set

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

• Read the supplied Safety Booklet for

additional safety information.

Installing the TV Against a Wall or Enclosed Area

Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown in the illustration.

Installed with stand

inches

4 inches (10 cm)

(30 cm)

4 inches (10 cm)

Leave at least this much space around the set.

Installed on the wall

inches

(30 cm)

4 inches (10 cm)

Never install the TV set as follows:

Air circulation is blocked. Air circulation is blocked.

4 inches (10 cm)

Leave at least this much space around the set.

inches

(6 cm)

Getting Started

Wall Wall

• Inadequate ventilation can lead to overheating

of the TV and may cause damage to your TV or cause a fire.

Using Your BRAVIA TV

Watching the TV

Turn on the TV.

1 Check the ENERGY SAVING switch

2 Press 1 (power) on the TV or I/1 on

* KDL-65HX72x only

Select a TV channel or select an

input.

is set to on (z) (KDL-65HX72x only).

the remote control to turn on the TV. (For KDL-65/55/46HX72x and KDL-60/55/46/40/32EX72x, you may use the I/1 button located on the front or back of the remote control.)

GUIDE

0-9

To use the Guide Press GUIDE to display the Rovi On

Screen Guide to view scheduled programs

or to select a program to watch. Press again to exit the Guide.

To use 0-9

For example, to enter 2.1, press , and .

Parts and controls of the remote control

Use the supplied remote control to control your TV. Basic remote control operations are explained here. For details on all of the remote control functions, press i-MANUAL and see the built-in manual (i-Manual) (page 24).

1 :/1

Press to turn the TV on and off from standby mode.

2 i-MANUAL

Displays the built-in manual (i-Manual).

For KDL-65/55/46HX72x and KDL-60/55/46/40/32EX72x

3 SYNC MENU

Displays the BRAVIA Sync Menu to operate the BRAVIA Sync-compatible equipment that is connected to the TV.

4 F/f/G/g/

Moves the on-screen cursor, and confirms the item.

5 OPTIONS

Displays a list of convenient functions and menu shortcuts. The menu items vary based on the current input and/or content.

6 Color buttons

When the color buttons are available, an operation guide appears on the screen.

7 CH +/–/Number buttons

Select channels in the TV mode.

8 VOL/2 +/–

Adjusts the volume.

Using Your BRAVIA TV

Rear of Remote Control

Selecting various functions and settings (Home Menu)

You can select the features of your TV from the Home menu. See page 23 for the Home menu map.

Press HOME.

Press F/f/G/g/ to select items.

1, 3

To select items in the Home menu (e.g., selecting “Settings”)

1 Press G/g to select Settings.

The contents of Settings are displayed on the right.

2 Press F/f to select Picture &

Display.

3 Press to launch the menu.

According to the screen instruction, press F/f/G/g to select items and press to confirm.

Press HOME to exit.

Home menu map

After pressing HOME on the remote control, following icons are displayed as categories. The categories are available depending on your TV model, region, country and broadcasting conditions.

TV You can select a list of TV channels, or a program

guide.

Media You can enjoy photo/music/video content via USB

devices or the home network.

Inputs You can select equipment connected to the TV.

Favorites/History Provides quick access to your frequently used and

recently viewed items, such as TV channels, external inputs or your media files.

Settings Contains all of the necessary configurations to

customize your TV settings.

Widgets Provides access to Widgets.

Applications You can enjoy various applications such as Music

Search, Internet Browser, etc.

Qriocity Provides access to the Qriocity online service.

Using Your BRAVIA TV

Internet Content You can enjoy Internet content services.

Recommendations Presents recommendations for programs you may

like, based on your viewing history.

Displaying Operating Instructions (i-Manual)

Operating instructions are built into your BRAVIA TV and can be displayed on the screen. To learn more about your TV features, access your i-Manual with the touch of a button.

Press i-MANUAL.

Press F/f/G/g/ to navigate and

select items.

To select items in the i-Manual

1 Press F/f to select an item.

The contents are displayed to the right as the second layer.

2 Press g to move to the second layer. 3 Press F/f to select an item from the

second layer. A description of the item is displayed to the right. If a third layer is available, repeat this step to display the details.

4 Press g to select an item.

The content is displayed.

Description of the i-Manual screen

Press G to go back to the previous page

Press f to go to the next page

Page number/Total number of pages

Press RETURN to go back to the previous page

Press to launch the function

• This will be displayed only when the function

is available.

To use the bookmark

The i-Manual has a bookmark function. Pages can be bookmarked with the color buttons, according to the instructions at the bottom of the screen. To access your registered bookmarks, go to the top page of the i-Manual and select Bookmarks.

To memorize the last displayed page

i-Manual memorizes the last displayed page. When in the i-Manual screen, press i-MANUAL to return to the TV screen. If you press i-MANUAL again, the information you saw last time appears. For viewing from the top page of the i-Manual, return to the top page according to the instructions on screen, or press HOME and select i-Manual of Settings in the Home menu.

Using Your BRAVIA TV

• Last page memory is automatically reset when you switch the TV to standby mode.

Network Setup

When you connect this TV to the Internet, you can enjoy multiple functions: displaying a photograph that shows its location on the map, enjoying Internet video, etc. For details on the functions, refer to the i-Manual.

• You will need to contract with an Internet

service provider to connect to the Internet.

Preparing a wired network

Internet

Modem with router functions

LAN

Router

Preparing a wireless LAN

For KDL-65/55/46HX729 and KDL-60/55/46/40EX723

For models with built-in wireless LAN device, you can access the Internet and your home network without the USB Wireless LAN Adapter UWA-BR100.

For KDL-60/55/46/40/32EX720, KDL-55/46/40EX621, KDL-55/46/40EX620 and KDL-46/40/32EX729

Wireless LAN Ready lets you easily access the Internet and your home network with the USB Wireless LAN Adapter UWA-BR100 (as of January 2010). By inserting the USB Wireless LAN Adapter into your TV’s USB port, you can easily create a cable-free network.

Before setting up the wireless LAN function of the TV, be sure to set up a wireless LAN router.

Modem

Internet

• For LAN connections, use a Category 7 cable

(not supplied).

• The USB Wireless LAN Adapter is available

as an optional accessory, depending on your TV model.

Setting up the Internet connection

Using the network feature you can connect the TV to the Internet. The setup procedure differs depending on the type of network and LAN router. Before setting up the Internet connection, be sure to set up a LAN router. Check your wireless LAN environment using the following chart.

Wireless LAN

Type 1: Secured network with Wi-Fi Protected Setup (WPS)

The WPS standard makes security of a wireless home network as straightforward as pressing the WPS button on the wireless LAN router. Before setting up a wireless LAN, check the location of the WPS button on the router and verify how to use it. For security purpose, WPS (PIN) provides a PIN code for your router. PIN code is renewed every time you select WPS (PIN).

Secure Wireless LAN?

YES m

Do you use a wireless LAN router compatible with Wi-Fi Protected Setup (WPS)?

YES m

Type 1*

Wired LAN

* Type 1 is easier to set up if your router has an

automatic setting button, e.g. Air Station OneTouch Secure System (AOSS). Most of the latest routers have this function. Check your router.

Type 1: Follow the configuration for “Secured Network with Wi-Fi Protected Setup (WPS)”. Type 2: Follow the configuration for “Secured Network without Wi-Fi Protected Setup (WPS)”. Type 3: Follow the configuration for “Unsecured Network with Any Type of Wireless LAN Router”. Type 4: Follow the configuration for “Wired network setup”.

, Type 4

NO k

Type 3

Type 2

1 Press HOME, then select >

Network > Network Setup.

2 Select Wireless Setup. 3 Select WPS (Push Button) for

Push Button method or WPS (PIN) for PIN method.

• Button name of the WPS may differ

depending on the router (e.g. AOSS button).

4 Follow the instructions on the setup

screen.

Type 2: Secured network without Wi-Fi Protected Setup (WPS)

To set up a wireless LAN, SSID (wireless network name) and security key (WEP or WPA key) will be required. If you do not know them, consult the instruction manual of your router.

1 Press HOME, then select >

Network > Network Setup.

2 Select Wireless Setup.

Network Setup

(Continued)

3 Select Scan, then select a network

from the list of scanned wireless networks.

4 Follow the instructions on the setup

screen.

• If you use WPS for network setup, the security

settings of the wireless LAN router activate, and any equipment previously connected to the wireless LAN in a non-secure status will be disconnected from the network. In this case, activate the security settings of the disconnected equipment and then reconnect. Or, you can deactivate the security settings of the wireless LAN router, and then connect the equipment to a TV in a non-secure status.

Type 3: Unsecured network with any type of wireless LAN router

To set up a wireless LAN, SSID (wireless network name) will be required.

1 Press HOME, then select >

Network > Network Setup.

2 Select Wireless Setup. 3 Select Scan, then select a network

from the list of scanned wireless networks.

4 Follow the instructions on the setup

screen.

• Security key (WEP or WPA key) will not be

required because you do not need to select any security method in this procedure.

Type 4: Wired network setup

Enter the respective alphanumeric values for your router if necessary. The items that need to be set (e.g. IP Address, Subnet Mask, DHCP) may differ depending on the Internet service provider or router. For details, refer to the instruction manuals provided by your Internet service provider, or those supplied with the router.

1 Press HOME, then select >

Network > Network Setup.

2 Select Wired Setup. 3 Select Auto to set the IP Address

and proxy server automatically, or

Custom to set them manually.

4 Follow the instructions on the setup

screen.

Viewing the network status

You can confirm your network status.

1 Press HOME, then select >

Network > Network Setup.

2 Select View Network Status.

If you cannot connect to the Internet

Use the diagnostic to check possible causes for network connection failures, and settings.

1 Press HOME, then select >

Network > Network Setup.

2 Select View Network Status.

3 Select Check Connection.

This may take several minutes. You cannot cancel the diagnostic after selecting Check Connection.

Adjusting the server display settings

You can select home network servers to be displayed on the Home Menu. Up to 10 servers can be displayed in the Home Menu automatically.

1 Press HOME, then select >

Network > Home Network Setup.

2 Select Show/Hide Media

Servers.

3 Select the server you want to display

on the Home Menu, and adjust the settings.

Network Setup

If you cannot connect to your home network

The TV detects if the server is being correctly recognized when you cannot connect it to your home network. If the diagnostic results indicate a failure, check possible causes, and network connections and settings.

1 Press HOME, then select >

Network > Home Network Setup.

2 Select Media Server

Troubleshooting.

The server diagnostic starts. When the server diagnostic is complete, the diagnostic result list appears.

Additional Information

Troubleshooting

When the 1 (standby) indicator is flashing, count how many times it flashes (interval time is three seconds).

Press 1 (power) on the TV to turn it off, disconnect the AC power cord, and contact Sony Customer Support (information provided on the front cover) with how many times the indicator flashes.

When the 1 (standby) indicator is not flashing, check the items in the table as follows.

Also refer to “Troubleshooting” in the i-Manual. If the problem persists, contact Sony Customer Support (information provided on the front cover).

Condition Explanation/Solution

There is no picture (screen is dark) and no sound.

Tiny black dots and/or bright dots appear on the screen.

Some programs cannot be tuned.

The TV’s power cannot be turned on.

The TV turns off automatically (the TV enters standby mode).

• Check the antenna/cable connection.

• Connect the TV to the AC power, and press 1 (power) on

the TV.

• If the 1 (standby) indicator lights up in red, press "/1 on

the remote control.

• The screen is composed of pixels. Tiny black dots and/or

bright dots (pixels) on the screen do not indicate a malfunction.

• Check the antenna or dish.

• Check to see the (z) mark on the ENERGY SAVING

switch is pressed (KDL-65HX72x only).

• Check if the Sleep Timer, Timer, or Idle TV Standby is

activated.

• The Auto Shut-off setting may be set to On. If Auto Shut-off is activated and TV receives no signal, the TV will

automatically enter standby mode in 15 minutes. Check Auto Shut-off is activated under Eco feature of this TV. (United States and Canada only)

• Check if Presence Sensor in Eco is activated. When no viewer is detected in front of the TV for a preset time, the picture automatically turns off, while leaving only the TV sound on. Additionally, after 30 minutes in picture off mode, the TV will switch to standby mode.

Condition Explanation/Solution

The remote control does not function.

The TV and its surrounding become warm.

The Parental Lock password has been forgotten.

• Replace the batteries.

• Your TV may be in SYNC mode. Press SYNC MENU,

select TV Control and then select Home (Menu) or Options to control the TV.

• When the TV is used for an extended period of time, the TV

and its surroundings may become warm to touch. This is not a malfunction of the TV.

• Enter 4357 for the PIN code. (PIN code 4357 is always

accepted.)

How to Care for Your BRAVIA

Safety is very important. Please read and follow the safety documentation (Safety Booklet) separately provided.

Unplug the TV and other connected equipment from the wall outlet before you begin cleaning your TV.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.

• If using a chemically pretreated cloth, please follow the instruction provided on the package.

• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.

• Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated.

The TV should also be placed on a stable surface to prevent it from toppling over (see page 15). If you have young children or pets at home, check regularly to ensure the TV is securely fastened.

Additional Information

Specifications

System

Television system NTSC: American TV standard

Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69

Panel system LCD (Liquid Crystal Display) Panel Speaker output 10 W + 10 W + 10 W (for KDL-65HX72x/KDL-60EX72x)

Input/Output jacks

CABLE/ANTENNA 75-ohm external terminal for RF inputs VIDEO IN 1/2 VIDEO / AUDIO COMPONENT IN YP

HDMI IN 1/2/3/4 HDMI: Video: 480i, 480p, 720p, 720/24p/30p, 1080i, 1080p, 1080/24p/30p

AUDIO OUT/Headphones 500 mVrms (typical)

DIGITAL AUDIO OUT (OPTICAL) PC IN D-sub 15-pin, analog RGB PC/HDMI 4 AUDIO IN Stereo mini jack LAN 10BASE-T/100BASE-TX connector (Connection speed may differ depending on the

USB/DLNA Refer to the i-Manual for supported format. REMOTE (HX729/EX729 series only)*

ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)

Analog Cable: 1 - 135 / Digital Cable: 1 - 135

10 W + 10 W (except KDL-65HX72x/KDL-60EX72x)

BPR (Component Video) / Signal format: 480i, 480p, 720p, 1080i, 1080p

AUDIO

HDMI:

Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

Analog audio input (minijack) (HDMI IN 4 only) ARC (Audio Return Channel) (HDMI IN 1 only)

Stereo mini jack / Impedance:  16 ohms PCM/Dolby Digital optical signal

network environment. 10BASE-T/100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

RS232C, D-sub 9 pin.

This jack is for receiving the external control signal.

Model name KDL- 65HX72x 60EX72x 55HX72x

Power and others

Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz) Power consumption

in use

in DAM*

in standby Less than 0.3 W with

Screen size (inches measured diagonally)

267 W 167 W 177 W 166 W

0.02 kWh/Day

(You may hear a clicking noise during the download but this is normal.)

120 V AC and less

than 0.4 W with

240 V AC

64.5 inches (65 class)

Less than 0.2 W with

120 V AC and less

than 0.3 W with

240 V AC

60 inches

Less than 0.3 W with

120 V AC and less

than 0.4 W with

240 V AC

Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical) Speaker Full range (mm)

(inches)

Woofer (mm)

(inches)

Dimensions with stand (mm)

(inches)

without stand (mm)

(inches)

wall-mount hole pattern

(mm)

wall-mount screw size

(mm)

1,496 × 930 × 371

59 × 36

1,496 × 898 × 59

59 × 35

30 × 150 (2)

/16 × 6 (2)

40 × 90 (1)

/8 × 3 5/8 (1)

/8 × 14 5/

/8 × 2 3/

1,389 × 869 × 320

/4 × 34 1/4 × 12 5/

1,389 × 839 × 41

/4 × 33 1/8 × 1 5/

1,269 × 799 × 305

50 × 31

1,269 × 769 × 41

50 × 30

400 × 300 300 × 300

M6 (length: refer to diagram on page 18.)

/2 × 12 1/

/8 × 1 5/

30 × 150 (2)

Less than 0.2 W with

120 V AC and less

than 0.3 W with

54.6 inches (55 class)

/16 × 6 (2)

– –

1,269 × 799 × 315

50 × 31

1,269 × 769 × 41

50 × 30

55EX72x 55EX62x

240 V AC

/2 × 12 1/

/8 × 1 5/

Model name KDL- 65HX72x 60EX72x 55HX72x

Mass with stand (kg)/(lb.) 47.2 / 104.0 31.6 / 69.6 25.4 / 56.0

without stand (kg)/(lb.) 39.1 / 86.0 25.3 / 55.8 20.2 / 44.5 Supplied accessories See “Checking the accessories” (page 8). Optional accessories Connecting cables

Support Belt Kit Wall-Mount Bracket: SU-WL500 3D Glasses: TDG-BR250/TDG-BR200/TDG-BR100/TDG-BR50 (KDL-65/55HX72x,

KDL-60/55EX72x) Camera and Microphone Unit: CMU-BR100 USB Wireless LAN Adapter

Operating temperature 32 °F - 104 °F (0 °C - 40 °C)

55EX72x 55EX62x

Model name KDL- 46HX72x

46EX72x 46EX62x

40EX72x 40EX62x

32EX72x

Power and others

Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz) Power consumption

in use

in DAM*

in standby Less than 0.2 W with

Screen size (inches measured diagonally) Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical) Speaker Full range (mm)

Woofer (mm)

Dimensions with stand (mm)

without stand (mm)

wall-mount hole pattern

wall-mount screw size

Mass with stand (kg)/(lb.) 18.8 / 41.4 17.9 / 39.5 14.4 / 31.8 10.4 / 22.9

without stand (kg)/(lb.) 14.4 / 31.8 14.3 / 31.5 11.2 / 24.7 7.9 / 17.4 Supplied accessories See “Checking the accessories” (page 8). Optional accessories Connecting cables

Operating temperature 32 °F - 104 °F (0 °C - 40 °C)

(inches)

(mm)

142 W 122 W 110 W 90 W

(You may hear a clicking noise during the download but this is normal.)

120 V AC and less

than 0.4 W with 240

V AC

Support Belt Kit Wall-Mount Bracket: SU-WL500 3D Glasses: TDG-BR250/TDG-BR200/TDG-BR100/TDG-BR50 (KDL-46/40/32EX72x,

KDL-46HX72x) Camera and Microphone Unit: CMU-BR100 USB Wireless LAN Adapter

Less than 0.2 W with 120 V AC and less than 0.3 W with 240 V AC

46 inches 40 inches

1,078 × 690 × 260

/2 × 27 1/4 × 10 1/

1,078 × 660 × 42

/2 × 26 × 1 11/

M6 (length: refer to diagram on page 18.)

0.02 kWh/Day

31.5 inches (32 class)

30 × 150 (2)

/16 × 6 (2)

– –

300 × 300 200 × 200

943 × 616 × 250

/4 × 24 3/8 × 9 7/

943 × 586 × 42

/4 × 23 1/8 × 1 11/

755 × 510 × 216

/4 × 20 1/8 × 8 5/

755 × 480 × 42

30 × 100 (2)

/16 × 4 (2)

– –

/4 × 19 × 1 11/

*1 For HX729/EX729 model series, when Control4 is set to On, control by BRAVIA Sync will be

disabled.

*2 Download Acquisition Mode (DAM) is used for software updates and/or collecting data for Rovi

On Screen Guide.

• Optional accessories availability depends on its stock.

• Design and specifications are subject to change without notice.

Additional Information

(Continued)

Declaration of Conformity

Trade Name: SONY Model: KDL-65HX729/KDL-60EX723/ KDL-60EX720/KDL-55HX729/KDL-55EX723/ KDL-55EX720/KDL-55EX621/KDL-55EX620/ KDL-46HX729/KDL-46EX729/KDL-46EX723/ KDL-46EX720/KDL-46EX621/KDL-46EX620/ KDL-40EX729/KDL-40EX723/KDL-40EX720/ KDL-40EX621/KDL-40EX620/KDL-32EX729/ KDL-32EX720 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Pour les clients résidant au Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC Related Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❑ Reorient or relocate the receiving antenna. ❑ Increase the separation between the equipment and

receiver.

❑ Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

❑ Consult the dealer or an experienced radio/TV

technician for help.

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety and Regulatory (for models with built-in wireless LAN device)

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body (excluding extremities: hands, wrists and feet).

This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition.

Note

This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.

Compatible Wall-Mount Bracket Information

Use the following Sony Wall-Mount Bracket with your TV model.

Sony TV Model No.

KDL-65HX729/KDL-60EX723/ KDL-60EX720/KDL-55HX729/ KDL-55EX723/KDL-55EX720/ KDL-55EX621/KDL-55EX620/ KDL-46HX729/KDL-46EX729/ KDL-46EX723/KDL-46EX720/ KDL-46EX621/KDL-46EX620/ KDL-40EX729/KDL-40EX723/ KDL-40EX720/KDL-40EX621/ KDL-40EX620/KDL-32EX729/ KDL-32EX720

Sony WallMount Bracket Model No.

Use with other Wall-Mount Brackets* may cause instability and could result in property damage or injury.

* For instructions on using the Wall-Mount bracket

with your TV please go to http://esupport.sony.com for your TV model and download “Additional Information for Using Sony Wall-Mount Bracket”.

To Customers

Sufficient expertise is required for TV installations. Be sure to subcontract the installation to a Sony dealer or licensed contractor and pay adequate attention to safety during the installation.

SU-WL500

Online Registration:

Software Updates:

For Your Convenience

Be sure to register your TV.

United States Canada

Your TV is capable of receiving software updates. For the latest information about software updates for your TV, visit:

United States Canada

NOTE: If your TV is connected to the Internet, you can check for software updates by selecting Settings, Product Support and then Software Update.

http://productregistration.sony.com http://www.SonyStyle.ca/registration

http://www.sony.com/tvsupport http://www.sony.ca/support

Sony KDL-32EX720, KDL-32EX729, KDL-40EX620, KDL-40EX621, KDL-40EX720 Setup Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Getting Started

Checking the accessories

Inserting batteries into the remote control

Before setting up your TV

3: Connecting the TV

4: Securing the TV

5: Bundling the cables

6: Running initial setup

Using a Wall-Mount Bracket

Installing the TV Against a Wall or Enclosed Area

Using Your BRAVIA TV

Watching the TV

Selecting various functions and settings (Home Menu)

Displaying Operating Instructions (i-Manual)

Network Setup

Preparing a wired network

Preparing a wireless LAN

Setting up the Internet connection

If you cannot connect to the Internet

Adjusting the server display settings

Additional Information

Troubleshooting

How to Care for Your BRAVIA

Specifications
