4-735-772-11(1)

Television

Reference Guide

KD-75Z9F / 65Z9F

Table of Contents

Note

Safety Information . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Parts and Controls . . . . . . . . . . . . . . . . . . . 7

Controls and Indicators . . . . . . . . . . . . . . . . . 7

Using Remote Control . . . . . . . . . . . . . . . . 8

Remote Control Parts Description. . . . . . . . . 8

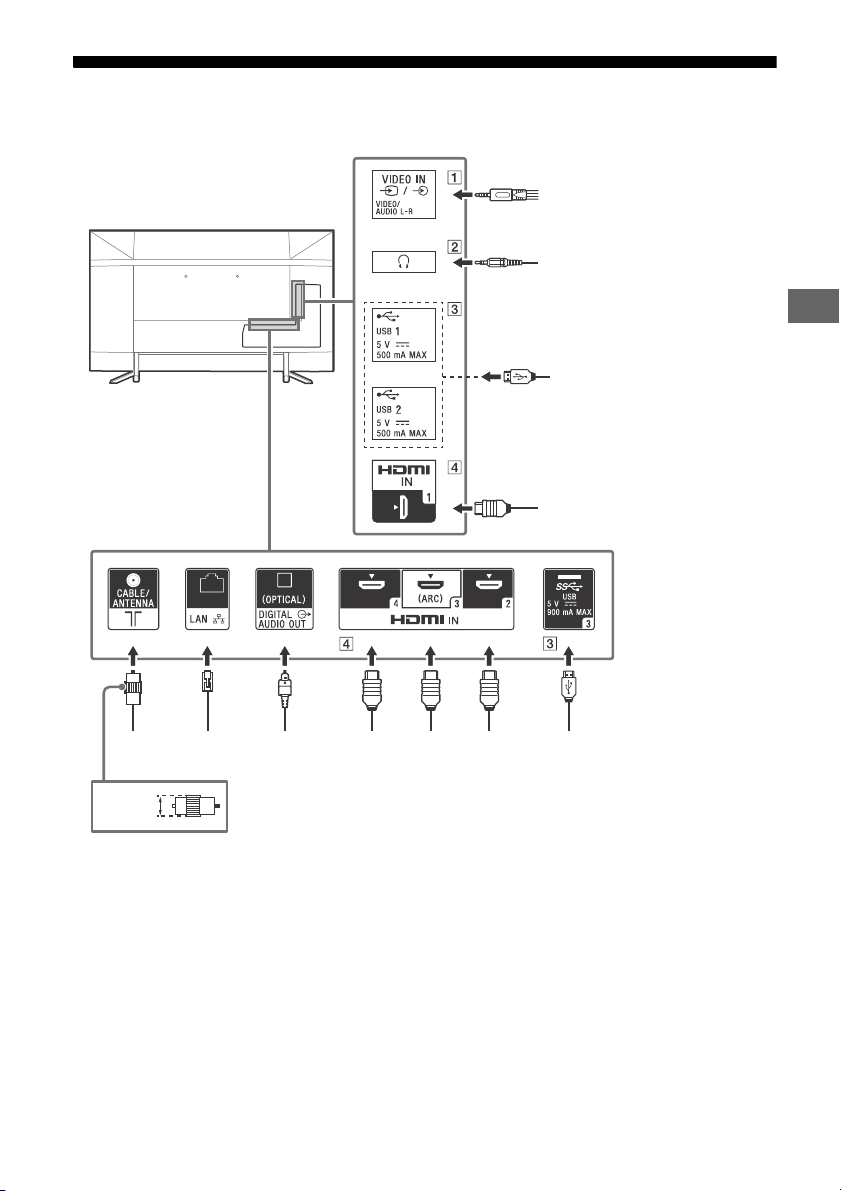

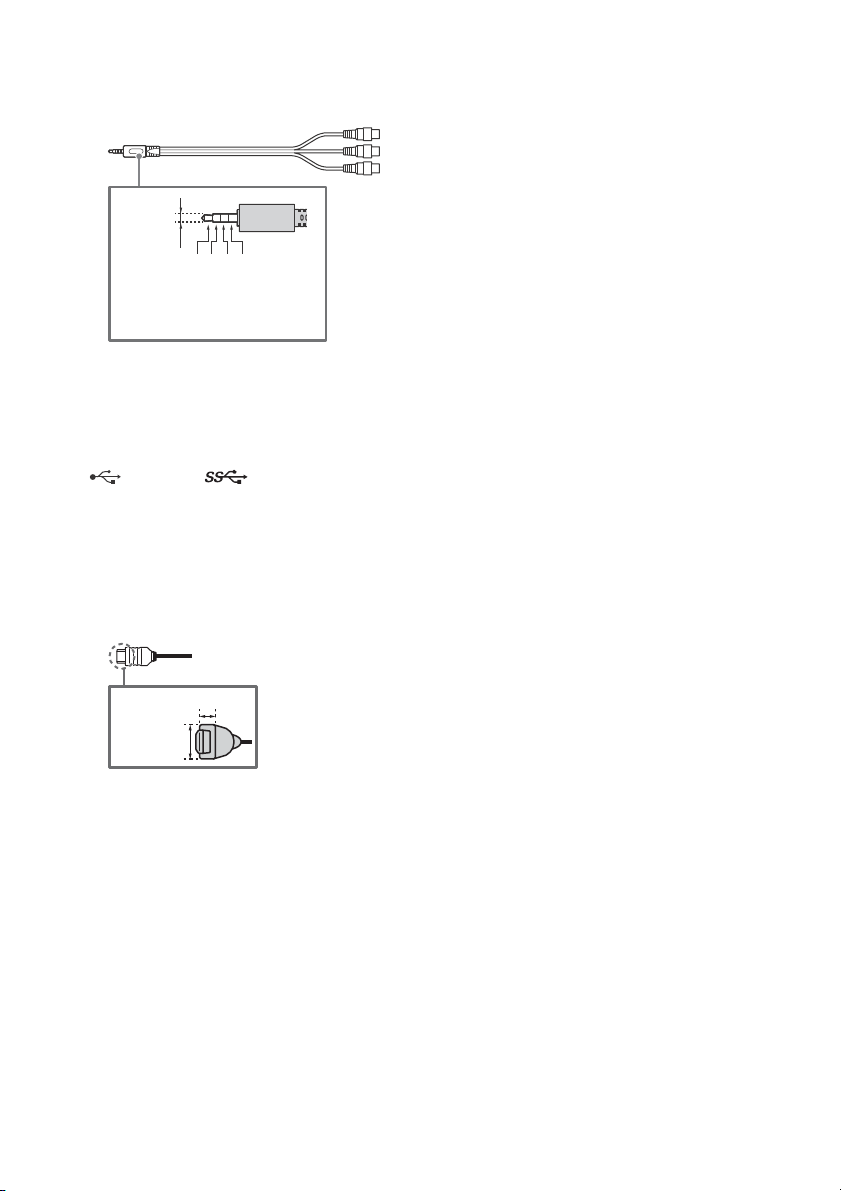

Connection Diagram . . . . . . . . . . . . . . . . 10

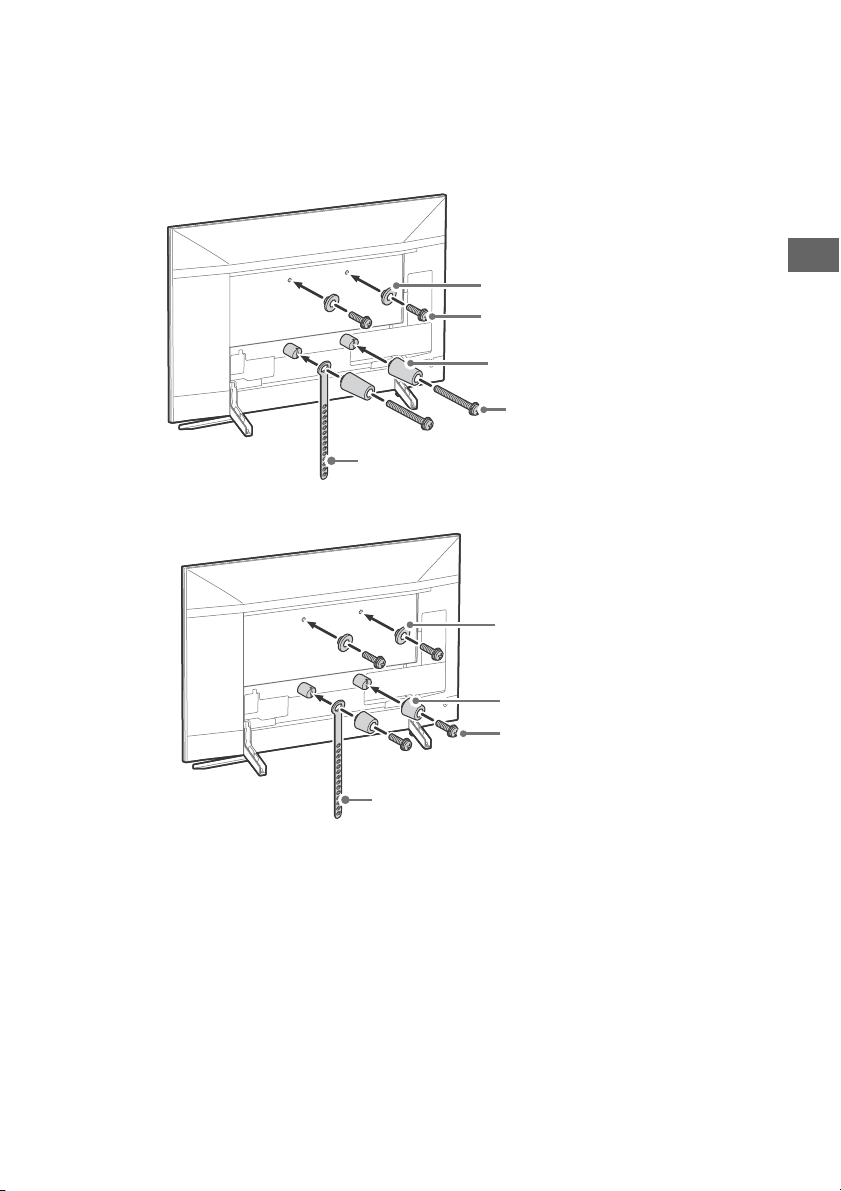

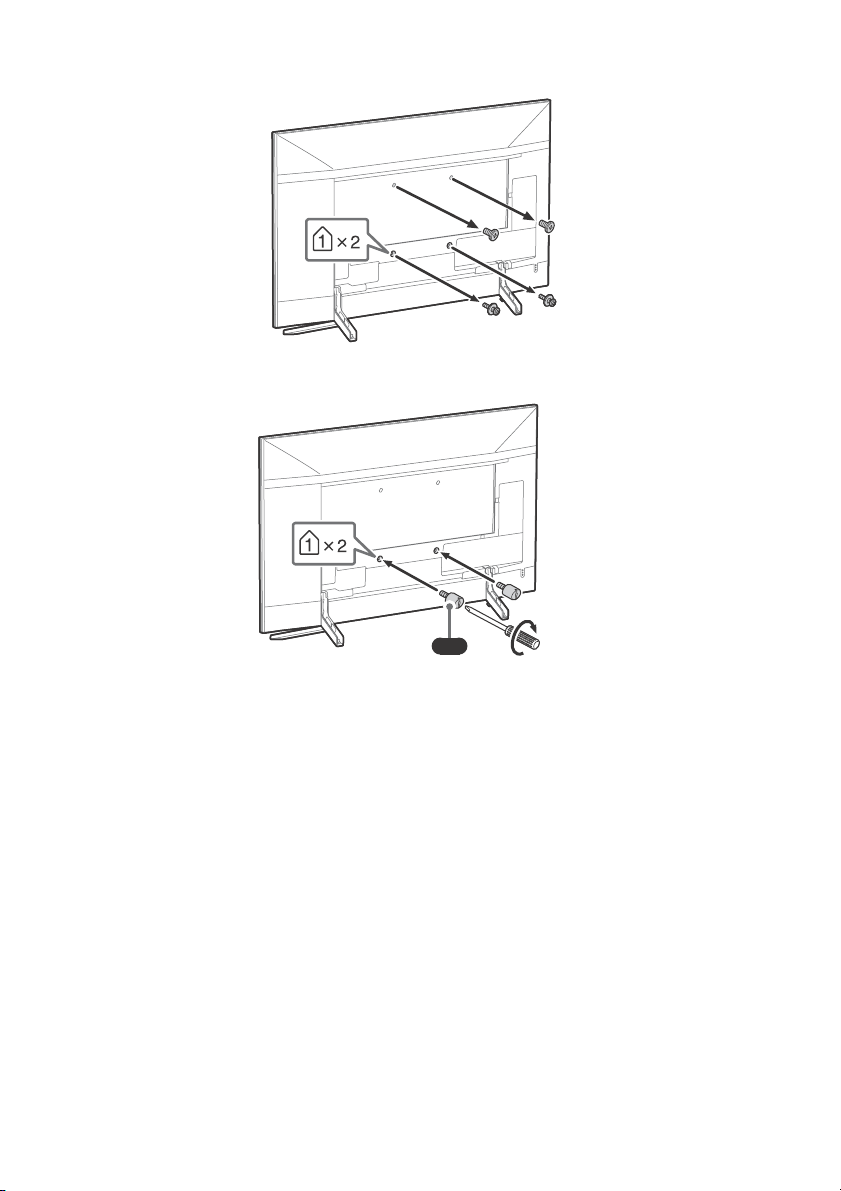

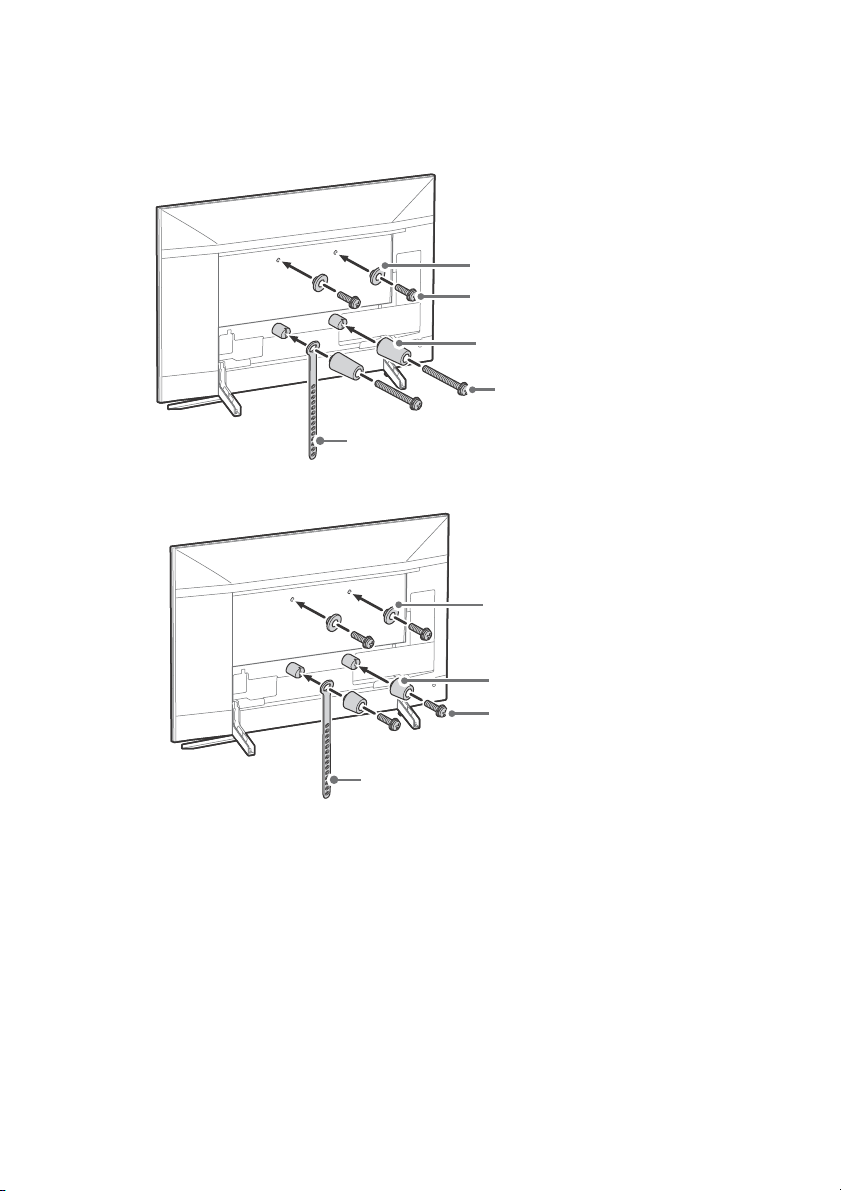

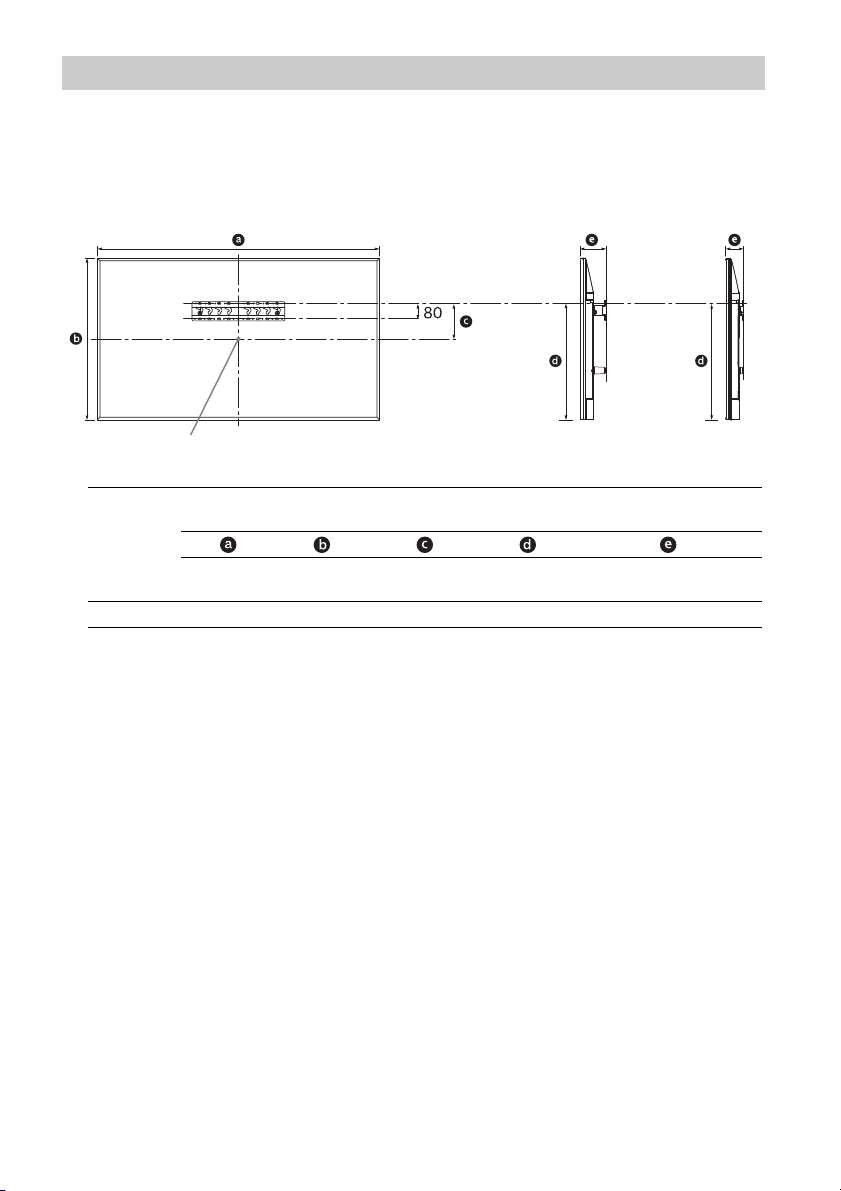

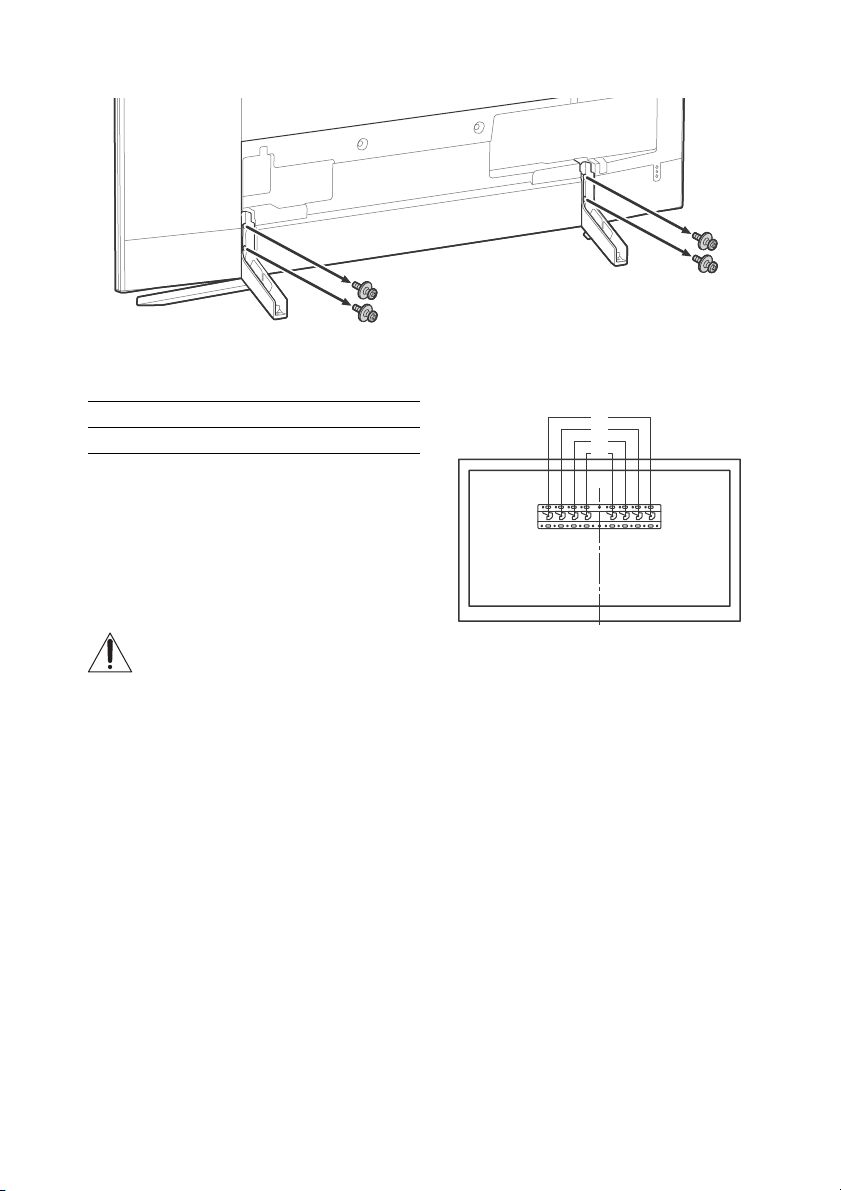

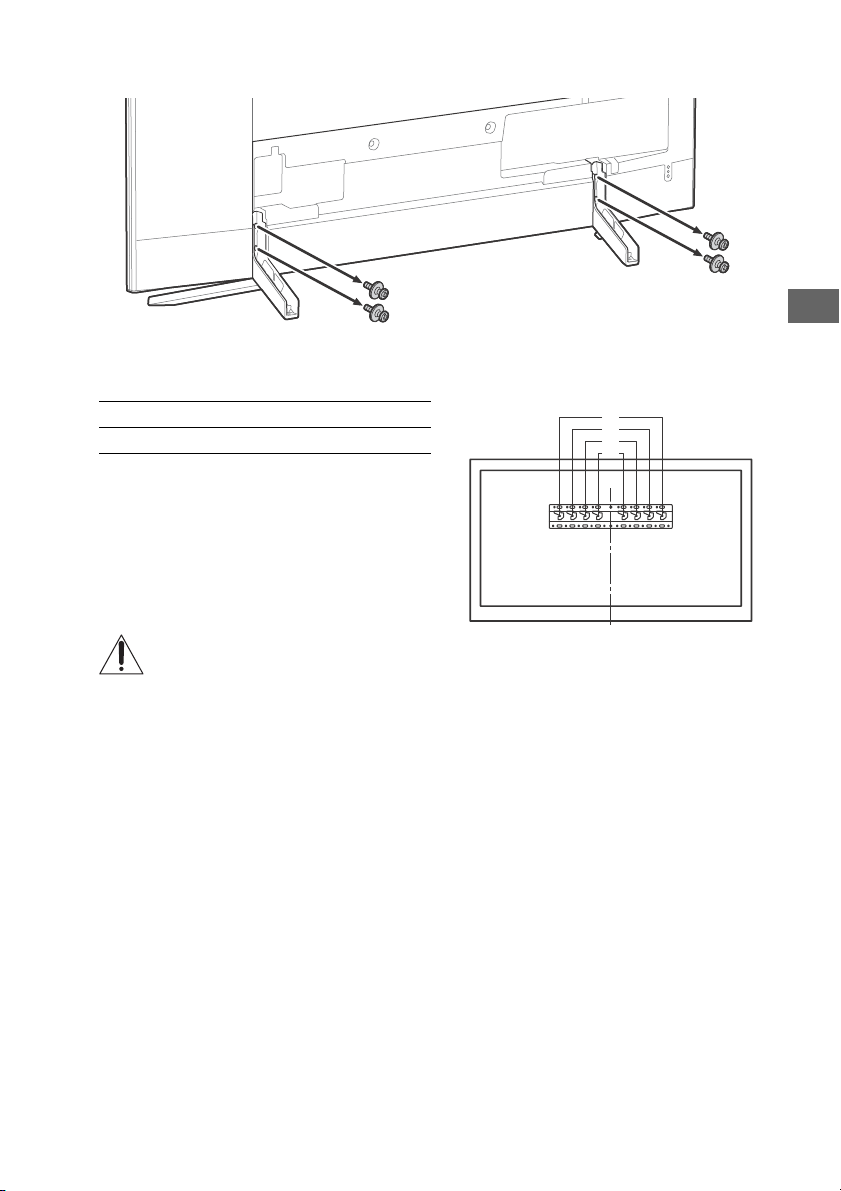

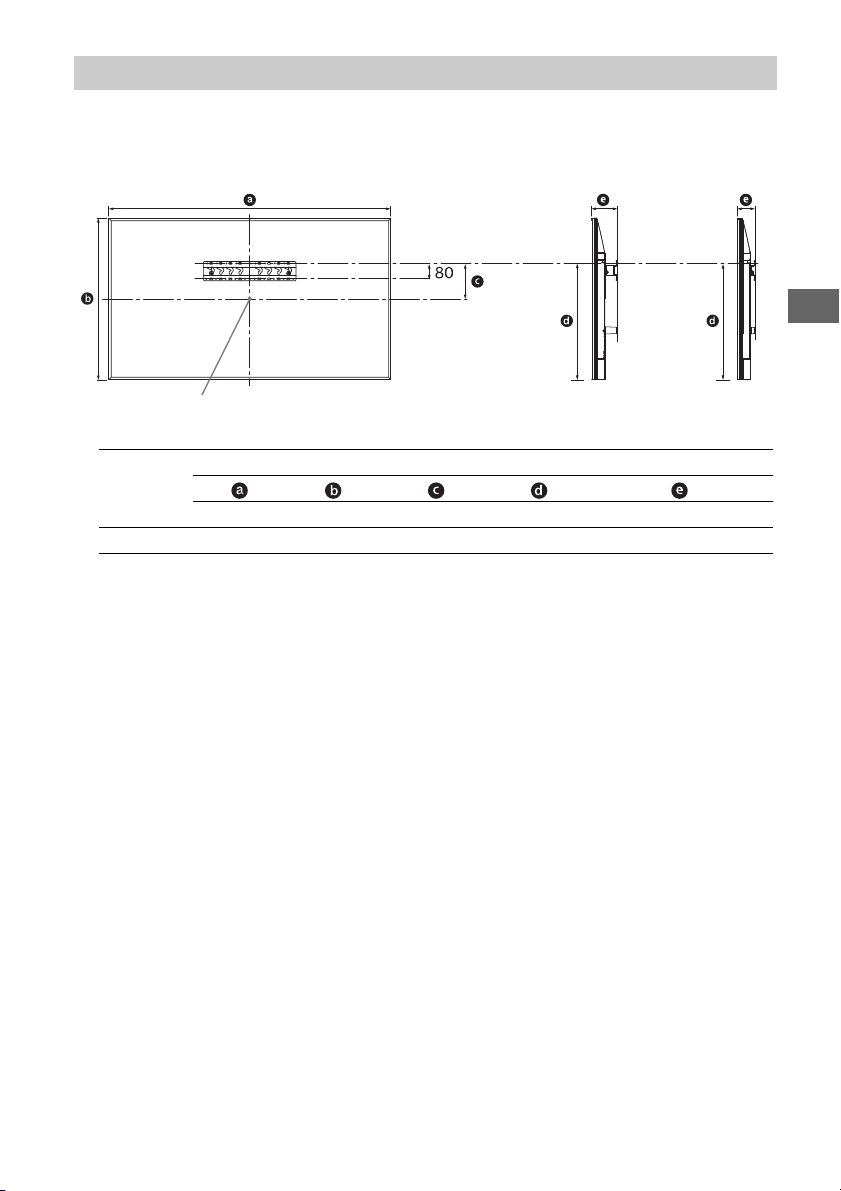

Installing the TV to the Wall . . . . . . . . . . 12

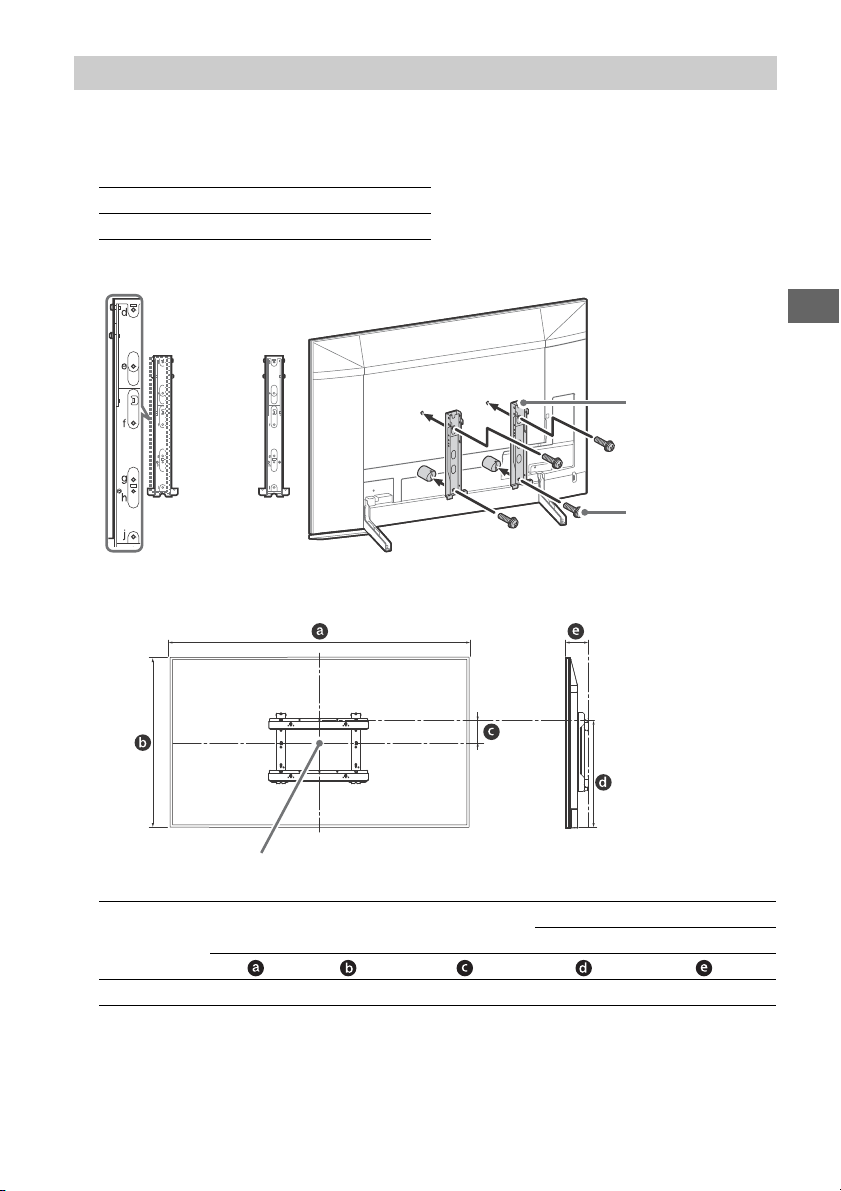

Using the optional Wall-Mount Bracket . . . 12

SU-WL500 (KD-75Z9F) . . . . . . . . . . . . . . . . . 14

SU-WL450 (KD-65Z9F) . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . 19

Troubles and Solutions. . . . . . . . . . . . . . . . . 19

Specifications . . . . . . . . . . . . . . . . . . . . . . 20

Introduction

Thank you for choosi ng this Sony product. Before operating the TV, please read this manual thoroughly and retain it for fu ture ref erence.

• Before operating the TV, please read the “Safety Information” (page

2).

• Instructio ns about “Installing the TV to the Wall” are included within this TV’s instruction manual.

• Imag es and illust rations used in t he Setup Guid e and this manual are for reference only and may differ from the actual product.

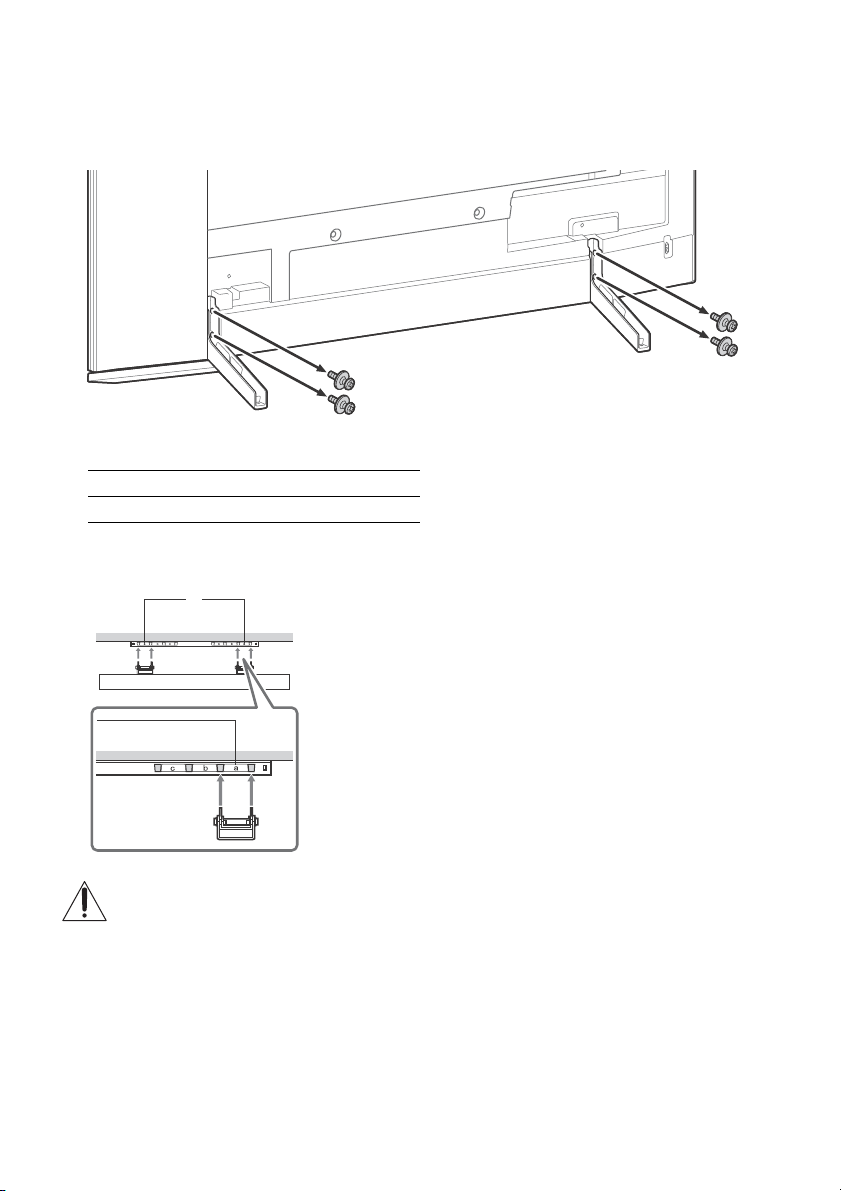

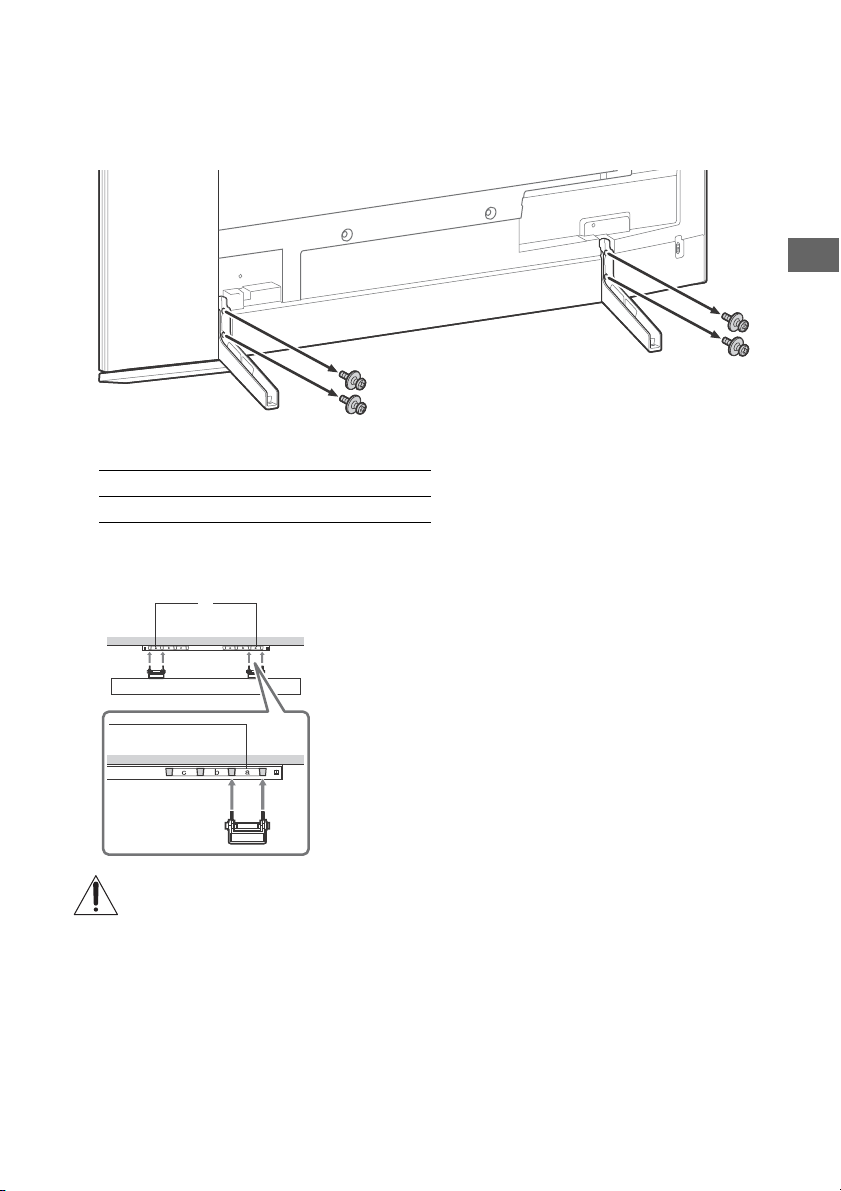

Attaching the Table-Top Stand to the TV

Refer to the Setup Guide o n top of the cushion.

Help

Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of top ics, or to search by keyword.

Help Guide (Manual)

For more detailed information, select [He lp Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartp hone (information provided o n the back cover).

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV. They can be found by removing the bottom cover.

This television is designed for use in Hong Kong and ensured

e usage in Hong Kong only.

Safety Information

WARN ING

Caution

Risk of explosion if the battery is replaced by an incorrect ty pe. Batteries must not be expose d to excessive heat such as sunshine, fire or the like or extremely low air pressure that can result in an exp losion or le akage of flamm able liquid or gas.

Stability Hazard

The television se t may fall, causing seri ous personal injur y or death. Never place a television set in an unstable location . A television set may fall, ca using serious personal inju ry or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabin ets or stands recommended by th e manufacturer of t

he television set.

• Only using furniture that can safely supp ort the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, c

upboards or bookcases) without anchoring both the furniture

and the television set to a suitable support.

Screw (M6)

Wall-M ount Bracket

8 mm - 12 mm

TV’s rear cover

8 mm - 12 mm

Screw (M6)

Wall-Mount Bracket

• Not placing the television set on cloth or oth er materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set o r its controls.

If your existing television set is b eing retained and relocated, the sa

me considerations as abo ve should be appl ied.

Installation/Set-up

Install and use the TV s et in accordance with the instruction s below in order to avoid any risk of fire, electric shock or damage and/or in juries. Apparatus connected to the protective e arthing of the building installation through the ma ins connection or through oth er apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire haza rd. Connection to a television distribution system therefore has to be provided through a device providing electrical isolation b elow a certain frequency range (galvanic isolator, see EN 60728-11).

Installation

• The TV se t should be insta lled near an easily accessible AC power outlet (mains socket).

• Place the TV set o n a stable, level surface to preven t it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked ov

er.

• Instal l the TV so that the TV's Table-Top Stand does not protrud e out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV se t to topple over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall-mount i

nstallations.

• For safety reasons, it is strongly recommended that yo u use Sony accessories, includ ing:  W

all-Mount Bracket SU-WL500 (K D-75Z9F)

 Wall-Mou nt Bracket SU-WL450 (KD-65 Z9F)

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Moun t Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the W

all-Mount Bracket model. Use of screws other than t hose supplied may result in internal damage to the TV se t or cause it to fall, etc.

Upper side

Lower side

Tran spo rti ng

• Before transpor ting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transpo rting the TV set by hand , hold it as shown below. D

o not put stress on the LCD panel and the frame around the

screen.

• When transpo rting the TV set, do not s ubject it to jolts or

xcessive vibration.

• When transpo rting the TV set for repairs o r when moving, pa ck it using the original carton and packing material.

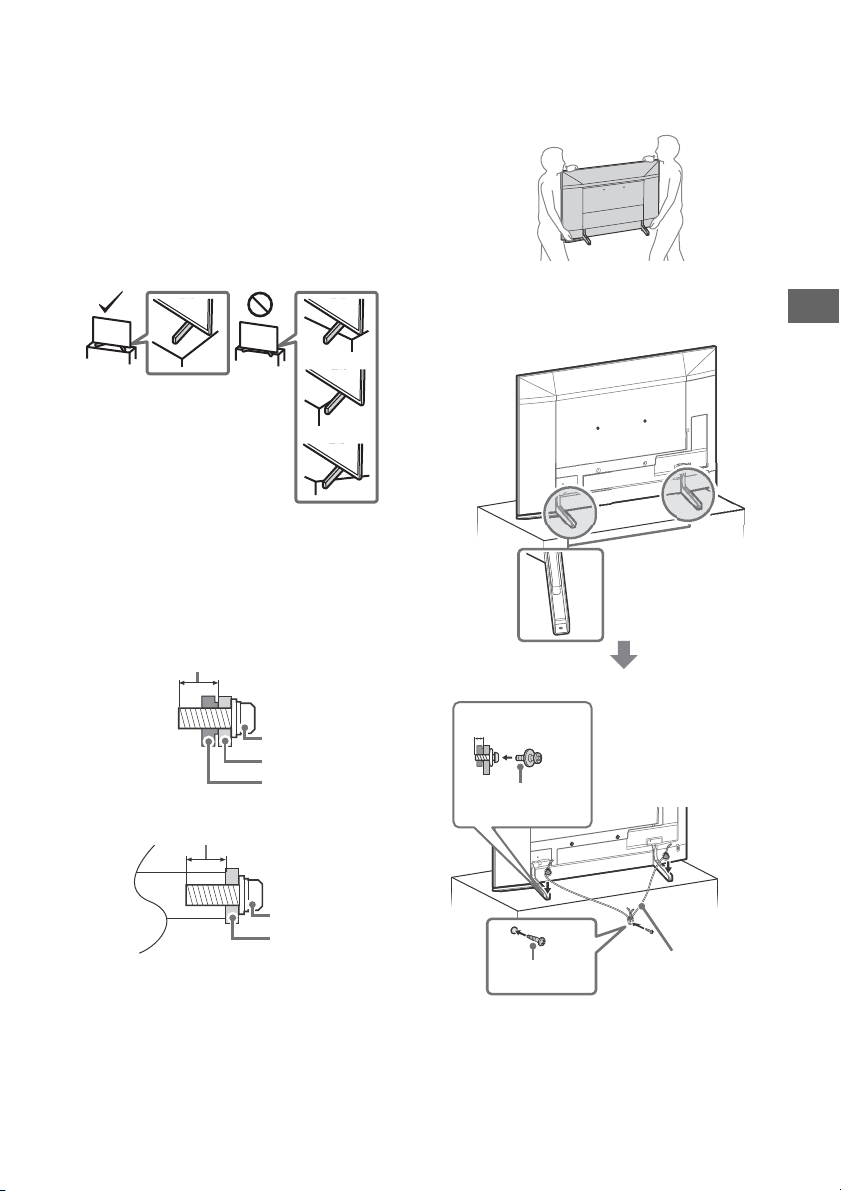

Topple prevention

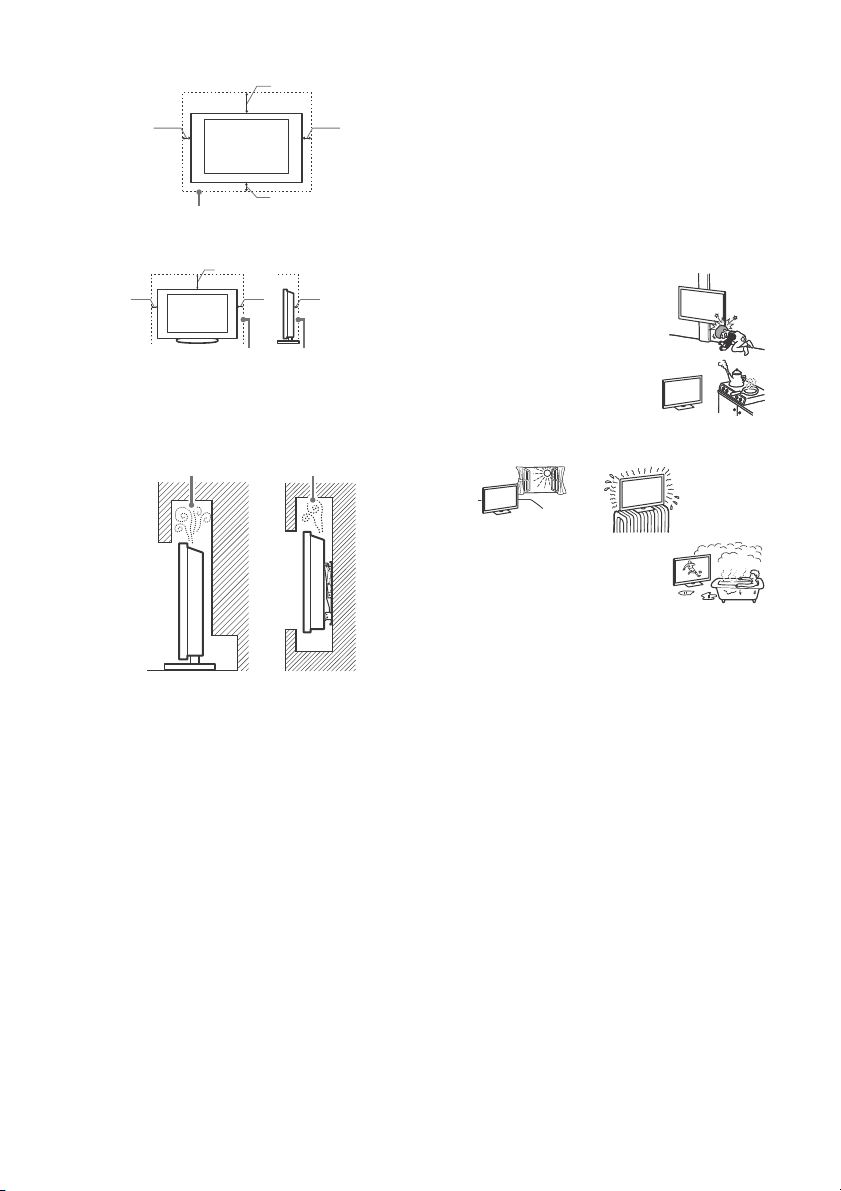

Ventilation

Note

M4 screw (not supplied)

Cord (not supplied)

Screw (not supplied)

4 mm - 7 mm

30 cm

10 cm

Leave at least this space around t he set.

30 cm

10 cm

Leave at least this space around the set.

6 cm

Wall

Air circulation is blocked.

Wall

• Never cover the v entilation holes or inser t anything in the cabinet.

• Leave space around the TV set as shown belo w.

• It is strongly recommen ded that you use a Sony Wall-M ount Br

acket in order to provide adequate air ci rculation.

Installed on the wall

Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust:  Do not l ay the TV set flat, install ups ide down, backwards, or

sideways.

 Do not pl ace the TV set on a shelf, rug, be d or in a closet.  D

o not cover the TV set with a cloth, such as curtains, or items

such as newspapers, etc.

o not install the TV set as sh own below.

 D

AC power cord (mains lead)

Handle the AC power cord (ma ins lead) and outlet (mains s ocket) as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:

• The shape of AC power plug (mains plug), which is supplied with the TV set, varies de pending on the region. Be sure to connect the appropriate supp lied AC power cord (mains lead) with the plug that fits i nto the AC power outlet (m ains socket).

• Use only Sony supplied AC power cords (mains lead), not those o

f other brands.

• Insert the pl ug fully into the AC powe r outlet (mains socket).

• Operate the TV set on a 220 V - 240 V AC supply only.

• When wiring cables, be sure to unplug the AC power cord (

mains lead) for your safety a nd take care not to catch your feet

on the cables.

• Disconnect the AC power cord (mains lead) f rom the AC power outlet (mains socket) before working on or moving th e TV set.

• Keep the AC power cord (m ains lead) away from heat s ources.

• Unplug the AC power plug (mains plug) and clean it regularly. If t

he plug is covered with dust and it picks up moisture, its

insulation may deteriorate, whic h could result in a fire.

• Do not use th e supplied AC power cord (mains lead) on any other equipment.

• Do not pinch, bend, or twist the AC power cord (mains lead) excessively. The core conductors may be exposed or broken.

• Do not modif y the AC power cord (mains lea d).

• Do not put any thing heavy on the AC po wer cord (mains lead).

• Do not pull on the AC power cord (mains lead) itself when disconnecting the AC po wer cord (mains lead).

• Do not connect too many appliances to the sa me AC power o

utlet (mains socket).

• Do not use a poor fitting AC power outlet (mains socket).

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as tho se listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries.

Locations:

• Outdoors (in direct su nlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, u nstable locations, near water, rain, moist ure or smoke.

Environments:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it migh t be exposed to mechanical vi bration, near flammable objects (candles, etc.). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufac turer. Disconnect the TV s et from AC power outlet (m ains socket) and antenna (aerial) during lightning storms.

• Install the TV s o that it sticks out into an open space. Injury or damage from a person or obje ct bumping into the TV may result .

• Place the TV in a humid or dusty space, o

r in a room with oi ly smoke or steam (near cooki ng tables or humidif iers). Fire, electric shock, o r warping may result.

• Install the TV i n places subject to extreme temperature such as in direct sun light, near a radiator or a heating vent. The TV may ov erheat in such condition which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is place d in the changing room o f

public bath or hot spring, the TV may be

a damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct il

lumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation . This may cause the TV to show poor picture and/or poor colour. Should this occur, allow mois ture to evaporate completely before powering the TV on.

Broken pieces:

• Do n ot throw anything at the TV set. T he screen glass may break by the impact and cause serious injury.

• If the surface of th e TV set cracks, do not touch it until you ha ve unplugged the AC po wer cord (mains lead). Other wise this may cause an electric shock.

When not in use

• If you will not be using the TV set for seve ral days, the TV set should be disconnected from the AC power (mains) for environmental and sa fety reasons.

• As the TV set i s not disconnected from the AC powe r (mains) w

hen the TV set is just turned off, pull the plug from the AC power outlet (mains socket) to disconnect the TV set completely.

• Some TV se ts may have features that require the TV set to be left in standby to work correctly.

For children

• Do not allow children to climb on the T V set.

• Keep small accessories ou t of the reach of children, so that they a

re not mistakenly swallowed.

If the following problems occur...

Turn off the T V set and unplug the AC pow er cord (mains lead) immediately if any of the following pro blems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

• AC power cord (mains lead) is damaged.

• Poor fitting of AC power outlet (mains socket).

• TV set is damaged by being dropped, hit or having something thrown at it.

• Any liqu id or solid object falls throug h openings in the cabinet.

About LCD TV Temperature

When the LCD TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV

• View the TV in mode rate light, as viewing the TV in poor light or during long period of tim e, strains your eyes.

• When usin g headphones, adj ust the volume so as to a void e

xcessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99 % or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantl y on the LCD screen. This is a structural property of the LCD screen a nd is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of t

his TV set. The image may be uneven or the LCD screen may be

damaged.

• If this TV set is used in a cold place, a smear m ay occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed c

ontinuously. It may disappear a fter a few moments.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

• The LCD screen contai ns a small amount of liquid crys tal. Follow your local ordinances and regulatio ns for disposal.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the AC powe r cord (mains lead) connected to the TV set from AC power outlet (mains socket) befo re cleaning. To avoid material degradation or screen coating de gradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently w

ith a soft cloth. If dust is persistent, wipe with a soft cloth

slightly mo istened with a diluted mild d etergent soluti on.

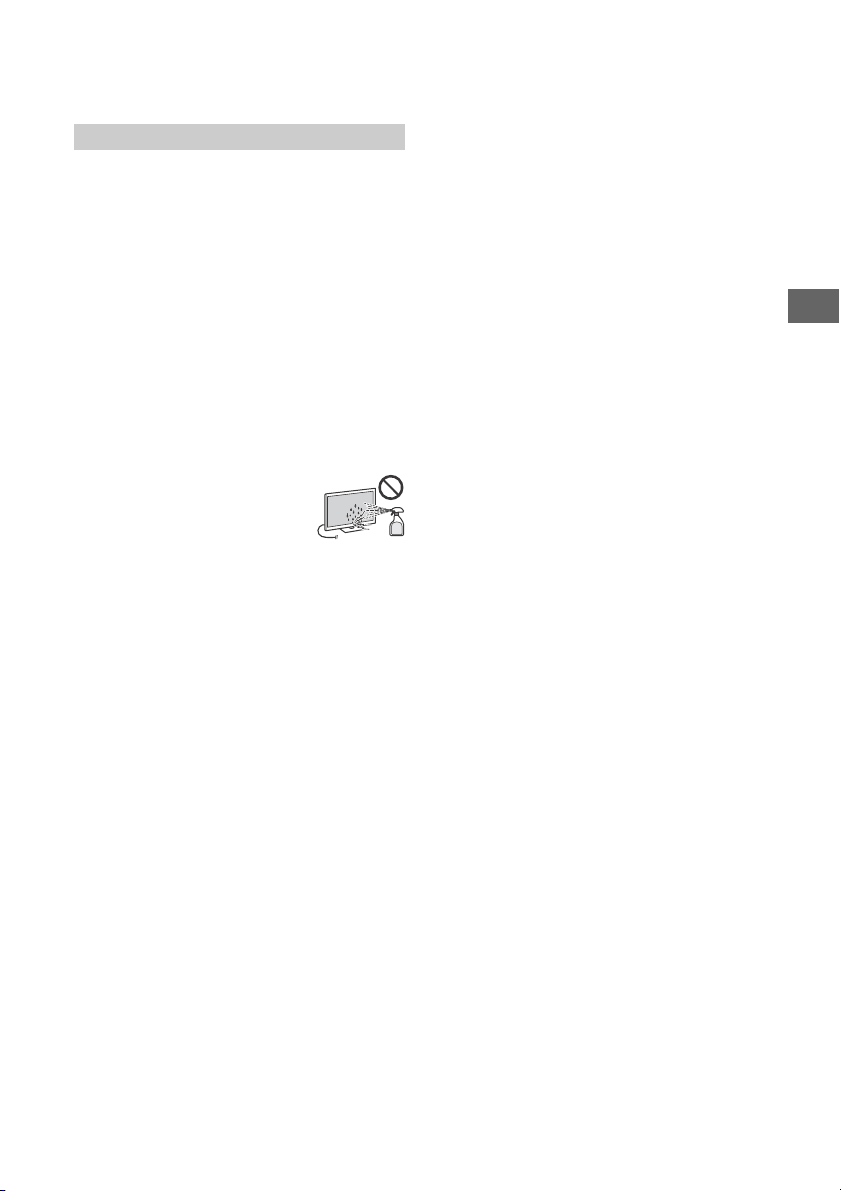

• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause dam age to the TV set.

• Never use any type of abrasive pad, a

lkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or in secticide. Us ing such materials or ma intaining prolonged contact with rubbe r or vinyl materials may resul t in damage to the screen su rface and cabinet material.

• Do not touch th e TV if your hand is covered in any ch emical sub

stance such as hand cream or sunblock.

• Periodic vacuuming of the vent ilation openi ngs is recommended to ensure proper ventilation.

• When adj usting the angle of the T V set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this u nit near medical equipm ent (pacemaker, etc.), as thi s may result i n the malfu nction of th e medical equipme nt.

• Altho ugh this un it transmits/re ceives scramble d signals, be careful of unauthorised i nterception. We cannot be responsible for any trouble as a result.

Caution about handling the remote control

• Observe th e correct polarity when inserting batteri es.

• Do not use different ty pes of batteries together o r mix old and new batteries.

• Dispose o f batteries in an environmentall y friendly way. Certain regions may regulate the d isposal of batteries. Pleas e consult your local autho rity.

• Handle the remote control with care. Do not drop or step on it, or

spill liquid of any kind onto it.

• Do no t place the remote control in a location n ear a heat source, a place subject to direct sun light, or a damp room.

ȫȬȪ

Parts and Controls

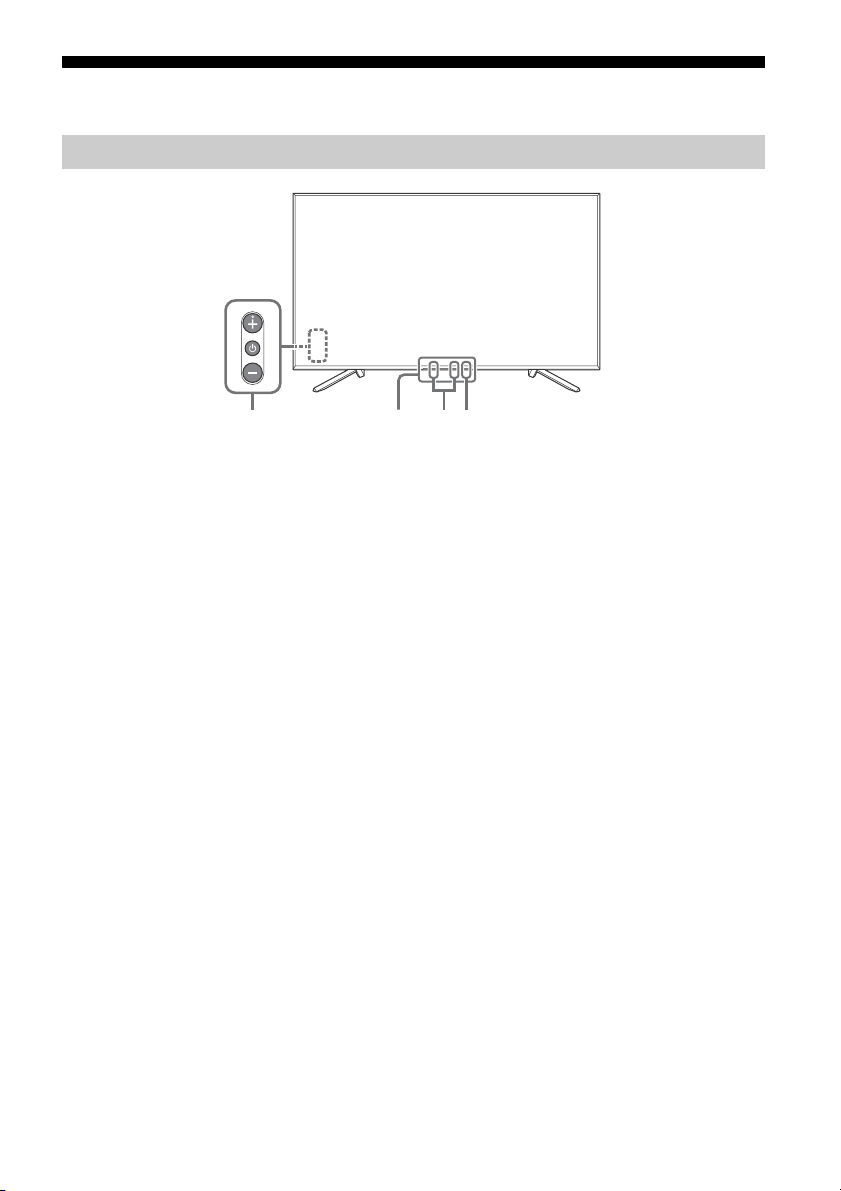

Controls and Indicators

 (Power) / + / –

When the TV is off,

Press  to

power on.

When the TV is on,

Press and hold  to Press 

repeatedly to change the function,

power off.

then press + or – button to:

•Adjust the volume.

• Select the channel.

• Select the input source of TV.

 Remote Control sensor*1 /

Light sensor*

/ Illumination LED

The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Gu

ide.

 Built-in MIC*2*

Use the hands-free built-in microphone for Voice Search. To enable the built-in MIC, press HOME, then select [Settings]  [Google].

 Built-in MIC LED

The built-in MIC LED lights up in amber when the built-in MIC is enabled. The builtin MIC LED can be disabled.*

*1 Do not place anything near the sensor.

*2 The built-in MIC will be available when software is

updated. For the latest information, visit Sony support website (information provided on the back cover). The Voice Search requires an Internet connection. The Voice Search with the built-in MIC is available only on limited region/country/language. Standby power consumption will increase because the built-in MIC is always listening when the Voice Search with the built-in MIC is enabled.

*3 For more information, see the Online Help Guide

(page 2).

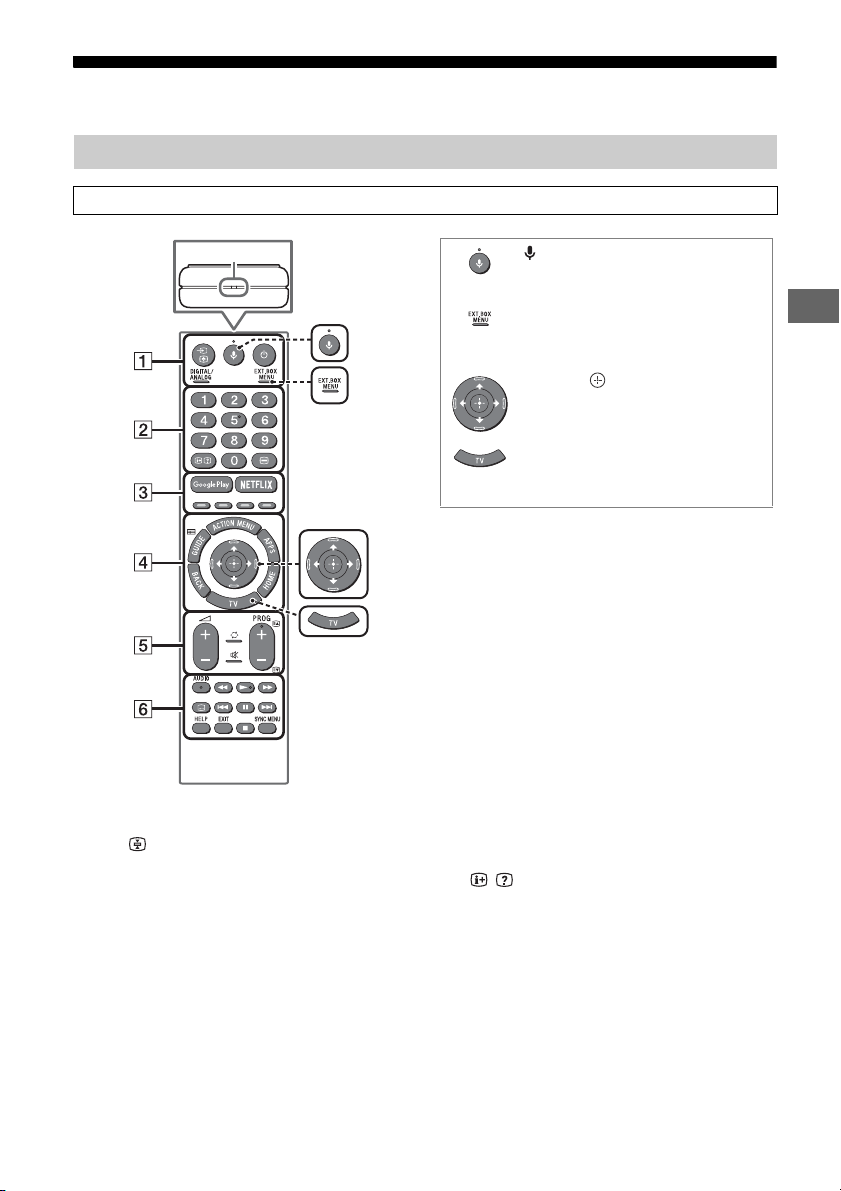

Using Remote Control

MIC

(Microphone)

Use Voice Search*. (e.g., Search various content by voice.)

EXT.BOX MENU

Display the External Box (cable/ satellite box) menu only if HDMI CEC compatible device is connected.

//// (Navigation D-Pad)

On screen menu navigation and selection.

Switch to a TV channel or input and display the TV Menu Bar.

* The Voice Search requires an Internet connection.

Remote Control Parts Description

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

/ (Input select/Text hold)

In TV mode: Display and select the input source. In Text mode: Hold the current page.

 (TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

 Number buttons

/ (Info/Text reveal)

Display information.

 (Text)

Display text information.

Hint

 Google Play

Access the “Google Play” online service.

NETFLIX (Only on limited region/ country/TV model)

Access the “NETFLIX” online service.

Colour buttons

Execute corresponding function at that time.

 ACTION MENU

Display a list of contextual functions.

GUIDE/

Display the digital programme guide.

APPS

Access various services and applications.

BACK

Return to the previous screen.

HOME

Display the TV Home Menu.

 +/– (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

 (Muting)

Mute the sound. Press again to restore the sound.

 AUDIO

Change the language for the programme currently being viewed.

//////

Operate media contents on the TV and connected BRAVIA Sync-compatible device.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

HELP

Display the Help menu. Help Guide can be accessed from here.

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

SYNC MENU

Display the BRAVIA Sync Menu.

• You can switch the accessibility on and off by

pressing and holding .

PROG +/–//

In TV mode: Select the channel. In Text mode: Select the next () or previous () page.

Connection Diagram

Cable/ Antenna

Router Audio

System with ARC/ HDMI Device

Digital still camera/Camcorder/ USB storage media

Headphone

< 14 mm

HDMI Device

VCR/Video game equipment/ DVD player/Camcorder

Digital still camera/ Camcorder/ USB storage media

HDMI Device

Audio System with Optical Audio Input

For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

3.5 mm

1234

1: L 2: Video 3: Ground 4: R

< 12 mm

< 21 mm

/ VIDEO IN

• For a composite connection, use an Analogue Extension Cable (not supplied).

•

 (Headphone)

• Supports 3-pole stereo mini jack only.

• You cannot output sound from both the h

eadphone and the TV speakers at the

same time.

 USB 1/2, USB 3

•Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, c

onnect to the USB 1 port.

 HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.

•

• HD

MI IN 3 ARC (Audio Return Channel)

Connect your audio system to the HDMI IN 3 to route TV audio to your audio sy

stem. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

• To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable and set the [HDMI signal format] to [Enhanced format]. Do this setting individually for each c

onnected HDMI IN terminal. For details of supported formats, refer to the “Specifications“ in this manual (page 20-

21).

Installing the TV to the Wall

Note

Using the optional Wall-Mount Bracket

This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

To Custo m er s :

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL500 (not supplied) (KD-75Z9F) or SU-WL450 (not supplied) (KD-

5Z9F) to install the TV to the wall.

6 When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supp

lied with the Wall-Mount Bracket.

• Be sure to store the removed screws in a safe place, keeping them away from children.

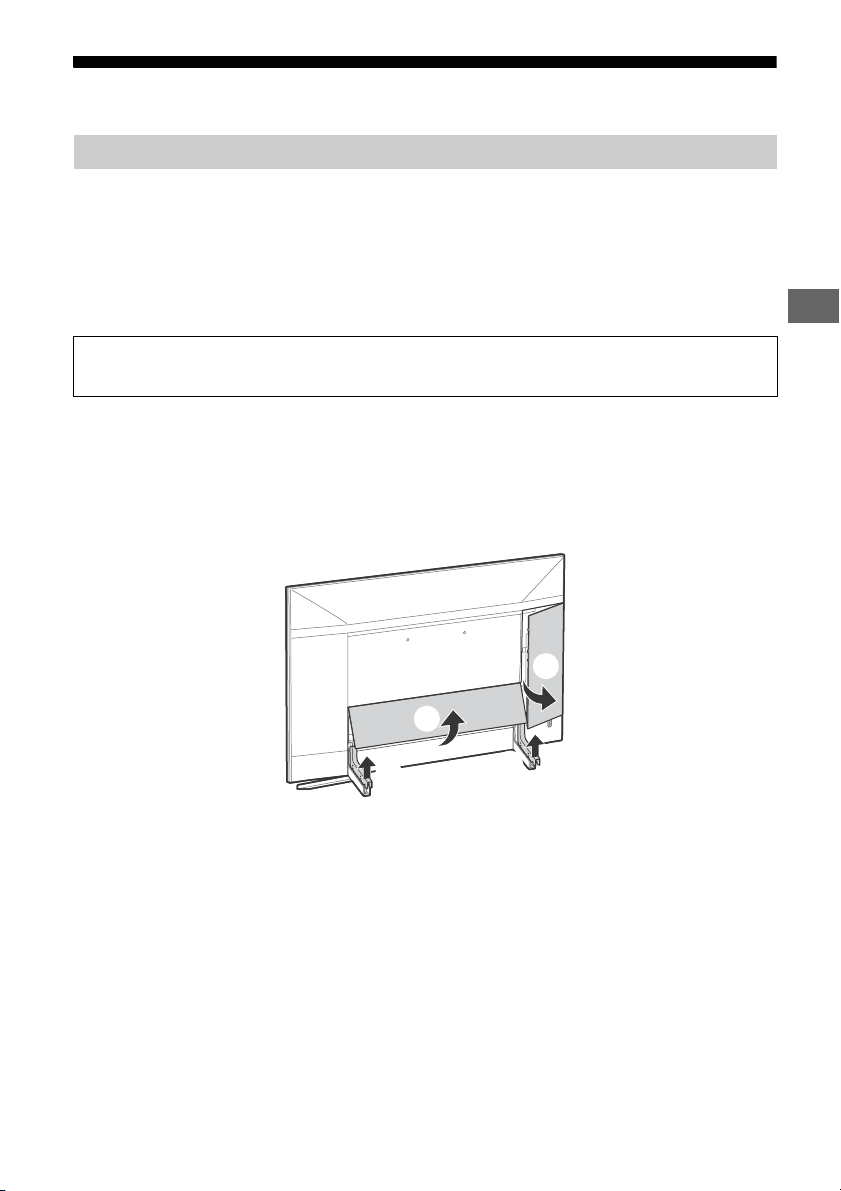

1 Remove the stand cover and terminal covers.

Note

1.5 N·m {15 kgf·cm}

2 Remove the screws from the rear of the TV.

3 Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it

parallel with the wall).

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.

Note

SU-WL500 (KD-75Z9F)

Mounting Hook

Screw (+PSW 6 × 16)

Screen centre point

1 Attach the Mounting Hook using the four screws supplied with the Wall-Mount Bracket.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.

Model Name Screw location

KD-75Z9F e, j

Screw location

When installing the Mounting Hook on the TV.

2 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 20-21 (Specifications) for the TV’s weight.

Model Name

KD-75Z9F 1,676 963 124 609 127

• Only applicable for 0º for this TV model.

• Figures in the table may differ slightly depending on the installation.

Display dimensions

Screen centre

mension

Length for mounting

Unit: mm

Angle (0º)

Note

3 Connect necessary cables to the TV.

• You cannot access to any terminal after installing the TV to the wall.

4 Detach the Table-Top Stand from the TV.

5 Install the TV on the wall.

Model Name Hook location

KD-75Z9F a

Hook location

When installing the TV onto the Base Bracket.

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Note

SU-WL450 (KD-65Z9F)

Screen centre point

Standard mounting

Slim mounting

1 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 20-21 (Specifications) for the TV’s weight.

Model

Display dimensions

Name

KD-65Z9F 1,453 837 186 609 129 87

Screen centre

ension

dim

Length for mounting

Standard

mounti

Slim

mounting

Unit: mm

• Figures in the table may differ slightly depending on the installation.

• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

Note

Pulley

Screw (+PSW 6 x 20)

Spacer (60 mm)

Screw (+PSW 6 x 50)

Belt

Pulley

Spacer (20 mm)

Screw (+PSW 6 x 20)

Belt

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by

referring to “1” of the Wall-Mount Bracket Installation Guide.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting

Slim mounting

3 Connect necessary cables to the TV.

• You cannot access to any terminal after installing the TV to the wall.

4 Detach the Table-Top Stand from the TV.

a b c d

5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the

Wall” of Operating Instructions supplied with the Wall-Mount Bracket.

Model Name Hook location

KD-65Z9F b

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the

wall.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button

on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the AC power cord (mains lead) for two minutes and then plug it in again.

2 Refer to the Help menu by pressing HELP on

the remote control.

3 Connect your TV to the Internet and perform

a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.

4 Visit Sony support website (information

provided on the back cover).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for ab

out one minute, then operate it again.

The EXT.BOX MENU button on the remote control does not work.

 Connect HDMI CEC compatible device and change

to that input.

The parental lock for broadcast password has been forgotten.

 Enter 9999 for the PIN code and select [Change

PIN code].

The TV surrounds become warm.

 When the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

Troubles and Solutions

When the illumination LED is flashing in red.

 Count how many times it flashes (interval time is

three seconds). Reboot the TV by disconnecting the AC power c

ord (mains lead) for two minutes, then turn on the TV. If the problem persists, disconnect the AC power c

ord (mains lead), and contact your dealer or Sony service centre with the number of times the illumination LED flashes.

There is no picture (screen is dark) and no sound.

 Check the antenna (aerial)/cable connection.  Connect the TV to the AC power (mains), and

press the power button on the TV or the remote control.

Some programmes cannot be tuned.

 Check the antenna (aerial)/cable connection.

The remote control does not function.

 Replace the batteries.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Analogue: I, D/K, B/G, M Digital: DTMB

Colour system

PAL/SECAM/NTSC3.58/NTSC4.43

Channel coverage

Analogue: UHF/VHF/Cable Digital: UHF

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n Bluetooth Version 4.2

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

/ VIDEO IN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (support 4K resolution, HDCP

2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)*

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC Formats* *1When 4096 × 2160p is input and [Wide

mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2]. To support 18 Gbps, set [HDMI signal format] to [Enhanced format]. Refer to the Help Guide for details.

1*2

, 4096 × 2160p

Audio:

In eARC (Enhanced Audio Return Channel)

de*

Refer to the Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/96/ 17

6.4/192 kHz 16/20/24 bits, Dolby Digital,

Dolby Digital Plus, DTS

* eARC will be available when software is

upda

ted. Visit Sony support website (information provided on the back cover) for the latest information. eAR C mode i s active when [eA RC mode] i s set to [Auto], [Speakers] is set to [Audio system] and eARC compatible audio system is connected.

ARC (Audio Return Channel) (HDMI IN 3 only)

In eARC mode*

Refer to the Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby D

igital, Dolby Digital Plus, DTS

* eARC will be available when software is

upd

ated. Visit Sony support website (information provided on the back cover) for the latest information. eARC mode is active when [eARC mode] is set to [Auto], [Speakers] is set to [Audio system] and eARC compatible audio system is connected.

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS)

 (Stereo mini jack)

Headphone

1, 2, 3

USB port 1 and 2 support High Speed USB (USB 2.0) USB port 3 supports Super Speed USB (USB 3.1 Ge

n 1)

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and commu

nication quality are not guaranteed for

this TV.)

Others

Optional accessories

Wall-Mount Bracket: SU-WL500 (KD-75Z9F) Wall-Mount Bracket: SU-WL450 (KD-65Z9F)

Operating temperature

0 ºC – 40 ºC

Operating humidity

10 % – 80 % RH (non-condensing)

Note

Power and others

Power requirements

220 V - 240 V AC, 50 Hz

Screen size (measured diagonally) (Approx.)

KD-75Z9F: 75 inches / 189.3 cm KD-65Z9F: 65 inches / 163.9 cm

Powe r consumption

Indicated on the rear of the TV

Standby power consumption*1*

0.5 W

Display resolution

3,840 pixels (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2

5 V , 500 mA MAX

USB 3

5 V , 900 mA MAX

Dimensions (Approx.) (w × h × d)

wi t h Tabl e-Top S tan d

KD-75Z9F: 1,676 × 1,039 × 399 mm KD-65Z9F: 1,453 × 906 × 314 mm

without Table-Top Stand

KD-75Z9F: 1,676 × 963 × 67 mm KD-65Z9F: 1,453 × 837 × 67 mm

Mass (Approx.)

wi t h Tabl e-Top S tan d

KD-75Z9F: 40.1 kg KD-65Z9F: 29.5 kg

without Table-Top Stand

KD-75Z9F: 38.5 kg KD-65Z9F: 28.2 kg

*1 Specified standby power is reached after the TV

finishes necessary internal processes.

*2 Standby power consumption will increase when

your TV is connected to the network.

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

Trademark Information

• The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

• Manufactured under license from Dolby

aboratories. Dolby, Dolby Audio, Dolby

L Vision, and the double-D symbol are trademarks of Dolby Laboratories.

•“BRAVIA”, and BRAVIA Sync are trademarks or registered marks of Sony

rporation.

• Gracenote, the Gracenote logo and

type, “Powered by Gracenote” logo are

logo either registered trademarks or trademarks of Gracenote, Inc. in the United States and/ or other countries.

• Google, Android TV, Google Play,

hromecast built-in, YouTube and other

C related marks and logos are trademarks of Google LLC.

• Wi-Fi®, Wi-Fi Alliance® and Wi-Fi Direct® are

egistered trademarks of Wi-Fi Alliance.

• Wi-Fi Protected Setup™ is a trademark of

i-Fi Alliance.

• The Wi-Fi CERTIFIED™ Logo is a

ertification mark of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured

license from DTS, Inc.

under DTS, the Symbol, & DTS and the Symbol

ogether are registered trademarks, and

• The Bluetooth® word mark and logos are

egistered trademarks owned by the

r Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Netflix is a registered trademark of Netflix,

Inc

eserved. Patents pending. RealMedia,

r RealNetworks, and their logos are trademarks or registered trademarks of RealNetworks, Inc.

• TUXERA is a registered trademark of Tuxera

. in the US and other countries.

Inc

• USB-IF SuperSpeed USB Trident logo is a

egistered trademark of USB Implementers

r Forum, Inc.

• All other trademarks are the property of

heir respective owners.

22GB2

註

安全資訊 . . . . . . . . . . . . . . . . 2

預先注意事項 . . . . . . . . . . . . . . 5

組件及控件 . . . . . . . . . . . . . .6

控件及指示燈 . . . . . . . . . . . . . . 6

使用遙控器 . . . . . . . . . . . . . .7

遙控器組件說明 . . . . . . . . . . . . . 7

連接圖 . . . . . . . . . . . . . . . . 9

將電視機安裝在牆上 . . . . . . . . . 11

使用選購的壁掛式支架 . . . . . . . . . 11

SU-WL500 (KD-75Z9F) . . . . . . . . . 13

SU-WL450 (KD-65Z9F) . . . . . . . . . 15

故障排除 . . . . . . . . . . . . . . 18

故障及解決方案 . . . . . . . . . . . . 18

規格 . . . . . . . . . . . . . . . . 18

簡介

感謝您購買這項 Sony 產品。使用電視機之前，請詳閱本手冊，並保留下來以便將來參考。

• 使用電視機之前，請詳讀 “ 安全資訊 ” （第 2 頁）。

• 有關 “將電視機安裝在牆上 ”的指示已包含在這台電視機的使用說

明書。

• 安裝指南和本品不同。

說明書中使用的影像和插圖僅作參考並可能與實際產

將桌面底座安裝至電視機

請參閱軟墊上的安裝指南。

說明

直接從電視機獲取更多故障排除資訊和其他有用資訊。按遙控器上的 HELP 以顯示主題清單，或透過關鍵字搜尋。

說明指南（說明書）

有關更多資訊，請從電視機上的說明選單選擇 [ 說明指南 ]。您也可以從您的 PC 或智能手機查看說明指南（封底提供的資訊）。

識別標籤的位置

電視機型號和電源等級的標籤位於電視機背面。移除底蓋之後可以找到它們。

本電視設計在香港使用，只保證能在香港使用。

安全資訊

警告

注意事項

若以不正確類型的電池進行更換，可能會有爆炸的危險。不可將電池曝露於如陽光、火或類似的過熱源或者極低的氣壓，以避免引起爆炸或可燃性液體或氣體洩漏。

穩固危險

電視機可能翻倒，造成嚴重人身傷害或死亡。切勿將電視安置在不穩定的地方。電視可能跌落、造成嚴重人身傷害或導致死亡。為避免尤其是對孩童造成傷害，可採取簡單的預先注意事項，如：

• 使用電視製造

• 僅使用可安全支撐電視的傢俱。

• 確保電視不會置於支撐傢俱的邊緣處。

• 未將傢俱與電視固定在合適的支架上時，勿將電視置於較高的傢俱

（如櫥櫃或書櫃）之上。

• 切勿在電視與支撐傢俱之間擺放布料或其他材料。

• 教育孩童攀爬傢俱去觸摸電視或其控制器是相當危險的。

如果您現有的電視仍在使用且已重新安放，則同樣適用上述注意事項。

商推薦的機櫃或支架。

螺絲 (M6)

壁掛式支架

8 毫米 - 12 毫米

電視機後蓋

8 毫米 - 12 毫米

螺絲 (M6)

壁掛式支架

M4 螺絲（非附帶）

導線（非附帶）

螺絲（非附帶）

4 毫米 - 7 毫米

安裝 / 設定

為了避免火災、觸電或損壞及 / 或受傷等危險，請遵照下列指示來安裝和使用電視機。若裝置透過電源接線或透過帶有保護地線連接設備的其他裝置與建築安裝的保護接地連接，以及使用同軸電纜與電視分配系統連接，則在某些情況下可能導致火災危險。因此，必須透過在特定頻率範圍內提供電氣隔離的設備（電流隔離器，參閱 EN 60728-11）提供與電視分配系統的連接。

安裝

• 應將電視機安裝在易於插拔的 AC 電源插座附近。

• 將電視機放在一個穩定的平面，以防止墜落和引起個人傷害或財產

損壞。

• 應將電視機

• 安裝電視機，使電視機的桌面底座不會從電視機櫃（非附帶）凸

安裝在不容易被拉、推或碰倒之處。

出。如果桌面底座從電視機櫃凸出，可能導致電視機翻倒、掉落及人身傷害或對電視機造成損壞。

搬動

• 搬動電視機之前，請斷開所有纜線的連接。

• 大尺寸電視機需要兩到三人搬動。

• 用手搬動電視機時，請如下圖所示抓握。請勿對液晶面板以及螢幕

周圍的框邊施加壓力。

動電視機時，請勿使其受到搖晃或過度震動。

• 搬

• 搬動電視機以進行維修或移動時，請使用原有的紙箱和包裝材料進

行包裝。

防止傾倒

• 僅可由合格

• 為了安全起見，強烈建議您使用 Sony 配件，包括：

• 將壁掛式支架安裝於電視機上時，務必要使用隨附於壁掛式支架的

的維修人員執行掛壁安裝。

 壁掛式支架 SU-WL500 (KD-75Z9F)  壁

掛式支架 SU-WL450 (KD-65Z9F)

螺絲。隨附螺絲如插圖所示設計從壁掛式支架安裝表面量起。螺絲的直徑和長度會因為壁掛式支架的型號而有所不同。使用隨附螺絲以外的螺絲可能會造成電視機內部損壞或者掉落等等。

上側

下側

通風

• 切勿遮擋通風孔或將任何物體插入機殼內。

• 如下圖所示，在電視機周圍保留通風空間。

• 強烈建議您使用 Sony 壁掛式支架以確保足夠的空氣流通。

安裝在牆壁上

註

30 厘米

10 厘米

在電視機周圍至少留出所示的空間。

30 厘米

10 厘米

在電視機周圍至少留出所示的空間。

6 厘米

牆壁

空氣流通被阻擋。

牆壁

安裝在底座上

• 為了確保正確通風及防止髒物或灰塵堆積：

 請勿將電視機平放、上面朝下安裝、向後安裝或側面安裝。  請勿將電視機放置於架子、地毯、床或壁櫥中。  請勿用布（如窗簾）或物件（如報紙等）覆蓋電視機。  請勿如下圖所示安裝電視機。

使用限制

請勿在下列地點、環境或情況條件下安裝 / 使用電視機，否則電視機可能會發生故障並造成火災、觸電、損壞及 / 或受傷等危險。

地點：

• 室外（在直射的陽光中），海邊，船上或其他船艦上，車內，醫療機構中，不穩定的場所，靠近水、雨、濕氣或煙霧的地方。

環境：

• 炎熱潮濕或太多灰塵的地方；昆蟲可能進入的地方；可能受到機械式震動的地方；靠近易燃物體（蠟燭等）的地方。不應該讓液體滴濕或噴濕電視機，而且裝滿液體的物體（例如花瓶）不應該擺在電視機上。

情況條件：

• 機櫃被拆卸或使用非生產商推薦的附件時，雙手潮濕狀態下使用。出現雷電時請將電視機電源線從 AC 電源插座和天線拔下。

• 安裝電視機時使其突出至開放的空間。可能會導致人或物體撞擊電視機而引起傷害或損壞。

• 把電視機放置油煙或蒸氣的房間內（靠近灶台或加濕器）。這可能導致火災、觸電或本機彎曲。

• 將電視機安裝如陽光直射、靠近散熱器或加熱裝置通風孔。電視機在這種環境下可能會過熱而導致外殼變形及 / 或電視機故障。

在潮濕或多塵的空間，或有

在會遭受極端溫度的地方，

• 如果放置電視內，電視機可能會被空氣中的硫磺等損壞。

• 若要獲得最佳直射光源或陽光下。

• 避免將電視機從寒冷的區域移至溫熱的區域。突然的室溫變化可能導致濕氣凝結。這可能造成電視機顯示劣質圖像及 / 或暗淡的顏色。如果發生這種情形，讓濕氣完全蒸發之後才開啟電視機。

打破電視機螢幕：

AC 電源線

為了避免火災、觸電或損壞及 / 或受傷等危險，請遵照下列指示來處理 AC 電源線和插座：

• 電視機附帶的 AC 電源插頭的形狀視區域而不同。確保連接合適的附帶 AC 電源線，插頭要適合 AC 電源插座。

• 僅使用 Sony 隨

• 將插頭完全插入 AC 電源插座。

• 僅可在 220 V - 240 V AC 電源上使用電視機。

• 連接纜線時，為了安全起見請務必拔下 AC 電源線，以免被纜線絆

到腳。

• 在進行作業或移動電視機之前，請從 AC 電源插座上斷開 AC 電源線的連接。

• 保持

• 拔下 AC 電源插頭，定期進行清潔。如果插頭上有灰塵積聚並帶有

濕氣，則其絕緣品質可能已經劣化，並可能會造成火災。

• 請勿將隨附的 AC 電源線用於任何其他設備。

• 請勿過度擰捏、彎曲或扭轉 AC 電源線。否則線芯可能會曝露在外

或折斷。

• 請勿改裝 AC 電源線。

• 請勿將任何重物放在 AC 電源線上。

• 斷開 AC 電源線連接時，請勿拉扯 AC 電源線。

• 請勿在相同的 AC 電源插座上連接太多設備。

• 請勿使用不適當的 AC 電源插座。

附的 AC 電源線，不能使用其他品牌的電源線。

AC 電源線遠離熱源。

• 請勿將任何物品丟向電視機。否則螢幕可能會因為受到撞擊而破裂並造成嚴重傷害。

• 如果電視機的會引起觸電。

不使用時

• 如果您不使用電視機數天，為了環保和安全原因，應將電視機電源線從 AC 電源插座上拔下。

• 關閉電視機電源時，電視機並未與 AC 電源斷開連接，請將插頭從 AC 電源插座上拔下以完全斷開電視機的電源連接。

• 某些電視機可能具有需要將電視機保持在待命模式下才能正常工作的特點。

對於兒童

• 請勿讓兒童爬上電視機。

• 將體積小的配件放在兒童拿不到的地方，以便不會被兒童誤吞。

如果出現下列問題 …

如果出現以下任何問題，請立刻關閉電視機並拔下 AC 電源線。請諮詢您的經銷商或 Sony 服務中心以交由合格的服務人員進行檢查。

當：

• AC 電源線損壞。

• AC 電源插座不適當。

• 電視機由於跌落、敲擊或撞擊而損壞。

• 任何液體或固體物件通過開口處掉入機殼內。

機在公共浴室或溫泉的更衣室

的畫面品質，請勿將螢幕放在

表面破裂，在拔下 AC 電源線以前請勿觸摸它。否則

關於液晶電視機溫度

長時間使用液晶電視機時，面板周圍溫度會升高。用手觸摸這些地方時可能會覺得很燙。

預先注意事項

觀賞電視

• 請在適當光線條件下觀賞電視，因為在光線不足條件下或長時間觀賞電視會損傷您的眼睛。

• 使用耳機時，請調整音量以免音量過高損傷聽力。

LCD 螢幕

• 雖然 LCD 螢幕採用最精密技術製造且 99.99 % 或以上的像素有效，但還是可能會出現黑點或 LCD 螢幕上可能會經常出現亮點

（紅、藍或綠色）。這是 LCD 螢幕的結構特性，並不是故障。

• 請勿按壓或

• 如果在寒冷地點使用本電視機，畫面上可能會出現模糊或變暗。這

• 畫面靜止不動將會產生重影。片刻後該現象將消失。

• 電視機使用過程中，螢幕和機殼會變熱。這不是故障。

• LCD 螢幕包含少量液晶。請按照您當地的法規進行廢棄物處理。

刮傷前濾光面板或在電視機頂部放置物件。畫面可能會

不均，或者 LCD 螢幕可能會損壞。

並不是故障。溫度上升後這些現象就會消失。

使用和清潔電視機的螢幕表層 / 機殼

清潔前，務必將電視機的 AC 電源線從 AC 電源插座上斷開連接。為了避免物質或螢幕塗層剝離，請遵照下列預先注意事項。

• 若要擦去螢

• 絕對不能將水或清潔劑直接噴灑在電視上。液

• 切勿使用任何類型的磨砂墊、鹼性 / 酸性清潔

• 如果手上塗

• 建議您定期吸塵以清理通風口以確保通風順暢。

• 當調整電視機的角度時，請慢慢地調動以防電視機從其桌面型底座

幕表層 / 機殼上的灰塵，請用軟布輕輕擦拭。如果灰塵

較難除去，請用稍稍蘸有稀釋中性清潔溶劑的軟布進行擦拭。

體可能滴落在螢幕的底部或外部零件上並滲入電視內，而毀壞電視。

劑、擦洗粉或揮發溶劑，如酒精、汽油、稀釋劑或殺蟲劑。使用上述材料或與橡膠或乙烯材料長時間接觸可能會造成螢幕表面和機殼材料的損壞。

有任何化學品，例如手霜或防曬霜，請勿觸摸電視機。

移動或滑落。

選購設備

將產生電磁輻射的選購元件或任何其他設備遠離電視機。否則可能會造成畫面失真及 / 或噪聲。

本機的無線功能

• 請勿在醫療設備（心臟起搏器等）附近操作本機，因為會引起醫療設備故障。

• 雖然本機發送 / 接收加擾信號，請小心未經授權的截取。我們不對此造成的任何問題負責。

注意有關處理遙控器

• 安裝電池時請注意正確的極性位置。

• 請勿同時使用不同類型的電池或混合使用新舊電池。

• 請以符合環境保護規定的方式來丟棄電池。特定地區可能有制訂廢

棄電池的相關規定。請向您當地的主管機關查詢。

• 請小心拿取

• 請勿將遙控器放置在接近熱源的地方，放置在受日光直射地方或潮

遙控器。請勿讓遙控器掉落或踩在遙控器上，或是讓任

何液體濺到遙控器。

濕的房間。

組件及控件

ȫȬȪ

控件及指示燈

（電源）/ + / –

當電視機處於關機狀態時，請按  開打開電視機時，按住  關重複按  以執行下列操作：

• 調節

• 選擇

 遙控器感應器 *1 /

光感應器 *

根據電視機的狀態，LED 照明燈會亮起或閃爍。有關更多資訊，請參閱說明指南。

機。

變更功能，然後按 + 或 - 按鈕

音量。頻道。電視機的輸入來源。

/ LED 照明燈

 內建 MIC*2*

使用免持內建麥克風進行語音搜尋。如要啟用內建 MIC，請按 HOME，然後選擇 [ 設定 ]  [Google]。

 內建 MIC LED

啟用內建 MIC 時，內建 MIC LED 亮琥珀色光。可停用內建 MIC LED。*

*1 請勿在感應器附近放置任何物品。 *2 軟體更新時，內建 MIC 可用。有關最新資訊，請造訪

Sony 支持網站（封底提供的資訊）。語音搜尋需要網際網路連線。採用內建 MIC 的語音搜尋僅在限制的區域 / 國家 / 以限制的語言提供。待機耗電量會增加，因為啟用採用內建 MIC 的語音搜尋時，一直在聆聽內建 MIC。

*3 有關更多資訊，請參閱線上說明指南（第 2 頁）。

MIC

（麥克風）使用語音搜尋 *。（例如，透過語音搜尋各種內容。）

EXT.BOX MENU 只在連接了 HDMI CEC 相容裝置時才顯示外接盒（纜線 / 衛星盒）選單。

//// （十字鍵）在螢幕選單導航和選擇上。

TV 切換為電視機頻道或輸入並顯示電視功能表列。

語音搜尋需要網際網路連線。

使用遙控器

遙控器組件說明

遙控器外形、按鈕的位置、可用性與功能視您的國家 / 區域 / 電視機型號而可能略有不同。

/ （輸入選擇 / 文字保留）

電視模式︰顯示並選擇輸入來源。文字模式︰保留當前頁面。

 （電視待機）

開啟或關閉電視機（待機模式）。

DIGITAL/ANALOG

在數位及模擬模式之間切換。

 數字按鈕

/ （顯現資訊 / 文字）

顯示資訊。

 （文字）

顯示文字資訊。

 Google Play

提示

訪問 “Google Play” 線上服務。

NETFLIX （僅限限制的區域 / 國家 / 電視機型號）

訪問 “NETFLIX” 線上服務。

顏色按鈕

屆時執行相應的功能。

 ACTION MENU

顯示情境功能清單。

GUIDE/

顯示數位節目指南。

APPS

訪問各種服務和應用程式。

BACK

返回上一個畫面。

HOME

顯示電視主選單。

 +/– （音量）

調節音量。

（跳轉）

在兩個頻道或兩次輸入之間前後跳轉。電視在當前頻道 / 輸入以及選擇的上一個頻道 / 輸入之間交替切換。

 （靜音）

將聲音消除。再次按下可恢復聲音。

 AUDIO

變更目前觀看之節目的語言。

//////

運行電視機和相連的 BRAVIA Sync 相容裝置上操作媒體內容。

（字幕設定）

開啟或關閉字幕（此功能可用時）。

HELP

顯示說明選單。可以從此處訪問說明指南。

EXIT

返回至上一個畫面，或從選單退出。如果交互式應用服務可供使用，按下即可退出服務。

SYNC MENU

顯示 BRAVIA 同步選單。

• 按住  可開啟關閉存取性。

PROG +/–//

電視模式︰選擇頻道。文字模式︰選擇下一個 () 或頁面。

上一個 ()

纜線 /天線路由器帶有 ARC

的音訊系統 /HDMI 裝置

數碼相機 / 攝像機 / USB 儲存媒介

耳機

< 14 毫米

HDMI 裝置

錄影機 / 電玩設備 / DVD 播放機 / 攝像機

數碼相機 /

攝像機/USB

儲存媒介

HDMI 裝置

帶有光學音訊輸入的音訊系統

連接圖

有關連接的更多資訊，請按遙控器上的 HELP 以參閱說明指南。

/ VIDEO IN

3.5 毫米

12 34

1: 左 2: 視訊 3: 接地 4: 右

< 12 毫米

< 21 毫米

• 如需完成複合連接，請使用模擬延長纜線（非附帶）。

•

 （耳機）

• 僅支援 3 極立體聲聲迷你插孔。

• 您無

法同時從耳機和電視機揚聲器輸出聲

音。

 USB 1/2, USB 3

• 連接大型 USB 裝置可能會干擾旁邊連接的其

他裝置。

• 連接

大型 USB 裝置時，請連接至 USB 1

埠。

 HDMI IN 1/2/3/4

• HDMI 介面可使用單個纜線傳輸數位視訊和音

訊。

•

• H

DMI IN 3 ARC （Audio Return Channel）

（音頻回傳信道）

將音訊系統連接至 HDMI IN 3 以傳送電視機音

訊至音訊系統。支援 HDMI ARC 的音訊系統可將視訊傳送至電視機，並透過同一 HDMI 纜線從電視機接收音訊。如果音訊系統不

支援 HDMI ARC，必須額外連接 DIGITAL AUDIO OUT (OPTICAL)。

• 要享受高品質 4K 50p/60p 內容，連接優質速度 HDMI 接線，並將 [HDMI 訊號格式 ] 設為 [ 增強的格式 ]。為每個連接的 HDMI IN 端子單獨完成此設定。

有關支援格式的細節，請參考本手冊中

的“規格 ”（第 18-19 頁）。

將電視機安裝在牆上

註

使用選購的壁掛式支架

本電視機使用說明書僅提供將電視機安裝到牆上前準備電視機進行壁掛式安裝的步驟。

致客戶：出於產品保護及安全原因，Sony 強烈建議由 Sony 經銷商或授權的承包商安裝電視機。請勿嘗試自

裝電視機。

行安

致 Sony 經銷商和承包商：安裝、定期維護及檢查本產品時，請充分注意安全。

安裝本產品須具備充足的專業知識，確定牆壁是否能夠承受電視重量時尤為如此。務必委託 Sony 經銷商或授權的承包商將本產品安裝至牆壁上，並在安裝期間充分注意安全。對於因錯誤操作或安裝不當引致的任何損害， Sony 概不負責。

使用壁掛式支架 SU-WL500 （非附帶）(KD-75Z9F) 或 SU-WL450 （非附帶）(KD-65Z9F) 將電視機安裝到牆上。安裝壁掛式支架時，亦請參閱壁掛式支架附帶的使用說明書及安裝指南。

• 務必將取下的螺絲存放在兒童接觸不到的安全位置。

1 移除底座罩以及終端罩。

2 從電視機背面卸下螺絲。

註

1.5 N·m {15 kgf·cm}

3 將壁掛式附件（隨電視機提供）安裝到電視機背面（使其與牆壁平行）。

• 使用電動螺絲批時，請將扭力設定為約 1.5 N·m {15 kgf·cm}。

• 將壁掛式附件安裝於電視機上時，務必固定這些附件。只使用平頭螺絲批安裝壁掛式附件。使用其他工具可能會導致

過於扭轉壁掛式附件並損壞電視機。

註

安裝吊鉤

螺絲 (+PSW 6 x 16)

螢幕中心點

SU-WL500 (KD-75Z9F)

1 使用隨附於壁掛式支架的四顆螺絲裝上安裝吊鉤。

• 使用電動螺絲批時，請將扭力設定為約 1.5 N·m {15 kgf·cm}。

• 務必將未使用的組件存放於安全位置，以備日後使用。保管好本說明書，以供日後參考。

型號名稱螺絲位置

KD-75Z9F e、j

螺絲位置將安裝吊鉤安裝到電視機上時。

2 確保牆壁有足夠空間以及能支撐至少電視機四倍的重量。

請參閱以下列表有關在牆上安裝電視機。請參閲第 18-19 頁（規格）有關電視機的重量。

單元 : 毫米

型號名稱

KD-75Z9F 1676 963 124 609 127

• 對於此電視機型號，僅適用於 0º 。

• 視乎安裝情況而定，表內的數字可能略有不同。

顯示幕螢幕中心尺寸

安裝的長度

角度 (0º)

3 將必要的連接線連接至電視機。

註

• 將電視機安裝至牆壁後，無法存取任何端子。

4 從電視機拆卸桌面底座。

5 將電視機安裝在牆上。

型號名稱螺絲位置

KD-75Z9F a

掛鉤位置將電視機安裝到底座支架時。

請參閱您所擁有型號之壁掛式支架附帶的說明書，將電視機安裝在牆上。

註

螢幕中心點

標準安裝簡易安裝

SU-WL450 (KD-65Z9F)

1 確保牆壁有足夠空間以及能支撐至少電視機四倍的重量。

請參閱以下列表有關在牆上安裝電視機。請參閲第 18-19 頁（規格）有關電視機的重量。

型號名稱

KD-65Z9F 1453 837 186 609 129 87

• 視乎安裝情況而定，表內的數字可能略有不同。

• 將電視機安裝在牆上後，電視機的上側略微前傾。

顯示幕螢幕中心尺寸安裝的長度

標準安裝簡易安裝

單元 : 毫米

2 安裝壁掛式支架的附件組件。參閱壁掛式支架安裝指南之 “1”，檢查附件組件。

註

滑輪

螺絲 (+PSW 6 x 20)

墊片（60 毫米）

螺絲 (+PSW 6 x 50)

皮帶

滑輪

墊片（20 毫米）

螺絲 (+PSW 6 x 20)

皮帶

• 使用電動螺絲批時，請將扭力設定為約 1.5 N·m {15 kgf·cm}。

• 務必將未使用的組件存放於安全位置，以備日後使用。保管好本說明書，以供日後參考。

標準安裝

簡易安裝

3 將必要的連接線連接至電視機。

• 將電視機安裝至牆壁後，無法存取任何端子。

4 從電視機拆卸桌面底座。

a b c d

5 將電視機安裝至底座。請參閱壁掛式支架附帶的安裝指南之 “5” 以及使用說明書之 “ 將電視機

安裝在牆上 ”。

型號名稱螺絲位置

KD-65Z9F b

請參閱您所擁有型號之壁掛式支架附帶的說明書，將電視機安裝在牆上。

故障排除

以下問題的一般故障排除：黑螢幕、沒有聲音、凍結畫面、電視機沒有反應或網絡丟失，請依照以下步驟操作。

1 按遙控器上的電源按鈕重新啟動電視機，直到

顯示一則訊息。電視機將重新啟動。如果電視機未恢復正常，請嘗試拔下電視機的 AC 電源線，等待兩分鐘，然後再將其插入。

2 請按遙控器上的 HELP 以參閱說明選單。 3 將電視機連接至網路，然後執行軟體更新。

Sony 建議您不斷更新您的電視機軟體。軟體更新將提供新功能和效能改善。

4 造訪 Sony 支持網站（封底提供的資訊）。

在插入電視機時，即使按遙控器或電視機上的電源按鈕，電視機也可能在一定時間不能開啟。

系統初始化需要一定時間。等待大約一分鐘，然後再次

操作。

故障及解決方案

當 LED 照明燈閃爍紅燈時。

 統計該 LED 照明燈閃爍的次數（間隔時間為三

秒）。斷開 AC 電源線兩分鐘重新啟動電視機，然後開啟電視

機。

如果此問題仍然存在，請斷開 AC 電源線，然後聯絡您

的經銷商或 Sony 服務中心並告知 LED 照明燈

閃燈的次數。

沒有畫面（螢幕是黑的）也沒有聲音。

 檢查天線 / 訊號線連接。  將電視機連接至 AC 電源，然後按電視機或遙控器

上的電源按鈕。

無法調諧某些節目。

 檢查天線 / 訊號線連接。

遙控器無效。

 更換電池。

遙控器上的 EXT.BOX MENU 按鈕不工作。

 連接 HDMI CEC 相容裝置並更改至該輸入。

忘記廣播密碼的家長鎖定。

 PIN 碼輸入 9999，然後選擇 [ 變更 PIN 號碼 ] 。

電視機周圍溫度升高。

 當長時間使用電視機時，電視機周圍溫度會升高。

用手觸摸這些地方時可能會覺得很燙。

規格

系統

面板系統

LCD （液晶顯示）面板，LED 背光源

電視系統

模擬 : I, D/K, B/G, M 數位 : DTMB

彩色系統

PAL/SECAM/NTSC3.58/NTSC4.43

頻道涵蓋範圍

類比 : UHF/VHF/ 纜線數位： UHF

聲音輸出

10 瓦 + 10 瓦

無線技術

IEEE802.11ac/a/b/g/n 協議藍牙版本 4.2

輸入 / 輸出插孔

天線 / 纜線

VHF/UHF 的 75 歐姆外接端子

/ VIDEO IN

視訊 / 音訊輸入（迷你插孔）

HDMI IN 1/2/3/4 （支援 4K 解析度、HDCP 2.3 相容）

視訊：

4096 × 2160p (50, 60 Hz)*

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 6

0, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 4

80p, PC 格式 *

*1 當輸入 4096 × 2160p 且 [ 寬螢幕模式 ] 設為

[ 正常模式 ] 時，解析度將顯示為 3840 × 2160p。要顯示 4096 × 2160p，請將 [ 寬螢幕模式 ] 設定設為 [ 全螢幕模式 1] 或 [ 全螢幕模式 2]。

*2 若要支援 18 Gbps，將 [HDMI 訊號格式 ] 設定為

[ 增強的格式 ]。

*3 有關詳情，請參閱說明指南。

音訊：

在 eARC （增強音頻回傳信道）模式下 *

有關詳情，請參閱說明指南。

eARC 模式除外

5.1 聲道線性 PCM ︰ 32/44.1/48/88.2/96/

176.

4/192 kHz 16/20/24 位元，Dolby Digital，

Dolby Digital Plus，DTS

軟體更新時，eARC 可用。有關最新資訊，請造訪 Sony 支持網站（封底提供的資訊）。 eARC 模式在 [eARC 模式 ] 設為 [ 自動 ]、 [ 喇叭 ] 設為 [ 音訊系統 ] 及連接 eARC 相容音訊系統時啟用。

1*2

, 4096 × 2160p

註

ARC （Audio Return Channel）（僅限 HDMI IN 3)

在 eARC 模式下 *

有關詳情，請參閱說明指南。

在 ARC 模式下

兩聲道線性 PCM ︰ 48 kHz 16 位元，Dolby Digital

，Dolby Digital Plus，DTS

軟體更新時，eARC 可用。有關最新資訊，請造訪 Sony 支持網站（封底提供的資訊）。 eARC 模式在 [eARC 模式 ] 設為 [ 自動 ]、[ 喇叭 ] 設為 [ 音訊系統 ] 及連接 eARC 相容音訊系統時啟用。

DIGITAL AUDIO OUT (OPTICAL)

數位光纖插孔（兩聲道線性 PCM：48 kHz 16 位元， Dolby Digital，DTS）

 （立體聲迷你插孔）

耳機

1, 2, 3

USB 連接埠 1 和 2 支援高速 USB （USB 2.0） USB 連接埠 3 支援超快速 USB （USB 3.1 Gen 1）

LAN

10BASE-T/100BASE-TX 接頭（視網絡的作業環境而定，連線速度可能不同。不保證本電視的 10BASET/100BASE-TX 通訊率和通訊品質。）

其他

選用的配件

壁掛式支架︰ SU-WL500 (KD-75Z9F) 壁掛式支架︰ SU-WL450 (KD-65Z9F)

作業溫度

0 ºC - 40 ºC

操作濕度

10 % - 80 % 相對濕度（非冷凝）

電源和其他規格

電源需求

220 V - 240 V AC, 50 Hz

螢幕尺寸（對角測量）（大約）

KD-75Z9F ︰ 75 英寸 /189.3 厘米 KD-65Z9F ︰ 65 英寸 /163.9 厘米

耗電量

見電視機背面

待機耗電量 *1*

0.5 瓦

顯示解析度

3840 畫素（水平）× 2160 條線（垂直）

輸出率

USB 1/2

5 V , 500 mA 最大值

USB 3

5 V , 900 mA 最大值

尺寸（大約）（寬 × 高 × 深）

包含桌面底座

KD-75Z9F ︰ 1676 × 1039 × 399 毫米 KD-65Z9F ︰ 1453 × 906 × 314 毫米

不含桌面底座

KD-75Z9F ︰ 1676 × 963 × 67 毫米 KD-65Z9F ︰ 1453 × 837 × 67 毫米

重量（大約）

包含桌面底座

KD-75Z9F ︰ 40.1 千克 KD-65Z9F ︰ 29.5 千克

不含桌面底座

KD-75Z9F ︰ 38.5 千克 KD-65Z9F ︰ 28.2 千克

電視完成必要的內部處理程序之後會達到指定的待機電力。

在電視機連接網路時，待機耗電量會增加。

• 選購配件的供應視國家 / 區域 / 電視機型號 / 存貨而定。

計與規格可能變更而不事先通知。

• 設

商標資訊

• HDMI、HDMI 高畫質多媒體介面及 HDMI 標誌

為 HDMI Licensing Administrator, Inc. 在美國及其他國家的商標或註冊商標。

• 本產品

• “

• G

• V

• G

• W

• 有

經過杜比實驗室的授權而製造。 Dolby、杜比、Dolby Audio、Dolby Vision 和雙 D 記號是杜比實驗室的商標。

BRAVIA”、和 BRAVIA Sync 是

Sony Corporation 的商標或註冊商標。

racenote、Gracenote 標誌和標誌字型以及 “Powered by Gracenote” 標誌是 Gracenote, Inc. 在美國和 / 或其他國家的註冊商標或商標。

oogle、Android TV、Google Play、 Chromecast built-in、YouTube 和其他相關標記和標誌均為 Google LLC 的商標。

i-Fi®、Wi-Fi Alliance® 和 Wi-Fi Direct® 是 Wi-Fi Alliance 的註冊商標。

i-Fi Protected Setup™ 是 Wi-Fi Alliance 的商標。

i-Fi CERTIFIED™ 標誌是 Wi-Fi Alliance 的認證標誌。

關 DTS 專利，請參閱

http://patents.dts.com。由 DTS, Inc. 授

。

權製造 DTS、其標誌、 & DTS 連同其標誌是註冊商標 , 而 DTS Digital Surround 是 DTS,

• 藍牙 ® 文字標記和徽標是 Bluetooth SIG, Inc. 持有的註冊商標，任何使用此商標的 Sony Corporation 均需獲得授權。其他商標和商標名稱為各自所有者的商標和商名。

flix 是 Netflix, Inc. 的註冊商標。

• Net

ERA 是 Tuxera Inc. 在美國及其他國家 /

• TUX 地區的註冊商標。

SB-IF SuperSpeed USB Trident 標誌是 USB

• U Implementers Forum, Inc. 的註冊商標。

有其他商標屬於其各自的所有者。

• 所

Customer Support and Contact:

䒌㆚㒓㍘⏰俓䳅濕

http://r

http://rd1.sony.net/help/tv/fga2/h_ga/

Help Guide

娎㕲㉫⊻

Sony KD-65Z9F Users guide [zh, en]

Specifications and Main Features

Frequently Asked Questions

User Manual
