HOME

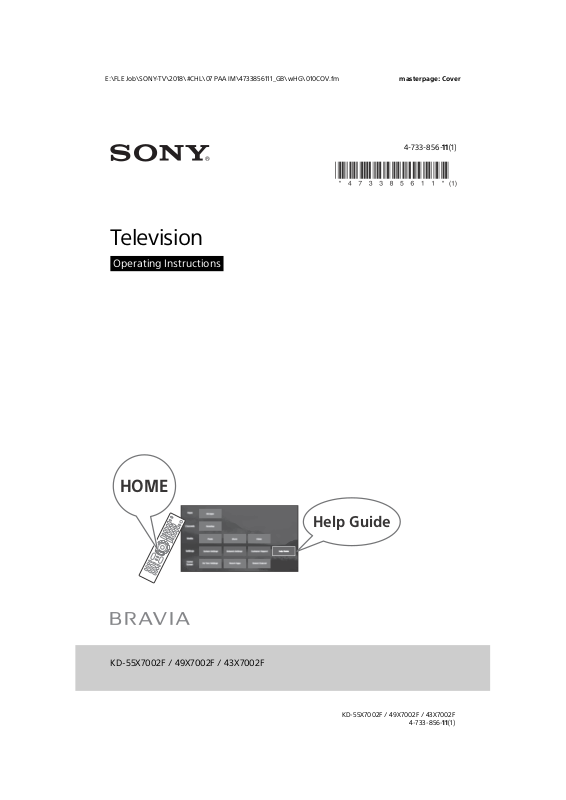

Help Guide

Television

Operating Instructions

4-733-856-11(1)

KD-55X7002F / 49X7002F / 43X7002F

Table of Contents

Safety Information . . . . . . . . . . . . . . . . . . . . .2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Parts and Controls . . . . . . . . . . . . . . . . . . . 7

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote Control. . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting TV to the Internet. . . . . . . . . 10

Setting up the Internet Connection . . . . . . 10

Watching TV . . . . . . . . . . . . . . . . . . . . . . . 10

Viewing Pictures from Connected

Equipment . . . . . . . . . . . . . . . . . . . . . . . . .11

Connection Diagram. . . . . . . . . . . . . . . . . . . 11

Additional Information . . . . . . . . . . . . . . 12

Installing the TV to the Wall. . . . . . . . . . . . . 12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 17

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 18

Introduction

Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and
retain i t for fu ture reference.

Note

• Before operating the TV, please read the “Safety Information”
(page 2).

• Instructions about “Installing the TV to the Wall” are included
within this TV’s instructions manual.

• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the actual
product.

Attaching the Table-Top Stand to the TV

Refer to the Setup Guide on top of the cushion.

Help Guide (Manual)

For more detailed information, press HOME on the remote
control, then select [Help Guide] under [Settings] menu. You
can also check the Help Guide from your PC or smartphone
(information provided on the back cover).

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located
on the rear of the TV.

For models with supplied AC adapter:
Labels for the AC adapter Model No. and Serial No. are located on
the bottom of the AC adapter.

Safety Information

WARNING

Caution

Risk of explosion if the battery is replaced by an incorrect type.
Batteries must not be exposed to excessive heat such as
sunshine, fire or the like or extremely low air pressure that can
result in an explosion or leakage of flammable liquid or gas.

Stability Hazard

The television set may fall, causing serious personal injury or
death.
Never place a television set in an unstable location. A television
set may fall, causing serious personal injury or death. Many
injuries, particularly to children, can be avoided by taking simple
precautions such as:

• Using cabinets or stands recommended by the manufacturer of
the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the
supporting furniture.

• Not placing the television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture
and the television set to a suitable support.

• Not placing the television set on cloth or other materials that
may be located between the television set and supporting
furniture.

• Educating children about the dangers of climbing on furniture
to reach the television set or its controls.

If your existing television set is being retained and relocated, the
same considerations as above should be applied.

GB

2

Installation/Set-up

Screw (M6)

Wall-Mount Bracket

8 mm - 12 mm

TV’s rear cover

8 mm - 12 mm

1.5 N·m/1,5 N·m
{15 kgf·cm}

M6 screw
(not supplied)

Cord

(not supplied)

Screw
(not supplied)

Install and use the TV set in accordance with the instructions
below in order to avoid any risk of fire, electric shock or damage
and/or injuries.
Apparatus connected to the protective earthing of the building
installation through the mains connection or through other
apparatus with a connection to protective earthing – and to a
television distribution system using coaxial cable, may in some
circumstances create a fire hazard. Connection to a television
distribution system therefore has to be provided through a device
providing electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).

Installation

• The TV set should be installed near an easily accessible AC
power outlet (mains soc ket).

• Place the TV set on a stable, level surface to prevent it from
falling over and causing personal injury or property damage.

• Install the TV so that the TV’s Table-Top Stand does not protrude
out from the TV stand (not supplied). If the Table-Top Stand
protrudes out from the TV stand, it may cause TV set to topple
over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall-mount
installations.

• For safety reasons, it is strongly recommended that you use
Sony accessories, including:
Wall-Mount Bracket: SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket
when attaching the Wall-Mount Bracket to the TV set. The
supplied screws are designed as indicated by illustration when
measured from the attaching surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the
Wall-Mount Bracket model.
Use of screws other than those supplied may result in internal
damage to the TV set or cause it to fall, etc.

Tran spo rti ng

• Before transporting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below.
Do not put stress on the LCD panel and the frame around the
screen.

• When lifting or moving the TV set, hold it firmly from the
bottom.

• When transporting the TV s et, do not subject it to jolts or
excessive vibration.

• When transporting the TV set for repairs or when moving, pack
it using the original carton and packing material.

Topple prevention
(Except models with supplied support belt kit)

KD-55X7002F

GB

3

KD-49/43X7002F

8 mm - 12 mm

1.5 N·m/1,5 N·m
{15 kgf·cm}

M6 screw
(not supplied)

Cord

(not supplied)

Screw
(not supplied)

30 cm

10 cm

10 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm

10 cm

Leave at least this space around the set.

6 cm

Air circulation is blocked.

Wall Wall

Ventilation

• Never cover the v entilation holes or in sert anything in the
cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony Wall-Mount
Bracket in order to provide adequate air circulation.

Installed on the wall

Installed with stand

AC power cord (mains lead)

Handle the AC power cord (mains lead) and outlet (mains socket)
as follows in order to avoid any risk of fire, electric shock or
damage and/or injuries:

• The shape of AC power plug (mains plug), which is supplied
with the TV set, varies depending on the regions. Be sure to
connect the appropriate supplied AC power cord (mains lead)
with the plug that fits into the AC power outlet (mains socket).

• Use only Sony supplied AC power cords (mains lead), not those
of other brands.

• Insert the plug fully into th e AC power outlet (mains socket).

• Operate the TV set on a 100 V – 240 V AC supply only.

• When wiring cables, be sure to unplug the AC power cord
(mains lead) for your safety and take care not to catch your feet
on the cables.

• Disconnect the AC power cord (mains lead) from the AC power
outlet (mains socket) before working on or moving the TV set.

• Keep the AC power cord (mains lead) away from heat sources.

• Unplug the AC power plug (mains plug) and clean it regularly. If
the plug is covered with dust and it picks up moisture, its
insulation may deteriorate, which could result in a fire.

Note

• Do not use the supplied AC power cord (mains lead) on any
other equipment.

• Do not pinch, bend, or twist the AC power cord (mains lead)
excessively. The core conductors may be exposed or broken.

• Do not modify the AC power cord (mains lead).

• Do not put anything heavy on the AC power cord (mains lead).

• Do not pull on the AC power cord (mains lead) itself when
disconnecting the AC power cord (mains lead).

• Do not connect too many appliances to the same AC power
outlet (mains socket).

• Do not use a poor fitting AC power outlet (mains socket).

NOTE ON AC ADAPTER (models with supplied
AC adapter only)

Warni ng

To reduce the risk of fire or electric shock, do not expose this
appara tus to ra in or m oistu re.
To prevent fire or shock hazard, do not place objects filled with
liquids, such as vases, on the apparatus.
Do not install this equipment in a confined space, such as a
bookshelf or similar unit.

• Please ensure that the AC powe r outlet (mains socket) is
installed near the equipment and shall be easily accessible.

• Be sure to use the supplied AC adapter and AC power cord
(mains lead). Otherwise it may cause a malfunction.

• Connect the AC adapter to an easily accessible AC power outlet
(mains socket).

• Do not coil the AC power cord (mains
lead) around the AC adapter. The core
wire may be cut and/or it may cause a
malfunction of the TV.

• To ensure proper ventilation and prevent the collection of dirt or
dust:
 Do not lay the TV set flat, install upside down, backwards, or

sideways.

 Do not place the TV set on a shelf, rug, bed or in a closet.
 Do not cover the TV set with a cloth, such as curtains, or items

such as newspapers, etc.

 Do not install the TV set as shown below.

GB

4

• Do not touch the AC adapter with wet hands.

• If you notice an abnormality in the AC adapter, disconnect it
from the AC power outlet (mains socket) immediately.

• The set is not disconnected from the AC source as long as it is
connected to the AC power outlet (mains so cket), even if the set
itself has been turned off.

• As the AC adapter will become warm when it is used for a long
time, you may feel hot when touching it by hand.

Prohibited Usage

Do not install/use the TV set in locations, environments or
situations such as those listed below, or the TV set may
malfunction and cause a fire, electric shock, damage and/or
injuries.

Locations:

• Outdoors (in direct sunlight), at the seashore, on a ship or other
vessel, inside a vehicle, in medical institutions, unstable
locations, near water, rain, moisture or smoke.

Environments:

• Places that are hot, humid, or excessively dusty; where insects
may enter; where it might be exposed to mechanical vibration,
near flammable objects (candles, etc.). The TV set shall not be
exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the TV.

Situations:

• Use when your hands are wet, with the cabinet removed, or
with attachments not recommended by the manufacturer.
Disconnect the TV set from AC power outlet (mains socket) and
antenna (aerial) during lightning storms.

• Install the TV so that it sticks out into an
open space. Injury or damage from a
person or object bumping into the TV
may result.

• Place the TV in a humid or dusty space,
or in a room with oily smoke or steam
(near cooking tables or humidifiers).
Fire, electric shock, or warping may
result .

• Install the TV in places subject to extreme temperature such as
in direct sunlight, near a radiator or a heating vent. The TV may
overheat in such condition which can cause deformation of the
enclosure and/or TV malfunction.

• If the TV is placed in the changing room of
a public bath or hot spring, the TV may be
damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct
illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden
room temperature changes may cause moisture condensation.
This may cause the TV to show poor picture and/or poor colour.
Should this occur, allow moisture to evaporate completely
before powering the TV on.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break
by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until you have
unplugged the AC power cord (mains lead). Otherwise this may
cause an electric shock.

When not in use

• If you will not be using the TV set for several days, the TV set
should be disconnected from the AC power (mains) for
environmental and safety reaso ns.

• As the TV set is not disconnected from the AC power (mains)
when the TV set is just turned off, pull the plug from the AC
power outlet (mains socket) to disconnect the TV set
completely.

• Some TV sets may have features that require the TV set to be
left in standby to work correctly.

For children

• Do not allow children to climb on the TV set.

• Keep small accessories out of the reach of children, so that they
are not mistakenly swallowed.

If the following problems occur...

Turn o ff the TV set and unplug the AC power cord (mains lead)
immediately if any of the following problems occur.
Ask your dealer or Sony service centre to have it checked by
qualified service personnel.

When:

• AC power cord (mains lead) is damaged.

• Poor fitting of AC power outlet (mains socket).

• TV set is damaged by being dropped, hit or having something
thrown at it.

• Any liquid or solid object falls through openings in the cabinet.

About LCD TV Temperature

When the LCD TV is used for an extended period, the panel
surrounds become warm. You may feel hot when touching there
by the hand.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or
during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid
excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision
technology and 99.99 % or more of the pixels are effective,
black dots may appear or bright points of light (red, blue, or
green) may appear constantly on the LCD screen. This is a
structural property of the LCD screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of
this TV set. The image may be uneven or the LCD screen may be
damaged.

• If this TV set is used in a cold place, a smear may occur in the
picture or the picture may become dark. This does not indicate a
failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed
continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in use. This
is not a malfunction.

• The LCD screen contains a small amount of liquid crystal. Follow
your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/
cabinet of the TV set

Be sure to unplug the AC power cord (mains lead) connected to
the TV set from AC power outlet (mains socket) before cleaning.
To avoid material degradation or screen coating degradation,
observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently
with a soft cloth. If dust is persistent, wipe with a soft cloth
slightly moistened with a diluted mild detergent solution.

• Never spray water or detergent directly on
the TV set. It may drip to the bottom of the
screen or exterior parts and enter the TV set,
and may cause damage to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner,
scouring powder, or volatile solvent, such as alcohol, benzene,
thinner or insecticide. Using such materials or maintaining
prolonged contact with rubber or vinyl materials may result in
damage to the screen surface and cabinet material.

• Periodic vacuuming of the ventilation open ings is
recommended to ensure proper ventilation.

• When adjusting the angle of the TV set, move it slowly so as to
prevent the TV set from moving or slipping off from its table
stand.

Optional Equipment

Keep optional components or any equipment emitting
electromagnetic radiation away from the TV set. Otherwise
picture distortion and/or noisy sound may occur.

GB

5

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker,
etc.), as this may result in the malfunction of the medical
equipment.

• Although this unit transmits/receives scrambled signals, be
careful of unauthorised interception. We cannot be responsible
for any trouble as a result.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and
new batteries.

• Dispose of batteries in an environmentally friendly way. Certain
regions may regulate the disposal of batteries. Please consult
your local authority.

• Handle the remote control with care. Do not drop or step on it,
or spill liquid of any kind onto it.

• Do not place the remote control in a location near a heat source,
a place subject to direct sunlight, or a damp room.

Disposal of the TV set

Disposal of old electrical &
electronic equipment (applicable in
the European Union and other
countries with separate collection
systems)

Disposal of old electrical &
electronic equipment (applicable in
Republic of India)

This symbol and its variations indicate that this
product and its components, consumables,
parts or spares thereof shall not be treated as
household waste and may not be dropped in
garbage bins. Product owners are advised to

point for the recycling of electrical and electronic equipment. Your
co-operation shall facilitate proper disposal and help prevent
potential negative consequences/hazards to the environment
and human health, which could otherwise be caused by
inappropriate waste disposal including improper handling,
accidental breakage, damage and/ or improper recycling of
e-waste. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this
product, please contact your local civic office, your household
waste disposal service provider or the store where you made the
purchase. You may contact our company’s toll free number in
India for assistance.

Toll Free: 1800-103-7799
Visit: www.sony.co.in for product recycling

Reduction in the Use of Hazardous Substances
in Electrical & Electronic Equipment (Applicable
in Republic of India)

This product and its components, consumables, parts or
spares comply with the hazardous substances restriction of
India’s E-Waste (Management) Rules. The maximum allowable
concentrations of the restricted substances are 0.1% by weight
in homogenous materials for Lead, Mercury, Hexavalent
Chromium, Polybrominated Biphenyls (PBB) and
Polybrominated Diphenyl Ethers (PBDE), and 0.01% by weight
in homogenous materials for Cadmium, except for the
exemptions specified in Schedule II of the aforesaid Rules.

deposit their product at the nearest collection

GB

6

Parts and Controls

TV

 (Power) / + / –

Short press  to turn the TV on.
Long press  until the TV turn off.

When the TV is on,
Volume

Press + or – button to increase/decrease the
volume.
You can also press  until notification is
displayed. Increases/decreases the volume
by pressing the + or – button.

Input

Press  until notification is displayed.
Moves the selected input source by pressing
+ (up) or – (down) button.

Programme

Press  until PROG notification is displayed.
Select the programme by pressing + (up) or
– (down) button.

 (Sensors/LED indicator)

• Receives signals from the remote control.
Do not put anything over the sensor.
Doing so may affect its function.

• Lights up in amber when the [Sleep
Timer]* or [On Timer]* is set, or the TV is in
Photo Frame Mode*.

• Lights up in white when [Power Saving]* is
set to [Picture Off]*.

• Lights up in white when the TV is turned
on.

• Does not light up when the TV is in
standby mode.

• Flashes while the remote control is being
operated.

* For more detailed information, press HOME on the

remote control, then select [Help Guide] under
[Settings] menu.

Note

• Make sure that the TV is completely turned off before
unplugging the AC power cord (mains lead).

• To disconnect the TV from the AC power (mains)
completely, pull the plug from the AC power outlet
(mains socket).

• Please wait for a while when perform input selection
to change to other input.

GB

7

Remote Control

The remote control shape, location,
availability and function of remote control
buttons may vary depending on your
region/country/TV model.

 / (Input select / Text hold)

• Displays and selects the input source.

• In text mode, holds the current page.

 SYNC MENU

Press to display the BRAVIA Sync Menu and
then select connected HDMI equipment
from [Device Selection].
The following options can be selected from
BRAVIA Sync Menu.

Device Control:

Use the [Device Control] to operate
equipment that is compatible with BRAVIA
Sync Control. Select options from [Home
(Menu)], [Options], [Content List] and [Power
Off] to operate the equipment.

Speakers:

Select [TV Speakers] or [Audio System] to
output the TV’s sound from the TV speakers
or connected audio equipment.

TV Control:

Use the [TV Control] menu to operate the TV
from the [Home (Menu)] or [Options] menu.

Return to TV:

Select this option to return to the TV
programme.

 Number buttons

• Select channels. For channel numbers 10
and above, enter the next digit quickly.

• In text mode, enter the three digit page
number to select the page.

 (Wide Mode)

Adjusts the screen display. Press repeatedly
to select the desired wide mode.

 Colour buttons

Displays operation guide (when colour
buttons are available).

 YouTube (Only on limited region/

country/TV model)

Accesses the “YouTube” online service.

 / (Info / Text reveal)

• Displays information. Press once to
display information about the
programme/input you are viewing. Press
again to remove the display from the
screen.

• In text mode, reveals hidden information
(e.g. answers to a quiz).

GB

8
