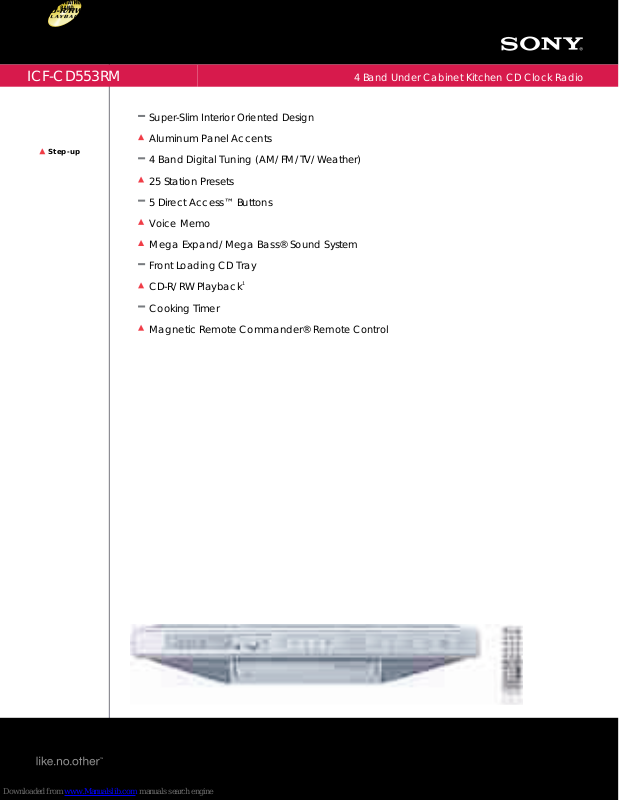

Sony ICF-CD553RM - Cd Clock Radio, ICF-CD553RM Specifications

ICF-CD553RM

4 Band Under Cabinet Kitchen CD Clock Radio

Step-up

Super-Slim Interior Oriented Design

Aluminum Panel Accents

4 Band Digital Tuning (AM/FM/TV/Weather)

25 Station Presets

5 Direct Access™

Buttons

Voice Memo

Mega Expand/Mega Bass®

Sound System

Front Loading CD Tray

CD-R/RW Playback

1

Cooking Timer

Magnetic Remote Commander®

Remote Control

Sony Electronics Inc. • 16530 Via Esprillo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com

Last Updated: 10/08/2007

ICF-CD553RM

4 Band Under Cabinet Kitchen CD Clock Radio

Please visit the Dealer Network for current information at

www.sony.com/dn

Features

Super Slim Interior Oriented Design brings a multi-media

entertainment center into the kitchen and mounts under a
cabinet so it takes up no precious counter area

Aluminum Panel Accents matches and enhances many of
today's stylish aluminum and stainless steel appliances

4 Band Digital Synthesized Tuner
(AM/FM/TV/Weather) provides the most accurate drift-free

tuning of all available radio stations, plus audio from TV
channels 2-13, and up to the minute weather from your local
Weather Band broadcasts

25 Station Presets offer convenient one-button tuning to 10 of
your favorite FM and 5 AM radio stations along with 5 TV
channels and 5 weather frequencies

5 Direct Access™ Buttons locate your favorite radio station
with the touch of a button

Voice Memo record or playback a grocery list or a message
for a family member with the touch of one button on the front
panel

Mega Expand/Mega Bass® Sound System enhances
reproduction of rich bass tones for a more complete and
enjoyable listening experience

Front-Loading CD Tray with slide-out mechanism for fast, easy
access to the compact disc

CD-R/RW Playback plays all compact discs including CD-R

(recordable) and CD-RW (rewritable); as well as your own
compilations from CD recorder deck or PC. A great
companion for your PC music

1

Cooking Timer

is built-in and eliminates the need for an
additional timer unit for food preparation or other purposes,
and automatically alerts you to the time you set

Magnetic Remote Commander® Remote Control provides full
function remote control on power on/off, compact disc, tuner
and volume with a magnetic feature that allows you to keep
the remote on your refrigerator door for quick and easy access

Specifications

General

Design: Under Cabinet Kitchen
Day/Night Function: Time: 12 hour system

Audio

Frequency Range: AM: 530-1710kHz; FM: 87.5-108MHz; TV: Ch. 2

-

13; Weather: Ch. 1-7

Antenna System: AM: Built-in Ferrite Bar Antenna; FM, TV,

Weather: Wire Antenna

Tuner Type: Digital
Format(s) Supported: CD-R/RW

Sound Enhancer:

Mega Xpand, Mega Bass® Sound System

Station Preset(s): 25 (5 AM, 10 FM, 5 TV, 5 WB)
Tuning:

5 Direct Access Buttons

1

Convenience

Timer Clock: Yes
Alarm: Yes

Hardware

Display: Backlit LCD

Power

Power Requirements: AC 120V, 60Hz
Output Power: 1.8W + 1.8W (at 10% harmonic distortion)
Power Handling Capacity: With 6-ohm load, both channels

driven from 100-10,000HZ, rated 1.4 W per channel minimum
RMS power, with no more than 10% total harmonic distortion in
AC operation

Speaker

Speaker Dimensions: 3 1/8" (77mm)
Speaker Type: Stereo, Built-In

Dimensions

Weight: 6 lbs. 9.82 oz (3.0kg)
Measurements: 15 3/4" x 3 3/8" x 12 3/4" (400 x 84 x 323mm)

Color:

Silver

1. CD-R/R-RW Playback may not be compatible with all discs, depending on recording conditions.

©2006 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Direct
Access, Dream Machine, Mega Bass, Remote Commander, and like.no.other are trademarks of Sony.
