Page 1
HDM Series
HD COLOR MONITOR
HD C
OLOR MONITOR
HDM Series
Page 2
The ongoing evolution of
the high definition video format demands an
evaluation monitor of the highest performance. For precise, stable
image quality that meets the most exacting professional requirements, Sony introduces
the new HDM Series.
Using HR Trinitron
®
technology for superb picture reproduction, the HDM Series
incorporates performance features derived from Sony’s popular BVM Series—including a
modular unit design, for proven system flexibility and ease of operation.
Sony’s HD SDI* option also allows you to connect to the latest generation of high
definition equipment.
The HDM Series combines the advantages of Sony experience in conventional monitor
design with innovative HD-related features, making it the ideal professional choice to
meet the essential needs of HD picture evaluation.
*HD SDI: High Definition Serial Digital Interface. Requires optional HD SDI input adaptor BKM-41HD or BKM-42HD.
Page 3
HD SDI
Capability
Precise, Stable
Picture Reproduction
The Sony HDM Series incorporates HR Trinitron
technology for ultra-precise image reproduction. The
HDM-20E1U achieves center resolution* of 850 TV
lines and the HDM-14E1U/14E5U delivers 700 TV
lines, for ultra-fine image detail in both screen sizes.
And with SMPTE-C standard color phosphors and
Sony’s beam current feedback circuit, the HDM Series
delivers highly stable color reproduction over time—a
primary requirement for the reliable picture
evaluation.
* The number of vertical white-and-black stripes visible in an area where the
screen width is the same as screen height in 16:9 aspect.
The HDM Series provides flexible input capability,
accepting both 1080 or 1035 signal formats in either
59.94 or 60 Hz vertical rates. These monitors
incorporate high bandwidth signal paths, allowing
extremely flat frequency response to 30 MHz.
With the optional Sony HD SDI (High Definition Serial
Digital Interface) input adaptor installed, HDM Series
monitors can receive full data rate 10-bit component
serial digital data transmission through a single BNC
cable. Up to 4* HD SDI inputs can be available with a
combination of adaptors. Input for analog high
definition video (YP
BPR) signals and analog GBR
signals with loop-through is also standard.
* Applies to HDM-20E1U/14E5U; requires 2 BKM-42HD input adaptors
equipped with 2 HD SDI inputs.
Flexible
Signal Input Capability

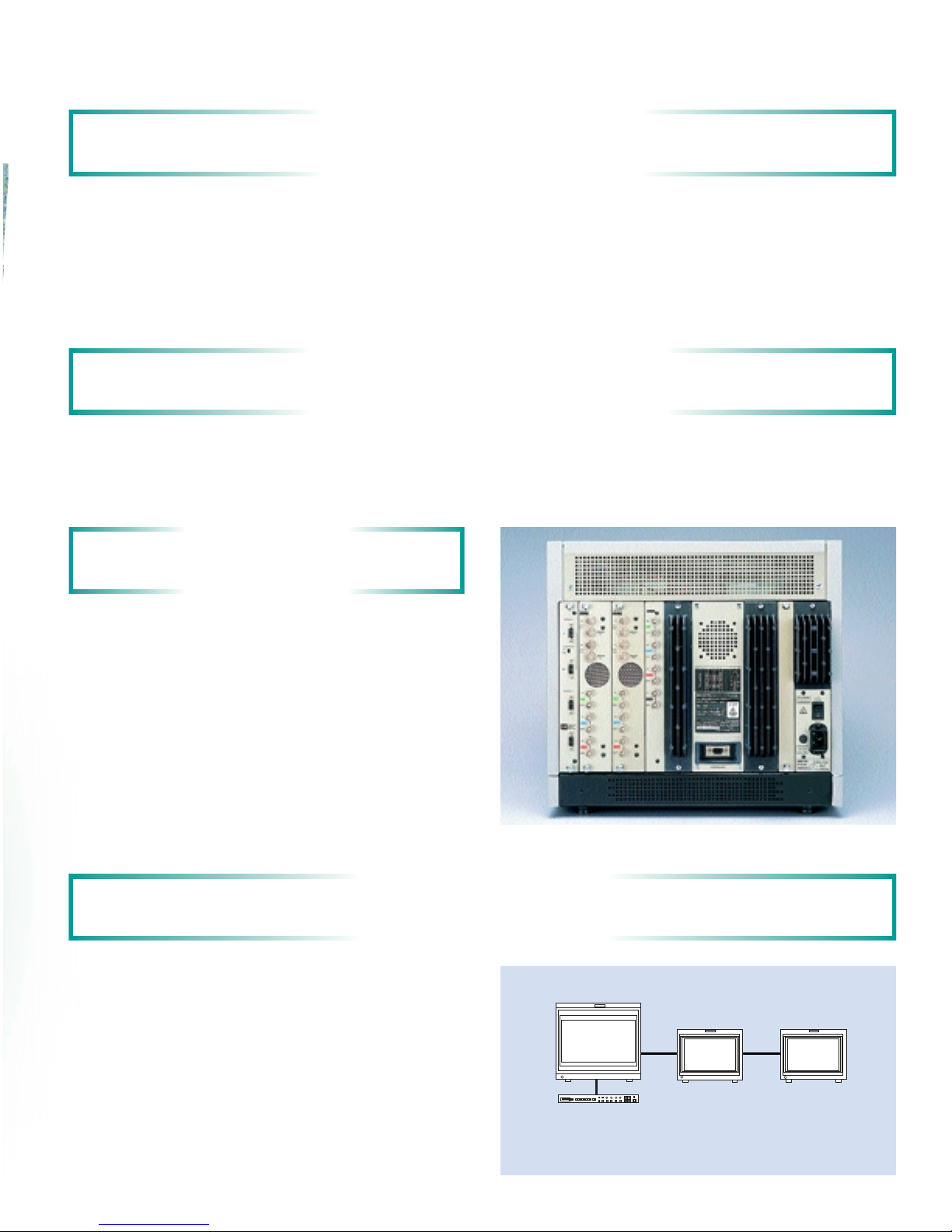

Flexible System
Integration
With a flexible configuration that divides monitor and
control units into separate components, the HDM
Series provides the same system flexibility as Sony’s
proven BVM Series monitors. Up to 32 monitors can be
controlled with one BKM-10R/11R Control Unit—and
because the same control protocol is used, conventional
BVM E/F/G Series monitors can also be controlled in a
single integrated system.
FEATURES
Contorol unit BKM-10R
RS-485
Monitor 2 Monitor 3
Monitor 1
◆
Remote control over multiple display unit
A maximum of 32 monitors can be controlled via RS-485 which enables
mutual communication between the monitors and one BKM-10R/11R
control unit.
HDM-20E1U with 2 BKM-42HD
Page 4
4:3 Area
Marker
Additional
Features
•
On-Screen Display menu for easy monitor operation.
• Memory Card (BKM-12Y) for storage and recall of
primary set-up data.
• Data transfer between monitors using an optional
BKM-12Y Memory Card or via an RS-485 link.
• Auto set-up for chroma and white balance.
• Serial and parallel remote control capability.
•
Supports Sony Interactive Status Reporting (ISR).
• Accepts a wide range of power supplies from 100 V
to 240 V AC (UL approved for 100 V to 120 V AC
operation).

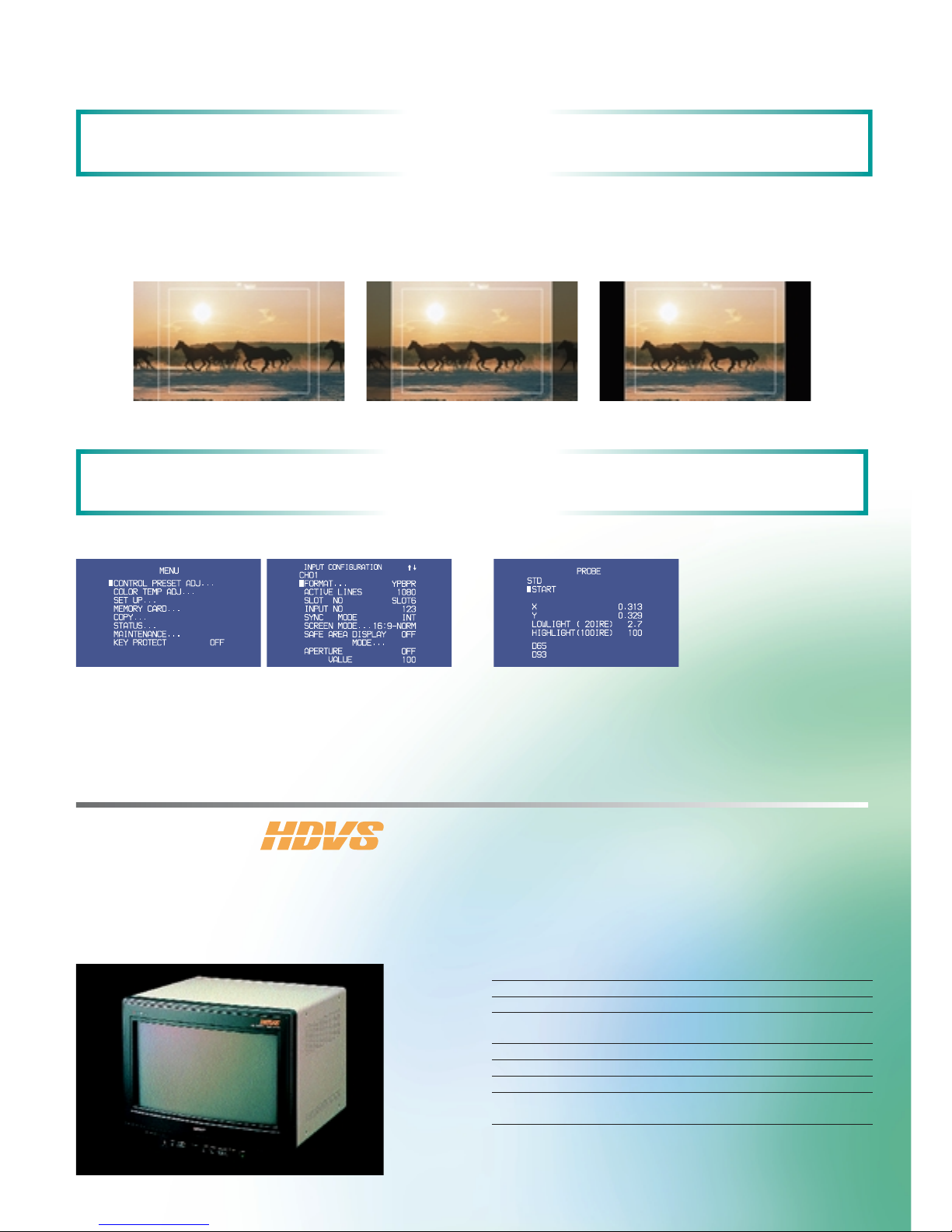

For situations where final distribution will be in a
conventional NTSC format, Sony’s 4:3 area marker
makes it simple to take this into account during
acquisition and editing. The HDM Series has a 4:3
area marker which clearly delineates the 4:3 aspect
area within the 16:9 widescreen picture. The area
marker can be displayed in several formats including
line, translucent mat, and full black mat.
HD Color Monitor
◆
HDM-2830*
•
HR Trinitron technology provides resolution of up to 1000 TV lines.
• 16:9 aspect ratio, 28-inch viewable area measured diagonally.
• SMPTE-C standard color phosphors.
• Anti-reflection coating provides high contrast image display.
• Adjustable color temperature (factory preset: D65).
• Beam current feedback circuit for stable color temperature
performance.
• Dual YP
BPR, GBR inputs with loop-through capability.
• Frequency response to 30 MHz dB.
• Incorporates digital uniformity system (169 points are adjustable
for the entire screen).
Specifications
System: 1125/1035, 60 Hz, 59.94 Hz 2:1 16:9
AG pitch: 0.34 mm
Visual screen size: 620 × 349 mm (28
1
/2 × 13
3
/4 inches),
28-inch (Viewable area, measured diagonally)
Power requirement: 100 V to 120 V AC, 220 V to 240 V AC
Power consumption: 330 W
Weight: Approx. 92 kg (202 lb 13 oz)
Dimensions: 754 (W) × 615 (H) × 677 (D) mm
(29 3/
4
× 24
1
/
4
× 26
3
/
4 inches)
* HDM-2830 is a different product line from the HDM-20E1/14E1/14E5
series. Optional accessories for HDM-20E1/14E1/14E5 can not be applied
to the HDM-2830.
Line Line + Translucent mat Line + Full black mat
•Auto Set-up Probe
Sony BKM-14L
GRASEBY SLS 9400
MINOLTA CA-100
PHILIPS PM 5639
THOMA TF6
+ 0.5
-3
Page 5

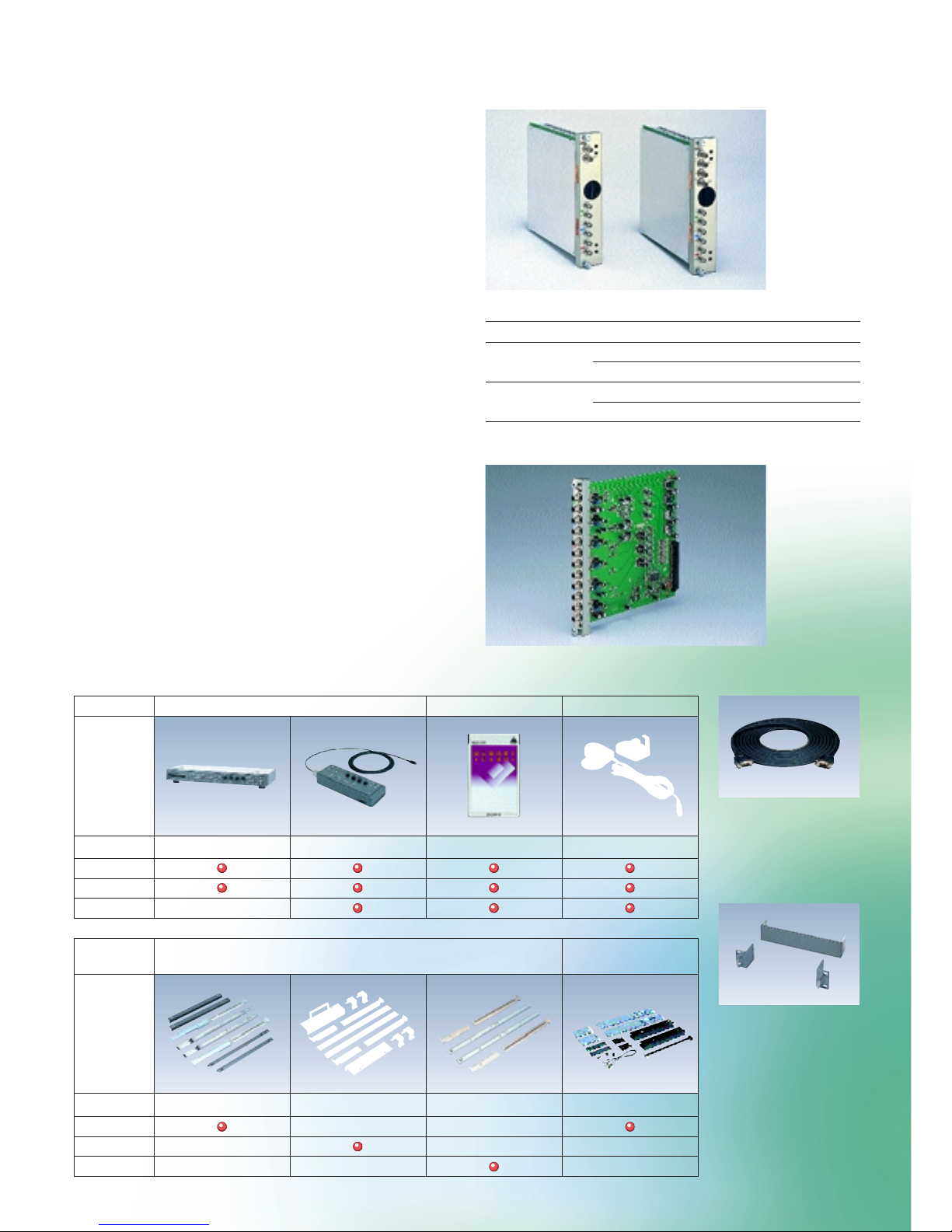

HD SDI Input Adaptor
◆
BKM-41HD/42HD
Designed to provide the HDM-20E1U, HDM-14E1U
and HDM-14E5U monitors with a powerful,
convenient
digital signal interface—and accommodate a new
generation of advanced Sony HDVS equipment.
• HD SDI decoding capability enables transmission
of full data rate 10-bit component digital signals
with a bit rate of 1.5 Gbps (conforms to the
SMPTE-292M standard).
• With HD serial digital signals, 1080 or 1035 active
lines are automatically selected.
• Analog Component Input/Output (YP
BPR, GBR) is
provided through a BNC connector with loopthrough output capability.
Specifications
Dimensions (WHD): 2 × 10 1/8 × 9 3/4 inches (50 × 256 × 245 mm)
Weight: BKM-41HD: Approx. 2 lb 13 oz (Approx. 1280 g)
BKM-42HD: Approx. 3 lb 1 oz (Approx. 1400 g)
Power consumption: BKM-41HD: 9.0 W
BKM-42HD: 14.5 W
OPTIONAL ACCESSORIES
Analog Input Expansion Adaptor
◆
BKM-48X
• HD analog input capability.
• Dual YPBPR, GBR inputs.
• Floating connectors can be selected to eliminate
ground hum.
• Applicable for the BVM E/F/G Series monitors.
Control Unit Memory Card Auto Set-up Probe
BKM-10R BKM-11R BKM-12Y BKM-14L
HDM-20E1U
HDM-14E1U
HDM-14E5U
Control cable
RCC-5G/10G/30G
(9-pin cable for
RS-485/422 serial
remote control)
19-inch Rack Mount Kit
MB-510
(for BKM-10R)
*
1
*
1
19-inch Rack Mount Kit
Control Unit
Attachment Kit
BKM-30E20 BKM-31E14 BKM-30E14 BKM-32H
HDM-20E1U
HDM-14E1U
HDM-14E5U
*
2
*1 Available when used with
BKM-10R/11R
*2 For BKM-10R
Page 6
V-10841
MK7145/1KYP-9805

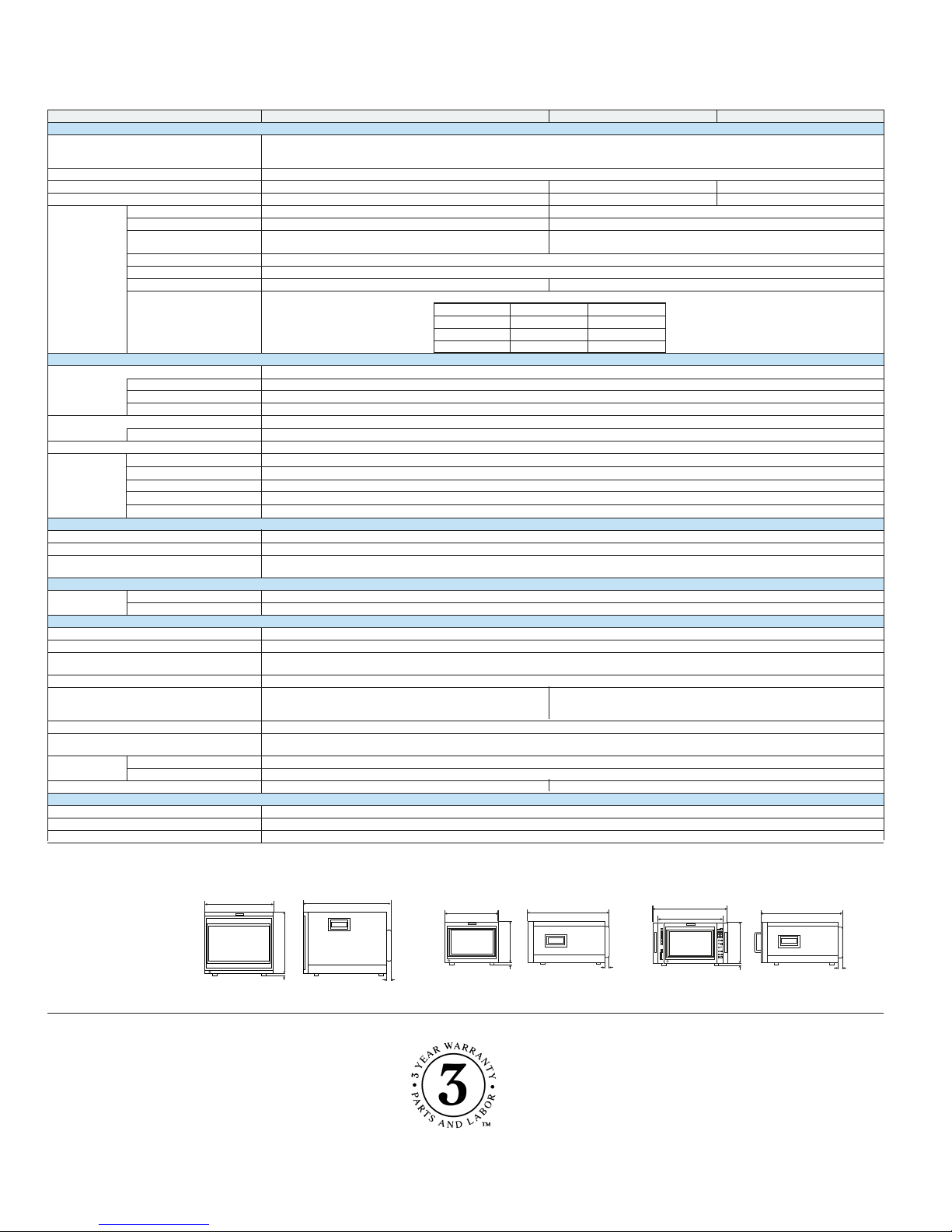

SPECIFICATIONS
15 (
19
/32)
30 (1 3/16)
482 (19)
426 (16
7
/8)
265 (10
1
/2)
530 (20 7/8)
346 (13 5/8)
265 (10
1
/2)
15 (
19
/32)
530 (20 7/8)
30 (1
3
/16)
◆ Dimensions
Unit: mm (inches)
444 (17 1/2)
399 (15
3
/4)
15 (
19
/32)
570 (22 1/2)
28 (1
1
/8)
© 1998 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony and Trinitron are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
HDM-20E1U HDM-14E1U HDM-14E5U
HDM-20E1U HDM-14E1U HDM-14E5U
General
System 1125/1080 60 Hz, 59.94 Hz 2:1 16:9 (SMPTE 274M)
1125/1035 60 Hz, 59.94 Hz 2:1 16:9 (SMPTE 240M)
525 59.94 Hz 1:1 16:9 (SMPTE 293M)
Power requirements 100 V to 240 V AC ±10 % 50/60 Hz
Power consumption 195 W max. 155 W max. 170 W max.
Weight Approx. 38 kg (83 lb 12 oz) Approx. 23 kg (50 lb 11 oz) Approx. 26 kg (57 lb 5 oz)
CRT CRT type 20-inch HR Trinitron 14-inch HR Trinitron
AG pitch 0.25 mm, 90° deflection, Ø30.6 mm in-line gun 0.22 mm, 90° deflection, Ø29.4 mm in-line gun
Visual screen 386 mm × 217 mm (15
1
/4× 8 5/
8 inches) 266 × 150 mm (10
1
/2× 6 inches)
(Viewable area, measured diagonally)
(443 mm (17 1/2 inches)) (305 mm (12 1/8 inches))
CRT protection EHT
Warm up period About 30 minutes
High voltage 27 kV typical 25 kV typical
Chromaticity coordinates
SMPTE-C phosphors
xy
R 0.63 0.34
G 0.31 0.6
B 0.155 0.07 Tolerance= ±0.005
Inputs/outputs
Video BNC × 3, with loop-through
GBR 1 Vp-p ±6 dB, sync negative, high impedance
Y 1 Vp-p ±6 dB, high impedance
PB/PR 0.7 Vp-p ±6 dB, high impedance
Ext sync BNC × 1, with loop-through
Composite 0.3 to 8 Vp-p, high impedance
Return loss More than 40 dB (10 MHz when 75 Ω terminated)
Remote OPTION RS-232C Mini-din 8-pin × 1
CONTROL UNIT RS-422 for BKM-10R (only for HDM-20E1U/14E1U) D-sub 9-pin × 1
REMOTE1 RS-485 serial interface, D-sub 9-pin, with loop-through
REMOTE2 D-sub 9-pin × 1
ISR D-sub 9-pin × 1
Video signal performance
DG Within 5 % for luminance from 0 to 100 cd/m2(0 to 30 ft-L)
Frequency response 60 Hz to 30 MHz
+1
-3
dB
DC restoration Back porch type
Back porch level: within 1 % of peak luminance, 10 to 90 % APL
Synchronization
Retrace time Horizontal under 3.77 µsec
Vertical under 650 µsec
Raster and picture performance
Normal scan 5 % over scan of effective picture area
Under scan 3 % under scan of the effective picture area
Linearity Within 0.5 % within circle centered on the screen
with a diameter equal to the vertical height, 1 % at any other point
Color temperature D65, D93, USER
Convergence Within 0.4 mm within circle centered on the screen Within 0.3 mm within circle centered on the screen
with a diameter equal to the vertical height, with a diameter equal to the vertical height,
0.7 mm at any other point 0.6 mm at any other point
Preset brightness 100 cd/m2(30 ft-L) (when a 1 Vp-p 100 % white signal is inputted)
Stability of raster size 1% of picture height for a 10 to 90 % APL change
when 100% peak white is set to 100 cd/m2(30 ft-l) brightness
Scan delay Horizontal Approx. 1/4 line
Vertical Approx. 1/2 field
Center resolution 850 TV lines (100 cd/m2) 700 TV lines (100 cd/m2)
Operating conditions
Operating temperature 0 to 35 °C (32 to 95 °F) Optimum operating range 20 to 30 °C (68 to 86 °F)
Storage temperature -10 to 35 °C (14 °F to 104 °F)
Humidity 0 to 90 % (no condensation)
Supplied Accessories: AC cable/AC plug holder/Tally label/Fuse/Operation manual
