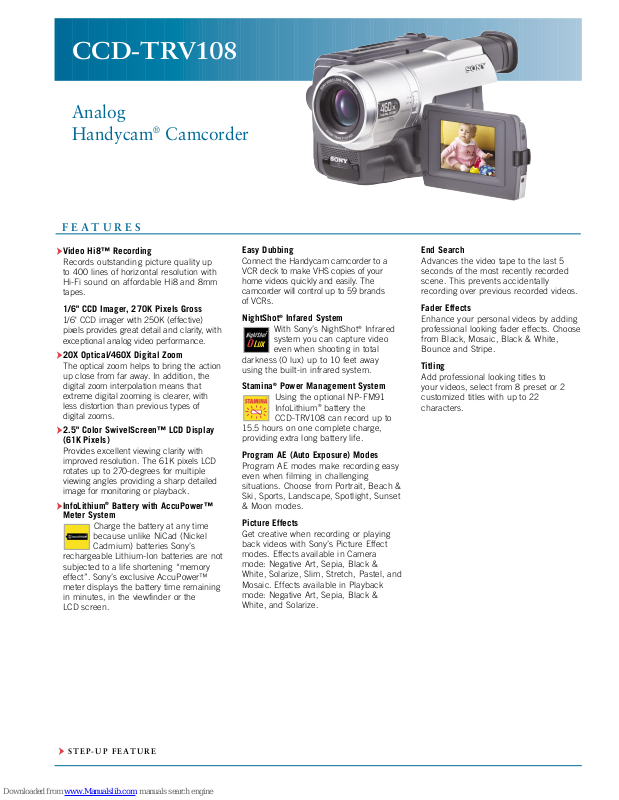

Sony Handycam CCD-TRV108 Specification Sheet

➤

Video Hi8™ Recording

Records outstanding picture quality up
to 400 lines of horizontal resolution with
Hi-Fi sound on affordable Hi8 and 8mm
tapes.

1/6" CCD Imager, 270K Pixels Gross

1/6" CCD imager with 250K (effective)
pixels provides great detail and clarity, with
exceptional analog video performance.

➤

20X Optical/460X Digital Zoom

The optical zoom helps to bring the action
up close from far away. In addition, the
digital zoom interpolation means that
extreme digital zooming is clearer, with
less distortion than previous types of
digital zooms.

➤

2.5" Color SwivelScreen™ LCD Display
(61K Pixels)

Provides excellent viewing clarity with
improved resolution. The 61K pixels LCD
rotates up to 270-degrees for multiple
viewing angles providing a sharp detailed
image for monitoring or playback.

➤

InfoLithium®Battery with AccuPower™
Meter System

Charge the battery at any time
because unlike NiCad (Nickel

Cadmium) batteries Sony’s
rechargeable Lithium-Ion batteries are not
subjected to a life shortening “memory
effect”. Sony’s exclusive AccuPower™
meter displays the battery time remaining
in minutes, in the viewfinder or the
LCD screen.

Easy Dubbing

Connect the Handycam camcorder to a
VCR deck to make VHS copies of your
home videos quickly and easily. The
camcorder will control up to 59 brands
of VCRs.

NightShot®Infared System

With Sony’s NightShot®Infrared
system you can capture video

even when shooting in total
darkness (0 lux) up to 10 feet away
using the built-in infrared system.

Stamina®Power Management System

Using the optional NP-FM91
InfoLithium

®

battery the

CCD-TRV108 can record up to

15.5 hours on one complete charge,
providing extra long battery life.

Program AE (Auto Exposure) Modes

Program AE modes make recording easy
even when filming in challenging
situations. Choose from Portrait, Beach &
Ski, Sports, Landscape, Spotlight, Sunset
& Moon modes.

Picture Effects

Get creative when recording or playing
back videos with Sony’s Picture Effect
modes. Effects available in Camera
mode: Negative Art, Sepia, Black &
White, Solarize, Slim, Stretch, Pastel, and
Mosaic. Effects available in Playback
mode: Negative Art, Sepia, Black &
White, and Solarize.

End Search

Advances the video tape to the last 5
seconds of the most recently recorded
scene. This prevents accidentally
recording over previous recorded videos.

Fader Effects

Enhance your personal videos by adding
professional looking fader effects. Choose
from Black, Mosaic, Black & White,
Bounce and Stripe.

Titling

Add professional looking titles to
your videos, select from 8 preset or 2
customized titles with up to 22
characters.

FEATURES

➤

STEP-UP FEATURE

CCD-TRV108

Analog
Handycam

®

Camcorder

OPTIONAL ACCESSORIES

SPECIFICATIONS

Imaging Device: 1/6", 270K Gross Pixels CCD
Video Actual: 250K Pixels
Still Actual: N/A
F: 1.4 – 2.9
Focal Distance: 3.6 – 72mm
35mm Conversion: 51.8 – 1036mm
Filter Diameter: 37mm
Optical Zoom: 20X
Digital Zoom: 460X
Focusing: Full Range Auto/Manual (Dial)
Minimum Illumination: 1 Lux (0 Lux with NightShot

®

Infrared System)

NightShot Infrared System: Yes
Shutter Speed: 1/60 -1/4000 (AE Mode)
Viewfinder: Black and White (90K Pixels)
LCD: 2.5" Color, 61K Pixels
Accessory Shoe: N/A
Video Input/Output: No/Yes (S-Video/Mini)
Audio Input/Output: No/Yes (Mono)
USB Terminal: N/A
USB Streaming: N/A
Headphone Jack: N/A
Mic-Input: N/A
White Balance: Auto
Exposure: Yes, Dial (24 Steps)
Power Consumption (VF/LCD/VF+LCD): 1.9W/2.6W/2.8W
Dimensions (WHD): 3

5

/8" x 4 1/8" x 7 7/8"

(90mm x 102mm x 197mm)

Weight: 2 lbs 1 oz (935g) w/Battery
Supplied Accessories: AC-L10 Power Adapter/In Camera

Charger, NP-FM30 InfoLithium

®

Rechargeable Battery,

Mono A/V Cable, Lens Cap, Shoulder Strap

©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, AccuPower, Handycam, Hi8, InfoLithium, NightShot, Stamina, SwivelScreen and Worry Free are
trademarks of Sony. All other trademarks are property of their respective owners.
Features and specifications subject to change without notice.
Non-metric weights and measures are approximate.

Battery* Rec Time

Playback Time

(Fully charged) VF/LCD / VF+LCD LCD/VF

NP-FM30 165/120/110 min 120/175 min
NP-FM50 265/195/180 min 195/280 min
NP-FM70 540/400/370 min 400/570 min
NP-QM71 640/465/430 min 465/675 min
NP-FM91 955/695/645 min 695/1010 min
NP-QM91 955/695/645 min 695/1010 min
*Results may vary

BATTERY LIFE

AC-SC950D AC Quick Charger for

Super Quick batteries

AC-VQ850D AC/DC Adaptor

Quick Charger
PC-VM50 Portable AC Charger
DCC-L50 Car Battery Adapter

Cable
LCS-VA2 Carrying Case
LCS-VA1 Carrying Case
ACC-KITFM50 Handycam

Camcorder Starter Kit
VCL-0637H Wide Angle Lens
VCL-HG0737X High Grade Wide

Angle Lens
VCL-ES06A Wide Angle Lens

VCL-ES20A Telephoto Lens
VCL-R2037X High Grade

Telephoto Lens

VF-R37K Neutral Density

Filter Kit
VF-37PK Polarizing Filter Kit
VCT-670RM Remote Control

Tripod
VCT-570RM Remote

Control Tripod
VCT-R610 Lightweight Tripod
VCT-TK1 Pocket Tripod

Sony Electronics Inc.
16765 West Bernardo Drive
San Diego, CA 92127
www.sony.com/di

CCD-TRV108
