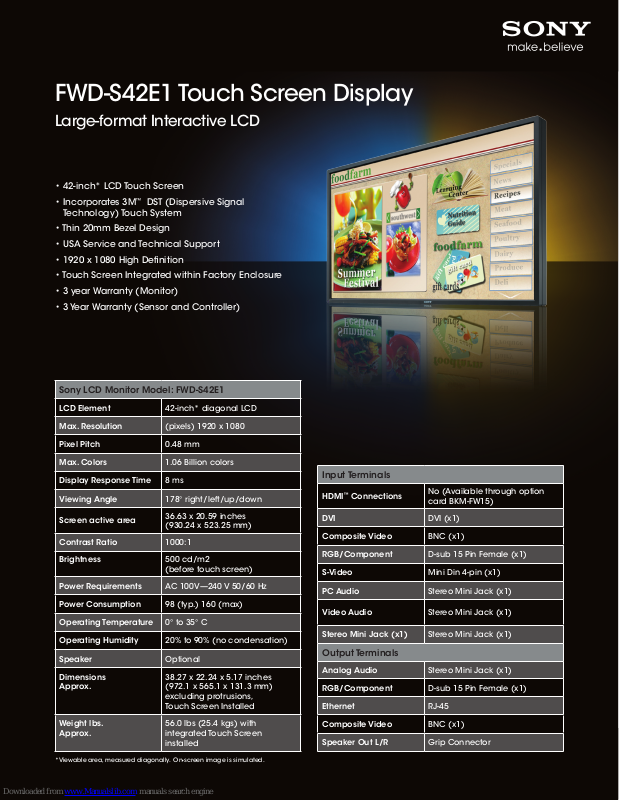

FWD-S42E1 Touch Screen Display
Large-format Interactive LCD
• 42-inch* LCD Touch Screen
• Incorporates 3M™ DST (Dispersive Signal
Technology) Touch System
• Thin 20mm Bezel Design
• USA Service and Technical Support
• 1920 x 1080 High Denition
• Touch Screen Integrated within Factory Enclosure
• 3 year Warranty (Monitor)
• 3 Year Warranty (Sensor and Controller)
Sony LCD Monitor Model: FWD-S42E1
LCD Element 42-inch* diagonal LCD
Max. Resolution (pixels) 1920 x 1080
Pixel Pitch 0.48 mm
Max. Colors 1.06 Billion colors
Display Response Time 8 ms
Viewing Angle 178° right/left/up/down
Screen active area
Contrast Ratio 1000:1
Brightness 500 cd/m2
Power Requirements AC 100V—240 V 50/60 Hz
Power Consumption 98 (typ.) 160 (max)
Operating Temperature 0° to 35° C
Operating Humidity 20% to 90% (no condensation)
Speaker Optional
Dimensions
Approx.
36.63 x 20.59 inches
(930.24 x 523.25 mm)
(before touch screen)
38.27 x 22.24 x 5.17 inches
(972.1 x 565.1 x 131.3 mm)
excluding protrusions,
Touch Screen Installed
Input Terminals
HDMI™ Connections
DVI DVI (x1)
Composite Video BNC (x1)
RGB/Component D-sub 15 Pin Female (x1)
S-Video Mini Din 4-pin (x1)
PC Audio Stereo Mini Jack (x1)
Video Audio Stereo Mini Jack (x1)
Stereo Mini Jack (x1) Stereo Mini Jack (x1)
No (Available through option
card BKM-FW15)
Output Terminals
Analog Audio Stereo Mini Jack (x1)
RGB/Component D-sub 15 Pin Female (x1)
Ethernet RJ-45
Weight lbs.
Approx.
*Viewable area, measured diagonally. On-screen image is simulated.
56.0 lbs (25.4 kgs) with
integrated Touch Screen
installed
Composite Video BNC (x1)
Speaker Out L/R Grip Connector
Page 2

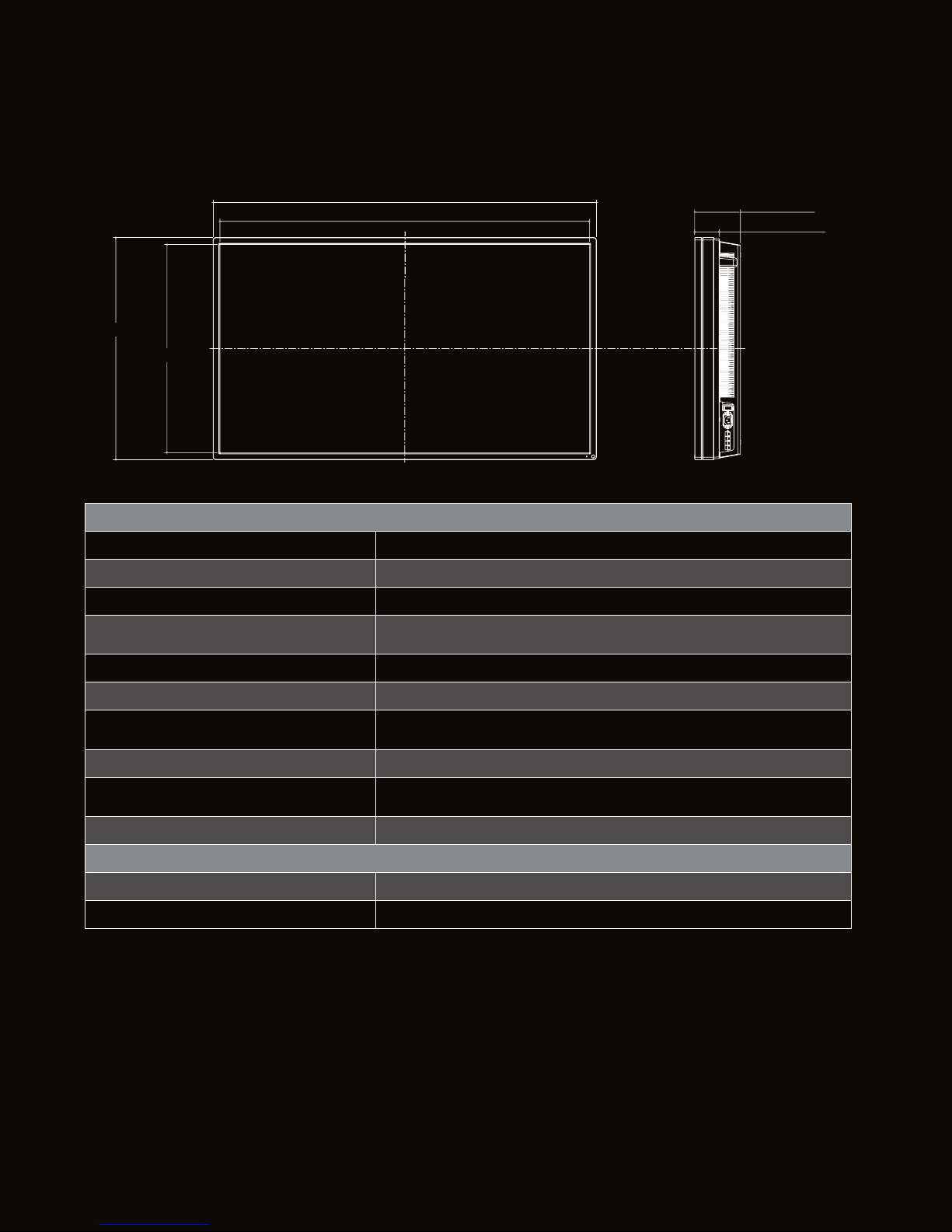

Sony FWD-42SE1 Touch Screen Display Dimensional Drawing
38.27” [972.1]
36.74” [933.2]
22.24” [565.1]
20.71” [523.2]
3M™ DST (Dispersive Signal Technology) Touch Screen Specifications
Total additional weight to monitor 6.0 lbs
Construction Glass chemically-strengthened anti-glare substrate
Input Method Finger and stylus input
Positional Accuracy
Light Transmission Up to 92%
Reported coordinates are within 1.0% of true position
(based on viewing area dimensions)
5.17” [131.35]
3.00” [76.35]
Operating Temperature -15°C to 90°C
Minimum Touch Impact 50 mN.s (milli-newton seconds), the equivalent of a very light touch
Response Time 20 ms for tap input
Expected Life Performance
Total Additional Depth to Sony FWD-S42E1 1/4”
Touch screen Connector Specifications
Interface USB or RS-232 Serial (specify when ordering)
Maximum Single USB Cable Length 5m (16.4 ft)
Note: When using USB over distances of 5m, a USB extension system can be used.
Note: Power for the LCD monitor itself requires a connection to a 110 VAC receptacle. In addition, the Sony DST touch screen monitors require an external power
supply to drive the integrated touch screen controller. This small form factor 110 VAC to 5Vdc power supply is included with every Sony DST touch screen monitor.
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/digitalsignage
DI-0210
No known wear-out mechanism, as there are no layers, coating,
or moving parts.
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written
permission is prohibited. Sony, BRAVIA, make.believe, Ziris and their respective logos
are trademarks of Sony. 3M and MicroTouch are trademarks of the 3M Company.
