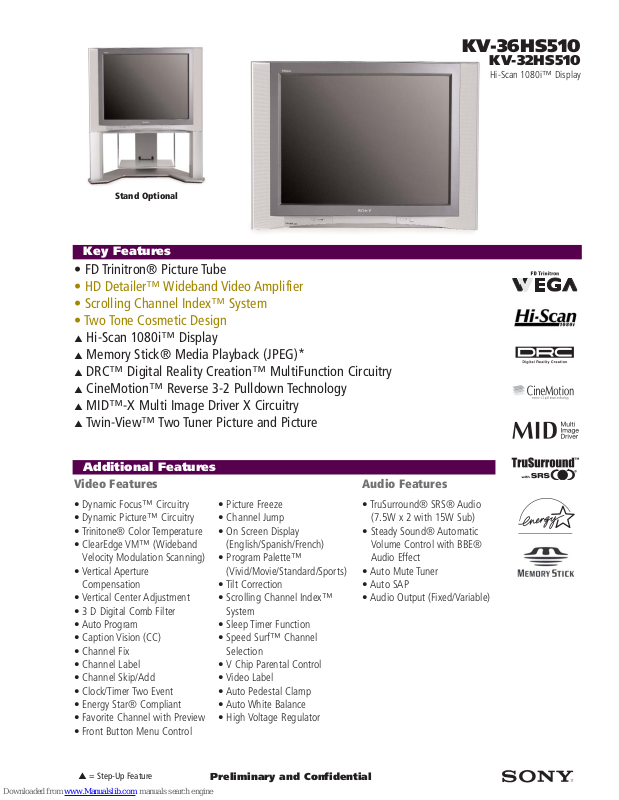

Page 1
Video Features
• Dynamic Focus™ Circuitry
• Dynamic Picture™ Circuitry
• Trinitone® Color Temperature
• ClearEdge VM™ (Wideband
Velocity Modulation Scanning)
• Vertical Aperture
Compensation
• Vertical Center Adjustment
• 3 D Digital Comb Filter
• Auto Program
• Caption Vision (CC)
• Channel Fix
• Channel Label
• Channel Skip/Add
• Clock/Timer Two Event
• Energy Star® Compliant
• Favorite Channel with Preview
• Front Button Menu Control
• Picture Freeze
• Channel Jump
• On Screen Display
(English/Spanish/French)
• Program Palette™
(Vivid/Movie/Standard/Sports)
• Tilt Correction
• Scrolling Channel Index™
System
• Sleep Timer Function
• Speed Surf™ Channel
Selection
• V Chip Parental Control
• Video Label
• Auto Pedestal Clamp
• Auto White Balance
• High Voltage Regulator
Audio Features
• TruSurround® SRS® Audio
(7.5W x 2 with 15W Sub)
• Steady Sound® Automatic
Volume Control with BBE®
Audio Effect
• Auto Mute Tuner
• Auto SAP
• Audio Output (Fixed/Variable)
• FD Trinitron® Picture Tube
• HD Detailer™ Wideband Video Amplifier
• Scrolling Channel Index™ System
• Two Tone Cosmetic Design
S Hi-Scan 1080i™ Display
S Memory Stick® Media Playback (JPEG)*
S DRC™ Digital Reality Creation™ MultiFunction Circuitry
S CineMotion™ Reverse 3-2 Pulldown Technology
S MID™-X Multi Image Driver X Circuitry
S Twin-View™ Two Tuner Picture and Picture
KV-36HS510
KV-32HS510
Hi-Scan 1080i™ Display
Key Features
Additional Features
Preliminary and Confidential
S = Step-Up Feature
Stand Optional
Page 2
Hi-Scan 1080i™ Display Sony’s Hi-Scan1080i™ TV’s accept the full 1080
interlaced scanning lines (1080i) or 720 progressive scan (720p) from an
external HDTV receiver or a compatible high definition digital satellite receiver. It also accepts 480 progressive (480p) scanning lines from compatible
DVD video sources.
HD MicroFocus™ CRT’s By using an impregnated cathode and a denser
phosphor layer, this CRT produces a 30% tighter beam spot compared to
previous models.
Digital Reality Creation™ (DRC™)-Multifunction Circuitry This Sony proprietary technology displays four times the the picture resolution compared
to conventional models for excellent picture quality.
CineMotion™ Reverse 3-2 Pulldown Technology Is a fixed algorithm irrespective of source which preserves the integrity of movie film frames to create the best possible image
DVI-HDTV Interface (Digital Visual Interface) Has been added for the latest generation in high definition television connectivity. A single wire delivers
a full digital uncompressed HD signal that can be received from any DVI set
top box.
Multi Image Driver (MID™ X) Circuitry With Sony’s Twin View™ 2 Tuner
Picture and Picture you can watch 2 full motion pictures side by side.
Together, Twin View, and Sony’s proprietary Multi Image Driver X
Circuitry allows you to view analog along side of HDTV at the same time on
the same screen. Also, with MID™ X both picture images are improved to
480 progressive image quality.
Specifications
Inputs and Outputs:
• Component Video
(Y/Pb/Pr) Input
2 Rear
• Composite Input:
1 Front/3 Rear
• DVI-HDTV Interface:
1 Rear
• S Video (With Detection):
1 Front/2 Rear
• Control S:
1 Rear
• Audio Out:
1 Rear
• Monitor:
1 Rear
General
• Power Requirements:
AC 120V 60Hz
• Power Consumption:
KV-36HS510:
(In Operation): 280W
(In Standby): 1W
KV-32HS510:
(In Operation): 280W
(In Standby): 1W
Accessories
Supplied Accessories
• Instruction Manual
• Remote Control
(RM-Y188)
• AA Battery (2)
Optional Accessories
• A/V Stand:
KV-36HS510 - SU-36HS1
KV-32HS510 - SU-32HS1
Weights & Measures
• Approx. Dimensions (w/h/d):
KV-36HS510:
40" x 30" x 25
3
/8"
(1017 x 760 x 643mm)
KV-32HS510:
35
3
/8" x 271/8" x 24"
(898 x 689 x 608mm)
• Approx. Weight:
KV-36HS510:
230 lbs. (104.3 kg)
KV-32HS510:
176 lbs. 6 oz. (80 kg)
UPC Code
• KV-32HS510:
0-27242-62570-9
• KV-36HS510:
0-27242-62580-8
Key Technology
Specifications
©2003 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, FD Trinitron, Speed Surf, Dynamic Focus, Dynamic Picture, Hi-Scan
1080i, Trinitone, Memory Stick, DRC, Digital Reality Creation, CineMotion, MID,Twin-View, HD MicroFocus, ClearEdge VM, Program Palette, Scrolling Channel Index, Steady Sound, BBE and WEGA
are trademarks of Sony.Any other trademarks referenced herein are either the property of Sony or their respective owners.
*All Sony digital still cameras and camcorders except models DSCD-700, DSCD-770, and DSR-PD100A store images on a Memory Stick in the DCF file format, which is required for playback on
these televisions. If the image file is renamed or manipulated, the DCF file format must be restored before playback is possible. Images captured on all other digital still cameras and camcorders
will need to be formatted on a PC to the DCF file format (with third party software not supplied with the television) before they can be viewed.
KV-36HS510
KV-32HS510
Hi-Scan 1080i™ Display
