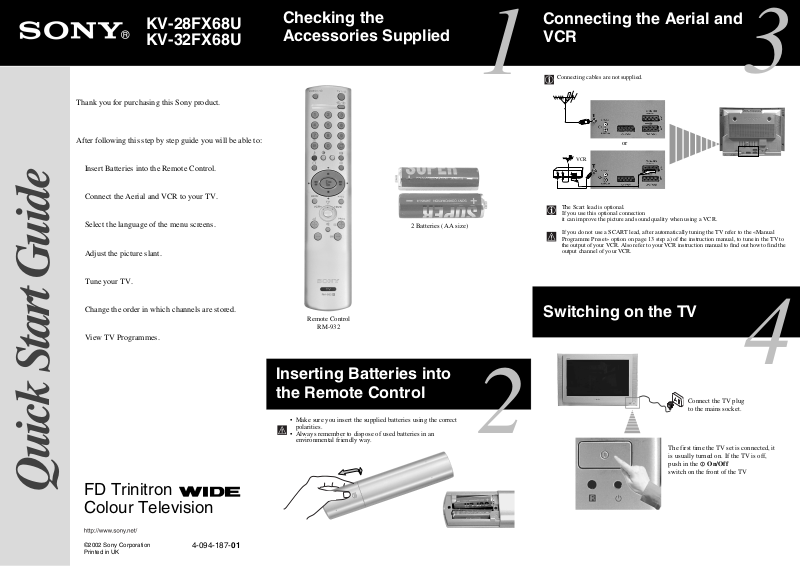

Sony FD Trinitron KV-28FX68U, FD Trinitron KV-32FX68U Quick Start Manual
KV-28FX68U
Checking the
Connecting the Aerial and
KV-32FX68U
Thank you for purchasing this Sony product.
After following this step by step guide you will be able to:
Insert Batteries into the Remote Control.
Connect the Aerial and VCR to your TV.
Select the language of the menu screens.
Adjust the picture slant.
Accessories Supplied
2 Batteries (AA size)
1
VCR
3
Connecting cables are not supplied.
or
VCR
OUT IN
The Scart lead is optional.
If you use this optional connection
it can improve the picture and sound quality when using a VCR.
If you do not use a SCART lead, after automatically tuning the TV refer to the «Manual
Programme Preset» option on page 13 step a) of the instruction manual, to tune in the TV to
the output of your VCR. Also refer to your VCR instruction manual to find out how to find the
output channel of your VCR.
Tune your TV.
Change the order in which channels are stored.
View TV Programmes.
Remote Control
RM-932
Inserting Batteries into
the Remote Control
• Make sure you insert the supplied batteries using the correct
polarities.
• Always remember to dispose of used batteries in an
environmental friendly way.
Switching on the TV
4
Connect the TV plug
to the mains socket.
2
The first time the TV set is connected, it
is usually turned on. If the TV is off,
push in the On/Off
switch on the front of the TV
Quick Start Guide
FD Trinitron
Colour Television
©2002 Sony Corporation
Printed in UK
4-094-187-01
Selecting the language of
Automatically Tuning
Changing the Programme Order
the menu screens
This TV set works with menu screens. By following the instructions
below, you can select the desired language of the menu sceens.
Language
Svenska
Norsk
English
Nederlands
Français
Italiano
Select Language:
Language
Svenska
Norsk
English
Nederlands
Français
Italiano
Select Language:
If picture slants, please
adjust picture rotation
Not necessary
Adjust now
OK
The first time that you switch on your TV,
the Language menu appears automatically.
Press the or button on the
remote control to select the language, then
press the OK button on the remote control
to confirm your selection.
OK
The Picture Rotation menu appears on
the screen.
OK
5
the TV
You need to tune the TV to receive channels.
By following the instructions below, this TV automatically searches and stores all available broadcast channels for you.
Do you want to start
automatic tuning?
Ye s
No
Auto Tuning
Programme: 01
Channel: C21
Searching...
Press the OK button on the remote
control to select Yes.
OK
The TV starts to automatically search and
store all available broadcast channels for
you.
This procedure could take some
minutes.
Please be patient and do not press
any buttons while the automatic
tuning is in progress. Otherwise the
automatic tuning will not be
completed.
7
of the broadcast channels
By following the instrutions below, you can rearrange the
order in which broadcast channels appear on the screen.
a) If you wish to keep the broadcast channels in the tuned order:
Programme Sorting
Programme:
01 TVE
02 TVE2
03 TV3
04 C33
05 C27
06 C58
Select channel:
MENU
Exit:
b) If you wish to store the broadcast channels in a different
order:
Programme Sorting
Programme:
01 TVE
02 TVE2
03 TV3
04 C33
05 C27
06 C58
Select channel:
MENU
Exit:
• Press the MENU button on the
remote control to exit and
return to the normal TV screen.
OK
OK
Your TV is now ready for use.
• Press the or button on the
remote control to select the
programme number with the
broadcast channel you wish to
rearrange, then press the button.
8
Correcting the Picture Slant
Because of the earth’s magnetism, the picture might slant.
By following the instructions below, you can correct the picture
slant if it is necessary.
If picture slants, please
adjust picture rotation
Not necessary
Adjust now
Do you want to start
automatic tuning?
Ye s
No
a) If it is not necessary, press or
to select Not necessary and
press OK.
b) If it is necessary, press or to
OK
OK
select Adjust now, then press
OK and correct any slant of the
picture between –5 and +5 by
pressing or . Finally press
OK to store.
The automatic tuning menu appears
on the TV screen.
6
No channel found
Please connect aerial
Confirm
Programme Sorting
Programme:
01 TVE
02 TVE2
03 TV3
04 C33
05 C27
06 C58
Select channel:
Exit: MENU
In some countries the TV
Broadcaster installs the channels
automatically (ACI system). In this
case, the TV Broadcaster sends a
menu in which you can select your
city by pressing the or button
and OK to store the channels.
If no channels were found during the
auto tuning process then a new menu
appears automatically on the screen
asking you to connect the aerial.
OK
OK
Please connect the aerial (see step 3)
and press OK. The auto tuning
process will start again.
When the automatic tuning is finished, the
Programme Sorting menu appears on the
screen.
Programme Sorting
Programme:
01 TVE
02 TVE2
03 TV3
04 C33
05 C27
06 C58 05 C27
Select new position:
Exit: MENU
• Press the or button on the
remote control to select the new
programme number position for your
selected broadcast channel, then
OK
press the OK button.
• Repeat all the above steps if you wish
to change the order of the other
broadcast channels on your TV.
• Press the MENU button on the
remote control to exit and return to
the normal TV screen.
Your TV is now ready for use.
Your television stations are now stored in your television’s memory.
