Sony FD Trinitron KV-27FS17 Specifications
KV-27FS17
RM-Y181 REMOTE CONTROL
24 7/8"
16 1/2"
MODEL:
DESCRIPTION:
DESCRIPTION:
DIMENSIONS
DIMENSIONS
(WHD):
(WHD):
WEIGHT:
WEIGHT:
27 5/8" x 24 7/8" x 20 1/8"

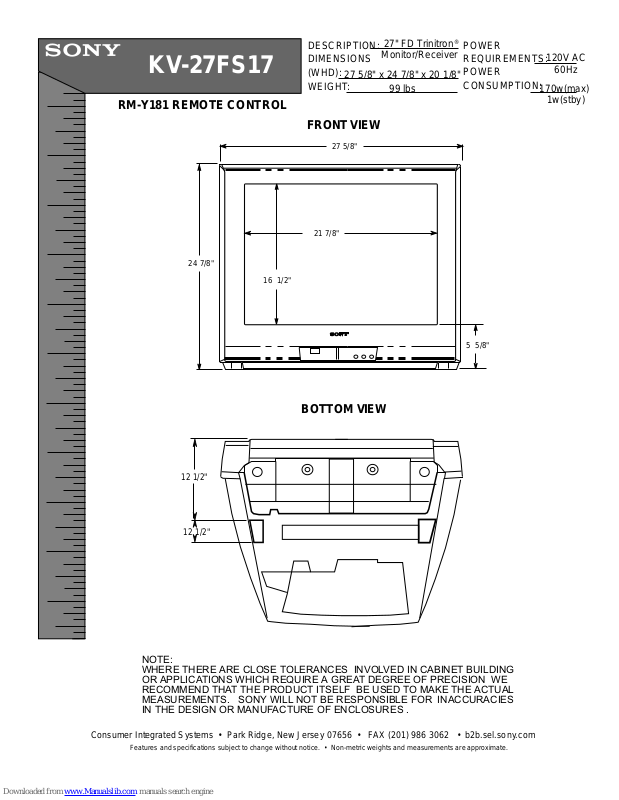

FRONT VIEW
27 5/8"
21 7/8"
27" FD Trinitron
Monitor/Receiver
99 lbs
®
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
120V AC
60Hz
170w(max)
1w(stby)
12 1/2"
12 1/2"
5 5/8"
BOTTOM VIEW
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
