4K1 16:9 video optimized 1/2.5” Exmor R
®
low-light CMOS Sensor
Built-in gimbal - Balanced Optical SteadyShot
image stabilizer
20x optical zoom and Clear Image Zoom of
30x for 4K1 / 40x for HD
2
Fast Intelligent AF tracks focus to captures
decisive moments
26.8mm2 wide-angle ZEISS® Vario-Sonnar T*
zoom lens
High-bitrate XAVC S™ 4K1 up to 100Mbps /
HD up to 50Mbps
Realistic audio with clear 5.1ch and 2ch
sound
5
Highlight Movie Maker automatically creates
short movies10 to share
Flip out tilting 3" Clear Photo touch screen
LCD - ideal for vlogging
Produce high quality 4K Time Lapse7 for an
immersive experience
Dedicated button starts Highlight Movie Maker
to create short movies
Wi-Fi for One-touch remote and One-touch
sharing using smartphone
8

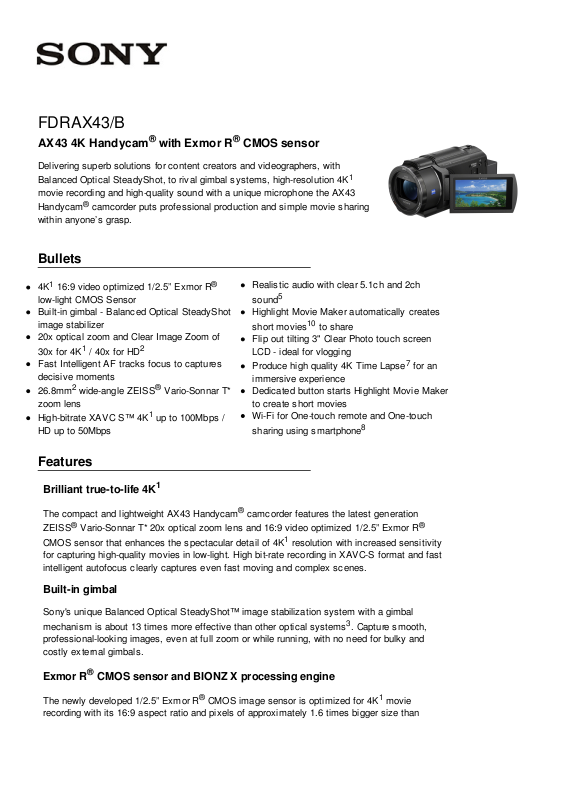

FDRAX43/B
AX43 4K Handycam® with Exmor R® CMOS sensor
Delivering superb solutions for content creators and videographers, with
Balanced Optical SteadyShot, to rival gimbal systems, high-resolution 4K
1
movie recording and high-quality sound with a unique microphone the AX43
Handycam® camcorder puts professional production and simple movie sharing
within anyone’s grasp.
Bullets
Features
Brilliant true-to-life 4K
1
The compact and lightweight AX43 Handycam® camcorder features the latest generation
ZEISS® Vario-Sonnar T* 20x optical zoom lens and 16:9 video optimized 1/2.5” Exmor R
®
CMOS sensor that enhances the spectacular detail of 4K1 resolution with increased sensitivity
for capturing high-quality movies in low-light. High bit-rate recording in XAVC-S format and fast
intelligent autofocus clearly captures even fast moving and complex scenes.
Built-in gimbal
Sony's unique Balanced Optical SteadyShot™ image stabilization system with a gimbal
mechanism is about 13 times more effective than other optical systems3. Capture smooth,
professional-looking images, even at full zoom or while running, with no need for bulky and
costly external gimbals.
Exmor R® CMOS sensor and BIONZ X processing engine
The newly developed 1/2.5” Exmor R® CMOS image sensor is optimized for 4K1 movie
recording with its 16:9 aspect ratio and pixels of approximately 1.6 times bigger size than
Page 2
previous AX-series camcorders. It offers superior sensitivity for capturing beautiful high-quality
images with less noise under dark as well as bright shooting conditions, while the BIONZ X
processing engine achieves more naturally vivid and lifelike images with faster processing.
Capture stunning video in both 4k/24p/30p and Full HD 60p/30p. Versatile shooting w/ XAVC
S™, AVCHD® and MP4 codecs.
Get more in
Fit more in your frame with the 26.8mm2 wide-angle ZEISS® Vario-Sonnar T* zoom lens,
specifically designed for high-resolution 4k1 movie recording. It achieves outstanding image
quality due to the ED (Extra-low Dispersion) lens that reproduces accurate color and AA
(advanced aspherical) lens which provides high resolution image reproduction. Get close to the
action with 20x optical zoom and Clear Image Zoom of 30x for 4K and 40x for HD.
Fast Intelligent Autofocus
Fast Intelligent AF algorithm optimizes communication between the lens and the image
processor to achieve incredibly rapid and accurate contrast-detection focus. This state-of-the-rt
AF range prediction system minimizes lens motion, predicting the autofocus range, to
accelerates the lens drive, thereby improving response so you can capture precise moments.
Great sound, less noise
The AX43 camcorder has a premium three mic. capsule structural design that enables it to
gather sound from five directions. This enables the camera to reproduce clearer sound, yielding
up to 40%4 less noise and is twice as effective in 2ch stereo (for XAVC S shooting) and three
times as effective in 5.1ch surround (5.1ch for AVCHD shooting). This makes it possible to
faithfully reproduce audio with clearly defined separation. Advanced sound features such as
Auto Wind Noise Reduction and My Voice Cancelling make it even easier to attain ideal sound
quality in various situations.
Vlog ready
The AX43 is the ideal clogging camera for all types content creators. High resolution 4k, ZEISS
lens with Fast Intelligent AF and Balanced Optical SteadyShot offers incredible image quality
while the on-board microphone and MI (Multi-interface) shoe which can be used with a variety of
optional external microphones deliver outstanding low-noise audio. Compatibility with
accessories like the GP-VPT1 shooting grip enhance the versatility of this already amazing
camera, while Highlight Movie Maker makes it super-simple to automatically create short videos
for instant sharing.
LCD copy
Flip out tilting 3" Clear Photo touch screen LCD is ideal for is perfect for selfie and almost any
other shot-composition from behind or in-front of the camera to high and low-angle shots. Power
automatically turns on when you open the LCD and all settings are accessible on the touch
screen for easy and fast operation.
Highlight Movie Maker makes movies easy
Page 3
Highlight Movie Maker is a versatile automatic in-camera movie editing function to streamline
movie editing. It can automatically create 4K10 or HD movies out of several of your clips with
time-saving features by picking highlight moments in your footage like zooming or points you
select while recording. Then the camcorder automatically sync movie transitions to your chosen
soundtrack. You can also customize with transition effects and your own soundtrack music9,
and once completed, easily share MP4 movies on social media sites via a smartphone.
4K Time-lapse Capture
9
Create captivating 4K time-lapse movies. You can capture 4K (8.3MP) still images continuously
over an extensive period of time at a selected constant interval from each shot to the next. Then
edit the entire sequence of still images in post-production9 software and enjoy playback as a
time-lapse movie.
Dual Video Recording
Record two movies at the same time — one in the maximum-quality XAVC S or AVCHD format
and another in MP4 format. That way you’ve got a small file ready for instant sharing, plus a
professional-grade file for further editing.
Wi-Fi w/ One-touch remote and sharing
Built-in Wi-Fi with NFC for easy connectivity, allows for ‘One-touch remote’ which lets you use
your smartphone or tablet as a viewfinder, while ‘One-touch sharing’ lets you transfer your
photos and videos from your camera to your mobile device for instant sharing on Social Media
sites. Connect to your mobile device with the free Imaging Edge Mobile app available for both
Android and Apple iOS.
Pro features
Enjoy customization with ergonomic manual controls. Use the intuitive touch screen to adjust
focus, exposure, IRIS, shutter speed, AE shift, or white balance shift mode. Time Code and
User Bit can be added to movies as data elements. Time Code function records
hours/minutes/seconds/frames on image data for precise advanced video editing. User Bit
function records information such as date/time/scene number, etc. in eight-digit arbitrary
numbers, and is useful for editing movies using two or more cameras.
Multi Camera Control
More shots mean more editing opportunities. Easily record footage from a variety of angles,
whether using cameras mounted directly to the Handycam® or triggered wirelessly. Multi Camera
Control makes it easy to sync shooting settings on compatible Wi-Fi® connected devices.
Specification
Imaging Sensor
Imaging Sensor 1/2.5 type(7.20mm) back-illuminated Exmor R CMOS Sensor
Processor BIONZ X image processor
Page 4
Pixel Gross approx. 8.57 Megapixels
Effective Picture
Resolution(movie)
approx. 8.29 Megapixels(16:9) *1
Effective Picture
Resolution(still)
approx. 8.29 Megapixels(16:9)/approx. 6.22 Megapixels(4:3)
Color Filter System RGB primary color filters
Recording
Media Type
XAVC S 4K(100Mbps): SDHC Memory Card(4GB or over,UHS-I
U3 or Higher)/SDXC Memory Card(UHS-I U3 or Higher)
Media Type
XAVC S 4K(60Mbps): SDHC Memory Card(4GB or over,Class10
or Higher)/SDXC Memory Card(Class10 or Higher)
Media Type
XAVC S HD: SDHC Memory Card(4GB or over,Class10 or
Higher)/SDXC Memory Card(Class10 or Higher)
Media Type
AVCHD,Still: Memory Stick PRO Duo (Mark 2), Memory Stick
PRO-HG Duo, Memory Stick XC-HG Duo, SD/SDHC/SDXC
Memory Card(Class 4 or Higher)
Maximum Capacity of
External Media
256GB(As of 12/2019)
Still Image File Format
DCF Ver.2.0 compatible, Exif Ver.2.3 compatible, MPF Baseline
compatible
Still Image Mode JPEG
Still Image Max Effective 16.6 Megapixels
Still Image Size(Movie
Mode)
M: 8.3 Megapixels 16:9
(3840x2160)
S: 2.1 Megapixels 16:9 (1920x1080)
Still Image Size(Photo
Mode)
L: 16.6 Megapixels 16:9 (5440x3056),12.5 Megapixels 4:3
(4080x3056)
M: 8.3 Megapixels 16:9
Still Image Size(Photo
Mode)
(3840x2160),6.2 Megapixels 4:3 (2880x2160)
Still Image Size(Photo
Mode)
S: 2.1 Megapixels 16:9 (1920x1080),0.3 Megapixels 4:3
(640x480)
Video Format XAVC S format:MPEG4-AVC/H.264
Video Format AVCHD format ver.2.0 compatible:MPEG4-AVC/H.264
Page 5
Video Format MP4: MPEG-4 AVC/H.264
Video Mode(Resolution) XAVC S 4K : 3840x2160/30p, 24p
Video Mode(Resolution) XAVC S HD : 1920x1080/60p, 30p, 24p
Video Mode(Resolution)
AVCHD :
1920x1080/60p(PS),30p(FX,FH),24p(FX,FH),60i(FX,FH),
1440x1080/60i(HQ,LP)
Video Mode(Resolution) MP4: 1280x720 30p
Movie Recording
Rate(Average Bit
Rate/VBR) *2
XAVC S 4K: approx.100Mbps
XAVC S 4K: approx.60Mbps
XAVC S HD: approx.50Mbps
AVCHD
PS:approx.28Mbps/FX:approx.24Mbps/FH:approx.17Mbps/HQ:ap
prox.9Mbps/LP:approx.5Mbps
MP4: approx.3Mbps
Video Actual (Pixel) approx. 8.29 Megapixels(16:9) *1
Progressive Mode
XAVC S 4K : 30p/24p, Progressive recording
XAVC S HD: 60p/30p/24p, Progressive recording
AVCHD: 60p/30p/24p, Progressive recording
MP4: 30p, Progressive recording
Photo Capture from Movie
XAVC S 4K: 8.3 Megapixels 16:9 (3840x2160)
XAVC S HD: 2.1 Megapixels 16:9 (1920x1080)
AVCHD: 2.1 Megapixels 16:9 (1920x1080)
Dual Record *7
M: 8.3 Megapixels 16:9
(3840x2160)
S: 2.1 Megapixels 16:9 (1920x1080)
*8 *9
Audio Format
LPCM 2ch(48kHz/16bit) *10
Dolby Digital 5.1ch, Dolby Digital 5.1Creator *11
Dolby Digital 2ch Stereo, Dolby Digital Stereo Creator *11
MPEG-4 AAC-LC 2ch *12
Microphone/Speaker
Built-in Zoom Microphone
Monaural Speaker
Mic Level Control Yes(31steps)
Auto wind noise reduction Yes(On/Off)
Dual Video Recording Yes *13
Video Signal
UHDTV
HDTV
NTSC color, EIA standards
Page 6
Optics/Lens
Lens Type ZEISS Vario-Sonnar T*
Lens Stabilization Balanced Optical SteadyShot
Aperture F2.0-3.8
Optical Zoom 20x
Digital Zoom *14 250x
Clear Image Zoom
4K : 30x
HD : 40x *15
Focal Distance
f=4.4-88mm
f=3/16 - 3 1/2 inch
Focal Length(35mm
equivalent)(Movie Mode)
f=26.8-536.0mm(16:9) *1
f=1 1/16 - 21 1/8 inch *1
Focal Length (35mm
equivalent) (Photo Mode)
f=26.8-536.0mm(16:9)
f=32.8-656.0mm(4:3)
f=1 1/16 - 21 1/8 inch (16:9)
f=1 5/16 - 25 7/8(4:3)
Filter Diameter
55mm
2 1/4inch
Minimum Focus Distance
approx.1cm(Wide),
approx.80cm(Tele)
approx.13/32inch(Wide),
approx.31 1/2inch(Tele)
Aperture Blade 6 blades
LCD Display
LCD Type
7.5cm(3.0 type) Clear Photo LCD display (460 800 dots)
Wide(16:9)
Touch Panel Yes
Angle Adjustment Opening Angle:max.90 deg., Turning Angle:max.270 deg.
Brightness Control *16 Yes(Menu)
LCD Backlight yes
Coverage 100%
Marker/Grid Display Grid Line *17
Focus Control
Focus System Contrast AF
Page 7
AF Modes Auto/Manual(Touch Panel)
Focus Area Full range Focus/Spot Focus
Manual Focus Assist Peaking Display
Focus Features Lock-on AF *8
Fast Intelligent AF Yes
Exposure System
Metering Modes Multi-segment/Spot
Exposure Compensation AE Shift(Touch Panel)
Exposure Settings
Auto
Flexible Spot(Touch Panel)
Manual(Menu)
LOW LUX Mode Yes
Scene Mode(s)
Auto/Night Scene/Sunrise &
Sunset/Fireworks/Landscape/Portrait/Spotlight/Beach/Snow
Backlight Compensation Yes(Auto)
Noise Reduction Yes
White Balance Mode Auto/Onepush/Outdoor/Indoor
WB Shift Yes
Minimum Illumination
4K:Standard:9 lux(1/60 Shutter Speed)
HD:Standard:6 lux(1/60 Shutter Speed)
4K:Low Lux 1.8lux(1/30 Shutter Speed)
HD:Low Lux 1.2lux(1/30 Shutter Speed)
Auto Iris Control F2.0-F11
Manual Iris Control F2.0-F11
Manual Exposure Assist Zebra Pattern Display
Drive System
Drive Mode Photo Mode:Single-shot/Self-timer
Self-timer approx.10sec.(Still Image/Golf Shot)
Shutter Speed Auto Control
Range
1/8-1/10000
Shutter Speed(Standard) 1/60-1/10000
Shutter Speed(Manual lris
Control)
1/30-1/10000
Page 8
Shutter Speed(Manual
Shutter)
1/8-1/10000
Shutter Speed(Smooth Slow
Rec)
1/250-1/10000
Convenience Features
Manual/Auto Lens Cover Auto
S/S & Zoom button on LCD Yes(Touch Panel)
Red Eye Reduction Yes *18
Fader Effect(s) *19 White/Black
Digital Picture
Effects/Picture Effects
-/Yes
Date/Time Stamp Yes(Rec Date and Time, Camera info)
Erase/Protect Yes/Yes
Media/Battery Indicator
Yes(recordable time, free and used media space)/Yes(recordable
time, remaining capacity)
On Screen Main Indicators
Intelligent Auto Status
Zoom Position
Recording/Playback/Editing Media
Recording Status
Recording Mode
Recording Image Quality
Photo Size
Shooting Mode Status
Multiple Language Display
English
French
Spanish
Brazilian Portugese
Still Image Playback
Options
Slide Show
Video Playback Options
Highlight Movie Maker
Highlight background music(Preinstalled 6 music files, Music
transfer compatible *20
Remote Control Yes(Optional)
Time code/User Bit Yes
Self Recording Yes
Filter mode Yes
Page 9
Time-Lapse Capture Yes
Shooting Interval 1/2/5/10/30/60sec
Shot Number 1-999
Capture Image Size 4K:L(8.3M;3840x2160)/HD:S(2.1M;1920x1080)
AE Mode AE Lock/AE Tracking
Advanced Features
Wi-Fi(built-in)
Send to Smartphone
Control with Smartphone
Multi Camera Control
View on TV Yes
NFC
One-touch remote
One-touch sharing
My Voice Canceling Yes
AGCLimit Yes
Audio Level Display Yes
Power Save Yes
Cinematone Yes
Face Detection Yes *8
Smile Shutter *7 Off/Dual Capture/Always On *8 *9
Golf Shot Yes *11
Smooth Slow Rec Yes *11
Image Stabilization
Balanced Optical SteadyShot w/ Intelligent Active mode(5axis) *21
Intelligent Auto
Portrait/Baby/Walk/Tripod/Backlight/Landscape/Spotlight/Twilight/
Macro/Low light/Auto wind noise reduction
View&Index Event
x.v.Color Yes
Airplane Mode Yes
Motion Shot Video Yes *24
High Speed Rec Yes(120p/1920x1080,100/60Mbps)
Trimming Playback Yes
Page 10
Flash
Flash Metering System Pre-flash TTL *18
Flash Modes Auto/On/OFF *18
Flash Compensation Yes(3 steps) *18
Interface
Wireless LAN(built-in) Yes(Wi-Fi Compatible, IEEE 802.11b/g/n(2.4GHz band) ) *25
NFC Yes (NFC forum Type 3 Tag compatible)
Memory Card Slot Memory Stick PRO Duo and SD/SDHC/SDXC compatible
STD Output Composite Video Out(AV CABLE(sold separately)
HD Output HDMI Out(micro)(supplied)
4K Output HDMI Out(micro)(supplied)
Multi/Micro USB
Terminal *26
Yes
BRAVIA Sync Yes
PhotoTV HD Yes
Headphone Jack Stereo Minijack
Microphone Input Stereo Minijack
Direct Copy Yes
DC IN Yes
Remote Terminal integrated into Multi/Micro USB Terminal *27
HDMI Terminal Yes (HDMI micro) *28
Accessory Shoe Yes(Multi Interface Shoe)
Weights and
Measurements
Dimensions(Approx.)
(WxHxD including supplied
battery) *29 *30
Approx.73mm x 80.5mm x 142.5mm(Approx.73mm x 80.5mm x
173mm(NP-FV70A)(including supplied battery))
Approx.2 7/8inch x 3 1/4inch x 5 5/8inch(Approx.2 7/8inch x 3
1/4inch x 6 7/8inch(NP-FV70A)(including supplied battery))
Weight(Approx) (Main unit
only)
Approx.510g
Approx.1lb 2.0oz
Page 11
Weight(Approx.) (Total) *31
Approx.560g(NP-FV50A)
Approx.600g(NP-FV70A)(supplied battery)
Approx.660g(NP-FV100A)
Approx.1lb 3.8oz(NP-FV50A)
Approx.1lb 5.2oz(NP-FV70A)(supplied battery)
Approx.1lb 7.3oz(NP-FV100A)
Power
Battery Type InfoLITHIUM with AccuPower Meter System (V Series) *32
Charge on
camcorder(Charging time
with supplied Battery) *33
Yes(approx. 3h 25min)
Power Consumption (in LCD
Operation) *34
4K:5.1W
Power Requirements 6.8V/7.3V(battery pack); 8.4V (AC Adaptor)
In the Box
Supplied Accessory *35
Rechargeable Battery Pack(NP-FV70A) (1)
AC Adaptor (1)
Power Cord (1)
Operating Guide(1)
HDMI(micro) Cable (1)
micro USB Cable (1)
Optics/Lens(details)
SteadyShot
mode:Active(16:9)
4K : f=27.3 -818.4mm
HD : f=27.3 -1091.2mm
SteadyShot mode:Intelligent
active(16:9)
f=28.1-1122.6mm
Camera(details)
Auto Non Flicker Yes
Gain Control Auto
Scene Selection 1/8-1/10000
LOW LUX 1/30-1/10000
Manual lris Control(Photo
Mode)
1/8-1/1000
Manual Shutter
Control(Photo Mode)
1/8-1/500
Face Detection
Page 12
Auto Control Exposure,Color,Focus
Smile Shutter
Smile Sensitivity Yes(3steps)
Imaging Sensor(details)
Recording pixels(photo,
16:9)
Max. 16.6 Megapixels
Effective(movie, 16:9) approx. 8.29 Megapixels
Panel(details)
Panel(details)
7.5cm(3.0 type) Clear Photo LCD display(460 800 dots)
Wide(16:9)
(960x480)
USB Charging(details)
USB Charging(details) DC 5V 1500mA
Convenience
Features(details)
Image Management File
Repair
Yes
Fast Playback About 5 times/10 times/30 times/60 times
Slow Playback Forward:1/5 speed, Reverse:1/2 speed
Date&Time, Area Setting Yes
Media Format Memory Card
Others(details)
XLRBox Yes (w/ optional XLR Adaptor Kit)
5.1ch Center Mic Ready(w/
Optional microphone)
Yes(w/ Optional Shoe Adaptor)
Demonstration Mode Yes
Operating Temperature 0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F.
Storage Temperature
-20 degrees C. - +60 degrees C. / -4 degrees F. - +140 degrees
F.
*1
*2
*3
Page 13
*4
*5
*6 Approximate number
when recording only
still images.
*7 Not available in the
recording mode
PS(60p/50p),
FX(24p/25p/60i/50i) and
FH(24p/25p)
*8 Not available in the
4K Recording mode
with Dual Video
Recording
*9 Not available in
100Mbps Movie
Recording Rate.
*10 Video Mode is XAVC
S HD or 4K.
*11 Video Mode is
AVCHD.
*12 Video Mode is MP4.
*13 "Dual Video
Recording "doesn't
work in "AVCHD PS"
mode or "XAVC S HD
60p" mode.
*14 The factory setting
is "Off". Digital zoom
ratio includes optical
zoom ration.
*15 When "SteadyShot"
is set to "Active" or
"Intelligent Active".
Page 14
*16 Backlight
brightness will
automatically be set
"Bright" when
connected to AC
adaptor.
*17 the same as Guide
Flame
*18 w/ Optional Flash
Accessory
*19 Only record movie
*20 PlayMemories Home
Ver.4.1 or later is
required.
*21 Not supported at
XAVC S 4K
*22 As for dustproof/shock-proof
performance, there is
no guarantee that the
camcorder will not
becomescratched or
dented.
Page 15
*23 Meeting to MIL-STD
810F Method 516.5Shock standards, this
product has passed the
required tests when
dropped from a height
of 1. 5 m above a 5 cm?
thick plywood board
(with the LCD screen
closed, facing toward
the camcorder body)*.
toward the camcorder
body)*.* Depending on
use conditions and
circumstances, no
guarantee is made
regarding damage to,
malfunction of, or the
water-proof
performance of this
camcorder.As for dustproof/shock-proof
performance,there is
no. guarantee that the
camcorder will not
become scratched or
dented.
*24 available only in
AVCHD or XAVC S HD or
MP4
*25 (Configuration
method/Access
method) WPS or
manually /infrastructure
mode. When
connecting to
smartphones, the
camera can always work
as a base without a
wireless access point.
(Security: WEP/WPAPSK/WPA2-PSK)
Page 16
*26 Supports Micro USB
compatible device.
*27 Supports Micro USB
compatible device.
*28 output only
*29 inculding the
projecting parts
*30 including lens hood
if it is supplied
*31 including a battery
pack and a media(if a
lens hood is supplied,
including it too.).
*32 Except for NP-FV30
*33 When using
supplyed AC adapater.
When the AC adaptor is
not supplyed, using
USB charging.
*34 Recording mode
and media are default
settings.
*35 The numbers in ( )
are the supplied
quantity
1. 4K (3840x2160). Requires SDXC/SDHC memory card Class 10 or higher for XAVC S 4K 60Mpbs and XAVC S HD
50Mbps recording, and SDHC/SDXC memory card UHS-I U3 or higher for XAVC S 4K 100Mbps recording
2. 35mm equivalent and when “SteadyShot” is set to “Standard” or “Off”.
3. When “SteadyShot” is set to “Active” or “Intelligent Active”
4. Compared to previous FDR-AX33 camcorder series.
5. Video Mode is 5.1ch (AVCHD) and 2ch (XAVC S) recording
6. (Highlight) When Dual Video Recording is ON. Video resolution is 1280 x 720 mp4.
7. Requires editing with PlayMemories Home™ (free software for PCs). Ver. 5.1 (available in January 2016) or later version
is required to create time-lapse movie.
8. Requires NFC-compatible mobile device. Check device’s user manual for compatibility.
9. PlayMemories Home™ (free software for PCs) is available for compiling time lapse movies and select and transfer
background music to the Handycam® for Highlight Movie Maker. The latest version is required.
10. When Dual Video Recording is ON. Video resolution is 1280 x 720 mp4.
11.
Page 17
© 2020 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Sony is not responsible for typographical and photographic errors. Features and specifications are subject to change
without notice. Sony, G Master, the Alpha logo and the Sony logo are trademark of Sony Corporation. All other trademarks
are trademarks of their respective owners.
12.
13.
14.
15.
Loading...
