Color Camera Module

Technical Manual

FCB-EX1020/EX1020P

 2010 Sony Corporation

Table of Contents

Features ..................................................................... 3

Precautions ................................................................ 4

Locations of Controls ............................................... 5

Basic Functions......................................................... 6

Overview of Functions ................................................ 6

Eclipse ...................................................................... 21

Spectral Sensitivity Characteristics .......................... 21

Vibration Specifications ............................................ 21

Key Switch Circuitry ................................................. 22

Key Function Specifications ..................................... 23

Initial Settings, Custom Preset and Backup ............. 26

Mode Condition ........................................................ 28

Command List ......................................................... 31

VISCA/RS-232C Commands ................................... 31

FCB Camera Commands ......................................... 37

Specifications .......................................................... 58

Overview

Features

• The EX-view HADTM CCD features 380,000 (NTSC) or 440,000 (PAL) effective picture elements and high-sensitivity shooting. The minimum illumination required is 1.4 lux ( OFF).

•A CCD for shooting a wide dynamic range is employed to perform progressive or interlaced scanning, and images with a wide dynamic range are obtained by a newly developed image signal processor (Wide Dynamic Range function). Furthermore, it is possible to automatically switch to this Wide Dynamic Range function, which enables you to obtain optimal images ranging from the dark areas of a subject to the light areas.

• Low-noise images can be obtained even in low light environments using the 3D Noise Reduction (3D NR + 2D NR) function.

•A function to output interlaced or progressive images by digital output (equivalent to ITU-R BT656) is provided.

•36× optical zoom (432× with digital zoom)

•A Image Stabilizer function enables stable shooting.

• Supporting external synchronization (V-lock)

•Images with a high resolution (550 TV lines) can be obtained using a newly developed Image Signal Processor for improved picture quality.

•An infrared (IR) Cut-Filter can be disengaged from the image path for increased sensitivity in low light environments. The ICR will automatically engage depending on the ambient light, allowing the camera to be effective in day/night environment.

•VISCA is a communications protocol, which enables the camera to be controlled remotely from a host computer/controller.

• Six memory locations are provided to temporally save and recall up to six sets of camera settings.

•A Privacy Zone Masking function (max. 24 blocks) is available.

•A mosaic masking function has been added to the privacy zone masking function.

/60 s (NTSC), 1/50 s (PAL), ICR

•A title composed of up to 11 lines can be set for displaying on the screen. 20 characters can be used on one line.

• E-FLIP and Mirror Image functions

•Alarm function with adjustable detection zones

•Adjustable AE response speed

With consideration given environmental protection, this module is designed to operate with low power consumption and also incorporates lead-free and halogen-free circuit boards.

Overview

Precautions

Software

Use of the demonstration software developed by Sony Corporation or use of the software with customer developed application software may damage hardware, the application program or the camera. Sony Corporation is not liable for any damages under these conditions.

Operation

Start the camera control software on your computer after you turn on the camera and the image is displayed.

Operation and storage locations

Do not shoot images that are extremely bright (e.g., light sources, the sun, etc.) for long periods of time. Do not use or store the camera in the following extreme conditions:

• Extremely hot or cold places (operating temperature –5 ˚C to +60 ˚C (41 ˚F to 140 ˚F))

•Close to generators of powerful electromagnetic radiation such as radio or TV transmitters

•Where it is subject to fluorescent light reflections

•Where it is subject to unstable (flickering, etc.) lighting conditions

•Where it is subject to strong vibration

•Where it is subject to radiation from laser beams

In case of abnormal operation, contact your authorized Sony dealer or the store where you purchased the product.

Phenomena specific to CCD image sensors

The following phenomena that may appear in images are specific to CCD (Charge Coupled Device) image sensors. They do not indicate malfunctions.

White flecks

Although the CCD image sensors are produced with high-precision technologies, fine white flecks may be generated on the screen in rare cases, caused by cosmic rays, etc. This is related to the principle of CCD image sensors and is not a malfunction.

The white flecks especially tend to be seen in the following cases:

•when operating at a high environmental temperature

•when you have raised the master gain (sensitivity)

•when operating in Slow-Shutter mode

Vertical smear

When an extremely bright object, such as a strong spotlight or flashlight, is being shot, vertical tails may be produced on the screen, or the image may be distorted.

Vertical tails shown on the

Monitor screen

image.

Care of the unit

Remove dust or dirt on the surface of the lens with a blower (commercially available).

Other

Do not apply excessive voltage. (Use only the specified voltage.) Otherwise, you may get an electric shock or a fire may occur.

Bright object (e.g. strong spotlight, strong reflected light, flashlight, the sun)

Aliasing

When fine patterns, stripes, or lines are shot, they may appear jagged or flicker.

Locations of Controls

Front

Back

Top

Bottom

1 Lens 2 CN500 jack 3 CN501 jack 4 CN702 jack (for key SW)

5 CN200 jack (for digital output) 6 TELE button 7 WIDE button

8 Tripod screw hole

When a tripod is used, please use

7 mm ( attach it to the camera. Also, please be sure to attach the tripod securely.

/32 in.) or less screw to

Basic Functions

Overview of Functions

VISCA commands are the basis of camera control.

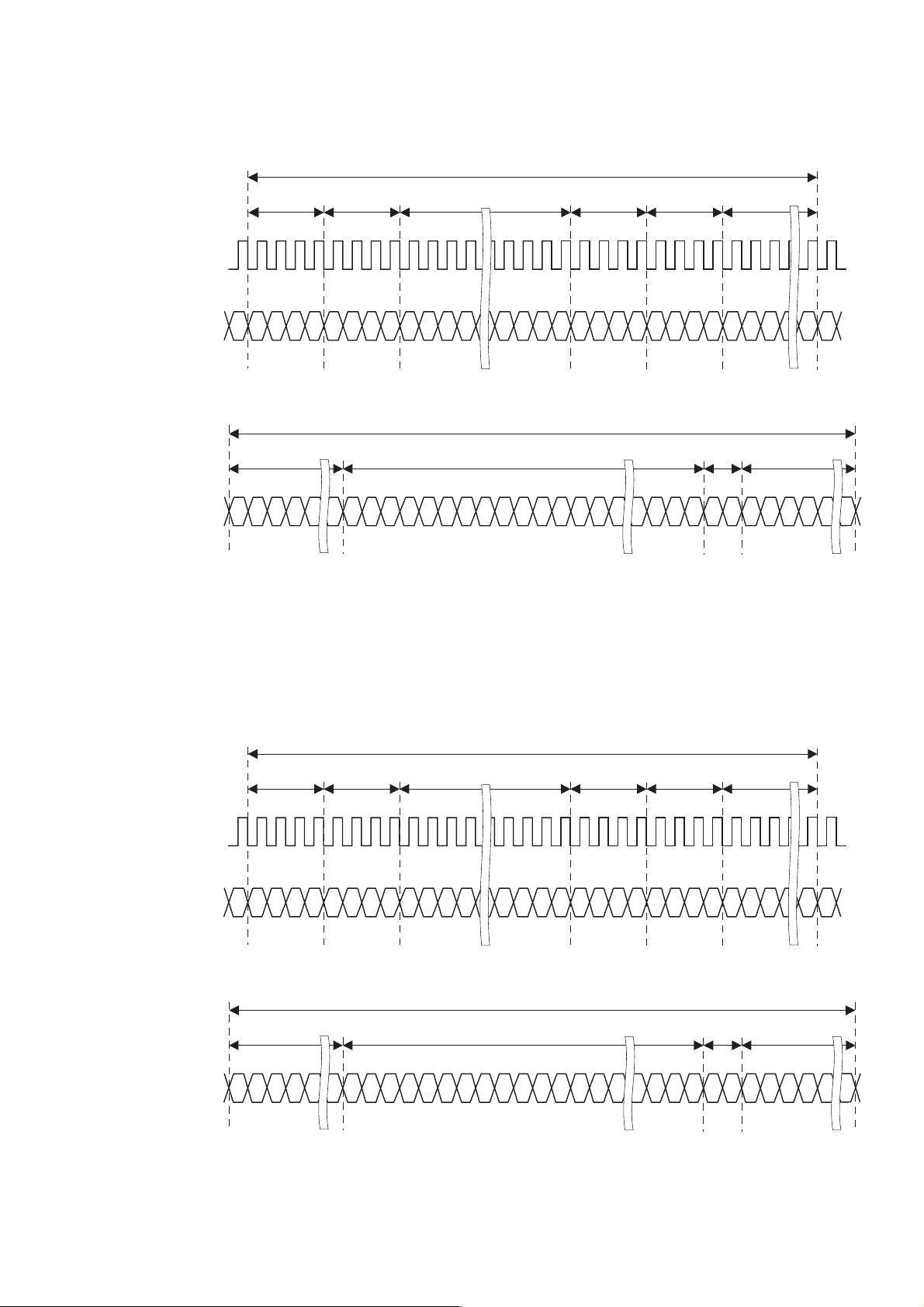

Timing Chart

As VISCA Command processing can only be carried out one time in a Vertical cycle, it takes the maximum 1V cycle time for an ACK/Completion to be returned. If the Command ACK/Completion communication time can be cut shorter than the 1V cycle time, then every 1V cycle can receive a Command.

General Commands

Within

Query Commands

Within

In general

• Power On/Off

Powers the camera on and off. When the power is off, the camera is able to accept only the lowest level of VISCA Commands; the display and other features are turned off.

• I/F Clear

Clears the Command buffer of the FCB camera. Clearing the buffer can also be carried out from the control application software when the power is on.

• Address Set

VISCA is a protocol, which normally supports a daisy chain of up to seven connected cameras via RS232C interface. In such cases, the address set command can be used to assign addresses from 1 to 7 to each of the seven cameras, allowing you to control the seven cameras with the same personal computer. Although the FCB camera does not support direct connection of cameras in a daisy chain, be sure to use the address set command to set the address whenever a camera is connected for the first time.

• ID Write

Sets the camera ID.

• Mute

Blanks the screen and sends out a synchronizing signal.

16 Byte

• Lens Initialize

Initializes the zoom and focus of the lens. Even when power is already on, it initializes the zoom and the focus.

• Comp Scan

A pixel blemish-masking feature, which can be made to reevaluate overall CCD pixel blemishes and mask severely flawed pixels automatically upon receiving the COMP SCAN command. This feature helps to mask the flaws found in CCD imagers, even after the camera has been powered on for some time.

Basic Functions

Zoom

The FCB camera employs a 36× optical zoom lens combined with a digital zoom function; this camera allows you to zoom up to 432×.

•Optical 36×, f = 3.4 to 122.4 mm (F 1.6 to F 4.5)

The horizontal angle of view is approximately 57.8 degrees (wide end) to 1.7 degrees (tele end). Digital Zoom enlarges the center of the subject by expanding each image in both the vertical and horizontal directions. When 432× zoom is used, the number of effective picture elements in each direction reduces to

You can activate the zoom in the following three ways

•By pressing the TELE or WIDE buttons on the camera itself

•Using a VISCA Command

• The Zoom Mode supports a Combined Mode and a Separate Mode.

•Using an external key switch board connected to the jack for the key SW.

/12 and the overall resolution deteriorates.

Using Standard Mode Using Variable Mode

There are eight levels of zoom speed.

Direct Mode

Setting the zoom position enables quick movement to the designated position.

Digital Zoom ON/OFF

In these standard and variable Speed Modes, it is necessary to send Stop Command to stop the zoom operation.

Combined Mode

This is the previously existing zoom method. After the optical zoom has reached its maximum level, the camera switches to Digital Zoom Mode.

Separate Mode

In this mode, Optical Zoom and Digital Zoom can be operated separately. You can use digital zoom magnification at any time from within any level of optical magnification.

About Continues Zoom position Reply

With ZoomDirect mode, or when zooming according to a preset, the camera outputs zoom position data when Continues Zoom position Reply is set to ON via a command. Continues Zoom position Reply: y0 07 04 69 0p 0p 0q 0q 0q 0q FF

pp: D-Zoom position qqqq: Zoom position

Focus

Focus has the following modes, all of which can be set using VISCA Commands.

• Auto Focus Mode

The minimum focus distance is 320 mm at the optical wide end and 1500 mm at the optical tele end, and is independent of the digital zoom. The Auto Focus (AF) function automatically adjusts the focus position to maximise the high frequency content of the picture in a center measurement area, taking into consideration the high luminance and strong contrast components.

- Normal AF Mode

This is the normal mode for AF operations.

- Interval AF Mode

The mode used for AF movements carried out at particular intervals. The time intervals for AF movements and for the timing of the stops can be set in one-second increments using the Set Time Command. The initial value for both is set to five seconds.

- Zoom Trigger Mode

When the zoom is changed with the TELE or the WIDE buttons, the pre-set value (initially set at 5 seconds) becomes that for AF Mode. Then, it stops.

AF sensitivity can be set to either Normal or LOW.

- Normal

Reaches the highest focus speed quickly. Use this when shooting a subject that moves frequently. Usually, this is the most appropriate mode.

- LOW

Improves the stability of the focus. When the lighting level is low, the AF function does not take effect, even though the brightness varies, contributing to a stable image.

• Manual Focus Mode

Manual Focus has both a Standard Speed Mode and a Variable Speed Mode. Standard Speed Mode focuses at a fixed rate of speed. Variable Speed Mode has eight speed levels that can be set using a VISCA Command.

In these standard and variable Speed Modes, it is necessary to send Stop Command to stop the zoom operation.

• One Push Trigger Mode

When a Trigger Command is sent, the lens moves to adjust the focus for the subject. The focus lens then holds that position until the next Trigger Command is input.

• Infinity Mode

The lens is forcibly moved to a position suitable for an unlimited distance.

• Near Limit Mode

Can be set in a range from 1000 (∞) to C000 (10 mm).

Basic Functions

White Balance

White Balance has the following modes, all of which can be set using VISCA Commands.

• Auto White Balance

This mode computes the white balance value output using color information from the entire screen. It outputs the proper value using the color temperature radiating from a black subject based on a range of values from 3000 to 7500K. This mode is the factory setting.

• ATW

Auto Tracing White balance (2000 to 10000K)

• Indoor

3200K Base Mode

• Outdoor

5800K Base Mode

• One Push WB

The One Push White Balance mode is a fixed white balance mode that may be automatically readjusted only at the request of the user (One Push Trigger), assuming that a white subject, in correct lighting conditions, and occupying more than 1/2 of the image, is submitted to the camera. One Push White Balance data is lost when the power is turned off. If the power is turned off, reset One Push White Balance.

• Manual WB

Manual control of R and B gain, 256 steps each

• Outdoor Auto

This is an auto white balance mode specifically for outdoors. It allows you to capture images with natural white balance in the morning and evening.

• Sodium Vapor Lamp Auto

This is an auto white balance mode that is compatible with sodium vapor lamps.

• Sodium Vapor Lamp

This is a fixed white balance mode specifically for sodium vapor lamps.

Automatic Exposure Mode

A variety of AE functions are available for optimal output of subjects in lighting conditions that range from low to high.

• Full Auto

Auto Iris and Gain, Fixed Shutter Speed (NTSC: 1/60 sec., PAL: 1/50 sec.)

• Gain Limit Setting

The gain limit can be set in the AE mode. Use this setting when image signal-to-noise ratio is particularly important.

• Shutter Priority

Variable Shutter Speed, Auto Iris and Gain (1/1 to 1/10,000 sec., 16 high-speed shutter speeds plus 6 low-speed shutter speeds)

1)Flicker can be eliminated by setting shutter to

t1/100s for NTSC models used in countries with a 50 Hz

power supply frequency

t1/120s for PAL models used in countries with a 60 Hz

power supply frequency

• Iris Priority

Variable Iris (F1.6 to Close, 18 steps), Auto Gain and Shutter speed

• Manual

Variable Shutter, Iris and Gain

• Bright

Variable Iris and Gain (Close to F1.6, 17 steps at 0 dB: F1.6, 15 steps from 0 to 28 dB)

AE – Shutter priority

The shutter speed can be set freely by the user to a total of 22 steps – 16 high speeds and 6 low speeds.

When the slow shutter is set, the speed can be

/15s, 1/8s, 1/4s, 1/2s, 1/1s. The picture output is read at a

/30s,

normal rate from the memory. The memory is updated at a low rate from the CCD. AF capability is low. In high speed mode, the shutter speed can be set up to 1/10,000s. The iris and gain are set automatically, according to the brightness of the subject.

Data NTSC (s) PAL (s)

15 1/10000 1/10000 14 1/6000 1/6000 13 1/4000 1/3500 12 1/3000 1/2500 11 1/2000 1/1750 10 1/1500 1/1250 0F 1/1000 1/1000

0E 1/725 1/600 0D 1/500 1/425 0C 1/350 1/300 0B 1/250 1/215 0A 1/180 1/150

09 1/125 1/120

08 1/100 1/100

07 1/90 1/75

06 1/60 1/50

05 1/30 1/25

04 1/15 1/12

03 1/8 1/6

02 1/4 1/3

01 1/2 1/2

00 1/1 1/1

Basic Functions

AE – Iris priority

The iris can be set freely by the user to 18 steps between F1.6 and Close. The gain and shutter speed are set automatically, according to the brightness of the subject.

Data

11 F1.6 08 F8 10 F2 07 F9.6 0F F2.4 06 F11

0E F2.8 05 F14 0D F3.4 04 F16 0C F4 03 F19 0B F4.8 02 F22 0A F5.6 01 F28

09 F6.8 00 CLOSE

Setting value

Data

Setting value

AE – Manual

The shutter speed (22 steps), iris (18 steps) and gain (16 steps) can be set freely by the user.

AE – Bright

The bright control function adjusts both gain and iris using an internal algorithm, according to a brightness level freely set by the user. Exposure is controlled by gain when dark, and by iris when bright. As both gain and iris are fixed, this mode is used when exposing at a fixed camera sensitivity. When switching from Full Auto or Shutter Priority Mode to Bright Mode, the current status will be retained for a short period of time. Only when the AE mode is set to “Full Auto” or “Shutter Priority,” can you switch it to “Bright.”

Gain

AGC

IRIS

MAX

OPEN

Gain curve

MIN

Dark Bright

Controlled by gain

Bright limit which controllable for this unit

IRIS curve

Controlled by IRIS

Data Iris Gain Data Iris Gain

1F F1.6 28 dB 0F F2.4 0 dB

1E F1.6 26 dB 0E F2.8 0 dB 1D F1.6 24 dB 0D F3.4 0 dB 1C F1.6 22 dB 0C F4 0 dB 1B F1.6 20 dB 0B F4.8 0 dB 1A F1.6 18 dB 0A F5.6 0 dB

19 F1.6 16 dB 09 F6.8 0 dB

18 F1.6 14 dB 08 F8 0 dB

17 F1.6 12 dB 07 F9.6 0 dB

16 F1.6 10 dB 06 F11 0 dB

15 F1.6 8 dB 05 F14 0 dB

14 F1.6 6 dB 04 F16 0 dB

13 F1.6 4 dB 03 F19 0 dB

12 F1.6 2 dB 02 F22 0 dB

11 F1.6 0 dB 01 F28 0 dB

10 F2 0 dB 00 CLOSE 0 dB

When switching from the Shutter Priority mode to the Bright mode, the shutter speed set in the Shutter Priority mode is maintained.

Spot Exposure Mode

In Full Auto AE, the level for the entire screen is computed and the optimum Auto Iris and Gain levels are determined. In Spot AE, a particular section of the subject can be designated, and then that portion of the image can be weighted and a value computed so that Iris and Gain can be optimized to obtain an image. For example, in an image with a lot of movement and with varying levels of brightness, portions without much change can be designated as such a “spot,” and changes to the screen can be minimized in that area. As shown in the diagram below, a range of 16 blocks vertically and 16 blocks horizontally can be designated. In the case where the center is designated (shown in black), the level is computed along with a weighted value for the surrounding block (shaded), including the specified portions; and then the Gain and Iris are set. The value of the designated portions and the surrounding areas should be calculated as 100%, the rest should be set to 20%. The range of the Spot AE frame is fixed to 5 blocks vertically and 4 blocks horizontally.

Horizontal 16

123456789ABCDEF

0 1 2

Ver tical 16

3 4 5 6 7 8 9 A B C D E F

(8,8)

Basic Functions

Exposure Compensation

Exposure compensation is a function which offsets the internal reference brightness level used in the AE mode, by steps of 1.5 dB.

Data Step

0E 7 10.5 dB 0D 6 9 dB 0C 5 7.5 dB 0B 4 6 dB 0A 3 4.5 dB 09 2 3 dB 08 1 1.5 dB 07 0 0 dB 06 –1 –1.5 dB 05 –2 –3 dB 04 –3 –4.5 dB 03 –4 –6 dB 02 –5 –7.5 dB 01 –6 –9 dB 00 –7 –10.5 dB

Setting value

Slow AE (Automatic Exposure)

The slow AE Response (automatic exposure) function allows you to reduce the exposure response speed. Usually the camera is set up so that the optimum exposure can be obtained automatically within about 1 second. However, using the slow AE response function allows you to lengthen the automatic exposure response speed from the factory setup speed (01 (hex) up to approx. two minutes (30 (hex)). For example, with the normal setting (about 1 second), if the headlights of a car are caught by the camera, the camera automatically adjusts the exposure so that it can shoot a high-intensity subject (in this case, the headlights). As a result, images around the headlights, that is, the rest of the subject, except the headlights, becomes relatively dark, and poorly distinguished. However, using the slow AE function means the AE response speed will be slower, and response time will be longer. As a result, even if the camera catches a high-intensity subject (e.g., the headlights) for a moment, you can still easily distinguish the portions of the image surrounding the headlights.

High Resolution Mode (Default)

A newly developed ISP function enables the filtering of signals. This allows the camera to provide images with a high resolution (550 TV lines).

Aperture Control

Aperture control is a function which adjusts the enhancement of the edges of objects in the picture. There are 16 levels of adjustment, starting from “no enhancement.” When shooting text, this control may help by making them sharper.

Back Light Compensation

When the background of the subject is too bright, or when the subject is too dark due to shooting in the AE mode, back light compensation will make the subject appear clearer.

Wide Dynamic Range Mode (WD)

The Wide Dynamic Range mode is a function for dividing an image into several blocks and correcting blocked-up shadows and blown-out highlights in accordance with the intensity difference. It enables you to obtain images in which portions ranging from dark to light can be recognized, even when capturing a subject with a large intensity difference that is backlit or includes extremely light portions. A CCD for shooting a wide dynamic range is employed, and a newly developed image signal processor combines a long exposure signal (normal shutter) and a signal of the high intensity portions obtained by a short exposure (high-speed shutter) to achieve images with a wide dynamic range.

Wide Dynamic Range Auto On/Off Mode

The wide dynamic range can be set to be automatically switched ON/OFF in accordance with the intensity difference obtained by dividing an image into several blocks and then averaging the intensity of each block.

Wide Dynamic Range Auto On/Off Mode

Auto On/Off

When the intensity difference between the dark portions and light portions of a subject becomes large because of back lighting or the like, the wide dynamic range mode is switched ON.

When the subject changes and the intensity difference between the dark portions and light portions becomes small, the wide dynamic range mode is switched OFF.

Basic Functions

The wide dynamic range mode includes the following operation modes.

• WD Mode

This mode corrects blocked-up shadows and blownout highlights in accordance with the intensity difference.

• WD Auto ON/OFF Mode

This mode switches WD ON/OFF automatically in accordance with the intensity difference of the subject. Configure the sensitivity for when WD is switched from OFF to ON with the detection sensitivity parameter.

• Exposure Ratio Mode

This mode fixes the shutter speed of a short exposure. Configure the shutter speed of a long exposure by setting the ratio with regards to a short exposure with the exposure ratio parameter. Blocked-up shadow correction is not performed in this mode.

• Histogram Mode

This mode uses a histogram to correct blocked-up shadows and blown-out highlights. (The operation is similar to that of FCB-EX1010/P Dver.)

About WD Set Parameter (Command: 8x 01 04 2D 0p 0q 0r 0s 0t 0u 00 00 FF)

p: Screen display (0: Combined image, 1: Long/short

division, 2: Long-time, 3: Short-time) Set the screen display to a WD combination image, long/short exposure division image, long exposure image, or short exposure image.

q: Detection sensitivity (0: Low, 1: Mid, 2: Hi)

Select from three levels for detecting the intensity within the image for when switching Auto WD from OFF to ON.

r: Blocked-up shadow correction level can be

set to one of four levels. (0:L 1:M 2:H 3:S)

s: Blown-out highlight correction level can be

set to one of three levels. (0:L 1:M 2:H)

tu: Parameter to use in the exposure ratio mode.

Specify the short exposure time by setting the magnification ratio (×1 to ×150) with regards to a long exposure time.

Note

When the wide dynamic range mode is ON, solarization may be observed in the images of some subjects. This phenomenon is unique to wide dynamic range mode, and is not an indication of a camera malfunction.

noise images can be obtained for the corresponding image brightness of a moving subject. This function has six steps: levels 1 to 5, plus off. Level 1 applies to subject motion mainly using 2D filter effects. With level 5, 2D and 3D filter effects are maximized, providing the lowest-noise images, although moving subjects may show trails. At each level, two filters are set according to noise and image motion characteristics, so the available level selections depend on the situation. The default setting is level 3.

StableZoom™

StableZoom is a function for performing correction using the Image Stabilizer function in accordance with the zoom ratio, and smoothly zooming up to approximately ×40 using a combination of the optical zoom and digital zoom. The digital zoom can be further used to zoom up to ×432. At the wide end, you can obtain images without any reduction in the angle of view and resolution because the digital zoom is not switched ON. On the other hand, at the Tele end, the correction effect by the Image Stabilizer function is at its maximum so blurring is reduced. The StableZoom function can be switched ON/OFF in the register settings.

x432

approx.

x40

x36

Zoom ratio

Blurring is corrected in this digital zoom area.

Wide

Angle of view and resolution

Optical zoom position

StableZoom

Digital zoom

Optical zoom

The digital zoom is not switched ON at the wide end.

Tele

Color Enhancement

Noise Reduction

The NR (Noise Reduction) function removes noise (both random and non-random) to provide clearer images. By combining 2D filtering according to brightness and image color, and 3D filtering according to noise caused by motion and time difference, lower-

A captured color image is converted to 256 levels of gray, and the binarization process is performed to convert all gray levels brighter than the threshold value to white, and all gray levels darker than the threshold value to black. (Any value can be set for the threshold level and hysteresis width.) Furthermore, any color can be assigned to each of the negative and positive.

Basic Functions

Note

Flickering in images during color enhancement is not an indication of a camera malfunction. It can be reduced with the threshold level, hysteresis width, and edge enhancement (aperture) settings.

Grayscale image (256 levels)

Color image

Binarization process

Assign any color

Image Stabilizer

Switching ON the Image Stabilizer function reduces image blurring caused by, for example, vibration, which allows you to obtain images without much blurring. A correction effect of approximately 90% is possible for a vibration frequency of around 10 Hz. The Image Stabilizer function employs the digital zoom system, so the angle of view and resolution are changed, but the sensitivity is maintained.

ICR (IR Cut-Removable) Mode

An infrared (IR) Cut-Filter can be disengaged from the image path for increased sensitivity in low light environments. The ICR will automatically engage depending on the ambient light, allowing the camera to be effective in day/night environments. When the auto ICR mode is set to ON, the image becomes black and white.

Auto ICR Mode

Auto ICR Mode automatically switches the settings needed for attaching or removing the IR Cut Filter. With a set level of darkness, the IR Cut Filter is automatically disabled (ICR ON), and the infrared sensitivity is increased. With a set level of brightness, the IR Cut Filter is automatically enabled (ICR OFF). Also, on systems equipped with an IR light, the internal data of the camera is used to make the proper decisions to avoid malfunctions. Auto ICR Mode operates with the AE Full Auto setting.

When Auto Slow Shutter is OFF (initial setting)

Hold Function of Image Stabilizer

With the Image Stabilizer function, suddenly stopping high-speed movement (pan, tilt, etc.) of the camera produces a blur sensor counteraction that may cause image movement. In such a case, you can use a command setting (hold) to maintain the correction of the Image Stabilizer function. In this case the image stabilizer is off, but there is no change in the angle of view.

Temperature Reading Function

The conversion value (hex) of the temperature sensor built into to the camera can be read by using a query command. The conversion value has an error of ±3 C, and because the temperature sensor is inside the camera, this value is not the ambient temperature. Use it as a reference value.

Slow shutter – Auto/Manual

When set to “Auto,” ensures that the slow shutter is set automatically when the brightness drops. Effective only when the AE mode is set to “Full Auto.” Set to “Slow Shutter Manual” at shipment.

Note

The Slow Shutter Auto function is not available in WD mode.

ICR

ICR ON

Dark Bright

AGC MAX

ICR OFF t ON

IRIS OPEN

GAIN

SHUTTER

Shutter 1/60 sec

IRIS

When Auto Slow Shutter is ON

Note

When in Auto_ICR_OFF state and WB data is added (default), a malfunction may occur when the subjects largely consisting of blue and green colors are taken.

Basic Functions

Camera ID

The ID can be set up to 65,536 (0000 to FFFF). As this will be memorized in the nonvolatile memory inside, data will be saved regardless of whether it has been backed up.

Effect

It consists of the following functions.

• Neg. Art: Negative/Positive Reversal

• Black White: Monochrome Image

Others

E-FLIP

This function turns the video output from the camera upside down.

Mirror Image

This function reverses the video output from the camera horizontally.

Freeze

This function captures an image in the field memory of the camera so that this image can be output continuously.

Because communication inside the camera is based on V cycle, the captured image is always the one 3V to 4Vs after the sending of a Command. Thus, you can not specify a time period after sending EVEN, ODD or a Command.

Memory (Position preset)

Using the position preset function, 6 sets of camera shooting conditions can be stored and recalled. This function allows you to achieve the desired status instantly, even without adjusting the following items each time.

• Zoom Position

• Digital Zoom On/Off

• Focus Auto/Manual

• Focus Position

• AE Mode

• Shutter control parameters

• Bright Control

• Iris control parameters

• Gain control parameters

• Exposure Compensation On/Off

• Exposure Level

• Backlight Compensation On/Off

• Slow Shutter Auto/Manual

• Slow AE Response speed

• White Balance Mode

• R/B Gain

• Aperture

• ICR Shoot On/Off

• WD On/Off

Custom Preset

As with the position preset function, the camera shooting conditions can be stored and recalled. The settings are recalled when the power is turned on.

For setting items, see the “Initial Settings, Custom Preset and Backup” section on page 26.

User Memory Area

A user area of 16 bytes allows you to write data, such as an ID for each customer, data for each system, and so on, freely.

Note

Rewriting of memory is not unlimited. Be careful to avoid using the memory area for such as unnecessary tasks as rewriting the contents of the memory for every operation.

The camera’s default settings can be changed by the register setting command. Register Setting Command:

8x 01 04 24 mm 0p 0q FF

mm: Register No. (=00 to 7F) pq: Register Value (=00 to FF)

8x 09 04 24 mm FF

mm: Register No.

y0 50 0p 0p FF

pp: Register Value (returned from the camera)

Example: To set communication speed to 38400 bps

8x 01 04 24 00 00 02 FF After sending this command, turn power off and back on (power reset) to resume communication control at 38400 bps.

Example: Sending to confirm settings

8x 09 04 24 00 FF y0 50 00 03 FF is returned from the camera

The register setting items and No. are as follows. Baud Rate: 00

Communication speed can be changed.

OSD Language: 60

OSD Language can be changed.

CCD Scanning Mode: 72

CCD scanning mode can be changed.

Digital Output Mode: 73

The FCB camera supports various output modes. This register “73” allows changing the output mode.

For details, see “Register Setting” on page 57.

Zoom Limit: 50 (Wide end), 51 (Tele end)

The Wide and Tele zoom limits can be set.

E-Zoom Max: 52

The maximum digital zoom limit can be specified (default is ×12).

StableZoom: 53

The StableZoom command can be enabled and disabled with this command.

Basic Functions

FocusTrace: 54

When zoom speed is given priority, using the ZoomDirect command changes focus at high speed (although the image may be blurred because focus is not tracked). For example, the focus transition time from Wide to Tele ends, which typically takes

2.8 seconds, can be reduced to 2 seconds.

FocusOffset: 55

Placing a dome cover in front of the camera may cause the focal distance of the camera to change. Especially at the Tele end, this effect exceeds the AF range, so focus cannot track, although it responds to changes in this value.

For details, see “Register Setting” on page 57.

Privacy Zone Settings

For details, see page 15.

Motion detection

For details, see page 19.

Title Display

•You can set a title composed of up to 11 lines. One line can contain up to 20 characters.

•You can set display on/off, the horizontal position of the first character, blinking state and color for each line.

• The camera gives priority to lines of a title when the camera status is displayed on the relevant line. On the lines where a title is not set, the camera status is displayed.

Line Number 00 to 0A H-position 00 to 17

Blink

Color 03 Red

00 01 02 03 04 05 06 07

AB CDEF G H

08 09 0a 0b 0c 0d 0e 0f

IJKLMNOP

10 11 12 13 14 15 16 17

QR STUVWX

18 19 1a 1b 1c 1d 1e 1f

YZ& ? ! 1 2

20 21 22 23 24 25 26 27

00: Does not blink

01: Blinks 00 White 01 Yellow 02 Violet

04 Cyan 05 Green 06 Blue

34 5678 9 0

28 29 2a 2b 2c 2d 2e 2f

ÀÈ Ì ÒÙÁ É Í

30 31 32 33 34 35 36 37

ÓÚ ÂÊÔÆŒÃ

38 39 3a 3b 3c 3d 3e 3f

ÕÑ ÇßÄ Ï Ö Ü

40 41 42 43 44 45 46 47

Å$

48 49 4a 4b 4c 4d 4e 4f

ø“ : ‘ . , / -

¥DM£ ¿ ¡

Synchronization methods

Internal and external synchronization are available; VISCA Commands allow you to switch between them.

• Internal synchronization

An internal vibrator inside the camera generates a synchronizing signal as a basic oscillator. NTSC=59.94 Hz PAL=50 Hz

• External synchronization (V-Lock Synchronization

When a TTL level V-Lock pulse is input, the camera synchronizes to the input signal (V-lock synchronization). The frequency of the input signal synchronizes to within ±1Hz of the external synchronization. Also, 360 degree phase adjustment is possible due to the phase adjustment of the V-lock signal. When adjusting V-Phase, first make the phase adjustment with the Line Lock mode, then switch to Frequency Lock mode and enable external sync. If not performing phase adjustment, switch to Frequency Lock mode then enable external sync. See “Command List” on page 31.

Note

Noise may occur when performing phase adjustment with the Line Lock mode, although it should disappear when switching to Frequency Lock mode for external sync.

Because V-lock synchronization is a simple synchronization method, color signals like a VBS “Genlock” signal cannot be synchronized.

1)In V-lock synchronization, the camera makes a V-lock pulse (VL-PULSE) which synchronizes to the commercial power supply and uses it as the external synchronization input signal of the camera, using the fact that the V cycle (59.97 Hz vertical synchronization signal) and the frequency of the commercial power supply (60 Hz). The synchronous signal of the camera will automatically sychronizes to the VL-PULSE in the camera.

)

Basic Functions

Privacy Zone Masking Function

Privacy Zone masking protects private objects and areas such as house windows, entrances, and exits which are within the camera’s range of vision but not subject to surveillance. Privacy zone masking can be masked on the monitor to protect privacy.

Timing chart

8x 01 .. .. FF

(Mask Setting Command)

Features

•Mask can be set on up to 24 places according to Pan/ Tilt positions.

•Mask can be displayed on 8 places per screen simultaneously.

• Privacy Zones are displayed according to priority in alphabetical order.

• Individual on/off zone masking settings.

•Two colors from among 29 colors including mosaic can be individually set for each of 24 privacy zones.

• Interlocking control with zooming.

• Interlocking control with Pan/Tilt.

•Non-interlocking control with Pan/Tilt.

Setting command is reflected at this timing.

Privacy Zone Setting Command List

Basic Functions

Command Set Command

CAM_PrivacyZone

SetMask

Display

SetMaskColor

SetPanTiltAngle

SetPTZMask

Non_InterlockMask

Grid On Grid Off CenterLineOn

Command Packet

8x 01 04 76 mm nn 0r 0r 0s 0s FF

8x 01 04 77 pp pp pp pp FF

8x 01 04 78 pp pp pp pp qq rr FF Setting Color of Mask

8x 01 04 79 0p 0p 0p 0q 0q 0q FF

8x 01 04 7B mm 0p 0p 0p 0q 0q 0q 0r 0r 0r 0r FF

8x 01 04 6F mm 0p 0p 0q 0q 0r 0r 0s 0s FF

8x 01 04 7C 02 FF 8x 01 04 7C 03 FF

8x 01 04 7C 04 FF

Comments

Setting Mask(Size) See “mm: Mask setting list”, “nn: Setting”, and “pp: x, qq:y, rr: w, ss: h” in “Parameters” on page 17.

Setting Mask Display On/Off See “pp pp pp pp: Mask bit” in “Parameters” on page 17. pp pp pp pp: Mask setting (0: OFF, 1: ON)

See “pp pp pp pp: Mask bit” and “qq, rr: Color code” in “Parameters” on page 17. qq: Color setting when setting the Mask bit to 0 rr: Color setting when setting the Mask bit to 1

Setting Pan/Tilt Angle See “Setting pan/tilt angle” in “Parameters” on page 17. ppp: Pan angle, qqq: Tilt angle

Setting the direct position of PTZ See “mm: Mask setting list” and “Setting pan/ tilt angle” in “Parameters” on page 17. ppp: Pan , qqq: Tilt , rrrr: Zoom

Setting non-interlocking the mask to pan/tilt See “mm: Mask setting list” and “pp:x, qq:y, rr:w, ss:h” in “Parameters” on page 17.

Setting Grid Display On/Off

Setting the center line On

Privacy Zone Inquiry Command List

Inquiry Command Command Packet Inquiry Packet Comments

CAM_Privacy DisplayInq

CAM_PrivacyPan TiltInq

CAM_Privacy PTZInq

CAM_Privacy MonitorInq

8x 09 04 77 FF y0 50 pp pp pp pp FF

8x 09 04 79 FF y0 50 0p 0p 0p 0q 0q 0q FF

8x 09 04 7B mm FF y0 50 0p 0p 0p 0q 0q 0q 0r 0r

8x 09 04 6F FF

0r 0r FF

y0 50 pp pp pp pp FF

Inquiry about the status of Setting Mask Display On/Off See “pp pp pp pp: Mask bit” in “Parameters” on page 17. 1:On, 0:Off

Inquiry about the pan/tilt position currently set See “Setting pan/tilt angle” in “Parameters” on page 17. ppp: Pan, qqq: Tilt

Inquiry about pan/tilt/zoom position at the mm Mask setting See “mm: Mask setting list” and “Setting pan/ tilt angle” in “Parameters” on page 17. ppp: Pan Position, qqq: Tilt Position rrrr: Zoom Position

Inquiry about the mask currently displayed See “pp pp pp pp: Mask bit” in “Parameters” on page 17.

Parameters

Basic Functions

mm: Mask setting list

Mask Name mm (Hex)

Mask_A 00h Mask_B 01h Mask_C 02h Mask_D 03h Mask_E 04h Mask_F 05h Mask_G 06h Mask_H 07h Mask_I 08h Mask_J 09h Mask_K 0Ah Mask_L 0Bh

Note

The priority order of the mask display is in the sequence from A (highest) to X (lowest). When you set the parameters of masks non-sequentially, it is recommended that you set the mask whose priority order is higher, first.

Mask Name mm (Hex)

Mask_M 0Ch Mask_N 0Dh Mask_O 0Eh Mask_P 0Fh Mask_Q 10h Mask_R 11h Mask_S 12h Mask_T 13h Mask_U 14h Mask_V 15h Mask_W 16h Mask_X 17h

nn:Setting

nn Setting

00 Resetting the zone size (the value of w,h)

for the existing mask.

01 Setting newly the zone size (the value of

w,h).

pp: x, qq: y, rr: w, ss: h

160

3Ch

mask

120

B0h

C4h

Effective display area

(x,y)

50h

pp pp pp pp: Mask bit

pp pp pp pp bit 7 6 5 43210765432107654321076543210 Mask - - X W V U T S - - R Q P O NM - - L K J I HG - - F E DCBA

The “-” must be “0”.

qq, rr: Color code

Mask (Color) Code (qq, rr) Semi-transparency (qq, rr) Black 00h 10h Gray1 01h 11h Gray2 02h 12h Gray3 03h 13h Gray4 04h 14h Gray5 05h 15h Gray6 06h 16h White 07h 17h Red 08h 18h Green 09h 19h Blue 0Ah 1Ah Cyan 0Bh 1Bh Yellow 0Ch 1Ch Magenta 0Dh 1Dh Mosaic 7Fh –

Setting pan/tilt angle

Angle/Parameter of Angle (ppp, qqq)

090-180 -90 180

Set the angle resolution to 360 (degree)/4096 (1000h).

400h800h C00h

800h

Basic Functions

Details of Setting Commands

Set Mask

Command: 8x 01 04 76 mm nn 0r 0r 0s 0s FF Parameters:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 17.

nn Selects new setting or resetting for the zone. See “nn:

Setting” in “Parameters” on page 17. rr Sets the half value “w” of the Mask Width. ss Sets the half value “h” of the Mask Height.

See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 17.

Comments: To set the mask, first display the object

at the center of the screen. When “nn” is set to 1, the current Pan/Tilt/Zoom position is recorded in internal memory. When “nn” is set to 0, the Pan/Tilt/Zoom position in memory is not changed.

Notes

• The tilt angle at which you can set the mask is between –70 to +70 degrees.

• It is recommended that you set the size to at least twice the size of the object (height and width).

Set Display

Command: 8x 01 04 77 pp pp pp pp FF Parameter:

pp pp pp pp Each 24 Privacy Zones corresponds to 1 bit.

See “pp pp pp pp: Mask bit” in “Parameters” on page 17.

Comments: Each of 24 Privacy zones can be

switched on and off individually by a single VISCA command. If you want to display a Privacy zone, you must set its bit to 1. If you do not want to display a Privacy zone, you must set its bit to 0.

Set Mask Color

Command: 8x 01 04 78 pp pp pp pp qq rr FF Parameter:

pp pp pp pp Each 24 Privacy Zones correspond with the BIT.

See “pp pp pp pp: Mask bit” in “Parameters” on page 17.

qq Set the color code include the semi-transparency

code.

rr Set the color code include the semi-transparency

code. See “qq, rr: Color code” in “Parameters” on page 17.

Comments: Two different color masks can be

chosen. The colors can be chosen from among 14 colors including the possibility for semi-transparency of each color. Therefore two colors from among the total of 29 colors including mosaic can be individually set for each of 24 privacy zones. If the bit of parameter (pp pp pp pp) is set to “0”, mask color will be “qq” color (Color code). If the bit of parameter (pp pp pp pp) is set to “1”, the mask color will be “rr” color (Color code).

Example: 8x 01 04 78 00 00 00 03 10 07 FF

The mask color of Mask_A and Mask_B is White (color code 07h), and the mask color of the other Mask (C to X) is semi-transparent Black (color code 10h).

Set Pan Tilt Angle

Command: 8x 01 04 79 0p 0p 0p 0q 0q 0q FF Parameter:

ppp Pan Angle qqq Tilt Angle

See “Setting pan/tilt angle” in “Parameters” on page

17.

Comments: Pan/Tilt angle settings are hexadecimal

data. The resolution of Pan/Tilt angle is 0.088 degrees.

Note

When you set the pan/tilt angle, locate the pan/tilt position at the center point of the FCB camera’s position.

Set PTZ Mask

Command: 8x 01 04 7B mm 0p 0p 0p 0q 0q 0q 0r 0r

0r 0r FF

Parameter:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 17.

ppp Pan Angle (000 to FFF) See “Setting pan/tilt angle” on

page 17.

qqq Tilt Angle (000 to FFF) See “Setting pan/tilt angle” on

page 17.

rrrr Zoom Position (000 to 4000) See “Zoom Ratio and Zoom

Position (for reference)” on page 55.

Comments: Mask can be set at the desired position

by setting the pan tilt angle and zoom position using this command. The set value can be input by hexadecimal number.

Basic Functions

Non Interlock Mask

Command: 8x 01 04 6F mm 0p 0p 0q 0q 0r 0r 0s 0s

Parameters:

mm Setting Mask

See “mm: Mask setting list” in “Parameters” on page 17. pp Sets the center position “x” of the Mask on screen. qq Sets the center position “y” of the Mask on screen. rr Sets the half value “w” of the Mask Width. ss Sets the half value “h” of the Mask Height.

See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 17.

Commands: Mask does not interlock with pan/tilt.

The limitations of parameters are as follows. (hexadecimal representation) x: ±50h w: ±50h y: ±3ch h: ±3ch

Note

When the Set Mask command and the Non Interlock Mask command are set to the same mask, the command set later becomes effective.

Grid

Motion Detection Function

This function instructs the camera to detect movement within the monitoring area and then send an alarm signal automatically. The Detect signal goes out through the serial command (VISCA) communication line.

Features

•You can set a frame for the detection range of 12

(horizontally) × 8 (vertically) blocks.

•You can set up to four frames.

•When the motion is detected in the set frame, the Alarm Replay VISCA command is sent.

• The threshold level for detection can be set (common to four frames).

• The interval of alarm detection can be set up to 256 seconds in units of one second.

•You can set on/off for each frame.

•When the Block Mode is set to ON, the Alarm Reply command is not sent. Use this mode for checking when the camera is installed or for confirming the camera operation.

• The frame number is also sent with Alarm Replay to report in which frame the motion has been detected.

Use the grid displayed on the screen to set mask positions (see the figure below). By executing the Center Line On command, only the x and y axes of the center are displayed. Grids lines disappear.

14hex (20(10))

Frames

Setting frames

You can set the frame by assigning the starting point and terminating point vertically and horizontally. You can set up to four frames.

When motion is detected within the rage where frames overlap

The alarms are sent for both frames.

Frame 1 Frame 2 Frame 3 Frame 4

At this position, the alarm for frame 3 is sent.

Within this overlapped range, alarms are sent for both frame 3 and frame 4.

Basic Functions

Sending Alarms

•When motion is detected, the Alarm Replay command is issued via the serial command (VISCA) communication line.

Alarm issue Alarm issue Alarm issue Alarm issue

Alarm interval

Motion is detected in frame 1.

Interval

Motion is detected in frame 1.

Setting Commands

• MD On/Off

The Display mode is selected by the Function Set command and frames are set by the Frame Set command. By sending an MD On command, the frame is displayed when motion is detected in the set frame. The Alarm Reply command is set via the serial command (VISCA) communication line.

8x 01 04 1B 02 FF --- On 8x 01 04 1B 03 FF --- Off

• Function Set

Select the detected frame, and set the Threshold Level and the Interval Time.

•When multiple motions are detected or motion is detected in another frame within the set interval following the original time the alarm was issued, another alarm command is not issued.

•When motion is detected after the interval time elapsed, the alarm is issued again.

Interval Interval

Motion is detected in frame 1.

Motion is detected in frame 2.

Motion is detected in frame 3.

• Frame Set

You can set up to four frames by assigning the starting and terminating points.

Note

Set a terminating point higher vertically and horizontally than the starting point. If you set the wrong value, the command yields an error.

8x 01 04 1D 0m 0p 0q 0r 0s FF m: Select Detection Frame (0: Frame0, 1: Frame1, 2:

Frame2, 3: Frame3) -- (0, 1, 2, 3) p: Frame set Start Horizontal Position -- (00 to 0B) q: Frame set Start Vertical Position -- (00 to 07) r: Frame set End Horizontal Position -- (01 to 0C) s: Frame set End Vertical Position -- (01 to 08)

8x 01 04 1C 0m 0n 0p 0q 0r 0s FF m: Display Mode on/off (bit0: Frame) n: Detection Frame set on/off (bit0:Frame0,

bit1:Frame1, bit2:Frame2, bit3:Frame3)

-- (0 to F) pq: Threshold -- (00 to FF) rs: Interval time set -- (00 to FF) (When pq and rs are 0, the command is received, but the setting is disabled.)

•Alarm Reply

When motion is detected in the set frame, the camera issues this command. This command includes the information on the number of the detected frame.

y0 07 04 1B 0p FF p: Frame Number (bit0: Frame0, bit1: Frame1, bit2:

Frame2, bit3: Frame3)

Basic Functions

Eclipse

When designing the housing, refer to the dimensional allowance as shown in the figure below.

Vibration Specifications

Test Method (Random vibration)

• Fix the camera at the four fixation points of the base using M2 screws.

• Perform the random vibration test under the following conditions in the X, Y and Z directions for 20 minutes in each direction.

• The camera vibration specification is to have no malfunction after this test.

2/s3

Power spectrum density

Effective overall value

Test time

5 to 50 Hz 4.14 m 50 to 100 Hz –36 dB/oct

14.3 m/s

20 minutes

{0.043 G2/Hz}

{1.46 G}

Spectral Sensitivity Characteristics

Use the graph as a reference value. (We can not guarantee these values.) This data is measured when the IR cut filter is removed and the characteristics of the lens and optical source characteristics are ignored.

Key Switch Circuitry

The circuitry shown below is an example. Note that all switches in the figure do not function in all models. For more information, refer to the command list, check functions on the camera, or contact your Sony dealer.

Basic Functions

The CN101 is connected to the FCB camera main unit.

Key Function Specifications

Basic Functions

Classification

ZOOM

FOCUS

Name

WIDE FAST

WIDE SLOW

TELE FAST

TELE SLOW

AF ON/OFF

NEAR

FAR ONE PUSH

INFINITY

AE AUTO BRIGHT

SHUTTER

IRIS

BACK LIGHT

EXP COMP ON/OFF

EXP COMP UP

EXP COMP DOWN

WD ON/OFF

AUTO WD ON/OFF

Function

Move ZOOM to WIDE side quickly.

Move ZOOM to WIDE side slowly.

Move ZOOM to TELE side quickly.

Move ZOOM to TELE side slowly.

Switch between Auto Focus and Manual Focus.

Move focus to NEAR side in Manual Focus mode.

Move focus to FAR side in Manual Focus mode. Perform AF operation once in Manual Focus

mode.

Move focus forcibly to Infinity resulting in Manual Focus mode, regardless of the current focus mode.

Switch to AE FULL Auto mode. Switch to variable brightness mode (BRIGHT),

depending on the conditions for mode shifting.

Shutter priority AE mode

Iris priority AE mode

Switch backlight on/off in AE FULL Auto mode.

Switch the exposure compensation function ON/ OFF.

Increase the exposure compensation (UP). (Used during exposure compensation mode. 1.5 dB increments.)

Decrease the exposure compensation (DOWN). (Used during exposure compensation mode. 1.5 dB increments.)

Switch the Wide Dynamic Range mode ON/ OFF.

Switch the Auto Wide Dynamic Range mode ON/OFF.

Button operation

Pressing repeatedly allowed.

Switch between Auto and Manual.

Pressing repeatedly allowed.

Pressing repeatedly allowed. Request One Push AF.

Request Infinity.

Request AE Full Auto. Request Bright mode.

Pressing Up/Down key repeatedly allowed.

Request shutter priority AE mode. Pressing Up/Down key repeatedly allowed.

Request iris priority AE mode. Pressing Up/Down key repeatedly allowed.

Switch on/off.

Request UP / pressing repeatedly allowed.

Request DOWN / pressing repeatedly allowed.

Switch on/off.

Mode display

ZOOM bar displayed for 3 s.

Manual F indication

Near indication

Far indication Manual F indication

flashes while request is made.

Far indication

No display Bright bar display

Shutter code display

Iris code display

Backlight indication

Exposure compensation code display

WDR character display

WDR character display when WD is ON.

Basic Functions

Classification

FEATURE

DISPLAY

UP/DOWN

PRESET

Name

AUTO WB ONE PUSH

ATW INDOOR OUTDOOR MANUAL

FREEZE LR

REVERSE E-FLIP BLACK &

WHITE NEGA ART MUTE DISPLAY TITLE

EXEC

DOWN

POS0 POS1 POS2 POS3 POS4 POS5 CUSTOM POS PRESET

POS RESET

Function

Switch to AUTO WB mode. Switch to One Push WB mode when pressed

once and capture data when pressed 2nd time.

Switch to ATW mode. Enable WB at 3200K in INDOOR mode. Enable WB at 5800K in OUTDOOR mode. Switch to Manual WB mode.

Enable R control when pressed once and enable B control when pressed 2nd time. Switchable with UP/DOWN key.

Capture still image. Horizontal reversal

Turn upside down Black-and-white output

Negative art output Muting video output Display Title setting

Confirm title setting.

Data UP key (priority for AE mode, Bright, manual WB, title, and clock)

Data DOWN key (priority for AE mode, Bright, manual WB, title, and clock)

Recall preset position 0. Recall preset position 1. Recall preset position 2. Recall preset position 3. Recall preset position 4. Recall preset position 5. Recall custom preset. Write data.

Enabled when pressed together with POS button.

Delete data. Enabled when pressed together with POS button.

Button operation

Request Auto WB mode. Request One Push WB mode

and trigger.

Request ATW mode. Request Indoor mode. Request Outdoor mode. Switch between R control

and B control in manual WB mode. Pressing Up/Down key repeatedly allowed.

Switch on/off. Switch on/off.

Switch on/off. Switch on/off. Switch on/off. Request setting. t Setting

is started with Exec. Pressing Up/Down key repeatedly allowed.

Select with Up/Down and confirm with Exec.

Request UP.

Request DOWN.

Request recall. Request recall. Request recall. Request recall. Request recall. Request recall. Request recall. Request setting. Enabled

when pressed together with POS key.

Request deletion. Enabled when pressed together with POS key.

Mode display

No display One Push indication

flashes at 0.8 Hz before capturing data, at 3.2 Hz during capturing, and stays lit after capturing.

ATW display Indoor indication Outdoor indication “WB-MAN”

(character display)

CAPTURE indication Horizontal reversal

indication Turn upside down mark B&W display

Neg Art display No display Display/no display Title setting screen

display

Sets screen selection and displays it in yellow.

Selection highlighted.

RECALL POS0 RECALL POS1 RECALL POS2 RECALL POS3 RECALL POS4 RECALL POS5 RECALL PRESET display

RESET display

Basic Functions

Classification

Others

FUNCTION

Name

APERTURE UP

APERTURE DOWN

BRIGHT UP

BRIGHT DOWN

AUTO SLOW SHUTTER

ICR ON/OFF STABILIZER

ON/OFF POWER ON/

OFF FUNCTION1 FUNCTION2 FUNCTION3

Function

Increase aperture (Aperture UP)

Decrease aperture (Aperture DOWN)

Raise brightness setting (Bright UP) (When not in Bright mode, switching to Bright mode is made automatically depending on the conditions.)

Lower brightness setting (Bright DOWN) (When not in Bright mode, switching to Bright mode is made automatically depending on the conditions.)

Switch Auto Slow Shutter on/off.

Switch ICR mode on/off Switch the Image Stabilizer function ON/OFF.

Switch the POWER (Standby) ON/OFF.

– – –

Button operation

Request UP.

Request DOWN.

Request UP./Pressing repeatedly allowed.

Request DOWN./Pressing repeatedly allowed.

Switch on/off.

Switch on/off. Switch on/off.

Switch on/off.

– – –

Mode display

Aperture bar displayed for 3 s.

Bright bar display

“ASS” (character display)

ICR indication Image Stabilizer

“OFF” mark –

– – –

Basic Functions

Initial Settings, Custom Preset and Backup

Initial settings for the various functions of the FCB camera are indicated in the “Initial settings” column. The “Custom preset” column indicates whether the custom preset function can be used to store the settings. The function enables the stored settings to be recalled automatically when the camera is turned on. The “Back up at standby” column indicates whether the data is preserved even when the camera is powered OFF.

Mode/Position setting Initial settings

Zoom Position Wide end aa D-Zoom On/Off On aa D-Zoom Separate/Combine Combine aa D-Zoom Position 00h aa Focus Position — aa Focus Auto/Manual Auto aa Near Limit Setting 8000h (32 cm) aa AF Sensitivity Normal aa AF Mode Normal aa AF Run Time 5 sec aa AF Interval 5 sec aa WB Mode Auto aa WB Data (Rgain, Bgain) — aa One Push WB Data — aa AE Mode Full Auto aa AE Response 01 aa WD On/Off/Auto Off aa Slow Shutter Mode Manual aa Shutter Position 1/60sec (NTSC), 1/50sec (PAL) aa Iris Position — aa Gain Position — aa Bright Position — aa Exposure Compensation On/Off Off aa Exposure Compensation Amount ±0 aa BackLight On/Off Off aa Spot AE On/Off Off aa Spot AE Position Setting X=8, Y=8 aa Aperture Level 6 aa High Resolution Mode On/Off On aa LR Reverse On/Off Off aa Freeze On/Off Off ×× Picture Effect Off aa ICR On/Off Off aa Auto ICR On/Off Off aa Auto ICR Threshold Level 0Ah aa

Custom Back up

preset at standby

A circle “a” in this column signifies that the data is preserved. A cross “×” signifies that the data IS NOT preserved.

Basic Functions

Mode/Position setting Initial settings

Camera Memory Same as the initial value setting aa Display On/Off Off aa Mute On/Off Off ×× WD Alarm On/Off Off × a Auto ICR Alarm On/Off Off aa Image Stabilizer On/Off/Hold Off aa NR Level 3 aa Gain Limit — aa Color Enhancement On/Off Off aa Title Display On/Off Off aa Title Setting — aa Mask Setting — aa Mask Display On/Off Off aa Mask Color Setting — aa Grid/Center Line Display On/Off Off aa Alarm On/Off Off aa Alarm Mode — aa Alarm Detect Level — aa E-Flip On/Off Off aa Privacy Zone On/Off Off aa Privacy Zone Setting — aa Key Lock On/Off Off aa Camera ID 0000h aa External Lock Mode Internal aa V-Phase Vsync edge position aa Alarm DayLight Threshold Level — aa MD On/Off Off aa MD Display Setting Off aa MD Threshold Level 10h aa MD Interval 1 sec aa MD Window Setting — aa ZoomPos Continuous Output On/Off Off × a ZoomPos Continuous Output Interval 3Ch × a

A circle “a” in this column signifies that the data is preserved. A cross “×” signifies that the data IS NOT preserved.

Custom Back up

preset at standby

Note

The number of times written to EEPROM (when Custom Preset is executed) is limited.

Basic Functions

Mode Power Off Initializing Power On Freeze On MemRecall

Address Set aaaaa

IF_Clear aaaaa

Command Cancel aaaaa

Mode Condition

Condition

Power On/Off aaaaa

Lens

Mode Power Off Initializing Power On Freeze On MemRecall Zoom Direct Focus Direct ZmFo Direct Focus Auto

Zoom Tele/Wide/Stop ××a ×××a × a

Zoom Direct ××a ××aa × a

Zoom Focus Direct ××a ××××a ×

D-Zoom On/Off ××a ×××a × a

D-Zoom Separate/Combine ××a ×××a × a

D-Zoom Tele/Wide/Stop ××a ××aaaa

D-Zoom ×1/Max ××a ××aaaa

D-Zoom Direct ××a ××aaaa

Focus Far/Near/Stop ××a ××a ×××

Focus Direct ××a ××aa ××

Focus Auto/Manual ××a ××a ××a

One Push AF ××a ××a ×××

Focus Infinity ××a ××a ××a

Focus Near Limit ××a ××a ××a

AF Sensitivity Normal/Low ××a ××aaaa

AF Mode Norm/Interval/Zoom ××a ××aaaa

AF Activation Time/Interval Setting ××a ××aaaa

Camera Memory Set/Reset ××aa××××a

Camera Memory Recall ××aaa* ×××a

Lens Initialize ××aa ××××a

Comp Scan ××aa ××××a

* × during recalling from key

OnePush ATW Manual

Sodium

Lamp AUTO

AUTO Lamp

Outdoor Sodium

Basic Functions

Mode Power Off Initializing Power On Freeze On MemRecall WB AUTO Indoor Outdoor

WB Mode Switchover ××a ××aaaaaaaaa

One Push WB ×× a ЧЧЧЧЧЧЧЧa ××

RGain Setting ×× a ЧЧЧЧЧЧЧЧЧЧa

White Balance

BGain Setting ×× a ЧЧЧЧЧЧЧЧЧЧa

Mode Power Off Initializing Power On Freeze On MemRecall AE Full Auto AE Manual ShutterPri Iris Priority Bright WD

AE Full Auto ××a ××a aaaaa

AE Manual ××a ××a aaaaa

Exposure

Shutter Priority ××a ××a aaaaa

Iris Priority ××a ××a aaaaa

Bright ××a ××a × a × aa

Shutter Setting ××a ×××aa ××a

Iris Setting ××a ×××a × a × a

Gain Setting ××a ×××a ×××a

Bright Setting ××a ЧЧЧЧЧЧaa

Slow Shutter Auto/Manual ××a ××a aaaa ×

Exposure Compensation On/Off ××a ××a aaaa ×

Exposure Compensation Setting ××a ××a aaaa ×

BackLight On/Off ××a ××a ЧЧЧЧЧ

SpotAE On/Off ××a ××a aaaa ×

SpotAE Setting ××a ××a aaaa ×

WD On/Off ××aaaaaaaaa

Basic Functions

Others

Mode Power Off Initializing Power On Freeze On MemRecall

WD Alarm On/Off ××a ××

Aperture Setting ××a ××

High Resolution Mode On/Off ××aaa

LR_Reverse On/Off ××a ××

Freeze On/Off ××aa ×

Picture Effect Setting ××a ××

ICR On/Off ××a ××

Auto ICR On/Off ××a ××

Auto ICR Threshold Level Setting ××aaa

Auto ICR Alarm On/Off ××a ××

Image Stabilizer On/Off/Hold ××a ××

Display On/Off ××aaa

Mute On/Off ××aaa

Title Setting ××aaa

Mask On/Off ××aaa

Mask Setting ××aaa

Key Lock On/Off ××aaa

Alarm On/Off ××aaa

Alarm Mode ××aaa

MD On/Off ××aaa

MD Function Setting ××aaa

MD Window Setting ××aaa

ID Write ××aaa

Memory Save ××aaa

Color Enhancement On/Off ××aaa

NR Level Setting ××aaa

External Synchronization

Mode Power Off Initializing Power On Freeze On MemRecall

External Lock Mode ××aaa

V-Phase Up/Down/Stop/Reset ××aaa

V-Phase Direct ××aaa

Command List

VISCA1)/RS-232C Commands

This Manual outlines an RS-232 control protocol and command list for certain Sony cameras from which control software can be developed. THIS CONTROL PROTOCOL AND COMMAND LIST IS PROVIDED BY SONY ON AN “AS-IS BASIS” WITHOUT WARRANTY OF ANY KIND. SONY DOES NOT WARRANT ANY PARTICULAR RESULT FROM THE USE OF THIS CONTROL PROTOCOL AND COMMAND LIST AND DISCLAIMS AND EXCLUDES ALL WARRANTIES. EXPRESS OR IMPLIED, WITH RESPECT TO THAT CONTROL PROTOCOL AND COMMAND LIST, INCLUDING, BUT NOT LIMITED TO, ANY OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN FACT, SONY SPECIFICALLY ACKNOWLEDGES THAT SOFTWARE DEVELOPED BASED ON THIS CONTROL PROTOCOL AND COMMAND LIST MAY CAUSE MALFUNCTION OR DAMAGE TO HARDWARE AND SOFTWARE USED WITH IT (INCLUDING SONY HARDWARE AND SOFTWARE) AND SPECIFICALLY DISCLAIMS ANY LIABILITY FOR ANY SUCH MALFUNCTION OR DAMAGE. THIS CONTROL PROTOCOL AND COMMAND LIST SHOULD BE USED WITH CAUTION.

Overview of VISCA

In VISCA, the device outputting commands, for example, a computer, is called the controller. The device receiving the commands, an FCB camera is called the peripheral device. In VISCA, up to seven peripheral devices like the FCB camera can be connected to one controller using communication conforming to the RS-232C standard. The parameters of RS-232C are as follows.

• Communication speed: 9.6 kbps/19.2 kbps/

38.4 kbps

• Data bits : 8

• Start bit : 1

• Stop bit : 1/2

• Non parity Flow control using XON/XOFF and RTS/CTS, etc., is not supported.

................................................................................................................................................................................................................................

1)VISCA is a protocol which controls consumer camcorders developed by Sony. “VISCA” is a trademark of Sony Corporation.

Command List

VISCA Communication Specifications

VISCA packet structure

The basic unit of VISCA communication is called a packet. The first byte of the packet is called the header and comprises the sender’s and receiver’s addresses. For example, the header of the packet sent to the FCB camera assigned address 1 from the controller (address

0) is hexadecimal 81H. The packet sent to the camera

Packet (3 to 16 bytes)

Header

Byte 1 Byte 2 Byte 3

Message (1 to 14 bytes)

assigned address 2 is 82H. In the command list, as the header is 8X, input the address of the camera at X. The header of the reply packet from the camera assigned address 1 is 90H. The packet from the camera assigned address 2 is A0H. Some of the commands for setting cameras can be sent to all devices at one time (broadcast). In the case of broadcast, the header should be hexadecimal 88H. When the terminator is FFH, it signifies the end of the packet.

Terminator

Sender’s

address

Bit 7

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

(MSB)

Receiver’s address

(LSB)

Command and inquiry

● Command

Sends operational commands to the FCB camera.

● Inquiry

Used for inquiring about the current state of the FCB camera.

Command Packet Note

Inquiry 8X QQ RR ... FF QQ

QQ = 01 (Command), 09 (Inquiry)

RR = 00 (Interface), 04 (camera 1), 06 (Pan/Tilter), 07 (camera 2)

X = 1 to 7: FCB camera address

= Command/Inquiry,

= category code

11111111

Bit 7

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

(MSB)

(LSB)

Command List

Responses for commands and inquiries

● ACK message

Returned by the FCB camera when it receives a command. No ACK message is returned for inquiries.

● Completion message

Returned by the FCB camera when execution of commands or inquiries is completed. In the case of inquiry commands, it will contain reply data for the inquiry after the 3rd byte of the packet. If the ACK message is omitted, the socket number will contain

Reply Packet Note

Ack X0 4Y FF Y = socket number Completion (commands) X0 5Y FF Y = socket number Completion (Inquiries) X0 5Y ... FF Y = socket number X = 9 to F: FCB camera address + 8

● Error message

When a command or inquiry command could not be executed or failed, an error message is returned instead of the completion message.

Command execution cancel

To cancel a command which has already been sent, send the Cancel command as the next command. To cancel one of any two commands which have been sent, use the cancel message.

Cancel Packet Note

Cancel 8X 2Y FF Y = socket number X = 1 to 7: FCB camera address, Y = socket number

An error message will be returned for this command, but this is not a fault. It indicates that the command has been canceled.

Error Packet Description

X0 6Y 01 FF Message length error (>14 bytes) X0 6Y 02 FF Syntax Error X0 6Y 03 FF Command buffer full X0 6Y 04 FF Command cancelled X0 6Y 05 FF No socket (to be cancelled) X0 6Y 41 FF Command not executable X = 9 to F: FCB camera address + 8, Y = socket number

Socket number

When command messages are sent to the FCB camera, it is normal to send the next command message after waiting for the completion message or error message to return. However to deal with advanced uses, the FCB camera has two buffers (memories) for commands, so that up to two commands including the commands currently being executed can be received. When the FCB camera receives commands, it notifies the sender which command buffer was used using the socket number of the ACK message. As the completion message or error message also has a socket number, it indicates which command has ended. Even when two command buffers are being used at any one time, an FCB camera management command and some inquiry messages can be executed. The ACK message is not returned for these commands and inquiries, and only the completion message of socket number 0 is returned.

VISCA Device Setting Command

Before starting control of the FCB camera, be sure to send the Address command and the IF_Clear command using the broadcast function.

For VISCA network administration

● Address

Sets an address of a peripheral device. Use when initializing the network, and receiving the following network change message.

● Network Change

Sent from the peripheral device to the controller when a device is removed from or added to the network. The address must be re-set when this message is received.

Command List

Packet Note

Address 88 30 01 FF Always broadcasted. Network Change X0 38 FF X = 9 to F: FCB camera address + 8

VISCA interface command

● IF_Clear

Clears the command buffers in the FCB camera and cancels the command currently being executed.

Command Packet Reply Packet Note

IF_Clear 8X 01 00 01FF X0 50 FF IF_Clear (broadcast) 88 01 00 01 FF 88 01 00 01 FF X = 1 to 7: FCB camera address (For inquiry packet) X = 9 to F: FCB camera address +8 (For reply packet)

VISCA interface and inquiry

● CAM_VersionInq

Returns information on the VISCA interface.

Inquiry Inquiry Packet Reply Packet Description

CAM_VersionInq 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID

(0020: Sony) HHHH = Model ID 0450: FCB-EX1020 0451: FCB-EX1020P JJJJ = ROM revision KK = Maximum socket #(02)

X = 1 to 7: FCB camera address (For inquiry packet) X = 9 to F: FCB camera address +8 (For reply packet)

VISCA Command/ACK Protocol

Command List

Command Command Message Reply Message

General Command 81 01 04 38 02 FF 90 41 FF (ACK)+90 51 FF

(Example) (Completion)

90 42 FF 90 52 FF

81 01 04 38 FF 90 60 02 FF (Syntax Error) (Example)

81 01 04 38 02 FF 90 60 03 FF (Example) (Command Buffer Full)

81 01 04 08 02 FF 90 61 41 FF (Example) (Command Not Executable)

90 62 41FF

Inquiry Command 81 09 04 38 FF 90 50 02 FF (Completion)

(Example) 81 09 05 38 FF 90 60 02 FF (Syntax Error)

(Example) Address Set 88 30 01 FF 88 30 02 FF IF_Clear(Broadcast) 88 01 00 01 FF 88 01 00 01 FF IF_Clear (For x) 8x 01 00 01 FF z0 50 FF (Completion) Command Cancel 8x 2y FF z0 6y 04 FF

(Command Canceled) z0 6y 05 FF (No Socket)

Comments

Returns ACK when a command has been accepted, and Completion when a command has been executed.

Accepted a command which is not supported or a command lacking parameters.

There are two commands currently being executed, and the command could not be accepted.

Could not execute the command in the current mode.

ACK is not returned for the inquiry command.

Accepted an incompatible command.

Returned the device address to +1. Returned the same command. ACK is not returned for this command. Returned when the command of the socket specified is canceled.

Completion for the command canceled is not returned. Returned when the command of the specified socket has already

been completed or when the socket number specified is wrong.

VISCA Camera-Issued Messages

ACK/Completion Messages

Command List

Command Messages

ACK z0 4y FF

(y:Socket No.)

Completion z0 5y FF

(y:Socket No.)

z = Device address + 8

Error Messages

Command Messages

Syntax Error z0 60 02 FF

Command Buffer Full z0 60 03 FF

Command Canceled z0 6y 04 FF

(y:Socket No.)

No Socket z0 6y 05 FF

(y:Socket No.)

Command Not Executable z0 6y 41 FF

(y:Socket No.)

Comments

Returned when the command is accepted.

Returned when the command has been executed.

Comments

Returned when the command format is different or when a command with illegal command parameters is accepted.

Indicates that two sockets are already being used (executing two commands) and the command could not be accepted when received.

Returned when a command which is being executed in a socket specified by the cancel command is canceled. The completion message for the command is not returned.

Returned when no command is executed in a socket specified by the cancel command, or when an invalid socket number is specified.

Returned when a command cannot be executed due to current conditions. For example, when commands controlling the focus manually are received during auto focus.

Network Change Message

Command Message Comments

Network Change z0 38 FF Issued when power is being routed.

FCB Camera Commands

New Command List (1/1)

Command Set Command Command Packet Comments

CAM_IRCorrection Standard 8x 01 04 11 00 FF FOCUS IR compensation data switching

IR Light 8x 01 04 11 01 FF

CAM_WB Outdoor Auto 8x 01 04 35 06 FF Outdoor auto

Sodium Lamp Auto 8x 01 04 35 07 FF Auto including sodium lamp source

Sodium Lamp 8x 01 04 35 08 FF Sodium lamp source fixed mode CAM_Gain Gain Limit 8x 01 04 2C 0p FF p: Gain Positionf 4 (6 dB) to F (28 dB) CAM_WD AutoOnOff 8x 01 04 3D 00 FF WideD ON/OFF auto switching

On (RatioFix) 8x 01 04 3D 01 FF WideD ON (fixed exposure ratio mode)

On (Dver Compati) 8x 01 04 3D 04 FF Wide ON (Dver operation)

Refresh 8x 01 04 10 0D FF WideD restart

Set Parameter 8x 01 04 2D 0p 0q 0r 0s 0t 0u p: Screen display

00 00 FF 0: Combined image, 1: Long/short division, 2: Long-time,

3: Short-time q: Detection sensitivity (0: L 1: M 2: H) r: Blocked-up shadow correction level (0: L 1: M 2: H 3: S) s: Blown-out highlight correction level (0: L 1: M 2: H) tu: Exposure ratio of short exposure (x1 to x150)

CAM_WDAlarmReply On 8x 01 04 3B 02 FF WideD auto switching alarm ON/OFF

Off 8x 01 04 3B 03 FF (Reply) y0 07 04 3B 02 FF WideD OFF t ON

y0 07 04 3B 03 FF WideD ON t OFF

CAM_NR – 8x 01 04 53 0p FF p: NR Setting (0: OFF, level 1 to 5) CAM On 8x 01 04 31 02 FF Auto ICR switching alarm ON/OFF _AutoICRAlarmReply Off 8x 01 04 31 03 FF

(Reply) y0 07 04 31 02 FF ICR OFF t ON

y0 07 04 31 03 FF ICR ON t OFF

CAM_Stabilizer On 8x 01 04 34 02 FF Hand shake correction ON/OFF

Off 8x 01 04 34 03 FF Hold 8x 01 04 34 00 FF Hand shake correction hold

CAM_ExtLock Internal Mode 8x 01 04 55 00 FF Internal Sync

Line Lock Mode 8x 01 04 55 01 FF V-Phase Adjustment Frequency Lock Mode 8x 01 04 55 02 FF External Sync

CAM_ColorEnhance Parameter Set 8x 01 04 20 mm nn pp qq rr ss mm: Threshold level

tt uu FF nn: Hysteresis width

pp: Fixed color Y of high-intensity side qq: Fixed color Cr of high-intensity side rr: Fixed color Cb of high-intensity side ss: Fixed color Y of low-intensity side tt: Fixed color Cr of low-intensity side uu: Fixed color Cb of low-intensity side * Set 00h to 7Fh for each parameter.

On 8x 01 04 50 02 FF Color Enhancement ON/OFF Off 8x 01 04 50 03 FF

Command List

Command List (1/6)

Command Set Command Command Packet Comments

AddressSet Broadcast 88 30 01 FF Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clesr CommandCancel – 8x 2p FF p: Socket No. (=1 or 2) CAM_Power On 8x 01 04 00 02 FF Power ON/OFF

Off 8x 01 04 00 03 FF

CAM_Zoom Stop 8x 01 04 07 00 FF

Tele(Standard) 8x 01 04 07 02 FF Wide(Standard) 8x 01 04 07 03 FF Tele(Variable) 8x 01 04 07 2p FF p=0 (Low) to 7 (High) Wide(Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_DZoom On 8x 01 04 06 02 FF Digital zoom ON/OFF

Off 8x 01 04 06 03 FF Combine Mode 8x 01 04 36 00 FF Optical/Digital Zoom Combined Separate Mode 8x 01 04 36 01 FF Optical/Digital Zoom Separate Stop 8x 01 04 06 00 FF Tele(Variable) 8x 01 04 06 2p FF p=0 (Low) to 7 (High) Wide(Variable) 8x 01 04 06 3p FF x1/Max 8x 01 04 06 10 FF x1/MAX Magnification Switchover Direct 8x 01 04 46 00 00 0p 0q FF pq: D-Zoom Position

CAM_Focus Stop 8x 01 04 08 00 FF

Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far(Variable) 8x 01 04 08 2p FF p=0 (Low) to 7 (High) Near(Variable) 8x 01 04 08 3p FF Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF AF ON/OFF Manual Focus 8x 01 04 38 03 FF Auto/Manual 8x 01 04 38 10 FF One Push Trigger 8x 01 04 18 01 FF One Push AF Trigger Infinity 8x 01 04 18 02 FF Forced infinity Near Limit 8x 01 04 28 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

AF Sensitivity Normal 8x 01 04 58 02 FF AF Sensitivity High/Low

Low 8x 01 04 58 03 FF

CAM_AFMode Normal AF 8x 01 04 57 00 FF AF Movement Mode

Interval AF 8x 01 04 57 01 FF Zoom Trigger AF 8x 01 04 57 02 FF Active/Interval Time 8x 01 04 27 0p 0q 0r 0s FF pq: Movement Time, rs: Interval

CAM_IRCorrection Standard 8x 01 04 11 00 FF FOCUS IR compensation data switching

IR Light 8x 01 04 11 01 FF

CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position

0t 0u 0v 0w FF tuvw: Focus Position

CAM_Initialize Lens 8x 01 04 19 01 FF Lens Initialization Start

Comp Scan 8x 01 04 19 02 FF Correction of CCD pixel blemishes

Command List

Command List (2/6)

Command Set Command Command Packet Comments

CAM_WB Auto 8x 01 04 35 00 FF Normal Auto

Indoor 8x 01 04 35 01 FF Indoor mode Outdoor 8x 01 04 35 02 FF Outdoor mode One Push WB 8x 01 04 35 03 FF One Push WB mode ATW 8x 01 04 35 04 FF Auto Tracing White Balance Manual 8x 01 04 35 05 FF Manual Control mode One Push Trigger 8x 01 04 10 05 FF One Push WB Trigger Outdoor Auto 8x 01 04 35 06 FF Outdoor auto Sodium Lamp Auto 8x 01 04 35 07 FF Auto including sodium lamp source Sodium Lamp 8x 01 04 35 08 FF Sodium lamp source fixed mode

CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain

Up 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain

CAM_BGain Reset 8x 01 04 04 00 FF Manual Control of B Gain

Up 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain

CAM_AE Full Auto 8x 01 04 39 00 FF Automatic Exposure mode

Manual 8x 01 04 39 03 FF Manual Control mode Shutter Priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode Iris Priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode Bright 8x 01 04 39 0D FF Bright Mode (Manual control)

CAM_SlowShutter Auto 8x 01 04 5A 02 FF Auto Slow Shutter ON/OFF

Manual 8x 01 04 5A 03 FF

CAM_Shutter Reset 8x 01 04 0A 00 FF Shutter Setting

Up 8x 01 04 0A 02 FF Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position

CAM_Iris Reset 8x 01 04 0B 00 FF Iris Setting

Up 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position

CAM_Gain Reset 8x 01 04 0C 00 FF Gain Setting

Up 8x 01 04 0C 02 FF Down 8x 01 04 0C 03 FF Direct 8x 01 04 4C 00 00 0p 0q FF pq: Gain Position Gain Limit 8x 01 04 2C 0p FF p: Gain Position

CAM_Bright Reset 8x 01 04 0D 00 FF Bright Setting

Up 8x 01 04 0D 02 FF Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Position

CAM_ExpComp On 8x 01 04 3E 02 FF Exposure Compensation ON/OFF

Off 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF Exposure Compensation Amount Setting Up 8x 01 04 0E 02 FF Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position

Command List

Command List (3/6)

Command Set Command Command Packet Comments

CAM_Backlight On 8x 01 04 33 02 FF Back Light Compensation ON/OFF

Off 8x 01 04 33 03 FF

CAM_SpotAE On 8x 01 04 59 02 FF Spot Automatic Exposure Setting

Off 8x 01 04 59 03 FF

Position 8x 01 04 29 0p 0q 0r 0s FF pq: X (0 to F), rs: Y (0 to F) CAM_AE_Response DIRECT 8x 01 04 5D pp FF Automatic Exposure Response Setting (01 to 30) CAM_WD On 8x 01 04 3D 02 FF Wide-D ON/OFF

Off 8x 01 04 3D 03 FF

AutoOnOff 8x 01 04 3D 00 FF Wide dynamic ON/OF auto switching

On(RatioFix) 8x 01 04 3D 01 FF Wide dynamic ON (Fixed exposure ratio mode)

On(Dver Compati) 8x 01 04 3D 04 FF Wide dynamic ON (Dver operation)

Refresh 8x 01 04 10 0D FF Wide dynamic restart

Set Parameter 8x 01 04 2D 0p 0q 0r 0s 0t 0u p: Screen display

00 00 FF 0: Combined image, 1: Long/short division, 2: Long-time,

CAM_WDAlarmReply On 8x 01 04 3B 02 FF Wide dynamic auto switching alarm ON/OFF

Off 8x 01 04 3B 03 FF (Reply) y0 07 04 3B 02 FF Wide dynamic OFF t ON

y0 07 04 3B 03 FF Wide dynamic ON t OFF

CAM_Aperture Reset 8x 01 04 02 00 FF Aperture Control

Up 8x 01 04 02 02 FF Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain

CAM_HR On 8x 01 04 52 02 FF High-Resolusion Mode ON/OFF

Off 8x 01 04 52 03 FF CAM_NR – 8x 01 04 53 0p FF p: NR Setting (0: OFF, level 1 to 5) CAM_LR_Reverse On 8x 01 04 61 02 FF Mirror Image ON/OFF

Off 8x 01 04 61 03 FF CAM_Freeze On 8x 01 04 62 02 FF Still Image ON/OFF

Off 8x 01 04 62 03 FF CAM_PictureEffect Off 8x 01 04 63 00 FF Picture Effect Setting

Neg.Art 8x 01 04 63 02 FF

B&W 8x 01 04 63 04 FF CAM_PictureFlip On 8x 01 04 66 02 FF Picture flip ON/OFF

Off 8x 01 04 66 03 FF CAM_ICR On 8x 01 04 01 02 FF Infrared Mode ON/OFF

Off 8x 01 04 01 03 FF CAM_AutoICR On 8x 01 04 51 02 FF Auto dark-field mode On/Off

Off 8x 01 04 51 03 FF

Threshold 8x 01 04 21 00 00 0p 0q FF pq: ICR ON t OFF threshold level

Command List (4/6)

Command Set Command Command Packet Comments

CAM On 8x 01 04 31 02 FF Auto ICR switching Alarm ON/OFF _AutoICRAlarmReply Off 8x 01 04 31 03 FF

(Reply) y0 07 04 31 02 FF ICR OFF t ON

y0 07 04 31 03 FF ICR ON t OFF

CAM_Stabilizer On 8x 01 04 34 02 FF Hand shake correction ON/OFF

Off 8x 01 04 34 03 FF

Hold 8x 01 04 34 00 FF Hand shake correction hold CAM_Memory Reset 8x 01 04 3F 00 0p FF p: Memory Number (=0 to 5)

Set 8x 01 04 3F 01 0p FF

Recall 8x 01 04 3F 02 0p FF CAM_Display On 8x 01 04 15 02 FF Display ON/OFF

(8x 01 06 06 02 FF)

Off 8x 01 04 15 03 FF

(8x 01 06 06 03 FF)

On/Off 8x 01 04 15 10 FF

(8x 01 06 06 10 FF)

CAM_Title Title Set1 8x 01 04 73 00 mm nn pp qq 00 00 L: Line Number, nn: H-Position

00 00 00 00 FF pp: Color, qq: Blink

Title Set2 8x 01 04 73 01 mm nn pp qq rr ss mnpqrstuvw: Display character setting

tt uu vv ww FF (1st to 10th character)

Title Set3 8x 01 04 73 02 mm nn pp qq rr ss mnpqrstuvw: Display character setting

tt uu vv ww FF (11th to 20th character) Title Clear 8x 01 04 74 00 FF Clear title setting On 8x 01 04 74 02 FF Title display ON/OFF Off 8x 01 04 74 03 FF

CAM_MultiLineTitle Title Set1 8x 01 04 73 1L 00 nn pp L: Line Number, nn: H-position

qq rr 00 00 00 00 00 FF pp: Color, qq: Blink rr: Opening Title Title Set2 8x 01 04 73 2L mm nn pp L: Line Number,

qq rr ss tt uu vv ww FF mnpqrstuvw: Setting of characters (1 to 10) Title Set3 8x 01 04 73 3L mm nn pp L: Line Number,

qq rr ss tt uu vv ww FF mnpqrstuvw: Setting of characters (11 to 20) Title Clear 8x 01 04 74 1p FF Title Setting clear (p: 0 to a, f= all lines) On 8x 01 04 74 2p FF Title display On/Off (0 to a, f= all lines) Off 8x 01 04 74 3p FF

CAM_Mute On 8x 01 04 75 02 FF Muting ON/OFF

Off 8x 01 04 75 03 FF On/Off 8x 01 04 75 10 FF

Command List

Command List (5/6)

Command Set Command Command Packet Comments

CAM_PrivacyZone SetMask 8x 01 04 76 mm nn mm: Mask Settings

0r 0r 0s 0s FF nn 00: Modify, 01: New

rr: W, ss:H

Display 8x 01 04 77 pp pp pp pp FF Mask Display ON/OFF

pp pp pp pp: Mask Settings (0:OFF, 1:ON)

SetMaskColor 8x 01 04 78 pp pp pp pp pp pp pp pp: Mask Color Settings

qq rr FF qq: Color Setting when 0 is selected

rr: Color Setting when 1 is selected

SetPanTiltAngle 8x 01 04 79 0p 0p 0p Pan/Tilt Angle Settings

0q 0q 0q FF ppp: Pan

qqq: Tilt

SetPTZMask 8x 01 04 7B mm 0p 0p 0p Pan/Tilt/Zoom Settings for Mask

0q 0q 0q 0r 0r 0r 0r FF ppp: Pan, qqq: Tilt, rrrr: Zoom Non_InterlockMask 8x 01 04 6F mm mm: Non_Interlock Mask Settings

0p 0p 0q 0q 0r 0r 0s 0s FF pp: X, q: Y, rr: W, ss: H GridOn 8x 01 04 7C 02 FF Grid Display ON/OFF GridOff 8x 01 04 7C 03 FF Grid/Center Line Display Off CenterLineOn 8x 01 04 7C 04 FF Center Line Display On

CAM_KeyLock Off 8x 01 04 17 00 FF Camera Control Enable/Disable

On 8x 01 04 17 02 FF

CAM_IDWrite – 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) CAM_MemSave Write 8x 01 04 23 0m 0p 0q 0r 0s FF m: Address (=0 to 7)

pqrs: Data (0000 to FFFF)

CAM_ExtLock Internal Mode 8x 01 04 55 00 FF Internal Sync

Line Lock Mode 8x 01 04 55 01 FF V-Phase Adjustment Frequency Lock Mode 8x 01 04 55 02 FF External Sync

CAM_VPhase Stop 8x 01 04 05 00 FF –

Up 8x 01 04 05 02 FF Down 8x 01 04 05 03 FF Up (Step) 8x 01 04 05 2p FF p=step (1-7) Down (Step) 8x 01 04 05 3p FF Reset 8x 01 04 05 40 FF Restore Factory Settings Direct 8x 01 04 45 0p 0q 0r 0s FF pqrs: V-Phase (0000 to)

(NTSC: 0000 to 20Chex, PAL: 0000 to 270hex)

CAM_Alarm On 8x 01 04 6B 02 FF Alarm ON/OFF

Off 8x 01 04 6B 03 FF SetMode 8x 01 04 6C pp FF pp: Mode setting

00 Focus change detection (reference value is not updated)

01 Focus change detection (reference value is updated) 02 AE change detection (reference value is not updated) 03 AE change detection (reference value is updated) : 0C Day/Night judgement

SetDayNighLevel 8x 01 04 6D 0p 0p 0p 0q 0q 0q FF ppp: Day judgement level setting

qqq: Night judgement level setting

Alarm(Reply) y0 07 04 6B 01 FF Detection level “ Low” t “High”

y0 07 04 6B 00 FF Detection level “ High” t “Low”

Command List

Command List (6/6)

Command Set Command Command Packet Comments

CAM_MD On 8x 01 04 1B 02 FF Motion Detection On/Off

Off 8x 01 04 1B 03 FF Function Set 8x 01 04 1C 0m 0n 0p 0q 0r 0s FF m: Display mode

n: Detection Frame Set (0 to F) pq: Threshold Level (00 to FF) rs: Interval Time set (00 to FF)

Window Set 8x 01 04 1D 0m 0p 0q 0r 0s FF m: Select Detection Frame (0, 1, 2, 3)

p: Start Horizontal Position (00 to 0B) q: Start Vertical Position (00 to 07) r: Stop Horizontal Position (01 to 0C) s: Stop Vertical Position (01 to 08)

Alarm (Reply) y0 07 04 1B 0p FF p: Detection Frame Number

CAM_Continuous On 8x 01 04 69 02 FF ZoomPosition data Continuous Output On/Off ZoomPosReply Off 8x 01 04 69 03 FF

(Reply) y0 07 04 69 0p 0p 0q 0q 0q 0q FF pp: D-Zoom Position

* 00: When Zoom Mode is Combine qqqq: Zoom Position

CAM_ – 8x 01 04 6A 00 00 0p 0p FF pp: Interval Time [Vertical timing] ReplyIntervalTimeSet

CAM_RegisterValue – 8x 01 04 24 mm 0p 0p FF mm: Register No. (=00-7F)

pp: Register Value (=00-7F)

CAM_ColorEnhance Parameter Set 8x 01 04 20 mm nn mm: Threshold level

pp qq rr ss tt uu FF nn: Hysteresis width

* Set 00h to 7Fh for each parameter. On 8x 01 04 50 02 FF Color Enhancement ON/OFF Off 8x 01 04 50 03 FF

Command List

New Query Command List (1/1)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_IRCorrectionInq 8x 09 04 11 FF y0 50 00 FF Standard

y0 50 01 FF IR Light

CAM_WBModeInq 8x 09 04 35 FF y0 50 06 FF Outdoor Auto

y0 50 07 FF Sodium Lamp Auto

y0 50 08 FF Sodium Lamp CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit CAM_WDModeInq 8x 09 04 3D FF y0 50 01 FF On (RatioFix)

y0 50 04 FF On (Dver operation) CAM_WDParameterInq 8x 09 04 2D FF y0 50 00 0p 0q 0r 0s 0t 0u 00 00 FF p: Screen display

q: Detection sensitivity r: Blocked-up shadow correction level s: Blown-out highlight correction level tu: Exposure ratio of short exposure

CAM_WDAlarmReplyInq 8x 09 04 3B FF y0 50 02 FF On

y0 50 03 FF Off CAM_NRInq 8x 09 04 53 FF y0 50 0p FF p: NR level CAM_StabilizerModeInq 8x 09 04 34 FF y0 50 02 FF On

y0 50 03 FF Off

y0 50 00 FF Hold CAM_ExtLockInq 8x 09 04 55 FF y0 50 00 FF Internal Sync

y0 50 01 FF V-Phase Adjustment

y0 50 02 FF External Sync CAM_ColorEnhanceInq 8x 09 04 20 FF y0 50 mm nn pp qq rr ss tt uu FF mm: Threshold level

nn: Hysteresis width pp: Fixed color Y of high-intensity side qq: Fixed color Cr of high-intensity side rr: Fixed color Cb of high-intensity side ss: Fixed color Y of low-intensity side tt: Fixed color Cr of low-intensity side uu: Fixed color Cb of low-intensity side

8x 09 04 50 FF y0 50 02 FF On

y0 50 03 FF Off CAM_TempInq 8x 09 04 68 FF y0 50 00 00 0p 0p FF pq: Temperature * Lens temperature

Command List

Inquiry Command List (1/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF On

y0 50 03 FF Off CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On

y0 50 03 FF D-Zoom Off CAM_DZoomC/SModeInq 8x 09 04 36 FF y0 50 00 FF Combine Mode

y0 50 01 FF Separate Mode CAM_DZoomPosInq 8x 09 04 46 FF y0 50 00 00 0p 0q FF pq: D-Zoom Position CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF Auto Focus

y0 50 03 FF Manual Focus CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position CAM_FocusNearLimitInq 8x 09 04 28 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Near Limit Position CAM_AFSensitivityInq 8x 09 04 58 FF y0 50 02 FF AF Sensitivity Normal

y0 50 03 FF AF Sensitivity Low CAM_AFModeInq 8x 09 04 57 FF y0 50 00 FF Normal AF

y0 50 01 FF Interval AF

y0 50 02 FF Zoom Trigger AF CAM_AFTimeSettingInq 8x 09 04 27 FF y0 50 0p 0q 0r 0s FF pq: Movement Time, rs: Interval CAM_IRCorrectionInq 8x 09 04 11 FF y0 50 00 FF Standard

y0 50 01 FF IR Light CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF Auto

y0 50 01 FF In Door

y0 50 02 FF Out Door

y0 50 03 FF One Push WB

y0 50 04 FF ATW

y0 50 05 FF Manual

y0 50 06 FF Outdoor Auto

y0 50 07 FF Sodium Lamp Auto

y0 50 08 FF Sodium Lamp CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF Full Auto

y0 50 03 FF Manual

y0 50 0A FF Shutter Priority

y0 50 0B FF Iris Priority

y0 50 0D FF Bright CAM_SlowShutterModeInq 8x 09 04 5A FF y0 50 02 FF Auto

y0 50 03 FF Manual CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position CAM_GainPosInq 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq: Gain Position CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit CAM_BrightPosInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF On

y0 50 03 FF Off CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position CAM_BacklightModeInq 8x 09 04 33 FF y0 50 02 FF On

y0 50 03 FF Off

Command List

Inquiry Command List (2/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_SpotAEModeInq 8x 09 04 59 FF y0 50 02 FF On

y0 50 03 FF Off CAM_SpotAEPosInq 8x 09 04 29 FF y0 50 0p 0q 0r 0s FF pq: X position, rs: Y position CAM_AE_ResponseInq 8x 09 04 5D FF y0 50 pp FF pp: 01 to 20 (hex) CAM_WDModeInq 8x 09 04 3D FF y0 50 02 FF On Wide-D

y0 50 03 FF Off

y0 50 00 FF AutoOnOff

y0 50 01 FF On (RatioFix)

y0 50 04 FF On (Dver operation) CAM_WDParameterInq 8x 09 04 2D FF

CAM_WDAlarmReplyInq 8x 09 04 3B FF y0 50 02 FF On

CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain CAM_HRModeInq 8x 09 04 52 FF y0 50 02 FF On Hi-Resolution

CAM_LR_ReverseModeInq 8x 09 04 61 FF y0 50 02 FF On

CAM_FreezeModeInq 8x 09 04 62 FF y0 50 02 FF On

CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 00 FF Off

CAM_PictureFlipModeInq 8x 09 04 66 FF y0 50 02 FF On

CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On

CAM_AutoICRModeInq 8x 09 04 51 FF y0 50 02 FF On

CAM_AutoICRThresholdInq 8x 09 04 21 FF y0 50 00 00 0p 0q FF pq: ICR ON t OFF Threshold Level CAM_AutoICRAlarmReplyInq 8x 09 04 31 FF y0 50 02 FF On

CAM_StabilizerModeInq 8x 09 04 34 FF y0 50 02 FF On

CAM_DisplayModeInq 8x 09 04 15 FF y0 50 02 FF On

(8x 09 06 06 FF) y0 50 03 FF Off

CAM_MuteModeInq 8x 09 04 75 FF y0 50 02 FF On

CAM_PrivacyDisplayInq 8x 09 04 77 FF y0 50 pp pp pp pp FF pp pp pp pp: Mask Display (0:OFF, 1:ON)

y0 50 0p 0q 0r 0s 0t 0u 00 00 FF

y0 50 03 FF Off

y0 50 02 FF Neg.Art

y0 50 04 FF B&W

y0 50 03 FF Off

y0 50 00 FF Hold

y0 50 03 FF Off

p: Screen display q: Detection sensitivity r: Blocked-up shadow correction level s: Blown-out highlight correction level tu: Exposure ratio of short exposure

Command List

Inquiry Command List (3/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_PrivacyPanTiltInq 8x 09 04 79 FF y0 50 0p 0p 0p 0q 0q 0q FF ppp: Pan

qqq: Tilt

CAM_PrivacyPTZInq 8x 09 04 7B mm FF y0 50 0p 0p 0p 0q 0q 0q 0r 0r mm: Mask Settings

0r 0r FF ppp: Pan

qqq: Tilt

rrr: Zoom CAM_PrivacyMonitorInq 8x 09 04 6F FF y0 50 pp pp pp pp FF pp pp pp pp: Mask is displayed now. CAM_KeyLockInq 8x 09 04 17 FF y0 50 00 FF Off

y0 50 02 FF On CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID CAM_MemSaveInq 8x 09 04 23 0X FF y0 50 0p 0p 0q 0q FF X: 00 to 07 (Address)

ppqq: 0x0000 to 0xFFFF (Data)

CAM_ExtLockInq 8x 09 04 55 FF y0 50 00 FF Internal Sync

y0 50 01 FF V-Phase Adjustment

y0 50 02 FF External Sync CAM_VPhasePosInq 8x 09 04 45 FF y0 50 0p 0q 0r 0s FF pqrs: V-Phase Position CAM_VersionInq 8x 09 00 02 FF y0 50 00 20 mnpq: Model Code (04xx)

mn pq rs tu vw FF rstu: ROM version

vw: Socket Number (=02)

CAM_AlarmInq 8x 09 04 6B FF y0 50 02 FF On

y0 50 03 FF Off CAM_AlarmModeInq 8x 09 04 6C FF y0 50 pp FF pp: Alarm Mode CAM_AlarmDayNightLevelInq 8x 09 04 6D FF y0 50 0p 0p 0p

0q 0q 0q 0r 0r 0r FF

CAM_AlarmDetectLevelInq 8x 09 04 6E FF y0 50 01 FF Detection level “High”

y0 50 00 FF Detection level “Low” CAM_MDModeInq 8x 09 04 1B FF y0 50 02 FF On

y0 50 03 FF Off CAM_MDFunctionInq 8x 09 04 1C FF y0 50 0m 0n 0p 0q FF m: Display mode

CAM_MDWindowInq 8x 09 04 1D 0m FF y0 50 0p 0q 0r 0s FF m: Select Detection Frame (0, 1, 2, 3)

CAM_ContinuousZoomPos 8x 09 04 69 FF y0 50 02 FF On ReplyModeInq y0 50 03 FF Off CAM_ReplyIntervalTimeInq 8x 09 04 6A FF y0 50 00 00 0p 0p FF pp: Interval Time CAM_RegisterValueInq 8x 09 04 24 mm FF y0 50 0p 0p ff mm: Register No. (00 to 7F)

ppp: Day judgement level setting qqq: Night judgement level setting rrr: Current Automatic Exposure level setting

n: Detection Frame Set (0 to F) pq: Threshold Level (0 to FF) rs: Interval Time set (0 to FF)

p: Start Horizontal Position (00 to 0B) q: Start Vertical Position (00 to 07) r: Stop Horizontal Position (01 to 0C) s: Stop Vertical Position (01 to 08)

pp: Register Value (00 to FF)

Command List

Inquiry Command List (4/4)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_ColorEnhanceInq 8x 09 04 20 FF y0 50 mm nn pp qq rr ss tt uu FF mm: Threshold level

8x 09 04 50 FF y0 50 02 FF On

y0 50 03 FF Off CAM_TempInq 8x 09 04 68 FF y0 50 00 00 0p 0p FF pq: Temperature * Lens temperature

Command List

Block Inquiry Command List

Lens Control System Inquiry Commands.............. Command Packet 8x 09 7E 7E 00 FF

Byte Bit Comments

7 6 5 4

3 2 1 0 70 Completion Message (50h) 61 50 41

30 20 10 00 70 60 50 40

3 2 1 0 70 60 50 40

3 2 1 0

Destination Address

Source Address

Zoom Position (HH)

Zoom Position (HL)

Zoom Position (LH)

Zoom Position (LL)

Byte Bit Comments

70 60 50 40

3 2 1 0 70 60 50 40

3 2 1 0 70 60 50

40 3 2 1 0 70 60 50 40 3 2 1 0

Focus Near Limit (H)

Focus Near Limit (L)

Focus Position (HH)

Focus Position (HL)

Focus Position (LH)

Focus Position (LL)

Byte Bit Comments

70 60 50

40 30 20 10 00 70 60 5 DZoomMode 0: Combine

1: Separate 4 0: Normal 1: Interval 3 2: Zoom Trigger 2 AF Sensitivity 0: Slow

1: Normal 1 Digital Zoom 1:On 0:Off 0 Focus Mode 0:Manual 1:Auto 70 60 50 40 3 Low Contrast Detection 1: Yes

0: No 2 Camera Memory Recall

1: Executing 0: Stopped 1 Focus Command 1: Executing

0: Stopped 0 Zoom Command 1: Executing

0: Stopped 71 Terminator (FFh) 61 51 41 31 21 11 01

Command List

Camera Control System Inquiry Commands ......... Command Packet 8x 09 7E 7E 01 FF

Byte Bit Comments

7 6 5 4

3 2 1 0 70 Completion Message (50h) 61 50 41

30 20 10 00 70 60 50 40

3 2 1 0 70 60 50 40

3 2 1 0

Destination Address

Source Address

R Gain (H)

R Gain (L)

B Gain (H)

B Gain (L)

Byte Bit Comments

70 60 50 40

3 2 1 0 70 60 50 40

3 2 1 0 70 60 50 4

3 2 Exposure Mode 1 0 70 60 5 High-Resolution 1: On 0: Off 4

Wide-D (1: Other than Off,

0: Off) 3 Spot AE 1: On 0: Off 2 Back Light 1:On 0:Off 1 Exposure Comp. 1:On 0:Off 0 Slow Shutter 1:Auto 0:Manual 70 60 50 4 3 2 Shutter Position 1 0 70 60 50 4 3 2 Iris Position 1 0

WB Mode

Aperture Gain

Byte Bit Comments

70 60 50

40 3 2 1 0 70 60 50 4 3 2 Bright Position 1 0 70 60 50 40 3 2 1 0 71 Terminator (FFh) 61 51 41 31 21 11 01

Gain Position

Exposure Comp. Position

Command List

Other Inquiry Commands ........................................ Command Packet 8x 09 7E 7E 02 FF

Byte Bit Comments

7 6 5 4

3 2 1 0 70 Completion Message (50h) 61 50 41

30 20 10 00 70 60 50 40

3 Auto ICR Alarm (1: On, 0: Off) 2 Auto ICR 1: On 0: Off 1 Key Lock 1: On 0: Off 0 Power 1:On 0:Off 70 6 Stabilizer (1: On, 0: Off) 50 4 ICR 1: On 0: Off

3 Freeze 1:On 0:Off 2 LR Reverse 1:On 0:Off 10 00 70 60 5 Privacy Zone 1: On 0: Off 4 Mute 1: On 0: Off

3 Title Display 1: On 0: Off 2 Display 1: On 0: Off 10 00 70 60 50 40

30 2 1 Picture Effect Mode 0

Destination Address

Source Address

Byte Bit Comments

70 60 50 40

30 20 10 00 70 60 50 40

3 2 1 0 70 60 50 40

3 2 1 0 70 60 50

40 3 2 1 0 70 60 50 40 3 2 1 0

Camera ID (HH)

Camera ID (HL)

Camera ID (LH)

Camera ID (LL)

Byte Bit Comments

70 60 5 External Lock 1: Provided

0: Not provided

4 Memory 1: Provided 0: Not

provided

3 Clock 1: Provided 0: Not

provided

2 ICR 1: Provided 0: Not

provided

1 Stabilizer (1: Provided, 0: Not

provided) 0 System 1:PAL 0:NTSC 70 60 5 External Lock status (1: Lock,

0: Unlock) 4 External Lock Mode 1: Line

Lock 0: Internal 3 2 1 0 70 60 5 4 3 2 1 0 71 Terminator (FFh) 61 51 41 31 21 11 01

V-Phase (H)

V-Phase (L)

Command List

Enlargement Function1 Query Command ............. Command Packet 8x 09 7E 7E 03 FF

Byte Bit Comments

7 6

70 Completion Message (50h)

24 0

34 0

44 0

54 0

Destination Address

Source Address

Digital Zoom Position (H)

Digital Zoom Position (L)

AF Activation Time (H)

AF Activation Time (L)

Byte Bit Comments

70 60

2 MD (1: On, 0: Off)

1 Alarm (1: On, 0: Off)

0 Picture flip (1: On, 0: Off)

AF Interval Time (H)

AF Interval Time (L)

SpotAE Position (X)

SpotAE Position (Y)

Byte Bit Comments

2 Advanced Privacy

(1: Provided, 0: Not provided)

1 Alarm (1: Provided, 0: Not

provided)

0 Picture flip (1: Provided,

0: Not provided)

70 60

2 AE Response

1 NR Level

71 Terminator (FFh)

Gain Limit

Command List

Enlargement Function2 Query Command ............. Command Packet 8x 09 7E 7E 04 FF

Byte Bit Comments

7 6 5 4

3 2 1 0 70 Completion Message (50h) 61 50 41

30 20 10 00 70 60 50

24 0

30 2 WideD mode (0: OFF, 1: ON, 1 2: Auto ON/OFF, 3: ON 0 (RatioFIx), 4: ON (Dver)) 70 60 50

34 0

3 WideD screen display 2 0: Combined image

1 WideD detection sensitivity 0 0: L 1: M 2: H 70 60 50

44 0

3 2

1 0 70 60 50

54 0

3 2 WideD short exposure 1 Exposure ratio (H) 0

Destination Address

Source Address

1: Long/short division 2: Long-time 3: Short-time

WideD blocked-up shadow correction level 0: L 1: M 2: H 3: S WideD blown-out highlight correction level 0: L 1: M 2: H

Byte Bit Comments

70 60

2 WideD short exposure

1 Exposure ratio (L)

Byte Bit Comments

70 60

71 Terminator (FFh)

VISCA Command Setting Values

Command List

Exposure control (1/2)

NTSC (s) PAL (s)

Shutter Speed 15 1/10000 1/10000

14 1/6000 1/6000 13 1/4000 1/3500 12 1/3000 1/2500 11 1/2000 1/1750 10 1/1500 1/1250 0F 1/1000 1/1000 0E 1/725 1/600

0D 1/500 1/425

0C 1/350 1/300 0B 1/250 1/215

0A 1/180 1/150

09 1/125 1/120 08 1/100 1/100 07 1/90 1/75 06 1/60 1/50 05 1/30 1/25 04 1/15 1/12 03 1/8 1/6 02 1/4 1/3 01 1/2 1/2 00 1/1 1/1

Iris 11 F1.6

10 F2 0F F2.4 0E F2.8

0D F3.4

0C F4 0B F4.8

0A F5.6

09 F6.8 08 F8 07 F9.6 06 F11 05 F14 04 F16 03 F19 02 F22 01 F28 00 CLOSE

Gain 0F 28 dB

0E 26 dB 0D 24 dB 0C 22 dB 0B 20 dB 0A 18 dB 09 16 dB 08 14 dB 07 12 dB 06 10 dB 05 8 dB 04 6 dB 03 4 dB 02 +2 dB 01 0 00 –3 dB

Gain Limit 0F +28 dB

0E +26 dB 0D +24 dB 0C +22 dB 0B +20 dB 0A +18 dB 09 +16 dB 08 +14 dB 07 +12 dB 06 +10 dB 05 +8 dB 04 +6 dB

Command List

Exposure control (2/2)

IRIS GAIN

Bright 1F F1.6 28 dB

1E F1.6 26 dB 1D F1.6 24 dB 1C F1.6 22 dB 1B F1.6 20 dB 1A F1.6 18 dB

19 F1.6 16 dB

18 F1.6 14 dB

17 F1.6 12 dB

16 F1.6 10 dB

15 F1.6 8 dB

14 F1.6 6 dB

13 F1.6 4 dB

12 F1.6 2 dB

11 F1.6 0

10 F2 0

0F F2.4 0

0E F2.8 0 0D F3.4 0 0C F4 0 0B F4.8 0 0A F5.6 0

09 F6.8 0

08 F8 0

07 F9.6 0

06 F11 0

05 F14 0

04 F16 0

03 F19 0

02 F22 0

01 F28 0

00 CLOSE 0

Exposure Comp. 0E 7 10.5 dB

0D 6 9 dB 0C 5 7.5 dB 0B 4 6 dB 0A 3 4.5 dB

09 2 3 dB

08 1 1.5 dB

07 0 0 dB

06 –1 –1.5 dB

05 –2 –3 dB

04 –3 –4.5 dB

03 –4 –6 dB

02 –5 –7.5 dB

01 –6 –9 dB

00 –7 –10.5 dB

Zoom Ratio and Zoom Position (for reference)

Zoom Ratio Optical Zoom

×36 Lens Positon Data

×1 0000 ×2 166F ×3 1FF0 ×4 257D ×5 2940 ×6 2C02 ×7 2E2B ×8 2FEE

×9 316A ×10 32B2 ×11 33D4 ×12 34D9 ×13 35C8 ×14 36A4 ×15 3773 ×16 3836 ×17 38F0 ×18 39A0 ×19 3A49 ×20 3AE8 ×21 3B7F ×22 3C0C ×23 3C8E ×24 3D06 ×25 3D73 ×26 3DD4 ×27 3E2C ×28 3E7C ×29 3EC2 ×30 3F00 ×31 3F38 ×32 3F68 ×33 3F94 ×34 3FBD ×35 3FDF ×36 4000

Command List

Digital Zoom Combine mode

X12-NTSC/PAL

Digital Zoom Digital Zoom

Ratio Position Data

×1 4000 ×2 6000 ×3 6A80 ×4 7000 ×5 7300 ×6 7540 ×7 76C0 ×8 7800

×9 78C0 ×10 7980 ×11 7A00 ×12 7AC0

Digital Zoom Separate mode

X12-NTSC/PAL

Digital Zoom Digital Zoom

Ratio Position Data

×100

×280

×3AA

×4C0

×5CC

×6D5

×7DB

×8E0

×9E3 ×10 E6 ×11 E8 ×12 EB

Title setting

Line number 00 to 0A

H-position 00 to 17

Blink

Color 03 Red

00 01 02 03 04 05 06 07

AB CDE F G H

08 09 0a 0b 0c 0d 0e 0f

IJKLMNOP

10 11 12 13 14 15 16 17

QR S TUVWX

18 19 1a 1b 1c 1d 1e 1f

YZ & ? ! 1 2

20 21 22 23 24 25 26 27

34 5678 9 0

28 29 2a 2b 2c 2d 2e 2f

ÀÈ Ì ÒÙÁ É Í

30 31 32 33 34 35 36 37

ÓÚ ÂÊÔÆŒÃ

38 39 3a 3b 3c 3d 3e 3f

ÕÑ Ç ßÄ Ï ÖÜ

40 41 42 43 44 45 46 47

Å$

48 49 4a 4b 4c 4d 4e 4f

ø“ : ‘. , / -

¥DM£ ¿ ¡

00: Dose not blink

01: Blinks

00 White

01 Yellow

02 Violet

04 Cyan

05 Green

06 Blue

Lens control

Zoom Position

Focus Position

Focus Near Limit

0000 to 4000 to 7AC0

Wide end Optical Digital

Tele end Tele end

1000 to C000

Far end Near end

1000: Over Inf 2000: 20 m 3000: 10 m 4000: 5 m As the distance on the left 5000: 3 m will differ due to temperature 6000: 2 m characteristics, etc., use as 7000: 1.5 m approximate values. 8000: 32 cm * The lower 1 byte is fixed at 9000: 9.5 cm 00. A000: 4.5 cm B000: 2 cm C000: 1 cm

Temperature Reading Conversion Value (Reference Value)

Reading Value Temperature

pq (hex) Conversion

Value (ºC)

00 –3 to 3

0A 7 to 13

14 17 to 23

1E 27 to 33

28 37 to 43

32 47 to 53

3C 57 to 63

Command List

VISCA 00 9600 bps Baud Rate

OSD Language

CCD Scanning 72 00 Interlaced Mode

Digital Output 73 00 60p/50p Mode * Enabled when Clock rate: the CCD 56 MHz

Zoom Limit

E-Zoom Max

StableZoom 53 00 OFF

FocusTrace 54 00 OFF @ZoomDirect FocusOffset 55 00-FF 00: None to @DomeCover FF: Max.

Scanning Mode is Progressive.

00 01 19200 bps

02 38400 bps

00 English 03 Chinese

01 Progressive

(30p/25p × 2)

01 60p/50p

Clock rate: 56 MHz

04 30p/25p

Clock rate: 28 MHz (Stop analog output)

50 00-FF Wide Limit

(0: Disabled)

51 00-FF Tele Limit

(0: Disabled)

52 00-FF Max. digital

zoom ratio = 256 ÷ (256-Value)

01 ON

Others

AF Active Time

AF Interval Time

Spot AE X position 00 to 0F

Spot AE Y position 00 to 0F

R Gain 00 to FF

B Gain 00 to FF

Aperture Level 00 to 0F

NR Level 00 to 05

V-Phase 00 to

AE Response 01 to 30 AutoICR ON t

OFF Threshold Level

MD Threshold Level 00 to FF

MD Interval Time

MD Set Horizontal Position 00 to 0C

MD Set Vertical Position 00 to 08

Color Enhancement Threshold Level

Color Enhancement Hysteresis Width

Color Enhancement Fixed Color Y

Color Enhancement Fixed Color Cr

Color Enhancement Fixed Color Cb

Unit: One second

40 center

00 to FF

020C (NTSC)

0270 (PAL)

00 to 1C

00 to FF

00 to 7F

The register settings are enabled when the power is turned off and then back on again. After turning the power back on again, verify that the mode settings have been changed.

Specifications

Picture elements FCB-EX1020: Approx. 380K pixels

FCB-EX1020P: Approx. 440K pixels

Horizontal resolution

550 TV lines (WIDE end)

Lens 36× zoom

F= 3.4 mm (WIDE) to 122.4 mm

(TELE), F1.6 to F4.5 Zoom movement speed (NTSC) Optical WIDE/Optical TELE

4.0 sec (Focus Tracking ON)

2.7 sec (Focus Tracking OFF) Optical WIDE/Digital TELE 6.0 sec Digital WIDE/Digital TELE 2.1 sec (PAL) Optical WIDE/Optical TELE

4.0 sec (Focus Tracking ON)

2.7 sec (Focus Tracking OFF) Optical WIDE/Digital TELE 6.2 sec Digital WIDE/Digital TELE 2.3 sec Focus Movement time ∞ to Near 1.0 sec

Digital zoom 12× (432× with optical zoom) Angle of view (H)

Approx. 57.8 degree (WIDE end) to

Approx. 1.7 degree (TELE end)

Min. working distance

320 mm (WIDE end), 1500 mm

(TELE end) Sync system Internal/External (V-Lock) Min. illumination (Interlace mode) 1.4 lux/1/60 sec (NTSC), 1/50 sec

(PAL) (Typical value)

0.1 lux/1/4 sec (NTSC), 1/3 sec (PAL) (Typical value)

ICR-ON Mode

0.01 lux/1/4 sec (NTSC), 1/3 sec (PAL)

Recommended illumination

100 to 100,000 lux S/N ratio 50 dB (Weight ON) Back light compensation

ON/OFF

Electronic shutter speed

FCB-EX1020: 1/4 to

1/10000 sec. (20 steps)

FCB-EX1020P: 1/3 to

1/10000 sec. (20 steps)

White balance AUTO, ATW, Indoor, Outdoor,

One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto)

Gain Auto/Manual (–3 dB to +28 dB,

16 steps)

Max. Gain Limit (6 dB to 28 dB,

12 steps)

Wide dynamic range

ON/OFF/AUTO

3D noise reduction

ON/OFF (level 5 to 1 / OFF,

6 steps) Image Stabilizer ON/OFF/HOLD Color Enhancement

ON/OFF Aperture control 16 steps Preset 6-POSITIONS Serial interface VISCA protocol (TTL/CMOS)

9.6 Kbps, 19.2 Kbps, 38.4 Kbps, Stop bit, 1/2 bit

Video Output VBS: 1.0 Vp-p (Sync negative),

Y/C Output

Digital (ITU-R BT656 equiv.)

Progressive/Interlace

Storage temperature/Humidity

–20 °C to +60 °C (–4 °F to +140 °F)/

20% to 95%

Operating temperature/Humidity

–5 °C to +60 °C (32 °F to +122 °F)/

20% to 80%

Power requirements/Power consumption

6 to 12 V DC/2.4 W (5.1 W)

Weight Approx. 230 g (8.1 oz.) Dimensions 50.0 × 57.5 × 87.9 mm

Design and specifications are subject to change without notice.

(2 × 2

/8 × 3 1/2 in.) (w/h/d)

Specifications

Digital Output Function

Operation Mode Digital Output (ITU-R BT656 equiv.)

Interlace FCB-EX1020/P: 60i/50i, clock rate: 28 MHz Interlace WD Progressive FCB-EX1020/P: 60p/50p, clock rate: 56 MHz

FCB-EX1020/P: 60p/50p (30p/25p × 2), clock rate: 56 MHz

FCB-EX1020/P: 30p/25p, clock rate: 28 MHz

Progressive WD FCB-EX1020/P: 60p/50p (30p/25p × 2), clock rate: 56 MHz

FCB-EX1020/P: 30p/25p, clock rate: 28 MHz

Slow shutter is not available in the Interlace WD or Progressive WD mode.

Digital Output Characteristics

DC characteristics

ITEM SIGN Rating Value UNIT

MIN MAX

Output voltage Digtal Signal out [7] - [0] VOH1 2.58 V

Digital Clock

VOL1 0.4 V

AC characteristics

MODEL MODE ITEM SIGN Typ

FCB-EX1020 (NTSC) Interlace Clock cycle period tcyc (ns) 35.2

Data output setup time tsu (ns) 13.5

Data output hold time thd (ns) 18.5

Progressive Clock cycle period tcyc (ns) 17.6

Data output setup time tsu (ns) 12.5

Data output hold time thd (ns) 2.5

FCB-EX1020P (PAL) Interlace Clock cycle period tcyc (ns) 35.2

Data output setup time tsu (ns) 14.6

Data output hold time thd (ns) 18.5

Progressive Clock cycle period tcyc (ns) 17.4

Data output setup time tsu (ns) 5.5

Data output hold time thd (ns) 9.5

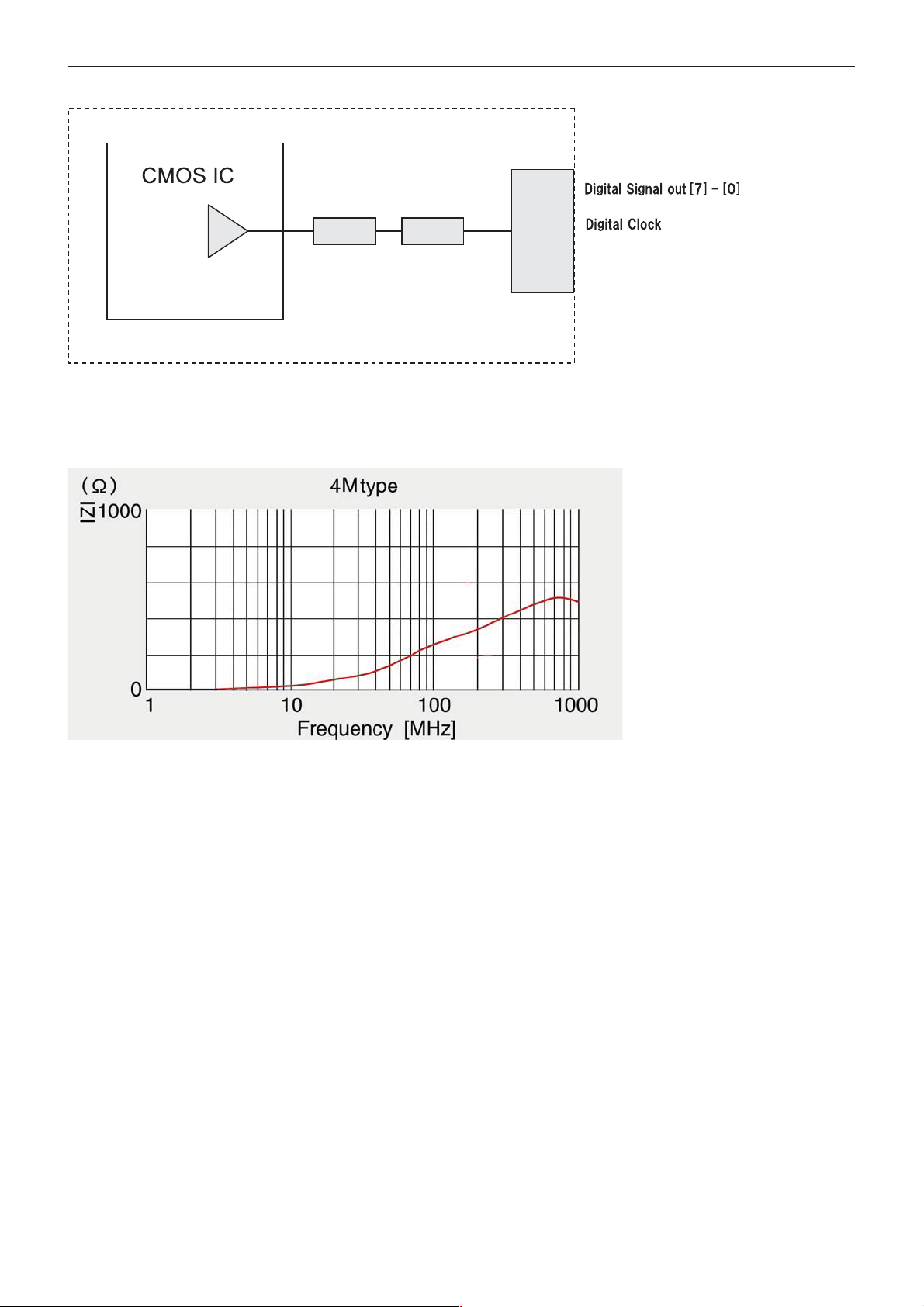

FCB Interior – Digital Output

Specifications

Resistance

Ferrite Beads

Product number: BK20104M241-T (Taiyo Yuden)

Impedance Frequency Characteristics (Reference)

Connector

FCB-EX1020P Digital Output Timing [50p mode]

Specifications

Horizontal

CLK [56.75 MHz]

Data out [0-7]

Vertical

Data out [0-7]

4CLK

SAV

24H

BLK

Cb0

4CLK

BLK

1504CLK Effective pixel

Cr0

Cb1

1H = 1816CLK

Cr1

582H Effective line

625H

4CLK

BLK

4CLK

EAV

BLK : Black data (Y 10, Cb/Cr 80)

BLK

304CLK

BLK

19H2H BLK

FCB-EX1020P Digital Output Timing [25p mode]

Horizontal

4CLK

SAV

CLK [28.375 MHz]

Data out [0-7]

Vertical

24H

BLK

Data out [0-7]

1H = 1816CLK

4CLK 4CLK

1504CLK Effective pixel

BLK BLK

Cr0

Cb0

Cb1

Cr1

625H

582H Effective line

4CLK

EAV

BLK

304CLK

BLK

19H BLK

BLK : Black data (Y 10, Cb/Cr 80)

FCB-EX1020 Digital Output Timing [60p mode]

Specifications

Horizontal

CLK [57.2727 MHz]

Data out [0-7]

Vertical

Data out [0-7]

4CLK

SAV

20H BLK

Cb0

4CLK

BLK

1536CLK Effective pixel

Cr0

Cb1

1H = 1820CLK

Cr1

494H Effective line

525H

4CLK

BLK

4CLK

EAV

BLK : Black data (Y 10, Cb/Cr 80)

BLK

276CLK

BLK

11H BLK

FCB-EX1020 Digital Output Timing [30p mode]

Horizontal

4CLK

SAV

CLK [28.6363 MHz]

Data out [0-7]

Vertical

20H BLK

Data out [0-7]

Cb0

4CLK

BLK

1536CLK Effective pixel

Cr0

Cb1

1H = 1820CLK

Cr1

494H Effective line

4CLK

BLK

4CLK 276CLK

EAV

BLK

525H

BLK

11H BLK

BLK : Black data (Y 10, Cb/Cr 80)

FCB-EX1020 Digital Output Timing [60i mode]

Specifications

Horizontal

CLK [28.6363 MHz]

Data out [0-7]

Vertical

Data out [0-7]

FLD2

1H = 1820CLK

4CLK

SAV

Cb0

4CLK

BLK

Cr0

1536CLK Effective pixel

Cb1

Cr1

4CLK

BLK

4CLK

EAV

276CLK

BLK

FLD1 ODD LINE FLD2 EVEN LINE

13H

BLKBLK BLK

247H Effective line

3H 13H

BLK BLK

247H Effective line

BLK : Black data (Y 10, Cb/Cr 80)

BLKBLK

FCB-EX1020P Digital Output Timing [50i mode]

Horizontal

4CLK

SAV

CLK [28.375 MHz]

Data out [0-7]

Vertical

Data out [0-7]

FLD2

BLK

19H

BLK

1H = 1816CLK

1504CLK Effective pixel

Cb1

Cr1

4CLK

BLK

4CLK

EAV

Cb0

4CLK

BLK

Cr0

FLD1 ODD LINE FLD2 EVEN LINE

291H Effective line

BLK3HBLK

19H

BLK

291H Effective line

304CLK

BLK

2H1H

BLKBLK

BLK : Black data (Y 10, Cb/Cr 80)

DIGITAL Image Output Y, Cr, Cb 4:2:2 FORMAT

Specifications

Dimensions

Front Left side

Specifications

CN702

ø38.6

(27.5)30

57.5

±0.1

20 ±0.1

Top Right side

87.9

2.5

48.3

±0.1

2-M2

4.5

36.5

22.5

20 ±0.1 28 ±0.1

Within a depth of 3 mm (

CN200

"D"Mark

9-M2

Within a depth of 3 mm

(

/8 in.) or less form the

side

/8 in.) or less form the side

85.2

ø34.016

21 ±0.1

(57.5)

25.4 ±0.1

14 ±0.1

73 ±0.1

4-M2

Within a depth of 3 mm ( or less form the top surface

/8 in.)

Bottom Back

1/4-20UNC

Within a depth of 7 mm ( less form the bottom surface

27 ±0.1

16 ±0.1

(Tripod screw for camera)

/32 in.) or

1453

8-M2

Within a depth of 3 mm ( or less form the bottom surface

/8 in.)

CN501

CN500

9.5

7.5

36 29

±0.1

40.2 33 ±0.1

Unit: mm (inches)

Specifications

Pin assignment

Frequency: 60 Hz ±1 Hz (FCB-EX1020)

50 Hz ±1 Hz (FCB-EX1020P)

Amplitude: 3 V ±0.5 V square wave (50% duty)

CMOS level

V Phase Adjustment Range: 0° to 360° from V SYNC

falling edge

Recommended Input Waveform

CN500

J.S.T. Mfg Co. S4B-ZR-SM4A-TF(LF)

Pin No. Name Level

1 Y_Out 2 GND (for Y signal) 3 C_Out 4 GND (for C signal)

CN501

KYOCERA ELCO Co. 00 6200 509 130 000+

Pin No. Name Level

1 RxD CMOS 5 V (low: max 0.8 V,

high: min 2.0 V) Read Data

2 TxD CMOS 5 V (low: max 0.1 V,

high: min 4.4 V) Send Data 3 GND (for RxD&TxD) 4 DC IN 9.0 V±3 V 5 GND (for DC IN) 6 VBS OUT 1.0 V±0.2 V 7 GND (for VBS OUT) 8V LOCK PULSE External VD-Lock Pulse

(EX.FV: Negative, 3 Vp-p

50% duty) 9 GND (VL PULSE)

CN702

KYOCERA ELCO Co. 086222012101848+

Pin No. Name Level

1 GND 2 GND 3 KEY AD0 4 KEY AD1 5 KEY AD2 6 KEY AD3 7 KEY AD4 8 KEY AD5

9 KEY AD6 10 KEY AD7 11 NC 12 Strobe

CN200

KYOCERA ELCO Co. 086222012101848+

Pin No. Name Level

1 GND 2 Digital Out 0 0 - 3.3 Vp-p 3 Digital Out 1 0 - 3.3 Vp-p 4 Digital Out 2 0 - 3.3 Vp-p 5 Digital Out 3 0 - 3.3 Vp-p 6 Digital Out 4 0 - 3.3 Vp-p 7 Digital Out 5 0 - 3.3 Vp-p 8 Digital Out 6 0 - 3.3 Vp-p

9 Digital Out 7 0 - 3.3 Vp-p 10 GND 11 CLOCK 0 - 3.3 Vp-p 12 GND

Note

Image noise may occur when using digital output. Take measures such as attaching a ferrite core to the FFC as needed. The recommended maximum FFC length is 150 mm.

Specifications

Strobe signal specifications

Sony FCB-EX980S, FCB-EX1020, FCB-EX980SP, FCB-EX980, FCB-EX980P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
