Sony FCB-EH3300, FCB-EH3400, FCB-EH6300 Brochure

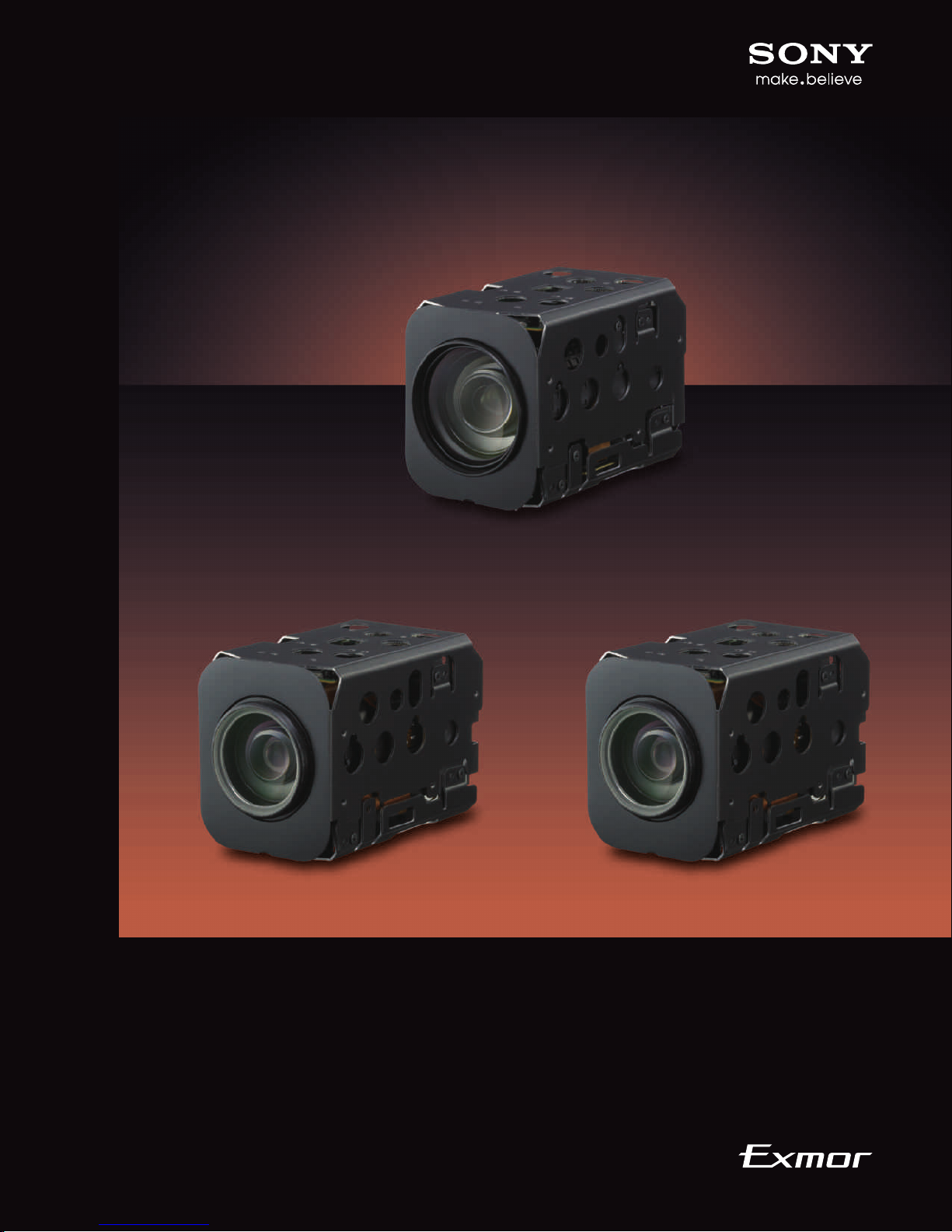

FCB-EH6300

FCB-EH3400 FCB-EH3300

FCB-EH Series

High Definition Color Block Cameras

INTRODUCTION

Sony, a leader in high-definition (HD) technology, is expanding its FCB Block Camera Series with the
addition of three new HD resolution cameras. In response to the growing demand for high-quality and
high-resolution images that only HD can offer, the FCB- EH Series offers a range of 20x to 28x optical zoom
lens options with outstanding features for surveillance, intelligent traffic, unmanned vehicles, photo
booths, police vehicles, low vision and videoconferencing applications.

The flagship FCB-EH6300 camera incorporates a 1/2.8-type Exmor™ CMOS image sensor with 1080p
resolution. The FCB-EH3400 and FCB-EH3300 cameras incorporate a 1/4-type Exmor CMOS image sensor
with 720p resolution. All three cameras inherit a multitude of features from Sony’s world-renowned FCB
Series such as Wide-D, Auto ICR and Spherical Privacy Zone Masking. With this breadth of choices, it has
never been easier to select the right Sony camera for your specific imaging applications.

FCB-EH6300 FCB-EH3400 FCB-EH3300

Imager sensor 1/2.8-type 1/4 - ty p e 1/4 - ty p e
Lens 20x 28x 20x
Picture Quality Full HD 1080p (1920 x 1080) HD 720p (1280 x 720)
Minimum illumination* 0.5 lx (F1.6, 50%) 0.25 lx (F1.35, 50%)
Digital zoom 12x (240x with optical zoom) 12x (336x with optical zoom) 12x (240x with optical zoom)
Wide-D (Wide dinamic range)
Image stabilization
StableZoom
Auto ICR (Auto IR-cut Filter Removal)
Spherical privacy zone masking
Noise reduction
Slow AE response

* High sensitivity mode

l l l

l

l

l l l

l l l

l l l

l l l

KEY FEATURES

Excellent high-definition (HD) picture quality

The Exmor CMOS sensor realizes high image
quality and high sensitivity

Powerful zoom capability

Bright, fast and robust 28x zoom lens

The FCB-EH3400 incorporates a new 28x bright zoom lens with
f=1.35. This lens has a fast zooming capability (approx. 2.6
seconds from tele end to wide end) and high durability.

Various output modes

n HD

Analog: Component (Y/Pb/Pr)
Digital: Y/Cb/Cr 4:2:2 via LVDS (Y: 8-bit, C: 8-bit, V-sync,

H-sync, Field and Clock)

n SD

VBS

Simple connection - one cable, one connector

• Covering video, VISCA communication and power supply

with a single cable.

• Supports both 30-pin micro coaxial (digital and analog

output) and 24-pin FFC (analog output only) interfaces.

Image Stabilization*

The FCB-EH3400 is equipped with an image-stabilization
function which minimizes the appearance of shaky images
caused by low-frequency vibration. This function is useful for
outdoor surveillance and traffic monitoring applications.

* When image stabilization is activated, residual movement may

appear at the top and bottom of the image.

StableZoom™ Mode

The FCB-EH3400 adopts a new method of image stabilization

by using the digital zoom. In StableZoom mode, this function

starts naturally without bringing an abrupt change to the
horizontal angle of view.

2

Video Mode Change on The Fly

Other Features

Without any power cycle, it is possible to change the video
mode from 1080p/29.97 mode to 720p/59.94 mode for
example.

Security-oriented functions include:

• Wide-D technology (On/Off/Auto/Ratio fix)

• Day/Night function (On/Off/Auto/Threshold enabled)

• Digital noise reduction (Up to 5 levels)

• Spherical privacy zone masking (24 zones with various PTZ

controls)

• Motion detection alarm (4 zones with several triggering and

threshold modes)

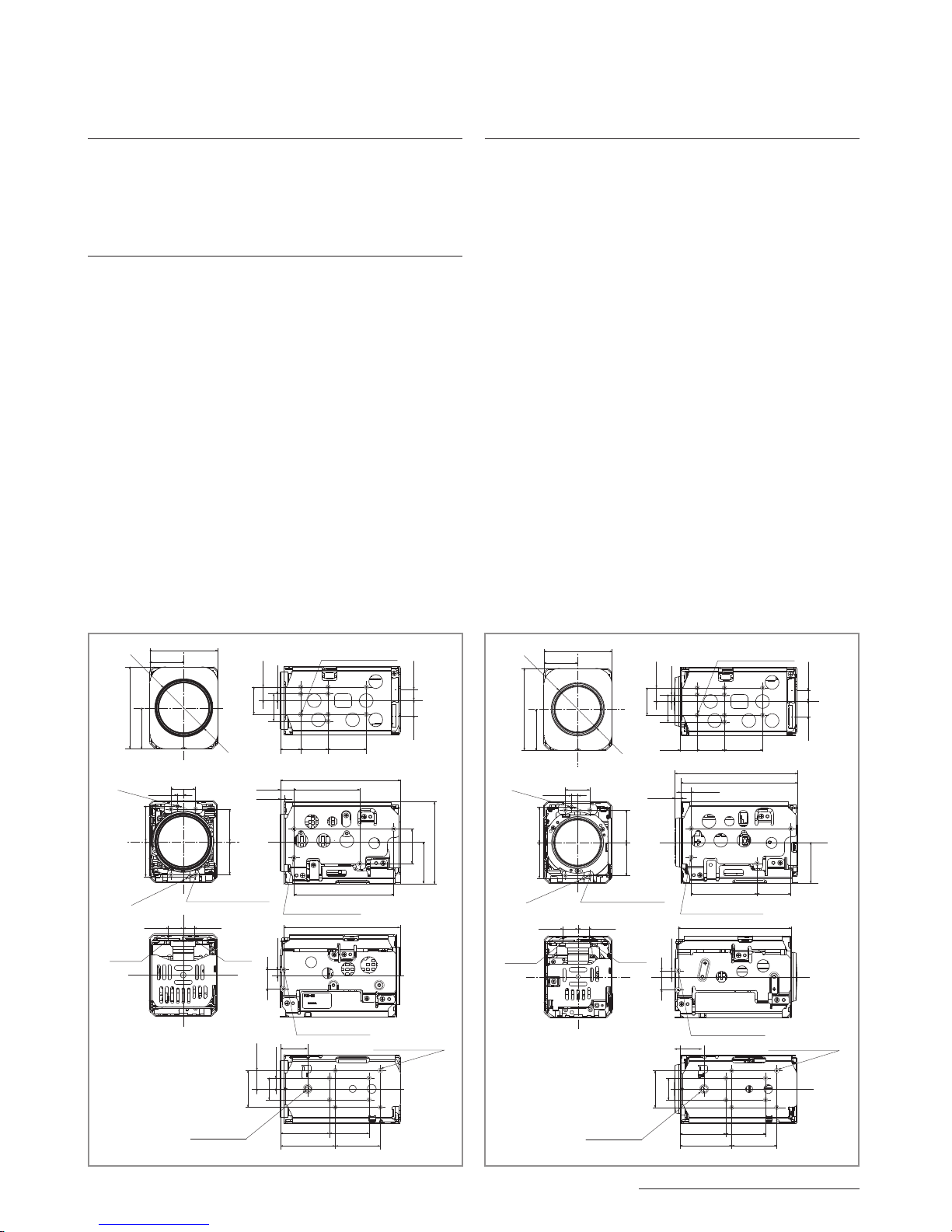

DIMENSIONS

l Various modes for White Balance

(Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor

Lamp Fix/Auto, One-push, Manual)

l Picture effects

(E-Flip, Nega Art, Black & White, Mirror Image, Color

Enhancement)

l Picture freeze
l Temperature readout

l Slow AE response (Approx. 5 min.)
l Title display (20 characters per line, max. 11 lines)
l Camera mode display (English)
l Electronic shutter/slow shutter

l Spot AE

l High Sensitivity Mode

l IR Focus Correction Function
l 4 Levels of Chrominance Suppression

FCB-EH6300 FCB-EH3400/FCB-EH3300

Front

ø41.8

/8 (60)

3

2

/16 (30)

3

1

Front
(without panel)

ø2.4 Hole

3

/16 (4.5)

/16 (26)1

1

1

/16 (26)

1

ø2.4 Hole

7

/16 (11)

Rear

CN601 30P

Unit: inches (mm)

1 (25)

23

2 (50)

/32 (18)

/16 (23.7)

15

/32 (24.2)

31

4-M2

1

Depth of

/8 in (3 mm) or less

11

/32 (8)

CN501 24P

Tripod Screw
Depth of 1/4 in or less
(5 mm - 20UNC)

1

13

/8 (27)
1

Top

/16 (20±0.1)

Right

13

Left

Bottom

/16 (13.5)

9

13

1

/8 (2.9)

/32 (10)

/32 (10)

/16 (14±0.1)

9

21

/32 (5)

9

/16 (20±0.1)

13

/16 (4.5)

3

/32 (8)

11

/32 (16)

9-M2
Depth of

19

13

/32 (15)

/16 (20±0.1)

15

1

/16 (48.3±0.1)

2 7/8 (73±0.1)

3-M2

1

Depth of

/8 in (3 mm) or less

3

2-M2

1

/8 in (3 mm) or less

Depth of

13

/13 (20)

7

1

/16 (36) 1 3/16 (29±0.1)

11

1

/16 (40.2) 1 5/16 (33±0.1)

1 1/8 (28±0.1)

1

/2 (87.9)

3

3

/8 (85.2)

1

/8 in (3 mm) or less

8-M2
Depth of

/32 (8)

11

/16 (11)

7

1 (25.4±0.1)

/16 (30)

3

1

1

/8 in (3 mm) or less

Front

/8 (60)

3

2

Front
(without panel)

ø2.4 Hole

/8 (60)

3

2

Rear

CN601 30P

Unit: inches (mm)

ø41.8

/16 (30)

3

1

1

1

ø2.4 Hole

/16 (26)1
1

/16 (26)

3

7

/16 (11)

/16 (4.5)

1 (25)

23

2 (50)

/32 (18)

/16 (23.7)

15

/32 (24.2)

31

4-M2

1

Depth of

/8 in (3 mm) or less

11

/32 (8)

CN501 24P

Tripod Screw
Depth of 1/4 in or less
(5 mm - 20UNC)

13

/16 (20)

Top

/32 (10)

13

Right

11

/64 (4.3)

Left

/16 (14±0.1)

9

Bottom

/8 (27)

1

1

1

/16 (20)

13

/2 (12.6)

/32 (16)

21

/32 (5)

9

/16 (4.5)

3

23

13

/16 (20)

19

/64 (7.6)

1 15/16 (48.3) 1 (24.7)

4-M2

1

Depth of

/8 in (3 mm) or less

2-M2
Depth of

/32 (17.5)

3

/8 (33.5) 1 3/16 (29)

1

1

1

/2 (37.7) 1 5/16 (33)

9-M2

1

Depth of

1 1/8 (28)

5

/8 (89.7)

3

3

3

/8 (85.5)

3

3

/8 (82.7)

1

/8 in (3 mm) or less

/8 in (3 mm) or less

8-M2
Depth of

/32 (8)

11

/16 (11)

7

/16 (30)

3

1

1

/8 in (3 mm) or less

3

SPECIFICATIONS PIN ASSIGNMENTS

Camera


Type 1/2.8-type Exmor CMOS 1/4-type Exmor CMOS 1/4-type Exmor CMOS

sensor

Number of

effective pixels
Image size (H x V) 1920 x 1080, 1280 x 720, 720 x 480, 720 x 576 1280 x 720, 720 x 480, 720 x 576 1280 x 720, 720 x 480, 720 x 576
Lens 20x optical zoom 28x optical zoom 20x optical zoom

Digital zoom 12x (240x with optical zoom) 12x (336x with optical zoom) 12x (240x with optical zoom)
Angle of

1080p mode 55.4°(wide end) to 2.9°(tele end) – –
view (H)

720p mode 37.6°(wide end) to 2.0°(tele end) 55.9°(wide end) to 2.1°(tele end) 55.9°(wide end) to 2.9°(tele end)
Minimum object distance 10 mm (wide end) to 1,000 mm (tele end)

Sync system Internal Internal Internal
Minimum

High sensitivity
illumination

mode
(50%)

Normal mode 1.7 lx (F1.6, ICR off)

Recommended illumination 100 lx to 100,000 lx 100 lx to 100,000 lx 100 lx to 100,000 lx
S/N ratio More than 50 dB More than 50 dB More than 50 dB
Signal

HD 1080p/29.97, 1080p/25,
system

SD NTSC, PAL NTSC, PAL NTSC, PAL
Video

HD Analog: Component (Y/Pb/Pr)
output

SD VBS VBS VBS
Camera control interface VISCA (CMOS 5 V level)

Electronic shutter speed 1/1 to 1/10,000 s, total 22 steps 1/1 to 1/10,000 s, total 22 steps 1/1 to 1/10,000 s, total 22 steps
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto,

Gain Auto/Manual (-3 dB to +28 dB, +2 dB step/total

AE control Auto, Manual, Priority mode (shutter priority & iris

Focusing system Auto (Sensitivity: normal, low), One-push AF,

EV compensation No No No
Backlight compensation Yes Ye s Yes
Aperture control 16 steps 16 steps 16 steps
Preset 6 positions 6 positions 6 positions

Camera Features

Wide-D (*) Yes (On/Off/Auto) ** Yes (On/Off/Auto) Yes (On/Off/Auto)
Image stabilization No Ye s No
StableZoom No Yes (33x) No
Digital output Yes Yes Ye s
Auto ICR Ye s Yes Yes
Spherical privacy zone masking Yes Ye s Ye s
Noise reduction Yes (On/Off) (Level 5 to 1/Off total 6 steps) Yes (On/Off) (Level 5 to 1/Off total 6 steps) Yes (On/Off) (Level 5 to 1/Off total 6 steps)
Motion detection Yes Ye s Ye s
Alarm Yes Yes Ye s
Slow AE response Yes (Approx. 5 minutes) Yes (Approx. 5 minutes) Yes (Approx. 5 minutes)
Picture effects Yes (E-Flip, Nega Art, Black & White, Mirror

Picture freeze Yes Yes Yes
Slow shutter Ye s Ye s Ye s
Temperature readout Yes Ye s Ye s
Title display Yes (20 characters/line, max. 11 lines) Yes (20 characters/line, max. 11 lines) Yes (20 characters/line, max. 11 lines)
Camera mode display Yes Yes Ye s
Key switch control No No No
Camera operation switch No No No

General

Storage temperature -4˚F to +140˚F (-20°C to +60°C) -4˚F to +140˚F (-20°C to +60°C) -4˚F to +140˚F (-20°C to +60°C)
Storage humidity 20% to 95% 20% to 95% 20% to 95%
Operating temperature 23˚F to +140˚F (-5°C to +60°C) 23˚F to +140˚F (-5°C to +60°C) 23˚F to +140˚F (-5°C to +60°C)
Operating humidity 20% to 80% 20% to 80% 20% to 80%
Power requirements 6.0 V to 12.0 V DC 6.0 V to 12.0 V DC 6.0 V to 12.0 V DC
Power consumption 3.2 W (zoom/focus inactive) / 3.8 W (zoom/

Weight 9.2 oz (260 g) 8.5 oz (240 g) 8.5 oz (240 g)
Dimensions (W x H x D) 2 x 2 3/8 x 3 1/2 inches (50.0 x 60.0 x 87.9 mm) 2 x 2 3/8 x 3 5/8 inches (50.0 x 60.0 x 89.7 mm) 2 x 2 3/8 x 3 5/8 inches (50.0 x 60.0 x 89.7 mm)

* Wide dynamic range
** Half frame rate at Off mode

FCB-EH6300 FCB-EH3400 FCB-EH3300

Approx. 3.27 Megapixels Approx. 1.43 Megapixels Approx. 1.43 Megapixels

f=4.7 mm (wide) to 94.0 mm (tele) f=3.5 mm (wide) to 98.0 mm (tele) f=3.5 mm (wide) to 70.0 mm (tele)
F1.6 to F3.5 F1.35 to F3.7 F1.35 to F3.4

(Default: 300 mm)

0.5 lx (F1.6, ICR off)

0.095 lx (F1.6, ICR on)

0.3 lx (F1.6, ICR on)

1080i/59.94 (Frame out: 29.97 PsF), 1080i/50
(Fram out: 25 PsF)
720p/59.94, 720p/50, 720p/29.97, 720p/25

Digital: Y/Cb/Cr 4:2:2 via LVDS
(Signal format conforms to SMPTE274/
SMPTE296.)

Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps
Stop bit: 1 bit

Sodium Vapor Lamp (Fix/Auto), One-push,
Manual

16 steps)
Max. Gain Limit (+6 dB to +28 dB, +2 dB step/
total 12 stpes)

priority),
Bright, EV compensation, Slow AE

Manual, Infinity
Interval AF, Zoom Trigger AF, Focus compensation
in ICR on

image, Color enhancement)

focus active)

10 mm (wide end) to 1,500 mm (tele end)
(Default: 300 mm)

0.25 lx (F1.35, ICR off)

0.03 lx (F1.35, ICR on)

1.0 lx (F1.35, ICR off)

0.1 lx (F1.35, ICR on)

720p/59.94, 720p/50, 720p/29.97, 720p/25 720p/59.94, 720p/50, 720p/29.97, 720p/25

Analog: Component (Y/Pb/Pr)
Digital: Y/Cb/Cr 4:2:2 via LVDS
(Signal format conforms to SMPTE296.)

VISCA (CMOS 5 V level)
Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps
Stop bit: 1 bit

Auto, ATW, Indoor, Outdoor, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto), One-push,
Manual
Auto/Manual (-3 dB to +28 dB, +2 dB step/total
16 steps)
Max. Gain Limit (+6 dB to +28 dB, +2 dB step/
total 12 stpes)
Auto, Manual, Priority mode (shutter priority & iris
priority),
Bright, EV compensation, Slow AE
Auto (Sensitivity: normal, low), One-push AF,
Manual, Infinity
Interval AF, Zoom Trigger AF, Focus compensation
in ICR on

Yes (E-Flip, Nega Art, Black & White, Mirror
image, Color enhancement)

2.7 W (zoom/focus inactive) / 3.4 W (zoom/
focus active)

10 mm (wide end) to 1,500 mm (tele end)
(Default: 300 mm)

0.25 lx (F1.35, ICR off)

0.03 lx (F1.35, ICR on)

1.0 lx (F1.35, ICR off)

0.1 lx (F1.35, ICR on)

Analog: Component (Y/Pb/Pr)
Digital: Y/Cb/Cr 4:2:2 via LVDS
(Signal format conforms to SMPTE296.)

VISCA (CMOS 5 V level)
Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps
Stop bit: 1 bit

Auto, ATW, Indoor, Outdoor, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto), One-push,
Manual
Auto/Manual (-3 dB to +28 dB, +2 dB step/total
16 steps)
Max. Gain Limit (+6 dB to +28 dB, +2 dB step/
total 12 stpes)
Auto, Manual, Priority mode (shutter priority & iris
priority),
Bright, EV compensation, Slow AE
Auto (Sensitivity: normal, low), One-push AF,
Manual, Infinity
Interval AF, Zoom Trigger AF, Focus compensation
in ICR on

Yes (E-Flip, Nega Art, Black & White, Mirror
image, Color enhancement)

2.7 W (zoom/focus inactive) / 3.4 W (zoom/
focus active)

CN601 30-pin Micro Coaxial

(for power supply/communication/video out (analog/digital)

Pin No. Name Level

1 TXOUT3+
2 TXOUT3­3 TXCL KOUT+
4 TXCLKOU T­5 TXOU T2+
6 TXOUT2­7 TXO UT1+
8 TXOU T1-

9 TXOUT0+
10 TXOUT0­11 GND
12 TxD CMOS 5 V (Low: M ax. 0.1 V,

13 RxD CMOS 5 V ( Low: Max. 0.8 V,

14 DC IN 6 to 12 V DC
15 DC IN 6 to 12 V DC
16 DC IN 6 to 12 V DC
17 DC IN 6 to 12 V DC
18 DC IN 6 to 12 V DC
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 NC
26 RESET IN RESET: Low (GND)

27 VBS OUT
28 Y OUT HD Analog Component
29 Pb OUT HD Analog Component
30 Pr OUT HD Analog Component

Connec tor: USL00-30 L-C (KEL C orp.)

CN501 24-pin FFC

(for power supply/communication/video out (analog)

Pin No. Name Level

1 GND

2 TxD CMOS 5 V (Low: Max. 0.1 V,

3 RxD CMOS 5 V (Low: Ma x. 0.8 V,

4 RESET IN RESET: Low (GND)

5 GND

6 NC

7 GND

8 NC

9 GND

10 VBS OUT

11 GND

12 Y OUT HD Analog Component

13 GND

14 Pb OUT HD Analog Component
15 GND
16 Pr OUT HD Analog Component

17 GND

18 DC IN 6 to 12 V DC
19 DC IN 6 to 12 V DC
20 DC IN 6 to 12 V DC
21 DC IN 6 to 12 V DC
22 GND
23 DC IN 6 to 12 V DC
24 GND

Connector: 046240024006800+ (Kyocera Elco)

High: Min. 4.4 V)

High: Min. 2.0 V)

Normal: Op en (1.8 V)

High: Min. 4.4 V)

High: Min. 2.0 V)

Normal: Op en (1.8 V)

Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/videocameras

IS-1243 (MK10862V1)

Reproduction in whole or in part without written permission is prohibited.

© 2011 Sony Corporation. All rights reserved.

Features and specifications are subject to change without notice.

The values for weight and dimension are approximate.

SONY, make.believe, Exmor and StableZoom are

registered trademarks of Sony Corporation.

All other trademarks are the property of their respective owners.

Printed in USA (7/11)
