Page 1

3-059-581-11(1)

CD/DVD Player

Operating Instructions

DVP-S336 DVP-S335

Page 2

WARNING

Welcome!

To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Mains cord must only be changed at qualified service shop.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the Laser protective housing inside the enclosure.

Notice for customers in the United Kingdom and Republic of Ireland

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS1362, (i.e., marked with

or mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Precautions

Safety

• This unit operates on 220 - 240 V AC, 50/ 60 Hz. Check that the unit's operating voltage is identical with your local power supply.

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

• The unit is not disconnected from the mains as long as it is connected to the mains outlet, even if the unit itself has been turned off.

• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.

Installing

• Allow adequate air circulation to prevent internal heat buildup.

• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the unit near heat sources such as radiators or air dusts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the unit and discs away from equipment with strong magnets, such as microwave ovens or large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to a warm location, moisture may condense inside the CD/DVD player and cause damage to the lenses. When you first install the unit, or when you move it from a cold to a warm location, wait for about 30 minutes before operating the unit.

Thank you for purchasing the Sony CD/ DVD Player. Before operating the unit, please read this manual thoroughly and retain it for future reference.

Page 3

TABLE OF CONTENTS

About This Manual 4 This Player Can Play the Following Discs 4 Precautions 6 Notes About the Discs 6

Getting Started 7

Unpacking 7 TV Hookups 8 Receiver (Amplifier) Hookups 11 2+1 Channel Surround Hookups 13

5.1 Channel Surround Hookups 14 Selecting the Language for the On-Screen

Display 16

Operation Sound Effects (Sound Feedback) 17

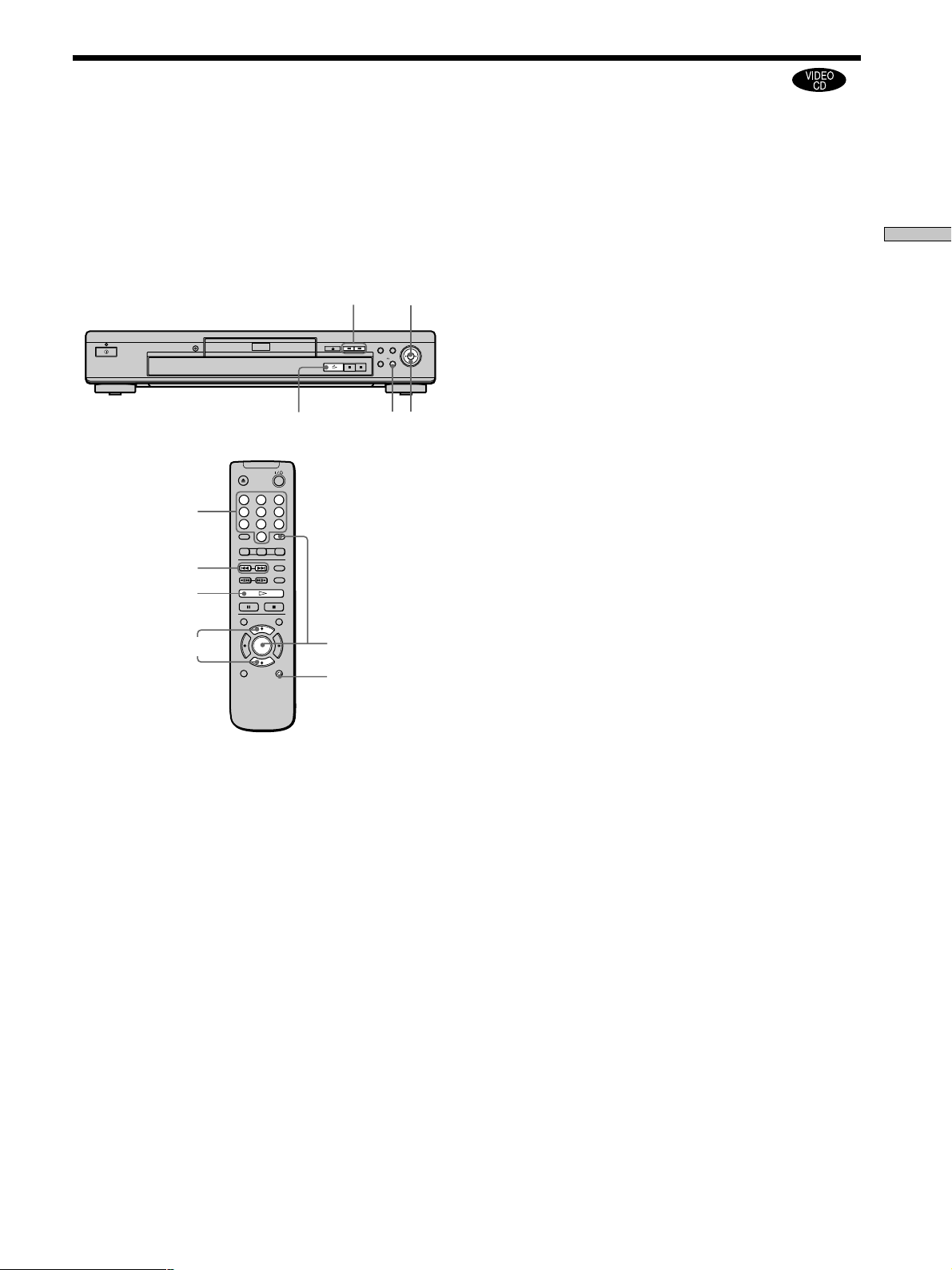

Playing Discs 18

Playing Discs 18 Searching for a Particular Point on a Disc 20 Resuming Playback from the Point Where You

Stopped the Disc (Resume Play) 21 Using the DVD’s Menu 22 Playing VIDEO CDs with PBC Functions

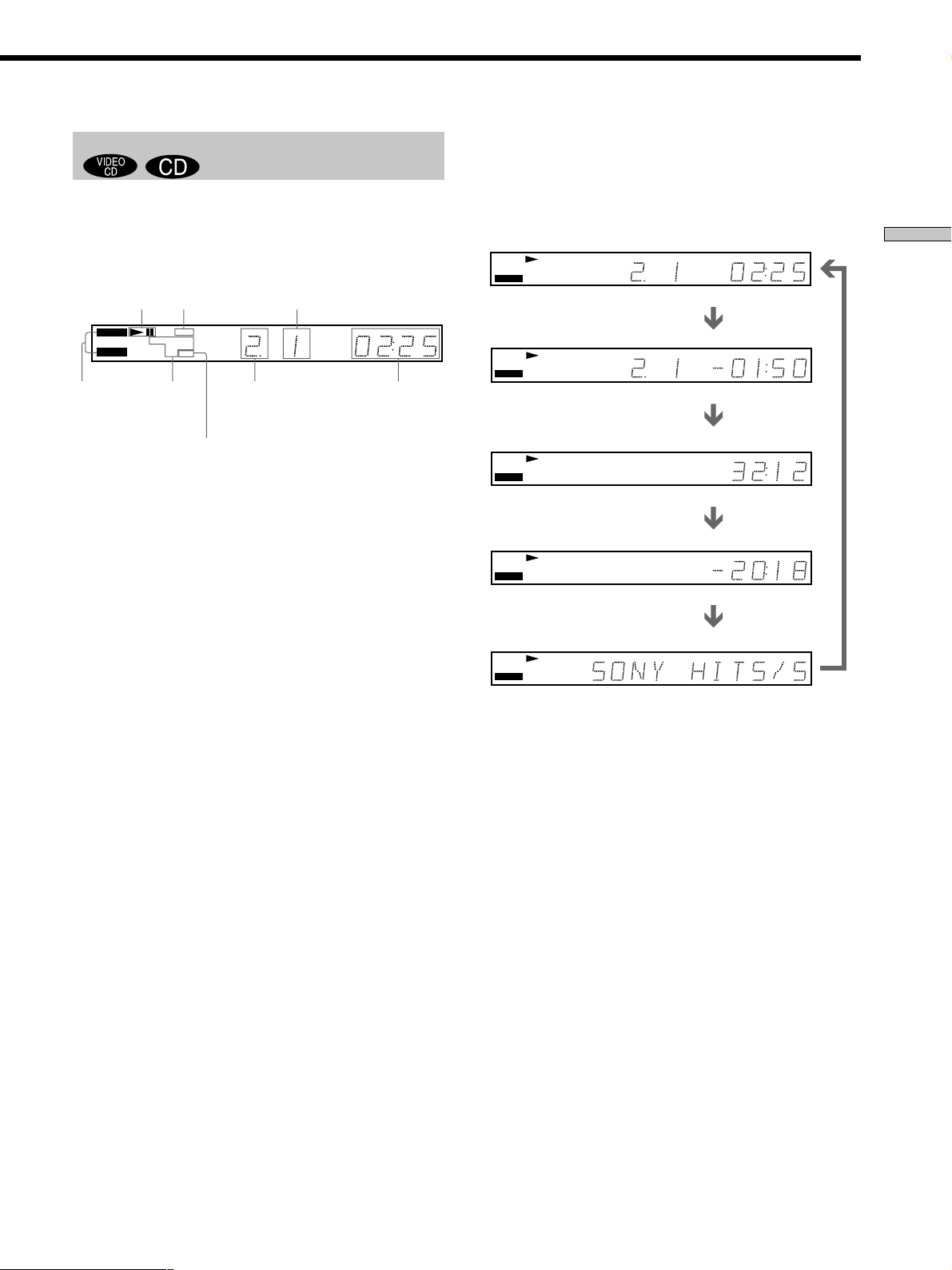

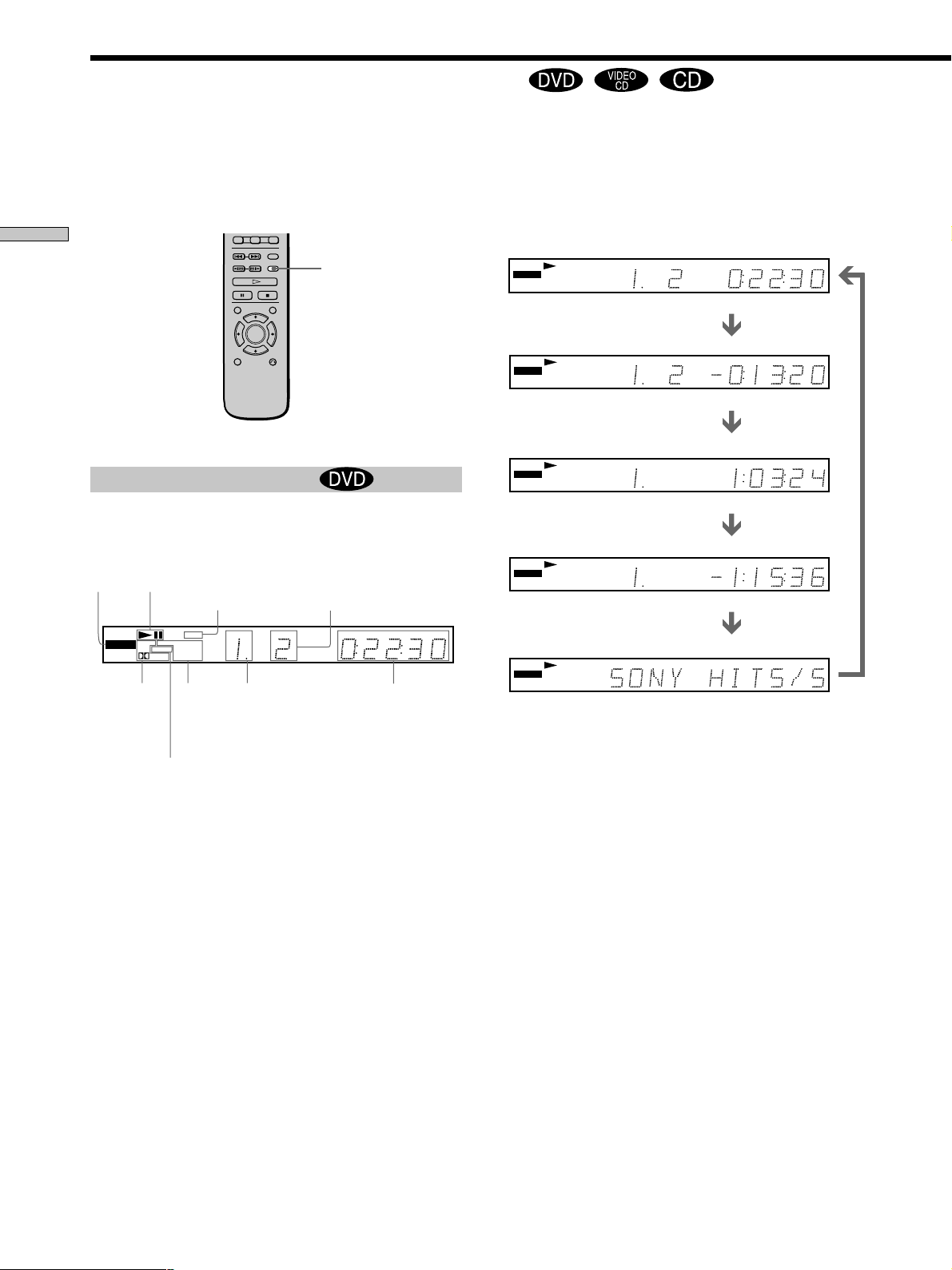

(PBC Playback) 23 Using the Front Panel Display 24

Settings and Adjustments 46

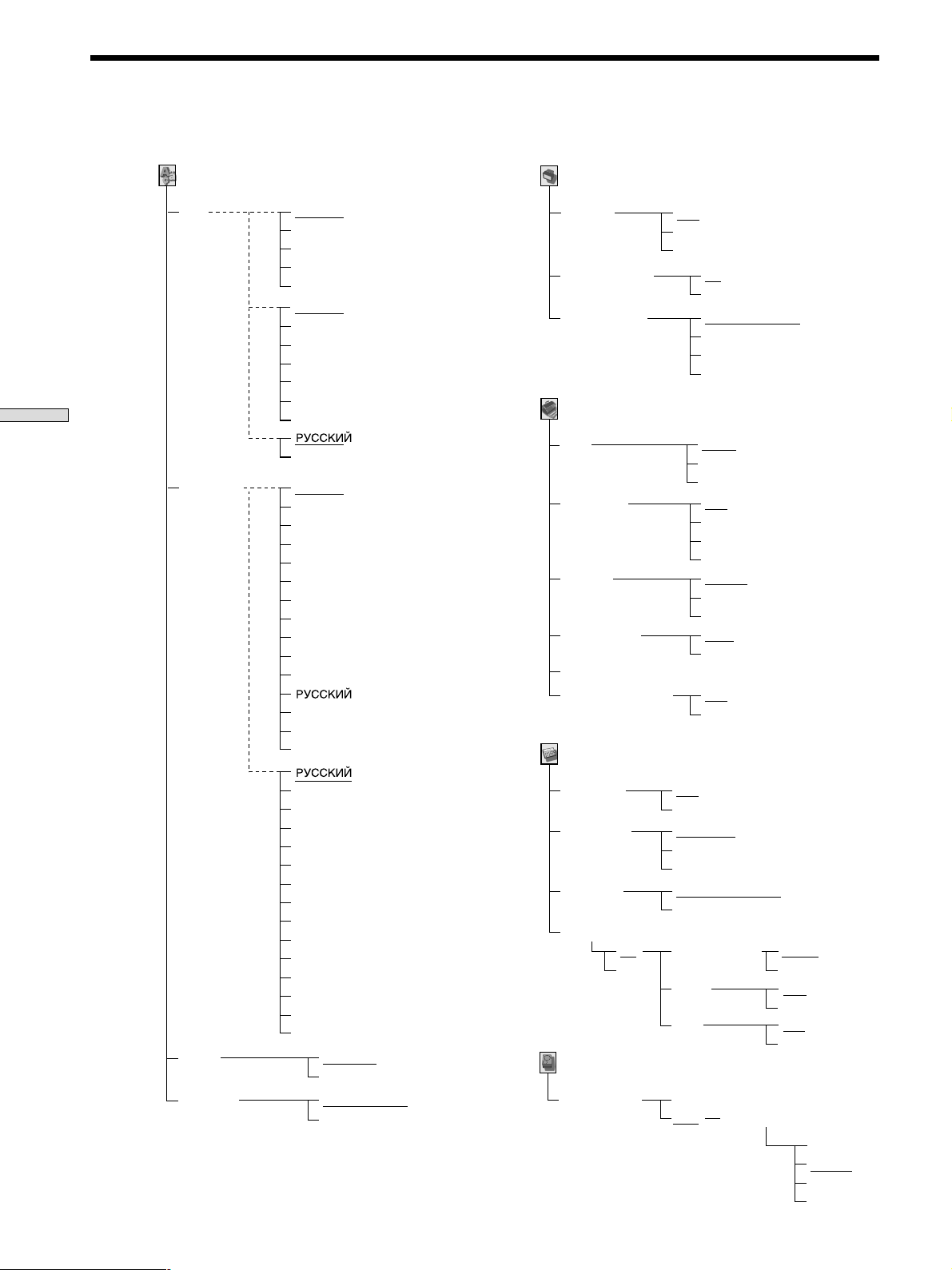

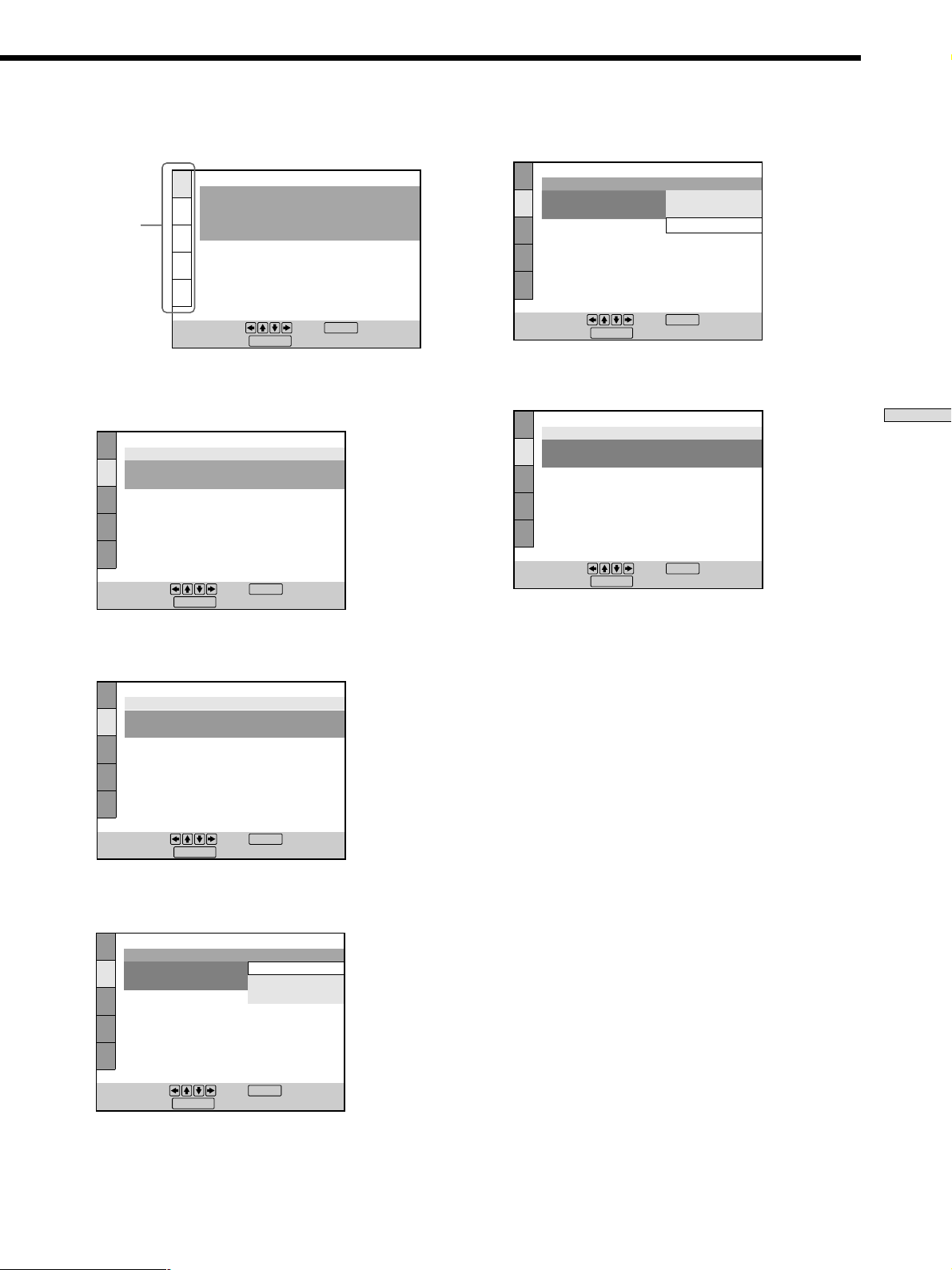

Using the Setup Display 46 Setup Display Item List 48 Setting the Display Language or Sound Track

(LANGUAGE SETUP) 49 Settings for the Display (SCREEN SETUP) 50 Custom Settings (CUSTOM SETUP) 51 Settings for the Sound (AUDIO SETUP) 55 Subwoofer Set Up (SPEAKER SETUP) 57

Additional Information 59

Troubleshooting 59 Self-diagnosis function 62 Specifications 63 Glossary 64 Language Code List 66 Index to Parts and Controls 67 Index 70

Using Various Functions with the Control Menu 26

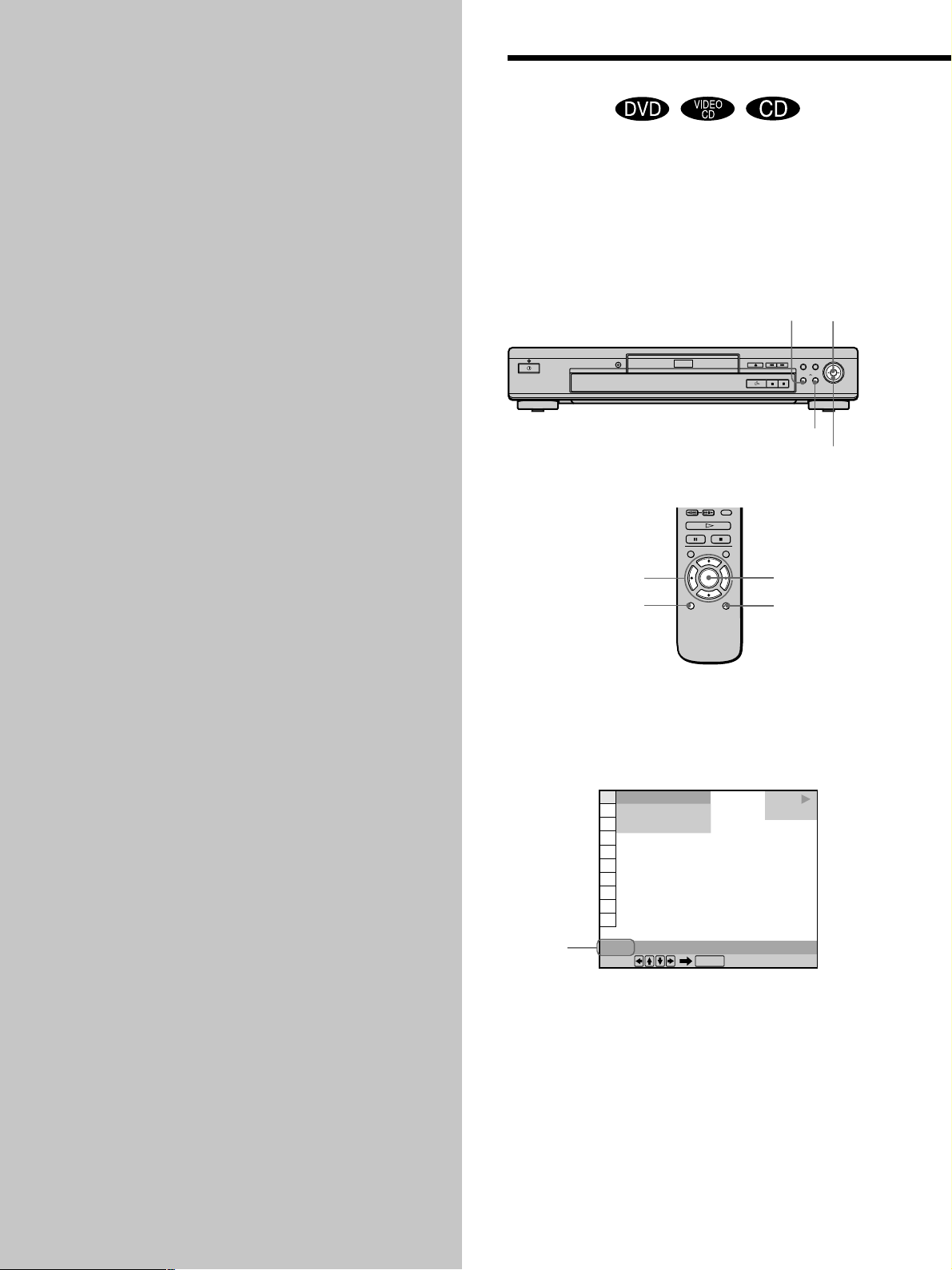

Using the Control Menu Display 26 Control Menu Item List 28 Searching for a Title/Chapter/Track/Index/

Scene 29

Checking the Playing Time and Remaining

Time 30 Selecting a Starting Point Using the Time Code 30 Viewing the Disc Information 31 Changing the Sounds 32 Displaying the Subtitles 34 Changing the Angles 35 Digital Cinema Sound Settings 36 Checking the Play Information 37 Locking Discs (Custom Parental Control) 38 Creating Your Own Program (Program Play) 40 Playing in Random Order (Shuffle Play) 42 Playing Repeatedly (Repeat Play) 43 Repeating a Specific Portion (A-B Repeat) 44

Page 4

About This Manual

Conventions

Icon Meaning

• Instructions in this manual describe the controls on the player. You can also use the controls on the remote if they have the same or similar names as those on the player.

• The icons on the right are used in this manual:

This Player Can Play the Following Discs

DVD VIDEOs VIDEO CDs Audio CDs

Disc logo

Indicates that you can use only the remote to do the task.

Indicates tips and hints for making the task easier.

Indicates that the function is for DVD VIDEOs.

Indicates that the function is for VIDEO CDs.

Indicates that the function is for Audio CDs.

Contents

Disc size

Audio + Video

12 cm 8 cm

Audio + Video Audio

12 cm

8 cm

12 cm

8 cm

(CD single)

Play time

About 4 h (for single-sided DVD)/ about 8 h (for double-sided DVD)

About 80 min. (for single-sided DVD)/ about 160 min. (for

74 min.

20 min.

74 min.

20 min.

double-sided DVD)

The “DVD VIDEO” logo is a trademark. When you play an NTSC disc, this player outputs the video signal in the NTSC system only. In this case, if your TV uses the PAL system, the picture becomes noisy.

Region code of DVDs you can play on this unit

Your DVD player has a region code printed on the back of the unit and will only play DVDs that are labeled with identical region codes.

DVDs labeled

ALL

will also play on this unit.

CD/DVD PLAYER

AC 00V 00Hz

NO.

00W

SONY CORPORATION

If you try to play any other DVD, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions.

MODEL NO.

MADE IN JAPAN

DVP–XXXX

0-000-000-00

Region code

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally fixed by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the DVDs or VIDEO CDs.

Page 5

Terms for discs

• Title

The longest section of a picture or music feature on a DVD, the movie, etc. in video software, or the name of an album in audio software.

• Chapter

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want. Depending on the disc, no chapters may be recorded.

• Track

Sections of a picture or a music feature on a VIDEO CD or a CD. Each track is assigned a track number enabling you to locate the track you want.

DVD structure

VIDEO CD or

Title

Chapter

Track

Disc

CD structure

Index

Discs that the player cannot play

The player cannot play discs other than the ones listed in the table on page 4. CD-Rs, CD-ROMs including PHOTO CDs, data sections in CD-EXTRAs, DVD-ROMs, DVD-audio, HD (high density) layer of Super Audio CD etc., cannot be played.

• Index (CD) / Video Index (VIDEO CD)

A number that divides a track into sections to easily locate the point you want on a VIDEO CD or a CD. Depending on the disc, no indexes may be recorded.

• Scene

On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called “scenes.” Each scene is assigned a scene number enabling you to locate the scene you want.

Note on PBC (Playback Control) (VIDEO CDs)

This player conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can enjoy two kinds of playback according to the disc type.

Disc type

VIDEO CDs without PBC functions (Ver. 1.1 discs)

VIDEO CDs with PBC functions (Ver. 2.0 discs)

You can

Enjoy video playback (moving pictures) as well as music.

Play interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver 1.1 discs. Moreover, you can play high-resolution still pictures if they are included on the disc.

When playing DTS*-encoded CDs, excessive noise will be heard from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo outputs of the DVD player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel DTS Digital Surround™ decoder system must be connected to the digital output of the DVD player.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

* “DTS” is a trademark of Digital Theater Systems, Inc.

Page 6

Precautions

On safety

• Caution – The use of optical instruments with this

product will increase eye hazard.

• Should any solid object or liquid fall into the cabinet,

unplug the player and have it checked by qualified personnel before operating it any further.

On power sources

• The player is not disconnected from the AC power

source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

• If you are not going to use the player for a long time, be

sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.

• Should the AC power cord (mains lead) need to be

changed, have it done at a qualified service shop only.

IMPORTANT NOTICE

Caution: The enclosed DVD player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

Notes About the Discs

On placement

• Place the player in a location with adequate ventilation

to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug

that might block the ventilation holes on the bottom.

• Do not place the player in a location near heat sources,

or in a place subject to direct sunlight, excessive dust or mechanical shock.

On operation

• If the player is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• When you move the player, take out any discs. If you

don’t, the disc may be damaged.

On adjusting volume

• Do not turn up the volume while listening to a portion

with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level portion is played.

On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc. If there is glue (or a similar substance) on the disc, remove the glue completely before using the disc.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

On cleaning

• Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

On novelty discs

• Do not use irregularly shaped CDs such as heart- or star-shaped CDs as they may cause the player to malfunction.

Page 7

Getting

Unpacking

Started

This section describes how to hook up the CD/DVD player to a TV (with audio/video input jacks) and/or an AV receiver (amplifier). You cannot connect this player to a TV which does not have a video input connector. Be sure to turn off the power of each component before making the connections.

Check that you have the following items:

• Audio/video connecting cord (1)

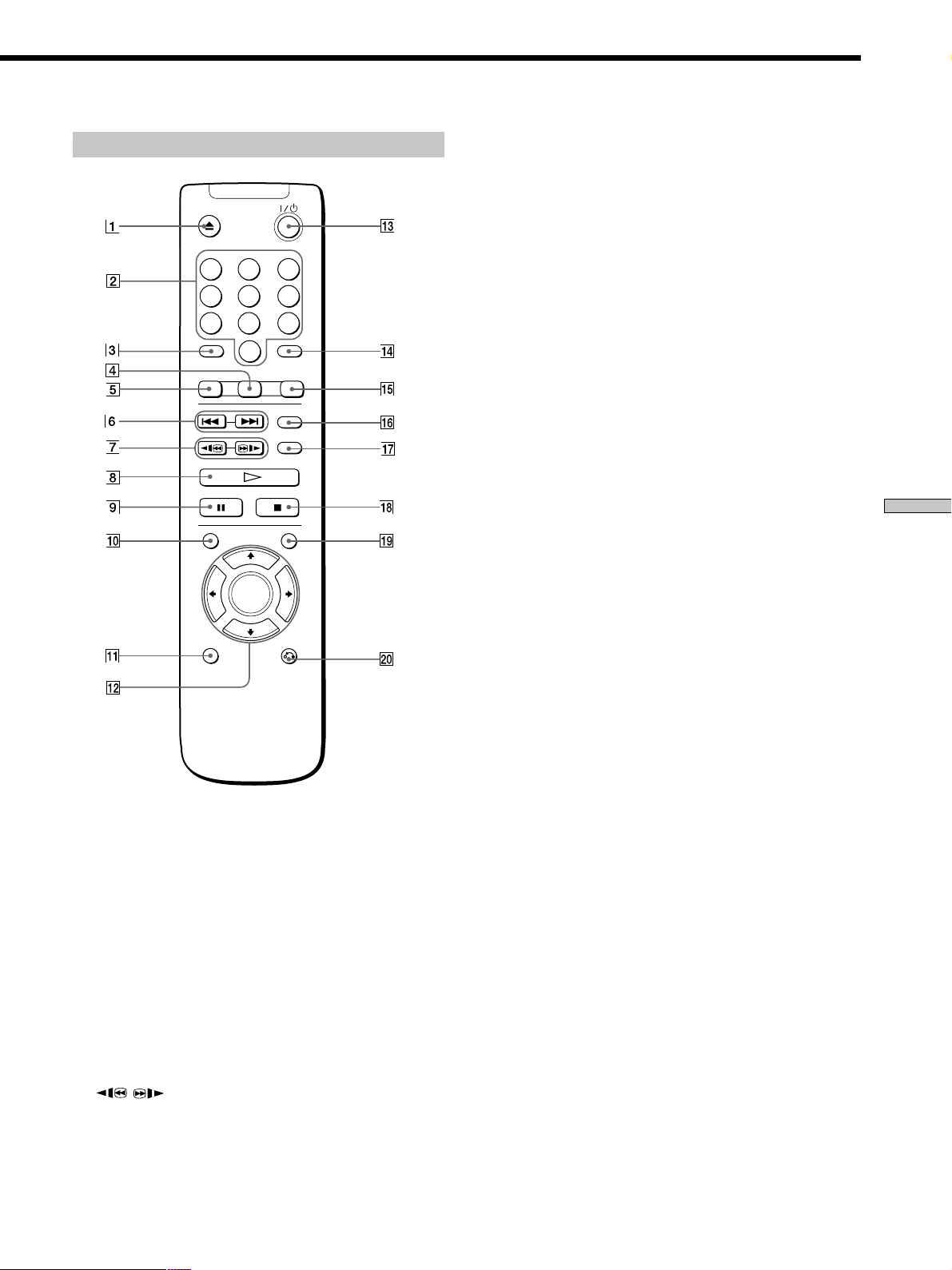

• Remote commander (remote) RMT-D115P (1)

• R6 (size AA) batteries (2)

Inserting batteries into the remote

You can control the player using the supplied remote. Insert two R6 (size AA) batteries by matching the + and – ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor

on the player.

Getting Started

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not drop any foreign object into the remote casing,

particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.

• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Page 8

TV Hookups

Getting Started

This connection is for listening to the sound through TV speakers (L:left, R:right). Refer to the instructions supplied with the component to be connected. You cannot connect this player to a TV without a SCART (EURO AV) connector or a video input connector.

zYou can enjoy surround sound with built-in TV speakers only

You can use 3D sound imaging to create virtual rear speakers from the sound of built-in TV speakers without using actual rear speakers (VES TV: Virtual Enhanced Surround TV). For details, see page 36.

CD/DVD player

WOOFER

AUDIO OUT

DIGITAL OUT

PCM/DTS/MPEG/

DOLBY DIGITAL

COAXIAL OPTICAL

LINE-1 (RGB) - TV

VIDEO OUT S VIDEO OUT

Required cords

SCART (EURO AV) connecting cord (not supplied) (2)

Be sure to make connections firmly to avoid hum and noise. Refer to the instructions supplied with the TV to be connected.

Notes

• When you set “LINE” to “S VIDEO” or “RGB” under “CUSTOM SETUP” in the setup display, use a SCART (EURO

AV) connecting cord that conforms to each signal.

• When you connect using the SCART (EURO AV) connecting cord, confirm that the TV corresponds to S VIDEO or RGB. Refer to the instructions supplied with the TV to be connected as well.

LINE-2

To an AC outlet

To T LINE-1 (RGB)-TV

VCR

To i LINE-2

To SCART (EURO AV) output

To SCART (EURO AV) input

: Signal flow

Page 9

If your TV has two SCART (EURO AV) connectors

CD/DVD player

LINE-1 (RGB) – TV LINE-2

If your TV has no SCART (EURO AV) connectors

You can connect the player to a TV (with audio/video input jacks) using the supplied audio/video connecting cord. If your TV has an S video input connector, connect the component via the S VIDEO OUT connector using an S video cord (not supplied) instead of the video connecting cord. You will get a better picture. When connecting the cords, be sure to match the color-coded cord to the appropriate jacks on the components: Yellow (video) to Yellow, Red (right) to Red and White (left) to White.

Getting Started

VCR

To SCART (EURO AV) input

Audio/Video connecting cord (supplied) (1)

Yellow White (L) Red (R)

x To listen to the sound through TV speakers

CD/DVD player

AUDIO OUT

WOOFER

VIDEO OUT

INPUT

VIDEO

AUDIO

x If your TV has an S video input connector

S video cord (not supplied) (1)

CD/DVD player

AUDIO OUT

S VIDEO OUT

S VIDEO IN

WOOFER

INPUT

AUDIO

Page 10

TV Hookups

Getting Started

Notes

• Refer to the instructions supplied with the component to be connected.

• Do not connect this player to a video deck. If you do, noise may appear in the picture.

• Depending on the TV or receiver (amplifier), sound distortion may occur because the audio output level is high. In this case, set “AUDIO ATT” in “AUDIO SETUP” to “ON” in the setup display. For details, see page 55.

• If you cannot view the pictures from a VCR through this player which is connected to a TV with RGB component connectors, set to t (Audio/Video) on your TV. When you select

(RGB), the TV cannot receive the signal from the VCR.

• If you want to use your VCR’s SmartLink function, connect the VCR to your TV’s SmartLink connector and connect the CD/ DVD player to the TV with another connector.

• When you connect the player to your TV via the SCART (EURO AV) connectors, the TV’s input source is set to the player automatically when you start playback or press any button except for ! on the player or @/1 on the remote. In this case, press TV/DVD on the remote to return the input to the TV.

VCR

CD/DVD player

Connect directly

Setups for the player

Some setup adjustments are necessary for the player depending on the TV or other components to be connected. Use the setup display to change the various settings. For details on using the setup display, see page 46.

• To connect the player to a wide-screen TV

In the setup display, set “TV TYPE” in “SCREEN SETUP” to “16:9” (default setting). For details, see page

50.

• To connect the player to a normal TV

In the setup display, set “TV TYPE” in “SCREEN SETUP” to “4:3 LETTER BOX” or “4:3 PAN SCAN.” For details, see page 50.

• To connect the player to a TV or VCR via a SCART (EURO AV) connector that conforms to the S video signals or RGB signals

In the setup display, set “LINE” in “CUSTOM SETUP” to “S VIDEO” or “RGB.” For details, see page 51.

When you play a disc recorded in the NTSC color system, the player outputs the video signal or the setup display etc. in the NTSC color system and the picture may not appear on PAL color system televisions. In this case, open the disc tray and remove the disc.

Page 11

Receiver (Amplifier) Hookups

This connection is for listening to the sound through speakers connected to a receiver lacking a built-in DTS, Dolby* Digital or MPEG decoder. Refer to the instructions supplied with the component to be connected as well.

zYou can enjoy surround sounds even if you connect front

speakers only

You can use 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (VES:Virtual Enhanced Surround). For details, see page 36.

zIf you have a digital component with a built-in DTS, Dolby

Digital or MPEG decoder

You can enjoy multi-channel surround sound by connecting the component via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord (not supplied). For details on hookups and settings, see page 14.

* Manufactured under license from Dolby Laboratories.

Required cords

Audio connecting cord (not supplied) (1)

White (L) Red (R)

S video cord (not supplied) (1)

When connecting the cords, be sure to match the color-coded cord to the appropriate jacks on the components: Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise. If you have a digital component such as a receiver (amplifier) with a digital connector, DAT or MD, connect the component via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord (not supplied).

Optical digital connecting cord (not supplied) (1)

Coaxial digital connecting cord (not supplied) (1)

White (L) Red (R)

Getting Started

CD/DVD player

WOOFER

To AUDIO OUT (R, L)

AUDIO OUT

To DIGITAL OUT (COAXIAL)

DIGITAL OUT

PCM/DTS/MPEG/

DOLBY DIGITAL

COAXIAL OPTICAL

LINE-1 (RGB) - TV LINE-2

VIDEO OUT S VIDEO OUT

To DIGITAL OUT

To S VIDEO OUT

(OPTICAL)

Take off the cap.

To optical digital input

To coaxial digital input

To S VIDEO input

INPUT

S VIDEO

DIGITAL IN

OPTICAL

COAXIAL

To an AC outlet

Receiver (Amplifier) with a digital connector, MD deck, DAT deck, etc.

: Signal flow

To audio input

Receiver (Amplifier)

Page 12

Receiver (Amplifier) Hookups

Getting Started

• You cannot enjoy a picture with an S video signal if your TV does not conform to the S video signal. When your TV does not have an S VIDEO input, connect the component via the VIDEO INPUT connector using the video connecting cord (not supplied) instead of the S video cord. For details, see page 9. Refer to the instructions supplied with your TV.

• Refer to the instructions supplied with the component to be connected.

• You cannot make digital audio recordings of discs recorded in multi-channel surround format directly using an MD deck or DAT deck.

• When you connect the component via the DIGITAL OUT OPTICAL or COAXIAL connector, set Virtual Enhanced Surround (VES) to “OFF.” Otherwise, the player will not output signals from the DIGITAL OUT OPTICAL or COAXIAL connector.

When you have made the connections using an optical or coaxial digital connecting cord, do not set “DOLBY DIGIT AL” to “DOLBY DIGIT AL,” “MPEG” to “MPEG” and “DTS” to “ON.” If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the speakers to be damaged.

Notes

Setups for the player

Some setup adjustments are necessary for the player depending on the components to be connected. Use the setup display to change the various settings. For details on using the setup display, see page 46.

• To listen to the sound through speakers connected to a receiver (amplifier) which has a digital connector and lacks a built-in DTS, Dolby Digital or MPEG decoder, or to output the sound to a digital component such as a DAT or MD deck

Set the “AUDIO SETUP” items in the setup display (page 55) as shown in the illustration below. These are the default settings.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

OFF

STANDARD

D-PCM

PCM

OFF

Set the items as shown

Set “VES” to “OFF” in the Control Menu display (page

36). When you select the VES mode other than “OFF,” the Virtual Enhanced Surround (VES) effect cannot be heard.

Note

When you output the signals which do not reproduce the Dolby Surround (Pro Logic) effect from the DIGITAL OUT OPTICAL or COAXIAL connector, set “DOWNMIX” to “NORMAL” in “AUDIO SETUP” in the setup display (page 56).

Page 13

2+1 Channel Surround Hookups

This connection is for listening to the sound through the left and right speakers of the TV, or speakers connected to a receiver and the subwoofer. You can enjoy rich bass frequencies by connecting a subwoofer. Refer to the instructions supplied with the component to be connected. Set “SUBWOOFER” in “SPEAKER SETUP” to “YES” in the setup display (page 57). Then set “FRONT SPEAKER SIZE” to “TV” when you use the TV’s speakers, or to “LARGE,” “MIDDLE” or “SMALL” when you use the speakers connected to the receiver.

zYou can enjoy surround sound with front speakers only

You can use 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (Virtual Enhanced Surround). For details, see page

36.

CD/DVD player

LINE-1 (RGB) - TV LINE-2

WOOFER

AUDIO OUT

DIGITAL OUT

PCM/DTS/MPEG DOLBY DIGITAL

COAXIAL OPTICAL

Required cords

Audio connecting cord (not supplied) (1)

White (L) Red (R)

S video cord (not supplied) (1)

Monaural audio cord (not supplied) (1)

One for a subwoofer

Black Black

VIDEO OUT S VIDEO OUT

Getting Started

White (L) Red (R)

Subwoofer (Active type)

INPUT

: Signal flow

To AUDIO OUT (WOOFER)

To AUDIO OUT (R, L)

To audio input

Note

You cannot enjoy a picture with an S video signal if your TV does not conform to the S video signal. When your TV does not have an S VIDEO input, connect the component via the VIDEO INPUT connector using the video connecting cord (not supplied) instead of the S video cord. For details, see page 9. Refer to the instructions supplied with your TV.

To an AC outlet

To S VIDEO OUT

To S VIDEO input

INPUT

VIDEO

S VIDEO L AUDIO

Receiver (Amplifier)

Page 14

5.1 Channel Surround Hookups

Getting Started

With DVDs which contain DTS, Dolby Digital or MPEG AUDIO sound, you can enjoy the surround sound while producing the effect of being in a movie theater or a concert hall using a digital component with a built-in DTS, Dolby Digital or MPEG decoder (not supplied). The player outputs the surround sound signals from the DIGITAL OUT OPTICAL and COAXIAL connectors. Using a receiver (amplifier) having the OPTICAL or COAXIAL connector and 6 speakers, you can enjoy even greater real audio presence in the comfort of your own home.

Note

When a DVD has a sound track with 7.1 channels recorded in MPEG AUDIO format, the output audio signals are mixed down to 5.1 channels.

Required cords

Optical digital connecting cord* (not supplied) (1)

Coaxial digital connecting cord* (not supplied) (1)

S video cord (not supplied) (1)

Setups for the player

• When you connect an audio component with a builtin Dolby Digital decoder A

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “DOLBY DIGITAL” to “DOLBY DIGITAL” in the setup display. (page 56)

• When you connect an audio component with a builtin MPEG decoder B

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “MPEG” to “MPEG” in the setup display. (page

56)

• When you connect an audio component with a builtin DTS decoder C

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “DTS” to “ON” in the setup display. (page 56)

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

DOLBY SURROUND

DOLBY DIGITAL

OFF

STANDARD

MPEG

* Connect the component via the DIGITAL OUT OPTICAL or

COAXIAL connector using an optical or coaxial digital connecting cord (not supplied). You do not need to connect both of these cords. See the figure on the next page.

Notes

• Do not connect the power cord to an AC outlet or press the POWER switch before completing all connections.

• Refer to the instructions supplied with the component to be connected.

• The cord connectors should be fully inserted into the jacks. Loose connection may cause hum and noise.

To set, press , then . To quit, press .

Notes

• When you do not connect an audio component with a built-in Dolby Digital decoder, do not set “DOLBY DIGIT AL” to “DOLBY DIGIT AL.”

• When you do not connect an audio component with a built-in MPEG decoder, do not set “MPEG” to “MPEG.”

• When you do not connect an audio component with a built-in DTS decoder, do not set “DTS” to “ON.”

DISPLAY

ENTER

Page 15

To S VIDEO input

To S VIDEO OUT

S VIDEO IN

Getting Started

CD/DVD player

To DIGITAL OUT (OPTICAL)

Take off the cap.

To optical digital input

AV Receiver (Amplifier) with a built-in DTS decoder, Dolby Digital decoder or MPEG decoder

AUDIO OUT

WOOFER

To DIGITAL OUT (COAXIAL)

To coaxial digital input

DIGITAL

DVD IN OPT

TV/LD IN OPT

CD IN OPT

MD/DAT IN OPT

MD/DAT OUT OPT

TV/LD IN

AC-3 RF

DVD IN

COAX

SIGNAL GND

PHONO

DIGITAL OUT

PCM/DTS/MPEG/ DOLBY DIGITAL

COAXIAL OPTICAL

DVD

TV/LD

S-VIDEO

VIDEO

AUDIO

TUNER

LINE-1 (RGB) - TV LINE-2

VIDEO OUT

S VIDEO OUT

To an AC outlet

VIDEO 1

VIDEO 2

S-VIDEO

OUT

VIDEO

AUDIO

OUT

REC OUT

MD/DAT

VIDEO

AUDIO

OUT

REC OUT

TAPE

S-LINK

MONITOR

CTRL A1

5.1 INPUT

FRONT REAR

S-VIDEO

OUT

VIDEO

AUDIO

RLR LRL

FRONTB REARA

CENTER

WOOFER

SPEAKERS

PRE OUT

FRONT REAR WOOFER CENTER

AC OUTLET

CENTER

–

Center speaker

Front speaker (R)

INPUT

Front speaker (L)

Subwoofer

(Active type)

Rear speaker (R) Rear speaker (L)

: Signal flow

Page 16

Selecting the Language for the On-Screen Display

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then .

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

To quit, press .

DISPLAY

Getting Started

You can select the language for the setup display, the Control Menu display or the messages displayed on the screen. The default setting is “ENGLISH.”

</M/m/,

1 When the player is in stop mode, press DISPLAY

and select “SETUP” using M/ m.

The on-screen menu items are different depending on whether there is a disc in the player or not.

DISPLAY

3 Select “LANGUAGE SETUP” using M/ m, and then

press ENTER.

ENTER

4 Select “OSD” using M/ m, then press , or ENTER.

The languages you can select are displayed. These languages are different depending on the player model.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRANÇAIS

DEUTSCH

ITALIANO

NEDERLANDS

Selected item

SETUP Select:

ENTER

2 Press ENTER.

The setup display appears on the TV screen.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

STOP

DVD

To set, press , then . To quit, press .

DISPLAY

ENTER

5 Select the desired language using M/ m, then press

ENTER.

CHOIX DE LA LANGUE

ECRANS: MENU DVD : AUDIO: SOUS-TITRE:

Pour le réglage, appuyez sur , puis

ENTER

sur . Pour quitter, appuyez sur .

FRANÇAIS

ENGLISH

ORIGINAL

IDEM AUDIO

DISPLAY

6 Press DISPLAY.

The setup display disappears.

7 Press DISPLAY repeatedly to turn off the on-screen

menu.

Page 17

Operation Sound Effects (Sound Feedback)

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Note

The languages you can select are the ones displayed in step 4. For details, see page 49.

The player beeps when the following operations are

Getting Started

performed. The default setting of the Sound Feedback function is set to off.

Operation Operation sound

Power is turned on One beep

Power is turned off Two beeps

H is pressed One beep

X is pressed Two beeps

Playback is stopped One long beep

Operation is not possible Three beeps

@/1

1 Press ! on the player, then press @/ 1 on the

remote.

The power indicator lights up in green. When there is a disc in the player, press A and remove the disc. Then press A again to close the disc tray.

2 Press and hold X on the player for more than two

seconds.

You will hear one beep and the Sound Feedback function is turned on.

To turn off the Sound Feedback Function

When there is no disc in the player, press and hold X on the player for more than two seconds. You will hear two beeps and the Sound Feedback function is turned off.

Page 18

Playing Discs

This chapter describes how to play a DVD/CD/VIDEO CD.

Playing Discs

Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the instructions supplied with your disc.

Power indicator

@/1

1 Turn on your TV.

Turn on the TV and select the video input so that you can view the pictures from this player.

When using a receiver (amplifier)

Turn on the receiver (amplifier) and select the appropriate position so that you can listen to the sound from this player.

2 Press ! on the player.

The player enters standby mode and the power indicator lights up in red.

3 Press A on the player, and place a disc on the disc

tray.

The player automatically turns on and the power indicator lights up in green.

With the playback side facing down

4 Press H.

The disc tray closes and the player starts playback (continuous play). Adjust the volume on the TV or the receiver (amplifier).

After following Step 4

xWhen playing a DVD

A DVD menu or title menu may appear on the TV screen (see page 22).

xWhen playing a VIDEO CD

A menu may appear on the TV screen depending on the VIDEO CD. You can play the disc interactively, following the instructions on the menu. (PBC Playback, see page 23.)

Page 19

To turn on the player

Press ! on the player. The player enters standby mode and the power indicator lights up in red. Then press @/1 on the remote. The player turns on and the power indicator lights up in green. In standby mode, the player also turns on by pressing A on the player or by pressing H.

To turn off the player

Press @/1 on the remote. The player enters standby mode and the power indicator lights up in red. To disconnect the power of the player, press ! on the player.

Notes on playing DTS sound tracks on a CD

• Do not play DTS sound tracks without first connecting the player to an audio component having a built-in DTS decoder. The player outputs the DTS signal via the DIGITAL OUT OPTICAL and COAXIAL connectors even if “DTS” in “AUDIO SETUP” is set to “OFF” in the setup display, and may affect your ears or cause your speakers to be damaged.

• Set the sound to “STEREO” when you play DTS sound tracks on a CD. (See “Changing the Sounds” on page 32.) If you set the sound to “1/L” or “2/R”, no sound will come from the DIGITAL OUT OPTICAL and COAXIAL connectors.

• If you play a CD with a DTS sound track, a loud noise may come out from the AUDIO OUT connectors, affecting your ears or causing the speakers to be damaged.

Additional operations

8 0

./>

Playing Discs

xXH

3 6 9

Notes on playing DTS sound tracks on a DVD

The signals of the DTS sound tracks are output from the DIGITAL OUT OPTICAL and COAXIAL connectors only. No sound will output from the AUDIO OUT connectors.

• If the player is connected to an audio component lacking a built-in DTS decoder, do not set “DTS” in “DIGITAL OUT” to “ON” in the setup display. Otherwise, when you play the DTS sound track, a loud noise will come out from the speakers, affecting your ears or causing the speakers to be damaged.

• When you set “DTS” in “AUDIO SETUP” to “OFF”, no sound will come out from the DIGITAL OUT OPTICAL and COAXIAL connectors even if you play DTS sound tracks on DVDs.

Notes

• If you leave the player or the remote in pause or stop mode for 15 minutes, the screen saver image appears automatically. To make the screen saver image go away, press H. (If you want to set the screen saver function to off, see page 50.)

• If you don‘t operate the player or the remote for more than 30 minutes when a disc is not being played, the power is automatically turned off. (Auto Power Off function)

• While playing a disc, do not turn off the player by pressing !. Doing so may cancel the settings of the menu. When you turn off the player, press x first to stop playback and then press @/1 on the remote. After the power indicator lights up in red and the player enters standby mode, press ! on the player.

Stop

Pause

Resume play after pause

Go to the next chapter,

Operation

Press x.

Press X.

Press X or H.

Press >. track or scene in continuous play mode

Go back to the preceding

Press .. chapter, track or scene in continuous play mode

Stop play and remove the

Press Z. disc

You can play discs in various modes such as Program Play using the on-screen menu (Control Menu). For Control Menu operations, see page 26.

Page 20

Searching for a Particular Point on a Disc Z

You can locate a particular point on a disc quickly by monitoring the picture or playing back slowly.

Playing Discs

Note

Depending on the DVD/VIDEO CD, you may not be able to do some of the operations described.

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

Press or while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press the Speed scan, the playback speed changes. Three speeds are available. With each press, the indication changes as follows:

Locating a point slowly by watching the screen (Slow-motion play)

or button during

You can use this function only for DVDs or VIDEO CDs. Press

or when the player is in the pause mode. When you find the point you want, press H to return to the normal speed. Each time you press the

or button during Slow-motion play, the playback speed changes. Two speeds are available. With each press, the indication changes as follows:

Playback direction

y 2

Opposite direction (DVD only)

y 2

The playback speed of 2 /2 is slower than 1 /1 .

Playback direction

x2B (DVD/CD only) t 1M t 2M

Opposite direction

x2b (DVD only) t 1m t 2m R

The playback speed of x2B/x2b is about twice the normal speed. The playback speed of 2M/2m is faster than 1M/1m.

Page 21

Resuming Playback from the Point Where You Stopped the Disc (Resume Play)

The player remembers the point where you stopped the disc, and when “RESUME” appears on the front panel display, you can resume playback from that point. As long as you do not open the disc tray, Resume Play will work even if the player enters standby mode by pressing @/1 on the remote.

Notes

• Resume Play may not be available on some DVDs.

• Resume Play is not available in Shuffle or Program Play mode.

• Depending on where you stopped the disc, the player may

resume playback from a different point.

• The point where you stopped playing is cleared when: – you open or close the disc tray – you turn the power off by pressing ! on the player – you change the play mode – you start playback after selecting a title, chapter or track – you change the settings in the setup display

Playing Discs

1 While playing a disc, press x to stop playback.

“RESUME” appears on the front panel display and “Disc will restart from current point. To start from

beginning, press [STOP] again.” appears on the TV screen. If “RESUME” does not appear, Resume Play is not available.

2 Press H.

The player starts playback from the point where you stopped the disc in Step 1.

zTo play from the beginning of the disc

When the playing time appears on the front panel display before you start playing, press x to reset the playing time, then press H.

Page 22

Using the DVD’s Menu

Some DVDs have a title menu or a DVD menu that is provided with DVDs only.

Using the title menu

Playing Discs

A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the title menu.

Using the DVD menu

Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select the language for the subtitles, the language for the sound, etc., using the DVD menu.

DVD MENU

TITLE

</M/m/,

ENTER

</M/m/,

ENTER

TITLE

ENTER

</M/m/,

1 Press TITLE.

The title menu appears on the TV screen. The contents of the menu vary from disc to disc.

2 Press </ M/ m/ , to select the title you want to

play.

Depending on the disc, you can use the number buttons to select the title.

3 Press ENTER.

The player starts playing the selected title.

Notes

• On some DVDs, you may not be able to select the title.

• On some DVDs, a “title menu” may simply be called a “menu”

or “title ” in the instructions supplied with the disc. “Press ENTER.” may also be expressed as “Press SELECT.”

DVD MENU

ENTER

</M/m/,

1 Press DVD MENU.

The DVD menu appears on the TV screen. The contents of the menu vary from disc to disc.

2 Press </ M/ m/ , to select the item you want to

change.

Depending on the disc, you can use the number buttons to select the item.

3 To change other items, repeat Step 2.

4 Press ENTER.

zIf you want to select the language for the DVD menu

Change the setting using “DVD MENU” in “LANGUAGE SETUP” in the setup display. For details, see page 49.

Note

Depending on the DVD, a “DVD menu” may simply be called a “menu” in the instructions supplied with the disc.

Page 23

Playing VIDEO CDs with PBC Functions (PBC Playback)

When playing VIDEO CDs with PBC (Play Back Control) functions (Ver. 2.0 discs), you can enjoy simple interactive operations, search functions, and other such operations. PBC Playback allows you to play VIDEO CDs interactively by following the menu on the TV screen. On this player, you can use the number buttons, ENTER, ., >, M/m and ORETURN during PBC Playback.

Number buttons

./>

ORETURN

ENTER

M/m

To go back to the menu

Press ORETURN, ., or >.

zTo cancel PBC playback of a VIDEO CD with PBC functions

and play the disc in continuous play mode

There are two ways.

• Before you start playing, select the track you want using . or >, then press ENTER or H.

• Before you start playing, select the track number using the number buttons on the remote, then press ENTER or H. “Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H.

Note

Depending on the VIDEO CD, “Press ENTER” in Step 3 may be expressed as “Press SELECT” in the instructions supplied with the disc.

Playing Discs

M/m

ENTER

ORETURN

1 Start playing a VIDEO CD with PBC functions by

following Steps 1 to 4 in “Playing Discs” on page

18.

2 Select the item number you want.

Press M/m to select the item number. You can also select the item number with the number buttons on the remote.

3 Press ENTER.

4 Follow the instructions in the menu for interactive

operations.

Refer to the instructions supplied with the disc, as the operating procedure may differ according to the VIDEO CD.

Page 24

Using the Front Panel Display Z

You can check information about the disc, such as the total number of titles or tracks or remaining time, using the front panel display.

Playing Discs

When playing back a DVD

Displaying information while playing the disc

Disc type

DVD

Current surround format

Playing status

MPEG PGM SHUFFLE DTS ANGLE REPEAT1

Digital

A-B

Lights up when the player outputs the signal in NTSC format

TITLE CHAP HOUR MIN

NTSC

Current play

number

mode

TIME/TEXT

Current chapter number

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing the disc, the display changes as shown in the following chart.

Playing time and number of the current chapter

DVD

Remaining time of

TITLE CHAP HOUR MIN

Press TIME/TEXT

the current chapter

DVD

TITLE CHAP HOUR MIN

Press TIME/TEXT Playing time and number of the current title

DVD

Remaining time of

TITLE HOUR MIN

Press TIME/TEXT

the current title

DVD

TITLE HOUR MIN

Press TIME/TEXT

SEC

Text

DVD

Playing timeCurrent title

Press TIME/TEXT

SEC

Lights up when you can change the angle

Notes

• On some DVDs, the chapter number or time may not appear or

you may not be able to change the front panel display.

• While you are doing Shuffle Play or Program Play, the playing

time of the title and the remaining time of the title are not displayed.

Page 25

When playing back a CD/VIDEO CD

Displaying information while playing a disc

Lights up when the player

Playing status

VIDEO CD

Disc type

outputs the signal in NTSC format

PGM SHUFFLE

REPEAT1 A-B

Current play mode

NTSC

PBC

TRACK INDEX MIN

Current track number

Lights up during PBC playback (VIDEO CD only)

Current index number

Playing time

SEC

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing a disc, the display changes as shown in the following chart.

Playing time and current track number

SEC

MIN

Remaining time of the current track

Playing time of the disc

TRACK INDEX MIN

Press TIME/TEXT

TRACK INDEX MIN

Press TIME/TEXT

Playing Discs

zWhen playing VIDEO CDs with PBC functions

The current scene number is displayed instead of the current track number and the current index number. In this case, the front panel display does not change when you press TIME/ TEXT. If TEXT is recorded on the disc, the front panel display changes to Text display when you press TIME/TEXT (see page

31).

Press TIME/TEXT

Remaining time of the disc

SEC

MIN

Press TIME/TEXT

Text

Press TIME/TEXT

Note

While you are doing Shuffle Play, or Program Play, the playing time of the disc and the remaining time of the disc are not displayed.

Page 26

Using Various Functions with the Control Menu

This chapter describes how to play discs in various modes and how to use the convenient features of the onscreen menu (Control Menu).

Using the Control Menu Display

Using the Control Menu display, you can select the start point, play in any order you like, change the angles, make Digital Cinema Sound settings, and other such operations. The possible operations are different depending on the kind of disc. For details on each Control Menu display item, see pages 28 to 45.

DISPLAY ENTER

ORETURN

</M/m/,

DISPLAY

ENTER

ORETURN

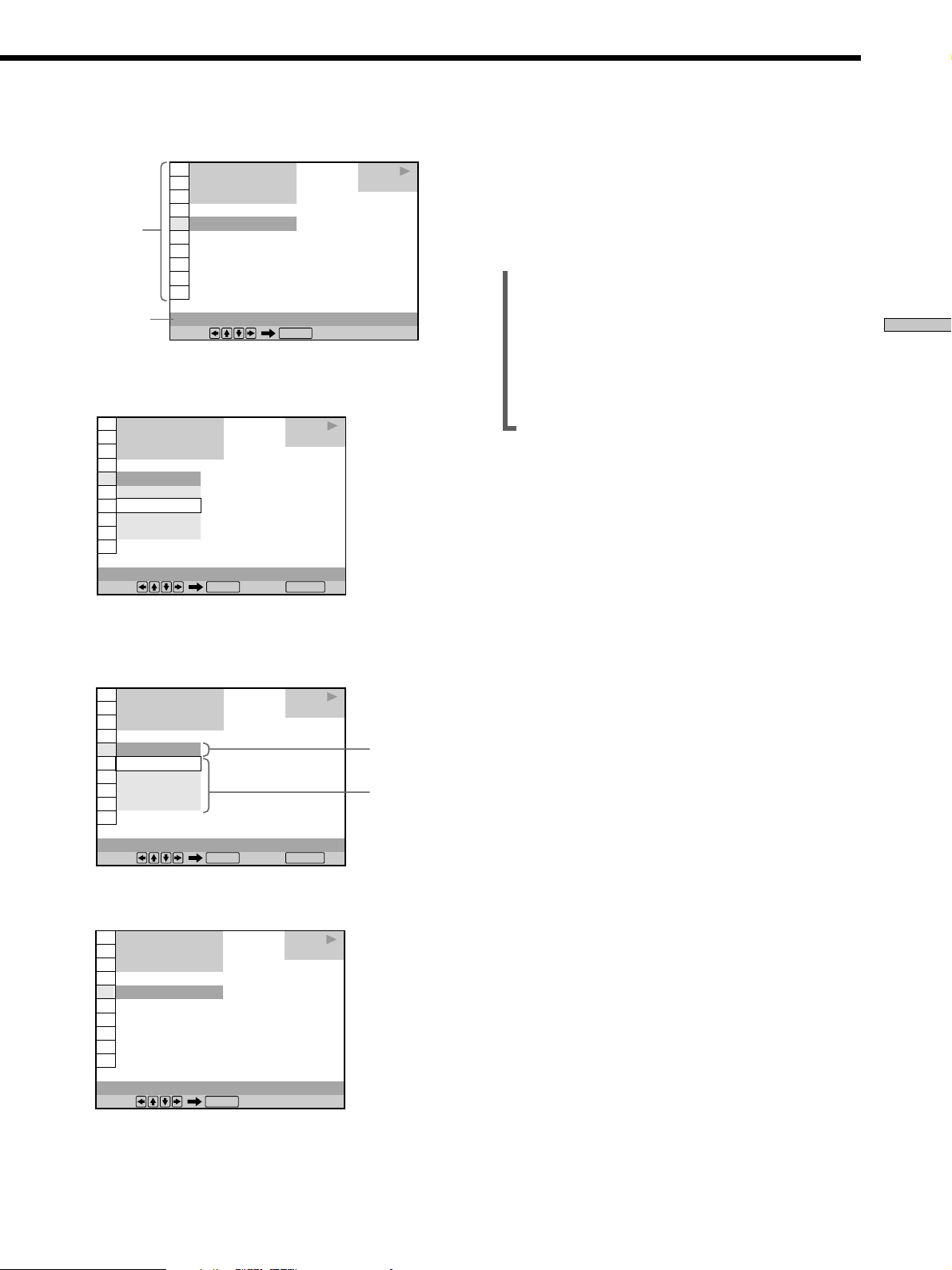

1 Press DISPLAY to show the Control Menu display

on the TV screen.

)

1 2 ( 2 7

)

Current item

1 8 ( 3 4 C

0 1 : 3 2 : 5 5

TITLE Select:

ENTER

DVD

Page 27

2 Select the item you want using M/m.

) )

0 1 : 3 2 : 5 5

ENTER

Items

Selected Item

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH

SUBTITLE Select:

3 Press ENTER.

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

To cancel while making a selection

Press O RETURN.

To display other items

Each time you press DISPLAY, the Control Menu display changes as follows:

,Control Menu display 1

Control Menu display 2 (The items except the first three items from the top

are changed to other items.)

ADVANCED display (see page 37)

Control Menu display off

The Control Menu display items are different depending on the disc.

zYou can select some items directly

Some items can be selected by pressing the corresponding button on the remote. In this case, only the item you selected is displayed. For instructions on using the remote, see the pages of each relevant item.

Using Various Functions with the Control Menu

4 Select the item you want using M/m.

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

5 Press ENTER.

1 2 ( 2 7 1 8 ( 3 4 C

OFF

SUBTITLE Select:

) )

0 1 : 3 2 : 5 5

ENTER

DVD

Note

Some Control Menu display items require operations other than selecting the setting. For details on these items, see the relevant pages.

Selected item

Items

Page 28

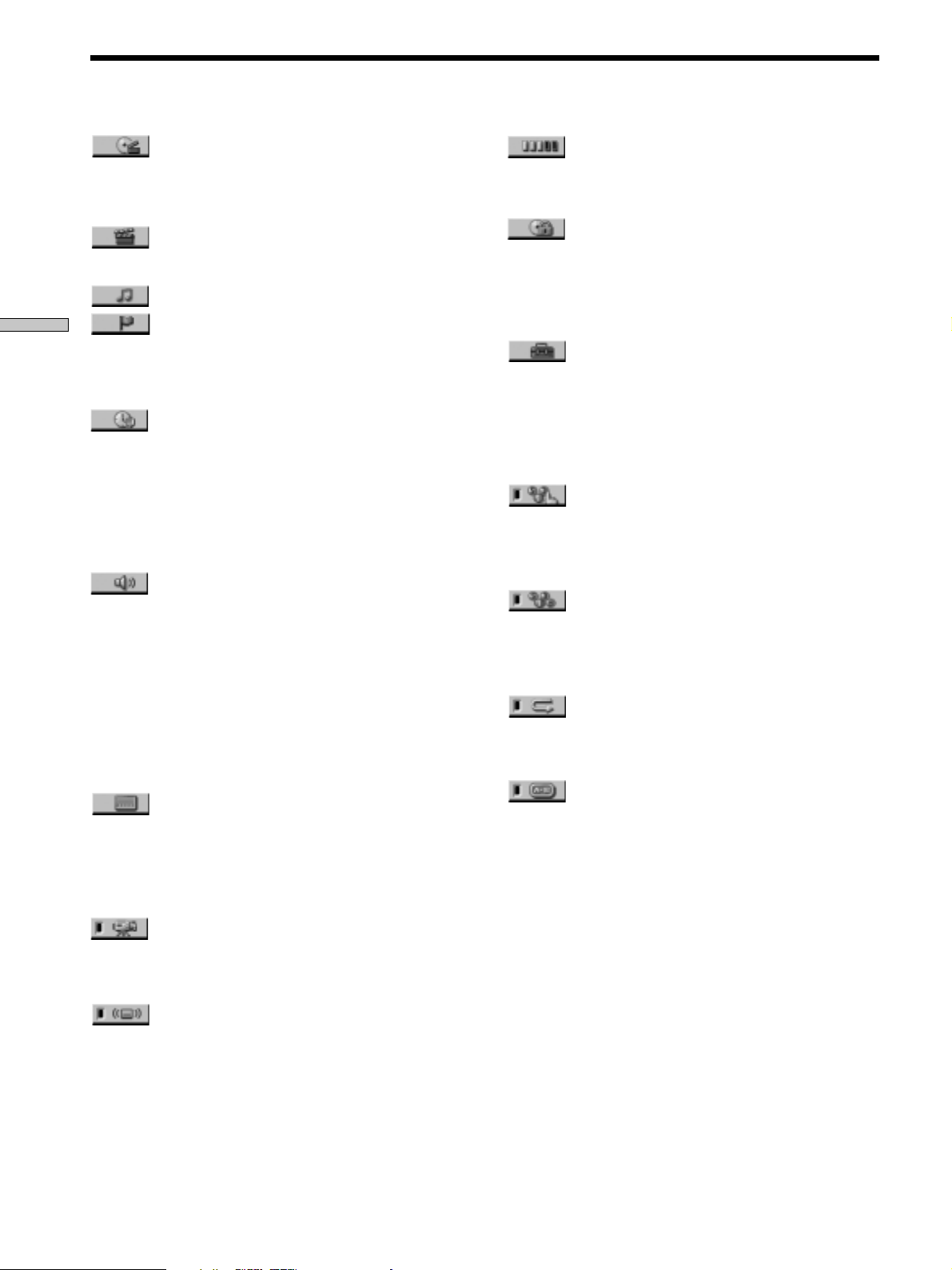

Control Menu Item List

Using Various Functions with the Control Menu

TITLE (DVD only) (page 29)/ SCENE (VIDEO CD during PBC playback

only) (page 29)/ TRACK (VIDEO CD only) (page 29)

CHAPTER (DVD only) (page 29)/

INDEX (VIDEO CD only) (page 29)

TRACK (CD only) (page 29)

INDEX (CD only) (page 29)

You can search for a point on the DVD by selecting the title, chapter, track, index or scene.

TIME/TEXT (pages 30, 31)

You can check the playing time and remaining time of the current title, chapter, track and the total playing time or remaining time of the disc. You can also search by inputting the time code. You can check the DVD TEXT or CD TEXT of the disc on the TV screen and the front panel display.

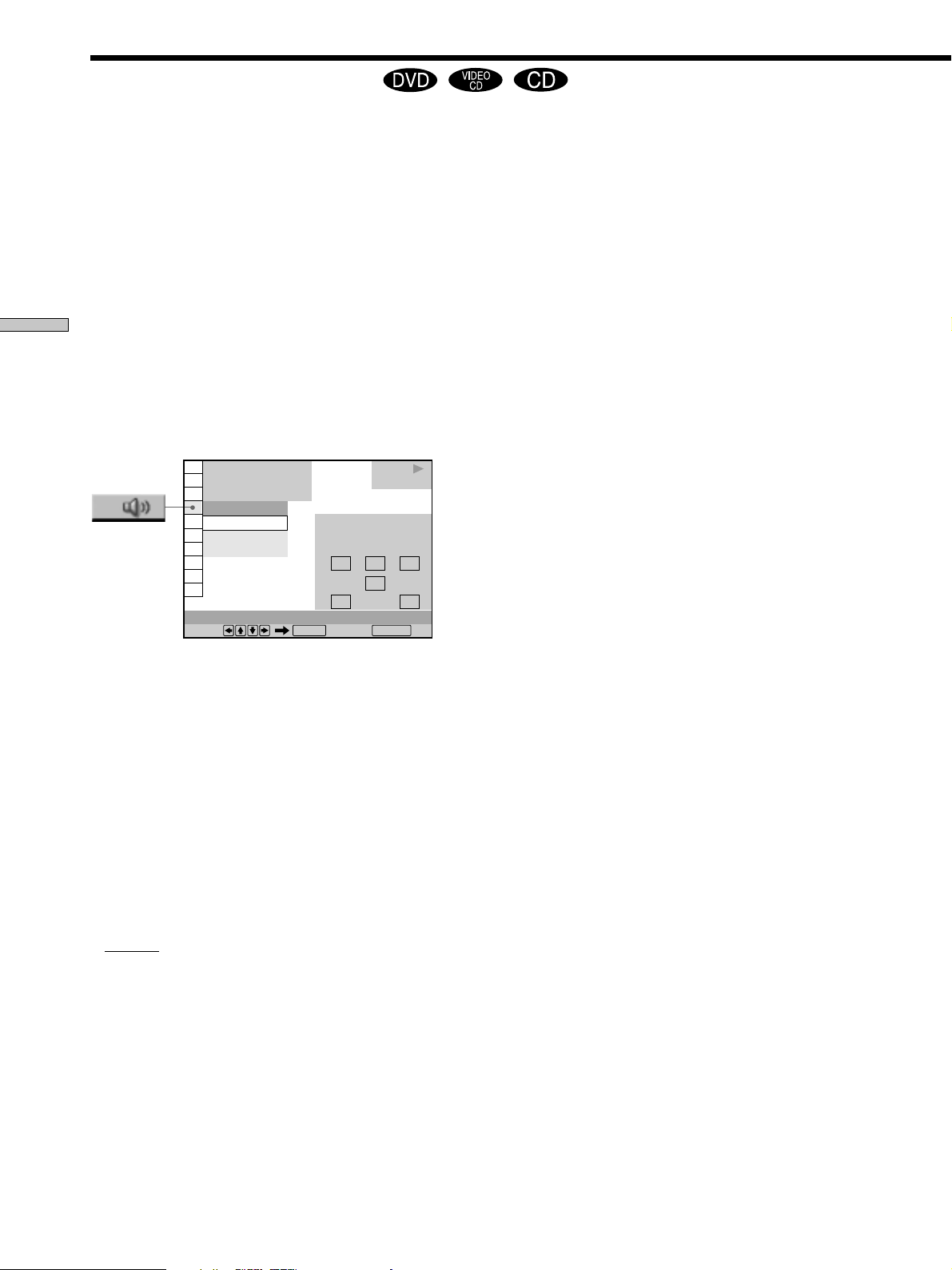

AUDIO (page 32)

ADVANCED (DVD only) (page 37)

You can check the play information about the bit rate or the position where the disc is played (layer).

CUSTOM PARENTAL CONTROL (page 38)

Using the registered password, you can set playback restrictions for desired disc. The same password is used for both Parental Control (page 52) and Custom Parental Control.

SETUP (page 46)

Using the setup display, you can do the initial setup, adjust the picture and sound and set the various outputs. You can also set a language for the subtitles and the setup display, limit playback by children, and so on. For details about the setup display, see page 48.

PROGRAM (page 40)

You can play the contents of the disc in the order you want by arranging the order of the titles, chapters or tracks on the disc to create your own program.

SHUFFLE (page 42)

You can have the player “shuffle” titles, chapters or tracks and play them in a random order. Subsequent “shuffling” may produce a different playing order.

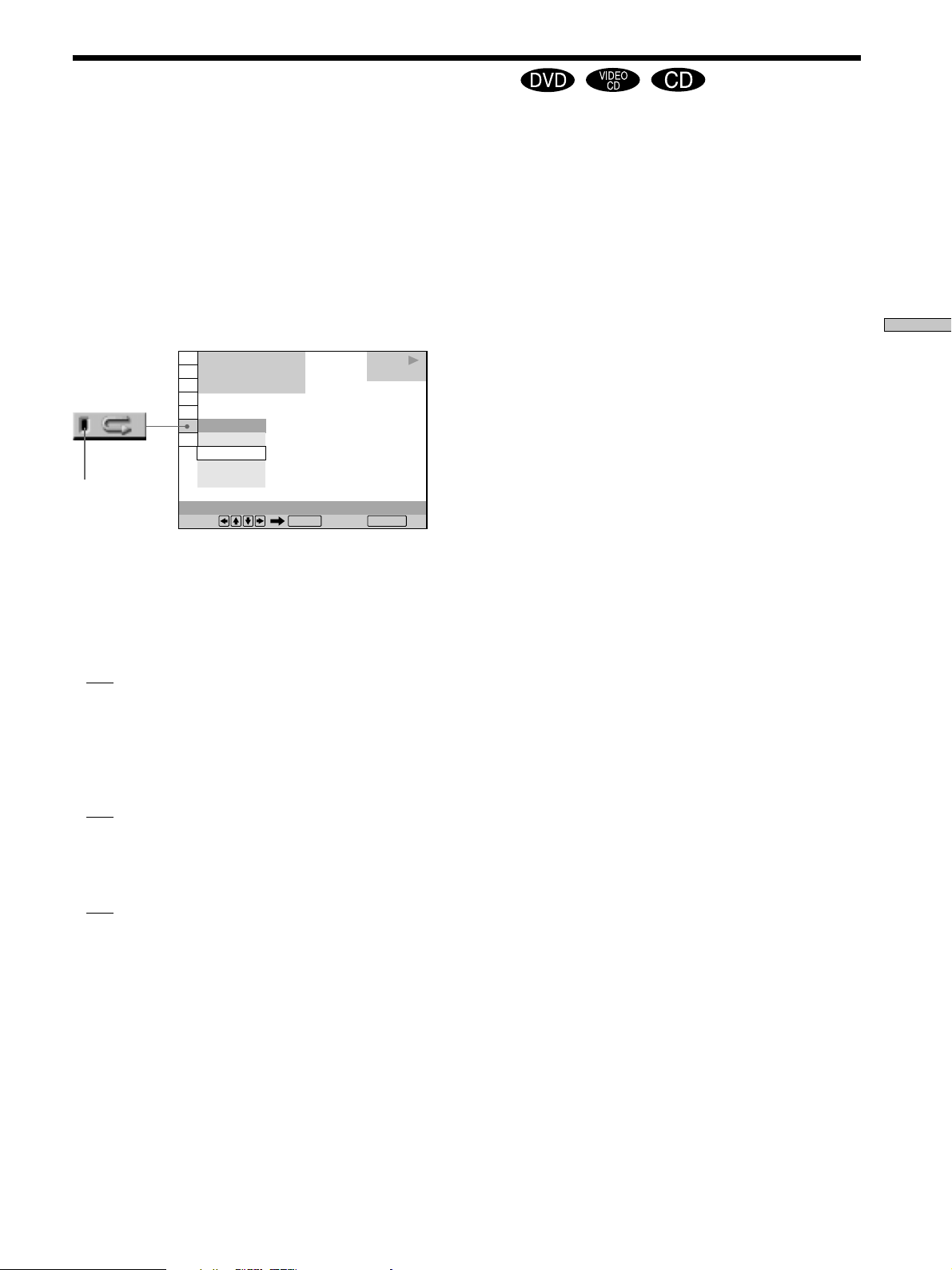

REPEAT (page 43)

You can play all the titles/tracks on a disc or a single title/ chapter/track repeatedly.

SUBTITLE (DVD only) (page 34)

With DVDs on which multilingual subtitles are recorded, you can change the subtitle language whenever you want while playing the DVD, and turn it on or off whenever you want.

ANGLE (DVD only) (page 35)

With DVDs on which various angles (multi-angles) are recorded, you can change the angle of the scene.

VES (DVD only) (page 36)

Select a mode to enjoy multichannel surround sound such as Dolby Digital and MPEG. Even if you connect only front speakers, Virtual Enhanced Surround (VES) lets you enjoy 3D sound by using 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers.

A-B REPEAT (page 44)

You can play a specific portion of a title, chapter, or track repeatedly.

Page 29

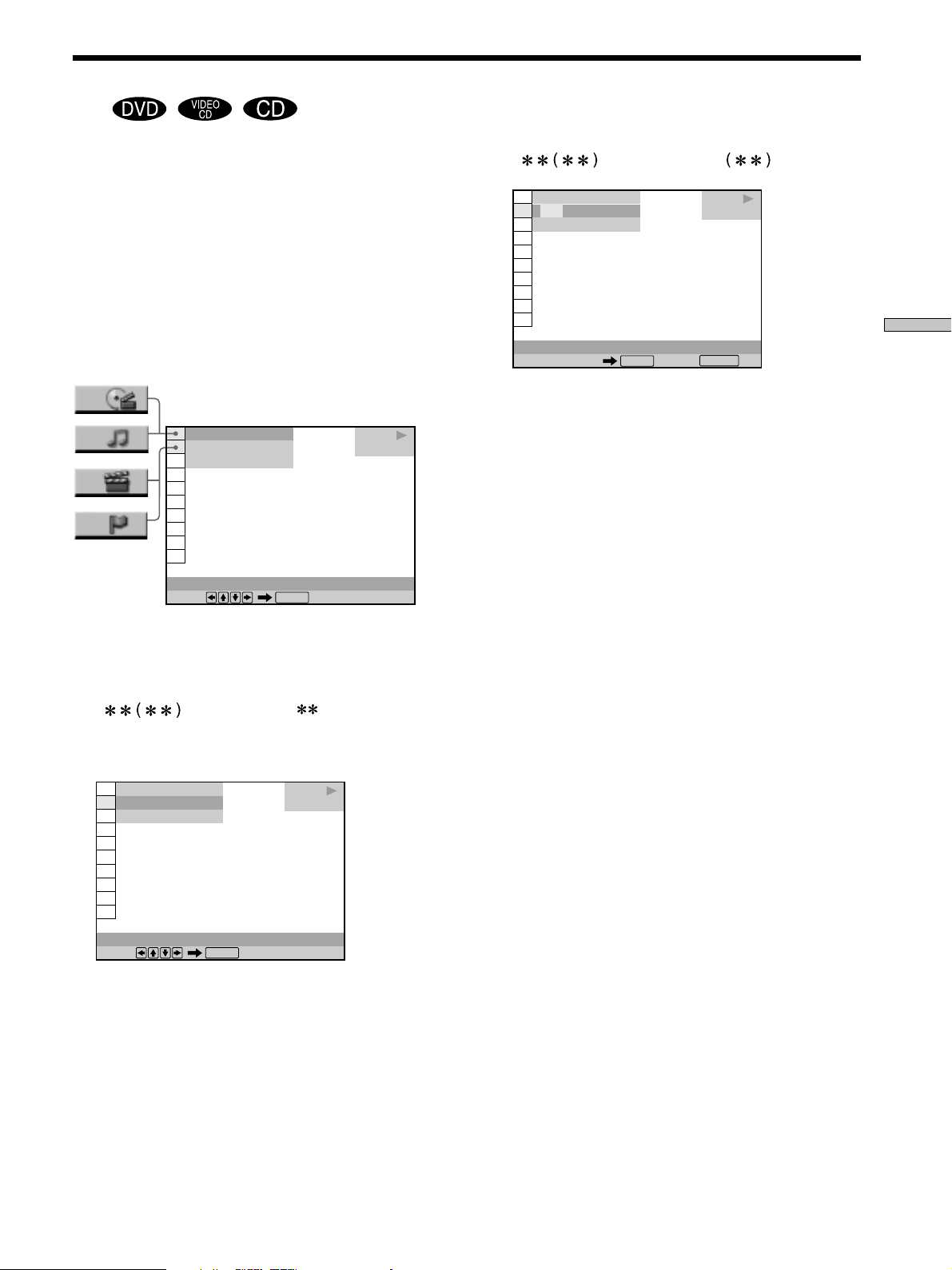

Searching for a Title/Chapter/Track/Index/Scene Z

2 Press , or ENTER.

You can search by selecting the title, chapter, track, index or scene.

Select “TITLE,” “ CHAPTER,” “ TRACK,” “INDEX” or “SCENE” after pressing DISPLAY. When you play back a DVD, “TITLE” and “ CHAPTER” are displayed. When you play back a VIDEO CD/CD, “TRACK” and “INDEX” are displayed. When you play back a VIDEO CD with PBC functions, “SCENE” is displayed.

1 2 ( 2 7 1 8 ( 3 4 C

) )

0 1 : 3 2 : 5 5

DVD

“

1 2 ( 2 7 – – ( 3 4 C

CHAPTER Number buttons Cancel:

3 Select the number of the title, chapter, track, index

or scene you want to search for using the number buttons, then press ENTER.

The player starts searching. To cancel the number, press CLEAR before pressing ENTER.

To cancel while making a selection

Press ORETURN.

” changes to “— — ”.

) )

0 1 : 3 2 : 5 5

ENTER

DVD

Using Various Functions with the Control Menu

RETURN

TITLE Select:

ENTER

1 Select “TITLE,” “CHAPTER,” “TRACK,” “INDEX” or

“SCENE” using M/m.

“ ” is highlighted. ( refers to a number) The number in parentheses indicates the total number

of titles, chapters, tracks, indexes or scenes.

1 2 ( 2 7 1 8 ( 3 4 C

CHAPTER Select:

) )

0 1 : 3 2 : 5 5

ENTER

DVD

Notes

• The title, chapter or track number displayed is the same number recorded on the disc.

• The index numbers are not displayed during PBC playback of VIDEO CDs.

Page 30

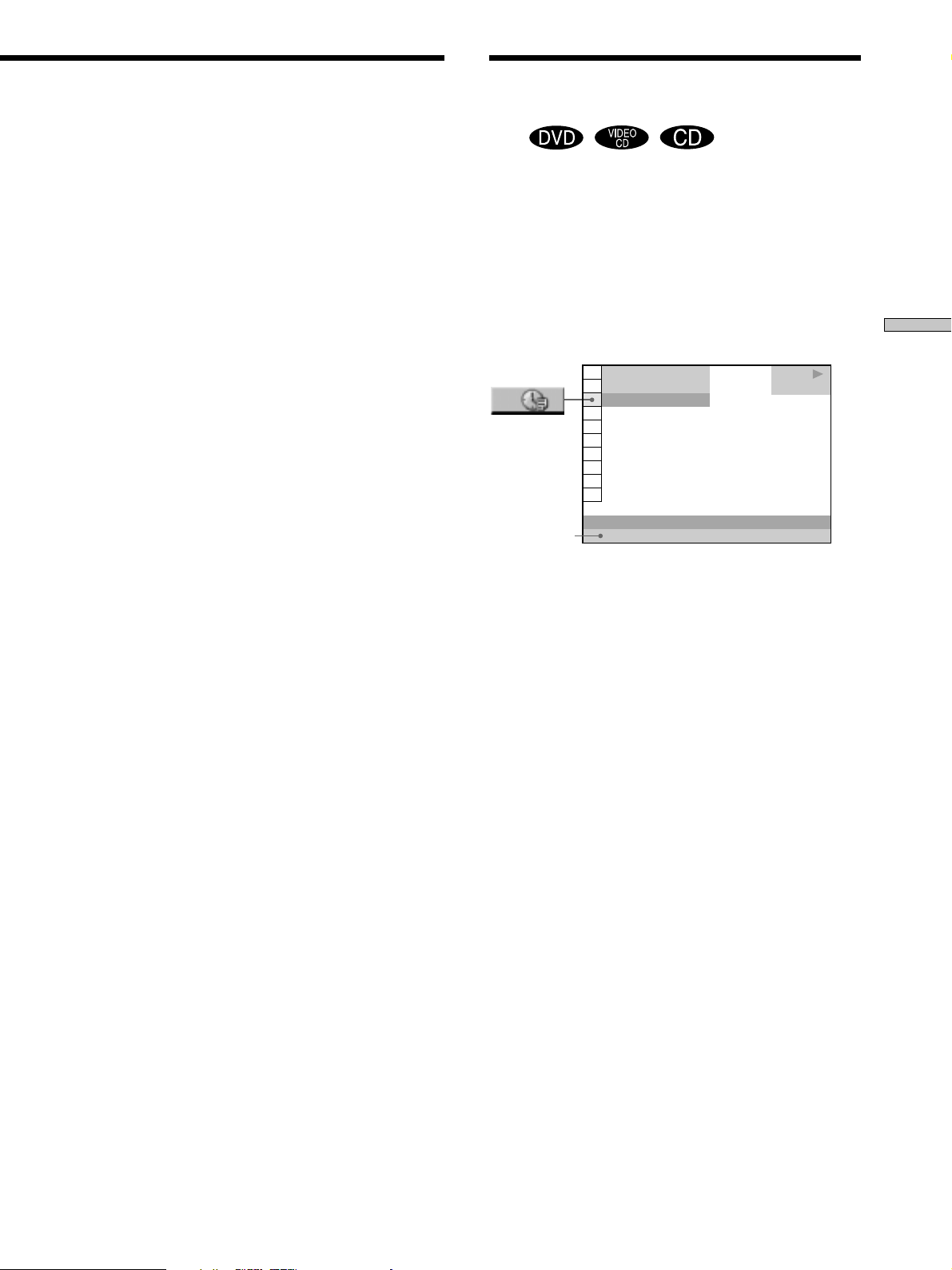

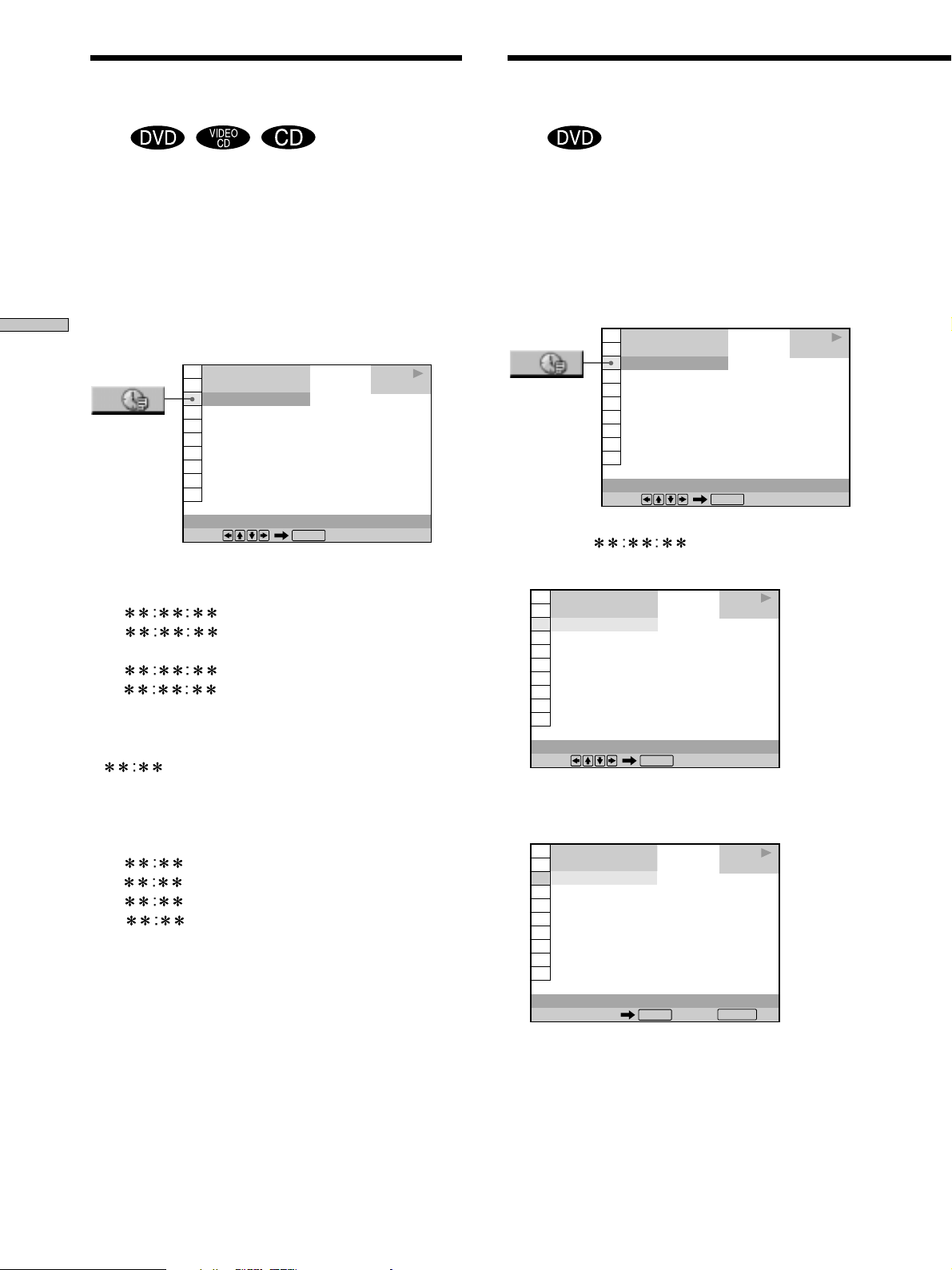

Checking the Playing Time

Selecting a Starting Point

Using Various Functions with the Control Menu

and Remaining Time Z

You can check the playing time and remaining time of the current title, chapter or track and the total playing time or remaining time of the disc.

Press DISPLAY. Then press TIME/TEXT on the remote to change the time information. You can also check the DVD TEXT or CD TEXT. See page

31.

1 2 ( 2 7 1 8 ( 3 4 C

TIME/TEXT Select:

When playing a DVD x TIME/TEXT

•C

•C –

•T

•T –

) )

0 1 : 3 2 : 5 5

ENTER

: Playing time of the current chapter

: Remaining time of the current

chapter : Playing time of the current title : Remaining time of the current title

DVD

Using the Time Code Z

You can search by inputting the time code.

Select “TIME/TEXT” after pressing DISPLAY. The time code corresponds to the approximate actual playing time. For example, to search for a scene 2 hours 10 minutes 20 seconds past the beginning, input 2:10:20.

1 2 ( 2 7 1 8 ( 3 4 C

TIME/TEXT Select:

1 Select “C ” (playing time of the

current chapter) when playing a DVD.

1 2 ( 2 7 1 8 ( 3 4 C

) )

0 1 : 3 2 : 5 5

) )

0 1 : 3 2 : 5 5

ENTER

DVD

When playing a VIDEO CD (during PBC playback) x TIME/TEXT

•

When playing a VIDEO CD (in continuous play) or CD x TIME/TEXT

•T

•T –

•D

•D –

: Playing time of the current scene

: Playing time of the current track

: Remaining time of the current track

: Playing time of the current disc

: Remaining time of the current disc

zYou can select “TIME/TEXT” directly

Press TIME/TEXT on the remote. Each time you press the button, the time information changes.

TIME/TEXT Select:

ENTER

2 Press , or ENTER.

Time code changes to “T – – : – – : – –”.

1 2 ( 2 7 1 8 ( 3 4 T – – : – – : – –

TIME/TEXT Number buttons Cancel:

) )

ENTER

DVD

RETURN

Page 31

Viewing the Disc Information

3 Input the time code using the number buttons,

then press ENTER.

The player starts searching. To cancel the number, press CLEAR before pressing ENTER.

To cancel while making a selection

Press ORETURN.

Note

When you input the time code, input the playing time of the title not the chapter or track time.

You can check the DVD TEXT or CD TEXT of the disc on the TV screen and the front panel display. DVD TEXT and CD TEXT are information recorded on the disc which you cannot change.

Press DISPLAY. Then press TIME/TEXT on the remote until DVD/CD TEXT is displayed. The information is displayed at the bottom of the display.

1 2 ( 2 7 1 8 ( 3 4 C

DVD/CD TEXT

TIME/TEXT

zYou can select “TIME/TEXT” directly

Press TIME/TEXT on the remote. To display DVD/CD TEXT, press TIME/TEXT until DVD/CD TEXT is displayed.

) )

0 1 : 3 2 : 5 5

BRAHMS SYMPHONY NO – 4

DVD

Using Various Functions with the Control Menu

zYou can view the entire DVD/CD TEXT recorded on the disc

DVD/CD TEXT is scrolled on the front panel display.

Notes

• DVD TEXT is displayed only in English.

• “NO TEXT” appears when the DVD/CD TEXT is not recorded on the disc.

• This player can only display the first level of DVD/CD TEXT information.

Page 32

Changing the Sounds

Using Various Functions with the Control Menu

If the DVD is recorded with multilingual tracks, you can select the language you want while playing the DVD. If the DVD is recorded in multiple audio formats (PCM, Dolby Digital, MPEG or DTS), you can select the audio format you want while playing the DVD. With multiplex CDs or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. In this case, the sound loses its stereo effect. For example, with a disc containing a song, the right channel may output the vocals and the left channel may output the instrumental. If you only want to hear the instrumental, you can select the left channel and hear it from both speakers.

Select “AUDIO” after pressing DISPLAY.

1 2 ( 2 7 1 8 ( 3 4 C 1: ENGLISH 1: ENGLISH 2: ENGLISH 3: FRENCH

AUDIO Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

LRC

LFE

LS RS

Notes

• Depending on the DVD, you may not be able to change the languages even if multilingual tracks are recorded on the DVD.

• While playing the CD/VIDEO CD, standard stereo playback will be resumed when: – you open or close the disc tray – the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• While playing the DVD, the sound may be changed when: – you open or close the disc tray – you change the title

x AUDIO When playing a DVD

Select the language. The languages you can select are different depending on the DVD. When 4 digits are displayed, they represent the language code. Select the language code from the list on page 66. When the same language is displayed two or more times, the DVD is recorded in multiple audio formats. The current audio format is shown on the “PROGRAM FORMAT” display.

When playing a VIDEO CD or a CD

The default setting is underlined.

•

STEREO : The standard stereo sound

• 1/L : The sound of the left channel (monaural)

• 2/R : The sound of the right channel (monaural)

zYou can select “AUDIO” directly

Press AUDIO on the remote. Each time you press the button, the item changes.

Page 33

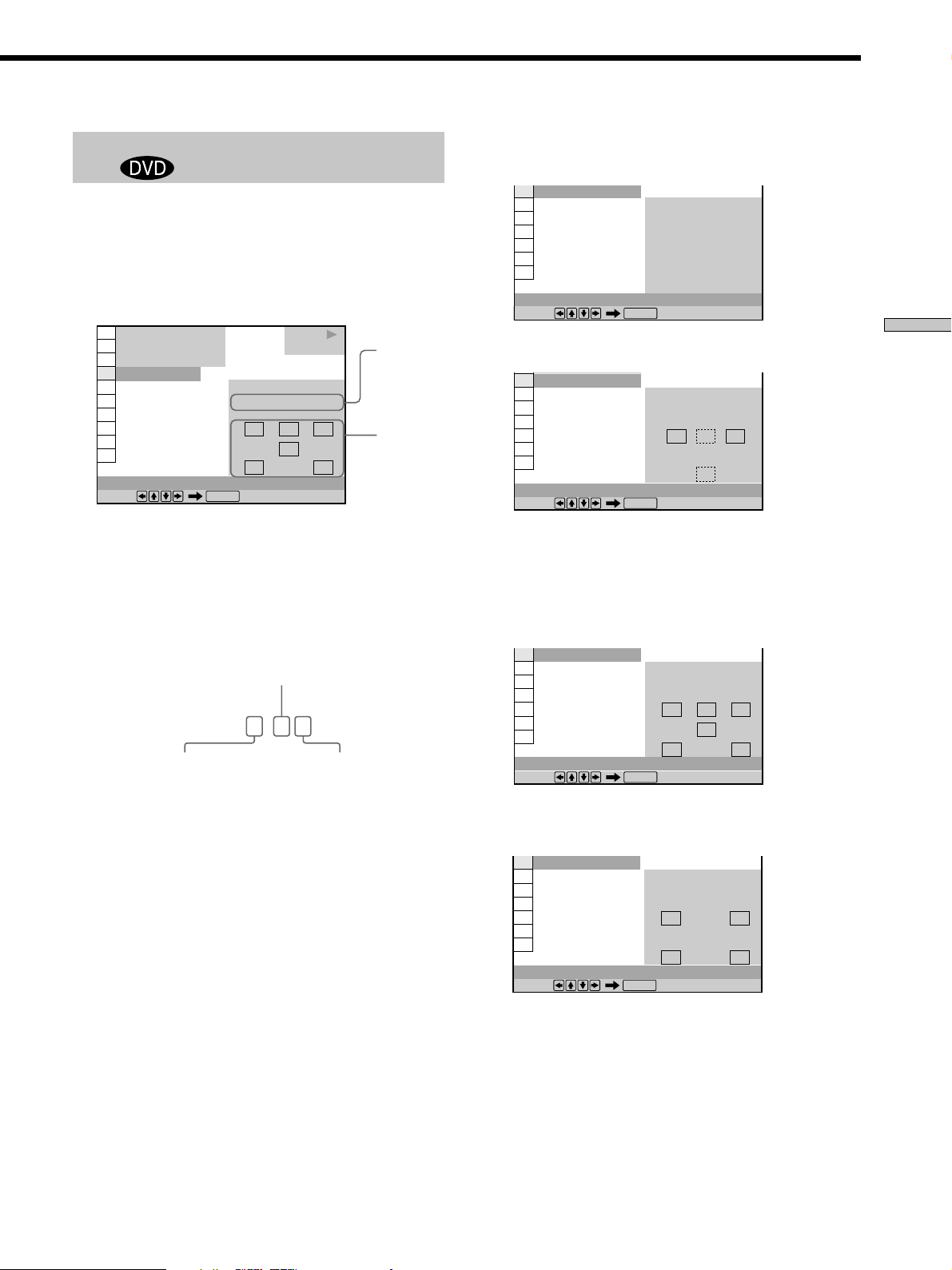

Displaying the audio information of the disc

When you select “AUDIO,” the channels being played are displayed on the screen. In Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the number of the recorded channels may be different.

1 2 ( 2 7 1 8 ( 3 4 C 1: ENGLISH

AUDIO

Select:

) )

0 1 : 3 2 : 5 5

ENTER

DVD

PROGRAM FORMAT DOLBY DIGITAL 3/2.1

LRC

LFE

LS RS

Current audio format*

Current playing program format**

The display examples are as follows:

•PCM (stereo)

1: ENGLISH

AUDIO

Select:

PROGRAM FORMAT PCM 48kHz 24bit

ENTER

•Dolby Surround

1: ENGLISH

AUDIO

Select:

PROGRAM FORMAT DOLBY DIGITAL 2/0 DOLBY SURROUND

L RC

ENTER

Using Various Functions with the Control Menu

* “PCM,“ “DTS,” “DOLBY DIGITAL“ or “MPEG“ is

displayed. In case of “DOLBY DIGITAL,” the channels in the playing track are displayed by numbers as follows:

The case of Dolby Digital 5.1 ch:

Rear component 2

DOLBY DIGITAL

Front component 2 + Center component 1

3 / 2. 1

LFE (Low Frequency Effect) component 1

** The letters in the program format display mean the

following:

L: Front (left) R: Front (right) C: Center (monaural) LS: Rear (left) RS: Rear (right) S: Rear (monaural) – the rear component of the

Dolby Surround processed stereo signal and the Dolby Digital signal.

LFE: – LFE (Low Frequency Effect)

•Dolby Digital 5.1ch “LFE” appears only when a disc contains an LFE signal component. “LFE” remains on the “PROGRAM FORMAT” display even if the LFE signal component is not being output.

1: ENGLISH

AUDIO

Select:

PROGRAM FORMAT DOLBY DIGITAL 3/2.1

LRC

LFE

LS RS

ENTER

•MPEG

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT

MPEG 2/2

LS RS

ENTER

Page 34

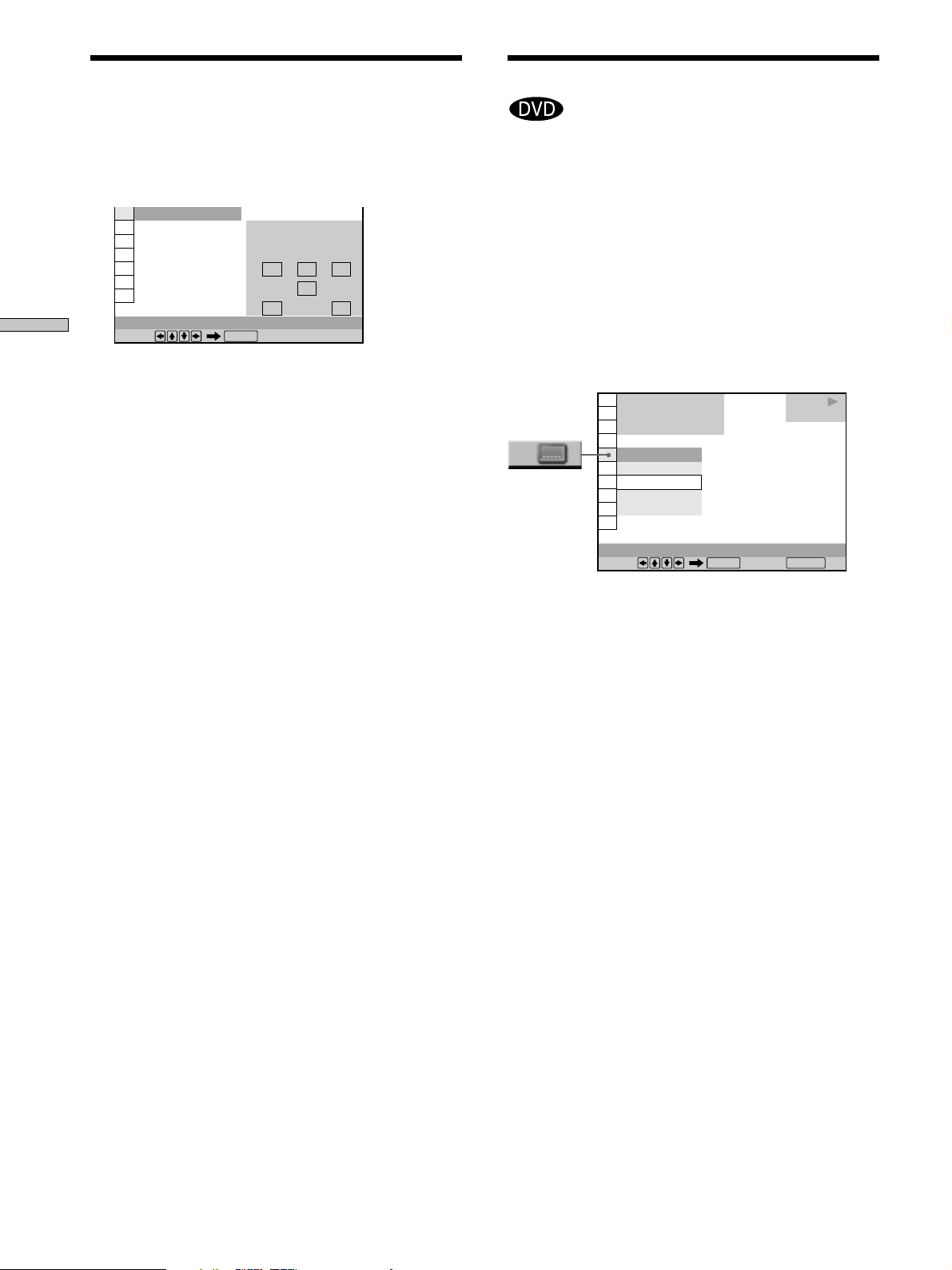

Using Various Functions with the Control Menu

Changing the Sounds

•DTS “LFE” is always enclosed in a solid line regardless of the LFE signal component output.

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT

DTS 3/2.1

LRC

LFE

LS RS

ENTER

Displaying the Subtitles

With DVDs on which subtitles are recorded, you can turn the subtitles on and off whenever you want while playing the DVD. With DVDs on which multilingual subtitles are recorded, you can change the subtitle language whenever you want while playing the DVD, and turn it on or off whenever you want. For example, you can select the language you want to practice and turn the subtitles on for better understanding.

Select “SUBTITLE” after pressing DISPLAY.

Note

When the signal does not contain rear signal components such as LS, RS or S, the Virtual Enhanced Surround (VES) effect cannot be heard (page 36).

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

x SUBTITLE

Select the language. The languages you can select are different depending on the DVD. When 4 digits are displayed, they indicate the language code. Select the language code from the list on page 66.

zYou can select “SUBTITLE” directly

Press SUBTITLE on the remote. Each time you press the button, the item changes.

Notes

• When playing a DVD on which no subtitles are recorded, no subtitles appear.

• Depending on the DVD, you may not be able to turn the subtitles on even if they are recorded on the DVD.

• Depending on the DVD, you may not be able to turn the subtitles off.

• The type and number of languages for subtitles vary from disc to disc.

• Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it.

• While playing the DVD, the subtitle may change when: – you open or close the disc tray – you change the title

Page 35

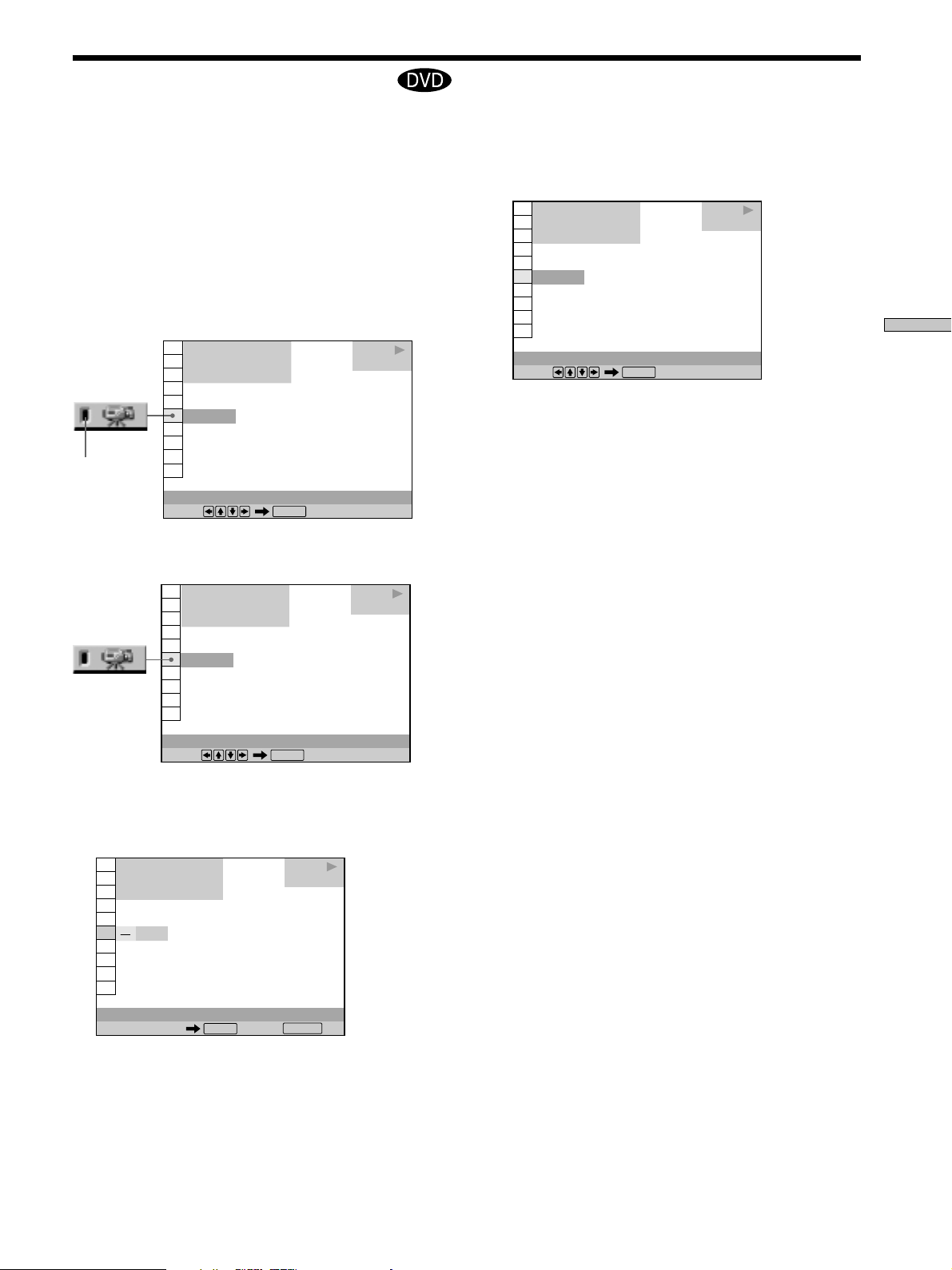

Changing the Angles Z

With DVDs on which various angles (multi-angles) for a scene are recorded, you can change the angles. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train or from the right window without having the train’s movement interrupted.

Select “ANGLE” after pressing DISPLAY. When the angles can be changed, the “ANGLE” indicator lights up in green.

) )

0 1 : 3 2 : 5 5

)

ENTER

DVD

Indicator

1 2 ( 2 7 1 8 ( 3 4 C

1 ( 9

ANGLE Select:

1 Select “ANGLE.”

1 2 ( 2 7 1 8 ( 3 4 C

) )

0 1 : 3 2 : 5 5

DVD

3 Select the number of the angles using the number

buttons or M/m, then press ENTER.

The angle is changed to the selected angle.

1 2 ( 2 7 1 8 ( 3 4 C

5 ( 9

ANGLE Select:

) )

0 1 : 3 2 : 5 5

)

ENTER

DVD

zYou can select “ANGLE” directly

Press ANGLE on the remote. Each time you press the button, the angle changes.

Notes

• The number of angles varies from disc to disc or from scene to scene. The number of angles that can be changed on a scene is equal to the number of angles recorded for that scene.

• Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

Using Various Functions with the Control Menu

)

1 ( 9

ANGLE Select:

ENTER

2 Press ,.

The number of the angle changes to “–”. The number in parentheses indicates the total number of angles.

1 2 ( 2 7 1 8 ( 3 4 C

ANGLE Number buttons Cancel:

) )

0 1 : 3 2 : 5 5

)

( 9

ENTER

DVD

RETURN

Page 36

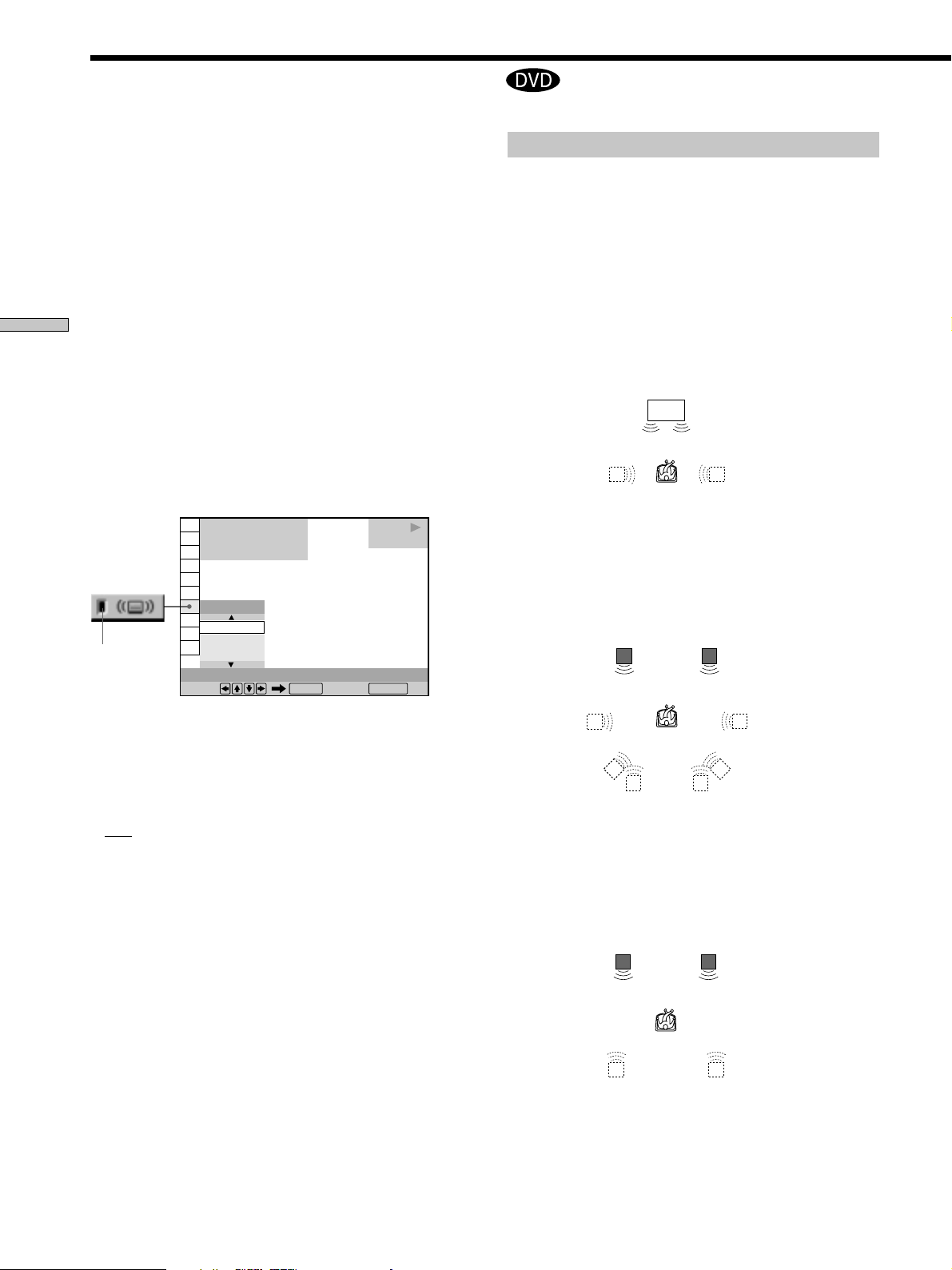

Digital Cinema Sound Settings

Using Various Functions with the Control Menu

Select a mode to enjoy multichannel surround sound such as Dolby Digital and MPEG. Even if you connect only a TV, front speakers or use a 2+1 channel connection, Virtual Enhanced Surround (VES) lets you enjoy 3D sound by using 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L:left, R:right) without using actual rear speakers. The surround sound signals are output from the AUDIO OUT connectors. When you select a surround mode, the player does not output the following signals from the DIGITAL OUT OPTICAL or COAXIAL connector.

• Dolby Digital signals (when you set “DOLBY DIGITAL” in “AUDIO SETUP” to “D-PCM”)

• MPEG AUDIO signals

Select “VES” after pressing DISPLAY. When you select any item except “OFF,” the ”VES” indicator lights up in green.

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

Indicator

1 2 ( 2 7 1 8 ( 3 4 C

VES TV

VES TV VES A VES B

VES

Select: Cancel:

Effects of each item

OFF

Outputs 2-channel signals for stereo sound. 5-channel signals for Dolby Digital sound of a DVD are mixed down to 2-channels.

VES (Virtual Enhanced Surround) TV

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. This mode is effective when the distance between the front L and R speakers is short, such as built-in TV speakers.

VES (Virtual Enhanced Surround) A

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. The virtual speakers are reproduced as shown in the illustration below.

x VES

Select the desired item. For details on each item, see “Effects of each item.” The default setting is underlined.

•

OFF

• VES TV

• VES A

• VES B

• VIRTUAL SEMI MULTI DIMENSION

VES (Virtual Enhanced Surround) B

L R

Page 37

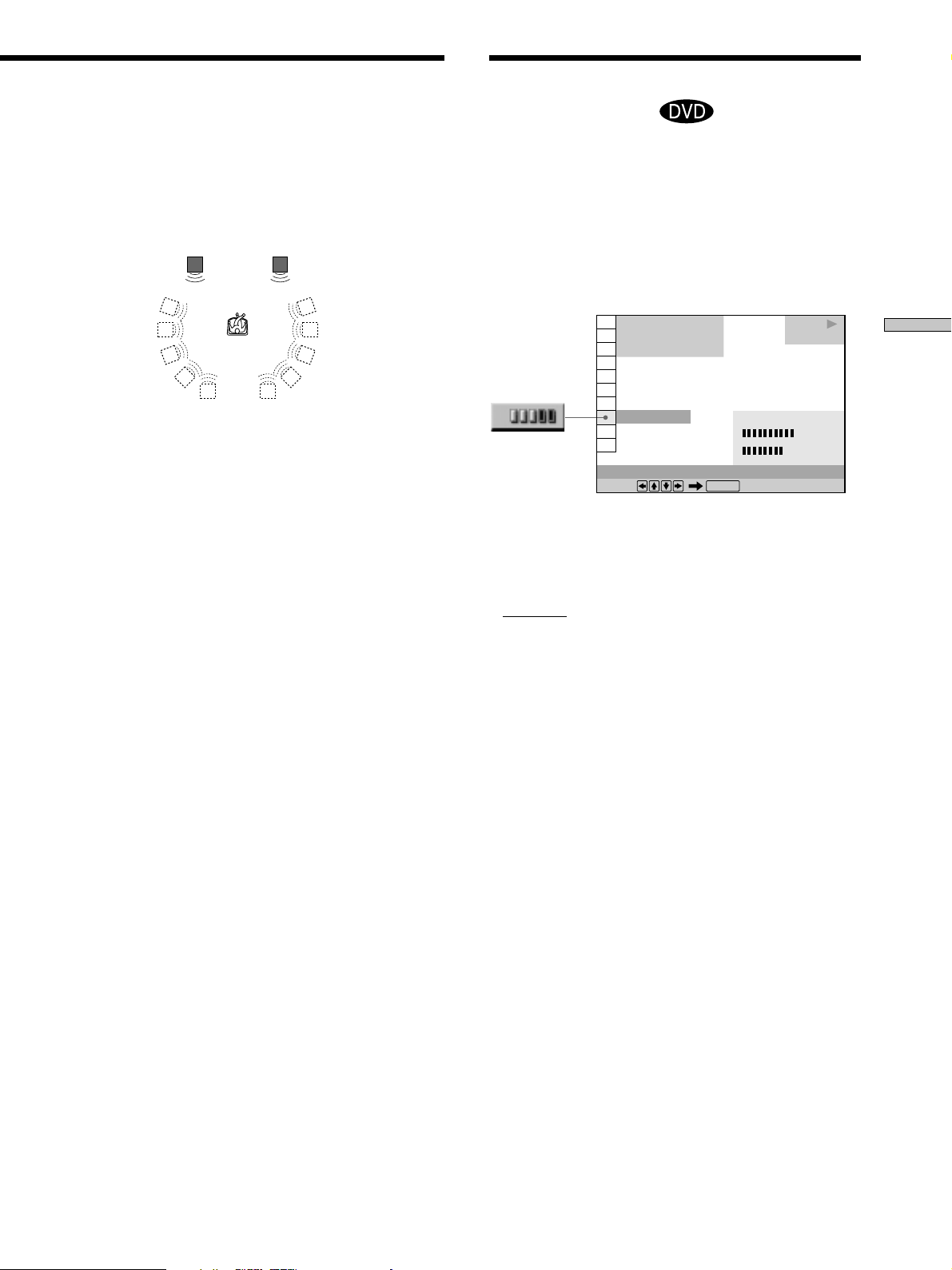

VIRTUAL SEMI MULTI DIMENSION

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at a 30˚ angle of elevation.

Checking the Play Information

You can check information such as the bit rate or the disc layer that is being played. While playing a disc, the approximate bit rate of the playback picture is always displayed as Mbps (Mega bit per second) and the audio as kbps (kilo bit per second).

Select “ADVANCED” after pressing DISPLAY.

zYou can select “VES” directly

Press VES on the player. Each time you press the button, the item changes.

Notes

• When you select an item, the sound cuts off for a moment.

• When the playing signal does not contain the surround component, the effects may be difficult to hear even if you select “VES TV,” “VES A,” ”VES B” or “VIRTUAL SEMI MULTI DIMENSION.”

• Set the front speakers to form an equilateral triangle with the listening position at the top, or the effects may be difficult to hear even if you select “VES A,” ”VES B” or “VIRTUAL SEMI MULTI DIMENSION.”

• When you select “VES TV,” “VES A,” ”VES B” or “VIRTUAL SEMI MULTI DIMENSION,” set the surround settings of the connected units, such as the amplifier, to OFF.

1 2 ( 2 7 1 8 ( 3 4 C

BIT RATE

ADVANCED Select:

) )

0 1 : 3 2 : 5 5

ENTER

DVD

BIT RATE

0 05

1000

x ADVANCED

The default setting is underlined.

When playing a DVD

•

BIT RATE: displays the bit rate.

• LAYER: displays the layer and the point picked up.

• OFF: turns off ADVANCED display.

Using Various Functions with the Control Menu

kbps Mbps

Page 38

OFF

DVD

CUSTOM PARENTAL CONTROL Select:

ENTER

1 8 ( 3 4

)

1 2 ( 2 7

)

0 1 : 3 2 : 5 5

OFF ON PASSWORD

DVD

CUSTOM PARENTAL CONTROL

1 8 ( 3 4

)

1 2 ( 2 7

)

0 1 : 3 2 : 5 5

Select: Cancel:

ENTER RETURN

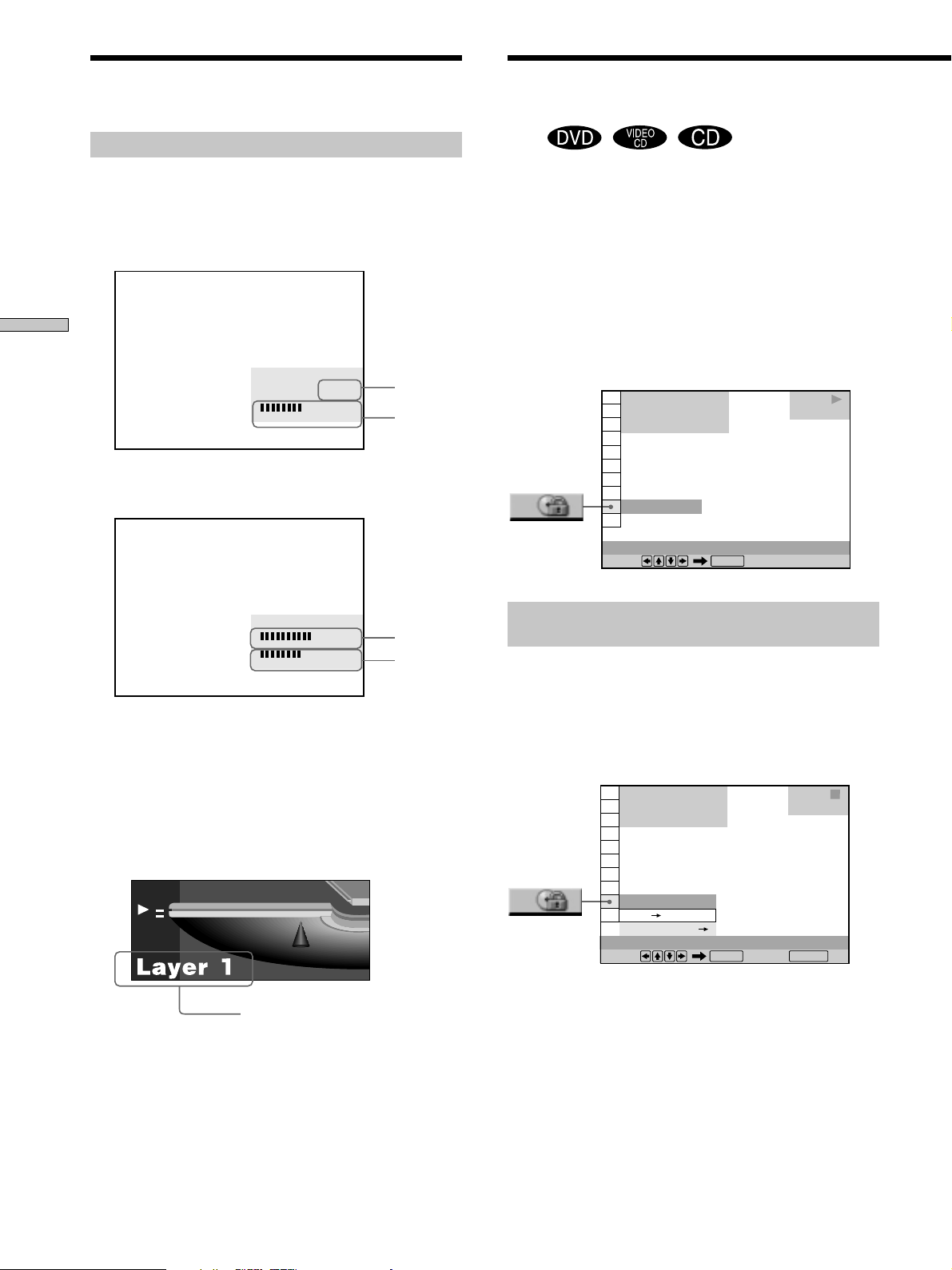

Checking the Play Information

Locking Discs (Custom Parental Control)

Using Various Functions with the Control Menu

Displays of each item

By pressing DISPLAY repeatedly, you can display either “BIT RATE” or “LAYER,” whichever was selected in “ADVANCED.”

BIT RATE

When you play MPEG AUDIO sound tracks

384kbps

Mbps

Audio

Video

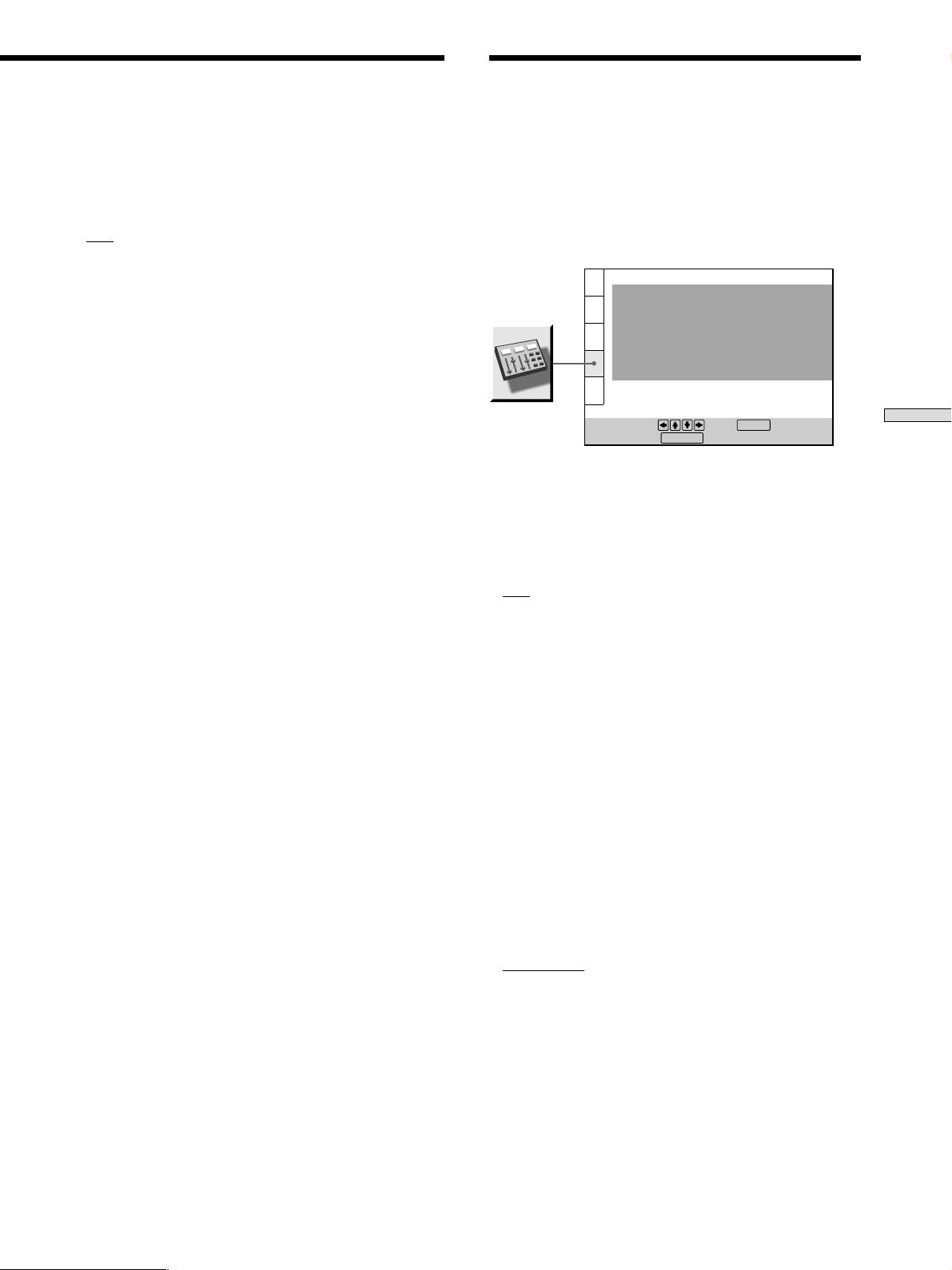

Using the registered password, you can set playback restrictions for desired disc. You can set the Custom Parental Control up to 50 discs. When you set to the fifty-first disc, the first disc setting is canceled. The same password is used for both Parental Control (page 52) and Custom Parental Control.

Select “CUSTOM PARENTAL CONTROL” after pressing DISPLAY.

BIT RATE

0 05

1000

kbps Mbps

Audio Video

Bit rate refers to the amount of video/audio data per second in a disc. The higher the bit rate, the larger the amount of data. When the bit rate level is high, there is a large amount of data. However, this does not always mean that you can get higher quality pictures or sounds.

LAYER

Appears when the DVD has dual layers

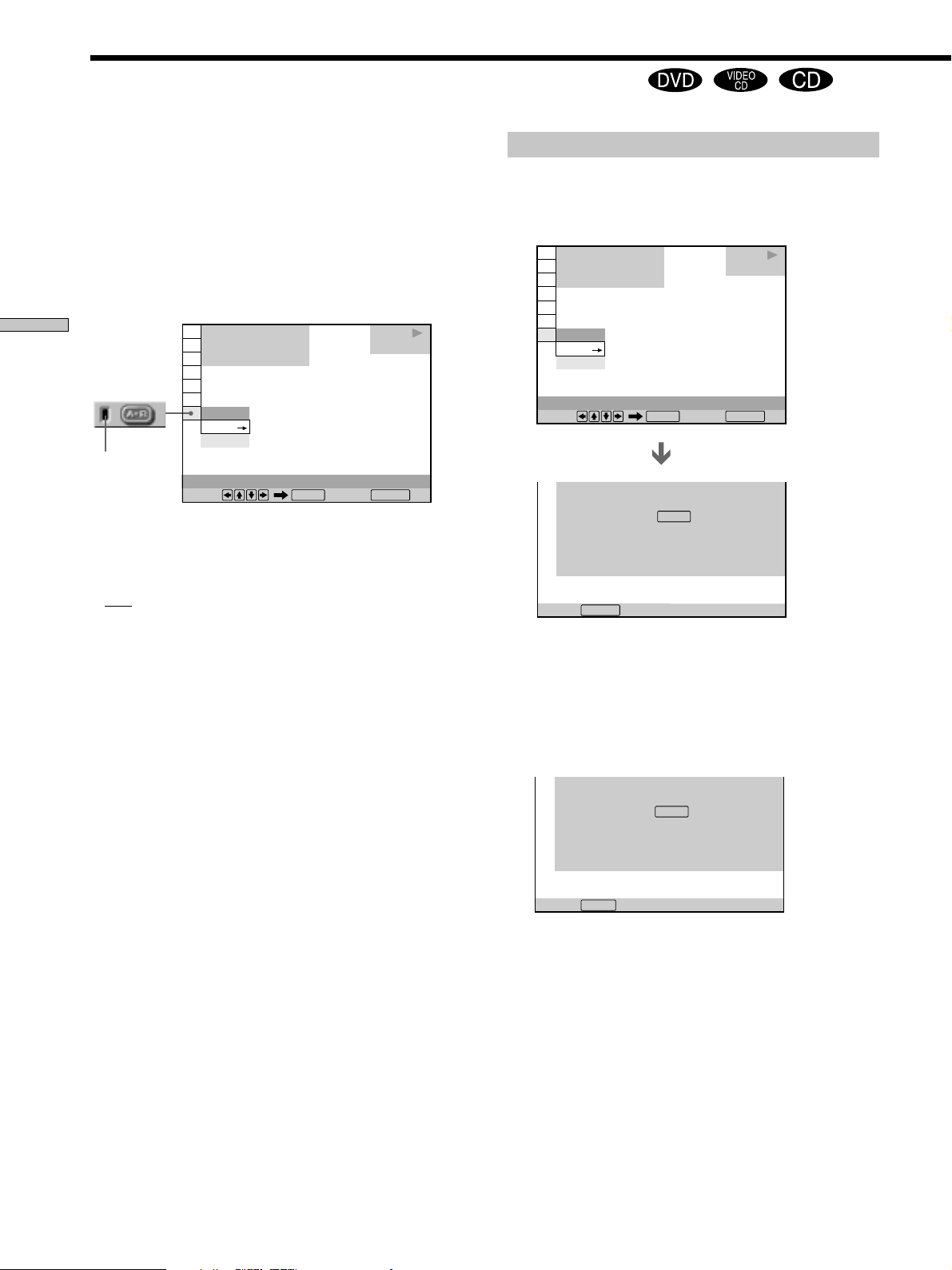

Setting the Custom Parental Control to a disc

1 Insert the disc you want to lock.

If a disc is playing, press x to stop playback.

2 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

Indicates the approximate point where the disc is playing. If it is a dual-layer DVD, the player indicates which layer is being read (“Layer 0” or “Layer 1”). For details on the layers, see page 64 (DVD).

Page 39

3 Select “ON,” using M/m, then press ENTER.

x If you have not entered a password

The display for entering a password appears.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

To return to the normal screen

Press ORETURN.

To turn off the Custom Parental Control function

1 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

2 Select “OFF” using M/m, then press ENTER. 3 Enter your 4-digit password using the number buttons,

then press ENTER.

To return, press .

RETURN

x When you have already registered a password

The display for confirming the password appears. Skip Step 4.

CUSTOM PARENTAL CONTROL

Enter password, then press

To return, press .

RETURN

ENTER

4 Enter a 4-digit password using the number

buttons, then press ENTER.

The digits change to asterisks ( confirming the password appears.

), and the display for

To change the password

1 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

2 Select “PASSWORD,” using M/m, then press ENTER. 3 Enter your 4-digit password using the number buttons,

then press ENTER. The display for changing the password appears.

4 Enter a new 4-digit password using the number

buttons, then press ENTER.

5 To confirm your password, re-enter it using the number

buttons, then press ENTER.

Playing the disc on which the Custom Parental Control is set

1 Insert the disc.

The CUSTOM PARENTAL CONTROL display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

and press

ENTER

Using Various Functions with the Control Menu

CUSTOM PARENTAL CONTROL

To confirm, enter password again, then press

To return, press .

ENTER

RETURN

5 Enter the same 4-digit password using the number

buttons, then press ENTER.

“Custom parental control is set.” appears and then the screen returns to the Control Menu display.

2 Enter your 4-digit password using the number

buttons, then press ENTER.

The player starts playback.

zIf you forget your password

Enter the 6-digit number “199703” in Step 2 to clear the current password. To enter a new password, follow the “Setting the Custom Parental Control to a disc” procedure.

Note

Unless you enter the password, the player cannot play the disc on which the Custom Parental Control is set. When you do not know the password, press A and remove the disc.

Page 40

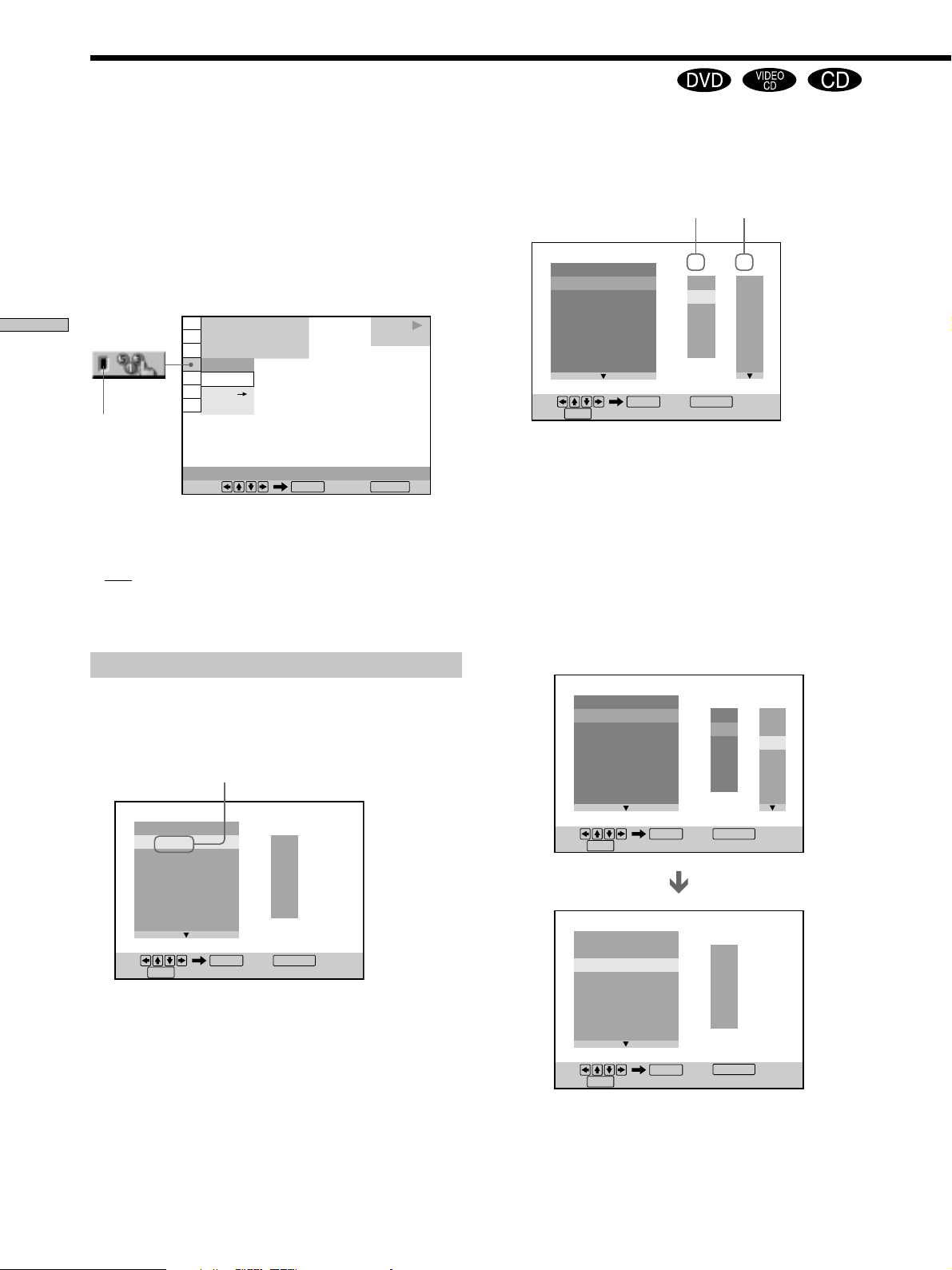

Creating Your Own Program (Program Play)

Using Various Functions with the Control Menu

You can play the contents of the disc in the order you want by arranging the order of the titles, chapters or tracks on the disc and create your own program. One program can be stored in the player and contain up to 99 titles, chapters and tracks.

Select “PROGRAM” after pressing DISPLAY. When you select “ON,” the “PROGRAM” indicator lights up in green.

1 2 ( 2 7 1 8 ( 3 4 C OFF OFF SET ON

Indicator

PROGRAM Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

x PROGRAM

The default setting is underlined.

•

OFF: plays normally.

• SET,: allows you to create your own program.

• ON: plays Program Play.

Creating the program

1 Select “SET,” in “PROGRAM.”

The programming display appears.

“TRACK” is displayed when you play a VIDEO CD or a CD.

PROGRAM ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

Set: Quit: Start:

PLAY

– – – – – – – – – – – –

ENTER

T – –

01 02 03 04 05

DISPLAY

2 Press ,.

“01” is highlighted. It is ready to set the first title or track for Program Play.

Title Chapter

PROGRAM ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

Set: Quit: Start:

PLAY

– – – – – – – – – – – – – –

ENTER

– –

01 02 03 04 05

DISPLAY

ALL

01 02 03 04 05 06

3 Select the title, chapter or track you want to

program using M/m, then press ENTER.

For example, select title or track 2. (You can also use the number buttons and ENTER button to make a selection. In this case, the selected number is displayed on the screen.)

x When playing a DVD

When both titles and chapters are recorded on the disc, select the title, then the chapter.

PROGRAM ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

Set: Quit: Start:

PROGRAM ALL CLEAR

1. TITLE 0 1

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

PLAY

– – – – – – – – – – – – – –

– – – – – – – – – –

ENTER

–

0 2

– –

01 02 03 04 05

DISPLAY

– –

01 02 03 04 05

ALL

01 02 03 04 05 06

Set: Quit:

PLAY

Start:

ENTER

DISPLAY

Page 41

x When playing a VIDEO CD or CD

Select the track you want to program.

zThe program remains even after Program Play ends

When you press H, you can play the same program again.

Total time of the programmed tracks

PROGRAM ALL CLEAR

1. TRACK 0 2

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

Set: Quit:

PLAY

Start:

– – – – – – – – – –

ENTER

0:15:30

– – 01

02 03 04 05

DISPLAY

4 To program other titles, chapters or tracks, repeat

Step 3.

The programmed titles, chapters or tracks are displayed in the selected order.

5 Press H to start Program Play.

To stop Program Play

Press CLEAR on the remote.

zYou can do Repeat Play or Shuffle Play of the programmed

titles, chapters or tracks

During Program Play, set “REPEAT” or “SHUFFLE” to “ON” in the Control Menu display.

zYou can select discs, titles, chapters and tracks for the

program by looking at the front panel display

You can program by looking at the front panel display instead of using the programming display on the TV screen. When you select Track 3 in a VIDEO CD for Program 1, the front panel display will appear as follows:

VIDEO CD

PGM

Program number

PGM

Track number

PGM

Using Various Functions with the Control Menu

To change the program

1 In Step 2, select the program number of the title, chapter

or track you want to change using M/m.

2 Follow Step 3 for new programming.

To cancel the programmed order

To cancel all the titles, chapters or tracks in the programmed order, select “ALL CLEAR” in Step 2. To cancel the selected program, select the program using M/m in Step 2 then press CLEAR, or select “– –” in Step 3 then press ENTER.

Notes

• The number of titles, chapters or tracks displayed are the same number of titles, chapters or tracks recorded on a disc.

• The program is canceled when:

– you open or close the disc tray – the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• You may not be able to perform Program Play depending on the DVD.

• If you are using the PBC playback function, you must first stop the disc before you can set a program.

Page 42

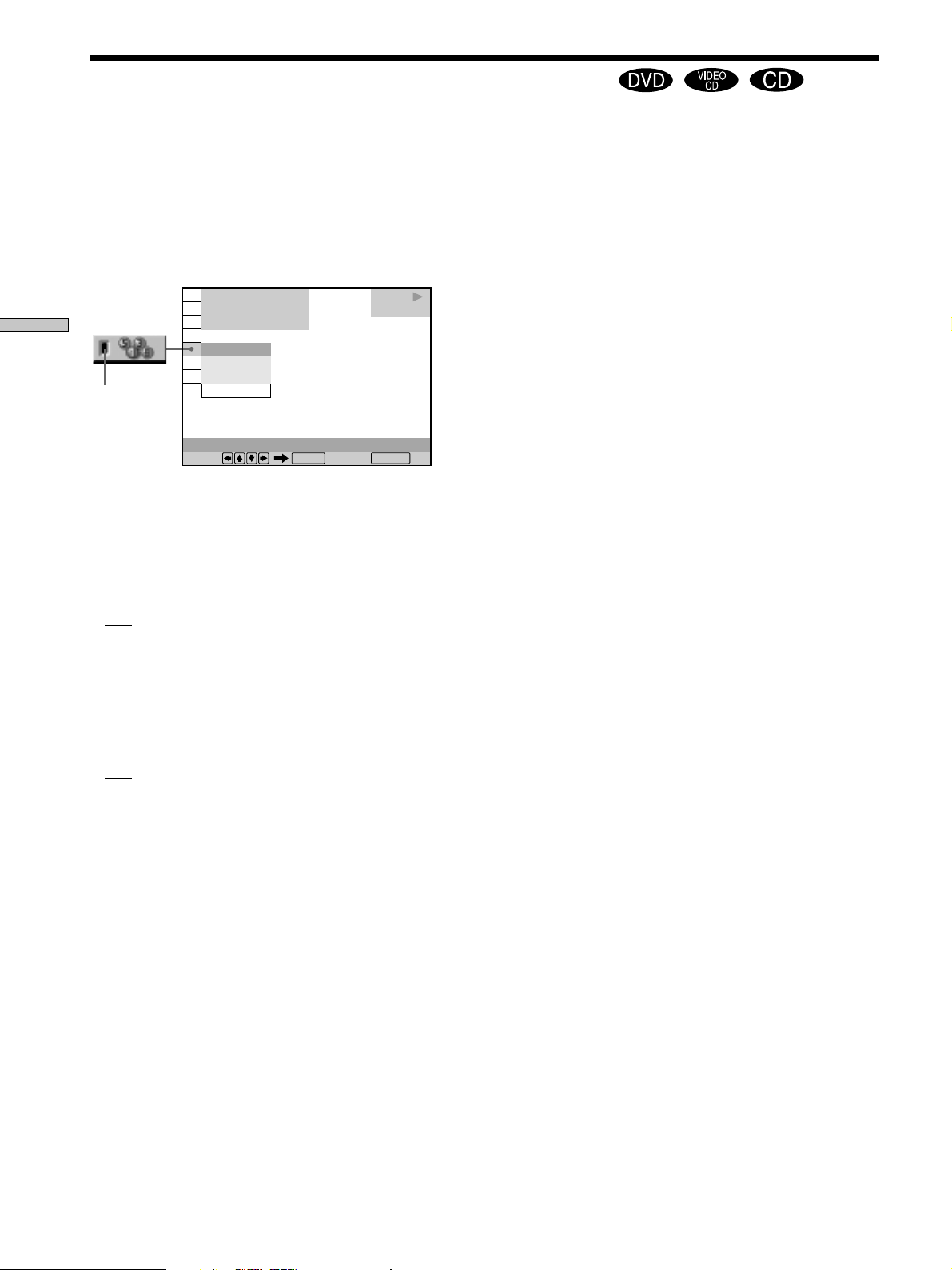

Playing in Random Order (Shuffle Play)

Using Various Functions with the Control Menu

You can have the player “shuffle” titles or tracks and play them in a random order. The playing order may differ from the previous “shuffling.”

Select “SHUFFLE” after pressing DISPLAY. When you select a shuffle mode other than “OFF,” the “SHUFFLE “ indicator lights up in green.

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

Indicator

1 2 ( 2 7 1 8 ( 3 4 C

CHAPTER OFF

TITLE CHAPTER

SHUFFLE Select: Cancel:

x SHUFFLE

Selects the Shuffle Play setting. The default settings are underlined.

When playing a DVD and when Program Play is set to OFF

•

OFF: does not play a disc in random order.

• TITLE: has the player “shuffle” titles and play them in a random order.

• CHAPTER: has the player “shuffle” chapters and play them in a random order.

zYou can set Shuffle Play while the disc is stopped

After selecting the “SHUFFLE” option, press H. The player starts Shuffle Play.

Notes

• Shuffle Play is canceled when: – you open or close the disc tray

– the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• You may not be able to perform Shuffle Play depending on the DVD.

• Up to 200 chapters in a disc can be played in random order when “CHAPTER” is selected.

When playing a VIDEO CD, CD or DVD (when Program Play is set to ON)

•

OFF: does not play a disc in random order.

• ON: has the player “shuffle” titles or tracks and play them in a random order.

When playing a VIDEO CD or CD (when Program Play is set to OFF)

•

OFF: does not play a disc in random order.

• TRACK: has the player “shuffle” tracks and play in a random order.

To stop Shuffle Play

Press CLEAR on the remote.

Page 43

Playing Repeatedly (Repeat Play)

You can play all of the titles or tracks on a disc or a single title, chapter or track repeatedly. In Shuffle or Program Play mode, the player repeats the titles or tracks in the shuffled or programmed order. You cannot perform Repeat Play during PBC playback of VIDEO CDs (page 23).

Select “REPEAT” after pressing DISPLAY. When you select a repeat mode other than “OFF,” the “REPEAT “ indicator lights up in green.

) )

0 1 : 3 2 : 5 5

DVD

ENTER RETURN

Indicator

1 2 ( 2 7 1 8 ( 3 4 C

DISC OFF DISC

TITLE CHAPTER

REPEAT

Select: Cancel:

x REPEAT

Selects the Repeat Play setting. The default settings are underlined.

zYou can set Repeat Play while the disc is stopped

After selecting the “REPEAT” option, press H. The player starts Repeat Play.

Notes

• Repeat play is canceled when: – you open or close the disc tray – the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• You may not be able to perform Repeat Play depending on the DVD.

Using Various Functions with the Control Menu

When playing a DVD and when Program Play and Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all of the titles.

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

When playing a VIDEO CD/CD and when Program Play and Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all of the tracks on a disc.

• TRACK: repeats the current track.

When Program Play or Shuffle Play is set to ON

•

OFF: does not play repeatedly.

• ON: repeats Program Play or Shuffle Play.

To stop Repeat Play

Press CLEAR on the remote.

Page 44

Repeating a Specific Portion (A-B Repeat)

1 8

(

3 4

)

DVD

Using Various Functions with the Control Menu

You can play a specific portion of a title, chapter or track repeatedly. This function is useful when you want to do such things as memorize lyrics. During PBC Playback of VIDEO CDs (page 23), this function is available only while playing moving pictures.

Select “A-B REPEAT” after pressing DISPLAY. During AB Repeat Play, the “A-B REPEAT” indicator lights up in green.

1 2 ( 2 7 1 8 ( 3 4 C

OFF SET OFF

Indicator

A–B REPEAT

Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

DVD

x A-B REPEAT

The default setting is underlined.

• SET,: sets the A and B points.

•

OFF: does not play a specific portion of a title/chapter/ track repeatedly.

Setting a portion for A-B repeat

1 Select “SET,” in “A-B REPEAT.”

The A-B REPEAT setting display appears.

1 2 ( 2 7 1 8 ( 3 4 C

OFF SET OFF

A–B REPEAT To select, press , then .

Select: Cancel:

1 2 ( 2 7 1 8 ( 3 4 C

A-B REPEAT

Set point A with .

Return:

) )

0 1 : 3 2 : 5 5

) )

0 1 : 3 2 : 5 5

RETURN

DVD

ENTER RETURN

PLAY

DVD

ENTER

2 During playback, when you find the starting point

(point A) of the portion to be played repeatedly, press ENTER.

The starting point (point A) is set.

Cancel:

0 1 : 3 2 : 5 5

A-B REPEAT

Set point B with .

CLEAR

ENTER

CHAPTER

A: 18 – 01 : 32 : 55

TIME

Page 45

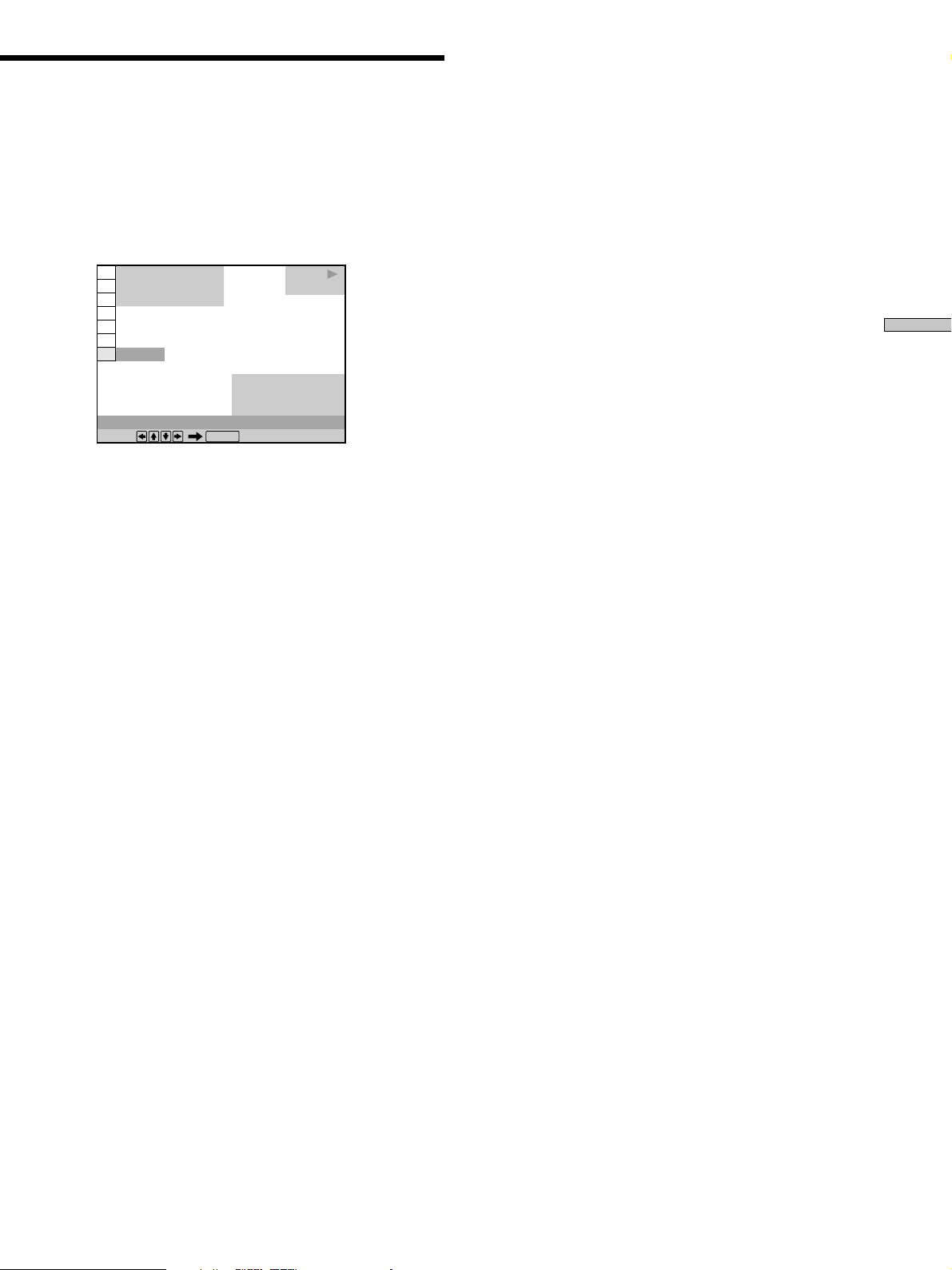

3 When you reach the ending point (point B), press

ENTER again.

The set points are displayed and the player starts repeating this specific portion. “A-B” appears on the front panel display during A-B repeat play.

1 2 ( 2 7 1 8 ( 3 4 C

A–B REPEAT Select:

) )

0 1 : 34 : 30

CHAPTER A: 18 – 01 : 32 : 55 B: 18 – 01 : 34 : 30

ENTER

DVD

TIME

To stop A-B Repeat Play

Press CLEAR on the remote.

Notes

• You can set A-B Repeat for only one specific portion.

• A-B Repeat is canceled when: – you open or close the disc tray

– the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• When you set A-B Repeat, the settings for Shuffle Play and Program Play are canceled.

• You may not be able to set A-B Repeat for some DVD or VIDEO CD scenes.

Using Various Functions with the Control Menu

Page 46

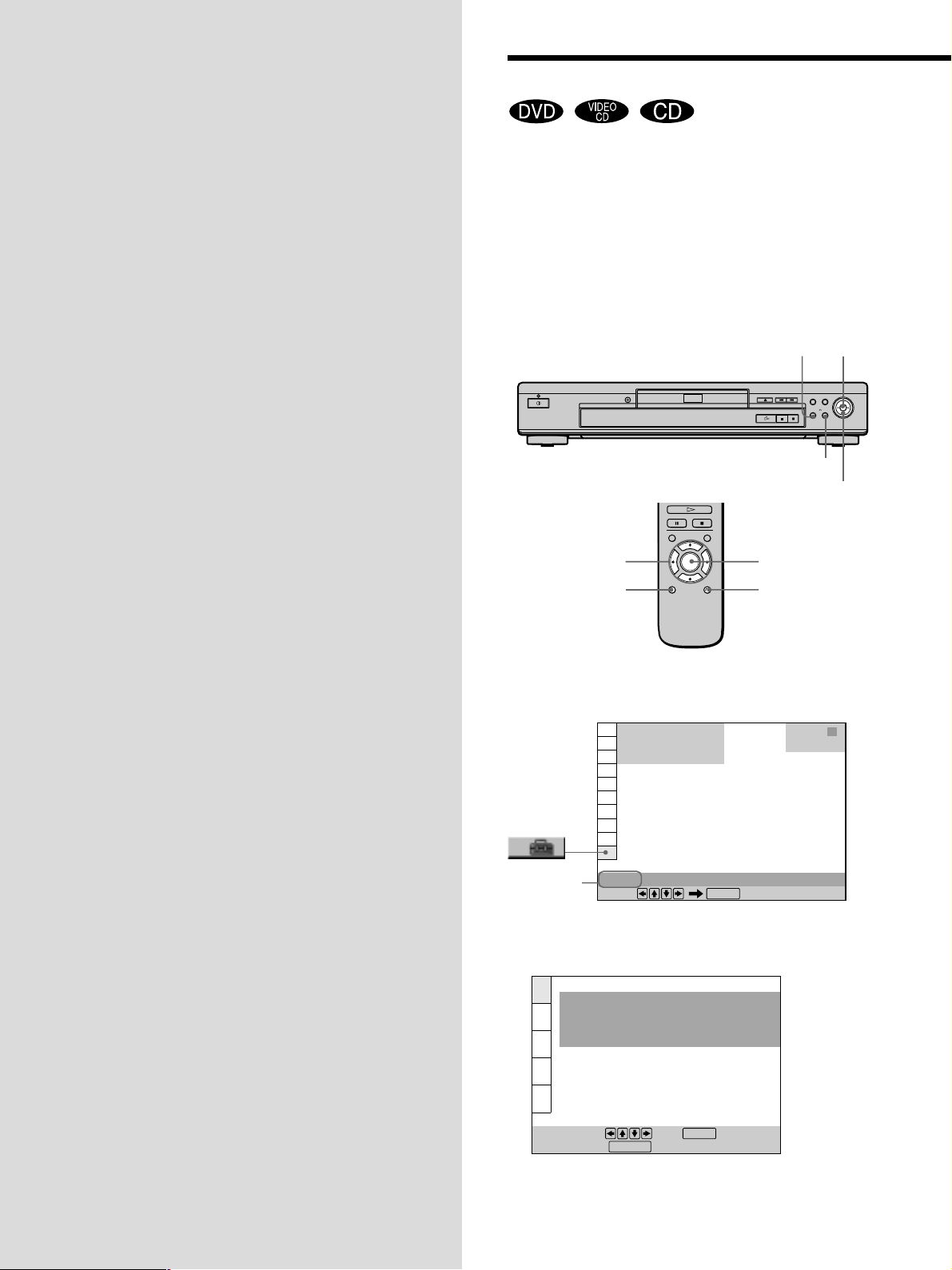

Settings and

STOP

Select:

SETUP

ENTER

1 8 ( 3 4

)

1 2 ( 1

)

0 0 : 0 0 : 0 0

DVD

Adjustments

This chapter describes how to set and adjust the player using the on-screen setup menu. Most settings and adjustments are required to be set when you first use the player.

Using the Setup Display

Note

You can display the setup display only when the player is in stop mode.

DISPLAY

ORETURN

ENTER

</M/m/,

ENTER</M/m/,

DISPLAY ORETURN

1 Press DISPLAY and select “SETUP” using M/m.

Selected item

2 Press ENTER.

The setup display appears.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

To set, press , then . To quit, press .

DISPLAY

ENTER

Page 47

3 Select the main item you want using M/m.

7 Select the setting you want using </M/m/,.

LANGUAGE SETUP

OSD: DVD MENU:

Main item

AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

4 Press ENTER.

The selected main item is highlighted.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

JACKET PICTURE

ENTER

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

16:9

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

8 Press ENTER.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

16:9 16:9 4:3 LETTER BOX 4:3 PAN SCAN

ENTER

4:3 PAN SCAN

JACKET PICTURE

ENTER

Settings and Adjustments

5 Select the item you want using M/m.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

JACKET PICTURE

ENTER

16:9

6 Press ENTER.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

16:9 16:9 4:3 LETTER BOX 4:3 PAN SCAN

ENTER

9 Press DISPLAY.

The setup display disappears.

Press DISPLAY repeatedly to turn off the on-screen menu.

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Note

Some setup display items require operations other than selecting the setting. For details on these items, see the relevant pages.

Page 48

Setup Display Item List

The default settings are underlined.

LANGUAGE SETUP (page 49)

OSD

Settings and Adjustments

DVD MENU

ENGLISH FRANÇAIS DEUTSCH

ITALIANO NEDERLANDS ENGLISH ESPAÑOL DANSK SVENSKA

SUOMI

NORSK PORTUGUÊS

ENGLISH

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL NEDERLANDS DANSK SVENSKA

SUOMI

NORSK PORTUGUÊS

CHINESE

JAPANESE OTHERS ,

SCREEN SETUP (page 50)

TV TYPE

SCREEN SAVER

BACKGROUND JACKET PICTURE

16:9 4:3 LETTER BOX

4:3 PAN SCAN

ON OFF

GRAPHICS BLUE BLACK

CUSTOM SETUP (page 51)

LINE VIDEO

S VIDEO RGB

AUTO PLAY OFF

TIMER DEMO1 DEMO2

DIMMER BRIGHT

DARK OFF

PAUSE MODE AUTO

FRAME

PARENTAL CONTROL , TRACK SELECTION OFF

AUTO

AUDIO SETUP (page 55)

AUDIO

SUBTITLE

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL NEDERLANDS DANSK SVENSKA

SUOMI

NORSK PORTUGUÊS

CHINESE

JAPANESE OTHERS ,

ORIGINAL (same as DVD MENU)

AUDIO FOLLOW (same as DVD MENU)

AUDIO ATT OFF

AUDIO DRC

DOWNMIX DOLBY SURROUND

DIGITAL OUT

ON OFF

SPEAKER SETUP

SUBWOOFER NONE

STANDARD TV MODE WIDE RANGE

NORMAL

DOLBY DIGITAL

MPEG

DTS

(page 57)

YES

FRONT SPEAKER SIZE

D-PCM DOLBY DIGITAL PCM MPEG OFF ON

LARGE MIDDLE SMALL TV

Page 49

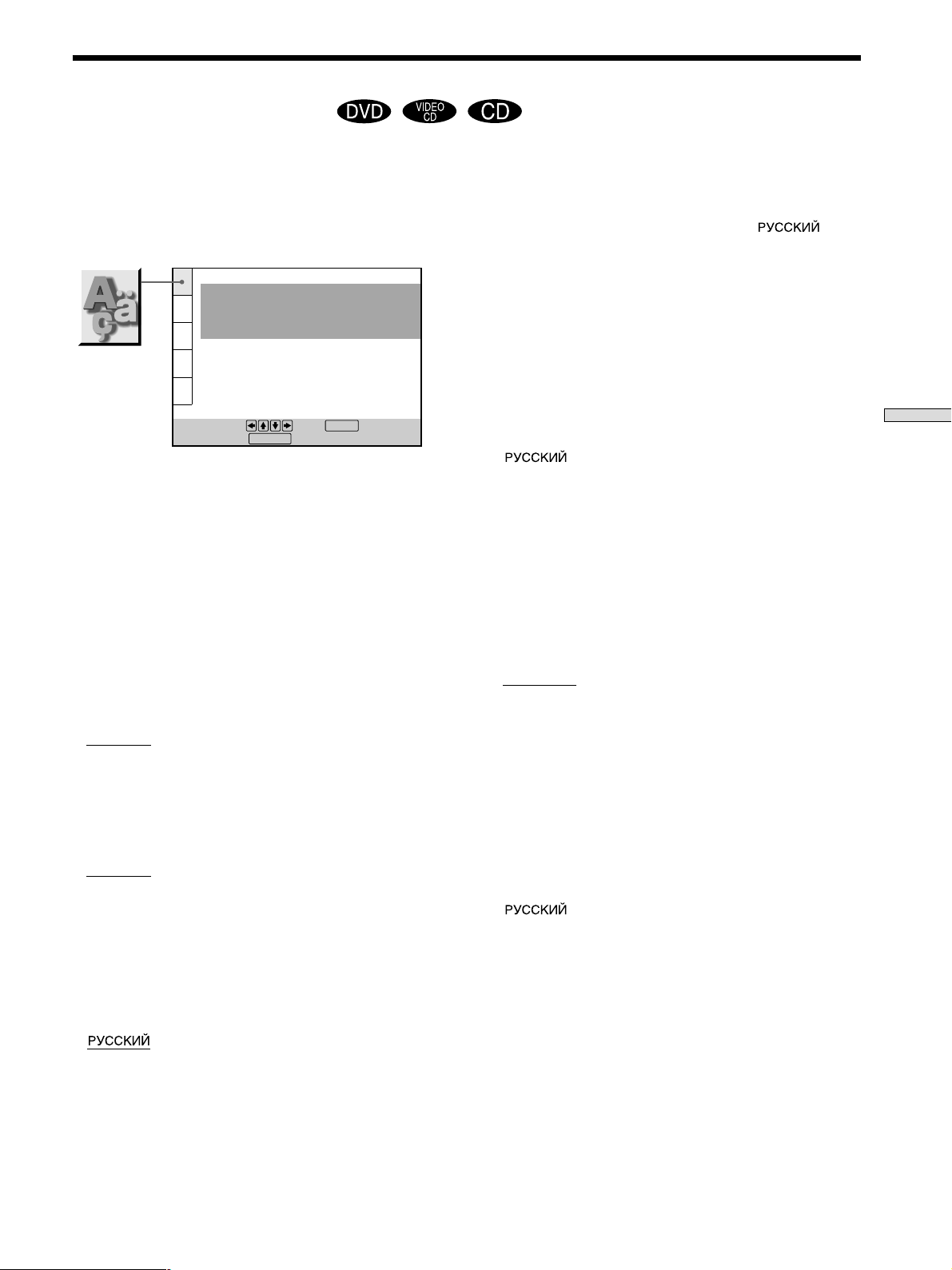

Setting the Display Language or Sound Track (LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track. The default settings are underlined.

Select “LANGUAGE SETUP” in the setup display.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

Notes

• When you select a language that is not recorded on the DVD, one of the recorded languages is automatically selected for the “DVD MENU,” “AUDIO” and “SUBTITLE” settings.

• Even when you select a language in “DVD MENU,” “AUDIO” or “SUBTITLE,” the player may not start playing with the selected language depending on the DVD.

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

x OSD (On-Screen Display)

Selects the language for the on-screen display. The languages you can select are different depending on the player model.

Type A

•

ENGLISH (English)

• FRANÇAIS (French)

• DEUTSCH (German)

• ITALIANO (Italian)

• NEDERLANDS (Dutch)

Type B

•

ENGLISH (English)

• ESPAÑOL (Spanish)

• DANSK (Danish)

• SVENSKA (Swedish)

• SUOMI (Finnish)

• NORSK (Norwegian)

• PORTUGUÊS (Portuguese)

Type C

•

(Russian)

• ENGLISH (English)

x DVD MENU

Selects the language for the DVD menu. The language order is different depending on the player model. Default setting is “ENGLISH” or “

.”

• ENGLISH (English)

• FRANÇAIS (French)

• DEUTSCH (German)

• ITALIANO (Italian)

• ESPAÑOL (Spanish)

• NEDERLANDS (Dutch)

• DANSK (Danish)

• SVENSKA (Swedish)

• SUOMI (Finnish)

• NORSK (Norwegian)

• PORTUGUÊS (Portuguese)

•

(Russian)

• CHINESE (Chinese)

• JAPANESE (Japanese)

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 66). After you have made a selection, the language code (4 digits) is displayed.

x AUDIO

Selects the language for the sound track. The language order is different depending on the player model.

•

ORIGINAL: the language given priority in the disc

• ENGLISH (English)

• FRANÇAIS (French)

• DEUTSCH (German)

• ITALIANO (Italian)

• ESPAÑOL (Spanish)

• NEDERLANDS (Dutch)

• DANSK (Danish)

• SVENSKA (Swedish)

• SUOMI (Finnish)

• NORSK (Norwegian)

• PORTUGUÊS (Portuguese)

•

(Russian)

• CHINESE (Chinese)

• JAPANESE (Japanese)

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 66). After you have made a selection, the language code (4 digits) is displayed.

Settings and Adjustments

Page 50

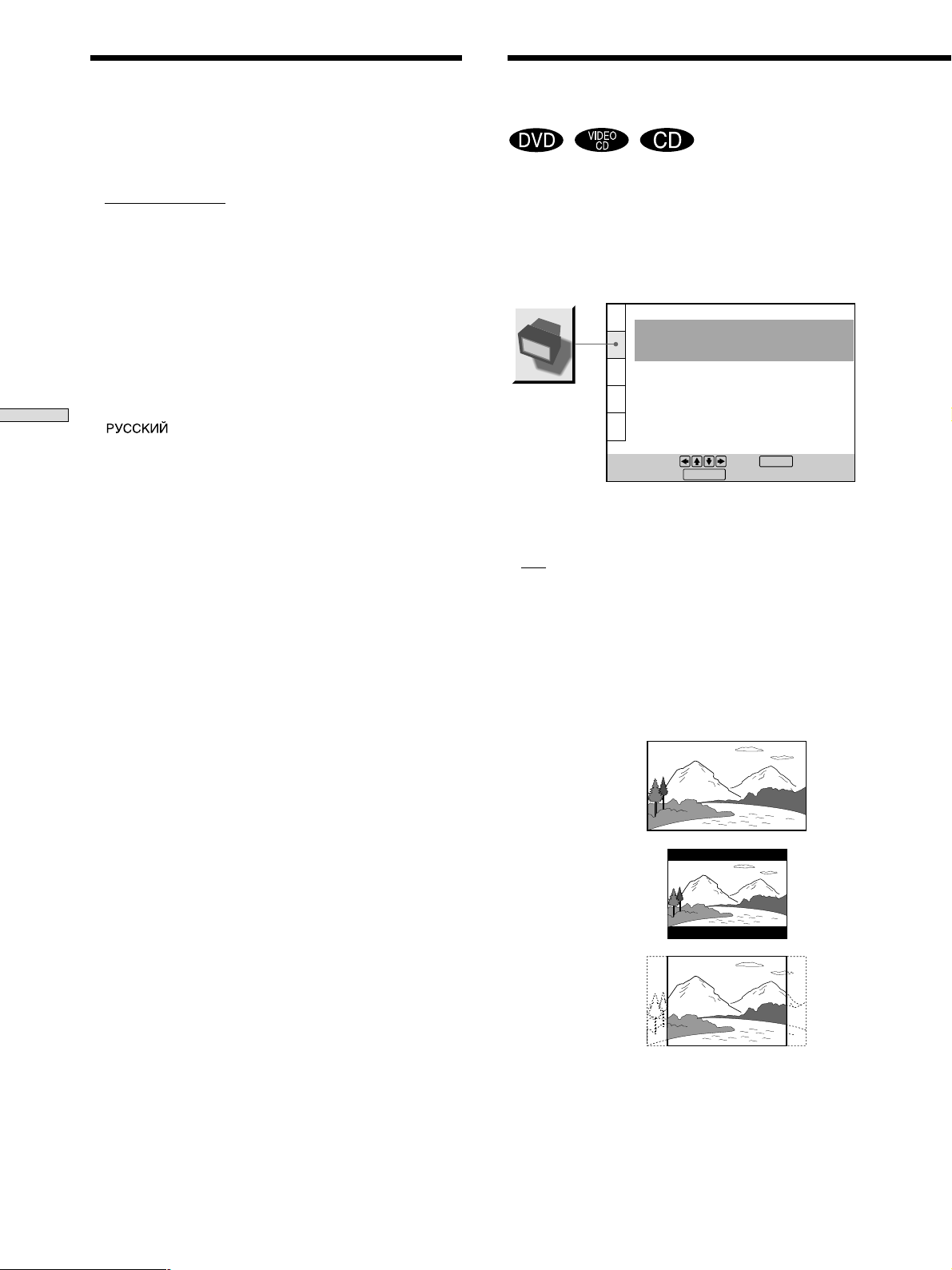

Setting the Display Language or Sound Track (LANGUAGE SETUP)

Settings for the Display (SCREEN SETUP)

x SUBTITLE

Selects the language for the subtitles. The language order is different depending on the player model.

•

AUDIO FOLLOW*

• ENGLISH (English)

• FRANÇAIS (French)

• DEUTSCH (German)

• ITALIANO (Italian)

• ESPAÑOL (Spanish)

• NEDERLANDS (Dutch)

• DANSK (Danish)

• SVENSKA (Swedish)

• SUOMI (Finnish)

• NORSK (Norwegian)

• PORTUGUÊS (Portuguese)

Settings and Adjustments

•

• CHINESE (Chinese)

• JAPANESE (Japanese)

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 66). After you have made a selection, the language code (4 digits) is displayed.

* When you select “AUDIO FOLLOW,” the language for the

subtitles changes according to the language for the setting you selected in “AUDIO.”

(Russian)

“SCREEN SETUP” allows you to set the display according to the playback conditions. The default settings are underlined.

Select “SCREEN SETUP” in the setup display.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

x TV TYPE

Selects the aspect ratio of the TV to be connected.

•

16:9: select this when you connect a wide-screen TV to the player.

• 4:3 LETTER BOX: select this when you connect a normal TV to the player. Displays a wide picture with bands on the upper and lower portions of the screen.

• 4:3 PAN SCAN: select this when you connect a normal TV to the player. Displays the wide picture on the whole screen automatically and cuts off the portions that do not fit.

DISPLAY

JACKET PICTURE

ENTER

16:9

4:3 LETTER BOX

4:3 PAN SCAN

Note

Depending on the DVD, “4:3 LETTER BOX“ may be selected automatically instead of “4:3 PAN SCAN” and vice versa.

Page 51

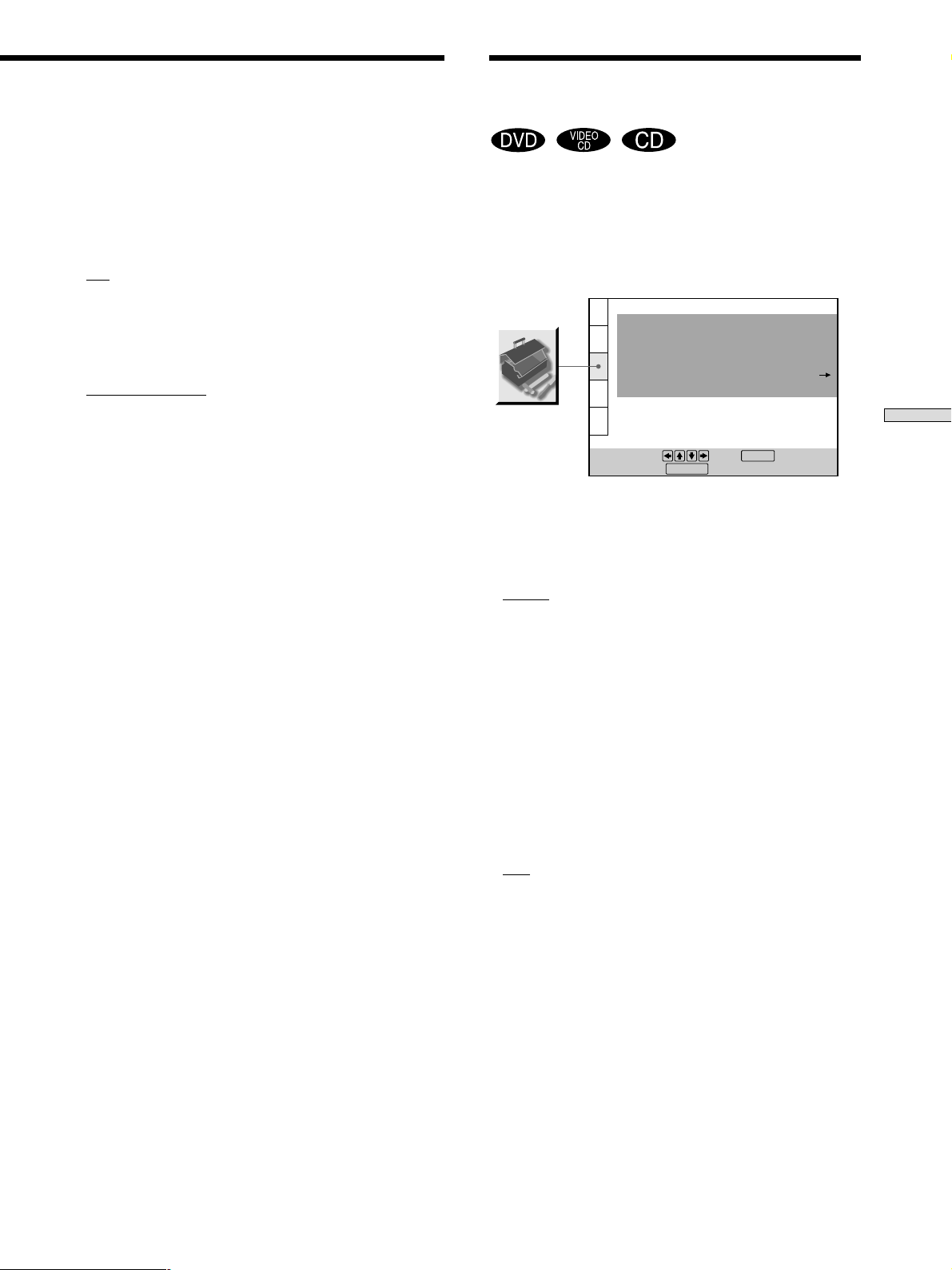

Custom Settings

CUSTOM SETUP

LINE: AUTO PLAY: DIMMER: PAUSE MODE:

To set, press , then . To quit, press .

VIDEO

OFF

BRIGHT

AUTO

TRACK SELECTION:

OFF

ENTER

PARENTAL CONTROL

DISPLAY

(CUSTOM SETUP)

x SCREEN SAVER

Turns on and off the screen saver. If you turn on the screen saver, the screen saver image appears when you leave the player or the remote in pause or stop mode for 15 minutes or when you play back a CD for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged.

•

ON: turns on the screen saver.

• OFF: turns off the screen saver.

x BACKGROUND

Selects the background color or picture of the TV screen in stop mode or while playing a CD.

•

JACKET PICTURE: The jacket picture appears in the background, but only when the jacket picture is already recorded on the disc.

• GRAPHICS: A preset picture stored in the player appears in the background.

• BLUE: The background color is blue.

• BLACK: The background color is black.

Note

If a disc which does not contain the jacket picture is played while “BACKGROUND” is set to “JACKET PICTURE,“ the picture stored in the player will automatically appear in the background.

“CUSTOM SETUP” allows you to set the playback conditions. The default settings are underlined.

Select “CUSTOM SETUP” in the setup display.

x LINE

Selects the methods of outputting video signals from the LINE–1(RGB)-TV connector on the rear panel of the player.

•

VIDEO: outputs the video signals.

• S VIDEO: outputs the S video signals.

• RGB: outputs the RGB signals.

Settings and Adjustments

Notes

• If your TV does not conform to the S video or the RGB signals, no picture appears on the TV screen even if you select “S VIDEO” or “RGB.” Refer to the instructions supplied with your TV.

• If your TV has only one SCART (EURO AV) connector, do not select “S VIDEO.”

x AUTO PLAY

Selects the Auto Play setting when you connect the AC power cord to the AC outlet.

•

OFF: does not use “TIMER,” “DEMO1” or “DEMO2” to start playback.

• TIMER: starts playing at any time you want by

connecting a timer (not supplied). Set a timer when the player is in standby mode (the power indicator lights up in red).

• DEMO1: starts playing the first demonstration

automatically.

• DEMO2: starts playing the second demonstration

automatically.

Page 52

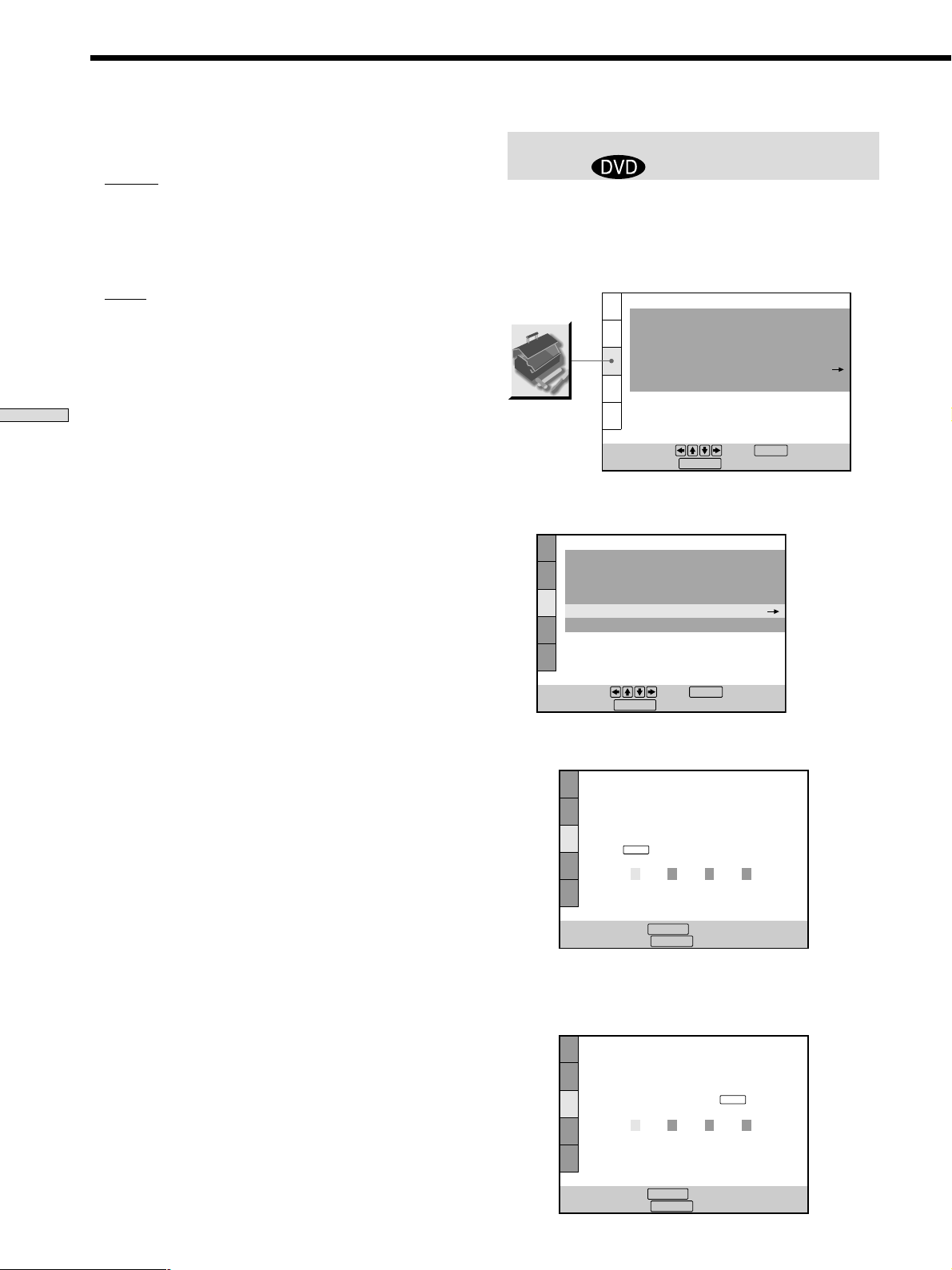

CUSTOM SETUP

LINE: AUTO PLAY: DIMMER: PAUSE MODE:

To set, press , then . To quit, press .

VIDEO

OFF

BRIGHT

AUTO

TRACK SELECTION:

OFF

ENTER

PARENTAL CONTROL

DISPLAY

Custom Settings (CUSTOM SETUP)

x DIMMER

Adjusts the lighting of the front panel display.

•

BRIGHT: makes the front panel display bright.

• DARK: makes the front panel display dark.

• OFF: turns off the lighting of the front panel display.

x PAUSE MODE (DVD only)

Selects the picture in pause mode.

•

AUTO: A picture, including subjects that move dynamically, is output with no jitter. Normally select this position.

• FRAME: A picture including subjects that do not move dynamically is output with high resolution.

x PARENTAL CONTROL,

Settings and Adjustments

Sets a password and playback limitation level when you play DVDs with playback limitation for children. The same password is used for both Parental Control and Custom Parental Control (page 38) . For details, see “Limiting Playback by Children (Parental Control) .”

Limiting Playback by Children (Parental Control)

Playback of some DVDs can be limited depending on the age of the users. The “Parental Control” function allows you to set a playback limitation level.

Select “CUSTOM SETUP” in the setup display.

1 Select “PARENTAL CONTROL” using M/m, then press

ENTER.

CUSTOM SETUP

LINE: AUTO PLAY: DIMMER: PAUSE MODE: AUTO PARENTAL CONTROL TRACK SELECTION: OFF

VIDEO

OFF

BRIGHT

To set, press , then . To quit, press .

DISPLAY

ENTER

x When you have not entered a password

The display for entering a password appears.

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

To return, press . To cancel, press .

RETURN

DISPLAY

x When you have already registered a password

The display for confirming the password appears. Skip Step 2.

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press

To return, press . To cancel, press .

RETURN

DISPLAY

ENTER

Page 53

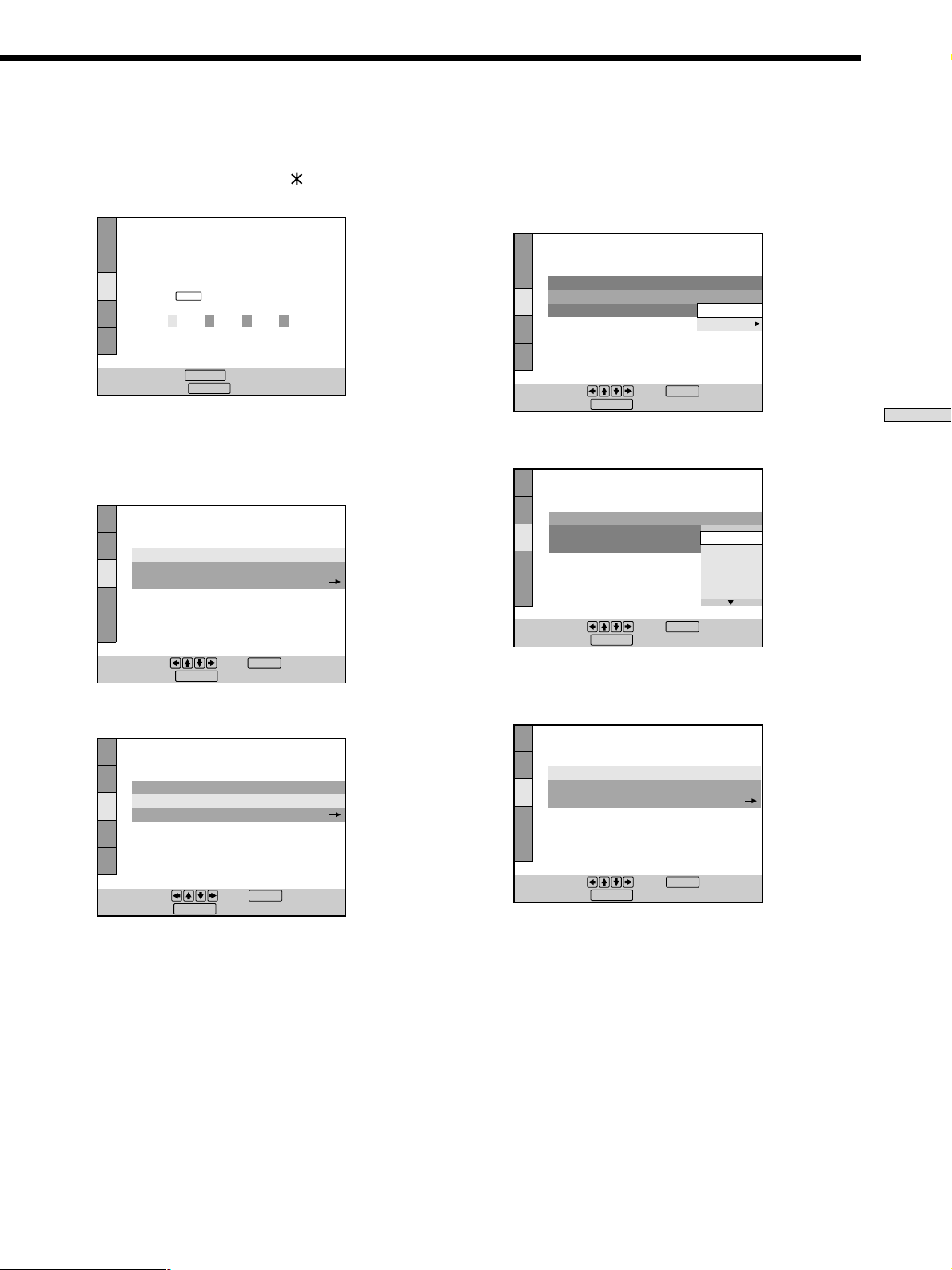

2 Enter a password in 4 digits using the number

buttons, then press ENTER.

The digits change to asterisks ( confirming the password appears.

CUSTOM SETUP

PARENTAL CONTROL

To confirm,enter password again,

ENTER

then press

), and the display for

5 Select a geographic area as the playback limitation

level standard using M/m, then press ,.

When you select “OTHERS,,” select and enter the standard code in the table on the next page using the number buttons.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OFF USA USA

OTHERS

To return, press . To cancel, press .

RETURN

DISPLAY

3 To confirm your password, enter it again using the

number buttons, then press ENTER.

The display for setting the playback limitation level and changing the password appears.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

To set, press , then . To quit, press .

DISPLAY

ENTER

OFF USA

4 Select “STANDARD” using M/m, then press ,.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OFF USA

To set, press , then . To quit, press .

DISPLAY

ENTER

6 Select “LEVEL” using M/m, then press ,.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF STANDARD: CHANGE PASSWORD

To set, press , then . To quit, press .

DISPLAY

ENTER

OFF

NC17

6: 5:

7 Select the level you want using M/m, then press

ENTER.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

4: PG13

USA

Settings and Adjustments

To set, press , then . To quit, press .

DISPLAY

ENTER

To set, press , then . To quit, press .

DISPLAY

ENTER

The lower the value, the more strict the limitation.

To return to the normal screen

Press DISPLAY.

To turn off the Parental Control function and play the DVD after entering your password

Set “LEVEL” to “OFF” in Step 7, then press H.

Page 54

Custom Settings (CUSTOM SETUP)

To change the password

1 After Step 3, select “CHANGE PASSWORD” using M/

m, then press , or ENTER.

The display for changing the password appears.

2 Follow Steps 2 and 3 to enter a new password.

Playing a disc which is blocked by the playback limitation level

1 Insert the disc and press H.

The PARENTAL CONTROL display appears.

2 Enter a 4-digit password using the number buttons,

then press ENTER. The player starts playback. When you stop playing the DVD, the level returns to the original level.

Settings and Adjustments

zIf you forget your password

Enter the 6-digit number “199703” in Step 2 to clear the current password. To enter a new password, follow the procedure from Step 2 again.

Notes

• When you play DVDs which do not have the Parental Control

function, playback cannot be limited on this player.

• If you do not set a password, you cannot change the settings

for playback limitation.

• Depending on the DVD, you may be asked to change the

parental control level while playing the disc. In this case, enter the password, then change the level. When you stop playing the DVD, the level returns to the original level.

• The same password is used for both Parental Control and

Custom Parental Control (page 38) .

Standard Code number

Argentina 2044

Australia 2047

Austria 2046

Belgium 2057

Brazil 2070

Canada 2079

Chile 2090

China 2092

Denmark 2115

Finland 2165

France 2174

Germany 2109

Hong Kong 2219

India 2248

Indonesia 2238

Italy 2254

Japan 2276

Korea 2304

Malaysia 2363

Mexico 2362

Netherlands 2376

New Zealand 2390

Norway 2379

Pakistan 2427

Philippines 2424

Portugal 2436

Russia 2489

Singapore 2501

Spain 2149

Sweden 2499

Switzerland 2086

Taiwan 2543

Thailand 2528

United Kingdom 2184

Page 55

x TRACK SELECTION

Gives the sound track which contains the highest number of channels priority when you play a DVD on which multiple audio formats (PCM, DTS, MPEG AUDIO or Dolby Digital format) are recorded.

•

OFF : No priority given.

• AUTO : Priority given.

Notes

• When you set this item to “AUTO”, the language may change depending on the “AUDIO” settings in “LANGUAGE SETUP.” The “TRACK SELECTION“ setting has higher priority than the

“AUDIO” settings in “LANGUAGE SETUP” (page 49).

• If you set “DTS” in “AUDIO SETUP” to “OFF”, the DTS sound

track is not played even if you set this item to “AUTO” and the highest-numbered channel audio is recorded in DTS format.

• If PCM, DTS, MPEG AUDIO and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, Dolby Digital and MPEG AUDIO sound tracks in this order.

• Depending on the DVD, the audio channel with priority may be predetermined. In this case, you cannot give priority to the DTS, MPEG AUDIO or Dolby Digital format by selecting “AUTO.”

Settings for the Sound (AUDIO SETUP)

“AUDIO SETUP” allows you to set the sound according to the playback conditions. The default settings are underlined.

Select “AUDIO SETUP” in the setup display.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

x AUDIO ATT (attenuation)

If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. Selects the setting of the output from the AUDIO OUT and LINE-1, 2 connectors according to the audio equipment to be connected.

•

OFF: turns off the audio attenuation. Normally select this position.

• ON: reduces the audio output level so that no sound distortion occurs. Select this when the playback sound from the built-in TV speakers is distorted.

OFF

STANDARD

D-PCM

PCM

OFF

Settings and Adjustments

Note

The setting does not affect the output from the DIGITAL OUT OPTICAL and COAXIAL connectors.

x AUDIO DRC (Dynamic Range Control)

Makes the sound clear when the volume is turned down when playing a DVD. This function works only when you play a DVD which has the AUDIO DRC function. This affects the output from the DIGITAL OUT connectors only when “DOLBY DIGITAL” is set to “D-PCM” and “MPEG” is set to “PCM” in ”DIGITAL OUT,” and it affects the output from the AUDIO OUT and LINE-1, 2 connectors.

•

STANDARD: Normally select this position.

• TV MODE: makes the low sounds clear even if you turn the volume down. It is especially recommended when you listen to the sound using the speakers of the TV.

• WIDE RANGE: It gives you the feeling of being at a live performance. When you use high quality speakers, it is more effective.

Note

When you play DVDs without the AUDIO DRC function, there may be no effect on the sound.

Page 56

Settings for the Sound (AUDIO SETUP)

x DOWNMIX

Switches the mixing down methods when you play a DVD on which rear signal components such as LS, RS or S in Dolby Digital format are recorded. For details on the rear signal components, see “Displaying the audio information of the disc” (page 33). The “DOWNMIX” setting affects the following connectors:

– AUDIO OUT connectors – DIGITAL OUT OPTICAL and COAXIAL connectors

(when you set “DOLBY DIGITAL” to “D-PCM” in “AUDIO SETUP” in the setup display)

•

DOLBY SURROUND: when the player is connected to an audio component that conforms to Dolby Surround (Pro Logic). The output signals which reproduce the

Settings and Adjustments

Dolby Surround (Pro Logic) effect are mixed down to 2 channels.

• NORMAL: when the player is connected to an audio component that does not conform to Dolby Surround (Pro Logic). The signals without Dolby Surround (Pro Logic) effect are output.

x DIGITAL OUT

Selects output signals via the DIGITAL OUT OPTICAL and COAXIAL connectors.

•

ON: Normally select this position. When you select “ON,” set “DOLBY DIGITAL,” “MPEG” and “DTS.” For details on setting these items, see “Setting the Digital Output Signal.”

• OFF: when the player does not output the sound signals via the DIGITAL OUT OPTICAL and COAXIAL connectors, the influence of the digital circuit upon the analog circuit is at a minimum.

Notes

• When you play sound tracks with a 96 kHz sampling

frequency, the output signals from the DIGITAL OUT (OPTICAL, COAXIAL) are converted to 48 kHz (sampling frequency). When the signals are output from the AUDIO OUT connectors, sampling frequency stays at 96kHz and the output signals are converted to analog signals.

• When you select “OFF,” you cannot set “DOLBY DIGITAL,”

“MPEG” and “DTS.”

Setting the Digital Output Signal

Switches the methods of outputting audio signals when you, 1. connect a digital component such as a receiver (amplifier) having a digital connector, 2. an audio component having a built-in decoder (Dolby Digital, MPEG or DTS), 3. a DAT or MD via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord. For details on the connection, see pages 12 and 14. When you select “ON,” set “DOLBY DIGITAL,” “MPEG” and “DTS.”

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

x DOLBY DIGITAL

Selects the Dolby Digital signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors. You cannot select this item when you set “DIGITAL OUT” to

“OFF.”

•

D-PCM (Downmix PCM): when you play Dolby Digital sound tracks, the output audio signals are mixed down to 2 channels. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in

“AUDIO SETUP.”

• DOLBY DIGITAL: when the player is connected to an

audio component with a built-in Dolby Digital decoder. If the player is connected to an audio component lacking a built-in Dolby Digital decoder, do not set this. Otherwise, when you play the Dolby Digital sound track, a loud noise or no sound will come out from the speakers, affecting your ears or causing the speakers to be damaged.

OFF

STANDARD

D-PCM

PCM

OFF

Note

When you select “D-PCM,” set Virtual Enhanced Surround (VES) to “OFF.” Otherwise, the player will not output signals from the DIGITAL OUT OPTICAL or COAXIAL connector.

Page 57

x MPEG

Selects the MPEG AUDIO signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors. You cannot select this item when you set “DIGITAL OUT” to

“OFF.”

•

PCM: when the player is connected to an audio component lacking a built-in MPEG decoder. If you play MPEG AUDIO sound tracks, the player outputs stereo signals via the DIGITAL OUT OPTICAL and COAXIAL connectors.

• MPEG: when the player is connected to an audio component having a built-in MPEG decoder. If the player is connected to an audio component lacking a built-in MPEG decoder, do not set this. Otherwise, when you play the MPEG AUDIO sound track, a loud noise will come out from the speakers, affecting your ears or causing the speakers to be damaged.

Note

The player outputs the MPEG analog audio sound only from the front speakers when you set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “MPEG” to “MPEG.”

Subwoofer Set Up (SPEAKER SETUP)

When you have connected a subwoofer, specify the size of the front speakers you have connected to change the frequency range output from the subwoofer so that you can obtain the best possible surround sound. Even if you change the “SUBWOOFER” setting, the sound output from the front speakers do not change. For the speaker hookups, see pages 12 and 13. The default settings are underlined.

Select “SPEAKER SETUP” in the setup display.

SPEAKER SETUP

SUBWOOFER: FRONT SPEAKER SIZE: MIDDLE

To set, press , then . To quit, press .

DISPLAY

ENTER

YES

Settings and Adjustments

x DTS

Selects the DTS signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors. You cannot select this item when you set “DIGITAL OUT” to “OFF.”

•

OFF: when the player is connected to an audio component lacking a built-in DTS decoder.

• ON: when the player is connected to an audio component having a built-in DTS decoder. If the player is connected to an audio component lacking a built-in DTS decoder, do not set this. Otherwise, when you play the DTS sound track, a loud noise will come out from the speakers, affecting your ears or causing the speakers to be damaged.

Note

Select the setting correctly. Otherwise, no sound or a strange sound will come out from the speakers, affecting your ears or causing the speakers to be damaged.

x SUBWOOFER

Selects whether a subwoofer is connected to the player or not.

• NONE: When a subwoofer is not connected to the player.

•

YES: When a subwoofer is connected to the player. When you select “YES,” set “FRONT SPEAKER SIZE.” For details, see “Setting the output level from the subwoofer.”

Page 58

Subwoofer Set Up (SPEAKER SETUP)

Setting the output level from the subwoofer

When you select “YES” in “SUBWOOFER,” set “FRONT SPEAKER SIZE.” This selects the size of the connected front speakers. The frequency range output from the subwoofer varies according to the size of the front speakers.

x FRONT SPEAKER SIZE

• LARGE: If you connect large speakers that will effectively reproduce bass frequencies and play a DVD recorded in 5.1 channels including an LFE signal, select this. If you feel a lack of bass frequencies from the front

Settings and Adjustments

speakers when you select this, select “MIDDLE.”

Notes

• If an LFE signal is not recorded on the disc, no sound will be output from the subwoofer even if you select “LARGE.”

• When you play MPEG AUDIO sound track, an LFE signal is not output from the SUBWOOFER connector.

• MIDDLE: If you connect large speakers that will effectively reproduce bass frequencies and play a source on which an LFE signal is not recorded, such as CD or DVD with 2 channels, select this to output the bass frequencies from the subwoofer as well as from the front channel. If you feel a lack of bass frequencies from the front speakers when you select this, select “SMALL.”

• SMALL: If you feel a lack of bass, select this to output even more bass frequencies from the subwoofer. If you still feel a lack of bass frequencies from the front speakers when you select this, select “TV.”

• TV: If you use the speakers of the TV or small speakers, select this to output the bass frequencies from the subwoofer.

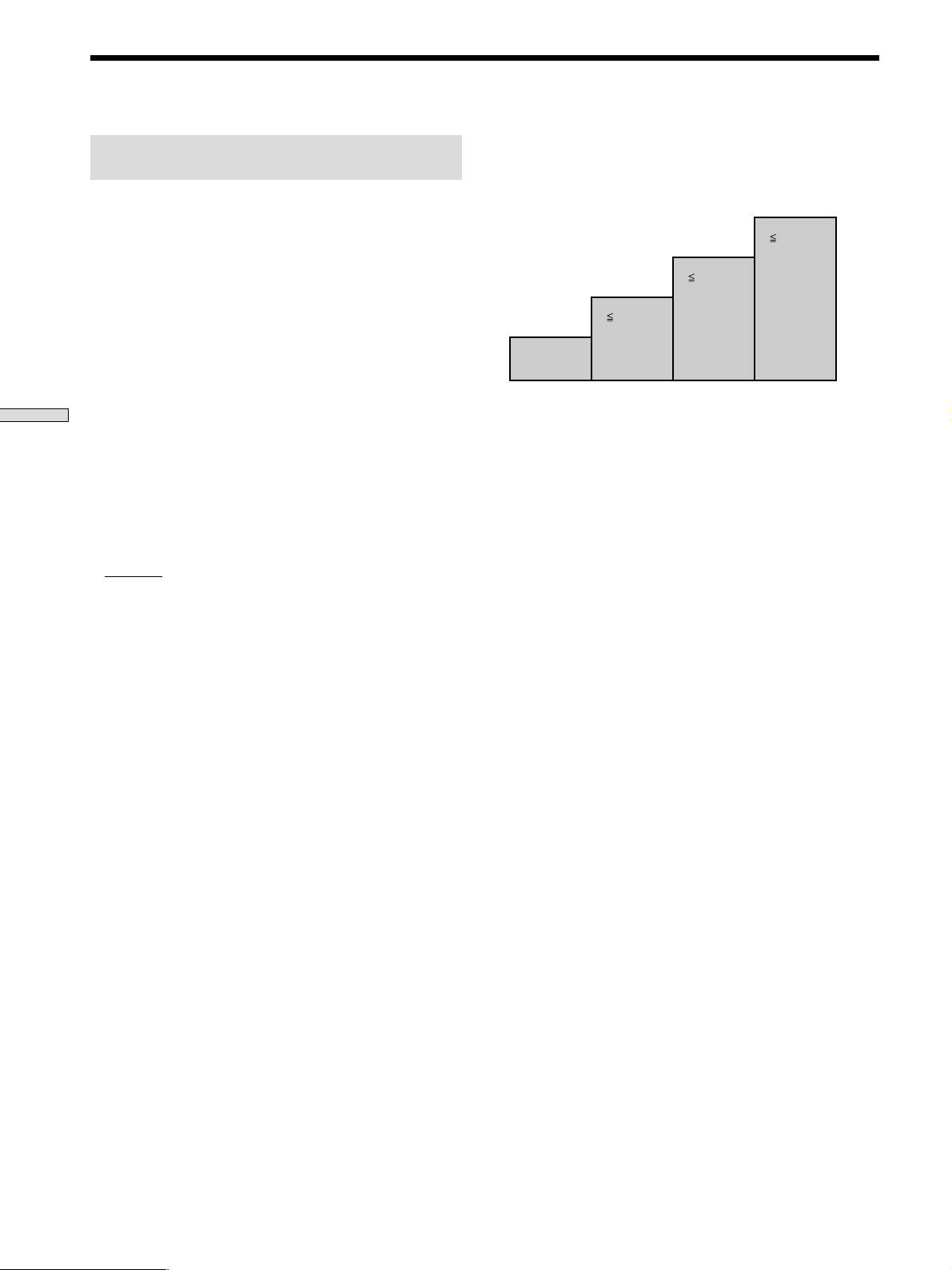

zThe subwoofer outputs the LFE signal and the frequency

range according to the FRONT SPEAKER SIZE setting.

The LFE signal is output only when the disc contains an LFE signal.

200 Hz*

150 Hz*

120 Hz*

LFE LFE

LARGE MIDDLE SMALL TV

* Audio signal besides LFE

Note

The signals of the PCM sound tracks with a 96 kHz sampling frequency are not output from the WOOFER connector.

LFE LFE

Page 59

Additional

Troubleshooting

Information

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem. Should any problem persist, consult your nearest Sony dealer.

Power

The power is not turned on.

, Check that the AC power cord is connected

securely.


There is no picture.

, Check that the player is connected securely. , The video connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the video

input connector on the TV. (page 8)

, Make sure you turn on the TV. , Make sure you select the video input on the TV so

that you can view the pictures from the player.

Picture noise appears.

, Clean the disc. , If the video signal from your DVD player has to go

through your VCR to get to your TV, the copyprotection applied to some DVD programs could affect picture quality. If you still experience problems after checking your connections, please try connecting your DVD player directly to your TV’s S-input, if your TV is equipped with this input. (page 8)

Additional Information

Even though you set the aspect ratio in “TV TYPE” in “SCREEN SETUP” of the setup display, the picture does not fill the screen.

, The aspect ratio is fixed on your DVD.

The picture is black and white.

, In the setup display, set “LINE” in ”CUSTOM

SETUP” to the appropriate item that conforms to your TV. (page 51)

, Depending on the TV, the picture on the screen

becomes black and white when you play a disc recorded in the NTSC color system.

Page 60

Troubleshooting

Sound

There is no sound.

, Check that the player is connected securely. , The audio connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the audio

input connectors on the receiver (amplifier). (page

11)

, Make sure you turn on the TV and the receiver

(amplifier).

, Make sure you select the appropriate input on the

receiver (amplifier) so that you can listen to the sound from the player.

, The player is in pause mode or in Slow-motion

Play mode. Press H to return to normal play mode.

, The player is in fast forward (1M or 2M) or fast

reverse (1m or 2m) mode. Press H to return to normal play mode.

Additional Information

, Check the speaker connections and setting (pages

13, 57). Refer to the operating manual of your receiver (amplifier).

, When you play Dolby Digital/MPEG AUDIO

sound tracks and attempt to output from the DIGITAL OUT connectors, set “DIGITAL OUT” to ”ON” in the setup display. Otherwise no sound will come from the DIGITAL OUT connectors. (page 56)

, You selected a VES mode other than “OFF” in the

Control Menu display when you connected the component via the DIGITAL OUT OPTICAL or COAXIAL connector. Set “VES” to “OFF” in the Control Menu display. (page 36)

, When you play DTS sound tracks, no sound will

come out from the AUDIO OUT connectors. (page

19)

Sound is noisy.

, Clean the disc. , When you play a CD with DTS sound tracks,

sound noise will come out from the AUDIO OUT connectors. (page 19)

Sound distortion occurs.

, In the setup display, set “AUDIO ATT” in ”AUDIO

SETUP” to “ON.”

The sound loses its stereo effect when you play a VIDEO CD or a CD.

, Set “AUDIO” to “STEREO” in the Control Menu

display. (page 32)

, Make sure you connect the player correctly. (page

8, 11, 13, 14)

The surround effect is difficult to hear when you are playing a Dolby Digital sound track.

, Check the speaker connections and setting (pages

13, 57). Refer to the operating manual of your receiver (amplifier).

, Depending on the DVD, the output signal may not

be the entire 5.1 channels. It may be monaural or stereo even if the sound track is recorded in Dolby Digital format.

Operation

The remote does not function.

, Remove any obstacles between the remote and the

player.

, Use the remote near the player. , Point the remote at the remote sensor

player.

, Replace all of the batteries in the remote with new

ones if they are weak.

The disc does not play.

, There is no disc inside (“Insert disc.” appears on

the TV screen). Insert a disc.

, Insert the disc correctly with the playback side

facing down on the disc tray.

, Clean the disc. , The player cannot play CD-ROMs, etc. (page 5)

Insert a DVD, a VIDEO CD, or CD.

, Check the region code of the DVD. (page 4) , Moisture has condensed inside the player. Remove

the disc and leave the player turned on for about half an hour. (page 6)

The player does not play from the beginning when playing a disc.

, Program Play, Shuffle Play, Repeat Play or A-B

Repeat Play has been selected. Press CLEAR. (pages 40 through 45)

, Resume Play has been selected.

Press x on the front panel or on the remote before you start playing. (page 21)

, A title menu or a DVD menu automatically

appears on the TV screen when you play your DVD, or a setup display automatically appears on the TV screen when you play your VIDEO CD with PBC functions.

on the

Page 61

The player starts playing the DVD automatically.

, The DVD features the auto playback function.

Playback stops automatically.

, The disc may contain an auto pause signal. While

playing such a disc, the player stops playback at the signal.

You cannot perform some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle Play or Program Play.

, Depending on the disc, you may not be able to do

some of the operations above.

Messages do not appear on the TV screen in the language you want.

, In the setup display, select the desired language for

the on-screen display in “OSD” under “LANGUAGE SETUP.” (page 49)

Nothing is displayed on the front panel display.

, In the set up display, “DIMMER” in “CUSTOM

SETUP” is set to “OFF.” Set “DIMMER” to “BRIGHT” or “DARK.” (page

51)

5 numbers or letters are displayed on the screen and on the front panel display.

, The self-diagnosis function was activated. See the

table on page 62.

The disc tray does not open and “LOCKED” is displayed on the front panel display.

, Contact your Sony dealer or local authorized Sony

service facility.

The language for the sound track cannot be changed when you play a DVD.

, Multilingual tracks are not recorded on the DVD. , Changing the language for the track is prohibited

on the DVD.

The subtitle language cannot be changed when you play a DVD.

, Multilingual subtitles are not recorded on the

DVD.

, Changing the language for the subtitles is

prohibited on the DVD.

The subtitles cannot be turned off when you play a DVD.

, Depending on the DVD, you may not be able to

turn the subtitles off.

The angles cannot be changed when you play a DVD.

, Multi-angles are not recorded on the DVD. , Change the angles when “ANGLE” appears on the

front panel display. (page 35)

, Changing the angles is prohibited on the DVD.

Additional Information

The player does not operate properly.

, Static electricity, etc., may affect the player's

operation. Disconnect the AC power cord once, then connect it again.

Page 62

Self-diagnosis function

When the self-diagnosis function activates to prevent the player from malfunctioning, a five-character service number (combination of a letter and digits) flashes on the screen and on the front panel display. In this case, check the following table.

C:13:00

First three characters

C13

C31

Exx (xx is any number)

Additional Information

Cause and/or Corrective Action

•The disc is dirty.

, Clean the disc with a cleaning cloth. (page 6)

•The disc is not inserted correctly.

, Open the disc tray and insert the disc correctly.

•To prevent a malfunction, the player has performed the self-diagnosis function.

,When you contact your Sony dealer or local authorized Sony service facility, give

the 5-character service number. (example: E:61:10)

Page 63

Specifications

CD/DVD player

Laser Semiconductor laser Signal format system

PAL/(NTSC)

Audio characteristics

Fr equency r esponse

DVD (PCM 96 kHz): 2 Hz to 44 kHz (±1

dB)*

DVD (PCM 48 kHz): 2 Hz to 22 kHz (±0.5

dB)

CD: 2 Hz to 20 kHz (±0.5 dB)

Signal-to-noise ratio

More than 110 dB (AUDIO OUT connectors

only)

Harmonic distortion

Less than 0.003 %

Dynamic range

More than 100 dB (DVD) More than 97 dB (CD)

Wow and flutter

Less than detected value

(±0.001% W PEAK)

General

Power r equir ements

220-240 V AC, 50/60 Hz

Power consumption

15 W

Dimensions (appr ox.)

430 × 69 × 252 mm (17 × 2

⁄4 × 10 in.)

(w/h/d) incl. projecting parts

Mass (appr ox.)

2.8 kg (6 lb 3 oz)

Operating temperatur e

5 ºC to 35 ºC

Operating humidity

25 % to 80 %

Supplied accessories

See page 7.

* The signals from AUDIO OUT connectors are measured. When you

play PCM sound tracks with a 96 kHz sampling frequency, the output signals from the DIGITAL OUT (OPTICAL, COAXIAL) are converted to 48 kHz (sampling frequency).

Design and specifications are subject to change without notice.

Additional Information

Outputs

AUDIO OUT (R, L)

DIGITAL OUT (OPTICAL)

DIGITAL OUT (COAXIAL)

VIDEO OUT

S VIDEO OUT

AUDIO OUT (WOOFER)

Jack type

Phono jacks

Optical output connector

Phono jack

4-pin mini DIN

Phono jack

Output level

2 Vrms (at 50 kilohms)

–18 dBm

0.5 Vp-p

1.0 Vp-p

Y: 1.0 Vp-p

C: 0.3 Vp-p (PAL)

0.286 Vp-p (NTSC)

2 Vrms (at 50 kilohms)

Load impedance

Over 10 kilohms

Wave length: 660 nm

75 ohms terminated

75 ohms, sync negative

75 ohms, sync negative 75 ohms terminated

Over 10 kilohms

Page 64

Glossary

Bit rate (page 38)

Value indicating the amount of video data compressed in a DVD per second. The unit is Mbps (Mega bit per second). 1 Mbps indicates that the data per second is 1,000,000 bits. The higher the bit rate, the larger the amount of data. However, this does not always mean that you can get higher quality pictures.

Chapter (page 5)

Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Digital Cinema Sound (DCS) (page 36)

The general name of technology that Sony developed to enjoy surround sound in a home. It simulates the sound not of a concert hall as usual but of a movie editing studio so that you can enjoy the surround sound of a movie

Additional Information

theater in the comfort of your own home. The VES (Virtual Enhanced Surround) system contained in DCS programs can create the sound image of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers.

Dolby Digital (pages 11, 56)

Digital audio compression technology that Dolby Laboratories Corporation developed. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data is recorded discretely and processed in digital.

Dolby Pro Logic (page 56)

Audio signal processing technology that Dolby Laboratories Corporation developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals. The rear channel is monaural.

DTS (pages 14, 57)

Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1channel surround. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and processed in digital.

DVD (page 4)

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte) which is 7 times that of a CD. The data capacity of a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and a dual-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy a more real audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

MPEG AUDIO (page 14)

International standard coding system used to compress audio digital signals authorized by ISO/IEC. MPEG 1 conforms to up to 2-channel stereo. MPEG 2 used on DVDs conforms to up to 7.1-channel surround.

Multi-angle function (page 35)

Various angles for the scene (viewpoints of the video camera) are recorded on some DVDs.

Multilingual function (pages 16, 34, 49)

Several languages for the audio track or sub-titles in a picture are recorded on some DVDs.

Parental Control (page 52)

A function of the DVD used to limit playback of the disc according to the age of the user and the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes, and so on.

Playback Control (PBC) (page 23)

Signals encoded on VIDEO CDs (Version 2.0) to control playback. By using menus recorded on VIDEO CDs with PBC functions, you can enjoy playing simple interactive programs, programs with search functions, and so on.

Page 65

Title (page 5)

The longest sections of a picture or a music piece on a DVD; a movie, etc., for a picture piece on video software; or an album, etc., for a music piece on audio software. Each title is assigned a title number enabling you to locate the title you want.

Track (page 5)

Sections of a picture or a music piece on a CD or VIDEO CD. Each track is assigned a track number enabling you to locate the track you want.

VIDEO CD (page 4)

A compact disc that contains moving pictures. The picture data uses the MPEG 1 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/140 of its original size. Consequently, a 12 cm VIDEO CD can contain up to 74 minutes of moving pictures. VIDEO CDs also contain compact audio data. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed. VIDEO CDs can hold 6 times the audio information of conventional audio CDs. There are 2 versions of VIDEO CDs.

• Version 1.1: You can play only moving pictures and sounds.

• Version 2.0: You can play high-resolution still pictures and enjoy PBC functions.

This player conforms to both versions.

Additional Information

Page 66

Language Code List

For details, see page 34, 49.

Code Language Code Language Code Language Code Language

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

Additional Information

1060 Bihari

1061 Bislama

1066 Bengali; Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish

1186 Scots Gaelic

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1235 Interlingua

1239 Interlingue

1245 Inupiak

1248 Indonesian

1253 Icelandic

1254 Italian

1257 Hebrew

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1327 Laothian

1332 Lithuanian

1334 Latvian; Lettish

1345 Malagasy

1347 Maori

1349 Macedonian

The language spellings conform to the ISO 639: 1988 (E/F) standard.

1350 Malayalam

1352 Mongolian

1353 Moldavian

1356 Marathi

1357 Malay

1358 Maltese

1363 Burmese

1365 Nauru

1369 Nepali

1376 Dutch

1379 Norwegian

1393 Occitan

1403 (Afan) Oromo

1408 Oriya

1417 Punjabi

1428 Polish

1435 Pashto; Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-Romance

1482 Kirundi

1483 Romanian

1489 Russian

1491 Kinyarwanda

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-Croatian

1503 Singhalese

1505 Slovak

1506 Slovenian

1507 Samoan

1508 Shona

1509 Somali

1511 Albanian

1512 Serbian

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volapük

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

1703 Not specified

Page 67

Index to Parts and Controls

Refer to the pages indicated in parentheses for details.

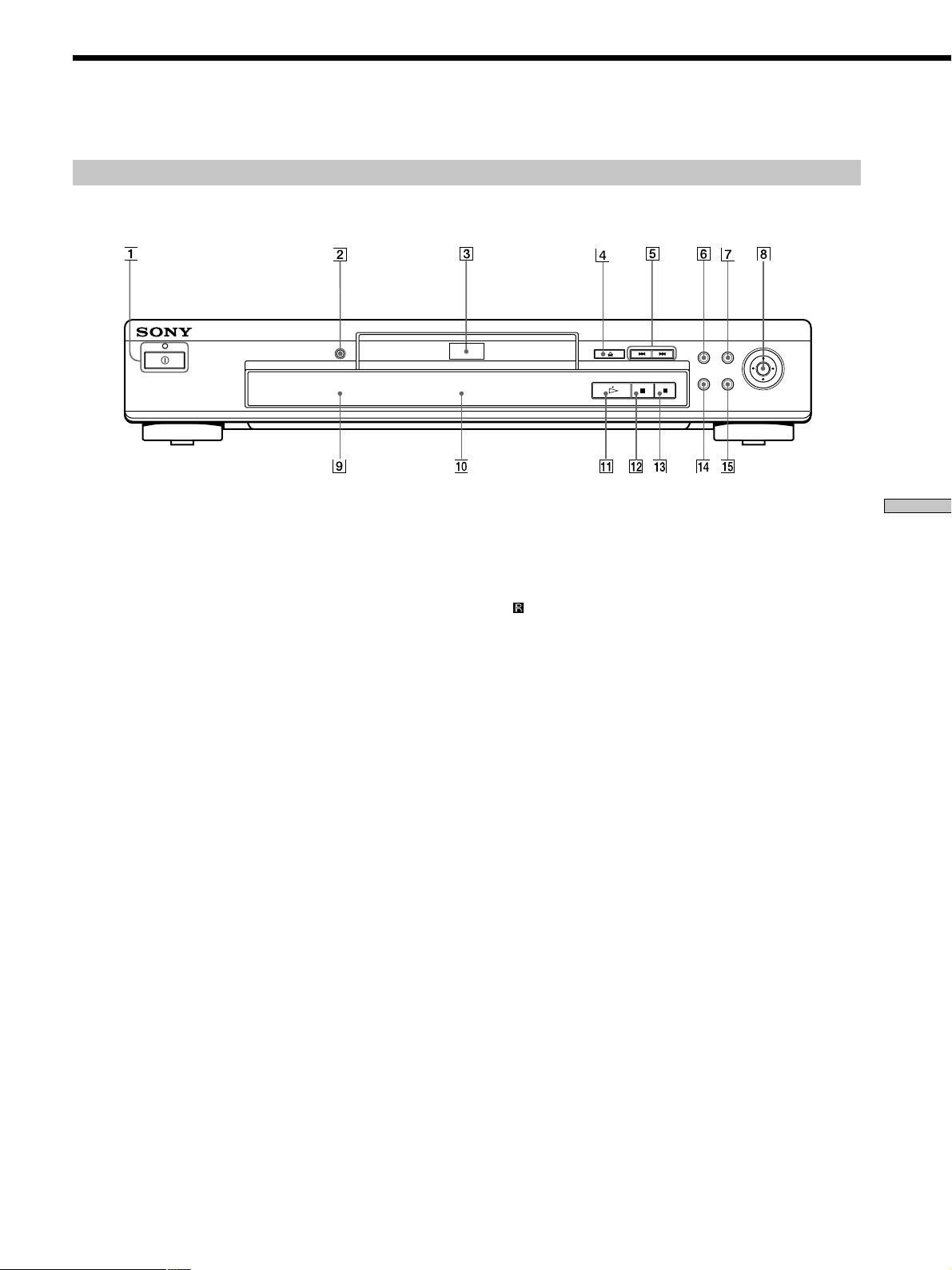

Front Panel

Additional Information

1 ! (power) button and indicator (18)

Disconnects the power of the player or places the player in standby mode.

2 VES (Virtual Enhanced Surround) button (36)

Press to select the desired “VES” item.

3 Disc tray (18)

Place a disc on the tray.

4 AOPEN/CLOSE button (18)

Opens or closes the disc tray.

5 ./>PREV/NEXT (previous/next) buttons (19)

Press to go to the next chapter or track, or to go back to the previous chapter or track.

6 TITLE button (22)

Displays the title menu on the TV screen.

7 DVD MENU button (22)

Displays the DVD menu on the TV screen.

8 </M/m/,/ENTER button

Selects and executes the items or settings.

9 (remote sensor) (7)

Accepts the remote control signals.

0 Front Panel Display (24)

Indicates the playing time, etc.

qa H (play) button (18)

Plays a disc.

qs X (pause) button (19)

Pauses playing a disc.

qd x (stop) button (19, 21)

Stops playing a disc.

qf DISPLAY button (26)

Displays the Control Menu display on the TV screen to set or adjust the items.

qg ORETURN button (23, 27)

Press to return to the previously selected screen, etc.

Page 68

Index to Parts and Controls

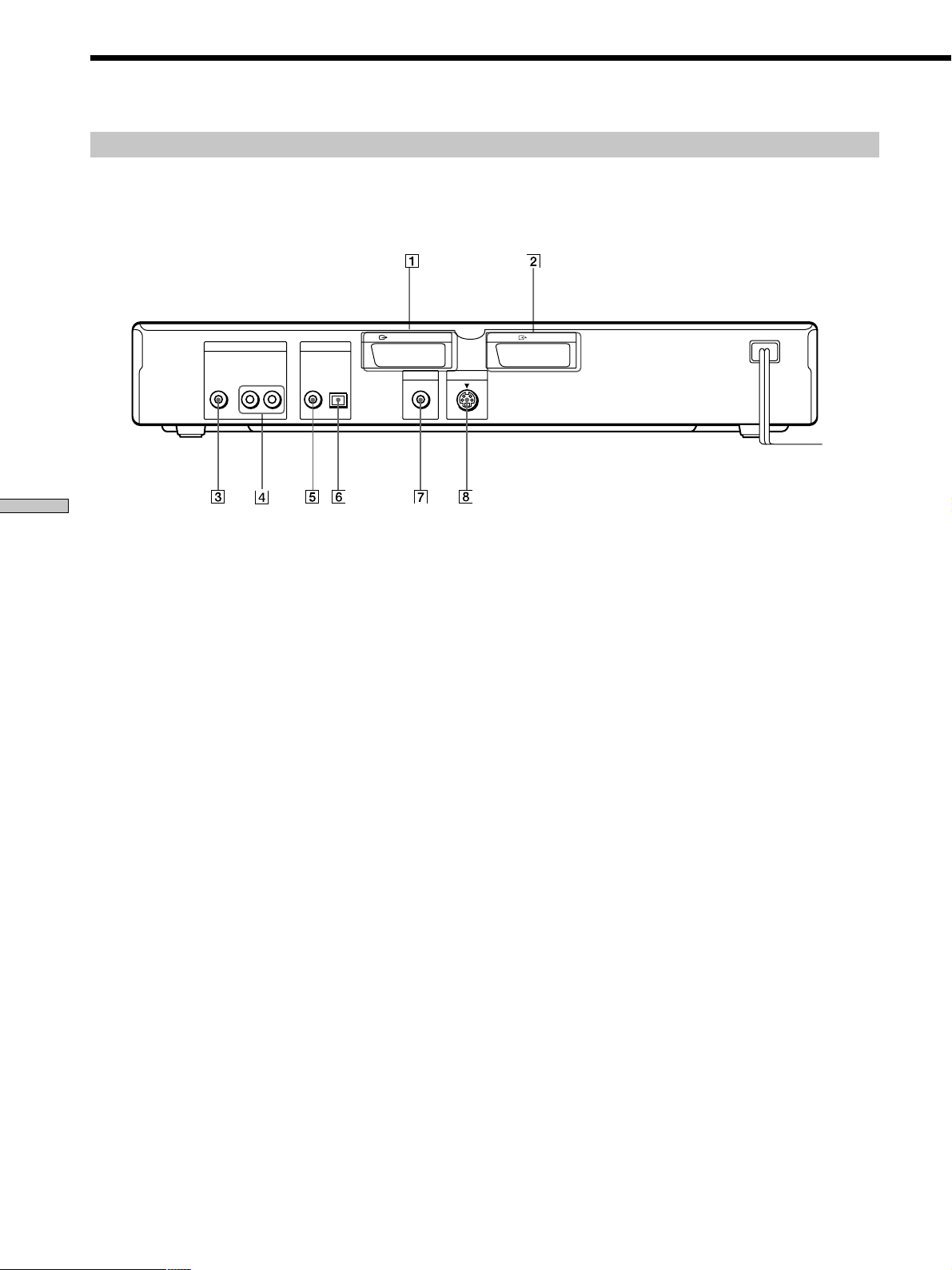

Rear Panel

Additional Information

1 LINE-1 (RGB)-TV connector (8, 51)

Connect to your TV using a LINE-1 connector to output the signal from the player. You can select the video signals, the S VIDEO signals or the RGB signals as the output signal format.

2 LINE-2 connector (8)

Connect your video equipment using a LINE-2 connector to input the signal from the equipment.

3 AUDIO OUT WOOFER connector (13)

Connect to a subwoofer (not supplied).

4 AUDIO OUT R (right)/L (left) connectors (9, 11)

Connect to the audio input connector on your TV or receiver (amplifier).

5 DIGITAL OUT COAXIAL connector (12, 14)

Connect to an audio component using the coaxial digital connecting cord.

6 DIGITAL OUT OPTICAL connector (12, 14)

Connect to an audio component using the optical digital connecting cord.

7 VIDEO OUT connector (9, 11)

Connect to the video input connector on your TV or monitor.

8 S VIDEO OUT connector (9, 11)

Connect to the S video input connector on your TV or monitor.

WOOFER

AUDIO OUT

DIGITAL OUT

PCM/DTS/MPEG/ DOLBY DIGITAL

COAXIAL OPTICAL

LINE-1 (RGB) - TV

VIDEO OUT S VIDEO OUT

LINE-2

Page 69

Remote

8 HPLAY button (18)

Plays a disc.

9 XPAUSE button (19)

Pauses playing a disc.

0 TITLE button (22)

Displays the title menu on the TV screen.

qa DISPLAY button (26)

Displays the Control Menu display on the TV screen to set or adjust the items.

qs </M/m/,/ENTER buttons

Selects and executes the items or settings.

qd @/1 (on/standby) button (19)

Press to turn on the player or place it in standby mode after power is connected by pressing ! on the player.

qf ENTER button

Executes the items or settings.

qg SUBTITLE button (34)

Changes the subtitles when playing a DVD.

qh TV/DVD button (10)

Press to return the TV‘s input from CD/DVD player to the TV when you connect the player to your TV via the SCART (EURO AV) connectors.

qj TIME/TEXT button (24)

Displays the playing time of the disc, etc., on the front panel display.

qk xSTOP button (19, 21)

Stops playing a disc.

ql DVD MENU button (22)

Displays the DVD menu on the TV screen.

w; ORETURN button (23, 27)

Press to return to the previously selected screen, etc.

Additional Information

1 ZOPEN/CLOSE button (18)

Opens or closes the disc tray.

2 Number buttons

Selects the items or settings.

3 CLEAR button (29, 41)

Press to return to continuous play, etc.

4 ANGLE button (35)

Changes the angles when playing a DVD.

5 AUDIO button (32)

Changes the sound while playing a DVD or VIDEO CD.

6 ./>PREV/NEXT (previous/next) buttons (19)

Press to go to the next chapter or track, or to go back to the previous chapter or track.

/ SCAN/SLOW buttons (20)

Locate a point quickly while monitoring the picture or play a disc in slow motion.

Page 70

Index

Numerics

2.1 Channel Surround 13 4:3 LETTER BOX 50 4:3 PAN SCAN 50

5.1 Channel Surround 14 16:9 50

A-B Repeat 44 A-B REPEAT 44 ADVANCED 37 Angle 35 ANGLE 35 AUDIO 32, 49 AUDIO ATT 55 AUDIO DRC 55 AUDIO SETUP 55 AUTO PLAY 51

Additional Information

BACKGROUND 51 Batteries 7

CD 4, 18 Chapter 5, 29, 64 CHAPTER 29 Connecting 8, 11, 13, 14 Continuous play

CD/VIDEO CD 18

DVD 18 Control Menu display 26 CUSTOM PARENTAL

CONTROL 38 CUSTOM SETUP 51

F, G

Fast Forward 20 Fast Reverse 20 Front panel display 24

Handling discs 6 Hooking up 8, 11, 13, 14

I, J, K

Index 5, 29 INDEX 29

LANGUAGE SETUP 49 LETTER BOX 50 Locating

a specific point 20 by watching the TV screen 20

M, N, O

MPEG 57 On-screen display

Control Menu display 26 Setup display 46

OSD 49

P, Q

PAN SCAN 50 PARENTAL CONTROL 52 PBC functions 23 PBC Playback 23, 64 PRO LOGIC 56 PROGRAM 40 Program Play 40

S video output 8, 11 Scene 5 SCENE 29 SCREEN SAVER 51 SCREEN SETUP 50 Searching. See Locating. Setup display 46 SHUFFLE 42 Shuffle Play 42 Slow-motion Play 20 SPEAKER SETUP 57 Speakers

hookup 13, 14 set up 57

SUBTITLE 34

TIME/TEXT 30, 31 Title 5, 29, 65 TITLE 29 Title menu 22 Track 5, 29, 65 TRACK 29 TRACK SELECTION 55 Troubleshooting 59 TV TYPE 50

Usable discs 4

V, W, X, Y, Z

VES 36 VIDEO CD 4, 18

D, E

DIGITAL OUT 56 Digital output 12, 14, 56 DIMMER 52 Display

Control Menu display 26

Front panel display 24

Setup display 46 Dolby Digital 11, 56 DTS 57 DVD 4, 18 DVD menu 49

Remote 7 REPEAT 43 Resume Play 21

Page 71

Page 72

Sony Corporation Printed in Japan
