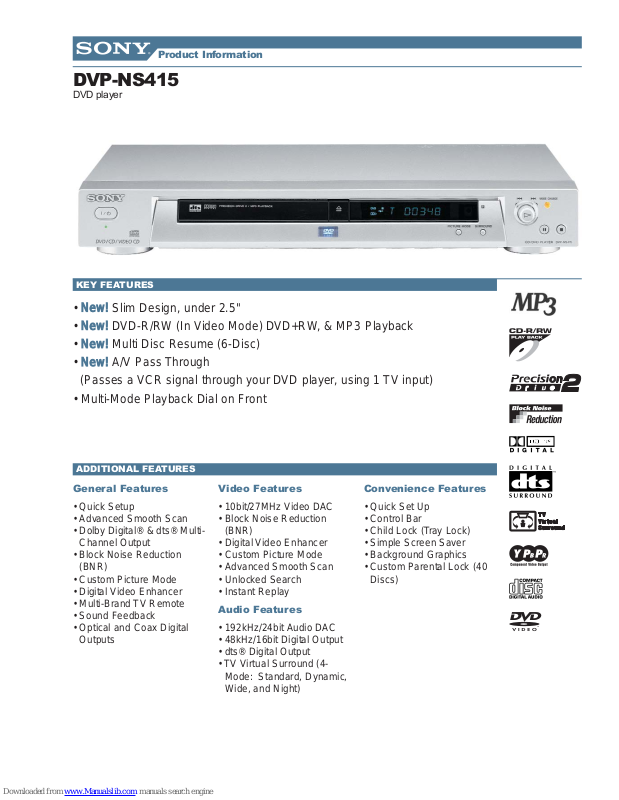

Sony DVP-NS415 Marketing Specifications

DVP-NS415

DVD player

•

NNeeww!!

Slim Design, under 2.5"

•

NNeeww!!

DVD-R/RW (In Video Mode) DVD+RW, & MP3 Playback

•

NNeeww!!

Multi Disc Resume (6-Disc)

•

NNeeww!!

A/V Pass Through

(Passes a VCR signal through your DVD player, using 1 TV input)

• Multi-Mode Playback Dial on Front

General Features

• Quick Setup

• Advanced Smooth Scan

• Dolby Digital® & dts® Multi­Channel Output

• Block Noise Reduction
(BNR)

• Custom Picture Mode

• Digital Video Enhancer

• Multi-Brand TV Remote

• Sound Feedback

• Optical and Coax Digital
Outputs

Video Features

• 10bit/27MHz Video DAC

• Block Noise Reduction
(BNR)

• Digital Video Enhancer

• Custom Picture Mode

• Advanced Smooth Scan

• Unlocked Search

• Instant Replay

Audio Features

• 192kHz/24bit Audio DAC

• 48kHz/16bit Digital Output

• dts® Digital Output

• TV Virtual Surround (4­Mode: Standard, Dynamic,
Wide, and Night)

Convenience Features

• Quick Set Up

• Control Bar

• Child Lock (Tray Lock)

• Simple Screen Saver

• Background Graphics

• Custom Parental Lock (40
Discs)

KEY FEATURES

ADDITIONAL FEATURES

Product Information

DVP-NS415

DVD player

MP3 Playback Playing MP3 Music on a Sony DVD player is

easy. Just insert an MP3 encoded disc and press MENU. A blue
screen pops up to display your folders. Scroll down the list using
the remote or front panel cursor control to select the folder you
want.The green files screen pops up to show the files in the select­ed folder. Select the file you want to hear and you’re done. Finding
music couldn’t be easier.

Easy Setup Setup can be confusing and time consuming—but

not with Sony’s Quick Setup.As soon as you connect your DVD
player, the Quick Setup screen appears ready to guide you through
the process, step by step, screen by screen.

You’ll make the right configuration and connections in no time.
Smart!

Specifications

AAuuddiioo

• 192kHz/24bit Audio DAC

• 48kHz/16bit Digital Output

• Frequency Response:
DVD (PCM96kHz):

2Hz to 44kHz (±1.0)
DVD (PCM48kHz):

2Hz to 22kHz (±0.5)
CD:

2Hz to 20kHz (±0.5)

• Signal-to-Noise Ratio:

115dB

• Audio Dynamic Range:

DVD:103 dB
CD: 99 dB

• Harmonic Distortion:

0.003%

• Wow and Flutter:
Less than detected value
(±0.001%W PEAK)

VViiddeeoo

• 10bit/27MHz Video DAC

• Signal Format: NTSC

Connections

VViiddeeoo OOuuttppuuttss

• Composite Video
Output x 1

• S-Video Output x 1

• Component Video
Output x 1

AAuuddiioo OOuuttppuuttss

• Analog Audio:
2ch Output x 1

• Coaxial Digital Output x 1

• Digital Optical Output x 1

General

• Power Requirements:
AC120V, 60Hz

• Power Consumption (in
Operation): 13W

Accessories

SSuupppplliieedd AAcccceessssoorriieess

• Instruction Manual

• AV Cable

• 4 Column Multi Brand TV
Remote

• AA Battery x 2

Weights & Measures

• Dimensions (W x H x D):
17" x 2.4" x 10"

• Weight: 5.06 lbs.

• Box Dimensions (W x H x D):

19.7" x 6.22" x 15.1"

• Box Weight: 8.8 lbs.

ADDITIONAL FEATURES

KEY TECHNOLOGY

Product Information

Precision Drive™ 2 System Past generations of Precision

Drive technology were only able to compensate for warped discs
by moving the entire optical block, which took more time and limit­ed the amount of correction possible.

Sony’s new Precision Drive 2 system simplifies the process by
moving the lens—instead of the entire optical block—for faster and
more accurate error correction.

DIGITAL OUT

PCM/DTS/

DOLBY DIGITAL

COAXIAL

OPTICAL

IN

OUT

R - AUDIO - L

R - AUDIO - L

LINE

VIDEO

VIDEO

COMPONENT

VIDEO OUT

S VIDEO

OUT
