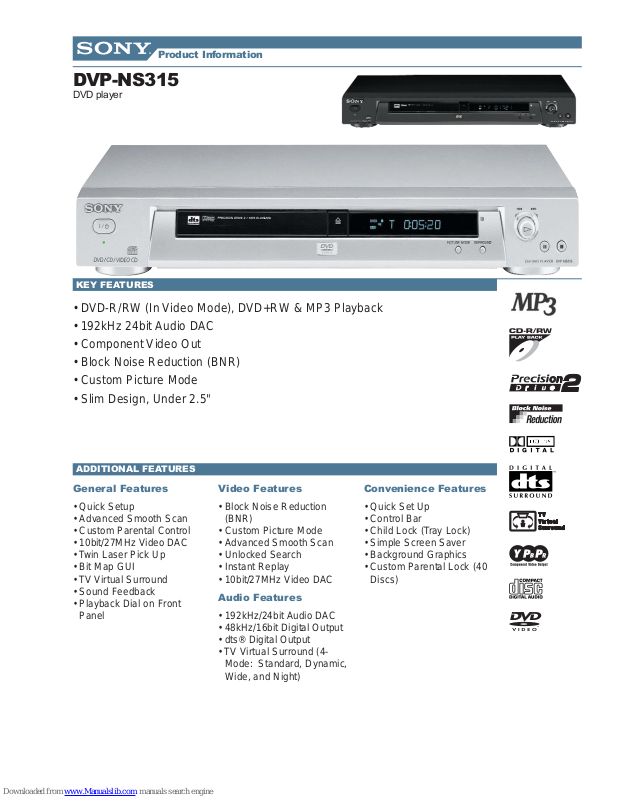

Sony DVP-NS315 Marketing Specifications
DVP-NS315
DVD player
• DVD-R/RW (In Video Mode), DVD+RW & MP3 Playback
• 192kHz 24bit Audio DAC
• Component Video Out
• Block Noise Reduction (BNR)
• Custom Picture Mode
• Slim Design, Under 2.5"
General Features
• Quick Setup
• Advanced Smooth Scan
• Custom Parental Control
• 10bit/27MHz Video DAC
• Twin Laser Pick Up
• Bit Map GUI
• TV Virtual Surround
• Sound Feedback
• Playback Dial on Front
Panel
Video Features
• Block Noise Reduction
(BNR)
• Custom Picture Mode
• Advanced Smooth Scan
• Unlocked Search
• Instant Replay
• 10bit/27MHz Video DAC
Audio Features
• 192kHz/24bit Audio DAC
• 48kHz/16bit Digital Output
• dts® Digital Output
• TV Virtual Surround (4Mode: Standard, Dynamic,
Wide, and Night)
Convenience Features
• Quick Set Up
• Control Bar
• Child Lock (Tray Lock)
• Simple Screen Saver
• Background Graphics
• Custom Parental Lock (40
Discs)
KEY FEATURES
ADDITIONAL FEATURES
Product Information
DVP-NS315
DVD player
MP3 Playback Playing MP3 Music on a Sony DVD player is
easy. Just insert an MP3 encoded disc and press MENU. A blue
screen pops up to display your folders. Scroll down the list using
the remote or front panel cursor control to select the folder you
want.The green files screen pops up to show the files in the selected folder. Select the file you want to hear and you’re done. Finding
music couldn’t be easier.
Easy Setup Setup can be confusing and time consuming—but
not with Sony’s Quick Setup.As soon as you connect your DVD
player, the Quick Setup screen appears ready to guide you through
the process, step by step, screen by screen.
You’ll make the right configuration and connections in no time.
Smart!
Specifications
Audio
• 192kHz/24bit Audio DAC
• 48kHz/16bit Digital Output
• Frequency Response:
DVD (PCM96kHz):
2Hz to 44kHz (±1.0)
DVD (PCM48kHz):
2Hz to 22kHz (±0.5)
CD:
2Hz to 20kHz (±0.5)
• Signal-to-Noise Ratio:
115dB
• Audio Dynamic Range:
DVD:103 dB
CD: 99 dB
• Harmonic Distortion:
0.003%
• Wow and Flutter:
Less than detected value
(±0.001%W PEAK)
Video
• 10bit/27MHz Video DAC
• Signal Format: NTSC
Connections
Video Outputs
• Composite Video
Output x 1
• S-Video Output x 1
• Component Video
Output x 1
Audio Outputs
• Analog Audio:
2ch Output x 1
• Coaxial Digital Output x 1
General
• Power Requirements:
AC120V, 60Hz
• Power Consumption (in
Operation): 12W
Accessories
Supplied Accessories
• Instruction Manual
• AV Cable
• 3 Column Remote
• AA Battery x 2
Weights & Measures*
• Dimensions (W x H x D):
17" x 2.4" x 10"
• Weight: 5.06 lbs.
• Box Dimensions (W x H x D):
19.7" x 6.22" x 15.1"
• Box Weight: 8.8 lbs.
ADDITIONAL FEATURES
KEY TECHNOLOGY
Product Information
©2002 SonyElectronics Inc. All rights reserved. Reproduction in wholeor in part without written permission is prohibited. Sony, CineMotion, Hi-Scan, Jog Dial, Precision Drive, and WEGA are trademarks of Sony. Dolby
Digital is a registered trademark of Dolby Laboratories Licensing Corporation. dts is a registered trademark of Digital Theater Systems, Inc. All other trademarks and logos are property of their respective owners.
*Weights & Measures are approximate.
Precision Drive™ 2 System Past generations of Precision
Drive technology were only able to compensate for warped discs
by moving the entire optical block, which took more time and limited the amount of correction possible.
Sony’s new Precision Drive 2 system simplifies the process by
moving the lens—instead of the entire optical block—for faster and
more accurate error correction.
DIGITAL OUT
PCM/DTS/
DOLBY DIGITAL
COAXIAL
R - AUDIO - L
LINE
VIDEO
COMPONENT
VIDEO OUT
S VIDEO
OUT
