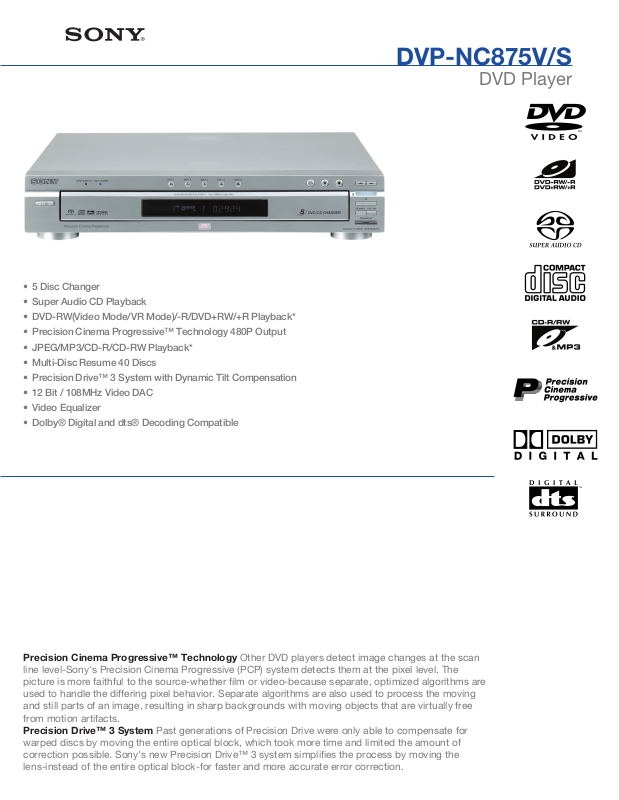

Sony DVP-NC875S User Manual
• 5 Disc Changer
• Super Audio CD Playback
• DVD-RW(Video Mode/VR Mode)/-R/DVD+RW/+R Playback*
• Precision Cinema Progressive™ Technology 480P Output
• JPEG/MP3/CD-R/CD-RW Playback*
• Multi-Disc Resume 40 Discs
• Precision Drive™ 3 System with Dynamic Tilt Compensation
• 12 Bit / 108MHz Video DAC
• Video Equalizer
• Dolby® Digital and dts® Decoding Compatible
DVP-NC875V/S
DVD Player
Precision Cinema Progressive™ Technology Other DVD players detect image changes at the scan
line level-Sony's Precision Cinema Progressive (PCP) system detects them at the pixel level. The
picture is more faithful to the source-whether film or video-because separate, optimized algorithms are
used to handle the differing pixel behavior. Separate algorithms are also used to process the moving
and still parts of an image, resulting in sharp backgrounds with moving objects that are virtually free
from motion artifacts.
Precision Drive™ 3 System Past generations of Precision Drive were only able to compensate for
warped discs by moving the entire optical block, which took more time and limited the amount of
correction possible. Sony's new Precision Drive™ 3 system simplifies the process by moving the
lens-instead of the entire optical block-for faster and more accurate error correction.
DVP-NC875V/S
Sony Electronics Inc.
16765 West Bernardo Drive
San Diego, CA 92127
DVD Player
Features
Convenience
• Multi-Disc Resume-40 Discs
• Quick Set-Up
• Custom Parental Control- 40 Discs
• RMT Remote Control
w/Multi-Brand TV Control
Compatible with Most Major
Brands
General
• DVD/CD Text
• 12 Bit / 108MHz Video DAC
• Super Audio CD Playback
• 192 kHz 24 Bit Digital to Analog
Converter
• Dolby® Digital and dts®
Optical/Coaxial Output
• Dolby® Digital and dts® 5.1
Channel Output
• Multi-Disc Resume- 40 Discs
• TV Virtual Surround - 4 Surround
Modes
• Digital Video EQ
• Custom Picture Mode
• Title and Chapter Viewer
• Advanced SmoothScan™; and
SmoothSlow modes
• Instant Replay and Instant Search
• Full 3-2 Reverse Conversion
Key Technologies
• Precision Cinema Progressive™
Technology Other DVD players
detect image changes at the scan
line level-Sony's Precision Cinema
Progressive (PCP) system detects
them at the pixel level. The picture
is more faithful to the
source-whether film or
video-because separate,
optimized algorithms are used to
handle the differing pixel behavior.
Separate algorithms are also used
to process the moving and still
parts of an image, resulting in
sharp backgrounds with moving
objects that are virtually free from
motion artifacts.
• Precision Drive™ 3 System Past
generations of Precision Drive
were only able to compensate for
warped discs by moving the entire
optical block, which took more
time and limited the amount of
correction possible. Sony's new
Precision Drive™ 3 system
simplifies the process by moving
the lens-instead of the entire
optical block-for faster and more
accurate error correction.
Output x 1
• Audio Outputs Analog Audio
Output x 1
• Audio Outputs 5.1 Channel Analog
Output
Supplied Accessories
• Instruction Manual
• Remote Control
• AV Cable
• AA Battery x 2
Weights & Measures
• Appox. 10 lbs
• Approx. 17" x 3 3/8" x 16 1/4"
UPC Codes
• 0272426524770
©2004 Sony Electronics Inc. All rights reserved.
Features and specifications are subject to
change without notice. Sony, The Sony
Logo,Precision Cinema Progressive, Precision
Drive, and SmoothScan are trademarks of
Sony, all others are trademarks of their
respective owners. *DVD+/- R/RW playback
and CD-R/RW playback may not be compatible
with all discs, depending on recording
conditions.
For more information:
http://www.sony.com
Specifications
Audio
• Audio Frequency Response (DVD,
96 kHz PCM): 2-44,000Hz -2db,
±1.0dB
• Audio Frequency Response
(SA-CD): 2-100,000Hz,
50kHz:-3dBI±1dB
• Audio DA Converter (CD):
2-20,000Hz, ±0.5dB
• Signal-to-Noise Ratio >115 dB
(Line Out L/R Audio Jacks Only)
• Dynamic Range >103 dB
(DVD,SA-CD); >99 dB (CD)
• Harmonic Distortion 0.003%
General
• Power Requirements AC120V, 60
Hz
Inputs and Outputs
• Video Outputs Component Video
Output x 1
• Video Outputs S-Video Output x 1
• Video Outputs Composite Video
Output x 1
• Audio Outputs Coaxial Digital
Output x 1
• Audio Outputs Optical Digital
