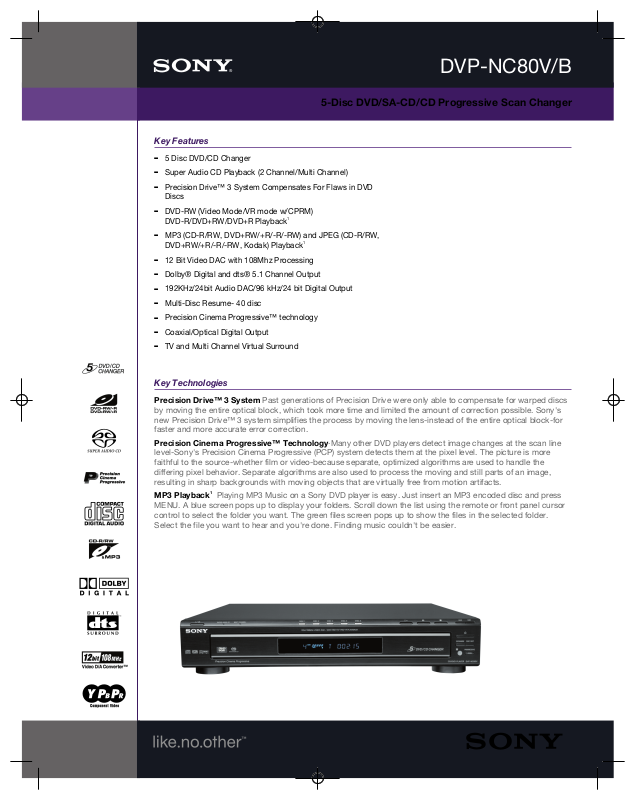

Sony DVP-NC80V/B BROCHURE

5-Disc DVD/SA-CD/CD Progressive Scan Changer

Key Features



5 Disc DVD/CD Changer



Super Audio CD Playback (2 Channel/Multi Channel)



Precision Drive™ 3 System Compensates For Flaws in DVD Discs



DVD-RW (Video Mode/VR mode w/CPRM) DVD-R/DVD+RW/DVD+R Playback



MP3 (CD-R/RW, DVD+RW/+R/-R/-RW) and JPEG (CD-R/RW, DVD+RW/+R/-R/-RW, Kodak) Playback



12 Bit Video DAC with 108Mhz Processing



Dolby® Digital and dts® 5.1 Channel Output



192KHz/24bit Audio DAC/96 kHz/24 bit Digital Output



Multi-Disc Resume- 40 disc



Precision Cinema Progressive™ technology



Coaxial/Optical Digital Output



TV and Multi Channel Virtual Surround

DVP-NC80V/B

Key Technologies

Precision Drive™ 3 System Past generations of Precision Drive were only able to compensate for warped discs

by moving the entire optical block, which took more time and limited the amount of correction possible. Sony's new Precision Drive™ 3 system simplifies the process by moving the lens-instead of the entire optical block-for faster and more accurate error correction.

Precision Cinema Progressive™ Technology·Many other DVD players detect image changes at the scan line

level-Sony's Precision Cinema Progressive (PCP) system detects them at the pixel level. The picture is more faithful to the source-whether film or video-because separate, optimized algorithms are used to handle the differing pixel behavior. Separate algorithms are also used to process the moving and still parts of an image, resulting in sharp backgrounds with moving objects that are virtually free from motion artifacts.

MP3 Playback1Playing MP3 Music on a Sony DVD player is easy. Just insert an MP3 encoded disc and press

MENU. A blue screen pops up to display your folders. Scroll down the list using the remote or front panel cursor control to select the folder you want. The green files screen pops up to show the files in the selected folder. Select the file you want to hear and you're done. Finding music couldn't be easier.

DVP-NC80V/B

5-Disc DVD/SA-CD/CD Progressive Scan Changer

Specifications

Video

DAC (D/A Converter): 12bit/108MHz Format(s) Supported: DVD-RW/-R (Video/VR Mode

with CPRM) DVD+RW/+R Playback1, JPEG (CD-R/-RW,DVD+RW/+R/-R/-RW, Kodak)

Audio

Digital-to-Analog Converter: 192kHz/24bit Audio DAC Sound Mode: Dolby® Digital and dts® decoding Format(s) Supported: MP3 Playback

(CD-R/RW,DVD-R/-RW/+R/+RW), CD (CD/CD-R/CD-RW)/VCR/SVCD

Inputs and Outputs

Analog Audio Output(s): 5.1 Channels Analog Video Output(s): Component x1, S-Video x1,

Composite x1 Digital Audio Output(s): Optical x 1, Coaxial x 1 Analog Audio Output(s): (R+L) x1

Power

Power Requirements: AC120V, 60 Hz

DVP-NC80V/B

Weight

9 lbs. 11 oz. (4.4Kg)

Dimensions (WHD)

17" x 3 7/15" x 16 1/8"

UPC Code

0272426675940

1. Pla yback ma y not be co mpati ble w ith a ll di scs, dep endin g on

rec ordin g con ditio ns

©20 05 So ny El ectro nics Inc . Son y, Pr ecisi on Ci nema Pro gress ive, Pre cisio n Dri ve, a nd Sm oothS can are tr adema rks o f Son y. Do lby i s a r egist ered tra demar k of Dol by Lab orato ries. dt s is a t radem ark o f Dig ital The ater Sys tems, L. P. Al l oth er tr adema rks a re pr opert y of the ir re spect ive o wners . Fea tures an d spe cific ation s are su bject to ch ange wit hout not ice. Non -metr ic we ights an d mea sures ar e app roxim ate.

Sony Electronics Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com/dn

Last Updated 2005-07-25
