Page 1

CD/DVD Player

Operating Inst ructions

2-591-934-11(1)

DVP-NC80V

Page 2

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

The AC power cord must be changed only at a qualified service shop.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This symbol is intended to alert the user to the presence of uninsulated

within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

“dangerous voltage”

This symbol is intended to alert the user to the presence of important operating and

For customers in the U.S.A Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. DVP-NC80V Serial No.______________

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the

receiving antenna.

– Increase the separation

between the equipment and receiver.

– Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an

experienced radio/TV technician for help.

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

Page 3

Important Safeguards

Attachments

Do not use attachments not recommended by the manufacturer, as they may cause hazards.

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them.

Use

Power sources

This set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization

This set is equipped with a polarized ac power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below:

For the set with a polarized AC power cord plug:

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

For the set with a three-wire grounding type AC plug:

This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the grounding plug.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

Object and Liquid Entry

Never push objects of any kind into the set through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the set.

Cleaning

Unplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set.

Installation

Water and Moisture

Do not use power-line operated sets near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Power-Cord Protection

Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Accessories

Do not place the set on an unstable cart, stand, tripod, bracket, or table. The set may fall, causing serious injury to a child or an adult, and serious damage to the set. Use only a cart stand tripod, bracket, or table recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

S3125A

Ventilation

The slots and openings in the cabinet are provided for necessary ven tila tion. To ensure reliable operation of the set, and to protec t it from overheating, these slots and openings must never be blocked or covered.

• Never cov er the slots and openings with a cloth or other materials.

• Never block the slots and openings by placing the set on a bed, sofa, rug or other similar surface.

,continued

Page 4

• Never place the set in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

• Do not place the set near or over a radiator or heat register, or where it is exposed to direct sunlight.

Antennas Outdoor antenna grounding

If an outdoor antenna or cable system is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL. Be sure the antenna system is grounded so as to provide some protection aga inst voltage surges and built-up static charges. Section 810 of the National E lectrical Code provides information with respect to proper groun ding of the mast and supporting structure, grounding o f the lead-in wire to an antenn a disc ha rge unit, size of grounding conductors, location of antenn a-discharge unit, connection to grounding electrodes, a nd requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code

Antenna Lead in Wire

Ground Clamp

Electric Service Equipment

NEC-NATIONAL ELECTRICAL CODE

Lightning

For added protection for this set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and powerline surges.

Antenna Discharge unit (NEC Section 810-20)

Grounding Conductors (NEC Section 810-21)

Ground Clamps

Power Service Grounding Electrode System (NEC Art 250 Part H)

Service

Damage Requiring Service

Unplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power cord or plug is damaged or fraye d.

• If liquid has been spilled or objects have fallen into the set.

• If the set has been exposed to rain or water.

• If the set has been subject to excessive shock by being dropped, or the cabinet has been damage d.

• If the set does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating in structions. Improper ad justment of other contro ls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation.

• When the set exhibits a distinct change in performance - this indicates a need for service.

Servicing

Do not attempt to service the set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Che ck

Upon completion of any service or repairs to the set, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the set is in safe operating condition.

Page 5

Precautions

On safety

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the app aratus.

• S hould any solid object or liq uid fall into the cabinet, unplu g the player and have it checked by quali f ie d personnel before operating it any further.

On power sources

• T he player is not di sconnect ed from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.

• If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

On placement

• P la ce t he pl ayer i n a l ocat i on wit h a de quat e ventilation to prevent heat build-up in the player.

• Do not place the player on a soft sur fa ce such as a rug.

• Do not place the player in a location near heat sources, or in a place subject to di rect sunlight, excessive dust, or mechanical shock.

• Do not install th e player in an inclined position. It is des i gned to be operated in a horizontal position only.

• Keep the player and the discs away from equipment with st rong magnets, su ch as microwave ovens, or large loud s p eakers.

• Do not place heavy objects on t he player.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not oper at e pr ope rl y. In thi s case, remove the disc and leave the player turned on for about hal f an hour until the moisture evaporates.

• When you move the player, take out any discs. If you don’t, the di sc may be damaged.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a pe ak l eve l se cti on is pl ay ed.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs

Do not use a commercially available cleaning disc. It may cause a malfunction.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display ima ge displayed on your TV for an extended period of time you risk permanent damage to your te levision screen . Pl asma display panel televisions and projection televisions are susceptible to this.

On transporting the player

Before transporting the play er , follow the procedure below to return the internal mechanisms to their original positions.

1 Remove all the discs from the disc tray . 2 Press A to close the disc tray.

Make sure that “NO DISC” appear s on the front panel d is pl ay.

3 Press ?/1 to turn off the play er.

The player ente rs standby mode.

4 Disconnect the AC power cord.

If you have any questi ons or problems concerning your player, please co nsult your nearest Sony dealer.

Page 6

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Notes About the Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

This Player Can Play the Following Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Index to Parts and Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Guide to the Control Menu Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Hookups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Hooking Up the Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Step 1: Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Step 2: Inserting Batteries Into the Remote. . . . . . . . . . . . . . . . . . . . . . . . . . 16

Step 3: Connecting the Video Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Step 4: Connecting the Audio Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Step 5: Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Step 6: Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Playing Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Resuming Playback Fro m the Poi nt W her e You Stopped the Disc (Multi-di sc

Resume) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the DVD’s Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Selecting “ORIGINAL” or “PLAY LIST” on a DVD-RW/DVD-R . . . . . . . . . . . 30

Selecting a Playback Area for a Super Audio CD . . . . . . . . . . . . . . . . . . . . . 31

Playing VIDEO CDs With PBC Functions (PBC Playback) . . . . . . . . . . . . . 32

Various Play Mode Function s (P ro gr am Pl ay, Sh uf fle Play, Repeat Play,

A-B Repeat Play). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Searching for a Scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Searching for a Particular Poin t on a Dis c (S ear ch, Scan, Slow-motion Play,

Freeze Frame). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Searching for a Title/Chap t er/Tr ac k/ Scene, etc. (Search mode) . . . . . . . . . . 38

Searching by Scene (PICTURE NAVIGATION) . . . . . . . . . . . . . . . . . . . . . . 40

Viewing Information About the Disc . . . . . . . . . . . . . . . . . . . . . . . 41

Checking the Playing Time and Remaining Time . . . . . . . . . . . . . . . . . . . . . 41

Sound Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Changing the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Surround Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Enjoying Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 9

Changing the Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Displaying the Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Adjusting the Playback Picture (CUSTOM PICTURE MODE). . . . . . . . . . . . 50

Sharpening the Pictures (SHARPNESS). . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Adjusting the Delay Between the Picture and Sound (AV SYNC). . . . . . . . . 52

Page 7

Enjoying MP3 Audio and JPEG Images . . . . . . . . . . . . . . . . . . . . . 53

About MP3 Audio Tracks and JPEG Image Files . . . . . . . . . . . . . . . . . . . . . 53

Playing MP3 Audio Tracks or JPEG Image Files. . . . . . . . . . . . . . . . . . . . . . 54

Enjoying JPEG Images as a Slide Show. . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Using Various Additional Functions . . . . . . . . . . . . . . . . . . . . . . . 59

Locking Discs (CUSTOM PARENTAL CONTROL,

PARENTAL CONTROL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Controlling Your TV or AV Amplifier (Receiver)

With the Supplied Remote. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Settings and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Using the Setup Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Setting the Display or Sound Tra ck Language (LANGUAGE SETU P ) . . . . . 66

Settings for the Display (SCREEN SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . 67

Custom Settings (CUSTOM SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Settings for the Sound (AUDIO SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Settings for the Speakers (SPEAKER SETUP) . . . . . . . . . . . . . . . . . . . . . . . 71

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Self-diagnosis Functio n (Wh en l ett er s/ num bers appear in the display). . . . . 77

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Language Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

About This Manual

• Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote.

• “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs and DVD-RWs/DVD-Rs.

• The meaning of the icons used in this manual is described below:

Icons Meanings

Functions available for DVD VIDEOs and DVD+RWs/DVD+Rs in +VR mode or DVD-RWs/DVD-Rs in video mode

Functions available for DVD-RWs/DVD-Rs in VR (Video Recording) mode

Functions available for VIDEO CDs (including Super VCDs or CD-Rs/CDRWs in video CD format or Super VCD format)

Functions available for Super Au di o CDs

Functions available for music CDs or CD-Rs/CD-RWs in music CD fo rmat

Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs) containing MP3* audio tra ck s, and JPEG image files

Functions available for DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/ DVD-RWs/DVD-Rs) containing MP3* audio tracks, and JPEG image files.

* MP3 (MPEG-1 Audio Layer III) is a standard forma t defined by ISO (International Org an ization for

Standardization)/IEC (International Electrotechnical Comm ission) M P E G wh ic h c om press es audio data.

Page 8

This Player Can Play the Following Disc s

Format of discs

DVD VIDEO

DVD-RW/-R

DVD+RW/+R

Super Audio CD

VIDEO CD/ Music CD

CD-RW/-R

“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.

Note about CDs/DVDs

The player can play CD-ROMs/CD-Rs/CDRWs recorded in the following formats: –music CD format –video CD format –MP3 audio tracks and JPEG ima g e fi le s of

format conforming to ISO 9660* Level 1/ Level 2, or its extended format, Joliet

–KODAK Picture CD format

* A logical format of files and folders on CD-

ROMs, defined by ISO (Internation al Organization for Standardization).

Example of discs that the player cannot play

The player cann ot p l ay t he following disc s:

• CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on this page.

• CD-ROMs recorded in P HOTO CD forma t.

• Data part of CD- Ext ras.

• DVD Audios.

Also, the player cannot play the follo w i ng discs:

• A DVD VIDEO with a different region code.

• A disc record ed in a c olor sys tem other than NTSC, such as PAL or SECAM (t his play er conforms to the NTSC color sy st em).

• A disc that has a non-standard shape (e.g., card, heart).

• A disc with paper or stickers on it.

• A disc that has the adhesive of cellopha ne tape or a sticker still left on it.

Region code

Your player has a region code printed on the back of the unit and only will play DVD VIDEOs (playback only) labeled with identical region codes. This system is used to protect copyrights.

ALL

Region code

DVD VIDEOs labeled will also play on this player.

If you try to play any other DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, there may be no region code indication, even though playing the DVD VIDEO is prohibited by area restrictions.

00V 00Hz

NO.

DVP–XXXX

00W

0-000-000-00

The player can play DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs recorded in the following format: –MP3 audio tracks and JPEG ima g e fi le s of

format conforming to UDF (Universal Disk Format).

Page 9

Notes

• Notes about DVD+RWs/DVD+Rs, DVD-RWs/ DVD-Rs or CD-Rs/CD-RWs

Some DVD+RWs/DVD+Rs, DVD-RWs/DVDRs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the char acte r istics of the recording device and authoring software. The disc will not play if it has not been correc tl y finalized. For more information, refer to the operating instructions for the r ecor ding device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

• Music discs encoded with copyright p rotectio n

technologies

This product is designed to playback di sc s tha t conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technol ogie s a re ma r keted by some record companies. Please be aware that among those discs, there are some tha t do not conform to the CD standard and may not be playable by this product.

• Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the othe r side . However, since the audio material side doe s not conform to the Compact Disc (CD) standard, playback on this product is not guara nteed.

Copyrights

This product incorporates copyrigh t protection techn ol ogy that is protected by U.S. patents and other intellectual proper ty rights. Use of this copyright protectio n technology must be authorized by Macrovision, an d is in te nded for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineer i ng or disassembly is prohibited.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intent i onally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

Page 10

Index to Parts an d Controls

For more information, see the pages indicated in parentheses.

Front panel

A [/1 (on/standby) button (26) B SUPER AUDIO CD indicator (31, 78)

Lights up when:

–playing an HD (High Density) layer of

Super Audio CDs.

–no disc is inserted.

C MULTI CHANNEL indicator (31, 78)

Lights up when:

–playing a disc that contai ns multiple

audio signal channels.

– no disc is inserted .

D DISC 1 – 5 buttons (27) E H (pl ay) button (26) F X (pause) button (27)

Rear panel

COAXIAL

OPTICAL

PCM/DTS/

DOLBY

DIGITAL

OUT

A DIGITAL OUT (OPTICAL) jack (20) B DIGITAL OUT (COAXIAL) jack (20) C 5.1CH OUTPUT jacks (20) D LINE OUT L/R (AUDIO) jacks (20)

FRONT

5.1CH OUTPUT

CENTER

VIDEO

AUDIO

WOOFER

REAR

LINE OUT

S VIDEO

OUT

COMPONENT

VIDEO OUT

G x (s top) button (27) H ./> (previous/next) buttons (37) I A ( open/close) button (26) J DISC SKIP button (26) K PROGRESSIVE button/indicator (19)

Lights up when the player outputs progressive signals.

L (remote sensor) (16) M EXCHANG E bu tton (28) N Disc tray (26) O Front panel display (11)

PRPB

E LINE OUT (VIDEO) jack (17) F S VIDEO OUT jack (17) G COMPONENT VIDEO OUT (Y, P

R) jacks (17)

Page 11

Front panel display

When playing ba ck a DVD VIDEO or DVD-VR mode disc

Disc type

Current disc

Disc numbers (27)

All Discs Repeat mode (35)

Current audio signal (44)

Lights up when you can change the angle (49)

Playing status

Lights up during Repeat Play (35)

Playing time of the current title (42)

When playing back a VIDEO CD with Playback Control (PBC) (32)

Disc numbers (27)

Disc type

Current disc

Playing status

Lights up during A-B Repeat Play (36)

Current playing time (42)

When playing back a Super Audi o CD, CD, DATA CD/DATA DV D (MP3 audi o) or VIDEO CD (without PBC)

Disc numbers (27)

Disc type*

Current track (42)

Current playing time (42)

Current disc

* When playing the HD layer of Super Audio CDs, the disc type is not displayed.

z Hint

You can adjust the lighting of the front pane l display by setting “DIMMER” in “ CUS TOM SETUP.” (page 68)

All Discs Repeat mode (35)

Lights up when playing MP3 audio tracks (55)

Playing status

Lights up during Repeat Play (35)

Note

The front panel disp la y w ill turn off automatica lly when the dis c tray is opened .

,continued

Page 12

Remote

A TV/DVD switch (41)

Z OPEN/CLOSE button (27)

B C Number buttons (30)

The number 5 button has a tactile dot.*

D CLEAR button (33) E TOP MENU button (30) F C/X/x/c buttons (30) G O RETURN button (28) H REPLAY/STEP/

ADVANCE/STEP buttons (27, 38)

I ./> PREV/NEXT (previous/

next) buttons (27)

J m/M SCAN/SLOW

buttons (38)

K ZOOM button (27, 56) L SLOW PLAY/FAST PLAY buttons

(27)

M SA-CD/CD button (31) N SA -CD MULTI/2CH button (31) O SUBTITLE button (49) P AUDIO button (44) Q [/1 (on/standby) button (26) R VOL (volume) +/– buttons (62)

The + button has a t actile dot.*

S TV/VIDEO/TIME/TEXT button (41) T PICTURE NAVI (picture navigation)

button (40, 56 )

U ENTER button (23, 62) V MENU button (30) W ENTER button (23) X DISPLAY button (13) Y H PLAY button (26)

The H button has a t actile dot.*

Z X PAUSE button (27)

wj x STOP button (27) wk SHUFFLE button (34) wl REPEAT button (35) e; SUR button (45) ea SEARCH MODE button (38) es ANGLE button (49) ed DISC SKIP button (28)

* Use the tactile dot as a referen ce when operating

the player.

Page 13

Guide to the Control Menu Display

Use the Control Menu to select a function and to view related information. Press DISPLAY repeatedly to turn on or change the Control Menu display as f ol lo w s:

Control Menu display 1

Control Menu display

The Control Menu display 1 and 2 will sho w di fferent items depe nding on the disc type . For details about each item, see the pages in parent heses.

Example: Control Menu display 1 when playing a DVD VIDEO.

Control Menu items

Selected item

Function name of selected Control Menu item

Operation message

*1 Displays the scene number for VIDEO CDs

(PBC is on), track number for VIDEO CDs/ Super Audio CDs/CDs, album number for DATA CDs/DATA DVDs.

*2 Displays the index number for VIDEO CDs/

Super Audio CDs, MP3 audio track number or JPEG image file number for DATA CDs/DATA

DVDs. *3 Di splays Super VCD as “SVCD.” *4 Displays the date for JPEG files.

Control Menu display 2 (appear s f or certa in discs only)

Control Menu display off

Currently playing disc number Currently playing title number* Currently playing chapter number* Total number of titles*

Total number of chapters*

1 1 2 ( 2 7 1 8 ( 3 4 T

OFF

) )

1 : 3 2 : 5 5

OFF SET ON

PROGRAM

ENTER DISPLAY

Quit:

DVD VIDEO

Playback status (N Playback,

X Pause, x Stop, etc.)

Type of disc being played*

Playing time* Current setting Options

To turn off the display

Press DISPLAY repeatedly.

,continued

Page 14

List of Control Menu items

Item Item Name, Function

DISC

Selects the disc to be played.

TITLE (page 38)/SCENE (page 38)/TRACK (page 38)

Selects the title, scene or track to be played.

CHAPTER (page 38)/INDEX (page 38)

Selects the chapter or index to be played.

TRACK (page 38)

Selects the track to be played.

ORIGINAL/PLAY LIST (page 30)

Selects the type of titles (DVD-RW/DVD-R) to be played, the ORIGINAL one or an edited PLAY LIST.

TIME/TEXT (page 39)

Checks the elapsed time and the remaining playback time. Input the time code for picture and music searching. Displays the DVD/CD text or the DATA CD/DATA DVD track/file name.

MULTI/2CH (page 31)

Selects the playback area on Super Audio CDs when available.

PROGRAM (page 33)

Selects the title, chapte r o r track to play in the order you want.

SHUFFLE (page 34)

Plays the title, chapter or track in random order.

REPEAT (page 35)

Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/ album repeated ly .

A-B REPEAT (page 36)

Specifies the parts you want to pla y re peatedly.

CUSTOM PICTURE MODE (page 50)

Adjusts the video signal from the player. You can select the picture quality that best suits the program you are watching.

SHARPNESS (page 51)

Exaggerates the outline of the image to produce a sharper picture.

AV SYNC (page 52)

Adjust the delay between the pic tu re and sound.

PARENTAL CONTROL (page 59)

Set to prohibit playback on this player.

SETUP (page 65)

QUICK Setup (page 23) Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of the TV, the audio output signal and the size of the speaker you are using. CUSTOM Setup In addition to the Quick Setup settin g, you can adj u st va ri o us oth er sett in gs. RESET Returns the settings in “SETUP” to the default setting.

ALBUM (page 53)

Selects the al bum to be played.

FILE (page 39)

Selects the JPEG image file to be played.

Page 15

DATE (page 56)

Displays the date the picture was ta ke n by a digi ta l cam e ra.

INTERVAL (page 58)

Specifies the duration for which the slides are displayed on the screen.

EFFECT (page 58)

Selects the effects to be used for changing slides during a slide show.

MODE (MP3, JPEG) (page 57)

Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both (AUTO) to be played when playing a DATA CD or DATA DVD.

z Hint

The Control Menu icon indicator lights up in green

except “OFF” (“PROGRAM,” “SHUFFLE,” “REPEAT,” “A-B REPEAT,” “CUSTOM PICTURE MODE,” “SHARPNESS” only). The “ORIGINAL/PLAY LIST” indicator lights up in green when you select “PLAY LIST” (default setting). The “MULTI/2C H ” in dic a tor lights up in green when you select the multi-channel playback area on a Super Audio CD. The “AV SYNC” indicator lights up in green when set to more than 0 ms.

when you select any item

Page 16

Hookups

Hooking Up the Player

Follow steps 1 to 6 to hoo k up and adjust the setti ngs of the player.

Notes

• Plug cords securely to prevent unwanted noise.

• Refer to the instructions supplied with the components to be connected.

• You cannot conn ect this player to a TV that does not have a video input jack.

• Be sure to disco nne c t the powe r cord of each com pone nt befor e con nect ing.

Step 1: Unpacking

Check that you have the following items:

• Audio/Vide o cord (phono plug × 3 y phono plug × 3) (1)

• Remote commander (remote) (1)

• Size AA (R6) batteries (2)

Step 2: Inserting Batteries Into the Remote

You can control the player using the supplied remote. Insert two Size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player.

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct light from the sun or a lighting apparatus. Doing so may cause a malfunction.

• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Page 17

Step 3: Connecting the Video Cords

Connect th is player to your TV moni tor, pr ojector, or AV ampl ifier ( receive r) using a video cord. Select one of the patter ns A through C, accord ing to the in p ut jack on y o ur TV monitor, projector, or AV amplifier (recei ver). In order to view p rogr essi ve si gnal (480 p) pi ctur es wi th a c ompat ible TV, proje ctor , or moni tor, you must use pattern A.

Hookups

INPUT

VIDEO

AUDIO

TV, projector, or AV amplifier (receiver)

to LINE OUT (VIDEO)

to COMPONENT VIDEO OUT

COMPONENT

VIDEO IN

(green)

(blue)

(red)

TV, projector, or AV amplifier (receiver)

COAXIAL

OPTICAL

FRONT

PCM/DTS/ DOLBY

5.1CH OUTPUT

DIGITAL

OUT

Audio/video cord (supplied)

CENTER

WOOFER

AUDIO

LINE OUT

VIDEO

REAR

(green)

Component video cord (not supplied)

S VIDEO cord (not supplied)

(yellow)

COMPONENT

S VIDEO

VIDEO OUT

OUT

(blue)

to S VIDEO OUT

PRPB

(red)

INPUT

S VIDEO

TV, projector, or AV amplifier (receiver)

CD/DVD player

l : Signal flow

,continued

Page 18

A If you are connecting to a monitor, projector, or AV amplifier

(receiver) having component video input jacks (Y, P

Connect the component via the COMPONE NT VIDEO OUT jack s us in g a component video cord (not suppl ie d) or three video co rds (not supplied ) of th e same kind and length. You will enjoy accurate col or reproduction and high quality ima ges. If your TV accepts progressive 480p format signals, use t hi s connection and pr ess the PROGRESSIVE button on the front panel to output progressive signals. For details, see “Using the PROGRESSIVE button” (page 19).

Green

Blue Red

B, PR)

Green Blue Red

B If you are connecting to a video input jack

Connect the yellow plug of an audio/video cord (supplied) to the yellow (video) jack. You will enjoy standard quality images. With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on t he front panel.

Yellow

White (L)

Red (R)

Yellow White (L) Red (R)

C If you are connecting to an S VIDEO input jack

Connect an S VIDEO cord (not supplied). You will enjoy high quality images. With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on t he front panel.

When connecting to a wide screen TV

Depending on the disc, the image may not fit your TV screen. To change the aspect ratio, see page 67.

Notes

• Do not connect a VCR, etc., between your TV and the player. If you pass the play er si g na l s via th e VCR, you may not receive a clear image on the TV screen. If you r TV has only one audio/video input jack, connect the player to this jack.

VCR

CD/DVD player

Connect directly

• Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 480 progressive scan picture problems, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 480p DVD player model, please contact our customer service center.

Page 19

Using the PROGRESSIVE button

By using the PROGRESSIVE button on the front panel, you can select the signal format in which the player outputs video signals (Progressive or Interlace), and the conversion method for progressive signal s. The PROGRESSIV E i ndi cator lights up when the player outputs progressive signals. Each time you press PROGRESSIVE, th e di splay changes as follows:

Hookups

PROGRESSIVE AUTO

PROGRESSIVE VIDEO

NORMAL (INTERLACE)

◆PROGRESSIVE AUTO

Select th is setting when: – your TV accepts progressive signals, and, –the TV is connected to the COMPONENT VIDEO OUT jacks. Normally select this under the above condition . This automatically detects the software type, and selects the approp r i ate conversion met hod. Note that the picture will not be clea r or no pictu re will a ppear if yo u select these se ttings whe n either of the above conditions is not met.

◆PROGRESSIVE VIDEO

Select th is setting when: – your TV accepts progressive signals, and, –the TV is connected to the COMPONENT VIDEO OUT jacks, and, –you want to fix the conversion method to PROGRESSIVE VIDEO for video based software. Select this if the image is not c lear when you select PROGR ESSIVE A UTO. Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met.

◆NORMAL (INTERLACE)

Select th is setting when: –your TV does not accept progressive signals, or, –your TV is co nnecte d to jacks other than the COMPONENT VIDEO OUT jacks (LINE OUT

(VIDEO) or S VIDEO OUT).

About DVD software types and the conversion method

DVD software can be divided into two types: film-based software and video-based software. Video-base d software is derived from TV , such as dramas and sit-co m s, and displays images at 30 frames/60 fields per se cond. Film-based s oftware is derive d from film and displa ys images at 24 frames per second. Some DVD software contains both video and film. In order for thes e images to appear natural on your screen when out put in progressive format, the progressive signals need to be converted to match the type of DVD software that you are watching.

Notes

• Whe n you pl ay vi de o- ba se d sof twar e in prog ressive signal format, sections of some types of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. Images from the S VI DEO OUT an d LINE OUT (VI DEO) j acks ar e un affect ed as they are outp ut in the normal (interlace) fo rm a t.

• When using LINE OUT (VIDEO) or S VIDEO OUT, the picture may appear to flicker each tim e the PROGRESSIVE button on the front panel is pressed (Interlace switches to Progressive or vice versa).

Page 20

Step 4: Connecting the Audio Cords

Select one of th e fol l owi ng pat t erns A, or , according to the input jack on your TV

B-1 B-2

monitor, projector, or AV amplifier (receiver). This will enabl e you to listen to sound.

(red)

(white)

(yellow)* to LINE OUT L/R (AUDIO)

to DIGITAL OUT (COAXIAL or OPTICAL)

Coaxial digital cord (not supplied)

Audio/video cord (supplied)

to 5.1CH OUTPUT

Stereo audio cord (not supplied)

(yellow)*

(white)

(red)

TV, projector, or AV amplifier (receiver)

CD/DVD player

B-1

Optical digital cord (not supplied)

to coaxial or optical digital input

[Speakers]

Rear (L)

Front (L)

Center

: Signal flow

* The yellow plug is used for video signa ls ( pa ge 17).

AV amplifier (receiver) having 5.1ch inputs or/ and a decoder

Monaural audio cord (not supplied)

to audio input

[Speakers]

Rear (R)

Front (R)

Subwoofer

Page 21

A Connecting to audio L/R input jacks

This connection will use your TV’s or st er eo amplifier’ s (receiver’s) two speakers for sound. Connect u si ng the audio/video co rd (supplied).

B-1

: Connecting to the 5.1 ch input jacks

You can enjoy 5.1 ch surround sound usi ng the internal Dolby Digital, DTS or Super Audio CD Multi decode r of this player. Connect using the stereo audio cord or monaural audio cord (not supplied).

Stereo audio cord

Hookups

Yellow

White (L)

Red (R)

Yellow White (L)

Red (R)

• Surround effect (page 46) TV: Dynamic Theater, Dynamic, Wide, Night

Stereo amplifier (receiver): Standard, Night

B Connecting to an AV amplifer (receiver) with 5.1 ch input j acks and/or a digital audio input jack

If your AV amplif ier (receiver) h as 5.1 channel inputs, use . If you want to use the Dolby Digital*

DTS*

decoder function on your AV

amplifier (receiver) , connect to it s digital jac k

B-2

using . With the following connections, you can enjoy a m ore reali stic a udio pr esence in the comfort of you r own home.

B-1

, or

White

Red

White

Red

White Red

Monaural audi o cord

White White

• Surround ef fect Dolby Digital (5.1ch), DTS (5.1ch)

B-2

: Connecting to a dig ital au dio in put

jack

If your AV amplifier (receiver) ha s a D olby Digital or DTS decoder and a digital inpu t jack, use this connection. Connect using a coaxial or optical digital cord (not supplied).

Coaxial cord

Optical cord

• Surround ef fect Dolby Digital (5.1ch), DTS (5.1ch)

,continued

Page 22

Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Digital Theater

Systems, Inc. U.S. Pat. No ’ s . 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and worldwide patents issued and pending. “DTS ” and “DTS Digital Surround” are registe r e d trademarks of Digital Theater Systems, Inc. Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Rese r ved.

z Hi nts

• For connection

For correct speaker location , refer to the operatin g instructions of the connecte d com ponents.

• To enhance the sound performance: – Use high-performance speakers. – Use front, rear, and center speakers of the same

size and performance.

– Place the subwoofer between the left and right

front speakers.

B-2

Notes

For conne ct ion

• After you have completed the connection, be sure to set “DOLBY DIGITAL” to “DOLBY DIGITAL” and “DTS” to “DTS” in Quick Setup (page 23).

• When you connect an amplifier (receiver) that conforms to the 96 kHz sampling frequency, set “48kHz/96kHz PCM” in “AUDIO SETUP” to “96kHz/24bit” (page 71).

• The surround sound effects of this player cannot be used with this connection.

• Super Audio CD audio signals are not output from the DIGITAL OUT jacks.

B-2

Page 23

Step 5: Connecting the Power Cord

Plug the playe r and TV power cords into an AC outlet .

Step 6: Quick Setu p

Follow the steps below to make the minimum number o f basi c adjust ments for using the play er. To skip an adjustment, press >. To return to the previous adjustment, press ..

ENTER

Hookups

1 Turn on th e TV. 2 Press [/1. 3 Switch the input selector on your

TV so that the signal from the player appears on the TV screen.

“Press [ENTER] to run QUICK SETUP” (press ente r to run Quick Setup) appears at the bott om of the s creen. If this message does not appear, select “QUICK” (quick) under “SETUP ” (setup) in th e Co ntrol Menu t o run Q uick Setup (page 66).

4 Press ENTER without inserting a

disc.

The Setup Display fo r selecting the language used in th e on-screen display appears.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

5 Press X/x to select a language.

The player displays the menu and subtitles in the selected language.

6 Press ENTER.

The Setup Display for selecting the aspect ratio of the TV to be connected appears.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT:

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

(COMPONENT OUT)

FULL

,continued

16:9 OFF

Page 24

7 Press X/x to select the setting that

matches your TV type.

◆ If you have a 4:3 stan dar d TV

• 4:3 LETTER BOX or 4:3 PAN SCAN (page 67)

◆ If you have a wide-screen TV or a 4:3

standard TV with a wide-screen mode

• 16:9 (page 67 )

8 P ress ENTE R.

The Setup Display f or sel ec ti ng the type of jack used to conne ct your amplifier (receiver) appe ars.

Is this player connected to an amplifier (receiver)? Select the type of jack you are using.

YES

LINE OUTPUT L/R(AUDIO) DIGITAL OUTPUT DIGITAL & 5.1CH OUTPUT

9 Press X/x to select the type of jack

(if any) you are using to connect to an amplifier (receiver), then press ENTER.

If you did not connec t an A V am plifier (receiver), sele ct “N O . ” Q uick Setup is finished and connections are complete. If you connected an AV amplifier (receiver) using just an audio cord, select “YES: LINE OUTPUT L/R (AUDIO).” Quick Setup is finis hed and connections are complete. If you connected an AV amplifier (receiver) using a digital coaxial or optical cord, select “YES: DIGITAL OUTPUT.” Setup Display for “DOLBY DIGITAL” appears. If you connected an AV amplifier (receiver) using an audio cord, select “YES : DIGITAL & 5.1CH OUTPUT.” The Setup Display for “DOLBY DIGITAL” appears.

10Press X/x to select the type of

Dolby Digital signal you wish to send to your amplifier (receiver).

If your AV ampli fie r (receiver) has a Dolby Digital dec oder, select “DOL BY

DIGITAL.” Otherwise, select “D-PCM.”

AUDIO SETUP

AUDIO ATT: AUDIO DRC: AUDIO FILTER: SHARP DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

DOLBY DIGITAL

OFF

STANDARD

ON D-PCM D-PCM

11Press ENTER.

“DTS” is selecte d .

AUDIO SETUP

AUDIO ATT: AUDIO DRC: AUDIO FILTER: SHARP DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

OFF

STANDARD

ON D-PCM D-PCM D-PCM

DTS

12Press X/x to select whether or

not you wish to send a DTS signal to your amplifier (receiver).

• If your AV amplifier (receiver) has a DTS decoder, sele ct “D T S.” Otherwise, select “D-PCM. ”

13Press ENTER.

◆ When “DIGITAL OUTPUT” is selected

in step 9

• Quick Setup is fi nished and connections are co m pl ete.

◆ When “DIGITAL & 5.1CH OUTPUT” is

selected in step 9

• The Setup Displa y for “SPEAKER SETUP” appears.

14Press X/x to select the size of the

center speaker.

If no center speaker is connected , s el ect “NONE” (page 71).

SPEAKER SETUP

SIZE: DISTANCE: LEVEL(FRONT): LEVEL(REAR): TEST TONE:

FRONT: CENTER: REAR: SUBWOOFER:

OFF

LARGE

SMALL

LARGE

NONE

LARGE

YES

Page 25

15Press ENTER.

“REAR” is selected.

SPEAKER SETUP

SIZE: DISTANCE:

LEVEL(FRONT) LEVEL(REAR)

TEST TONE:

FRONT: CENTER: REAR: SUBWOOFER:

OFF

LARGE(REAR) LARGE(REAR)

LARGE LARGE

LARGE(SIDE)

YES

16Press X/x to select the size of the

rear speakers.

If no rear speake r i s connected, sele ct “NONE.”

17Press ENTER.

“SUBWOOFER” is selected.

SPEAKER SETUP

SIZE: DISTANCE: LEVEL(FRONT): LEVEL(REAR): TEST TONE:

FRONT: CENTER: REAR: SUBWOOFER:

OFF

LARGE LARGE

YES

LARGE(REAR)

NONE

YES

18Press X/x to select whether or

not you have connected a subwoofer.

Hookups

19Press ENTER.

Quick Setup is finished. All connections and setup operati ons are complete.

Page 26

Playing Discs

Depending on the DVD or VIDEO CD, some operations may be di fferent or restricted. Refer to the operating instructions supplied with your disc .

4 Press A on the player, and plac e a

disc on the disc tray.

To place other discs on the tray, press DISC SKIP and pl ace the discs in the order you want to play them. Each time you press DISC SKIP, the disc tray turns so you ca n place the discs on the empty compartments. The player plays from the last disc placed on the tr ay.

Disc

With the playback side facing down

compartment number

1 Tu rn on your TV . 2 Press [/1.

The player turns on.

3 Switch the input selector on your

TV so that the signal from the player appears on the TV screen.

◆ When using an amplifier (receiver)

Turn on the amplifier (receiver) and select the appropriate channel so that you can hear sound fr om t h e player.

DISC SKIP

ENTER

DISC SKIP

5 Press H.

The disc tray closes. The player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). Depending on the disc, a menu may appear on the TV screen. For DVD VIDEOs, see page 30. For VIDEO CDs, see page 32.

To turn off the player

Press [/1. The player enters standby mode.

z Hint

You can have the player turn off automatically whenever you leave it in stop mode for more th an 30 minutes. To turn this function on or off, set “AUTO POWER OFF” in “CUSTOM SETUP” to “ON” or “OFF” (page 68).

Notes

• Super Audio CD audio signals are not output from the DIGITAL OUT jacks.

• Discs created on DVD recorders must be correctly finalized before they can be played. For more information about finalizing, refer to the operating instructions supplied with the DVD recorder.

Page 27

Additional operations

DISC 1-5

To Operation

Briefly fast forward the current scene*

Press

ADVANCE during playback

Magnify the image*

Press ZOOM repeatedly. Press CLEAR to cancel.

DISC SKIP

CLEAR

REPLAY

ZOOM

SLOW PLAY

ADVANCE

FAST PLAY DISC SKIP

To Operation

Select a disc Press DISC 1– 5 on the

player Stop Press x Pause Press X Resume play after

Press X or H pause

Go to the next disc Press DISC SKIP Go to the next chapter,

Press > track, or scene in continuous play mode

Go back to the

Press

previous chapter, track, or scene in continuous play mode

Stop play and remove

Press Z the disc

Replay the previous

scene*

Press

REPLAY during

playback

*1DVD VIDEOs/DVD-RWs/DVD-Rs only

DVD VIDEOs/DVD-RWs/DVD-Rs/

DVD+RWs only

Video and JPEG pictures only (except

BACKGROUND pictures). You can move the enlarged picture using C/X/x/c. Depending upon the contents of the disc, the zoom function may be canceled automat ically when the picture is moved.

Notes

• You may not be able to use the Instant Re play or Instant Advance function with some scenes.

• Before loading the discs, a disc number indicator of an empty compartment may be lit.

Playback quickly or slowly with sound

You can listen to dial og or sound while playing the current scene quickly or slowly.

During playback, press FAST PLAY or SLOW PLAY.

The speed change s w hen you press either FAST PLAY or SLOW PLAY.

To return to normal playback

Press H.

Notes

• You can only use this function with DVDs/ VIDEO CDs/Super VCDs and DVD-RWs/DVDRs in VR mode only.

• “Operation not possible” will appear when maximum or mini mu m speed is reached.

• During Fast Play or Slow Play mode, you cannot change the angle ( page 49), sub title (pag e 49) and sound (page 44). The sound can only be changed for VIDEO CDs/Super VCDs.

• Fast Play and Slow Play functions do not work when playing DTS sound tracks.

• You cannot use Fast Play or Slow Play functions when playing a still picture on DVD-RW/DVD-R in VR mode.

Playing Discs

,continued

Page 28

Replacing discs while playing a

disc (EXCHANGE)

You can open the disc t ray while playing a disc so that you can check which discs are to be played next and replace discs wit hout interrupting playback of the current disc.

DISC SKI

EXCHANGE

Locking the disc tray (Child Lock)

You can lock the disc tray to prevent children from opening it.

When the player is in standby mode, press O RETURN, ENTER and then [/1 on the remote.

The player turns on and “LOCKED” appears on the front panel display. The EXCHANGE buttons and Z button on the player or the remote do not w ork while the Child Lock is set.

To unlock the disc tray

When the player is in standby mode, press

O RETURN, ENTER and then [/1 again.

A and

DISC SKIP

1 Press EXCHANGE.

The disc tray op en s and two disc compartment s appear. Even if the pl ayer is playing a disc, it doesn’t stop playing.

2 Replace the discs in the

compartments with new ones.

3 Press DISC SKIP.

The disc tray turn s and another two disc compartments appear.

4 Replace the discs in the

compartments with new ones.

5 Press EXCHANGE.

The disc tray closes .

z Hi nt

While the disc tray is open, – If the playback of th e current disc end, the player

stops playing. If the disc is played in One Dis c Repeat Play mode (page 35), the current disc starts playing again.

Note

Even if you select “RESE T” under “SE TUP” in the Control Menu (page 65), the disc tray remains locked.

Note

Do not push the disc tray to close in step 5, as you may damage the player.

Page 29

Resuming Playback From the Point Where You Stopped the Disc (Multi-disc

Resume)

The player stores the point where you stopped the disc for up to 40 discs and resumes playback the next t ime you insert the s am e disc. If you stor e a resume pl aybac k point fo r the 41st disc, the resume playback point for the first disc is deleted.

Notes

• “MULTI-DISC RESUME” in “CUSTOM SETUP” must be set to “ON” (default) for this function to work (page 69).

• The point where you stopped playing is cleared when:

– you change the play mode. – you change the settings on the Setup Display.

• For DVD-RWs/DVD-Rs in VR mode, Super Audio CDs, CDs, DATA CDs, and DATA DVDs the player remembers the resume playback point for the current disc. The resume point is cleared when:

– you press DISC SKIP or DISC – you opened the disc tray. – you disconnect the power cord (CD or DATA

CD/DATA DVD only).

– the player enters standby mode (DATA CD/

DATA DVD on ly).

• Resume Play does not work during Shuffle Play and Program Play.

• This func ti on ma y not work with some discs.

• If “MULTI-DISC RESUME” in “CUSTOM SETUP” is set to “ON” and you playback a recorded disc such as DVD-RW, the player may playback other recorded discs from the same resume point. To play fr o m the beginning, press x twice and then press H.

1–5.

Playing Discs

1 While playing a disc, press x to

stop playback.

“RESUME” appea rs on the front panel display.

2 Press H.

The player starts playback from the point where you stopped the disc in step 1.

z Hint

To play from the beginning of the disc, press x twice, then pr ess H.

Page 30

Using the DVD’s Menu

A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button. When you play DVDs that al low you to select items such as language for the sound and subtitles, select these ite ms u sin g th e MENU button.

Number buttons

Selecting “O RI GI N AL” or “PLAY LIST” on a DVDRW/DVD-R

Some DVD-RWs/DVD-Rs in VR (Video Recording) mode have two types of tit les for playback: originally recorded titles (ORIGINAL) and titles that can be created on recordable DVD players for editing (PLAY LIST). You can select the type of t i tl e t o be played.

1 Press TOP MENU or MENU.

The disc’s menu ap pears on the TV screen. The contents of the menu vary from di sc to disc.

2 Press C/X/x/c or the number

buttons to select the item you want to play or change.

If you press the number buttons, the following display appears. Press the number buttons to select the item you want.

3 P ress ENTE R.

MENUTOP MENU ENTER

ENTER DISPLAY

1 Pr ess DISPL AY when the player i s

in stop mode.

The Control Menu ap pears.

2 Press X/x to select

(ORIGINAL/PLAY LIST), then press ENTER.

The options for “ORIGINAL/PLAY LIST” appear.

1 1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 0 : 5 0 PLAY LIST PLAY LIST ORIGINAL

) )

DVD-VR

3 Press X/x to select a setting.

• PLAY LIST: plays the titles created from “ORIGINAL” for editing.

• ORIGINAL: plays the titles originally recorded.

4 Press ENTER.

Page 31

Selecting a Playback

Area for a Super Audio CD

Selecting a playback layer when playing a hybrid Super Audio CD

Some Super Audio CDs consist of an HD layer and a CD layer. You can select the playback layer you want to listen to.

SA-CD

MULTI/2CH

SA-CD/C

Selecting a playback area on a 2 channel + Multi-channel Super Audio CD

Some Super Audio CDs consist of a 2 channel playback area and a multi-channel playback area. You can select th e playback area you want to listen to.

1 Press SA-CD M ULTI/2CH when the

player is in stop mode.

The following dis pl ay a ppears.

2CH

Press SA-CD/CD when the player is in stop mode.

Each time you press the button, an HD layer or a CD layer is al te rnately selected. When playing a CD layer, the “CD” indicator in the front panel display lights up.

Notes

• For deta il s about Super Audio CD discs, see page 78.

• Each play mode function works only within the selected layer or playback area.

Playing Discs

2 Press SA-CD MULTI /2CH repeated ly to

select the item.

• MULTI: plays a multi-channel playback area.

• 2CH: plays a 2 ch annel playback area.

The “MULTI” indica t or in the front panel display lights up when playing a multi-channel playback area.

Page 32

Playing VIDEO CDs With PBC Functions

PBC (Playback Contr ol ) allows you to play VIDEO CDs interactively by following the menu on the TV screen.

Number buttons

RETURN

(PBC Playback)

ENTER

1 S tart playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

z Hint

To play without using PBC, press ./> or the number buttons while the player is stopped to select a track, then press H or ENTER. “Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H.

Note

Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H.

2 Press th e number buttons to select

the item number you wan t .

3 P ress ENTE R. 4 Follow the instructions in the

menu for interactive operations.

Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the V IDEO CD.

To return to the menu

Press O RETURN.

Page 33

Various Play Mode Functions

Shuffle Play, Re peat Play, A-B Repeat Play)

(Program Play,

1 1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 2 : 5 5 OFF OFF SET ON

) )

PLAY DVD VIDEO

You can set the following play modes:

• Program Play (page 33 )

• Shuffle P la y (page 34)

• Repeat Play (page 35)

• A-B Repeat Play (page 36)

•

CLEAR

ENTER

DISPLAY

Note

The play mode is canceled when: – you open the disc tray. – the player enters standby mode by press ing [/1.

Creating your own program (Program Play)

You can play the contents of a disc in the order you want by ar ranging the order of t he titles, chapters or tr acks on the disc to cr eate your own pr ogram. You can prog ram up to 9 9 titles, chapters and tracks.

1 Press DISPLAY.

The Control Menu appears.

2 Press X/x to select

(PROGRAM), then press ENTER.

The options for “PROGRAM” appear.

3 Press X/x to select “SET t,” then

press ENTER.

“TRACK” is displayed when you play a VIDEO CD, Super Audio CD or CD.

PROGRAM

ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

– – – – – – – – – – – –

– – 01 02 03 04

Titles or tracks recorded on a disc

4 Press c.

The cursor moves to the title or track row “T” (in this case, “01”).

PROGRAM

ALL CLEAR

– –

1. TITLE – –

2. TITLE – –

3. TITLE – –

4. TITLE – –

5. TITLE – –

6. TITLE – –

7. TITLE

Chapters recorded on a disc

– –

ALL

02 03

5 Select the title, chapter or track you

want to program.

◆ When playing a DV D VI DEO

For example, select chapter “0 3” of title “02.” Press X/x to select “02” under “T,” t hen press ENTER.

PROGRAM

ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

– – – – – – – – – – – – – –

– –

ALL

Playing Discs

,continued

Page 34

Next, press X/x to select “03” under “C,” then press ENTER.

PROGRAM

ALL CLEAR

1. TITLE 0 2

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

– – – – – – – – – – – – –

Selected title and chapter

0 3

– –

01 02 03 04 05

◆ When playing a VIDEO CD, Super Audio CD or CD

For example, select track “02.” Press X/x to select “02” under “ T,” then press ENTER. The track number may be displayed in 3 digits for a Super Audio CD.

Selected track

– – – – – – – – – – – –

0:15:30

– – 01 02 03

04 05

DISPLAY

PROGRAM

ALL CLEAR

1. TRACK 0 2

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

Set: Quit:

PLAY

Total time of the programmed tracks

Start:

ENTER

6 To program other titles, chapters or

tracks, repeat steps 4 to 5.

The programmed titles, chapters, and tracks are displayed in the selected order.

7 Press H to start Program Play.

Program Play begins. When the program ends, you can resta rt the same progra m aga i n by pressing H.

want to delete the title, chapter, or track from the program, press CLEAR.

3 Follow step 5 for new programming. To

cancel a program, select “--” under “T,” then press ENTER.

To cancel all of the titles, chapters, or tracks in the programm ed order

1 Follow steps 1 to 3 of “

Creating your own

program (Program Play).”

2 Press X and select “ALL CLEAR.” 3 Press ENTER.

z Hint

You can perform Repeat Play or Shuffle Play of programmed ti tles, chapters, or tracks. During Program Play, follow the s teps of Repeat Play (pag e

35) or Shuffle Play (page 34).

Notes

• All Discs Repeat is automatically changed into One Disc Repeat when you set to program play mode (page 35). You can only program the contents of the current disc.

• When you program tr a cks on a Supe r VCD, th e total playing time is not displayed.

• You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.

Playing in random order (Shuffle Play)

You can have the pl ayer “shuffle” titles, chapters or tracks . Subsequent “shuffling” may produce a dif fe re nt playing order.

To return to normal play

Press CLEAR or select “OFF” after step 2. To play the same program agai n, select “ON” in step 3 and press ENT ER.

To change or cancel a program

1 Follow ste ps 1 to 3 of “ Creating yo ur own

program (Program Play).”

2 Select the program number of the title,

chapter, or track you want to change or cancel using X/x and press c. If you

CLEAR

SHUFFLE

Page 35

1 Press SHUFFLE during playback.

The following dis pl ay a ppears.

TITLE

CLEAR

2 Press SHUFFLE repeatedly to select

the item to be shuffled.

◆ When playing a DVD VIDEO

•TITLE

•CHAPTER

◆ When playing a VIDEO CD, Super Audio CD or CD

•TRACK

◆ When Program Play is ac tivated

• ON: shuffles titles, chapte rs or tracks selected in Program Play.

To return to normal play

Press CLEAR, or sel ect “OFF” in step 2.

z Hints

• You can set Shuffle Play while the player is stopped. After selecting the “SHUFFLE” option, press H. Shuffle Play starts.

• Up to 20 0 chap t ers in a disc can be played in random order when “CHAPTER” is selected.

Notes

• You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.

• All Discs Repeat is automa tically changed into One Disc Repeat when you set to shuffle play mode. You can only shuffle the content s of the current disc.

Playing repeatedly (Repeat Play)

You can play all of the titles or tracks on a disc, or a single title, chapter or track repeatedly. You can use a combination of Shuffle or Program Play modes.

REPEA

1 Press REPEAT during playback.

The following dis pl ay appears.

ALL DISCS

2 Press REPEAT repeatedly to select the

item to be repeated.

◆ When playing a DV D VI DEO

• ALL DISCS: repeats all of the discs.

• ONE DISC: repeats all of the titles on the current disc.

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

◆ When playing a DV D - VR mode disc

• ALL DISCS: repeats all of the discs.

• ONE DISC: repeats all of the titles of the selected type .

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

◆ When playing a VIDEO CD, Super

Audio CD or CD

• ALL DISCS: repeats all of the discs.

• ONE DISC: repeats all of the tracks on the current disc.

• TRACK: repeats the curr ent t ra ck.

◆ When playing a DATA CD/DATA DVD

with MP3 audio tracks or JPEG image files

• ALL DISCS: repeats all of the discs.

• ONE DISC: repe ats all of th e albums on the current disc.

,continued

Playing Discs

Page 36

• ALBUM: repeats the current album.

• TRACK (MP3 au di o t ra cks only): repeats the cu rr ent track.

◆ When Program Pl ay or Shuf f le Play is

activated

• ON: repeats Program Play or Shuffle Play.

To return to normal play

Press CLEAR, or sel ect “OFF” in step 2.

z Hi nt

You can set Repeat Play whi le the player is st opped. After selecting the “REPEAT” option, press H. Repeat Play starts.

A 18 - 1:32:30 B

4 During playback, when you find the

starting point (point A ) of the portion to be played repeat edly, press ENTER.

The starting point (point A) is set.

A 18 - 1:32:30 B 18 - 1:33:05

Notes

• You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.

• When repeating a DATA CD/DATA DVD which contains MP3 audio tracks and JPEG image files, and their playing t imes are not t he same, th e sound will not match the image.

• When “MO D E ( MP 3, JPEG)” is set to “IMAGE (JPEG)” (page 57), you cannot select “TRACK.”

Repeating a specific portion (AB Repeat Play)

You can play a specif ic portion of a title, chapter or track r epeatedly. (This function is useful when you wan t to memorize lyrics, etc.)

1 Press DISPLAY dur ing playback.

The Control Men u appears.

2 Press X/x to select (A-B

REPEAT), then press ENTER.

The options for “A-B REPEAT” appear.

PLAY

1 1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 2 : 5 5

) )

DVD VIDEO

5 When you reach the ending point

(point B), press ENTER again.

The set points ar e di splayed and the player starts repeating this specific portion.

To return to normal play

Press CLEAR, or select “OFF” in step 3.

Notes

• When you set A-B Re pe a t Play , the se tti ngs for Shuffle Play, Repeat Play and Program Play are canceled.

• A-B Re p eat Play does not work acr os s multiple titles.

• You may not set A-B Repeat Play for contents on a DVD-RW/DVD-R (VR mode) that contains still pictures.

OFF SET OFF

3 Press X/x to select “SET t,” then

press ENTER.

The “A-B REPEAT” setting bar appears.

Page 37

Searching for a Scene

Searching for a Particular Point on a Disc (Search, Scan, Slow-motion

Play, Freeze Frame)

You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly.

STEP

Locating a point quickly using the PREV (previous)/NEXT (next) buttons (Search)

You can search for the next or previous chapter, track or scene using ./> on the player. During playback, press > or . once briefly to go to the next or previous chapter / track/scen e. O r , press and hold > or . to search forw ard or backwards and release the button when you find the point you want to return to normal playback. (Sear ch)

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

Press m or M while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press m or M during scan, the scan speed changes. With each pre ss the indication changes as shown below. Actual speeds may diffe r between discs.

Searching for a Scene

Notes

• Depending on the disc, you may not be able to do some of the operations described.

• For DATA CDs/DATA DVDs, you can search for a particular point only on an MP3 audio track.

Playback dire ction

×2B t 1M t 2M t 3M

3M (DVD VIDEO/DVD-VR mode/ VIDEO CD only) ×2B (DVD VIDEO/Super Audi o CD/CD only)

Opposite direction

×2b t 1m t 2m t 3m

3m (DVD VIDEO/DVD-VR mode/ VIDEO CD only) ×2b (DVD VIDEO only)

The “×2B”/ “×2b” playback speed is about twice the normal speed. The “3M”/“3m” playback speed is fa ster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/ “1m.”

,continued

Page 38

Watching frame by frame (Slow-motion Play)

Press m or M when the player is in pause mode. To return to normal speed, press H. Each time you press m or M during Slow-motion Play, the playback speed changes. Two sp eeds are avai lable. With each press the indication changes as follows:

Playback direction

2 y 1

Opposite direction (DVD/DVD-VR mode only)

2 y 1

The “2 y”/“2 ” playback speed is slower than “1 y”/“1 .”

Playing one frame at a time (Freeze Frame)

When the player is in the pause mode, press

STEP to go to the next frame. P ress

STEP to go to the precedin g f ra me (DVD/DVD-VR mode only). To return to normal playback, press H.

Searching for a Title/ Chapter/Track/Scene, etc. (Search mode)

You can search a DVD by title or c hapter, and you can search a VIDEO CD/Super Audio CD/CD/DATA CD/DATA DVD by track, index or scene. As titles and tracks ar e assigned unique numbers on the disc, you can select the desired one by entering its number. You can also search for a scene using the time code.

Number buttons

CLEAR

ENTER

Note

You cannot search for a still picture on a DVD-RW/ DVD-R in VR mode.

SEARCH MODE

1 Press SEARCH MODE.

The following display appears. “-- (**)” appears next to the icon (** refers to a number). The number in parentheses indicates the tota l number of titles, tracks, indexes, scenes, etc ., of the disc.

(10)

– –

2 Press SEARCH MODE repeatedly

to select a search method.

Page 39

◆ When playing a DVD VIDEO/DVD- VR mode disc

TITLE CHAPTER TIME/TEXT

Select “TIME/TEXT” t o se arch for a starting point by inputting the time code.

◆ When playing a VIDEO CD or Super VCD without PBC Playback

TRACK INDEX

◆ When playing a VIDEO CD or Super VCD with PBC Playback

SCENE

◆ When playing a Super Audio CD/CD

TRACK

◆ When playing a DATA CD/DATA DVD

ALBUM TRACK (MP3 audi o tr a cks

only)

FILE (JPEG image files only)

3 Select the number of the title,

track, scene, time code, etc. you want by pressing the number buttons to select the digit.

◆ When you select TIME/TEXT

For example, to find the scen e at 2 hours, 10 minutes, and 2 0 seconds after the beginning, enter “21020.”

◆ If you make a mistake

Cancel the number by pressin g CLEAR, then select anoth er number.

z Hints

• When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD-VR mode) or track (Super Audio CD/CD/DATA CD/ DATA DVD) by pressing the number buttons and ENTER.

• You can display the first scene of titles, cha pters or tracks recorded on the disc on a screen divided into 9 sections. You can start playback directly by selecting one of the scenes. For de ta ils, see “Searching by Scene (PICTURE NAVIGATION)” (page 40).

Notes

• The title, chapter, or track number displayed is the same number recorded on the disc.

• You cannot search for a scene on a DVD+RW using the time code .

Searching for a Scene

4 Press ENTER.

The player starts playback from the selected number .

To turn off the display

Press SEARCH MODE repeatedly until the display is turne d of f.

Page 40

Searching by Scene

(PICTURE NAVIGATION)

3 Press ENTER.

The first scene of each chapter, title or track appears as fol l ow s.

You can divide the screen into 9 subscreens and find the desired scene quickly.

PICTURE NAVI

ENTER

RETURN

DISPLAY

1 Press PICTURE NAVI during

playback.

The following display appears.

CHAPTER VIEWER

ENTER

4 Press C/X/x/c to select a chapter,

title or track, and press ENTER.

Playback star t s f rom the selected scene.

To return to normal play during setting

Press O RETURN or DISPLAY.

z Hint

If there are more than 9 chapters , titles, or tracks, V is displayed at the bottom right of the sc r een. To display the additional chapters, titles or tracks, select the bottom scenes and pre ss x. To return to the previous scene, select the top scenes and press X.

Note

Depending on the disc, you may not be able to select some items.

2 Press PICTURE NAVI repeatedly to

select an item.

• CHAPTER VIEWER (DVD VIDEO only): displays the first scene of each chapter.

• TITLE VIEWER (DVD VIDEO only): displays the first scene of each title.

• TRACK VIEWER (VIDEO CD/ Super VCD only): displays the first scene of each track.

Page 41

Viewing Information About the Disc

Checking the Playing Time and Remaining Time

You can check th e pl aying time and remaining time of the cur rent title, cha pter, or track. Also, you can check the DVD/Super Audio CD/CD text or track name (MP3 audio) recorded on the disc.

TV/DVD switch

TIME/TEXT

◆ When playing a DVD VIDEO or DVD-VR mode disc

•T

•T–

•C *:*:

•C–

◆ When playing a VIDEO CD or Super VCD (with PBC functions)

•

◆ When playing a VIDEO CD (without PBC functions), Super Audio CD or CD

•T

•T–

•D

•D–

◆ When playing a Super VCD (without PBC functions)

•T

◆ When playing a DATA CD or DATA DVD (MP3 audio)

•T

(hours: minutes: seconds)

*:*:*

Playing time of the current title

*:*:*

Remaining time of the current title

Playing time of the current chapter

*:*:*

Remaining time of the current chapter

(minutes: seconds)

*:*

Playing time of the current scene

(minutes: seconds)

*:*

Playing time of the current track

*:*

Remaining time of the current track

*:*

Playing time of the current disc

*:*

Remaining time of the current disc

(minutes: seconds)

*:*

Playing time of the current track

(minutes: seconds)

*:*

Playing time of the current track

Viewing Information About the Disc

1 Make sure that the TV/D VD switch

is set to DVD. Press TIME/TEXT during playback.

The following dis pl ay a ppears.

T 1:01:57

Time information

2 Press TIME/TEXT repeatedly to

change the time information.

The available tim e in formation depends upon the type of disc you are playing.

,continued

Page 42

Checking the play information of

T 17:30 128k

JAZZ RIVER SIDE

the disc

To check the DVD/Supe r Aud io CD/C D tex t

Press TIME/TEXT repeatedly in step 2 to display text recorded on the DVD/Super Audio CD/CD. The DVD/Super Audio CD/CD text appears only when text is re c o rded in th e d i sc. You cannot change th e t ext . If the disc does not contain text, “NO TE X T ” appears.

BRAHMS SYMPHONY

To check DATA CD/DATA DVD (MP3 audio) album name, etc.

By pressing TIME/TEXT while playing MP3 audio tracks on a DATA CD/DATA DVD, you can display the name of the album/track , and the audio bit rate (the amount of data per second of the current audio track) on your TV screen.

Bit rate

Checking the information on the front panel display

You can view the time information and text displayed on the T V scr een also on the fron t panel display. The information on the front panel display changes as follows w hen you change the time in formation on your TV screen.

When playing a DVD VIDEO or DVD-V R mode disc

Playing time of the current title

Remaining time of the current title

Playing time of the current chapter

Remaining time of th e cur rent chapt er

Text

Album name

Track name

Current title and chapter number

(returns to top automaticall y)

When playing a DATA CD/DATA DVD (MP3 audio)

Track playing time and number of current disc track

Track name

Current album and track number

(returns to top automatically)

Page 43

When playing a VIDEO CD (without PBC functions), Super Audio CD or CD

Track playing time and current disc track number

Remaining time of the current track*

Playing time of the current disc

Remaining time of the disc

Text

Notes

• Depending on the type of disc being played, th e DVD/Super Audio CD/CD text or track name may not be displayed.

• The play er c an onl y display the first level of the DVD/Super Audio CD/CD text, such as the disc name or title.

• Playing time of MP3 audio tracks may not be displayed correctly.

• If you play a disc containing JPEG image files only, “NO AUDIO DATA” appears when “MODE (MP3, JPEG)” is set to “AUTO,” “JPEG” appears whe n “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” in the front panel display.

Viewing Information About the Disc

Current disc, track

(returns to top automatically)

*1 When playing a Super Audio CD, the current

track is not displayed.

The current track and index number appear only

when playing a VIDEO CD or Super Audio CD.

z Hints

• When pla yi ng VID E O CDs wit hout PBC functions, the track number and the index number are displayed after the text.

• When pla yi ng VIDEO CDs with PBC functions, the scene number or the playing time are displayed.

• Lon g tex t tha t doe s not fi t in a single line will scroll across the fron t pa ne l display.

• You can also check the time informati on and text using the Control Menu (page 13).

*2 and index number

Page 44

Sound Adjustments

Changing the Sound

When playing a DVD VIDEO recorded in multiple audio formats (PCM, Do lby Digital, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With CDs, DATA CDs, DATA DVDs or VIDEO CDs, you can select the sound from either the right or left channel and list en to the sound of the select ed channel through both the right and left speakers. For example, when playing a disc contai ning a song with the vocals on the right ch annel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.

AUDIO

1 Press AUDIO during playback.

The following display appears.

◆ When playing a DV D VIDEO

Depending on the DVD VIDEO, the choice of language varies. When 4 digits ar e di splayed, they indicate a lang uage code . Se e “L angua ge Code List” on page 81 to see which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

◆ When playing a DVD-VR mode disc

The types of sound tracks recorded on a disc are displayed. The default setting is underlined. Example:

•1: MAIN

• 1: SUB (sub sound)

• 1: MAIN+SU B (main and sub sound)

◆ When playing a VI DEO CD, CD or DATA CD/DATA DVD (MP3 audio)

The default setting is underlined.

•STEREO

• 1/L: the sound of the left channel (monaural)

• 2/R: the sound of the right channe l (monaural)

◆ When playing a Super VCD

The default setting is underlined.

•1:STEREO audio track 1

• 1:1/L: the soun d of the left channel of the audio track 1 (monaural)

• 1:2/R: the sound of the right channel of the audio track 1 (monaural)

• 2:STEREO: the stere o sound of the audio track 2

• 2:1/L: the soun d of the left channel of the audio track 2 (monaural)

• 2:2/R: the sound of the right channel of the audio track 2 (monaural)

(main sound)

: the standard stereo sound

: the stereo soun d of th e

1:ENGLISH DOLBY DIGITAL 3/2.1

2 Press AUDIO repeatedly to select

the desired audio signal.

Notes

• While playi ng a Supe r VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.”

• You cannot chan ge the sound f or Super Audio CDs.

Page 45

Checking the audio signal format

You can check the audio signal format by pressing AUDIO repeatedly duri ng playback. The format of the current audio signal (Dolby Digital, DTS, PCM, etc.) appears as shown below.

Example:

Dolby Digital 5.1 ch

LFE (Low

Rear (L/R)

Frequency Effect)

Surround Mode Settings

You can enjoy surround sounds while playing discs including Dol by Digital and DTS DVDs, even if you h ave on ly 2 or 4 speake rs. Select the surround mode that best suit s your speaker setup.

1:ENGLISH DOLBY DIGITAL

Front (L/R) + Center

Currently playing program format

3 / 2 .1

LRC

LFE

LS RS

Example:

Dolby Digital 3 ch

Front (L/R)

2:SPANISH DOLBY DIGITAL

Currently playing program format

Rear (Monaural)

2 / 1

About audio signa ls

Audio signal s recorded in a disc contain t he sound elements ( channels) shown bel o w. Each channel is outp ut from a separate speaker.

• Front (L)

• Front (R)

•Center

• Rear (L)

• Rear (R)

• Rear (Mon aural): This signa l ca n be either the Dolby Surround Sound processed signals or the Dolby Digital sound’s monaural rear audio signals.

• LFE (Low Frequency Effect) signal

SUR

1 Press SUR during playback.

The following dis pl ay appears.

TVS DYNAMIC THEATER

2 Press SUR repeatedly to select

one of the surround modes.

See the explanatio ns given for each item in the following section.

◆ For 2 speaker setups

• TVS DYNAMIC THEATER

• TVS DYNAMIC

• TVS WIDE

• TVS NIGHT

• TVS STANDARD

◆ For 4 to 6 speaker setu ps

(If you select “NONE” in the setting of “REAR” in “SPEAKER SETUP” (page 71), you cannot select th ese modes.)

• NORMAL SURROUND

• ENHANCED SURROUND

• VIRTUAL REAR SHIFT

• VIRTUAL MULTI REAR

• VIRTUAL MULTI DIMENSION

,continued

Sound Adjustments

Page 46

To cancel the setti ng

Select “OFF” in ste p 2.

For 2 speaker setups

When you connect a st er eo TV or 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surrou nd sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. TVS was developed by Sony to produce surround sound for home use using jus t a stereo TV. This only works when playing a multichannel Dolby audio sound track. Furthermore, if the player is set up to out p ut the sign al from the DIGITAL OUT (OPTICAL or COAXIAL) jack, the surround ef fect will only be heard when “DOLBY DIGITAL” and “DTS” are set to “D-PCM ” i n “A UDIO SETUP ” (page

70).

◆TVS DYNAMIC TH EATER

Creates one set of LARGE virtual rear speakers and virtual subwoofer from the sound of the front s p eakers (L, R) witho ut using actual rear speakers and sub w oofer (shown below) . This mode is effect iv e w hen the distance between the front L and R speakers is shor t, such as with built-in speakers on a stereo TV.

◆TVS WIDE

Creates five sets of virtual re ar speakers from the sound of the front speakers ( L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with buil t-i n sp eak er s on a st ere o TV .

◆TVS NIGHT

Large sounds, suc h as explosions, are suppressed, but the quieter sounds are unaffected. This feature is useful when you want to hear the dial og and enjoy the surround sound effects of “TV S WIDE” at low volume.

◆TVS STANDARD

Creates three sets of virtual r e ar speakers from the sound of the actual front speakers (L, R) as shown below. This mode is effective when you use 2 separate speakers.

L R

Sub woofer

◆TVS DYNAMIC

Creates one set of virtual rear speakers from the sound of th e front speakers (L, R) wit hout using actual rear speakers (shown bel ow). This mode is effect iv e w hen the distance between the front L and R speakers is shor t, such as with built-in speakers on a stereo TV.

L: Front speaker (lef t) R: Front speaker ( ri ght)

: Virtual speaker

Page 47

For 4 to 6 speaker setups

You can enjoy the following surround effects by using the 2 front speakers and 2 rear speakers. Connect the player to t he ampl ifie r (rec eiver) with the connection (page 20). You can experience Dolby Surround (Pro Logic) sounds or Digita l Cinema Sound (DCS). DCS uses sound imaging to shift the sound of the rear speakers away fro m the actual speak er posit ion or cr eate en tire s ets of virtual rear spe akers from one set of actual rear speakers. “VIRTUAL REAR SH IFT,” “VIRTUAL MULTI REAR,” and “VIRTUAL MULTI DIMENSION” make use of this technology.

◆NORMAL SURROUND

Software with 2 ch annel audio signals is decoded with the Dolby Surround (Pro Logic) decoder to create s u r round effects. Th e rear speakers will emit identical monaural sounds. If you are using a cent er speaker, the appropriate sounds for the center speaker will be delivered.

B-1

L R

◆VIRTUAL RE AR SHIFT

Shifts the sound of the rear speakers away from the actual speaker positio n. The shift position differs according to “REAR” or “SIDE” sett in g of th e r ear speakers (page 71).

REAR

SIDE

LS RS

◆VIRTUAL MULTI REAR

Creates an array of virtual rear speakers from a single set of actual rear speakers. The position of the vi r tual rear speakers differs according to “REAR” or “SIDE” setting of the re ar speakers (pag e 71).

REAR

Sound Adjustments

RSLS

◆ENHANCED SURROUND

Provides a greate r sense of presence f ro m a Dolby Surround (Pro Logic) source with a monaural rear ch annel signal. Produces a stereo like effe ct in the rear channels.

SIDE

LS RS

,continued

Page 48

◆VIRTUAL MULTI DIMENSION

Creates an arra y of virtual rear sp eaker positions higher than the listener from a single set of ac tual rear speake r s. This mode creates five sets of virtual speakers surrounding the listener at approximately a 30° angle of elevat io n. The effect differs according to “REAR” or “SIDE” setting of the rear speakers (page 71).

REAR

SIDE

LS RS

Notes

• When you select one of the surround modes, turn off the surround setting of the connected TV or amplifier (receiver).

• Not all discs will respond to the “TVS NIGHT” function in th e same way.

• To enjoy the mu ltichannel audio through the

5.1CH OUTPUT jacks, corre ctly set eac h speaker position and distance (page 20, 71).

• When the playing signal does not contain a signal for the rear speakers, you cannot hear th e TVS effect.

• When you sele ct one of the TVS mode s, the player does not output the sound of cente r speaker.

• Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.

• If you use the DIGITAL OUT (OPTICAL or COAXIAL) jack and set “DOLBY DIGITAL” to “DOLBY DIGITAL,” and “DTS” to “DTS,” in “AUDIO SETUP”, sound will come from your speakers but it will not have the SURROUND effect.

• The TVS effects do not work when using the Fast Play or Slow Play functions, even though you can change the TV S modes.

L: Front speaker (l eft) R: Front speaker (right ) LS: Rear speaker (left) RS: Rear speaker (right)

: Virtual speaker

Page 49

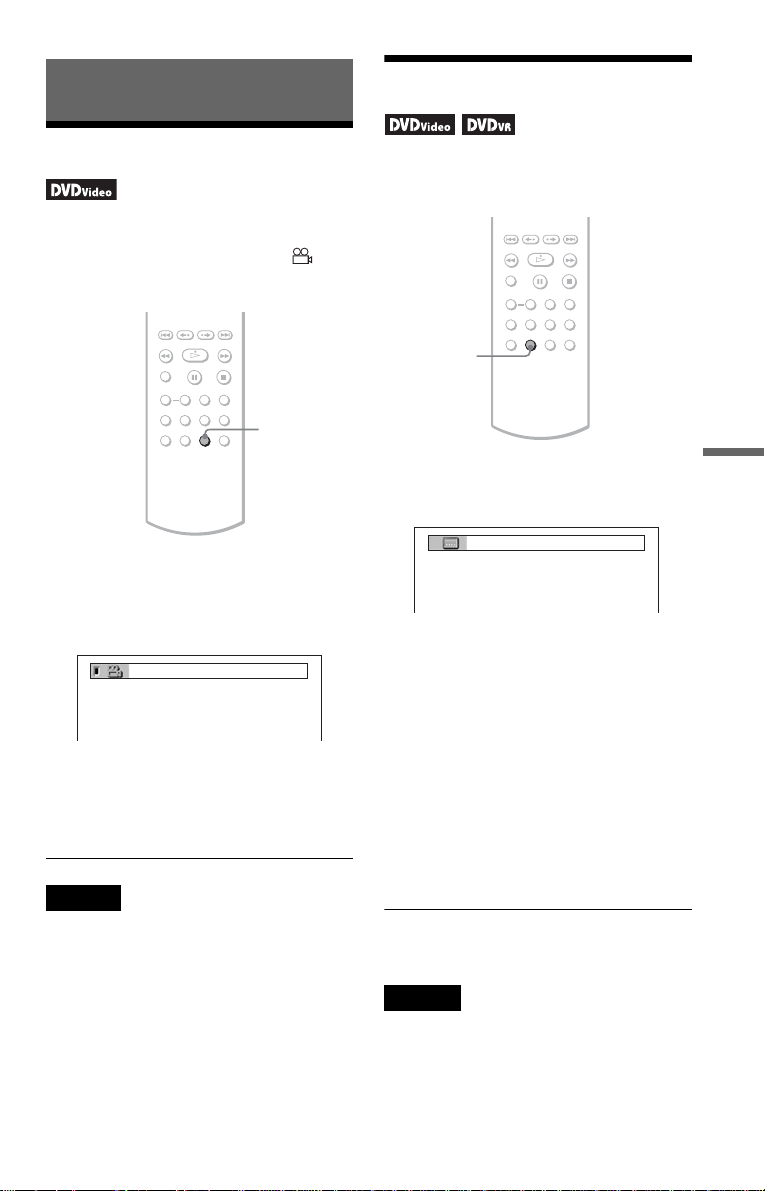

Enjoying Movies

Changing the Angles

If various angles (multi-angles) for a scene are recorded on t he D VD VIDEO, “ ” appears in the front panel display. This means that you can change t he viewing angle.

ANGLE

1 Press ANGLE durin g play ba ck.

The number of the an gl e appears on the display.

2 Press ANGLE repeatedly to select

an angle number.

The scene changes to the selected angle.

Note

Depending on the DVD VIDEO, you may not be able to change the angles even if multi-angles are recorded on the DVD VIDEO.

Displaying the Subtitles

If subtitles ar e r eco rd ed on th e di sc s, you c a n change the subtitles or turn them on and off whenever you want while playing a DVD.

SUBTITLE

1 Press SUBTITLE during playback.

The following dis pl ay appears.

1:ENGLISH

2 Press SUBTITLE repeatedly to

select a setting.

◆ When playing a DV D VI DEO

Select the language. Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a la nguage co de. See “L anguage Code List” on page 81 to see which language the code represents.

◆ When playing a DV D - VR mode disc

Select “ON.”

To turn off the subtitles

Select “OFF” in step 2.

Enjoying Movies

Notes

• Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also ma y not be able to turn them off.

• While playing a disc with subtitles, the subtitle may disappear when you press FAST PLAY or SLOW PLAY button.

Page 50

Adjusting the Playback Picture

You can adjust the video signal of the DVD, VIDEO CD or DATA CD/DATA DVD in JPEG format from the player to obtain the picture quality you want. Choose the setting that best suits the program you are watching. When you select “MEMORY,” you can make further adju stments to each element of the picture (color, brightness, etc.).

RETURN

(CUSTOM PICTURE MODE)

ENTER DISPLAY

3 Press X/x to select the setting you

want.

The default setting is underlined.

• STANDARD: displays a standard picture.

• DYNAMIC 1: produces a bold dynamic picture by increasing the picture contrast and t he color intensity.

• DYNAMIC 2: produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and color intensity.

• CINEMA 1: enhances details in dark areas by increasing the black level.

• CINEMA 2: white colors become brighter and black colors become richer, and the color contrast is increased.

• MEMORY: adju st s the picture in greater detail.

4 Press ENTER.

The selected setting takes effect.

z Hint

When you watch a movie, “CINEMA 1” or “CINEMA 2” is recommended.

1 Press DISPLAY twice during

playback.

The following display appears.

2 Press X/x to select

(CUSTOM PICTURE MODE), then press ENTER.

The options for “CUSTOM PICTURE MODE” appear.

STANDARD STANDARD DYNAMIC 1 DYNAMIC 2 CINEMA 1 CINEMA 2 MEMORY

DVD VIDEO

Page 51

Adjusting the picture items in

1 8

(

)

DVD

“MEMORY”

You can adjust each element of the picture individually.

• PICTURE: changes the contrast

• BRIGHTNESS: changes the overall brightness

• COLOR: makes the colors deeper or lighter

• HUE: chan ges the color balan ce

1 In step 3 of “Adjusting the Playback

Picture,” select “MEMORY” and press ENTER.

The “PICTURE” adjustment bar appears.

0 1 : 3 2 : 5 5

Sharpening the Pictures

(SHARPNESS)

You can enhance th e outlines of images to produce a sharper picture.

ENTER DISPLAY


2 Press C/c to adjust the picture

contrast.

To go the next or previous pi cture item without saving th e current setting, press X/x.

3 Press ENTER.

The adjustment is saved, and “BRIGHTNESS” adjustment bar appears.

4 Repeat step 2 an d 3 to adjust

“BRIGHTNESS,” “COLOR” and “HUE.”

To turn off the display

Press O RETURN or DISPLAY.

Note

The “BRIGHTNESS” setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel.

1 Press DISPLAY twice during

playback.

The Control Menu appears.

2 Press X/x to select

(SHARPNESS), then press ENTER.

The options for “S H A RPNESS” appear.

OFF OFF 1 2

DVD VIDEO

3 Press X/x to select a level.

• 1: enhances the ou tl i ne.

• 2: enhances the outline more than 1.

4 Press ENTER.

The selected setting takes effect.

To cancel the “SHARPNESS” setting

Select “OFF” in step 3.

Note

This setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack, and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel.

Enjoying Movies

Page 52

Adjusting the Delay Between the Picture and Sound (AV SYNC)

When the sound does not match the pictur es on the screen, yo u can adjust the delay between the picture and sound.

CLEAR

ENTER

DISPLAY

1 P ress DISP LA Y during pl ayba ck.

The Control Men u appears.

4 Press c repeatedly to adjust the

delay.

Each time you pr ess C/c, the delay is adjusted by 10 milliseconds.

5 Press ENTER.

The selected setting takes effect.

To reset the “AV SYNC” setting

Press CLEAR in step 4.

Note

This function is not effective if you use the DIGITAL OUT (OPTICAL or COAXIAL) jack, and set “DOLBY DIGITAL” or “DTS” in AUDIO SETUP to “DOLBY DIGITAL” or “DTS” respectively (page 70).

2 Press X/x to select (AV

SYNC), then press ENTER.

The following display appears.

0 ms

SET

3 Press x to select “SET c”, then

press ENTER.

The “AV SYNC” adjustment bar appears.

AV SYNC 0ms

STOP DVD VIDEO

Page 53

Enjoying MP3 Audio and JPEG Images

About MP3 Audio Tracks and JPEG Image Files

MP3 is audio comp ression technology that satisfies the ISO/IEC MPEG regulations. JPEG is image compression technology. You can play DATA CDs/DATA DVDs that contain MP3 audio tracks or JPEG image files.

DATA CDs/DATA DVDs that the player can play

You can play back DATA CDs (CD-ROMs/ CD-Rs/CD-RWs) or DATA DVDs (DVDROMs/DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs) recorded in MP3 (MPEG-1 Audio Layer III) an d JPEG format . However, the discs must be record ed according to ISO 9660 Level 1/Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the record ing software (not supplied) for details on the recording format.

Notes

• The play er wil l pla y an y dat a wi th the ex te nsion “.MP3,” “.JPG,” or “.JPEG,” even if they are not in MP3 or JPEG format. Playing these data may generate a loud noise which could dam a ge your speaker system.

• The play er does not conform to audio tracks in mp3PRO format.

• Some JPEG files cannot be played.

About playback order of albums, tracks, and files

Albums play in the following order:

◆Structure of disc con t ents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

ROOT

Enjoying MP3 Audio and JPEG Images

Note

The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format.

MP3 audio track or JPEG image file that the player can play

The player can play the following tracks and files: –MP3 audio tracks with the extension

“.MP3.”

–JPEG image files with the extension

“.JPEG” or “.JPG.”

–JPEG image file s that conform to the DCF*

image file format.

* “Design rule for Camera File system”: Image

standards for digital cameras regulated by JEITA (Japan Electronics and Information Te ch nology Industries Association ).

Album

Track or file

,continued

Page 54

When you insert a DATA CD/DATA DVD and press H, the num bered tracks (or fi les) are played sequenti al ly, from 1 through 7. Any sub-albums/tracks (or fil es) contained within a curren tly selected album ta ke priority over t he n ext album in the same tree. (Example: C contains D so 4 is played before 5.)

When you press MENU and the list of album names appears (page 55), the album names are arranged in the following orde r: A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list.

Playing MP3 Audio Tracks or JPEG Image Files

You can play MP3 a udi o tracks and JPEG image files on DATA CDs (CD-ROMs/CDRs/CD-RWs) or DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs).

z Hi nts

• If you add numbers (01, 02, 03, etc.) to the front of the track/file names when you store the tracks (or files) in a disc, the tr a cks and files will be played in that order.

• Since a disc with many trees takes longer to start playback, it is recomme nde d tha t you create albums with no more than two trees.

Notes

• Depending on the software you use to create the DATA CD/DATA DVD, the playback order may differ from the above illustration.

• The playb ack or de r abov e may not b e appli c abl e if there are more than 200 albums and 300 tracks/ files in each album.

• The player can rec ognize up to 200 albums (the player will count just albums, includi ng al bums that do not contain MP3 audio tracks and JPEG image files). The player will not play any albums beyond the 200th album.

• Proceeding to the next or another album may take some time.


CLEAR

RETURN

ZOOM

z Hint

You can view the disc information while playin g MP3 audio tracks (page 41).

NAVI MENU

ENTER

Notes

• DATA CDs recorded in KODAK Picture CD format automatical ly start playing when inserted.

• If no MP3 audio trac k or JPEG im a ge file is recorded on the DATA CD/DATA DVD, “No audio data” or “No image data” appea rs on the screen.

Page 55

Selecting an album

Selecting an MP3 audio track

1 Press MENU.

The list of albums on th e di s c appears. When an album is being play ed, its title is shaded.

(

3 0

)

ROCK BEST HIT KARAOKE MY FAVOURITE SONG R&B JAZZ CLASSIC SALSA OF CUBA BOSSA NOVA

2 Press X/x to select the album you

want to play.

3 Press H.

Playback starts from the selected album. To select MP3 audio tracks, see “Selecting an MP 3 audio track” (page 55). To select JPEG image files, see “Selecting a JPEG i m age file” (page 56) .

To stop playb ac k

Press x.

To go to the next or previous page

Press c or C.

To turn on or off the display

Press MENU repeatedly.

z Hint

Of the selected album, you can select to play only the MP3 audio tracks, JPEG image files or both, by setting “MODE (MP3, JPEG)” (page 57).

1 After step 2 of “Selecting an album,”

press ENTER.

The list of tracks in the album appears.

M Y FAVOURITE SONG 1 ( 2 5 6

WALTZ FOR DEBBY MY ROMANCE MILES TONES MY FUNNY VALENTINE AUTUM LEAVES ALL BLUES SOMEDAY MY PRINCE W...

)

2 Press X/x to select a track and press

ENTER.

Playback star t s from the selected track.

To stop playback

Press x.

To go to the next or previous page

Press c or C.

To return to the previous display

Press O RETURN.

To go to the next or previous MP3 aud io track

Press > or . during playback. You can select the first track of the next album by pressing > during playback of the last track of the current album. Note that you cannot return to the previ ous album by using ., a nd t hat you need to select the previous album from the album lis t.

Enjoying MP3 Audio and JPEG Images

,continued

Page 56

Selecting a JPEG image file

1 After step 2 of “Selec tin g an album,”

press PICT URE NAVI.

The image files in the album app ear in 16 subscreens. A scroll box is displayed on the right.

To rotate a JP EG image

Press X/x while viewing the image. Each time you press X, the image rotates counterclockw i se by 90 degrees. To return to nor mal view, press CLEAR. Note that the view also returns to nor m al if you press C/c to go to the next or previous image. Example: whe n X is pressed once.

1234

5678

9101112

13 14 15 16

To display the additional image, select the bottom images and press x. To retu rn to the previous image, select the top images and pres s X.

2 Press C/X/x/c to select the image you

want to view, and press ENTER.

The selected image appears. Example

To go to the next or previous JPEG image file

Press C or c during playback. You can select the first file of the next al bum by pressing c during playback of the last file of the current album. Note that you cann ot return to the previous album by using C, and that you need to select the previous album from the album list.

Rotating direction

To magnify a JPEG image (ZOOM)

Press ZOOM while viewing the image. You can enlarge the image up to four times the original size, and scroll using C/X/x/c. To return to nor mal view, press CLEAR.

◆When pressed once (x2)

The image enlarges twice the original size.

◆When pressed twice (x4)

The image enlarges four times the original size.

To stop viewing the JPEG image

Press x.

z Hints

• While viewing JPEG image files, you can set options such as “INTERVAL” (page 58), “EFFECT” (page 58), and “SHARPNESS” (page 51).

• You can view JPEG images files without MP3 audio by setting “MODE (MP3, JPEG)” to “IMAGE (JPEG)” (page 57).

• The date the picture was taken is displayed beside “DATE” in the Control Menu (page 13). Note that no date may appear depending on the digital camera.

Note

PICTURE NAVI does not work if “AUDIO (MP3)” is selected in “MODE (MP3, JPEG)” (page 57).

Page 57

Enjoying JPEG Images as a Slide Show

You can play JPEG image files on a DATA CD or DATA DVD successively as a slide show.

MENU ENTER DISPLAY

1 Press MENU.

The list of albums on the D A T A CD/ DATA DVD appears.

(

3 0

)

ROCK BEST HIT KARAOKE MY FAVOURITE SONG R&B JAZZ CLASSIC SALSA OF CUBA BOSSA NOVA

2 Press X/x to select an album. 3 Press H.

The JPEG images in the selected album start playing as a sl i de show.

Viewing a slide show with sound (MODE (MP3, JPEG))

When JPEG image files and MP3 audio tracks are placed in the same album, you ca n enjoy a slide show w i t h sound.

1 Press DISPLAY during stop mode .

The Control Menu appears.

2 Press X/x to select (MODE

(MP3, JPEG)), and press ENTER.

The options for “MODE (MP3, JPEG)” appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

3 2 : 5 5 AUTO AUTO AUDIO (MP3) IMAGE (JPEG)

DATA CD

MP3

3 Press X/x to select “AUTO” (default),

and press ENTER .

• AUTO: plays both the JPEG image files and MP3 audio track s i n th e same album as a slide show.

• AUDIO (MP3): plays only MP3 audio tracks continuously.

• IMAGE (JPEG): plays only JPEG image files continuously.

4 Press MENU.

The list of albums on the DATA CD/ DATA DVD appears.

(

3 0

)

ROCK BEST HIT KARAOKE MY FAVOURITE SONG R&B JAZZ CLASSIC SALSA OF CUBA BOSSA NOVA

Enjoying MP3 Audio and JPEG Images

To stop playb ac k

Press x.

Notes

• The slide show stops when X/x or ZOOM is pressed.To resume the slide show, press H.

• This function does not w ork if “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 57).

5 Press X/x to select the album that

contains both the MP3 audio tracks and JPEG images you want to play.

6 Press H.

A slide show starts with sound.

,continued

Page 58

z Hi nts

• To repeat both MP3 audio tracks and JPEG image files in a single album, repeat the same MP3 audio track or album when “MODE (MP3, JPEG)” is set to “AUTO.” See “Playing repeatedly (Repeat Play)” (page 35) to repeat the track or album .

• The player recognizes a maximum of 200 albums regardless of the sele cted mode. Of each album, the player recognizes up to 300 MP3 audio tracks and 300 JPEG image files when “AUTO” is selected, 600 MP3 audio tracks when “AUDIO (MP3)” is selected, 600 JPEG image fi les whe n “IMAGE (JPEG)” is selected.

3 Press X/x to select a setting.

The default setting is underlined.

• NORMAL

: sets the duration to between

6 to 9 seconds.

• FAST: sets a duration shorter than NORMAL.

• SLOW 1: sets a duration longer than NORMAL.

• SLOW 2: sets a duration longer than SLOW 1.

4 Press ENTER.

Notes

• This func tion does not work if the MP3 audio tracks and JPEG imag e fi les are not placed in the same album.

• If playing time of JPEG image or MP3 audio is longer than the other, the longer one continues without sound or image.

• If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file.

• The player skips to the next disc if the current disc contains MP3 audio tracks only and “MODE (MP3, JPEG)” is set to “IMAGE (JPEG),” or the disc contains JPEG image files only and “MODE (MP3, JPEG)” is set to “AUDIO (MP3).” It is recommended that you set “MODE (MP3, JPEG)” to “AUTO.”

Setting the pace for a slide show (INTERVAL)

You can set the time the slides are displayed on the screen.

1 Press DISPLAY twice while viewing a

JPEG image or whe n the player is in stop mode.

The Control Men u appears.

2 Press X/x to select

(INTERVAL), then press ENTER.

The options for “INTERVAL” appear.

12)

3 (

1 0 / 2 9 / 2 0 0 5 NORMAL NORMAL FAST

SLOW 1 SLOW 2

DATA CD

JPEG

Note

Some JPEG files, especial ly progres sive JPEG files or JPEG files of 3,000,000 pixels or more, may take longer to display than others, whic h ma y ma ke the duration seem longer than the sett ing you selected.

Selecting the slides’ appearance (EFFECT)

You can select the way the slides are displayed during a slide show.

1 Press DISPLAY twice while viewing a

JPEG image or when the player is in stop mode.

2 Press X/x to select (EFFECT),

then press ENTER.

The options for “EFFECT” appear.

12)

3 (

1 0 / 2 3 / 2 0 0 5

MODE 1 MODE 1

MODE 2 MODE 3 MODE 4 MODE 5

OFF

DATA CD

JPEG

3 Press X/x to select a setting.

The default setting is underlined.

• MODE 1

: the image sweeps in from top

to bottom.

• MODE 2: the image sweeps in from left to right.

• MODE 3: the image stretches ou t from the center of the sc reen.

• MODE 4: the images randomly cycle through the effects.

• MODE 5: the ne xt image sl ides over t he previous image.

• OFF: turns off th is function.

4 Press ENTER.

Page 59

Using Various Additional Functions

Locking Discs (CUSTOM

PARENTAL CONTROL, PARENTAL CONTROL)

You can set two kinds of playback restrictions for a disc.

• Custom Parent al Control You can set playback restrictions so that the player will not play in appropriate discs.

• Parental Control Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replac ed with different scenes.

The same password is used for both Parental Control and Custom Pa rental Control.

Number buttons

ENTER DISPLAY

Custom Parental Control

You can set the sam e Custom Parental Control password for up to 40 discs. When you set the 41st-d isc, the fir st disc is canceled.

3 Press X/x to select

(PARENTAL CONTROL), then press ENTER.

The options for “PARENTAL CONTROL” ap pear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

ON PLAYER PASSWORD OFF

DVD VIDEO

4 Press X/x to select “ON t,” then

press ENTER.

◆ If you have not ente red a password

The display for registering a new password appears.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press .

Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears.

◆ When you have al ready registered a password

The display for entering the pa ssword appears.

5 Enter or re-enter y our 4-digit passwor d

using the number buttons, then press ENTER.

“Custom parental control is set.” appears and then the screen returns to the Control Menu.

Using Various Additional Func ti ons

1 Insert the disc you want to lock.

If the disc is playin g, press x to stop playback.

2 Press DISPLAY while the player is in

stop mode.

The Control Menu appears.

,continued

Page 60

To turn off the Custom Parental Control function

1 Follow steps 1 to 3 of “Custom Parental

Control.”

2 Press X/x to select “OFF t,” then pr ess

ENTER.

3 Enter your 4-digit password using the

number buttons, then press ENTER.

To play a disc for which Custom Parental Control is set

1 Insert the dis c for which Cus tom Parenta l

Control is set. The “CUSTOM PARENTAL CONTROL” display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

ENTER

and press

2 Enter your 4-digit password using the

number buttons, then press ENTER. The player is ready for pl ayback.

z Hi nt

If you forget your password, enter the 6-digit number “199703” using the number buttons when the “CUSTOM PARENTAL CONTROL” display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Parental Control (limited playback)

Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of th e users. The “PARENTAL CONTROL” function allows you to set a playback limitation level.

1 Press DISPLAY while the player is in

stop mode.

The Control Menu ap pears.

2 Press X/x to select

(PARENTAL CONTROL), then pre ss ENTER.

The options for “PARENTAL CONTROL” appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

ON PLAYER PASSWORD OFF

DVD VIDEO

3 Press X/x to select “PLAYER t,”

then press ENTER.

◆ If you have not entered a password

The display for registering a new password appears.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press .

Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the passwor d appears.

◆ When you hav e al ready registered a password

The display for entering the password appears.

Page 61

4 Enter or re-enter your 4-digit password

using the number buttons, then press ENTER.

The display for sett in g t he playback limitation level appears.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

USA

5 Press X/x to select “STANDARD,”

then press ENTER.

The selection items for “STANDARD” are displayed.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

USA USA

OTHERS

6 Press X/x to select a ge ograph ic area

as the playback l imitation level, then press ENTER.

The area is selected. When you select “OTHERS t,” select and enter a standar d code in the table on page 81 usin g t he number buttons.

7 Press X/x to select “LEVEL,” then

press ENTER.

The selection items for “LEVEL” are displayed.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

OFF

NC17

7: 6: 5:

8 Select the level you want using X/x,

then press ENTER .

Parental Control setting is complete.

PARENTAL CONTROL

LEVEL: STANDARD: USA

The lower the value, the stricter the limitation.

To turn off the Parental Control function

Set “LEVEL” to “OFF” in step 8.

To play a disc for which Parental Control is set

1 Insert the disc and press H.

The display for entering your password appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER. The player starts playback.

z Hint

If you forget your password, remove the disc and repeat steps 1 to 3 of “Parental Contro l (l imited playback).” When you are asked to enter your password, enter “199703” using th e numbe r buttons, then press ENTER. The dis pl ay will ask you to enter a new 4-digit password. After you enter a new 4-digit password, repl ace th e disc in the player and press H. When the display for entering your password appears, enter your new passwo rd .

Notes

• When you play discs which do not have the Parental Control function, playback cannot be limited on this player.

• Depend ing on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your passwo rd , the n change the level. If the Resume Play mode is canceled, the le vel returns to the prev ious level.

4: PG13

Using Various Additional Func ti ons

,continued

Page 62

Changing the password

1 Press DISPLAY while the player is in

stop mode.

The Control Men u appears.

2 Press X/x to select

(PARENTAL CONTROL), then pr ess ENTER.

The options for “PARENTAL CONTROL” appear.

3 Press X/x to select “PASSWORD

t,” then press ENTE R.

The display for enter i ng the password appears.

4 Enter your 4-digit password usi ng the

number buttons, then press ENTER.

5 Enter a new 4-digit password using the

number buttons, then press ENTER.

6 To confirm your password, re-enter it

using the number buttons, th en press ENTER.

If you make a mistake enter i ng your password

Press C before yo u pr ess ENTER and input the correct number.

Controlling You r TV or AV Amplifier (Receiver) With the Supplied Remote

By adjusting the remote signal, you can control your TV with the supplied remote. If you connect the player to an AV amplifier (receiver), you can control the volu me with the supplied remote.

Notes

• Depending on the connected unit, you may not be able to correctly control your TV or AV amplifier (receiver) using some of the buttons belo w.

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropr ia te code number again.

Controlling TVs with the remote

TV/DVD switch

Number buttons

[/1

VOL +/– TV/VIDEO ENTER

1 Slide the TV/DVD switch to TV. 2 While holding down [/1, pr ess the

number buttons to select the manufacturer’s code for your TV (see the table below).

3 Release [/1.

Page 63

When the TV/DVD switch is set to TV, the remote performs the following:

[/1 Tur ns the TV on or off VOL +/– Adjusts the volume of the T V TV/VIDEO Switches the TV’ s in p ut

Number buttons and ENTER

source between the TV and other input sources

Selects the channel of the TV

Code number s of co ntrollable TVs

If more than one code number is listed, try entering them one at a time until yo u find the one that works with your TV .

Manufacturer Code number

Sony 01 (default) Akai 04 AOC 04 Centurion 12 Coronado 03 Curtis-Mathes 12, 14 Daewoo 04, 22 Daytron 03, 12 Fisher 11 General Electric 04, 06, 10 Gold Star/LG 03, 04, 17 Hitachi 02, 03, 04 J.C.Penney 04, 10, 12 JVC 09 KMC 03 Magnavox 03, 04, 08, 12, 21 Marantz 04, 13 MGA/Mitsubishi 04, 12, 13, 17 NEC 04, 12 Panasonic 06, 19 Philco 02, 03, 04, 08 Philips 08, 21 Pioneer 06, 16 Portland 03

Manufacturer Code number

Proscan 10 Quasar 06, 18 Radio Shack 05, 10, 14 RCA 04, 10 Sampo 12 Samsung 03, 04, 12, 20 Sanyo 11, 14 Scott 12 Sears 07, 10, 11 Sharp 03, 05, 18 Sylvania 08, 12 Teknika 03, 08, 14 Toshiba 07, 18 Wards 03, 04, 12 Yorx 12 Zenith 14, 15

Using Various Additional Func ti ons

,continued

Page 64

Controlling the volume of your

–

AV amplifier (receiver) with the remote

TV/DVD switch

[/1

z Hint

If you want to control the TV’s volume even when the TV/DVD switch is set to DVD, repeat steps 1 and 2 and enter the code number 90 (defaul t).

Number buttons

VOL +/

1 Slide the TV/DVD switch to DVD. 2 Hold down [/1, and enter the

manufacturer code (see the table below) for your AV amplifier (re ceiver) using the number buttons.

3 Release [/1.

The VOL +/– buttons control the AV amplifier’s volume.

◆ If you want to control the TV’s volume

Slide the TV/DVD switch to TV.

Code numbers of controllable AV amplifiers (receivers)

If more than one code number is listed, try entering them one at a time until yo u find the one that works with your AV amplifier (receiver).

Manufacturer Code number

Sony 78, 79, 80, 91 Denon 84, 85, 86 Kenwood 92, 93 Onkyo 81, 82, 83 Pioneer 99 Sansui 87 Technics 97, 98 Yamaha 94, 95, 96

Page 65

Settings and Adjustments

Using the Setup Di splay

By using the Set up Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display it em, see pages from 66 to 70.

Note

Playback settings stored in the disc take priority over the Setup Display settings and not all of the functions described may work.

ENTER DISPLAY

3 Press X/x to select “C USTOM,”

then press ENTER.

The Setup Displ ay appears.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

ORIGINAL

ENGLISH

4 Press X/x to select the setup item

from the displayed list: “LANGUAGE SETUP,” “SCREEN SETUP,” “CUSTOM SETUP,” “AUDIO SETUP” or “SPEAKER SETUP.” Then press ENTER.

The Setup item is selected. Example: “SCREEN SETUP”

Selected item

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

BLACK LEVEL: BLACK LEVEL

4:3 OUTPUT:

4:3 LETTER BOX

JACKET PICTURE

(COMPONENT OUT)

ON ON

OFF

FULL

Settings and Adjustments

1 Press DISPLA Y wh en the p layer is

in stop mode.

The Control Menu appears.

2 Press X/x to select

(SETUP), then press ENTER.

The options for “SETUP” appear.

)

(

QUICK

CUSTOM

RESET

QUICK

STOP DVD VIDEO

Setup items

5 Press X/x to select an ite m, then

press ENTER.

The options for the selected item appear. Example: “TV TYPE”

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT:

4:3 LETTER BOX

4:3 PAN SCAN

(COMPONENT OUT)

Options

,continued

16:9 OFF

FULL

Page 66

6 Press X/x to select a setting, then

press ENTER.

The setting is selected and setup is complete. Example: “4:3 PAN SCAN”

Selected setting

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

BLACK LEVEL: BLACK LEVEL

4:3 OUTPUT:

To enter the Quick Setup mode

Select “QUICK” in st ep 3. Follow from step 5 of the Quick Setup ex pl anation to make basic adjustm en t s (p age 23).

To reset all of the “SETUP” settings

1 Select “RESET” i n st ep 3 and press

ENTER.

2 Select “YES” using X/x.

You can also quit the process and return to the Control Menu by selecting “NO” here.

3 Press ENTER.

All the settings explained on pages 66 to 73 return to the default settings. Do not press [/1 while resetting the pla yer , which takes a few seconds to complete.

4:3 PAN SCAN

JACKET PICTURE

(COMPONENT OUT)

ON ON

OFF

FULL

Setting the Di sp lay or Sound Track Language

(LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track.

Select “LANGUAGE SETUP” in the Setup Display. To use th e di splay, see “Using th e Setup Display” (page 65).

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

◆OSD (On-Screen Display)

Switches the display language on the screen.

◆MENU (DVD VIDEO only)

You can select the desired language for the disc’s menu.

◆AUDIO (DVD VIDEO only)

Switches the language of the sound track. When you select “ORIGINAL,” the language given priori ty in the disc is selected.

◆SUBTITLE (DVD VIDEO only)

Switches the language of the subt itle record ed on the DVD VIDEO. When you select “AUDIO FOLLOW,” the language for the subtitles changes according to the language you selected for t he sound track.

ENGLISH ENGLISH

ORIGINAL

ENGLISH

z Hint

If you select “OTHERS t” in “MENU,” “SUBTITLE,” or “AUDIO,” select and enter a language code from “Language Code Lis t” on page 81 using the number buttons.

Note

If you select a language in “MENU,” “SUBTITLE,” or “AUDIO” that is not recorded on a DVD VIDEO, one of the recorded languages will be automatically selected.

Page 67

Settings for the Display

(SCREEN SETUP)

Choose settings according to the TV to be connected.

Select “SCREEN SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 65). The default settings are underlined.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

BLACK LEVEL: BLACK LEVEL

4:3 OUTPUT:

◆TV TYPE

Selects the aspect ratio of the connected TV (4:3 standa rd or wide).

4:3 LETTER BOX

Select this when you conn ec t a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.

4:3 PAN SCAN

Select this when you conn ec t a 4:3 screen TV. Autom atically displays the wide picture on the entire screen and cuts off the portions that do not fit.

16:9 Select thi s w hen you connect a

wide-screen TV or a TV with a wide mode function.

4:3 LETTER BOX

JACKET PICTURE

(COMPONENT OUT)

ON ON

OFF

FULL

Note

Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa.

◆SCREEN SAVER

The screen saver image appears whe n you leave the player in pause or stop mode for 15 minutes or when you play a Super Audio CD, CD or DATA CD/DATA DVD (MP3 audio) for more than 15 minutes. The screen saver will help preven t yo ur display device fr om becoming damag ed (ghosting). Press H to turn off the screen saver.

ON Turns on the screen saver. OFF Turns off the screen saver.

◆BACKGROUND

Selects the background color or picture on the TV screen when the player is in stop mode or while playing a Super Audio CD, CD or DATA CD/DATA DVD (MP3 audio).

JACKET PICTURE

The jacket picture (still picture) appears, bu t on ly when the jacket picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” pict ure appears.

GRAPHICS A preset pictur e stored in the

player appears.

BLUE Th e background color is blue . BLACK The background color is bl ac k.

◆ BLACK LEVEL

Selects the black level (setup level) for the video sign als out put from the j acks ot her than COMPONENT VIDEO OUT.

Settings and Adjustments

4:3 PAN SCAN

16:9

Sets the black level of the output signal to the standard level.

OFF Lowers the standard black

level. Use this when the picture becomes too white.

,continued

Page 68

◆ BLACK LEVEL (COMPONENT OUT)

Selects the black level (setup level) for the video signals output from the COMPONENT VIDEO OUT jacks. You cannot select this when the player outputs progressive signals (page 19).

OFF Sets the black level of the

ON Raises the standa rd black l evel.

output signal to the standard level. Normally select this position.

Use this setting when the picture appears too da rk.

Note

This does not work with PAL format discs.

◆4:3 OUTPUT

This setting is effective only when you set “TV TYPE” in “SCREEN SETUP” to “16:9”. Adjust th is to w at ch 4:3 aspect ratio progressive sig nals. If you can change the aspect ratio on your progressive format (480p) compatible TV, change the setting on your TV, not the player. This setting is effective only when “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” is selected by using th e PROGRE SSIVE but ton on the front panel.

FULL

NORMAL Select this when you cannot

Select this when you can change the aspect ratio on your TV.

change the aspect ratio on your TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image.

Custom Settings (CUSTOM

SETUP)

Use this to set up playback related and ot her settings.

Select “CUSTOM SETUP” in the Setup Display. To use th e di splay, see “Using th e Setup Display” (page 65). The default sett i ngs are underlined.

CUSTOM SETUP

AUTO POWER OFF: OFF AUTO PLAY: DIMMER: PAUSE MODE: TRACK SELECTION: MULTI-DISC RESUME:

◆AUTO POWER OFF

Switches the Auto Power Off setting on or off.

OFF Switches th is f unction off. ON The player enters standby mode

when left in stop mode for more than 30 minutes.

◆AUTO PLAY

Switches the Auto Play setting on or off. This function is useful when the player is connected to a timer (not supplied).

OFF ON Automatically starts playback

Switches th is f unction off.

when the player is tu rne d on by a timer (not supplied).

OFF

BRIGHT

AUTO

OFF

16:9 aspect ratio TV

◆DIMMER

Adjusts the lighting of the fr ont panel display .

BRIGHT DARK Makes the lighting dark. AUTO

DARK

Makes the lighting bright.

Makes the lighting dark if you do not operate the player or remote for a short while.

Page 69

◆PAUSE MOD E (DVD VIDE O/D VD-V R mode only)

Selects the pictur e in pause mode.

AUTO The picture, including subjects

that move dynamically, is output with no jitter. Normally select this position.

FRAME The picture, including subjects

that do not move dynamical ly, is output in high resolution.

◆TRACK SEL E CTION (DVD VIDEO only)

Gives the sound tra ck w hich contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, DTS, or Dol by Digital format) are r ecorded.

OFF

No priority given.

AUTO Priority given.

Notes

• When you se t the item to “AUTO,” the language may change. The “TRACK SELECTION” setting has higher priority than the “A UDIO” settings in “LANGUAGE SETUP” (page 66).

• If you set “DTS” to “D-PCM” (page 70), the DTS sound track is not played even if you set “TRACK SELECTION” to “AUTO.”

• If PCM, DTS, and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, and Dolby Digital sou nd tracks in this order.

◆MULTI-DISC RESUME (DVD VIDEO/

VIDEO CD only)

Switches the Multi-disc Res ume setting on or off. Resume playback can be stored in memory for up to 40 d ifferent DVD VI DEOs/ VIDEO CDs discs (page 29).

Stores the resume setting in memory for up to 40 discs.

OFF Does not store the resume

setting in memory. Playback restarts at the resume p oint only for the curr ent di sc in the player.

Settings for the Sound

(AUDIO SETUP)

“AUDIO SETUP” allows you to set the s ound according to the pla yback and connecti on conditions.

Select “AUDIO SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 65). The default settings are underlined.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: AUDIO FILTER: SHARP DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

◆AUDIO ATT (attenuation)

If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. This function affects the output of the following jacks: –LINE OUT L/R (AUDIO) jacks –5.1CH OUTPUT jacks

OFF Normally, select this position. ON Select this when th e p layback sou n d

from the speakers is distorte d.

◆AUDIO DRC (Dynamic Range Control) (DVD VIDEO/DVD-VR m o de only)

Makes the sound cl ear when the volume i s turned down when playing a DVD that conforms to “AUDIO DRC.” This function affects the output from the following jacks: –LINE OUT L/R (AUDIO) jacks –5.1CH OUTPUT jacks –DIGITAL OUT (OPTICAL or COAXIAL)

jack only when “DOLBY DIGITA L” is set to “D-PCM” (page 70).

STANDARD

Normally se lect this position.

TV MODE Makes low sounds clear even if

you turn the v olume down.

WIDE RANGE

Gives you the feeling of bein g at a live performance.

OFF

STANDARD

ON D-PCM D-PCM

48kHz/16bit

Settings and Adjustments

,continued

Page 70

◆AUDIO FILTER

Selects the digital filter to reduce noise above

22.05 kHz (Sampling frequency (Fs) of the audio source is 44.1 kHz), 24 kHz (Fs is 48 kHz), or 48 kHz (Fs is above 96 kHz).

SHARP Provides a wide frequency range

SLOW Provi de s smoo th and w a rm

and spatial feeling.

sound.

Note

There may be little effect by chang ing the digital filter depending on the disc or playback environment.

◆DOWNMIX (DVD VIDEO/DVD-VR mode only)

Switches the method for mixing down to 2 channels when you play a DVD which has rear sound elem ents (cha nnels) or is record ed in Dolby Digital format. For details on the rear signal com ponents, see “Check ing the audio signal format” (page 45). This function affects the output of the following jacks: –LINE OUT L/R (AUDIO) jacks –DIGITAL OUT (OPTICAL or COAXIAL)

jack when “ DOLBY DIGITA L” and “DTS ” is set to “D-PCM” (page 70).

DOLBY SURROUND

NORMAL Multi-channel audio signa ls are

Normally, select this position. Multi-channel audio signals are output to 2 channels for enjoying surround sounds.

downmixed to 2 channels f or use with your stereo.

◆DIGITAL OUT

Selects if audio signa ls ar e output via the DIGITAL OUT (OPTICAL or COAXIAL) jack.

Normally select this position. When

you select “ON,” see “Setting the digital output signal” for further settings.

OFF The influence of the digital circuit

upon the analog circuit is min imal.

Setting the digital output signal

Switches the meth od of outputting audio signals when you connect a compone nt such as an amplifier (receiver) or MD deck with a digital input jack. For connection details, see page 20. Select “DOLBY DIG I T A L,” “DTS,” and “48kHz/96kHz PCM” after setting “DIGITAL OUT” to “ON.” If you connect a component that is incompatible with the selected audio signal, a loud noise (or no s ound) may be heard from the speakers, risking damage to your ears or speakers.

◆DOLBY DIGITAL (DVD VIDEO/DVD-VR mode only)

Selects the type of Do l by D igital signal.

D-PCM Select this when the player is

DOLBY DIGITAL

◆DTS

Selects the type of DTS signals.

D-PCM

DTS Select this when the player is

connected to an audio component without a built-in Dolby Digita l decoder. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP” (page 70).

Select this when the player is connected to an audio componen t w ith a built-in Dolby Digital decoder.

Select this when the player is connected to an audio component without a built-in DTS decoder.

connected to an audio component with a built-in DTS decoder.

Note

Super Audio CD audio signals are not output from a digital jack.

Page 71

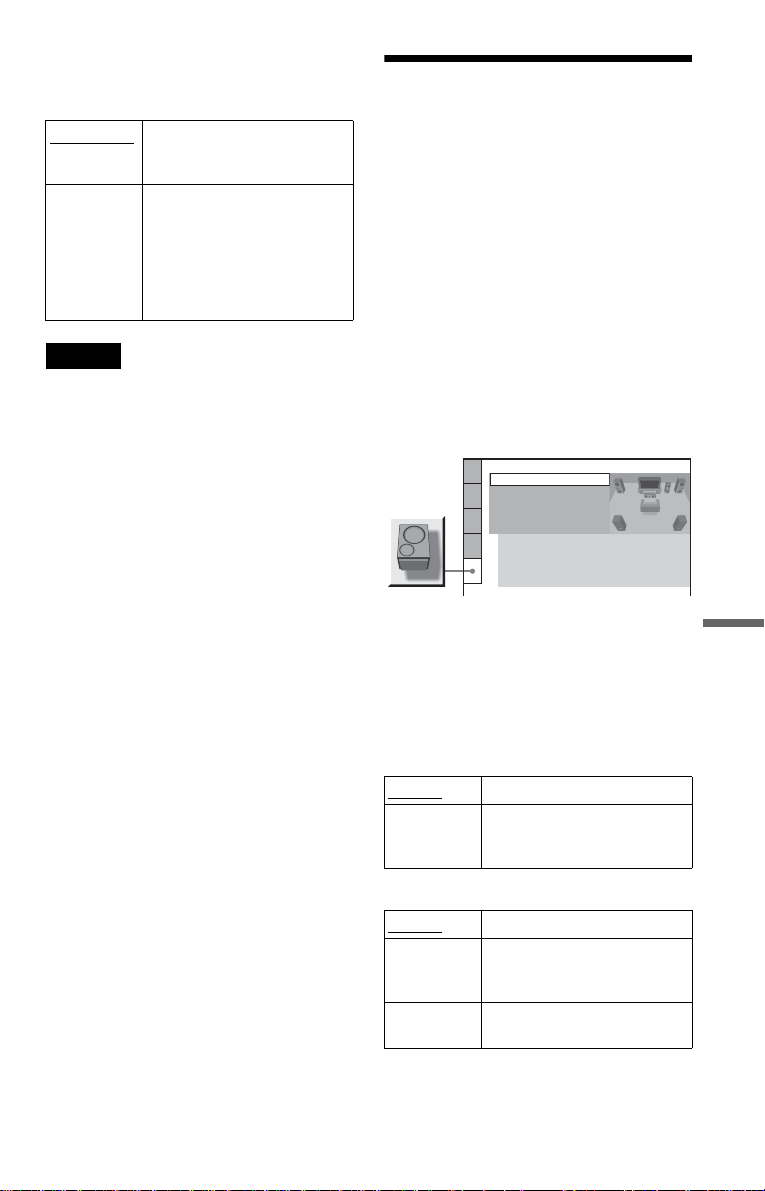

◆48kHz/96kHz PCM (DVD VIDEO only)

Selects the sampl in g frequency of the au dio signal.

48kHz/16bit The audio signals of DVD

VIDEOs are always converted to 48kHz/16bit.

96kHz/24bit All types of signals including

96kHz/24bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48kHz/16bit.

Note

The analogue audio signals from the LINE OUT L/ R (AUDIO) jacks and 5.1CH OUTPUT jacks are not affected by this setting and keep th ei r original sampling frequency level.

Settings for the Speakers

(SPEAKER SETUP)

To obtain the best possible surround sound, set the size of the speakers you have connected and the ir di st ance from your listening position. Then use the test tone to adjust the volume of the speakers to the same level. This setting is effective when connecting the speaker with 5.1 CH OUT PU T jacks (page 20).

Select “SPEAKER SE TU P” in th e Se tu p Display. To use the display, see “Using the Setup Display” (page 65). The default settings are underlined.

SPEAKER SETUP

SIZE: DISTANCE: LEVEL(FRONT): LEVEL(REAR): TEST TONE:

FRONT: CENTER: REAR: SUBWOOFER:

OFF

LARGE(REAR)

LARGE LARGE

YES

To return to the default setting

Select the item, then press CLEAR. Note th at only the “SIZE” setting does not return to the default setting.

◆SIZE

Selects the size of the speakers.

• FRONT

LARGE Normally select this position. SMALL Select this when the speaker

cannot reproduce adequate bass frequencies.

• CENTER

LARGE

Normally select this position.

SMALL Select this when the speaker

cannot reproduce adequate bass frequencies.

NONE Select this if you do not connect

a center speaker.

,continued

Settings and Adjustments

Page 72

•REAR

LARGE (REAR/SIDE): Normally select

this position. Select according to the rear speaker position*.

SMALL (REAR/SIDE): Select this

when the sound distorts or the surround effects are difficult to hear. Select according to the rear speaker position*.

NONE Select this if you do not connec t

rear speakers.

* Rear speaker position Correctly specify t he location of th e rear speakers to enjoy the surround effect.

• Set to “SIDE,” if the location o f the rear spea kers corresponds to section A below.

• Set to “REAR,” if the location of the re ar speakers corresponds to section B below.

This setting affects only “VIRTUAL REAR SHIFT,” “VIRTUAL MULTI REAR,” and “VIRTUAL MULTI DIMENSION” mode (page 47). This setting doe s not affect the Super Audio CD Multi audio signals.

Notes

• The cut off frequency for the subwoofer is fixed at 120 Hz.

• If your speakers are too small to reproduce low bass frequencies, utilize a subw oofer f or low frequency sound. When you set the speaker settings to “SMALL,” the ba ss red irection circuitry will be activated and the bass frequencies for the speakers are output from the subwoofer.

• Even if there are fewer than 6 speakers connected, the player distributes the audio signal components to the front speakers.

◆DISTANCE

Sets the distance from your l istenin g positio n to the speakers. Set the distance to your front speakers in “FRONT” first (A). Then adjust the values in “CENTER” (center speake r B), and “REAR” (rear speaker C) to reflect the actual distance to your center speaker, and rear speakers.

(4~50 ft/

1.2~

15.2m)

(4~50 ft/

1.2~

15.2m)

• SUBWOOFER

YES

Select this if y ou connect a subwoofer to output the LFE (Low Frequency Effect) signals from the subwoofer.

NONE Select this if you do not connec t

a subwoofer.

Be sure to change the value in the Set up Display each time you move the speakers. Start from the fr ont speaker. The default adjustments are in pa re ntheses.

FRONT (10 ft/3m)

Set this between 4 and 50 ft (1.2m and 15.2m) in 1 ft (0.3m) increments.

CENTER (10 ft/3m)

Set this within –5 and +2ft (–1.5m and +0.6m) of the “FRONT” setting in 1 ft (0.3m) increments. For example, if “FR ONT” is set to 17 ft (5.1m), “CENTER” can be set between 12 and 19 ft (3.6m and 5.7m).

Page 73

REAR (10 ft/3m)

Set this within –16 and +2 ft (–4.8m and +0.6m) of the “FRONT” setting in 1 ft (0.3m) increments. For example, if “FRONT” is set to 17 ft (5.1m), “REAR” can be set between 1 and 19 ft (0.3m and 5.7m).

Note

If each of the front or rear speaker s are not placed at an equal distance from your listening position, set the distance according to the closest speaker.

◆LEVEL (FRONT)

Varies the level of the front speakers. Be sure to set “TEST TONE” to “ON” for easy adjustment. The default adjustments are in parentheses.

L (0 dB) Set this between –6 dB and 0

R (0 dB) Set this between –6 dB an d 0

CENTER (0 dB)

SUBWOOFER (–5 dB)

dB in 0.5 dB increments.

dB in 0.5 dB increments. Set this between –12 dB and

0 dB in 0.5 dB increments. Set this between –15 dB and

+5 dB in 0.5 dB increments.

◆LEVEL (REAR)

Varies the level of the rear speakers. Be sure to set “TEST TONE” to “ON” for easy adjustment. The default adjustments are in parentheses.

L (0 dB) Set this between –12 dB and

R (0 dB) Set this between –12 dB and

0 dB in 0.5 dB increments.

◆TEST TONE

The speakers will emit a test tone. Use this when you use the 5. 1C H OU TPUT ja cks a n d adjust “LEVEL (FRONT)” and “LEVEL (REAR).”

OFF The test tone is not emitted

from the speakers.

ON The test tone is emitted from

each speaker in sequence while adjusting le v el.

Adjusting the speaker volume and level

1 Select “SPEAKER SETUP” in the Se tup

Display.

2 Select “TEST TONE” and set to “ON.”

You will hear the test tone from each speaker in sequence.

3 From your listening position, select

“LEVEL (FRONT)” o r “L EVEL (R EAR) ” and adjust the value using X/x.

The test tone is emitted from both left and right speakers si multaneously.

4 Select “TEST TONE” and set to “OFF”

to turn off the test tone.

Note

The test tone signals are not output from the digital jack.

Settings and Adjustments

To adjust the volume of all the speakers at one time

Use the amplifier’s (receiver’s) volume control.

Page 74

Additional Information

Troubleshooting

If you experience any of the following difficulties while us in g the player, use this troubleshooting guide to help remedy the problem before req uesting repairs. Should any problem persis t , co nsult your nearest Sony dealer.

Power

The power is not turned on.

, Check that the power cord is connected

securely.


There is no picture/picture nois e appears.

, Re-connect the connecti ng cord securely. , The connecting cords are damaged. , Check the connection to your TV (page 17)

and switch the input selector on your TV so that the signal fr om the player appear s on the TV screen.

, The disc is dirty or flawed. , If the picture output from your pl aye r goes

through your VCR to get to your TV or if you are connected to a combination TV/ VIDEO player, the copy-protection signa l applied to some DVD programs could affect picture quality. If you still exp eri e nce problems even wh en you connect your player directly to you r TV , try connecting your player to your TV’s S VIDE O input (page 17).

, You have selected “PROGRESSIVE

AUTO” or “PROGRESSIVE VIDEO” using the PROGRESSIVE butto n on t he front panel (the PROGRESSIV E indicator lights up) even though your TV cannot accept the progressive signal. In this case, select “NORMAL (INTERLACE)” so that the PROGRESSIVE indicator turn s off.

, E v en if your TV is compatible with

progressive format 480p signals, the image may be affected when you set the player to progressive format. In this case, select “NORMAL (INTERLACE)” using the PROGRESSIVE button on the front pa nel so that the PROGRESSIVE indicator turns off and the player is set to normal (interlace) format.

The picture does not fill the screen, even though the aspect ratio is set in “TV TYPE” under “SCREEN SETUP.”

, The aspect ratio of the disc is fixed on your

DVD.

Sound

There is no sound.

, R e-connect the connecting cord securely. , The connecting cord is damaged. , The player is connected to the wr ong input

jack on the amplifier (receiver) (page 20).

, T he amplifier ( r eceiver) input is not

correctly set.

, The player is in pause mode or in Slow-

motion Play mode.

, The player is in fast forward or fast reverse

mode.

, I f the audio signal does not come throug h

the DIGITAL OUT (OPTICAL or COAXIAL) jack, check the audio settings (page 70).

, Su pe r Audio CD audio signals are not

output from the DIGITAL OUT (OPTICAL or COAXIAL) jack.

, While playing a Super VCD on which the

audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.”

Sound distortion occ ur s.

, Set “AUDIO ATT” in “AUDIO SETUP” to

“ON” (page 69).

The sound volume is low.

, The sound volume is low on some DVDs .

The sound volume may improve if you set “AUDIO DRC” in “AUDIO SETUP” to “TV MODE” (page 69).

, Set “AUDIO ATT” in “AUDIO SETUP” to

“OFF” (page 69).

Page 75

The surround effect is difficult to hear when you are playing a Dolby Digital, or DTS sound track.

, Check the speaker conn ec ti ons a nd setting

(page 20, 23, 70 ).

, The 5.1 channel sound is no t rec orded on

the disc being played.

The sound com es fro m th e ce n ter spea ker only.

, Depending on the disc, the sound may come

from the center speake r onl y.

, Set the surround mode se tting to “OFF ”

(page 45)

Operation

The remote does not function.

, The batteries in the remote are weak. , There are obsta cles be tween t he remo te and

the player.

, The distance bet w ee n the remote and the

player is too far.

, The remote is not pointed at the remote

sensor on the player.

The disc does not play.

, The disc is turned ov er.

Insert the disc with the playback side facing down.

, The disc is skewed. , The player cannot play c ert ai n discs

(page 8).

, The region code on the DVD does not match

the player.

, Moisture has condensed inside the player

, The player cannot play a recorded disc that

The MP3 audio trac k cannot be played (page 54).

, The DATA CD is not recorded in an MP3

, The DATA DVD is not recorded in MP3

, The MP3 audio track does not have the

, The data is not formatted in MP3 even

, The data is not MPEG-1 Audio Layer III

(page 5)

(page 9)

is not correctly finalize d

format that conforms to ISO 9660 Level 1/ Level 2 or Joliet.

format that conforms to U D F (U ni versal Disk Format).

extension “.MP3.”

though it has the extension “.MP3.”

data.

, The player cannot play audio tracks in

mp3PRO format.

, “MODE (MP3, JPEG)” is set to “IMAGE

(JPEG)” (page 57).

The JPEG image file cannot be played (page 54).

, The DATA CD is not recorded in a JPEG

format that conforms to ISO 9660 Level 1/ Level 2, or Joliet.

, The DATA DVD is not recorded in JPEG

format that conforms to UD F (U niversal Disk Format).

, The fil e ha s an e xt ensi on other than

“.JPEG” or “.JPG.”

, The image is larger than 3072 (width)

2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files ca nnot be displayed even if the file size is within this specified capacity.)

, The image does not fit the screen (the image

is reduced).

, “MODE (MP3 , JPEG)” is set to “AUDIO

(MP3)” (page 57).

The MP3 audio track s an d JPEG image files start playing simultaneously.

, “MODE (MP3 , JPEG)” is set to “AUTO”

(page 57).

The album/track/file name s are not displayed correctly.

, The pla ye r ca n only display numbers and

alphabet. Other characters are displayed as “*.”

The disc does not st art playing from the beginning.

, Program Play, Shuffle Play, Repeat Play or

A-B Repeat Play is selected (page 33).

, R esu me play has taken effect (page 2 9).

The player starts playing the disc automatically.

, The disc features an auto playb ack func tion . , “AUTO PLAY” in “CUSTOM SETUP” is

set to “ON” (page 68).

Playback stops automatically.

, While playing discs with an auto pause

signal, the player stops playback at the auto pause signal.

,continued

Additional Infor ma tio n

Page 76

Some functions su ch as Stop, Search, Fast Play, Slow Play, Slow-motion Play, Repeat Play, Shuffle Play, or Program Play cannot be performed.

, Depending on the disc, you may not be able

to do some of the operations above. Refer to the operating manual that comes with the disc.

The language fo r the sound track cannot be changed.

, Try using the DVD’s menu instead of the

direct selection button on the remot e (page 30).

, Multilingual tracks are n o t recorded o n the

DVD being played.

, Th e DVD prohibits the changing of the

language for the sound track.

The subtitle language cannot be changed or turned off.

, Try using the DVD’s menu instead of the

direct selection button on the remot e (page 30).

, Multilingual subtitles ar e not record ed on

the DVD being played.

, The DVD prohibits the ch anging of

subtitles.

The disc tray does not open and “LOCKED” appears on the front panel display.

, Child Lock is set (page 28).

The disc tray does not open an d “T RAY LOCKED” appears on the front panel display.

, Contact your Sony dealer or local

authorized Sony servic e fa cility.

“Data error” ap pears on the TV scre en when playing a DATA CD/DATA DVD.

, The MP3 a udi o track/JPEG image file you

want to play is broken.

, The data is not MPEG-1 Audio Layer III

data.

, The JPEG image file format does not

conform to DCF (page 53).

, The JPEG i mage file has the extension

“.JPG” or “.JPEG,” bu t is n ot in JPEG format.

The angles cannot be changed.

, Try using the DVD’s menu instead of the

direct selection button on the remot e (page 30).

, Multi-angles are not recorded on the DVD

being played.

, The angle can only be changed when the

“ ” indicator lights up on the front panel display (page 11).

, The DVD prohibits chan ging of the angles.

The player does not operate proper ly.

, When static electricity, etc., causes the

player to operate abnormally, unplug the player.

5 numbers or letters are displayed on t he screen and on the front panel display.

, The self-diagn osis function was activated.

(See the table on page 77.)

Page 77

Self-diagnosis Function

Glossary

(When letters/numbers appear in the display)

When the self-diagnosis f unction is a ctivate d to prevent the player from malfunctioni ng, a five-charac ter se rv ice nu mber (e .g. , C 13 50 ) with a combin ation of a letter and four di gits appears on the screen and the front panel display. In this cas e, check the followi ng table.

C:13:50

First three charac ters of the service number

C 13 The disc is dirty or recorded

C 31 The disc is not inserted

E XX

(xx is a number)

Cause and/or corrective action

in a format that th is player cannot play (page 8). , Clean the disc with a soft

cloth or check its format (page 2).

correctly. , Re-inser t th e disc

correctly.

To prevent a malfunction, the player has performed the self-diagnosis function. , Contac t you r ne arest

Sony dealer or local authorized Sony service facility and give the 5character service number. Example: E 61 10

Album (page 53, 55)

A unit in which to store JPEG image files or MP3 audio tracks on a DATA CD/DATA DVD. (“Album” is an exclusive definition for this player.)

Chapter (page 13)

Sections of a picture or a music featu re that are smaller t ha n titles. A title is co m po s ed of several chapters. Depending on the disc, no chapters may be recorded.

Dolby Digital (page20, 70)

Digital audio com pression technolog y developed by Dolb y Laboratories. This technology conforms to multi-channel surround soun d. The rear channel i s st ereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Di gi t al” theater surround sound systems. G o od channel sepa ration is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.

Additional Infor ma tio n

DTS (page 20, 70)

Digital audio com pression technolog y t hat Digital Theater Systems, Inc. developed. This technology conforms to multi-channel surround soun d. The rear channel i s st ereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high qual i ty digital audio. Good channel sep ar at i on i s r ealized because all of the channel data is recorded discretely and little deterioration is realized because all channel data proc essing is digital.

DVD VIDEO (page 7)

A disc that contains up to 8 hours of movin g pictures even though its diam eter is the same as a CD. The data capacity of a single-layer and singlesided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is

,continued

Page 78

9.4 GB, and double -l ayer and double-sided DVD is 17 GB. The picture data uses th e MPEG 2 format, a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (avera ge) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dol by Dig ita l, allowing you to enjoy a more realistic audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provid ed w i th the DVD.

DVD-RW (page 7)

A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD+RW (page 7)

A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.

File (page 53, 56)

A JPEG image recorded on a DATA CD/ DATA DVD (“File” is an exclusive definition for this player.) A single file consist of a single image.

Film based software, Video based software (page 19)

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie the at er s. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames/60 fie lds per second.

Normal (Interlace) format (page 19)

Normal (Interlace ) format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered l ines of a n image, an d the odd numbered field shows the odd numbered lines of an image.

Progressive format (page 19)

Compared to the Interlace format that alternatel y shows every ot her line of an image (field) to create one frame, the Progressive format shows th e entire image at onc e as a single frame. This means that while the Interlace format can s how 30 frames/60 fie lds in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and hori zontal li nes appear sh arper. Th is player is compatible with the 480 progressive format.

Progressive JPEG

Progressive JPEGs are used mostly on the internet. Th ey are diff erent fr om other J PEGs in that they “fade in” gradually instead of being drawn from top to bottom when displayed on a browser. This lets you view the image while it is being downloaded.

Super Audio CD (page 7)

A Super Audio CD disc can reproduce sounds that are extremely faithful to the original sound by use of DSD (Direct S tream Dig ital) technology. This technology utilizes a sampling fr eque ncy of 2. 8224 MHz, w hic h is 64 times th at of a co nven ti on al CD, an d 1- bi t quantization that enables the disc to hold 4 times the amount of information that a standard PCM format CD can hold. Super Audio CDs are divid ed i nt o t he following types.

• Super Audio CD (s in gle layer disc) This disc consists of a single HD layer*.

*High density signal layer for the Super Audio CD

HD (high density) layer

Page 79

• Super Audio CD (dual layer disc) This disc consists of dual HD layers an d is capable of extended play over long periods. Also, as the dual layer disc cons is ts of dual HD layers on one side only, you do not have to turn the disc ov er during playback.

HD layer

• Super Audio CD + CD (Hybrid disc) This disc consists of an HD layer and a CD layer. Also, as t he dual layers are on on e side only, you do not ha ve to turn the disc over during playback. You can play the CD layer using a co nventional CD player.

CD layer HD layer

• 2 channel + Multi -c ha nnel Su pe r Audi o C D This disc consists of the 2 channel playback area and the multi-channel playback area.

2 channel playback area

Multi-channel playback area

Additional Infor ma tio n

Title (page 11)

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or th e entire album in audio software.

Page 80

Specifications

System

Laser: Semiconductor laser Signal format system: NTSC

Audio characte r is tic s

Frequency response: DVD VIDEO (PCM

96 kHz): 2 Hz to 44 kHz (44 kHz: –2 dB ±1 dB)/Super Audio CD: 2 Hz to 100 kHz (50 kHz: –3 dB ±1 dB)/ CD: 2 Hz to 20 kHz (±0.5 dB )

Signal-to-noise ratio (S/N ratio ): 115 dB

(LINE OUT L /R (AUDIO) jacks only)

Harmonic distortion: 0.003 % Dynamic range: DVD VIDEO/Super Audio

CD: 103 dB/CD: 99 dB

Wow and flutter: Less than detected value

(±0.001% W PE A K )

Outputs

(Jack name: Jack type/Output level /Load

impedance)

LINE OUT (AUDIO): Phono jack/2 Vrms/

10 kilohms

5.1CH OUTPUT: P hono jack/2 Vrms/

10 kilohms

DIGITAL OUT (OPTICAL): Optical

output jack/–18 dBm (w av e length 660 nm)

DIGITAL OUT (COAXIAL): Phono jack/

0.5 Vp-p/75 ohms

COMPONENT VIDEO OUT(Y, P

Phono jack/Y: 1.0 Vp-p/P interlace* interlace*

= 0.648 Vp-p, prog ressive or

= 0.7 Vp-p/75 ohms

B, PR):

B, PR:

*1 BLACK LEVEL (COMPONENT OUT)

is ON

*2 BLACK LEVEL (COMPONENT OUT)

is OFF

LINE OUT (VIDEO): Phono jack/1.0 Vp-p/

75 ohms

S VIDEO OUT: 4-pin mini DIN/Y:

1.0 Vp-p, C: 0.286 Vp-p/7 5 ohms

General

Power requirem ents:

120 V AC, 60 Hz

Power consumption: 14 W Dimensions (approx.):

430 × 83 × 409 mm (

× 16

× 3 in.) (width/height/depth) incl. projecting parts

Mass (approx.): 4. 4 kg (9

lb)

Operating temperature: 5 °C to 35 °C

(41

°F to 95 °F)

Operating humidity: 25 % to 80 %

Supplied accessories

See page 16. Specifications and design are subject to

change without no ti ce .

ENERGY STAR

As an

ENERGY STAR

Corporation has determined that this product meets the

is a U.S. registered mark.

ENERGY STAR

Partner, Sony

guidelines for

energy efficiency.

Page 81

Language Code List

For details, see pag es 44, 49, 66. The language spellin gs conform to the ISO 6 39: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali;

Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian

1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian;

Lettish

1345 Malagasy

1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan)Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto;

Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-

Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-

Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian

1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu

1703 Not specified

Additional Infor ma tio n

Parental Control Area Code List

For details, see p age 59.

Code Area Code Area Code Area Code Area 2044 Argentina

2047 Australia 2046 Austria 2057 Belgium 2070 Brazil 2079 Canada 2090 Chile 2092 China 2115 Denmark

2165 Finland 2174 France 2109 Germany 2248 India 2238 Indonesia 2254 Italy 2276 Japan 2304 Korea 2363 Malaysia

2362 Mexico 2376 Netherlands 2390 New Zealand 2379 Norway 2427 Pakistan 2424 Philippines 2436 Portugal 2489 Russia 2501 Singapore
