Sony DVP-K85P User Manual

Download

Page 1

CD/DVD Player

Operating Instructions

2-681-437-14(1)

Operating Instruction s Manual de instrucc i ones

US ES

DVP-K85P

Page 2

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

The AC power cord must be changed only at a qualified service shop.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This symbol is intended to alert the user to the presence of uninsulated

within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

“dangerous voltage”

This symbol is intended to alert the user to the presence of important operating and

For customers in the U.S.A Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. DVP-K85P Serial No.______________

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the

receiving antenna.

– Increase the separation

between the equipment and receiver.

– Connect the equipment in to an

outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an

experienced radio/TV technician for help.

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

Page 3

Important Safeguards

Attachments

Do not use attachments not recommended by the manufacturer, as they may cause hazards.

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them.

Use

Power sources

This set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization

This set is equipped with a polarized ac power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below:

For the set with a polarized AC power cord plug:

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

For the set with a three-wire grounding type AC plug:

This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the grounding plug.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

Object and Liquid Entry

Never push objects of any kind into the set through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the set.

Cleaning

Unplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set.

Installation

Water and Moisture

Do not use power-line operated sets near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Power-Cord Protection

Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Accessories

Do not place the set on an unstable cart, stand, tripod, bracket, or table. The set may fall, causing serious injury to a child or an adult, and serious damage to the set. Use only a cart stand tripod, bracket, or table recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

S3125A

Ventilation

The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the set, and to protect it from overheating, these slots and openings must never be blocked or covered.

• Never cover the slots and openings with a cloth or other materials.

• Never block the slots and openings by placing the set on a bed, sofa, rug or other similar surface.

,continued

Page 4

• Never place the set in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

• Do not place the set near or over a radiator or heat register, or where it is exposed to direct sunlight.

Antennas Outdoor antenna groundin g

If an outdoor antenna or cable system is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code

Antenna Lead in Wire

Ground Clamp

Electric Service Equipment

NEC-NATIONAL ELECTRICAL CODE

Lightning

For added protection for this set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and powerline surges.

Antenna Discharge unit (NEC Section 810-20)

Grounding Conductors (NEC Section 810-21)

Ground Clamps

Power Service Grounding Electrode System (NEC Art 250 Part H)

Service

Damage Requiring Service

Unplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power cord or plug is damaged or frayed.

• If liquid has been spilled or objects have fallen into the set.

• If the set has been exposed to rain or water.

• If the set has been subject to excessive shock by being dropped, or the cabinet has been damaged.

• If the set does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation.

• When the set exhibits a distinct change in performance - this indicates a need for service.

Servicing

Do not attempt to service the set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check

Upon completion of any service or repairs to the set, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the set is in safe operating condition.

Page 5

Precautions

On safety

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.

On power sources

• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.

• If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

On placement

• Place the player in a location with adequ ate ventilation to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug.

• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the player and the discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.

• Do not place heavy objects on the player.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use a commercially available cleaning disc or disc/lens cleaner (wet or spray type). These may cause the apparatus to malfunction.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• When you move the player, take out any discs. If you don’t, the disc may be damaged.

Page 6

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Notes About the Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

This Player Can Play the Following Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Index to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Guide to the Control Menu Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Hookups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Hooking Up the Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Step 1: Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Step 2: Inserting Batteries Into the Remote. . . . . . . . . . . . . . . . . . . . . . . . . . 17

Step 3: Connecting the Video Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Step 4: Connecting the Audio Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Step 5: Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Step 6: Quick Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Resuming Playback From the Point Where You Stopped the Disc

(Multi-disc Resume). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Using the DVD’s Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Selecting “ORIGINAL” or “PLAY LIST” on a DVD-RW/DVD-R . . . . . . . . . . . 28

Playing VIDEO CDs With PBC Functions (PBC Playback) . . . . . . . . . . . . . . 29

Various Play Mode Functions (Program Play, Shuffle Play, Repeat Play,

A-B Repeat Play). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Searching for a Scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play,

Freeze Frame) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Searching for a Title/Chapter/Track/Scene, etc. . . . . . . . . . . . . . . . . . . . . . . 36

Searching by Scene (PICTURE NAVIGATION) . . . . . . . . . . . . . . . . . . . . . . 38

Enjoying Karaoke. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using Karaoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Changing the Key (Key Control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Playing Karaoke with Any Stereo Disc (Karaoke Pon) . . . . . . . . . . . . . . . . . 42

Selecting the Vocals (Vocal Select). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Turning the Guide Melody On and Off (Guide Melody) . . . . . . . . . . . . . . . . . 43

Inserting the Applause Effect (Applause). . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Selecting the Score (Score). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Viewing Information About the Disc . . . . . . . . . . . . . . . . . . . . . . . 46

Checking the Playing Time and Remaining Time . . . . . . . . . . . . . . . . . . . . . 46

Page 7

Sound Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Changing the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

TV Virtual Surround Settings (TVS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Enjoying Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Changing the Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Displaying the Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Adjusting the Playback Picture (CUSTOM PICTURE MODE). . . . . . . . . . . . 53

Sharpening the Picture (SHARPNESS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Enjoying MP3 Audio and JPEG Images . . . . . . . . . . . . . . . . . . . . . 56

About MP3 Audio Tracks and JPEG Image Files . . . . . . . . . . . . . . . . . . . . . 56

Playing MP3 Audio Tracks or JPEG Image Files. . . . . . . . . . . . . . . . . . . . . . 57

Enjoying JPEG Images as a Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Using Various Additional Functions . . . . . . . . . . . . . . . . . . . . . . . 62

Locking Discs (CUSTOM PARENTAL CONTROL,

PARENTAL CONTROL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Controlling Your TV with the Supplied Remote . . . . . . . . . . . . . . . . . . . . . . . 65

Settings and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Using the Setup Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Setting the Display or Sound Track Language (LANGUAGE SETUP) . . . . . 68

Settings for the Display (SCREEN SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . 69

Custom Settings (CUSTOM SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Settings for the Sound (AUDIO SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Self-diagnosis Function (When letters/numbers appear in the display). . . . . 76

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Language Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Parental Control Area Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Page 8

About This Manual

• Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote.

• “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs (+VR mode) and DVD-RWs/DVD-Rs (VR mode, video mode).

• The meaning of the icons used in this manual is described below:

Icons Meaning

Functions available for DVD VIDEOs and DVD+RWs/DVD+Rs in +VR mode or DVD-RWs/DVD-Rs in video mode

Functions available for DVD-RWs/DVD-Rs in VR (Video Recording) mode

Functions available for VIDEO CDs (including Super VCDs or CD-Rs/CDRWs in video CD format or Super VCD format)

Functions available for music CDs or CD-Rs/CD-RWs in music CD format, including discs containing CD Graphics

Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs containing MP3

Functions available for DATA DVDs (DVD-ROMs/DVD+Rs/DVD+RWs/ DVD-Rs/DVD-RWs containing MP3

* MP3 (MPEG-1 Audio Layer III) is a standard format defined by ISO (International Organization for

Standardization)/IEC (International Electrotechnical Commission) MPEG which compresses audio data.

audio tracks, JPEG image files)

Page 9

This Player Can Play the Following Discs

Format of discs

DVD VIDEO

DVD-RW/-R

Example of discs that the player cannot play

The player cannot play the following discs:

• CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on this page.

• CD-ROMs recorded in PHOTO CD format.

• Data part of CD-Extras.

• DVD Audio discs.

• HD layer on Super Audio CDs.

DVD+RW/+R

VIDEO CD/ Music CD/ CD Graphics

CD-RW/-R

“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.

Note about CDs/DVDs

The player can play CD-ROMs/CD-Rs/CDRWs recorded in the following formats: –music CD format –CD Graphics –video CD format –MP3 audio tracks, and JPEG image files of

format conforming to ISO 9660* Level 1/ Level 2, or its extended format, Joliet

–KODAK Picture CD format

* A logical format of files and folders on CD-

ROMs, defined by ISO (International Organization for Standardiz ation).

The player can play DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs recorded in the following format: –MP3 audio tracks, and JPEG image files of

format conforming to UDF (Universal Disk Format).

Also, the player cannot play the following discs:

• A DVD VIDEO with a different region code.

• A disc recorded in a color system other than NTSC, such as PAL or SECAM (this player conforms to the NTSC color system).

• A disc that has a non-standard shape (e.g., card, heart).

• A disc with paper or stickers on it.

• A disc that has the adhesive of cellophane tape or a sticker still left on it.

Region code

Your player has a region code printed on the back of the unit and only will play DVD VIDEOs (playback only) labeled with identical region codes. This system is used to protect copyrights.

ALL

Region code

DVD VIDEOs labeled will also play on this player.

If you try to play any other DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, there may be no region code indication, even though playing the DVD VIDEO is prohibited by area restrictions.

00V 00Hz

NO.

DVP–XXXX

00W

0-000-000-00

,continued

Page 10

Notes

• Notes about DVD+RWs/DVD+Rs, DVD-RWs/ DVD-Rs or CD-Rs/CD-RWs

Some DVD+RWs/DVD+Rs, DVD-RWs/DVDRs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the c haracteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized . In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

• Music discs encoded with copyright protection

technologies

This product is designed to playback discs that conform to the Compact Disc (C D) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Pl ease be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

• Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (C D) standard, playback on this product is not guaranteed.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

Page 11

Index to Parts and Controls

For more information, see the pages indicated in parentheses.

Front panel

MIC 1 MIC 2

LEVEL

MIC 1 MIC 2

ECHO LEVEL

MIN MAX MIN MAX MIN MAX

A [/1 (on/standby) button (25) B Key control buttons (41) C Disc tray (25) D A (open/close) button (25) E H (play) button (25) F X (pause) button (26) G x (stop) button (26) H ./> (previous/next) buttons (35)

Rear panel

LINE OUT

COAXIAL VIDEO

AUDIO

OPTICAL

COMPONENT VIDEO OUT

S VIDEO OUT

DIGITAL OUT

PROGRESSIVE

I PROGRESSIVE button/indicator (20)

Lights up when the player outputs progressive signals.

J Front panel display (12) K (remote sensor) (17) L ECHO LEVEL control (39) M MIC 1/2 (microphone) LEVEL control

(39)

N MIC 1/2 (microphone) connectors (39)

A DIGITAL OUT (COAXIAL) jack (21) B LINE OUT L/R (AUDIO) jacks (21) C LINE OUT (VIDEO) jack (18) D S VIDEO OUT jack (18)

E COMPONENT VIDEO OUT jacks

(18)

F DIGITAL OUT (OPTICAL) jack (21)

,continued

Page 12

Front panel display

When playing back a DVD VIDEO/DVD-VR mode disc

Disc type

Lights up during Repeat Play (33)

Playing status

Current audio signal (50)

Lights up when you can change the angle (52)

Current title/chapter or playing time (46)

When playing back a VIDEO CD with Playback Control (PBC) (29)

Disc type

Playing status

Lights up during A-B Repeat Play (34)

Current scene or playing time (46)

When playing back a CD, DATA CD (MP3 audio)/DATA DVD (MP3 audio), or VIDEO CD (without PBC)

Playing status

Lights up during Repeat Play (33)

Current track (46)

Disc type*

* When playing DATA DVDs, the DVD indicator is displayed.

When playing VIDEO CDs (without PBC), the VCD indicator is displayed.

Lights up when playing MP3 audio tracks (56)

Playing time (46)

Page 13

Remote

A TV [/1 (on/standby) button (65) B Z OPEN/CLOSE button (26) C Number buttons (28)

The number 5 button has a tactile dot.*

D CLEAR button (30) E TOP MENU button (28) F C/X/x/c buttons (28) G O RETURN button (25) H / REPLAY/STEP/

ADVANCE/STEP buttons (26, 36)

I ./> PREV/NEXT (previous/

next) buttons (26)

J m/M SCAN/SLOW

buttons (36)

K ZOOM button (26, 59) L SLOW PLAY/FAST PLAY buttons

(26)

M SUR (surround) button (50) N VOCAL SELECT button (42) O AUDIO button (49) P SUBTITLE button (52) Q [/1 (on/standby) button (25) R VOL (volume) +/– buttons (65)

The + button has a tactile dot.*

S TV/VIDEO button (65) T PICTURE NAVI (picture navigation)

button (38, 59)

U TIME/TEXT button (46) V MENU button (28) W ENTER button (23) X DISPLAY button (14) Y H PLAY button (25)

The H button has a tactile dot.*

Z x STOP button (26)

wj X PAUSE button (26) wk KEY CONTROL (2-#) buttons (41) wl APPLAUSE button (44) e; KARAOKE PON button (42) ea SCORE button (44) es ANGLE button (52)

* Use the tactile dot as a reference when operating

the player.

Page 14

Guide to the Control Menu Display

Use the Control Menu to select a function and to view related information. Press DISPLAY repeatedly to turn on or change the Control Menu display as follows:

Control Menu display 1

You can use the Control Menu display items for KEY CONTROL, SCORE MODE, KARAOKE PON, VOCAL SELECT or, GUIDE MELODY when the player is in karaoke mode only. For details, see page 39.

Control Menu display

The Control Menu display 1 and 2 will show different items depending on the disc type. For details about each item, see the pages in parentheses.

Example: Control Menu display 1 when playing a DVD VIDEO.

Control Menu display 2

Control Menu display off

Control Menu items

1 2 ( 2 7 1 8 ( 3 4 T

Selected item

Function name of selected Control Menu item

Operation message

*1Displays the scene number for VIDEO CDs

(PBC is on), track number for VIDEO CDs/ CDs, album number for DATA CDs/DATA DVDs.

*2Displays the index number for VIDEO CDs,

MP3 audio track number or JPEG image file

number for DATA CDs/DATA DVDs. *3Displays Super VCD as “SVCD.” *4Displays the date for JPEG files. *5Appears when the player is in karaoke mode.

PROGRAM

1 : 3 2 : 5 5

OFF OFF SET ON

ENTER DISPLAY

Currently playing chapter number* Currently playing title number* Total number of titles*

Total number of chapters*

) )

PLAY DVD VIDEO

Quit:

To turn off the display

Press DISPLAY repeatedly.

Playback status (N Playback,

X Pause, x Stop, etc.)

Type of disc being played*

Playing time* Current setting

Options

Page 15

List of Control Menu items

Item Item Name, Function

TITLE (page 36)/SCENE (page 36)/TRACK (page 36)

Selects the title, scene, or track to be played.

CHAPTER (page 36)/INDEX (page 36)

Selects the chapter or index to be played.

TRACK (page 36)

Selects the track to be played.

ORIGINAL/PLAY LIST (page 28)

Selects the type of titles (DVD-RW/DVD-R in VR mode) to be played, the ORIGINAL one, or an edited PLAY LIST.

TIME/TEXT (page 36)

Checks the elapsed time and the remaining playback time. Input the time code for picture and music searching. Displays the DVD/CD text, or the DATA CD/DATA DVD track/file name.

PROGRAM (page 31)

Selects the title, chapter, or track to play in the order you want.

SHUFFLE (page 32)

Plays the title, chapter, or track in random order.

REPEAT (page 33)

Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/ album repeatedly.

A-B REPEAT (page 34)

Specifies the parts you want to play repeatedly.

CUSTOM PICTURE MODE (page 53)

Adjusts the video signal from the player. You can select the picture quality that best suits the program you are watching.

SHARPNESS (page 55)

Exaggerates the outline of the image to produce a sharper picture.

PARENTAL CONTROL (page 62)

Set to prohibit playback on this player.

SETUP (page 67)

QUICK Setup (page 23) Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of the TV and the audio output signal. CUSTOM Setup In addition to the Quick Setup setting, you can adjust various other settings. RESET Returns the settings in “SETUP” to the default setting.

ALBUM (page 36)

Selects the album that contains MP3 audio track and JPEG image file to be played.

FILE (page 36)

Selects the JPEG image file to be played.

DATE (page 59)

Displays the date the picture was taken by a digital camera.

INTERVAL (page 61)

Specifies the duration for which the slides are displayed on the screen.

EFFECT (page 61)

Selects the effects to be used for changing slides during a slide show.

,continued

Page 16

MODE (MP3, JPEG) (page 60)

Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both (AUTO) to be played when playing a DATA CD or DATA DVD.

KEY CONTROL (page 41)

Changes the key to suit your vocal range.

KARAOKE MODE (page 39)

Sets the player to karaoke mode.

SCORE MODE (page 44)

Selects different kind of scoring method to suit your level.

KARAOKE PON (page 42)

Enjoy karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals.

VOCAL SELECT (page 42)

Selects different kind of vocals recorded on the disc.

GUIDE MELODY (page 43)

Selects to the guide melody.

z Hint

The Control Menu icon indicator lights up in green

except “OFF” (“PROGRAM,” “SHUFFLE,” “REPEAT,” “A-B REPEAT,” “CUSTOM PICTURE MODE,” “SHARPNESS,” “KARAOKE MODE,” “KARAOKE PON,” “VOCAL SELECT,” “GUIDE MELODY” only). The “ORIGINAL/PLAY LIST” indicator lights up in green when you select “PLAY LIST” (default setting).

when you select any item

Page 17

Hookups

Hooking Up the Player

Follow steps 1 to 6 to hook up and adjust the settings of the player.

Notes

• Plug cords securely to prevent unwanted noise.

• Refer to the instructions supplied with the components to be connected.

• You cannot connect this player to a TV that does no t hav e a v ideo input jack.

• Be sure to disconnect the power cord of each component before connecting.

Step 1: Unpacking

Check that you have the following items:

• Audio/Video cord (phono plug × 3 y phono plug × 3) (1)

• Remote commander (remot e) (1)

• Size AA (R6) batteries (2)

Step 2: Inser t ing Batteries Into the Remote

You can control the player using the supplied remote. Insert two Size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player.

Hookups

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not drop any foreign object into the remote c as ing, pa rt ic ula r ly whe n r ep la ci ng the ba tte r ie s.

• Do not expose the remote sensor to direct light from the sun or a lighting apparatus. Doing so may cause a malfunction.

• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

,continued

Page 18

Step 3: Connecting the Video Cords

Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord. Select one of the patterns A through C, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). In order to view progressive signal (480p) pictures with a compatible TV, projector, or monitor, you must use pattern C.

INPUT

VIDEO

AUDIO

(yellow)

TV, projector or AV amplifier (receiver)

Audio/video cord (supplied)

(yellow)

S VIDEO cord (not supplied)

INPUT

S VIDEO

TV, projector or AV amplifier (receiver)

to LINE OUT (VIDEO)

COAXIAL

AUDIO

OPTICAL

DIGITAL OUT

COMPONENT VIDEO OUT

(green)

(blue)

LINE OUT

(red)

VIDEO

S VIDEO OUT

to COMPONENT VIDEO OUT

to S VIDEO OUT

CD/DVD player

COMPONENT

VIDEO IN

Component video cord (not supplied)

TV, projector or AV

l : Signal flow

amplifier (receiver)

A If you are connecting to a video input jack

Connect the yellow plug of an audio/video cord (supplied) to the yellow (video) jack. You will enjoy standard quality images. With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on the front panel.

Yellow

White (L)

Red (R)

Yellow White (L) Red (R)

(green)

(blue)

(red)

Page 19

B If you are connecting to an S VIDEO input jack

Connect an S VIDEO cord (not supplied). You will enjoy high quality images. With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on the front panel.

C If you are connecting to a monitor, projector, or AV amplifier

(receiver) having component video input jacks (Y, P

Connect the component via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images. If your TV accepts progressive 480p format signals, use this connection and press the PROGRESSIVE button on the front panel to output progressive signals. For details, see “Using the PROGRESSIVE button” (page 20).

B, PR)

Hookups

Green Blue Red

When connecting to a wide screen TV

Depending on the disc, the image may not fit your TV screen. To change the aspect ratio, see page 69.

Note

Do not connect a VCR, etc., between your TV and the player. If you pass the player signals via the VCR, you may not receive a clear image on the TV screen. If your TV has only one audio/video input jack, connect the player to this jack.

VCR

CD/DVD player

Connect directly

,continued

Page 20

Using the PROGRESSIVE button

By using the PROGRESSIVE button on the front panel, you can select the signal format in which the player outputs video signals (Progressive or Interlace), and the conversion method for progressive signals. The PROGRESSIVE indicator lights up when the player outputs progressive signals. Each time you press PROGRESSIVE, the display changes as follows:

PROGRESSIVE AUTO

PROGRESSIVE VIDEO

NORMAL (INTERLACE)

◆PROGRESSIVE AUTO

Select this setting when: –your TV accepts progressive signals, and, –the TV is connected to the COMPONENT VIDEO OUT jacks. Normally select this under the above condition. This automatically detects the software type, and selects the appropriate conversion method. Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met.

◆PROGRESSIVE VIDEO

Select this setting when: –your TV accepts progressive signals, and, –the TV is connected to the COMPONENT VIDEO OUT jacks, and, –you want to fix the conversion method to PROGRESSIVE VIDEO for video-based software. Select this if the image is not clear when you select PROGRESSIVE AUTO. Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met.

◆NORMAL (INTERLACE)

Select this setting when: –your TV does not accept progressive signals, or, –your TV is connected to jacks other than the COMPONENT VIDEO OUT jacks (LINE OUT

(VIDEO) or S VIDEO OUT).

About DVD software types and the conversion method

DVD software can be divided into two types: film-based software and video-based software. Video-based software is derived from TV, such as dramas and sitcoms, and displays images at 30 frames/60 fields per second. Film-based software is derived from film and displays images at 24 frames per second. Some DVD software contains both video and film. In order for these images to appear natural on your screen when output in progressive format, the progressive signals need to be converted to match the type of DVD software that you are watching.

Note

When you play video-based software in progressive signal format, sections of some t ypes of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. Images from the S VIDEO OUT and LINE OUT (VIDEO) jacks are unaffected as they are output in the normal (interlace) format.

Page 21

Step 4: Connecting the Audio Cords

Select one of the following patterns A or B, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). This will enable you to listen to sound.

Hookups

(red)

Audio/video cord (supplied)

(white)

(yellow)*

LINE OUT

VIDEO

AUDIO

to LINE OUT L/R (AUDIO)

LINE OUT

VIDEO

COAXIAL

AUDIO

OPTICAL

COMPONENT VIDEO OUT

S VIDEO OUT

DIGITAL OUT

to DIGITAL OUT (COAXIAL or OPTICAL)

COAXIAL

OPTICAL

DIGITAL OUT

Optical digital cord (not supplied)

to optical

[Speakers]

digital input

Rear (L)

(yellow)*

(white)

(red)

TV, projector, or AV amplifier (receiver)

Coaxial digital cord (not supplied)

to coaxial digital input

INPUT

VIDEO

AUDIO

CD/DVD player

[Speakers]

Rear (R)

Front (L)

Center

AV amplifier (receiver) with a decoder

Front (R)

Subwoofer

: Signal flow

* The yellow plug is used for video signals (page 18).

z Hint

For correct speaker location , see the operating instructions supplied with the connected components.

,continued

Page 22

A Connecting to audio L/R input

jacks

This connection will use your TV’s or stereo amplifier’s (receiver’s) two speakers for sound. Connect using the audio/video cord (supplied).

Yellow

White (L)

Red (R)

Yellow White (L)

Red (R)

B Connecting to a digital audio

input jack

If your AV amplifier (receiver) has a Dolby

Digital* input jack, use this connection. Connect using a coaxial or an optical digital cord (not supplied).

or DTS*2 decoder and a digital

Coaxial cord

Optical cord

• Surround effect (page 51) TV: Dynamic Theater, Dynamic, Wide, Night

Stereo amplifier (receiver): Standard, Night

• Surround effect Dolby Digital (5.1ch), DTS (5.1ch)

Manufactured under license f rom Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Notes

• After you have completed the connection, make the appropriate settings in Quick Setup (page 23). Otherwise, no sound or a loud noise will come from your speakers.

• The TVS effects of this player cannot be used with this connection.

• In order to listen to DTS sound tracks, you must use this connection. DTS sound tracks are not output through the LINE OUT L/R (AUDIO) jacks, even if you set “DTS” to “ON” in Quick Setup (page 23).

Page 23

Step 5: Connecting the Power Cord

Plug the player and TV power cords into an AC outlet.

Step 6: Quick Setup

Follow the steps below to make the minimum number of basic adjustments for using the player. To skip an adjustment, press >. To return to the previous adjustment, press ..

ENTE

Hookups

1 Turn on the TV. 2 Press [/1. 3 Switch the input selector on your

TV so that the signal from the player appears on the TV screen.

“Press [ENTER] to run QUICK SETUP” appears at the bottom of the screen. If this message does not appear, select “QUICK” under “SETUP” in the Control Menu to run Quick Setup (page 68).

4 Press ENTER without inserting a

disc.

The Setup Display for selecting the language used in the on-screen display appears.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

5 Press X/x to select a language.

The player displays the menu and subtitles in the selected language.

6 Press ENTER.

The Setup Display for selecting the aspect ratio of the TV to be connected appears.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT: FULL

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

(COMPONENT OUT)

16:9

OFF

,continued

Page 24

7 Press X/x to select the setting that

matches your TV type.

◆ If you have a 4:3 standard TV

• 4:3 LETTER BOX or 4:3 PAN SCAN (page 69)

◆ If you have a wide-screen TV or a 4:3

standard TV with a wide-screen mode

• 16:9 (page 69)

8 Press ENTER.

The Setup Display for selecting the type of jack used to connect your amplifier (receiver) appears.

10Press X/x to select the type of

Dolby Digital signal you wish to send to your amplifier (receiver).

If your AV amplifier (receiver) has a Dolby Digital decoder, select “DOLBY DIGITAL.” Otherwise, select “D-PCM.”

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

DOLBY DIGITAL

OFF

STANDARD

ON D-PCM D-PCM

Is this player connected to an amplifier (receiver) ? Select the type of jack you are using.

YES

LINE OUTPUT L/R (AUDIO) DIGITAL OUTPUT

9 Press X/x to select the type of jack

(if any) you are using to connect to an amplifier (receiver), then press ENTER.

If you did not connect an AV amplifier (receiver), select “NO,” then go to step

13. If you connected an AV amplifier (receiver) using just an audio cord, select “YES: LINE OUTPUT L/R (AUDIO),” then go to step 13. If you connected an AV amplifier (receiver) using a digital coaxial or an optical cord, select “YES: DIGITAL OUTPUT.”

11Press ENTER.

“DTS” is selected.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

OFF

STANDARD

ON D-PCM

OFF OFF

12Press X/x to select whether or

not you wish to send a DTS signal to your amplifier (receiver).

If your AV amplifier (receiver) has a DTS decoder, select “ON.” Otherwise, select “OFF.”

13Press ENTER.

Quick Setup is finished. All connections and setup operations are complete.

Page 25

Playing Discs

4 Press A on the player, and place a

disc on the disc tray.

Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.

LEVEL

MIC 1 MIC 2

MIN MAX MIN MAX MIN MAX

RETURN

ECHO LEVEL

PROGRESSIVE

ENTE

1 Turn on your TV. 2 Press [/1.

The player turns on.

3 Switch the input selector on your

TV so that the signal from the player appears on the TV screen.

◆ When using an amplifier (receiver)

Turn on the amplifier (receiver) and select the appropriate channel so that you can hear sound from the player.

Playback side facing down

5 Press H.

The disc tray closes. The player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). Depending on the disc, a menu may appear on the TV screen. For DVD VIDEOs, see page 28. For VIDEO CDs, see page 29.

To turn off the player

Press [/1. The player enters standby mode.

z Hint

You can have the player turn off automatically whenever you leave it in stop m ode for more than 30 minutes. To turn this function on or off, set “AUTO POWER OFF” in “CUSTOM SETUP” to “ON” or “OFF” (page 70).

Note

Discs created on DVD recorders must be correctly finalized before they can be played. For more information about finalizing, refer to the operating instructions supplied with the DVD recorder.

Notes on playing DTS sound tracks on a DVD VIDEO

• DTS audio signals are outpu t only through the DIGITAL OUT (COAXIAL or OPTICAL) jack.

• When you play a DVD VIDEO with DTS sound tracks, set “DTS” to “ON” in “AUDIO SETUP” (page 72).

• If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to “ON” in “AUDIO SETUP” (page 72). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged.

Playing Discs

,continued

Page 26

Additional operations

CLEAR

REPLAY

ZOOM

SLOW PLAY

ADVANCE

FAST PLAY

Notes

• You may not be able to use the Re play or Advance function with some scenes.

• When playing CD Graphics, the picture may not appear to play smoothly.

Playback quickly or slowly with sound

You can listen to dialog or sound while playing the current scene quickly or slowly.

During playback, press FAST PLAY or SLOW PLAY.

The speed changes when you press either FAST PLAY or SLOW PLAY.

To return to normal playback

Press H.

To Operation

Stop Press x Pause Press X Resume play after

pause Go to the next chapter,

track, or scene in continuous play mode

Go back to the previous chapter, track, or scene in continuous play mode

Stop play and remove the disc

Replay the previous

scene*

Briefly fast forward the current scene*

Magnify the image*

*1DVD VIDEOs/DVD-RWs/DVD-Rs only. *2DVD VIDEOs/DVD-RWs/DVD-Rs/

DVD+RWs/DVD+Rs only.

*3Video and JPEG pictures only (except

BACKGROUND pictures). You can move the enlarged picture using C/X/x/c. Depending upon the contents of the disc, the zoom function may be canceled automatically when the picture is moved.

Press X or H

Press >

Press .

Press Z

Press REPLAY during playback

Press

ADVANCE during playback

Press ZOOM repeatedly. Press CLEAR to cancel.

Notes

• You can only use this function with DVDs/ VIDEO CDs/Super VCDs and DVD-RWs/DVDRs in VR mode only.

• “Operation not possible” will appe ar when maximum or minimum speed is reached.

• During Fast Play or Slow Play mode, you cannot change the angle (page52), subtitle (page 52), or sound (page 49). The sound can only be changed for VIDEO CDs/Super VCDs.

• Fast Play and Slow Play functions do not work when playing DTS sound tracks.

• You cannot use Fast Play or Slow Play functions when playing a still picture on DVD-RW/DVD-R in VR mode.

Locking the disc tray (Child Lock)

You can lock the disc tray to prevent children from opening it.

When the player is in standby mode, press O RETURN, ENTER, and then [/1 on the remote.

The player turns on and “LOCKED” appears on the front panel display. The buttons on the player or the remote do not work while the Child Lock is set.

To unlock the disc tray

When the player is in standby mode, press O RETURN, ENTER, and then [/1 again.

Note

Even if you select “RESET” under “SETUP” in the Control Menu (page 68), the disc tray remains locked.

A and Z

Page 27

Resuming Playback From the Point Where You Stopped the Disc (Multi-disc

Resume)

The player stores the point where you stopped the disc for up to 6 discs and resumes playback the next time you insert the same disc. If you store a resume playback point for the seventh disc, the resume playback point for the first disc is deleted.

Notes

• “MULTI-DISC RESUME” in “CUSTOM SETUP” must be set to “ON” (default) for this function to work (page 71).

• The point where you stopped playing is cleared when:

– you change the play mode. – you change the settings on the Setup Display.

• For DVD-RWs/DVD-Rs in VR mode, CDs, DATA CDs, and DATA DVDs the player remembers the resume playback point for the current disc. The resume point is cleared when:

– you opened the disc tray. – you disconnect the power cord. – the player enters standby mode (DATA CD/

DATA DVD only).

• Resume Play does not work during Shuffle Play and Program Play.

• This function may not w ork with some discs.

• If “MULTI-DISC RESUME” in “CUSTOM SETUP” is set to “ON” and you playback a recorded disc such as DVD-RW, the player may playback other recorded discs from the same resume point.

• When using the Resume function on CD Graphics, the playback starts from the beginning of the track.

Playing Discs

1 While playing a disc, press x to

stop playback.

“RESUME” appears on the front panel display.

2 Press H.

The player starts playback from the point where you stopped the disc in step 1.

z Hint

To play from the beginning of the disc, press x twice, then press H.

Page 28

Using the DVD’s Menu

A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as language for the sound and subtitles, select these items using the MENU button.

Number buttons

Selecting “ORIGINAL” or “PLAY LIST” on a DVDRW/DVD-R

Some DVD-RWs/DVD-Rs in VR (Video Recording) mode have two types of titles for playback: originally recorded titles (ORIGINAL) and titles that can be created on recordable DVD players for editing (PLAY LIST). You can select the type of title to be played.

MENUTOP MENU ENTER

1 Press TOP MENU or MENU.

The disc’s menu appears on the TV screen. The contents of the menu vary from disc to disc.

2 Press C/X/x/c or the number

buttons to select the item you want to play or change.

If you press the number buttons, the following display appears. Press the number buttons to select the item you want.

ENTER DISPLAY

1 Press DISPLAY when the player is

in stop mode.

The Control Menu appears.

2 Press X/x to select

(ORIGINAL/PLAY LIST), then press ENTER.

The options for “ORIGINAL/PLAY LIST” appear.

)

1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 2 : 5 5 PLAY LIST PLAY LIST ORIGINAL

)

DVD-VR

3 Press ENTER.

Page 29

3 Press X/x to select a setting.

• PLAY LIST: plays the titles created from “ORIGINAL” for editing.

• ORIGINAL: plays the titles originally recorded.

Playing VIDEO CDs With PBC Functions (PBC Playback)

4 Press ENTER.

PBC (Playback Control) allows you to play VIDEO CDs interactively by following the menu on the TV screen.

Number buttons

ENTER

RETURN

1 Start playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

2 Press the number buttons to select

the item number you want.

Playing Discs

3 Press ENTER. 4 Follow the instructions in the

menu for interactive operations.

Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.

To return to the menu

Press O RETURN.

,continued

Page 30

z Hint

To play without using PBC, press ./> or the number buttons while the player is stopped to select a track, then press H or ENTER. “Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H.

Note

Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H.

Various Play Mode Functions (Program Play,

Shuffle Play, Repeat Play, A-B Repeat Play)

You can set the following play modes:

• Program Play (page 31)

• Shuffle Play (page 32)

• Repeat Play (page 33)

• A-B Repeat Play (page 34)

CLEAR

ENTER

DISPLAY

Note

The play mode is canceled when: – you open the disc tray. – the player enters standby mode by pressing [/1.

Page 31

Creating your own program (Program Play)

You can play the contents of a disc in the order you want by arranging the order of the titles, chapters, or tracks on the disc to create your own program. You can program up to 99 titles, chapters, and tracks.

1 Press DISPLAY.

The Control Menu appears.

2 Press X/x to select

(PROGRAM), then press ENTER.

The options for “PROGRAM” appear.

)

1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 2 : 5 5 OFF OFF SET ON

)

PLAY DVD VIDEO

3 Press X/x to select “SET t,” then

press ENTER.

“TRACK” is displayed when you play a VIDEO CD, or CD.

PROGRAM

ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

– – – – – – – – – – – –

– –

01 02 03 04 05

Titles or tracks recorded on a disc

4 Press c.

The cursor moves to the title or track row “T” (in this case, “01”).

PROGRAM

ALL CLEAR

– –

1. TITLE – –

2. TITLE – –

3. TITLE – –

4. TITLE – –

5. TITLE – –

6. TITLE – –

7. TITLE

Chapters recorded on a disc

– –

ALL

02 03

5 Select the title, chapter, or track you

want to program.

◆ When playing a DVD VIDEO

For example, select chapter “03” of title “02.” Press X/x to select “02” under “T,” then press ENTER.

PROGRAM

ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

– – – – – – – – – – – – – –

– –

ALL

Next, press X/x to select “03” under “C,” then press ENTER.

PROGRAM

ALL CLEAR

1. TITLE 0 2

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

– – – – – – – – – – – –

–

Selected title and chapter

0 3

– –

01 02 03 04 05

◆ When playing a VIDEO CD, or CD

For example, select track “02.” Press X/x to select “02” under “T,” then press ENTER.

Selected track

– – – – – – – – – – – –

0:15:30

– – 01 02 03

04 05

PROGRAM

ALL CLEAR

1. TRACK 0 2

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

Total time of the programmed tracks

6 To program other titles, chapters, or

tracks, repeat steps 4 to 5.

The programmed titles, chapters, and tracks are displayed in the selected order.

7 Press H to start Program Play.

Program Play begins. When the program ends, you can restart the same program again by pressing H.

Playing Discs

,continued

Page 32

To return to normal play

Press CLEAR, or select “OFF” in step 3. To play the same program again, select “ON” in step 3 and press ENTER.

To change or cancel a program

1 Follow steps 1 to 3 of “Creating your own

program (Program Play).”

2 Select the program number of the title,

chapter, or track you want to change or cancel using X/x and press c. If you want to delete the title, chapter, or track from the program, press CLEAR.

3 Follow step 5 for new programming. To

cancel a program, select “--” under “T,” then press ENTER.

To cancel all of the titles, chapters, or tracks in the programmed order

1 Follow steps 1 to 3 of “

program (Program Play).”

Creating your own

2 Press X and select “ALL CLEAR.” 3 Press ENTER.

z Hint

You can perform Repeat Play or Shuffle Play of programmed titles, chapters, or tracks. During Program Play, follow the steps of Repeat Play (page

33) or Shuffle Play (page 32).

Notes

• When you program tracks on a Super VCD, the total playing time is not displayed.

• You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.

Playing in random order (Shuffle Play)

You can have the player “shuffle” titles, chapters, or tracks. Subsequent “shuffling” may produce a different playing order.

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press X/x to select

(SHUFFLE), then press ENTER.

The options for “SHUFFLE” appear.

)

1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF OFF TITLE CHAPTER

)

PLAY DVD VIDEO

3 Press X/x to select the item to be

shuffled.

◆ When playing a DVD VIDEO

• TITLE

• CHAPTER

◆ When playing a VIDEO CD or CD

• TRACK

◆ When Program Play is activated

• ON: shuffles titles, chapters, or tracks

selected in Program Play.

4 Press ENTER.

Shuffle Play starts.

To return to normal play

Press CLEAR, or select “OFF” in step 3.

z Hints

• You can set Shuffle Play while the player is stopped. After selecting the “SHUFFLE” option, press H. Shuffle Play starts.

• Up to 200 chapters in a disc can be played in random order when “CHAPTER ” is selected.

Note

You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.

Page 33

Playing repeatedly (Repeat Play)

You can play all of the titles or tracks on a disc, or a single title, chapter, or track repeatedly. You can use a combination of Shuffle or Program Play modes.

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press X/x to select

(REPEAT), then press ENTER.

The options for “REPEAT” appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF OFF DISC TITLE CHAPTER

DVD VIDEO

3 Press X/x to select the item to be

repeated.

◆ When playing a DVD VIDEO

• DISC: repeats all of the titles.

• TITLE: repeats the current title on a

disc.

• CHAPTER: repeats the current

chapter.

◆ When playing a DVD-VR mode disc

• DISC: repeats all the ti tles of the

selected type.

• TITLE: repeats the current title on a

disc.

• CHAPTER: repeats the current

chapter.

◆ When playing a VIDEO CD or CD

• DISC: repeats all of the tracks.

• TRACK: repeats the current track.

◆ When playing a DATA CD/DATA DVD

• DISC: repeats all of the albums.

• ALBUM: repeats the current album.

• TRACK (MP3 audio tracks only):

repeats the current track.

◆ When Program Play or Shuffle Play is

activated

• ON: repeats Program Play or Shuffle Play.

4 Press ENTER.

Repeat Play starts.

To return to normal play

Press CLEAR, or select “OFF” in step 3.

z Hint

You can set Repeat Play while the player is stopped. After selecting the “REPEAT” option, press H. Repeat Play starts.

Notes

• You cannot use th is function with VIDEO CDs or Super VCDs with PBC playback.

• When repeating a DATA CD/DATA DVD which contains MP3 audio tracks and JPEG image files, and their playing times are not the same, the sound will not match the image.

• When “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 60), you cannot select “TRACK.”

Playing Discs

,continued

Page 34

Repeating a specific portion (A-B Repeat Play)

You can play a specific portion of a title, chapter or track repeatedly. (This function is useful when you want to memorize lyrics, etc.)

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press X/x to select (A-B

REPEAT), then press ENTER.

The options for “A-B REPEAT” appear.

To return to normal play

Press CLEAR, or select “OFF” in step 3.

Notes

• When you set A-B Repeat Play, the settings for Shuffle Play, Repeat Play, and Program Play are canceled.

• A-B Repeat Play does not work across multiple titles.

• A-B Repeat Play does not work on CD Graphics.

• You may not set A-B Repeat Play for contents on a DVD-RW/DVD-R (VR mode) that contains still pictures.

1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF SET OFF

) )

PLAY DVD VIDEO

3 Press X/x to select “SET t,” then

press ENTER.

The “A-B REPEAT” setting bar appears.

A 18 - 1:32:30 B

4 During playback, when you find the

starting point (point A) of the portion to be played repeatedly, press ENTER.

The starting point (point A) is set.

A 18 - 1:32:55 B 18 - 1:33:05

5 When you reach the ending point

(point B), press ENTER again.

The set points are displayed and the player starts repeating this specific portion.

Page 35

Searching for a Scene

Searching for a Particular Point on a Disc (Search, Scan, Slow-motion

Play, Freeze Frame)

You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly.

STEP

Locating a point quickly using the PREV (previous)/NEXT (next) buttons (Search)

You can search for the next or previous chapter, track, or scene using ./> on the player. During playback, press > or . once briefly to go to the next or previous chapter/ track/scene. Or, press and hold > or . to search forward or backwards, and release the button when you find the point you want to return to normal playback. (Search)

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

Press m or M while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press m or M during scan, the scan speed changes. With each press the indication changes as shown below. Actual speeds may differ between discs.

Playback direction

×2B t 1M t 2M t 3M

Searching for a Scene

MIC 1 MIC 2

LEVEL

MIC 1 MIC 2

MIN MAX MIN MAX MIN MAX

ECHO LEVEL

PROGRESSIVE

Notes

• Depending on the dis c, you may no t be able to do some of the operations described.

• For DATA CDs/DATA DVDs, you can search for a particular point only on an MP3 audio track.

3M (DVD VIDEO/DVD-VR mode/VIDEO CD only) ×2B (DVD VIDEO/CD only)

Opposite direction

×2b t 1m t 2m t 3m

3m (DVD VIDEO/DVD-VR mode/VIDEO CD only) ×2b (DVD VIDEO only)

The “×2B”/ “×2b” playback speed is about twice the normal speed. The “3M”/“3m” playback speed is faster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/ “1m.”

,continued

Page 36

Note

For CDs, Scan function does not work for CD Graphics only.

Watching frame by frame (Slow-motion Play)

Press m or M when the player is in pause mode. To return to normal speed, press H. Each time you press m or M during Slow-motion Play, the playback speed changes. Two speeds are available. With each press the indication changes as follows:

Playback direction

2 y 1

Opposite direction (DVD/DVD-VR mode only)

2 y 1

The “2 y”/“2 ” playback speed is slower than “1 y”/“1 .”

Playing one frame at a time (Freeze Frame)

When the player is in the pause mode, press

STEP to go to the next frame. Press

STEP to go to the preceding frame (DVD/DVD-VR mode only). To return to normal playback, press H.

Note

You cannot search for a still picture o n a DVD-RW/ DVD-R in VR mode.

Searching for a Title/ Chapter/Track/Scene, etc.

You can search a DVD by title or chapter, and you can search a VIDEO CD/CD/DATA CD/ DATA DVD by track, index, file, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. You can also search for a scene using the time code.

Number buttons

CLEAR

ENTER

DISPLAY

1 Press DISPLAY (When playing a

DATA CD or DATA DVD with JPEG image files, press twice).

The Control Menu appears.

2 Press X/x to select the search

method.

◆ When playing a DVD VIDEO/DVD-VR mode disc

TITLE CHAPTER TIME/TEXT

Select “TIME/TEXT” to search for a starting point by inputting the time code.

◆ When playing a VIDEO CD or Super VCD without PBC Playback

TRACK INDEX

Page 37

◆ When playing a VIDEO CD or Super VCD with PBC Playback

SCENE

◆ When playing a CD

TRACK

◆ When playing a DATA CD/DATA DVD

ALBUM

TRACK (MP3 audio tracks only)

FILE (JPEG image files only)

Example: when you select CHAPTER “** (**)” is selected (** refers to a number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, album or files.

1 2 ( 2 7 1 8 ( 3 4 T

1 : 3 2 : 5 5

) )

Selected row

PLAY DVD VIDEO

3 Press ENTER.

“** (**)” changes to “-- (**).”

1 2 ( 2 7

( 3 4

1 : 3 2 : 5 5

) )

PLAY DVD VIDEO

To search for a scene using the time code (DVD VIDEO/DVD-VR mode only)

1 In step 2, select TIME/TEXT.

“T **:**:**” (playing time of the current title) is selected.

2 Press ENTER.

“T **:**:**” changes to “T --:--:--.”

3 Input the time code using the number

buttons, then press ENTER. For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.”

z Hints

• When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD-VR mode), track (CD/DATA CD/DATA DVD), by pressing the number button s and ENTER.

• You can display the firs t scen e of ti tles, ch apters , or tracks recorded on the disc on a screen divided into 9 sections. You can start playback directly by selecting one of the scenes. For details, see “Searching by Scene (PICTU RE NAVIGATION)” (page 38).

Notes

• The title, chapter, or track number displayed is the same number recorded on the disc.

• You cannot search for a scene on a DVD+RW/ DVD+R using the time code.

Searching for a Scene

4 Press the number buttons to select

the title, chapter, track, index, scene, etc., number you want to search.

If you make a mistake

Cancel the number by pressing CLEAR, then select another number.

5 Press ENTER.

The player starts playback from the selected number.

Page 38

Searching by Scene

(PICTURE NAVIGATION)

3 Press ENTER.

The first scene of each chapter, title, or track appears as follows.

You can divide the screen into 9 subscreens and find the desired scene quickly.

PICTURE NAVI

ENTER

RETURN

DISPLAY

1 Press PICTURE NAVI during

playback.

The following display appears.

CHAPTER VIEWER

ENTER

4 Press C/X/x/c to select a chapter,

title, or track, and press ENTER.

Playback starts from the selected scene.

To return to normal play during setting

Press O RETURN or DISPLAY.

z Hint

If there are more than 9 c hapters, t itles, or tracks, V is displayed at the bottom right of the screen. To display the additional chapters, titles, or tracks, select the bottom scenes and press x. To return to the previous scene, select the top scenes and press X.

Note

Depending on the disc, you may not be able to select some items.

2 Press PICTURE NAVI repeatedly to

select an item.

• CHAPTER VIEWER (DVD VIDEO only): displays the first scene of each chapter.

• TITLE VIEWE R (DVD VI DEO only ): displays the first scene of each title.

• TRACK VIEWER (VIDEO CD/ Super VCD only): displays the first scene of each track.

Page 39

Enjoying Karaoke

Using Karaoke

You can enjoy ka rao ke (s ingi ng alo ng wit h a disc) by setting this player to karaoke mode. You can connect up to two microphones (not supplied) to the player.

heard with some discs, select the audio channel for kara oke play using the AUDIO button (page49).

MIC 1/2 connectors

LEVEL

MIC 1 MIC 2

ECHO LEVEL

MIN MAX MIN MAX MIN MAX

ECHO LEVEL control

MIC 1/2 LEVEL control

ENTER DISPLAY

AUDIO

Setting the player to karaoke mode

The player enters karaoke mode when a microphone is plug ged into the MIC 1 or 2 connector.

The player exits from karaoke mode wh en you disconnect the microphones from both of the MIC 1 and 2 conne ct or s. You may also turn th e karaoke mode on and off by selecting “KARAOKE MODE” in the Control Menu display using X/x, and then pressing ENTER. For details about the Control Menu operat i ons , see “Guide to the Control Menu Display” on page 14.

Microphones (not supplied)

Note

When you set the player to the karaoke mode , you cannot use the Fast Play or Slow Play function (page 26).

Enjoying Karaoke

When you turn the karaoke mode on with DVDs or Super VCDs, karaoke play is performed with the audio channel you selected using the AUDIO button (page 49). With CDs or VIDEO CDs, the Audio setting automatically changes to “1/L” so that only the accompaniment is played when you turn the karaoke mode on. If the vocal audio is

,continued

Page 40

Adjusting the microphone

1 Set the MIC 1/2 LE VEL control of the

MIC connector to MIN.

2 Plug a microphon e (n ot supp lied) into

the MIC connector.

When a microphon e is connected to the MIC 1 or 2 connector, the player enters karaoke mode.

3 Set the ON/OFF switch on the

microphone to ON and turn the MIC 1/2 LEVEL control to ad just the microphone volume.

4 Turn the ECHO LEVEL control to adjust

the echo.

Dolby Digital Karaoke format

Dolby Digital format, which re produces surround soun d us ing 5 channels, can also contain the “Dolby Digital Karaoke” format which is specialized for karaoke. In the Dolby Digital Karaoke format discs, guide melody and guide vocal t racks are recorded in addition to the accompaniment. You can select them when the player is in karaoke mode.

Speaker output in normal Dolby Digital format (5 channel surround)

Front (L)

Centre Front (R)

z Hint

If howling occurs: – move the microphone away from the speakers. – lower the MIC 1/2 LEVEL or ECHO LEVEL. – lower the overall volume.

Notes

• The sound input from the microphone is not output from the DIGITAL OUT (OPTICAL and COAXIAL) connectors.

• You can turn the karaoke mode off even when a microphone is connected to the M IC 1 o r 2 connectors by selecting the “KARAOKE MODE” to “OFF” in the Control Menu display.

Rear (L)

Rear (R)

Speaker output in Dolby Digital Karaoke format

Accompaniment (L)

Guide melody

Guide vocal 1

You can select any of these. Thes e are output from the front speakers (L, R).

You can check the audio information usin g AUDIO button ( page 49). When pl aying a Dolby Digital Karaoke disc, “9” appears at the current audio format (page 50). Example:

Accompaniment (R)

Guide vocal 2

DOLBY DIGITAL 3 / 2

2/0:Recorded only with

accompaniment.

3/0:Recorded with guide

melody.

3/1:Recorded with guide

melody and guide vocal.

3/2:Recorded with guide

melody and two kinds of guide vocals.

Page 41

Changing the Key (Key

Control)

You can change the key to suit your vocal range. While playing karaoke, press one of the KEY CONTROL buttons repeatedly to find the key that suits your vocal range.

KEY CONTRO

z Hint

The key automatically returns t o the original key when: – You turn off the power – You remove the disc – The title or track changes

Notes

• Depending on the discs, you may no t be able to do the operations above.

• Natural (3) key is on the front panel only.

To Press

Raise the key # (Sharp) Lower the key 2 (Flat) Return to the

3 (Natural)

original key

You can adjust the key in 15 half-tone steps (7 steps higher, 7 steps lower and the original key).

Enjoying Karaoke

2,3,#

MIC 1 MIC 2

LEVEL

MIC 1 MIC 2

MIN MAX MIN MAX MIN MAX

ECHO LEVEL

PROGRESSIVE

1 Press KEY CONTROL while playing

a disc in karaoke mode.

The following display appears.

7654321 1234567

2 Press KEY CONTROL repeatedly to

select the desired vocal range.

Page 42

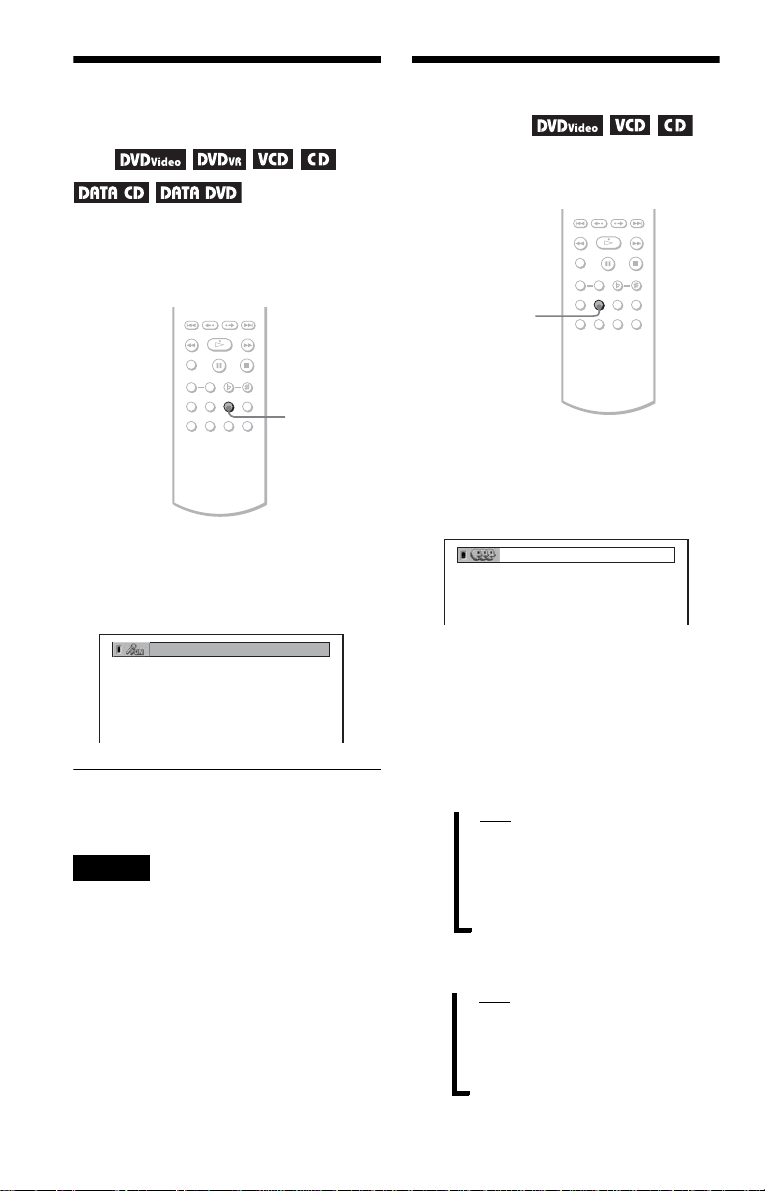

Playing Karaoke with

Selecting the Vocals

Any Stereo Disc (Karaoke

Pon)

You can enjoy karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals.

KARAOKE PON

Press KARAOKE PON while playing a disc in karaoke mode

The following display appears.

To cancel the Karaoke Pon function

Press KARAOKE PON again.

Notes

• This function may not work well in the following cases:

– Only a few instruments are playing – A duet is playing – The vocals on the disc deviate from the centre – Monaural-recorded discs (t he acco mpaniment is

also reduced)

– Multiplex

• During the Karaoke Pon mode, the stereo effect is reduced.

(Vocal Select)

You can select different kinds of vocals recorded in the disc.

VOCAL SELECT

1 Press VOCAL SELECT while

playing a disc in karaoke mode.

The following display appears.

1+2

2 Press VOCAL SELECT repeatedly

to select the desired vocal channel.

The output channel changes as follows. The default setting is underlined.

◆ When playing a DVD VIDEO

OFF

1+2 (Guide vocal 1+2)

1 (Guide vocal 1)

2 (Guide vocal 2)

◆ When playing a VIDEO CD or CD

OFF

L+R (same sound is output from both speakers)

STEREO (The standard stereo sound)

Page 43

◆ When playing a Super VCD

OFF

1:L+R

1:STEREO (The stereo sound of the audio track 1)

2:L+R

2:STEREO (The stereo sound of the audio track 2)

Turning the Guide Melody On and Off (Guide

Melody)

You can listen to the guide melody.

z Hints

• The channel returns to the default setting when: – you turn off the power. – you remove the disc.

• When playing a DVD VIDEO recorded only with one kind of guide vocal, select “1.”

Notes

• When playing a DVD VIDEO, the function works only with the Dolby Digital Karaoke format.

• Depending on the discs, you may not be able to do the operations above.

• While playing a Super VCD on which the audio track 2 is not recorded, no sound w i ll come out when you select “2:L+R” or “2:STEREO.”

ENTER DISPLAY

1 Press DISPLAY twice while

playing a disc in karaoke mode.

The Control Menu appears.

2 Press X/x to select

(GUIDE MELODY), then press ENTER.

The options for “GUIDE MELODY” appear.

DVD VIDEO

OFF OFF ON

3 Press X/x to select the setting.

• OFF: To cancel the guide melody.

• ON: To turn on the guide melody.

Enjoying Karaoke

4 Press ENTER.

Notes

• This function works only with the Dolby Digital Karaoke format.

• If no guide melody is recorded on the disc, you cannot hear the guide melody even if you turn it on.

Page 44

Inserting the Applause

Selecting the Score (Score)

Effect (Applause)

When using the Karaoke mode, you can insert applause with cheers.

APPLAUSE

Press APPLAUSE while playing a disc in karaoke mode

Applause with cheers will sound each time you press the button.

Notes

• This effect may not work with some DVDs or during PBC playback of VIDEO CDs/Super VCDs.

• You will not be able to hear the applause effect from DIGITAL OUT (COAXIAL or OPTICAL) jack when:

– you play a disc with DTS sound tracks. – you set “DOLBY DIGITAL” to “DOLBY

DIGITAL” in “AUDIO SETUP.”

You can select “SCORE MODE” when karaoke mode is “ON”. Your score is calculated by comparing your voice level with the actual music.

SCORE

1 Press DISPLAY twice (When

playing a DATA CD or DATA DVD with MP3 files, press once)

The Control Menu appears.

2 Press X/x to select

(SCORE MODE), then press ENTER.

The options for “SCORE MODE” appear.

NORMAL NORMAL EASY DEMO

DVD VIDEO

3 Press X/x to select the setting.

• NORMAL: Advance or professional

level.

• EASY: Beginner or Intermediate level.

• DEMO: Demonstration mode.

Consistently displays a high score for every song.

4 Press ENTER.

Page 45

5 Press SCORE before singing a

song in karaoke mode.

The previous high score will be displayed.

6 Press SCORE again after singing

for more than a minute to view your score.

z Hints

• “SCORE MODE” returns to “NORMAL” (default) when the player enters standby mode.

• The score function is calculated from 0 to 99.

Notes

• The high score is cleared when the player enters standby mode.

• The score calculating function may be cancelled when certain remote control buttons are pressed.

• Depending on the situation, you may not be able to use SCORE.

Enjoying Karaoke

Page 46

Viewing Information About the

Disc

Checking the Playing Time and Remaining Time

You can check the playing time and remaining time of the current title, chapter, or track. Also, you can check the DVD/CD text or track name (MP3 audio) recorded on the disc.

TIME/TEX

◆ When playing a DVD VIDEO or DVD-VR mode disc

•T

•T–

•C

•C–

◆ When playing a VIDEO CD or Super VCD (with PBC functions)

•

◆ When playing a VIDEO CD (without PBC functions), or CD

•T

•T–

•D

•D–

◆ When playing a Super VCD (without PBC functions)

•T

◆ When playing a DATA CD (MP3 audio)/ DATA DVD (MP3 audio)

•T

(hours: minutes: seconds)

*:*:*

Playing time of the current title

*:*:*

Remaining time of the current title

*:*:*

Playing time of the current chapter

*:*:*

Remaining time of the current chapter

(minutes: seconds)

*:*

Playing time of the current scene

(minutes: seconds)

*:*

Playing time of the current track

*:*

Remaining time of the current track

*:*

Playing time of the current disc

*:*

Remaining time of the current disc

(minutes: seconds)

*:*

Playing time of the current track

(minutes: seconds)

*:*

Playing time of the current track

1 Press TIME/TEXT during playback.

The following display appears.

T 1:01:57

Time information

2 Press TIME/TEXT repeatedly to

change the time information.

The available time information depends

upon the type of disc you are playing.

Page 47

Checking the play information of

T 17:30 128k

JAZZ RIVER SIDE

the disc

To check the DVD/CD text

Press TIME/TEXT repeatedly in step 2 to display text recorded on the DVD/CD. The DVD/CD text appears only when text is recorded in the disc. You cannot change the text. If the disc does not contain text, “NO TEXT” appears.

BRAHMS SYMPHONY

Checking the information on the front panel display

You can view the time information and text displayed on the TV screen also on the front panel display. The information on the front panel display changes as follows when you change the time information on your TV screen.

When playing a DVD VIDEO or DVD-VR mode disc

Playing time of the current title

To check DATA CD (MP3 audio)/DATA DVD (MP3 audio) album name, etc.

By pressing TIME/TEXT while playing MP3 audio tracks on a DATA CD/DATA DVD, you can display the name of the album/track, and the audio bit rate (the amount of data per second of the current audio track) on your TV screen.

Bit rate

Album name

Track name

Viewing Information About the Disc

Remaining time of the current titl e

Playing time of the current chapter

Remaining time of the current chapter

Text

Current title and chapter number

(returns to top automatically)

,continued

Page 48

When playing a DATA CD (MP3 audio)/ DATA DVD (MP3 audio)

Playing time and number of the current track

Track name

Current album and track number

(returns to top automatically)

When playing a VIDEO CD (without PBC functions), or CD

Playing time and number of the current track

Remaining time of the current track

Notes

• Depending on the type of disc being played, the DVD/CD text or track name may not be displayed.

• The player can only display the first level of the DVD/CD text, such as the disc name or title.

• Playing time of MP3 audio tracks may not be displayed correctly.

• If you play a disc containing JPEG image files only, “NO AUDIO DATA” appears when “MODE (MP3, JPEG)” is set to “AUTO,” “JPEG” appears when “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” in the front panel disp lay.

Playing time of the disc

Remaining time of the disc

Text

z Hints

• When playing VIDEO CDs without PBC functions, the track number and the index number are displayed after the text.

• When playing VIDEO CDs with PBC functions, the scene number or the playing time are displayed.

• Long text that does not fit in a single line will scroll across the front panel display.

• You can also check the time information and text using the Control Menu (page 14).

Page 49

Sound Adjustments

Changing the Sound

When playing a DVD VIDEO recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With CDs, DATA CDs, DATA DVDs, or VIDEO CDs, you can select the sound from either the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.

AUDIO

1 Press AUDIO during playback.

The following display appears.

1:ENGLISH DOLBY DIGITAL 3/2.1

2 Press AUDIO repeatedly to select

the desired audio signal.

◆ When playing a DVD VIDEO

Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language

Code List” on page 79 to see which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

◆ When playing a DVD-VR mode disc

The types of sound tracks recorded on a disc are displayed. The default setting is underlined. Example:

•1: MAIN

• 1: SUB (sub sound)

• 1: MAIN+SUB (main and sub sound)

◆ When playing a VIDEO CD, CD, or DATA CD (MP3 audio)/DATA DVD (MP3 audio)

The default setting is underlined.

•STEREO

• 1/L: the sound of the left channel (monaural)

• 2/R: the sound of the right channel (monaural)

◆ When playing a Super VCD

The default setting is underlined.

•1:STEREO audio track 1

• 1:1/L: the sound of the left channel of the audio track 1 (monaural)

• 1:2/R: the sound of the right channel of the audio track 1 (monaural)

• 2:STEREO: the stereo sound of the audio track 2

• 2:1/L: the sound of the left channel of the audio track 2 (monaural)

• 2:2/R: the sound of the right channel of the audio track 2 (monaural)

(main sound)

: the standard stereo sound

: the stereo sound of the

Notes

• While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.”

• When playing DVD-RW/DVD-R in VR mode: If you connect to an AV amplifier (receiver) using the DIGITAL OUT (COAXIAL or OPTICAL) jack and want to switch between the sound tracks, set “DOLBY DIGITAL” to “D-PCM” in “AUDIO SETUP.”

Sound Adjustments

,continued

Page 50

Checking the audio signal format

You can check the audio signal format by pressing AUDIO repeatedly during playback. The format of the current audio signal (Dolby Digital, DTS, PCM, etc.) appears as shown below.

Example:

Dolby Digital 5.1 ch

Rear (L/R)

1:ENGLISH DOLBY DIGITAL

Front (L/R) + Center

Example:

Dolby Digital 3 ch

2:SPANISH DOLBY DIGITAL

LFE (Low Frequency Effect)

3 / 2 .1

2 / 1

TV Virtual Surround Settings (TVS)

When you connect a stereo TV or 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. TVS was developed by Sony to produce surround sound for home use using just a stereo TV. This only works when playing a multichannel Dolby audio sound track. Furthermore, if the player is set up to output the signal from the DIGITAL OUT (COAXIAL or OPTICAL) jack, the surround effect will only be heard when “DOLBY DIGITAL” is set to “D-PCM” in “AUDIO SETUP” (page 72).

Front (L/R)

Rear

(Monaural)

About audio signals

Audio signals recorded in a disc contain the sound elements (channels) shown below. Each channel is output from a separate speaker.

• Front (L)

• Front (R)

•Center

• Rear (L)

• Rear (R)

• Rear (Monaural): This signal can be either the Dolby Surround Sound processed signals or the Dolby Digital sound’s monaural rear audio signals.

• LFE (Low Frequency Effect) signal

Note

If “DTS” is set to “OFF” in “AUDIO SETUP” (page 72) the DTS track selection option will not appear on the screen even if the disc contains DTS tracks.

SUR

1 Press SUR during playback.

The following display appears.

TVS DYNAMIC THEATER

2 Press SUR repeatedly to select

one of the TVS sounds.

See the explanations given for each item in the following section.

• TVS DYNAMIC THEATER

• TVS DYNAMIC

• TVS WIDE

• TVS NIGHT

• TVS STANDARD

Page 51

To cancel the setting

Select “OFF” in step 2.

◆TVS DYNAMIC THEATER

Creates one set of LARGE virtual rear speakers and virtual subwoofer from the sound of the front speakers (L, R) without using actual rear speakers and subwoofer (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.

Sub woofer

◆TVS NIGHT

Large sounds, such as explosions, are suppressed, but the quieter sounds are unaffected. This feature is useful when you want to hear the dialog and enjoy the surround sound effects of “TVS WIDE” at low volume.

◆TVS STANDARD

Creates three sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). Use this setting when you want to use TVS with 2 separate speakers.

L R

◆TVS DYNAMIC

Creates one set of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.

◆TVS WIDE

Creates five sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.

Sound Adjustments

L: Front speaker (left) R: Front speaker (right)

: Virtual speaker

Notes

• When the playing sign al does not c ontain a sign al for the rear speakers, the surr ound effects cannot be heard.

• When you select one of the TVS modes, turn off the surround setting of the connected TV or amplifier (receiver).

• Make sure that your list ening posit ion is betw een and at an equal distance from your speakers, and that the speakers are located in similar surroundings.

• Not all discs will respond to the “TVS NIGHT” function in the same way.

• The TVS effects do not work when using the Fast Play or Slow Play function s, even thou gh you can change the TVS modes.

Page 52

Enjoying Movies

Changing the Angles

If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “ ” appears in the front panel display. Thi s means that you can change the viewing angle.

ANGLE

Displaying the Subtitles

If subtitles are recorded on the discs, you can change the subtitles or turn them on and off whenever you want while playing a DVD.

SUBTITLE

1 Press SUBTITLE during playback.

The following display appears.

1 Press ANGLE during playback.

The number of the angle appears on the display.

2 Press ANGLE repeatedly to select

an angle number.

The scene changes to the selected angle.

Note

Depending on the DVD VIDEO, you may not be able to change the angles even if multi-angles are recorded on the DVD VIDEO.

1:ENGLISH

2 Press SUBTITLE repeatedly to

select a setting.

◆ When playing a DVD VIDEO

Select the language. Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 79 to see which language the code represents.

◆ When playing a DVD-VR mode disc

Select “ON.”

To turn off the subtitles

Select “OFF” in step 2.

Page 53

Notes

• Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.

• While playing a disc with subtitles, the subtitle may disappear when you press FAST PLAY or SLOW PLAY button.

Adjusting the Playback Picture (CUSTOM PICTURE MODE)

You can adjust the video signal of the DVD, VIDEO CD or DATA CD/DATA DVD in JPEG format from the player to obtain the picture quality you want. Choose the setting that best suits the program you are watching. When you select “MEMORY,” you can make further adjustments to each element of the picture (color, brightness, etc.).

ENTER

RETURN

DISPLAY

Enjoying Movies

1 Press DISPLAY twice during

playback.

The Control Menu appears.

2 Press X/x to select

(CUSTOM PICTURE MODE), then press ENTER.

The options for “CUSTOM PICTURE MODE” appear.

DVD VIDEO

STANDARD STANDARD

DYNAMIC 1 DYNAMIC 2

,continued

Page 54

3 Press X/x to select the setting you

want.

The default setting is underlined.

•

STANDARD:

• DYNAMIC 1: produces a bold dynamic picture by increasing the picture contrast and the color intensity.

• DYNAMIC 2: produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and color intensity.

• CINEMA 1: enhances details in dark areas by increasing the black level.

• CINEMA 2: white colors become brighter and black colors become richer, and the color contrast is increased.

• MEMORY: adjusts the picture in greater detail.

displays a standard picture.

4 Press ENTER.

The selected setting takes effect.

z Hint

When you watch a movie, “CINEMA 1” or “CINEMA 2” is recommended.

Adjusting the picture items in “MEMORY”

You can adjust each element of the picture individually.

• PICTURE: changes the contrast

• BRIGHTNESS: changes the overall brightness

• COLOR: makes the colors deeper or lighter

• HUE: changes the color balance

1 In step 3 of “Adjusting the Playback

Picture,” select “MEMORY” and press ENTER.

The “PICTURE” adjustment bar appears.


2 Press C/c to adjust the picture

contrast.

To go to the next or previous picture item without saving the current setting, press X/x.

3 Press ENTER.

The adjustment is saved, and “BRIGHTNESS” adjustment bar appears.

4 Repeat step 2 and 3 to adjust

“BRIGHTNESS,” “COLOR,” and “HUE.”

To turn off the display

Press O RETURN , or DISPLAY.

Notes

• The “BRIGHTNESS” setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel.

• For CDs, you can adjust the playback picture only on CD Graphics.

Page 55

Sharpening the Picture

(SHARPNESS)

4 Press ENTER.

The selected setting takes effect.

To cancel the “SHARPNESS” setting

Select “OFF” in step 3.

You can enhance the outlines of images to produce a sharper picture.

ENTER DISPLAY

1 Press DISPLAY twice during

playback.

The Control Menu appears.

2 Press X/x to select

(SHARPNESS), then press ENTER.

The options for “SHARPNESS” appear.

DVD VIDEO

Notes

• This setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel.

• For CDs, you can sharpen the outline of an image only on CD Graphics.

Enjoying Movies

OFF OFF 1 2

3 Press X/x to select a level.

• 1: enhances the outline.

• 2: enhances the outline more than 1.

Page 56

Enjoying MP3 Audio and JPEG Images

About MP3 Audio Tracks and JPEG Image Files

MP3 is audio compression technology that satisfies the ISO/IEC MPEG regulations. JPEG is image compression technology. You can play DATA CDs/DATA DVDs that contain MP3 audio tracks or JPEG image files.

DATA CDs/DATA DVDs that the player can play

You can play back DATA CDs (CD-ROMs/ CD-Rs/CD-RWs) or DATA DVDs (DVDROMs/DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs) recorded in MP3 (MPEG-1 Audio Layer III) and JPEG format. However, this player only plays DATA CDs whose logical format is ISO 9660 Level 1/ Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.

Notes

• The player will play any data with the extension “.MP3,” “.JPG,” or “.JPEG,” even if they are not in MP3 or JPEG format. Playing these data may generate a loud noise which could damage your speaker system.

• The player does not conform to audio tracks in mp3PRO format.

• Some JPEG files cannot be played.

About playback order of albums, tracks, and files

Albums play in the following order:

◆Structure of disc contents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

ROOT

Note

The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format.

MP3 audio track or JPEG image file that the player can play

The player can play the following tracks and files: –MP3 audio tracks with the extension

“.MP3.”

–JPEG image files with the extension

“.JPEG” or “.JPG.”

–JPEG image files that conform to the DCF*

image file format.

* “Design rule for Camera File system”: Image

standards for digital cameras regulated by JEITA (Japan Electronics and Information Techn ol ogy Industries Association).

Album

Track or file

Page 57

When you insert a DATA CD/DATA DVD and press H, the numbered tracks (or files) are played sequentially, from 1 through 7. Any sub-albums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.)

When you press MENU and the list of album names appears (page 58), the album names are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list.

Playing MP3 Audio Tracks or JPEG Image Files

You can play MP3 audio tracks and JPEG image files on DATA CDs (CD-ROMs/CDRs/CD-RWs) or DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs).

z Hints

• If you add numbers (01, 02, 03, etc.) to the front of the track/file names when you store the tracks (or files) in a disc, the tracks and files will be played in that order.

• Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees.

Notes

• Depending on the software you use to create the DATA CD/DATA DVD, the playback order may differ from the above illustration.

• The playback order above may not be applicable if there are more than 200 alb ums an d 3 00 tr ac ks / files in each album.

• The player can recognize up to 200 albums (the player will count just albums, including albums that do not contain MP3 audio tracks and JPEG image files). The player will not play any albums beyond the 200th album.

• Proceeding to the next or another album may take some time.


CLEAR

RETURN

ZOOM

z Hint

You can view the disc information while playing MP3 audio tracks (page 46).

NAVI MENU

ENTER

Notes

• DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted.

• If no MP3 audio track or JPEG image file is recorded on the DATA CD/DATA DVD, “No audio data” or “No image data” appears on the screen.

Enjoying MP3 Audio and JPEG Images

,continued

Page 58

Selecting an album

Selecting an MP3 audio track

1 Press MENU.

The list of albums on the disc appears. When an album is being played, its title is shaded.

(

3 0

)

ROCK BEST HIT KARAOKE JAZZ R&B MY FAVORITE SONGS CLASSICAL SALSA OF CUBA BOSSANOVA

2 Press X/x to select the album you

want to play.

3 Press H.

Playback starts from the selected album. To select MP3 audio tracks, see “Selecting an MP3 audio track” (page 58). To select JPEG image files, see “Selecting a JPEG image file” (page 59).

To stop playback

Press x.

To go to the next or previous page

Press c or C.

To turn on or off the display

Press MENU repeatedly.

z Hint

Of the selected album, you can select to play only the MP3 audio tracks, JPEG image files, or both, by setting “MODE (MP3, JPEG)” (page 60).

1 After step 2 of “Selecting an album,”

press ENTER.

The list of tracks in the album appears.

J A Z Z 1 ( 9 0

01SHE IS SPECIAL 02ALL YOU NEED IS ... 03SPICY LIFE 04HAPPY HOUR 05RIVER SIDE 06

07TAKE TIME,TAKE TIME

)

2 Press X/x to select a track, and press

ENTER.

Playback starts from the selected track.

To stop playback

Press x.

To go to the next or previous page

Press c or C.

To return to the previous display

Press O RETURN.

To go to the next or previous MP3 audio track

Press > or . during playback. You can select the first track of the next album by pressing > during playback of the last track of the current album. Note that you cannot return to the previous album by using ., and that you need to select the previous album from the album list.

Page 59

Selecting a JPEG image file

1 After step 2 of “Selecting an album,”

press PICTURE NAVI.

The image files in the album appear in 16 subscreens. A scroll box is displayed on the right.

To rotate a JPEG image

Press X/x while viewing the image. Each time you press X, the image rotates counterclockwise by 90 degrees. To return to normal view, press CLEAR. Note that the view also returns to normal if you press C/c to go to the next or previous image. Example: when X is pressed once.

1234

5678

9101112

13 14 15 16

To display the additional image, select the bottom images and press x. To return to the previous image, select the top images and press X.

2 Press C/X/x/c to select the image you

want to view, and press ENTER.

The selected image appears. Example

To go to the next or previous JPEG image file

Press C or c during playback. You can select the first file of the next album by pressing c during playback of the last file of the current album. Note that you cannot return to the previous album by using C, and that you need to select the previous album from the album list.

Rotating direction

To magnify a JPEG image (ZOOM)

Press ZOOM while viewing the image. You can enlarge the image up to four times the original size, and scroll using C/X/x/c. To return to normal view, press CLEAR.

◆When pressed once (x2)

The image enlarges twice the original size.

◆When pressed twice (x4)

The image enlarges four times the original size.

To stop viewing the JPEG image

Press x.

z Hints

• While viewing JPEG image files, you can set options such as “INTERVAL” (page 61), “EFFECT” (page 61), and “SHARPNESS” (page 55).

• You can view JPEG images files without MP3 audio by setting “MODE (MP3, JPEG)” to “IMAGE (JPEG)” (page 60).

• The date the picture was taken is displayed beside “DATE” in the Control Menu (p age 14). Note that no date may appear depending on the digital camera.

Note

PICTURE NAVI does not work if “AUDIO (MP3)” is selected in “MODE (MP3, JPEG)” (page 60).

Enjoying MP3 Audio and JPEG Images

Page 60

Enjoying JPEG Images as a Slide Show

You can play JPEG image files on a DATA CD or DATA DVD successively as a slide show.

ENTER DISPLAY

1 Press MENU.

The list of albums on the DATA CD/ DATA DVD appears.

(

3 0

)

ROCK BEST HIT KARAOKE JAZZ R&B MY FAVORITE SONGS CLASSICAL SALSA OF CUBA BOSSANOVA

2 Press X/x to select an album. 3 Press H.

The JPEG images in the se le c te d album start playing as a slide show.

Viewing a slide show with sound (MODE (MP3, JPEG))

When JPEG image files and MP3 audio tracks are placed in the same album, you can enjoy a slide show with sound.

1 Press DISPLAY during stop mode.

The Control Menu appears.

2 Press X/x to select (MODE

(MP3, JPEG)), and press ENTER.

The options for “MODE (MP3, JPEG)” appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

3 2 : 5 5

AUTO AUTO AUDIO (MP3) IMAGE (JPEG)

DATA CD

MP3

3 Press X/x to select “AUTO” (default),

and press ENTER.

• AUTO: plays both the JPEG image files and MP3 audio tracks in the same album as a slide show.

• AUDIO (MP3): plays only MP3 audio tracks continuously.

• IMAGE (JPEG): plays only JPEG image files continuously.

4 Press MENU.

The list of albums on the DATA CD/ DATA DVD appears.

(

3 0

)

ROCK BEST HIT KARAOKE JAZZ R&B MY FAVORITE SONGS CLASSICAL SALSA OF CUBA BOSSANOVA

To stop playback

Press x.

Notes

• The slide show stops when X/x or ZOOM is pressed.To resume the slide show, press H.

• This function does not work if “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 60).

5 Press X/x to select the album that

contains both the MP3 audio tracks and JPEG images you want to play.

6 Press H.

A slide show starts with sound.

Page 61

z Hints

• To repeat both MP3 audio tracks and JPEG image files in a single album, repeat the same MP3 audio track or album when “MODE (MP3, JPEG)” is set to “AUTO.” See “Playing repeatedly (Repeat Play)” (page 33) to repeat the track or album.

• The player recognizes a maximum of 200 albums regardless of the selected mode. Of each album, the player recognizes up to 300 MP3 audio tracks and 300 JPEG image files when “AUTO” is selected, 600 MP3 audio tracks when “AUDIO (MP3)” is selected, 600 JPEG image files when “IMAGE (JPEG)” is selected.

Notes

• This function does not work if the MP3 audio tracks and JPEG image files are not placed in the same album.

• If playing time of JPEG image or MP3 audio is longer than the other, the longer one continues without sound or image.

• If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file.

Setting the pace for a slide show (INTERVAL)

You can set the time the slides are displayed on the screen.

1 Press DISPLAY twice while viewing a

JPEG image or when the player is in stop mode.

The Control Menu appears.

2 Press X/x to select

(INTERVAL), then press ENTER.

The options for “INTERVAL” appear.

1 2)

3 (

1( 1 0 / 2 9 / 2 0 0 6 NORMAL NORMAL FAST SLOW 1 SLOW 2

DATA CD

JPEG

3 Press X/x to select a setting.

The default setting is underlined.

•NORMAL 6 to 9 seconds.

• FAST: sets a duration shorter than NORMAL.

: sets the duration to between

• SLOW 1: sets a duration longer than NORMAL.

• SLOW 2: sets a duration longer than SLOW 1.

4 Press ENTER.

Note

Some JPEG files, especially progressive JPE G files or JPEG files of 3,000,000 pixels or more, may take longer to display than others, which may make the duration seem longer than the setting you selected.

Selecting the slides’ appearance (EFFECT)

You can select the way the slides are displayed during a slide show.

1 Press DISPLAY twice while viewing a

JPEG image or when the player is in stop mode.

2 Press X/x to se lect (EFFECT),

then press ENTER.

The options for “EFFECT” appear.

1 2)

3 (

1 0 / 2 9 / 2 0 0 6

MODE 1 MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 OFF

DATA CD

JPEG

3 Press X/x to select a setting.

The default setting is underlined.

•MODE 1

: the image sweeps in from top

to bottom.

• MODE 2: the image sweeps in from left to right.

• MODE 3: the image stretches out from the center of the screen.

• MODE 4: the images randomly cycle through the effects.

• MODE 5: the next image slides over the previous image.

• OFF: turns off thi s function.

4 Press ENTER.

Enjoying MP3 Audio and JPEG Images

Page 62

Using Various Additional Functions

Locking Discs (CUSTOM

PARENTAL CONTROL, PARENTAL CONTROL)

You can set two kinds of playback restrictions for a disc.

• Custom Parental Control You can set playback restrictions so that the player will not play inappropriate discs.

• Parental Control Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes.

The same password is used for both Parental Control and Custom Parental Control.

2 Press DISPLAY while the player is in

stop mode.

The Control Menu appears.

3 Press X/x to select

(PARENTAL CONTROL), then press ENTER.

The options for “PARENTAL CONTROL” appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF ON PLAYER PASSWORD

STOP DVD VIDEO

4 Press X/x to select “ON t,” then

press ENTER.

◆ If you have not entered a password

The display for registering a new password appears.

Number buttons

ENTER DISPLAY

Custom Parental Control

You can set the same Custom Parental Control password for up to 40 discs. When you set the 41st-disc, the first disc is canceled.

1 Insert the disc you want to lock.

If the disc is playing, press x to stop playback.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press .

Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears.

◆ When you have already registered a password

The display for entering the password appears.

5 Enter or re-enter your 4-digit password

using the number buttons, then press ENTER.

“Custom parental control is set.” appears and then the screen returns to the Control Menu.

Page 63

To turn off the Custom Parental Control function

1 Follow steps 1 to 3 of “Custom Parental

Control.”

2 Press X/x to select “OFF t,” then press

ENTER.

3 Enter your 4-digit password using the

number buttons, then press ENTER.

To play a disc for which Custom Parental Control is set

1 Insert the disc for which Custom Parental

Control is set. The “CUSTOM PARENTAL CONTROL” display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

ENTER

and press

2 Enter your 4-digit password using the

number buttons, then press ENTER. The player is ready for playback.

z Hint

If you forget your password, enter the 6-digit number “199703” using the n umber buttons when the “CUSTOM PARENTAL CONTROL” display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Parental Control (limited playback)

Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The “PARENTAL CONTROL” function allows you to set a playback limitation level.

1 Press DISPLAY while the player is in

stop mode.

The Control Menu appears.

2 Press X/x to select

(PARENTAL CONTROL), then press ENTER.

The options for “PARENTAL CONTROL” appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF ON PLAYER PASSWORD

STOP DVD VIDEO

3 Press X/x to select “PLAYER t,”

then press ENTER.

◆ If you have not entered a password

The display for registering a new password appears.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press .

Using Various Additional Functions

Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears.

◆ When you have already registered a password

The display for entering the password appears.

,continued

Page 64

4 Enter or re-enter your 4-digit password

using the number buttons, then press ENTER.

The display for setting the playback limitation level appears.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

USA

5 Press X/x to select “STANDARD,”

then press ENTER.

The selection items for “STANDARD” are displayed.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

USA USA

OTHERS

6 Press X/x to select a geographic area

as the playback limitation level, then press ENTER.

The area is selected. When you select “OTHERS t,” select and enter a standard code in the table on page 79 using the number buttons.

7 Press X/x to select “LEVEL,” then

press ENTER.

The selection items for “LEVEL” are displayed.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

OFF

NC17

6: 5:

PARENTAL CONTROL

LEVEL: STANDARD: USA

4: PG13

The lower the value, the stricter the limitation.

To turn off the Parental Control function

Set “LEVEL” to “OFF” in step 8.

To play a disc for which Parental Control is set

1 Insert the disc and press H.

The display for entering your password appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER. The player starts playback.

z Hint

If you forget your password, remove the disc and repeat steps 1 to 3 of “Parental Control (limited playback).” When you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4-digit pas sword. After you en ter a new 4-digit password, replace the disc in the player and press H. When the display for entering your password appears, enter your new pass word.

Notes

• When you play discs which do not have the Parental Control function, playback cannot be limited on this player.

• Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is canceled, the level returns to the previous level.

8 Select the level you want using X/x,

then press ENTER.

Parental Control setting is complete.

Page 65

Changing the password

1 Press DISPLAY while the player is in

stop mode.

The Control Menu appears.

2 Press X/x to select

(PARENTAL CONTROL), then press ENTER.

The options for “PARENTAL CONTROL” appear.

3 Press X/x to select “PASSWORD

t,” then press ENTER.

The display for entering the password appears.

4 Enter your 4-digit password using the

number buttons, then press ENTER.

5 Enter a new 4-digit password using the

number buttons, then press ENTER.

6 To confirm your password, re-enter it

using the number buttons, then press ENTER.

If you make a mistake entering your password

Press C before you press ENTER and input the correct number.

Controlling Your TV with the Supplied Remote

You can control the sound level, input source, and power switch of your Sony TV with the supplied remote.

Number buttons

You can control your TV using the buttons below.

By pressing You can

TV [/1 Turn the TV on or off VOL +/– Adjust the volume of the TV TV/VIDEO Switch the TV’s input source

between the TV and other input sources.

VOL +/– TV/VIDEO

Using Various Additional Functions

Note

Depending on the connected unit, you may not be able to control your TV using all or some of the buttons on the supplied remote.

,continued

Page 66

Controlling other TVs with the remote

You can control the sound level, input source, and power switch of non-Sony TVs as well. If your TV is listed in the table below, set the appropriate manufacturer’s code.

1 While holding down TV [/1, press the

number buttons to select your TV’s manufacturer’s code (see the table below).

2 Release TV [/1.

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer Code number

Sony 01 (default) Daewoo 04, 22 Hitachi 02, 04 JVC 09 LG/Goldstar 04 MGA/Mitsubishi 0 4, 13 Panasonic 19 Philips 21 RCA 04, 10 Samsung 04, 20 Sharp 18 Toshiba 07, 18

Notes

• When you replace the batterie s of the r emote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

• Depending on the connected unit, you may not be able to control your TV using all or some of the buttons on the supplied remote.

Page 67

Settings and Adjustments

Using the Setup Display

By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display item, see pages from 68 to 72.

Note

Playback settings stored in the disc take priority over the Setup Display settings and not all of the functions described may work.

ENTER DISPLAY

3 Press X/x to select “CUSTOM,”

then press ENTER.

The Setup Display appears.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

ORIGINAL

ENGLISH

4 Press X/x to select the setup item

from the displayed list: “LANGUAGE SETUP,” “SCREEN SETUP,” “CUSTOM SETUP,” or “AUDIO SETUP.” Then press ENTER.

The Setup item is selected. Example: “SCREEN SETUP”

Selected item

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT:

Setup items

4:3 LETTER BOX

JACKET PICTURE

(COMPONENT OUT)

OFF

FULL

Settings and Adjustments

1 Press DISPLAY when the player is

in stop mode.

The Control Menu appears.

2 Press X/x to select

(SETUP), then press ENTER.

The options for “SETUP” appear.

)

( 47

QUICK CUSTOM

RESET

QUICK

STOP DVD VIDEO

5 Press X/x to select an item, then

press ENTER.

The options for the selected item appear. Example: “TV TYPE”

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT:

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

(COMPONENT OUT)

Options

FULL

,continued

16.9 OFF

Page 68

6 Press X/x to select a setting, then

press ENTER.

The setting is selected and setup is complete. Example: “16:9”

Selected setting

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

BLACK LEVEL: BLACK LEVEL (COMPONENT OUT): 4:3 OUTPUT:

JACKET PICTURE

16:9

OFF

FULL

Setting the Display or Sound Track Language

(LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track.

Select “LANGUAGE SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 67).

To enter the Quick Setup mode

Select “QUICK” in step 3. Follow from step 5 of the Quick Setup explanation to make basic adjustments (page 23).

To reset all of the “SETUP” settings

1 Select “RESET” in step 3 and press

ENTER.

2 Select “YES” using X/x.

You can also quit the process and return to the Control Menu by selecting “NO” here.

3 Press ENTER.

All the settings explained on pages 68 to 72 return to the default settings. Do not press [/1 while resetting the player, which takes a few seconds to complete.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

ORIGINAL

ENGLISH

◆OSD (On-Screen Display)

Switches the display language on the screen.

◆MENU (DVD VIDEO only)

You can select the desired language for the disc’s menu.

◆AUDIO (DVD VIDEO only)

Switches the language of the sound track. When you select “ORIGINAL,” the language given priority in the disc is selected.

◆SUBTITLE (DVD VIDEO only)

Switches the language of the subtitle recorded on the DVD VIDEO. When you select “AUDIO FOLLOW,” the language for the subtitles changes according to the language you selected for the sound track.

z Hint

If you select “OTHERS t” in “MENU,” “SUBTITLE,” or “AUDIO,” select and enter a language code from “Language Code List” on page 79 using the number buttons.

Note

If you select a language in “MENU,” “SUBTITLE,” or “AUDIO” that is not recorded on a DVD VIDEO, one of the recorded languages will be automatically selected.

Page 69

Settings for the Display

(SCREEN SETUP)

Choose settings according to the TV to be connected.

Select “SCREEN SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 67). The default settings are underlined.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

BLACK LEVEL: BLACK LEVEL (COMPONENT OUT):

4:3 OUTPUT:

◆TV TYPE

Selects the aspect ratio of the connected TV (4:3 standard or wide).

4:3 LETTER BOX

Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.

4:3 PAN SCAN

Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

16:9 Select this when you connect a

wide-screen TV or a TV with a wide mode function.

4:3 LETTER BOX

JACKET PICTURE

ON ON

OFF

FULL

Note

Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa.

◆SCREEN SAVER

The screen saver image appears when you leave the player in pause or stop mode for 15 minutes, or when you play a CD, or DATA CD (MP3 audio)/DATA DVD (MP3 audio) for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press H to turn off the screen saver.

ON Turns on the screen saver. OFF Turns off the screen saver.

◆BACKGROUND

Selects the background color or picture on the TV screen when the player is in stop mode or while playing a CD, or DATA CD (MP3 audio)/DATA DVD (MP3 audio).

JACKET PICTURE

The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears.

GRAPHICS A preset picture stored in the

player appears.

BLUE The background color is blue. BLACK The background color is black.

◆ BLACK LEVEL

Selects the black level (setup level) for the video signals output from the jacks other than COMPONENT VIDEO OUT.

Settings and Adjustments

4:3 PAN SCAN

16:9

Sets the black level of the output signal to the standard level.

OFF Lowers the standard black

level. Use this when the picture becomes too white.

,continued

Page 70

◆ BLACK LEVEL (COMPONENT OUT)

Selects the black level (setup level) for the video signals output from the COMPONENT VIDEO OUT jacks. You cannot select this when the player outputs progressive signals (page 20).

OFF Sets the black level of the

ON Raises the standard black level.

output signal to the standard level. Normally select this position.

Use this setting when the picture appears too dark.

◆4:3 OUTPUT

This setting is effective only when you set “TV TYPE” in “SCREEN SETUP” to “16:9.” Adjust this to watch 4:3 aspect ratio progressive signals. If you can change the aspect ratio on your progressive format (480p) compatible TV, change the setting on your TV, not the player. Note that this setting is effective only when “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” is selected by the PROGRESSIVE button on the front panel.

FULL

NORMAL Select this when you cannot

Select this when you can change the aspect ratio on your TV.

change the aspect ratio on your TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image.

Custom Settings (CUSTOM

SETUP)

Use this to set up playback related and other settings.

Select “CUSTOM SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 67). The default settings are underlined.

CUSTOM SETUP

AUTO POWER OFF: AUTO PLAY: DIMMER: PAUSE MODE:

TRACK SELECTION:

MULTI-DISC RESUME:

◆AUTO POWER OFF

Switches the Auto Power Off setting on or off.

OFF Switches this function off. ON The player enters standby mode

when left in stop mode for more than 30 minutes.

◆AUTO PLAY

Switches the Auto Play setting on or off. This function is useful when the player is connected to a timer (not supplied).

OFF ON Automatically starts playback

Switches this function off.

when the player is turned on by a timer (not supplied).

OFF OFF

BRIGHT

AUTO

OFF

16:9 aspect ratio TV

◆DIMMER

Adjusts the lighting of the front panel display.

BRIGHT DARK Makes the lighting dark.

Makes the lighting bright.

Page 71

◆PAUSE MODE (DVD VIDEO/DVD-VR mode only)

Selects the picture in pause mode.

AUTO The picture, including subjects

that move dynamically, is output with no jitter. Normally select this position.

FRAME The picture, including subjects

that do not move dynamically, is output in high resolution.

◆TRACK SELECTION (DVD VIDEO only)

Gives the sound track which contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, DTS, or Dolby Digital format) are recorded.

OFF

No priority given.

AUTO Prior ity given.

Settings for the Sound

(AUDIO SETUP)

“AUDIO SETUP” allows you to set the sound according to the playback and connection conditions.

Select “AUDIO SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 67). The default settings are underlined.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

OFF

STANDARD

D-PCM

OFF

48kHz/16bit

Notes

• When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 68).

• If you set “DTS” to “OF F” (page 72), the DTS sound track is not played even if you set “TRACK SELECTION” to “AUTO.”

• If PCM, DTS, and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, and Dolby Digital sound tracks in this order.

◆MULTI-DISC RESUME (DVD VIDEO/

VIDEO CD only)

Switches the Multi-disc Resume setting on or off. Resume playback can be stored in memory for up to 6 different DVD VIDEOs/ VIDEO CDs (page 27).

Stores the resume setting in memory for up to six discs.

OFF Does not store the resume

setting in memory. Playback restarts at the resume point only for the current disc in the player.

Note

If you run Quick Setup, Multi-disc Resume setting stored in memory may return to the defa ult sett ings.

◆AUDIO ATT (attenuation)

If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. This function affects the output of the LINE OUT L/R (AUDIO) jacks.

OFF Normally, select this position. ON Select this when the playback

sound from the speakers is distorted.

◆AUDIO DRC (Dynamic Range Control) (DVD VIDEO/DVD-VR mode only)

Makes the sound clear when the volume is turned down when playing a DVD that conforms to “AUDIO DRC.” This function affects the output from the following jacks: –LINE OUT L/R (AUDIO) jacks –DIGITAL OUT (COAXIAL or OPTICAL)

jack only when “DOLBY DIGITAL” is set to “D-PCM” (page 72).

STANDARD

Normally select this position.

TV MODE Makes low sounds clear even if

you turn the volume down.

WIDE RANGE

Gives you the feeling of being at a live performance.

Settings and Adjustments

,continued

Page 72

◆DOWNMIX (DVD VIDEO/DVD-VR mode only)

Switches the method for mixing down to 2 channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see “Checking the audio signal format” (page 50). This function affects the output of the following jacks: –LINE OUT L/R (AUDIO) jacks –DIGITAL OUT (COAXIAL or OPTICAL)

jack when “DOLBY DIGITAL” is set to “D-PCM” (page 72).

DOLBY SURROUND

NORMAL Multi-channel audio signals are

Normally, select this position. Multi-channel audio signals are output to 2 channels for enjoying surround sounds.

downmixed to 2 channels for use with your stereo.

◆DIGITAL OUT

Selects if audio signals are output via the DIGITAL OUT (COAXIAL or OPTICAL) jack.

OFF The influence of the digital circuit

Normally select this position. When you select “ON,” see “Setting the digital output signal” for further settings.

upon the analog circuit is minimal.

Setting the digital output signal

Switches the method of outputting audio signals when you connect a component such as an amplifier (receiver) or MD deck with a digital input jack. For connection details, see page 21. Select “DOLBY DIGITAL,” “DTS,” and “48kHz/96kHz PCM” after setting “DIGITAL OUT” to “ON.” If you connect a component that is incompatible with the selected audio signal, a loud noise (or no sound) may be heard from the speakers, risking damage to your ears or speakers.

◆DOLBY DIGITAL (DVD VIDEO/DVD-VR mode only)

Selects the type of Dolby Digital signal.

D-PCM Select this when the player is

DOLBY DIGITAL

connected to an audio component without a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP” (page 72).

Select this when the player is connected to an audio component with a built-in Dolby Digital decoder.

◆DTS

Selects whether or not to output DTS signals.

OFF

ON Select this when the player is

Select this when the player is connected to an audio component without a built-in DTS decoder.

connected to an audio component with a built-in DTS decoder.

◆48kHz/96kHz PCM (DVD VIDEO only)

Selects the sampling frequency of the audio signal.

48kHz/16bit

96kHz/24bit All types of signals including

The audio signals of DVD VIDEOs are always converted to 48kHz/16bit.

96kHz/24bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48kHz/16bit.

Note

The analogue audio signals from the LINE OUT L/ R (AUDIO) jacks are not affected by this setting and keep their original sampling frequency level.

Page 73

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

Power

The power is not turned on.

, Check that the power cord is connected

securely.


There is no picture/picture noise appears.

, Re-connect the connecting cord securely. , The connecting cords are damaged. , Check the connection to your TV (page 18)

and switch the input selector on your TV so that the signal from the player appears on the TV screen.

, The disc is dirty or flawed. , If the picture output from your player goes

through your VCR to get to your TV or if you are connected to a combination TV/ VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your player directly to your TV, try connecting your player to your TV’s S VIDEO input (page 18).

, You have selected “PROGRESSI VE

AUTO” or “PROGRESSIVE VIDEO” using the PROGRESSIVE button on the front panel (the PROGRESSIVE indicator lights up) even though your TV cannot accept the progressive signal. In this case, select “NORMAL (INTERLACE)” so that the PROGRESSIVE indicator turns off.

, Even if your TV is compatible with

progressive format 480p signals, the image may be affected when you set the player to progressive format. In this case, select “NORMAL (INTERLACE)” using the PROGRESSIVE button on the front panel so that the PROGRESSIVE indicator turns off and the player is set to normal (interlace) format.

The picture does not fill the screen, even though the aspect ratio is set in “TV TYPE” under “SCREEN SETUP.”

, The aspect ratio of the disc is fixed on your

DVD.

Sound

There is no sound.

, Re-connect the connecting cord securely. , The connecting cord is damaged. , The player is connected to the wrong input

jack on the amplifier (receiver) (page 21).

, The amplifier (receiver) input is not

correctly set.

, The player is in pause mode or in Slow-

motion Play mode.

, The player is in fast forward or fast reverse

mode.

, If the audio signal does not come through

the DIGITAL OUT (COAXIAL or OPTICAL) jack, check the audio settings (page 72).

, While playing a Super VCD on which the

audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.”

Sound distortion occurs.

, Set “AUDIO ATT” in “AUDIO SETUP” to

“ON” (page 71).

The sound volume is low.

, The sound volume is low on some DVDs.

The sound volume may improve if you set “AUDIO DRC” in “AUDIO SETUP” to “TV MODE” (page 71).

, Set “AUDIO ATT” in “AUDIO SETUP” to

“OFF” (page 71).

Additional Information

,continued

Page 74

Operation

The remote does not function.

, The batteries in the remote are weak. , There are obstacles between the remote and

the player.

, The distance between the remote and the

player is too far.

, The remote is not pointed at the remote

sensor on the player.

, The image is larger than 3072 (width) ×

2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the file size is within this specified capacity.)

, The image does not fit the screen (the image

is reduced).

, “MODE (MP3, JPEG)” is set to “AUDIO

(MP3)” (page 60).

The disc does not play.

, The disc is turned over.

Insert the disc with t he playbac k side facin g down.

, The disc is skewed. , The player cannot play certain discs

(page 9).

, The region code on the DVD does not match

the player.

, Moisture has condensed inside the player

, The player cannot play a recorded disc that

(page 5)

is not correctly finalized

(page 10)

The MP3 audio track cannot be played (page 57).

, The DATA CD is not recorded in an MP3

format that conforms to ISO 9660 Level 1/ Level 2 or Joliet.

, The DATA DVD is not recorded in MP3

format that conforms to UDF (Universal Disk Format).

, The MP3 audio track does not have the

extension “.MP3.”

, The data is not formatted in MP3 even

though it has the extension “.MP3.”

, The data is not MPEG-1 Audio Layer III

data.

, The player cannot play audio tracks in

mp3PRO format.

, “MODE (MP3, JPEG)” is set to “IMAGE

(JPEG)” (page 60).

The JPEG image file cannot be played (page 57).

, The DATA CD is not recorded in a JPEG

format that conforms to ISO 9660 Level 1/ Level 2, or Joliet.

, The DATA DVD is not recorded in JPEG

format that conforms to UDF (Universal Disk Format).

, The file has an extension other than

“.JPEG” or “.JPG.”

The MP3 audio tracks and JPEG image files start playing simultaneously.

, “MODE (MP3, JPEG)” is set to “AUTO”

(page 60).

The album/track/file names are not displayed correctly.

, The player can only display numbers and

alphabet. Other characters are displayed as “*.”

The disc does not start playing from the beginning.

, Program Play, Shuffle Play, Repeat Play, or

A-B Repeat Play is selected (page 30).

, Resu me play has taken effect (page 27).

The player starts playing the disc automatically.

, The disc features an auto playback function. , “AUTO PLAY” in “CUSTOM SETUP” is

set to “ON” (page 70).

Playback stops automatically.

, While playing discs with an auto pause

signal, the player stops playback at the auto pause signal.

Some functions such as Stop, Search, Fast Play, Slow Play, Slow-motion Play, Repeat Play, Shuffle Play, or Program Play cannot be performed.

, Depending on the disc, you may not be able

to do some of the operations above. Refer to the operating manual that comes with the disc.

Page 75

The language for the sound track cannot be changed.

, Try using the DVD’s menu instead of the

direct selection button on the remote (page 28).

, Multilingual tracks are not recorded on the

DVD being played.

, The DVD prohibits the changing of the

language for the sound track.

The subtitle language cannot be changed or turned off.

, Try using the DVD’s menu instead of the

direct selection button on the remote (page 28).

, Multilingual subtitles are not recorded on

the DVD being played.

, The DVD prohibits the changing of

subtitles.

The angles cannot be changed.

, Try using the DVD’s menu instead of the

direct selection button on the remote (page 28).

, Multi-angles are not recorded on the DVD

being played.

, The angle can only be changed when the

“ ” indicator lights up on the front panel display (page 12).

, The DVD prohibits changing of the angles.

“Data error” appears on the TV screen when playing a DATA CD or DATA DVD.

, The MP3 audio track/JPEG image file you

want to play is broken.

, The data is not MPEG-1 Audio Layer III

data.

, The JPEG image file format does not

conform to DCF (page 56).

, The JPEG image file has the extension

“.JPG” or “.JPEG,” but is not in JPEG format.

The player does not operate properly.

, When static electricity, etc., causes the

player to operate abnormally, unplug the player.

5 numbers or letters are displayed on the screen and on the front panel display.

, The self-diagnosis function was activated.

(See the table on page 76.)

The disc tray does not open and “LOCKED” appears on the front panel display.

, Child Lock is set (page 26).

The disc tray does not open and “TRAY LOCKED” appears on the front panel display.

, Contact your Sony dealer or local

authorized Sony service facility.

Additional Information

Page 76

Self-diagnosis Function

Glossary

(When letters/numbers appear in the display)

When the self-diagnosis function is activated to prevent the player from malfunctioning, a five-character service number (e.g., C 13 50) with a combination of a letter and four digits appears on the screen and the front panel display. In this case, check the following table.

C:13:50

First three characters of the service number

C 13 The disc is dirty or recorded

C 31 The disc is not inserted

E XX

(xx is a number)

Cause and/or corrective action

in a format that this player cannot play (page 9). ,Clean the disc with a

cleaning cloth or check its format (page 2).

correctly. ,Re-insert the disc

correctly.

To prevent a malfunction, the player has performed the self-diagnosis function. ,Contact your nearest

Sony dealer or local authorized Sony service facility and give the 5character service number. Example: E 61 10

Album (page 58, 61)

A unit in which to store JPEG image files or MP3 audio tracks on a DATA CD/DATA DVD. (“Album” is an exclusive definition for this player.)

Chapter (page 12)

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.

Dolby Digital (page 22, 72)

Digital audio compression technology developed by Dolby Laborat o ries . Thi s technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Digital” theater surround sound systems. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.

DTS (page 22, 72)

Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.

Page 77

DVD VIDEO (page 8)

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and singlesided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is

9.4 GB, and double-layer and double-sided

DVD is 17 GB. The picture data uses the MPEG 2 format, a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more realistic audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

DVD-RW (page 8)

A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD+RW (page 8)

A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.

File (page 56, 59)

A JPEG image recorded on a DATA CD/ DATA DVD (“File” is an exclusive definition for this player.) A single file consist of a single image.

Film based software, Video based software (page 20)

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theaters. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames/60 fields per second.

Normal (Interlace) format (page 20)

Normal (Interlace) format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.

Progressive format (page 20)

Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 480 progressive format.

Progressive JPEG

Progressive JPEGs are used mostly on the internet. They are different from other JPEGs in that they “fade in” gradually instead of being drawn from top to bottom when displayed on a browser. This lets you view the image while it is being downloaded.

Title (page 12)

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

Additional Information

Page 78

Specifications

System

Laser: Semiconductor laser Signal format system: NTSC

Audio characte r is tic s

Frequency response: DVD VIDEO (PCM

96 kHz): 2 Hz to 44 kHz (±1. 0 dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)

Signal-to-noise ratio (S/N ratio ): 115 dB

(LINE OUT L /R (AUDIO) jacks only)

Harmonic distortion: 0.003 % Dynamic range: DVD VIDEO: 103 dB/

CD: 99 dB

Wow and flutter: Less than detected value

(±0.001% W PEAK)

Outputs and Input

(Jack name: Jack type/Output level/Load

impedance)

LINE OUT (AUDIO): Phono jack/2 Vrms/

10 kilohms

DIGITAL OUT (COAXIAL): Phono jack/

0.5 Vp-p/75 ohms

DIGITAL OUT (OPTICAL): Optical

output jack/–18 d B m (wave le n gth 660 nm)

COMPONENT VIDEO OUT (Y, P

Phono jack/Y: 1.0 Vp-p/P interlace*1 = 0.648 Vp-p, prog ressive or interlace*

*1BLACK LEVEL (COMPONENT OUT) is ON

BLACK LEVEL (COMPONENT OUT) is OFF

= 0.7 Vp-p/75 ohms

B, PR):

B, PR:

LINE OUT (VIDEO): Phono jack/1.0 Vp-p/

75 ohms

S VIDEO OUT: 4-pin mini DIN/

Y: 1.0 Vp-p, C: 0.286 Vp-p/75 ohms

MIC Input 1/2: Phone ja cks

General

Power requirem ents:

120 V AC, 60 Hz

Power consumpti on: 11 W Dimensions (approx.):

430 × 55 × 243.7 mm (width/height/ depth) incl. projecting parts

Mass (approx.): 2.04 kg Operating temperature: 5 °C to 35 °C Operating humidity: 25 % to 80 %

Supplied accessories

See page 17. Specifications and design are subject to

change without no tice.

Page 79

Language Code List

For details, see pages 49, 52, 68. The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali;

Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian

1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian;

Lettish

1345 Malagasy

1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan)Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto;

Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-

Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-

Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian

1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu

1703 Not specified

Additional Information

Parental Control Area Code List

For details, see page 63.

Code Area Code Area Code Area Code Area 2044 Argentina

2047 Australia 2046 Austria 2057 Belgium 2070 Brazil 2079 Canada 2090 Chile 2092 China 2115 Denmark

2165 Finland 2174 France 2109 Germany 2248 India 2238 Indonesia 2254 Italy 2276 Japan 2304 Korea 2363 Malaysia

2362 Mexico 2376 Netherlands 2390 New Zealand 2379 Norway 2427 Pakistan 2424 Philippines 2436 Portugal 2489 Russia 2501 Singapore

2149 Spain 2499 Sweden 2086 Switzerland 2528 Thailand 2184 United

Kingdom

Page 80

Index

Numerics

16:9

4:3 LETTER BOX 4:3 OUTPUT 4:3 PAN SCAN 48kHz/96kHz PCM

5.1 Channel Surround

A-B REPEAT ADVANCE ALBUM

Album

56, 76

ANGLE

APPLAUSE AUDIO

49, 68

AUDIO ATT AUDIO DRC AUDIO SETUP AUTO PLAY AUTO POWER OFF

BACKGROUND Batteries

BLACK LEVEL BLACK LEVEL

(COMPONENT OUT)

9, 25

CD Graphics CHAPTER Chapter

CHAPTER VIEWER Checking the audio signal

format Child Lock Connecting Continuous play

CD/VIDEO CD

DVD

Control Menu CUSTOM CUSTOM PARENTAL

CUSTOM PICTURE MODE CUSTOM SETUP

CONTROL

DATA CD DATA DVD DATE

DIGITAL OUT Digital output

DIMMER Display

Control Menu Display

8, 26

8, 56

Front panel display

Setup Display DOLBY DIGITAL DOWNMIX DTS

49, 72, 76

DVD

8, 25, 77

DVD+RW DVD’s menu DVD-RW

Echo

EFFECT

Fast forward FAST PLAY Fast reverse FILE

File

Film based software Freeze Frame Front panel display

GUIDE MELODY

Handling discs Hooking up

INDEX

Interlace format INTERVAL

JPEG

8, 56

Karaoke

KARAOKE MODE KARAOKE PON KEY CONTROL

LANGUAGE SETUP Locating

a specific point by watching

the TV screen

MEMORY MENU

MIC (microphone) LEVEL MODE (MP3, JPEG) MP3

8, 56

MULTI-DISC RESUME

8, 26, 77

8, 28, 77

49, 72, 76

20, 77

27,

NORMAL (INTERLACE) Normal (Interlace) format

On-screen display

Control Menu Display

Setup Display ORIGINAL ORIGINAL/PLAY LIST OSD

PARENTAL CONTROL PAUSE MODE PBC Playback PICTURE NAVIGATION

59 PLAY LIST PROGRAM Program Play PROGRESSIVE AUTO Progressive format PROGRESSIVE VIDEO

28 31

QUICK

Quick Setup

23, 68

Remote

13, 17, 65

REPEAT

Repeat Play REPLAY RESET

Scan

SCENE

SCORE

13, 44

SCREEN SAVER SCREEN SETUP Searching SETUP

Setup Display SHARPNESS SHUFFLE Shuffle Play Slide Show SLOW PLAY Slow-motion Play Speakers

Hooking up SUBTITLE Surround

67 55

52, 68

TIME/TEXT TITLE

36, 46

14 28

38,

Page 81

Title

TITLE VIEWER TOP MENU TRACK Track

TRACK SELECTION TRACK VIEWER Troubleshooting TV TYPE TVS (TV Virtual Surround)

Usable discs

Video based software VIDEO CD VOCAL SELECT

20, 77

8, 25

ZOOM

26, 59

Additional Information

Page 82

Tabla de contenido

Conexiones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Conexión del reproductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Paso 1: Desembalaje. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Paso 2: Inserción de las pilas en el control remoto . . . . . . . . . . . . . . . . . . . . . 3

Paso 3: Conexión de los cables del video . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Paso 4: Conexión de los cables de audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Paso 5: Conexión del cable de alimentación . . . . . . . . . . . . . . . . . . . . . . . . . 9

Paso 6: Ajuste rápido . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Reproducción de discos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Reproducción de discos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Page 83

Conexiones

Conexión del reproductor

Siga los pasos 1 a 6 para conectar el reproductor y ajustar sus valores.

Notas

• Enchufe los cables firmemente para evi ta r ruidos no deseados.

• Consulte el manual de instruccio nes suministrado con los componentes que va a conec t ar.

• No es posible conectar este reproductor a un te le visor que no tenga una toma de entrada de video.

• Asegúrese de desconectar el cable de corriente de cada componente antes de realizar las conexiones.

Paso 1: Desembalaje

Compruebe qu e t ie ne los siguientes elem entos:

• Cable de audio/video (clavij a fonográfica × 3 y clavija fonográfica × 3) (1)

• Control remoto (1)

• Pilas R6 (tamaño AA) (2)

Paso 2: Inserción de las pilas en el control remoto

Se puede controlar el reproductor co n el cont ro l remo to sumin is trado. Inserte dos pilas R6 (tamaño AA) d e forma que coinci dan sus extremos 3 y # con las m arcas del interior de l compartimiento. Al utilizar el control remoto, oriéntelo hacia el sensor remoto del reproductor.

Conexiones

Notas

• No deje el control remoto en lugares ex tr em a da me nte cálidos o húmedos.

• No permita que caigan objetos extraños sobr e el cont r ol r em oto, especialmente cuando sustituya la s pilas.

• No exponga el sensor del control remoto a la luz directa del sol ni a dispositivos de iluminación. Si lo hace, pueden producirse fallas en el funcionamiento.

• Cuando no vaya a usar el control remoto durante un tiempo pr ol onga do, extraiga las pilas para evitar posibles daños por fugas y corrosión.

,continúa

Page 84

Paso 3: Conexión de los cables del video

Conecte el reproductor al monitor del televisor, al proyector o al amplificador (receptor) de AV con un cable de video. Seleccione uno de los patrones A a C según la toma de entrada del monitor del televisor, del proyector o del amplificador (receptor) de AV. Para visualizar imágenes de señal progresiva (480 p) con un televisor, un proyector o un monitor compatible, debe utilizar el patrón C.

INPUT

VIDEO

AUDIO

TV (televisor), proyecto r o amplificador de AV (receptor)

a LINE OUT (VIDEO) (salida línea) (vídeo)

Cable de conexión de vídeo componente (no suministrado)

(amarillo)

DIGITAL OUT

(verde)

Cable de audio/ vídeo (suministrado)

LINE OUT

COAXIAL

VIDEO

AUDIO

OPTICAL

S VIDEO OUT

COMPONENT VIDEO OUT

(rojo)

(azul)

Cable S VIDEO (s vídeo) (no suministrado)

(amarillo)

a S VIDEO OUT (salida de s vídeo)

a COMPONENT VIDEO OUT (salida de vídeo componente)

INPUT

S VIDEO

TV (televisor), proyector o amplificador de AV

(receptor)

Reproductor CD/DVD (reproductor de discos compactos y videodiscos digitales)

COMPONENT

VIDEO IN

(verde) (azul)

(rojo)

l : flujo de señal

TV (televisor), proyector o amplificador de AV (receptor)

Page 85

A Si lo conecta a una toma de entrada de vídeo

Conecte la clavija amarilla del cable de audio/vídeo (suministrado) a la toma amarilla (vídeo). Disfrutará de imágenes de calidad estándar. En esta conexión, presione el botón PROGRESSIVE (progresivo) del panel frontal para seleccionar “NORMAL (INTERLACE)” (normal (entrelazado)) (predeterminado).

Conexiones

Amarillo

Blanco (izquierdo)

Rojo (derecho)

Amarillo Blanco (izquierdo) Rojo (derecho)

B Si lo conecta a una toma de entrada S VIDEO (s vídeo)

Conecte un cable S VIDEO (s vídeo) (no suministrado). Disfrutará de imágenes de alta calidad. En esta conexión, presione el botón PROGRESSIVE (progresivo) del panel frontal para seleccionar “NORMAL (INTERLACE)” (normal (entrelazado)) (predeterminado).

C Si lo conecta a un monitor, a un proyector o a un amplificador de

AV (receptor) con tomas de entrada de vídeo componente (Y, P

Conecte el componente a través de las tomas de COMPONENT VIDEO OUT (salida de vídeo componente) con un cable de vídeo componente (no suministrado) o con tres cables de vídeo (no suministrados) del mismo tipo y longitud. Este tipo de conexiones proporciona imágenes de alta calidad con una reproducción fiel de los colores. Si el televisor admite señales de formato progresivo de 480 p, utilice esta conexión y presione el botón PROGRESSIVE (progresivo) del panel frontal para emitir señales progresivas. Para obtener más información, consulte “Uso del botón PROGRESSIVE (progresivo)” (página 6).

Verde Azul Rojo

B, PR)

Si lo conecta a un televisor de pantalla panorámica

Según el disco, es posible que la imagen no quepa en la pantalla del televisor. Para cambiar la relación de aspecto, consulte la versión en inglés del Manual de instrucciones.

Nota

No conecte una videograbadora, etc., entre el televisor y el reproductor. Si pasa las señales del reproductor a través de la videograbadora, es posible que no reciba una imagen clara en la pantalla del televisor. Si el televisor sólo tiene una toma de entrada de audio/vídeo, conecte el reproductor a esta toma.

Videograbadora

Reproductor de CD/DVD

(reproductor de discos compa ctos y

videodiscos digitales)

Conectar directamente

Televisor

,continúa

Page 86

Uso del botón PROGRESSIVE (progresivo)

El botón PROGRESSIVE (progresivo) permite seleccionar el formato de señal que utilizará el reproductor para emitir señales de video (Progresivo o Entrelazado) y el método de conversión para las señales progresivas. El indicador PROGRESSIVE (progresivo) se iluminará cuando el reproductor emita señales progresivas. Cada vez que presione PROGRESSIVE (progresivo), la pantalla cambiará de la siguiente forma:

PROGRESSIVE AUTO

PROGRESSIVE VIDEO

NORMAL (INTERLACE)

◆PROGRESSIVE AUTO (progresivo automático)

Seleccione este ajuste cuando: –el televisor acepte señales progresivas y –esté conectado a las tomas COMPONENT VIDEO OUT (salida de vídeo componente). Normalmente seleccione este ajuste si se cumple la condición anterior. Detectará en forma automática el tipo de software y seleccionará el método de conversión adecuado. Tenga presente que si selecciona estos ajustes y no se cumple ninguna de las condiciones mencionadas anteriormente, la imagen no será nítida o no aparecerá ninguna imagen.

◆PROGRESSIVE VIDEO (progresivo video)

Seleccione este ajuste cuando: –el televisor acepte señales progresivas y –esté conectado a las tomas COMPONENT VIDEO OUT (salida de vídeo componente) y –desea fijar el método de conversión en PROGRESSIVE VIDEO (progresivo video) para el

software basado en video. Seleccione este ajuste si la imagen no es nítida cuando selecciona

PROGRESSIVE AUTO (progresivo automático). Tenga presente que si selecciona estos ajustes y no se cumple ninguna de las condiciones mencionadas anteriormente, la imagen no será nítida o no aparecerá ninguna imagen.

◆NORMAL (INTERLACE) (normal (entrelazado))

Seleccione este ajuste cuando: –el televisor no acepte señales progresivas o –esté conectado a tomas que no sean las tomas COMPONENT VIDEO OUT (salida de vídeo

componente), (LINE OUT (VIDEO) (salida línea (vídeo)) o S VIDEO OUT (salida de s

vídeo)).

Acerca de los tipos de software de DVD (videodisco digital) y el método de conversión

El software de DVD (videodisco digital) puede dividirse en dos tipos: el software basado en cine y el software basado en video. El software basado en video proviene de programas de televisión, como telenovelas y comedias, y muestra imágenes a 30 fotogramas/60 campos por segundo. El software basado en cine proviene de películas y muestra imágenes a 24 fotogramas por segundo. Existe software de DVD (videodisco digital) que contiene tanto video como películas. Para que estas imágenes parezcan naturales en la pantalla cuando se emiten en formato progresivo, las señales progresivas deben convertirse para que coincidan con el tipo de software de DVD (videodisco digital) que está viendo.

Nota

Si reproduce software basado en video en formato de señales progresivas, es posible que algunas partes de determinados tipos de imágenes no parezcan naturales debido al proceso de conversión si se emiten mediante las tomas COMPONENT VIDEO O UT (salida de vídeo component e). Las i mágenes em itidas a t ravés de las tomas S VIDEO OUT (salida de s vídeo) y LINE OUT (VIDEO) (salida línea (vídeo)) no se verán afectadas al utilizar un formato normal (entrelazado).

Page 87

Paso 4: Conexión de los cables de audio

Seleccione uno de los siguientes patrones, A o B, según la toma de entrada del monitor del televisor, del proyector o del amplificador de AV (receptor). De este modo podrá escuchar el sonido.

Conexiones

(blanco)

(amarillo)*

LINE OUT

AUDIO

LINE OUT

COAXIAL

AUDIO

OPTICAL

COMPONENT VIDEO OUT

DIGITAL OUT

a DIGITAL OUT (COAXIAL u OPTICAL) (salida digital coaxial u ó ptica)

COAXIAL

OPTICAL

DIGITAL OUT

Cable de conexión digital óptica (no suministrado)

[Altavoces]

Posterior (izquierdo)

Frontal (izquierdo)

Central

(rojo)

Cable de audio/video (suministrado)

VIDEO

a LINE OUT L/R (AUDIO) (salida línea izquierda/derecha)

VIDEO

S VIDEO OUT

a la entrada digital óptica

amplificador de AV (receptor) que dispone de un codificador

(amarillo)*

(blanco)

(rojo)

TV (televisor), proyector o amplificador de AV (receptor)

Reproductor de CD/ DVD (reproductor de discos compactos y videodiscos digitales)

Cable de conexión digital coaxial (no suministrado)

a la entrada digital coaxial

[Altavoces]

INPUT

VIDEO

AUDIO

Posterior (derecho)

Frontal (derecho)

Altavoz potenciador de graves

: flujo de señal

* La clavija amarilla se utiliza para señales de vídeo (página 4).

z Sugerencia

Para la colocación correcta de los altavoces, consulte el manual de instrucciones suministrado con los componentes conectados.

,continúa

Page 88

A Conexión a las tomas de

entrada de audio izquierdo/ derecho

Esta conexión utilizará los dos altavoces del televisor o del amplificador estéreo (receptor) para el sonido. Conexión mediante el cable de audio/vídeo (suministrado).

amarillo blanco (I)

rojo (D)

amarillo blanco (I) rojo (D)

B Conexión a las tomas de

entrada de audio digital

Si el amplificador de AV (receptor) dispone de decodificador Dolby Digital* una toma de entrada digital, utilice esta conexión. Conexión mediante un cable digital coaxial u óptica (no suministrado).

cable coaxial

cable óptica

o DTS*2 y

• Efecto sonido envolvente (para obtener

información detallada, consulte la versión

en inglés del Manual de instrucciones) Televisor: Teatro Dinámico, Dinámico, Envolvente, Nocturno

Amplificador estéreo (receptor): Estándar, Nocturno

• Efecto sonido envolvente Dolby Digital de (5,1 canales), DTS (5,1 canales)

Fabricado bajo licencia de Dolby Laboratories. “Dolby”, “Pro Logic” y el símbolo de la doble D son marcas comerciales de Dolby Laboratories.

“DTS” y “DTS Digital Out” son marcas comerciales de Digital Theater Systems, Inc.

Notas

• Tras completar la conexión, realice los aj us t es apropiados en Ajuste rápido (página 9). De lo contrario, los altavoces no emit irá n el son id o o bien emitirán un ruido fuerte.

• Los efectos TVS (sonido envolvente virtual de televisor) de este reproductor no son compatibles con esta conexión.

• Para escuchar pistas de sonido DTS (sistema digital de sala de cine), debe utilizar esta conexión. Las pistas de so nido DTS n o se em iten a través de las tomas LINE OUT L/R (AUDIO) (salida línea I/D (izquierdo/derecho) (AUDIO)) aunque ajuste “DTS” (siste ma digital de sala de cine) en “ON” en Ajuste rápido (página 9).

Page 89

Paso 5: Conexión del cable de alimentación

Conecte los cables de alimentación del reproductor y del televisor a una toma de ca

Paso 6: Ajuste rápido

Siga los pasos siguientes para realizar el mínimo de ajustes básicos para utilizar el reproductor. Para saltar un ajuste, presione >. Para volver al ajuste anterior, presione ..

ENTER (ingresar)

Conexiones

1 Encienda el televisor. 2 Presione [/1. 3 Cambie el selector de entrada del

televisor para que la señal del reproductor aparezca en la pantalla del televisor.

En la parte inferior de la pantalla, aparecerá “Press [ENTER] to run QUICK SETUP”. Si este mensaje no aparece, seleccione “QUICK” en “SETUP” del menú de control para ejecutar el ajuste rápido (para obtener información detallada, consulte la versión en inglés del Manual de instrucciones).

4 Presione ENTER (ingresar) sin

insertar ningún disco.

Aparece la pantalla de ajustes que le permitirá seleccionar el idioma utilizado en la pantalla.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

5 Presione X/x para seleccionar un

idioma.

El reproductor muestra el menú y los subtítulos en el idioma seleccionado.

6 Presione ENTER (ingresar).

Aparece la pantalla de ajustes que le permitirá seleccionar la relación de aspecto del televisor que vaya a conectar.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: BLACK LEVEL: BLACK LEVEL 4:3 OUTPUT: FULL

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

(COMPONENT OUT)

,continúa

16:9 OFF

Page 90

7 Presione X/x para seleccionar el

ajuste que coincida con el tipo de televisor.

◆ Si tiene un televisor 4:3 estándar

• 4:3 LETTER BOX (tipo buzón) o 4:3 PAN SCAN (exploración PAN) (para obtener información detallada, consulte la versión en inglés del Manual de instrucciones)

◆ Si tiene un televisor con pantalla

panorámica o uno 4:3 estándar con el modo de pantalla panorámica

• 16:9 (para obtener información detallada, consulte la versión en inglés del Manual de instrucciones)

8 Presione ENTER (ingresar).

Aparece la pantalla de ajustes que le permitirá seleccionar el tipo de toma utilizada para conectar el amplificador (receptor).

Is this player connected to an amplifier (receiver) ? Select the type of jack you are using.

YES

LINE OUTPUT L/R (AUDIO) DIGITAL OUTPUT

10Presione X/x para seleccionar el

tipo de señal Dolby Digital que desee enviar al amplificador (receptor).

Si el amplificador de AV (receptor) dispone de decodificador Dolby Digital, seleccione “DOLBY DIGITAL”. De lo contrario, seleccione “D-PCM”.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

DOLBY DIGITAL

OFF

STANDARD

ON D-PCM D-PCM

11Presione ENTER (ingresar).

Se selecciona “DTS” (sistema digital de sala de cine).

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

OFF

STANDARD

D-PCM

OFF OFF

9 Presione X/x para seleccionar (si

existe) el tipo de toma que utilice para conectar a un amplificador (receptor) y, a continuación, presione ENTER (ingresar).

Si no conectó el amplificador de AV (receptor), seleccione “NO” y vaya al paso 13. Si conectó el amplificador de AV (receptor) sólo con un cable de audio, seleccione “YES: LINE OUTPUT L/R (AUDIO)” y vaya al paso 13. Si conectó un amplificador (receptor) de AV mediante un cable digital coaxial u óptica, seleccione “YES: DIGITAL OUTPUT”.

12Presione X/x para seleccionar si

desea o no enviar una señal DTS (sistema digital de sala de cine) al amplificador (receptor).

Si el amplificador de AV (receptor) dispone de decodificador DTS (sistema digital de sala de cine), seleccione “ON”. De lo contrario, seleccione “OFF”.

13Presione ENTER (ingresar).

El ajuste rápido ha finalizado. Todas las conexiones y operaciones de ajuste se han completado.

Page 91

Reproducción de discos

Algunas operaciones pueden ser distintas o estar limitadas en función del DVD (videodisco digital) o VIDEO CD (videodisco compacto). Consulte las instrucciones de uso suministradas con el disco.

*3 *4

3 Cambie el selector de entrada del

televisor para que la señal del reproductor aparezca en la pantalla del televisor.

◆ Cuando utilice un amplificador (receptor)

Encienda el amplificador (receptor) y seleccione el canal adecuado para que pueda escuchar el sonido del reproductor.

4 Presione A en el reproductor y

coloque un disco en la bandeja de discos.

Reproducción de discos

LEVEL

MIC 1 MIC 2

ECHO LEVEL

MIN MAX MIN MAX MIN MAX

RETURN

(volver)

DVD video (video de videodisco digital).

DVD-VR (videodisco digital sin función de grabación de video).

VCD (videodisco compacto).

CD (disco compacto).

DATA CD (disco compacto de datos).

DATA DVD (videodisco digital de datos).

ENTER (ingresar)

1 Encienda el televisor. 2 Presione [/1.

El reproductor se enciende.

PROGRESSIVE

Con la cara de reproducción hacia abajo

5 Presione H.

La bandeja de discos se cierra y el reproductor inicia la reproducción (continua). Ajuste el volumen en el televisor o en el amplificador (receptor). De acuerdo con el disco, puede aparecer un menú en la pantalla del televisor. Para obtener información detallada, consulte la versión en inglés del Manual de instrucciones.

Para apagar el reproductor

Presione [/1. El reproductor entra en modo de espera.

z Sugerencia

El reproductor se puede apagar en forma automática siempre que lo deje en modo de pa rada durante más de 30 minutos. Para activar o desactivar esta función, ajuste “AUTO POWER OFF” en “CUSTOM SETUP” en “ON” o “OFF” (para obtener información detall ada, consulte la versión en inglés del Manual de instrucciones).

Nota

Los discos creados con grabadoras de DVD (videodisco digital) deberán est ar fin al i zados correctamente para poder reproducirse. Para obtener más información acerca de la finalización, consulte el manual de instrucciones suministrado con la grabadora de DVD (videodisco digital).

,continúa

Page 92

Notas sobre la reproducción de pistas de sonido DTS (sistema digital de sala de cine) de un DVD VIDEO (video de videodisco digital)

• Las señales de audio DTS (sistema digital de sala de cine) se emiten sólo a través de la toma DIGITAL OUT (COAXIAL u OPTICAL) (salida digital coaxial u óptica).

• Cuando reproduzca un DVD VIDEO (video de videodisco digital) con pistas de sonido DTS (sistema digital de sala de cine), ajuste “DTS” (sistema digital de sala de cine) en “ON” en “AUDIO SETUP” (para obtener información detallada, consulte la versión en inglés del Manual de instrucciones).

• Si conecta el reproductor al equipo de audio sin utilizar un decodificador DTS (sistema digital de sala de cine), no ajuste “DTS” (sistema digital de sala de cine) de “AUDIO SETUP” en “ON” (para obtener información detallada, consulte la versión en inglés del Manual de instrucciones). Es posible que los altavoces emitan un ruido fuerte, que podría afectar los oídos o dañar los altavoces.

Operaciones adicionales

Para Funcionamiento

Detener Presione x Hacer una pausa Presione X Reanudar la

reproducción después de la pausa

Pasar al capítulo, pista o escena siguiente en el modo de reproducción continua

Retroceder al capítulo, pista o escena anterior en el modo de reproducción continua

Detener la reproducción y expulsar el disco

Volver a reproducir la escena anterior*

Avanzar rápidamente una pequeña parte de la escena actual*

Aumentar la imagen*

Presione X o H

Presione >

Presione .

Presione Z

Presione

(REPLAY) (reproducción) durante la reproducción

Presione (ADVANCE)

(avance) durante la reproducción

Presione ZOOM (ampliación) varias veces. Presione CLEAR (borrar) para cancelar.

CLEAR (borrar)

REPLAY

(reproducción)

ZOOM

(ampliación)

SLOW PLAY

(reproducción

lenta)

ADVANCE (avance)

FAST PLAY (reproducción rápida)

*1 Sólo para discos DVD VIDEO/DVD-RW/

DVD-R (video de videodisco digital/ videodisco digital menos reg rabable/videodisco digital menos grabable).

*2Sólo para discos DVD VIDEO/DVD-RW/

DVD-R/DVD+RW/DVD+R (video de videodisco digital/videodisco digital menos regrabable/videodisco digital menos grabable/ videodisco digital más regrabable/videodisco digital más grabable).

*3Sólo para imágenes de video y JPEG (grupo

conjunto de expertos en fotografía) (salvo imágenes FONDO). Puede mover la imagen ampliada mediante C/X/x/c. Según el contenido del disco, es posible que se cancele en forma automática la función de zoom (ampliación) cuando se mueva la imagen.

Page 93
