3-063-038-11(2)

CD/DVD Player

Operating Instructions

DVP-K350

Page 2

WARNING

Welcome!

To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Mains cord must only be changed at a qualified service shop.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

Precautions

Safety

• The power requirements and power consumption of this unit are indicated on the back of the unit. Check that the unit’s operating voltage is identical with your local power supply.

Power requirements and power consumption c

CD/DVD PLAYER

AC 00V 00Hz

NO.

00W

SONY CORPORATION

MODEL NO.

MADE IN JAPAN

DVP–XXXX

0-000-000-00

Installing

• Allow adequate air circulation to prevent internal heat buildup.

• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the unit near heat sources such as radiators or air dusts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the unit and discs away from equipment with strong magnets, such as microwave ovens or large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to a warm location, moisture may condense inside the CD/DVD player and cause damage to the lenses. When you first install the unit, or when you move it from a cold to a warm location, wait for about 30 minutes before operating the unit.

Thank you for purchasing this Sony CD/ DVD Player. Before operating the unit, please read this manual thoroughly and retain it for future reference.

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

• The unit is not disconnected from the mains as long as it is connected to the mains outlet, even if the unit itself has been turned off.

• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.

Page 3

TABLE OF CONTENTS

About This Manual 4 This Player Can Play the Following Discs 4 Precautions 6 Notes About the Discs 6

Getting Started 7

Unpacking 7 TV Hookups 8 Receiver (Amplifier) Hookups 10 2+1 Channel Surround Hookups 12

5.1 Channel Surround Hookups 13 Selecting the Language for the On-Screen

Display 15

Operation Sound Effects (Sound Feedback) 16

Playing Discs 17

Playing Discs 17 Searching for a Particular Point on a Disc 19 Resuming Playback from the Point Where You

Stopped the Disc (Resume Play) 20 Using the DVD’s Menu 21 Playing VIDEO CDs with PBC Functions

(PBC Playback) 22 Using the Front Panel Display 23

Using Various Functions with the Control Menu 25

Using the Control Menu Display 25 Control Menu Item List 27 Searching for a Title/Chapter/Track/Index/

Scene 28 Checking the Playing Time and Remaining

Time 29 Selecting a Starting Point Using the Time Code 29 Viewing the Disc Information 30 Changing the Sound 31 Displaying the Subtitles 33 Changing the Angles 34 Digital Cinema Sound Settings 35 Checking the Play Information 36 Locking Discs (Custom Parental Control) 37 Creating Your Own Program (Program Play) 39 Playing in Random Order (Shuffle Play) 41 Playing Repeatedly (Repeat Play) 42 Repeating a Specific Portion (A-B Repeat) 43

Enjoying Karaoke 45

Using Karaoke 45 Using the Karaoke Control Menu Display 47 Changing the Key (Key Control) 48 Applying the Surround Effect

(Karaoke Surround) 48 Additing Richness to Your Voice (Karaoke Star) 49 Playing Karaoke with Any Stereo Disc

(Karaoke Pon) 49 Turning the Vocals On and Off (Vocal) 50 Selecting the Vocals (Vocal Select) 51 Being Supported by the Recorded Vocal Track

(Vocal Support) 52 Turning the Guide Melody On and Off

(Guide Melody) 52 Playing Only the First Verse of Each Title

(First Verse Play) 53 Searching for a Title by Listening to the Chorus

(Chorus Medley) 53 Pausing at the End of Each Track (Auto Pause) 54 Reserving Karaoke (Reserve) 54 Inserting the Applause Effect (Ef fect Mode) 55

Settings and Adjustments 56

Using the Setup Display 56 Setup Display Item List 58 Setting the Display Language or Sound Track

(LANGUAGE SETUP) 59 Settings for the Display (SCREEN SETUP) 60 Custom Settings (CUSTOM SETUP) 61 Settings for the Sound (AUDIO SETUP) 65 Subwoofer Set Up (SPEAKER SETUP) 67

Additional Information 68

Troubleshooting 68 Self-diagnosis function 71 Specifications 72 Glossary 73 Language Code List 75 Index to Parts and Controls 76 Index 79

Page 4

About This Manual

Conventions

Icon Meaning

• Instructions in this manual describe the controls on the player. You can also use the controls on the remote if they have the same or similar names as those on the player.

• The icons on the right are used in this manual:

This Player Can Play the Following Discs

DVD VIDEOs VIDEO CDs Audio CDs

Disc logo

Indicates that you can use only the remote to do the task.

Indicates tips and hints for making the task easier.

Indicates that the function is for DVD VIDEOs.

Indicates that the function is for VIDEO CDs.

Indicates that the function is for Audio CDs.

Contents

Disc size

Audio + Video

12 cm 8 cm

Audio + Video Audio

12 cm

8 cm

12 cm

8 cm

(CD single)

Play time

About 4 h (for single-sided DVD)/ about 8 h (for double-sided DVD)

About 80 min. (for single-sided DVD)/ about 160 min. (for

74 min.

20 min.

74 min.

20 min.

double-sided DVD)

The “DVD VIDEO” logo is a trademark.

This player switches the color system, PAL or NTSC, according to the connected TV. (For details, see page 9.)

Region code of DVDs you can play on this unit

Your DVD player has a region code printed on the back of the unit and will only play DVDs that are labeled with identical region codes.

DVDs labeled

ALL

will also play on this unit.

If you try to play any other DVD, the message “Playback prohibited by area limitations.” will

CD/DVD PLAYER

AC 00V 00Hz

NO.

00W

SONY CORPORATION

MODEL NO.

MADE IN JAPAN

DVP–XXXX

0-000-000-00

Region code

appear on the TV screen. Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally fixed by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the DVDs or VIDEO CDs.

Page 5

Terms for discs

• Title

The longest section of a picture or music feature on a DVD, the movie, etc. in video software, or the name of an album in audio software.

• Chapter

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want. Depending on the disc, no chapters may be recorded.

• Track

Sections of a picture or a music feature on a VIDEO CD or a CD. Each track is assigned a track number enabling you to locate the track you want.

DVD structure

VIDEO CD or

Title

Chapter

Track

Disc

CD structure

Index

Discs that the player cannot play

The player cannot play discs other than the ones listed in the table on page 4. CD-Rs, CD-ROMs including PHOTO CDs, data sections in CD-EXTRAs, DVD-ROMs, DVD-audio, HD (high density) layer of Super Audio CD etc., cannot be played.

• Index (CD) / Video Index (VIDEO CD)

A number that divides a track into sections to easily locate the point you want on a VIDEO CD or a CD. Depending on the disc, no indexes may be recorded.

• Scene

On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called “scenes.” Each scene is assigned a scene number enabling you to locate the scene you want.

Note on PBC (Playback Control) (VIDEO CDs)

This player conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can enjoy two kinds of playback according to the disc type.

Disc type

VIDEO CDs without PBC functions (Ver. 1.1 discs)

VIDEO CDs with PBC functions (Ver. 2.0 discs)

You can

Enjoy video playback (moving pictures) as well as music.

Play interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver. 1.1 discs. Moreover, you can play high-resolution still pictures if they are included on the disc.

When playing DTS*-encoded CDs, excessive noise will be heard from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo outputs of the DVD player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel DTS Digital Surround™ decoder system must be connected to the digital output of the DVD player.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

* “DTS,” “DTS Digital Surround” and “DTS Digital Out” are

trademarks of Digital Theater Systems, Inc.

Page 6

Precautions

On safety

• Caution – The use of optical instruments with this

product will increase eye hazard.

• Should any solid object or liquid fall into the cabinet,

unplug the player and have it checked by qualified personnel before operating it any further.

On power sources

• The player is not disconnected from the AC power

source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

• If you are not going to use the player for a long time, be

sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.

• Should the AC power cord (mains lead) need to be

changed, have it done at a qualified service shop only.

On placement

• Place the player in a location with adequate ventilation

to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug

that might block the ventilation holes on the bottom.

• Do not place the player in a location near heat sources,

or in a place subject to direct sunlight, excessive dust or mechanical shock.

IMPORTANT NOTICE

Caution: The enclosed DVD player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

Notes About the Discs

On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc. If there is glue (or a similar substance) on the disc, remove the glue completely before using the disc.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• When you move the player, take out any discs. If you don’t, the disc may be damaged.

On adjusting volume

• Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.

On cleaning

• Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

On novelty discs

• Do not use irregularly shaped CDs such as heart- or star-shaped CDs as they may cause the player to malfunction.

Page 7

Getting

Unpacking

Started

This section describes how to hook up the CD/DVD player to a TV (with audio/video input jacks) and/or an AV receiver (amplifier). You cannot connect this player to a TV which does not have a video input connector. Be sure to turn off the power of each component before making the connections.

Check that you have the following items:

• Audio/video connecting cord (1)

• Remote commander (remote) RMT-D118E (1)

• R6 (size AA) batteries (2)

Inserting batteries into the remote

You can control the player using the supplied remote. Insert two R6 (size AA) batteries by matching the + and – ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor

on the player.

Getting Started

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.

• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Page 8

TV Hookups

Getting Started

This connection is for listening to the sound through TV speakers (L:left, R:right). Refer to the instructions supplied with the component to be connected.

zYou can enjoy surround sound using your TV’s built-in

speakers

You can use 3D sound imaging to create virtual rear speakers from the sound of built-in TV speakers without using actual rear speakers (VES TV: Virtual Enhanced Surround TV). For details, see page 35.

CD/DVD player

WOOFER

AUDIO OUT

PCM/DTS/MPEG/

DOLBY DIGITAL

COAXIAL OPTICAL

Required cords

Audio/video connecting cord (supplied) (1)

Yellow

White (L)

Red (R)

S video cord (not supplied) (1)

When connecting the cords, be sure to match the color-coded cord to the appropriate jacks on the components: Yellow (video) to Yellow, Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise. If your TV has an S video input connector, connect the component via the S VIDEO OUT connector using an S video cord (not supplied). You will get a better picture. Refer to the instructions supplied with the TV to be connected.

VIDEO OUT S VIDEO OUTDIGITAL OUT

COMPONENT VIDEO OUT

B/B-Y CR/R-Y

Yellow

White (L) Red (R)

To AUDIO OUT

: Signal flow

To VIDEO OUT

To S VIDEO OUT

To video input

To audio input

To S VIDEO input

To mains

INPUT

VIDEO

S VIDEO

AUDIO

Page 9

If you connect the player to a monitor or projector having component video input connectors that conform to output signals from the COMPONENT VIDEO OUT (Y, C

B/B-Y, CR/R-Y)

connectors on the player

Connect the component via the COMPONENT VIDEO OUT connectors using three video connecting cords (not supplied) of the same kind. You will get a better picture.

CD/DVD player

COMPONENT VIDEO OUT

CB/B-YYC

/R-Y

Monitor or projector with component video input connectors

COMPONENT

VIDEO IN

Notes

• Refer to the instructions supplied with the component to be connected.

• Do not connect this player to a video deck. If you do, noise may appear in the picture.

VCR

Setups for the player

Some setup adjustments are necessary for the player depending on the TV or other components to be connected. Use the setup display to change the various settings. For details on using the setup display, see page 56.

• To connect the player to a wide-screen TV

In the setup display, set “TV TYPE” in “SCREEN SETUP” to “16:9” (default setting). For details, see page

60.

• To connect the player to a normal TV

In the setup display, set “TV TYPE” in “SCREEN SETUP” to “4:3 LETTER BOX” or “4:3 PAN SCAN.” For details, see page 60.

• If the color system of the TV is NTSC or DUAL

Since the color system of the player is set to NTSC, you can use the player as it is.

• If the color system of the TV is PAL

To change the color system of the player to PAL, hold ! down while pressing X on the player. The power indicator lights up in green and changes to red. Then release X.

zYou can check the color system of the player

Press ! on the player and then press @/1 on the remote. The power indicator lights up in green. When “NTSC” appears on the front panel display, the color system of the player is set to NTSC. When “NTSC” does not appear, the color system is set to PAL.

Getting Started

CD/DVD player

• Depending on the TV or receiver (amplifier), sound distortion may occur because the audio output level is high. In this case, set “AUDIO ATT” in “AUDIO SETUP” to “ON” in the setup display. For details, see page 65.

Connect directly

Page 10

Receiver (Amplifier) Hookups

Getting Started

speakers connected to a receiver without a built-in DTS, Dolby* Digital or MPEG decoder. Refer as well to the instructions supplied with the component to be connected.

zYou can enjoy surround sounds even if you connect front

This connection is for listening to the sound through

speakers only

You can use 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (VES:Virtual Enhanced Surround). For details, see page 35.

zIf you have a digital component with a built-in DTS, Dolby

Digital or MPEG decoder

You can enjoy multi-channel surround sound by connecting the component via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord (not supplied). For details on hookups and settings, see page 13.

Note

You cannot use the karaoke function with the DIGITAL OUT connectors.

* Manufactured under license from Dolby Laboratories.

Required cords

Audio connecting cord (not supplied) (1)

White (L) Red (R)

S video cord (not supplied) (1)

When connecting the cords, be sure to match the color-coded cord to the appropriate jacks on the components: Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise. If you have a digital component such as a receiver (amplifier) with a digital connector, DAT or MD, connect the component via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord (not supplied).

Optical digital connecting cord (not supplied) (1)

Coaxial digital connecting cord (not supplied) (1)

White (L) Red (R)

CD/DVD player

To AUDIO OUT

WOOFER

AUDIO OUT

To DIGITAL OUT (COAXIAL)

PCM/DTS/MPEG/

DOLBY DIGITAL

COAXIAL OPTICAL

VIDEO OUT S VIDEO OUTDIGITAL OUT

To DIGITAL OUT (OPTICAL)

Take off the cap.

COMPONENT VIDEO OUT

B/B-Y CR/R-Y

To S VIDEO OUT

To S VIDEO input

To optical digital input

To coaxial digital input

VIDEO

AUDIO

DIGITAL IN

OPTICAL

COAXIAL

To mains

INPUT

S VIDEO

Receiver (Amplifier) with a digital connector, MD deck, DAT deck, etc.

Receiver (Amplifier)

: Signal flow

To audio input

Page 11

Notes

• You cannot enjoy a picture with an S video signal if your TV does not conform to the S video signal. When your TV does not have an S VIDEO input, connect the component via the VIDEO INPUT connector using the video connecting cord (not supplied) instead of the S video cord. For details, see page 8. Refer to the instructions supplied with your TV.

• Refer to the instructions supplied with the component to be connected.

• You cannot make digital audio recordings of discs recorded in multi-channel surround format directly using an MD deck or DAT deck.

• When you connect the component via the DIGITAL OUT OPTICAL or COAXIAL connector, set Virtual Enhanced Surround (VES) to “OFF.” Otherwise, the player will not output the following signals from the DIGITAL OUT OPTICAL or COAXIAL connector. – Dolby Digital signals (when you set “DOLBY DIGITAL” in

“AUDIO SETUP” to “D-PCM”)

– MPEG audio

When you have made the connections using an optical or coaxial digital connecting cord, do not set “DOLBY DIGITAL” to “DOLBY DIGITAL,” “MPEG” to “MPEG” and “DTS” to “ON.” If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the speakers to be damaged.

Setups for the player

Some setup adjustments are necessary for the player depending on the components to be connected. Use the setup display to change the various settings. For details on using the setup display, see page 56.

• To listen to the sound through speakers connected

to a receiver (amplifier) which has a digital connector and lacks a built-in DTS, Dolby Digital or MPEG decoder, or to output the sound to a digital component such as a DAT or MD deck

Set the “AUDIO SETUP” items in the setup display (page 65) as shown in the illustration below. These are the default settings.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

OFF

STANDARD

D-PCM

PCM

OFF

Set the items as shown

Getting Started

Set “VES” to “OFF” in the Control Menu display (page

35). When you select any VES mode other than “OFF,” no sound will come from the speakers.

Note

When you output the signals which do not reproduce the Dolby Surround (Pro Logic) effect from the DIGITAL OUT OPTICAL or COAXIAL connector, set “DOWNMIX” to “NORMAL” in “AUDIO SETUP” in the setup display (page 65).

Page 12

2+1 Channel Surround Hookups

Getting Started

This connection is for listening to the sound through the left and right speakers of the TV, or speakers connected to a receiver and the subwoofer. You can enjoy rich bass frequencies by connecting a subwoofer. Refer to the instructions supplied with the component to be connected. Set “SUBWOOFER” in “SPEAKER SETUP” to “YES” in the setup display (page 67). Then set “FRONT SPEAKER SIZE” to “TV” when you use the TV’s speakers, or to “LARGE,” “MIDDLE” or “SMALL” when you use the speakers connected to the receiver.

zYou can enjoy surround sounds even if you connect front

speakers only

You can use 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (Virtual Enhanced Surround). For details, see page

35.

CD/DVD player

WOOFER

AUDIO OUT

PCM/DTS/MPEG/

DOLBY DIGITAL

COAXIAL OPTICAL

Required cords

Audio connecting cord (not supplied) (1)

White (L) Red (R)

S video cord (not supplied) (1)

Monaural audio cord (not supplied) (1)

One for a subwoofer

VIDEO OUT S VIDEO OUTDIGITAL OUT

COMPONENT VIDEO OUT

B/B-Y CR/R-Y

White (L) Red (R)

Subwoofer (Active type)

INPUT

: Signal flow

To AUDIO OUT (WOOFER)

To AUDIO OUT

To audio input

Notes

You cannot enjoy a picture with an S video signal if your TV does not conform to the S video signal. When your TV does not have an S VIDEO input, connect the component via the VIDEO INPUT connector using the video connecting cord (not supplied) instead of the S video cord. For details, see page 8. Refer to the instructions supplied with your TV.

To mains

To S VIDEO OUT

To S VIDEO input

INPUT

VIDEO

S VIDEO L AUDIO

Receiver (Amplifier)

Page 13

5.1 Channel Surround Hookups

With DVDs which contain DTS, Dolby Digital or MPEG audio sound, you can enjoy the surround sound while producing the effect of being in a movie theater or a concert hall using a digital component with a built-in DTS, Dolby Digital or MPEG decoder (not supplied). The player outputs the surround sound signals from the DIGITAL OUT OPTICAL and COAXIAL connectors. Using a receiver (amplifier) having the OPTICAL or COAXIAL connector and 6 speakers, you can enjoy even greater real audio presence in the comfort of your own home.

Notes

• When a DVD has a sound track with 7.1 channels recorded in MPEG audio format, the output audio signals are mixed down to 5.1 channels.

• You cannot use the karaoke function with the DIGITAL OUT connectors.

Required cords

Optical digital connecting cord* (not supplied) (1)

Coaxial digital connecting cord* (not supplied) (1)

S video cord (not supplied) (1)

Setups for the player

• When you connect an audio component with a built-

in Dolby Digital decoder A

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “DOLBY DIGITAL” to “DOLBY DIGITAL” in the setup display. (page 65)

• When you connect an audio component with a built-

in MPEG decoder B

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “MPEG” to “MPEG” in the setup display. (page

65)

• When you connect an audio component with a built-

in DTS decoder C

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “DTS” to “ON” in the setup display. (page 65)

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

DOLBY SURROUND

DOLBY DIGITAL

OFF

STANDARD

MPEG

Getting Started

* Connect the component via the DIGITAL OUT OPTICAL or

COAXIAL connector using an optical or coaxial digital connecting cord (not supplied). You do not need to connect both of these cords. See the figure on the next page.

Notes

• Do not connect the mains lead to mains or press the POWER switch before completing all connections.

• Refer to the instructions supplied with the component to be connected.

• The cord connectors should be fully inserted into the jacks. A loose connection may cause hum and noise.

To set, press , then . To quit, press .

Notes

• When you do not connect an audio component with a built-in Dolby Digital decoder, do not set “DOLBY DIGITAL” to “DOLBY DIGITAL.”

• When you do not connect an audio component with a built-in MPEG decoder, do not set “MPEG” to “MPEG.”

• When you do not connect an audio component with a built-in DTS decoder, do not set “DTS” to “ON.”

DISPLAY

ENTER

Page 14

5.1 Channel Surround Hookups

Getting Started

To DIGITAL OUT (OPTICAL)

Take off the cap.

AUDIO OUT

WOOFER

To DIGITAL OUT (COAXIAL)

To S VIDEO input

S VIDEO IN

To S VIDEO OUT

CD/DVD player

PCM/DTS/MPEG/

DOLBY DIGITAL

COAXIAL OPTICAL

VIDEO OUT S VIDEO OUTDIGITAL OUT

COMPONENT VIDEO OUT

B/B-Y CR/R-Y

To mains

To optical digital input

AV Receiver (Amplifier) with a built-in DTS decoder, Dolby Digital decoder or MPEG decoder

To coaxial digital input

DIGITAL

TV/LD IN AC-3 RF

DVD IN

COAX

DVD IN OPT

TV/LD IN OPT

CD IN OPT

MD/DAT IN OPT

MD/DAT OUT OPT

TV/LD

S-VIDEO

VIDEO

AUDIO

SIGNAL GND

TUNER

PHONO

Front speaker (R)

DVD

VIDEO

S-VIDEO

OUT

VIDEO

AUDIO

OUT

REC OUT

VIDEO 2

MD/DAT

S-VIDEO

VIDEO

AUDIO

VIDEO 1

S-VIDEO

OUT

VIDEO

AUDIO

OUT

REC OUT

TAPE

S-LINK

MONITOR

CTRL A1

5.1 INPUT

FRONT REAR

S-VIDEO

OUT

VIDEO

AUDIO

RLR LRL

FRONTB REARA

CENTER

WOOFER

SPEAKERS

PRE OUT

FRONT REAR WOOFER CENTER

AC OUTLET

CENTER

–

Center speaker

INPUT

Front speaker (L)



Rear speaker (R)

Subwoofer

(Active type)

: Signal flow

Rear speaker (L)

Page 15

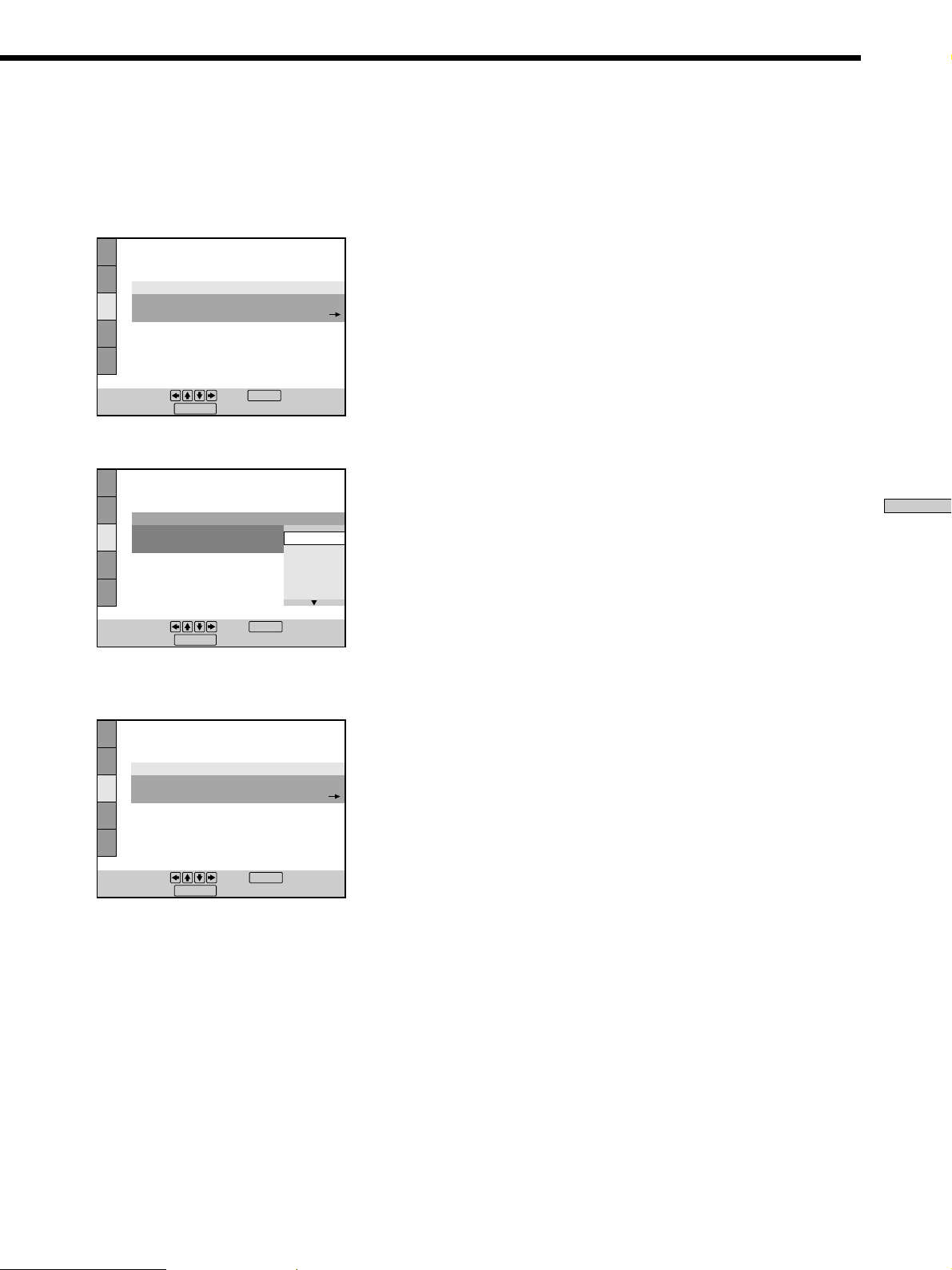

Selecting the Language for the On-Screen Display

You can select the language for the setup display, the Control Menu display or the messages displayed on the screen. The default setting is “ENGLISH.”

ENTER

</M/m/,

DISPLAY

1 When the player is in stop mode, press DISPLAY

and select “SETUP” using M/m.

The on-screen menu items are different depending on whether there is a disc in the player or not.

STOP DVD

3 Select “LANGUAGE SETUP” using M/m, and then

press ENTER.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

4 Select “OSD” using M/m, then press , or ENTER.

The languages you can select are displayed.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

ENGLISH

ENGLISH CHINESE 1 CHINESE 2

ENTER

5 Select the desired language using M/m, then press

ENTER.

Getting Started

Selected item

SETUP Select:

ENTER

2 Press ENTER.

The setup display appears on the TV screen.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

6 Press DISPLAY.

The setup display disappears.

7 Press DISPLAY repeatedly to turn off the on-screen

menu.

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Note

The languages you can select are the ones displayed in step 4. For details, see page 59.

Page 16

Operation Sound Effects (Sound Feedback)

Getting Started

The player beeps when the following operations are performed. The default setting of the Sound Feedback function is set to off.

Operation Operation sound

Power is turned on One beep Power is turned off Two beeps

H is pressed One beep X is pressed Two beeps

Playback is stopped One long beep Operation is not possible Three beeps

In karaoke mode, the player beeps when the following operations are performed using buttons on the player or on the remote. For details about the karaoke operations, see page 45.

Operation Operation sound

When you turn the karaoke mode on One beep

When you turn the karaoke mode off Two beeps

When you turn on: One beep KARAOKE PON, VOCAL, VOCAL SUPPORT

When you turn off: Two beeps KARAOKE PON, KARAOKE STAR, VOCAL, VOCAL SUPPORT

KEY CONTROL:

at the maximum Three beeps at the minimum Three beeps

VOCAL SELECT (for DVDs): 1+2 Two beeps 1 One beep 2 One beep

VOCAL SELECT (for CDs/VIDEO CDs/Super VCDs): L+R Two beeps STEREO One beep

RESERVE: When the player waits for the next disc When all reserved titles or tracks are finished One long beep (stop)

EFECT MODE: OFF Two beeps 1, 2 One beep

Two beeps

Two beeps after one long beep (stop)

@/1

1 Press ! on the player, then press @/1 on the

remote.

The power indicator lights up in green. When there is a disc in the player, press A and remove the disc. Then press A again to close the disc tray.

2 Press and hold X on the player for more than two

seconds.

You will hear one beep and the Sound Feedback function is turned on.

To turn off the Sound Feedback Function

When there is no disc in the player, press and hold X on the player for more than two seconds. You will hear two beeps and the Sound Feedback function is turned off.

Page 17

Playing Discs

This chapter describes how to play a DVD/CD/VIDEO CD.

Playing Discs

Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the instructions supplied with your disc.

Power indicator

@/1

1 Turn on your TV.

Turn on the TV and select the video input so that you can view the pictures from this player.

When using a receiver (amplifier)

Turn on the receiver (amplifier) and select the appropriate position so that you can listen to the sound from this player.

2 Press ! on the player.

The player enters standby mode and the power indicator lights up in red.

Playing Discs

3 Press A on the player, and place a disc on the disc

tray.

The player automatically turns on and the power indicator lights up in green.

With the playback side facing down

4 Press H.

The disc tray closes and the player starts playback (continuous play). Adjust the volume on the TV or the receiver (amplifier).

After following Step 4

xWhen playing a DVD

A DVD menu or title menu may appear on the TV screen (see page 21).

xWhen playing a VIDEO CD

A menu may appear on the TV screen depending on the VIDEO CD. You can play the disc interactively, following the instructions on the menu. (PBC Playback, see page 22.)

Page 18

Playing Discs

1 4 7

2 5 8 0

3 6 9

To turn on the player

Press ! on the player. The player enters standby mode and the power indicator lights up in red. Then press @/1 on the remote. The player turns on and the power indicator lights up in green. In standby mode,

Playing Discs

the player also turns on by pressing A on the player or by pressing H.

To turn off the player

Press @/1 on the remote. The player enters standby mode and the power indicator lights up in red. To disconnect the power of the player, press ! on the player.

Notes on playing DTS sound tracks on a CD

• Do not play DTS sound tracks without first connecting the player to an audio component having a built-in DTS decoder. The player outputs the DTS signal via the DIGITAL OUT OPTICAL and COAXIAL connectors even if “DTS” in “AUDIO SETUP” is set to “OFF” in the setup display, and may affect your ears or cause your speakers to be damaged.

• Set the sound to “STEREO” when you play DTS sound tracks on a CD. (See “Changing the Sound” on page 31.) If you set the sound to “1/L” or “2/R,” no sound will come from the DIGITAL OUT OPTICAL and COAXIAL connectors.

• If you play a CD with a DTS sound track, a loud noise may come out from the AUDIO OUT connectors, affecting your ears or causing the speakers to be damaged.

Additional operations

./>

xXH

Notes on playing DTS sound tracks on a DVD

To Operation

The signals of the DTS sound tracks are output from the DIGITAL OUT OPTICAL and COAXIAL connectors only. No sound will be output from the AUDIO OUT connectors.

Stop Press x Pause Press X

• If the player is connected to an audio component lacking a built-in DTS decoder, do not set “DTS” in “AUDIO SETUP” to “ON” in the setup display. Otherwise, when you play the DTS sound track, a loud noise will come out from the speakers, affecting your ears or causing the speakers to be damaged.

• When you set “DTS” in “AUDIO SETUP” to “OFF,” no sound will come out from the DIGITAL OUT OPTICAL and COAXIAL connectors even if you play DTS sound tracks on

Resume play after pause Press X or H Go to the next chapter, Press >

track or scene in continuous play mode

Go back to the preceding Press . chapter, track or scene in continuous play mode

DVDs.

Stop play and remove the Press Z

Notes

disc

• If you leave the player or the remote in pause or stop mode for 15 minutes, the screen saver image appears automatically. It will also appear if you play back a CD for more than 15 minutes. To make the screen saver image go away, press H.

You can play discs in various modes such as Program Play using the on-screen menu (Control Menu). For Control Menu operations, see page 25.

(If you want to set the screen saver function to off, see page 60.)

• If you don‘t operate the player or the remote for more than 30 minutes when a disc is not being played, the player automatically enters standby mode. (Auto Power Off function)

• While playing a disc, do not turn off the player by pressing !. Doing so may cancel the settings of the menu. When you turn off the player, press x first to stop playback and then press @/1 on the remote. After the power indicator lights up in red and the player enters standby mode, press ! on the player.

Page 19

Searching for a Particular Point on a Disc Z

You can locate a particular point on a disc quickly by monitoring the picture or playing back slowly.

Note

Depending on the DVD/VIDEO CD, you may not be able to do some of the operations described.

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

While a disc is playing, press to locate a point in playback direction, or press opposite direction. When you find the point you want, press H to return to normal speed playback. Each time you press the the playback speed changes. Three speeds are available. With each press, the display changes as follows:

to locate a point in

or button during scan,

Locating a point slowly by watching the screen (Slow-motion play)

You can use this function only for DVDs or VIDEO CDs. When the player is in the pause mode, press locate a point in playback direction, or press locate a point in opposite direction. When you find the point you want, press H to return to the normal speed playback. Each time you press the

or button during Slow-motion play, the playback speed changes. Two speeds are available. With each press, the indication changes as follows:

Playback direction

SLOW1

y SLOW2

Opposite direction (DVD only)

SLOW1

The SLOW2 /SLOW2 playback speed is slower than SLOW1 /SLOW1 .

y SLOW2

to to

Playing Discs

Playback direction

x2B (DVD/CD only) t FF1M t FF2M

Opposite direction

x2b (DVD only) t FR1m t FR2m

The x2B/x2b playback speed is about twice the normal speed. The FF2M/FR2m playback speed is faster than FF1M/ FR1m.

Page 20

Resuming Playback from the Point Where You Stopped the Disc (Resume Play)

The player remembers the point where you stopped the disc and when “RESUME” appears on the front panel display, you can resume playback from that point. As long as you do not open the disc tray, Resume Play

Playing Discs

will work even if the player enters standby mode by pressing @/1 on the remote.

Notes

• Resume Play may not be available on some DVDs.

• Resume Play is not available in Shuffle or Program Play mode.

• Depending on where you stopped the disc, the player may resume playback from a different point.

• The point where you stopped playing is cleared when: – you open or close the disc tray – you turn the power off by pressing ! on the player – you change the play mode – you start playback after selecting a title, chapter or track – you change the settings in the setup display

1 While playing a disc, press x to stop playback.

“RESUME” appears on the front panel display and “Disc will restart from current point. To start from beginning, press [STOP] again.” appears on the TV screen. If “RESUME” does not appear, Resume Play is not available.

2 Press H.

The player starts playback from the point where you stopped the disc in Step 1.

zTo play from the beginning of the disc

When the playing time appears on the front panel display before you start playing, press x to reset the playing time, then press H.

Page 21

Using the DVD’s Menu

Some DVDs have a title menu or a DVD menu that is provided with DVDs only.

Using the title menu

A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the title menu.

TITLE

</M/m/,

ENTER

TITLE

</M/m/,

Using the DVD menu

Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select the language for the subtitles, the language for the sound, etc., using the DVD menu.

DVD MENU

</M/m/,

ENTER

DVD MENU

</M/m/,

Playing Discs

1 Press TITLE.

The title menu appears on the TV screen. The contents of the menu vary from disc to disc.

2 Press </M/m/, to select the title you want to

play.

Depending on the disc, you can use the number buttons to select the title.

3 Press ENTER.

The player starts playing the selected title.

Notes

• On some DVDs, you may not be able to select the title.

• On some DVDs, a “title menu” may simply be called a “menu” or “title” in the instructions supplied with the disc. “Press ENTER.” may also be expressed as “Press SELECT.”

1 Press DVD MENU.

The DVD menu appears on the TV screen. The contents of the menu vary from disc to disc.

2 Press </M/m/, to select the item you want to

change.

Depending on the disc, you can use the number buttons to select the item.

3 To change other items, repeat Step 2. 4 Press ENTER.

zIf you want to select the language for the DVD menu

Change the setting using “DVD MENU” in “LANGUAGE SETUP” in the setup display. For details, see page 59.

Note

Depending on the DVD, a “DVD menu” may simply be called a “menu” in the instructions supplied with the disc.

Page 22

Playing VIDEO CDs with PBC Functions (PBC Playback)

When playing VIDEO CDs with PBC (Play Back Control) functions (Ver. 2.0 discs), you can enjoy simple interactive operations, search functions, and other such operations. PBC Playback allows you to play VIDEO CDs interactively by following the menu on the TV screen.

Playing Discs

On this player, you can use the number buttons, ENTER, ., >, M/m and ORETURN during PBC Playback.

Number buttons

./>

To go back to the menu

Press ORETURN, ., or >.

zTo cancel PBC playback of a VIDEO CD with PBC functions

and play the disc in continuous play mode

There are two ways.

• Before you start playing, select the track you want using . or >, then press ENTER or H.

./>

ORETURN

ENTER

M/m

• Before you start playing, select the track number using the number buttons on the remote, then press ENTER or H. “Play without PBC.” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H.

Notes

• Depending on the VIDEO CD, “Press ENTER” in Step 3 may be expressed as “Press SELECT” in the instructions supplied with the disc. In this case, press H.

• The PBC functions of Super VCDs do not work with this player. Super VCDs are played in continuous play mode only.

M/m

ENTER ORETURN

1 Start playing a VIDEO CD with PBC functions by

following Steps 1 to 4 in “Playing Discs” on page

17.

2 Select the item number you want.

Press M/m to select the item number. You can also select the item number with the number buttons on the remote.

3 Press ENTER. 4 Follow the instructions in the menu for interactive

operations.

Refer to the instructions supplied with the disc, as the operating procedure may differ according to the VIDEO CD.

Page 23

Using the Front Panel Display Z

You can check information about the disc, such as the total number of titles or tracks or remaining time, using the front panel display.

TIME/TEXT

When playing back a DVD

Displaying information while playing the disc

Disc type

DVD

Current surround format

Playing status

MPEG PGM SHUFFLE DTS ANGLE REPEAT1

Lights up when the player outputs the signal in NTSC format

NTSC

Digital

A-B

Current play mode

Current chapter number

TITLE CHAP HOUR MIN

Playing timeCurrent title

number

SEC

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing the disc, the display changes as shown in the following chart.

Playing time and number of the current chapter

DVD

TITLE CHAP HOUR MIN

Remaining time of the current chapter

DVD

TITLE CHAP HOUR MIN

Playing time and number of the current title

DVD

TITLE HOUR MIN

Remaining time of the current title

DVD

TITLE HOUR MIN

Text

DVD

Press TIME/TEXT

SEC

Playing Discs

Lights up when you can change the angle

Notes

• On some DVDs, the chapter number or time may not appear or you may not be able to change the front panel display.

• While you are doing Shuffle Play or Program Play, the playing time of the title and the remaining time of the title are not displayed.

Page 24

Using the Front Panel Display

When playing back a CD/VIDEO CD

Displaying information while playing a disc

Playing Discs

VIDEO CD

Disc type

zWhen playing VIDEO CDs with PBC functions

The current scene number is displayed instead of the current track number and the current index number. In this case, the front panel display does not change when you press TIME/ TEXT. If TEXT is recorded on the disc, the front panel display changes to the Text display when you press TIME/TEXT (see page 30).

Playing status

Lights up when the player outputs the signal in NTSC format

NTSC

PGM SHUFFLE

REPEAT1

PBC

A-B

Current play mode

Lights up during PBC playback (VIDEO CD only)

TRACK INDEX MIN

Current track number

Current index number

Playing time

SEC

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing a disc, the display changes as shown in the following chart.

Playing time and current track number

TRACK INDEX MIN

Remaining time of the current track

TRACK INDEX MIN

Playing time of the disc

Remaining time of the disc

Text

Press TIME/TEXT

SEC

MIN

SEC

MIN

Press TIME/TEXT

Note

While you are doing Shuffle Play, or Program Play, the playing time of the disc and the remaining time of the disc are not displayed.

Page 25

Using Various Functions with the Control Menu

This chapter describes how to play discs in various modes and how to use the convenient features of the onscreen menu (Control Menu).

Using the Control Menu Display

Using the Control Menu display, you can select the starting point, play scenes in any order you like, change the viewing angles, make Digital Cinema Sound settings, and other such operations. The possible operations are different depending on the kind of disc. For details on each Control Menu display item, see pages 28 to 44.

DISPLAY

ORETURN

ENTER

</M/m/,

Using Various Functions with the Control Menu

</M/m/,

DISPLAY

ENTER ORETURN

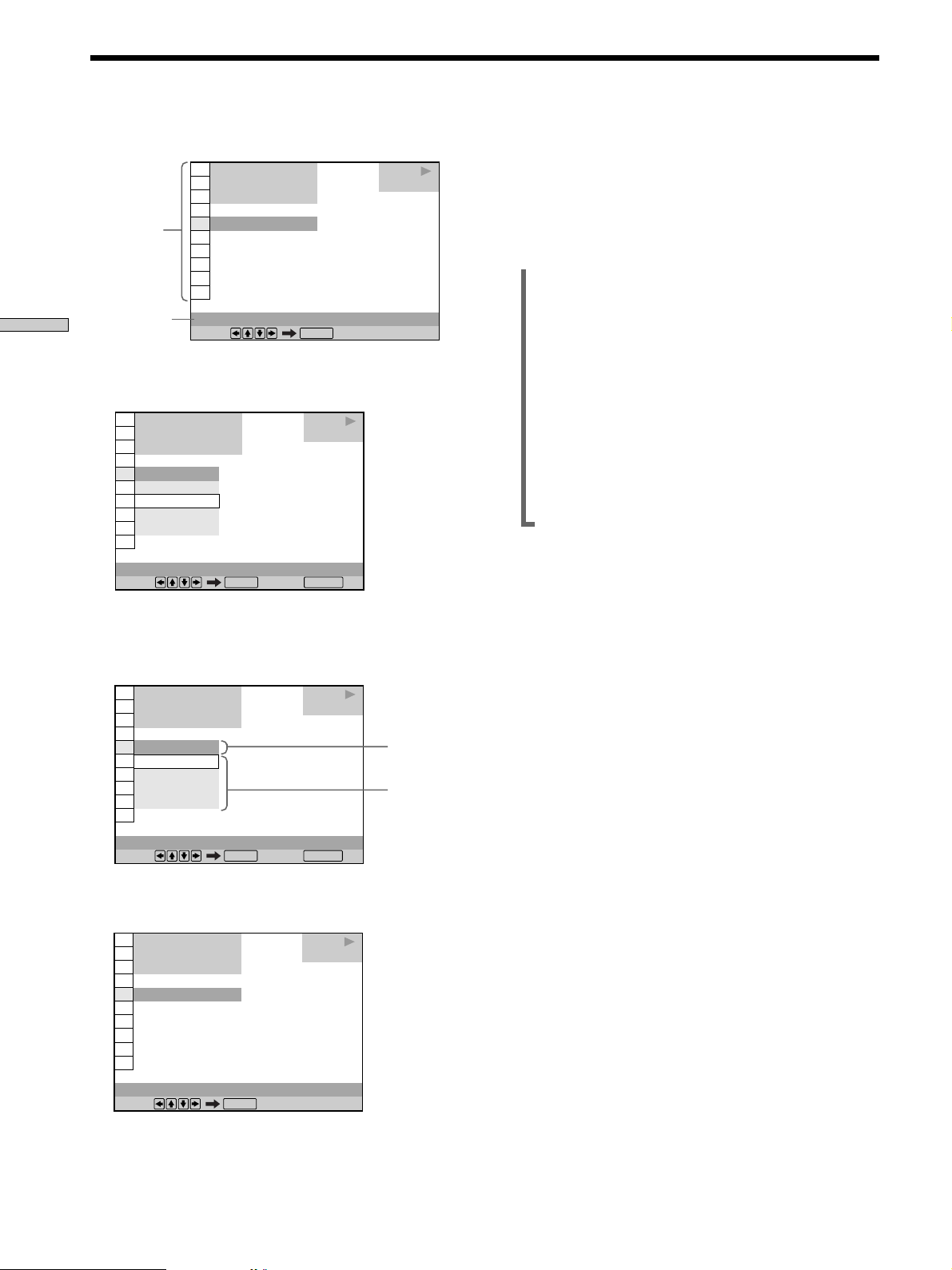

1 Press DISPLAY to show the Control Menu display

on the TV screen.

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

Current item

1 2 ( 2 7 1 8 ( 3 4 C

TITLE Select:

Page 26

Using the Control Menu Display

Using Various Functions with the Control Menu

2 Select the item you want using M/m.

) )

0 1 : 3 2 : 5 5

ENTER

Items

Selected item

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH

SUBTITLE Select:

3 Press ENTER.

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

To cancel while making a selection

Press O RETURN.

To display other items

Each time you press DISPLAY, the Control Menu display changes as follows:

,Control Menu display 1

Control Menu display 2 (DVD only) (The items except the first three items from the top are changed to other items.)

Karaoke Control Menu display (The Karaoke Control Menu display items can be used only when the player is in karaoke mode. For details, see page 47.)

ADVANCED display (page 36)

Control Menu display off

The Control Menu display items are different depending on the disc.

4 Select the item you want using M/m.

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

PLAY DVD

ENTER RETURN

5 Press ENTER.

1 2 ( 2 7 1 8 ( 3 4 C

OFF

) )

0 1 : 3 2 : 5 5

PLAY DVD

Selected item

Items

zYou can select some items directly

Some items can be selected by pressing the corresponding button on the remote. In this case, only the item you selected is displayed. For instructions on using the remote, see the pages of each relevant item.

Note

Some Control Menu display items require operations other than selecting the setting. For details on these items, see the relevant pages.

SUBTITLE Select:

ENTER

Page 27

Control Menu Item List

TITLE (DVD only) (page 28)/ SCENE (VIDEO CD during PBC playback

only) (page 28)/ TRACK (VIDEO CD only) (page 28)

CHAPTER (DVD only) (page 28)/ INDEX (VIDEO CD only) (page 28)

TRACK (CD only) (page 28)

INDEX (CD only) (page 28)

You can search for a point on the disc by selecting the title, chapter, track, index or scene.

TIME/TEXT (pages 29, 30)

You can check the playing time and remaining time of the current title, chapter, track and the total playing time or remaining time of the disc. You can also search by inputting the time code. You can check the DVD TEXT or CD TEXT of the disc on the TV screen and the front panel display.

AUDIO (page 31)

ADVANCED (DVD only) (page 36)

You can check play information about the bit rate or the position where the disc is being played (layer).

CUSTOM PARENTAL CONTROL (page 37)

Using a registered password, you can set playback restrictions for a desired disc. The same password is used for both Parental Control (page 62) and Custom Parental Control.

Using Various Functions with the Control Menu

SETUP (page 56)

Using the setup display, you can do the initial setup, adjust the picture and sound and set the various outputs. You can also set a language for the subtitles and the setup display, limit playback by children, and so on. For details about the setup display, see page 56.

PROGRAM (page 39)

You can play the contents of the disc in the order you want by arranging the order of the titles, chapters or tracks on the disc to create your own program.

SHUFFLE (page 41)

You can have the player “shuffle” titles, chapters or tracks and play them in a random order. Subsequent “shuffling” may produce a different playing order.

REPEAT (page 42)

You can play all the titles/tracks on a disc or a single title/ chapter/track repeatedly.

SUBTITLE (DVD only) (page 33)

With DVDs on which multilingual subtitles are recorded, you can change the subtitle language whenever you want while playing the DVD, and turn it on or off whenever you want.

ANGLE (DVD only) (page 34)

With DVDs on which various angles (multi-angles) are recorded, you can change the angle of the scene.

VES (DVD only) (page 35)

Select a mode to enjoy multichannel surround sound such as Dolby Digital and MPEG. Even if you connect only front speakers, Virtual Enhanced Surround (VES) lets you enjoy 3D sound by using 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers.

A-B REPEAT (page 43)

You can play a specific portion of a title, chapter, or track repeatedly.

For details about the Karaoke Control Menu display, see “Using the Karaoke Control Menu Display” on page 47.

Page 28

Using Various Functions with the Control Menu

Searching for a Title/Chapter/Track/Index/Scene Z

2 Press , or ENTER.

You can search the disc by title, chapter, track, index or scene.

Select “TITLE,” “CHAPTER,” “TRACK,” “INDEX” or “SCENE” after pressing DISPLAY. When you play back a DVD, “TITLE” and “CHAPTER” are displayed. When you play back a VIDEO CD/CD, “TRACK” and “INDEX” are displayed. When you play back a VIDEO CD with PBC functions, “SCENE” is displayed.

1 2 ( 2 7 1 8 ( 3 4 C

) )

0 1 : 3 2 : 5 5

PLAY DVD

“

1 2 ( 2 7 – – ( 3 4 C

CHAPTER Number buttons Cancel:

3 Select the number of the title, chapter, track, index

or scene you want to search for using the number buttons, then press ENTER.

The player starts playback at the selected number. To cancel the number, press CLEAR before pressing ENTER.

To cancel while making a selection

Press ORETURN.

” changes to “– – .”

)

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

RETURN

TITLE Select:

ENTER

1 Select “TITLE,” “CHAPTER,” “TRACK,” “INDEX” or

“SCENE” using M/m.

“ ” is highlighted. ( refers to a number) The number in parentheses indicates the total number

of titles, chapters, tracks, indexes or scenes.

1 2 ( 2 7 1 8 ( 3 4 C

CHAPTER Select:

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

zYou can search for the title, chapter, track, index or scene

using the SEARCH MODE button

1 Press SEARCH MODE on the remote repeatedly to select

“TITLE,” “CHAPTER,” “TRACK,” “INDEX” or “SCENE.”

2 Press number buttons to select the number of the title, chapter,

track, index or scene, then press ENTER.

Notes

• The title, chapter or track number displayed is the same number recorded on the disc.

• The index numbers are not displayed during PBC playback of VIDEO CDs.

Page 29

Checking the Playing Time

Selecting a Starting Point and Remaining Time Z

You can check the playing time and remaining time of the current title, chapter or track and the total playing time or remaining time of the disc.

Press DISPLAY. Then press TIME/TEXT on the remote to change the time information. You can also check the DVD TEXT or CD TEXT. See page

30.

1 2 ( 2 7 1 8 ( 3 4 C

TIME/TEXT Select:

When playing a DVD x TIME/TEXT

•C

•C –

•T

•T –

) )

0 1 : 3 2 : 5 5

ENTER

: Playing time of the current chapter

: Remaining time of the current

chapter : Playing time of the current title : Remaining time of the current title

PLAY DVD

Using the Time Code Z

You can search for a starting point by inputting the time code.

Select “TIME/TEXT” after pressing DISPLAY. The time code corresponds to the approximate actual playing time. For example, to search for a scene 2 hours 10 minutes 20 seconds past the beginning, input 2:10:20.

1 2 ( 2 7 1 8 ( 3 4 C

TIME/TEXT Select:

1 Select “C ” (playing time of the

current chapter) when playing a DVD.

1 2 ( 2 7 1 8 ( 3 4 C

) )

0 1 : 3 2 : 5 5

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

Using Various Functions with the Control Menu

When playing a VIDEO CD (during PBC playback) x TIME/TEXT

•

When playing a VIDEO CD (in continuous play) or CD x TIME/TEXT

•T

•T –

•D

•D –

When playing a Super VCD

The remaining time cannot be displayed.

x TIME/TEXT

•T

: Playing time of the current scene

: Playing time of the current track : Remaining time of the current track : Playing time of the current disc

: Remaining time of the current disc

: Playing time of the current track

zYou can select “TIME/TEXT” directly

Press TIME/TEXT on the remote. Each time you press the button, the time information changes.

TIME/TEXT Select:

ENTER

2 Press , or ENTER.

Time code changes to “T – – : – – : – –.”

1 2 ( 2 7 1 8 ( 3 4 T – – : – – : – –

TIME/TEXT Number buttons Cancel:

) )

ENTER

PLAY DVD

RETURN

Page 30

1 8 ( 3 4

)

1 2 ( 2 7

)

0 1 : 3 2 : 5 5

DVD

TIME/TEXT

BRAHMS SYMPHONY NO – 4

PLAY

Selecting a Starting Point Using the Time Code

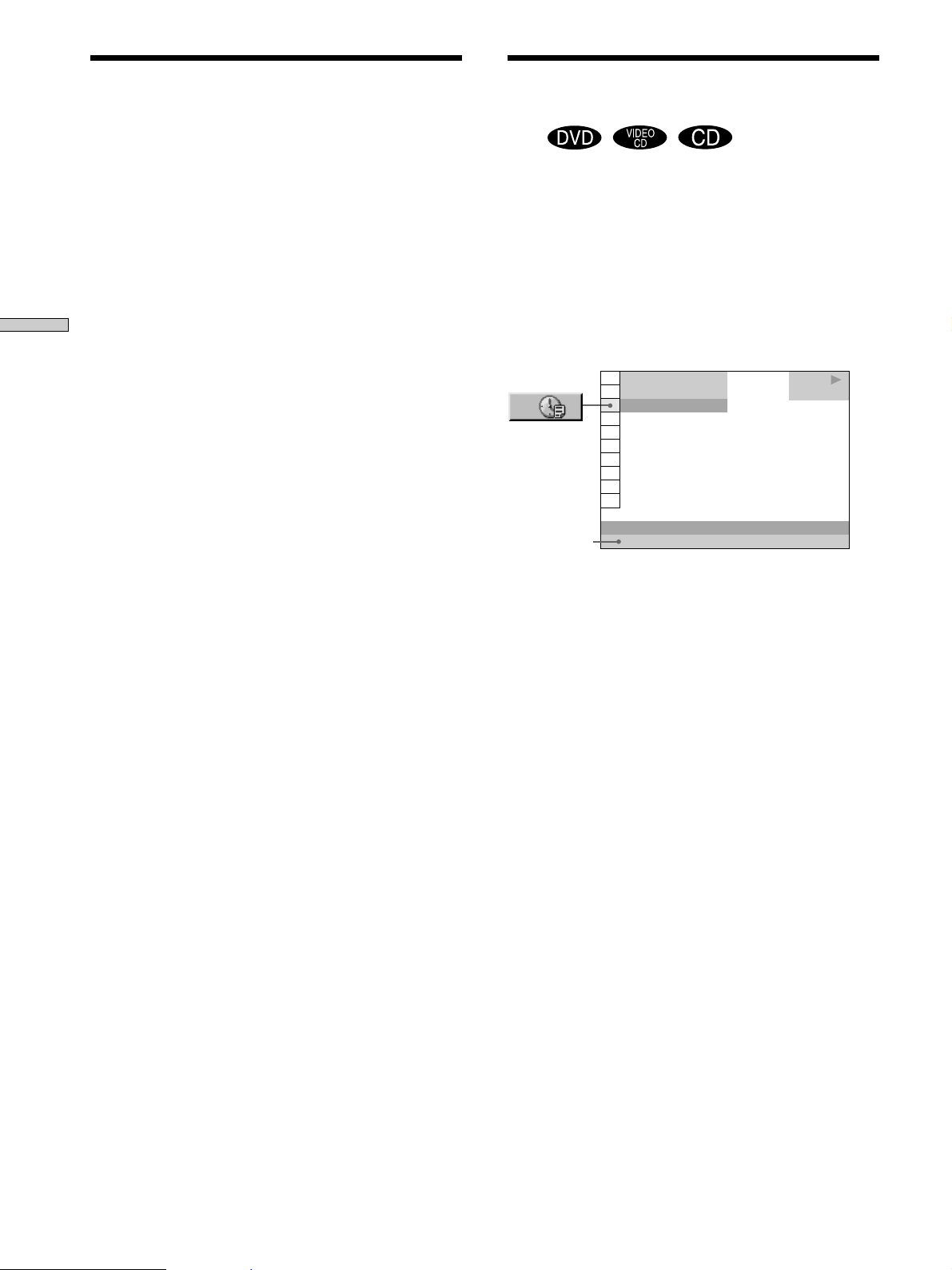

Viewing the Disc Information

Using Various Functions with the Control Menu

3 Input the time code using the number buttons,

then press ENTER.

The player starts playback at the selected time colde. To cancel the number, press CLEAR before pressing ENTER.

To cancel while making a selection

Press ORETURN.

zYou can perform time code search using the SEARCH MODE

button

1 Press SEARCH MODE on the remote repeatedly to select

“TIME/TEXT.”

2 Input the time code using the number buttons, then press

ENTER.

Note

When you input the time code, input the playing time of the title, not the chapter or track time.

You can check the DVD TEXT or CD TEXT of the disc on the TV screen and the front panel display. DVD TEXT and CD TEXT are information recorded on the disc which you cannot change.

Press DISPLAY. Then press TIME/TEXT on the remote until DVD/CD TEXT is displayed. The information is displayed at the bottom of the display.

DVD/CD TEXT

zYou can select “TIME/TEXT” directly

Press TIME/TEXT on the remote. To display DVD/CD TEXT, press TIME/TEXT until DVD/CD TEXT is displayed.

zYou can view the entire DVD/CD TEXT recorded on the disc

DVD/CD TEXT is scrolled on the front panel display.

Notes

• Text is displayed only in English.

• “NO TEXT” appears when the DVD/CD TEXT is not recorded on the disc.

• This player can only display the first level of DVD/CD TEXT information.

Page 31

Changing the Sound

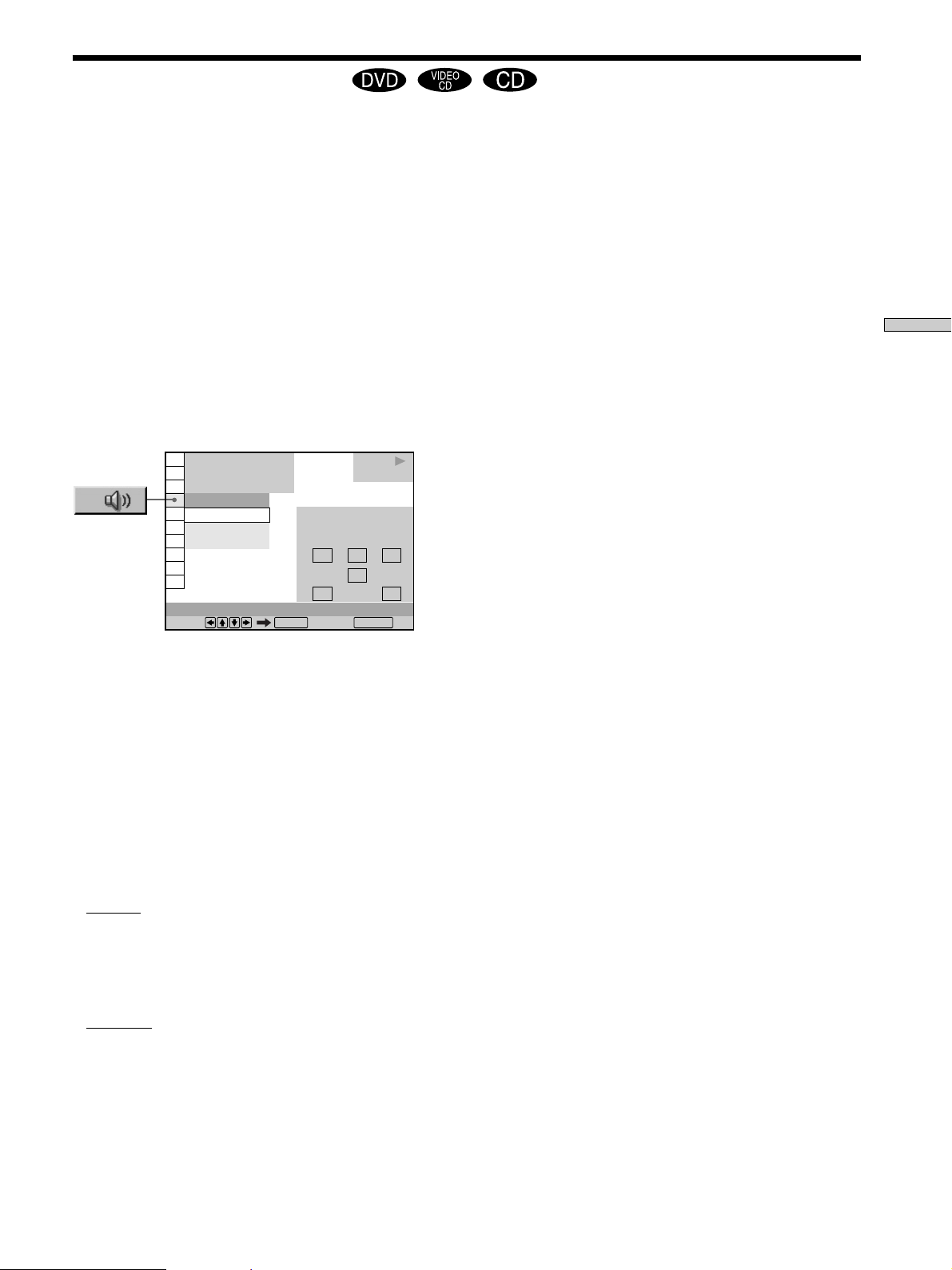

If the DVD is recorded with multilingual tracks, you can select the language you want while playing the DVD. If the DVD is recorded in multiple audio formats (PCM, Dolby Digital, MPEG or DTS), you can select the audio format you want while playing the DVD. With CDs or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. In this case, the sound loses its stereo effect. For example, with a disc containing a song, the right channel may output the vocals and the left channel may output the instrumental. If you only want to hear the instrumental, you can select the left channel and hear it from both speakers.

Select “AUDIO” after pressing DISPLAY.

1 2 ( 2 7 1 8 ( 3 4 C 1: ENGLISH 1: ENGLISH 2: ENGLISH 3: FRENCH

AUDIO Select: Cancel:

) )

0 1 : 3 2 : 5 5

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

ENTER RETURN

PLAY DVD

LRC

LFE

LS RS

zYou can select “AUDIO” directly

Press AUDIO on the remote. Each time you press the button, the item changes.

Notes

• Depending on the DVD, you may not be able to change the languages even if multilingual tracks are recorded on the DVD.

• While playing the CD/VIDEO CD, standard stereo playback will be resumed when: – you open or close the disc tray – the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• While playing the DVD, the sound may be changed when: – you open or close the disc tray – you change the title

• If “DTS” is set to “OFF” in “AUDIO SETUP,” the DTS track selection option will not appear on the screen even if the disc contains DTS tracks.

• While playing the Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L” or “2:2/R.”

Using Various Functions with the Control Menu

x AUDIO When playing a DVD

Select the language. The languages you can select are different depending on the DVD. When 4 digits are displayed, they represent the language code. Select the language code from the list on page 75. When the same language is displayed two or more times, the DVD is recorded in multiple audio formats. The current audio format is shown on the “PROGRAM FORMAT” display.

When playing a VIDEO CD or a CD

The default setting is underlined.

•

STEREO: The standard stereo sound

• 1/L: The sound of the left channel (monaural)

• 2/R: The sound of the right channel (monaural)

When playing a Super VCD

The default setting is underlined.

•

1:STEREO: The stereo sound of the audio track 1

• 1:1/L: The sound of the left channel of the audio track 1 (monaural)

• 1:2/R: The sound of the right channel of the audio track 1 (monaural)

• 2:STEREO: The stereo sound of the audio track 2

• 2:1/L: The sound of the left channel of the audio track 2 (monaural)

• 2:2/R: The sound of the right channel of the audio track 2 (monaural)

Page 32

Changing the Sound

Using Various Functions with the Control Menu

Displaying the audio information of the disc

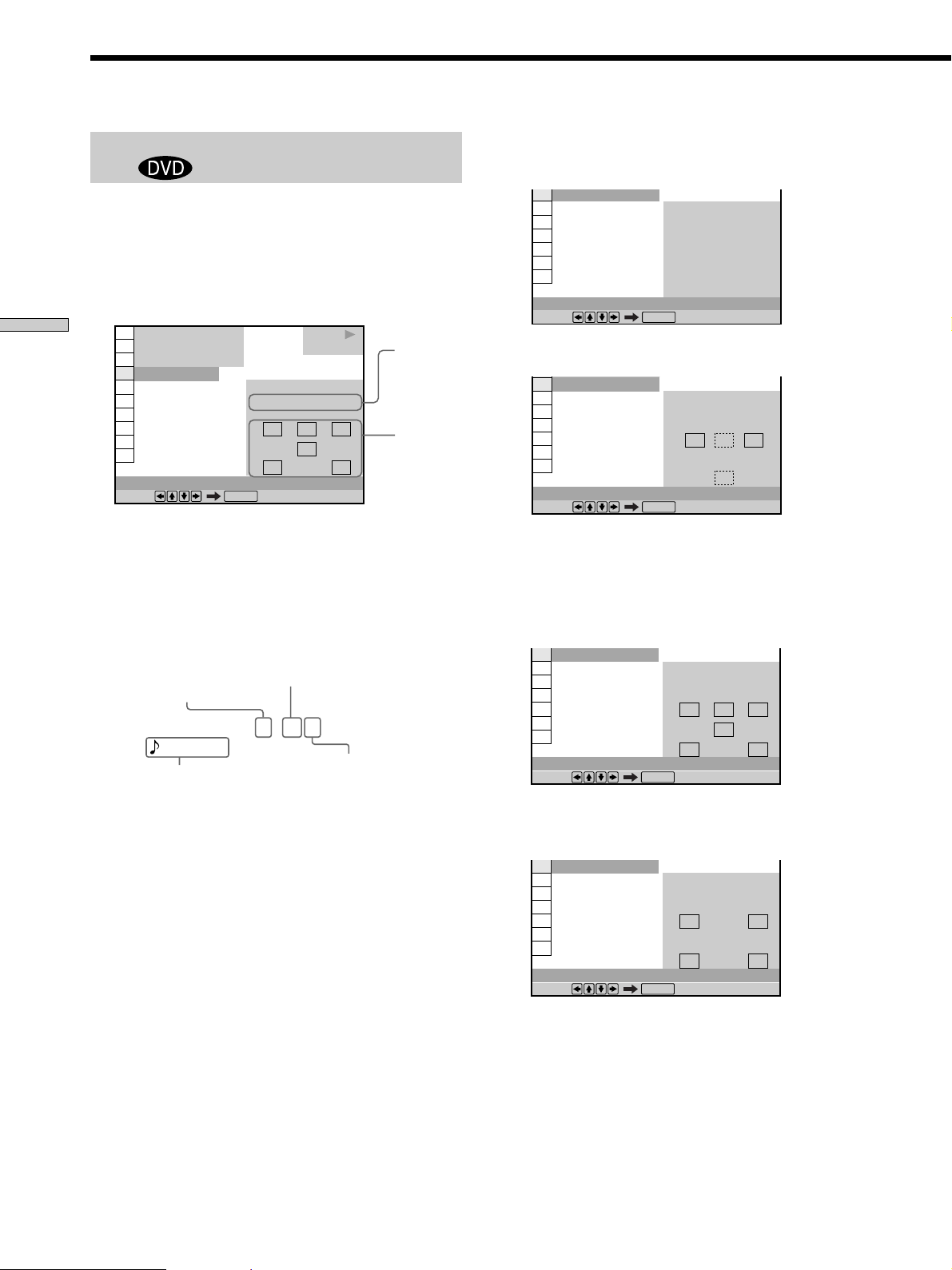

When you select “AUDIO,” the channels being played are displayed on the screen. In Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the number of the recorded channels may be different.

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH

AUDIO Select:

) )

0 1 : 3 2 : 5 5

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

ENTER

PLAY DVD

LRC

LFE

LS RS

Current audio format*

Current playing program format**

* “PCM,” “DTS,” “DOLBY DIGITAL” or “MPEG” is

displayed. In case of “DOLBY DIGITAL,” the channels in the playing track are displayed by numbers as follows:

For Dolby Digital 5.1 ch:

Front component 2 + Center component 1

DOLBY DIGITAL

Rear component 2

3 / 2. 1

KARAOKE

Dolby Digital Karaoke format (see page 46)

** The letters in the program format display mean the

following:

L: Front (left) R: Front (right) C: Center (monaural) LS: Rear (left) RS: Rear (right) S: Rear (monaural) – the rear component of the

Dolby Surround processed stereo signal and the Dolby Digital signal.

LFE: – LFE (Low Frequency Effect)

LFE (Low Frequency Effect) component 1

The display examples are as follows:

•PCM (stereo)

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT PCM 48kHz 24bit

ENTER

•Dolby Surround

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT DOLBY DIGITAL 2/0 DOLBY SURROUND

L RC

ENTER

•Dolby Digital 5.1ch “LFE” appears only when a disc contains an LFE signal component. “LFE” remains on the “PROGRAM FORMAT” display even if the LFE signal component is not being output.

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

LRC

LFE

LS RS

ENTER

•MPEG

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT MPEG 2/2

LS RS

ENTER

Page 33

•DTS “LFE” is always enclosed in a solid line regardless of the LFE signal component being output.

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT DTS 3/2.1

LRC

LFE

LS RS

ENTER

Displaying the Subtitles

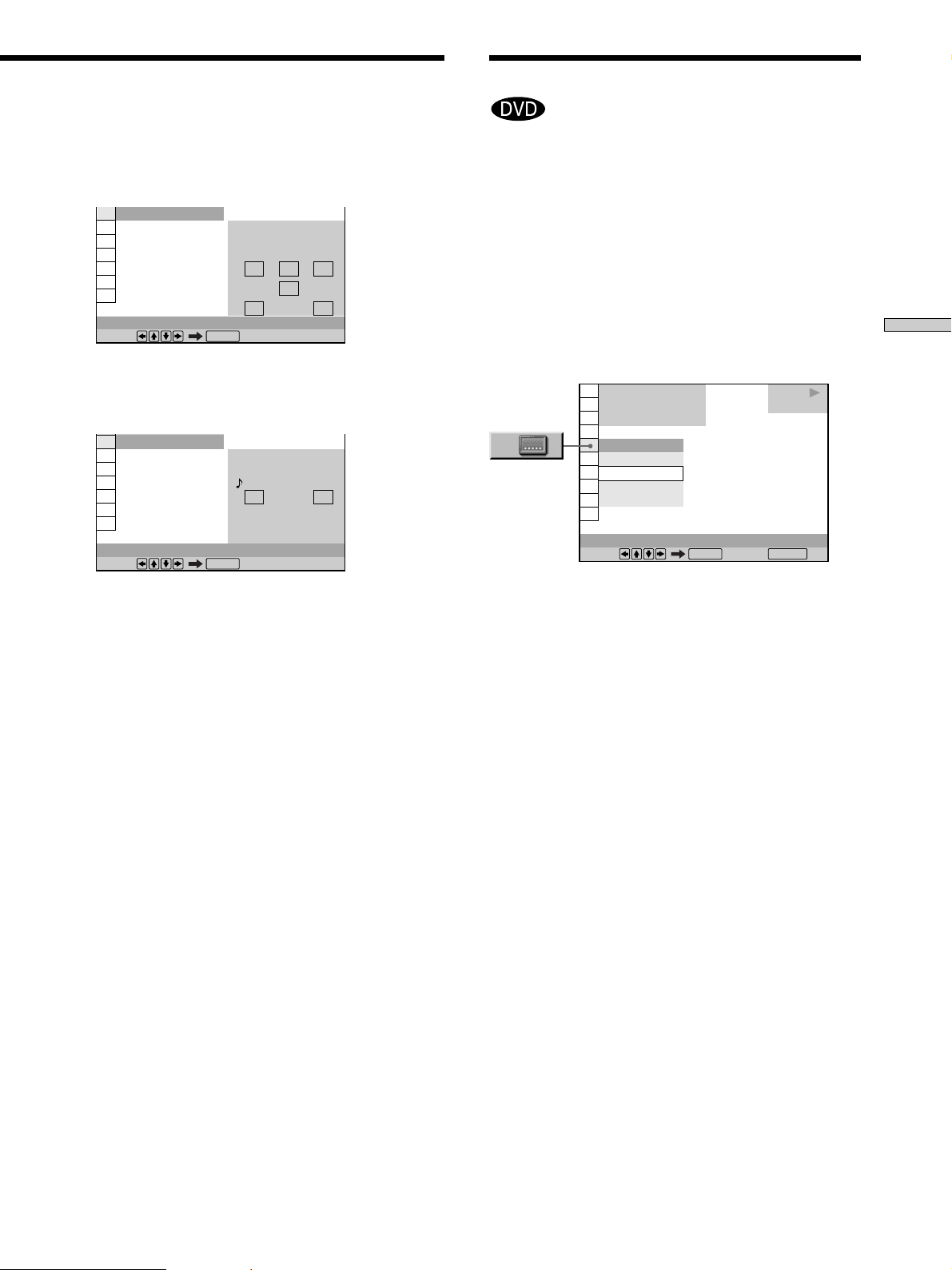

With DVDs on which subtitles are recorded, you can turn the subtitles on and off whenever you want while playing the DVD. With DVDs on which multilingual subtitles are recorded, you can change the subtitle language whenever you want while playing the DVD, and turn it on or off whenever you want. For example, you can select the language you want to practice and turn the subtitles on for better understanding.

Using Various Functions with the Control Menu

Select “SUBTITLE” after pressing DISPLAY.

•Dolby Digital Karaoke format

(For details, see page 46.)

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT DOLBY DIGITAL 3/2

KARAOKE

ENTER

LFE

LS RS

Note

When the signal does not contain rear signal components such as LS, RS or S, the Virtual Enhanced Surround (VES) effect cannot be heard (page 35).

1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

x SUBTITLE

Select the language. The languages you can select are different depending on the DVD. When 4 digits are displayed, they indicate the language code. Select the language code from the list on page 75.

zYou can select “SUBTITLE” directly

Press SUBTITLE on the remote. Each time you press the button, the item changes.

Notes

• When playing a DVD on which no subtitles are recorded, no subtitles appear.

• Depending on the DVD, you may not be able to turn the subtitles on even if they are recorded on the DVD.

• Depending on the DVD, you may not be able to turn the subtitles off.

• The type and number of languages for subtitles vary from disc to disc.

• Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it.

• While playing the DVD, the subtitle may change when: – you open or close the disc tray – you change the title

Page 34

Changing the Angles Z

Using Various Functions with the Control Menu

With DVDs on which various angles (multi-angles) for a scene are recorded, you can change the angles. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train or from the right window without having the train’s movement interrupted.

Select “ANGLE” after pressing DISPLAY. When the angles can be changed, the “ANGLE” indicator lights up in green.

Indicator

1 2 ( 2 7 1 8 ( 3 4 C

1 ( 9

ANGLE Select:

) )

0 1 : 3 2 : 5 5

)

ENTER

PLAY DVD

1 Select “ANGLE.”

1 2 ( 2 7

1 8 ( 3 4 C

0 1 : 3 2 : 5 5

) )

PLAY DVD

3 Select the angle number using the number buttons

or M/m, then press ENTER.

The angle is changed to the selected angle.

1 2 ( 2 7 1 8 ( 3 4 C

5 ( 9

ANGLE Select:

) )

0 1 : 3 2 : 5 5

)

ENTER

PLAY DVD

zYou can select “ANGLE” directly

Press ANGLE on the remote. Each time you press the button, the angle changes.

Notes

• The number of angles varies from disc to disc or from scene to scene. The number of angles that can be changed on a scene is equal to the number of angles recorded for that scene.

• Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

)

1 ( 9

ANGLE

Select:

ENTER

2 Press ,.

The number of the angle changes to “–.” The number in parentheses indicates the total number of angles.

1 2 ( 2 7 1 8 ( 3 4 C

ANGLE Number buttons Cancel:

) )

0 1 : 3 2 : 5 5

)

( 9

ENTER

PLAY DVD

RETURN

Page 35

Digital Cinema Sound Settings

Select a mode to enjoy multichannel surround sound such as Dolby Digital and MPEG. Even if you connect only a stereo TV, front speakers or use a 2+1 channel connection, Virtual Enhanced Surround lets you enjoy 3D sound by using 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. The surround sound signals are output from the AUDIO OUT connectors. These signals are not output from the DIGITAL OUT OPTICAL or COAXIAL connector. When you select a surround mode, the player does not output the following signals from the DIGITAL OUT OPTICAL or COAXIAL connector.

• Dolby Digital signals (when you set “DOLBY DIGITAL” in “AUDIO SETUP” to “D-PCM”)

• MPEG audio signals

Select “VES” after pressing DISPLAY. When you select any item except “OFF,” the “VES” indicator lights up in green.

1 2 ( 2 7 1 8 ( 3 4 C

) )

0 1 : 3 2 : 5 5

PLAY DVD

Effects of each item

OFF

Outputs 2-channel signals for stereo sound. 5-channel signals for Dolby Digital sound of a DVD are mixed down to 2-channels.

VES (Virtual Enhanced Surround) TV

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. This mode is effective when the distance between the front L and R speakers is short, such as built-in stereo TV speakers.

VES (Virtual Enhanced Surround) A

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. The virtual speakers are reproduced as shown in the illustration below.

Using Various Functions with the Control Menu

VES TV VES TV

Indicator

VES A VES B

VES

Select: Cancel:

ENTER RETURN

x VES

Select the desired item. For details on each item, see “Effects of each item.” The default setting is underlined.

•

OFF

• VES TV

• VES A

• VES B

• VIRTUAL SEMI MULTI DIMENSION

VES (Virtual Enhanced Surround) B

L R

Page 36

Digital Cinema Sound Settings

VIRTUAL SEMI MULTI DIMENSION

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at a 30˚ angle of elevation.

Checking the Play Information

You can check information such as the bit rate or the disc layer that is being played. While playing a disc, the approximate bit rate of the playback picture is always displayed as Mbps (Mega bit per second) and the audio as kbps (kilo bit per second).

Select “ADVANCED” after pressing DISPLAY.

Using Various Functions with the Control Menu

zYou can select “VES” directly

Press VES on the player. Each time you press the button, the item changes.

Notes

• When you select an item, the sound cuts off for a moment.

• When the playing signal does not contain the surround component, the effects may be difficult to hear even if you select “VES TV,” “VES A,” “VES B” or “VIRTUAL SEMI MULTI DIMENSION.”

• Set the front speakers to form an equilateral triangle with the listening position at the top, or the effects may be difficult to hear even if you select “VES A,” “VES B” or “VIRTUAL SEMI MULTI DIMENSION.”

• When you select “VES TV,” “VES A,” “VES B” or “VIRTUAL SEMI MULTI DIMENSION,” set the surround settings of the connected units, such as the amplifier, to OFF.

1 2 ( 2 7 1 8 ( 3 4 C

BIT RATE

ADVANCED Select:

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

BIT RATE

0 05

1000

x ADVANCED

The default setting is underlined.

When playing a DVD

•

BIT RATE: displays the bit rate.

• LAYER: displays the layer and the pick-up point.

• OFF: turns off ADVANCED display.

kbps Mbps

Page 37

OFF PASSWORD

DVD

CUSTOM PARENTAL CONTROL

1 8 ( 3 4

)

1 2 ( 2 7

)

0 1 : 3 2 : 5 5

Select: Cancel:

ENTER RETURN

STOP

Locking Discs (Custom Parental Contr ol)

Displays of each item

By pressing DISPLAY repeatedly, you can display either “BIT RATE” or “LAYER,” whichever was selected in “ADVANCED.”

BIT RATE

When you play MPEG audio sound tracks

384kbps

Mbps

Audio

Video

Using a registered password, you can set playback restrictions for the desired disc. You can set the same Custom Parental Control password for up to 50 discs. When you set the fifty-first disc, the first disc is canceled. The same password is used for both Parental Control (page 61) and Custom Parental Control.

Select “CUSTOM PARENTAL CONTROL” after pressing DISPLAY.

1 2 ( 2 7 1 8 ( 3 4 C

OFF

CUSTOM PARENTAL CONTROL Select:

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

Using Various Functions with the Control Menu

BIT RATE

0 05

1000

kbps Mbps

Audio Video

Bit rate refers to the amount of video/audio data per second in a disc. The higher the bit rate, the larger the amount of data. When the bit rate level is high, there is a large amount of data. However, this does not always mean that you can get higher quality pictures or sounds.

LAYER

Appears when the DVD has dual layers

Indicates the approximate point where the disc is playing. If it is a dual-layer DVD, the player indicates which layer is being read (“Layer 0” or “Layer 1”). For details on the layers, see page 73 (DVD).

Setting the Custom Parental Control for a disc

1 Insert the disc you want to lock.

If a disc is playing, press x to stop playback.

2 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

Page 38

Locking Discs (Custom Parental Control)

Using Various Functions with the Control Menu

3 Select “ON,” using M/m, then press ENTER.

x If you have not entered a password

The display for entering a password appears.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

To return, press .

x When you have already registered a password

The display for confirming the password appears. Skip Step 4.

CUSTOM PARENTAL CONTROL

Enter password, then press

RETURN

ENTER

To return to the normal screen

Press ORETURN.

To turn off the Custom Parental Control function

1 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

2 Select “OFF,” using M/m, then press ENTER. 3 Enter your 4-digit password using the number buttons,

then press ENTER.

To change the password

1 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

2 Select “PASSWORD,” using M/m, then press ENTER. 3 Enter your 4-digit password using the number buttons,

then press ENTER. The display for changing the password appears.

4 Enter a new 4-digit password using the number

buttons, then press ENTER.

5 To confirm your password, re-enter it using the number

buttons, then press ENTER.

Playing the disc for which the Custom Parental Control is set

To return, press .

RETURN

4 Enter a 4-digit password using the number

buttons, then press ENTER.

The digits change to asterisks (

), and the display for

confirming the password appears.

CUSTOM PARENTAL CONTROL

To confirm, enter password again, then press

To return, press .

ENTER

RETURN

5 Enter the same 4-digit password using the number

buttons, then press ENTER.

“Custom parental control is set.” appears and then the screen returns to the Control Menu display.

1 Insert the disc.

The CUSTOM PARENTAL CONTROL display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

and press

ENTER

2 Enter your 4-digit password using the number

buttons, then press ENTER.

The player starts playback.

zIf you forget your password

Enter the 6-digit number “199703” whenever the CUSTOM PARENTAL CONTROL display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Note

Unless you enter the password, the player cannot play the disc for which the Custom Parental Control is set. When you do not know the password, press A and remove the disc.

Page 39

Creating Your Own Program (Program Play)

You can play the contents of the disc in the order you want by arranging the order of the titles, chapters or tracks on the disc and create your own program. One program can be stored in the player and contain up to 99 titles, chapters and tracks.

Select “PROGRAM” after pressing DISPLAY. When you select “ON,” the “PROGRAM” indicator lights up in green.

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

Indicator

1 2 ( 2 7 1 8 ( 3 4 C OFF OFF SET ON

PROGRAM

Select: Cancel:

x PROGRAM

The default setting is underlined.

•

OFF: plays normally.

• SET,: allows you to create your own program.

• ON: plays Program Play.

Creating the program

1 Select “SET,” in “PROGRAM.”

The programming display appears.

“TRACK” is displayed when you play a VIDEO CD or a CD.

PROGRAM

ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

Set: Quit: Start:

PLAY

– – – – – – – – – – – –

ENTER

T – –

01 02 03 04 05

DISPLAY

2 Press ,.

“01” is highlighted. It is ready to set the first title or track for Program Play.

Title Chapter

PROGRAM

ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

Set: Quit: Start:

PLAY

– – – – – – – – – – – – – –

ENTER

– –

01 02 03 04 05

DISPLAY

ALL

01 02 03 04 05 06

3 Select the title, chapter or track you want to

program using M/m, then press ENTER.

For example, select title or track 2. (You can also use the number buttons and ENTER button to make a selection. In this case, the selected number is displayed on the screen.)

x When playing a DVD

When both titles and chapters are recorded on the disc, select the title, then the chapter.

PROGRAM

ALL CLEAR

1. TITLE

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

Set: Quit: Start:

PROGRAM

ALL CLEAR

1. TITLE 0 1

2. TITLE

3. TITLE

4. TITLE

5. TITLE

6. TITLE

7. TITLE

PLAY

– – – – – – – – – – – – – –

– – – – – – – – – –

ENTER

–

0 2

T – –

01 02 03 04 05

DISPLAY

T – –

01 02 03 04 05

ALL

01 02 03 04 05 06

Using Various Functions with the Control Menu

Set: Quit:

PLAY

Start:

ENTER

DISPLAY

Page 40

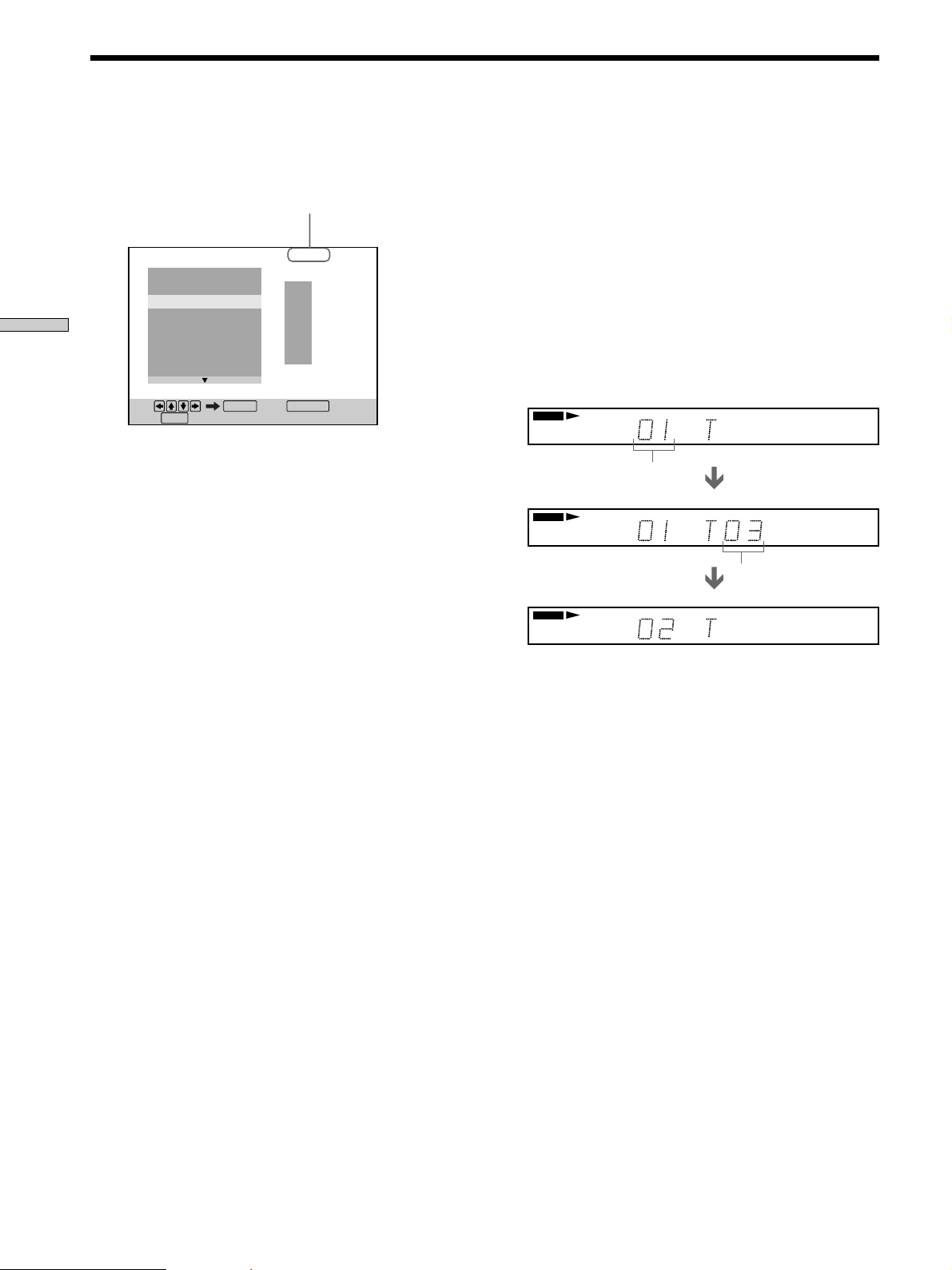

Creating Your Own Program (Program Play)

VIDEO CD

PGM

VIDEO CD

PGM

VIDEO CD

PGM

Using Various Functions with the Control Menu

x When playing a VIDEO CD or CD

Select the track you want to program.

Total time of the programmed tracks

PROGRAM

ALL CLEAR

1. TRACK 0 2

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

Set: Quit:

PLAY

Start:

– – – – – – – – – –

ENTER

0:15:30 T

– – 01

02 03 04 05

DISPLAY

4 To program other titles, chapters or tracks, repeat

Step 3.

The programmed titles, chapters or tracks are displayed in the selected order.

5 Press H to start Program Play.

To stop Program Play

Press CLEAR on the remote.

zThe program remains even after Program Play ends

When you press H, you can play the same program again.

zYou can do Repeat Play or Shuffle Play of the programmed

titles, chapters or tracks

During Program Play, set “REPEAT” or “SHUFFLE” to “ON” in the Control Menu display.

zYou can select discs, titles, chapters and tracks for the

program by looking at the front panel display

You can program by looking at the front panel display instead of using the programming display on the TV screen. When you select Track 3 in a VIDEO CD for Program 1, the front panel display will appear as follows:

Program number

Track number

To cancel programming

Press PROGRAM on the remote.

To change the program

1 In Step 2, select the program number of the title, chapter

or track you want to change using M/m.

2 Follow Step 3 for new programming.

To cancel the programmed order

To cancel all the titles, chapters or tracks in the programmed order, select “ALL CLEAR” in Step 2. To cancel the selected program, select the program using M/m in Step 2 then press CLEAR, or select “- -” in Step 3 then press ENTER.

zYou can display the “PROGRAM” display using the remote

Press PROGRAM on the remote.

Notes

• The number of titles, chapters or tracks displayed are the same number of titles, chapters or tracks recorded on a disc.

• The program is canceled when:

– you open or close the disc tray – the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• Depending on the DVD, you may not be able to perform Program Play.

• If you are using the PBC playback function, you must first stop the disc before you can set a program.

• When playing Super VCDs, the total time of the programmed tracks does not appear on the screen.

• You cannot use the Program Play function in karaoke mode.

Page 41

Playing in Random Order (Shuffle Play)

You can have the player “shuffle” titles, chapters or tracks and play them in a random order. Subsequent “shuffling” may produce a different playing order.

Select “SHUFFLE” after pressing DISPLAY. When you select a shuffle mode other than “OFF,” the “SHUFFLE” indicator lights up in green.

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

Indicator

1 2 ( 2 7 1 8 ( 3 4 C

CHAPTER OFF

TITLE CHAPTER

SHUFFLE

Select: Cancel:

x SHUFFLE

Selects the Shuffle Play setting. The default settings are underlined.

When playing a DVD and when Program Play is set to OFF

•

OFF: does not play a disc in random order.

• TITLE: has the player “shuffle” titles and play them in a random order.

• CHAPTER: has the player “shuffle” chapters and play them in a random order.

zYou can set Shuffle Play while the disc is stopped

After selecting the “SHUFFLE” option, press H. The player starts Shuffle Play.

Notes

• Shuffle Play is canceled when: – you open or close the disc tray

– the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• Up to 200 chapters in a disc can be played in random order when “CHAPTER” is selected.

• Depending on the DVD, you may not be able to perform Shuffle Play.

• You cannot perform Shuffle play during PBC playback of VIDEO CDs (page 22).

Using Various Functions with the Control Menu

When playing a VIDEO CD or CD (when Program Play is set to OFF)

•

OFF: does not play a disc in random order.

• TRACK: has the player “shuffle” tracks and play them in a random order.

When playing a VIDEO CD, CD or DVD (when Program Play is set to ON)

•

OFF: does not play a disc in random order.

• ON: has the player “shuffle” titles or tracks selected in Program Play and play them in a random order.

To stop Shuffle Play

Press CLEAR on the remote.

Page 42

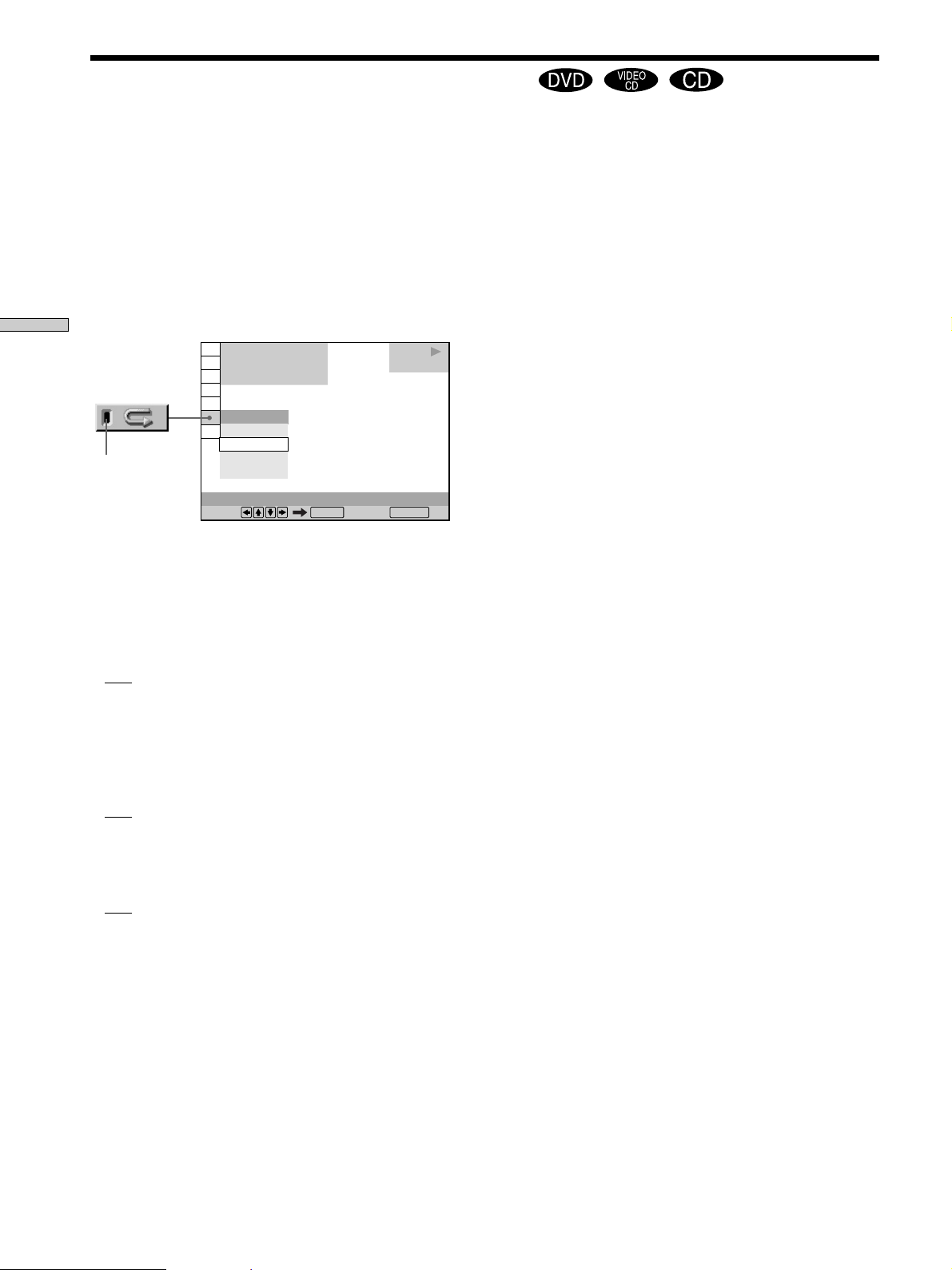

Playing Repeatedly (Repeat Play)

Using Various Functions with the Control Menu

You can play all of the titles or tracks on a disc or a single title, chapter or track repeatedly. In Shuffle or Program Play mode, the player repeats the titles or tracks in the shuffled or programmed order. You cannot perform Repeat Play during PBC playback of VIDEO CDs (page 22).

Select “REPEAT” after pressing DISPLAY . When you select a repeat mode other than “OFF,” the “REPEAT” indicator lights up in green.

) )

0 1 : 3 2 : 5 5

PLAY DVD

ENTER RETURN

Indicator

1 2 ( 2 7 1 8 ( 3 4 C

DISC OFF DISC

TITLE CHAPTER

REPEAT Select: Cancel:

x REPEAT

Selects the Repeat Play setting. The default settings are underlined.

zYou can set Repeat Play while the disc is stopped

After selecting the “REPEAT” option, press H. The player starts Repeat Play.

Notes

• Repeat play is canceled when: – you open or close the disc tray

– the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• Depending on the DVD, you may not be able to perform

Repeat Play.

When playing a DVD and when Program Play and Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all of the titles.

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

When playing a VIDEO CD/CD and when Program Play and Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all of the tracks on a disc.

• TRACK: repeats the current track.

When Program Play or Shuffle Play is on

•

OFF: does not play repeatedly.

• ON: repeats Program Play or Shuffle Play.

To stop Repeat Play

Press CLEAR on the remote.

Page 43

Repeating a Specific Portion (A-B Repeat)

You can play a specific portion of a title, chapter or track repeatedly. This function is useful when you want to do such things as memorize lyrics. During PBC Playback of VIDEO CDs (page 22), this function is available only while playing moving pictures.

Select “A-B REPEAT” after pressing DISPLAY. During AB Repeat Play, the “A-B REPEAT” indicator lights up in green.

1 2 ( 2 7 1 8 ( 3 4 C

OFF SET OFF

Indicator

A–B REPEAT Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

x A-B REPEAT

The default setting is underlined.

• SET,: sets the A and B points.

•

OFF: does not play a specific portion of a title/chapter/ track repeatedly.

Setting a portion for A-B repeat

1 Select “A-B REPEAT” and press ENTER.

1 2 ( 2 7 1 8 ( 3 4 C

OFF SET OFF

A–B REPEAT

To select, press , then .

Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

2 Select “SET,” and press ENTER.

The A-B REPEAT setting display appears.

0 1 : 3 2 : 5

A-B REPEAT

Set point A with

RETURN

Return:

ENTER

Using Various Functions with the Control Menu

3 During playback, when you find the starting point

(point A) of the portion to be played repeatedly, press ENTER.

The starting point (point A) is set.

0 1 : 3 2 : 5 5

A-B REPEAT

Set point B with .

CLEAR

Cancel:

ENTER

CHAPTER

A: 18 – 01 : 32 : 55

TIME

Page 44

Repeating a Specific Portion (A-B Repeat)

4 When you reach the ending point (point B), press

ENTER again.

The set points are displayed and the player starts repeating this specific portion. “A-B” appears on the front panel display during A-B repeat play.

Using Various Functions with the Control Menu

1 2 ( 2 7 1 8 ( 3 4 C

A–B REPEAT Select:

) )

0 1 : 34 : 30

CHAPTER A: 18 – 01 : 32 : 55 B: 18 – 01 : 34 : 30

ENTER

PLAY

DVD

TIME

To stop A-B Repeat Play

Press CLEAR on the remote.

Notes

• You can set A-B Repeat for only one specific portion.

• A-B Repeat is canceled when: – you open or close the disc tray

– the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• When you set A-B Repeat, the settings for Shuffle Play, Repeat Play and Program Play are canceled.

• You may not be able to set A-B Repeat for some DVD or VIDEO CD scenes.

Page 45

Enjoying

Using Karaoke

Karaoke

This chapter describes how to play discs in karaoke mode and how to use the various karaoke features .

You can enjoy karaoke (singing along with a disc) by setting this player to karaoke mode. You can connect up to two microphones (not supplied) to the player.

Setting the player to karaoke mode

The player enters karaoke mode when a microphone is plugged into the MIC 1 or 2 connector.

The player exits from karaoke mode when you disconnect the microphones from both of the MIC 1 and 2 connectors. You may also switch karaoke mode on or off by pressing KARAOKE MODE on the remote. The KEY CONTROL button indicators light up when the player is in karaoke mode.

When you turn the karaoke mode on with DVDs or Super VCDs, the karaoke play is performed with the audio channel you selected in “AUDIO” of the Control Menu display. With CDs or VIDEO CDs, the “AUDIO” setting automatically changes to “1/L” so that only the accompaniment is played when you turn the karaoke mode on. If the vocal audio is heard with some discs, select the audio channel for the karaoke play in “AUDIO” of the Control Menu display (page 31).

Enjoying Karaoke

Notes on karaoke mode

• You cannot use the karaoke function with the DIGITAL OUT connectors.

• You cannot use the Program Play function in karaoke mode.

• Sound tracks with a 96 kHz (PCM) sampling frequency are converted to 48 kHz (sampling frequency) in karaoke mode.

MIC 1/2 connectors

Microphones (not supplied)

MIC 1/2 LEVEL

ECHO LEVEL

KEY CONTROL button indicators

KARAOKE MODE

Page 46

Using Karaoke

Adjusting the microphone

1 Set the MIC 1/2 LEVEL control of the MIC connector

to MIN.

2 Plug a microphone (not supplied) into the MIC

connector.

When a microphone is connected to the MIC 1 or 2 connector, the player enters karaoke mode.

3 Set the ON/OFF switch on the microphone to ON

and turn the MIC 1/2 LEVEL control to adjust the microphone volume.

4 Turn the ECHO LEVEL control to adjust the echo.

Enjoying Karaoke

The same echo level is applied to all connected microphones.

zIf howling occurs

• Move the microphone away from the speakers.

• Lower the microphone volume or echo level.

• Lower the overall volume.

Notes

• The sound input from the microphone is not output from the DIGITAL OUT (OPTICAL, COAXIAL) connectors.

• You can turn the karaoke mode off even when a microphone is connected to the MIC 1 or 2 connectors by pressing KARAOKE MODE on the remote. You can continue using the microphone but the echo function and the ECHO LEVEL control do not work.

Dolby Digital Karaoke format

Dolby Digital format, which reproduces surround sound using 5 channels, contains the “Dolby Digital Karaoke” format specialized for karaoke. In the Dolby Digital Karaoke format discs, guide melody and guide vocal tracks are recorded in addition to the accompaniment. You can select them when the player is in karaoke mode.

Speaker output in normal Dolby Digital format (5 channel surround)

Front (L)

Rear (L)

Speaker output in Dolby Digital Karaoke format

Accompaniment

(L)

Center Front (R)

Rear (R)

Accompaniment

(R)

Guide melody

Guide vocal 1

You can select any of these. These are output from the front speakers (L, R).

You can check the audio information using “AUDIO” in the Control Menu display. When playing a Dolby Digital Karaoke disc, “9KARAOKE” appears at the current audio format (page 32).

Example:

DOLBY DIGITAL

3 / 2

Guide vocal 2

KARAOKE

2/0 : Recorded only with

accompaniment. 3/0 : Recorded with guide melody. 3/1 : Recorded with guide melody and

guide vocal. 3/2 : Recorded with guide melody and

two kinds of guide vocals.

Page 47

Using the Karaoke Control Menu Display

You can use the Karaoke Control Menu display when the player is in karaoke mode. Using the Karaoke Control Menu display, you can enjoy karaoke features such as changing the key, applying effects and programming the next titles and tracks. For details about each Karaoke Control Menu item, see pages 48 to 55.

Displaying the Karaoke Control Menu display

Set the player to karaoke mode (page 45), then press DISPLAY until the Karaoke Control Menu display appears. Use M/m to select item you want, then press ENTER. The Karaoke Control Menu selection operations are the same as the Control Menu operations. For details about the Control Menu operations, see “Using the Control Menu Display” on page 25.

DISPLAY ENTER

</M/m/,

Karaoke Control Menu item list

KEY CONTROL (pages 48)

You can change the key to suit your vocal range.

KARAOKE SURROUND (page 48)

The karaoke surround function gives surround effects to the accompaniment sound.

KARAOKE STAR (page 49)

The Karaoke Star function gives effects to your voice.

KARAOKE PON (page 49)

You can enjoy karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals.

VOCAL (page 50)

When playing a DVD with the Dolby Digital Karaoke format in karaoke mode, you can turn on or off the guide vocal. When playing a VIDEO CD/CD in karaoke mode, you can listen to the vocals.

VOCAL SELECT (page 51)

You can select different kind of vocals recorded in the disc.

Enjoying Karaoke

</M/m/,

DISPLAY

ENTER

Karaoke Control Menu display

Appears when the player is in karaoke mode

PLAY DVD

ENTER

Items

Selected item

Settings for each item

OFF OFF OFF OFF 1+2 OFF OFF OFF OFF

OFF KEY CONTROL Select:

The Karaoke Control Menu display items are different depending on the disc.

VOCAL SUPPORT (page 52)

The recorded vocal will play when you stop singing during a song.

GUIDE MELODY (DVD only) (page 52)

You can listen to the guide melody.

FIRST VERSE PLAY (DVD only) (page 53)

You can play only the first verse of each title.

CHORUS MEDLEY (DVD only) (page 53)

You can sequentially play the chorus part of all titles in a disc.

AUTO PAUSE (VIDEO CD/CD only) (page 54)

You can set the player to pause every time a track is played.

RESERVE (page 54)

You can select and reserve up to 24 titles/tracks when the player is in karaoke mode. You can reserve additional titles/tracks even if somebody is performing karaoke.

Page 48

Changing the Key (Key

Applying the Surround

Control)

You can change the key to suit your vocal range. While playing karaoke, press one of the KEY CONTROL buttons repeatedly to find the key that suits your vocal range.

Enjoying Karaoke

Press KEY CONTROL or KEY in karaoke mode.

KEY CONTROL , , buttons and indicators

These indicators light up when you select one of the keys.

KEY ,

Effect (Karaoke Surround)

The karaoke surround function gives surround effects to the accompaniment sound.

Select “KARAOKE SURROUND” in the Karaoke Control Menu display. Select the karaoke surround mode using M/m, and then press ENTER. To cancel the karaoke surround, select “OFF” using M/m, and then press ENTER. To use the Karaoke Control Menu display, see “Displaying the Karaoke Control Menu display” on page 47.

OFF OFF QUASI-STEREO LIVE MOVIE VOCAL OFF OFF OFF

OFF KARAOKE SURROUND Select: Cancel:

ENTER RETURN

PLAY DVD

To Press

raise the key lower the key return to the original key

You can adjust the key in 15 half-tone steps (7 steps higher, 7 steps lower and the original key).

zYou can change the key using “KEY CONTROL” in the Karaoke

Control Menu display

Select “KEY CONTROL” in the Karaoke Control Menu display (page 47), change the key using </,, and then press ENTER.

7 6 5 4 3 2 1 1 2 3 4 5 6 7 OFF OFF OFF 1+2 OFF OFF OFF OFF OFF

KEY CONTROL Adjust: Cancel:

ENTER RETURN

x KARAOKE SURROUND

•OFF: turns off the karaoke surround function.

•QUASI-STEREO: gives a stereo like effect to the monaural accompaniment sound. This mode is effective with CDs/VIDEO CDs.

•LIVE: emphasizes treble frequencies of the accompaniment sound to give a live concert performance effect.

•MOVIE: gives a theater performance effect to the accompaniment sound.

•VOCAL: reduces the accompaniment sound level so that your voice is emphasized. This mode is effective with CDs/VIDEO CDs.

Notes

•The key automatically returns to the original key when the title or track changes.

•This function has no effect on the output sound from the WOOFER connector.

Page 49

Additing Richness to Your

Playing Karaoke with Any

Voice (Karaoke Star)

The Karaoke Star function gives effects to your voice.

KARAOKE STAR button and indicator

The indicator lights up when you select a karaoke star mode other than “OFF.”

KARAOKE STAR

Stereo Disc (Karaoke Pon)

You can enjoy karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals.

KARAOKE PON

Enjoying Karaoke

Press KARAOKE STAR in karaoke mode. Each time you press KARAOKE STAR, the effect changes as follows:

, OFF: turns off the karaoke star function

UNISON: gives the effect of depth to the vocal voice

DUET: gives a duet like effect to the vocal voice

CHORUS: gives a chorus like effect to the vocal voice

OCTAVE UP:raises the tone of the vocal voice by

one octave

OCTAVE DOWN:lowers the tone of the vocal voice

by one octave

The KARAOKE STAR effect is enhanced when you increase the echo level.

zYou can select the Karaoke Star mode using “KARAOKE

STAR” in the Karaoke Control Menu display

Select “KARAOKE STAR” in the Karaoke Control Menu display (page 47), select the item using M/m, and then press ENTER.

OFF OFF OFF UNISON DUET CHORUS OCTAVE UP OCTAVE DOWN OFF

OFF KARAOKE STAR Select: Cancel:

ENTER RETURN

PLAY

DVD

Press KARAOKE PON in karaoke mode.

To cancel the Karaoke Pon function

Press KARAOKE PON again.

zYou can turn the Karaoke Pon function on and off using

“KARAOKE PON” in the Karaoke Control Menu display

Select “KARAOKE PON” in the Karaoke Control Menu display (page 47), select “ON” or “OFF” using M/m, and then press ENTER.

OFF OFF OFF OFF ON OFF OFF OFF OFF

OFF KARAOKE PON Select: Cancel:

ENTER RETURN

Notes

• The stereo effect will be reduced.

• This function may not work well in the following cases: – only a few instruments are playing – a duet is playing – the vocals on the disc deviate from the center – monaural-recorded discs (the accompaniment is also

reduced)

– multiplex discs

PLAY DVD

Page 50

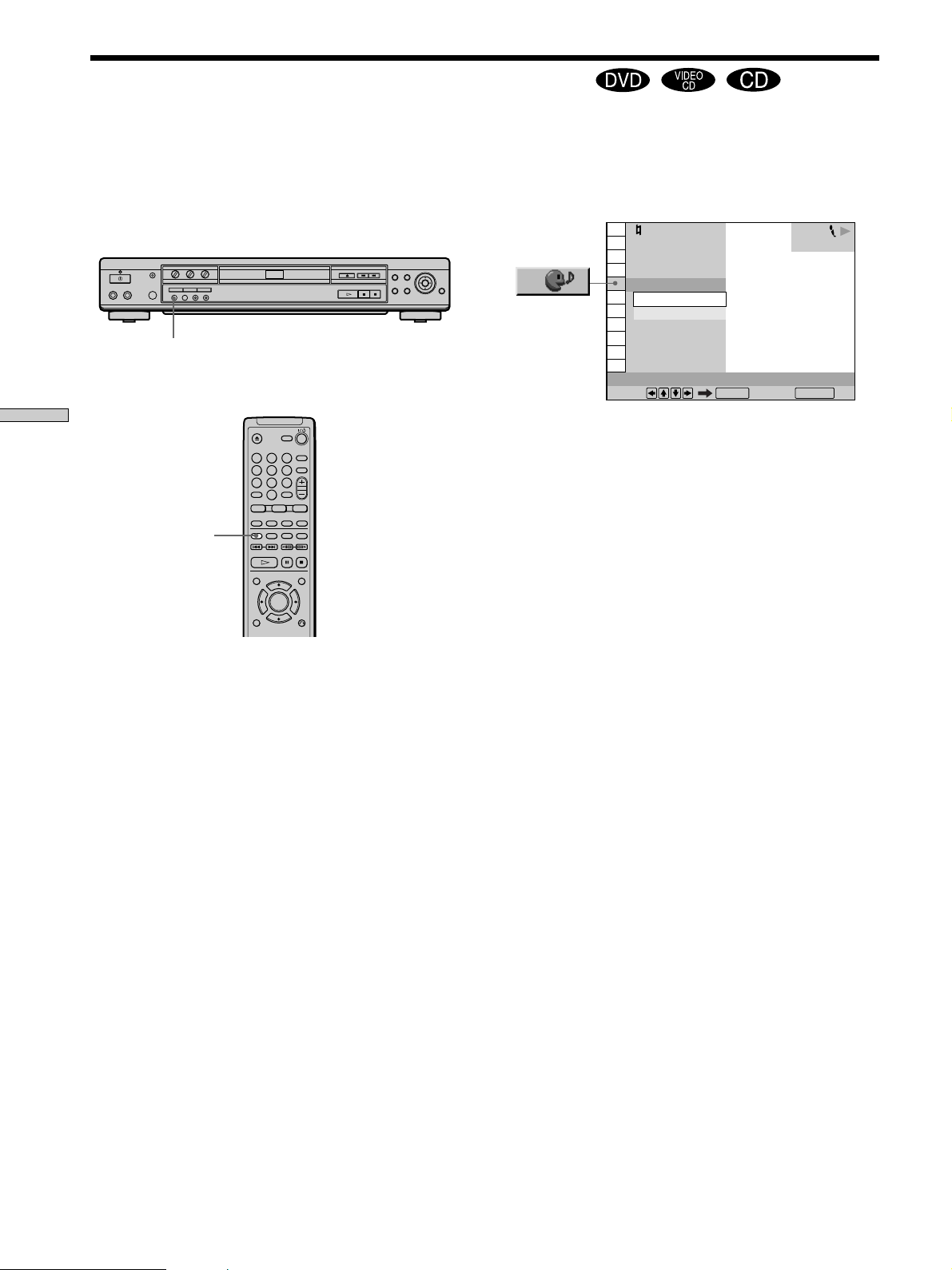

Turning the Vocals On and Off (Vocal)

When playing a DVD with the Dolby Digital Karaoke format in karaoke mode, you can turn on or off the guide vocal recorded in the karaoke track. When playing a VIDEO CD/CD in karaoke mode, you can listen to the vocals.

Enjoying Karaoke

VOCAL button and indicator

The indicator lights up when the Vocal function is turned on.

VOCAL

zYou can turn the Vocal function on and off using “VOCAL” in

the Karaoke Control Menu display

Select “VOCAL” in the Karaoke Control Menu display (page 47), select “ON” or “OFF” using M/m, and then press ENTER.

OFF OFF OFF OFF OFF ON OFF OFF OFF

OFF VOCAL Select: Cancel:

ENTER RETURN

PLAY DVD

zYou can select the vocals

When the Vocal function is set to on, you can change the guide vocal by pressing VOCAL SELECT. See “Selecting the Vocals” (page 51).

Notes

• When you turn the Vocal function on, the Vocal Support function is automatically turned off (page 52).

• When you turn the Vocal function on and off while playing a Super VCD, the sound may cut off for a moment.

When playing a DVD

You can listen to the guide vocal recorded in the Dolby Digital karaoke format track. Press VOCAL while playing a disc. To cancel the guide vocal, press VOCAL again.

Notes

• This function works only with the Dolby Digital Karaoke format.

• If the guide vocal is not recorded on the disc, you cannot use the Vocal function.

When playing a VIDEO CD or CD

When VIDEO CDs and CDs are played in karaoke mode, the audio output automatically changes so that only the left channel (accompaniment track) is played and output from both front speakers (L, R). You can listen to the vocals by pressing VOCAL while the accompaniment is being played.

Page 51

Selecting the Vocals (Vocal Select)

After you have set Vocal (page 50) or Vocal Support (page

52) to ON, you can change the guide vocal channel. You can select different kinds of vocals when using the Vocal or Vocal Support function.

VOCAL SELECT

When playing a VIDEO CD or CD

To select the vocal track, press VOCAL SELECT during playback. Each time you press VOCAL SELECT, the output channel changes as follows:

, L+R (same sound is output from both speakers)

STEREO

When playing a Super VCD

To select the vocal track, press VOCAL SELECT during playback. Each time you press VOCAL SELECT, the output channel changes as follows:

, 1: L+R

1: STEREO

2: L+R

2: STEREO

Enjoying Karaoke

When playing a DVD

During playback, press VOCAL SELECT. Each time you press VOCAL SELECT, the guide vocal channel changes as follows:

, 1+2 (Guide vocal 1+2)

1 (Guide vocal 1)

2 (Guide vocal 2)

Notes

• This function works only with the Dolby Digital Karaoke format.

• Depending on the DVD, you may not be able to do the operations above.

• If only one guide vocal is recorded in the disc, you can select only “1.”

zYou can select the vocals using “VOCAL SELECT” in the

Karaoke Control Menu display

Select “VOCAL SELECT” in the Karaoke Control Menu display (page 47), select the vocals using M/m, and then press ENTER.

OFF OFF OFF OFF 1+2 1+2 1 2 OFF

OFF VOCAL SELECT Select: Cancel:

ENTER RETURN

PLAY DVD

Page 52

Being Supported by the

Turning the Guide Melody Recorded Vocal Track (Vocal Support)

The recorded vocal will play when you stop singing during a song.

VOCAL SUPPORT button and indicator

The indicator lights up when the Vocal

Enjoying Karaoke

function is turned on.

When playing a DVD

You can use the Vocal Support function only with the Dolby Digital Karaoke format. Press VOCAL SUPPORT while playing a disc in karaoke mode. To cancel the Vocal Support function, press VOCAL SUPPORT again.

When playing a VIDEO CD or CD

Press VOCAL SUPPORT while playing a disc in karaoke mode. To cancel the Vocal Support function, press VOCAL SUPPORT again.

On and Off (Guide Melody)

You can listen to the guide melody.

Select “GUIDE MELODY” in the Karaoke Control Menu

display. To turn the guide melody on, select “ON” using

M/m, and then press ENTER. To cancel the guide melody,

select “OFF” using M/m, and then press ENTER.

To use the Karaoke Control Menu display, see “Displaying

the Karaoke Control Menu display” on page 47.

VOCAL SUPPORT

OFF OFF OFF OFF 1+2 OFF OFF OFF ON

OFF GUIDE MELODY Select: Cancel:

ENTER RETURN

Notes

• This function works only with the Dolby Digital Karaoke format.

• If no guide melody is recorded on the disc, you cannot hear the guide melody even if you turn it on.

PLAY DVD

zYou can turn the Vocal Support function on and off using

“VOCAL SUPPORT” in the Karaoke Control Menu display

Select “VOCAL SUPPORT” in the Karaoke Control Menu display (page 47), select “ON” or “OFF” using M/m, and then press ENTER.

OFF OFF OFF OFF 1+2 OFF OFF ON OFF

OFF VOCAL SUPPORT Select: Cancel:

ENTER RETURN

PLAY DVD

zYou can select the vocals

When the Vocal Support function is set to ON, you can change the guide vocal by pressing VOCAL SELECT. See “Selecting the Vocals” (page 51).

Notes

• When you turn the Vocal Support function on, the Vocal function is automatically turned off (page 50).

• When switching the recorded vocal and your vocal while playing a Super VCD, the sound may cut off for a moment.

Page 53

Playing Only the First Verse

Searching for a Title by of Each Title (First Verse Play)

You can play only the first verse of each title. Use this when you want to sing many songs. You can use this function only for DVDs with the First Verse function.

Select “FIRST VERSE PLAY” in the Karaoke Control Menu display. To turn the First Verse function on, select “ON” using M/m, and then press ENTER. To cancel the First Verse function, select “OFF” using M/m, and then press ENTER. To use the Karaoke Control Menu display, see “Displaying the Karaoke Control Menu display” on page 47.

OFF OFF OFF OFF 1+2 OFF OFF OFF OFF

ON FIRST VERSE PLAY Select: Cancel:

ENTER RETURN

PLAY DVD

Listening to the Chorus (Chorus Medley)

You can sequentially play the chorus part of all titles in a disc. You can use this function only for DVDs with the Chorus Medley function.

OFF OFF OFF OFF 1+2 OFF OFF ON OFF

OFF CHORUS MEDLEY Select: Cancel:

ENTER RETURN

1 Before you start playing, select “CHORUS MEDLEY”

in the Karaoke Control Menu display. Select “ON” using M/m, and then press ENTER.

To use the Karaoke Control Menu display, see “Displaying the Karaoke Control Menu display” on page 47.

STOP DVD

Enjoying Karaoke

2 Press H.

The player starts Chorus Medley playback.

To go to the chorus part of the next title

Press >.

To go back to the chorus part of the preceding title

Press ..

To start playback from the beginning of the title being played

During Chorus Medley playback, press H. Chorus Medley playback is canceled.

To cancel Chorus Medley playback

Select “CHORUS MEDLEY” in the Karaoke Control Menu display, select “OFF” using M/m, and then press ENTER.

Note

If you press CHORUS MEDLEY while playing a disc, the Chorus Medley function will not work.

Page 54

RESERVE DVD 1–20

2 –– ––

–– –– ––

PLAY

Pausing at the End of Each

Reserving Karaoke

Track (Auto Pause)

You can set the player to pause every time a track is played.

Select “AUTO PAUSE” in the Karaoke Control Menu display. To turn the Auto Pause function on, select “ON” using M/m, and then press ENTER. To cancel the Auto Pause function, select “OFF” using M/m, and then press ENTER. To use the Karaoke Control Menu display, see “Displaying the Karaoke Control Menu display” on page 47.

Enjoying Karaoke

OFF OFF OFF OFF L+R OFF OFF OFF ON

AUTO PAUSE Select: Cancel:

ENTER RETURN

PLAY VIDEO CD

(Reserve)

You can select and reserve up to 24 tracks/titles when the player is in karaoke mode. You can reserve additional tracks/titles even if somebody is performing karaoke. Once the track or title is performed, it disappears from the reserve list.

RESERVE button and indicator

The indicator lights up while playing the reserved titles or tracks.

Number buttons

CLEAR

ENTER RESERVE

Note

The Auto Pause function does not work during PBC playback of a VIDEO CD.

ENTER

1 Press RESERVE in karaoke mode.

The RESERVE display appears and the RESERVE indicator flashes.

Total number of titles or tracks

RESERVE DVD 1–20

––

–– –– ––

–– ––

––

–– –– ––

2 Input the title or track number using the number

buttons, then press ENTER.

To cancel this title or track, press CLEAR.

Page 55

3 To reserve other titles or tracks, repeat Step 2.

PLAY

You can reserve other titles or tracks even while playing a disc.

RESERVE DVD 1–20

––

–– –– ––

–– ––

––

–– –– ––

To reserve titles or tracks from another disc: 1 Press 0.

“

(next disc)” appears.

2 Press ENTER. 3 Input the title or track number of another disc.

When the player reaches “ stop so that you can change the disc.

RESERVE NEXT DISC 1-99

2 13 ––

15 ––18––

1 –– ––

19 –– ––

––

–– –– ––

–– ––

(next disc),” it will

––

4 –– ––

Inserting the Applause Effect (Effect Mode) Z

You can insert applause with or without cheers in the karaoke mode.

EFFECT MODE EFFECT DO

Enjoying Karaoke

To cancel the number, press CLEAR.

The reserved titles or tracks are played in the reserved order. If you reserve titles or tracks when the player is in stop mode, press H to start Reserve Play.

To exit the RESERVE display

Press RESERVE. The RESERVE display is turned off. However, the player memorizes the contents of the reserve list.

To cancel Reserve Play

Select “OFF” in “RESERVE” in the Karaoke Control Menu display or press CLEAR. All of the reserve settings are erased.

zYou can display the “RESERVE” list using the Karaoke

Control Menu display

Select “SET,” in “RESERVE” in the Karaoke Control Menu display (page 47).

zYou can select a reserved title or track

While playing the reserved title or track, you can jump to the next title or track by pressing the > (NEXT) button and then return to the beginning of the current title or track with the . (PREV) button.

To automatically insert the effect at the beginning and end of the titles and tracks

Press EFFECT MODE to select applause only or applause with cheers. (You may not be able to do this operation depending on the DVD or when doing PBC playback of a VIDEO CD.) Each time you press EFFECT MODE, the effect changes as follows:

, OFF

1 (applause)

2 (applause and cheers)

To instantly insert the effect whenever you want

Press EFFECT DO when you want to insert the applause effect. You may insert applause and cheers using this button even if EFFECT MODE is set to OFF.

Notes

• You cannot do Shuffle Play and Repeat Play while using this function. The Shuffle Play or Repeat Play setting is canceled when you start reserving tracks or titles.

• If the reserved title or track does not exist, “Reserve play of title** is prohibited.” or “Reserve play of track** is prohibited.” appears and the next title or track is played.

• The reserve function does not work during PBC playback of a VIDEO CD.

Page 56

Settings and

Select:

SETUP

ENTER

1 8 ( 3 4

)

1 2 ( 1

)

0 0 : 0 0 : 0 0

STOP DVD

Adjustments

This chapter describes how to set and adjust the player using the on-screen setup menu. Most settings and adjustments are required to be set when you first use the player.

Using the Setup Display

Note

You can display the setup display only when the player is in stop mode.

DISPLAY

ORETURN

ENTER

</M/m/,

DISPLAY

ENTER ORETURN

1 Press DISPLAY and select “SETUP” using M/m.

Selected item

2 Press ENTER.

The setup display appears.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

To set, press , then . To quit, press .

DISPLAY

ENTER

Page 57

3 Select the main item you want using M/m.

7 Select the setting you want using </M/m/,.

LANGUAGE SETUP

OSD: DVD MENU:

Main item

AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

4 Press ENTER.

The selected main item is highlighted.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

JACKET PICTURE

ENTER

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

16:9

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

8 Press ENTER.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

16:9 16:9

4:3 LETTER BOX

4:3 PAN SCAN

ENTER

4:3 PAN SCAN

JACKET PICTURE

Settings and Adjustments

ENTER

5 Select the item you want using M/m.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

JACKET PICTURE

ENTER

16:9

6 Press ENTER.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

DISPLAY

4:3 LETTER BOX

4:3 PAN SCAN

ENTER

16:9 16:9

9 Press DISPLAY.

The setup display disappears.

Press DISPLAY repeatedly to turn off the on-screen menu.

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Note

Some setup display items require operations other than selecting the setting. For details on these items, see the relevant pages.

Page 58

Setup Display Item List

The default settings are underlined.

LANGUAGE SETUP (page 59)

OSD

DVD MENU

Settings and Adjustments

AUDIO

SUBTITLE

SCREEN SETUP (page 60)

TV TYPE

SCREEN SAVER

BACKGROUND JACKET PICTURE

ENGLISH CHINESE 1 CHINESE 2

ENGLISH CHINESE JAPANESE FRENCH GERMAN ITALIAN SPANISH DUTCH DANISH SWEDISH FINNISH NORWEGIAN PORTUGUESE RUSSIAN OTHERS ,

ORIGINAL (same as DVD MENU)

AUDIO FOLLOW (same as DVD MENU)

16:9 4:3 LETTER BOX

4:3 PAN SCAN

ON OFF

GRAPHICS BLUE/MAGENTA BLACK

CUSTOM SETUP (page 61)

COLOR SYSTEM AUTO

PAL NTSC

AUTO PLAY OFF

TIMER DEMO1 DEMO2

DIMMER BRIGHT

DARK OFF

PAUSE MODE AUTO

FRAME

PARENTAL CONTROL , TRACK SELECTION OFF

AUTO

AUDIO SETUP (page 65)

AUDIO ATT OFF

AUDIO DRC

DOWNMIX DOLBY SURROUND

DIGITAL OUT

ON OFF

SPEAKER SETUP

SUBWOOFER NONE

STANDARD TV MODE WIDE RANGE

NORMAL

DOLBY DIGITAL

MPEG

DTS

(page 67)

YES

FRONT SPEAKER SIZE

D-PCM DOLBY DIGITAL PCM MPEG OFF ON

LARGE MIDDLE SMALL TV

Page 59

Setting the Display Language or Sound Track (LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track. The default settings are underlined.

Select “LANGUAGE SETUP” in the setup display.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

Notes

• When you select a language that is not recorded on the DVD, one of the recorded languages is automatically selected for the “DVD MENU,” “AUDIO” and “SUBTITLE” settings.

• Depending on the DVD, the player may not start playing with the selected language even when you select a language in “DVD MENU,” “AUDIO” or “SUBTITLE.”

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

x OSD (On-Screen Display)

Selects the language for the on-screen display.

•

ENGLISH

• CHINESE 1

• CHINESE 2

x DVD MENU

Selects the language for the DVD menu.

•

ENGLISH

• CHINESE

• JAPANESE

• FRENCH

• GERMAN

• ITALIAN

• SPANISH

• DUTCH

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• PORTUGUESE

• RUSSIAN

• OTHERS,

x AUDIO

Selects the language for the sound track.

•

ORIGINAL: the language given priority in the disc

• ENGLISH

• CHINESE

• JAPANESE

• FRENCH

• GERMAN

• ITALIAN

• SPANISH

• DUTCH

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• PORTUGUESE

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 75). After you have made a selection, the language code (4 digits) is displayed.

x SUBTITLE

Selects the language for the subtitles.

•

AUDIO FOLLOW*

• ENGLISH

• CHINESE

• JAPANESE

• FRENCH

• GERMAN

• ITALIAN

• SPANISH

• DUTCH

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• PORTUGUESE

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 75). After you have made a selection, the language code (4 digits) is displayed.

Settings and Adjustments

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 75). After you have made a selection, the language code (4 digits) is displayed.

* When you select “AUDIO FOLLOW,” the language for the

subtitles changes according to the language for the setting you selected in “AUDIO.”

Page 60

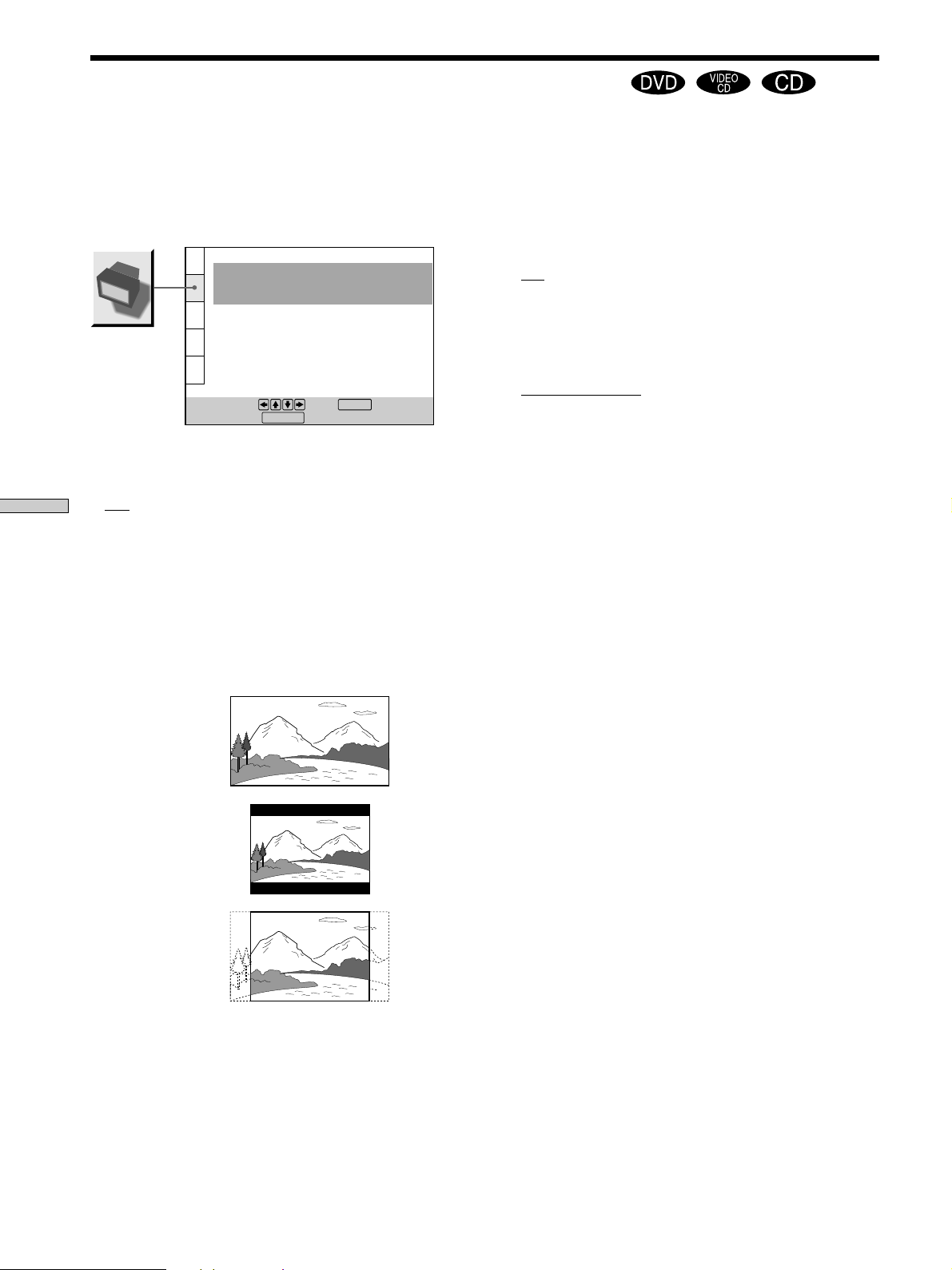

Settings for the Display (SCREEN SETUP)

“SCREEN SETUP” allows you to set the display according to the playback conditions. The default settings are underlined.

Select “SCREEN SETUP” in the setup display.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

To set, press , then . To quit, press .

x TV TYPE

Selects the aspect ratio of the TV to be connected.

•

Settings and Adjustments

16:9: select this when you connect a wide-screen TV to the player.

• 4:3 LETTER BOX: select this when you connect a normal TV to the player. Displays a wide picture with bands on the upper and lower portions of the screen.

• 4:3 PAN SCAN: select this when you connect a normal TV to the player. Displays the wide picture on the whole screen automatically and cuts off the portions that do not fit.

DISPLAY

16:9

JACKET PICTURE

ENTER

x SCREEN SAVER

Turns on and off the screen saver. If you turn on the screen saver, the screen saver image appears when you leave the player or the remote in pause or stop mode for 15 minutes, or when you play back a CD for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged.

•

ON: turns on the screen saver.

• OFF: turns off the screen saver.

x BACKGROUND

Selects the background color or picture on the TV screen in stop mode or while playing a CD.

•

JACKET PICTURE: The jacket picture appears in the background, but only when the jacket picture is already recorded on the disc.

• GRAPHICS: A preset picture stored in the player appears in the background.

• BLUE/MAGENTA: The background color is blue. When the player is in karaoke mode, the background color changes to magenta.

• BLACK: The background color is black.

Note

If a disc which does not contain the jacket picture is played while “BACKGROUND” is set to “JACKET PICTURE,” the picture stored in the player will automatically appear in the background.

16:9

4:3 LETTER BOX

4:3 PAN SCAN

Note

Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” and vice versa.

Page 61

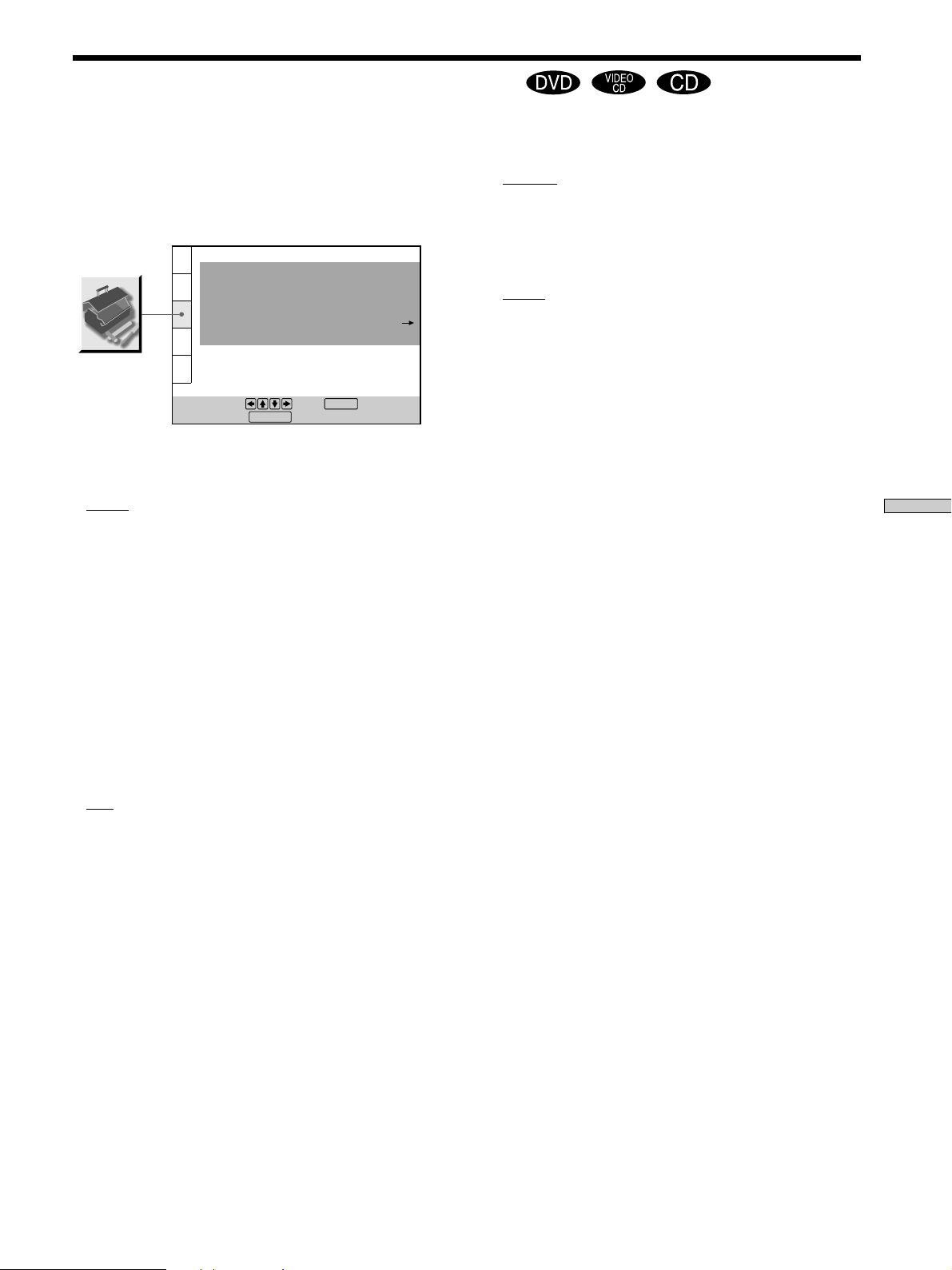

Custom Settings (CUSTOM SETUP)

“CUSTOM SETUP” allows you to set the playback conditions. The default settings are underlined.

Select “CUSTOM SETUP” in the setup display.

CUSTOM SETUP

COLOR SYSTEM: AUTO PLAY: DIMMER: PAUSE MODE: PARENTAL CONTROL TRACK SELECTION:

To set, press , then . To quit, press .

DISPLAY

ENTER

AUTO

OFF

BRIGHT

AUTO

OFF

x COLOR SYSTEM

Selects the color system when you play a VIDEO CD.

•

AUTO: outputs the video signal in the system of the VIDEO CD, either PAL or NTSC. If your TV is the DUAL system, select AUTO.

• PAL: changes the video signal of an NTSC VIDEO CD and outputs it in the PAL system.

• NTSC: changes the video signal of a PAL VIDEO CD and outputs it in the NTSC system.

x DIMMER

Adjusts the lighting of the front panel display.

•

BRIGHT: makes the front panel display bright.

• DARK: makes the front panel display dark.

• OFF: turns off the lighting of the front panel display.

x PAUSE MODE (DVD only)

Selects the picture in pause mode.

•

AUTO: A picture including subjects that move dynamically is output with no jitter. Normally select this position.

• FRAME: A picture including subjects that do not move dynamically is output with high resolution.

x PARENTAL CONTROL,

Sets a password and playback limitation level for DVDs with playback limitation for children. The same password is used for both Parental Control and Custom Parental Control (page 37) . For details, see “Limiting Playback by Children (Parental Control).”

Settings and Adjustments

Notes

• You cannot change the color system of the DVD itself.

• You can change the color system of this unit according to the connected TV. See page 9.

x AUTO PLAY

Selects the Auto Play setting when you connect the mains lead to mains.

•

OFF: does not use “TIMER,” “DEMO1” or “DEMO2” to start playback.

• TIMER: starts playing at any time you want when

connected to a timer (not supplied). Set the timer when the player is in standby mode (the power indicator lights up in red).

• DEMO1: starts playing the first demonstration

automatically.

• DEMO2: starts playing the second demonstration

automatically.

Page 62

Custom Settings (CUSTOM SETUP)

Limiting Playback by Children (Parental Control)

Playback of some DVDs can be limited depending on the age of the users. The “Parental Control” function allows you to set a playback limitation level.

Select “CUSTOM SETUP” in the setup display.

CUSTOM SETUP

To set, press , then . To quit, press .

Settings and Adjustments

1 Select “PARENTAL CONTROL” using M/m, then press

ENTER.

CUSTOM SETUP

COLOR SYSTEM: AUTO PLAY: DIMMER: PAUSE MODE: AUTO PARENTAL CONTROL TRACK SELECTION: OFF

COLOR SYSTEM: AUTO PLAY: DIMMER: PAUSE MODE: PARENTAL CONTROL TRACK SELECTION:

DISPLAY

AUTO

OFF

BRIGHT

ENTER

AUTO

OFF

BRIGHT

AUTO

OFF

2 Enter a password in 4 digits using the number

buttons, then press ENTER.

The digits change to asterisks (

), and the display for

confirming the password appears.

CUSTOM SETUP

PARENTAL CONTROL

To confirm,enter password again,

ENTER

then press

To return, press . To cancel, press .

RETURN

DISPLAY

3 To confirm your password, enter it again using the

number buttons, then press ENTER.

The display for setting the playback limitation level and changing the password appears.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OFF USA

To set, press , then . To quit, press .

DISPLAY

ENTER

x When you have not entered a password

The display for entering a password appears.

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

To return, press . To cancel, press .

RETURN

DISPLAY

x When you have already registered a password

The display for confirming the password appears. Skip Step 2.

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press

ENTER

To set, press , then . To quit, press .

DISPLAY

ENTER

4 Select “STANDARD” using M/m, then press ,.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

To set, press , then . To quit, press .

DISPLAY

ENTER

OFF USA USA

OTHERS

To return, press . To cancel, press .

RETURN

DISPLAY

Page 63

5 Select a geographic area as the playback limitation

level standard using M/m, then press ENTER.

When you select “OTHERS,,” select and enter the standard code in the table on the next page using the number buttons.

To change the password

1 After Step 3, select “CHANGE PASSWORD” using M/

m, then press , or ENTER.

The display for changing the password appears.

2 Follow Steps 2 and 3 to enter a new password.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

To set, press , then . To quit, press .

DISPLAY

ENTER

OFF USA

6 Select “LEVEL” using M/m, then press ,.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF STANDARD: CHANGE PASSWORD

To set, press , then . To quit, press .

DISPLAY

ENTER

OFF

NC17

6: 5:

7 Select the level you want using M/m, then press

ENTER.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

4: PG13

USA

Playing a disc which is blocked by the playback limitation level

1 Insert the disc and press H.

The PARENTAL CONTROL display appears.

2 Enter your 4-digit password using the number buttons,

then press ENTER. The player starts playback. When you stop playing the DVD, the level returns to the original level.

zIf you forget your password

Enter the 6-digit number “199703” whenever the PARENTAL CONTROL display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Notes

• When you play DVDs which do not have the Parental Control function, playback cannot be limited on this player.

• If you do not set a password, you cannot change the settings for playback limitation.

• Depending on the DVD, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. When you stop playing the DVD, the level returns to the original level.

• The same password is used for both Parental Control and Custom Parental Control (page 37).

Settings and Adjustments

To set, press , then . To quit, press .

DISPLAY

ENTER

The lower the value, the more strict the limitation.

To return to the normal screen

Press DISPLAY.

To turn off the Parental Control function and play the DVD after entering your password

Set “LEVEL” to “OFF” in Step 7, then press H.

Page 64

Custom Settings (CUSTOM SETUP)

Standard Code number

Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 Hong Kong 2219

Settings and Adjustments

India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363 Mexico 2362 Netherlands 2376 New Zealand 2390 Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Taiwan 2543 Thailand 2528 United Kingdom 2184

x TRACK SELECTION

Gives the sound track which contains the highest number of channels priority when you play a DVD on which multiple audio formats (PCM, DTS, MPEG audio or Dolby Digital format) are recorded.

•

OFF: No priority given.

• AUTO: Priority given.

Notes

• When you set this item to “AUTO,” the language may change depending on the “AUDIO” settings in “LANGUAGE SETUP.” The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 59).

• If you set “DTS” in “AUDIO SETUP” to “OFF,” the DTS sound track is not played even if you set this item to “AUTO” and the highest-numbered audio channel is recorded in DTS format.

• If PCM, DTS, MPEG audio and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, Dolby Digital and MPEG audio sound tracks in this order.

• Depending on the DVD, the audio channel with priority may be predetermined. In this case, you cannot give priority to the DTS, MPEG audio or Dolby Digital format by selecting “AUTO.”

Page 65

Settings for the Sound (AUDIO SETUP)

“AUDIO SETUP” allows you to set the sound according to the playback conditions. The default settings are underlined.

Select “AUDIO SETUP” in the setup display.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

OFF

STANDARD

D-PCM

PCM

OFF

x AUDIO ATT (attenuation)

If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. Selects the setting of the output from the AUDIO OUT connectors according to the audio equipment to be connected.

•

OFF: turns off the audio attenuation. Normally select this position.

• ON: reduces the audio output level so that no sound distortion occurs. Select this when the playback sound from the built-in TV speakers is distorted.

Note

The setting does not affect the output from the DIGITAL OUT OPTICAL and COAXIAL connectors.

x AUDIO DRC (Dynamic Range Control)

Makes the sound clear when the volume is turned down when playing a DVD. This function works only when you play a DVD which has the AUDIO DRC function. This affects the output from the DIGITAL OUT connectors only when “DOLBY DIGITAL” is set to “D-PCM” and “MPEG” is set to “PCM” in “DIGITAL OUT,” and it affects the output from the AUDIO OUT connectors.

•

STANDARD: Normally select this position.

• TV MODE: makes the low sounds clear even if you turn the volumedown. It is especially recommended when you listen to the sound using the speakers of the TV.

• WIDE RANGE: It gives you the feeling of being at a live performance. When you use high quality speakers, it is more effective.

x DOWNMIX

Switches the mixing down methods when you play a DVD on which rear signal components such as LS, RS or S are recorded in Dolby Digital format. For details on the rear signal components, see “Displaying the audio information of the disc” (page 32). The “DOWNMIX” setting affects the following connectors: – AUDIO OUT connectors – DIGITAL OUT OPTICAL and COAXIAL connectors

(when you set “DOLBY DIGITAL” to “D-PCM” in “AUDIO SETUP” in the setup display)

•

DOLBY SURROUND: when the player is connected to an audio component that conforms to Dolby Surround (Pro Logic). The output signals which reproduce the Dolby Surround (Pro Logic) effect are mixed down to 2 channels.

• NORMAL: when the player is connected to an audio component that does not conform to Dolby Surround (Pro Logic). The signals without the Dolby Surround (Pro Logic) effect are output.

x DIGITAL OUT

Selects output signals via the DIGIT AL OUT OPTICAL and COAXIAL connectors.

•

ON: Normally select this position. When you select “ON,” set “DOLBY DIGITAL,” “MPEG” and “DTS.” For details on setting these items, see “Setting the Digital Output Signal.”

• OFF: when the player does not output the sound signals via the DIGIT AL OUT OPTICAL and COAXIAL connectors, the influence of the digital circuit upon the analog circuit is at a minimum.

Notes

• When you play sound tracks with a 96 kHz sampling

frequency, the output signals from the DIGITAL OUT (OPTICAL, COAXIAL) are converted to 48 kHz (sampling frequency). When the signals are output from the AUDIO OUT connectors, sampling frequency stays at 96 kHz and the output signals are converted to analog signals.

• When you select “OFF,” you cannot set “DOLBY DIGITAL”

“MPEG” and “DTS.”

Settings and Adjustments

Note

When you play DVDs without the AUDIO DRC function, there may be no effect on the sound.

Page 66

Settings for the Sound (AUDIO SETUP)

Setting the Digital Output Signal

Switches the methods of outputting audio signals when you, connect 1. a digital component such as a receiver (amplifier) having a digital connector, 2. an audio component having a built-in decoder (Dolby Digital, MPEG or DTS), 3. a DAT or MD via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord. For connection details, see pages 12 and 14. When you select “ON,” set “DOLBY DIGITAL,” “MPEG” and “DTS.”

AUDIO SETUP

AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: MPEG: DTS:

Settings and Adjustments

To set, press , then . To quit, press .

x DOLBY DIGITAL

Selects the Dolby Digital signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors. You cannot select this item when you set “DIGITAL OUT” to “OFF.”

•

D-PCM (Downmix PCM): when the player is connected to an audio component lacking a built-in Dolby Digital decoder. If you play Dolby Digital sound tracks, the output audio signals are mixed down to 2 channels. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP.”

• DOLBY DIGITAL: when the player is connected to an audio component with a built-in Dolby Digital decoder. If the player is connected to an audio component lacking a built-in Dolby Digital decoder, do not set this. Otherwise, when you play the Dolby Digital sound track, a loud noise or no sound will come out from the speakers, affecting your ears or causing the speakers to be damaged.

DISPLAY

OFF

STANDARD

DOLBY SURROUND

D-PCM

PCM

OFF

ENTER

x MPEG

Selects the MPEG audio signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors. You cannot select this item when you set “DIGITAL OUT” to “OFF.”

•

PCM: when the player is connected to an audio component lacking a built-in MPEG decoder. If you play MPEG audio sound tracks, the player outputs stereo signals via the DIGITAL OUT OPTICAL and COAXIAL connectors.

• MPEG: when the player is connected to an audio component having a built-in MPEG decoder . If the player is connected to an audio component lacking a built-in MPEG decoder, do not set this. Otherwise, when you play the MPEG audio sound track, a loud noise or no sound will come out from the speakers, affecting your ears or causing the speakers to be damaged.

x DTS

Selects the DTS signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors. You cannot select this item when you set “DIGITAL OUT” to “OFF.”

•

OFF: when the player is connected to an audio component lacking a built-in DTS decoder .

• ON: when the player is connected to an audio component having a built-in DTS decoder. If the player is connected to an audio component lacking a built-in DTS decoder, do not set this. Otherwise, when you play the DTS sound track, a loud noise or no sound will come out from the speakers, affecting your ears or causing the speakers to be damaged.

Note

When you select “D-PCM,” set Virtual Enhanced Surround (VES) to “OFF.” Otherwise, the player will not output signals from the DIGITAL OUT OPTICAL or COAXIAL connector.

Page 67

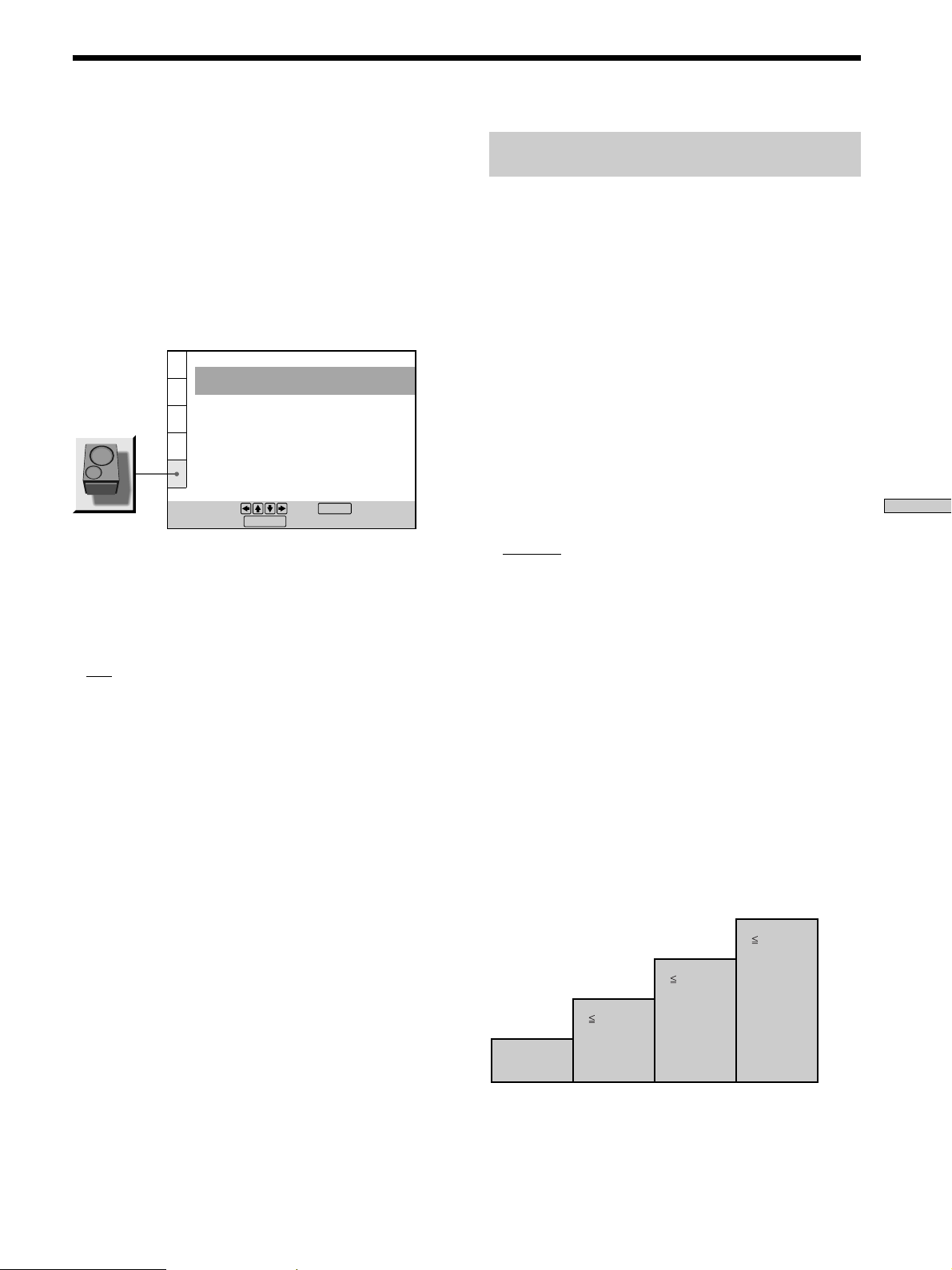

Subwoofer Set Up (SPEAKER SETUP)

When you have connected a subwoofer, specify the size of the front speakers you have connected to change the frequency range output from the subwoofer so that you can obtain the best possible surround sound. Even if you change the “SUBWOOFER” setting, the sound output from the front speakers do not change. For the speaker hookups, see pages 12 and 13. The default settings are underlined.

Select “SPEAKER SETUP” in the setup display.

SPEAKER SETUP

SUBWOOFER: FRONT SPEAKER SIZE: MIDDLE

To set, press , then . To quit, press .

DISPLAY

ENTER

YES

x SUBWOOFER

Selects whether a subwoofer is connected to the player or not.

• NONE: when a subwoofer is not connected to the player.

•

YES: when a subwoofer is connected to the player. When you select “YES,” set “FRONT SPEAKER SIZE.” For details, see “Setting the output level from the subwoofer.”

Setting the output level from the subwoofer

When you select “YES” in “SUBWOOFER” set “FRONT SPEAKER SIZE.” This selects the size of the connected front speakers. The frequency range output from the subwoofer varies according to the size of the front speakers.

x FRONT SPEAKER SIZE

• LARGE: if you connect large speakers that will effectively reproduce bass frequencies and play a DVD recorded in 5.1 channels including an LFE signal, select this. If you feel a lack of bass frequencies from the front speakers when you select this, select “MIDDLE.”

Notes

• If an LFE signal is not recorded on the disc, no sound will be output from the subwoofer even if you select “LARGE.”

• When you play MPEG audio sound track, an LFE signal is not output from the WOOFER connector.

• MIDDLE: if you connect large speakers that will effectively reproduce bass frequencies and play a source on which an LFE signal is not recorded, such as CD or DVD with 2 channels, select this to output the bass frequencies from the subwoofer as well as from the front channel. If you feel a lack of bass frequencies from the front speakers when you select this, select “SMALL.”

• SMALL: if you feel a lack of bass, select this to output even more bass frequencies from the subwoofer. If you still feel a lack of bass frequencies from the front speakers when you select this, select “TV.”

• TV: if you use the speakers of the TV or small speakers, select this to output the bass frequencies from the subwoofer.

Settings and Adjustments

zThe subwoofer outputs the LFE signal and the frequency

range according to the FRONT SPEAKER SIZE setting

The LFE signal is output only when the disc contains an LFE signal.

200 Hz*

150 Hz*

120 Hz*

LFE LFE

LARGE MIDDLE SMALL TV

* Audio signal besides LFE

Note

The signals of the PCM sound tracks with a 96 kHz sampling frequency are not output from the WOOFER connector.

LFE LFE

Page 68

Additional

Troubleshooting

Information

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem. Should any problem persist, consult your nearest Sony dealer.

Power

The power is not turned on.

, Check that the mains lead is connected securely.


There is no picture.

, Check that the player is connected securely. , The video connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the video

input connector on the TV. (page 8)

, Make sure you turn on the TV. , Make sure you select the video input on the TV so

that you can view the pictures from the player.

Picture noise appears.

, Clean the disc. , If the video signal from your DVD player has to go

through your VCR to get to your TV, the copyprotection applied to some DVD programs could affect picture quality. If you still experience problems after checking your connections, please try connecting your DVD player directly to your TV’s S video input, if your TV is equipped with this input. (page 8)

, If the color system of your DVD player does not

match with that of your TV, change the color system of the player . For details, see page 9. (You cannot change the color system of the DVD disc itself.)

Even though you set the aspect ratio in “TV TYPE” in “SCREEN SETUP” of the setup display, the picture does not fill the screen.

, The aspect ratio is fixed on your DVD.

Page 69

Sound

There is no sound.

, Check that the player is connected securely. , The audio connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the audio

input connectors on the receiver (amplifier). (page

10)

, Make sure you turn on the TV and the receiver

(amplifier).

, Make sure you select the appropriate input on the

receiver (amplifier) so that you can listen to the sound from the player.

, The player is in pause mode or in Slow-motion

Play mode. Press H to return to normal play mode.

, The player is in fast forward or fast reverse mode.

Press H to return to normal play mode.

, Check the speaker connections and setting (pages

12, 67). Refer to the operating manual of your receiver (amplifier).

, When you play Dolby Digital/MPEG audio sound

tracks and attempt to output from the DIGITAL OUT connectors, set “DIGITAL OUT” to “ON” in the setup display. Otherwise no sound will come from the DIGITAL OUT connectors. (page 65)

, You selected a VES mode other than “OFF” in the

Control Menu display when you connected the component via the DIGITAL OUT OPTICAL or COAXIAL connector. Set “VES” to “OFF” in the Control Menu display. (page 35)

, When you play DTS sound tracks, sound will only

come out from the DIGITAL OUT OPTICAL or COAXIAL connector. (page 18)

, While playing the Super VCD on which the audio

track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L” or “2:2/R.”

Sound is noisy.

, Clean the disc. , When you play a CD with DTS sound tracks, noise

will come from any connector other than the DIGITAL OUT OPTICAL or COAXIAL connector. (page 18)

Sound distortion occurs.

, In the setup display, set “AUDIO ATT” in “AUDIO

SETUP” to “ON.”

The sound loses its stereo effect when you play a VIDEO CD or a CD.

, Set “AUDIO” to “STEREO” in the Control Menu

display. (page 31)

, Make sure you connect the player correctly. (page

8, 10, 12, 13)

, The sound becomes monaural in karaoke mode.

The surround effect is difficult to hear when you are playing a Dolby Digital or MPEG sound track.

, Check the speaker connections and setting (pages

12, 67). Refer to the operating manual of your receiver (amplifier).

, Depending on the DVD, the output signal may not

be the entire 5.1 channels. It may be monaural or stereo even if the sound track is recorded in Dolby Digital or MPEG format.

Vocal is not heard when you select the vocal in karaoke mode.

, Vocals are not recorded on the disc.

Operation

The remote does not function.

, Remove any obstacles between the remote and the

player.

, Use the remote near the player. , Point the remote at the remote sensor

player.

, Replace all of the batteries in the remote with new

ones if they are weak.

The disc does not play.

, There is no disc inside (“Insert disc.” appears on

the TV screen). Insert a disc.

, Insert the disc correctly with the playback side

facing down on the disc tray.

, Clean the disc. , The player cannot play CD-ROMs, etc. (page 5)

Insert a DVD, a VIDEO CD, or CD.

, Check the region code of the DVD. (page 4) , Moisture has condensed inside the player. Remove

the disc and leave the player turned on for about half an hour. (page 6)

on the

Additional Information

Page 70

Troubleshooting

The player does not play from the beginning when playing a disc.

, Program Play, Shuffle Play, Repeat Play or A-B

Repeat Play has been selected. Press CLEAR. (pages 39 through 44)

, Resume Play has been selected.

Press x on the front panel or on the remote before you start playing. (page 20)

, A title menu or a DVD menu automatically

appears on the TV screen when you play your DVD, or a setup display automatically appears on the TV screen when you play your VIDEO CD with PBC functions.

The player starts playing the DVD automatically.

, The DVD features the auto playback function.

Playback stops automatically.

, The disc may contain an auto pause signal. While

playing such a disc, the player stops playback at the signal.

You cannot perform some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle

Additional Information

Play or Program Play .

, Depending on the disc, you may not be able to do

some of the operations above.

Messages do not appear on the TV screen in the language you want.

, In the setup display, select the desired language for

the on-screen display in “OSD” under “LANGUAGE SETUP.” (page 59)

The angles cannot be changed when you play a DVD.

, Multi-angles are not recorded on the DVD. , Change the angles when “ANGLE” appears on the

front panel display. (page 34)

, Changing the angles is prohibited on the DVD.

The player does not operate properly.

, Static electricity, etc., may affect the player's

operation. Press ! on the player to turn the player off and then on again.

Nothing is displayed on the front panel display.

, In the set up display, “DIMMER” in “CUSTOM

SETUP” is set to “OFF.” Set “DIMMER” to “BRIGHT” or “DARK.” (page

61)

5 numbers or letters are displayed on the screen and on the front panel display.

, The self-diagnosis function was activated. See the

table on page 71.

The disc tray does not open and “LOCKED” is displayed on the front panel display.

, Contact your Sony dealer or local authorized Sony

service facility.

The language for the sound track cannot be changed when you play a DVD.

, Multilingual tracks are not recorded on the DVD. , Changing the language for the track is prohibited

on the DVD.

The subtitle language cannot be changed when you play a DVD.

, Multilingual subtitles are not recorded on the

DVD.

, Changing the language for the subtitles is

prohibited on the DVD.

The subtitles cannot be turned off when you play a DVD.

, Depending on the DVD, you may not be able to

turn the subtitles off.

Page 71

Self-diagnosis function

When the self-diagnosis function activates to prevent the player from malfunctioning, a five-character service number (combination of a letter and digits) flashes on the screen and on the front panel display. In this case, check the following table.

C:13:00

First three characters

C13

C31

Exx (xx is any number)

Cause and/or Corrective Action

•The disc is dirty. , Clean the disc with a cleaning cloth. (page 6)

•The disc is not inserted correctly. , Open the disc tray and insert the disc correctly.

•To prevent a malfunction, the player has performed the self-diagnosis function. ,When you contact your Sony dealer or local authorized Sony service facility, give

the 5-character service number. (example: E:61:10)

Additional Information

Page 72

Specifications

CD/DVD player

Laser Semiconductor laser Signal format system

NTSC/PAL (See page 9 to switch.)

Audio characteristics

Frequency response

DVD (PCM 96 kHz): 2 Hz to 44 kHz (±1

DVD (PCM 48 kHz): 2 Hz to 22 kHz (±0.5

CD: 2 Hz to 20 kHz (±0.5 dB)

Signal-to-noise ratio

More than 110 dB (AUDIO OUT connectors

Harmonic distortion

Less than 0.003 %

Dynamic range

More than 100 dB (DVD) More than 97 dB (CD)

Wow and flutter

Less than detected value

Additional Information

Outputs and inputs

dB)*

dB)

only)

(±0.001 % W PEAK)

General

Power requirements

220 to 240 V AC, 50/60 Hz 110 V AC, 50/60 Hz See page 2 for further informations.

Power consumption

15 W See page 2 for further informations.

Dimensions (approx.)

430 × 69 × 260 mm (w/h/d)

incl. projecting parts

Mass (approx.)

2.9 kg

Operating temperature

5 ˚C to 35 ˚C

Operating humidity

25 % to 80 %

Supplied accessories

See page 7.

* The signals from AUDIO OUT connectors are measured. When you

play PCM sound tracks with a 96 kHz sampling frequency, the output signals from the DIGITAL OUT (OPTICAL, COAXIAL) are converted to 48 kHz (sampling frequency).

Design and specifications are subject to change without notice.

AUDIO OUT (1, 2)

DIGITAL OUT (OPTICAL)

DIGITAL OUT (COAXIAL)

VIDEO OUT (1, 2)

S VIDEO OUT (1, 2)

COMPONENT VIDEO OUT (Y, CB/B-Y, CR/R-Y)

AUDIO OUT (WOOFER)

MIC 1, 2

Jack type

Phono jacks

Optical output connector

Phono jack

Phono jacks

4-pin mini DIN

Phono jacks

Phono jack

Standard jacks

Output level

2 Vrms (at 50 kilohms)

–18 dBm

0.5 Vp-p

1.0 Vp-p

Y: 1.0 Vp-p

C: 0.3 Vp-p (PAL) C: 0.286 Vp-p (NTSC)

Y: 1.0 Vp-p

CB/B-Y, CR/R-Y:

0.7 Vp-p 2 Vrms

(at 50 kilohms)

Load impedance

Over 10 kilohms

Wave length: 660 nm

75 ohms terminated

75 ohms, sync negative

75 ohms, sync negative 75 ohms terminated

75 ohms, sync negative

75 ohms Over 10 kilohms

Page 73

Glossary

Bit rate (page 36)

Value indicating the amount of video data compressed in a DVD per second. The unit is Mbps (Mega bit per second). 1 Mbps indicates that the data per second is 1,000,000 bits. The higher the bit rate, the larger the amount of data. However, this does not always mean that you can get higher quality pictures.

Chapter (page 5)

Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Digital Cinema Sound (DCS) (page 35)

The general name of technology that Sony developed to enjoy surround sound in a home. It simulates the sound of a movie editing studio instead of the usual concert hall so that you can enjoy the surround sound of a movie theater in the comfort of your own home. The VES (Virtual Enhanced Surround) system contained in DCS programs can create the sound image of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers.

Dolby Digital (pages 10, 66)

Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data is recorded discretely and processed in digital.

Dolby Pro Logic (page 65)

Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals. The rear channel is monaural.

DTS (pages 13, 66)

Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1channel surround. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and processed in digital.

DVD (page 4)

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte) which is 7 times that of a CD. The data capacity of a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and a dual-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy a more real audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

MPEG audio (page 13)

International standard coding system to compress audio digital signals authorized by ISO/IEC. MPEG 1 conforms to up to 2-channel stereo. MPEG 2 used on DVDs conforms to up to 7.1-channel surround.

Multi-angle function (page 34)

Various angles for the scene (viewpoints of the video camera) are recorded on some DVDs.

Multilingual function (pages 15, 33, 59)

Several languages for the audio track or sub-titles in a picture are recorded on some DVDs.

Parental Control (page 61)

A function of the DVD used to limit playback of the disc according to the age of the user and the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes and so on.

Playback Control (PBC) (page 22)

Signals encoded on VIDEO CDs (Version 2.0) to control playback. By using menus recorded on VIDEO CDs with PBC functions, you can enjoy playing simple interactive programs, programs with search functions, and so on.

Additional Information

Page 74

Glossary

Title (page 5)

The longest section of a picture or a music piece on a DVD; a movie, etc., for a picture piece on video software; or an album, etc., for a music piece on audio software. Each title is assigned a title number enabling you to locate the title you want.

Track (page 5)

Sections of a picture or a music piece on a CD or VIDEO CD. Each track is assigned a track number enabling you to locate the track you want.

VIDEO CD (page 4)

A compact disc that contains moving pictures. The picture data uses the MPEG 1 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/140 of its original size. Consequently, a 12 cm VIDEO CD can contain up to 74 minutes of moving pictures. VIDEO CDs also contain compact audio data. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed. VIDEO CDs can hold 6 times the audio information of conventional audio CDs.

Additional Information

There are 2 versions of VIDEO CDs.

• Version 1.1: You can play only moving pictures and sounds.

• Version 2.0: You can play high-resolution still pictures and enjoy PBC functions.

This player conforms to both versions.

Page 75

Language Code List

For details, see page 33, 59.

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali; Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish

1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian; Lettish 1345 Malagasy 1347 Maori 1349 Macedonian

1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan) Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto; Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian

1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu 1703 Not specified

Additional Information

Page 76

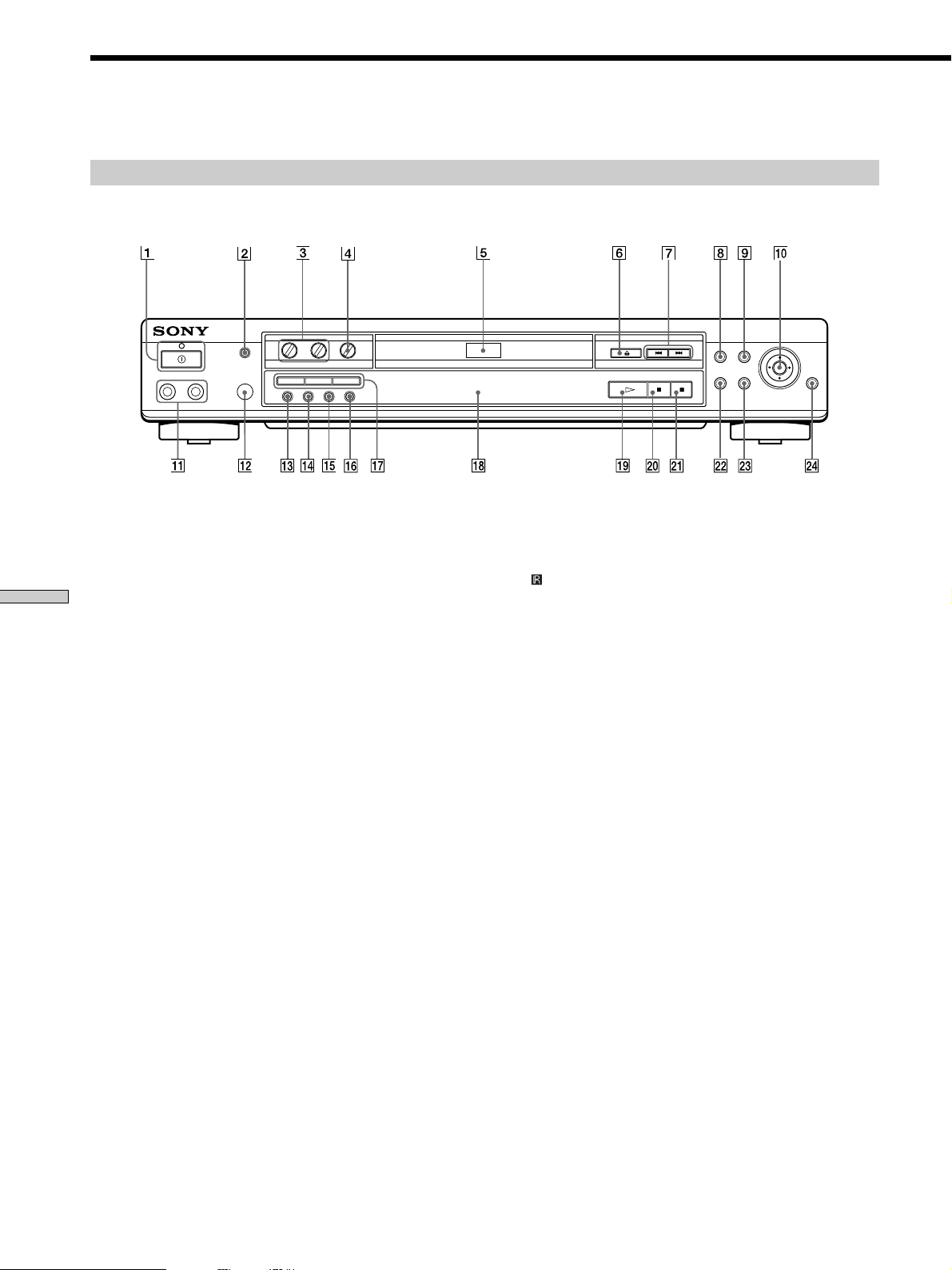

Index to Parts and Controls

Refer to the pages indicated in parentheses for details.

Front Panel

1 ! (power) button and indicator (17)

Additional Information

Disconnects the power of the player or places the player in standby mode.

2 VES (Virtual Enhanced Surround) button and

indicator (36)

Press to select the desired “VES” item. The indicator lights up for every selected item except “OFF.”

3 MIC 1 and 2 LEVEL controls (45)

Adjusts the volume of the microphone connected to the MIC 1 and 2 connectors.

4 ECHO LEVEL control (45)

Adjusts the echo of the microphones connected to the MIC 1 and 2 connectors.

5 Disc tray (17)

Place a disc on the tray.

6 AOPEN/CLOSE button (17)

Opens or closes the disc tray.

7 ./>PREV/NEXT (previous/next) buttons (18)

Press to go to the next chapter or track, or to go back to the previous chapter or track.

8 TITLE button (21)

Displays the title menu on the TV screen.

9 DVD MENU button (21)

Displays the DVD menu on the TV screen.

0 </M/m/,/ENTER button

Selects and executes the items or settings.

qa MIC 1 and 2 connectors (45)

Connect the microphones (not supplied) to these connectors. The player enters karaoke mode.

qs (remote sensor) (7)

Accepts the remote control signals.

qd VOCAL button and indicator (50)

Turns the Vocal function on and off in karaoke mode.

qf VOCAL SELECT button (51)

Selects different kinds of vocals recorded on the disc in karaoke mode.

qg VOCAL SUPPORT button and indicator (52)

Turns the Vocal Support function on and off in karaoke mode.

qh KARAOKE STAR button and indicator (49)

Press to select the effect to your voice in karaoke mode.

qj KEY CONTROL buttons and indicators (48)

Press to adjust the key to suit the vocal in karaoke mode.

qk Front Panel Display (23)

Indicates the playing time, etc.

ql H (play) button (17)

Plays a disc.

w; X (pause) button (18)

Pauses playing a disc.

wa x (stop) button (18, 20)

Stops playing a disc.

ws DISPLAY button (25)

Displays the Control Menu display on the TV screen to set or adjust the Control Menu items.

wd ORETURN button (22, 26)

Press to return to the previously selected screen, etc.

wf RESERVE button and indicator (54)

Displays the “RESERVE” list on the TV screen in karaoke mode.

Page 77

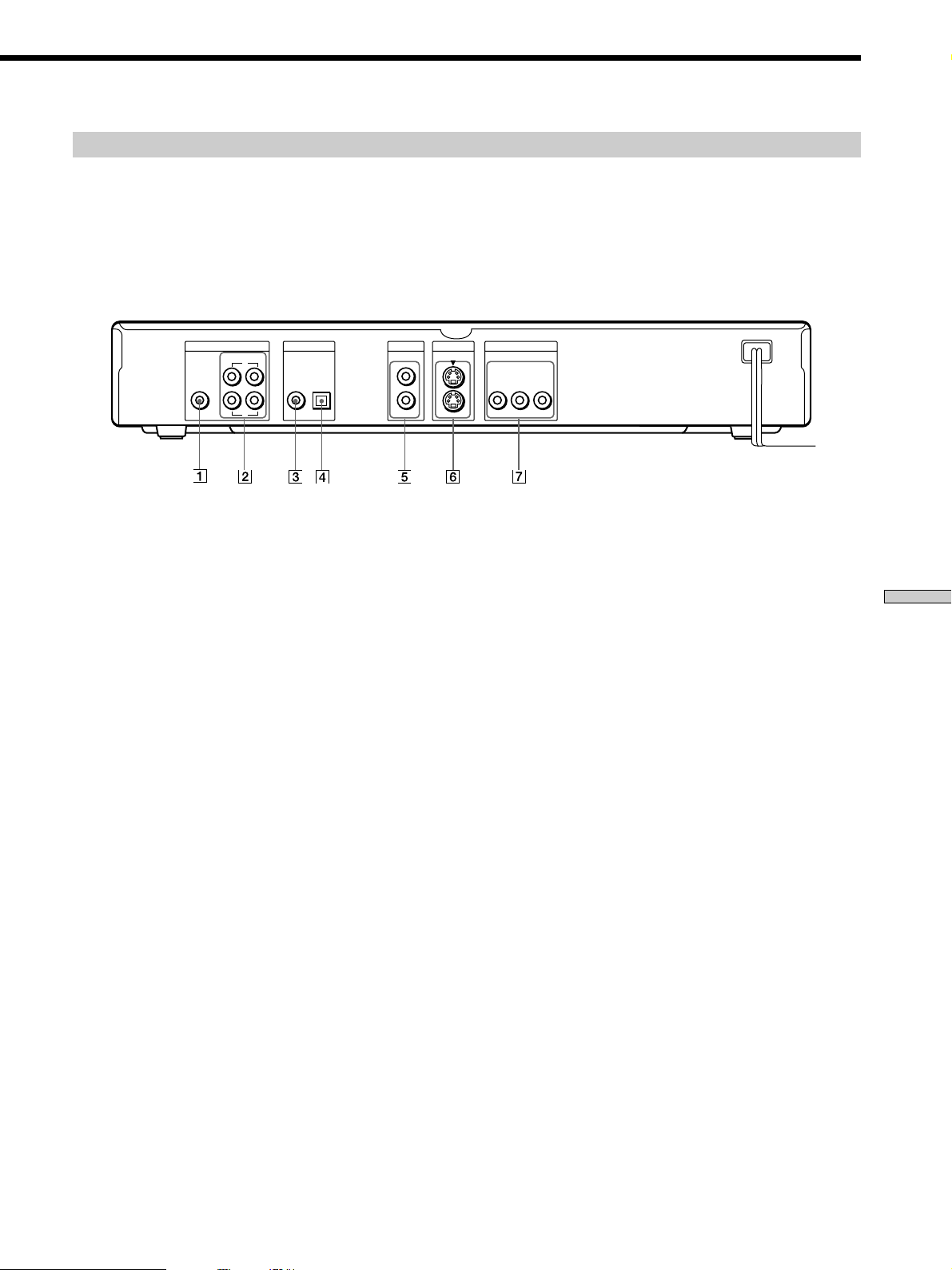

Rear Panel

VIDEO OUT S VIDEO OUTDIGITAL OUT

WOOFER

AUDIO OUT

PCM/DTS/MPEG/

DOLBY DIGITAL

COAXIAL OPTICAL

1 AUDIO OUT WOOFER connector (12)

Connect to a subwoofer (not supplied).

2 AUDIO OUT R (right)/L (left), 1/2 connectors (8, 10,

12)

Connect to the audio input connector on your TV or receiver (amplifier).

3 DIGITAL OUT COAXIAL connector (10, 14)

Connect to an audio component using a coaxial digital connecting cord.

4 DIGITAL OUT OPTICAL connector (10, 14)

Connect to an audio component using an optical digital connecting cord.

Take off the cap.

5 VIDEO OUT 1/2 connectors (8)

Connect to the video input connector on your TV or monitor.

6 S VIDEO OUT 1/2 connectors (8, 10, 12)

Connect to the S video input connector on your TV or monitor.

7 COMPONENT VIDEO OUT connectors (9)

Connect to a monitor or projector having component video input connectors (Y, C

B/B-Y, CR/R-Y) that

conform to output signals from the player.

COMPONENT VIDEO OUT

/B-Y CR/R-Y

Additional Information

Page 78

Index to Parts and Controls

Remote

Additional Information

1 ZOPEN/CLOSE button (18)

Opens or closes the disc tray.

2 Number buttons

Selects the items or settings.

3 CLEAR button (28, 40)

Press to return to continuous play, etc.

4 ANGLE button (34)

Changes the angles when playing a DVD.

5 AUDIO button (31)

Changes the sound while playing a DVD or VIDEO CD.

6 KARAOKE STAR button (49)

Press to select the effect to your voice in karaoke mode.

7 KARAOKE PON button (49)

Reduces the singer’s voice recorded on the disc in karaoke mode.

8 VOCAL SELECT button (51)

Selects different kinds of vocals recorded on the disc in karaoke mode.

9 VOCAL button (50)

Turns the Vocal function on and off in karaoke mode.

0 ./>PREV/NEXT (previous/next) buttons (18)

Press to go to the next chapter or track, or to go back to the previous chapter or track.

qa HPLAY/SELECT button (17)

Plays a disc.

qs TITLE button (21)

Displays the title menu on the TV screen.

qd DISPLAY button (25)

Displays the Control Menu display on the TV screen to set or adjust the items.

qf </M/m/,/ENTER buttons

Selects and executes the items or settings.

qg KARAOKE MODE button (45)

Press to set the player to karaoke mode.

qh @/1 (on/standby) button (17)

Press to turn on the player or place it in standby mode after power is connected by pressing ! on the player.

qj EFFECT MODE button (55)

Press to insert applause with or without cheers while playing karaoke.

qk EFFECT DO button (55)

Press to insert applause whenever you want in karaoke mode.

ql KEY buttons (48)

Press to adjust the key to suit the vocal in karaoke mode.

w; ENTER button

Executes the items or settings.

wa SUBTITLE button (33)

Changes the subtitles when playing a DVD.

ws PROGRAM/RESERVE button (28, 30)

Displays the “PROGRAM” display on the TV screen. In karaoke mode, displays the “RESERVE” list.

wd SEARCH MODE button (28, 30)

Press to select the search mode (title, chapter, track, etc.).

wf VOCAL SUPPORT button (52)

Turns the Vocal Support function on and off in karaoke mode.

wg TIME/TEXT button (23)

Displays the playing time of the disc, etc., on the front panel display.

wj xSTOP button (18, 20)

wk XPAUSE button (18)

wl DVD MENU button (21)

e; ORETURN button (22, 26)

/ SCAN/SLOW buttons (19)

Locate a point quickly while monitoring the picture or play a disc in slow motion.

Stops playing a disc.

Pauses playing a disc.

Displays the DVD menu on the TV screen.

Press to return to the previously selected screen, etc.

Page 79

Index

Numerics

2+1 Channel Surround 12 4:3 LETTER BOX 60 4:3 PAN SCAN 60

5.1 Channel Surround 13 16:9 60

A-B REPEAT 43 ADVANCED 36 Angle 34 ANGLE 34 AUDIO 31, 59 AUDIO ATT 65 AUDIO DRC 65 AUDIO SETUP 65 AUTO PAUSE 54 AUTO PLAY 61

BACKGROUND 60 Batteries 7

CD 4, 17 Chapter 5, 28, 73 CHAPTER 28 CHORUS MEDLEY 53 COLOR SYSTEM 61 Connecting 8, 10, 12, 13 Continuous play

CD/VIDEO CD 17

DVD 17 Control Menu display 25 CUSTOM PARENTAL

CONTROL 37 CUSTOM SETUP 61

DIGITAL OUT 65 Digital output 10, 13, 66 DIMMER 61 Display

Control Menu display 25

Front panel display 23

Karaoke Control Menu

display 47

Setup display 56 Dolby Digital 10, 66 DOLBY DIGITAL 66 DOWNMIX 65 DTS 66 DVD 4, 17 DVD MENU 59

Echo 46 EFFECT MODE 55

Fast Forward 19 Fast Reverse 19 FIRST VERSE PLAY 53 Front panel display 23 FRONT SPEAKER SIZE 67

GUIDE MELODY 52

Handling discs 6 Hooking up 8, 10, 12, 13

I, J

Index 5, 28 INDEX 28

Karaoke Control Menu

display 47 Karaoke mode 45 KARAOKE PON 49 KARAOKE STAR 49 KARAOKE SURROUND 48 KEY CONTROL 48

LANGUAGE SETUP 59 LETTER BOX 60 Locating

a specific point 19

by watching the TV screen 19

M, N

MIC (microphone) LEVEL 45 MPEG 66

On-screen display

Control Menu display 25

Karaoke Control Menu

display 47

Setup display 56 OSD 59

P, Q

PAN SCAN 60 PARENTAL CONTROL 61 PAUSE MODE 61 PBC functions 22 PBC Playback 22, 73 PRO LOGIC 66 PROGRAM 39 Program Play 39

Remote 7 REPEAT 42 RESERVE 54 Resume Play 20

S video output 8, 10 Scene 5, 28 SCENE 28 SCREEN SAVER 60 SCREEN SETUP 60 Searching. See Locating. Setup display 56 SHUFFLE 41 Shuffle Play 41 Slow-motion Play 19 SPEAKER SETUP 67 Speakers

hookup 12, 13

set up 67 SUBTITLE 33, 59 SUBWOOFER 67

TIME/TEXT 29, 30 Title 5, 28, 74 TITLE 28 Title menu 21 Track 5, 28, 74 TRACK 28 TRACK SELECTION 64 Troubleshooting 68 TV TYPE 60

Usable discs 4

V, W, X, Y, Z

VES 35 VIDEO CD 4, 17 VOCAL 50 VOCAL SELECT 51 VOCAL SUPPORT 52

Additional Information

Page 80

Sony Corporation Printed in Malaysia

Sony DVP-K350 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About This Manual

This Player Can Play the Following Discs

Precautions

Notes About the Discs

Unpacking

Getting Started

TV Hookups

Receiver (Amplifier) Hookups

2+1 Channel Surround Hookups

5.1 Channel Surround Hookups

Selecting the Language for the On-Screen Display

Operation Sound Effects (Sound Feedback)

Playing Discs

Playing Discs

Searching for a Particular Point on a Disc Z

Resuming Playback from the Point Where You Stopped the Disc (Resume Play)

Using the DVD’s Menu

Playing VIDEO CDs with PBC Functions (PBC Playback)

Using the Front Panel Display Z

Using Various Functions with the Control Menu

Using the Control Menu Display

Control Menu Item List

Viewing the Disc Information

Changing the Sound

Displaying the Subtitles

Changing the Angles Z

Digital Cinema Sound Settings

Checking the Play Information

Locking Discs (Custom Parental Contr ol)

Creating Your Own Program (Program Play)

Playing in Random Order (Shuffle Play)

Playing Repeatedly (Repeat Play)

Repeating a Specific Portion (A-B Repeat)

Using Karaoke

Enjoying Karaoke

Using the Karaoke Control Menu Display

Turning the Vocals On and Off (Vocal)

Selecting the Vocals (Vocal Select)

Using the Setup Display

Setup Display Item List

Setting the Display Language or Sound Track (LANGUAGE SETUP)

Settings for the Display (SCREEN SETUP)

Custom Settings (CUSTOM SETUP)

Settings for the Sound (AUDIO SETUP)

Subwoofer Set Up (SPEAKER SETUP)

Additional

Troubleshooting

Self-diagnosis function

Specifications

Glossary

Language Code List

Index to Parts and Controls

Index
