Page 1

3-062-342-11(2)

CD/DVD Player

Operating Instructions

DVP-C675D DVP-C670D

Page 2

WARNING

Welcome!

To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the left side enclosure (Laser protective housing).

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to

alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature accompanying the appliance.

CAUTION

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

For customers in the U.S.A Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. DVP-C675D/DVP-C670D Serial No.______________

CAUTION

You are cautioned that any change or modifications not expressly approved in this manual could void your authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on

a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

For the model supplied with the AC plug adaptor

If the AC plug of your unit does not fit into the wall outlet, attach the supplied AC plug adaptor.

Thank you for purchasing this Sony CD/ DVD Player. Before operating the unit, please read this manual thoroughly and retain it for future reference.

Page 3

TABLE OF CONTENTS

About This Manual 4 This Player Can Play the Following Discs 4 Precautions 6 Notes About the Discs 6

Getting Started 7

Unpacking 7 TV Hookups 8 Receiver (Amplifier) Hookups 10

5.1 Channel Surround Hookups 12 Selecting the Language for the On-Screen

Display 14

Operation Sound Effects (Sound Feedback) 15

Playing Discs 16

Playing Discs 16 Playing at Various Speeds/Frame by Frame 18 Resuming Playback from the Point Where You

Stopped the Disc (Resume Play) 19 Using the DVD’s Menu 20 Playing VIDEO CDs with PBC Functions (PBC

Playback) 21 Replacing Discs while Playing a Disc

(EXCHANGE) 22 Using the Front Panel Display 23 Displaying the Disc Information (Disc Explorer)

Using Various Functions with the Control Menu 28

Using the Control Menu Display 28 Control Menu Item List 30 Searching for a Disc/Title/Chapter/Track/Index/

Scene 31 Checking the Playing Time and Remaining

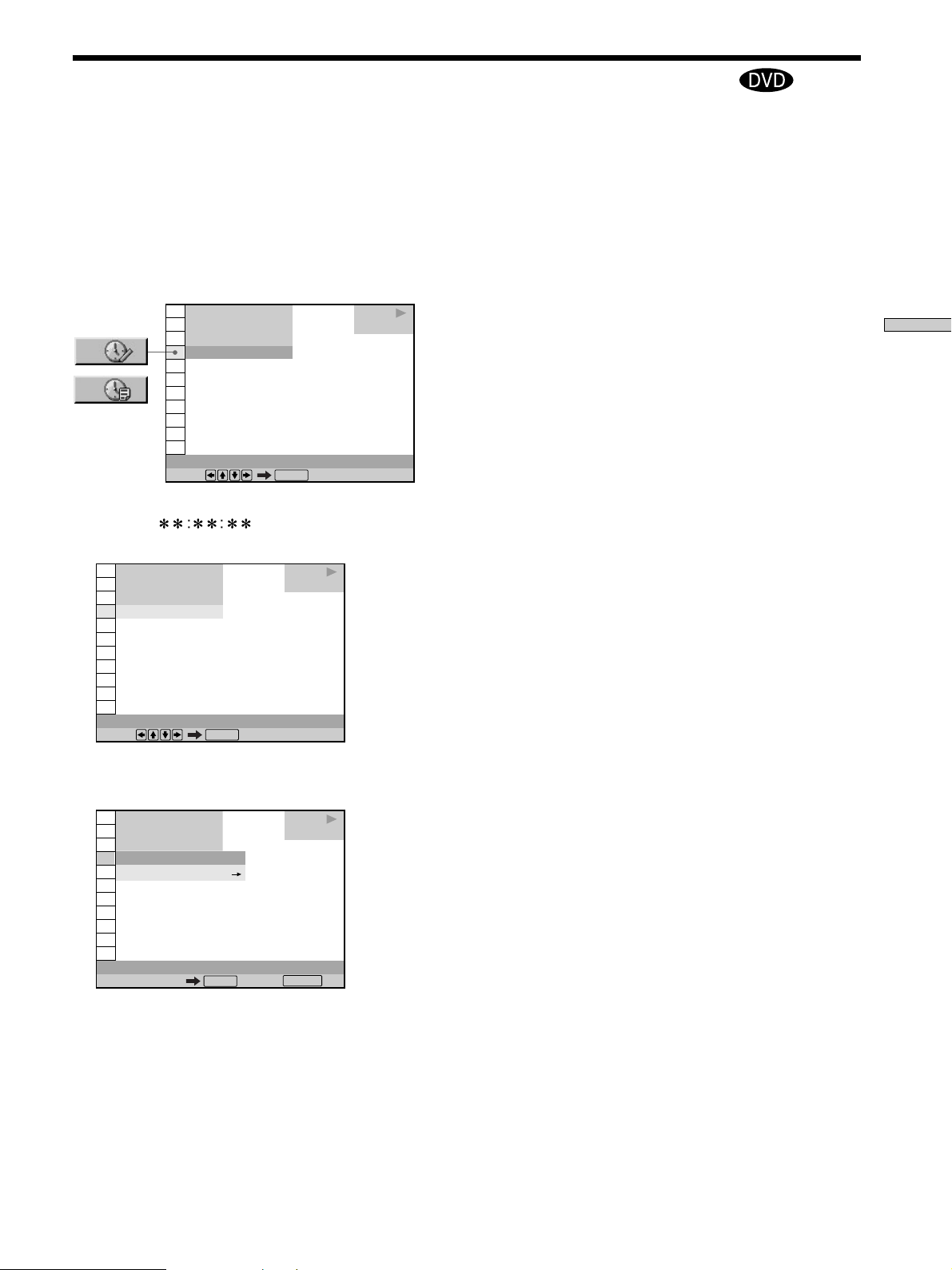

Time 32 Selecting a Starting Point Using the Time Code 33 Labeling the Disc 34 Changing the Sound 35 Displaying the Subtitles 37 Changing the Angles 38 Digital Cinema Sound Settings 39 Checking the Play Information 42 Locking Discs (Custom Parental Control) 43 Selecting the Disc Mode (1 Disc or All Discs) 45

Creating Your Own Program (Program Play) 45 Playing in Random Order (Shuffle Play) 48 Playing Repeatedly (Repeat Play) 49 Repeating a Specific Portion (A–B Repeat) 50 Adjusting the Playback Picture (Video Equalizer)

Enhancing the Playback Picture (Digital Video

Enhancer) 52

Using the Quick Reference Screen (VIEWER) 53

Settings and Adjustments 56

Using the Setup Display 56 Setup Display Item List 58 Setting the Display Language or Sound Track

(LANGUAGE SETUP) 59 Settings for the Display (SCREEN SETUP) 60 Custom Settings (CUSTOM SETUP) 61 Settings for the Sound (AUDIO SETUP) 65 Settings for the Speakers (SPEAKER SETUP) 67 Controlling Your TV or AV Receiver (Amplifier)

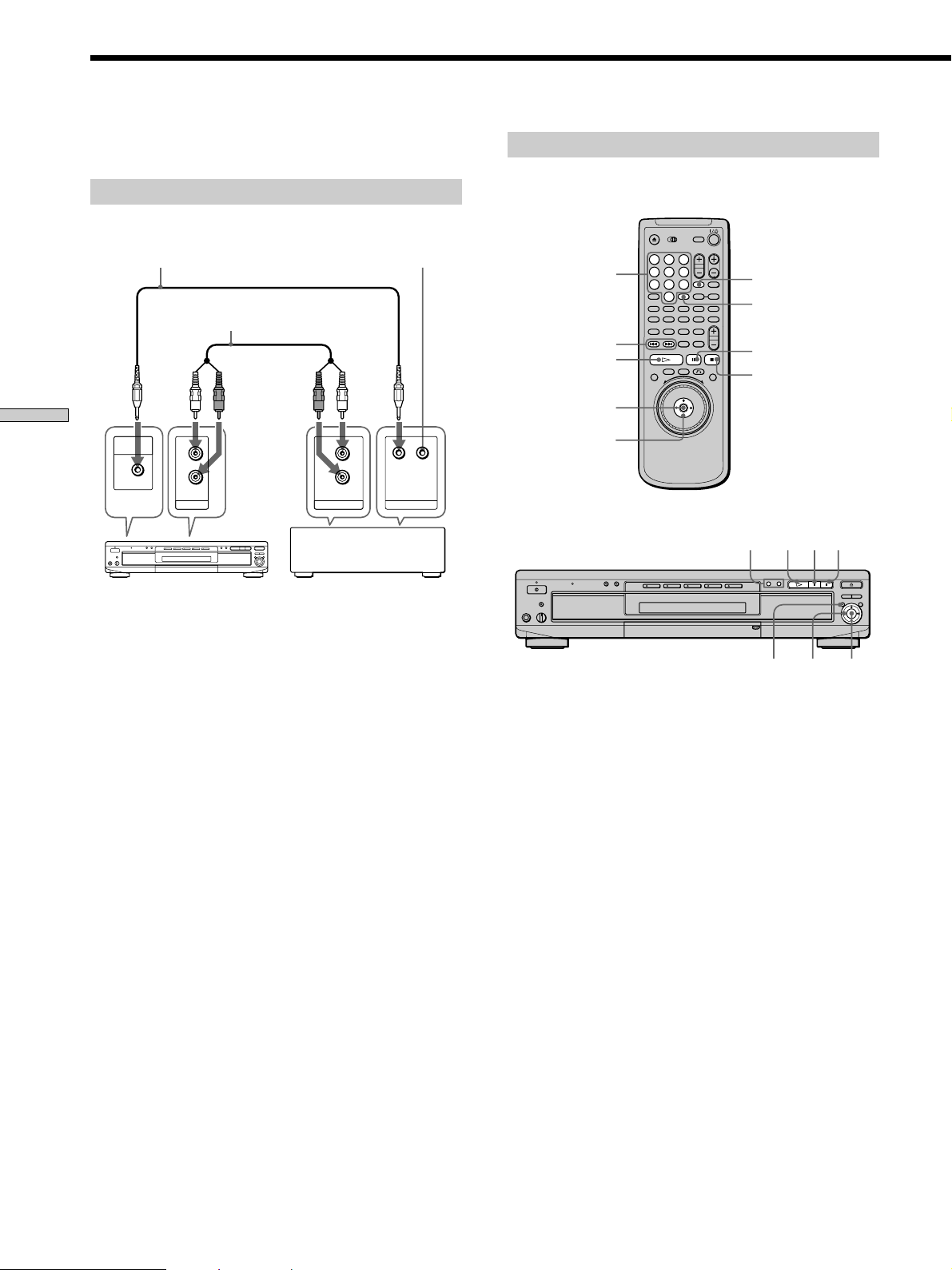

with the Supplied Remote 70 Controlling the CD Changer (Mega Control) 72

Additional Information 74

Troubleshooting 74 Self-diagnosis function 77 Specifications 78 Glossary 79 Language Code List 81 Index to Parts and Controls 82 Index 86

Page 4

About This Manual

Conventions

Icon Meaning

• Instructions in this manual describe the controls on the player. You can also use the controls on the remote if they have the same or similar names as those on the player.

• The icons on the right are used in this manual:

This Player Can Play the Following Discs

DVD VIDEOs VIDEO CDs Audio CDs

Disc logo

Indicates that you can use only the remote to do the task.

Indicates tips and hints for making the task easier.

Indicates that the function is for DVD VIDEOs.

Indicates that the function is for VIDEO CDs.

Indicates that the function is for Audio CDs.

Contents

Disc size

Audio + Video

12 cm 8 cm

Audio + Video Audio

12 cm

8 cm

12 cm

8 cm

(CD single)

Play time

About 4 h (for single-sided DVD)/ about 8 h (for double-sided DVD)

About 80 min. (for single-sided DVD)/ about 160 min. (for

74 min.

20 min.

74 min.

20 min.

double-sided DVD)

The “DVD VIDEO” logo is a trademark.

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

Region code of DVDs you can play on this unit

Your DVD player has a region code printed on the back of the unit and will only play DVDs that are labeled with identical region codes.

DVDs labeled

ALL

will also play on this unit.

CD/DVD PLAYER

AC 00V 00Hz

NO.

00W

SONY CORPORATION

If you try to play any other DVD, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions.

MODEL NO.

MADE IN JAPAN

DVP–XXXX

0-000-000-00

Region code

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally fixed by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the DVDs or VIDEO CDs.

Page 5

Terms for discs

• Title

The longest section of a picture or music feature on a DVD, the movie, etc. in video software, or the name of an album in audio software.

• Chapter

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want. Depending on the disc, no chapters may be recorded.

• Track

Sections of a picture or a music feature on a VIDEO CD or a CD. Each track is assigned a track number enabling you to locate the track you want.

DVD structure

VIDEO CD or

Title

Chapter

Track

Disc

CD structure

Index

Discs that the player cannot play

The player cannot play discs other than the ones listed in the table on page 4. CD-Rs, CD-ROMs including PHOTO CDs, data sections in CD-EXTRAs, DVD-ROMs, DVD-audio, HD (high density) layer of Super Audio CD etc., cannot be played.

• Index (CD) / Video Index (VIDEO CD)

A number that divides a track into sections to easily locate the point you want on a VIDEO CD or a CD. Depending on the disc, no indexes may be recorded.

• Scene

On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called “scenes.” Each scene is assigned a scene number enabling you to locate the scene you want.

Note on PBC (Playback Control) (VIDEO CDs)

This player conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can enjoy two kinds of playback according to the disc type.

Disc type

VIDEO CDs without PBC functions (Ver. 1.1 discs)

VIDEO CDs with PBC functions (Ver. 2.0 discs)

You can

Enjoy video playback (moving pictures) as well as music.

Play interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver. 1.1 discs. Moreover, you can play high-resolution still pictures if they are included on the disc.

When playing DTS*-encoded CDs, excessive noise will be heard from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo outputs of the DVD player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel DTS Digital Surround™ decoder system must be connected to the digital output of the DVD player.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

* “DTS,” “DTS Digital Surround” and “DTS Digital Out” are

trademarks of Digital Theater Systems, Inc.

Page 6

Precautions

On safety

• Caution – The use of optical instruments with this

product will increase eye hazard.

• Should any solid object or liquid fall into the cabinet,

unplug the player and have it checked by qualified personnel before operating it any further.

On power sources

• The player is not disconnected from the AC power

source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

• If you are not going to use the player for a long time, be

sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.

• Should the AC power cord (mains lead) need to be

changed, have it done at a qualified service shop only.

IMPORTANT NOTICE

Caution: The enclosed DVD player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

Notes About the Discs

On placement

• Place the player in a location with adequate ventilation

to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug

that might block the ventilation holes on the bottom.

• Do not place the player in a location near heat sources,

or in a place subject to direct sunlight, excessive dust or mechanical shock.

On operation

• If the player is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• When you move the player, take out any discs. If you

don’t, the disc may be damaged.

On adjusting volume

• Do not turn up the volume while listening to a section

with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.

On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc. If there is glue (or a similar substance) on the disc, remove the glue completely before using the disc.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

On cleaning

• Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

On novelty discs

• Do not use irregularly shaped CDs such as heart- or star-shaped CDs as they may cause the player to malfunction.

Page 7

Getting

Unpacking

Started

This section describes how to hook up the CD/DVD player to a TV (with audio/video input jacks) and/or an AV receiver (amplifier). You cannot connect this player to a TV which does not have a video input connector. Be sure to turn off the power of each component before making the connections.

Check that you have the following items:

• Audio/video/S-link connecting cord (1)

• S video cord (1)

• Remote commander (remote) RMT-D121A (1)

• Size AA (R6) batteries (2)

• Plug adaptor (1) (DVP-C675D only)

Inserting batteries into the remote

You can control the player using the supplied remote. Insert two Size AA (R6) batteries by matching the + and – ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor

on the player.

Getting Started

z You can control TVs and AV receivers (amplifiers) using the

supplied remote

See page 70.

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.

• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Transporting the player

Before transporting the player, follow the procedure below to return the internal mechanisms to their original positions.

1 Remove all the discs from the disc tray. 2 Press A to close the disc tray.

Make sure that “NO DISC” appears on the front panel display.

3 Wait for 10 seconds, then press ?/1 on the remote,

followed by ! on the player.

This will safely turn off the player.

Page 8

TV Hookups

Getting Started

This connection is for listening to the sound through TV speakers (L: left, R: right). Refer to the instructions supplied with the component to be connected.

zYou can enjoy surround sound using your TV’s built-in

speakers

You can use 3D sound imaging to create virtual rear speakers from the sound of built-in TV speakers without using actual rear speakers (VES TV: Virtual Enhanced Surround TV). For details, see page 39.

CD/DVD player

Required cords

Audio/video/S-link connecting cord (supplied) (1)

Yellow

White (L)

Red (R) S-LINK

S video cord (supplied) (1)

When connecting the cords, be sure to match the color-coded cord to the appropriate jacks on the components: Yellow (video) to Yellow, Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise. If your TV has an S-link connector, you can control the CD/DVD player from the TV. Connect the TV via the S-LINK connector. If your TV has an S video input connector, connect the component via the S VIDEO OUT connector using the supplied S video cord. You will get a better picture. Refer to the instructions supplied with the TV to be connected.

Yellow

White (L) Red (R)

S-LINK

To AUDIO OUT

5.1CH OUTPUT

FRONT REAR

AUDIO IN

CENTER

WOOFER

AUDIO OUT

MEGA

S-LINK

CONTROL

CONTROL S

IN PCM/DTS/ DOLBY DIGITAL

OPTICALCOAXIAL

DIGITAL OUT

COMPONENT VIDEO OUT

PB/B-Y PR/R-YY

121

OUT

S VIDEO

OUT

VIDEO

To VIDEO OUT

To S-LINK

To S VIDEO OUT

To S VIDEO input

To S-LINK

INPUT

VIDEO

AUDIO

To an AC outlet

S VIDEO

S-LINK

: Signal flow

Page 9

If you connect the player to a monitor or projector having component video input connectors that conform to output signals from the COMPONENT VIDEO OUT (Y, P

B/B-Y, PR/R-Y)

connectors on the player

Connect the component via the COMPONENT VIDEO OUT connectors using three video connecting cords (not supplied) of the same kind. You will get a better picture.

Monitor or projector

CD/DVD player

COMPONENT VIDEO OUT

PB/B-Y PR/R-YY

with component video input connectors

COMPONENT

VIDEO IN

Notes

• Refer to the instructions supplied with the component to be connected.

• Do not connect this player to a video deck. If you do, noise may appear in the picture.

Setups for the player

Some setup adjustments are necessary for the player depending on the TV or other components to be connected. Use the setup display to change the various settings. For details on using the setup display, see page 56.

• To connect the player to a normal TV

In the setup display, set “TV TYPE” in “SCREEN SETUP” to “4:3 LETTER BOX” (default setting) or “4:3 PAN SCAN.” For details, see page 60.

• To connect the player to a TV having the WIDE

MODE function

In the setup display, set “TV TYPE” in “SCREEN SETUP” to “16:9/4:3 WIDE MODE.” For details, see page 60.

• To connect the player to a wide-screen TV

In the setup display, set “TV TYPE” in “SCREEN SETUP” to “16:9/4:3 WIDE MODE.” For details, see page 60.

Getting Started

VCR

CD/DVD player

• Depending on the TV or receiver (amplifier), sound distortion may occur because the audio output level is high. In this case, set “AUDIO ATT” in “AUDIO SETUP” to “ON” in the setup display. For details, see page 65.

Connect directly

Page 10

Receiver (Amplifier) Hookups

Getting Started

Connect your receiver (amplifier) as follows. Refer as well to the instructions supplied with the component to be connected.

zYou can enjoy surround sounds even if you only connect

front speakers

You can use 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (VES: Virtual Enhanced Surround and VIRTUAL SEMI MULTI DIMENSION). For details, see page 39.

Required cords

Audio connecting cord (not supplied) (1)

White (L) Red (R)

S video cord (supplied) (1)

When connecting the cords, be sure to match the color-coded cord to the appropriate jacks on the components: Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise.

White (L) Red (R)

If you have a digital component such as a receiver (amplifier) with a digital connector, DAT or MD, connect the component via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord (not supplied).

Optical digital connecting cord (not supplied) (1)

Coaxial digital connecting cord (not supplied) (1)

Do not connect the power cord to a switched AC outlet such as the AC outlet on a receiver (amplifier). Doing so may cause the Playback Memory, Bookmark, Disc Memo and menu settings to be cancelled when you turn off the receiver.

CD/DVD player

FRONT REAR

AUDIO IN

To AUDIO OUT (R, L)

5.1CH OUTPUT

AUDIO OUT

To DIGITAL OUT (COAXIAL)

S-LINK

CENTER

WOOFER

CONTROL S

PCM/DTS/ DOLBY DIGITAL

DIGITAL OUT

CONTROL

MEGA

OPTICALCOAXIAL

COMPONENT VIDEO OUT

PB/B-Y PR/R-YY

121

OUT

S VIDEO

OUT

VIDEO

To DIGITAL OUT (OPTICAL)

Take off the cap.

To S VIDEO OUT

To S VIDEO input

To optical digital input

To coaxial digital input

INPUT

VIDEO

AUDIO

DIGITAL IN

OPTICAL

COAXIAL

To an AC outlet

S VIDEO

Receiver (Amplifier) with a digital connector, MD deck, DAT deck, etc.

: Signal flow

To audio input

Receiver (Amplifier)

Page 11

Note

You cannot enjoy a picture with an S video signal if your TV does not conform to the S video signal. When your TV does not have an S VIDEO input, connect the component via the VIDEO INPUT connector using the supplied audio/video connecting cord instead of the S video cord. For details, see page 8. Refer to the instructions supplied with your TV.

Setups for the player when using the digital connecting cords

Connect the component via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord (not supplied). You do not need to use the audio connecting cord. Some setup adjustments are necessary for the player depending on the components to be connected. Use the setup display to change the various settings. For details on using the setup display, see page 56.

If your receiver (amplifier) does not have a builtin Dolby* Digital decoder or DTS decoder

• To listen to the sound through speakers connected

to a receiver (amplifier) which has a digital connector, or to output the sound to a digital component such as a DAT or MD deck

Set the “AUDIO SETUP” items in the setup display (page 65) as shown in the illustration below. These are the default settings.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: CENTER SPEAKER EQ: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

OFF

STANDARD

FLAT

ON D-PCM D-PCM

48kHz/16bit

Set the items as shown

If you have an audio component with a built-in Dolby Digital decoder or DTS decoder

• When you connect an audio component with a builtin Dolby Digital decoder A

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “DOLBY DIGITAL” to “DOLBY DIGITAL” in the setup display (page 66).

• When you connect an audio component with a builtin DTS decoder B

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “DTS” to “DTS” in the setup display (page 67).

• When you connect an audio component that is compatible with 96kHz/24bit C

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and then set “48kHz/96kHz PCM” to “96kHz/24bit” in the setup display (page 67).

AUDIO SETUP

AUDIO ATT: AUDIO DRC: CENTER SPEAKER EQ: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

DOLBY SURROUND

DOLBY DIGITAL

OFF

STANDARD

FLAT

DTS

96kHz/24bit

A B C

To set, press , then . To quit, press .

DISPLAY

Notes

• When you do not connect an audio component with a

built-in Dolby Digital decoder, do not set “DOLBY DIGITAL” to “DOLBY DIGITAL.”

• When you do not connect an audio component with a

built-in DTS decoder, do not set “DTS” to “DTS.”

• Do not set to “96kHz/24bit” if your receiver (amplifier) is

not compatible with 96 kHz.

• When you connect the component via the DIGITAL OUT

OPTICAL or COAXIAL connector, the Virtual 3D Surround effect cannot be heard.

ENTER

Getting Started

When you have made the connections using an optical or coaxial digital connecting cord, do not set ”DOLBY DIGITAL“ to ”DOLBY DIGITAL,“ ”DTS“ to ”DTS“ and “48kHz/96kHz PCM” to “96kHz/24bit.” If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the speakers to be damaged.

Note

You cannot make direct digital audio recordings of discs recorded in multichannel surround format using an MD deck or DAT deck.

* Manufactured under license from Dolby Laboratories.

Page 12

5.1 Channel Surround Hookups

Getting Started

Some DVDs have a sound track with up to 5.1 channels recorded in Dolby Digital or DTS format. Using a receiver (amplifier) having 5.1 channel inputs and 6 speakers, you can enjoy a more realistic audio presence in the comfort of your own home. “5.1 channel” stands for the 2 front speakers (Left and Right), 2 rear speakers (Left and Right), 1 center speaker, and a subwoofer. Even if you have fewer than 6 speakers, the player appropriately distributes the output signal to the speakers. This player also has a VIRTUAL 3D SURROUND mode. You can use 3D sound imaging to shift the sound of the rear speakers away from the actual speaker position (VIRTUAL REAR SHIFT) or to create 3 sets of virtual rear speakers from 1 set of actual rear speakers (VIR TUAL MULTI REAR, etc.). For details on the VIRTUAL 3D SURROUND mode, see page 39.

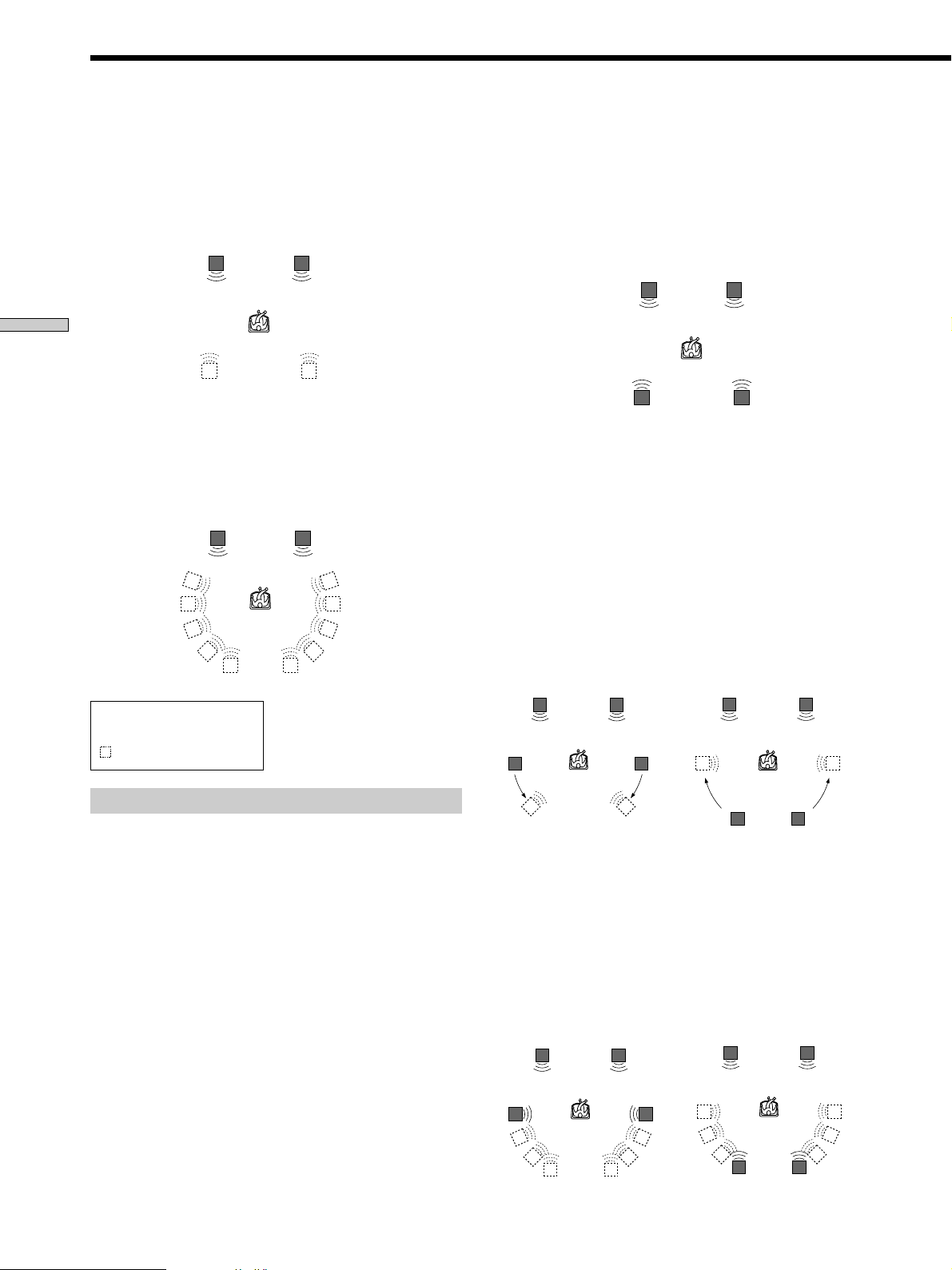

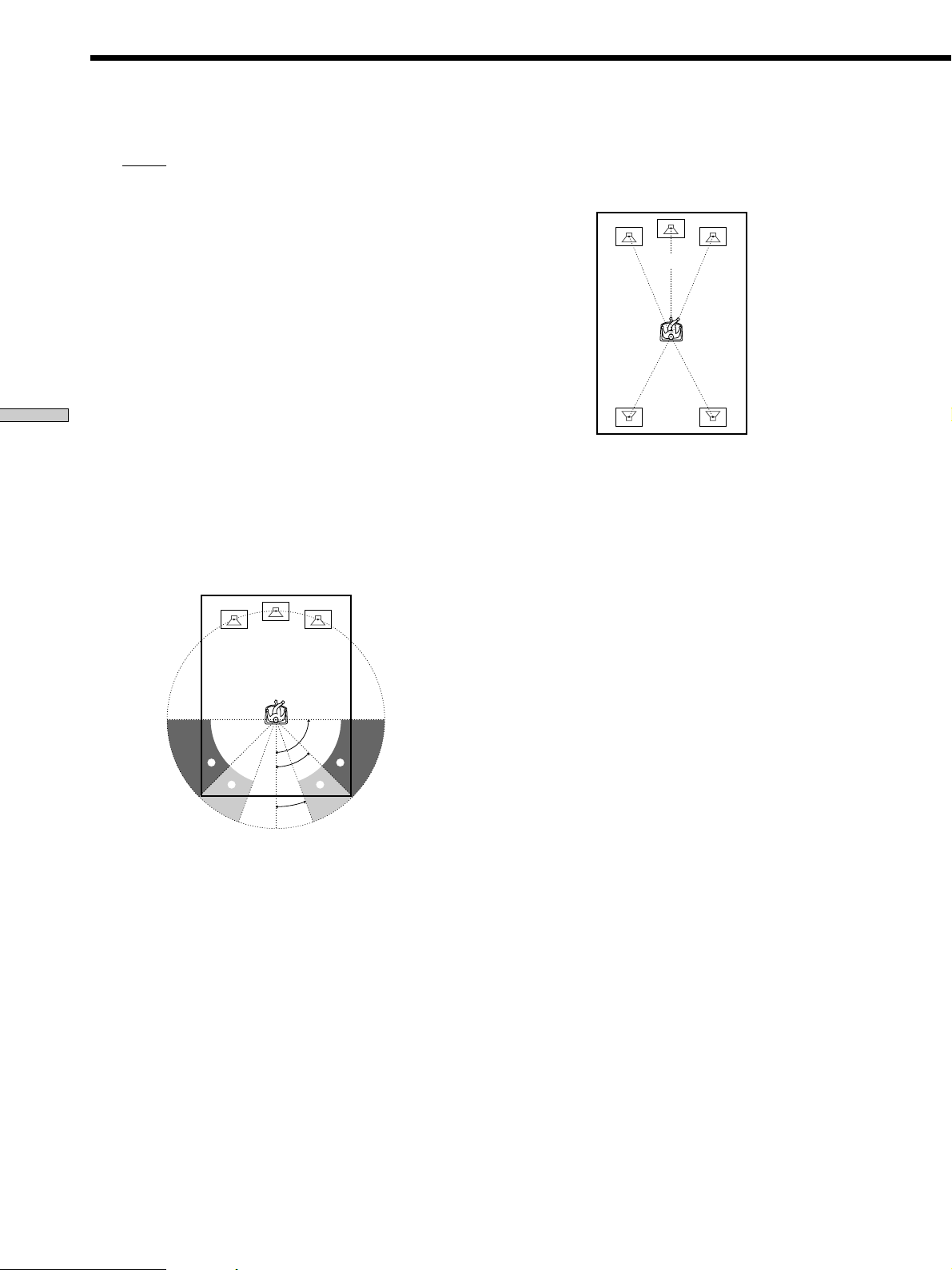

Speaker placement

For the best possible surround sound, we recommend the following conditions.

• Use higher performance speakers.

• Use rear and center speakers that match your front speakers in size and performance.

• Place the subwoofer between the front (L, R) speakers if possible.

Notes

• Do not connect the power cord to an AC outlet or press the POWER switch before completing all connections.

• Refer to the instructions supplied with the component to be connected.

• The cord connectors should be fully inserted into the jacks. A loose connection may cause hum and noise.

• If you want to connect the component via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord (not supplied), see page 10.

Setups for the player

Some setup adjustments are necessary for the player depending on the components to be connected. Use the setup display to change the various settings. For details on using the setup display, see page 56.

• To enjoy surround sounds by connecting the player

to a receiver (amplifier) with 5.1 channel inputs

Correctly adjust each speaker to your listening position (page 67).

Note

Do not place the rear speakers farther away from the listening position than the front speakers.

Required cords

Audio cords (not supplied) (2)

For the 5.1CH OUTPUT FRONT and REAR jacks

White (L) Red (R)

Monaural audio cords (not supplied) (2)

For 5.1CH OUTPUT CENTER and WOOFER jacks.

S video cord (supplied) (1)

For the S VIDEO OUT jack

White (L) Red (R)

Page 13

CD/DVD player

To S VIDEO OUT

To S VIDEO input

S VIDEO IN

Getting Started

AV Receiver (Amplifier) with

5.1ch inputs

5.1CH OUTPUT

FRONT REAR

AUDIO IN

CENTER

WOOFER

AUDIO OUT

DIGITAL

TV/LD IN AC-3 RF

DVD IN

COAX

DVD IN OPT

TV/LD IN OPT

CD IN OPT

MD/DAT IN OPT

MD/DAT OUT OPT

S-LINK

MEGA

CONTROL

CONTROL S

IN PCM/DTS/ DOLBY DIGITAL

OPTICALCOAXIAL

DIGITAL OUT

To 5.1CH OUTPUT

TV/LD

S-VIDEO

VIDEO

AUDIO

SIGNAL GND

TUNER

PHONO

COMPONENT VIDEO OUT

PB/B-Y PR/R-YY

121

VIDEO

S VIDEO

OUT

VIDEO 2

DVD

S-VIDEO

VIDEO

AUDIO

OUT

VIDEO

OUT

REC OUT

MD/DAT

OUT

VIDEO

AUDIO

AUDIOINAUDIO

OUT

REC OUT

VIDEO 1

TAPE

MONITOR

S-LINK

CTRL A1

5.1 INPUT

FRONT REAR

S-VIDEO

OUT

VIDEO

AUDIO

RLR LRL

FRONTB REARA

CENTER

WOOFER

SPEAKERS

To 5.1CH input

PRE OUT

FRONT REAR WOOFER CENTER

To an AC outlet

AC OUTLET

CENTER

–

Center speaker

Front speaker

INPUT

(R)



Subwoofer

Front speaker (L)

(Active type)

Rear speaker (R) Rear speaker (L)

: Signal flow

Page 14

Selecting the Language for the On-Screen Display

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then .

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

To quit, press .

DISPLAY

Getting Started

You can select the language for the setup display, the Control Menu display or the messages displayed on the screen. The default setting is “ENGLISH.”

1 When the player is in stop mode, press DISPLAY

and select “SETUP” using M/m.

The on-screen menu items are different depending on whether there is a disc in the player or not.

DISPLAY

3 Select “LANGUAGE SETUP” using M/m, and then

press ENTER.

ENTER

4 Select “OSD” using M/m, then press , or ENTER.

</M/m/,

The languages you can select are displayed.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

)

Selected item

1 2 ( 1 1 8 ( 3 4 C

SETUP Select:

)

0 0 : 0 0 : 0 0

ENTER

2 Press ENTER.

The setup display appears on the TV screen.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

STOP DVD

DVD

To set, press , then . To quit, press .

DISPLAY

ENTER

5 Select the desired language using M/m, then press

ENTER.

CHOIX DE LA LANGUE

ÉCRANS: MENU DVD : AUDIO: SOUS-TITRE:

Pour régler, appuyez sur , puis sur

ENTER

Pour quitter, appuyez sur .

FRANÇAIS

ANGLAIS

ORIGINAL

IDEM AUDIO

DISPLAY

6 Press DISPLAY.

The setup display disappears.

7 Press DISPLAY repeatedly to turn off the on-screen

menu.

Page 15

Operation Sound Effects (Sound Feedback)

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Note

The languages you can select are the ones displayed in step 4. For details, see page 59.

The player beeps when the following operations are performed. The default setting of the Sound Feedback function is set to off.

Operation Operation sound

Power is turned on One beep Power is turned off Two beeps

H is pressed One beep X is pressed Two beeps

Playback is stopped One long beep Operation is not possible Three beeps

Getting Started

?/1

1 Press ! on the player, then press ?/1 on the

remote.

The power indicator lights up in green. When there is a disc in the player, press A and remove the disc. Then press A again to close the disc tray.

2 Press and hold X on the player for more than two

seconds.

You will hear one beep and the Sound Feedback function is turned on.

To turn off the Sound Feedback Function

When there is no disc in the player, press and hold X on the player for more than two seconds. You will hear two beeps and the Sound Feedback function is turned off.

Page 16

Playing Discs

1 4 7

2 5 8 0

3 6 9

This chapter describes how to play a DVD/CD/VIDEO CD.

Playing Discs

Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the instructions supplied with your disc.

Adjust the headphone volume.

Connect headphones*.

* For details on using the VIRTUAL SURROUND

HEADPHONES function, see “Digital Cinema Sound Settings” on page 39.

DISC SKIP

@/1

1 Turn on your TV.

Turn on the TV and select the video input so that you can view the pictures from this player.

When using a receiver (amplifier)

Turn on the receiver (amplifier) and select the appropriate position so that you can listen to the sound from this player.

AHPower indicator

2 Press ! to turn on the player.

The player enters standby mode and the power indicator lights up in red.

3 Press A on the player, and place a disc on the disc

tray.

To place other discs on the tray, press DISC SKIP on the player and place the discs in the order you want to play them. Each time you press DISC SKIP, the disc tray turns so you can place the discs in the empty compartments. The player plays from the last disc placed on the tray.

With the playback side facing down

Disc tray number

4 Press H.

The disc tray closes and the player starts playback of all discs (continuous play). Adjust the volume on the

TV or the receiver (amplifier).

Page 17

After following Step 4

xWhen playing a DVD

A DVD menu or title menu may appear on the TV screen (see page 21).

xWhen playing a VIDEO CD

Depending on the VIDEO CD, a menu may appear on the TV screen. You can play the disc interactively by following the instructions on the menu. (PBC Playback, see page 21.)

Additional operations

DISC SELECT 1 – 5

./>

Playing Discs

To turn on the player

Press ! on the player. The player enters standby mode and the power indicator lights up in red. Then press @/1 on the remote. The player turns on and the power indicator lights up in green. In standby mode, the player also turns on by pressing A on the player or by pressing H.

To turn off the player

Press @/1 on the remote. The player enters standby mode and the power indicator lights up in red. To disconnect the power of the player, press ! on the player.

Notes on playing DTS sound tracks on a CD

• Do not play DTS sound tracks without first connecting the player to an audio component having a built-in DTS decoder. The player outputs the DTS signal via the DIGITAL OUT OPTICAL and COAXIAL connectors even if “DTS” in “AUDIO SETUP” is set to “D-PCM” in the setup display, and may affect your ears or cause your speakers to be damaged.

• Set the sound to “STEREO” when you play DTS sound tracks on a CD. (See “Changing the Sound” on page 35.) If you set the sound to “1/L” or “2/R”, no sound will come from the DIGITAL OUT OPTICAL and COAXIAL connectors.

• If you play a CD with a DTS sound track, a loud noise may come out from the AUDIO OUT connectors, affecting your ears or causing the speakers to be damaged.

Notes

• If you leave the player or the remote in pause or stop mode for 15 minutes, the screen saver image appears automatically. It will also appear if you play back a CD for more than 15 minutes. To make the screen saver image go away, press H. (If you want to set the screen saver function to off, see page 60.)

• While playing a disc, do not turn off the player by pressing !. Doing so may cancel the settings of the menu. When you turn off the player, press x first to stop playback and then press @/1 on the remote. After the power indicator lights up in red and the player enters standby mode, press ! on the player.

DISC SKIP

./>

Select a disc

Stop Pause Resume play after pause Go to the next disc Go to the next chapter,

track or scene in continuous play mode

Go back to the preceding chapter, track or scene in continuous play mode

Stop play and remove the disc

Operation

Press DISC SELECT 1 – 5 on the player or DISC 1 – 5 on the remote

Press x Press X Press X or H Press DISC SKIP on the player Press >

Press .

Press Z

DISC 1 – 5

x X

You can play discs in various modes such as Program Play using the on-screen menu (Control Menu). For Control Menu operations, see page 28.

Page 18

Playing at Various Speeds/Frame by Frame Z

Using the click shuttle and the JOG button/indicator, you can play back a DVD/CD/VIDEO CD at various speeds or frame by frame. Each time you press JOG, it changes between shuttle mode and jog mode.

Playing Discs

To change the playback speed (Shuttle mode)

Turn the click shuttle. The playback speed changes depending on the turning direction and angle as follows:

When you play back a DVD

During playback

FF2M Fast forward (about 30 times the normal speed)

FF1M Fast forward (about 10 times the normal speed)

×2B (about twice the normal speed)

PLAYN (normal speed)

×2b (about twice the normal speed)

FR1m Fast rewind (about 10 times the normal speed)

FR2m Fast rewind (about 30 times the normal speed)

JOG

Click shuttle

If you turn the click shuttle quickly, the playback speed goes to FF2M or FR2m at once.

During pause

SLOW1 Slow (playback direction)

SLOW2 Slow (playback direction – slower than

“SLOW1 ”)

PAUSEX Pause

SLOW2 Slow (opposite direction – slower than

“SLOW1 ”)

SLOW1 Slow (opposite direction)

When you play back a CD/VIDEO CD

During playback

FF2M Fast forward (faster than “FF1M”)

FF1M Fast forward

×2B (about twice the normal speed)*

PLAYN (normal speed)

FR1m Fast rewind

FR2m Fast rewind(faster than “FR1m”)

* CD Only

If you turn the click shuttle quickly, the playback speed goes to FF2M or FR2m at once.

During pause (VIDEO CD only)

SLOW1 Slow (playback direction)

SLOW2 Slow (playback direction – slower than

“SLOW1 ”)

PAUSEX Pause

To return to continuous play

Press H.

Note

Depending on the DVD/VIDEO CD, you may not be able to do some of the operations described.

Page 19

Resuming Playback from the Point Where You

To play the disc frame by frame (Jog mode)

1 Press JOG.

JOG lights up during jog mode.

2 Turn the click shuttle.

Depending on the turning speed, playback goes to frame-by-frame playback in the direction that the click shuttle is turned. If you turn the click shuttle at a constant speed for a while, the playback speed goes to slow or normal.

To return to Continuous Play

Press H.

Note

If you don’t operate the click shuttle for about 20 seconds after pressing JOG, it returns to shuttle mode.

Stopped the Disc (Resume Play)

The player remembers the point where you stopped the disc, and when “RESUME” appears on the front panel display, you can resume playback from that point. As long as you do not open the disc tray, Resume Play will work even if the player enters standby mode by pressing @/1 on the remote.

Playing Discs

1 While playing a disc, press x to stop playback.

“RESUME” appears on the front panel display and “Disc will restart from current point. To start from beginning, press [STOP] again.” appears on the TV screen. If “RESUME” does not appear, Resume Play is not available.

2 Press H.

The player starts playback from the point where you stopped the disc in Step 1.

zTo play from the beginning of the disc

When the playing time appears on the front panel display before you start playing, press x to reset the playing time, then press H.

Page 20

Resuming Playback from the Point Where You Stopped the Disc (Resume Play)

Notes

• Resume Play may not be available on some DVDs.

• Resume Play is not available in Shuffle or Program Play mode.

• Depending on where you stopped the disc, the player may

Playing Discs

resume playback from a different point.

• The point where you stopped playing is cleared when: – you open or close the disc tray – you turn the power off by pressing ! on the player – you change the play mode – you start playback after selecting a title, chapter or track – you change the settings in the setup display – you press DISC EXPLORER – you load disc information by pressing LOAD – you press MEGA CONTROL (CTL)

Using the DVD’s Menu

Some DVDs have a title menu or a DVD menu that is provided with DVDs only.

Using the title menu

A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the title menu.

TITLE

</M/m/,

ENTER

</M/m/,

ENTER

1 Press TITLE.

The title menu appears on the TV screen. The contents of the menu vary from disc to disc.

2 Press </M/m/, to select the title you want to

play.

Depending on the disc, you can use the number buttons to select the title.

3 Press ENTER.

The player starts playing the selected title.

Notes

• On some DVDs, you may not be able to select the title.

• On some DVDs, a “title menu” may simply be called a “menu” or “title ” in the instructions supplied with the disc. “Press ENTER.” may also be expressed as “Press SELECT.”

Page 21

Playing VIDEO CDs with

1 4 7

2 5 8 0

3 6 9

PBC Functions (PBC

Using the DVD menu

Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select the language for the subtitles, the language for the sound, etc., using the DVD menu.

</M/m/,

DVD MENU

ENTER

</M/m/,

ENTER

Playback)

When playing VIDEO CDs with PBC (Play Back Control) functions (Ver. 2.0 discs), you can enjoy simple interactive operations, search functions, and other such operations. PBC Playback allows you to play VIDEO CDs interactively by following the menu on the TV screen. On this player, you can use the number buttons, ENTER,

., >, M/m and ORETURN during PBC Playback.

ENTER

M/m

./>

ORETURN

Number buttons

Playing Discs

1 Press DVD MENU.

The DVD menu appears on the TV screen. The contents of the menu vary from disc to disc.

2 Press </M/m/, to select the item you want to

change.

Depending on the disc, you can use the number buttons to select the item.

3 To change other items, repeat Step 2. 4 Press ENTER.

zIf you want to select the language for the DVD menu

Change the setting using “DVD MENU” in “LANGUAGE SETUP” in the setup display. For details, see page 59.

Note

Depending on the DVD, a “DVD menu” may simply be called a “menu” in the instructions supplied with the disc.

./>

ORETURN

ENTER

M/m

1 Start playing a VIDEO CD with PBC functions by

following Steps 1 to 4 in “Playing Discs” on page

16.

2 Select the item number you want.

Press M/m to select the item number. You can also select the item number with the number buttons on the remote.

3 Press ENTER. 4 Follow the instructions in the menu for interactive

operations.

Refer to the instructions supplied with the disc, as the operating procedure may differ according to the VIDEO CD.

Page 22

Playing VIDEO CDs with PBC Functions (PBC Playback)

Replacing Discs while Playing a Disc (EXCHANGE)

To go back to the menu

Press ORETURN, ., or >.

zTo cancel PBC playback of a VIDEO CD with PBC functions

Playing Discs

and play the disc in continuous play mode

There are two ways.

• Before you start playing, select the track you want using . or >, then press ENTER or H.

• Before you start playing, select the track number using the number buttons on the remote, then press ENTER or H. “Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H.

Note

Depending on the VIDEO CD, “Press ENTER” in Step 3 may be expressed as “Press SELECT” in the instructions supplied with the disc. In this case, press H.

You can open the disc tray while playing a disc so that you can check which discs are to be played next and replace discs without interrupting playback of the current disc.

EXCHANGE

DISC SKIP

1 Press EXCHANGE.

The disc tray opens and two disc compartments appear. Even if the player is playing a disc, it doesn’t stop playing.

2 Replace the discs in the compartments with new

ones.

3 Press DISC SKIP.

The disc tray turns and another two disc compartments appear.

4 Replace the discs in the compartments with new

ones.

5 Press EXCHANGE.

The disc tray closes.

z While the disc tray is open after being opened with the

EXCHANGE button

• If the playback of the current disc ends, the player stops playing. If the disc is played in 1 DISC Repeat Play mode (page

49), the current disc starts playing again.

• In ALL DISCS Shuffle Play mode (page 48), titles/tracks/ chapters are reshuffled on the current disc.

• In Program Play mode (page 45), only the titles/tracks/ chapters on the current disc are played.

Note

Do not push the disc tray to close in Step 5, as you may damage the player.

Page 23

Using the Front Panel Display Z

You can check information about the disc, such as the total number of titles or tracks or remaining time, using the front panel display.

TIME/TEXT

When playing back a DVD

Displaying information while playing the disc

Playing status

1 disc or all discs play mode

Current disc number

Current title number

Current chapter number

Disc type

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing the disc, the display changes as shown in the following chart.

Playing time and number of the current chapter

Press TIME/

Remaining time of the current chapter

Playing time and number of the current title

Remaining time of the current title

Text or Disc Memo

TEXT

Press TIME/ TEXT

Playing Discs

Current surround format

Current play mode

Lights up when you can change the angle

Lights up when Text or Disc Memo is recorded

Playing time

Press TIME/ TEXT

Notes

• On some DVDs, the chapter number or time may not appear or you may not be able to change the front panel display.

• While you are doing Shuffle Play or Program Play, the playing time of the title and the remaining time of the title are not displayed.

Page 24

Using the Front Panel Display

When playing back a CD/VIDEO CD

Displaying information while playing a disc

Playing Discs

Playing status

Disc type

zWhen playing VIDEO CDs with PBC functions

The current scene number is displayed instead of the current track number and the current index number. In this case, the front panel display does not change when you press TIME/ TEXT. If TEXT is recorded on the disc, the front panel display changes to the Text display when you press TIME/TEXT (see page 34).

1 disc or all discs play mode

Current disc number

Current play mode

Lights up when Text or Disc Memo is recorded

Current track number

Lights up during PBC playback (VIDEO CD only)

Current index number

Playing time

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing a disc, the display changes as shown in the following chart.

Playing time and current track number

Remaining time of the current track

Playing time of the disc

Remaining time of the disc

Text or Disc Memo

Press TIME/ TEXT

Note

While you are doing Shuffle Play, or Program Play, the playing time of the disc and the remaining time of the disc are not displayed.

Page 25

1 4 7

2 5 8 0

3 6 9

Displaying the Disc Information (Disc Explorer)

You can check the contents of each disc loaded.

Loading the disc information

LOAD

Press LOAD on the player when the player is in stop or standby mode.

The player reads the disc information of all the discs and loads it into memory so that the disc type, titles and other text information can be displayed.

To cancel loading

Press x.

zThe player can load the disc information even when the

power is in standby mode

Press LOAD before turning on the player. The player reads and loads all the disc information.

Displaying the information of the loaded discs Z

You can look at the loaded disc information on the Disc Explorer, and also select the disc to be played on the Disc Explorer.

DISC EXPLORER

Number buttons

ENTER

</M/m/,

Press DISC EXPLORER.

The Disc Explorer appears. If a disc is playing, it will stop.

Disc tray number

Jacket picture

Genre Disc type

Playing Discs

DISC EXPLORER

1 2 3 4 5

Select: Cancel:

Super Car Chase BRAHMS SYMPHONY4 Skiing the World Music Madness

ENTER RETURN

Text information (DVD TEXT, CD TEXT, Disc Memo)

DVD CD

Action DVD

Pop CD

VIDEO CD

Current disc

Jacket picture

The jacket picture recorded on the disc appears automatically. If the jacket picture is not recorded, the genre picture recorded in the memory of the player is displayed when you select the genre.

Text information (DVD TEXT, CD TEXT or Disc Memo)

The text information (DVD TEXT or CD TEXT) recorded on the disc appears automatically. If no text information is recorded, you can store the text information (Disc Memo) yourself (page

34).

Page 26

Displaying the Disc Information (Disc Explorer)

Genre

You can select the genre of the disc yourself.

Disc type

Playing Discs

The disc type appears automatically. “?” appears when the player has not loaded the disc information in the memory.

To select the disc on the Disc Explorer

1 Select the disc by pressing M/m.

2 Press ENTER.

The Disc Explorer disappears and playback starts.

To cancel using the Disc Explorer

Press ORETURN.

Selecting a genre

You can assign a genre to your disc.

</M/m/,

ENTER

Notes

• If you open the tray, the disc information disappears. Press LOAD again to load the disc information.

• If you load or try to play an empty tray, it appears as a white blank in the Disc Explorer. You cannot select this.

• Even if the disc has a jacket picture recorded on it, the jacket picture may not appear on the Disc Explorer.

ENTER

</M/m/,

1 Select the disc on the Disc Explorer using M/m, then

press ,.

The genre row only is highlighted.

DISC EXPLORER

1 2 3 4 5

Select: Cancel:

2 Press ENTER.

DISC EXPLORER

The GENRE SELECTION display appears.

Super Car Chase BRAHMS SYMPHONY4 Skiing the World Music Madness

ENTER RETURN

BRAHMS SYMPHONY4

GENRE SELECTION

Action Drama Non Feature Western Classical Pop

Classics Family Sci–fi

Country Rock

Comedy Horror Thriller

Jazz/R&B Others

DVD CD

Action DVD

Pop CD

VIDEO CD

Select: Cancel:

ENTER RETURN

Page 27

3 Select the genre by using </M/m/,, then press

ENTER.

The genre for the selected disc is stored in memory. If no jacket picture is recorded in the disc, the genre picture in the memory of the player is displayed.

DISC EXPLORER

1 2 3 4 5

Select: Cancel:

Super Car Chase BRAHMS SYMPHONY4 Skiing the World Music Madness

ENTER RETURN

DVD Classical

CD Action

DVD Pop

CD VIDEO CD

4 Press < to return to the original Disc Explorer

display.

DISC EXPLORER

1 2 3 4 5

Select: Cancel:

Super Car Chase BRAHMS SYMPHONY4 Skiing the World Music Madness

ENTER RETURN

DVD Classical

CD Action

DVD Pop

CD VIDEO CD

Playing Discs

Page 28

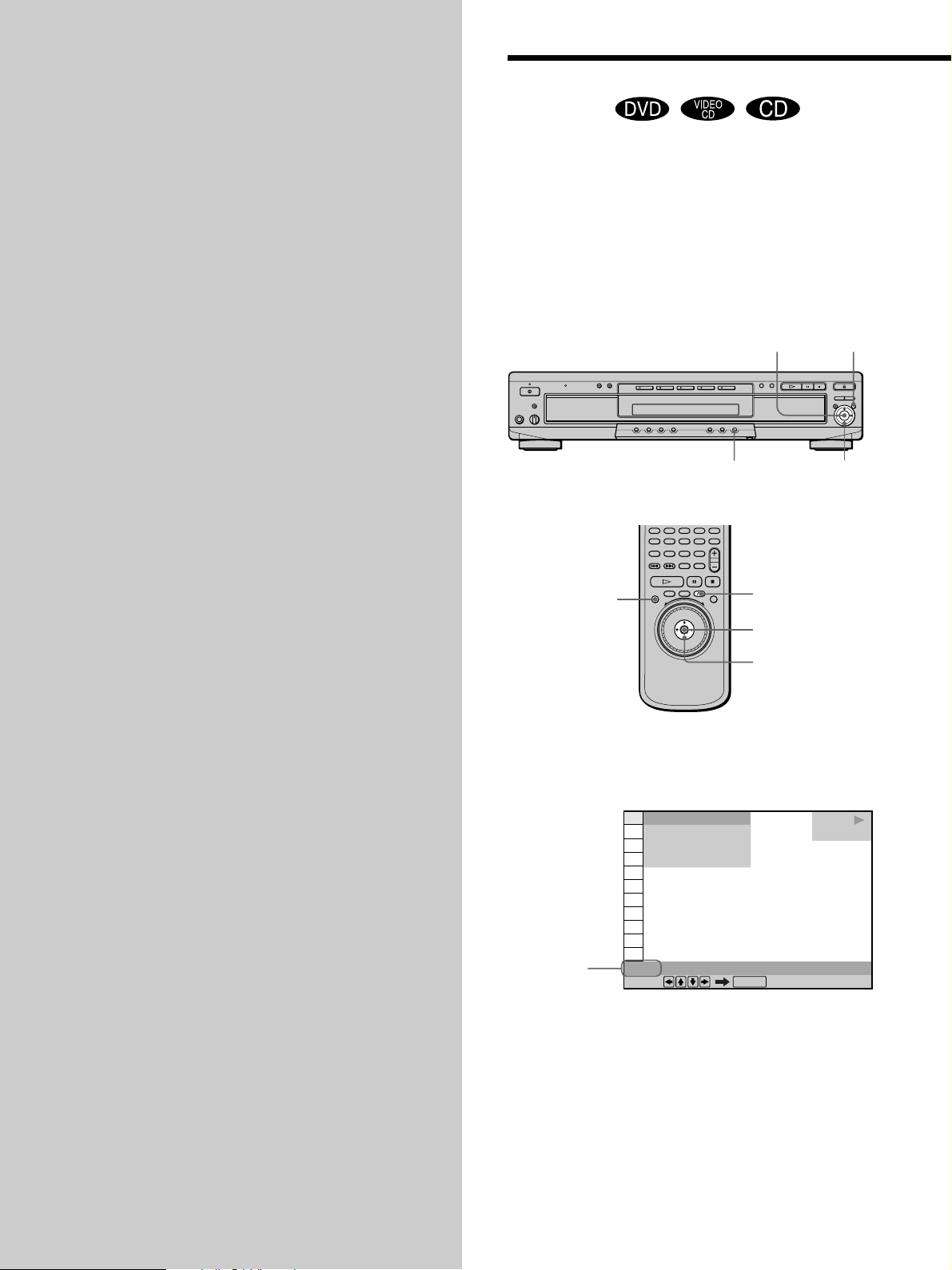

Using V arious Functions with the Control Menu

This chapter describes how to play discs in various modes and how to use the convenient features of the onscreen menu (Control Menu).

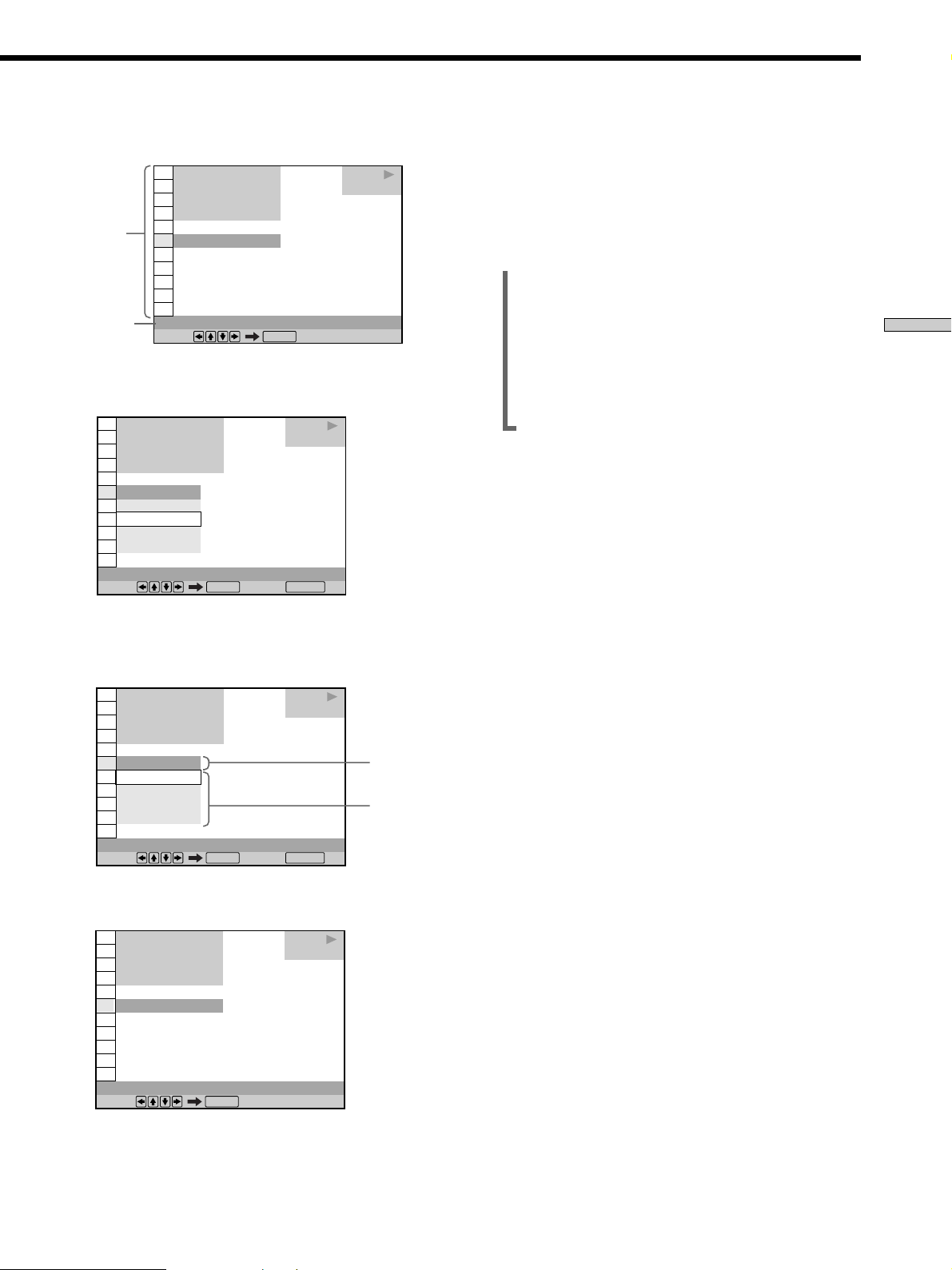

Using the Control Menu Display

Using the Control Menu display, you can select the starting point, play scenes in any order you like, change the viewing angles, make Digital Cinema Sound settings, and other such operations. The possible operations are different depending on the kind of disc. For details on each Control Menu display item, see pages 31 to 55.

DISPLAYENTER

DISPLAY

ORETURN

ENTER

</M/m/,

1 Press DISPLAY to show the Control Menu display

on the TV screen.

1 1 2 ( 2 7 1 8 ( 3 4 C

0 1 : 3 2 : 5 5

) )

PLAY

DVD

Current item

DISC Select:

ENTER

Page 29

2 Select the item you want using M/m.

Items

Selected item

1 1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH

SUBTITLE Select:

) )

0 1 : 3 2 : 5 5

ENTER

3 Press ENTER.

1 1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

To cancel while making a selection

Press O RETURN.

To display other items

Each time you press DISPLAY, the Control Menu display changes as follows:

,Control Menu display 1

Control Menu display 2 (The items except the first three items from the top are changed to other items.)

ADVANCED display (see page 42)

Control Menu display off

The Control Menu display items are different depending on the disc.

zYou can select some items directly

Some items can be selected by pressing the corresponding button on the remote or on the player. In this case, only the item you selected is displayed. For instructions on using the buttons, see the pages of each relevant item. For a list of available buttons on the player and remote, see pages 82 and 84.

Using Various Functions with the Control Menu

4 Select the item you want using M/m.

1 1 2 ( 2 7 1 8 ( 3 4 C

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY

DVD

5 Press ENTER.

1 1 2 ( 2 7 1 8 ( 3 4 C

OFF

SUBTITLE Select:

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

Note

Some Control Menu display items require operations other than selecting the setting. For details on these items, see the relevant pages.

Selected item

Items

Page 30

Control Menu Item List

Using Various Functions with the Control Menu

DISC (page 31)

TITLE (DVD only) (page 31)/ SCENE (VIDEO CD during PBC playback

only) (page 31)/ TRACK (VIDEO CD only) (page 31)

CHAPTER (DVD only) (page 31)/ INDEX (VIDEO CD only) (page 31)

TRACK (CD only) (page 31)

INDEX (CD only) (page 31)

You can select a disc or search for a point on the disc by selecting the title, chapter, track, index or scene.

TIME/MEMO (pages 32, 33, 34) TIME/TEXT (pages 32, 33, 34)

You can check the playing time and remaining time of the current title, chapter, track and the total playing time or remaining time of the disc. You can also search for a scene by inputting the time code. You can check the DVD TEXT or CD TEXT of the disc on the TV screen and the front panel display. When the disc is a VIDEO CD or the DVD TEXT/CD TEXT is not recorded on the disc, you can label the disc using the Disc Memo function.

AUDIO (page 35)

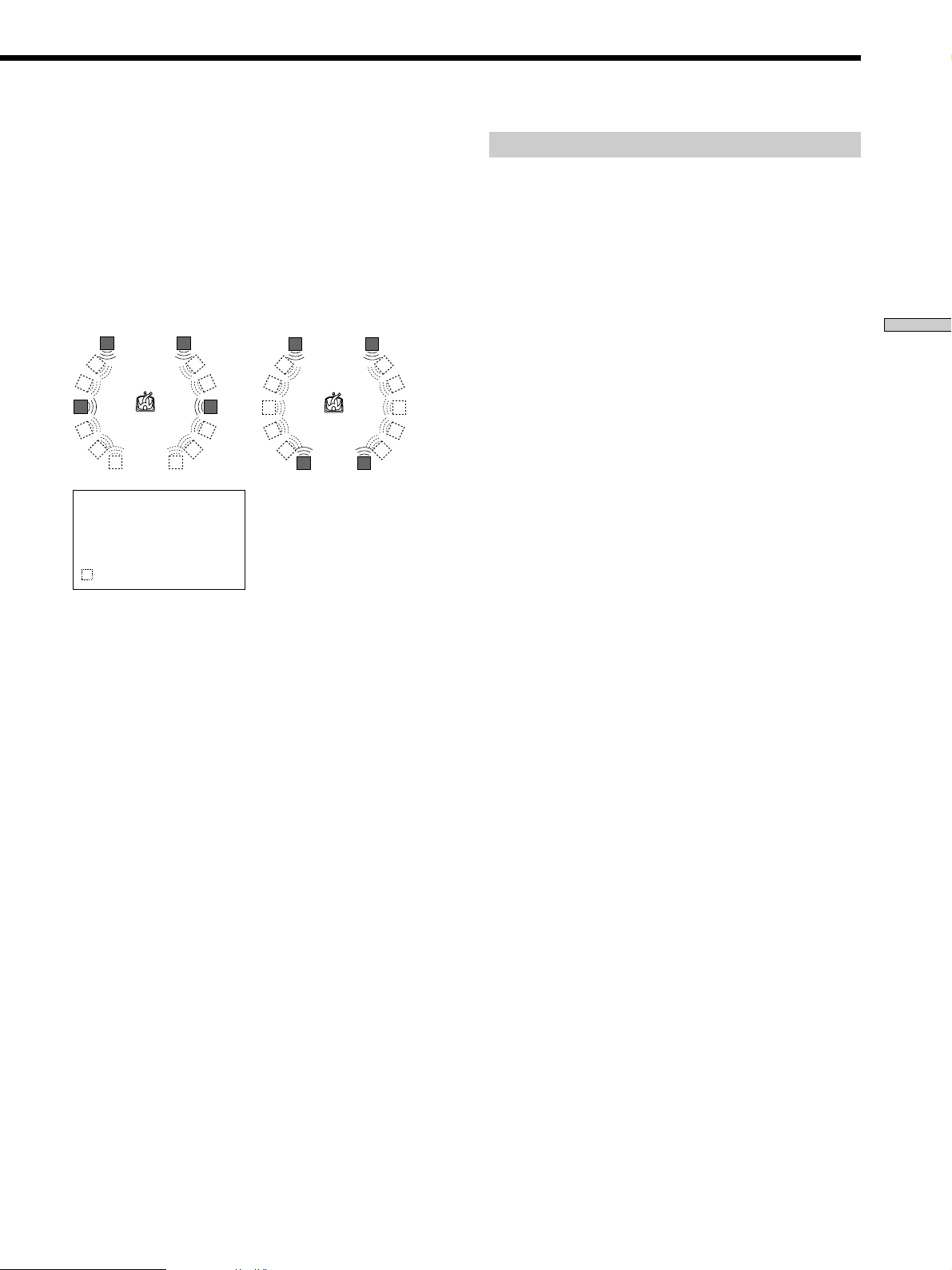

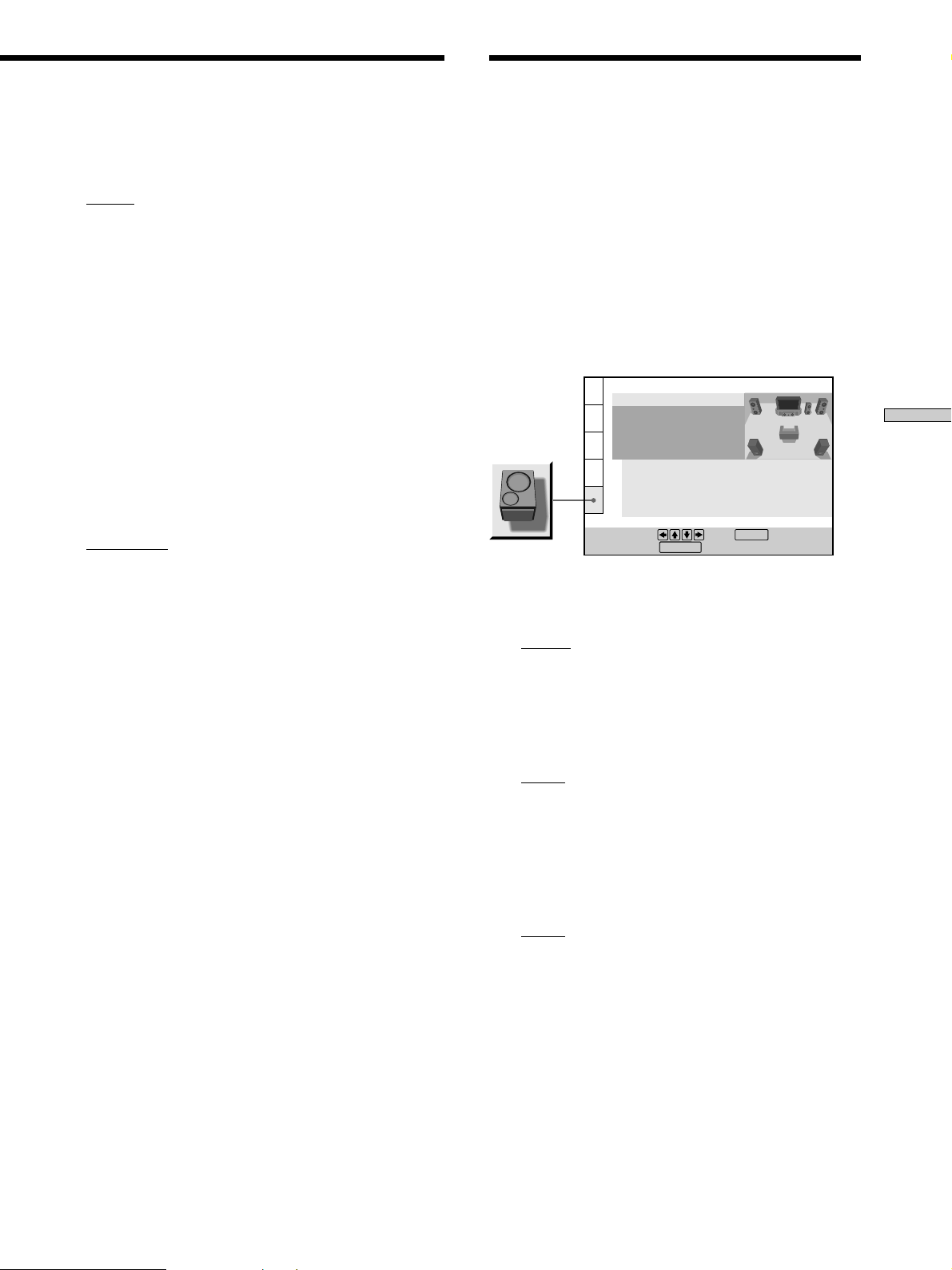

VIRTUAL 3D SURROUND (page 39)

Select one of the surround modes to enjoy multichannel Dolby Digital DVDs with only 2 or 4 speakers. When you connect only 2 front speakers, Virtual Enhanced Surround (VES) and VIRTUAL SEMI MULTI DIMENSION let you enjoy 3D sound by using 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. When you connect 2 front speakers and 2 rear speakers, you can use this function’s 3D sound imaging to shift the sound of the rear speakers away from the actual speaker position (VIRTUAL REAR SHIFT) or create 3 sets of virtual rear speakers from 1 set of actual rear speakers (VIRTUAL MULTI REAR, etc.).

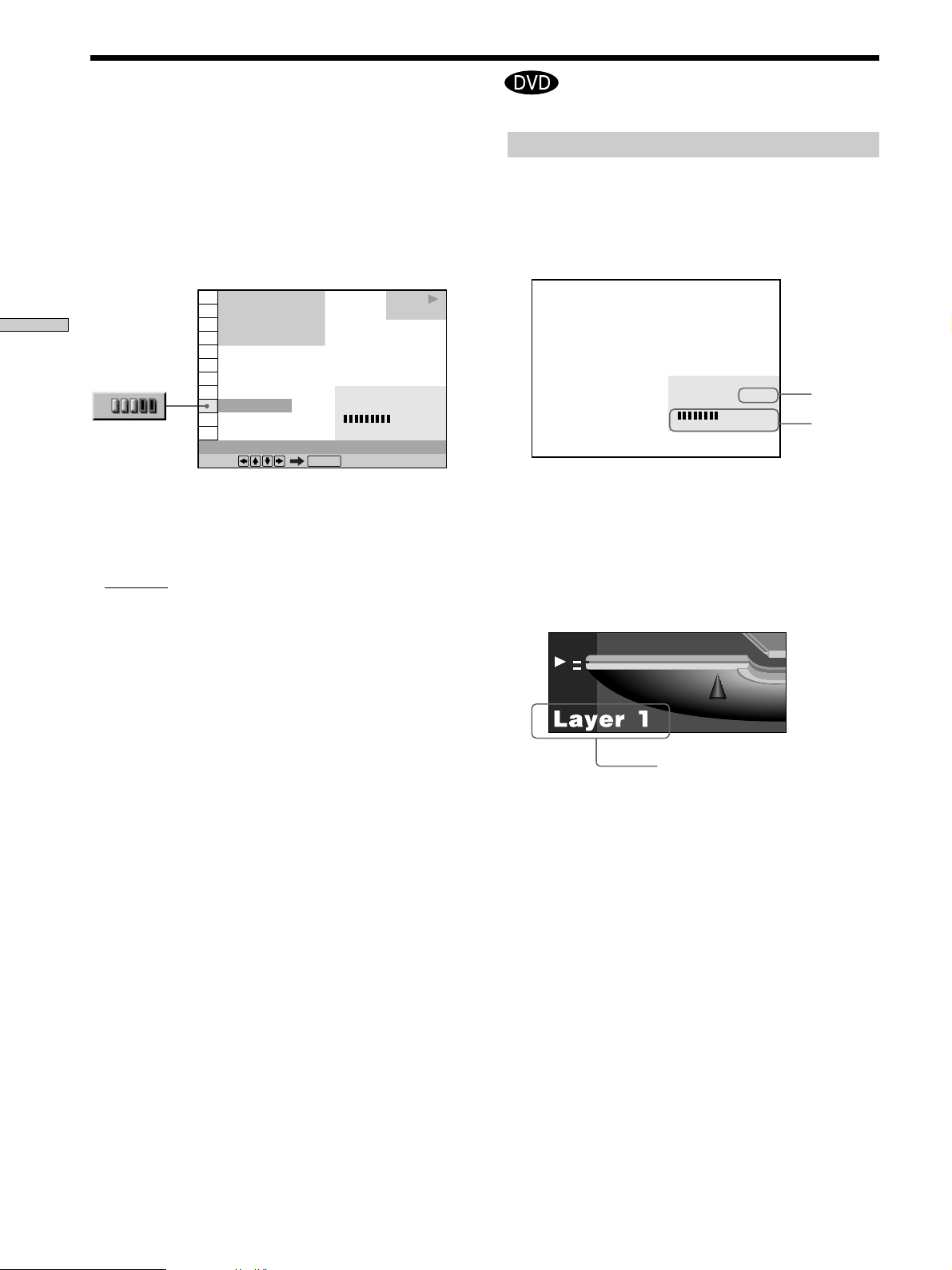

ADVANCED (DVD only) (page 42)

You can check play information about the bit rate or the position where the disc is being played (layer).

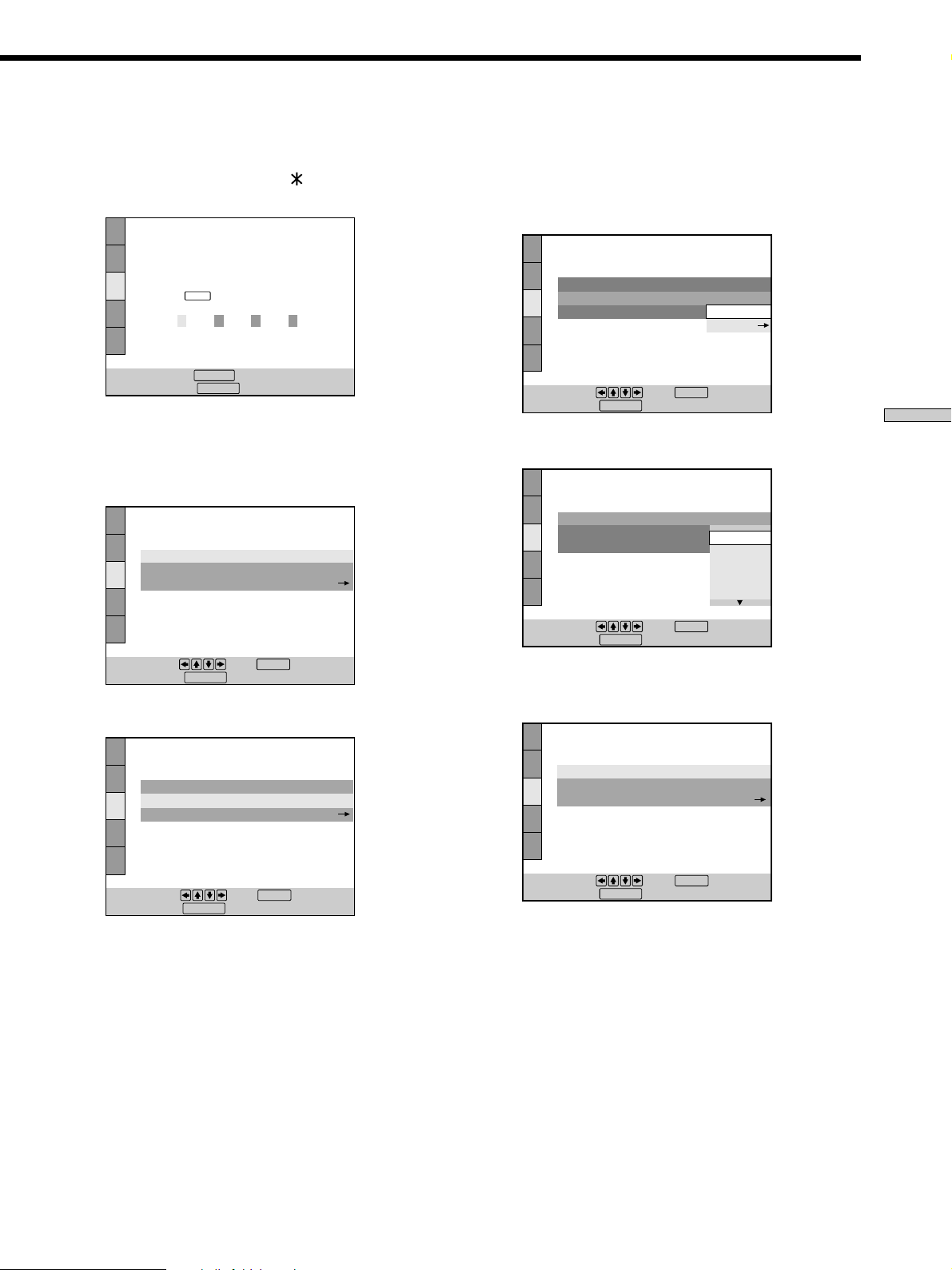

CUSTOM PARENTAL CONTROL (page 43)

Using a registered password, you can set playback restrictions for a desired disc. The same password is used for both Parental Control (page 62) and Custom Parental Control.

SETUP (page 56)

Using the setup display, you can do the initial setup, adjust the picture and sound and set the various outputs. You can also set a language for the subtitles and the setup display, limit playback by children, and so on. For details about the setup display, see page 56.

1/ALL DISCS (page 45)

You can have the player play one or all of the discs. You can switch between one disc mode or all disc mode in the Program Play, Shuffle Play and Repeat Play modes.

SUBTITLE (DVD only) (page 37)

With DVDs on which multilingual subtitles are recorded, you can change the subtitle language whenever you want while playing the DVD, and turn it on or off whenever you want.

ANGLE (DVD only) (page 38)

With DVDs on which various angles (multi-angles) are recorded, you can change the angle of the scene.

PROGRAM (page 45)

You can play the contents of the disc(s) in the order you want by arranging the order of the titles, chapters or tracks on the disc(s) to create your own program.

SHUFFLE (page 48)

You can have the player “shuffle” titles, chapters or tracks and play them in a random order. Subsequent “shuffling” may produce a different playing order.

Page 31

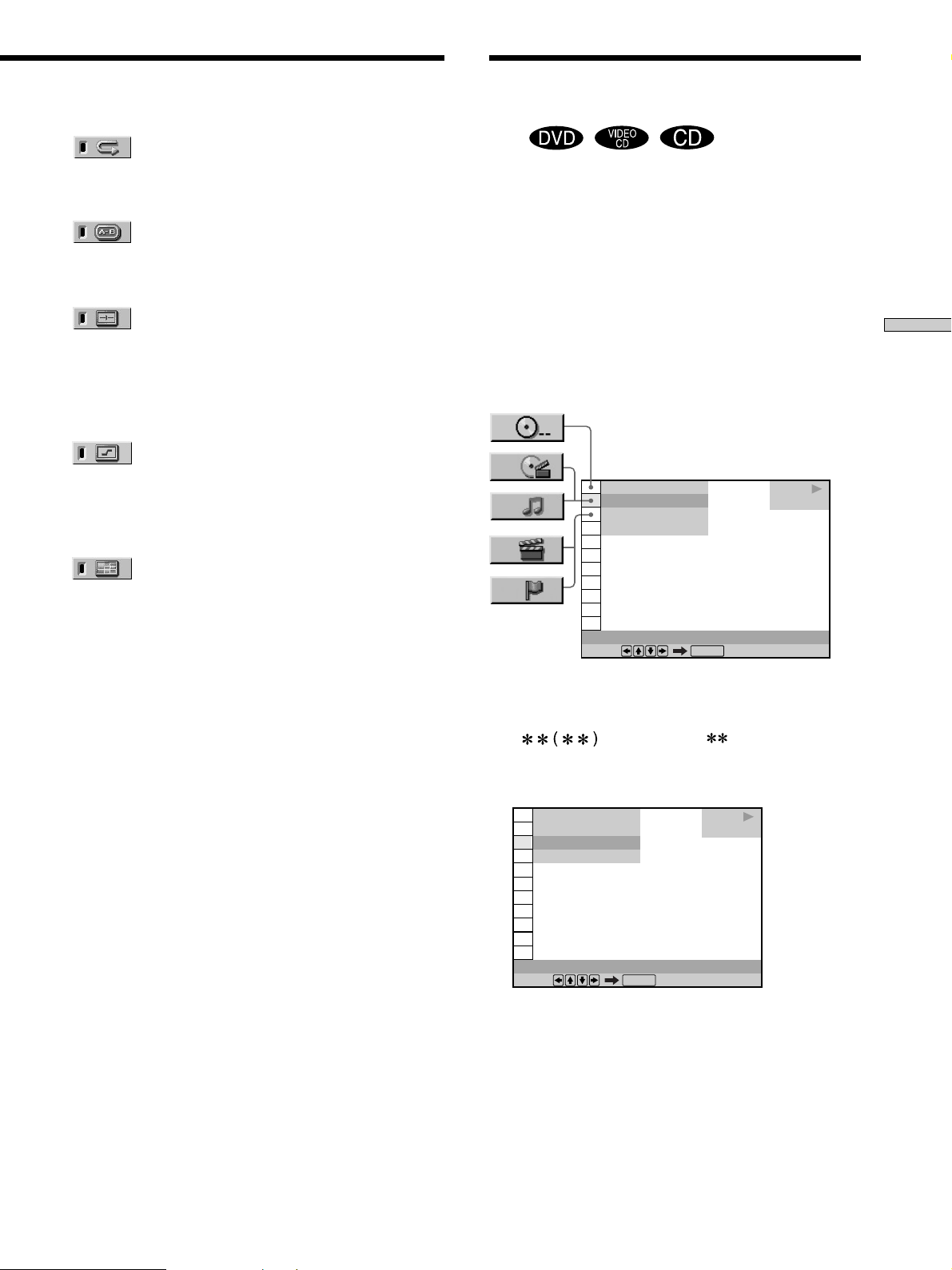

Searching for a Disc/Title/ Chapter/Track/Index/Scene

REPEAT (page 49)

You can play all of the titles/tracks on a disc or all of the discs, or a single title/chapter/track repeatedly.

A-B REPEAT (page 50)

You can play a specific portion of a title, chapter, or track repeatedly.

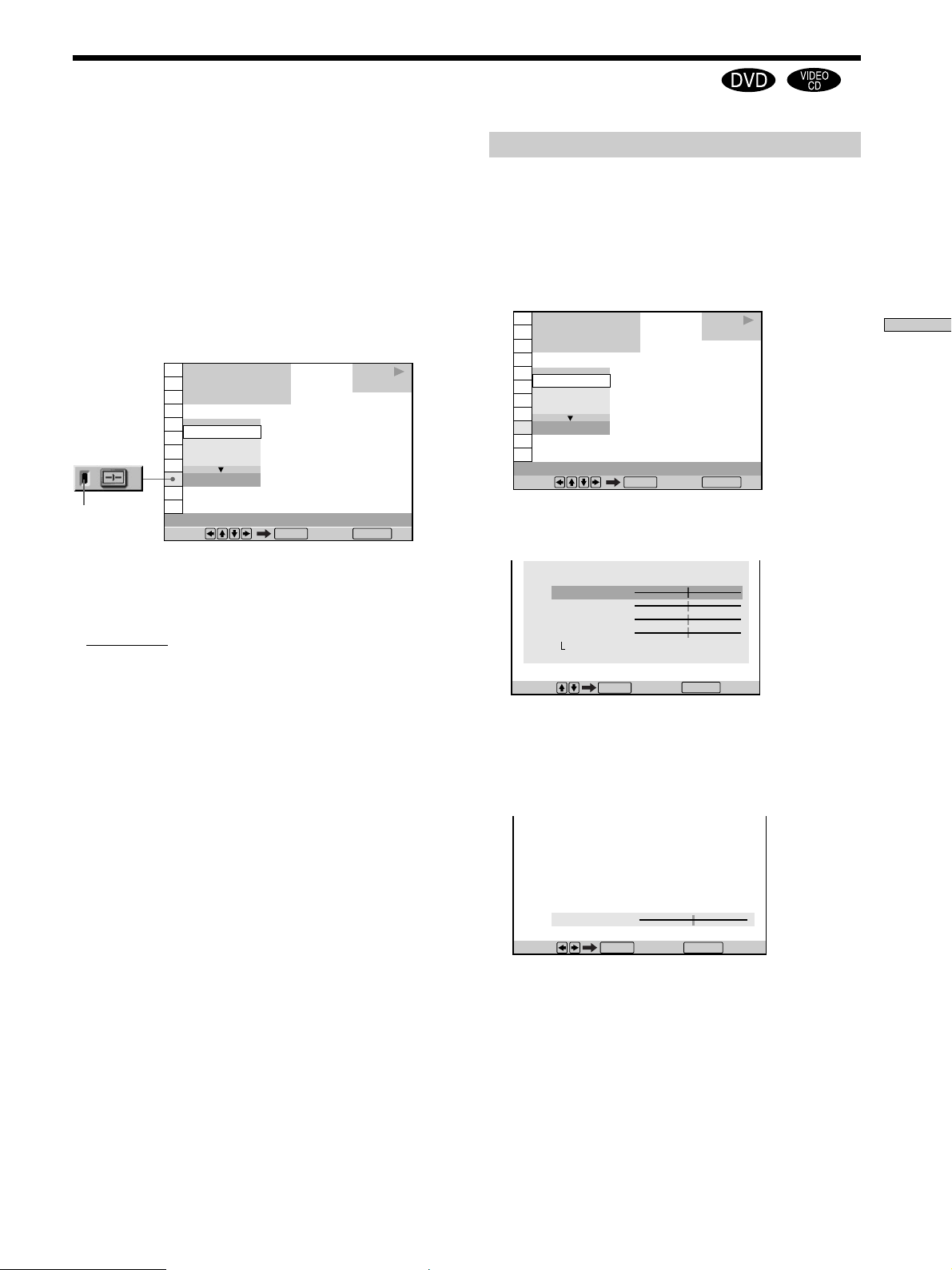

VIDEO EQUALIZER (DVD, VIDEO CD only)

(page 51)

You can adjust the video output of the DVD or VIDEO CD from the player, not from the TV, to obtain the picture quality you want.

DIGITAL VIDEO ENHANCER (DVD, VIDEO

CD only) (page 52)

You can make the picture clearer by emphasizing the outlines of images on your TV screen.

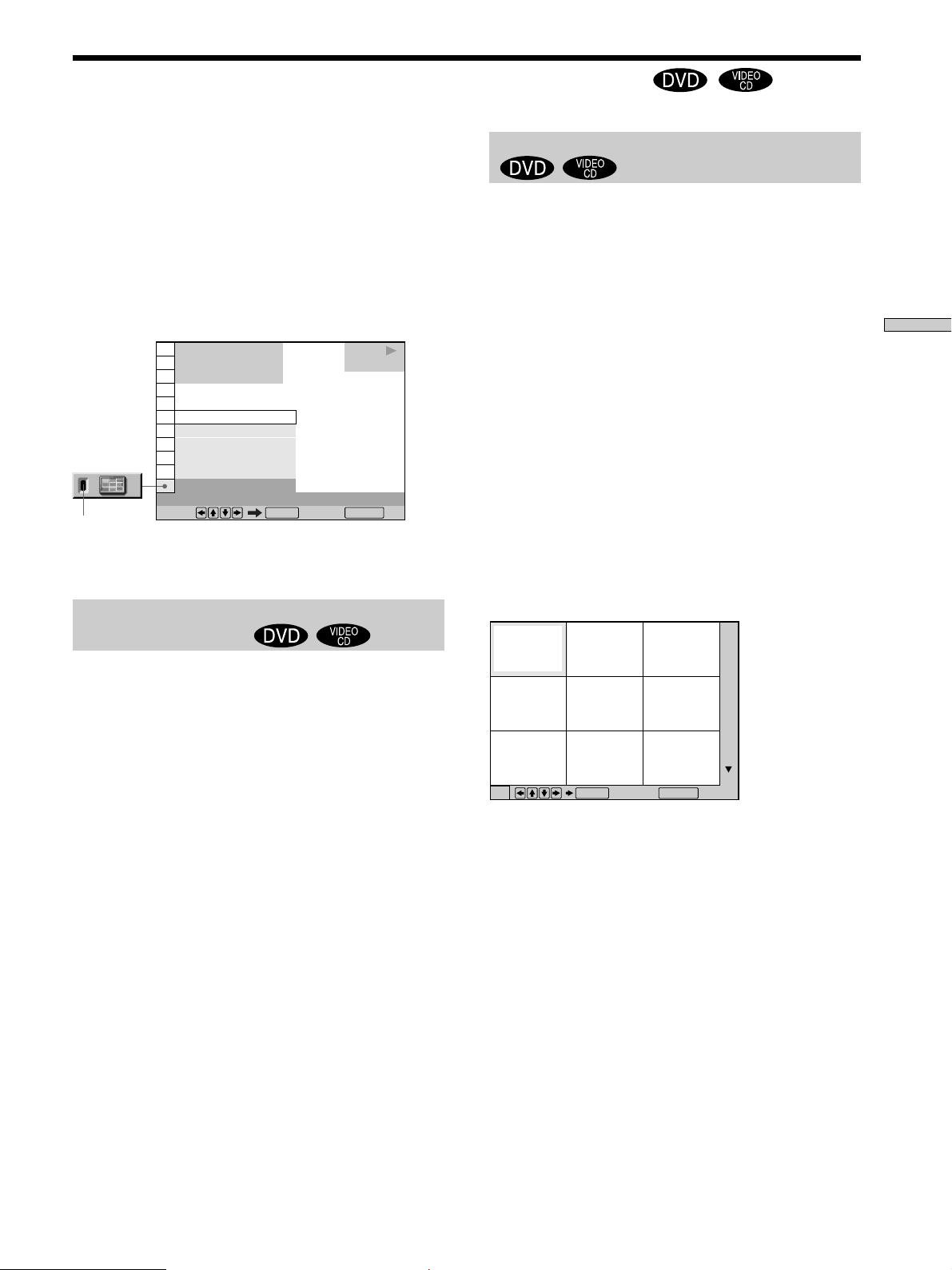

VIEWER (DVD, VIDEO CD only) (page 53)

You can divide the screen into 9 sections (quick reference screen) and quickly search for a scene or a bookmark.

You can select a disc, or search the disc by title, chapter, track, index or scene.

Select “DISC,” “TITLE,” “CHAPTER,” “TRACK,” “INDEX” or “SCENE” after pressing DISPLAY. When you play back a DVD, “TITLE” and “CHAPTER” are displayed. When you play back a VIDEO CD/CD, “TRACK” and “INDEX” are displayed. When you play back a VIDEO CD with PBC functions, “SCENE” is displayed.

1 1 2 ( 2 7 1 8 ( 3 4 C

0 1 : 3 2 : 5 5

) )

PLAY DVD

Using Various Functions with the Control Menu

TITLE Select:

ENTER

1 Select “DISC,” “TITLE,” “CHAPTER,” “TRACK,”

“INDEX” or “SCENE” using M/m.

“ ” is highlighted ( refers to a number). The number in parentheses indicates the total number

of titles, chapters, tracks, indexes or scenes.

1 1 2 ( 2 7 1 8 ( 3 4 C

CHAPTER Select:

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

Page 32

Using Various Functions with the Control Menu

1 8 ( 3 4

)

1 2 ( 2 7

)

0 1 : 3 2 : 5 5

DVD

Select:

TIME/MEMO

ENTER

PLAY

Searching for a Disc/Title/Chapter/Track/ Index/Scene

2 Press , or ENTER.

“

2 1 2 ( 2 7 – – C

” changes to “— — ”.

)

(

)

3 4

0 1 : 3 2 : 5 5

PLAY DVD

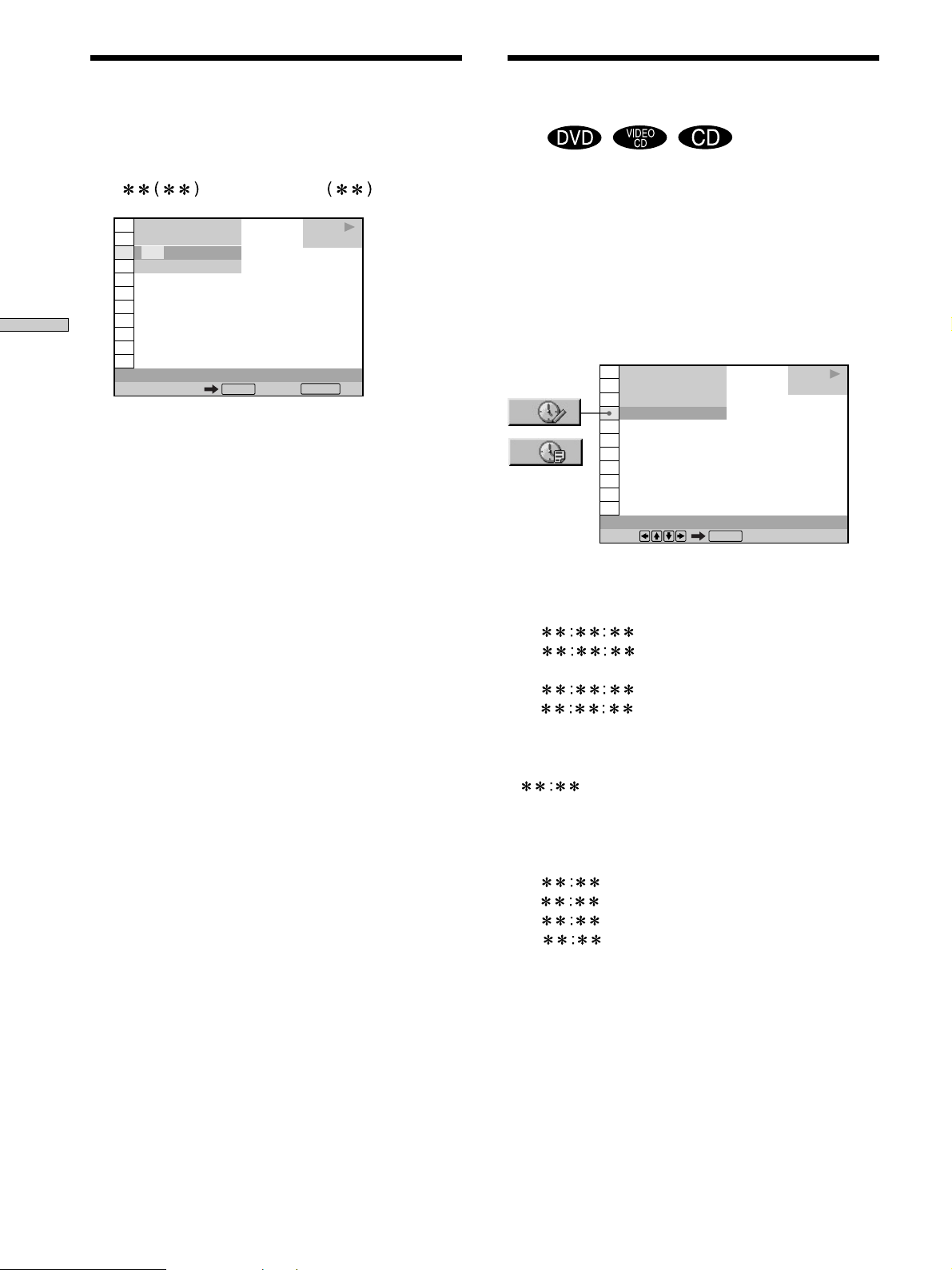

Checking the Playing Time and Remaining Time Z

You can check the playing time and remaining time of the current title, chapter or track and the total playing time or remaining time of the disc.

Press DISPLAY. Then press TIME/TEXT on the remote to change the time information. You can also check the DVD TEXT, CD TEXT or Disc Memo, and label the disc. See page 34.

CHAPTER Number buttons Cancel:

ENTER

RETURN

3 Select the number of the disc, title, chapter, track,

index or scene you want to search for using the number buttons, then press ENTER.

The player starts playback at the selected number. To cancel the number, press CLEAR before pressing ENTER.

To cancel while making a selection

Press ORETURN.

zYou can select a disc directly

Press DISC SELECT 1 – 5 on the player or DISC 1 – 5 on the remote.

Notes

• The title, chapter or track number displayed is the same number recorded on the disc.

• The index numbers are not displayed during PBC playback of VIDEO CDs.

When playing a DVD x TIME/MEMO or TIME/TEXT

•C

•C –

: Playing time of the current chapter : Remaining time of the current

chapter

•T

•T –

: Playing time of the current title : Remaining time of the current title

When playing a VIDEO CD (during PBC playback) x TIME/MEMO

•

: Playing time of the current scene

When playing a VIDEO CD (in continuous play) or CD x TIME/MEMO or TIME/TEXT

•T

•T –

•D

•D –

: Playing time of the current track : Remaining time of the current track : Playing time of the current disc

: Remaining time of the current disc

zYou can select “TIME/MEMO” or “TIME/TEXT” directly

Press TIME/TEXT on the remote. Each time you press the button, the time information changes.

Page 33

Selecting a Starting Point Using the Time Code Z

You can search for a starting point by inputting the time code.

Select “TIME/MEMO” or “TIME/TEXT” after pressing DISPLAY. The time code corresponds to the approximate actual playing time. For example, to search for a scene 2 hours 10 minutes 20 seconds past the beginning, input 2:10:20.

1 1 2 ( 2 7 1 8 ( 3 4 C

TIME/MEMO Select:

) )

0 1 : 3 2 : 5 5

ENTER

PLAY

DVD

1 Select “C ” (playing time of the

current chapter) when playing a DVD.

1 1 2 ( 2 7 1 8 ( 3 4 C

0 1 : 3 2 : 5 5

) )

PLAY DVD

3 Input the time code using the number buttons,

then press ENTER.

The player starts playback at the selected time code. To cancel the number, press CLEAR before pressing ENTER.

To cancel while making a selection

Press ORETURN.

Note

When you input the time code, input the playing time of the title, not the chapter or track time.

Using Various Functions with the Control Menu

TIME/MEMO Select:

ENTER

2 Press , or ENTER.

Time code changes to “T – – : – – : – –”.

1 1 2 ( 2 7 1 8 ( 3 4 T – – : – – : – – DISC MEMO INPUT

TIME/MEMO Number buttons Cancel:

) )

ENTER

PLAY DVD

RETURN

Page 34

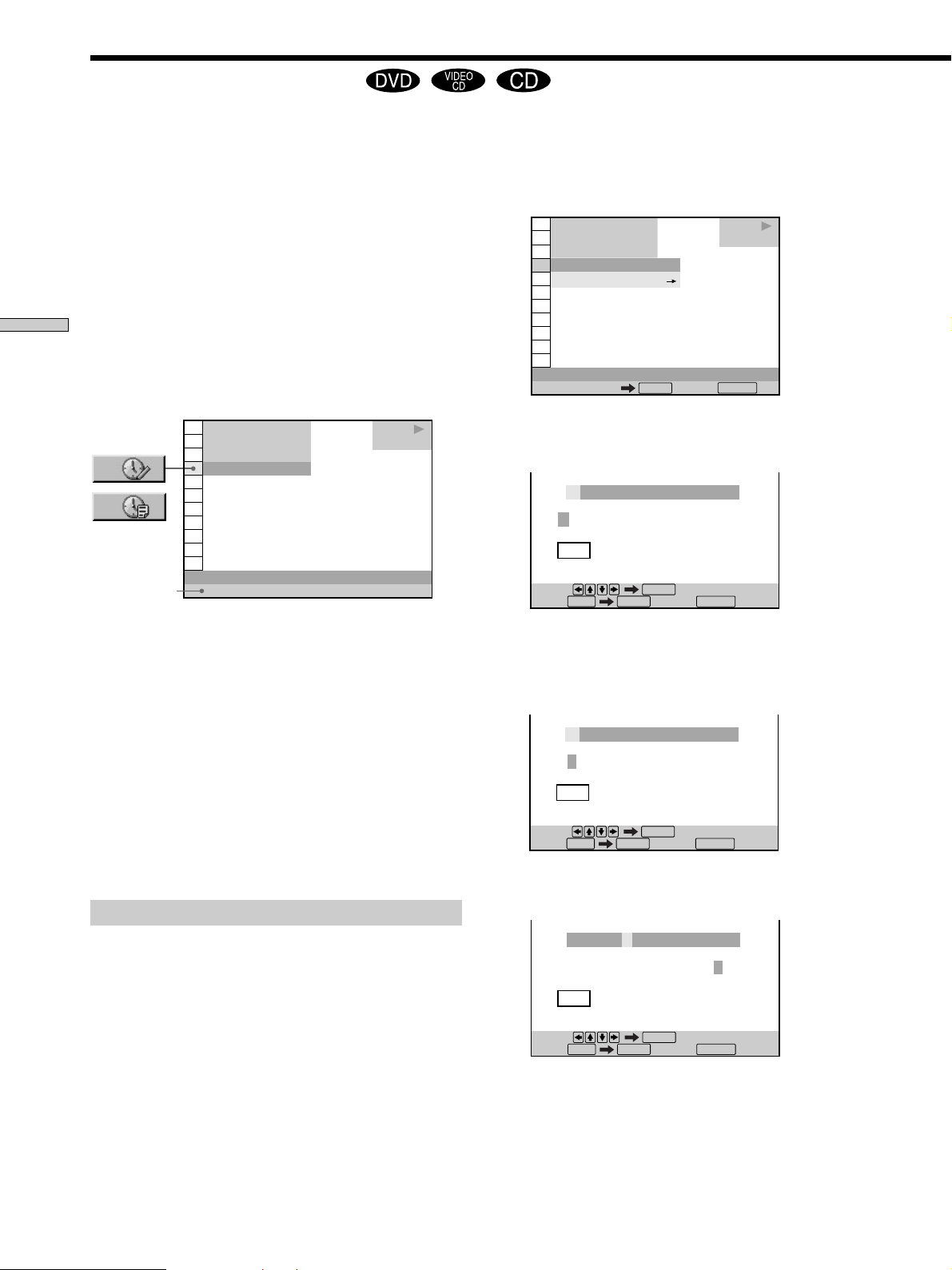

Labeling the Disc Z

Using Various Functions with the Control Menu

You can label discs so that the label appears on your TV screen and the front panel display when you play the disc. If the disc already has DVD TEXT or CD TEXT recorded on it, then this information will appear instead.

Press DISPLAY. “TIME/MEMO” appears. Press TIME/ TEXT on the remote until the Disc Memo appears at the bottom of the display. If the disc does not contain a label, “NO TEXT” is displayed. Follow the steps below to label a disc. If the disc has DVD TEXT or CD TEXT already recorded on it, “TIME/TEXT” appears instead. Press TIME/TEXT on the remote until the information is displayed at the bottom of the display. You cannot change this information.

Disc Memo or DVD/CD TEXT

1 1 2 ( 2 7 1 8 ( 3 4 C

TIME/MEMO

) )

0 1 : 3 2 : 5 5

BRAHMS SYMPHONY NO – 4

PLAY DVD

1 Select the disc you want to label. 2 Select “TIME/MEMO” and press ENTER.

“DISC MEMO INPUT,” appears.

1 1 2 ( 2 7 1 8 ( 3 4 T – – : – – : – – DISC MEMO INPUT

TIME/MEMO Number buttons Cancel:

) )

ENTER

PLAY DVD

RETURN

3 Select “DISC MEMO INPUT,” and press ENTER.

The DISC MEMO INPUT display appears.

0 1 : 3 2 : 5

DISC MEMO INPUT

ABCDEFGHIJKLMNOPQRSTUVWX YZ 0123456789<>+–✽/=? _@ SAVE

Select: Save: Cancel:

ENTER

ENTERSAVE

RETURN

zYou can select “TIME/MEMO” or “TIME/TEXT” directly

Press TIME/TEXT on the remote. To display DVD/CD TEXT or Disc Memo, press TIME/TEXT until DVD/CD TEXT or Disc Memo is displayed.

zYou can view the entire DVD/CD TEXT or Disc Memo recorded

on the disc

DVD/CD TEXT or Disc Memo is scrolled on the front panel display.

Note

This player can only display the first level of DVD/CD TEXT information.

Labeling discs (Disc Memo)

When DVD TEXT or CD TEXT is not recorded on the disc, you can put a personal title on the disc by labeling it on the on-screen display. Y ou can input up to 20 characters per disc. You can also have the player display the Disc Memo each time you select the disc. The Disc Memo can be anything you like, such as a title, musician’s name, category or date of purchase.

4 Select a character by pressing </M/m/, or by

turning the click shuttle on the remote.

The selected character changes color.

0 1 : 3 2 : 5

DISC MEMO INPUT

B ABCDEFGHIJKLMNOPQRSTUVWX

YZ 0123456789<>+–✽/=? _@ SAVE

Select: Save: Cancel:

ENTER

ENTERSAVE

RETURN

5 Press ENTER.

0 1 : 3 2 : 5

DISC MEMO INPUT

BRAHMS ABCDEFGHIJKLMNOPQRSTUVWX

YZ 0123456789<>+–✽/=? _@ SAVE

Select: Save: Cancel:

ENTER

ENTERSAVE

RETURN

Page 35

6 Repeat Steps 4 and 5 to input other characters.

Changing the Sound

7 When you have entered all the characters for the

Disc Memo, select [SAVE] by pressing </M/m/, and then press ENTER.

The Disc Memo is stored.

Disc Memo or DVD/CD TEXT

1 1 2 ( 2 7 1 8 ( 3 4 C

TIME/MEMO

) )

0 1 : 3 2 : 5 5

BRAHMS SYMPHONY NO – 4

PLAY DVD

To correct the characters

• To erase the characters:

1 Move the cursor to the character you want to erase

by pressing . or >.

2 Press CLEAR.

• To insert or overwrite the characters:

1 Move the cursor to the character you want to correct

by pressing . or >.

2 Select the correct character by pressing </M/m/,

or by turning the click shuttle on the remote.

3 To insert the character, press ENTER.

To overwrite, don’t press ENTER but move the cursor by pressing . or >.

zYou can save the Disc Memo using the remote

After you have entered the characters, press INPUT on the remote to store the Disc Memo.

zYou can display the Disc Memo input display using the

remote

Press INPUT on the remote.

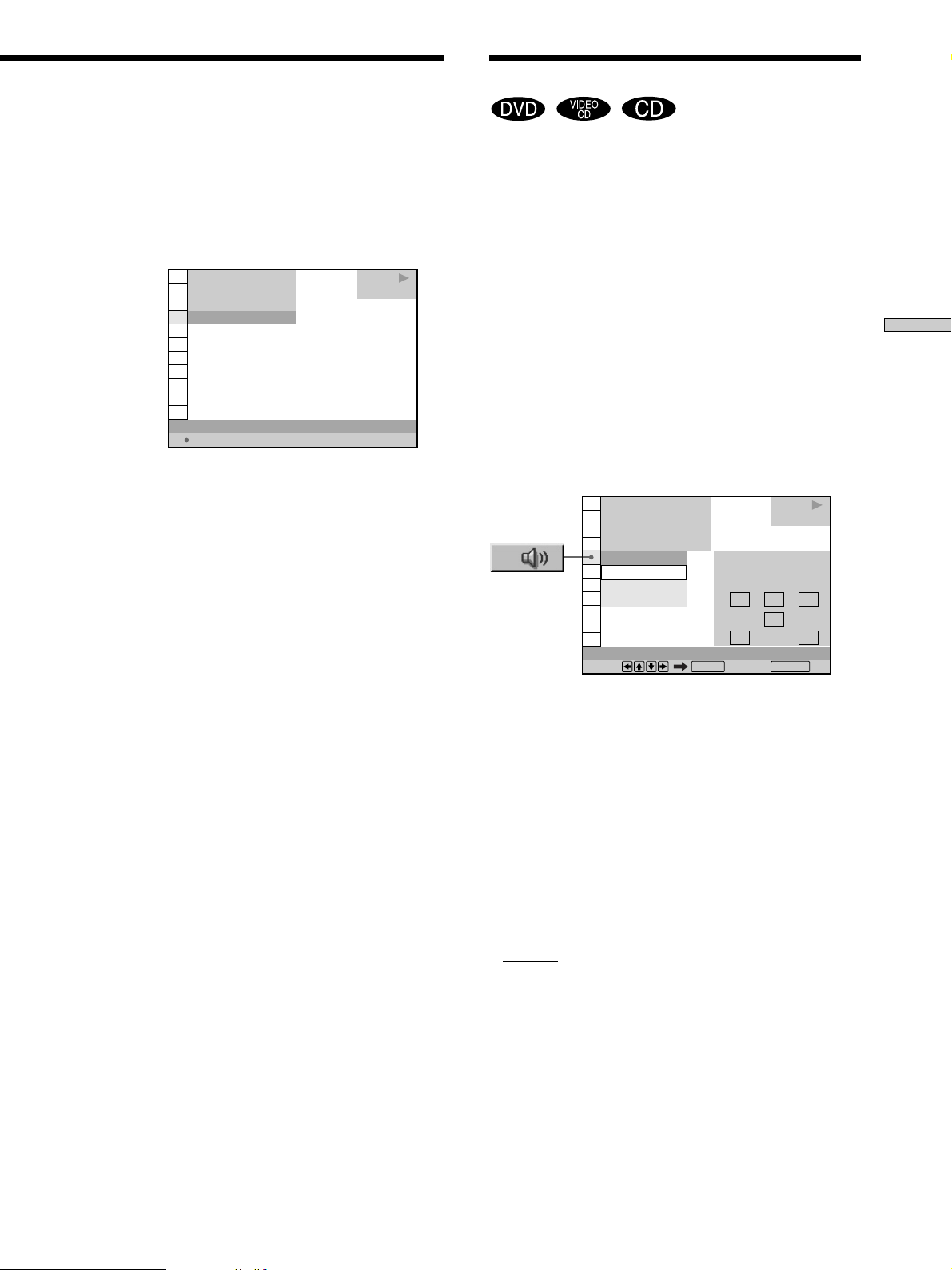

If the DVD is recorded with multilingual tracks, you can select the language you want while playing the DVD. If the DVD is recorded in multiple audio formats (PCM, Dolby Digital or DTS), you can select the audio format you want while playing the DVD. With multiplex CDs or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. In this case, the sound loses its stereo effect. For example, with a disc containing a song, the right channel may output the vocals and the left channel may output the instrumental. If you only want to hear the instrumental, you can select the left channel and hear it from both speakers.

Select “AUDIO” after pressing DISPLAY.

1 1 2 ( 2 7 1 8 ( 3 4 C 1: ENGLISH 1: ENGLISH 2: ENGLISH 3: FRENCH

AUDIO Select: Cancel:

) )

0 1 : 3 2 : 5 5

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

ENTER RETURN

PLAY

DVD

LRC

LFE

LS RS

x AUDIO When playing a DVD

Select the language. The languages you can select are different depending on the DVD. When 4 digits are displayed, they represent the language code. Select the language code from the list on page 81. When the same language is displayed two or more times, the DVD is recorded in multiple audio formats. The current audio format is shown on the “PROGRAM FORMAT” display.

Using Various Functions with the Control Menu

Notes

• Do not turn off the player by pressing !. Doing so may cancel the settings. When you turn off the player, press x first to stop playback and then press ?/1 on the remote. After the power indicator lights up in red and the player enters standby mode, press ! on the player.

• You can label up to 300 discs. When you have the player store over 300 discs in memory, each new Disc Memo erases the oldest Disc Memo from those first stored.

When playing a VIDEO CD or a CD

The default setting is underlined.

•

STEREO : The standard stereo sound

• 1/L : The sound of the left channel (monaural)

• 2/R : The sound of the right channel (monaural)

Page 36

Changing the Sound

Using Various Functions with the Control Menu

zYou can select “AUDIO” directly

Press AUDIO on the remote. Each time you press the button, the item changes.

Notes

• Depending on the DVD, you may not be able to change the languages even if multilingual tracks are recorded on the DVD.

• While playing the CD/VIDEO CD, standard stereo playback will be resumed when: – you open or close the disc tray – the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• While playing the DVD, the sound may be changed when: – you open or close the disc tray – you change the title

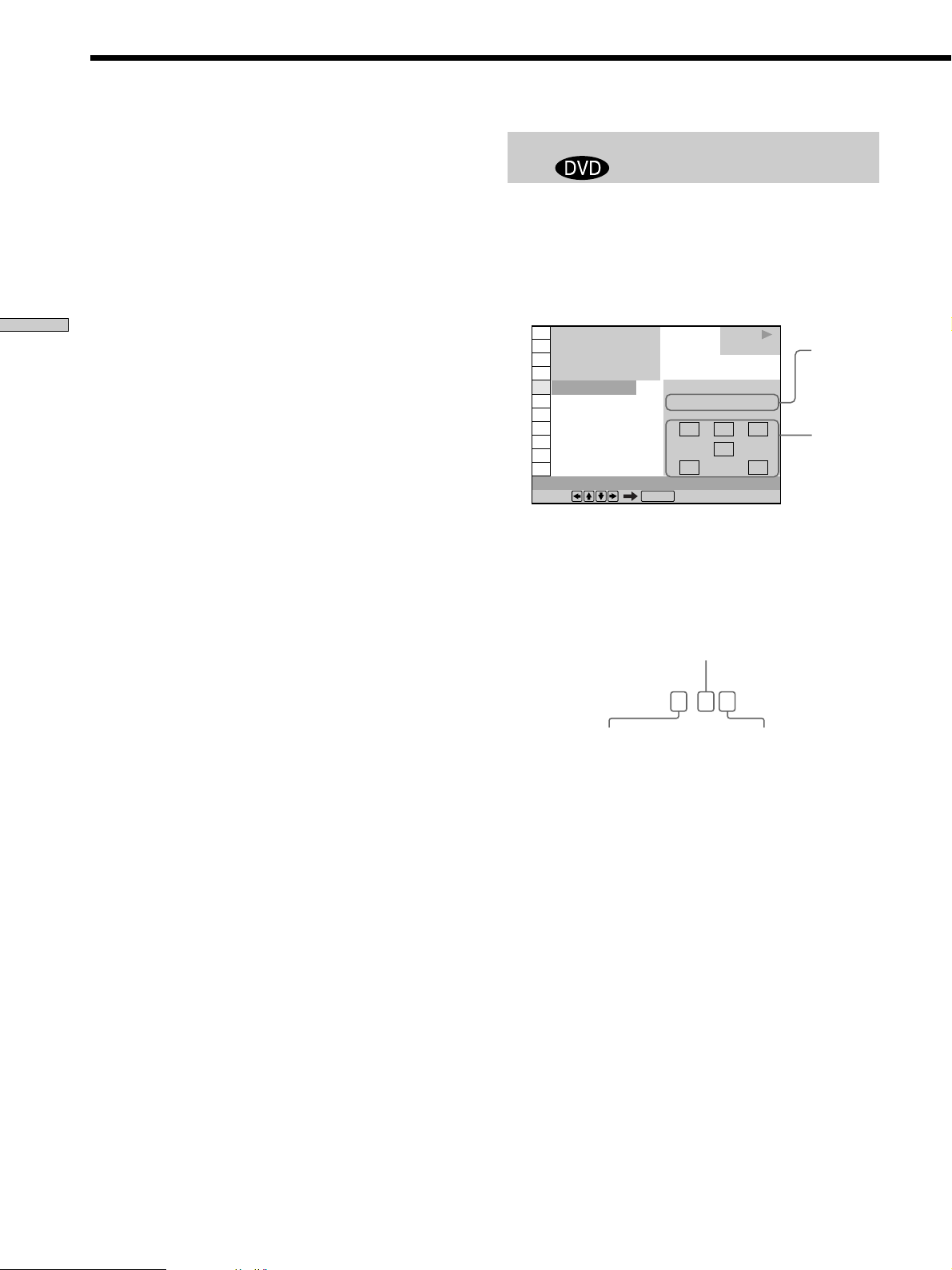

Displaying the audio information of the disc

When you select “AUDIO,” the channels being played are displayed on the screen. For example, in Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the number of the recorded channels may be different.

1 1 2 ( 2 7 1 8 ( 3 4 C 1: ENGLISH

AUDIO Select:

) )

0 1 : 3 2 : 5 5

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

ENTER

* “PCM,” “DTS” or “DOLBY DIGITAL” is displayed. In

case of “DOLBY DIGITAL,” the channels in the playing track are displayed by numbers as follows:

PLAY DVD

LRC

LFE

LS RS

Current audio format*

Current playing program format**

For Dolby Digital 5.1 ch:

Rear component 2

DOLBY DIGITAL

Front component 2 + Center component 1

3 / 2 . 1

LFE (Low Frequency Effect) component 1

** The letters in the program format display mean the

following:

L: Front (left) R: Front (right) C: Center (monaural) LS: Rear (left) RS: Rear (right) S: Rear (monaural) – the rear component of the

Dolby Surround processed stereo signal and the Dolby Digital signal.

LFE: LFE (Low Frequency Effect)

Page 37

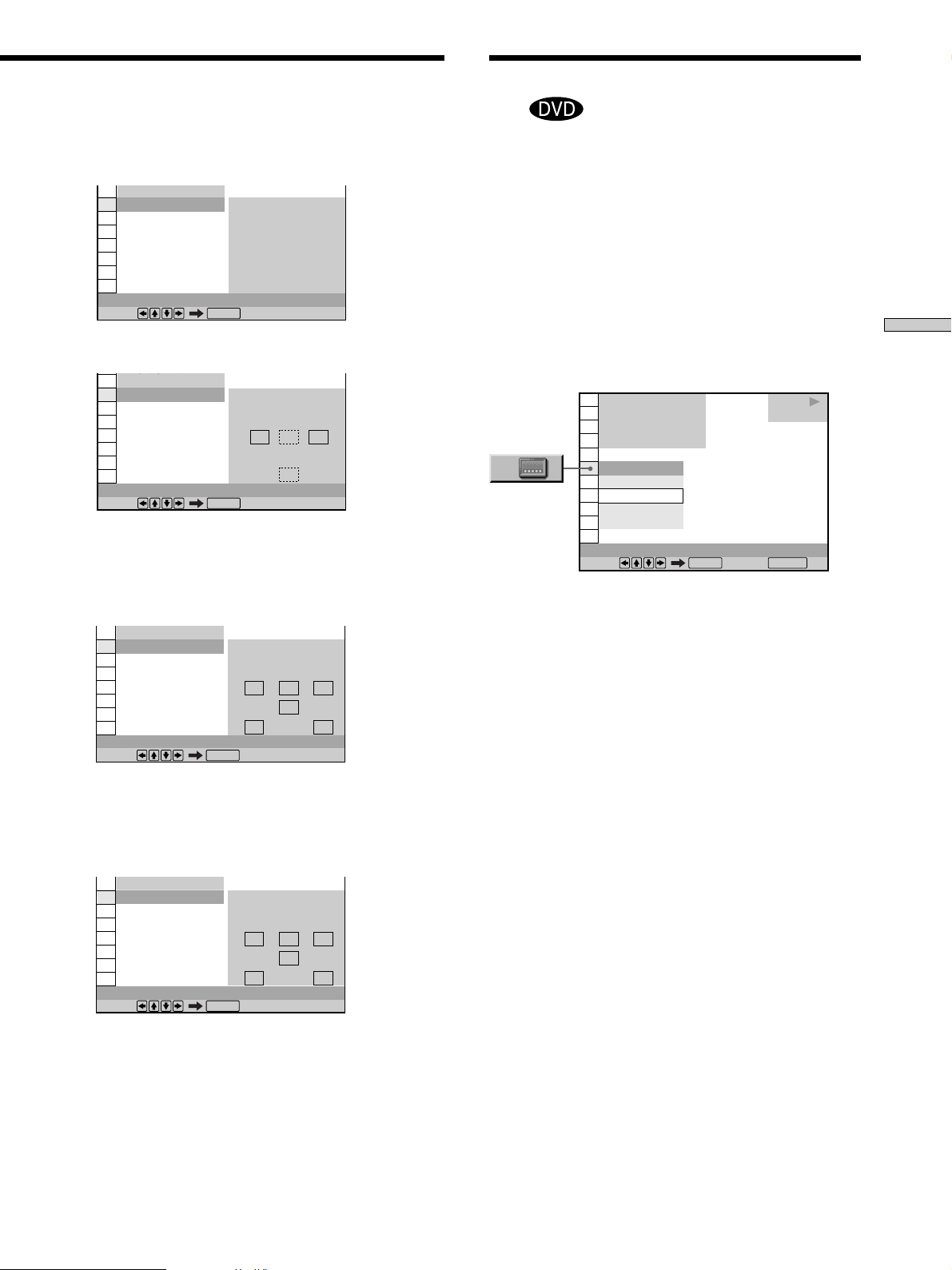

The display examples are as follows:

1 8

(

)

()

•PCM (stereo)

0 1 : 3 2 : 5 5

1: ENGLISH

AUDIO

Select:

PROGRAM FORMAT PCM 48kHz 24bit

ENTER

•Dolby Surround

0 1 : 3 2 : 5 5

1: ENGLISH

PROGRAM FORMAT DOLBY DIGITAL 2/0 DOLBY SURROUND

L RC

Displaying the Subtitles Z

With DVDs on which subtitles are recorded, you can turn the subtitles on and off whenever you want while playing the DVD. With DVDs on which multilingual subtitles are recorded, you can change the subtitle language whenever you want while playing the DVD, and turn it on or off whenever you want. For example, you can select the language you want to practice and turn the subtitles on for better understanding.

Select “SUBTITLE” after pressing DISPLAY.

1 1 2 ( 2 7 1 8 ( 3 4 C

0 1 : 3 2 : 5 5

) )

PLAY DVD

Using Various Functions with the Control Menu

AUDIO

Select:

ENTER

•Dolby Digital 5.1ch When an LFE signal component is output, “LFE” is enclosed in a solid line. When an LFE signal component is not output, “LFE” is enclosed in a broken line.

0 1 : 3 2 : 5 5

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT DOLBY DIGITAL 3/2.1

LRC

LFE

LS RS

ENTER

•DTS When an LFE signal component is output, “LFE” is enclosed in a solid line. When an LFE signal component is not output, “LFE” is enclosed in a broken line.

0 1 : 3 2 : 5 5

1: ENGLISH

AUDIO Select:

PROGRAM FORMAT DTS 3/2.1

LRC

LFE

LS RS

ENTER

1: ENGLISH OFF 1: ENGLISH 2: FRENCH 3: SPANISH

SUBTITLE Select: Cancel:

ENTER RETURN

x SUBTITLE

Select the language. The languages you can select are different depending on the DVD. When 4 digits are displayed, they indicate the language code. Select the language code from the list on page 81.

zYou can select “SUBTITLE” directly

Press SUBTITLE on the remote. Each time you press the button, the item changes.

Notes

• When playing a DVD on which no subtitles are recorded, no subtitles appear.

• Depending on the DVD, you may not be able to turn the subtitles on even if they are recorded on the DVD.

• Depending on the DVD, you may not be able to turn the subtitles off.

• The type and number of languages for subtitles vary from disc to disc.

• Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it.

• While playing the DVD, the subtitle may change when: – you open or close the disc tray – you change the title

Note

When the signal contains rear signal components such as LS, RS or S, the Virtual 3D Surround effect is enhanced (page 39).

Page 38

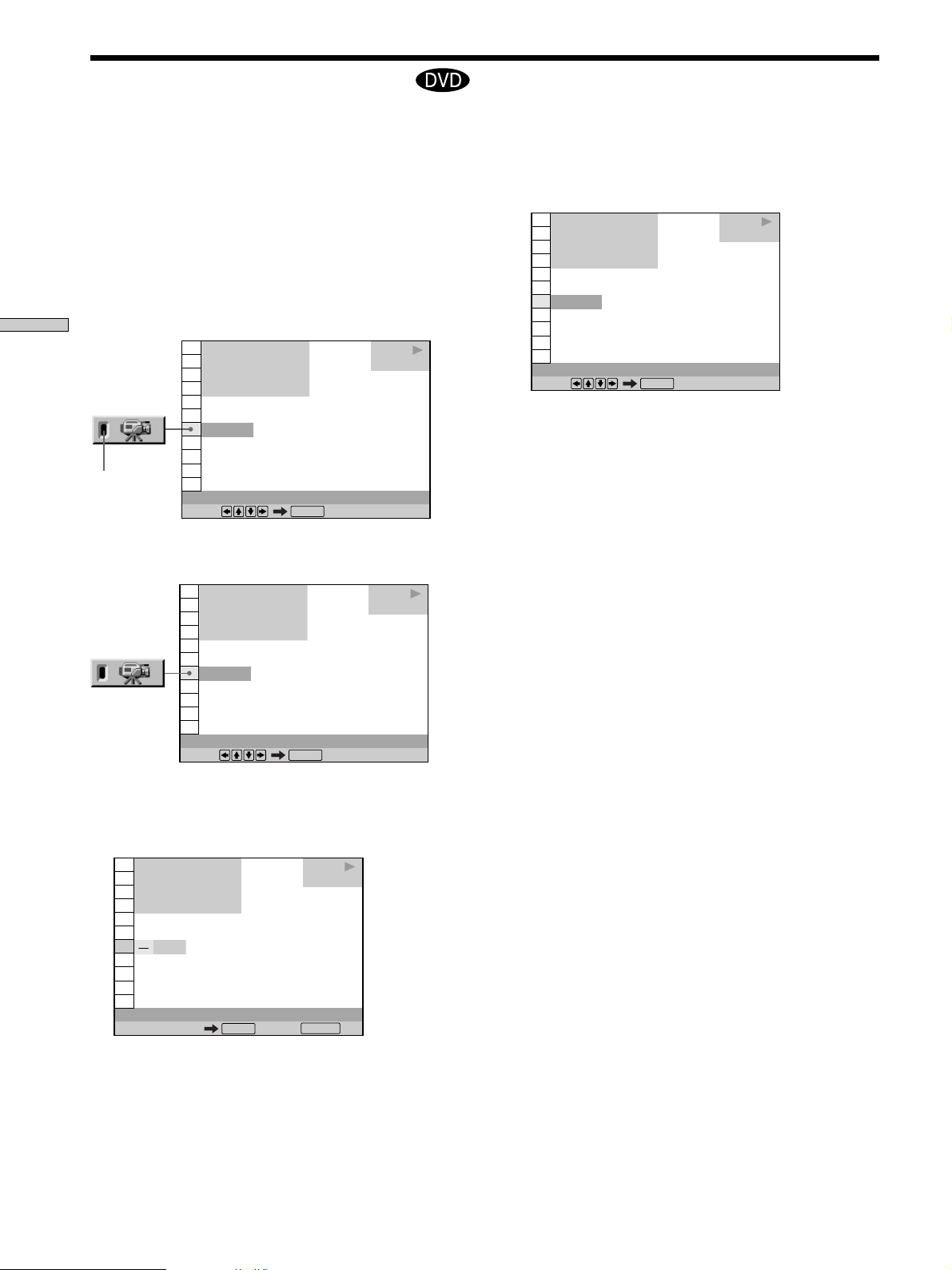

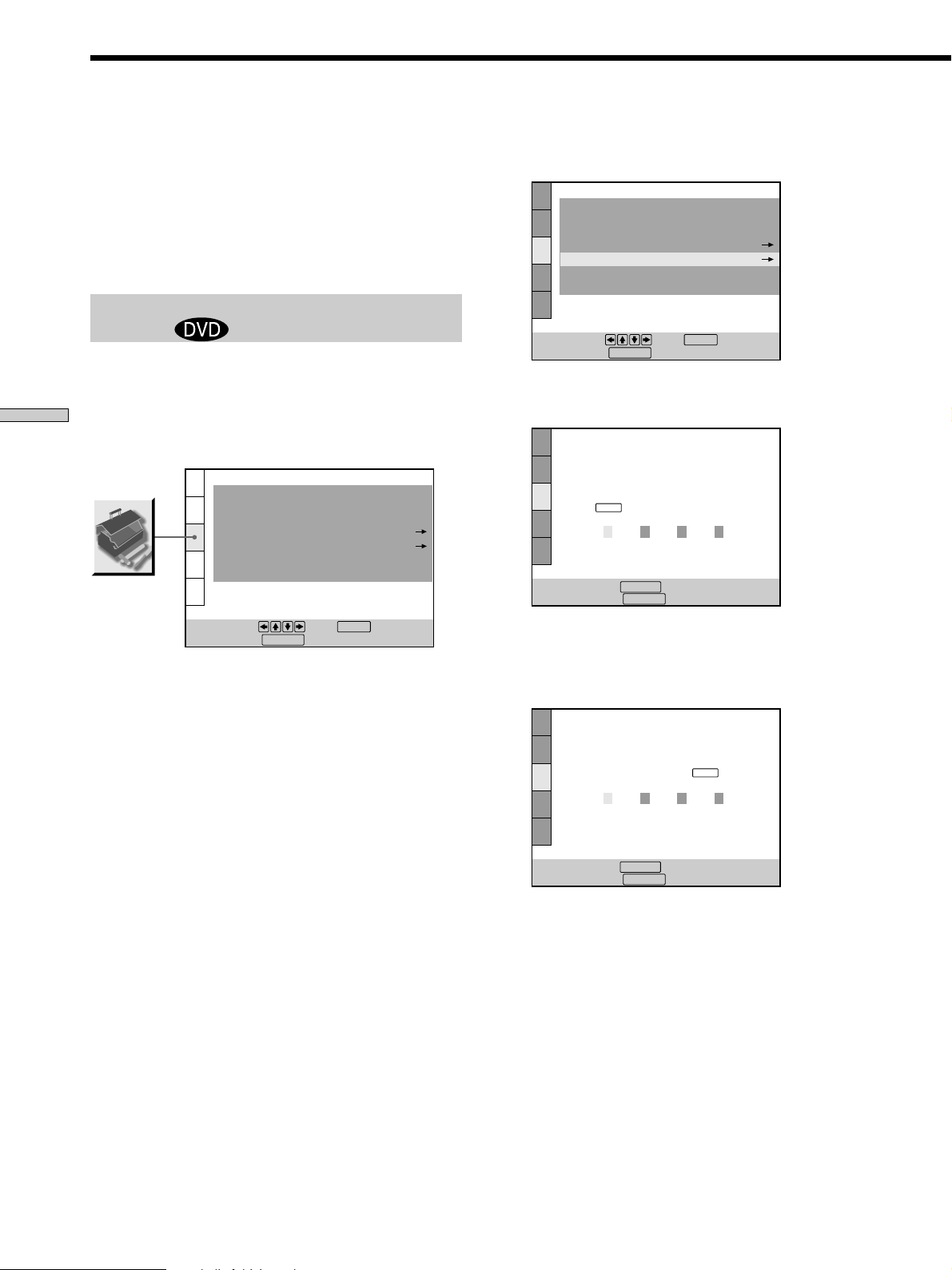

Changing the Angles Z

Using Various Functions with the Control Menu

With DVDs on which various angles (multi-angles) for a scene are recorded, you can change the angles. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train or from the right window without having the train’s movement interrupted.

Select “ANGLE” after pressing DISPLAY. When the angles can be changed, the “ANGLE” indicator lights up in green.

PLAY DVD

Indicator

1 1 2 ( 2 7 1 8 ( 3 4 C

1 ( 9

ANGLE Select:

) )

0 1 : 3 2 : 5 5

)

ENTER

1 Select “ANGLE.”

1 1 2 ( 2 7 1 8 ( 3 4 C

0 1 : 3 2 : 5 5

)

1 ( 9

) )

PLAY DVD

3 Select the angle number using the number buttons

or M/m, then press ENTER.

The angle is changed to the selected angle.

1 1 2 ( 2 7 1 8 ( 3 4 C

5 ( 9

ANGLE Select:

) )

0 1 : 3 2 : 5 5

)

ENTER

PLAY DVD

zYou can select the angle directly

Press ANGLE on the remote. Each time you press the button, the angle changes.

zYou can display different angles simultaneously (ANGLE

VIEWER)

You can display all the angles recorded on the disc on the same screen, and start playback in continuous mode from the chosen angle directly. The angles are displayed on a screen divided in 9 sections. For details, see page 53.

Notes

• The number of angles varies from disc to disc or from scene to scene. The number of angles that can be changed on a scene is equal to the number of angles recorded for that scene.

• Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

ANGLE Select:

ENTER

2 Press ,.

The number of the angle changes to “–”. The number in parentheses indicates the total number of angles.

1 1 2 ( 2 7 1 8 ( 3 4 C

ANGLE Number buttons Cancel:

) )

0 1 : 3 2 : 5 5

)

( 9

ENTER

PLAY DVD

RETURN

Page 39

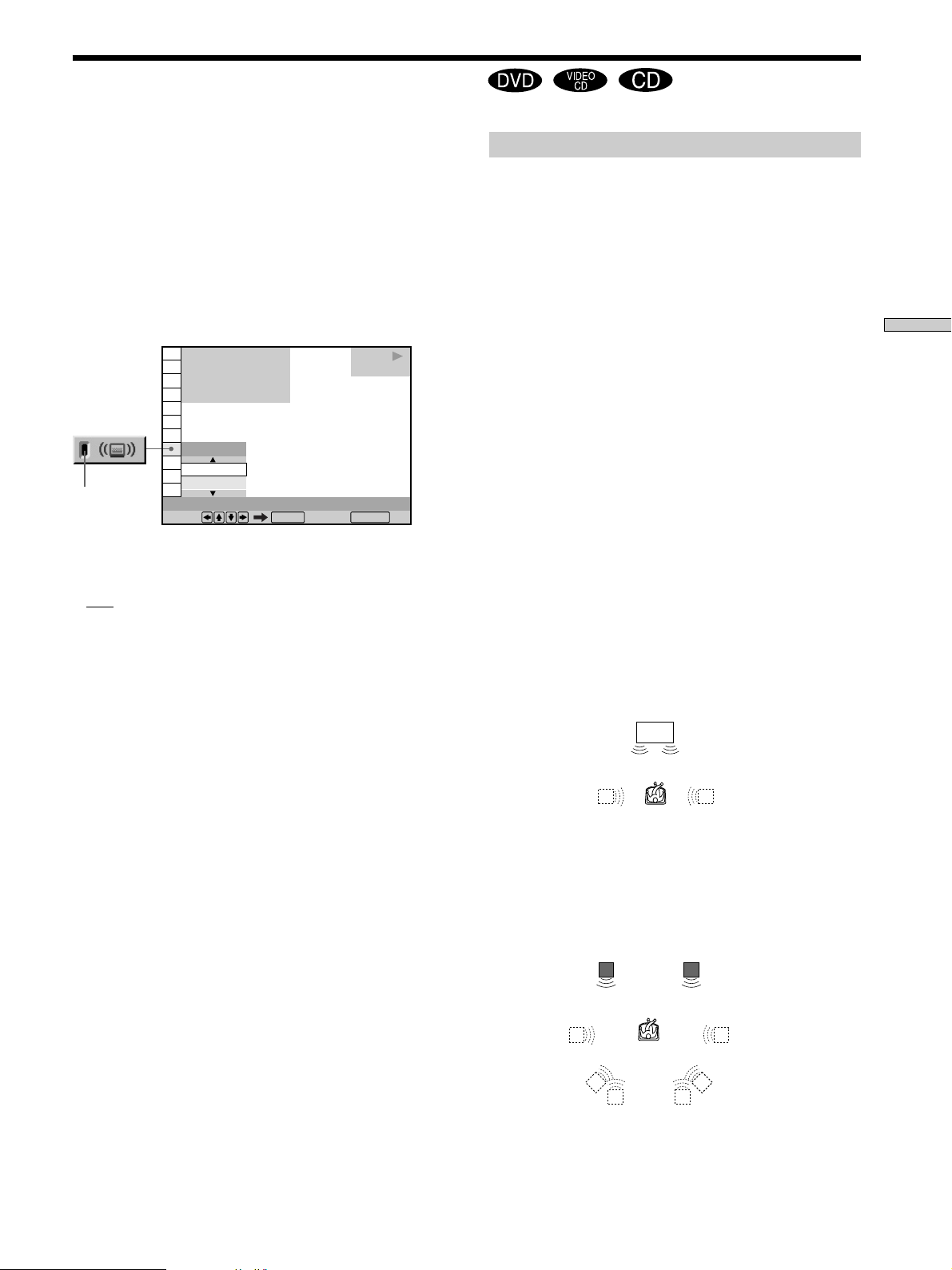

Digital Cinema Sound Settings

You can enjoy 3D surround sounds while playing discs including Dolby Digital and DTS DVDs, even if you only have 2 or 4 speakers. Select the surround mode that best suits your speaker setup. You can also experience virtual 3D surround sound effects through your headphones.

Select “VIRTUAL 3D SURROUND” after pressing DISPLAY. When you select any item except “OFF,” the ”VIRTUAL 3D SURROUND” indicator lights up in green.

Indicator

1 1 2 ( 2 7 1 8 ( 3 4 C

VES TV

VES TV VES A

VIRTUAL 3D SURROUND Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

PLAY DVD

x VIRTUAL 3D SURROUND

The default setting is underlined.

•

OFF

For 2 speaker setups

• VES TV

• VES A

• VES B

• VIRTUAL SEMI MULTI DIMENSION

For 4 (or more) speaker setups

• NORMAL SURROUND

• ENHANCED SURROUND

• VIRTUAL REAR SHIFT

• VIRTUAL MULTI REAR

• VIRTUAL MULTI DIMENSION

When using headphones

• VIRTUAL SURROUND HEADPHONES Select the desired item. For details on each item, see the following explanation.

Notes

• If you connect only 2 front speakers, you can only use “VES TV,” “VES A,” “VES B” or “VIRTUAL SEMI MULTI DIMENSION.” If you connect more speakers, we recommend that you select an item other than those above.

• To enjoy the original Dolby Digital sound thr ough the 5.1CH OUTPUT connectors, correctly set each speaker position and distance. For details on setting each speaker, see page 67.

For 2 speaker setups

When you connect only 2 front speakers, Virtual Enhanced Surround lets you enjoy surround sound effects by using 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. Select one of the following modes: VES TV, VES A, VES B, VIRTUAL SEMI MULTI DIMENSION. If the player is set up to output the signal from the DIGITAL OUT (OPTICAL or COAXIAL) connector, the surround effect will be heard only when you set “DOLBY DIGITAL” to “D-PCM” and “DTS” to “D-PCM” in “AUDIO SETUP.”

OFF

Outputs all channel signals recorded on the disc. For example, outputs 2-channel signals for the stereo sound of a CD or the Dolby Digital and DTS sounds of the DVD. When you connect fewer than 6 speakers, the player appropriately distributes the output signal for the missing speaker to other speakers.

VES (Virtual Enhanced Surround) TV

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. This mode is effective when the distance between the front L and R speakers is short, such as built-in speakers on a stereo TV.

VES (Virtual Enhanced Surround) A

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. The virtual speakers are reproduced as shown in the illustration below.

Using Various Functions with the Control Menu

Page 40

Digital Cinema Sound Settings

Using Various Functions with the Control Menu

VES (Virtual Enhanced Surround) B

L R

VIRTUAL SEMI MULTI DIMENSION

Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at a 30˚ angle of elevation.

NORMAL SURROUND

Software with 2 channel audio signals is decoded with Dolby Surround (Pro Logic) to create surround effects. The rear speakers will emit identical monaural sounds. If you are using a center speaker, Dolby Surround (Pro Logic) will also create the appropriate sounds for the center speaker .

L R

RSLS

ENHANCED SURROUND

Provides a greater sense of presence from a Dolby Surround (Pro Logic) source with a monaural rear channel signal. Produces a stereo like effect in the rear channels.

VIRTUAL REAR SHIFT

Uses 3D sound imaging to shift the sound of the rear speakers away from the actual speaker position. The virtual speakers are reproduced as shown in the illustration below. The shift postion differs according to the setting of the rear speaker position (page 68).

L: Front speaker (left) R:Front speaker (right)

: Virtual speaker

For 4 (or more) speaker setups

When you connect 2 front speakers and 2 rear speakers, you can enjoy Dolby Surround (Pro Logic) sounds, or use 3D sound imaging to shift the sound of the rear speakers away from the actual speaker position or create entire sets of virtual rear speakers from 1 set of actual rear speakers. Select one of the following modes: NORMAL SURROUND, ENHANCED SURROUND, VIRTUAL REAR SHIFT, VIRTUAL MULTI REAR, VIRTUAL MUL TI DIMENSION.

OFF

SIDE REAR

LS RS

VIRTUAL MULTI REAR

Uses 3D sound imaging to create an array of virtual rear speakers from a single pair of actual rear speakers. The virtual speakers are reproduced as shown in the illustration below. The position of the virtual rear speakers differs according to the setting of the rear speaker position (page 68).

SIDE REAR

LS RS

Page 41

VIRTUAL MULTI DIMENSION

Uses 3D sound imaging to create an array of virtual rear speaker positions higher than the listener from a single pair of actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at approximately a 30˚ angle of elevation. The effect differs according to the setting of the rear speaker position (page

68).

SIDE REAR

L: Front speaker (left) R:Front speaker (right) LS: Rear speaker (left) RS: Rear speaker (right)

: Virtual speaker

LS RS

zYou can select ”VIRTUAL 3D SURROUND“ directly

Press VIRTUAL 3D SURROUND on the player. Each time you press the button, the mode changes.

When using headphones

Select VIRTUAL SURROUND HEADPHONES when you want to experience Virtual 3D Surr ound effects through your headphones.

VIRTUAL SURROUND HEADPHONES

Uses 3D sound imaging to place the listener in an acoustically sophisticated movie studio by giving greater definition to the sound. Adjust the volume using the PHONES LEVEL control to the right of the PHONES connector. You can also enjoy the surround effect through your receiver’s headphones connector when your receiver is connected to this player.

zYou can select “VIRTUAL SURROUND HEADPHONES” directly

Press VIRTUAL SURROUND HEADPHONES on the player. To turn it off, press the button again.

Notes

• When you press VIRTUAL SURROUND HEADPHONES on the player, the VIRTUAL 3D SURROUND mode turns off and vice versa.

• If the player is set up to output the signal from DIGITAL OUT (OPTICAL or COAXIAL) and you are using your receiver’s headphones, the surround effect will be heard only when you set “DOLBY DIGITAL” to “D-PCM” and “DTS” to “D-PCM” in “AUDIO SETUP.”

Using Various Functions with the Control Menu

Notes

• When you select an item, the sound cuts off for a moment.

• When the playing signal does not contain a signal for the rear speakers, the 3D surround effects may be difficult to hear.

• When you connect a center speaker and a subwoofer, you can also hear the sound from the center speaker and the subwoofer. However, when you select “VES TV,” “VES A,” ”VES B” or “VIRTUAL SEMI MULTI DIMENSION,” the player does not output the sound from the center speaker.

• When you select one of the VIRTUAL 3D SURROUND modes, set the surround setting of the connected units, such as the amplifier, to OFF.

• The sampling frequency is converted to 48 kHz when a VIRTUAL 3D SURROUND mode is selected.

• If the player is set up to output the signal from the DIGITAL OUT (OPTICAL or COAXIAL) connectors, the surround effect will not be heard when you play a CD.

• Set the front speakers to form an equilateral triangle with the listening position at the top. Otherwise, the effects may be difficult to hear even if you select “VES A,” ”VES B” or “VIRTUAL SEMI MULTI DIMENSION.”

• When you connect 4 speakers, the surround effect will not be heard if you use the DIGITAL OUT (OPTICAL or COAXIAL) connectors.

Page 42

Checking the Play Information

Using Various Functions with the Control Menu

You can check information such as the bit rate or the disc layer that is being played. While playing a disc, the approximate bit rate of the playback picture is always displayed as Mbps (Mega bit per second) and the audio as kbps (kilo bit per second).

Select “ADVANCED” after pressing DISPLAY.

1 1 2 ( 2 7 1 8 ( 3 4 C

BIT RATE

ADVANCED Select:

) )

0 1 : 3 2 : 5 5

BIT RATE

ENTER

PLAY DVD

384 kbps

Mbps

x ADVANCED

The default setting is underlined.

When playing a DVD

•

BIT RATE: displays the bit rate.

• LAYER: displays the layer and the pick-up point.

• OFF: turns off ADVANCED display.

Displays of each item

By pressing DISPLAY repeatedly, you can display either “BIT RATE” or “LAYER,” whichever was selected in “ADVANCED.”

BIT RATE

384

kbps Mbps

Bit rate refers to the amount of video/audio data per second in a disc. The higher the bit rate, the larger the amount of data. When the bit rate level is high, there is a large amount of data. However, this does not always mean that you can get higher quality pictures or sounds.

LAYER

Audio

Video

Appears when the DVD has dual layers

Indicates the approximate point where the disc is playing. If it is a dual-layer DVD, the player indicates which layer is being read (“Layer 0” or “Layer 1”). For details on the layers, see page 79 (DVD).

Page 43

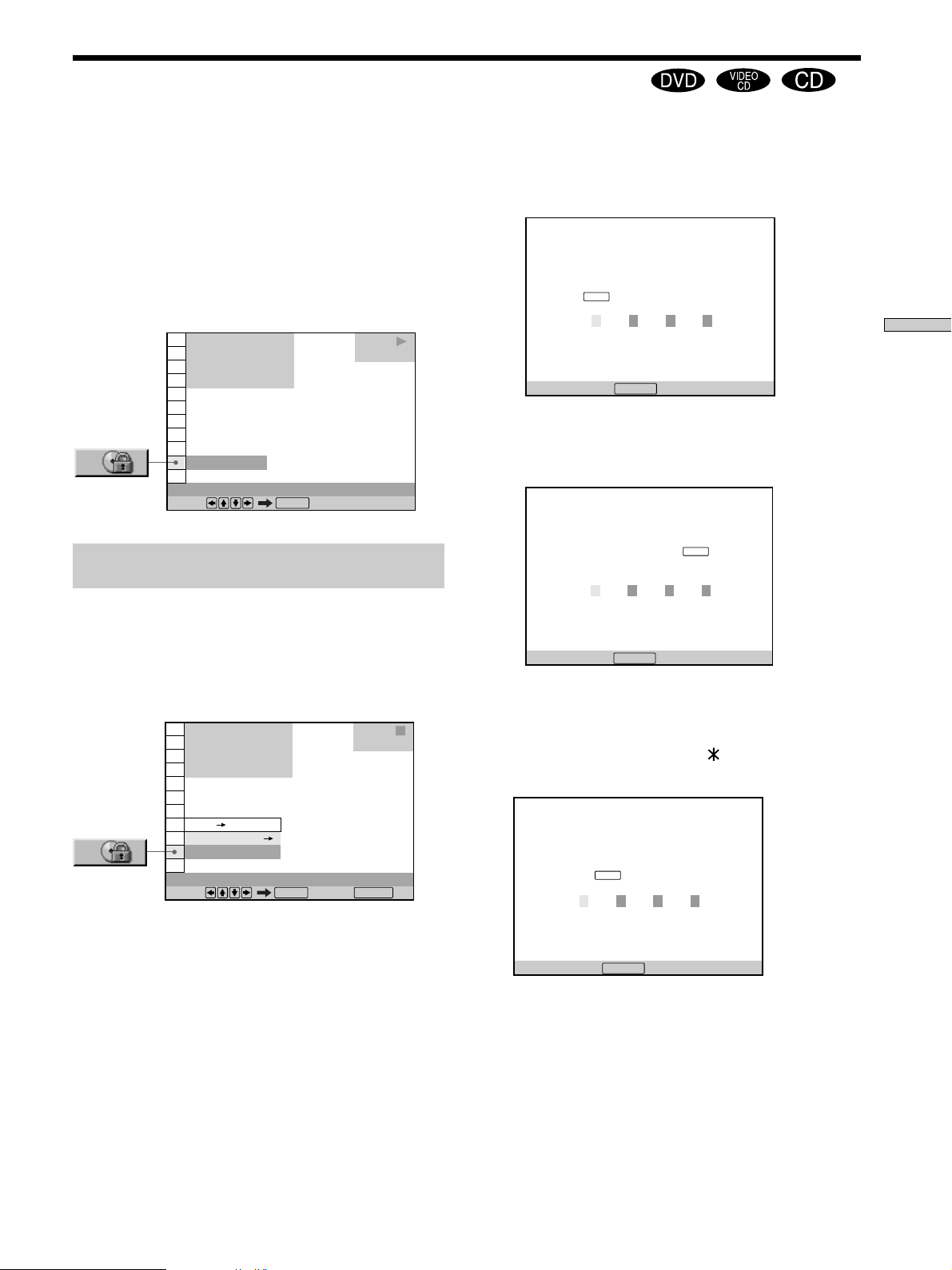

Locking Discs (Custom Parental Control) Z

Using a registered password, you can set playback restrictions for the desired disc(s). You can set the same Custom Parental Control password for up to 300 discs. When you set the three-hundred and first disc, the first disc is canceled. The same password is used for both Parental Control (page 62) and Custom Parental Control.

Select “CUSTOM PARENTAL CONTROL” after pressing DISPLAY.

1 1 2 ( 2 7 1 8 ( 3 4 C

OFF

CUSTOM PARENTAL CONTROL Select:

) )

0 1 : 3 2 : 5 5

ENTER

PLAY DVD

Setting the Custom Parental Control for a disc

3 Select “ON,” using M/m, then press ENTER.

x If you have not entered a password

The display for entering a password appears.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

To return, press .

x When you have already registered a password

The display for confirming the password appears. Skip Step 4.

CUSTOM PARENTAL CONTROL

Enter password, then press

RETURN

ENTER

Using Various Functions with the Control Menu

1 Insert and select the disc you want to lock.

If a disc is playing, press x to stop playback.

2 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

1 1 2 ( 2 7 1 8 ( 3 4 C

ON PASSWORD OFF

CUSTOM PARENTAL CONTROL

Select: Cancel:

) )

0 1 : 3 2 : 5 5

ENTER RETURN

STOP DVD

To return, press .

RETURN

4 Enter a 4-digit password using the number

buttons, then press ENTER.

The digits change to asterisks (

), and the display for

confirming the password appears.

CUSTOM PARENTAL CONTROL

To confirm, enter password again, then press

To return, press .

ENTER

RETURN

5 Enter the same 4-digit password using the number

buttons, then press ENTER.

“Custom parental control is set.” appears and then the screen returns to the Control Menu display.

Page 44

Locking Discs (Custom Parental Control)

Using Various Functions with the Control Menu

To return to the normal screen

Press ORETURN.

To turn off the Custom Parental Control function

1 Select the disc for which you want to turn off the

Custom Parental Control function.

2 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

3 Select “OFF,” using M/m, then press ENTER. 4 Enter your 4-digit password using the number buttons,

then press ENTER.

To change the password

1 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

2 Select “PASSWORD,” using M/m, then press ENTER. 3 Enter your 4-digit password using the number buttons,

then press ENTER. The display for changing the password appears.

4 Enter a new 4-digit password using the number

buttons, then press ENTER.

5 To confirm your password, re-enter it using the number

buttons, then press ENTER.

Playing the disc for which the Custom Parental Control is set

1 Insert the disc.

The CUSTOM PARENTAL CONTROL display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

and press

ENTER

2 Enter your 4-digit password using the number

buttons, then press ENTER.

The player starts playback.

zIf you forget your password

Enter the 6-digit number “199703” whenever the CUSTOM PARENTAL CONTROL display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Note

Unless you enter the password, the player cannot play the disc for which the Custom Parental Control is set. When you do not know the password, press A and remove the disc.

Page 45

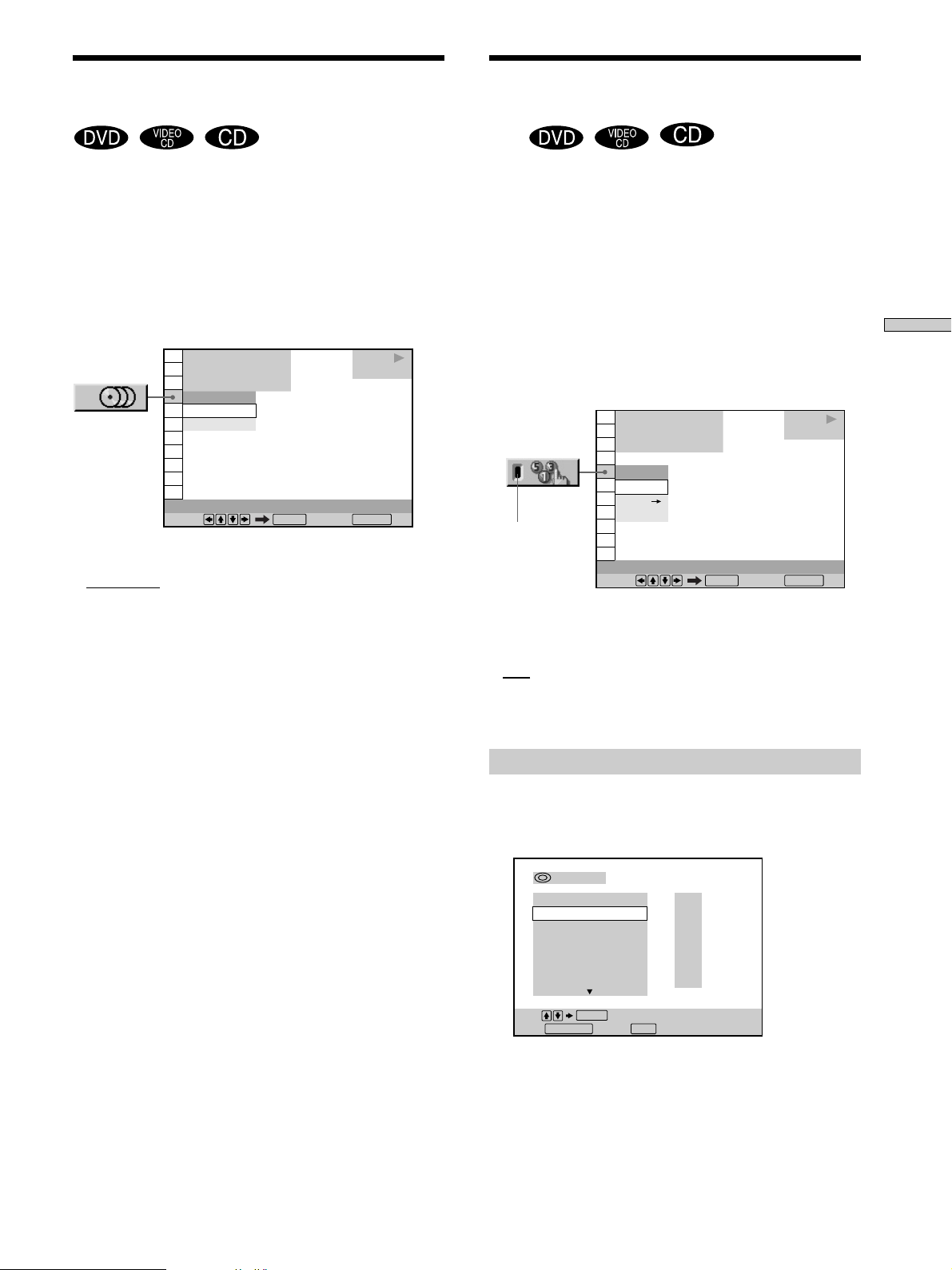

Selecting the Disc Mode

Creating Your Own

(1 Disc or All Discs)

You can have the player play one disc or all of the discs in the player. Before setting Program Play, Shuffle Play, or Repeat Play, you must select whether to set those play modes on one disc or all of the discs.

Select “1/ALL DISCS” after pressing DISPLAY.

1 1 2 ( 2 7 1 8 ( 3 4 ALL DISCS ALL DISCS 1 DISC

1/ALL DISCS Select: Cancel:

) )

ENTER RETURN

x 1/ALL DISCS

•

ALL DISCS: will play all of the discs in the player in consecutive order. Also allows you to set Program Play, Shuffle Play or Repeat Play for all of the loaded discs.

• 1 DISC: will play the selected disc to the end. Also

allows you to set Program Play, Shuffle Play or Repeat Play for 1 disc only.

z You can select the mode directly

Press 1/ALL on the player or 1/ALL DISCS on the remote. Each time you press the button, 1 DISC or ALL DISCS mode is selected.

PLAY DVD

Program (Program Play) Z

You can play the contents of the disc(s) in the order you want by arranging the order of the titles, chapters or tracks on the disc and create your own program. One program can be stored in the player and contain up to 99 titles, chapters and tracks. By selecting “1/ALL DISCS,” you can create a program for one or all of the discs in the player.

Select “PROGRAM” after pressing DISPLAY. When you select “ON,” the “PROGRAM” indicator lights up in green.

1 1 2 ( 2 7 1 8 ( 3 4

OFF OFF SET ON

Indicator

PROGRAM

Select: Cancel:

) )

ENTER RETURN

x PROGRAM

The default setting is underlined.

•

OFF: plays normally.

• SET,: allows you to create your own program.

• ON: plays Program Play.

Creating the program

1 Select “SET,” in “PROGRAM.”

The programming display appears and “1” is highlighted.

PLAY DVD

Using Various Functions with the Control Menu

PROGRAM

– : – – –

ALL CLEAR

1. – – – –

2. – – – –

3. – – – –

4. – – – –

5. – – – –

6. – – – –

Set: Quit: Start:

ENTER

ALL

PLAYPROGRAM

Page 46

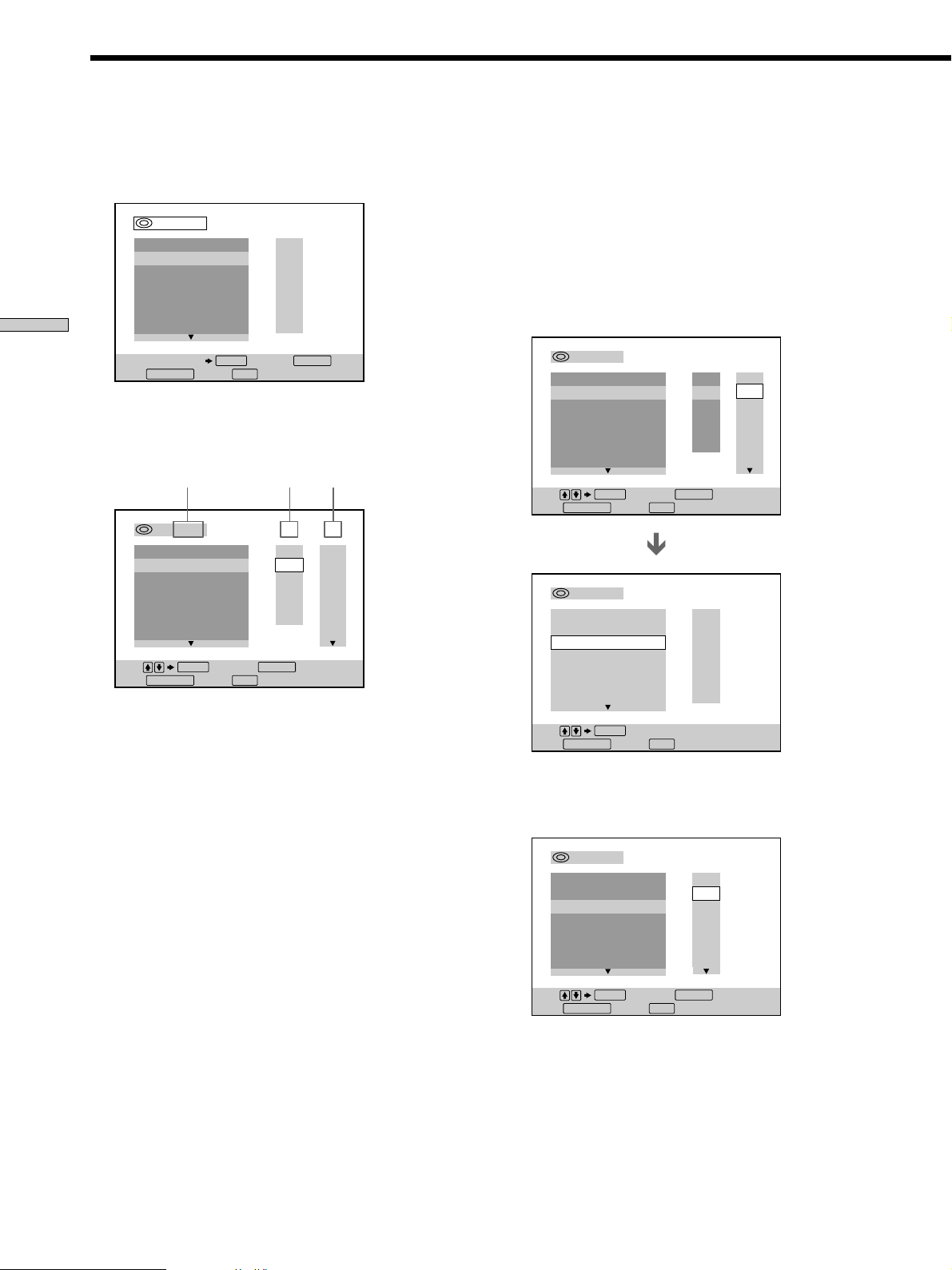

Creating Your Own Program (Program Play)

Using Various Functions with the Control Menu

2 Press ENTER.

It is ready to set the first disc of a title or track for Program Play.

PROGRAM

– : – – –

ALL CLEAR

1. – – – –

2. – – – –

3. – – – –

4. – – – –

5. – – – –

6. – – – –

Number buttons Return: Quit: Start:

ENTER RETURN

PLAYPROGRAM

ALL

3 Select the disc you want to program using the

number buttons or M/m, then press ENTER.

Disc type*

PROGRAM

3 : DVD

ALL CLEAR

1. – – – –

2. – – – –

3. – – – –

4. – – – –

5. – – – –

6. – – – –

Set: Return: Quit: Start:

* “?” appears when the player has not loaded the disc

information in the memory. If an empty tray is loaded, the disc type does not appear.

ENTER RETURN

Title Chapter

ALL

PLAYPROGRAM

ALL

4 Select the title, chapter or track you want to

program using M/m, then press ENTER.

You can also use the number buttons and ENTER button to make a selection. In this case, the selected number is displayed on the screen.

x When playing a DVD

For example, select title 1, chapter 1 in disc 3. When both titles and chapters are recorded on the disc, select the title, then the chapter.

PROGRAM

3 : DVD

ALL CLEAR

1. – – – –

2. – – – –

3. – – – –

4. – – – –

5. – – – –

6. – – – –

Set: Return: Quit: Start:

Set: Quit: Start:

ENTER RETURN

PROGRAM

– : – – –

ALL CLEAR

1. 3DVD –T01–C01

2. – – – –

3. – – – –

4. – – – –

5. – – – –

6. – – – –

ENTER

PLAYPROGRAM

ALL

x When playing a VIDEO CD or CD

For example, select track 1 in disc 2.

PROGRAM

2 : VCD

ALL CLEAR

1. 3DVD –T01–C01

2. – – – –

3. – – – –

4. – – – –

5. – – – –

6. – – – –

Set: Return: Quit: Start:

ENTER RETURN

PLAYPROGRAM

ALL

01 02 03 04 05 06

5 To program other discs, titles, chapters or tracks,

repeat Steps 3 and 4.

The programmed discs, titles, chapters or tracks are displayed in the selected order.

Page 47

6 Press H to start Program Play.

To stop Program Play

Press CLEAR on the remote.

To cancel programming

Press PROGRAM on the remote.

To change the program

1 In Step 3, select the disc for which you want to change

the program using M/m.

2 Follow Step 4 for new title, chapter or track

programming.

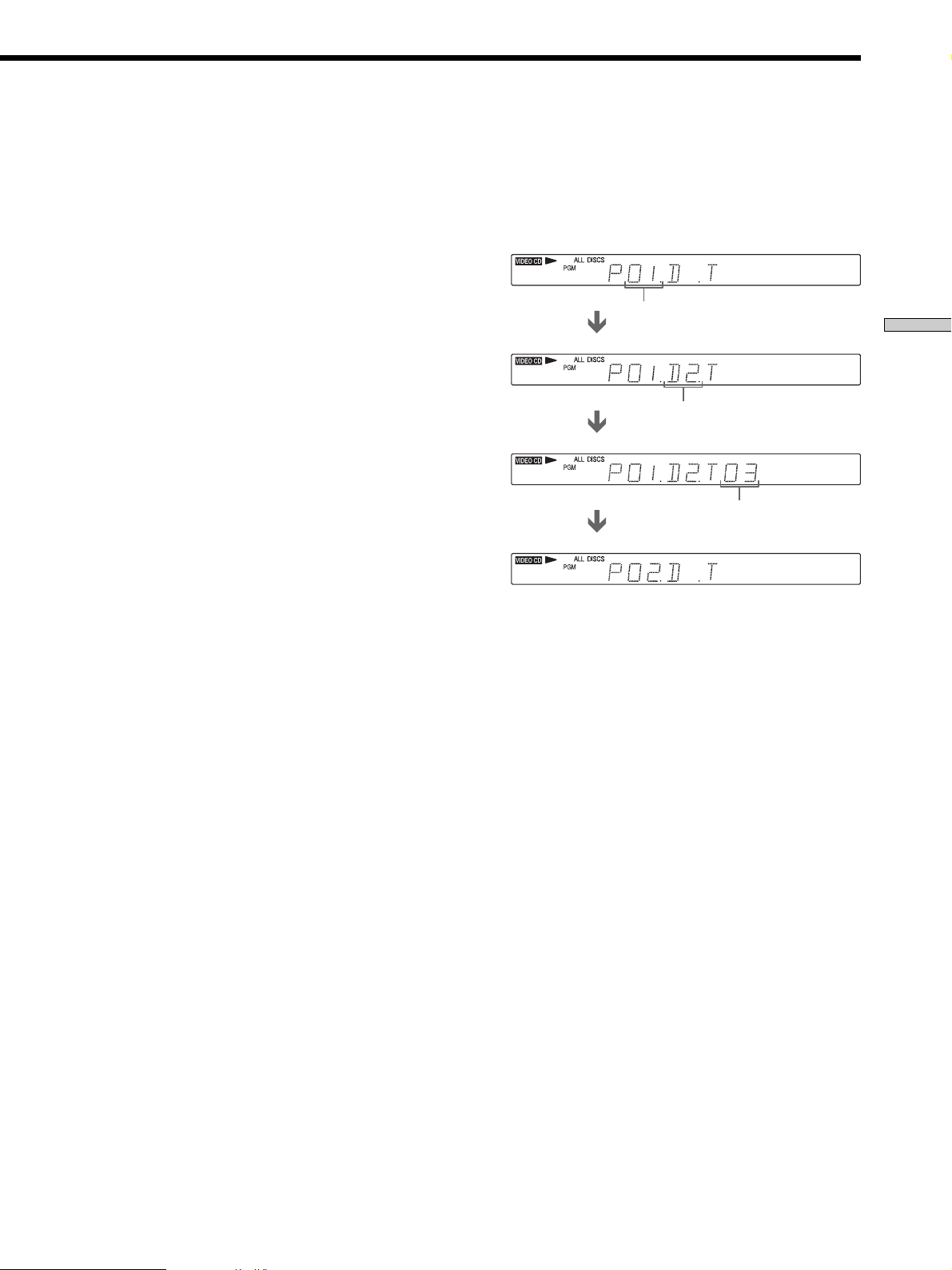

zYou can select discs, titles, chapters and tracks for the

program by looking at the front panel display

You can program by looking at the front panel display instead of using the programming display on the TV screen. When you select Track 3 in a VIDEO CD in disc tray 2 for Program 1, the front panel display will appear as follows:

Program number

Using Various Functions with the Control Menu

To cancel the programmed order

To cancel all the titles, chapters or tracks in the programmed order, select “ALL CLEAR”. To cancel the selected program, select the program using M/m then press CLEAR.

zThe program remains even after Program Play ends

When you press H, you can play the same program again.

zYou can do Repeat Play or Shuffle Play of the programmed

titles, chapters or tracks

During Program Play, press REPEAT or SHUFFLE. Or set “REPEAT” or “SHUFFLE” to “ON” in the Control Menu display.

zYou can select “PROGRAM” directly

Press PROGRAM on the remote.

zFor easier programming, load the disc information

Press LOAD when the player is in standby or stop mode so that the player reads and loads the disc information.

Disc number

Track number

Notes

• The number of titles, chapters or tracks displayed are the same number of titles, chapters or tracks recorded on a disc.

• Program play is canceled when:

– you open the disc tray – the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• Depending on the DVD, you may not be able to perform Program Play.

• If you are using the PBC playback function, you must first stop the disc before you can set a program.

Page 48

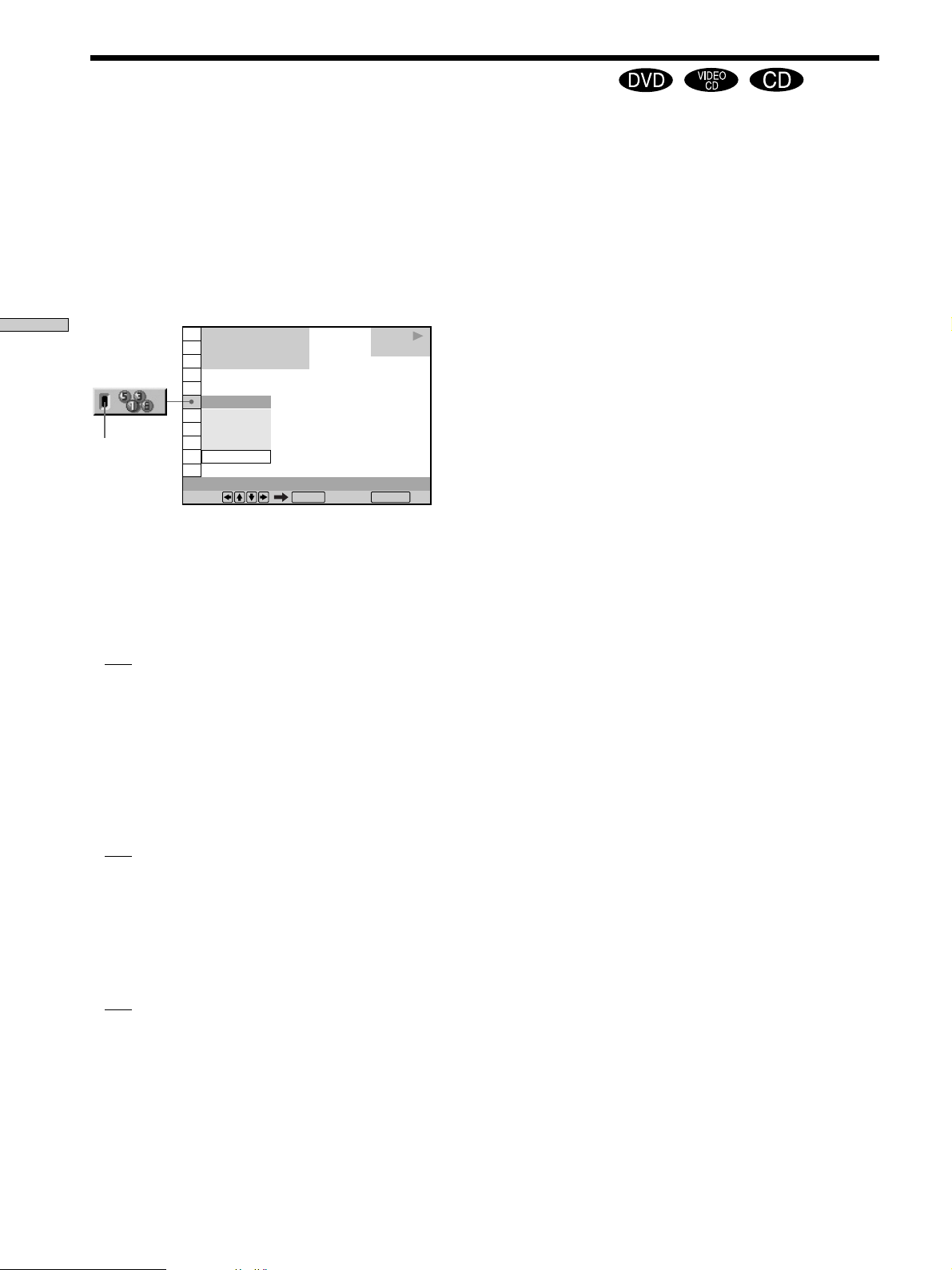

Playing in Random Order (Shuffle Play)

Using Various Functions with the Control Menu

You can have the player “shuffle” discs, titles, chapters or tracks and play them in a random order. Subsequent “shuffling” may produce a different playing order. By selecting “1/ALL DISCS,” you can have the player shuffle one disc or all of the discs in the player.

Select “SHUFFLE” after pressing DISPLAY. When you select a shuffle mode other than “OFF,” the “SHUFFLE” indicator lights up in green.

Indicator

1 1 2 ( 2 7 1 8 ( 3 4

CHAPTER OFF

DISC TITLE CHAPTER

SHUFFLE Select: Cancel:

) )

ENTER RETURN

PLAY DVD

x SHUFFLE

Selects the Shuffle Play setting. The default settings are underlined.

To stop Shuffle Play

Press CLEAR on the remote.

zYou can set Shuffle Play while the disc is stopped

After selecting the “SHUFFLE” option, press H. The player starts Shuffle Play.

zYou can select “SHUFFLE” directly

Press SHUFFLE on the player or the remote. Each time you press the button, the item changes.

Notes

• Shuffle Play is canceled when: – you open the disc tray

– the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• Depending on the DVD, you may not be able to perform Shuffle Play.

• Up to 96 chapters in a disc can be played in random order when “CHAPTER” is selected.

• You cannot perform Shuffle Play during PBC playback of VIDEO CDs (page 21).

When playing a DVD and when Program Play is set to OFF

•

OFF: does not play the disc(s) in random order.

• DISC*: has the player “shuffle” discs and play them in a random order.

• TITLE: has the player “shuffle” titles and play them in a random order.

• CHAPTER: has the player “shuffle” chapters and play them in a random order.

When playing a VIDEO CD or CD (when Program Play is set to OFF)

•

OFF: does not play the disc(s) in random order.

• DISC*: has the player “shuffle” discs and play them in a random order.

• TRACK: has the player “shuffle” tracks and play them in a random order.

When playing a VIDEO CD, CD or DVD (when Program Play is set to ON)

•

OFF: does not play the disc(s) in random order.

• ON: has the player “shuffle” titles or tracks selected in Program Play and play them in a random order.

* Appears only when you select “ALL DISCS” in “1/ALL

DISCS.”

Page 49

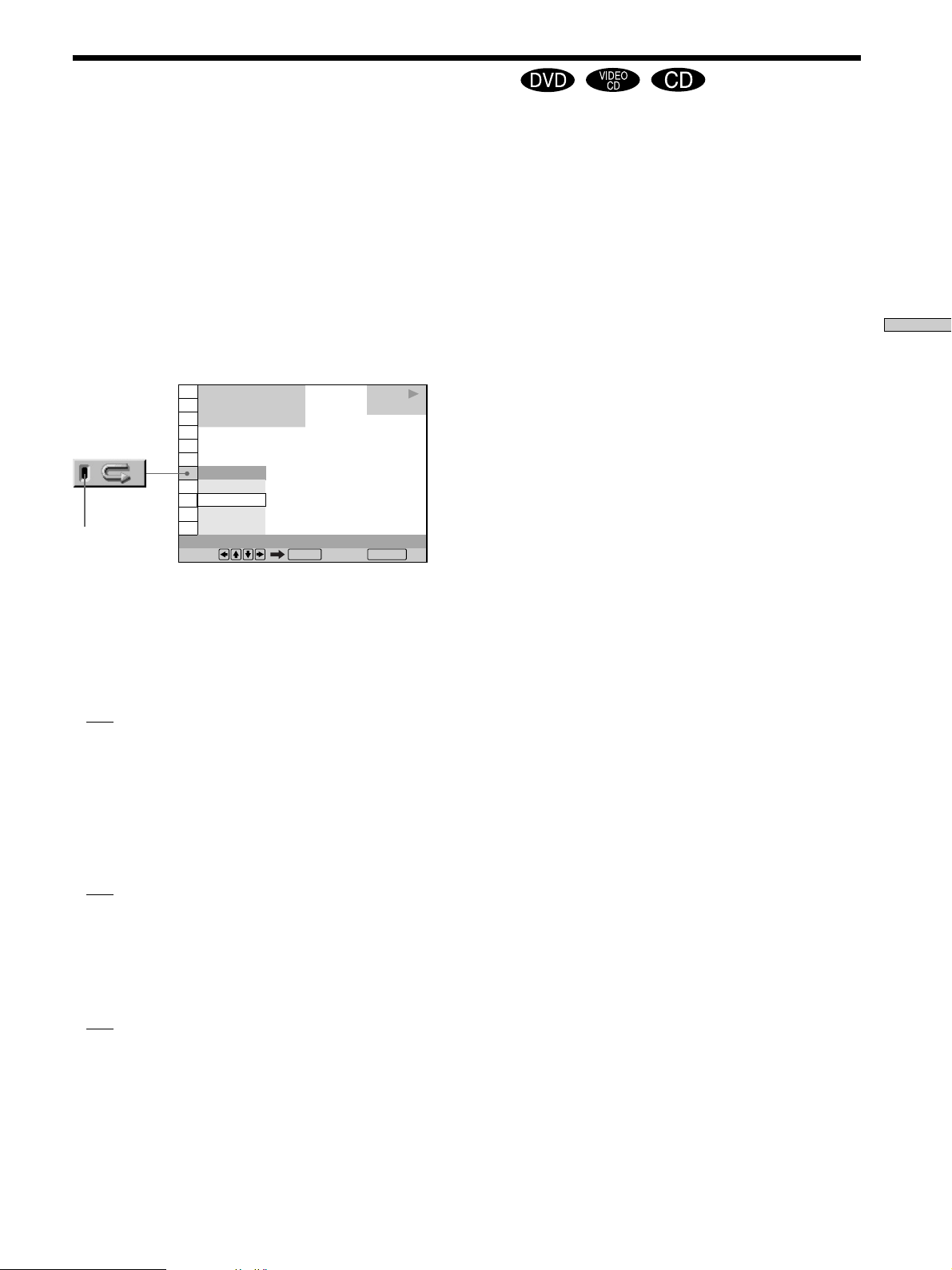

Playing Repeatedly (Repeat Play)

You can play all discs, or all of the titles or tracks on a disc, or a single title, chapter or track repeatedly. In Shuffle or Program Play mode, the player repeats the titles or tracks in the shuffled or programmed order. By selecting “1/ALL DISCS,” you can have the player repeat one disc or all of the discs in the player. You cannot perform Repeat Play during PBC playback of VIDEO CDs (page 21).

Select “REPEAT” after pressing DISPLAY. When you select a repeat mode other than “OFF,” the “REPEAT” indicator lights up in green.

Indicator

1 1 2 ( 2 7 1 8 ( 3 4

DISC OFF DISC

TITLE

CHAPTER REPEAT Select: Cancel:

) )

ENTER RETURN

PLAY DVD

x REPEAT

Selects the Repeat Play setting. The default settings are underlined.

zYou can set Repeat Play while the disc is stopped

After selecting the “REPEAT” option, press H. The player starts Repeat Play.

zYou can select “REPEAT” directly

Press REPEAT on the player or the remote. Each time you press the button, the item changes.

Notes

• Repeat play is canceled when: – you open the disc tray – the player enters standby mode by pressing ?/1 on the

remote

– you turn the power off by pressing ! on the player

• Depending on the DVD, you may not be able to perform Repeat Play.

Using Various Functions with the Control Menu

When playing a DVD and when Program Play and Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all titles on the selected disc when you select “1 DISC” in “1/ALL DISCS,” and repeats all titles in all discs when you select “ALL DISCS.”

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

When playing a VIDEO CD/CD and when Program Play and Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all tracks on the selected disc when you select “1 DISC” in “1/ALL DISCS,” and repeats all tracks in all discs when you select “ALL DISCS.”

• TRACK: repeats the current track.

When Program Play or Shuffle Play is on

•

OFF: does not play repeatedly.

• ON: repeats Program Play or Shuffle Play.

To stop Repeat Play

Press CLEAR on the remote.

Page 50

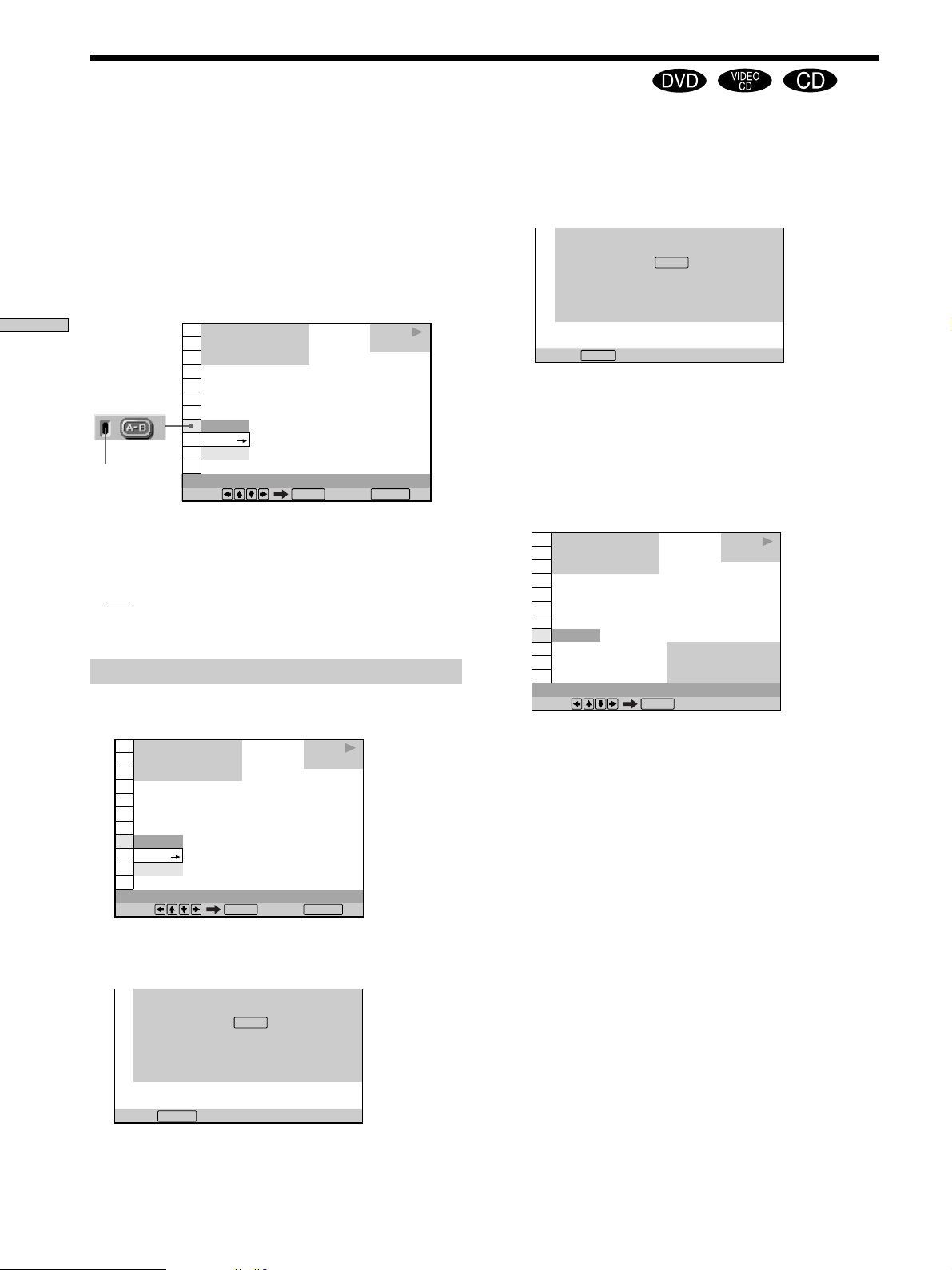

Repeating a Specific Portion (A–B Repeat)

Using Various Functions with the Control Menu

You can play a specific portion of a title, chapter or track repeatedly. This function is useful when you want to do such things as memorize lyrics. During PBC Playback of VIDEO CDs (page 21), this function is available only while playing moving pictures.

Select “A-B REPEAT” after pressing DISPLAY. During A-B Repeat Play, the “A-B REPEAT” indicator lights up in green.

Indicator

1 1 2 ( 2 7 1 8 ( 3 4

OFF SET OFF

A–B REPEAT Select: Cancel:

) )

ENTER RETURN

PLAY DVD

x A-B REPEAT

The default setting is underlined.

• SET,: sets the A and B points.

•

OFF: does not play a specific portion of a title/chapter/ track repeatedly.

Setting a portion for A-B repeat

1 Select “A-B REPEAT” and press ENTER.

3 During playback, when you find the starting point

(point A) of the portion to be played repeatedly, press ENTER.

The starting point (point A) is set.

0 1 : 3 2 : 5 5

A-B REPEAT

Set point B with .

CLEAR

Cancel:

ENTER

CHAPTER

A: 18 – 01 : 32 : 55

TIME

4 When you reach the ending point (point B), press

ENTER again.

The set points are displayed and the player starts repeating this specific portion. “A-B” appears on the front panel display during A-B repeat play.

1 1 2 ( 2 7 1 8 ( 3 4

A–B REPEAT Select:

) )

CHAPTER A: 18 – 01 : 32 : 55 B: 18 – 01 : 34 : 30

ENTER

PLAY DVD

TIME

1 1 2 ( 2 7 1 8 ( 3 4

) )

PLAY DVD

To stop A-B Repeat Play

Press CLEAR on the remote.

Notes

OFF SET OFF

A–B REPEAT To select, press , then .

Select: Cancel:

ENTER RETURN

2 Select “SET,” and press ENTER.

The A-B REPEAT setting display appears.

0 1 : 3 2 : 5

A-B REPEAT

Set point A with

RETURN

Return:

ENTER

• You can set A-B Repeat for only one specific portion.

• A–B Repeat is canceled when: – you open the disc tray

– the player enters standby mode by pressing @/1 on the

remote

– you turn the power off by pressing ! on the player

• When you set A-B Repeat, the settings for Shuffle Play, Repeat Play, and Program Play are canceled.

• You may not be able to set A-B Repeat for some DVD or VIDEO CD scenes.

• You cannot set the start point (point A) on one disc and ending point (point B) on other disc.

Page 51

Adjusting the Playback Picture (Video Equalizer)

You can adjust the video output of the DVD or VIDEO CD from the player, not from the TV, to obtain the picture quality you want. Choose the video mode that suits the program you are watching. When you select “MEMORY,,” you can make further adjustments to each element of the picture (color, brightness, etc.).

Select “VIDEO EQUALIZER” after pressing DISPLAY . When you select a setting other than “STANDARD,” the “VIDEO EQUALIZER” indicator lights up in green.

Indicator

1 1 2 ( 2 7 1 8 ( 3 4

STANDARD DYNAMIC 1 DYNAMIC 2

STANDARD

VIDEO EQUALIZER Select: Cancel:

) )

ENTER RETURN

PLAY DVD

x VIDEO EQUALIZER

Selects the video control setting. The default setting is underlined.

•

STANDARD: displays a standard picture.

• DYNAMIC 1: produces a bold dynamic picture by increasing the picture contrast and the color intensity.

• DYNAMIC 2: produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and the color intensity.

• CINEMA 1: enhances details in dark areas by increasing the black level.

• CINEMA 2: white colors become brighter and black colors become richer, and the color contrast is increased.

• MEMORY,: adjusts the picture in greater detail.

To adjust the picture items in MEMORY

You can adjust each element of the picture individually.

• PICTURE: changes the contrast

• BRIGHTNESS: changes the overall brightness

• COLOR: makes the colors deeper or lighter

• HUE: changes the color balance

1 Select “VIDEO EQUALIZER” and press ENTER.

1 1 2 ( 2 7 1 8 ( 3 4

STANDARD DYNAMIC 1 DYNAMIC 2

STANDARD

VIDEO EQUALIZER Select: Cancel:

) )

ENTER RETURN

PLAY DVD

2 Select “MEMORY,” and press ENTER.

The video equalizer display appears.

0 1 : 3 2 : 5

VIDEO EQUALIZER

PICTURE BRIGHTNESS COLOR HUE

RESET

Select : Cancel :

ENTER

RETURN

3 Select the picture item you want to adjust using

M/m, then press ENTER.

The adjustment bar of the selected item appears. To cancel adjusting the picture, press ˆRETURN.

0 1 : 3 2 : 5

Using Various Functions with the Control Menu

zWhen you watch a movie

CINEMA 1 or CINEMA 2 is recommended.


Adjust: Cancel:

ENTER

RETURN

Page 52

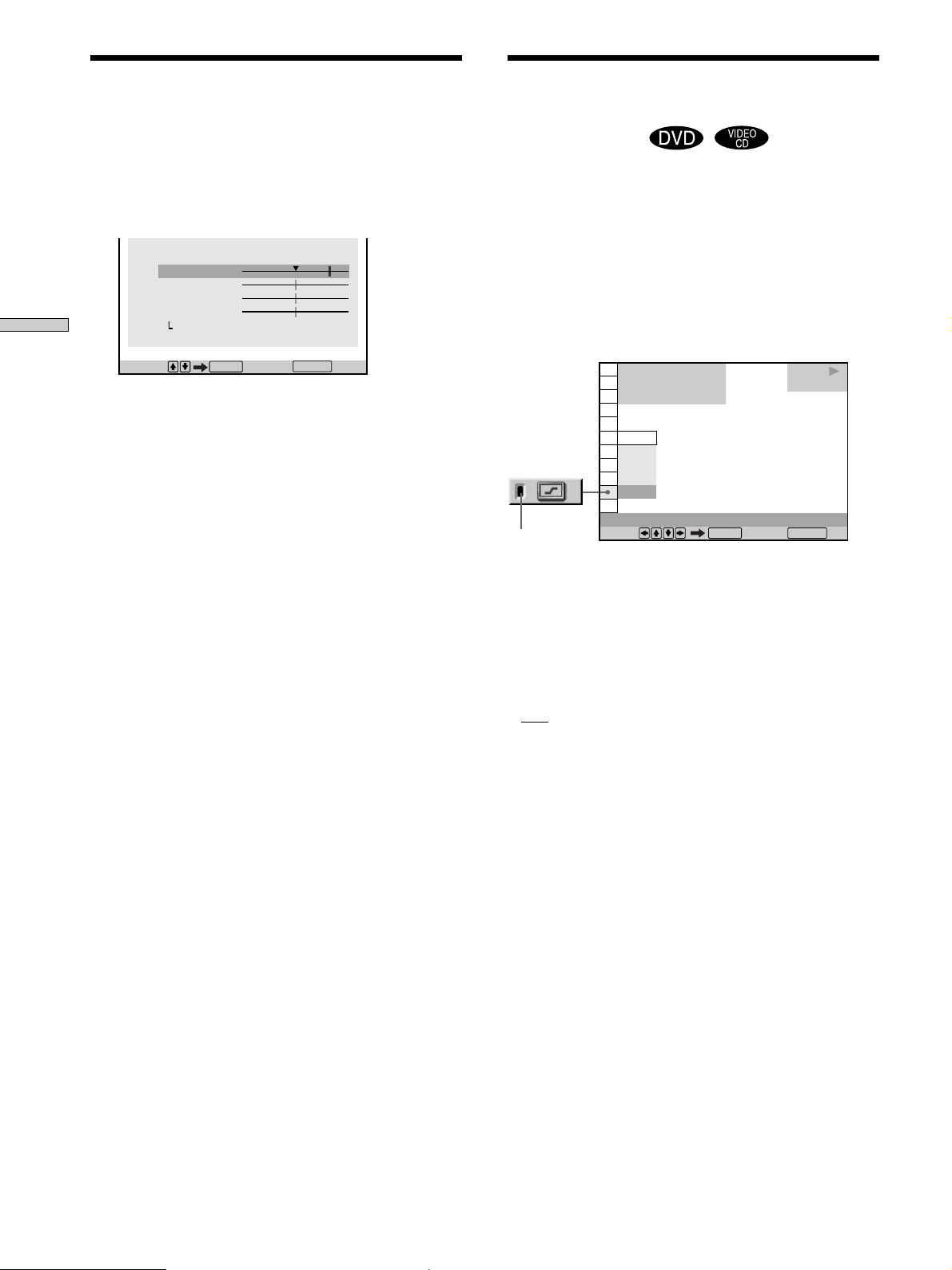

Using Various Functions with the Control Menu

Adjusting the Playback Picture (Video Equalizer)

4 Adjust the selected picture item using </,, then

press ENTER.

The setting is stored in memory.

0 1 : 3 2 : 5

VIDEO EQUALIZER

PICTURE BRIGHTNESS COLOR HUE

RESET

Enhancing the Playback Picture (Digital Video Enhancer)

The Digital Video Enhancer function makes the picture appear clear and crisp by enhancing the outlines of images on your TV screen.

Select “DIGITAL VIDEO ENHANCER” after pressing DISPLAY. When you select a level other than “OFF,” the “DIGITAL VIDEO ENHANCER” indicator lights up in green.

ENTER

RETURN

Cancel : Select :

5 To adjust other items, repeat Steps 3 and 4.

To exit the video equalizer display

Press ˆRETURN.

zTo reset the picture items

Select “RESET” in “MEMORY,.”

Note

Only one set of “MEMORY,” adjustments can be stored. When you adjust the items again, the new setting erases the previous setting.

Indicator

1 1 2 ( 2 7 1 8 ( 3 4

OFF 1 2 3 OFF

DIGITAL VIDEO ENHANCER Select: Cancel:

) )

ENTER RETURN

PLAY DVD

x DIGITAL VIDEO ENHANCER

Selects the level of enhancement. As the value increases, the outlines of images on your TV screen will become crisper. Select the level that best suits the image on your TV screen. The default setting is underlined.

•

OFF: turns off the Digital Video Enhancer function.

• 1: enhances the outline.

• 2: enhances the outline more than 1.

• 3: enhances the outline more than 2.

zYou can select ”DIGITAL VIDEO ENHANCER“ directly

Press DVE on the player or the remote. Each time you press the button, the level changes.

Note

Depending on the DVD/Video CD disc or the scene being played, noise found in the disc may become more apparent. If this happens, reduce the Digital Video Enhancer level.

Page 53

Using the Quick Reference Screen (VIEWER)

You can divide the screen into 9 sections (quick reference screen) and enjoy the following functions.

• STROBE PLAYBACK

• TITLE VIEWER (DVD only)

• CHAPTER VIEWER (DVD only)

• TRACK VIEWER (VIDEO CD only)

• ANGLE VIEWER (DVD only)

• BOOKMARK

Select “VIEWER” after pressing DISPLAY.

1 1 2 ( 2 7 1 8 ( 3 4

STROBE PLAYBACK TITLE VIEWER CHAPTER VIEWER ANGLE VIEWER BOOKMARK STROBE PLAYBACK

VIEWER

Indicator*

* The indicator lights up when a bookmark is in memory.

Select: Cancel:

) )

ENTER RETURN

PLAY DVD

Dividing a track into 9 sections (STROBE PLAYBACK)

You can display 9 consecutive sections of the disc on the screen. If you are playing a disc, you can change the speed of the images on the screen by turning the click shuttle. When you press X, 9 still images around the pause position are displayed.

Scanning the title and chapter

You can check the first picture of titles, chapters or tracks of the disc, and start playback from the chosen title, chapter or track.

When playing a DVD, select “TITLE VIEWER” or “CHAPTER VIEWER” in “VIEWER” and press ENTER.

When playing a VIDEO CD, select “TRACK VIEWER” in “VIEWER” and press ENTER.

The screen will divide into 9 sections and show the first picture of each title, chapter or track.

To start playback from the selected picture

Select the picture using </M/m/,, then press ENTER. Playback starts from the selected picture.

zWhen there are over 9 titles, chapters or tracks

V appears at the right bottom of the screen. Select the right bottom scene (the position 9) and use m to display the next titles, tracks or chapters. To return to the previous scene, select the left top scene (the position 1) and press M.

Using Various Functions with the Control Menu

Select “STROBE PLAYBACK” in “VIEWER” and press ENTER. Nine consecutive scenes appear on the screen.

To cancel watching the strobe play

Press ORETURN.

Notes

• Depending on the disc, there are some scenes you may not be

able to watch with the strobe play function.

• The sound is muted when using this function.

ENTER RETURN

Cancel:

zYou can check the number on the front panel display

The number of the title, chapter or track you selected is displayed on the front panel display.

To cancel scanning the title, chapter or track

Press ORETURN.

Notes

• Depending on the disc, you may not be able to scan the title, chapter or track.

• The sound is muted when using this function.

Page 54

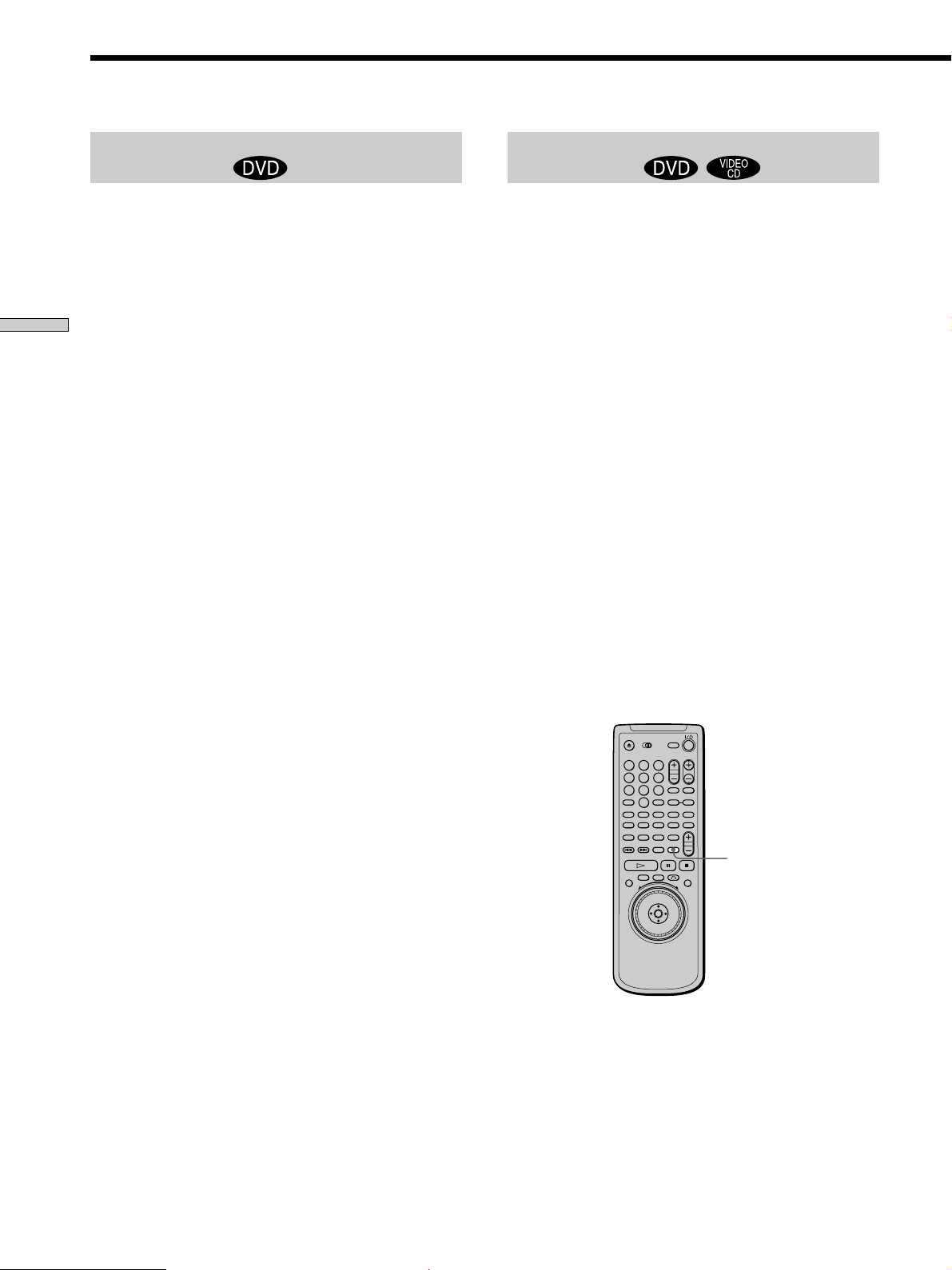

Using the Quick Reference Screen (VIEWER)

Using Various Functions with the Control Menu

Displaying different angles simultaneously

With DVDs on which various angles (multi-angles) for a scene are recorded, you can display all of the angles recorded on the disc on the same screen, and start playback in continuous mode at the chosen angle. The angles are displayed on a screen divided in 9 sections.

Select “ANGLE VIEWER” in “VIEWER.” The available angles appear on the screen.

To select one angle

Select the angle using </M/m/,, then press ENTER. The selected angle is displayed.

To cancel displaying multi-angles

Press ORETURN.

zYou can check the angle number on the front panel display

The number of the angle you selected is displayed on the front panel display.

Notes

• If only one angle is recorded on the disc, then you will not be able to use this function.

• Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

• When a scene for which various angles (multi-angles) are not recorded appears when using this function, the player returns to normal playback.

• The sound is muted when using this function.

Setting and selecting favorite scene (Bookmark) Z

You can have the player store specific portions of the disc in memory and play them immediately whenever you want (Bookmark). Up to 9 bookmarks per disc for up to 300 discs can be stored in memory.

Select “BOOKMARK” in “VIEWER.” The bookmarks appear on the screen.

To start playback from the selected picture

Select the picture using </M/m/,, then press ENTER. Playback starts from the selected picture.

To cancel scanning the bookmark pictures

Press ORETURN.

To reset the bookmark

Select the bookmark you want to reset using </M/m/ ,, then press CLEAR.

To reset all of the bookmarks for the player

Select “BOOKMARK RESET,” under “CUSTOM SETUP” in the setup display. For details on resetting all of the bookmarks for the player, see page 61.

Setting a bookmark

During playback, when you find a scene to be bookmarked, press BOOKMARK on the remote.

BOOKMARK

zYou can check the bookmark number on the front panel

display

The number of the bookmark you selected is displayed on the front panel display.

Page 55

Notes

• The player can store in memory the bookmarks of up to 300 discs. When you have the player store over 300 discs in memory, each new bookmark erases the oldest bookmark.

• Depending on the DVD, you may not be able to set the bookmark.

• The sound is muted when using this function.

Using Various Functions with the Control Menu

Page 56

Settings and

Select:

SETUP

ENTER

1 8 ( 3 4

)

1 2 ( 1

)

0 0 : 0 0 : 0 0

DVD

STOP DVD

Adjustments

This chapter describes how to set and adjust the player using the on-screen setup menu. Most settings and adjustments are required to be set when you first use the player. This chapter also describes how to set the remote for controlling the TV or the AV receiver (amplifier) or the CD changer.

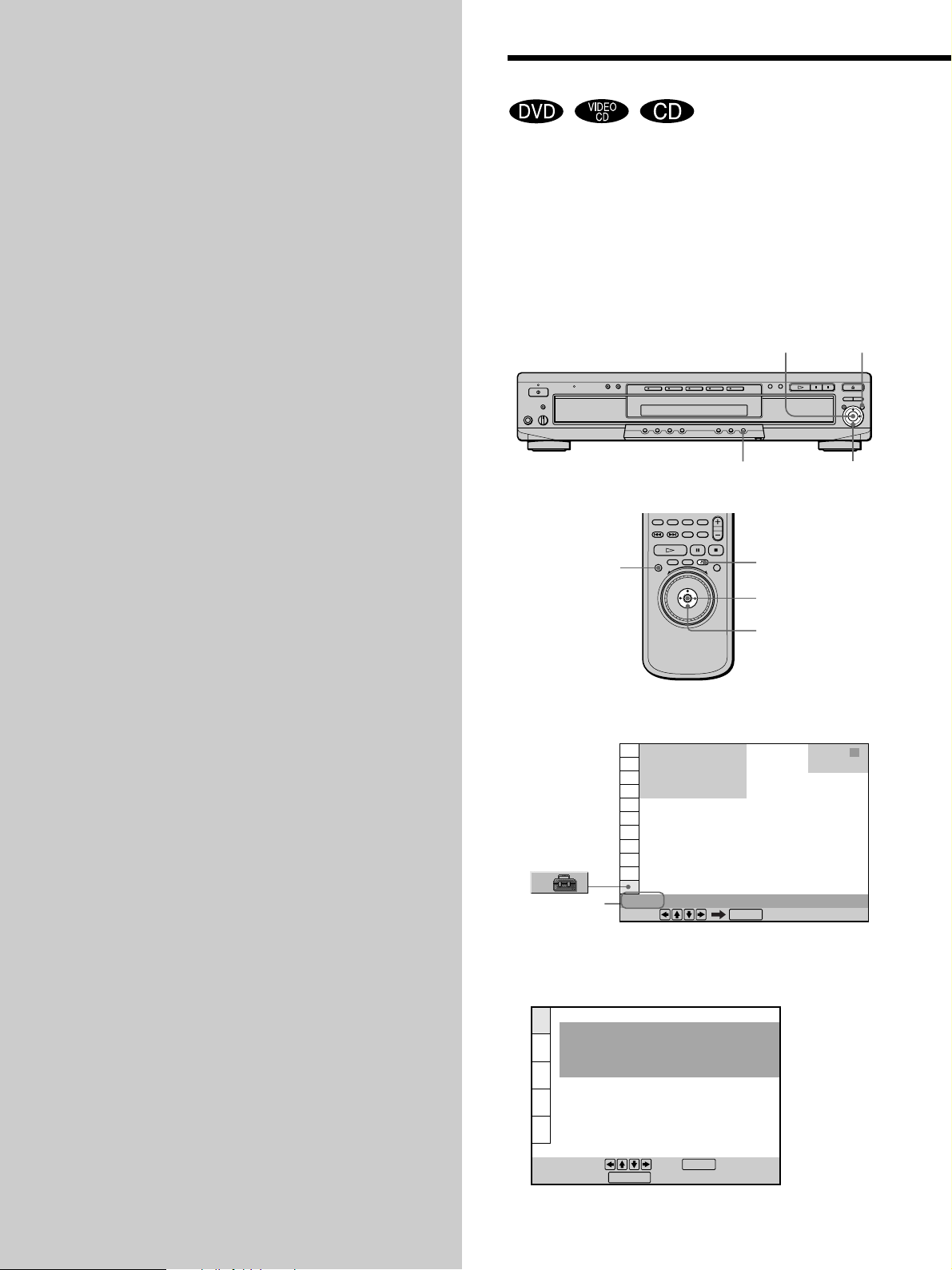

Using the Setup Display

Note

You can display the setup display only when the player is in stop mode.

ENTER

DISPLAY

ORETURN

DISPLAY

</M/m/,

ORETURN

ENTER

</M/m/,

1 Press DISPLAY and select “SETUP” using M/m.

Selected item

2 Press ENTER.

The setup display appears.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

Page 57

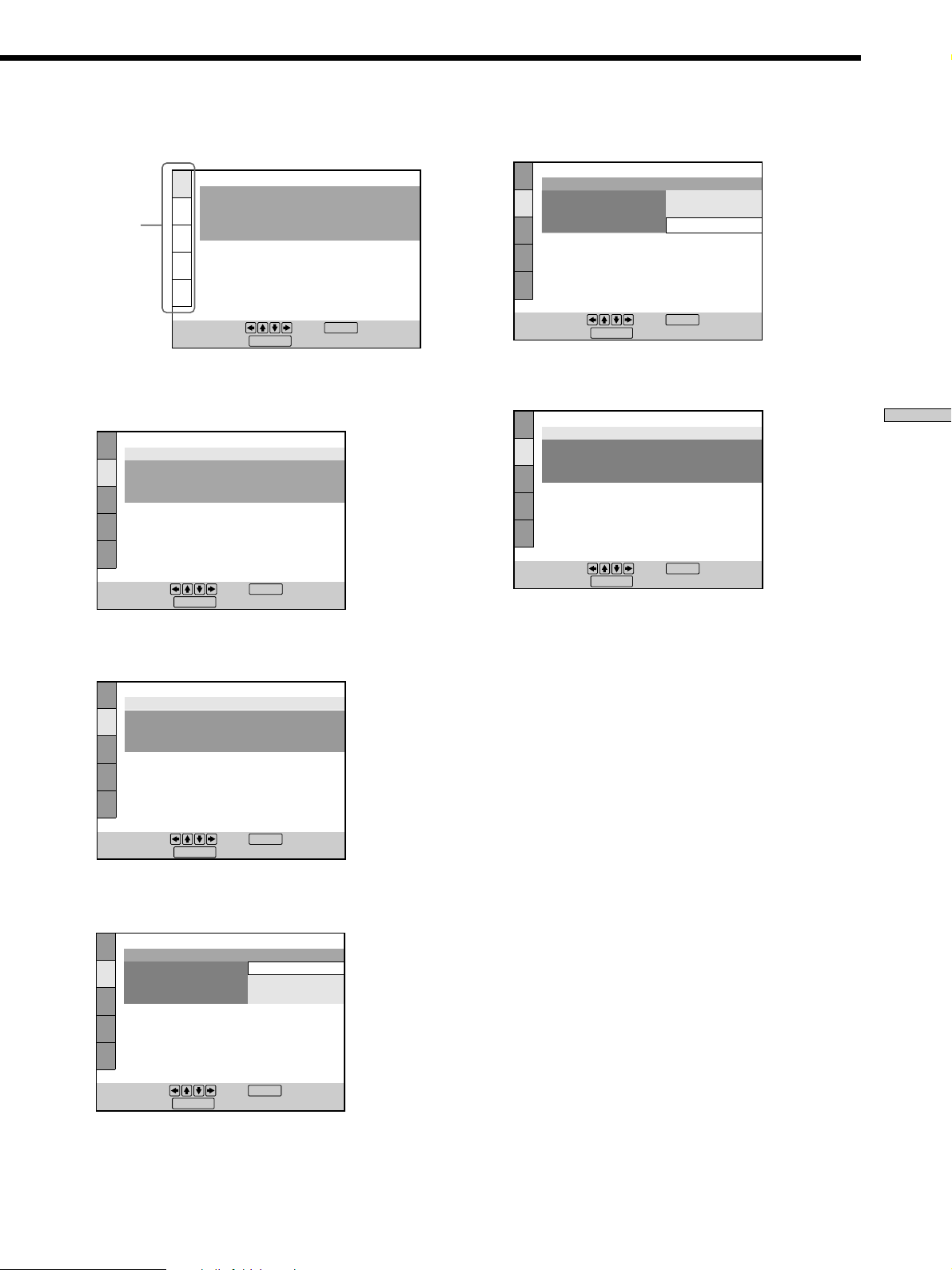

3 Select the main item you want using M/m.

7 Select the setting you want using </M/m/,.

LANGUAGE SETUP

OSD: DVD MENU:

Main item

AUDIO: SUBTITLE:

To set, press , then . To quit, press .

DISPLAY

4 Press ENTER.

The selected main item is highlighted.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: STARTUP SCREEN: STANDARD

To set, press , then . To quit, press .

DISPLAY

4:3 LETTER BOX

JACKET PICTURE

ENTER

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: STARTUP SCREEN:

To set, press , then . To quit, press .

DISPLAY

8 Press ENTER.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: STARTUP SCREEN: STANDARD

To set, press , then . To quit, press .

DISPLAY

16:9/4:3 WIDE MODE

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

16:9/4:3 WIDE MODE

ENTER

Settings and Adjustments

JACKET PICTURE

ENTER

5 Select the item you want using M/m.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: STARTUP SCREEN: STANDARD

To set, press , then . To quit, press .

DISPLAY

4:3 LETTER BOX

JACKET PICTURE

ENTER

6 Press ENTER.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: STARTUP SCREEN:

To set, press , then . To quit, press .

DISPLAY

4:3 LETTER BOX 4:3 LETTER BOX

4:3 PAN SCAN

16:9/4:3 WIDE MODE

ENTER

9 Press DISPLAY.

The setup display disappears.

Press DISPLAY repeatedly to turn off the on-screen menu.

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Note

Some setup display items require operations other than selecting the setting. For details on these items, see the relevant pages.

Page 58

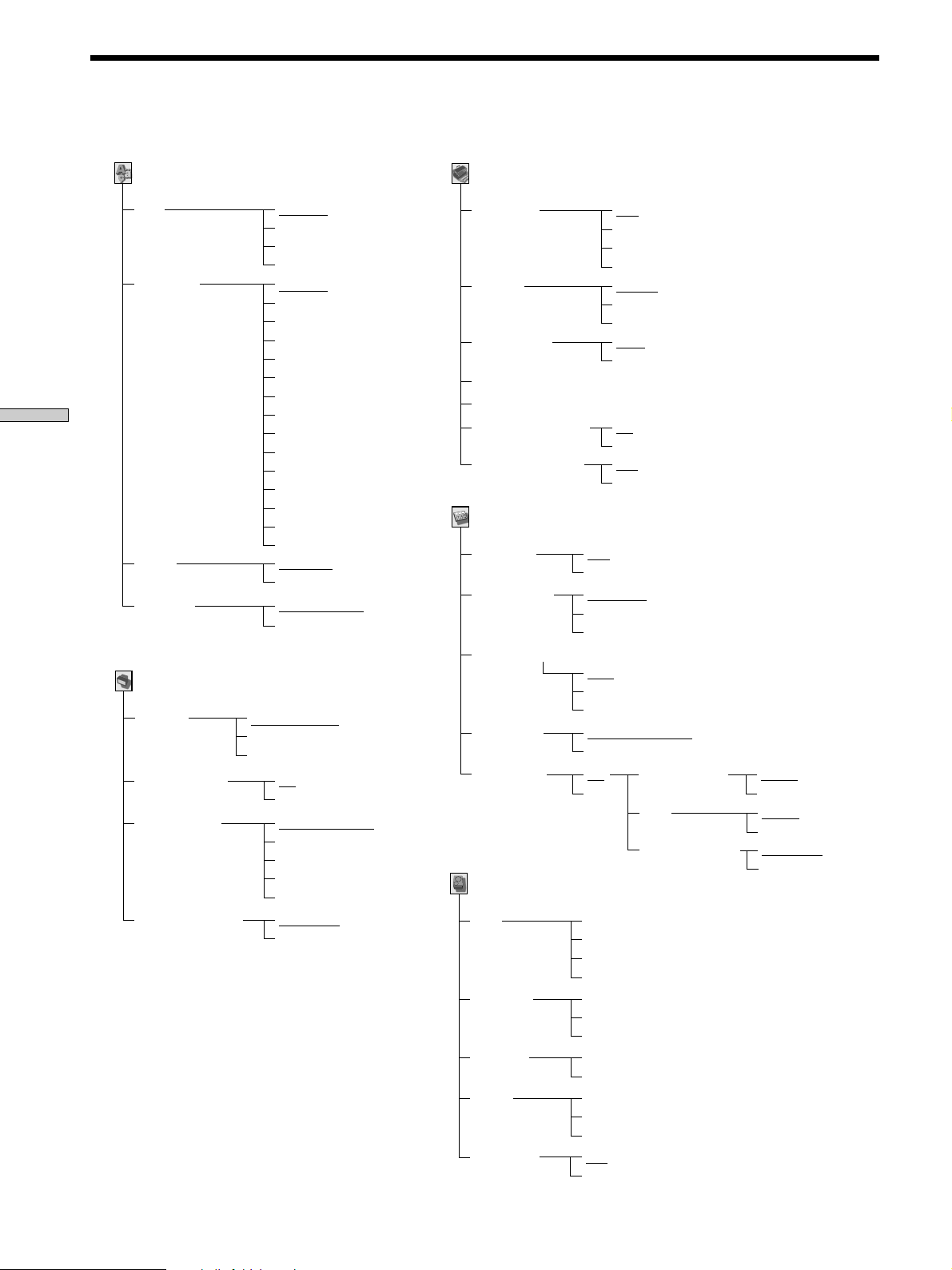

Setup Display Item List

The default settings are underlined.

LANGUAGE SETUP (page 59)

OSD

DVD MENU

Settings and Adjustments

AUDIO

SUBTITLE

SCREEN SETUP (page 60)

TV TYPE

SCREEN SAVER

BACKGROUND JACKET PICTURE

STARTUP SCREEN STANDARD

ENGLISH FRENCH SPANISH PORTUGUESE

ENGLISH FRENCH

SPANISH PORTUGUESE GERMAN ITALIAN DUTCH CHINESE

JAPANESE

DANISH SWEDISH FINNISH

NORWEGIAN

RUSSIAN OTHERS , ORIGINAL (same as DVD MENU)

AUDIO FOLLOW (same as DVD MENU)

4:3 LETTER BOX 4:3 PAN SCAN 16:9/4:3 WIDE MODE

OFF

PICTURE MEMORY

GRAPHICS

BLUE

BLACK

PICTURE MEMORY

CUSTOM SETUP (page 61)

AUTO PLAY OFF

TIMER DEMO1 DEMO2

DIMMER BRIGHT

DARK OFF

PAUSE MODE AUTO

FRAME BOOKMARK RESET , PARENTAL CONTROL , PLAYBACK MEMORY ON

OFF TRACK SELECTION OFF

AUTO

AUDIO SETUP (page 65)

AUDIO ATT OFF

AUDIO DRC

CENTER SPEAKER EQ

DOWNMIX DOLBY SURROUND

DIGITAL OUT ON

SPEAKER SETUP

SIZE FRONT

DISTANCE FRONT

BALANCE

LEVEL CENTER

TEST TONE

STANDARD TV MODE WIDE RANGE

FLAT ENHANCED SOFT

NORMAL

DOLBY DIGITAL

OFF

DTS

48kHz/96kHz PCM

(page 67)

CENTER REAR(REAR/SIDE) SUBWOOFER

CENTER REAR

FRONT REAR

REAR SUBWOOFER

OFF ON

D-PCM DOLBY DIGITAL D-PCM DTS

48kHz/16bit 96kHz/24bit

Page 59

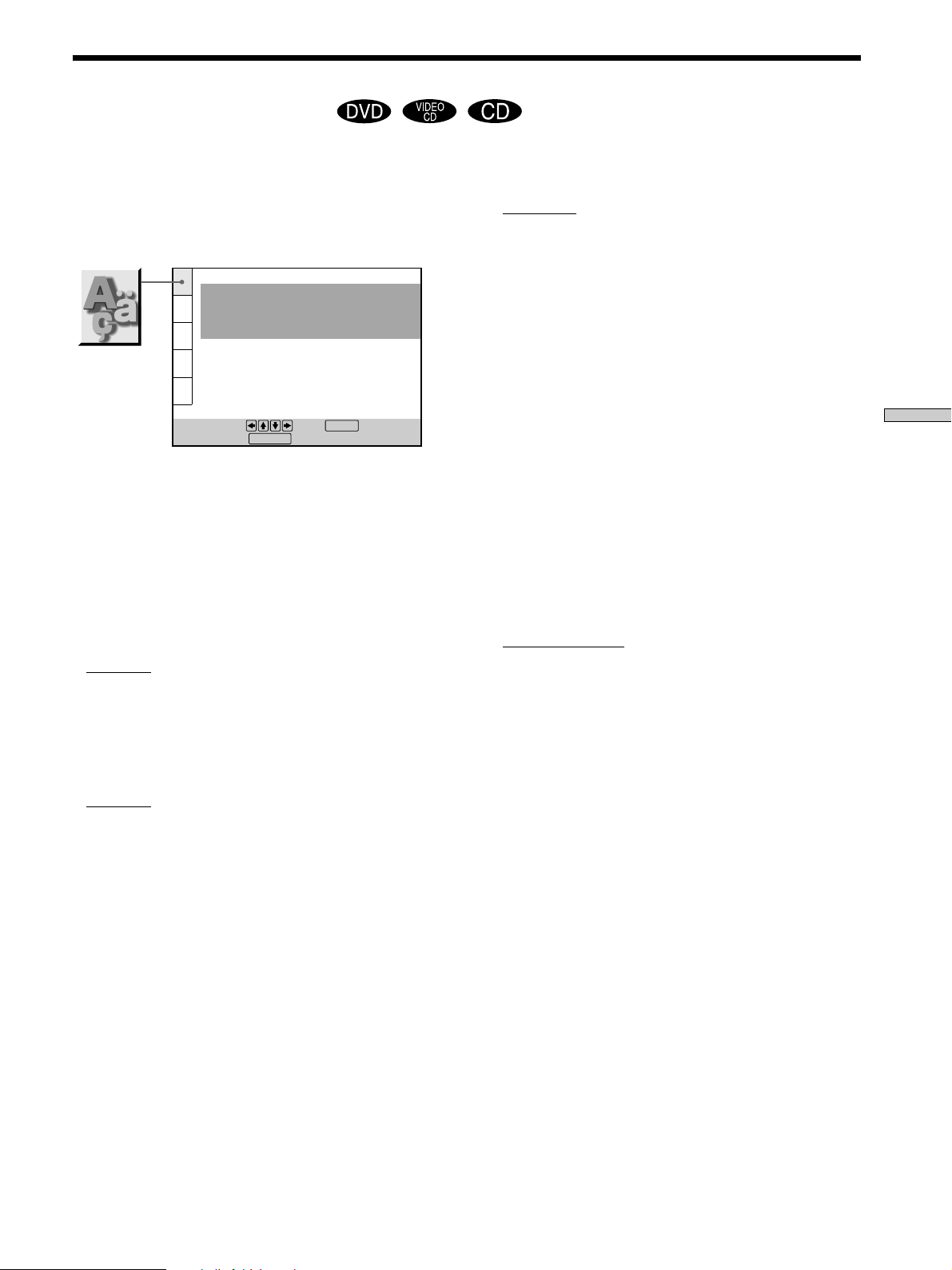

Setting the Display Language or Sound Track (LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track. The default settings are underlined.

Select “LANGUAGE SETUP” in the setup display.

LANGUAGE SETUP

OSD: DVD MENU: AUDIO: SUBTITLE:

To set, press , then . To quit, press .

Notes

• When you select a language that is not recorded on the DVD, one of the recorded languages is automatically selected for the “DVD MENU,” “AUDIO” and “SUBTITLE” settings.

• Depending on the DVD, the player may not start playing with the selected language even when you select a language in “DVD MENU,” “AUDIO” or “SUBTITLE.”

DISPLAY

ENGLISH ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

x OSD (On-Screen Display)

Selects the language for the on-screen display.

•

ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

x DVD MENU

Selects the language for the DVD menu.

•

ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 81). After you have made a selection, the language code (4 digits) is displayed.

x AUDIO

Selects the language for the sound track.

•

ORIGINAL: the language given priority in the disc

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 81). After you have made a selection, the language code (4 digits) is displayed.

x SUBTITLE

Selects the language for the subtitles.

•

AUDIO FOLLOW*

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language code from the list using the number buttons (page 81). After you have made a selection, the language code (4 digits) is displayed.

* When you select “AUDIO FOLLOW,” the language for the

subtitles changes according to the language you selected for the sound track.

Settings and Adjustments

Page 60

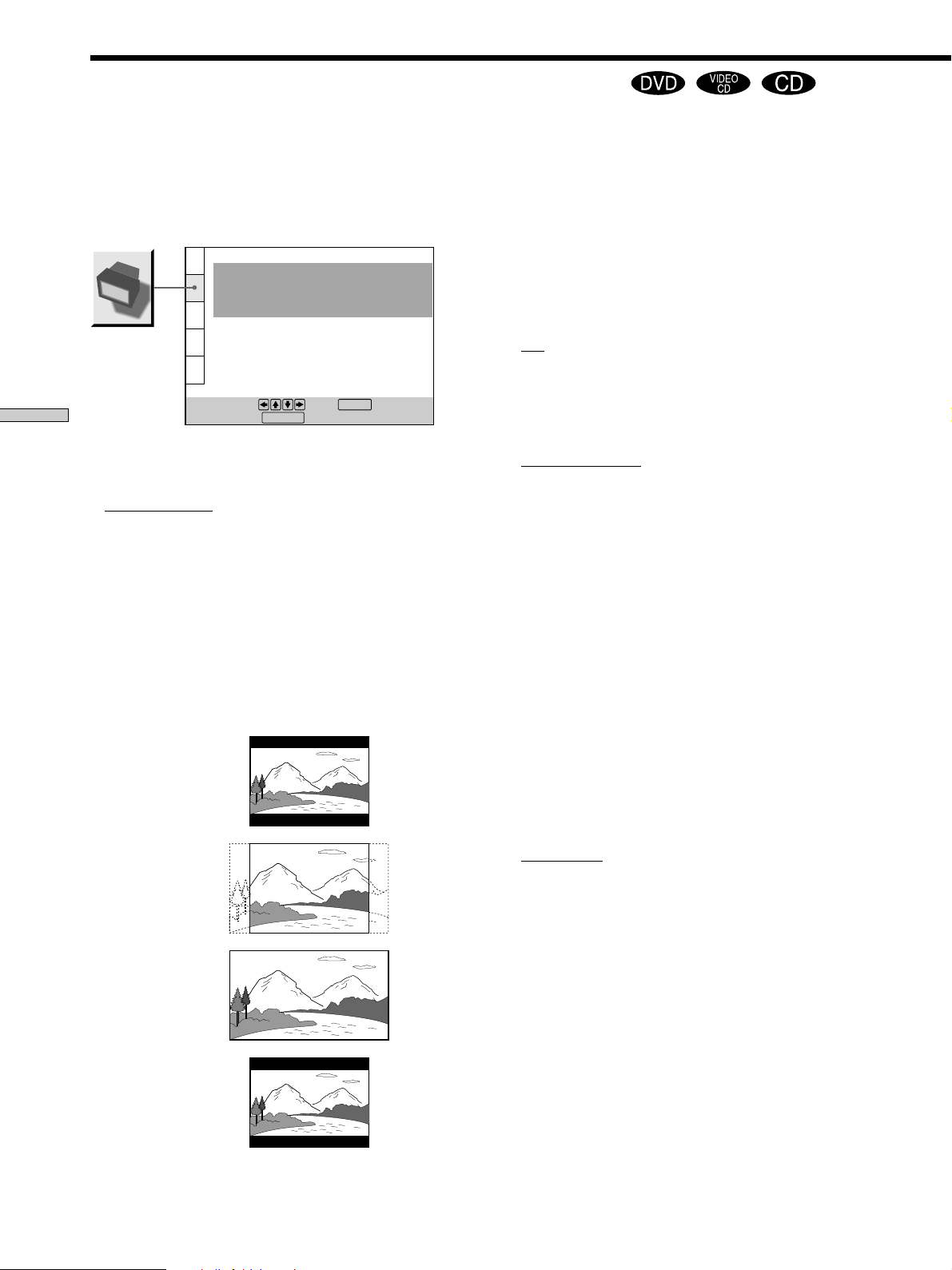

Settings for the Display (SCREEN SETUP)

“SCREEN SETUP” allows you to set the display according to the playback conditions. The default settings are underlined.

Select “SCREEN SETUP” in the setup display.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: STARTUP SCREEN: STANDARD

To set, press , then .

Settings and Adjustments

To quit, press .

x TV TYPE

Selects the aspect ratio of the TV to be connected.

•

4:3 LETTER BOX: select this when you connect a normal TV to the player. Displays a wide picture with bands on the upper and lower portions of the screen.

• 4:3 PAN SCAN: select this when you connect a normal TV to the player. Displays the wide picture on the whole screen automatically and cuts off the portions that do not fit.

• 16:9/4:3 WIDE MODE: select this when you connect a wide-screen TV to the player or when you connect a TV with the WIDE MODE function to the player (displays a wide picture with bands displayed on the upper and lower portions of the screen).

4:3 LETTER BOX

DISPLAY

4:3 LETTER BOX

JACKET PICTURE

ENTER

Note

Depending on the DVD, “4:3 LETTER BOX“ may be selected automatically instead of “4:3 PAN SCAN” and vice versa.

x SCREEN SAVER

Turns on and off the screen saver. If you turn on the screen saver, the screen saver image appears when you leave the player or the remote in pause or stop mode for 15 minutes, or when you play back a CD for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged.

•

ON: turns on the screen saver.

• OFF: turns off the screen saver.

x BACKGROUND

Selects the background color or picture on the TV screen in stop mode or while playing a CD.

•

JACKET PICTURE: The jacket picture appears in the background, but only when the jacket picture is already recorded on the disc.

• PICTURE MEMORY: Your favorite picture appears in the background. For an explanation of how to store your favorite scene recorded on the disc for the background picture, see the following section “Storing a picture in memory.”

• GRAPHICS: A preset picture stored in the player appears in the background.

• BLUE: The background color is blue.

• BLACK: The background color is black.

Note

If a disc which does not contain the jacket picture is played while “BACKGROUND” is set to “JACKET PICTURE,“ the picture stored in the player will automatically appear in the background.

4:3 PAN SCAN

16:9

4:3 WIDE MODE

x STARTUP SCREEN

Selects the startup screen. The startup screen image you selected appears when you turn on the player.

•

STANDARD: The standard startup screen in the player’s memory appears.

• PICTURE MEMORY: Your favorite picture appears in the startup screen. For an explanation of how to store your favorite scene recorded on the disc for the startup screen, see the following section “Storing a picture in memory.” If you select PICTURE MEMORY before setting a picture in memory, the standard startup screen will appear.

Page 61

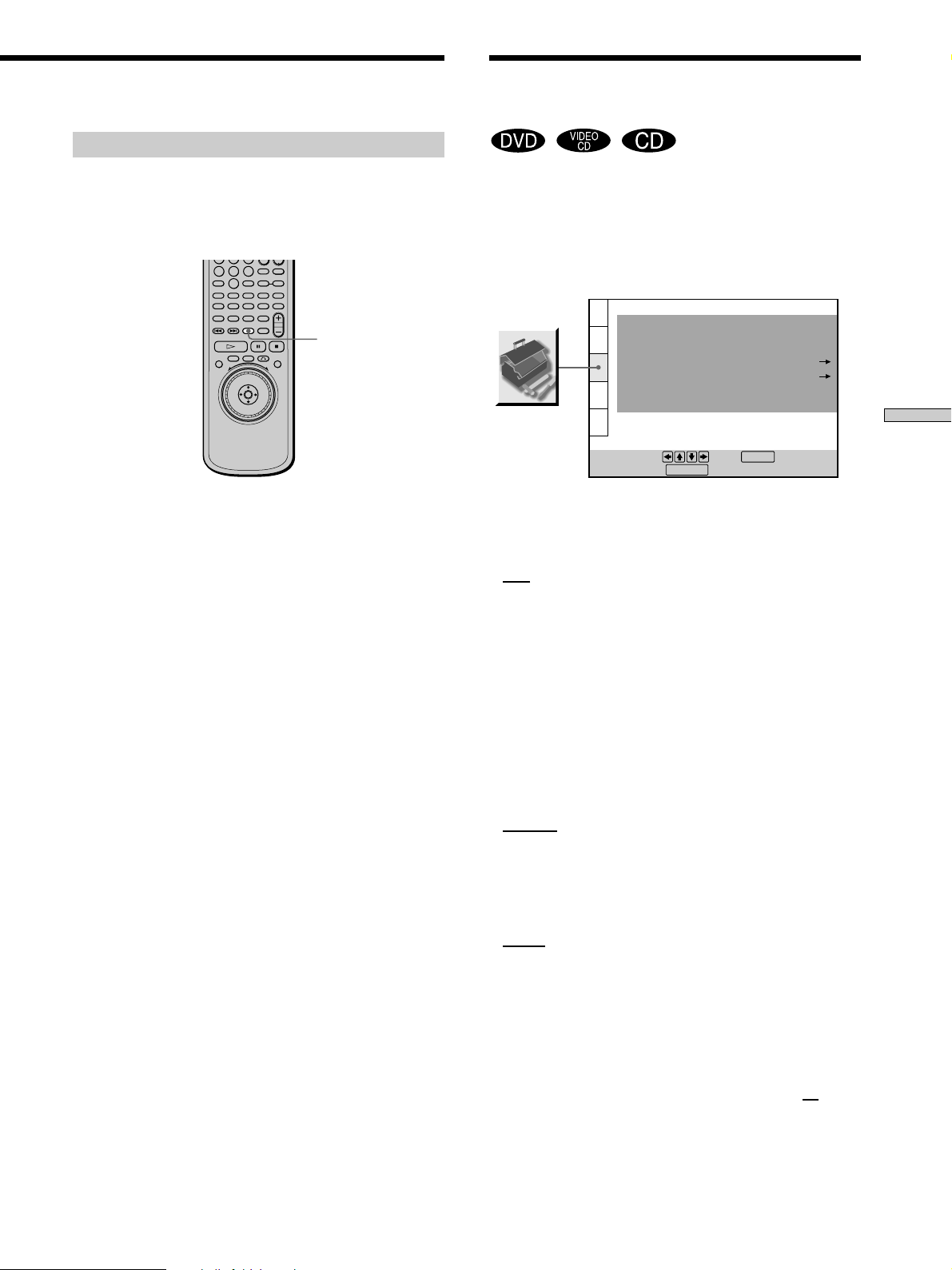

Custom Settings

CUSTOM SETUP

AUTO PLAY: DIMMER: PAUSE MODE:

To set, press , then . To quit, press .

OFF

BRIGHT

AUTO

TRACK SELECTION:

OFF

ENTER

PARENTAL CONTROL

DISPLAY

PLAYBACK MEMORY:

BOOKMARK RESET

475

(CUSTOM SETUP)

Storing a picture in memory

During playback, when you find the scene to be stored in memory, press PICTURE MEMORY on the remote.

The picture is stored in memory.

PICTURE MEMORY

Notes

• The player can store only one scene in memory. The stored picture appears in both the background and the startup screen.

• Depending on the DVD, some scenes cannot be stored in memory when using the remote.

• When the picture is stored in memory by pressing PICTURE MEMORY, the picture stored before is erased.

• If you operate this player while the picture is being stored in memory, the player will fail to store the picture.

“CUSTOM SETUP” allows you to set the playback conditions. The default settings are underlined.

Select “CUSTOM SETUP” in the setup display.

x AUTO PLAY

Selects the Auto Play setting when you connect the AC power cord to the AC outlet.

•

OFF: does not use “TIMER,” “DEMO1” or “DEMO2” to start playback.

• TIMER: starts playing when the player is turned on, or at any time you want when connected to a timer (not supplied). Set the timer when the player is in standby mode (the power indicator lights up in red).

• DEMO1: starts playing the first demonstration automatically.

• DEMO2: starts playing the second demonstration automatically.

Settings and Adjustments

x DIMMER

Adjusts the lighting of the front panel display.

•

BRIGHT: makes the front panel display bright.

• DARK: makes the front panel display dark.

• OFF: turns off the lighting of the front panel display.

x PAUSE MODE (DVD only)

Selects the picture in pause mode.

•

AUTO: A picture, including subjects that move dynamically, is output with no jitter. Normally select this position.

• FRAME: A picture including subjects that do not move dynamically is output with high resolution.

x BOOKMARK RESET,

Select “BOOKMARK RESET.” The BOOKMARK reset display appears. And then press ENTER to reset bookmarks.

all

Page 62

Custom Settings (CUSTOM SETUP)

x PARENTAL CONTROL,

Sets a password and playback limitation level for DVDs with playback limitation for children. The same password is used for both Parental Control and Custom Parental Control (page 43) . For details, see “Limiting Playback by Children (Parental Control) .”

Limiting Playback by Children (Parental Control)

Playback of some DVDs can be limited depending on the age of the users. The “Parental Control” function allows you to set a playback limitation level.

Settings and Adjustments

Select “CUSTOM SETUP” in the setup display.

CUSTOM SETUP

AUTO PLAY: DIMMER: PAUSE MODE: BOOKMARK RESET PARENTAL CONTROL PLAYBACK MEMORY: TRACK SELECTION:

OFF

BRIGHT

AUTO

OFF

1 Select “PARENTAL CONTROL” using M/m, then press

ENTER.

CUSTOM SETUP

AUTO PLAY: DIMMER: PAUSE MODE: BOOKMARK RESET PARENTAL CONTROL PLAYBACK MEMORY: TRACK SELECTION:

To set, press , then . To quit, press .

DISPLAY

ENTER

x When you have not entered a password

The display for entering a password appears.

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password, then

ENTER

press

To return, press . To cancel, press .

RETURN

DISPLAY

OFF

BRIGHT

AUTO

OFF

To set, press , then . To quit, press .

DISPLAY

ENTER

x When you have already registered a password

The display for confirming the password appears. Skip Step 2.

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press

To return, press . To cancel, press .

RETURN

DISPLAY

ENTER

Page 63

2 Enter a password in 4 digits using the number

buttons, then press ENTER.

The digits change to asterisks ( confirming the password appears.

CUSTOM SETUP

PARENTAL CONTROL

To confirm,enter password again,

ENTER

then press

), and the display for

5 Select a geographic area as the playback limitation

level standard using M/m, then press ,.

When you select “OTHERS,,” select and enter the standard code in the table on the next page using the number buttons.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OFF USA USA

OTHERS

To return, press . To cancel, press .

RETURN

DISPLAY

3 To confirm your password, enter it again using the

number buttons, then press ENTER.

The display for setting the playback limitation level and changing the password appears.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

To set, press , then . To quit, press .

DISPLAY

ENTER

OFF USA

4 Select “STANDARD” using M/m, then press ,.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OFF USA

To set, press , then . To quit, press .

DISPLAY

ENTER

6 Select “LEVEL” using M/m, then press ,.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF STANDARD: CHANGE PASSWORD

To set, press , then . To quit, press .

DISPLAY

ENTER

OFF

NC17

6: 5:

7 Select the level you want using M/m, then press

ENTER.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

4: PG13

USA

Settings and Adjustments

To set, press , then . To quit, press .

DISPLAY

ENTER

To set, press , then . To quit, press .

DISPLAY

ENTER

The lower the value, the more strict the limitation.

To return to the normal screen

Press DISPLAY.

To turn off the Parental Control function and play the DVD after entering your password

Set “LEVEL” to “OFF” in Step 7, then press H.

Page 64

Custom Settings (CUSTOM SETUP)

To change the password

1 After Step 3, select “CHANGE PASSWORD” using

M/m, then press , or ENTER. The display for changing the password appears.

2 Follow Steps 2 and 3 to enter a new password.

Playing a disc which is blocked by the playback limitation level

1 Insert the disc and press H.

The PARENTAL CONTROL display appears.

2 Enter your 4-digit password using the number buttons,

then press ENTER. The player starts playback. When you stop playing the DVD, the level returns to the original level.

Settings and Adjustments

zIf you forget your password

Enter the 6-digit number “199703” whenever the PARENTAL CONTROL display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Notes

• When you play DVDs which do not have the Parental Control function, playback cannot be limited on this player.

• If you do not set a password, you cannot change the settings for playback limitation.

• Depending on the DVD, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. When you stop playing the DVD, the level returns to the original level.

• The same password is used for both Parental Control and Custom Parental Control (page 43).

Standard Code number

Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 Hong Kong 2219 India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363 Mexico 2362 Netherlands 2376 New Zealand 2390 Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Taiwan 2543 Thailand 2528 United Kingdom 2184

Page 65

x PLAYBACK MEMORY

The player can store the SUBTITLE, VIDEO EQUALIZER, and other settings of each disc for up to 300 discs (Playback Memory). Set the Playback Memory function on or off.

•

ON : stores the settings in memory when you eject the disc.

• OFF : does not store the settings in memory.

The following settings are stored in memory by the Playback Memory function.

– AUDIO (page 35)* – SUBTITLE (page 37)* – ANGLE (page 38)* – VIRTUAL 3D SURROUND (page 39) – VIDEO EQUALIZER (page 51) – DIGITAL VIDEO ENHANCER (page 52)

* DVD only

Notes

• The player can store the settings of up to 300 discs. When you store the setting of disc number 301, the first disc setting is canceled.

• Depending on the DVD, the information stored in the disc takes priority over the Playback Memory settings and the function does not work.

x TRACK SELECTION

Gives the sound track which contains the highest number of channels priority when you play a DVD on which multiple audio formats (PCM, DTS or Dolby Digital format) are recorded.

•

OFF : No priority given.

• AUTO : Priority given.

Notes

• When you set this item to “AUTO,” the language may change depending on the “AUDIO” settings in “LANGUAGE SETUP.” The “TRACK SELECTION“ setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 59).

• If you set “DTS” in “AUDIO SETUP” to “D-PCM”, the DTS sound track is not played even if you set this item to “AUTO” and the highest-numbered audio channel is recorded in DTS format.

• If PCM, DTS and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS and Dolby Digital sound tracks in this order.

• Depending on the DVD, the audio channel with priority may be predetermined. In this case, you cannot give priority to the DTS or Dolby Digital format by selecting “AUTO.”

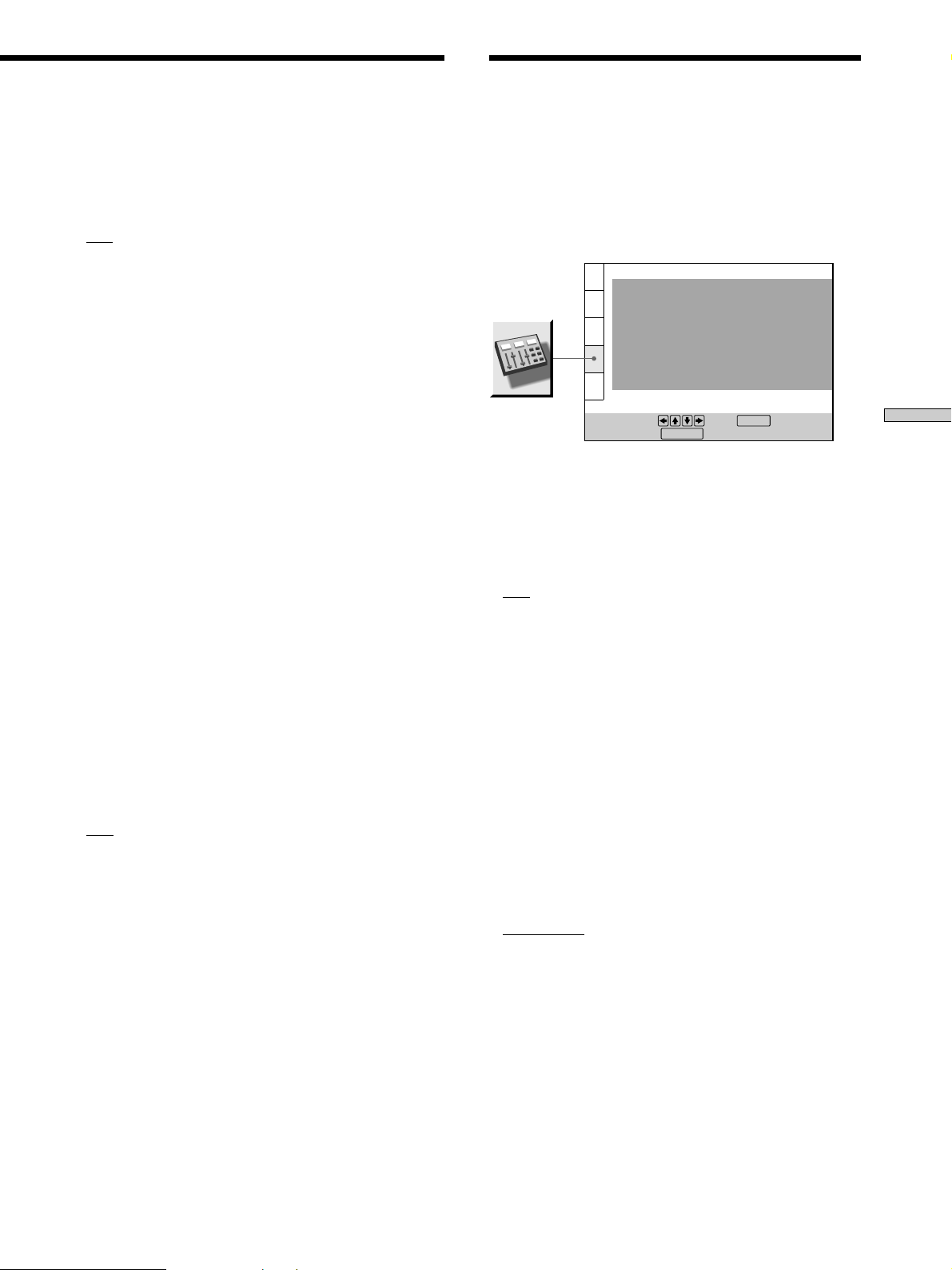

Settings for the Sound (AUDIO SETUP)

“AUDIO SETUP” allows you to set the sound according to the playback conditions. The default settings are underlined.

Select “AUDIO SETUP” in the setup display.

AUDIO SETUP

AUDIO ATT: AUDIO DRC: CENTER SPEAKER EQ: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

x AUDIO ATT (attenuation)

If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. Selects the setting of the output from the AUDIO OUT (1, 2) connectors according to the audio equipment to be connected.

•

OFF: turns off the audio attenuation. Normally select this position.

• ON: reduces the audio output level so that no sound distortion occurs. Select this when the playback sound from the built-in TV speakers is distorted.

Note

The setting does not affect the output from the DIGITAL OUT OPTICAL and COAXIAL connectors.

x AUDIO DRC (Dynamic Range Control) (DVD only)

Makes the sound clear when the volume is turned down when playing a DVD. This function works only when you play a DVD which has the AUDIO DRC function. This affects the output from the DIGITAL OUT connectors only when “DOLBY DIGITAL” is set to “D-PCM” and “DTS” to “D-PCM” in ”DIGITAL OUT.”

•

STANDARD: Normally select this position.

• TV MODE: makes the low sounds clear even if you turn the volume down. It is especially recommended when you listen to the sound using the speakers of the TV.

• WIDE RANGE: It gives you the feeling of being at a live performance. This function only works when you are playing a Dolby Digital disc and is more effective when you connect 6 speakers using the 5.1 channel connectors. When you use high quality speakers, it is even more effective.

Note

When you play DVDs without the AUDIO DRC function, there may be no effect on the sound.

OFF

STANDARD

FLAT

ON D-PCM D-PCM

48kHz/16bit

Settings and Adjustments

Page 66

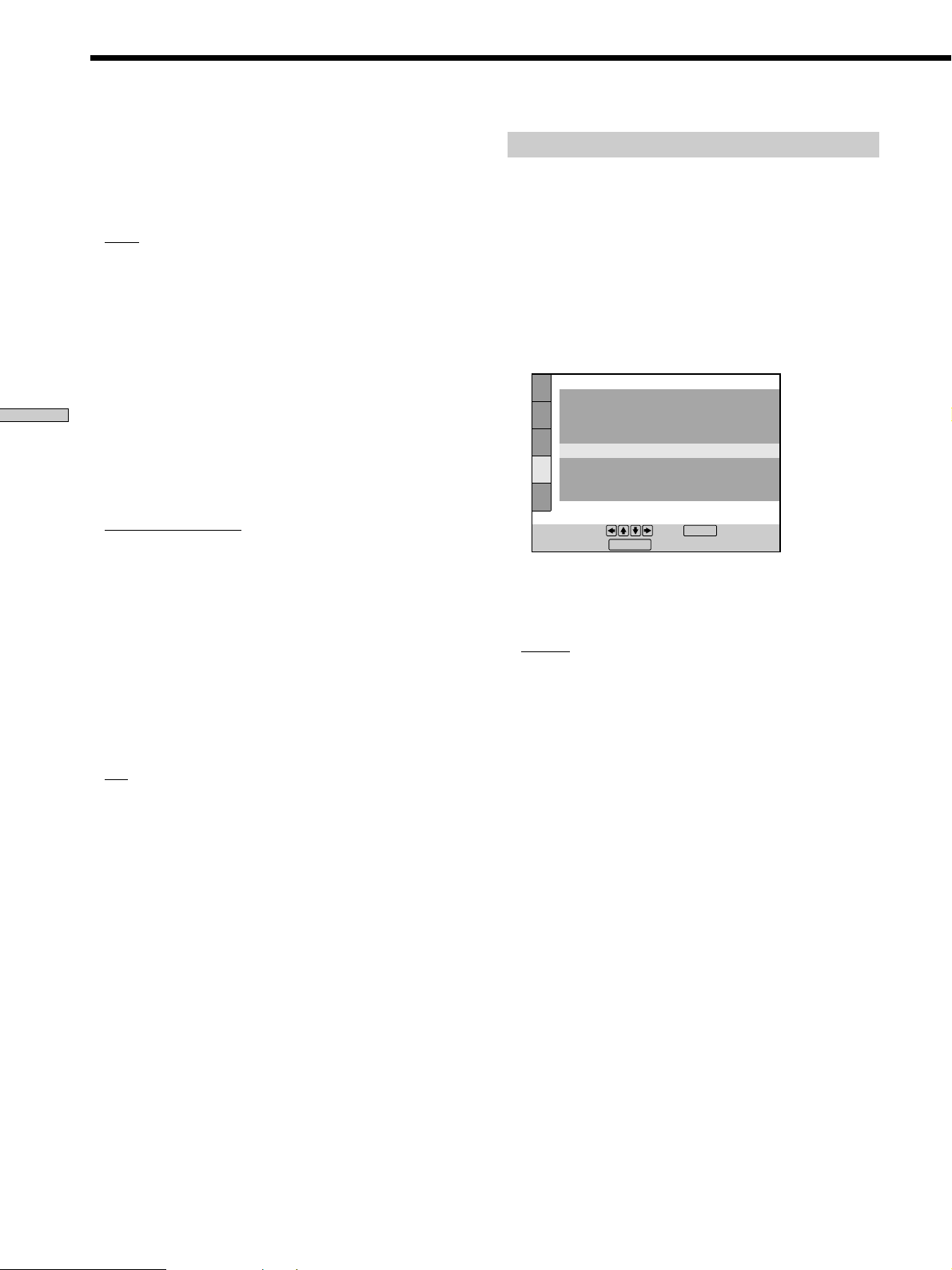

Settings for the Sound (AUDIO SETUP)

x CENTER SPEAKER EQ (equalizer)

Makes the spoken track clear by changing the frequency response when speech is difficult to hear. A center speaker must be connected to the CENTER connector of 5.1CH OUTPUT for this function to work.

•

FLAT: outputs the spoken track as it was recorded.

• ENHANCED: enhances the spoken track only.

• SOFT: makes the sound softer by rounding out the sound frequency above 8 kHz. Select this when the spoken track sounds shrill.

x DOWNMIX

Switches the mixing down methods when you play a DVD on which rear signal components such as LS, RS, or S are recorded in Dolby Digital or DTS format. For details

Settings and Adjustments

on the rear signal components, see “Displaying the audio information of the disc” (page 36). This affects the output from the DIGITAL OUT connectors only when “DOLBY DIGITAL” is set to “D-PCM” and “DTS” to “D-PCM” in ”DIGITAL OUT.”

•

DOLBY SURROUND: when the player is connected to an audio component that conforms to Dolby Surround (Pro Logic). The output signals which reproduce the Dolby Surround (Pro Logic) effect are mixed down to 2 channels.

• NORMAL: when the player is connected to an audio component that does not conform to Dolby Surround (Pro Logic). The signals without the Dolby Surround (Pro Logic) effect are output.

x DIGITAL OUT

Selects output signals via the DIGIT AL OUT OPTICAL and COAXIAL connectors.

•

ON: Normally select this position. When you select “ON,” set “DOLBY DIGITAL,” “DTS” and “48kHz/ 96kHz PCM.“ For details on setting these items, see “Setting the Digital Output Signal.”

• OFF: when the player does not output the sound signals via the DIGIT AL OUT OPTICAL and COAXIAL connectors, the influence of the digital circuit upon the analog circuit is at a minimum.

Setting the Digital Output Signal

Switches the methods of outputting audio signals when you, connect 1. a digital component such as a receiver (amplifier) having a digital connector, 2. an audio component having a built-in decoder (Dolby Digital or DTS), 3. a DAT or MD via the DIGITAL OUT OPTICAL or COAXIAL connector using an optical or coaxial digital connecting cord. For connection details, see page 11. You cannot adjust “DOLBY DIGITAL,” “DTS” and “48kHz/96kHz PCM” if you set “DIGITAL OUT” to “OFF.”

AUDIO SETUP

AUDIO ATT: AUDIO DRC: CENTER SPEAKER EQ: DOWNMIX: DIGITAL OUT:

DOLBY DIGITAL: DTS: 48kHz/96kHz PCM:

To set, press , then . To quit, press .

DISPLAY

DOLBY SURROUND

ENTER

x DOLBY DIGITAL

Selects the Dolby Digital signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors.

•

D-PCM (Downmix PCM): when the player is connected to an audio component lacking a built-in Dolby Digital decoder. If you play Dolby Digital sound tracks, the output audio signals are mixed down to 2 channels. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP.”

• DOLBY DIGITAL: when the player is connected to an audio component with a built-in Dolby Digital decoder. If the player is connected to an audio component lacking a built-in Dolby Digital decoder, do not set this. Otherwise, when you play the Dolby Digital sound track, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged.

OFF

STANDARD

FLAT

ON D-PCM D-PCM

48kHz/16bit

Note

When you select “OFF,” you cannot set “DOLBY DIGITAL,” “DTS” and “48kHz/96kHz PCM.“

Page 67

x DTS

Selects the DTS signals to be output via the DIGITAL OUT OPTICAL and COAXIAL connectors.

•

D-PCM: when the player is connected to an audio component lacking a built-in DTS decoder. If you play DTS sound tracks, the player outputs stereo signals via the DIGIT AL OUT OPTICAL and COAXIAL connectors.

• DTS: when the player is connected to an audio component having a built-in DTS decoder. If the player is connected to an audio component lacking a built-in DTS decoder, do not set this. Otherwise, when you play the DTS sound track, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged.

x 48kHz/96kHz PCM (DVD only)

Selects the sampling frequency of the audio signal to be output via the DIGIT AL OUT OPTICAL and COAXIAL connectors.

•

48kHz/16bit: The audio signals of DVDs are always converted to 48 kHz/16 bit.

• 96kHz/24bit: All types of signals including 96 kHz/24 bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48 kHz/16 bit.

Notes

• If you select “96kHz/24bit” when a receiver (amplifier) which

cannot accept 96 kHz is connected to the player, no sound or a loud noise will come out from the speakers.

• Even if you set “48kHz/96kHz PCM” in “AUDIO SETUP” to

“96kHz/24bit,” the sampling frequency is converted to 48 kHz/16 bit when a VIRTUAL 3D SURROUND mode is selected.

• The analog audio signals from the AUDIO OUT connectors are

not affected by this setting and keep their original sampling frequency level.

Settings for the Speakers (SPEAKER SETUP)

To obtain the best possible surround sound when you use the 5.1CH OUTPUT connectors, use the SPEAKER SETUP display to first specify the size of the speakers you have connected and their distance from your listening position. Then set the balance and level. Use the test tone to adjust the volume of the speakers to the same level. For speaker hookup instructions, see page 12. The default settings are underlined.

Select “SPEAKER SETUP” in the setup display.

SPEAKER SETUP

SIZE: DISTANCE: BALANCE: LEVEL: TEST TONE:

FRONT: CENTER: REAR: SUBWOOFER:

To set, press , then . To quit, press .

SETUP

DISPLAY

x SIZE

Selects the size of the speakers to be connected.

• FRONT —

LARGE: Normally select this.

— SMALL: When the sound cracks or the surround

sound effects are difficult to hear, select this. This activates the Dolby Digital bass redirection circuitry and outputs the bass frequencies of the speaker from the subwoofer .

• CENTER —

NONE: If you do not connect a center speaker, select

this. — LARGE: Normally select this. — SMALL: When the sound cracks, select this. This

activates the Dolby Digital bass redirection circuitry

and outputs the bass frequencies of the center

speaker from other speakers .

• REAR —

NONE: If you do not connect rear speakers, select this.

— LARGE (REAR/SIDE): Normally select either of

these according to the rear speaker’s position*.

— SMALL (REAR/SIDE): When the sound cracks or the

surround sound effects are difficult to hear, select either of these according to the rear speaker’s position*. This activates the Dolby Digital bass redirection circuitry and outputs the bass frequencies of the rear speaker from other speakers .

OFF

LARGE LARGE

LARGE(REAR

ENTER

)

YES

Settings and Adjustments

Page 68

Settings for the Speakers (SPEAKER SETUP)

12ft/3.6m 12ft/3.6m

10ft/3.0m 10ft/3.0m

12ft/3.6m

• SUBWOOFER —

NONE: If you do not connect a subwoofer, select this. This activates the Dolby Digital bass redirection circuitry and outputs the LFE signals from the front speakers as long as the front speaker size is set to “LARGE.”

— YES: If you connect a subwoofer, select this to output

the LFE (low frequency effect) channel from the subwoofer.

* Rear speaker position

Specify the location of the rear speakers for correct “VIRTUAL REAR SHIFT,” “VIRTUAL MULTI REAR” and “VIRTUAL MULTI DIMENSION” effects. These effects can be found in “VIRTUAL 3D SURROUND” of the

Settings and Adjustments

Control Menu display.

• SIDE: If the location of the rear speakers corresponds to section A in the illustration below.

• REAR: If the location of the rear speakers corresponds to section B in the illustration below.

This setting affects only the “VIRTUAL REAR SHIFT,” “VIRTUAL MULTI REAR” and “VIRTUAL MULTI DIMENSION” mode.

Notes

• The cut off frequency for the subwoofer is fixed at 120 Hz.

• If your speakers are too small to reproduce low bass

frequencies, please set all speaker settings to “SMALL” and utilize a subwoofer for low frequency sound.

x DISTANCE

The default distance setting for the speakers in relation to the listening position is shown below.

You can vary the distance of each speaker as follows. The default adjustments are in parentheses. Be sure to change the value in the setup display when you move the speakers.

• FRONT (12ft/3.6m) Front speaker distance can be set in 1 foot (0.3 meter) increments from 4 to 50 feet (1.2 to 15.2 meters). Distance is measured from the front speaker to the listening position.

• CENTER (12ft/3.6m) Center speaker distance can be set in 1 foot (0.3 meter) increments. Place the center speaker directly between the front speakers. You can move it up to 2 feet (0.6 meter) backwards or 5 feet (1.5 meters) forwards if

90°

45°

20°

necessary.

• REAR (10ft/3.0m) Rear speaker distance can be set in 1 foot (0.3 meter) increments. Place the speakers behind the listening position at a distance equal to the front speaker distance. If necessary you can move the rear speakers up to 16 feet (5 meters) closer to your listening position.

To return to the default setting

Select the item, then press CLEAR.

Notes

• If each of the front or rear speakers are not placed at an equal

distance from your listening position, set the distance according to the closest speaker.

• Do not place the rear speakers farther away from your listening

position than the front speakers.

Page 69

x BALANCE

You can vary the balance of the left and right speakers as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment (see x TEST TONE below). The default adjustments are in parentheses.

• FRONT (0dB) Adjust the balance between the front left and right speakers (–6dB [L] to +6dB [R], 0.5dB increments).

• REAR (0dB) Adjust the balance between the rear left and right speakers (–6dB [L] to +6dB [R], 0.5dB increments).

To return to the default setting

Select the item, then press CLEAR.

Adjusting the speaker volume

1 After you stop playback, select “SPEAKER SETUP”

in the setup display.

2 Select “TEST TONE” and set “TEST TONE” to “ON.”

You will hear the test tone from each speaker in sequence.

3 From your listening position, select “BALANCE” or

“LEVEL” and adjust the value of “BALANCE” using </, and “LEVEL” using M/m.

The test tone is emitted from both left and right speakers simultaneously.

x LEVEL

You can vary the level of each speaker as follows. The front speaker level becomes the criterion for adjusting the other speakers. Be sure to set “TEST TONE” to “ON” for easy adjustment (see x TEST TONE below). The default adjustments are in parentheses.

• CENTER (0dB) Adjust the level of the center speaker (–6dB to +6dB,

0.5dB increments).

• REAR (0dB) Adjust the level of the rear speakers (–6dB to +6dB,

0.5dB increments).

• SUBWOOFER (0dB) Adjust the level of the subwoofer (–10dB to +10dB,

0.5dB increments).

To return to the default setting

Select the item, then press CLEAR.

x TEST TONE

The speakers will emit a test tone. Use this when you use the 5.1CH OUTPUT connectors and adjust the BALANCE and LEVEL.

•

OFF: The test tone is not emitted from the speakers.

• ON: The test tone is emitted from each speaker in sequence. When you select one of the “SPEAKER SETUP” items, the test tone is emitted from both left and right speakers simultaneously.

4 Select “TEST TONE” and set “TEST TONE” to “OFF”

to turn off the test tone.

To adjust the volume of all the speakers at one time

Use the receiver’s (amplifier’s) volume control.

Settings and Adjustments

Note

When you adjust the speaker settings, the sound cuts off for a moment.

Page 70

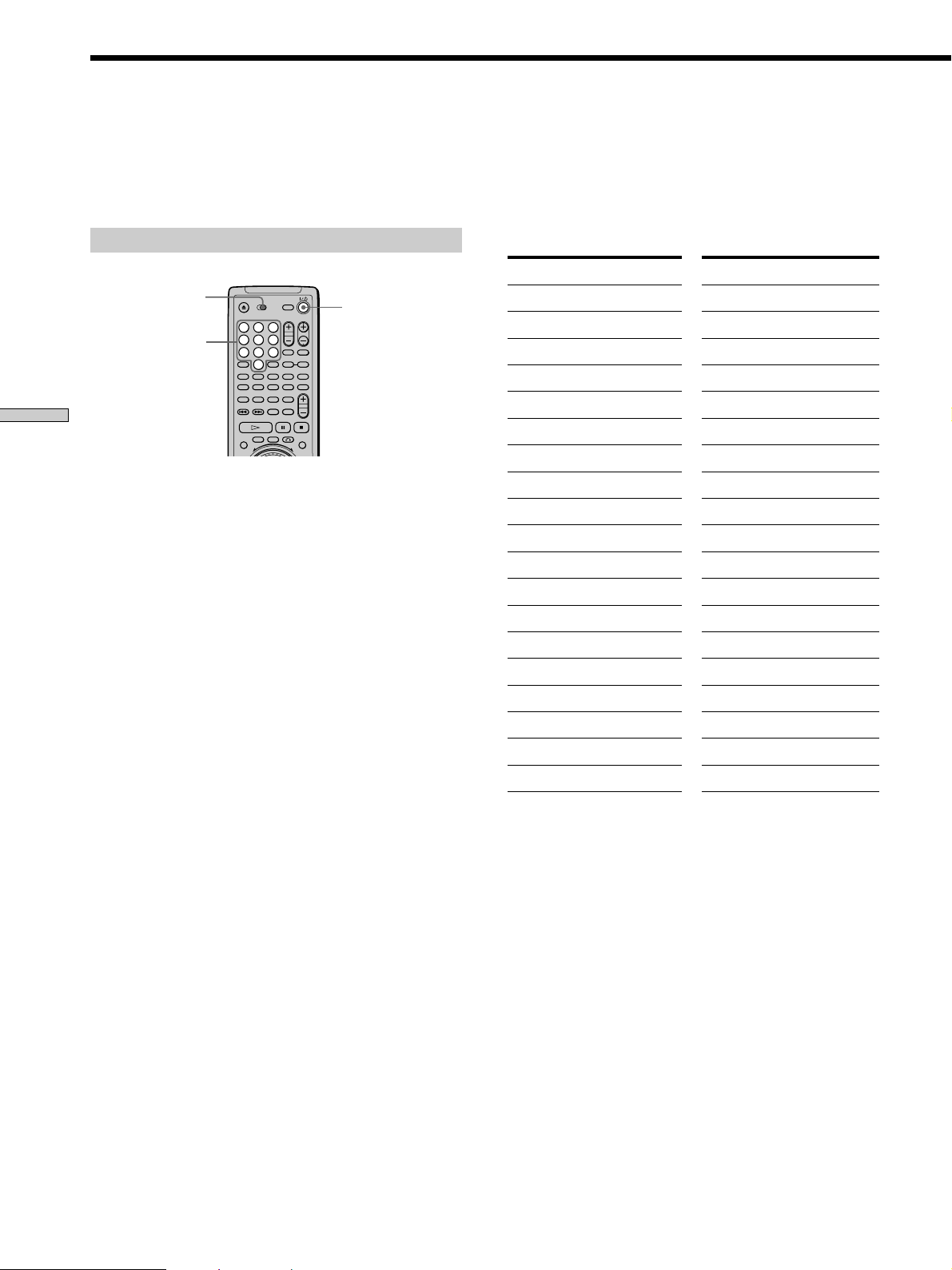

Controlling Your TV or AV Receiver (Amplifier) with the Supplied Remote Z

By adjusting the remote signal, you can control your TV or AV receiver (amplifier) with the supplied remote.

Controlling TVs with the remote

TV/DVD switch

Number buttons

Settings and Adjustments

1 Slide the TV/DVD switch to TV. 2 Hold down ?/1, and enter your TV’s manufacturer’s

code (see the table) using the number buttons.

3 Release ?/1.

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer Code number

1/u

Sony (default) 01 Akai 04 AOC 04 Centurion 12 Coronado 03 Curis-Mathes 12 Daytron 12 Emerson 03,04,14 Fisher 11 General Electric 06, 10 Gold Star 03,04,17 Hitachi 02,03 J.C.Penney 04,12 JVC 09 KMC 03 Magnavox 03,08,12 Marantz 04,13 MGA/Mitsubishi 04,12,13,17 NEC 04, 12

Manufacturer Code number

Panasonic 06,19 Philco 03,04 Philips 08 Pioneer 16 Portland 03 Quasar 06,18 Radio Shack 05,14 RCA 04,10 Sampo 12 Sanyo 11 Scott 12 Sears 07,10,11 Sharp 03,05,18 Sylvania 08,12 Teknika 03,08,14 Toshiba 07 Wards 03,04,12 Yorx 12 Zenith 15

Notes

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number may be reset to the default setting. Reset the appropriate code number.

Page 71

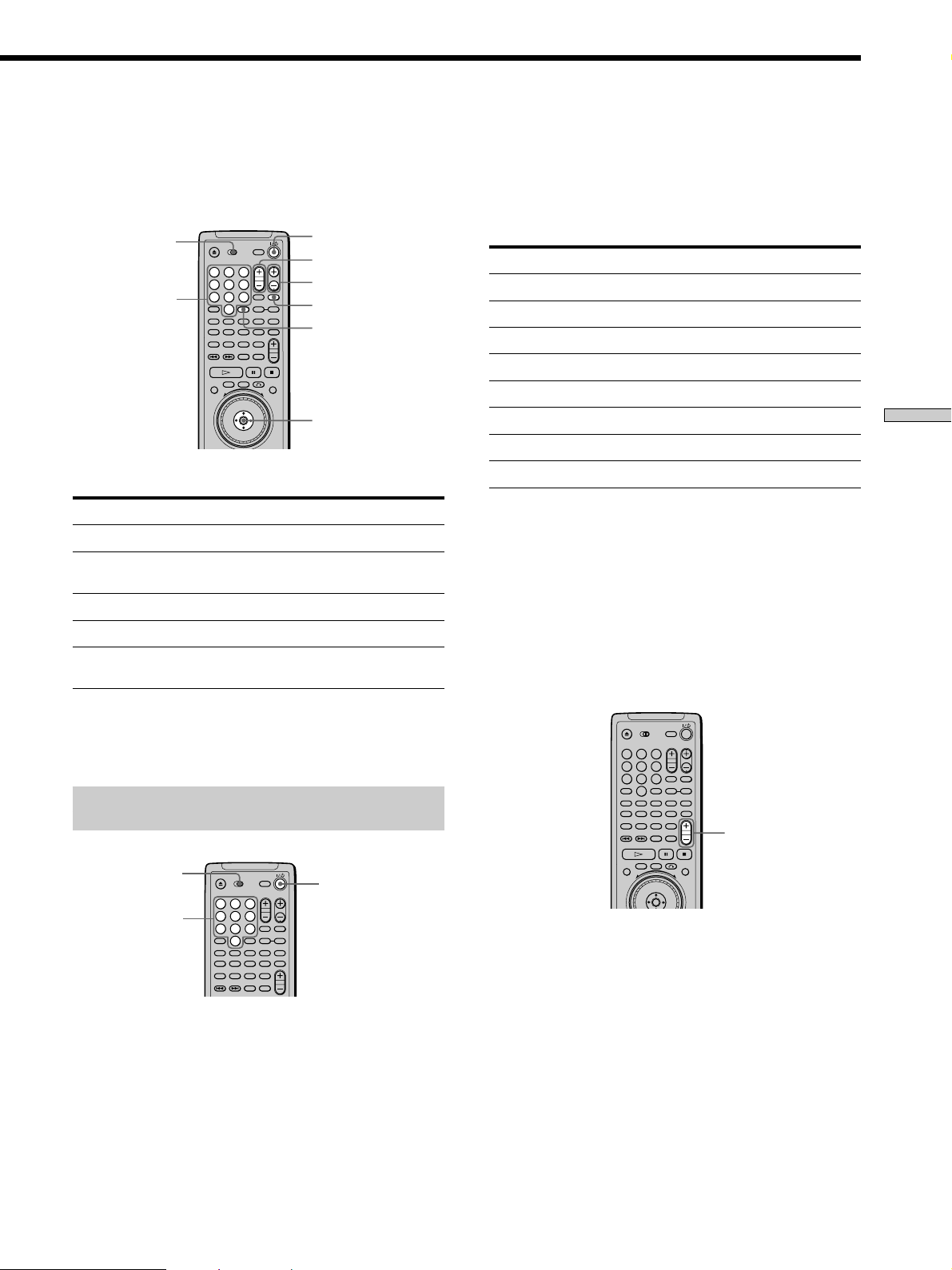

Controlling the TV

You can control your TV using the buttons below. When you set the TV/DVD switch to TV, you can also control the number, 1/u and ENTER buttons.

TV/DVD switch

Number buttons

1/u VOL CH

TV/VIDEO ENTER

ENTER

Code numbers of controllable AV receivers (amplifier)

If more than one code number is listed, try entering them one at a time until you find the one that works with your AV receiver (amplifier).

Manufacturer Code number

Sony 91 (default), 89 Denon 84, 85, 86 Kenwood 92, 93 Onkyo 81, 82, 83 Pioneer 99 Sansui 87 Technics 97, 98 Yamaha 94, 95, 96

Settings and Adjustments

By pressing

?/1 TV/VIDEO

You can

Turn the TV on or off Switch the TV’s input source between

the TV and other input sources VOL CH Number buttons

Adjust the volume of the TV

Select the channel of the TV

Select the channel of the TV and ENTER

Note

Depending on the TV, you may not be able to control your TV or to use some of the buttons above.

Controlling AV receivers (amplifiers) with the remote

TV/DVD switch

Number buttons

1/u

1 Slide the TV/DVD switch to DVD.

Notes

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number may be reset to the default setting. Reset the appropriate code number.

Controlling the AV receiver (amplifier)

You can change the volume of the AV receiver (amplifier) using A V VOL.

AV VOL

Notes

• Depending on the AV receiver (amplifier), you may not be able to control your AV receiver (amplifier).

• You can control the AV receiver (amplifier) regardless of the position of the TV/DVD switch.

2 Hold down ?/1, and enter your AV receiver’s

manufacturer’s code (see the table) using the number buttons.

3 Release ?/1.

Page 72

Controlling the CD Changer (Mega Contr ol)

You can control a Sony CD changer of 5/50/200/300 discs connected to the MEGA CONTROL jack of the player.

Connecting the CD changer

CONTROL A1 cable (not supplied)

Audio cable (not supplied)

Settings and Adjustments

MEGA

CONTROL

This player

AUDIO IN

Do not connect anything to the other CONTROL A1 jack.

AUDIO OUT

CONTROL A1

Sony CD changer (5/50/200/300 discs)

Controlling the CD changer

The controls indicated below are effective while the MEGA CONTROL button is lit.

Number buttons

./>

ENTER

</M/m/,

MEGA CTL

ENTER

./>

HXx

MEGA CONTROL

</M/

ENTER

m/,

1 Set the command mode selector of the CD changer

to “CD 3.”

2 Turn on the player and the CD changer. 3 Press MEGA CONTROL (MEGA CTL).

The MEGA CONTROL button on the front panel lights up and the display shows the current disc number in the CD changer.

4 Select the play mode you want on the CD changer. 5 Press H on the player to start playing.

Playback starts and the display shows the current disc and track numbers and the playing time of the track. While the MEGA CONTROL button on the front panel is lit, you can control the CD changer with the controls on the player as follows:

Page 73

Select a disc in continuous play mode

Skip by 10 discs in continuous play mode

Stop Pause Resume play after pause Go to the next track Go back to the preceding

track

Operation

Press the number button on the remote and ENTER, or M/m and ENTER.

Press </,.

Press x. Press X. Press X or H. Press >. Press ..

To control the player again

Press MEGA CONTROL (MEGA CTL). The MEGA CONTROL (MEGA CTL) button on the player turns off and you can control the player.

Notes

• Connect only a Sony 5/50/200/300 CD changer to the MEGA CONTROL jack.

• You cannot locate a particular point on a CD’s track using the controls on the player.

• Depending on the CD changer, some controls on the player may not operate the CD changer as they do the player.

• You cannot control the player when the MEGA CONTROL button on the front is lit.

• The player will not enter Resume Play after the MEGA CONTROL button on the front has been turned on and off.

• You cannot control the CD changer right after turning on the player or connecting the CD changer. Wait a few seconds until the player recognizes the CDs.

• When the MEGA CONTROL button is lit, you cannot use the Control menu.

Settings and Adjustments

Page 74

Additional

Troubleshooting

Information

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem. Should any problem persist, consult your nearest Sony dealer.

Power

The power is not turned on.

, Check that the AC power cord is connected

securely.


There is no picture.

, Check that the player is connected securely. , The video connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the video

input connector on the TV. (page 8)

, Make sure you turn on the TV. , Make sure you select the video input on the TV so

that you can view the pictures from the player.

Picture noise appears.

, Clean the disc. , If the video signal from your DVD player has to go

through your VCR to get to your TV, the copyprotection applied to some DVD programs could affect picture quality. If you still experience problems after checking your connections, please try connecting your DVD player directly to your TV’s S-input, if your TV is equipped with this input. (page 8)

Even though you set the aspect ratio in “TV TYPE” in “SCREEN SETUP” of the setup display, the picture does not fill the screen.

, The aspect ratio is fixed on your DVD.

Page 75

Sound

There is no sound.

, Check that the player is connected securely. , The audio connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the audio

input connectors on the receiver (amplifier). (page

10)

, Make sure you turn on the TV and the receiver

(amplifier).

, Make sure you select the appropriate input on the

receiver (amplifier) so that you can listen to the sound from the player.

, The player is in pause mode or in Slow-motion

Play mode. Press H to return to normal play mode.

, The player is in fast forward or fast reverse mode.

Press H to return to normal play mode.

, Check the speaker connections and setting (page

12, 67). Refer to the operating manual of your receiver (amplifier).

, If you use the DIGITAL OUT connectors, set

“DIGITAL OUT” to ”ON” in the setup display. Otherwise no sound will come from the DIGITAL OUT connectors. (page 66)

The surround effect is difficult to hear when you are playing a Dolby Digital or DTS sound track.

, Check the speaker connections and setting (pages

12, 67). Refer to the operating manual of your receiver (amplifier).

, Depending on the DVD, the output signal may not

be the entire 5.1 channels. It may be monaural or stereo even if the sound track is recorded in Dolby Digital or DTS format.

The sound comes from the center speaker only.

, Depending on the disc, the sound may come from

the center speaker only.

, Set “VIRTUAL 3D SURROUND” to “OFF” in the

Control Menu display. (page 39)

Operation

The remote does not function.

, Remove any obstacles between the remote and the

player.

, Use the remote near the player. , Point the remote at the remote sensor

player.

, Replace all of the batteries in the remote with new

ones if they are weak.

on the

Additional Information

Sound is noisy.

, Clean the disc. , When you play a CD with DTS sound tracks, noise

will come from any connector other than the DIGITAL OUT OPTICAL or COAXIAL connector. (page 17)

Sound distortion occurs.

, In the setup display, set “AUDIO ATT” in ”AUDIO

SETUP” to “ON.” (page 65)

The sound loses its stereo effect when you play a VIDEO CD or a CD.

, Set “AUDIO” to “STEREO” in the Control Menu

display. (page 35)

, Make sure you connect the player correctly. (pages

8, 10, 12)

The disc does not play.

, There is no disc inside (“Insert disc.” appears on

the TV screen). Insert a disc.

, Insert the disc correctly with the playback side

facing down on the disc tray.

, Clean the disc. , The player cannot play CD-ROMs, etc. (page 5)

Insert a DVD, a VIDEO CD, or CD.

, Check the region code of the DVD. (page 4) , Moisture has condensed inside the player. Remove

the disc and leave the player turned on for about half an hour. (page 6)

The player does not play from the beginning when playing a disc.

, Program Play, Shuffle Play, Repeat Play or A-B

Repeat Play has been selected. Press CLEAR. (pages 47 through 50)

, Resume Play has been selected.

Press x on the front panel or on the remote before you start playing. (page 19)

, A title menu or a DVD menu automatically

appears on the TV screen when you play your DVD, or a setup display automatically appears on the TV screen when you play your VIDEO CD with PBC functions.

Page 76

Troubleshooting

The player starts playing the disc automatically.

, The DVD features the auto playback function. , “AUTO PLAY” in “CUSTOM SETUP” is set to

“TIMER.” (page 61)

Playback stops automatically.

, The disc may contain an auto pause signal. While

playing such a disc, the player stops playback at the signal.

You cannot perform some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle Play or Program Play .

, Depending on the disc, you may not be able to do

some of the operations above.

Messages do not appear on the TV screen in the language you want.

, In the setup display, select the desired language for

Additional Information

the on-screen display in “OSD” under “LANGUAGE SETUP.” (page 59)

The language for the sound track cannot be changed when you play a DVD.

, Multilingual tracks are not recorded on the DVD. , Changing the language for the track is prohibited

on the DVD.

Nothing is displayed on the front panel display.

, In the set up display, “DIMMER” in “CUSTOM

SETUP” is set to “OFF.” Set “DIMMER” to “BRIGHT” or “DARK.” (page 61)

The sound does not come from the CD changer connected using the CONTROL A1 cable

, Turn on the player. , Press the MEGA CONTROL button on the front

panel. (page 72)

5 numbers or letters are displayed on the screen and on the front panel display.

, The self-diagnosis function was activated. See the

table on page 77.

The disc tray does not open and “LOCKED” is displayed on the front panel display.

, Contact your Sony dealer or local authorized Sony

service facility.

The subtitle language cannot be changed when you play a DVD.

, Multilingual subtitles are not recorded on the

DVD.

, Changing the language for the subtitles is

prohibited on the DVD.

The subtitles cannot be turned off when you play a DVD.

, Depending on the DVD, you may not be able to

turn the subtitles off.

The angles cannot be changed when you play a DVD.

, Multi-angles are not recorded on the DVD. , Change the angles when “ANGLE” appears on the

front panel display. (page 38)

, Changing the angles is prohibited on the DVD.

The player does not operate properly.

, Static electricity, etc., may affect the player’s

operation. Press ! on the player to turn the player off and then on again.

Page 77

Self-diagnosis function

When the self-diagnosis function activates to prevent the player from malfunctioning, a five-character service number (combination of a letter and digits) flashes on the screen and on the front panel display. In this case, check the following table.

C:13:00

First three characters

C13

C31

Exx (xx is any number)

Cause and/or Corrective Action

•The disc is dirty. , Clean the disc with a cleaning cloth. (page 6)

•The disc is not inserted correctly. , Open the disc tray and insert the disc correctly.

•To prevent a malfunction, the player has performed the self-diagnosis function. ,When you contact your Sony dealer or local authorized Sony service facility, give

the 5-character service number. (example: E:61:10)

Additional Information

Page 78

Specifications

CD/DVD player

Laser Semiconductor laser Signal format system

NTSC

Audio characteristics

Frequency response

DVD (PCM 96 kHz): 2 Hz to 44 kHz

DVD (PCM 48 kHz): 2 Hz to 22 kHz

CD: 2 Hz to 20 kHz (±0.5 dB)

Signal-to-noise ratio

More than 110 dB

Harmonic distortion

Less than 0.003 %

Dynamic range

Additional Information

More than 100 dB (DVD) More than 97 dB (CD)

Wow and flutter

Less than detected value

Outputs/Inputs

Jack type

AUDIO OUT (1, 2)

DIGITAL OUT (OPTICAL)

DIGITAL OUT (COAXIAL)

VIDEO OUT (1, 2)

S VIDEO OUT (1, 2)

COMPONENT VIDEO OUT (Y, PB/B-Y, PR/R-Y)

5.1CH OUTPUT

S-LINK PHONES

Phono jacks

Optical output connector

Phono jack

Phono jacks

4-pin mini DIN

Phono jacks

Phono jack

Mini jack Phone

jack

(±1.0 dB)

(±0.5 dB)

(AUDIO OUT connectors only)

(±0.001% W PEAK)

Output/input

Load impedance

level

2 Vrms (at 50 kilohms)

–18 dBm

0.5 Vp-p

1.0 Vp-p

Y: 1.0 Vp-p

C: 0.286 Vp-p Y: 1.0 Vp-p

PB/B-Y, PR/R-Y:

0.7 Vp-p 2 Vrms

(at 50 kilohms) – 12 mW

Over 10 kilohms

Wave length: 660 nm

75 ohms terminated

75 ohms, sync negative

75 ohms, sync negative 75 ohms terminated

75 ohms, sync negative

75 ohms Over 10 kilohms

– 32 ohms

Output/input level

–

2 Vrms

Load impedance

–

47 kilohms

MEGA CONTROL

AUDIO IN

Jack type

Mini jack

Phono jack

General

Power requirements

DVP-C670D

120 V AC, 60 Hz

DVP-C675D

110 – 240 V AC, 50/60 Hz

Power consumption

DVP-C670D

17 W

DVP-C675D

18 W

Dimensions (approx.)

430 × 95 × 414 mm (17 × 3

/4 × 16 3/8 in.)

(w/h/d) incl. projecting parts

Mass (approx.)

5.4 kg (11 lb 14 oz)

Operating temperature

5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)

Operating humidity

25 % to 80 %

Supplied accessories

See page 7.

Design and specifications are subject to change without notice.

ENERGY STAR

As an ENERGY STARR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

is a U.S. registered mark.

Page 79

Glossary

Bit rate (page 42)

Value indicating the amount of video data compressed in a DVD per second. The unit is Mbps (Mega bit per second). 1 Mbps indicates that the data per second is 1,000,000 bits. The higher the bit rate, the larger the amount of data. However, this does not always mean that you can get higher quality pictures.

Chapter (page 5)

Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Digital Cinema Sound (DCS) (page 39)

The general name of technology that Sony developed to enjoy surround sound in a home. It simulates the sound of a movie editing studio instead of the usual concert hall so that you can enjoy the surround sound of a movie theater in the comfort of your own home. The VES (Virtual Enhanced Surround) system contained in DCS programs can create the sound image of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers.

Dolby Digital (pages 11, 66)

Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data is recorded discretely and processed in digital.

DVD (page 4)

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte) which is 7 times that of a CD. The data capacity of a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and a dual-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy a more real audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

Multi-angle function (page 38)

Various angles for the scene (viewpoints of the video camera) are recorded on some DVDs.

Multilingual function (pages 14, 37, 59)

Several languages for the audio track or subtitles in a picture are recorded on some DVDs.

Parental Control (page 62)

A function of the DVD used to limit playback of the disc according to the age of the user and the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes, and so on.

Additional Information

Dolby Pro Logic (pages 40, 66)

Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals. The rear channel is monaural.

DTS (pages 11, 67)

Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1channel surround. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and processed in digital.

Playback Control (PBC) (page 21)

Signals encoded on VIDEO CDs (Version 2.0) to control playback. By using menus recorded on VIDEO CDs with PBC functions, you can enjoy playing simple interactive programs, programs with search functions, and so on.

Title (page 5)

The longest section of a picture or a music piece on a DVD; a movie, etc., for a picture piece on video software; or an album, etc., for a music piece on audio software. Each title is assigned a title number enabling you to locate the title you want.

Page 80

Glossary

Track (page 5)

Sections of a picture or a music piece on a CD or VIDEO CD. Each track is assigned a track number enabling you to locate the track you want.

VIDEO CD (page 4)

A compact disc that contains moving pictures. The picture data uses the MPEG 1 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/140 of its original size. Consequently, a 12 cm VIDEO CD can contain up to 74 minutes of moving pictures. VIDEO CDs also contain compact audio data. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed. VIDEO CDs can hold 6 times the audio information of conventional audio CDs. There are 2 versions of VIDEO CDs.

• Version 1.1: You can play only moving pictures and

Additional Information

sounds.

• Version 2.0: You can play high-resolution still pictures and enjoy PBC functions.

This player conforms to both versions.

Page 81

Language Code List

For details, see pages 37, 59.

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali; Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish

1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian; Lettish 1345 Malagasy 1347 Maori 1349 Macedonian

1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan) Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto; Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian

1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu 1703 Not specified

Additional Information

Page 82

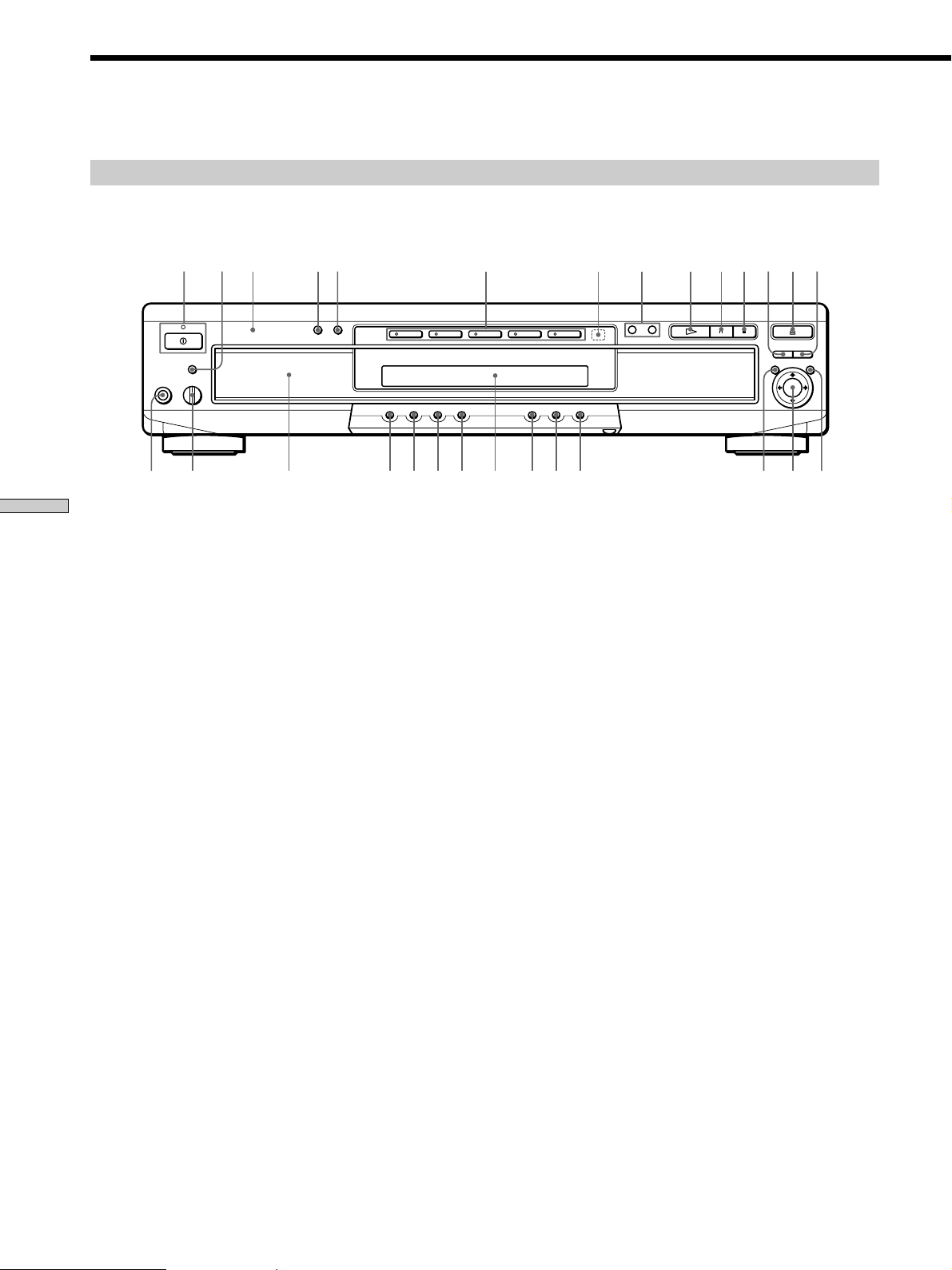

Index to Parts and Controls

Refer to the pages indicated in parentheses for details.

Front Panel

154326897 0 qa qs qd qf

Additional Information

qk wsqjqhqg ql w; wa wd whwf wjwg wk

1 ! (power) button and indicator (16)

Disconnects the power of the player or places the player in standby mode.

2 VIRTUAL SURROUND HEADPHONES button and

indicator (41)

Press to turn on the VIRTUAL SURROUND HEADPHONES function. The indicator lights up when it is on.

3 MULTICHANNEL indicator

Lights up when:

– playing back a Dolby Digital soundtrack on the

DVD – playing back a DTS soundtrack on the DVD – the disc is not inserted

4 DVE (Digital Video Enhancer) button and indicator

(52)

Press to select a Digital Video Enhancer level. The indicator lights up for every selected item except “OFF.”

5 VIRTUAL 3D SURROUND button and indicator (41)

Press to select the desired “VIRTUAL 3D SURROUND” item. The indicator lights up for every selected item except “OFF.”

6 DISC SELECT 1 – 5 buttons and indicators (18)

Selects a disc. The indicator lights up in green when a disc is being played or is loaded, and lights up in amber if the disc is waiting to be loaded. The indicator does not light up when the loaded tray is empty or if the disc cannot be played.

7 g (remote sensor) (7)

Accepts the remote control signals.

8 ./>PREV/NEXT (previous/next) buttons (17)

Press to go to the next chapter or track, or to go back to the previous chapter or track.

9 H (play) button (16)

Plays a disc.

q; X (pause) button (17)

Pauses playing a disc.

qa x (stop) button (17, 19)

Stops playing a disc.

qs EXCHANGE button (22)

Press to change discs during playback.

qd AOPEN/CLOSE button (16)

Opens or closes the disc tray.

qf DISC SKIP button (16, 22)

Press to turn the disc tray to place other discs.

qg PHONES connector (16)

Connect the headphones to this connector.

qh PHONES LEVEL control (16)

Adjusts the headphone volume.

qj Disc tray (16)

Place the discs on the tray.

qk SHUFFLE button (48)

Displays the “SHUFFLE” display on the TV screen.

ql REPEAT button (49)

Displays the “REPEAT” display on the TV screen.

w; 1/ALL button (45)

Selects 1 DISC or ALL DISCS play mode.

Page 83

wa LOAD button (25)

Reads the information of the discs loaded in sequence.

ws Front Panel Display (23)

Indicates the playing time, etc.

wd TITLE button (20)

Displays the title menu on the TV screen.

wf DVD MENU button (21)

Displays the DVD menu on the TV screen.

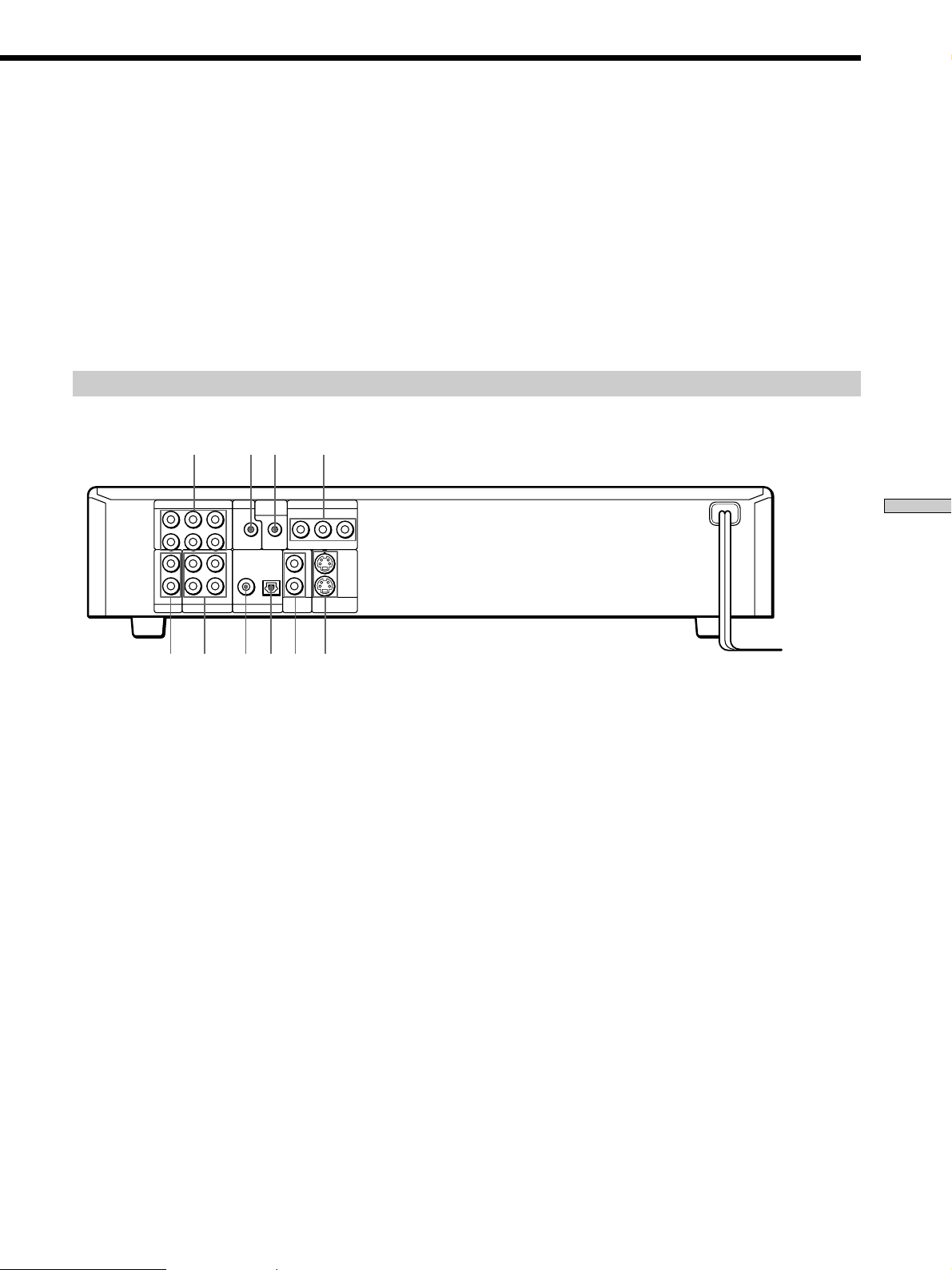

Rear Panel

3241

MEGA

5.1CH OUTPUT

FRONT REAR

AUDIO IN

CENTER

WOOFER

AUDIO OUT

S-LINK

CONTROL S

PCM/DTS/ DOLBY DIGITAL

DIGITAL OUT

CONTROL

OPTICALCOAXIAL

COMPONENT VIDEO OUT

PB/B-Y PR/R-YY

121

VIDEO

OUT

S VIDEO

OUT

wg ORETURN button (22, 29)

Press to return to the previously selected screen, etc.

wh MEGA CONTROL button and indicator (72)

Press to control the connected CD changer.

wj </M/m/,/ENTER button

Selects and executes the items or settings.

wk DISPLAY button (28)

Displays the Control Menu display on the TV screen to set or adjust the Control Menu items.

Additional Information

587690

1 5.1CH OUTPUT connectors (13)

Connect to a receiver (amplifier) having 5.1 channel input connectors.

2 S-LINK connector (8)

Connect to the S-link connector on an external component.

3 MEGA CONTROL connector (72)

Connect to the control connector on a Sony CD changer of 5/50/200/300 discs.

4 COMPONENT VIDEO OUT connectors (9)

Connects to a monitor or projector having component video input connectors (Y, P

B/B-Y, PR/R-Y) that

conform to output signals from the player.

5 AUDIO IN (L, R) connectors (72)

Connect to the audio output on a Sony CD changer of 5/50/200/300 discs.

6 AUDIO OUT R (right)/L (left) 1/2 connectors (8, 10)

Connect to the audio input connector on your TV or receiver (amplifier).

7 DIGITAL OUT COAXIAL connector (10)

Connect to an audio component using a coaxial digital connecting cord.

8 DIGITAL OUT OPTICAL connector (10)

Connect to an audio component using an optical digital connecting cord. Take off the cap.

9 VIDEO OUT 1/2 connectors (8)

Connect to the video input connector on your TV or monitor.

q; S VIDEO OUT 1/2 connectors (8, 10)

Connect to the S video input connector on your TV or monitor.

Page 84

Index to Parts and Controls

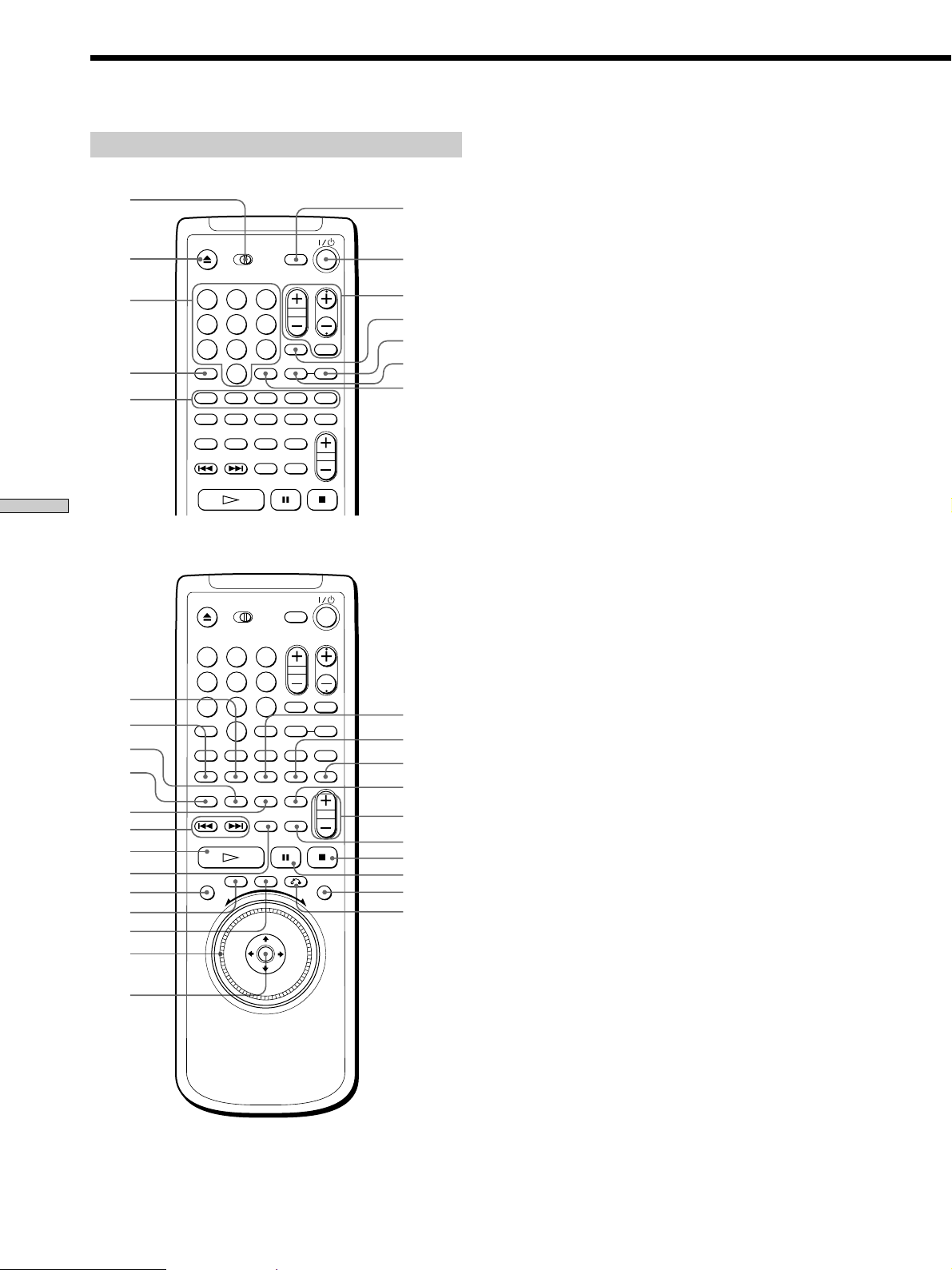

Remote

Additional Information

qd qf qg

qj qk

ql w;

wa ws wd

1 TV/DVD switch (70)

Selects to control the player or the TV with the remote.

2 ZOPEN/CLOSE button (17)

8 9 0 qa qs

wh wj wk wl

e; ea

es ed ef eg

Opens or closes the disc tray.

3 Number buttons

Selects the items or settings.

4 CLEAR button (47 through 50)

Press to return to continuous play, etc.

5 DISC 1 – 5 buttons (17)

Selects a disc.

6 DISC EXPLORER button (25)

Displays the disc information such as jacket picture and disc memo.

7 @/1 (on/standby) button (16)

Press to turn on the player or place it in standby mode after power is connected by pressing ! on the player.

8 TV (television) operation buttons (71)

Controls TVs.

9 MEGA CTL (control) button (72)

Press to control the connected CD changer.

q; TIME/TEXT button (23)

Displays the playing time of the disc, etc., on the front panel display.

qa INPUT button (35)

Press when labeling a disc.

qs ENTER button

Executes the items or settings.

qd PROGRAM button (47)

Displays the “PROGRAM” display on the TV screen.

qf SHUFFLE button (48)

Displays the “SHUFFLE” display on the TV screen.

qg ANGLE button (38)

Changes the angles when playing a DVD.

qh AUDIO button (36)

Changes the sound while playing a DVD or VIDEO CD.

qj SUBTITLE button (37)

Changes the subtitles when playing a DVD.

qk ./>PREV/NEXT (previous/next) buttons (17)

Press to go to the next chapter or track, or to go back to the previous chapter or track.

ql HPLAY button (16)

Plays a disc.

w; PICTURE MEMORY button (61)

Press to store a picture in memory.

wa DISPLAY button (28)

Displays the Control Menu display on the TV screen to set or adjust the Control Menu items.

ws TITLE button (20)

Displays the title menu on the TV screen.

wd DVD MENU button (21)

Displays the DVD menu on the TV screen.

wf Click shuttle (18)

Changes the playback speed.

Page 85

wg </M/m/,/ENTER buttons

Selects and executes the items or settings.

wh REPEAT button (49)

Displays the “REPEAT” display on the TV screen.

wj 1/ALL DISCS button (45)

Selects 1 DISC or ALL DISCS play mode.

wk DVE (Digital Video Enhancer) button (52)

Press to select the Digital Video Enhancer level.

wl LOAD button (25)

Reads the information of the discs loaded in sequence.

e; AV VOL button (71)

Change the sound volume of the AV receivers (amplifiers).

ea BOOKMARK button (54)

Press to set a bookmark.

es xSTOP button (17, 19)

Stops playing a disc.

ed XPAUSE button (17)

Pauses playing a disc.

ef JOG button and indicator (18)

Press to play a disc frame by frame.

eg ORETURN button (22, 29)

Press to return to the previously selected screen, etc.

Additional Information

Page 86

Index

Numerics

4:3 LETTER BOX 60 4:3 PAN SCAN 60 4:3 WIDE MODE 60

5.1 Channel Surround 12 16:9 60 48kHz/96kHz PCM 67 1/ALL DISCS 45

A-B REPEAT 50 ADVANCED 42 ANGLE 38 ANGLE VIEWER 53 AUDIO 35, 59 AUDIO ATT 65 AUDIO DRC 65 AUDIO SETUP 65 AUTO PLAY 61

Additional Information

BACKGROUND 60 BALANCE 69 Batteries 7 BOOKMARK 54 BOOKMARK RESET 61

CD 4, 16 CENTER SPEAKER EQ

(equalizer) 66 Chapter 5, 31, 79 CHAPTER 31 CHAPTER VIEWER 53 Connecting 8, 10, 12 Continuous play

CD/VIDEO CD 16

DVD 16 Control Menu display 28 CUSTOM PARENTAL

CONTROL 43 CUSTOM SETUP 61

D, E

DIGITAL OUT 66 Digital output 10, 66 DIGITAL VIDEO ENHANCER

(DVE) 52 DIMMER 61 DISC 31 Disc Explorer 25 DISC MEMO 34

Display

Control Menu display 28 Front panel display 23

Setup display 56 DISTANCE 68 DOLBY DIGITAL 11, 66 DOWNMIX 66 DTS 11, 67 DVD 16 DVD menu 21

Fast Forward 18 Fast Rewind 18 Front panel display 23

Genre 26

Handling discs 6 Hooking up 8, 10, 12

Index 5, 31 INDEX 31

J, K

Jacket Picture 25, 60

LANGUAGE SETUP 59 LETTER BOX 60 LEVEL 69 Locating

a specific point 18

by watching the TV

screen 18

M, N

MEGA CONTROL 72

On-screen display

Control Menu display 28

Setup display 56 OSD 59

P, Q

PAN SCAN 60 PARENTAL CONTROL 62 PAUSE MODE 61 PBC functions 21 PBC Playback 21, 79

PICTURE MEMORY 61 PLAYBACK MEMORY 65 PRO LOGIC 40, 66 PROGRAM 45 Program Play 45

Remote 7, 70 REPEAT 49 Resume Play 19

S video output 8, 10 Scene 5 SCENE 31 SCREEN SAVER 60 SCREEN SETUP 60 Searching. See Locating. Setup display 56 SHUFFLE 48 Shuffle Play 48 SIZE 67 S-Link 8 Slow-motion Play 18 SPEAKER SETUP 67 Speakers

hookup 12

set up 67 STARTUP SCREEN 60 STROBE PLAYBACK 53 SUBTITLE 37

TEST TONE 69 TIME/MEMO 32, 33, 34 TIME/TEXT 32, 33, 34 Title 5, 31, 79 TITLE 31 Title menu 20 TITLE VIEWER 53 Track 5, 31, 80 TRACK 31 TRACK SELECTION 65 TRACK VIEWER 53 Troubleshooting 74 TV TYPE 60

Usable discs 4

V, W, X, Y, Z

VIDEO CD 4, 16 VIDEO EQUALIZER 51 VIEWER 53 VIRTUAL 3D SURROUND 39

Page 87

Additional Information

Page 88

Sony Corporation Printed in Malaysia
